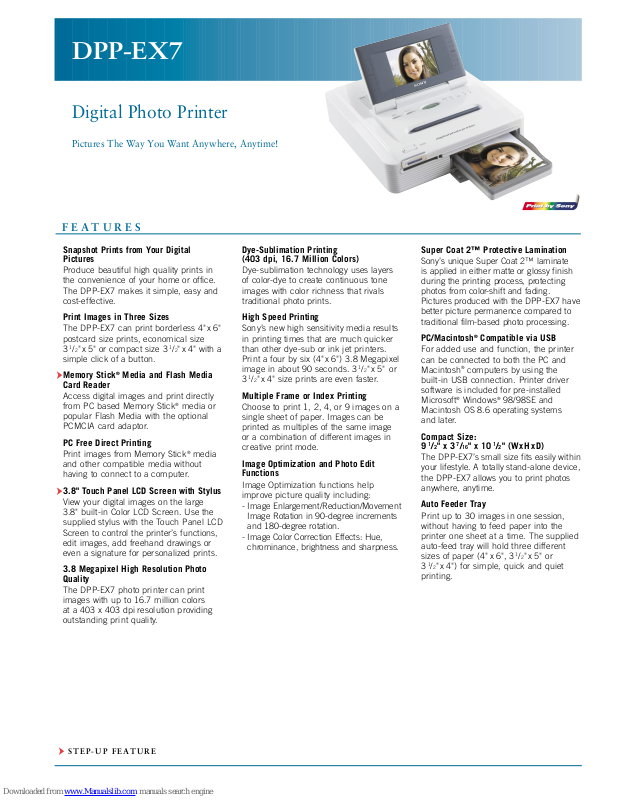

Sony DPP-EX7 Marketing Specifications

Page 1

Snapshot Prints from Your Digital Pictures

Produce beautiful high quality prints in the convenience of your home or office. The DPP-EX7 makes it simple, easy and cost-effective.

Print Images in Three Sizes

The DPP-EX7 can print borderless 4"x 6" postcard size prints, economical size 3

/2" x 5" or compact size 31/2" x 4" with a

simple click of a button.

➤

Memory Stick®Media and Flash Media Card Reader

Access digital images and print directly from PC based Memory Stick

media or popular Flash Media with the optional PCMCIA card adaptor.

PC Free Direct Printing

Print images from Memory Stick®media and other compatible media without having to connect to a computer.

➤

3.8" Touch Panel LCD Screen with Stylus

View your digital images on the large

3.8" built-in Color LCD Screen. Use the supplied stylus with the Touch Panel LCD Screen to control the printer’s functions, edit images, add freehand drawings or even a signature for personalized prints.

3.8 Megapixel High Resolution Photo Quality

The DPP-EX7 photo printer can print images with up to 16.7 million colors at a 403 x 403 dpi resolution providing outstanding print quality.

Dye-Sublimation Printing (403 dpi, 16.7 Million Colors)

Dye-sublimation technology uses layers of color-dye to create continuous tone images with color richness that rivals traditional photo prints.

High Speed Printing

Sony’s new high sensitivity media results in printing times that are much quicker than other dye-sub or ink jet printers. Print a four by six (4"x 6") 3.8 Megapixel image in about 90 seconds. 3

/2"x5" or

/2" x 4" size prints are even faster.

Multiple Frame or Index Printing

Choose to print 1, 2, 4, or 9 images on a single sheet of paper. Images can be printed as multiples of the same image or a combination of different images in creative print mode.

Image Optimization and Photo Edit Functions

Image Optimization functions help improve picture quality including:

- Image Enlargement/Reduction/Movement Image Rotation in 90-degree increments and 180-degree rotation.

- Image Color Correction Effects: Hue, chrominance, brightness and sharpness.

Super Coat 2™ Protective Lamination

Sony’s unique Super Coat 2™ laminate is applied in either matte or glossy finish during the printing process, protecting photos from color-shift and fading. Pictures produced with the DPP-EX7 have better picture permanence compared to traditional film-based photo processing.

PC/Macintosh®Compatible via USB

For added use and function, the printer can be connected to both the PC and Macintosh

computers by using the built-in USB connection. Printer driver software is included for pre-installed Microsoft

Windows®98/98SE and Macintosh OS 8.6 operating systems and later.

Compact Size: 9

/2" x 37/16" x 101/2" (WxHxD)

The DPP-EX7’s small size fits easily within your lifestyle. A totally stand-alone device, the DPP-EX7 allows you to print photos anywhere, anytime.

Auto Feeder Tray

Print up to 30 images in one session, without having to feed paper into the printer one sheet at a time. The supplied auto-feed tray will hold three different sizes of paper (4"x 6", 3

/2" x 5" or

/2" x 4") for simple, quick and quiet

printing.

➤

STEP-UP FEATURE

DPP-EX7

Digital Photo Printer

Pictures The Way You Want Anywhere, Anytime!

FEATURES

Page 2

SPECIFICATIONS

Printing System: Dye-Sublimation Printing Size: Large Postcard Size 4"x 6" Borderless Prints

Medium Size 3

/2" x 5" Borderless Prints

Economical Size 3

/2" x 4" Prints

Gradations: 8-bit per color – C/M/Y/K

(Approximately 16.7 Million Colors)

Printing Time: Approximately 90 Seconds (4" x 6")

Approximately 75 Seconds (3

/2" x 5")

Approximately 60 Seconds (3

/2" x 4")

Video Output: N/A Input/Output Connections: Memory Stick

Media and PCMCIA

Card Slot

USB: (Ver. 1.1) Connection for PC or Macintosh

Computers

Media Cards: Memory Stick Media, Popular Flash Media (via

optional PCMCIA Adapters)

Format: JPEG / TIFF / Bitmap / EXIF2 Paper Size: Large Postcard Size: 4"x 6" (101.6mm x 174.4mm)

Medium Size: 3

/2" x 5" (89mm x 149mm)

Economical Size: 3

/2" x 4" (89mm x 101.6mm)

Power Requirements: 110 – 120 Volts AC Supplied Software: Printer Driver Software

Dimensions (W/H/D): 9

/2" x 37/16" x 101/2" (242 x 87 x 267mm)

Weight: 5 lb. 8 oz (2.5kg) with Paper Tray Supplied Accessories: Paper Tray, CD-ROM Printer Driver

Software, Cleaning Kit, AC Power Cord

OPTIONAL ACCESSORIES

SVM-25LS Postcard Size Printer Pack (25 prints) SVM-25LW Postcard Size Sticker Pack (25 prints) SVM-30MS Medium Size Printer Pack (30 prints) SVM-30SS Compact Size Photo Paper (30 prints) SVM-30SW Compact Size Stickers (30 prints) SVM-30SW09 Compact Size 9 Split Stickers (30 prints) SVM-75LS Postcard Size Printer Pack (75 prints)

©2002 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Memory Stick, and Super Coat 2 are trademarks of Sony. Microsoft and Windows are trademarks of Microsoft Corporation. Macintosh is a trademark of Apple Computer, Inc. All other trademarks are the property of their respective owners. Features and specifications subject to change without notice. Non-metric weights and measures are approximate.

Sony Electronics Inc. 16765 West Bernardo Drive San Diego, CA 92127 www.sony.com/di

DPP-EX7

DIGITAL PRINT MEDIA (sold separately)

SVM-25LS Print Pack

•

4" x 6" Print Paper with Snap-Off Edges for Bordered or Borderless Prints
