Page 1
NTSC
Digital Video Cassette Recorder
DNW -75
TM
Page 2
Main Features
High Quality Digital Video and Audio Recording
The DNW-75 delivers the exceptional video quality of the
Betacam SX format, recording 8-bit, 4:2:2 component
digital signals using MPEG-2 4:2:2 Profile@Main Level
compression technology. The system also includes four
16-bit, uncompressed audio channels.
±0 frame Insert/Assemble Editing
The DNW-75 enables insert and assemble editing with the
±0 frame accuracy. This enables precise editing on
Betacam SX
tape in machine-to-machine or A/B roll
configurations.
Preread Editing Capability
The DNW-75 is equipped with Preread technology, which
has proven invaluable in the Digital Betacam series VTRs.
Preread heads are located ahead of the record heads on
the drum scanner, and previously recorded video and
audio signals are read by these Preread heads. This
signal can be processed by external equipment and
recorded back onto the same track. This capability is
ideal for titling, color correction and layering for video, and
mixing or sweetening for audio.
Variable Speed Control
The range of the Variable Speed Control is from -1 to +2
times with noiseless image and digital jog sound.
DMC (Dynamic Motion Control)
Equipped with the Dynamic Motion Control functions, the
DNW-75 provides slow-motion playback from the control
panel or from external controllers such as the BVE series
editors or DTR-3000 slow motion controller.
The Digital Video Cassette Recorder—DNW-75
In the relatively short time since its launch, Betacam SX™ has provided broadcasters and production
companies with superb picture quality, outstanding operational functionality and significantly reduced
operating costs. Based on MPEG-2 4:2:2 Profile@Main Level compression strategy, the Betacam SX
format has been the foundation for a range of recorders and players supporting both non-linear and
linear video tape operations.
Previous models have provided the facility to play back analog Betacam™ and Betacam SP™
recordings. When this feature is not required, the Sony DNW-75 Digital Video Cassette Recorder can
be the ideal choice. The DNW-75 is a Betacam SX editing VTR capable of insert and assemble
editing to zero frame accuracy. It can also be used for linear operations, such as in A/B roll systems
controlled from the familiar Sony BVE edit controllers, or installed in Sony Flexicart™ and Library
Management System™ (LMS) as a multi-segment VTR.
It includes a wide range of features, including
DMC (Dynamic Motion Control), Freeze
function, 525/625 operation, variable speed
playback, Good Shot Mark support, and an
optional SDTI (Serial Data Transport
Interface) carrying MPEG data.
Note: SDTI is defined by SMPTE 305M.
DNW-75
Page 3
Main Features
Good Shot Mark
One of the most useful features of the Betacam SX series
is the Good Shot Mark system, providing a method for
qualitative decisions made in the camcorder to be utilized
during the editing process. The DNW-75 can scan the
tapes and automatically detect shot marks recorded on
the tape. After scanning for marks, a list of all the marks is
displayed on the monitor, allowing easy cueing to any
mark. In addition, the DNW-75 has two types of the
additional marks. One can only be memorized during the
Play, Shuttle, Jog and Still, called “Virtual Shot Marks”, and
another can be recorded on the tape. These features can
speed up the edit search process dramatically.
525/60 or 625/50 Versatility
The DNW-75 can easily be switched from 525/60 to
625/50 modes. This enables the DNW-75 to work in
international environments.
Versatile Interfaces
The DNW-75 is equipped with analog composite and
component video I/O, component SDI I/O and 4 channels of
analog audio I/O, AES/EBU I/O, and 2 audio monitor outputs
as standard. In addition, RS-422A control, RS-232C control,
Parallel 50-pin remote control interface, video processor
control interface (Parallel 15-pin), and Time Code I/O are
also included. SDTI (SX) output is an optional interface.
It enables to transfer the material to an A/V Server at a
maximum of 2 times normal speed and will speed up the
editing time.
Multi-segment Recorder in the Flexicart and
LMS Systems
The DNW-75 can be used as a multi-segment recorder in
the Flexicart or LMS, giving these multicassette systems
the advantage of long playing times and lower
maintenance costs associated with
the Betacam SX format.

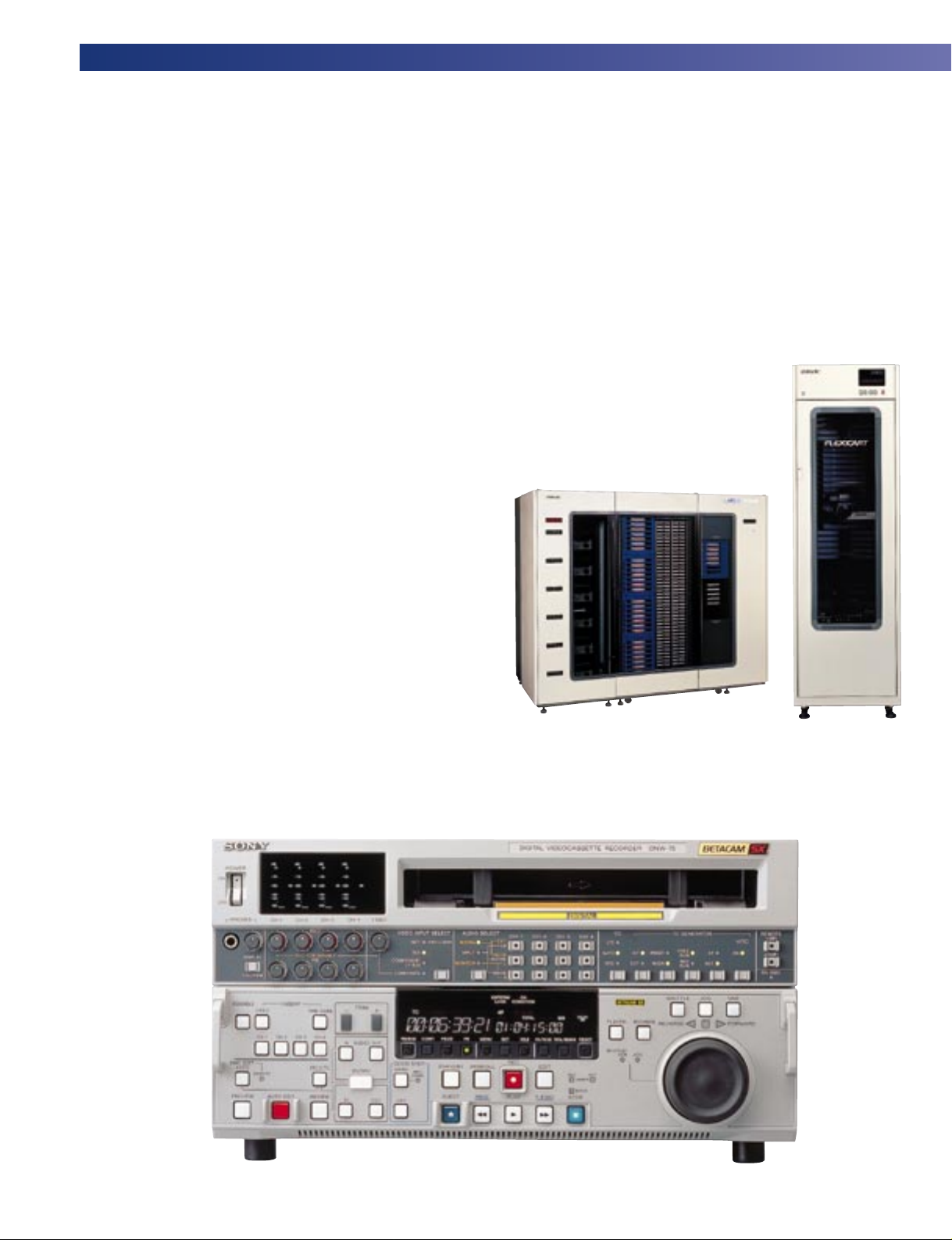

DNW-75 Front Panel
FLEXICARTLMS
Page 4
High-speed Picture Search
Shuttle Search Speed Betacam SX mode : ±78 times
normal play speed.
Long Recording & Playback Time
The DNW-75 provides long time Recording and
Playback time for 194 minutes using the L cassette and
62 minutes using the S cassette.
Flexible Usage of the Control Panel
The remote control panel of the DNW-75 can be
extended. Also, since the DNW-75 is equipped with
another connector on the rear panel, it can be controlled
from two control panels, adding greater operational
flexibility.

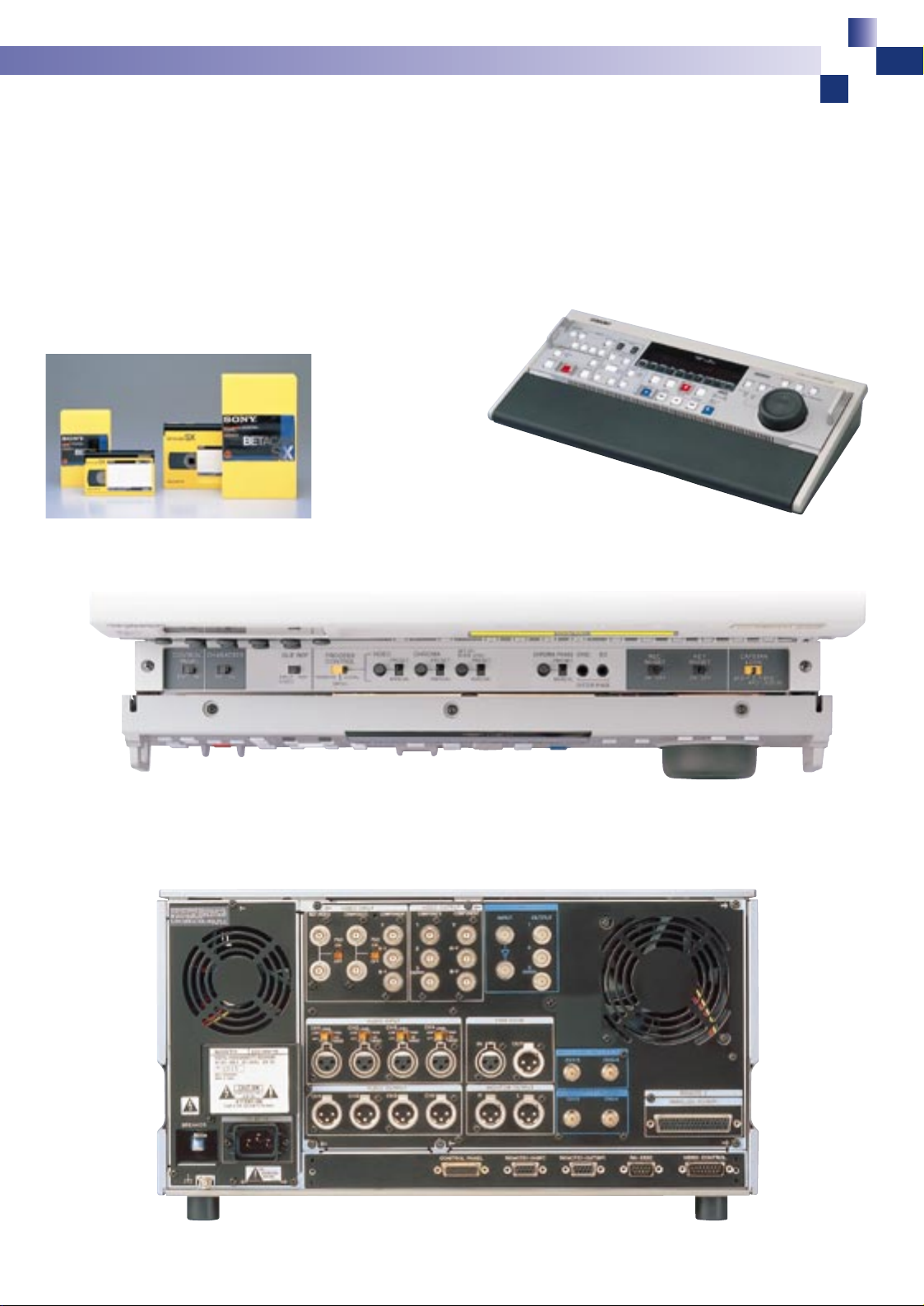

DNW-75 Front Sub-panel
DNW-75 Rear Panel
Betacam SX Tape
BKNW-119
with BKNW-121
Page 5

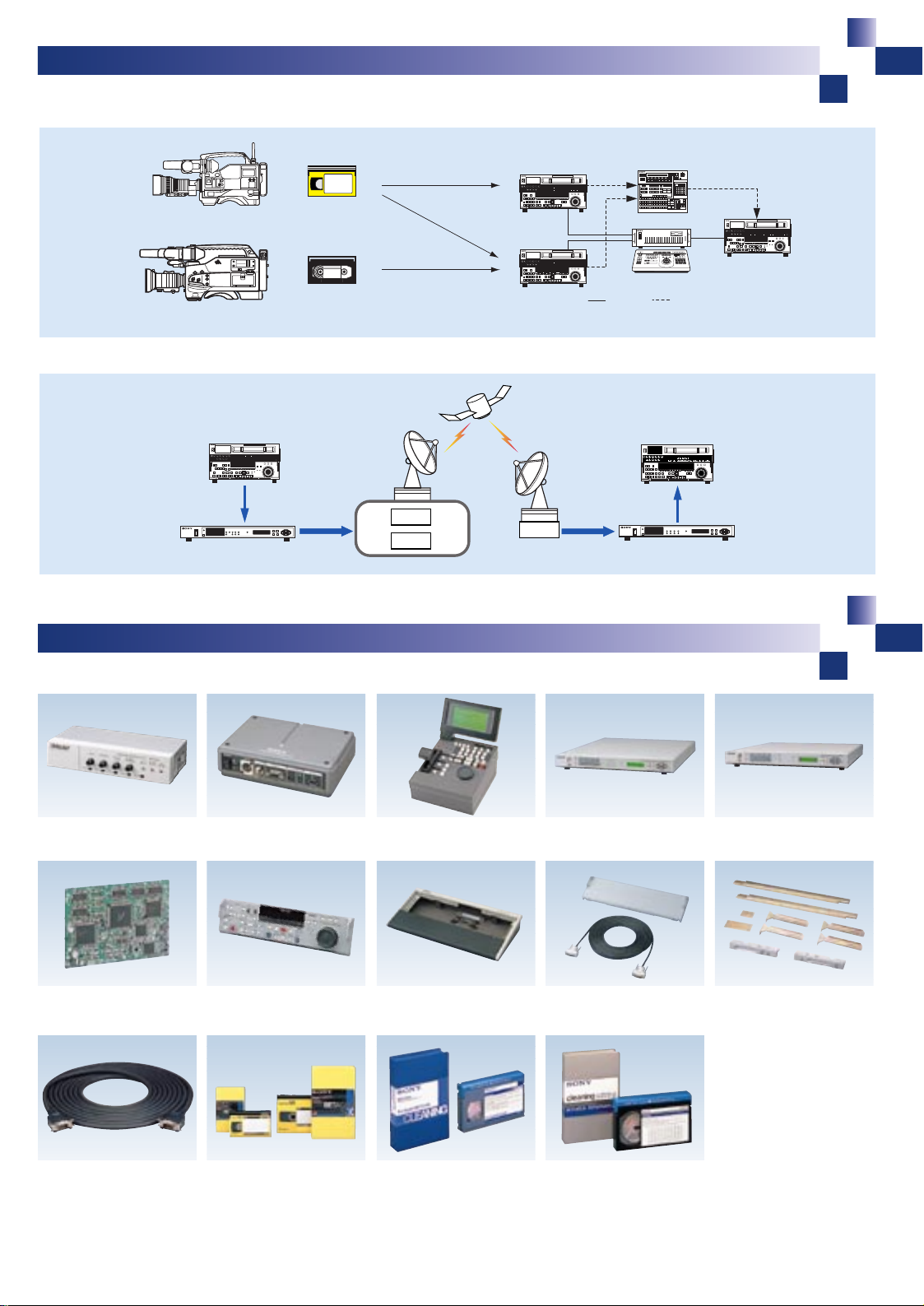

System Configuration
BVE series
DVS/DFS series
: Video Signal
: Control
DNW-75
DNW-65
DNW-A65
Betacam SX
Betacam SP
Betacam
DNW-7/9WS/90/90WS
BetacomSP Camcorders
Acquisition
950~1700MHz
70/140MHz
DSM-T1 DSM-R1
HPA
UC
LNB
DNW-75
DNW-A100
Digital Satellite Link System
Optional Accessories
Video Processor Controller
BVR-50
DV Interface Box
BKNW-25
Dynamic Motion Controller
DTR-3000
Digital Satellite Modulator/Demodulator
DSM-T1/R1
SDTI Multiplexer/Demultiplexer
DSM-M1/D1
Remote Control Cable
(5m)(10m)(30m)
RCC-5G/10G/30G
Betacam SX Video Cassette
BCT-12SX/22SX/32SX/60SX/62SX
(Small)
BCT-64SXL/94SXL/124SXL/184SXL/194SXL
(Large)
Cleaning Cassette
BCT-D12CL
Cleaning Cassette
BCT-5CLN
Maintenance Manual
DSM-T1 DSM-M1
SDTI (SX) Output Board
BKNW-1 18
Control Panel
BKNW-1 19
Control Panel Case
BKNW-121
Control Panel Extension Kit
BKNW-122
Rack Mount Kit
RMM-111
Page 6
©1999 Sony Corporation. All rights reserved.
Reproduction in whole or in part without the written permission of Sony is prohibited.
Features and specifications subject to change without notice.
All non-metric weights and measures are approximate.
Betacam, Betacam SP, Betacam SX, Digital BETACAM, Flexicart and Library Management System are trademarks of Sony Corporation.
Sony is a registered trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
Distributed by
MK7323V2TC99SEP
Printed in Japan
Printed on recycled paper

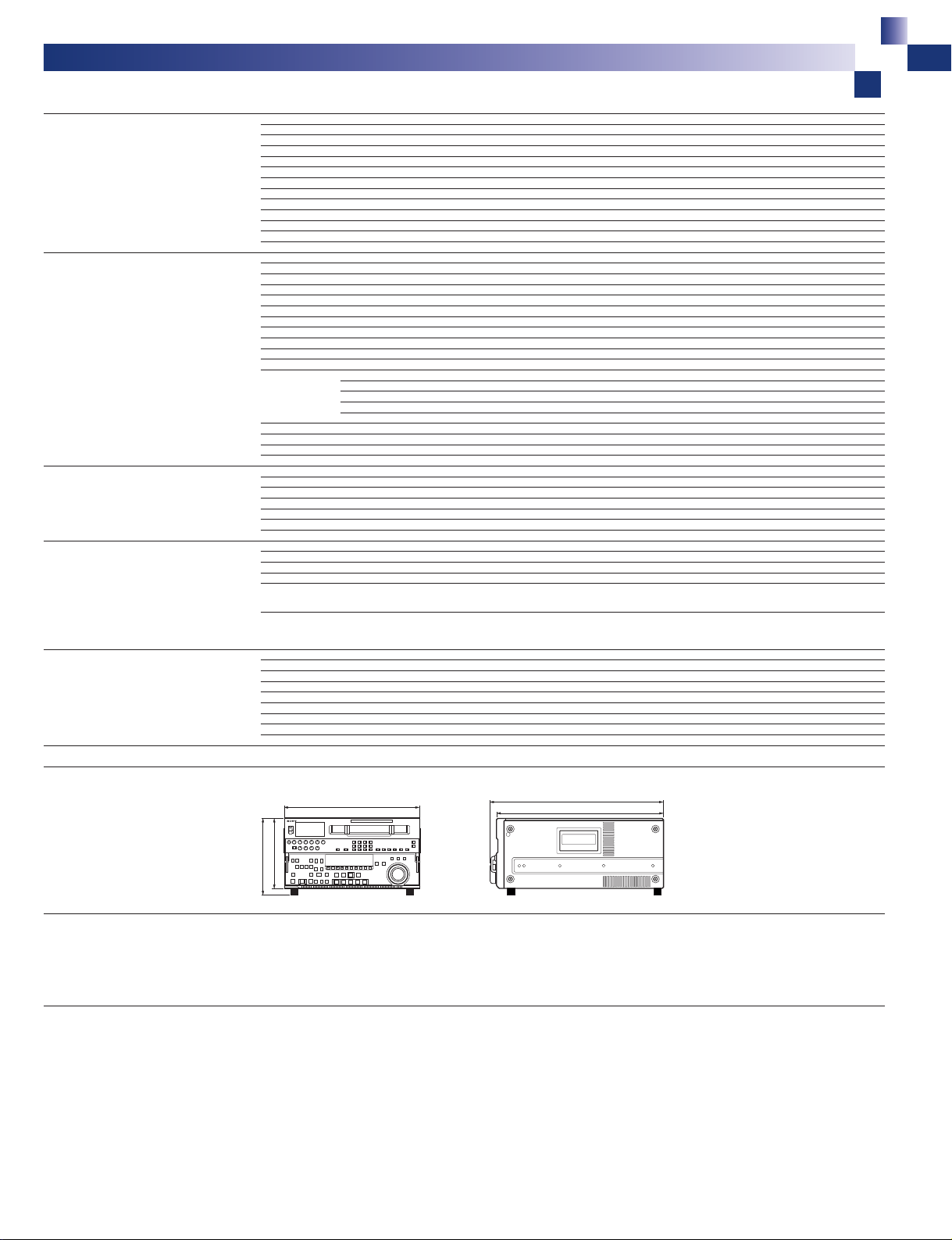

Specifications
DNW-75
Power requirements AC 100 V to 240 V, 50/60 Hz
Power consumption 184 VA (175 W) /AC 240
Operating temperature +5 °C to +40 °C (+41 °F to +104 °F)
Storage temperature -20 °C to +60 °C (-4 °F to +140 °F)
Humidity 25 % to 80 % (relative humidity)
Mass 26.7 kg (58 Ib 13 oz)
Dimensions (W x H x D) 427 x 237 x 524 mm (16 7/8 x 9 3/8 x 20 3/4 inches)
Tape speed 59.515 mm/s (525 mode), 59.575 mm/s (625 mode)
Digital playback/recording time Max. 194 min with BCT-194SXL cassette
Fast forward/rewind time Approx. 3 min with BCT-194SXL cassette
Search speed range ±78 times normal playback speed (Betacam SX)
Servo lock time 0.5 s or less (from standby on)
Load/unload time 6 s or less
Analog composite input BNC (x2), 1.0 Vp-p, 75 Ω, sync negative
Analog composite output BNC (x3, including one character out), 1.0 Vp-p, 75 Ω, sync negative
Analog component input BNC (x3, for 1 set, Y/R-Y/B-Y), Y:1.0 Vp-p, 75 Ω, sync negative, R-Y/B-Y: 0.7 Vp-p, 75 Ω
Analog component output BNC (x3, for 1 set, Y/R-Y/B-Y), Y:1.0 Vp-p, 75 Ω, sync negative, R-Y/B-Y: 0.7 Vp-p, 75 Ω
SDI input BNC (x2, including one active through out), SMPTE 259M, (ITU-R BT.656-3) 270 Mbit/s
SDI output BNC (x3, including one character out), SMPTE 259M, (ITU-R BT.656-3) 270 Mbit/s
SDTI (SX) output (option) BNC (x2), Maximum x2 speed, SMPTE 305M
Analog audio input (CH1, 2, 3, 4) XLR (x4)
Analog audio output (CH1, 2, 3, 4) XLR (x4)
Digital audio input (CH1/2, 3/4) BNC (x2), AES/EBU
Digital audio output (CH1/2, 3/4) BNC (x2), AES/EBU
Remote control Remote D-sub 9-pin (x2), Sony 9-pin remote interface
RS-232C D-sub 9-pin (x1), RS-232C interface
Processor Control D-sub 15-pin (x1)
Connector for Control Panel Mini D-sub 29-pin (x1)
Parallel Remote 50-pin x1
Reference input BNC (x1), 0.3 Vp-p, 75 Ω, sync negative (with loop through out)
Time code input XLR (x1)
Time code output XLR (x1)
Monitor Output L/R XLR (x2)
Video level ±3 dB/ -∞ to 3 dB selectable
Chroma level ±3 dB/ -∞ to 3 dB selectable
Set up/Black level ±30 IRE/±210 mV
Chroma phase/hue ±30 °
System sync phase ±15 µs
System SC phase ±200 ns
Composite input level ±3 dB
Sampling frequency Y: 13.5 MHz R-Y/B-Y: 6.75 MHz
Quantization 8 bits/sample
Error correction Reed-Solomon code
Digital input to analog component output K-factor (2T pulse): 1 % or less
Analog component input to analog component output Input A/D quantization: 8 bits/sample
K-factor (2T pulse): 1 % or less
LF non-linearity: 2.5 % or less
Analog composite input to analog composite output Differential gain: 2 % or less
Differential phase: 2 ° or less
Y/C delay: 15 ns or less
K-factor (2T pulse): 1 % or less
Sampling frequency 48 kHz (synchronized with video)
Quantization 16 bits/sample
Frequency response (0 dB at 1 kHz) 20 Hz to 20 kHz +0.5 dB/-1.0 dB
Dynamic range (at 1 kHz, emphasis ON) More than 90 dB
Distortion (at 1 kHz, emphasis ON, reference level) Less than 0.05 %
Cross talk (at 1 kHz, between any two channels) Less than -80 dB
Wow & flutter Below measurable level
Head room 20 dB (18 dB selectable)
Emphasis (ON/OFF selectable in REC mode) T1=50 µs , T2=15 µs
PSW 4 x16 Rack Mount Screw x 4
Operation manual x 1
General
Inputs/outputs signal
Processor adjustment range
Digital video performance
Digital audio performance
Supplied accessories
Dimensions
543.5 (21 1/2)
524 (20 3/4)
218 (8
5
/
8
)
237 (9
3
/
8
)
427 (16 7/8)
Unit: mm (inch)
