Sony CX155E User Manual

4-170-897-14(1)
HDR-CX110E/CX115E/CX116E/ CX150E/CX155E/XR150E/XR155E
Digital HD Video Camera Recorder
Operating Guide
Table of contents
Getting started
Recording/Playback
Making good use of your camcorder
Saving movies and photos with a computer
Saving images with an external device
Customizing your camcorder
Additional information
Quick reference
2010 Sony Corporation

Read this first

Before operating the unit, please read this manual thoroughly, and retain it for future reference.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
Do not expose the batteries to excessive heat such as sunshine, fire or the like.
CAUTION
Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.
Do not disassemble.
 
Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion batteries.
Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
Keep the battery pack out of the reach of small children.
Keep the battery pack dry.
Replace only with the same or equivalent type recommended by Sony.
Dispose of used battery packs promptly as described in the instructions.
Replace the battery with the specified type only. Otherwise, fire or injury may result.
GB
2
AC Adaptor
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Even if your camcorder is turned off, AC power source (mains) is still supplied to it while connected to the wall outlet (wall socket) via the AC Adaptor.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an
or
mark) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug
without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
FOR CUSTOMERS IN EUROPE
Notice for the customers in the countries applying EU Directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
ATTENTION
The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).
Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or
0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of­life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
GB
3
For customers in the U.S.A.
If you have any questions about this product, you may call: Sony Customer Information Center 1-800­222-SONY (7669). The number below is for the FCC related matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY Model No.: HDR-CX110E Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
Trade Name: SONY Model No.: HDR-CX150E Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
GB
4
Declaration of Conformity
Trade Name: SONY Model No.: HDR-XR150E Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on
a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/
TV technician for help.
The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
Using the camcorder
Do not hold the camcorder by the following
parts, and also do not hold the camcorder by the jack covers.
LCD Screen
Battery pack
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Supplied items
The numbers in ( ) are the supplied quantity.
AC Adaptor (1) Power cord (Mains lead) (1) Component A/V cable (1)  A/V connecting cable (1)  USB cable (1)  Rechargeable battery pack NP-FV50 (1) CD-ROM “Handycam” Application
Software (1) (p. 35)
“PMB” (software, including “PMB Help”)
 
“Handycam” Handbook (PDF)
“Operating Guide” (This manual) (1)
See page 18 for the memory card you can use
with this camcorder.
Battery pack
The camcorder is not dustproofed, dripproofed or waterproofed. See “Precautions” (p. 64).
Menu items, LCD panel, and lens
A menu item that is grayed out is not available under the current recording or playback conditions.
The LCD screen is manufactured using extremely high-precision technology, so over
99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue, or green in color) that appear constantly on the LCD screen. These points are normal results of the manufacturing process and do not affect the recording in any way.
Black points
White, red, blue or green points
GB
5
Exposing the LCD screen or the lens to direct
sunlight for long periods of time may cause malfunctions.
Do not aim at the sun. Doing so might cause your camcorder to malfunction. Take images of the sun only in low light conditions, such as at dusk.
About language setting
The on-screen displays in each local language are used for illustrating the operating procedures. Change the screen language before
sing the camcorder if necessary (p. 16).
u
On recording
To ensure stable operation of the memory card, it is recommended to initialize the memory card with your camcorder before the first use. Initializing the memory card will erase all the data stored on it and the data will be irrecoverable. Save your important data on your PC etc.
Before starting to record, test the recording function to make sure the image and sound are recorded without any problems.
Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of the camcorder, recording media, etc.
TV color systems differ depending on the country/region. To view your recordings on a TV, you need a PAL system-based TV.
Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the copyright laws.
Notes on playing back
The camcorder is compatible with MPEG-4 AVC/H.264 High Profile for high definition image quality (HD) recording. Therefore, you cannot play back images recorded with high definition image quality (HD) on the camcorder with the following devices;
Other AVCHD format compatible devices which are not compatible with High Profile
GB
6
Devices which are not compatible with the
AVCHD format
You may not be able to play back normally images recorded on your camcorder with other devices. Also, you may not be able to play back images recorded on other devices with your camcorder.
Standard (STD) image quality movies recorded on SD memory cards cannot be played on AV equipment of other manufacturers.

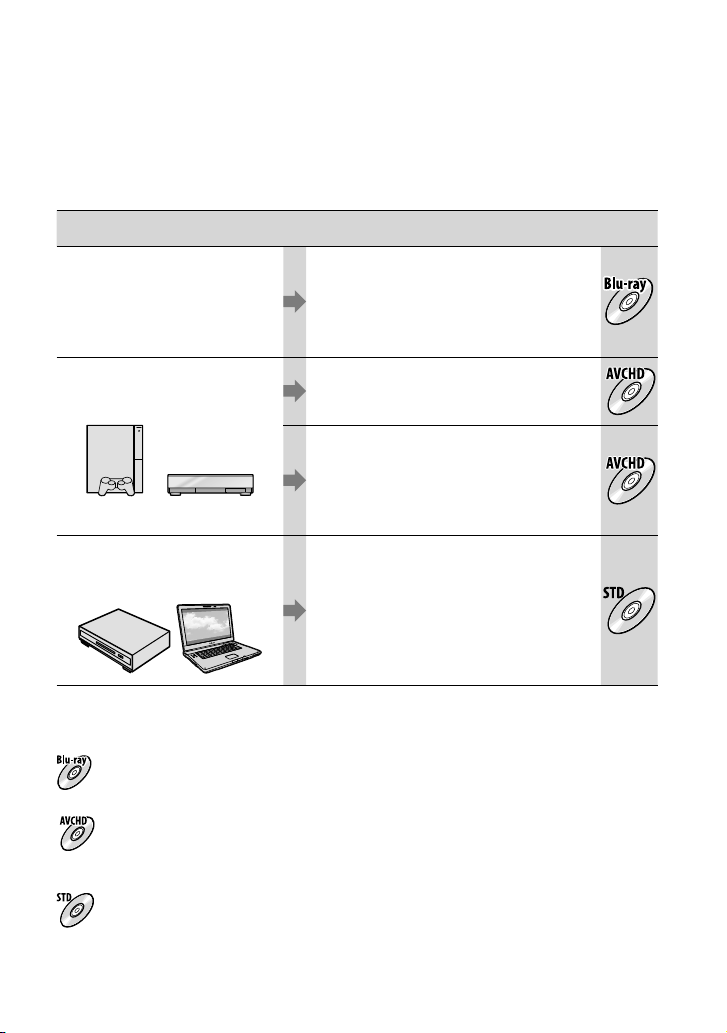

Discs recorded with HD image quality (high definition)
This camcorder captures high definition footage
in the AVCHD format. DVD media containing AVCHD footage should not be used with DVD based players or recorders, as the DVD player/ recorder may fail to eject the media and may erase its contents without warning. DVD media containing AVCHD footage may be played on a compatible Blu-ray Disc
player/recorder or
other compatible device.
Save all your recorded image data
To prevent your image data from being lost,
save all your recorded images on external media periodically. It is recommended that you save the image data on a disc such as DVD-R, etc. using your computer. Also, you can save your image data using a VCR, or a DVD/HDD
ecorder (p. 47).
r
You cannot make a AVCHD disc from the
image data recorded with
[Show others]
[ REC MODE] (under
(MENU)
[SHOOTING SET] category) set to [HD
FX]. Save them on a Blu-ray Disc or using an
ernal media (p. 43, 45).
ext
Notes on battery pack/AC Adaptor
Be sure to remove the battery pack or the AC Adaptor after turning off the camcorder.
Disconnect the AC Adaptor from the camcorder, holding both the camcorder and the DC plug.
Note on the camcorder/battery pack temperature
When the temperature of the camcorder
or battery pack becomes extremely high or extremely low, you may not be able to record or play back on the camcorder, due to the protection features of the camcorder being activated in such situations. In this case, an indicator appears on the LCD screen.
When the camcoder is connected to a computer or accessories
Do not try to format the recording media of the
camcorder using a computer. If you do so, your camcorder may not operate correctly.
When connecting the camcorder to another device with communication cables, be sure to insert the connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal and may result in a malfunction of the camcorder.
If you cannot record/play back images, perform [MEDIA FORMAT]
If you repeat recording/deleting images for
a long time, fragmentation of data occurs on the recording media. Images cannot be saved or recorded. In such a case, save your images on some type of external media first, and then perform [MEDIA FORMAT] by touching

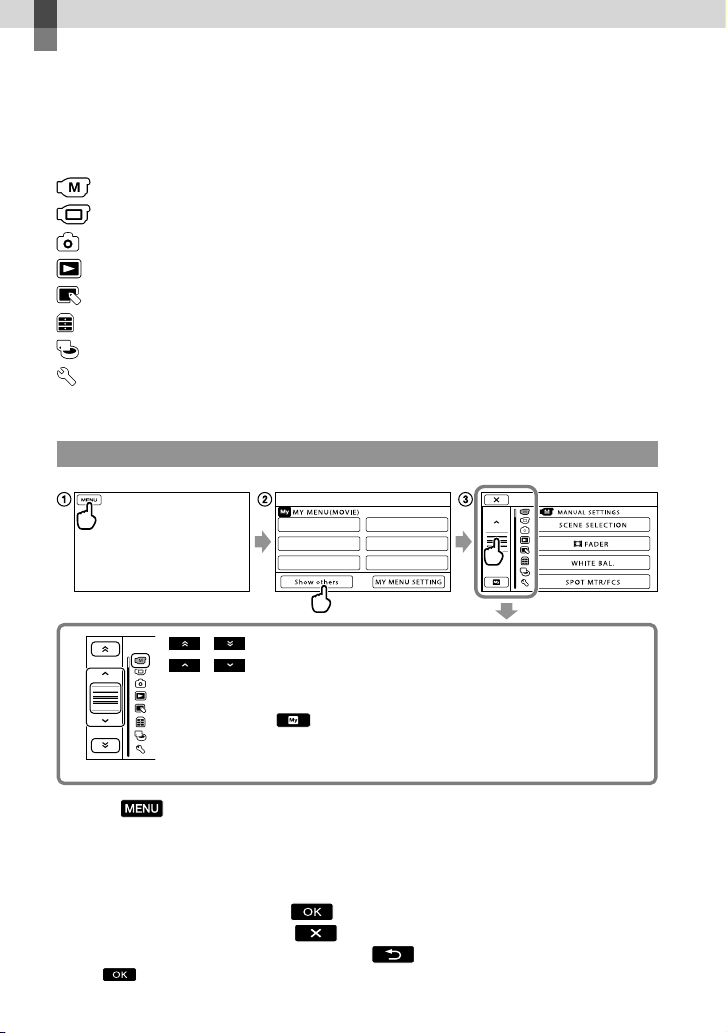

(MENU)  [Show others] 
[MEDIA FORMAT] (under [MANAGE
MEDIA] category) (HDR-CX116E/CX150E/CX155E/XR150E/
XR155E)
the desired medium
[YES] [YES] .
Notes on optional accessories
We recommend using genuine Sony accessories.
 
Genuine Sony accessories may not be available in some countries/regions.
About this manual, illustrations and on-screen displays
The example images used in this manual for illustration purposes are captured using a digital still camera, and therefore may appear different from images and screen indicators that actually appear on your camcorder. And, the illustrations of your camcorder and its screen indication are exaggerated or simplified for understandability.
In this manual, the internal memory (HDR­CX116E/CX150E/CX155E) and the hard disk (HDR-XR150E/XR155E) of the camcorder and the memory card are called “recording media.”
In this manual, the DVD disc recorded with high definition image quality (HD) is called AVCHD disc.
Design and specifications of your camcorder and accessories are subject to change without notice.
Carl Zeiss lens
Your camcorder is equipped with a Carl Zeiss
lens, which was developed jointly by Carl Zeiss, in Germany, and Sony Corporation, and produces superior images. It adopts the MTF measurement system for video cameras and offers a quality typical of a Carl Zeiss lens. MTF= Modulation Transfer Function. The number value indicates the amount of light from a subject coming into the lens.
GB
7
Confirm the model name of your camcorder
The model name is shown in this manual when
there is a difference in specification between models. Confirm the model name on the bottom of your camcorder.
The main differences in specification of this series are as follows.
HDR­CX110E
HDR­CX115E
HDR­CX116E
HDR­CX150E
HDR­CX155E
HDR­XR150E
HDR­XR155E
Recording
media
Memory card
Internal memory + memory card
Internal hard disk + memory card
Capacity
of internal
recording
media
Input/
8GB Output
16GB Input/
120GB Input/
USB jack
output
Output only
only
output
Output only
output
Output only
Notes on use
Do not do any of the following. Otherwise, the
recording media may be damaged, recorded images may be impossible to play back or may be lost, or other malfunctions could occur.
ejecting the memory card when the access
amp (p. 19) is lit or flashing
l
removing the battery pack or AC Adaptor from the camcorder, or applying mechanical shock or vibration to the camcorder when the
(Movie)/ (Photo) lamps (p. 22) or the
access lamp (p. 19) are lit or flashing
When using a shoulder belt (sold separately), do not crash the camcorder against an object.
Do not use your camcorder in very loud areas.
On the drop sensor (HDR-XR150E/ XR155E)
To protect the internal hard disk from shock
by dropping, the camcorder has a drop sensor function. When a drop occurs, or under a non­gravity condition, the block noise made when this function is activated by the camcorder may also be recorded. If the drop sensor catches a drop repeatedly, recording/playback may be stopped.
Note on using the camcorder at high altitudes (HDR-XR150E/XR155E)
Do not turn on the camcorder in a low-pressure
area, where the altitude is more than 5,000 meters (16,000 feet). Doing so may damage the internal hard disk drive of your camcorder.
GB
8

Operation flow

Getting started (p. 12)
Prepare the power source and memory card.
Recording movies and photos (p. 21)
Recording movies p. 23
Changing the recording mode Expected recording time(MEDIA INFO)
Shooting photos p. 25
Playing movies and photos
Playback on the camcorder p. 26 Playing images on a TV p
Saving images
Saving movies and photos with a computer p. 34 Saving movies and photos in external media p Saving images with a DVD writer/recorder p
. 29
. 45
. 47

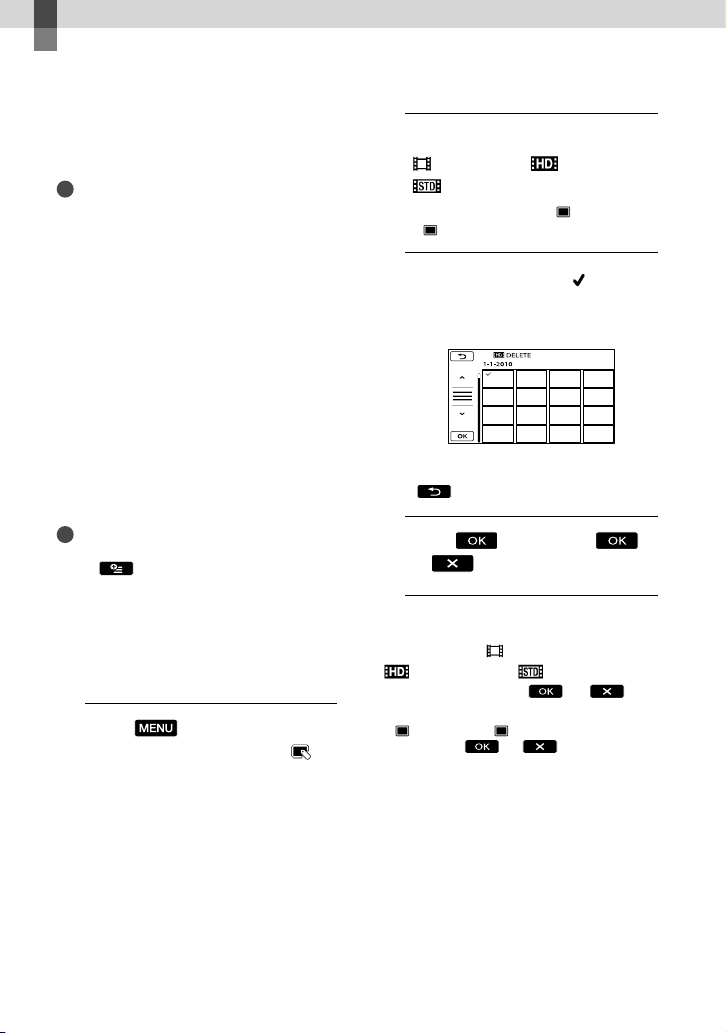

Deleting movies and photos (p. 32)
If you delete the image data that has been saved on your computer or a disc, you can record new images on the free media space again.
GB
9

Table of contents

Read this first .. . .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. . 2
Operation flow .
Getting started
Step 1: Charging the battery pack .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. . 12
Charging the battery pack abroad .
Step 2: Turning the power on, and setting the date and time .
Changing the language setting .
Step 3: Preparing the recording media
To check the recording media settings . Dubbing or copying movies and photos from the internal recording media
to memory card (HDR-CX116E/CX150E/CX155E/XR150E/XR155E) .
Recording/Playback
Recording . . . . . .. .. .. .. .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . 21
Playback on the camcorder . Playing images on a TV .
Making good use of your camcorder
Deleting movies and photos . .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . 32
Saving movies and photos with a computer
Preparing a computer (Windows) . . .. . .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. . 34
When using a Macintosh . Starting PMB (Picture Motion Browser) . Selecting the method for creating a disc (computer) . Creating a disc with one touch (One Touch Disc Burn) . Importing movies and photos to a computer . Creating an AVCHD disc .
Playing an AVCHD disc on a computer .

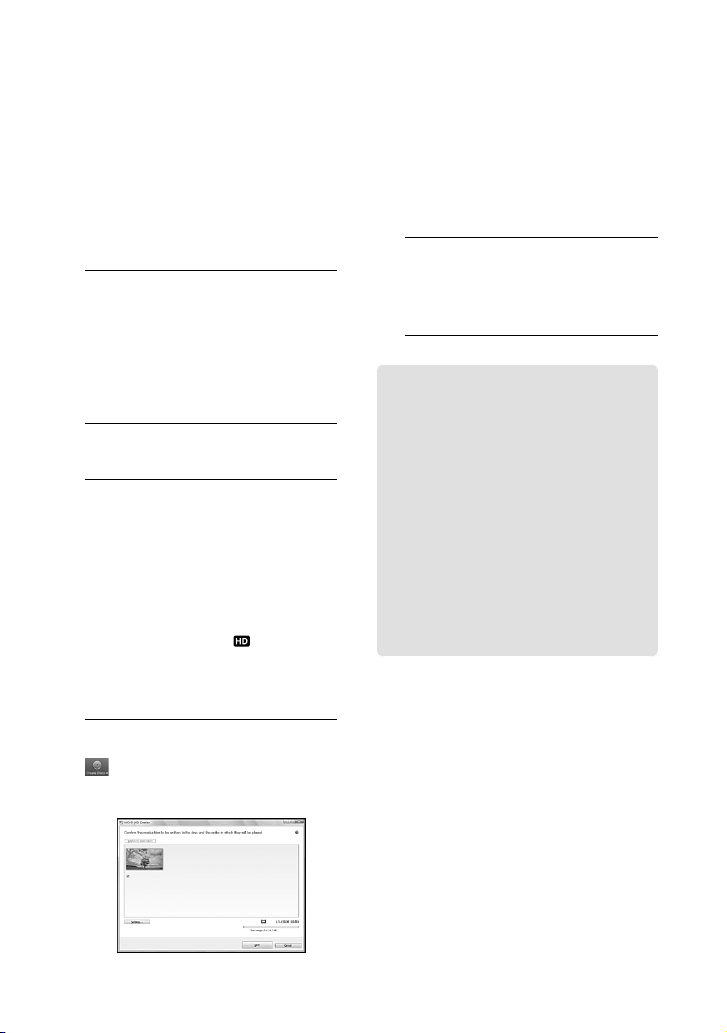

Creating a Blu-ray disc . Creating a standard definition image quality (STD) disc that can be played on
ordinary DVD players .
Copying a disc .
Editing movies .
Capturing photos from a movie .
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. 9
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . . 14
. .. . .. .. .. . .. .. .. .. . .. .. .. 15
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. . 16
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. . 17
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. . 18
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. 26
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . 29
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. 35
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. 37
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . . 38
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. 40
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. . 41
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. 42
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. . 42
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . 43
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . . 43
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . . 44
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . 44
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. 44
. .. . .. .. .. . . 20
Saving images with an external device
Saving images in external media (DIRECT COPY) . . .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . . 45

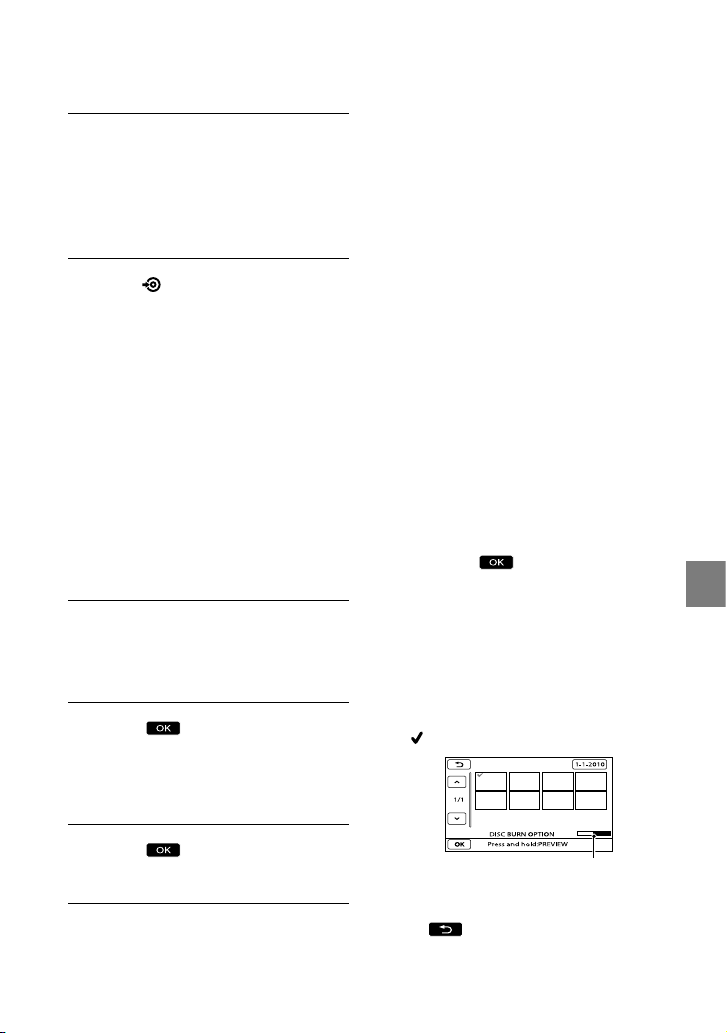

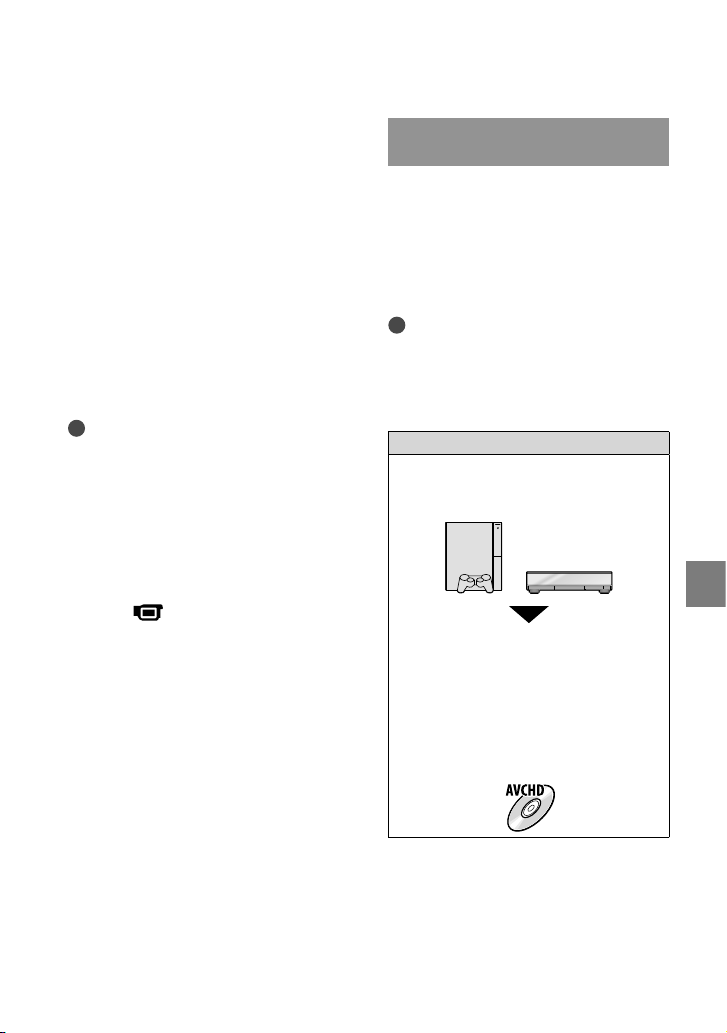

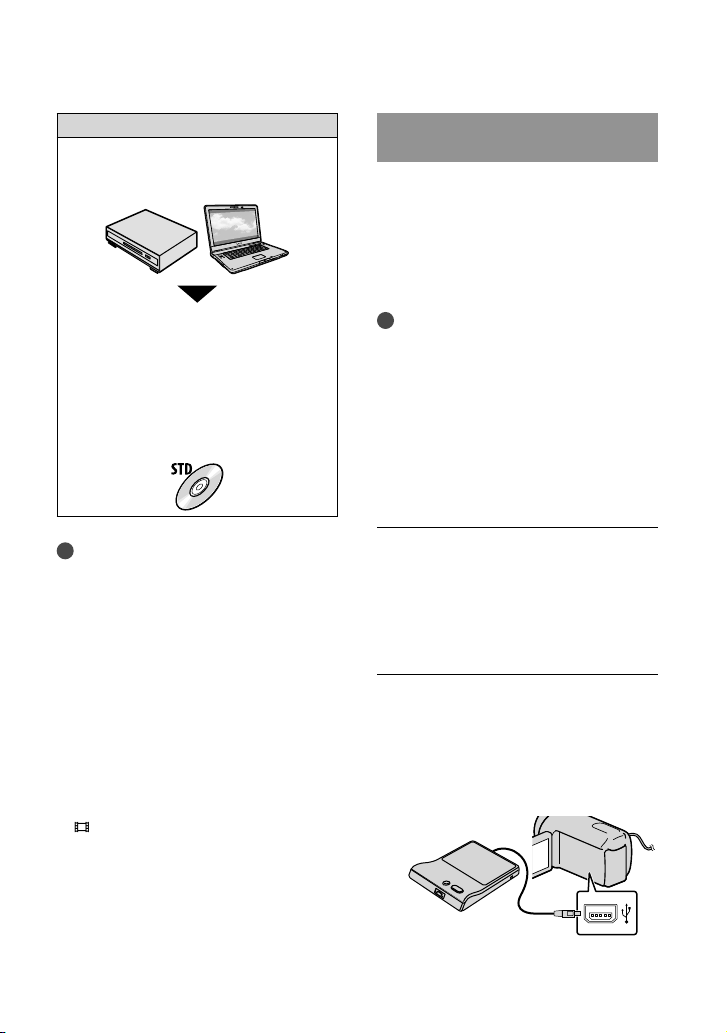

Creating a disc with a DVD writer, recorder .
GB
10
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. 47
Customizing your camcorder
Using menus .. .. .. .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . . 54
Getting detailed information from the “Handycam” Handbook .
. .. . .. .. .. . .. .. .. .. . .. .. 61
Additional information
Troubleshooting . . .. . .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . 62
Precautions . Specifications .
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. 64
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. . 66
Quick reference

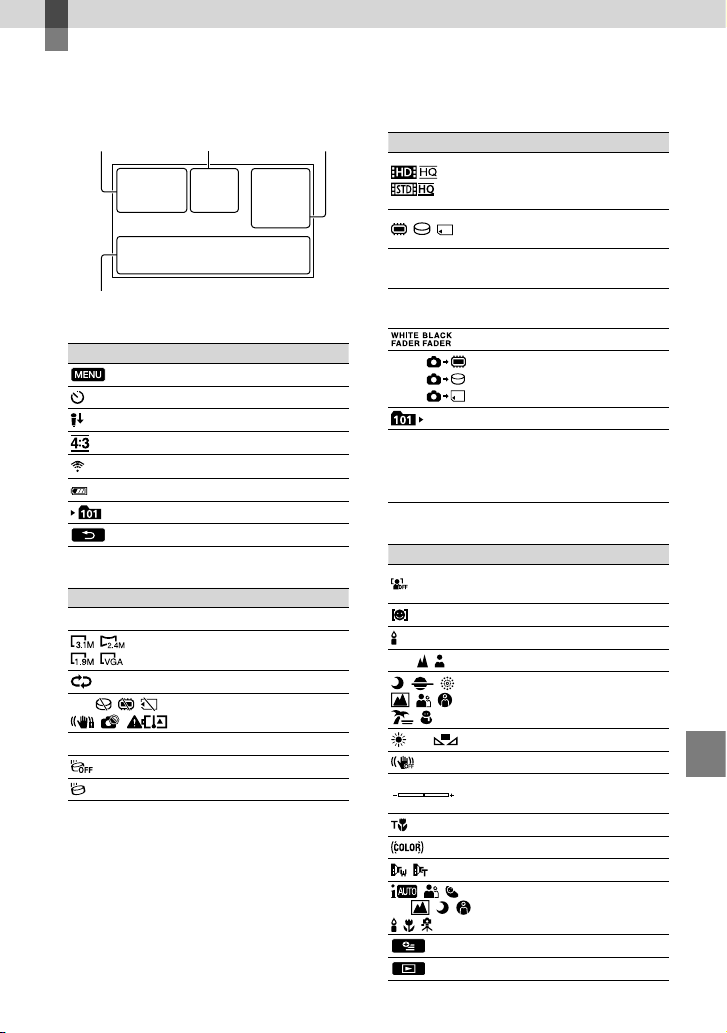

Screen indicators . . .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. 71

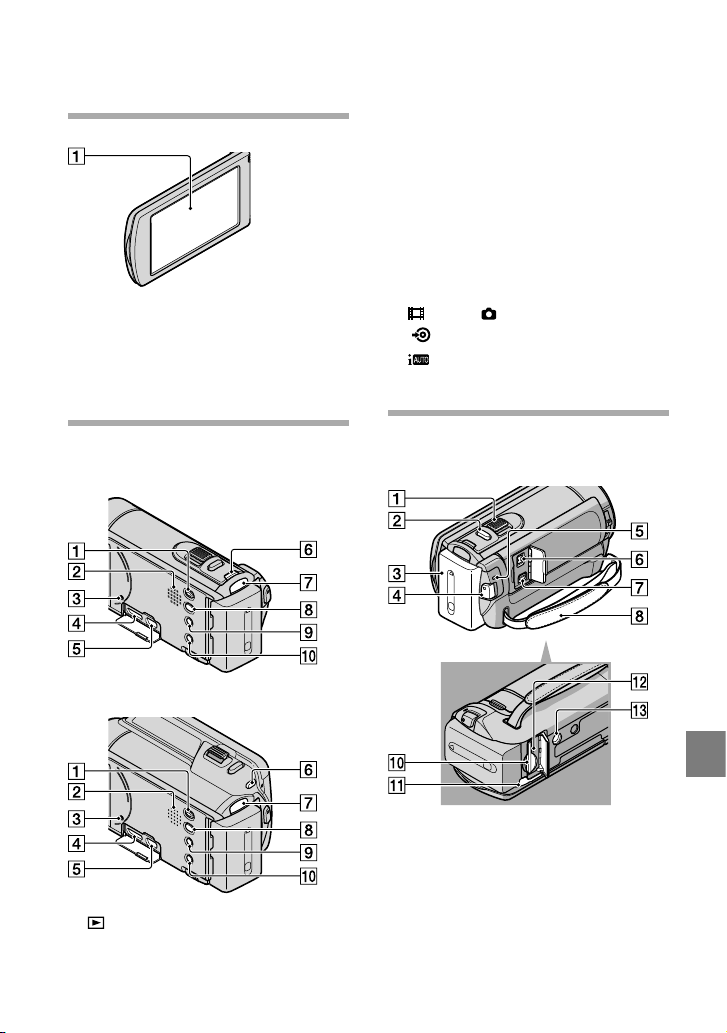

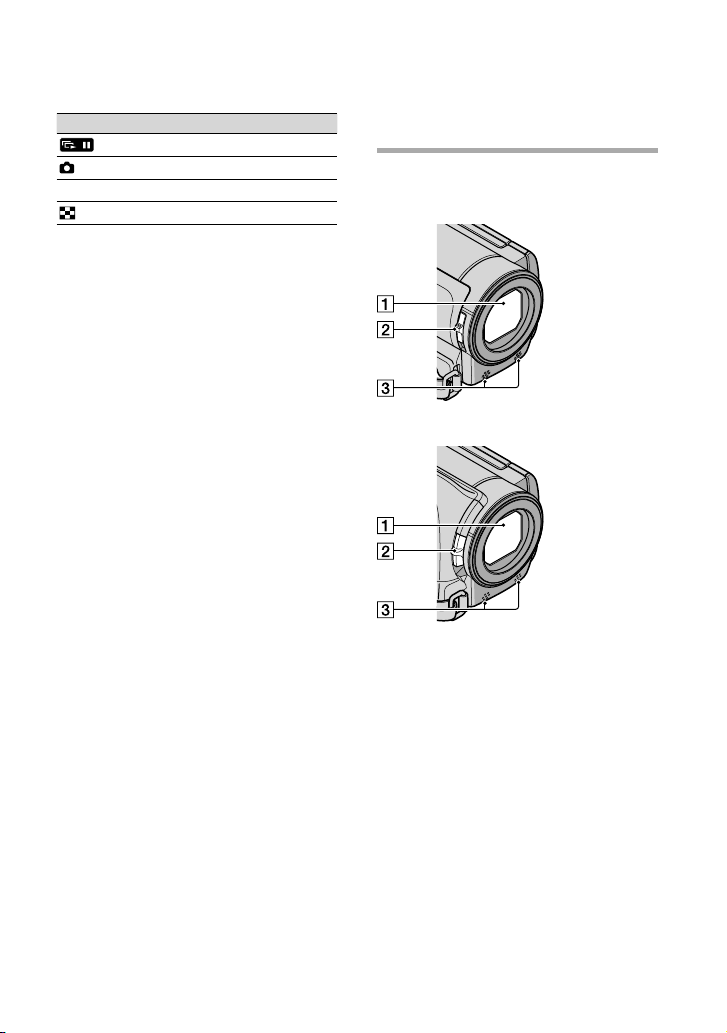

Parts and controls .
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. . 75
Index .
. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. . .. .. .. .. . .. .. .. . .. .. .. .. . .. .. . 72
Table of contents
GB
11

Getting started

Step 1: Charging the battery pack

HDR-CX110E/CX115E/CX116E/CX150E/CX155E
DC IN jack
Battery pack
CHG (charge) lamp
HDR-XR150E/XR155E
Battery pack
CHG (charge) lamp
AC Adaptor
AC Adaptor
DC plug
Power cord (Mains lead)
To the wall outlet (wall socket)
DC IN jack
DC plug
Power cord (Mains lead)
To the wall outlet (wall socket)
12
GB
You can charge the “InfoLITHIUM” battery pack (V series) after attaching it to your camcorder.
Notes
You cannot attach any “InfoLITHIUM” battery pack other than the V series to your camcorder.
Turn off your camcorder by closing the LCD screen.
1
Attach the battery pack by sliding it in the direction of the arrow until it
2
clicks.
Connect the AC Adaptor and the power cord (mains lead) to your
3
camcorder and the wall outlet (wall socket).
Align the mark on the DC plug with that on the DC IN jack.
The CHG (charge) lamp lights up and charging starts. The CHG (charge) lamp turns off when the battery pack is fully charged.
When the battery is charged, disconnect the AC Adaptor from the DC IN
4
jack of your camcorder.
Tips
See page 68 on recording and playing time.
When your camcorder is on, you can check the approximate amount of remaining battery power with the remaining battery indicator at the upper left on the LCD screen.
Getting started
To remove the battery pack
Close the LCD screen. Slide the BATT (battery) release lever () and remove the battery pack ().
To use a wall outlet (wall socket) as a power source
Make the same connections as “Step 1: Charging the battery pack.” Even if the battery pack is attached, the battery pack is not discharged.
GB
13
Notes on the battery pack
When you remove the battery pack or disconnect the AC Adaptor, close the LCD screen and make sure that the
The CHG (charge) lamp flashes during charging under the following conditions:
  
(Movie)/ (Photo) lamps (p. 22), the access lamp (p. 19) are turned off.
The battery pack is not attached correctly. The battery pack is damaged. The temperature of the battery pack is low. Remove the battery pack from your camcorder and put it in a warm place.
The temperature of the battery pack is high. Remove the battery pack from your camcorder and put it in a cool place.
We do not recommend using an NP-FV30, which only allows short recording and playback times, with your camcorder.
In the default setting, the power turns off automatically if you leave your camcorder without any operation for about 5 minutes, to save battery power ([A.SHUT OFF]).
Notes on the AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from
the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder. Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
 
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This may cause a malfunction.

Charging the battery pack abroad

You can charge the battery pack in any countries/regions using the AC Adaptor supplied with your camcorder within the AC 100 V - 240 V, 50 Hz/60 Hz range.
Do not use an electronic voltage transformer.
14
GB

Step 2: Turning the power on, and setting the date and time

Open the LCD screen of your camcorder.
1
Your camcorder is turned on.
To turn on your camcorder when the LCD screen is open, press POWER.
MODE lamp
POWER button
Select the desired geographical area with
2
Touch the button on the
3
LCD screen
To set the date and time again, touch (MENU) [Show others] [CLOCK/ LANG]
[GENERAL SET] category) [CLOCK SET]. When an item is not on the screen, touch
(under
/ until the item appears.
Set [SUMMERTIME], date and time, then touch
The clock starts.
If you set [SUMMERTIME] to [ON], the clock advances 1 hour.
/ , then touch [NEXT].
.
Getting started
GB
15
Notes
The date and time does not appear during recording, but they are automatically recorded on the recording media, and can be displayed during playback. To display the date and time, touch (MENU) [Show others] [PLAYBACK SET] (under CODE] [DATE/TIME]
You can turn off the operation beeps by touching SET] (under
If the button you touch does not react correctly, calibrate the touch panel.
[GENERAL SET] category) [BEEP] [OFF] .
.
[PLAYBACK] category) [DATA
(MENU) [Show others] [SOUND/DISP
To turn off the power
Close the LCD screen. The (Movie) lamp flashes for a few seconds and the power is turned off.
Tips
You can turn off your camcorder also by pressing POWER.
When [POWER ON BY LCD] is set to [OFF], turn off your camcorder by pressing POWER.

Changing the language setting

You can change the on-screen displays to show messages in a specified language. Touch category) [
(MENU) [Show others] [CLOCK/ LANG] (under [GENERAL SET]
LANGUAGE SET] a desired language .
16
GB

Step 3: Preparing the recording media

The recording media that can be used differs depending on your camcorder. The following icons are displayed on the screen of your camcorder.
HDR-CX110E/CX115E
Memory card
HDR-CX116E/CX150E/CX155E
*
Internal memory
HDR-XR150E/XR155E
* In the default setting, both movies and photos are recorded on this recording media. You can perform
recording, playback and editing operations on the selected medium.
Tips
See page 68 for the recordable time of movies.
*
Internal hard disk
Selecting the recording media for movies (HDR-CX116E/CX150E/CX155E/ XR150E/XR155E)
Touch (MENU) [Show others] [MEDIA SETTINGS] (under
[MANAGE MEDIA] category) [MOVIE MEDIA SET].
The [MOVIE MEDIA SET] screen appears.
Touch the desired recording media.
Touch [YES]  .
The recording medium is changed.
Memory card
Memory card
Getting started
GB
17
Selecting the recording media for photos (HDR-CX116E/CX150E/CX155E/ XR150E/XR155E)
Touch (MENU) [Show others] [MEDIA SETTINGS] (under
[MANAGE MEDIA] category) [PHOTO MEDIA SET].
The [PHOTO MEDIA SET] screen appears.
Touch the desired recording media.
Touch [YES]  .
The recording medium is changed.

To check the recording media settings

In either movie recording mode or photo recording mode, the media icon of the selected recording media is displayed at the top right corner of the screen.
Recording media icon
The icon displayed may vary depending on your model.
Inserting a memory card
Notes
Set the recording medium to [MEMORY CARD] to record movies and/or photos on a memory card (HDR-CX116E/CX150E/CX155E/XR150E/XR155E).
Types of memory card you can use with your camcorder
You can use the following memory cards for this camcorder; “Memory Stick PRO Duo” (Mark2) media,
“Memory Stick PRO-HG Duo” media, SD memory cards, SDHC memory cards, SDXC memory cards (Speed Class 4 or faster is required for each SD card). However, operation with all memory cards is not assured.
“Memory Stick PRO Duo” media of up to 32 GB and SD cards of up to 64 GB have been verified to operate with your camcorder.
In this manual, “Memory Stick PRO Duo” (Mark2) media and “Memory Stick PRO-HG Duo” media are called “Memory Stick PRO Duo” media. SD memory card, SDHC memory card and SDXC memory card are called SD card.
Notes
A MultiMediaCard cannot be used with this camcorder.
GB
18
Movies recorded on SDXC memory cards cannot be imported to or played back on computers or A/V
devices not supporting the exFAT USB cable. Confirm in advance that the connecting equipment is supporting the exFAT system. If you connect an equipment not supporting the exFAT system and the format screen appears, do not perform the format. All the data recorded will be lost.
* The exFAT is a file system that is used for SDXC memory cards.
* file system by connecting the camcorder to these devices with the
Size of memory card you can use with your camcorder
“Memory Stick PRO Duo” media, half the size of “Memory Stick”, or standard size SD cards can be used for this camcorder.
Do not attach a label or the like on memory card or memory card adaptor. Doing so may cause a malfunction.
Open the cover, and insert the memory card with the nothched edge in the direction as illustrated until it clicks.
Close the cover after inserting the memory card.
Note direction of notched corner.
Access lamp
The [Create a new Image Database File.] screen may appear if you insert a new memory card. In that case, touch [YES]. If you record only photos on the memory card, touch [NO].
Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction, the memory card, memory card slot, or image data may be damaged.
Notes
If [Failed to create a new Image Database File. It may be possible that there is not enough free space.]
is displayed, format the memory card by touching
FORMAT]
CX155E/XR150E/XR155E)
(under [MANAGE MEDIA] category)  [MEMORY CARD] (HDR-CX116E/CX150E/
[YES] [YES] .
(MENU)  [Show others]  [MEDIA
Getting started
GB
19
To eject the memory card
Open the cover and lightly push the memory card in once.
Do not open the cover during recording.
 
When inserting or ejecting the memory card, be careful so that the memory card does not pop out and drop.

Dubbing or copying movies and photos from the internal recording media to memory card (HDR-CX116E/CX150E/CX155E/XR150E/XR155E)

Touch (MENU) [Show others] [MOVIE DUB]/[PHOTO COPY] (under [EDIT]
category), then follow the displays on the screen.
20
GB

Recording/Playback

Recording

In the default setting, movies are recorded with high definition image quality (HD) on the following media. HDR-CX110E/CX115E: Memory card HDR-CX116E/CX150E/CX155E: Internal memory HDR-XR150E/XR155E: Internal hard disk
Tips
To change the recording media, see page 17 (HDR-CX116E/CX150E/CX155E/XR150E/XR155E).
To open the lens cover
Slide the LENS COVER switch to open.
Tips
When you finish recording or when you play back images, close the lens cover.
Fasten the grip belt.
1
HDR-CX110E/CX115E/CX116E/CX150E/CX155E
Recording/Playback
GB
21
22
GB
HDR-XR150E/XR155E
Open the LCD screen of your camcorder.
2
Your camcorder is turned on.
To turn on your camcorder when the LCD screen is already open, press POWER (p. 15).
 
You can switch recording modes by pressing MODE. Press MODE to light up the desired recording mode lamp.
HDR-CX110E/CX115E/CX116E/CX150E/CX155E
MODE button
(Movie): When recording a movie (Photo): When recording a photo
HDR-XR150E/XR155E
MODE button
(Movie): When recording a movie
(Photo): When recording a photo
Recording movies
Press START/STOP to start recording.
You can start recording also by touching in the bottom left of LCD screen.
START/STOP button
[STBY] [REC]
To stop recording, press START/STOP again.
You can stop recording also by touching in the bottom left of LCD screen.
The icons and indicators on the LCD panel will be displayed for about 3 seconds, then disappear after turning on your camcorder or switching the recording (movie/photo)/playback modes. To display the icons and indicators again, touch anywhere on the screen except the rec & zoom buttons on the LCD.
Recording/Playback
Rec & zoom buttons on LCD
about 3sec
after
Notes
If you close the LCD screen while recording movies, the camcorder stops recording.
The maximum continuous recordable time of movies is about 13 hours.
When a movie file exceeds 2 GB, the next movie file is created automatically.
It will take several seconds until you can start recording after you turn on the camcorder. You cannot operate your camcorder during this time.
GB
23
