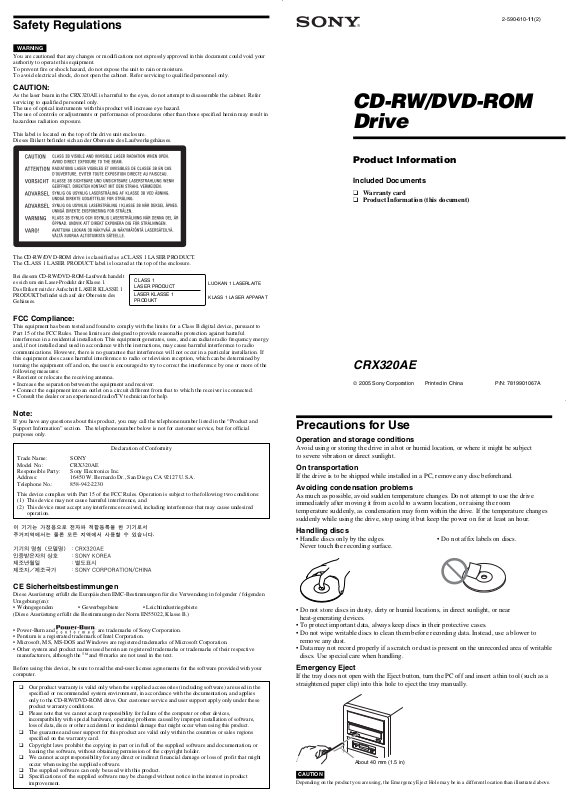

CD-RW/DVD-ROM Drive
Product Information
Included Documents
Warranty cardProduct Information (this document)
The CD-RW/DVD-ROM drive is classified as a CLASS 1 LASER PRODUCT. The CLASS 1 LASER PRODUCT label is located at the top of the enclosure.
Bei diesem CD-RW/DVD-ROM-Laufwerk handelt es sich um ein Laser-Produkt der Klasse 1. Das Etikett mit der Aufschrift LASER KLASSE 1 PRODUKT befindet sich auf der Oberseite des Gehäuses.
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
FCC Compliance:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note:
If you have any questions about this product, you may call the telephone number listed in the “Product and Support Information” section. The telephone number below is not for customer service, but for official purposes only.
Declaration of Conformity
Trade Name: SONY Model No.: CRX320AE Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr., San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
operation.
CRX320AE
2005 Sony Corporation Printed in China P/N: 7819901067A
Precautions for Use
Operation and storage conditions
Avoid using or storing the drive in a hot or humid location, or where it might be subject to severe vibration or direct sunlight.
On transportation
If the drive is to be shipped while installed in a PC, remove any disc beforehand.
Avoiding condensation problems
As much as possible, avoid sudden temperature changes. Do not attempt to use the drive immediately after moving it from a cold to a warm location, or raising the room temperature suddenly, as condensation may form within the drive. If the temperature changes suddenly while using the drive, stop using it but keep the power on for at least an hour.
CE Sicherheitsbestimmungen
Diese Ausrüstung erfüllt die Europäischen EMC-Bestimmungen für die Verwendung in folgender / folgenden Umgebung(en):
• Wohngegenden • Gewerbegebiete • Leichtindustriegebiete (Diese Ausrüstung erfüllt die Bestimmungen der Norm EN55022, Klasse B.)
• Power-Burn and
• Pentium is a registrated trademark of Intel Corporation.
• Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
• Other system and product names used herein are registered trademarks or trademarks of their respective manufacturers, although the
Before using this device, be sure to read the end-user license agreements for the software provided with your computer.
Our product warranty is valid only when the supplied accessories (including software) are used in the
specified or recommended system environment, in accordance with the documentation, and applies only to the CD-RW/DVD-ROM drive. Our customer service and user support apply only under these product warranty conditions. Please note that we cannot accept responsibility for failure of the computer or other devices,
incompatibility with special hardware, operating problems caused by improper installation of software, loss of data, discs or other accidental or incidental damage that might occur when using this product.
The guarantee and user support for this product are valid only within the countries or sales regions
specified on the warranty card.
Copyright laws prohibit the copying in part or in full of the supplied software and documentation, or
loaning the software, without obtaining permission of the copyright holder.
We cannot accept responsibility for any direct or indirect financial damage or loss of profit that might
occur when using the supplied software.
The supplied software can only be used with this product.Specifications of the supplied software may be changed without notice in the interest in product
improvement.
are trademarks of Sony Corporation.
TM
and ® marks are not used in the text.
Handling discs
• Handle discs only by the edges. Never touch the recording surface.
• Do not store discs in dusty, dirty or humid locations, in direct sunlight, or near heat-generating devices.
• To protect important data, always keep discs in their protective cases.
• Do not wipe writable discs to clean them before recording data. Instead, use a blower to remove any dust.
• Data may not record properly if a scratch or dust is present on the unrecorded area of writable discs. Use special care when handling.
• Do not affix labels on discs.
Emergency Eject
If the tray does not open with the Eject button, turn the PC off and insert a thin tool (such as a straightened paper clip) into this hole to eject the tray manually.
About 40 mm (1.5 in)
CAUTION
Depending on the product you are using, the Emergency Eject Hole may be in a different location than illustrated above.
Introduction
Specifications
This product offers the following features.
An internal CD-RW/DVD-ROM drive
with ATAPI (EIDE) interface for PCs.
Writes up to 52× speed on CD-R disc
media.
Writes up to 32× speed on CD-RW disc
media.
Reads CD-ROM discs at up to 52×
speed.
With the Turbo Boost function, easily
switch from the default 40× read/write speed to 52× speed.*
Reads DVD-ROM discs at up to 16×
speed.
* For details, see “Turbo Boost Function” below.
System Requirements
This CD-RW/DVD-ROM drive can be used in systems with the following capabilities.
CPU: Pentium II 400 MHz or higher is
recommended.
PC/AT-compatible PCOS:
Windows® 98 Second Edition Windows® 2000 Professional Windows® Millennium Edition Windows® XP Home Edition Windows® XP Professional
64 MB RAM or higher is recommendedAt least 1 GB available hard disk spaceOne available EIDE (ATAPI) interface
connection with DMA capability
Features “Power-Burn conformed”
technology to prevent buffer under-run errors.
“Power-Burn conformed” is used to refer to a CD-R/RW that uses CD-R/RW recording technology (ICs and/or firmware) other than Power-Burn, but provides performance equivalent to that of Sony original Power-Burn technology based on the Power-Burn concept.
Notes
• Writing speed may automatically be adjusted depending on the disc specified speed or disc conditions such as weight imbalance and eccentricity.
•1× and 2× writing speed and discs are not supported.
• During startup, the drive may make a whirring noise due to balls contained in the ABS (Auto-Balance System) spindle motor. This is normal and does not indicate a drive malfunction.
One empty 5-inch half-height drive bayOne available internal +12 V/+5 V power
connector
Notes
• The above system configuration is given as a minimum requirement for a system on which basic CD-RW writing performance can be obtained. In actual use, the requirements for the writing software and “Windows” also have to be taken into consideration. (Normally, these requirements will be higher than the above specifications.)
• The drive cannot be assured to operate properly if connected to an ATAPI interface adapter card (we cannot guarantee compatibility or offer user support).
Compatible discs
CD-R CD-RW CD-ROM CD-ROM XA CD-DA
1)
CD Extra (CD+) Video CD CD TEXT Photo CD DVD-ROM DVD-Video Disc diameter 12 cm
(for horizontal use only)
8 cm
1)
This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. When you use this unit as an audio CD player, please use compact discs with the following mark.
Writing Systems
Track-at-once Disc-at-once Session-at-once Packet writing
Drive
Data transfer rate
CD-ROM DVD-ROM
Up to 7800 KB/s (52× speed) Up to 22160 KB/s (16× speed)
2) 3)
3)
Access time
Average random stroke CD-ROM 120 ms
DVD-ROM 140 ms
2)
When using the Turbo Boost function.
3)
The maximum data transfer rate depends on the capabilities of the host PC.
Please note that specifications and appearance may be subject to change without notice.
Connecting the Cables
Buffer under-run error protection
technology
Operating Environment
5 to 40 °C
Power and Miscellaneous
DC +5 V 1.5 A DC +12 V 1.5 A
Size
Approx. 145.8 × 41.3 × 165 mm (W×H×D) (excluding front bezel)
Weight
Approx. 0.9 kg (drive only)
Interface
Drive interface
ATAPI (EIDE)-compliant
Drive Inquiry
SONY CD-RW CRX320EE
Buffer capacity
2 MB
Laser specifications
Type
CD: RLD78PZW4 DVD: RLD65MZT2
Wavelength
CD: 784 ± 5 nm DVD: 655 +5/-10 nm
Output power
CD : 120 mW (CW)
230 mW (Pulse)
DVD : 10 mW
Package Contents
Please verify that the package includes the following accessories with the drive when unpacking. If any of these items appears to be missing or damaged, please contact your supplier.
• CD-RW/DVD-ROM drive
• Product Information (this document)
•Warranty card
Note
To guard against possible loss or damage, be sure to make a backup copy of the provided software disc on a CD-R disc or other media. The software disc is not sold separately.
Please Record Responsibly
Before copying anything onto a CD-R or CD-RW disc, make sure that you are not violating copyright laws. Most software companies allow you to make a backup or archive copy of software. Check your software license agreement for details.
• Connect one end of the audio cable to the ANALOG AUDIO connector on the drive, and the
other end to the audio input connector on your PC.
• Connect the IDE flat cable to the IDE connector on the drive.
• Connect an unused power connector from the PC power supply to the DC input (power input)
connector on the drive.
Analog audio connector
Audio cable
To sound card
CAUTION
• The red side of the IDE flat cable indicates the pin 1 conductor. Verify that the pin 1 side is connected to pin 1 on the
motherboard.
• The power connector must be inserted with the inclined side upwards.
• If no spare power connector is available, a “Y” adapter is necessary.
• It is not necessary to connect the audio cable if your PC supports digital playback.
• Using the wrong type of cable with this product can cause it to malfunction. Follow the instructions when connecting
the product.
Pin1
IDE connector
DC input connector
IDE flat cable
DC INPUT
5V GND12V
Power connector
Red (pin 1)
To computer motherboard
Turbo Boost Function
The default CD-R and CD-ROM read/write speed of this drive is 40× speed. With a single touch, you can activate the Turbo Boost function, making the read/write speed 52× speed.
CAUTION
• On rare occasions, some discs may not be able to
tolerate 52× speed, causing them to break. We recommend that you do not use deeply scratched, brittle, or other discs that may break at 52× speed.
• The Turbo Boost function does not increase read/write speed with CD-RW or DVD-ROM discs.
1 Insert a disc into the drive.
The speed when you insert a disc is normally 40× speed.
2 Press the Eject button for five
seconds.
The Busy indicator blinks twice and the speed switches to 52× speed. (The Turbo Boost function is active.)
Notes
• When you want to write at 52× speed, insert the disc
into the drive, activate the Turbo Boost function, and then start writing to the disc.
• When writing with the Turbo Boost function, the Busy indicator blinks more rapidly than usual. (About twice as fast as when writing at the default write speed.)
• When you open the disc tray, the speed reverts to its default of 40× speed.
• The Turbo Boost function does not guarantee a 52× write speed. Depending on the condition of the disc you are using, the speed may be lower.
Product and Support Information
Sony Site Information (As of November, 2004)
Product purchased in Europe:*
http://www.sonydigital-link.com/OSD/
* Local Web sites for computer peripheral products
Technical Support
Please consult the above sources before calling with questions about using this product, or with technical questions about the drive or the supplied software. If using telephone or e-mail support, please have the following information available:
•Model number: CRX320AE
• Serial number
• Date and place of purchase
• Computer maker and model number
• Computer specifications (CPU speed, memory size, OS version, etc.)
•Writing software used (version, etc.)
Local technical support is only available in the specified sales regions. The customers in these regions should be provided with a warranty card for this product. For contact information, refer to the warranty card.
Note that technical support conditions may vary according to the locality, and that charges and/or limited service may apply in some regions.
