Page 1

Micro Hi-Fi Component System

Operating Instructions

2-055-021-11(1)

CMT-HPX11D

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or mo ist u r e.

To prevent fire, do not cover the ventil at ion of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candle s on the apparatus.

To prevent fire or shock hazard, do not place obje c ts filled with liquids, such as vases , on the ap pa ratus.

Do not install the appliance in a confined space, such as a bookcase or built-in cabi ne t.

This appliance is classified as a CLASS 1 LASER product. This marking is locat ed on the rear exterior.

Don’t throw away the battery with general house waste, dispose of it correctly as chemical was te.

This system incorporat es Dol by matrix surround decoder and DTS System.

Manufactured under license from Dolby

Digital adaptive

Digital Surround

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Digital Theater Systems, Inc. “DTS” and “DTS 2.0 + DigitalOut” are trademarks of Digital Theater Systems, Inc.

ENERGY STAR

ENERGY STAR® is a U.S. registered mark. As an E

TAR

partner, Sony Corporation

NERGY

has determined that this produc t meets the E

NERGY STAR

guidelines for energy efficiency.

Page 3

Table of Contents

How to use this manual...........................5

Playable discs..........................................5

Getting Started

Hooking up the system............................7

Setting the clock....................................10

Performing QUICK SETUP .................10

DVD/Video CD/CD/MP3/JPEG – Play

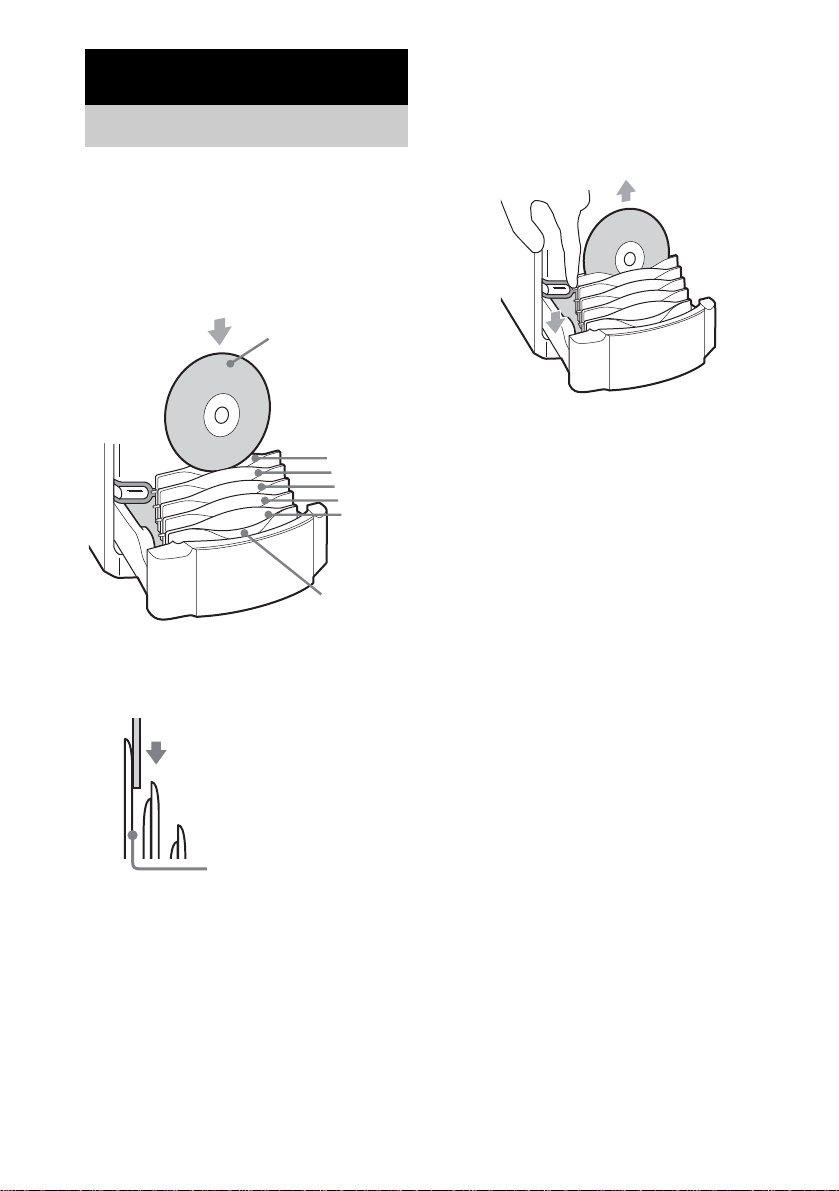

Loading a disc........................ ... .... ........12

Playing a disc........................................13

— Normal Play/Shuffle Play

Playing DVDs using the menu..............15

Playing Video CDs with PBC functions

(Ver. 2.0).........................................16

— PBC Play

Playing repeatedly.................................16

— Repeat Play

Creating your own program.................. 17

— Program Play Using the on-screen display to

search..............................................20

DVD – Various functions

Changing the sound/subtitle/

language.......................................... 22

Adjusting the angle/imag e....................25

Restricting disc playback......................27

— CUSTOM PARENTAL

CONTROL/PARENTAL

CONTROL

Speaker settings ....................................31

— SPEAKER SETUP

Tape – Play

Loading a tape......................................35

Playing a tape............. ... ........................35

Tape – Recording

Recording your favorite CD tracks

on a tape .........................................36

— CD-TAPE Synchro Recording

Recording on a tape manually.............. 37

— Manual Recording

Sound Adjustment

Adjusting the sound..............................37

Selecting the surround effect................38

Adjusting the equalizer......................... 38

Singing along: Karaoke........................39

Timer

Falling asleep to music.........................41

— Sleep Timer

Waking up to music..............................41

— Play Timer

Timer recording radio programs........... 42

— Rec Timer

Display

Turning off the display......................... 43

— Power Saving Mode

Viewing information about the disc

in the display..................................44

Viewing information about the disc

in the on-screen display.................. 45

Checking the date information ............. 46

Tuner

Presetting radio stations........................32

Listening to the radio ............................33

— Preset Tuning

— Manual Tuning

continued

Page 4

Optional Components

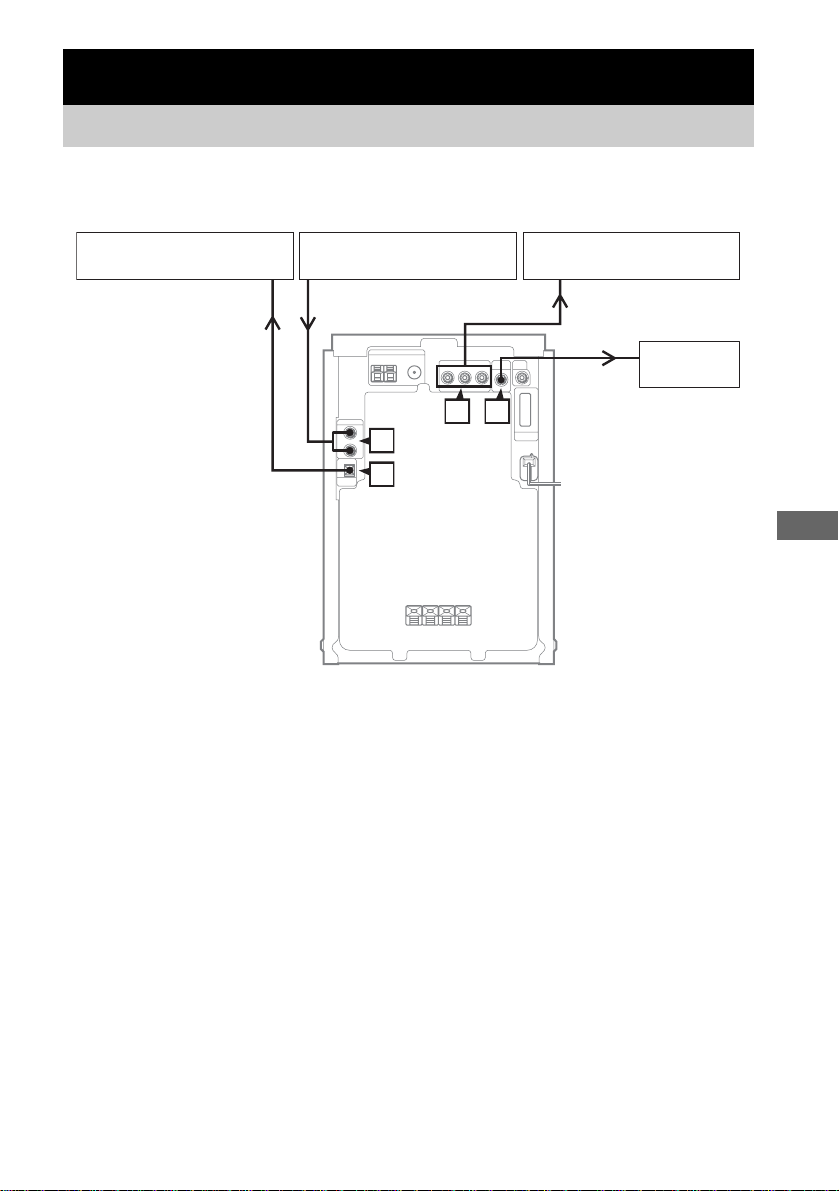

Hooking up optional com po nents.........47

Listening to audio from a connected

component ......................................48

Enjoying 5.1 chan nel sound with an

optional amplifier...........................48

Recording audio from a connected

component ......................................49

Recording on a connected

component ......................................49

Troubleshooting

Problems and remedies.........................50

Messages...............................................55

Additional Information

Precautions............................................56

Specifications........................................58

Language code list ................................59

List of items that can be displayed and

selected by disc type.......................60

System setup item list ...........................61

Glossary................................................62

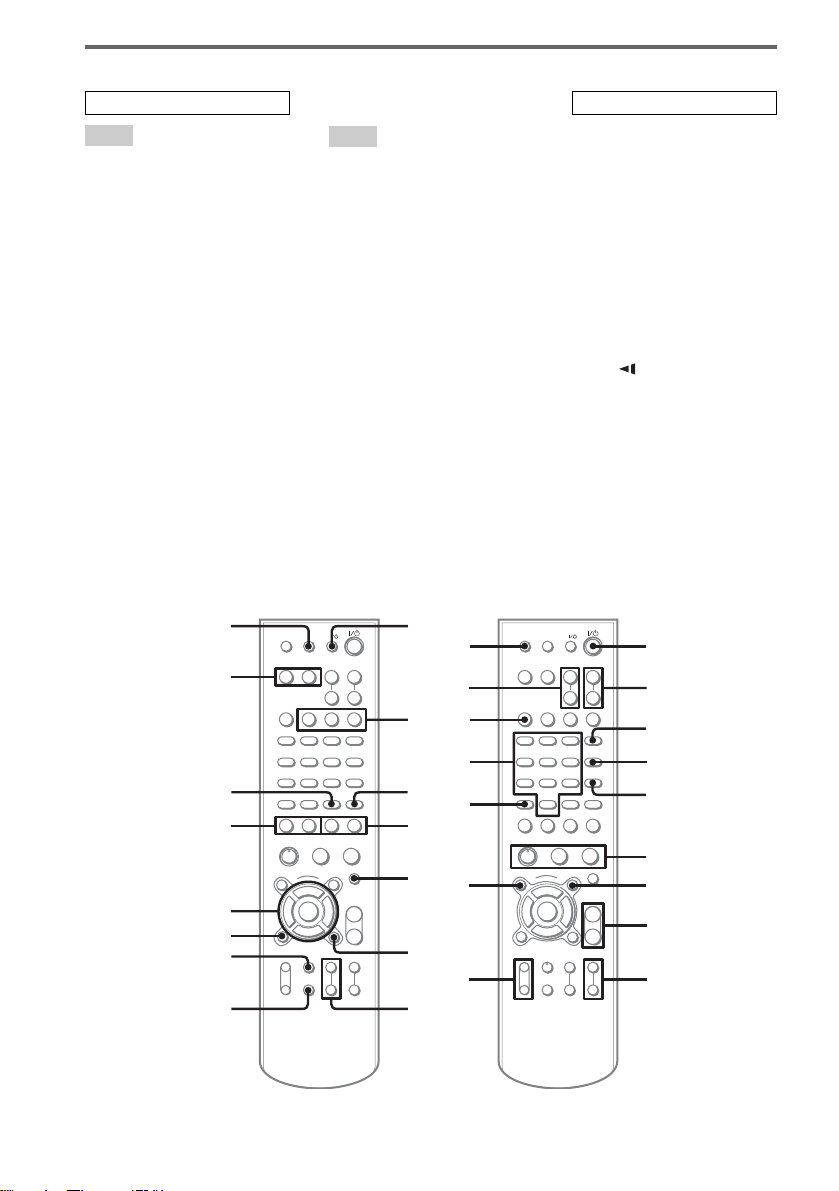

List of button locations and refer e nce

pages...............................................65

Page 5

How to use this manual

• This manual mainly explains operations u sing the remote, but the same operations can also be performed us in g t he buttons on the unit having the same or similar names.

• The OSD (on-screen display) may vary depending on the country model.

• The English OSD screen (on-screen display) is used for illustration purposes only.

• The following symbols are used in this manual.

Symbol Meaning

Functions that can be used with DVDs

Functions that can be used with Video CDs

Functions that can be used with audio CDs

Functions that can be used with MP3 audio tracks

Functions available for JPEG files

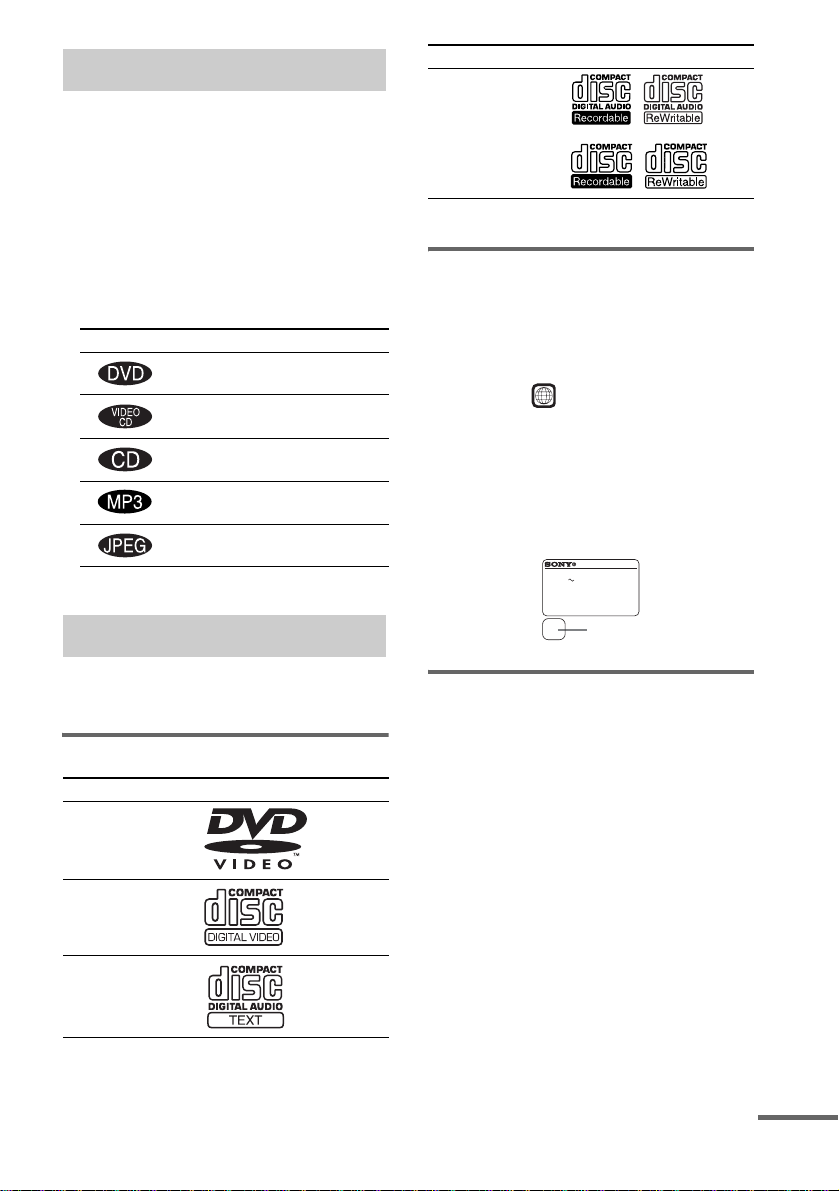

Playable discs

Format of discs Disc logo

CD-Rs/CD-RWs (audio data/MP3 files/ JPEG files)

The “DVD VIDEO” logo is a trademark.

Region code of DVDs you can play on this system

Your system ha s a region code printe d on the back of the unit and will only play DVDs labeled with identical region code.

DVDs labeled will also be played on this system. If you try to play any ot her DVD, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

ALL

DVD DECK RECEIVER

AC: 00V 00Hz 00W

SERIAL NO:

MODEL NO. HCD-RVXXXX

Region code

You can play back the following discs on this system. Other discs cannot be playe d back.

List of playable discs

Format of discs Disc logo

DVD Videos

Video CDs

Audio CDs

Discs that this system cannot play

• CD-ROMs (except for ext ension “.MP3” , “.JPG” or “.JPEG”)

• CD-Rs/CD-RWs other than those record ed in the following formats: – Music CD format – Video CD format – MP3 (MPEG 1 Audio Layer-3)/JPEG

format that conforms to ISO 9660* Level 1/Level 2 or Joliet

• Data part of CD-Extras

• Super Audio CDs

• DVD-RWs in VR (Video Recording) mode

• DVD-ROMs

• DVD-RAMs

• DVD Audio discs

• A DVD with a different region code.

continued

Page 6

• Progressive JPEG format file

• Discs with non-standard shapes (e.g., heart, square, star) ca nnot be played on this un it. Attempting to do so may damage the unit. Do not use such discs.

• A disc with paper or stickers on it.

• A disc that has the adhesive, cellophane tape, or a sticker still left on it.

* A logical format of files and folders on a CD-ROM

as defined by ISO (International Organization for Standardization).

Notes about CD-R/CD-RW/ DVD-R/DVD-RW (Video mode)/ DVD+R/DVD+RW

• In some cases, CD-Rs, CD-RWs, DVD-Rs, DVD-RWs (Video mode) (DVD-RWs created in video mode have the same for m at as a DVD VIDEO), DVD+R or DVD+RW cannot be played on t hi s s ystem depending upon the recording quality or physical condition of the disc, or the characteristics of the recording device. Further m ore, the disc will not play if it has n ot been correctly finalized. For more information, see the operating instructions for the recording device.

• A disc recorded i n packet write format cann ot be played.

Note on playback operations of DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally set by software producers. Since this system plays DVDs and Video CDs according to the disc contents the software producers designed, som e playback features may not be availa bl e. Also, refer to the instructions supplied with the DVDs or Video CDs.

Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protect io n technologies are mar keted by some record companies . Plea se be awar e that among those discs, there are some that do not conform to the CD standard and may not be playable by this prod uct.

Cautions when playing a disc that is recorded in Multi Session

• This system can play Multi Session CDs when an MP3 audio track is contained in the first session. Any su bsequent MP3 audio tracks recorded in later sessions can also be played back.

• This system can play Multi Session CDs when a JPEG image file is contained in the first session. Any s ubsequent JPEG image files recorded in later sessions can also be played back.

• If audio tracks and images in music CD format or video CD format are recorded in the first session, only the first se ss ion will be played back.

• CD-R and CD-RW discs recorded in multisession that have not ended by “closing the session” are not supported.

Copyrights

This product i nc orporates copy right protect i on technology that is protected by U.S. patents and other intellectu al property rights. Use of this copyright protect io n technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unles s otherwise author i zed by Macrovision. Reverse engineering or disassembly is prohibi t ed.

Page 7

Getting Started

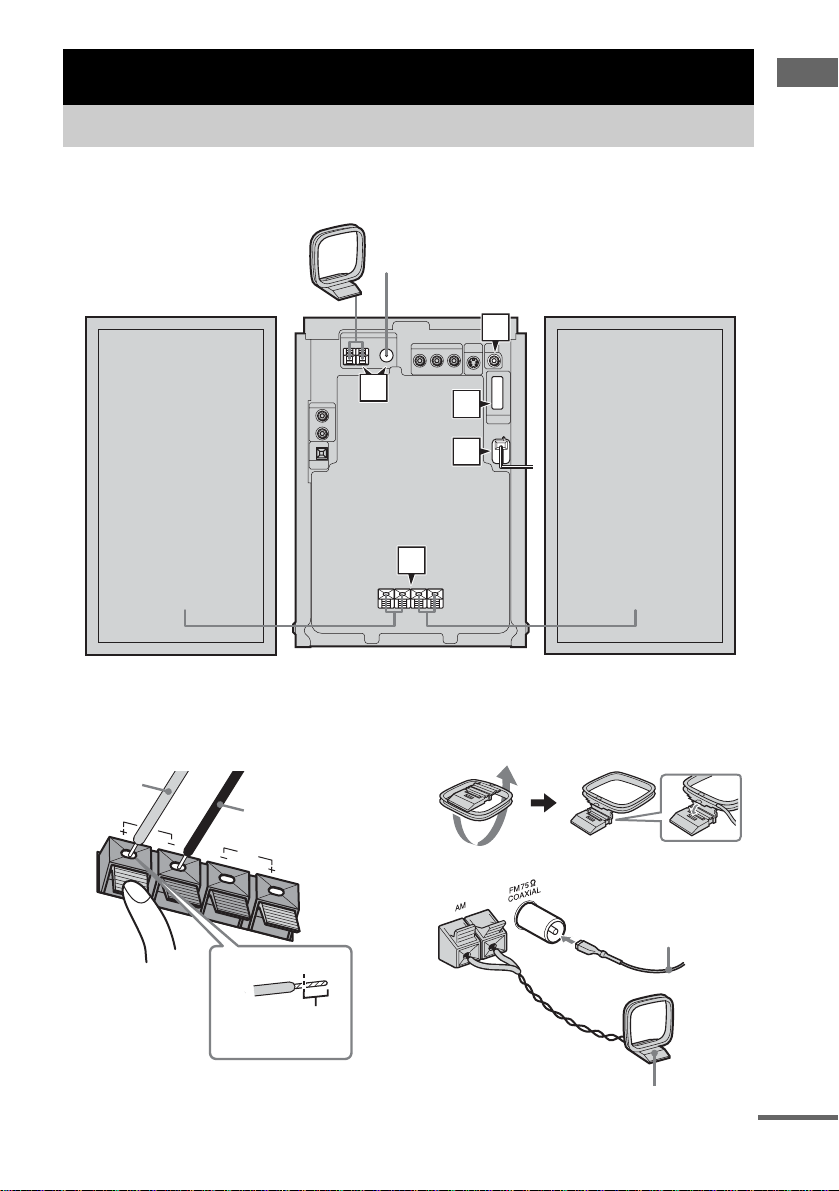

Hooking up the system

Perform the following procedures 1 to 4 to hook up your system using the supplied cords and accessories.

Getting Started

AM loop antenna

Right speaker

1 Connect the speakers.

Connect the right and left speaker cords to the SPEAKER terminals as shown below.

Solid (+)

IMPEDANCE USE 6-16Ω

Stripe (–)

FM lead antenna

Left speaker

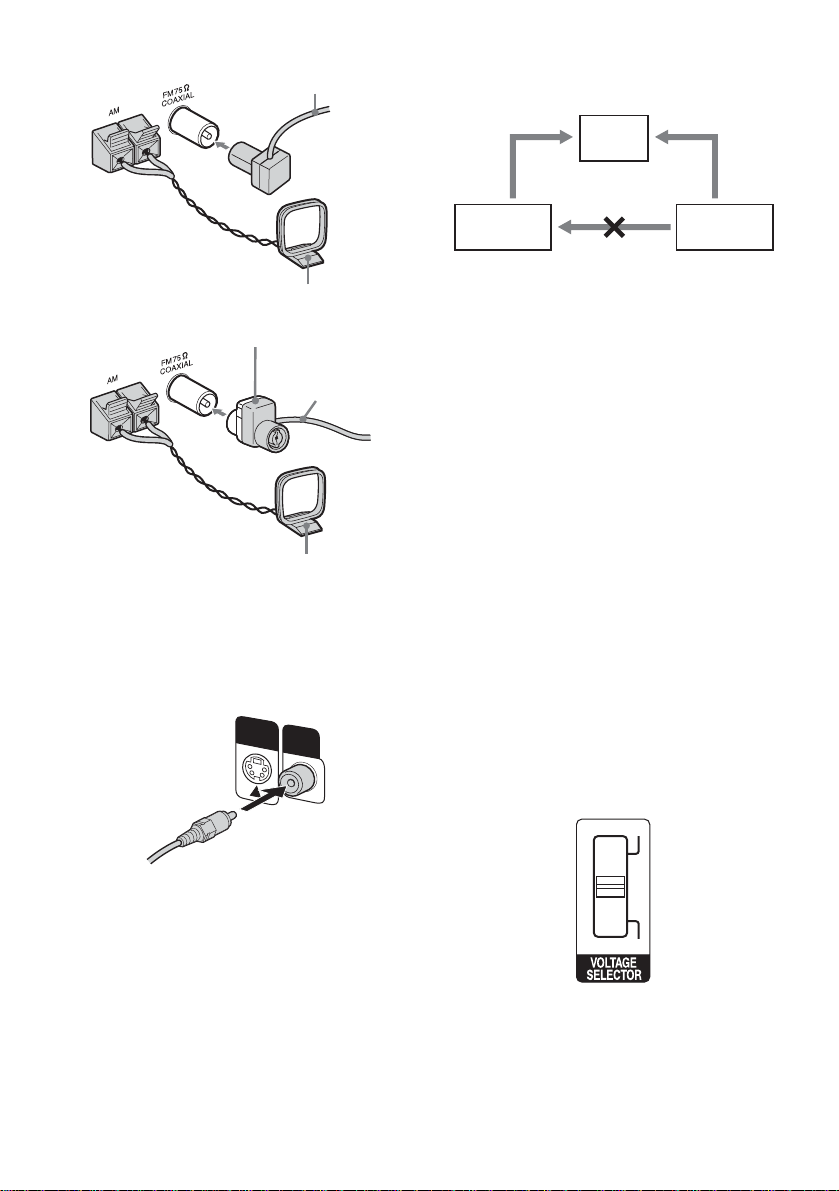

2 Connect the FM and AM antennas.

Set up the AM loop antenna, then connect it.

Plug type A

Insert this portion

Extend the FM lead antenna horizontally

AM loop antenna

continued

Page 8

Plug type B

Plug type C

Note

Extend the FM lead antenna horizontally

AM loop antenna

Connect using the brown side

Extend the FM lead antenna horizontally

AM loop antenna

To prevent noise pickup, keep the antennas away from the system and other components.

3 Connect the video input jack of your TV

to the VIDEO OUT jack with the supplied video cord.

S VIDEO

VIDEO

OUT

When connecting a video deck

Connect the TV and the video deck using video cord (not supplied) as shown below.

Video deck System

Do not connect

directly.

If you connect a video deck between this system and the TV, you may experience video leakage when watching the video signal f ro m this system. Do not connect a video deck between this system and the TV.

Note

Do not place the TV on this system.

Tip

For even higher quality video ima g e s: – Use an optional component video cord to connect the

COMPONENT VIDEO input jacks on your TV to the COMPONENT VIDEO OUT jacks of this system. If your TV is compatible with progr e ssi ve format file signals, use this connection and set “COMPONENT OUT” to “PROGRESSIVE” in “Adjusting the TV screen” (page 26).

– You can use an optional S video cord to connect the

S video input jack on your TV to the S VIDEO OUT jack.

4 For models with a voltage selector, set

VOLTAGE SELECTOR to the local power line voltage.

Refer to the print on your sys tem’s VOLTAGE SELECTOR for available settings.

*120V

220

When using a TV

Turn on the TV and select the video input so that you can view the pictures from this syste m.

230-240V

* Saudi Arabian model: 120 – 127 V

Page 9

5 Connect the power cord to a wall

outlet.

If the plug does not f it th e w all socket, detach the supplied plug adaptor (only for models equipped with an adaptor). To turn on the system, press ?/1.

6 Set the color system to PAL or NTSC

depending on the color system of your TV.

The color syst em is factor y set to NTSC f or region code 3 model s, and PAL for other region code models. Each time you per form the procedure belo w , t he color system changes as follows: NTSC y PAL

1 Press ?/1 to turn off the sy stem. 2 Press ?/1 on the unit while holding

down lm on the unit. The system turns on and the color system is changed.

Notes

• You c an not se t the color system in Power Saving Mode (page 43).

• Whe n pla ying back a Video CD recorded in a different color system from the one you set for this unit, the picture may appear distorted.

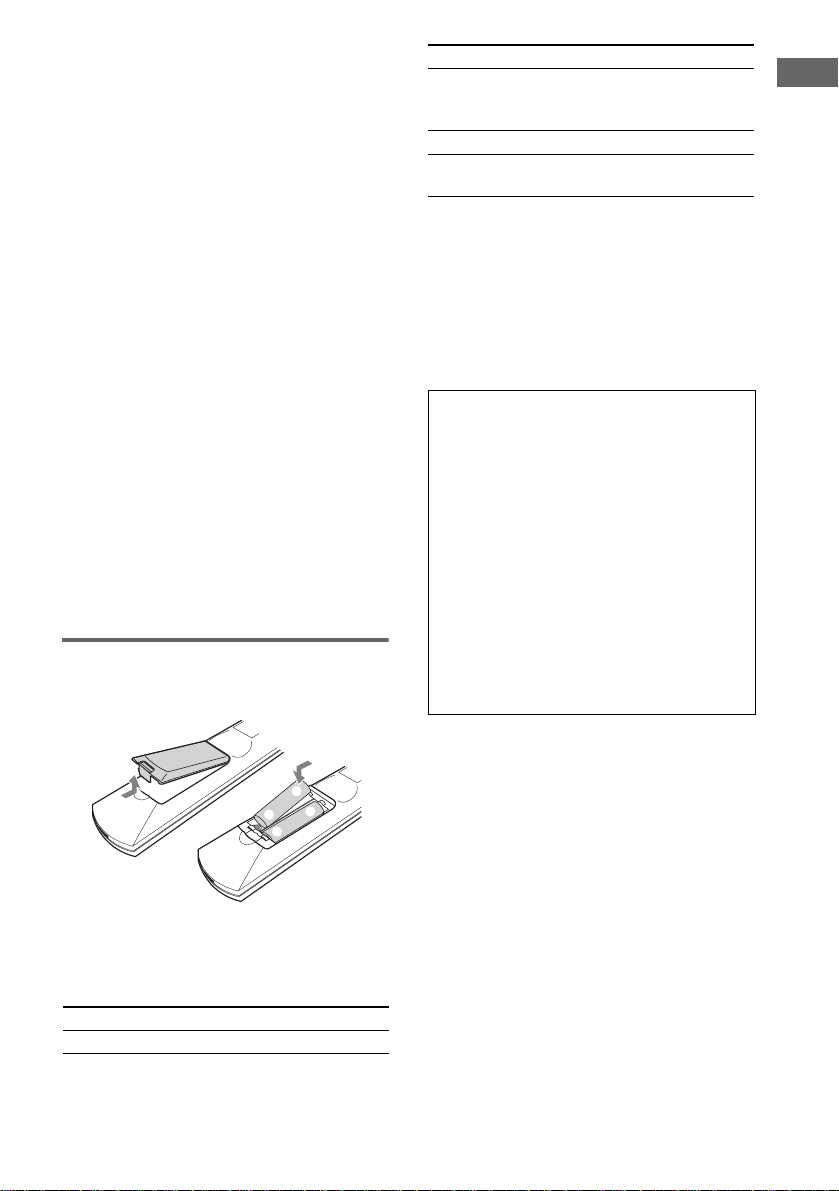

Inserting two R6 (size AA) batteries into the remote

To Press

Switch the TV’s input source between the TV and other input sources

Change the TV channels TV CH +/– Adjust the volume of the TV

speaker(s)

Note

If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage and corros io n .

Tip

With normal use, the batteries should last for about six months. When the remote no longer operates the system, replace both batterie s with new ones.

TV/VIDEO

TV VOL +/–

When carrying this system

Perform the follo w i ng procedure to protect the DVD mechanism.

1 Press ?/1 to turn on the unit, then switch

the function to DVD.

2 Check the following:

• All discs are removed from the system.

• The disc tray is closed.

3 While holding down EX-CHANGE, press

?/1.

Check that “PLEASE WAIT” then “LOCK” is displayed.

4 Unplug the power cord.

Getting Started

Operating a Sony TV

You can use th e followi ng button s on the rem ote to operate a Sony TV.

To Press

Turn the TV on or off TV ?/1

Page 10

Setting the clock Performing QUICK SETUP

Use buttons on the r emote for the operati on.

1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press M/m repeatedly to set the hour. 4 Press ENTER. 5 Press M/m repeatedly to set the

minute.

6 Press ENTER.

The clock starts working.

To adjust the clock

1 Press CLOCK/TIMER SET. 2 Press M/m until “CLOCK SET” appears,

then press ENTER.

3 Do the same procedures as step 3 to 6

above.

Notes

• The clock settings are canceled when you disconnect the power cord or if a power failure occurs.

• You cannot set the clock in Power Saving Mode (page 43).

You can set the initial settings of LANGUAGE SETUP and TV TYPE ste p by step. After performing the Quick Setup, th e system is ready for playing back of movies, music CDs, etc. The Asian model is used here for illustration purposes only.

1 Turn on your TV and select the video

input.

2 Press ?/1 to turn on the system. 3 Press FUNCTION +/– repeatedly until

“DVD” appears.

The guide message appears on the TV screen.

4 Press ENTER.

“LANGUAGE SETUP” appears.

LANGUAGE SETUP

ENGLISH CHINESE1 CHINESE2 OTHERS

The language you select in “LANGUAGE SETUP” applies to the “O SD”, “DVD MENU” and “SUBTITLE” language settings (page 23).

If you select “OTH ER St” in “LANGUAGE SETUP”, select and enter the language code fr om the language code list using the number buttons (page 59). The selected langu age code (4-digit) is displayed the next time you select “OTHERSt”. Yo u can select the language for the DVD menu (“DVD MENU”) and the language of the subtitle (“SUBTITLE”).

Page 11

5 Press M/m repeatedly to select a

language, then press ENTER.

The setting is selected and “TV TYPE” appears.

TV TYPE

4 : 316 : 9

6 Press </, repeatedly to select a TV

type connecting to the system, then press ENTER.

“QUICK SETUP” is complete.

If you make a mistake

Press O RETURN, then select the item again.

To quit QUICK SETUP

Press DVD SETUP.

To change settings of QUICK SETUP

1 Press DVD SETUP in stop mode.

The Setup Display appears.

2 Press M/m repeatedly to select “SET UP”,

then press ENTER.

3 Press M/m repeatedly to select “QUICK”,

then press ENTER.

“LANGUAGE SETUP” appears.

4 Change each setting by repeating step 5 to

6 in “Performing QUICK SETUP” above.

Notes

• Only when you turn on the system for the first time, or after performing “RESET” (page 54), the guide message app ears.

• Whe n you se le c t “4 :3” in “TV TYPE”, “4: 3 LETTER BOX” is selected (page 25).

• When a disc is loaded in the system or the disc tray is open, the guide message does not appear on the TV screen. To perform QUICK SETUP, press Z to remove the disc, press ?/1 to turn the system off , then press ?/1 again to turn the system on.

• If you want to change each setting, see “DVD – Various functions” on page 2 2.

Getting Started

Page 12

DVD/Video CD/CD/MP3/JPEG – Play

Loading a disc

Use buttons on the unit for the operation.

1 Press Z. 2 Insert discs with the label side facing

forward.

Check that the lever on the left side of th e respective slot raises.

When you play a disc, insert it with the label side forward.

To remove discs

1 Press Z. 2 Hold down the lever on the left side of

the respective slot to elevate the disc, then lift it out with your other hand.

DISC 1 – 5 slot

(for 12 cm d is c on ly )

DISC 1 DISC 2 DISC 3 DISC 4 DISC 5

DISC +1 slot

(for 8 cm di sc only)

To load an 8 cm disc, in sert only DISC +1 slot. You c annot st ore an 8 cm disc in a ny of DISC 1 – 5 slot.

Place the disc so that it is flush with the gray side of the slot, then insert it vertically.

3 Press Z.

To exchange discs during playback

1 Press EX-CHANGE during playback. 2 Remove and insert discs in any slot

except that of the currently playing disc.

Notes

• Do not pla ce an ything (such as the remote or cords) in front of the disc tray. When opening the disc tray, it may catch and cause malfunct ion.

• You cannot store 8 cm discs in the DISC 1 – 5 slots. For instructions on how to remove these discs, see page 52.

• Do not use a disc with tape, seals or paste on it as this may cause malfunction.

• Do not use a non-standard shape disc.

• Do not load an 8 cm disc with an adaptor. Doing so may cause the system to malfunction.

• When you eject a disc, handle the disc by its edge. Do not touch the surface.

• When using the EX-CHANGE function, be sure that you do not insert a disc in the slot of the current playing disc. If you do, “CHECK” and the respective disc number will be displayed a lte r na te ly. This may cause malfunction.

Page 13

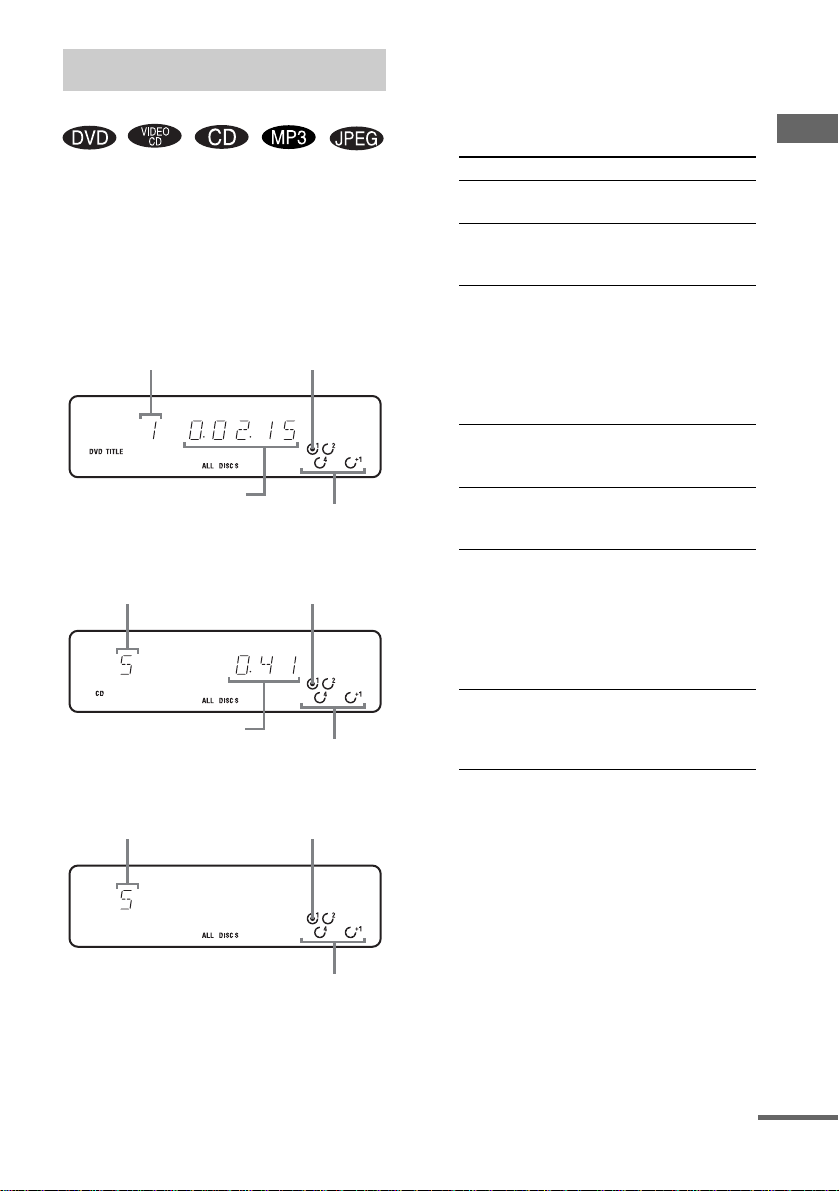

Playing a disc

— Normal Play/Shuffle Play

Before playing a DVD, Video CD or JPEG, turn on your TV and select th e vi deo input. Depending on the DVD or Video CD, some operations ma y be different or re st ricted. Refer to the operating instructions supplied with the disc.

Example: When a DVD disc is load ed

Title or chapter number

Playing time

Example: When a CD disc is loaded

Track number

Playing time

Example: When a JPEG disc is lo aded

File number

Current disc

Loaded discs

Current disc

Loaded discs

Current disc

Loaded discs

1 Press FUNCTION +/– repeatedly until

“DVD” appears.

2 Press PLAY MODE in stop mode

repeatedly until the mode you want appears in the display.

Select To play

ALL DISCS (Normal Play)

1 DISC (Normal Play)

ALBM (Normal Play)

ALL DISCS SHUF (Shuffle Play)*

1 DISC SHUF (Shuffle Play)*

ALBM SHUF (Shuffle Play)*

PGM (Program Play)*

*You cannot use Shuffle Pla y and Progr a m Pla y

when playing DVDs or JPEG image files.

All discs in the system continuously.

The tracks on the disc you have selected in original order.

All MP3 audio tracks or JPEG image files in the album on the disc you have selected in original order .

When playing a non-MP3/ JPEG disc, Album Play becomes 1 DISC Play.

The tracks on all discs in random order.

The tracks on the disc you have selected in random order.

The MP3 audio tracks in the album on the disc you have selected in random order.

When playing a non-MP3 disc, Album Shuffle Play becomes 1 DISC SHUF Play.

The tracks on all disc s i n th e order you want them to be played (see “Creat in g y o ur own program” on page 17).

3 Press nN (or DVD/NX on the unit).

Notes

• You cannot change the play mode during playback.

• “ALBM” or “ALBM SHUF” appears even if you have selected a non-MP3/JPEG disc or MP3/JPEG disc with no albums. In this case, Alb u m Pl ay or Album Shuffle Play performs the same ope rati on a s 1DISC play or 1DISC SHUF Play, respectively.

DVD/Video CD/CD/MP3/JPEG – Play

continued

Page 14

Tips

• When the DVD function is selected when you load a DVD, the disc playbacks automatically.

• You can change the play mode between 1DISC , ALL DISCS and ALBM using the on-screen displa y as follows:

1 Press DVD DISPLAY in stop mode.

The Control Menu appears.

2 Press M/m to select “PLAY MODE”, then press

ENTER.

3 Press M/m to select desired play mode, then press

ENTER.

Other operations

To Do this

Stop play Press x. Pause

(Except for JPEG)

Select a track, image or chapter

Select an MP3 or JPEG album

Locate a point quickly in fast forward or fast

reverse (Lock Search) (Except for MP3/ JPEG)

Watch frame by

frame (Slow-motion Play) (DVD, Video CD only)

Enjoy the Slide Show (Only one direction) (JPEG only)

Press X.

Press again to resume

play.

Press ./> repeat edly either during playback or while play back is paused.

Press ALBUM +/– repeatedly after step 2.

Press m/M during play. For DVD or Video CD, each time you press the button, searching speed changes as follows:

1 (slow) y 2 (faster than 1) For CD, searching speed does not

change (1 (slow) play). To return to Normal Play, press nN.

Press X during play, then press SLOW or y. Each time you press the button, the playback speed changes as follows: Playback direction 2 y y 1 y Opposite direction (DVD only) 2 y 1 To return to Normal Play, press nN.

Press M while a JPEG image is displayed. Each time you press M during a Slide Show, the interval time of the Slide Show changes. Press nN when you want to return to Normal Play.

To Do this

Rotate the current image (JPEG only)

Press </,. Each time you

press ,, the image is rotated by 90° clockwise. Each time you press <, the image is rotated by 90° counterclockwise.

Select a disc in stop mode

Press DISC SKIP repeatedly (or any one of the buttons (DISC 1 – 5 and DISC +1 on the unit)).

Switch to DVD function from another source

Press any one of the buttons (DISC 1 – 5 and DISC +1 on the unit) (Automatic Source Selection).

Exchange discs

Press EX-CHANGE on the unit.

during playback Remove a disc Press Z on the unit.

1)There may be some disturbance in the vide o im age.

2)No sound is output.

3)You cannot rotate the image during Slide Show. Press nN to return to Normal Play before performing this operation.

Notes

• If DVD playback is paused for approximately one

hour, the system automatically turns off.

• Depending on the DVD or Video CD, some

operations may be restricte d.

• 2 cha nne l sound is heard when using headphones.

• An album that does not include any MP3 audio tracks

or JPEG image files is skipped.

• M aximum album number: 99

• The maximum number of MP3 audio tracks or JPEG

image files that can be contained on a single album is

250.

• P la yba c k is possible up to 8 levels.

• If you attach the “.MP3” extension to data not saved

in MP3 format, the system is unable to recognize the data and generates a loud noise which could damage your speaker system.

• Whe n pla ying the data disc (CD-ROM/CD-R/CD-

RW) contained MP3 audio tracks and JPEG image files, select “CUSTOM SETUP” from the setup items, then set “DATA CD PRIORITY” (page 24).

• The f ollowing discs take a longer time to sta r t

playback: – A disc recorded with complicated tree structure – A disc recorded in Mult i Se ssion – A disc to which data can be added (non-finalized

disc)

Page 15

Tip

When disc access takes a long time, set “DVD POWER” and “ON” using the DVD power manage function (page 33).

Resuming playback from the point you stopped the disc

— Resume Play (Except for JPEG image

files)

This system memorizes the point where you stopped the disc so y ou can resume from t hat point. Resume Play is not canceled when you turn off th e system.

1 While playing a disc, press x to stop

playback.

“RESUME” appears in the display. If “RESUME” does not appe ar, Resume P lay is n ot available.

2 Press nN.

The player starts playba ck from the point you stopped the disc in step 1.

Notes

• You c an not pe r f orm Resume Play during Shuffle Play or Program Play.

• De pe nding on where you stopped the disc, the system may resume playback fr om a dif fer e nt point.

• Resume play is canceled when: – You press x or DISC SKIP in stop mode. – You open the disc tray. – You change the play mo de. – You change the settings using the DVD SETUP

button.

Playing a track by entering the track number (on the remote only)

Press the number button(s) to enter the track number of the track you want to play. (To enter the MP3 audio track number, press ALBM +/ – repeatedly to select the desired album before entering the number.)

To enter a track number over 10

1 Enter the corresponding digits.

To enter 0, press 10/0.

2 Press ENTER.

Example:

To play track number 30, press 3 and 10/0, the n press ENTER.

To play MP3 track number 100, press 1 and 10/0 twice, then press ENTER.

Playing DVDs using the menu

DVD/Video CD/CD/MP3/JPEG – Play

Some DVDs have m enus to help you enjoy th e DVDs. You can play DVDs using these menus on the TV screen.

• Using the DVD top menu

A DVD is divided into long sections of a picture or a music feature called “titles”. When you play a DVD which contains several titles, you can select the title you want using the menu.

• Using the DVD menu

Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select items such as the language for the subtitles and the language for th e sound using the DVD menu.

1 Press DVD TOP MENU or DVD MENU.

The menu appears o n th e TV screen. The contents of the menu vary from disc to disc.

2 Press M/m/</, or the num be r

buttons to select the title or item you want to play.

3 Press ENTER.

Note

If the DVD top menu or a DVD menu is displayed during DVD playback for approximately one hour, the system automatica ll y turns off.

Page 16

Playing Video CDs with

Playing repeatedly

PBC functions (Ver. 2.0)

— PBC Play

You can use PBC* menus on your TV screen to enjoy the disc’s interactive software. The menu format and struct ure may differ dependi ng on each disc.

* PBC: Playback Control

1 Press nN to start playi ng a Video CD

with the PBC function (Ver. 2.0).

The PBC menu appea rs on t he TV screen.

2 Press M/m or the number buttons to

select the item number you want.

3 Press ENTER. 4 Continue playback according to the

instructions on the menus to enjoy interactive playback.

Refer to the operating instructio ns supplied with the disc, as the operating procedure may differ accordi ng to the Video CD.

To go back to a previous menu

Press O RETURN.

Notes

• De pe nding on the Video CD, the menu does not appear in step 1.

• Depending on the Video CD, “Press ENTER” in step 3 may appear as “Press nN” in the operating instruction s supplie d with the d isc. In th is case, pres s nN.

Tip

You can cancel playback with the PBC function.

1 In stop mode, press ./>, or the numbe r

buttons to select a track.

2 Press nN.

“Play without PBC” appears on the TV screen and playback starts fr om the select ed track. Still images , such as the menu screens, will not be shown .

To return to PBC playback, press x twice, then press

nN.

— Repeat Play

You can play all the titl es/tra cks/fi les or a sin gle title/chapter/track on a disc repeatedly.

Using the front panel display

Press REPEAT during play until “REP” or “REP 1” appears.

REP: For all the tracks/files1) on the disc(s)2) up to five times. REP 1: For a single title3)/chapter3)/track only.

During Slide Show only

When “ALBM” is selected for MP3 or JPEG, all t he tracks/files in the album are repeated.

When playing DVDs, you can check whether a title/ chapter is being repeatedly played on the TV screen.

To cancel Repeat Play

Press REPEAT repeatedly until both “REP” and “REP 1” disappear.

Notes

• Depending on the DVD, you cannot perform Repeat Play.

• You cannot perform Repeat Play during PBC playback of Video CDs (page 16).

• You cannot select “REP 1” during Program Play or while a JPEG image is displayed.

• Whe n you se lect “REP 1”, that title/chapter/track is repeated endlessly until “REP 1” is canceled.

• You cannot select “REP” and “ALL DISCS SHUF” at the same time.

Using the on-screen display

1 Press DVD DISPLAY during play.

The Control Menu appears.

2 Press M/m repeatedly to select

“REPEAT”, then press ENTER.

If you do not select “OFF”, the “REPEAT” indicator lights up in green.

3 Press M/m repeatedly to select the

Repeat Play setting.

The default setting ar e underlined.

Page 17

x When playing a DVD

•OFF: does not play repeatedly.

• ALL*: repeats all the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

x When playing a Video CD/CD/MP3

when Program Play is set to OFF

•OFF: does not play repeatedly.

• ALL*: repeats all the tracks on a disc, or all the tracks in the current album**.

• TRACK: repeats the current track.

xWhen playing a JPEG

•OFF: does not play repeatedly.

• ALL: repeats all the files on the disc, or repeats the current album**.

x When Program Play is set to ON

•OFF: does not play repeatedly.

• ALL: repeats Program Play.

4 Press ENTER.

Repeat Play start s.

* When “SHUFFLE (ALL)” is selected, if you select

“TITLE”, “CHAPTER ” o r “TRACK” i n Repeat Play, “ALL” does not appear.

**When “CONTINUE (ALBUM)” is selected for

MP3 or JPEG, or “SHUFFLE (ALBUM)” is selected for MP3.

To cancel Repeat Play

Select “OFF” in step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disa ppears.

Notes

• Depending on the DVD, you cannot perform Repeat Play.

• You c an not pe rf or m Repe a t Pla y dur ing PBC playback of Video CDs (page 16).

• If you select “ ALL” , the progr a m repe ats up to f ive times.

Tips

• You can set Repeat Play when the playback is stopped. Press REPEAT repeated ly to se le c t the setting, then press nN to start Repeat Play.

• You can quickly display the “REPEAT” status. Press REPEAT.

Creating your own program

—Program Play

You can make a pr ogra m of up to 2 5 step s f ro m all the discs in the or der you want to play them. You can sync hro record t he programmed t racks onto a cassette tape (page 36).

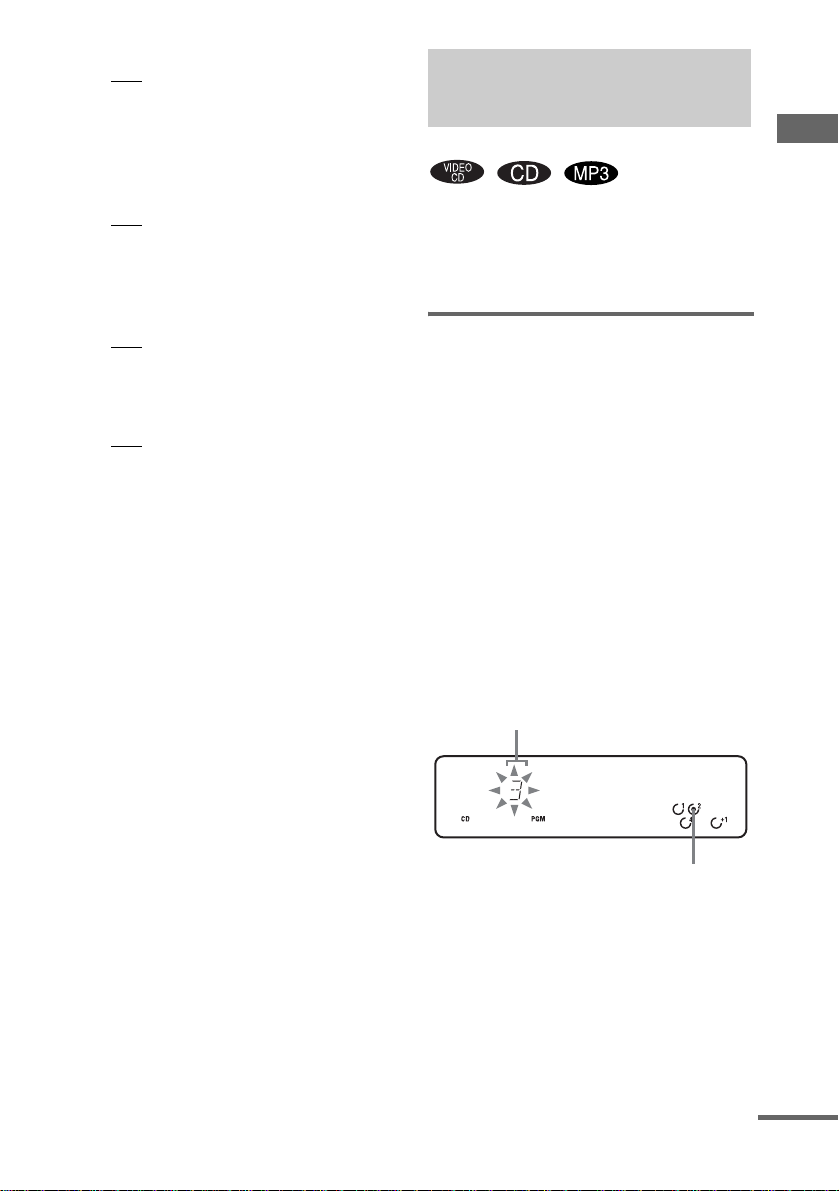

Using the front panel display

1 Press FUNCTION +/– repeatedly until

“DVD” appears.

2 Press PLAY MODE in stop mode

repeatedly until “PGM” appears.

3 Press DISC SKIP repeatedly (or press

one of the disc buttons (DISC 1 – 5 and DISC +1) on the unit) to select a disc.

To program all the tracks o n a disc at once, proceed to step 5 wi th “A L” displayed.

4 Press ./> repeatedly until the

desired track number appears.

When programming an MP3, press ALBUM +/– to select an album, then press ./> repeatedly until the desired track number appears.

Selected track number

Current disc

DVD/Video CD/CD/MP3/JPEG – Play

continued

Page 18

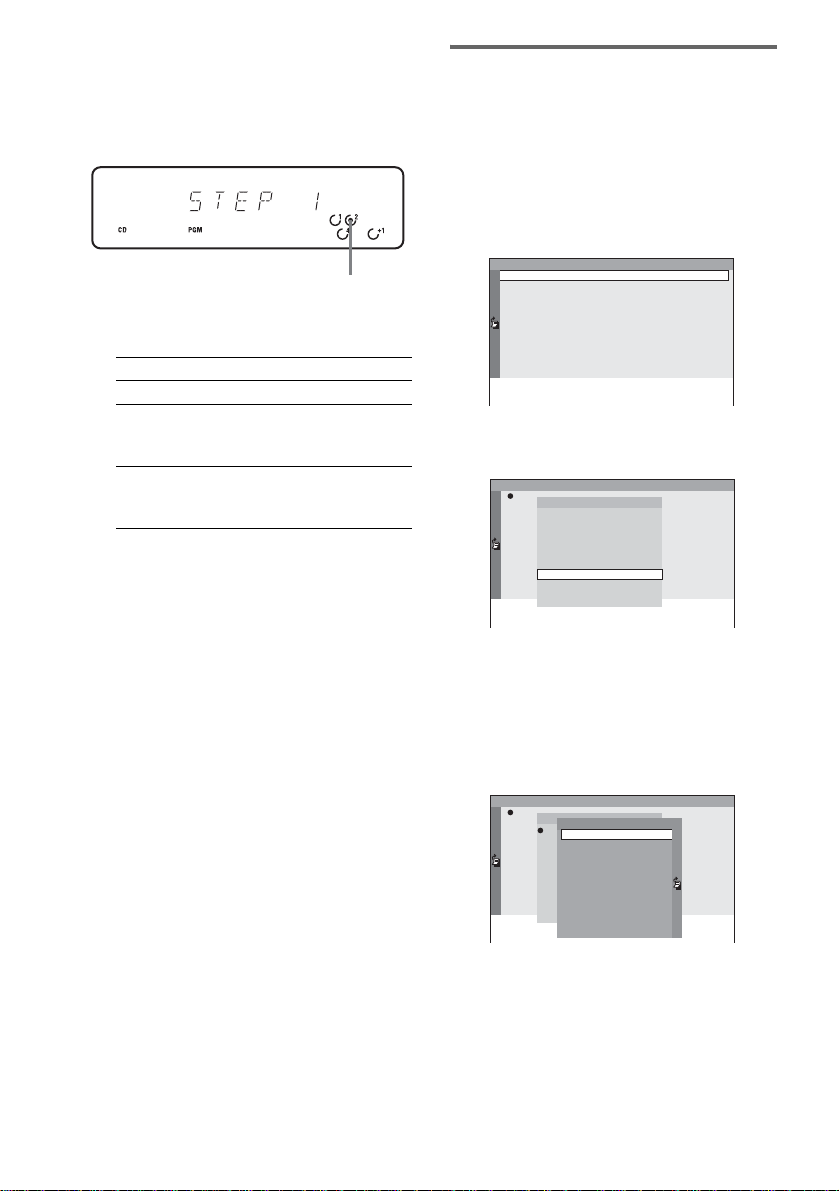

5 Press ENTER.

The disc, album or track i s p rogrammed. The program step number appears. “AL”, the album nu m ber or the track

number appears.

Current disc

6 Program additional discs, albums or

tracks.

To program Repeat steps

Other discs 3 and 5 Other tracks or

4 and 5 albums on the same disc

Other tracks or

3 to 5 albums on other discs

7 Press nN (or DVD/NX on the unit).

Program Play starts .

To clear a programmed step from the end of a program

Press CLEAR in step 6.

Note

When you switch the play mode to “PGM” while “REP 1” is selected, “REP 1” is automatically canceled.

Tip

The program you made remains after Progr a m P la y finishes. To play the same program ag ai n, pre ss FUNCTION +/– repeatedly to switch the function to DVD, then press

nN.

Using the on-screen display

1 Press FUNCTION +/– repeatedly to

switch the function to DVD.

2 Press PLAY MODE repeatedly in stop

mode until “PGM” appears in the display.

The Program Display appears on the TV screen.

Program

1 2 3 4 5 6 7 8 9

3 Press ,.

The disc list appears.

Program

Disc

DISC 1 (CD)

DISC 2 (MP3)

DISC 3

DISC 4 (– – – – –)

6 7

DISC 5

DISC+1(CD)

4 Press M/m repeatedly to select a disc.

To program all the tracks on a disc at once, press ENTER after selecting the desired disc, then procee d to st ep 7.

5 Press ,.

The album or track list appears.

Program

Disc

Track

DISC 1 (CD)

ALL TRACKS

DISC 2 (– – – – –)

4 5 6 7 8 9

When the list of all tracks cannot be displayed on the window, the jump bar appears. Press icon, and then scroll the jump bar to d isplay the rest of the list u sing M/m. Press < or O RETURN to return to the track list.

TRACK1

DISC 3 (MP3)

TRACK2

2 3

TRACK3

TRACK4

TRACK5

TRACK6

TRACK7

TRACK8 TRACK9

, to select the jump bar

Page 19

6 Select the album or track you want to

program. x When programming a Video CD or

For example, select track “6”.

M/m or the number butt ons to select

Press “6”, then press ENTER.

Program

DISC 1 (CD) – TRACK 6

1 2 3 4 5 6 7 8 9

To program all the tracks on a disc, press

M/m to select “ALL TRACKS”, then press

ENTER.

x When programming an MP3

For example, select track “3” of album “2”. Press

M/m to select “2”, then press ,.

To program all the tracks of an alb um, press

M/m to select “ALL TRACKS”, then press

ENTER.

Program

Disc

Track

DISC 1 (CD)

ALL TRACKS

DISC 2 (– – – – –)

4 5 6 7 8 9

Next, press M/m or the number buttons to select “3”, then press ENTER.

Program

DISC 3 (MP3) – ALBUM2 – TRACK3

1 2 3 4 5 6 7 8 9

DISC 3 (MP3)

2 3 4 5 6 7 8 9

TRACK1 TRACK2 TRACK3 TRACK4 TRACK5 TRACK6 TRACK7 TRACK8 TRACK9

8 Press nN.

Program Play star ts .

Other operations

To Do this

Cancel Program Play Press PLAY MODE

Turn off t h e Program Display

Check the program When the list of all

Clear a prog r ammed step from the end of program

Notes

• The Program Play function is not available for DVD and JPEG.

• When you switch the play mode to “PGM” while “REP 1” is selected, “REP 1” is automatically canceled.

Tip

The program you made remains after Program Play finishes. To play the same progra m a gai n, press FUNCTION +/– repeatedly to switch the function to DVD, then press

repeatedly in stop mode until “PGM” disappear.

Press PLAY MODE in stop mode.

programmed steps cannot be displayed on the window, press the jump bar icon, and then scroll the jump bar to display the rest of the list using

M/m. Press , or

O RETURN to return to the programmed step list.

Press CLEAR in step 7.

nN.

< to select

DVD/Video CD/CD/MP3/JPEG – Play

To program all the al bum s on a disc, press

M/m to select “ALL ALBUMS”, then press

ENTER.

7 To program other discs, albums or

tracks, repeat steps 3 to 6.

Page 20

Using the on-screen display to search

You can search for a title (DVD), chapter (DVD), track (CD, Video CD, MP3), index (Video CD), al bum (MP3, JPE G ) and file (JPEG). As titles, tracks, albums and files are assigned unique n um bers on the disc, you c an select the desired one fr om the Control Menu. Also chapters and indexes are ass i gned unique numbers on the di sc, so you can select the desired one by ent eri ng its nu mbe r. Or , you ca n search for a particular point using th e time code (Time Search).

Searching for a title/track/ album/file

1 Press DVD DISPLAY.

The Control Men u appears.

2 Press M/m repeatedly to select the

search method. x When playing a DVD

“TITLE”

x When playing a Video CD wi thout the

PBC function

“TRACK”

x When playing a CD

“TRACK”

x When playing an MP3

“ALBUM” or “TRACK”

x When playing a JPEG

“ALBUM” or “FILE”

3 Press ENTER.

The list of contents in th e disc appears.

1:CD

HIGHWAY1. VIEW POINT

2. MY CHILDREN

3. DANCING

4. GOOD TASTE

5. DESTINATION

6. MARATHON

7. PLACE-KICK

8. TAKE IT EASY

9. PORT TOWER

10. STANDARD

11. LADY

12.

When the list of all tracks or albums cannot be displaye d on the window, the ju mp bar appears. Press , to select the jump bar icon, and then scroll the jump bar to d isplay the rest of the list u sing M/m. Press < or O RETURN to return to the track or the album list.

4 Press M/m repeatedly to select the

desired title, track, album or file, then press ENTER.

Playback starts from the selected track, et c.

Searching for a chapter/index

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press M/m repeatedly to select the

search method. x When playing a DVD

“CHAPTER”

x When playing a Vi deo CD without the

PBC function

“INDEX” “** (**)” is selected (** refe rs to a number). The number in parentheses indicates the

total number of chapters or indexes.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD

Page 21

3 Press ENTER.

“** (**)” changes to “– – (**)”.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

– – ( 3 4 T

1 : 3 2 : 5 5

DVD

4 Press M/m repeatedly, or press the

number buttons to select the chapter or index number you want to search.

If you make a mista ke, press CLEAR to cancel the number, then select another number.

5 Press ENTER.

The playback starts from the selected number.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disa ppears.

To cancel searching

Press O RETURN.

To search for a particular point using the time code

— Time Search

Notes

• The title, chapter or track number displayed on the TV screen is recorded data on the dis c.

• You cannot search a scene of a Video CD.

• When playing a Video CD with the PBC function, the index search function does not work.

• The time search function does not work on a Video CD (when the PBC function is on).

• If you play a DVD, input the playing time of the current title using the time code . If you pla y a CD , Video CD or MP3, input the playing time of the current track using the time code.

Tip

You can change the display to show pla ying time or remaining time. For details, see “Viewing information about the disc in the on-screen displ ay ” on pa ge 45.

DVD/Video CD/CD/MP3/JPEG – Play

For example, search for the playing time of the current title on a DVD.

1 In step 2, select “TIME”.

“T

**:**:**” (playing time of the current title)

is selected.

2 Press ENTER.

– –:– –:– –” appears above “T **:**:**”.

“T

3 Input the time code using the number

buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, enter “2:10:20”.

Page 22

DVD – Various functions

Changing the sound/ subtitle/language

Notes

• For discs not recorded in multiple audio format, you cannot change the sound.

• During DVD playback, the sound may change automatically.

Tip

You can select the audio setting by pressing AUDIO. Each time you press the button, the se tting changes.

Changing the sound (DVD only)

If a DVD is recorded with multilingual tracks, you can select the lan guage you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio or DTS), you can select the audio format you want while playing the DVD.

1 Press DVD DISPLAY during play.

The Control Men u appears.

2 Press M/m repeatedly to select

“AUDIO”, then press ENTER.

The options for “AUDIO” appear.

3 Press M/m repeatedly to select the

audio signal you want.

Depending on the DVD, the choice of the language and au dio format varies . When a 4-digit code is displayed, it represents the language code (see “Language code list” on page 59). When the same language is displayed twice or more times, the DVD is recorded in multiple audio formats.

4 Press ENTER.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disappears.

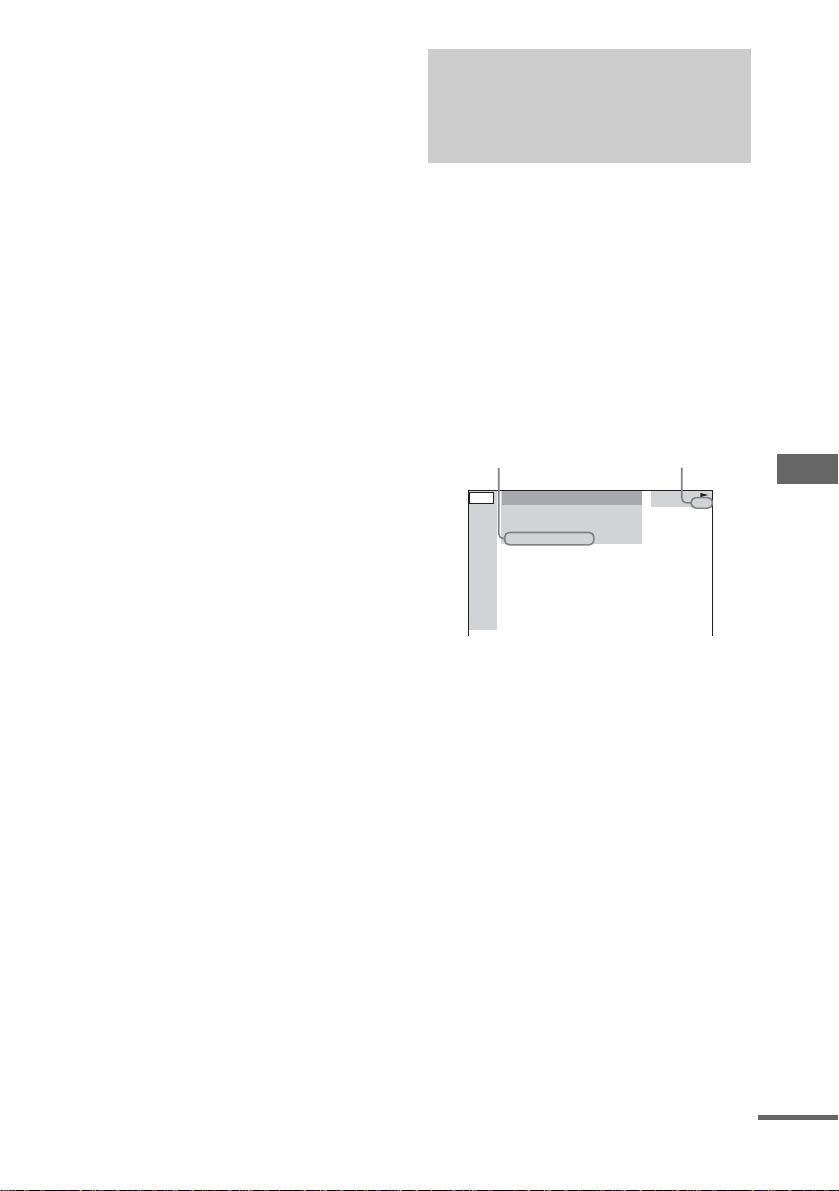

Displaying the audio information of the disc (DVD only)

When you select “AUDIO”, the channels being played are displayed on the TV screen. For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of recorded channels may differ.

Current audio format*

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ENGLISH

PROGRAM FORMAT DOLBY DIGITAL 3/2.1

* “PCM”, “DTS” or “DOLBY DIGITAL” is

displayed. For “DOLBY DIGITAL”, the channels in the playing track are displayed numerically as follows: For Dolby Digital 5.1 ch:

Surround component 2

DOLBY DIGITAL

Front component 2 + Center component 1

3 / 2 . 1

LFE (Low Fr equency Effect) component 1

DVD

Page 23

The display examples are as follows:

• PCM (stereo)

PROGRAM FORMAT PCM 48kHz 24bit

• Dolby Surround

PROGRAM FORMAT DOLBY DIGITAL 2/0 DOLBY SURROUND

• Dolby Digital 5. 1 ch

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

•DTS

PROGRAM FORMAT DTS 3/2.1

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disappears.

Note

Depending on the DVD, you may not be able to change the subtitles ev en if mult ili ngual su btit les a re recorded on the DVD.

Tip

You can select the subtitle languag e by pre ssing SUBTITLE. Each time you press the button, the language changes.

Changing the screen display language, DVD menu language and audio track auto selection mode

— LANGUAGE SETUP/CUSTOM

SETUP

DVD – Various functions

Displaying the subtitles (DVD only)

With DVDs on which multilingual subtitles are recorded, you can change the subtitle la nguage while playing a DVD, or turn the subtit les o n or off whenever you w ant. For example, you can select the language yo u want to master and turn the subtitles on for better understanding.

1 Press DVD DISPLAY during play.

The Control Menu ap pears.

2 Press M/m repeatedly to select

“SUBTITLE”, then press ENTER.

The options for “SUBTITLE” appear .

3 Press M/m repeatedly to select the

language you want, then press ENTER.

The subtitles are displayed in the selected language.

When a 4-digit code is di splayed, it represents the language code (see “Language code list” on page 59).

To cancel the SUBTITLE setting

Select “OFF” in step 3.

1 Press DVD SETUP in stop mode.

The Setup Display appears.

2 Press M/m repeatedly to select

“LANGUAGE SETUP” or “CUSTOM SETUP”, then press ENTER.

Select Setup item

LANGUAGE SETUP OSD

DVD MENU AUDIO SUBTITLE

CUSTOM SETUP TRACK SELECTION

AUDIO DRC DATA CD PRIORITY JPEG DATE

3 Press M/m repeatedly to select an item,

then press ENTER.

4 Press M/m repeatedly to select a

setting, then press ENTER.

Note

When the selected language is not recorded on the DVD, one of the recorded languages is automatically selected (except for “OSD”).

continued

Page 24

Tips

• You can reset all the DVD settings except for Parental Control by perfor ming the operations described under “To return the DVD setup to the default settings*, perform reset as follows:” (page 54).

• If you se le c t “OT HERS t” in “DVD MENU”, “AUDIO” or “SUBTITLE”, select and enter the language code from the language code list using the number buttons (page 59). The selected language code (4-digit) is displaye d the ne xt time you select “OTHERSt”.

* Except for Parental Control settings

x OSD (on-screen display)

Switches the display language on the TV screen. Select the language from the displayed list.

x DVD MENU (DVD only)

Switches the lang ua ge of the DVD menu. Select the language from the displayed list.

x AUDIO (DVD only)

Switches the language of the sound track. Select the language from the displayed list.

x SUBTITLE (DVD only)

Switches the language of the subtitle. Select the language from the displayed list.

x TRACK SELECTION (DVD only)

Gives the priority to the sound track which contains the highest number of channels when you play a DVD on which multiple audio formats (PCM, MPEG audio, DTS or Dolby Digital format) are recorded. The default setting is underlined.

OFF No priori ty given. AUTO Priority given.

Notes

• When you set to “AUTO”, the language setting may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” setting in “LANGUAGE SETUP”.

• If PCM, MPEG audio, DTS and Dolby Digital sound tracks have the same number of channels, the sys tem selects PCM, DTS, Dolby Digital and MPEG audio sound tracks in this order.

• Depending on the DVD, a priority audio channel may be predetermined. In this case, you cannot give priority to th e D TS, Dolby Digita l o r MPEG audio format by selecting “AUTO”.

x AUDIO DRC (Dynamic Range Compression)

Narrows the dynam ic range of the soundtrack. Useful for watching movies at low volume late at night. The default setting is underlined.

OFF No compression of dynamic

STANDARD

MAX Narrows the dynamic range fully .

Note

AUDIO DRC only works when playing Dolby Digital sources.

range. Reproduces the sound track with

the kind of dynamic range that the recording engineer intended .

x DATA CD PRIORITY (MP3, JPEG only)

Set priority data you want to play, when you play the data disc (CD-ROM/CD-R/CD-RW) contained MP3 audio tracks and JPEG image files. The default setting is underlined.

MP3

JPEG If a JPEG file exists on the disc,

If an MP3 file exists on the disc, the system recognise s the d is c as an “MP3 Disc”. If only JPEG fi les exist on the disc, the syst em recognises the disc as a “JPEG Disc”.

the system recognises the disc as a “JPEG Disc”. If only MP3 files exist on the disc, the syst em recognises the disc as an “MP3 Disc”.

x JPEG DATE

Change the date infor m at ion order of a JPEG image in the Control Menu as: The default setting is underlined.

MM/DD/YYYY YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

YYYY: Year MM: Month DD: Day

Page 25

Adjusting the angle/image

Changing the angles (DVD only)

When playing a DVD on which various angles (multi-angles) for a scene are recorded, the “ANGLE” indicator lights up in green on the TV screen. This means that you can change the viewing angle. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted.

1 Press DVD DISPLAY during play.

The Control Menu ap pears.

2 Press M/m repeatedly to select

“ANGLE”.

The angle number appears. The number in parentheses indicates the total numbe r of angles. The “ANGLE” indicator lights up in green when angles are recorded on the disc.

3 Press ENTER.

The angle number changes to “–”.

4 Press the number buttons or M/m to

select the angle you want, then press ENTER.

The angle is changed to the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disa ppears.

Note

Depending on the DVD, you may not be able to change the angles even if multi-angles are reco r d e d on the DVD.

Tip

You can select the angle by pressing ANGLE. Each time you press the button, the angle changes.

Adjusting the TV screen

— SCREEN SETUP/CUSTOM SETUP

1 Press DVD SETUP in stop mode.

The Setup Display appears.

2 Press M/m repeatedly to select

“SCREEN SETUP” or “CUSTOM SETUP”, then press ENTER.

Select Setup item

SCREEN SETUP TV TYPE

SCREEN SAVER BACKGROUND COMPONENT OUT

CUSTOM SETUP VCD COLOR

SYSTEM

3 Press M/m repeatedly to select an item,

then press ENTER.

4 Press M/m repeatedly to select a

setting, then press ENTER.

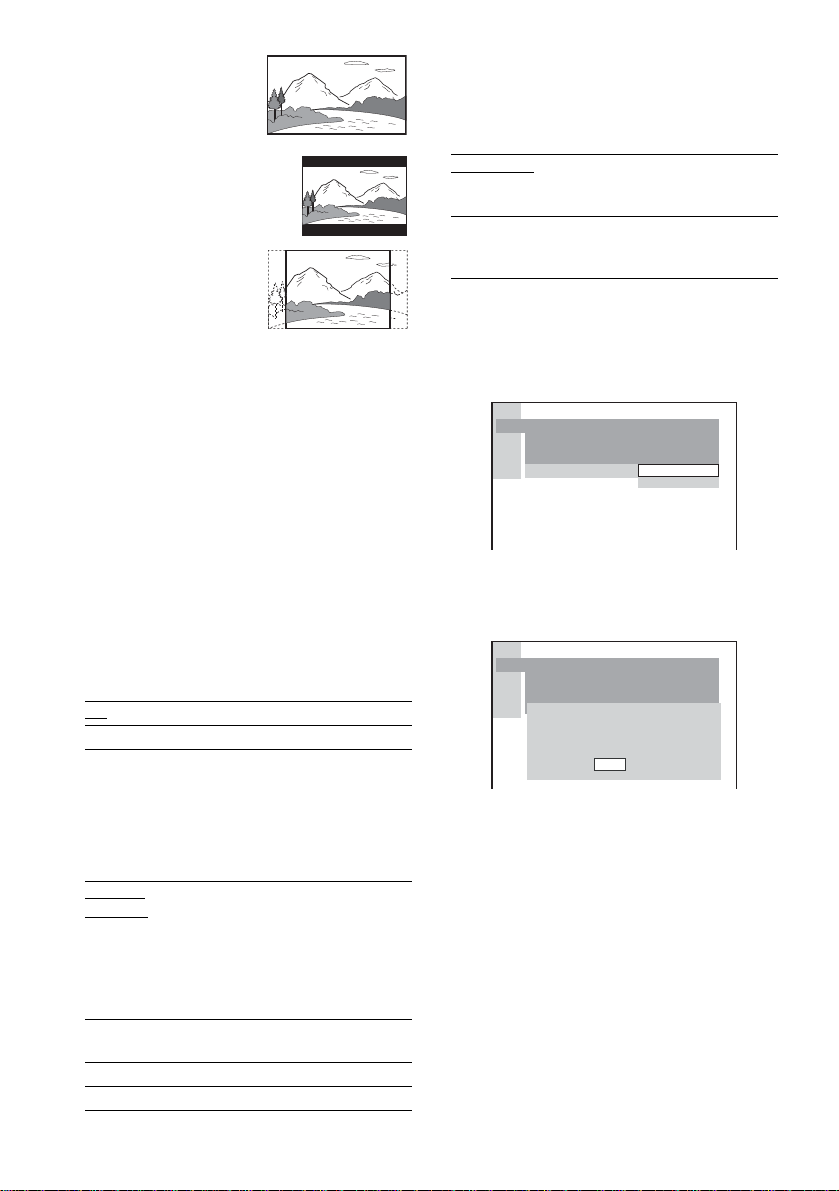

x TV TYPE (DVD only)

Select the aspect ratio of the connected TV. The default setting is underlined.

16:9

4:3 LETTER BOX

4:3 PAN SCAN Select this when you connect a 4:3

Select this when you connect a wide-screen TV or a TV with a wide mode function.

Select this when you connect a 4:3 screen TV. This setting displays a wide picture with bands displayed on the upper and lower portions of the screen.

screen TV. This setting displays the wide picture on the entire screen and cuts off the portions that do not fit.

DVD – Various functions

continued

Page 26

• 16:9

• 4:3 LETTER BOX

• 4:3 PAN SCAN

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automatical ly i nste ad of “4 :3 PAN SCAN” or vice versa.

x SCREEN SAVER

Turn on and off th e screen saver. If you t urn on the TV screen saver, the screen saver image appears when you l eave the player in paus e or stop mode for 15 minut es or when you play a CD, disc with MP3 audio tracks or JPEG image files (excep t for during Sli de Show) for more than 15 minutes. The screen saver will help prevent your disp l ay device from becom i ng damaged (ghosting). Press any DVD-related button to turn off the screen saver. The default setting is underlined.

ON Turns on the screen saver. OFF Turns off the screen saver.

x BACKGROUND

Select the ba ckground col or or pictur e on the TV screen when the pla yback is stopped or while playing a CD. The default setting is underlined.

JACKET PICTURE

GRAPHICS 1 – 5 The preset picture stored in the

BLUE The background color is blue. BLACK The background color is black.

The jacket picture (still picture) appears in the background, but only when the jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS 1” picture appears.

system appears in the background.

x COMPONENT OUT

Change the type of signal output from the COMPONENT VIDEO OUT jacks on the system. The default setting is underlined.

INTERLACE Select this when you are

PROGRESSIVE Select this when you have a TV

connected to a standard (interlace format) TV.

that can accept progressive signals.

To set to “PROGRESSIVE”

1 Press M/m repeatedly to select

“COMPONENT OUT” in “SCREEN SETUP”, then press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

16:9

INTERLACE

PROGRESSIVE

2 Press M/m repeatedly to select

“PROGRESSIVE”, then press ENTER.

The display for confirming appears.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

COMPONENT OUT

Does your TV accept progressive signals?

JACKET PICTURE

YES NO

16:9

3 Press M/m repeatedly to select “YES”,

then press ENTER.

The type of output sign al changes to progressive fo r m at.

Page 27

To force the system to switch to interlace when PROGRESSIVE is selected

Make sure the function is set to DVD, then press

x, DSGX and MIC VOL – at the same time.

Notes

• “PROGR ES SIVE” doe s not work for PAL si gnals. Even if you set “COMPONENT OUT” to “PROGRESSIVE”, the output signal is automatically switched to interlace form a t f or PA L signals.

• When “COMPONENT OUT” is set to “PROGRESSIVE”, no video signal is output from the VIDEO OUT or S VIDEO OUT jack.

• The display for confirming does not appear when you select “INTERLACE”.

x VCD COLOR SYSTEM

Select the color sy stem when you play a Video CD. The default set ting is underl i ned.

AUTO Outputs the video signal in the

system of the disc, either PAL or NTSC. If your TV uses a DUAL system, select AUTO.

PAL Changes the video signal of an

NTSC disc and outputs it in the PAL system.

NTSC Changes the video signal of a PAL

disc and outputs it in the NTSC system.

Notes

• You cannot change the color system of the dis c itself.

• You c an change the color system of this unit according to the connected TV (page 9).

Tip

You can reset all the DVD settings except for Parental Control by performing the operations described under “To return the DVD setup to the default settings*, perform reset as follows:” (page 54).

* Except for Parental Control settings

Restricting disc playback

— CUSTOM PARENTAL CONTROL/

PARENTAL CONTROL

Preventing playback of specific discs

— CUSTOM PARENTAL CONTROL

You can set the playback restrictions so that the system will not play inappropriate discs. You can set the same Cust om Parental Contro l password for up to 25 discs. W hen you set the twenty-sixth disc, the playback restriction for the first disc is canceled.

1 Insert the disc you want to lock.

If the disc is playing, press x to stop play.

2 Press DVD DISPLAY in stop mode.

The Control Menu a ppears.

3 Press M/m repeatedly to select

“CUSTOM PARENTAL CONTROL”, then press ENTER.

The “CUSTOM PARENTAL CONTROL” is selected.

4 Press M/m repeatedly to select

“ONt”, then press ENTER. x If you have not entered a password

The display f or regi ste ri ng a ne w pa ss wor d appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

– – –

DVD – Various functions

Enter a 4-digit password using t he number buttons, then press ENTER. The display for conf irm i ng t he password appears.

continued

Page 28

x When you have already registered a

password

The display for enteri ng the password appears.

CUSTOM PARENTAL CONTROL

Enter password, then press .

ENTER

– – –

5 Enter or re-ent er your 4- digit pa ssword

using the number buttons, then press ENTER.

“Custom parental control is set.” appears and the scre en returns to the Control M enu.

If you make a mistake entering your password

Press < before you press ENTE R and input the correct number.

If you make a mistake

Press O RETURN, then start from st ep 3 again.

To turn off the Control Menu

Press O RETURN, then press DVD DISPLAY repeatedly until the Control Menu disappears.

To turn off the Custom Parental Control function

1 In step 4, select “OFFt”, then press

ENTER.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

To change the password

1 In step 4, select “PASSWORDt”, then

press ENTER. The display for entering the password appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

3 Enter a new 4-digit password using the

number buttons, then press ENTER.

4 To confirm your password, re-enter it using

the number buttons, then press ENTER.

Playing the disc for which Custom Parental Control is set

1 Insert the disc for which Custom

Parental Control is set.

The “CUSTOM PARENTAL CONTROL” display appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

The system is ready for playback.

Tip

If you forgot your password, enter the 6-dig it num be r “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” in step 2. The display will ask you to enter a new 4-digit passwor d.

Limiting playback by children (DVD only)

— PARENTAL CONTROL

You can limit the playback of some DVDs according to a predetermined level s u ch as the age of the users. The same password is used for both Custom Parental Control and Parental Control. When a limited scene is played back, that scene is cut or replaced wi t h a preset other scene .

1 Press DVD SETUP in stop mode.

The Setup Display appears.

2 Press M/m repeatedly to select

“CUSTOM SETUP”, then press ENTER.

The “CUSTOM SETUP” display appears.

CUSTOM SETUP

VCD COLOR SYSTEM: AUTO PARENTAL CONTROL

OFFTRACK SELECTION:

STANDARDAUDIO DRC:

MP3DATA CD PRIORITY:

MM/DD/YYYYJPEG DATE:

Page 29

3 Press M/m repeatedly to select

“PARENTAL CONTROL ENTER.

x If you have not entered a password

The display for registering a new password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

x When you have already registered a password

The display for entering the password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press .

t”, then press

– – –

ENTER

– – –

5 Press M/m repeatedly to select

“STANDARD”, then press ENTER.

The options for “STANDARD” appear.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OTHERS

OFF USA

6 Press M/m repeatedly to select a

geographic area as the playback limitation level, then press ENTER.

The area is selected. When you sel ect “OTHERS

t”, select and

enter the standard code in the tab le on page 30 using the number bu ttons.

7 Press M/m repeatedly to select

“LEVEL”, then press ENTER.

The options for “LEVEL” appear.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

OFFLEVEL:

NC17

6: 5:

PG13

3: 2:

DVD – Various functions

4 Enter or re-enter your 4-digit password

using the number buttons, then press ENTER.

The display for set ti ng the playback limitation level and changing the password appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

USA

8 Press M/m repeatedly to select the

level you want, then press ENTER.

The Parental Control setting is completed.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

The lower the value, the more strict the limitation.

If you make a mistake

Press < or O RETURN to go back to the previous screen.

PG134:LEVEL:

USA

continued

Page 30

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” in step 8.

To change the password

1 In step 5, select “CHANGE

PASSWORD The display for entering the password appears.

t”, then press ENTER.

2 Follow step 3 to enter a new password.

Playing the disc for which Parental Control is set

1 Insert the disc and press nN .

The “PARENTAL CONTROL” display appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

Playback starts.

Notes

• When you play DVDs which do not have the Parental Control function, playback cannot be limited on this system.

• Depending on the DVD, you may be asked to change the parental control level w hile pla ying the disc. In this case, enter your password, then change the level. If the Resume Play mode is canceled, the level returns to the original level.

Tip

If you forgot your password, remove the disc a nd repeat steps 1 to 3 of “Limiting playba ck by children (DVD only)” (page 28). When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The disp lay will ask yo u to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the system and

nN. When the “PARENTAL CONTROL”

press display appears, enter your new password.

Area code

Standard Code number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong 2219 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184

Page 31

Speaker settings

— SPEAKER SETUP

You can enjoy lo w fre quency effect wit h LFE channel recorde d on discs.

1 Press DVD SETUP in stop mode.

The Setup Disp l ay appears.

2 Press M/m repeatedly to select

“SPEAKER SETUP”, then press ENTER.

“LFE” appears.

3 Press ENTER. 4 Press M/m repeatedly to select a

setting, then press ENTER.

The default setting is underlined.

ON The LFE channel is output. OFF The LFE channel is not output.

Note

If there is excessive wow or flutter when recordin g audio from a DVD, set “LFE” to “OFF”.

DVD – Various functions

Page 32

Tuner

Presetting radio stations

7 Press TUNER MEMORY.

“COMPLETE” appears.

8 Repeat steps 4 through 7 to preset

other stations.

You can preset up to 20 FM stations and 10 AM stations. You can th en tune in any of those stations simply by sel e ct ing the corresponding preset number.

Automatic tuning preset

You can automatically tune in all of t he st ations that can be receiv ed in your area and the n st ore the radio frequency of the desired stations.

1 Press FUNCTION +/– (or TUNER/BAND

on the unit) repeatedly unt il “TUNER” appears.

2 Press BAND (or TUNER/BAND on the

unit) repeatedly to select “FM” or “AM”.

3 Press TUNING MODE repeatedly until

“AUTO” appears in the display.

4 Press TUNING +/–.

The frequency changes as the system scans for a station. Scanning stops automatically when a station is tuned in. At that time, “TUNED” and “STEREO” (for stereo program only) appear.

If “TUNED” does not appear and the scanning does not stop

Set the freque ncy of the desired radio station as described in steps 2 and 3 of “Manual tuning preset” (page 32).

5 Press TUNER MEMORY.

A preset numbe r fl ashes. Perform steps 6 and 7 while the preset number flash es.

Manual tuning preset

You can manually tune in and store the radio frequency of the desired stations.

1 Press FUNCTION +/– (or TUNER/BAND

on the unit) repeatedly until “TUNER” appears.

2 Press BAND (or TUNER/BAND on the

unit) repeatedly to select “FM” or “AM”.

3 Press TUNING MODE repeatedly until

“AUTO” and “PRESET” di sappear from the display.

4 Press TUNING +/– repeatedly to tune in

the desired station.

5 Press TUNER MEMORY. 6 Press TUNING +/– repeatedly to select

the desired preset number.

7 Press TUNER MEMORY.

“COMPLETE” appears.

8 Repeat steps 4 through 7 to preset

other stations.

Other operations

To Do this

Tune in a station with a weak signal

Set another station to the existing preset number

Follow the procedure described in “Manual tuning preset” (page 32).

After step 5, press or TUNING +/– repeatedly to select the preset number you want to store the station.

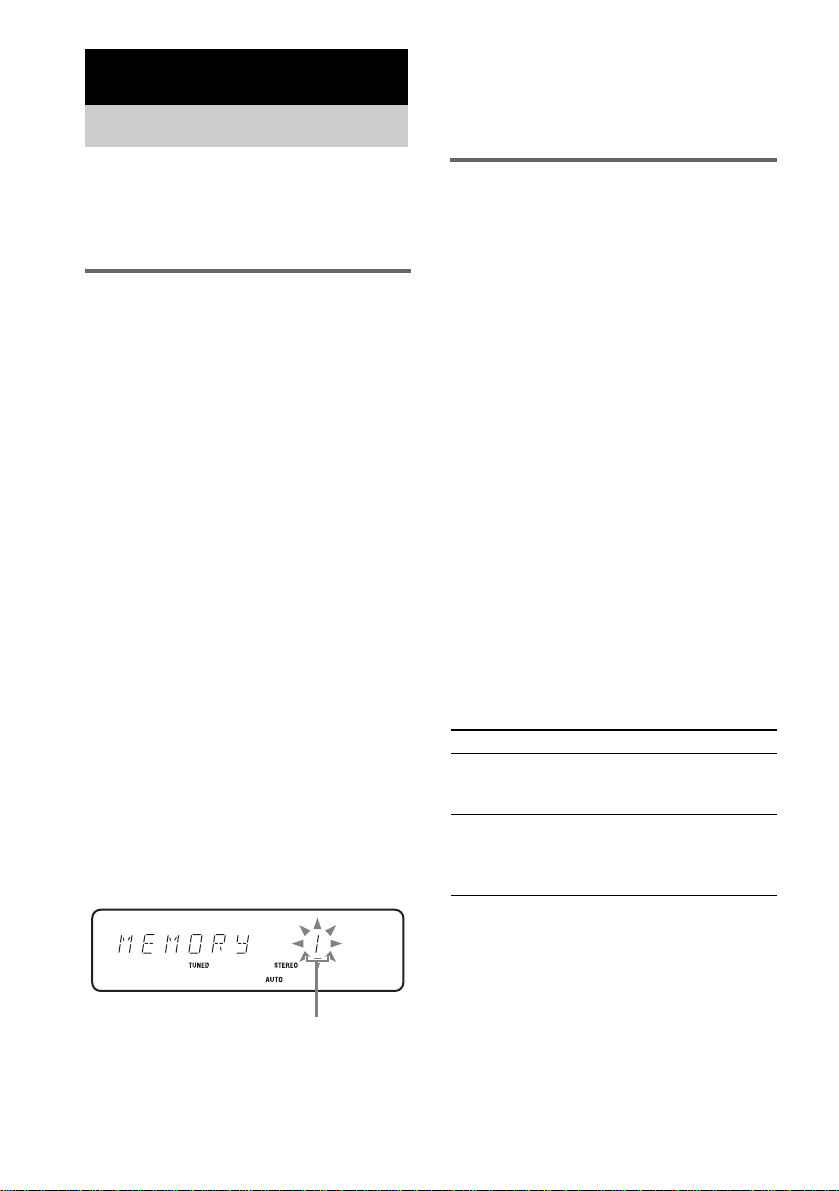

Preset number

6 Press TUNING +/– repeatedly to select

the desired preset number.

Page 33

To improve tuner reception

When tuner reception is poor, set th e disc player power off by the DVD power manage function. The DVD power is fac to ry set to on.

1 Press FUNCTION +/– repeatedly to switch

the function to DVD.

2 Press ?/1 to turn off the system. 3 Press ?/1 on the unit while holding x on the

unit.

“DVD POWER” and “OFF” appear.

To set the DVD power on

Repeat the procedure above, and “DVD POWER” and “ON” appear.

Notes

• When “DVD POWER” and “OFF” are selected, DVD access time is increased.

• You c an not c ha nge the set ting in Power Saving Mode (page 43).

To change the AM tuning interval (Except for Saudi Arabian model)

The AM tuning interval is factory-preset to 9 kHz (or 10 kHz for some areas). To change the AM tuning interval , tune into any AM station first, then turn off th e power by pressin g ?/1 on the unit. While holding TUNING +, press ?/1 on the unit. When you change the interval, all AM preset stations are erased. To reset the interval, repeat the above pr ocedure.

Note

You cannot change the AM tuning interval in Powe r Saving Mode (page 43).

Tips

• The pr es et sta tions are retained for about half a day even if you disconnect the power cord or if a power failure occurs.

• To improve the reception, adju st the supplied antennas or connect an external antenna.

Listening to the radio

You can listen to a radio station either by selecting a preset station, or by manually tuning in the station.

Listening to a preset station

— Preset Tuning

Tuner

Preset radio stations in th e tuner’s memory first (see “Presetting radio stati o ns” on page 32).

1 Press FUNCTION +/– repeatedly (or

TUNER/BAND on the unit) to switch the function to TUNER.

2 Press BAND (or TUNER/BAND on the

unit) repeatedly to select “FM” or “AM”.

3 Press TUNING MODE repeatedly until

“PRESET” appears in the display.

4 Press TUNING +/– repeatedly to select

the desired preset station.

Listening to non-preset radio station

— Manual Tuning

1 Press FUNCTION +/– repeatedly (or

TUNER/BAND on the unit) to switch the function to TUNER.

2 Press BAND (or TUNER/BAND on the

unit) repeatedly to select “FM” or “AM”.

3 Press TUNING MODE repeatedly until

“AUTO” and “PRESET” disappea r from the display.

4 Press TUNING +/– repeatedly to tune in

the desired station.

Notes

• The OSD does not appear on the TV screen except when using the DVD function.

• When switching to the DVD function from tuner, it may take longer to access the disc. In this case, set “DVD POWER” and “ON” using the DVD power manage function (page 33).

continued

Page 34

Tips

• To improve broadcast reception, adjust the supplied antennas, or connect a commercially available external antenna.

• When an FM stereo program has static noise, press FM MODE until “MONO” appears. There will be no stereo effect, but the reception will improve.

• Press TUNING MODE repeatedly until “AUTO” appears in step 3 above, then press TUNING +/–. The frequency indication changes and scanning stops when the system tunes in a station (Automatic Tuning).

• To record the radio programs, use manual recording (page 37).

Page 35

Tape – Play

Loading a tape

1 Slide the lid open with your hand. 2 Insert a tape.

With the side you want to play/record facing up

To remove the tape, lift up the tape from the side as shown in the ill ustration.

3 Slide the lid close with your hand.

Playing a tape

You can use TYPE I (normal).

1 Press FUNCTION +/– repeatedly until

“TAPE” appears.

2 Press DIRECTION repeatedly to select

“g” to play one side of the tape. Select “h “j

” to play both sides, or

” to play both sides repeatedly.

3 Press nN (or TAPE/hH on the

unit).

Press nN (or TAPE/hH on the unit) again to play the reverse side.

Other operations

To Do this

Stop play Press x. Pause Press X. Press again to resume

Fast-forward or rewind

Remove a tape Slide the lid open on the unit in

* The tape deck stops au tomat ically af ter re peatin g the

sequence 5 times.

Note

The AMS function may not operate correctly under the followi n g circumstances: – When the unreco rd e d spa c e betwe e n songs is less

than 4 seconds long.

– When the system is placed near a televi sion.

play. Press m/M.

stop mode.

Tape – Play

Page 36

Tape – Recording

Recording your favorite CD tracks on a tape

— CD-TAPE Synchro Recording

You can record a w hole disc (Video CD , C D , MP3) on a tape. You can use TYPE I ( normal). Use buttons on the unit for the operation.

1 Load a recordable tape. 2 Press DIRECTION on the unit

repeatedly to select “g” to record on one side of the tape only. Select “h” (or “j”) to record on both sides.

3 Press TAPE/hH repeatedly to select

the recording side, then press x.

If you select both sides or the front side for recording, press TA PE/hH to display “N”, then press x. If you choose to record on the reverse side, pres s TA PE/hH again to display “ n”, then press x.

4 Press FUNCTION +/– repeatedly until

“DVD” appears.

5 Load the disc(s) you want to record on.

If you have already lo aded a disc, press DISC SKIP to select the disc. When you want to record an album from an MP3 disc, be sure to pre ss PLAY MODE to select “ALBM”, then use ALBUM +/– to select the desired album before proceeding.

6 Press CD SYNC.

“SYNC” and “REC ” appear.

7 Press z START.

Recording starts.

To stop recording

Press x.

To record a Video CD/CD/MP3 by specifying track order

You can record only your favorite tracks using Program Play. Between steps 4 and 5, perform steps 2 to 6 in “C reating your own pro gram” (page 17).

Notes

• CD Synchro Recording is not available with DVDs and JPEG files.

• You cannot listen to other sources while recording.

• Whe n you pr e ss C D SYNC in step 5, the su rrou nd effect may automatically change (see “Selecting the surround effect” on page 38) .

• If the play mode is set to Repeat Play or Shuffle Play, it automatically switches to Normal Play in step 5.

• Whe n you r e cord f rom a Vide o CD, pla yba c k with the PBC function is automatically canceled.

Tip

If you select both sides recording and the tape reaches the end of the front side part-way through a track, the entire track is record ed again from th e beginning of t he reverse side.

Page 37

Recording on a tape manually

— Manual Recording

You can record just the p ortions you like from a disc (DVD, Video CD, CD, MP3) on a tape. You can also record radio programs or audio input from a connected component (see “Hooki ng up optional components” on page 47). Use buttons on the unit for the operation.

1 Load a recordable tape. 2 Press DIRECTION on the unit

repeatedly to select “g” to record on one side of the tape only. Select “h” (or “j”) to record on both sides.

3 Press TAPE/hH repeatedly to select

the recording side, then press x.

If you select both sides or the front side for recording, press TAPE/hH to display “N”, then press x. If you choose t o record on the reverse side, press T A PE/hH again to display “n”, then press x.

4 Select the desired source to record.

• TUNER: To record from this system’s tuner.

• DVD: To record from this system’s disc player.

• MD/VIDEO: To record from the optional component connected to the MD/VIDEO jacks.

5 Press z START.

“REC” appears and the tape deck stands by for recording.

6 Press z START.

Recording starts for the source you selected.

To stop recording

Press x.

Tip

For recording from a disc, you can press ./> to select tracks during recording pause mode (after step 5 and before step 6).

Sound Adjustment

Adjusting the sound

You can adjust the bass and treble to enjoy more powerful sound.

Generating a more dynamic sound (Dynamic Sound Generator X-tra)

Press DSGX on the unit.

To cancel the DSGX, press DSGX on the unit again.

Tape – Recording/Sound Adjustment

Page 38

Selecting the surround

Adjusting the equalizer

effect

Press SOUND FIELD +/– repeatedly to select the effect you desire.

Each time you press the button, the display changes cycli cally as follows: 2CH ST y 2CH SURR y VIRTUAL*

* These sound fields can be selected during DVD

function except when: – The system is in stand by for recording or is

recording.

– The pitch of the music is adjusted with KEY

CONTROL

– Karaoke mode is selected.

#/2.

You can adjust the sound by raising or lowering the levels of specific frequency ranges. Use buttons on the unit for the operation.

1 Press EQ EDIT repeatedly to select a

frequency band.

Each time you press the button, the display changes cyclical l y as follows:

t MID t HIGH

LOW

2 Press EQ EDIT +/– repeatedly to adjust

the level.

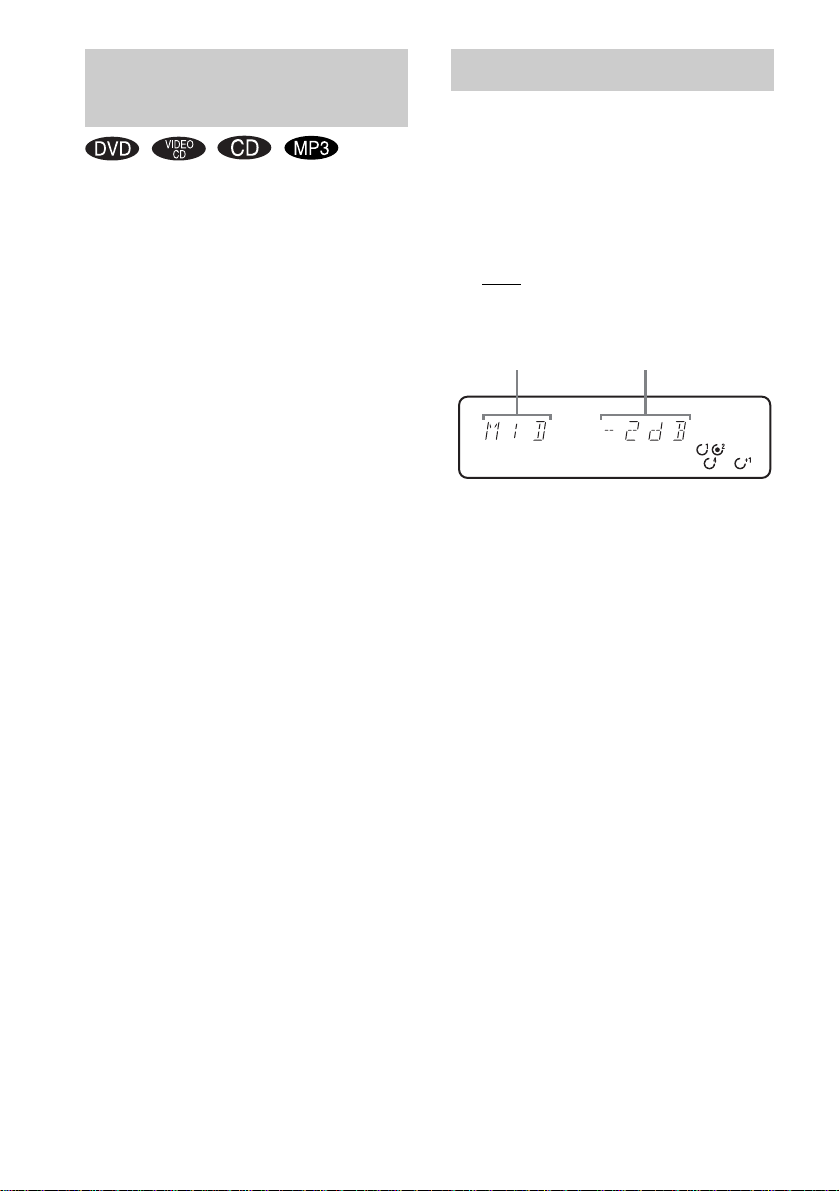

Frequency levelFrequency band

Page 39

Singing along: Karaoke

You can sing along by turning down the singer’s voice. You need to connect an optional microphone.

Enjoying Karaoke

Use buttons on the unit for the operation.

1 Press MIC VOL – until MIN is displayed

to turn down the microphone control level.

Connect an optional

jack.

microphone to t he

3 Press KARAOKE/MPX on the remote

repeatedly to obtain the karaoke effect you desire.

Each time you press the button, the display changes cycl i cally as follows:

KARAOKE PON t MPX L

MPX R

t KARAOKE OFF

To sing karaoke of multiplex CD, select “MPX L” or “MPX R”.

4 Start playing the music. 5 Adjust the microphone volume by

pressing MIC VOL +/–.

Note

The MIC VOL +/– button is unavailable while the equalizer level is being adjust e d.

Other operations

To Do this

Use Video CDs or DVDs

Cancel karaoke mode

Adjust the microphone echo

Adjust the pitch of music

Except for DVD

Karaoke mode is canceled.

Notes

• The instrumental sound may be reduced as well as the singer’s voice when the sound is recorded in monaural.

• The singer’s voice may not be reduced when: – Only a few instruments are playing. – A duet is being played. – The source has strong echoes or chorus. – The singer’s voice deviates from the center. – The voice on the source is singing in high soprano

or tenor.

• If the disc changes, karaoke mode is canceled.

• With some songs, vocals may not be canceled when you select “KARAOKE PON”.

Turn on your TV and switch it to the appropriate video input.

Press MIC VOL – until MI N is displayed and disconnect th e microphone from the press KARAOKE/MPX repeatedly until “

Press ECHO on the unit to set echo effect on. To cancel the echoing, press ECHO again.

Press KEY CONTROL the remote to suit your vocal range.

You can adjust the key higher or lower in 13 halftone steps (

#6).

m jack, then

m” disappears.

# or 2 on

26 –

Sound Adjustment

continued

Page 40

Mixing and recording sounds

You can “mix” so unds by playing one of th e components and singing or speaking into a microphone (not supplied). The mixed sound can be recorded on a tape. Use buttons on the unit for the operation.

1 Prepare the source you want to mix. 2 Load a recordable tape. 3 Press DIRECTION on the unit

repeatedly to select “g” to record on one side of the tape only. Select “h” (or “j”) to record on both sides.

4 Press TAPE/hH repeatedly to select

the recording side, then press x.

5 Press the function button of the source

you want to record.

6 Press z START.

The tape deck stands by for recording. “REC” flashes.

7 Press z START, then start singing,

speaking or playing the desired source.

Recording starts.

To stop recording

Press x.

Note

When you select any function other than DVD in step 5, karaoke and ke y con tr ol se tt ings are canceled.

Tips

• If acoustic feedback (howling) occurs , mo ve th e microphone away from the speak ers or ch an ge th e direction of the microphone.

• If you wa nt to r ecor d your voice through the microphone only, you can do so by selecting the DVD function and not playing a disc.

• When high level sound signals are input, the system automatically adjusts the recording level to prevent distortion of the recorded sou nd signal (Auto Level Control function).

Page 41

Timer

Falling asleep to music

— Sleep Timer

You can set the system to turn off after a certa in time, so that you can fall asleep to musi c. Use buttons on the remote for the operation.

Press SLEEP repeatedly.

Each time you press the button, the minute display (the turn-o ff time ) cha nges c ycli cally as follows: AUTO* t 90MIN t 80MIN t … t 10MIN t SLEEP OFF

* The system automatically turns off in 100 minutes or

after the current disc or tape finishes playing.

Other operations

To Press

Check the remaining time**

Change the time to turn off

Cancel the Sleep Timer function

**You cannot ch eck the r em a ining time if you select

“AUTO”.

Note

You cannot select “AUTO” during Synchro Recording on a tape.

Tip

You can use Sleep Timer, even if you have not set the clock.

SLEEP once.

SLEEP repeatedly to select the time you want.

SLEEP repeatedly until “SLEEP OFF” appears.

Waking up to music

—Play Timer

You can wake up to music at a preset time. Make sure you have set the cl ock (see “Setting the clock” on page 10). Use buttons on the remote for the operation.

1 Prepare the sound source you want to

play.

• DVD: Load a disc. To start from a specific track, make a program (see “Creating your ow n program” on page 17).

• TAPE: Load a tape.

• TUNER: Tune in a ra dio station (see “Listening to the radio” on page 33).

2 Adjust the volume. 3 Press CLOCK/TIMER SET. 4 Press M/m repeatedly until “PLAY

SET” appears, then press ENTER.

“ON” appears a nd t he hour indication flashes.

5 Set the time to start playing.

Press M/m repeatedly to set the hour, then press ENTER.

The minute indication flashes. Press

M/m repeatedly to set the minute,

then press ENTER.

6 Set the time to stop playing following

the same procedure as step 5.

7 Press M/m rep eatedly until the desired

sound source appears.

Each time you press the button, th e dis p lay changes cyclically as follows:

TUNER y DVD PLAY

TAPE PLAY

Timer

8 Press ENTER.

The start time, the stop time, and the sound source appear in t ur n, then the original display returns.

9 Press ?/1 to turn off the system.

continued

Page 42

Other operations

To Do this

Check the setting 1 Pr e ss C LO CK/ TI MER

Change the setting S tart over from step 1. Cancel the time r

Notes

• If you use Play Time r and Slee p Tim er at the same time, Sleep Timer has priority.

• Do not operate the syste m f r om the time the system turns on until the play starts (about 15 seconds before the preset time).

• If the system is on about 15 seconds before the preset time, Play Timer will not be activated.

• You cannot set a timer for optional c o mponents.

• You cannot activate Play Timer and R ec Timer simultaneously.

SELECT.

2 Press M/m repeatedly until

“PLAY SEL” appears, then press ENTER.

1 Pr e ss C LO CK/ TI MER

SELECT.

2 Press M/m repeatedly until

“TIMER OFF” appears, then press ENTER.

Timer recording radio programs

— Rec Timer

To timer record, you must first preset the radio station (see “Presetting radio stations” on page 32) and set the clock (see “Setting the clock” on page 10). Use buttons on the remote for the operation.

1 Tune in the preset radio station (see

“Listening to a preset station” on page 33).

2 Press CLOCK/TIMER SET. 3 Press M/m repeatedly until “REC”

appears, then press ENTER.

“ON” appears wi t h a flashing hour indication.

4 Set the time to start recording.

Press M/m repeatedly to set the hour, the n press ENTER.

The minute indication flashes. Press

M/m repeatedly to set the minute,

then press ENTER.

5 Set the time to stop recording following

the same procedure as step 4.

Rec Timer settings and the desired station appear, then the original display returns.

6 Load a recordable tape. 7 Press ?/1 to turn off the system.

Page 43

Other operations

To Do this

Check the setting 1 Press CLOCK/TIMER

Change the setting Start over from step 1. Cancel the timer

Notes

• If you use Rec Timer and Sleep Timer at the same time, Sleep Timer has priority.

• Do not operate the system from the time the system turns on until the recording starts (about 15 seconds before the preset time).

• If the system is on about 15 seconds before the preset time, Rec Timer will not be activate d.

• The volume is reduced to minimum during recording.

• You c an not a ct ivate Play Timer and Rec Timer simultaneously.

SELECT.

2 Press M/m repeatedly until

“REC SEL” appears, then press ENTER.

1 Press CLOCK/TIMER

SELECT.

2 Press M/m repeatedly until

“TIMER OFF” appears, then press ENTER.

Display

Turning off the display

— Power Saving Mode

The clock display can be turned off to minimize the amount of power consumed during standby (Power Saving Mode).

Press DISPLAY repeatedly while the system is off until the clock display disappears.

To cancel Power Saving Mode

Press DISPLAY while the system is off. Each time you press the button, the display switches as follows: Clock display* y No display (Power Saving Mode)

* The clock is displ ay ed only if you set the clock.

Note

You cannot perform the following operations in Power Saving Mode: – Setting the clock

– Switching the MD/VIDEO function – Switching the DVD power on or off using the DVD

power manage function

– Changing th e AM tu ning interval

Tips

• The ?/1 indicator lights up even in Power Saving Mode.

• The timer continues to operate in Power Saving Mode.

Display

Page 44

Viewing information about the disc in the display

You can check the playing time and remaining time of the current track or that of the disc. When a DVD/CD -TEXT disc or a disc with MP3 audio tracks or JPEG image fi les is loaded, you can also check the information recorded on disc, such as the titles.

Checking the remaining time and titles (DVD/Video CD/CD/ MP3/JPEG)

Press DISPLAY during Normal Play.

Each time you press the button, the display changes cycli cally as follows:

x When playing a DVD

Current track n um ber and elapsed playing time t Remaining time of the current title t Elapsed playing time of the current chapter t Remaining time of the current chapter t Title1) t Clock display t S ound field status t Karaoke effect status

x When playing a CD/Video CD without the

PBC function

Current track n um ber and elapsed playing time t Remaining time of the current track t Elapsed playing time of the disc3) t Remaining time of the disc Clock display t Sound field status t Karaoke effect status

x When playing a Video CD with the PBC

function (Ver. 2.0)

Elapsed playing time on the current scene4) t Clock display t Sound field status t Karaoke effect status

t Track title1) t

x When playing an MP3

Elapsed playing time of the current track t Remaining time of the current track t Track

1)5)

title

t Album name1) t Clock display t

Sound field status t Karaoke effect status

x When playing a JPEG

Current file number t File name1) t Album

t Clock display t So und field status

name t Karaoke ef fect status

Only numbers and letters of the al pha be t can be displayed. In addition, no data is displayed for discs without DVD/CD text or a file/album name.

When the Karaoke effect is activated.

These are not displayed during Shuff le Pl a y or Program Play.

This may not be displayed for still image s.

When you play back a track with an ID3 tag ver. 1.0 or ver. 1.1, the ID3 tag appears. The ID3 tag displays only the track title information.

Checking the total playing time and titles (DVD/Video CD/ CD/MP3/JPEG)

Press DISPLAY in stop mode.

Each time you press t he button, the display changes cyclical l y as follows:

x When a DVD/Video CD/CD/MP3/JPEG is

in Normal Play mode

Total playing time of the current disc or total album number of the disc of the current alb u m

label

or album name4) t Clock display t

Sound Field status t Karaoke effect status

For discs with MP3 audio tracks in Normal P lay or Shuffle Play mode or JPE G image files in Norma l Play mode

For discs with MP3 audio tracks in Album Play or Album Shuffle Play mode or JPEG imag e files in Album Play mode

For discs with DVD/CD text

For discs with MP3 audio tracks or JPEG image files, album titles or volume la be l ma y not be displayed depending on the play mode.

When the Karaoke effect is activated.

or total track number

t Disc title3) or volume

Page 45

x When a Video CD/CD/MP3 is in Program

Play mode

The last track number of the program t Th e program step number t Track title display t Sound Field status t Karaoke effect

status

No data is displayed for discs without CD text or an album name. When you play back an MP3 audio track with an ID3 tag ver. 1.0 or ver. 1.1, the ID3 tag appears. The ID3 tag displays only the track title info r m at ion.

When the Karaoke effect is activated.

Notes

• Depending on the DVD, the disc information may not be displayed.

• Depending on the disc, some DVD/CD-TEXT information may not appear.

• With formats other than ISO 966 0 L evel 1 and 2, folder names or file names may not be displayed correctly.

Tips

• You can check the playing time of the disc using the Control Menu (see “ V iewing information about the disc in the on-screen display” on page 45).

• Whe n pla ying Video CDs with the PBC function, only the playing time of the scene is displayed.

t Clock

Viewing information about the disc in the onscreen display

You can check the playing time and remaining time of the current title, chapter or track. You can also check the DVD/CD text and file/ album name recorded on the disc.

1 Press DVD DISPLAY during play.

The Control Menu a ppears.

2 Press DISPLAY to change the time

information.

The display and the ki nds of time that you can change depe nd on the disc you are playing.

Time information Disc type

1: DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD

Display

x When playing a DVD

• T **:**:** Elapsed playing time of the current title

• T–**:**:** Remaining time of the current title

• C **:**:** Elapsed playing time of the current chapter

• C–**:**:** Remaining time of the current chapter

• **:**:** Elapsed playing time of the menu or the current title without chapter

x When playing a Video CD with the PBC

function (Ver. 2.0)

• **:** Elapsed playing time of the current scene

continued

Page 46

x When playing a CD/Video CD without the

PBC function

• T **:** Elapsed playing time of the current track

• T–**:** Remaining time of the current track

• D **:** Elapsed playing time of the current disc

• D–**:** Remaining time of the current disc

x When playing an MP3

• T **:** Elapsed playing time of the current track

• T–**:** Remaining time of the current track

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu disappears.

Notes

• Only numbers and letters of the alphabet ca n be

displayed.

• De pe nding on the disc being played, the syste m c an

only display a limited number of characters. Also, depending on the disc, all text cha r acte r s a re not displayed.

• With formats other than ISO 9660 Le ve l 1 and 2,

folder names or file names ma y not be displayed correctly.

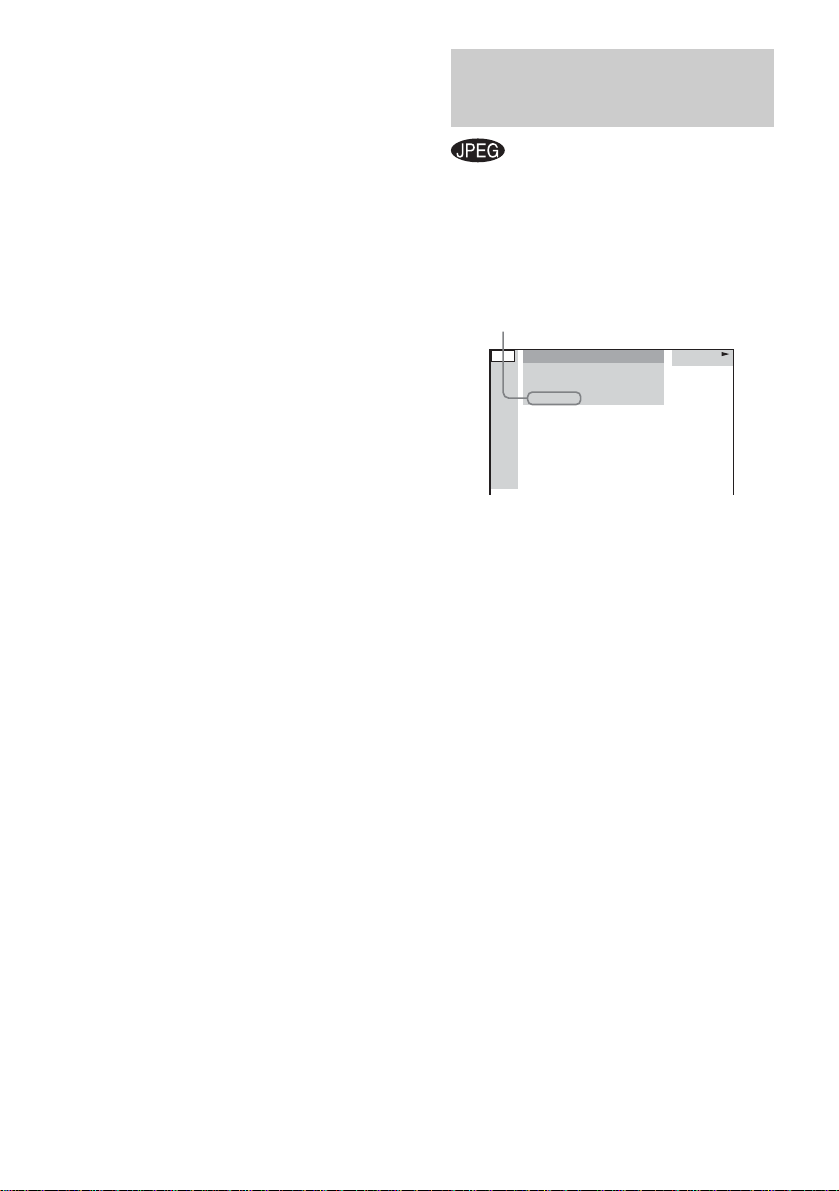

Checking the date information

You can check th e da te in forma tio n duri ng pl ay when the Exif* tag is recorded in the JPEG image data.

Press DVD DISPLAY during play.

The Control Menu appears.

Date information

1:MOUNTAIN

FAMILY

) BIRTHDAY

1 ( 2 0 1 / 1 / 2004

* “Exchangeable Image File Format” is a digital

camera image format defined by th e Japa n Electronics and Information Technology Industries Association (JEITA).

Note

If there is no date information or data is dam ag ed on the disc, the system cannot display the date information.

Tip

You can change the date information order by selecting “JPEG DATE” in “CUSTOM SETUP” (see page 24).

JPEG

Page 47

Optional Components

Hooking up optional components

To enhance your system, you can connect optional components. Refer to the operating instruc tio n s provided with each com ponent.

Amplifier or MD deck

To the digital input jack of the digital component

MD deck, etc.

From the audio output jacks of an optional analog component

A B

A MD/VIDEO IN jacks

Use audio cords (not supplied) to connect an optional analog component (MD deck, etc.) to these jacks. You can then listen to the sound from the compone nt .

B DIGITAL OUT (OPTICAL) jack

Use a digital optical cable (s quare, not suppli ed) to connect an amplifier with a digital optical input jack. Sound is then output when the system function is set to DVD. By connecting this system to the optical input jack of the optional amplifier equipp ed with Dolby Digita l or D T S decoder, you can enjoy the 5.1 channel sound. If the jack is covered with a cap, remove it before use.

TV or projector

To the component video input jack of the TV or projector

To the S video

Notes

• Digital audio can be output only when playing a CD or a DVD.

• You can record digital audio from this system only when the DVD function is selected.

input jack of the TV

C COMPONENT VIDEO OUT

jacks

Use an optional vi deo cord to connect a TV . If your TV accept pr ogressive format file signals, you must use this connection and set “COMPONENT OUT” to “PROGRESSIVE” in “Adjusting the TV screen” (page 25).

D S VIDEO OUT jack

Use an S video c ord (n ot suppli ed) t o connect an optional TV to this jack. You can enjoy higher quality video imag es.

Optional Components

Page 48

Listening to audio from a

Enjoying 5.1 channel

connected component

Use the buttons on t he unit for the operation.

1 Connect audio cords.

See “Hooki ng up optional components” on page 47.

2 Press FUNCTION repeatedly until “MD”

or “VIDEO” appears.

Playback starts on the selected component.

Notes

• If you c ann ot se le c t “VIDEO” by pressing FUNCTION repeatedly, turn off the s ystem and then press ?/1 on the unit while holding down FUNCTION on the unit. The function will change from “MD” to “VIDEO”, and “VIDEO” will appear in the display. To change back to “MD”, repeat the same procedure.

• You cannot switch the MD/VIDEO function in Power Saving Mode (page 43).

sound with an optional amplifier

1 Connect a digital optical cable.

See “Hooking up optional components” on page 47.

2 Connect 6 speakers to an AV amplifier

equipped with a decoder.

For speaker plac ement, refer to the operating instruc ti ons supplied with th e connected amp lifi er.

3 Switch the output to 5.1 channel Dolby

Digital sound or 5.1 channel DTS sound.

See “Changing the sound/subtitle/ language” on page 22.

Tip

You cannot use the surround effect of this syst em .

Page 49

Recording audio from a

Recording on a connected

connected component

1 Connect audio cords.

See “Hooking up optional components” on page 47.

2 Start recording manually.

See “Recording on a tape m anually” on page 37.

component

Making a digital recording on an MD

1 Connect a digital optical cable.

See “Hooking up optional components” on page 47.

2 Start recording on the connected

component.

Refer to the operating instructions provided with the connected component.

Notes

• When making a digital recording from the disc player of this system to an optional component (MD deck, etc.) connected to the D IGI T A L OUT jack, start the optional component recording in a dva nce.

• You cannot make a digital recording in the following cases:

– When using copy-guarded DVDs. – When using Dolby Digital or DTS bit str eam

output.

Optional Components

Page 50

Troubleshooting

Problems and remedies

Should you encounter a problem with your system, do the following:

1 Make sure the power cord and speaker

cords are correctly and firmly connected.

2 Find your problem in the troubleshooting

checklist below and take the indicated corrective action.

If the problem persists after doing all of the above, consult yo ur nearest Sony dealer.

When the ?/1 indicator flashes

Immediately unplug the power co rd and check the follow i ng i tems.

• If your system has a voltage selector, is the voltage selector set to the correct voltage? Check the voltage for your region, the n make sure the voltage selector is set correctly.

• Are the + and – speaker cords shor tcirculated?

• Are you using th e supplied speakers?

• Is anything blocking the ventilation holes on the rear of the system?

Check all the above items and fix any problems found. A ft er ?/1 indicator stops flashing, reconnect the power cord and turn on the system. If the indi cator s til l fla shes, o r if the cause of the prob l em cannot be found even after checki ng all the above items, consult your neares t Sony dealer.

General

“CANT LOCK” appears in the display.

• Turn the power off and then on again by pressing ?/1 on the system, then perform “When carrying this system” (page 9). If “CANT LOCK” still appears, contact your Sony dealer or local authorized Sony servic e faci lity.

“– –:– –” appears in the displa y.

• A powe r inte r ruption has occurred. Set the clock (page 10) and time r se ttings (pages 41 and 42) again.

“CHECK” and “DISC * (disc number)” appear in the display.

• R emove the disc for the number indicated.

The color irregularity on a TV screen persists.

• Turn of f the TV set once , then turn it on after 15 to 30 minutes. If the color irregularity still persists, place the speakers farther away fr om the TV set.

There is acoustic feedback.

• Lower the volume.

• Move the microphone away from the speakers or change the direction of the microphone.

There is no sound.

• Press VOLUME + on the remote repeatedly (or turn VOLUME on the unit clockwise).

• Make sure the headphones are not connected.

• Check the speaker connections (page7).

• Ther e is no aud io output during Rec Timer.

• The syst em is in pa use mode or in slow-motion play mode. Press nN to return to normal pla y mode.

There is severe hum or noise.

• Move the system away from the source of noise.

• C onne ct the system to a differen t w al l outlet.

• I nst all a noise filter (commer ci a lly a v a ila ble) to the power line.

The timer cannot be set.

• Set the clock again (page 10).

The timer does not function.

• Press CLOCK/TIMER SELECT on the remote to set the timer and light up “ in the display (pages 42 and 43).

• Check the timer setting and set the correct time (pages 42 and 43).

• Cancel the Sleep Timer function (page 41).

• Make sure the clock is correctly set.

The remote does not function.

• Rem ove the obstacle.

• Move the remote clos er to the system.

• Point the remote at the system’s sensor.

• Replace the batteries (R6/size AA).

• Locate the system away from the fluoresce nt light.

c PLAY” or “c REC”

Page 51

Speakers

Sound comes from one channel, or the left and right volumes are unbalanced.

• Check the speaker connections and placement.

• The sound so urce be ing played back is monaural.

DVD/Video CD/CD/MP3/JPEG player

The disc tray does not open and “LOCKED” appears.

• Contact your Sony dealer or local authorized Sony service facility.

Play does not start.

• Eject the disc and check whether a disc is loaded.

• Wipe the disc clean (page 57).

• Replace the disc.

• Load the disc that this system can play (page 5).

• Loa d the disc correctly.

• Load the disc with the label side up.

• Remove the disc and wipe away the moisture on the disc, then leave the system turned on for a few hours until the moisture evapora tes.

•Press nN (or DVD/NX on the unit) to start play.

• The region code on the DVD does not match the system.

• Canc e l the Cus tom Pa r en tal Control function (page 28).

Disc access takes a long time.

• Set “DVD POWER” and “ON” by the DVD power manage function (page 33).

The sound skips.

• Wipe the disc clean (page 57).

• Replace the disc.

• Try movi ng the system to a place without vibration (e.g., on top of a stable stand) .

• Try moving the speakers away from the s ystem, or placing them on separate stands. When you listen to a track with bass sounds at high volume, the speaker vibration may cause the sound to skip.

Play does not start from the first track.

• Press PLAY MODE repeatedly until both “PGM” and “SHUF” disappear to return to Normal Play.

• Resume Play is selected. Press x in stop mode, then start playback (page 15).

• The title, DVD or PBC menu automatically appears on the TV screen.

Playback starts automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal. While playing such a disc, the playback stops at the auto pause signal.

The system turned off during DVD playback.

• If approximately one hour passes with DVD playback paused or with the DVD top menu or a DVD menu displayed during DVD playback, the system automatically turns off.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play or Program Play.

• Depending on the disc, you may not be able to do some of the operations above. Re fer to the operating instructio ns supplied with the disc.

MP3 audio track cannot be played back.

• Recording was not performed according to the ISO 9660 Level 1 or Level 2 f or mat, or Jolie t in the expansion format.

• The MP3 audio track does not have the extension “.MP3”.

• The data is not saved in the MP3 format.

• Discs containing tracks other than MPEG1 Audio Layer-3 files cannot be playe d.

• S et “DATA CD PRIORITY” to “.MP3” “CUSTOM SETUP” (page 24).

• Playback is possible up to 8 levels.

• The disc contains more than 99 albums (the maximum number of MP3 audio tracks that can be contained on an album is 250).

MP3 audio tracks take longer to play back than others.

• After the system reads all tracks on the discs, playback may take more time tha n usual if: – the number of albums or trac k s on the dis c is

very large.

– the album and track organization structure is

very complex.

Troubleshooting

continued

Page 52

The JPEG image file cannot be played.

• The DATA CD is not recorded in the JPEG format that conforms to ISO 9660 Le ve l 1/Level 2 or Joliet.

• The JPEG image file does not have the extension “.JPG” or “.JPEG”.

• The data is not formatted in JPEG even though it has the extension “.JPG” or “.JPEG” .

• Length or width of image is more than 4,720 dots.

• Set “DATA CD PRIORITY” to “JPEG” in “CUSTOM SETUP” (page 24).

• Playback is possible up to 8 levels.

• Progressive JPEG format files cannot be played on this system.

• JPEG image files with vastly differing widths or heights cannot be played.

• The disc contains more than 99 albums (the maximum number of JPEG image files that can be contained on an album is 250).

The album title, track title and ID3 tag do not appear correctly.

• Use a disc that conforms with ISO 9660 Level 1, Level 2, or Joliet in the expansi on f or ma t.

• The ID3 tag only displays track title inf or m at ion and only supports versions 1.0 and 1.1.

The disc title, album titl e, track title and ID3 ta g appear as spaces. The CD characters appear as spaces.

• The only character codes this system can dis pla y are numbers and letters of the alphabet . All othe r characters appears as spaces.

The sound loses stereo effect when you play a DVD, Video CD, CD or MP3.

• Select “KARAOKE OFF” in step 3 of “Singing along: Karaoke” (page 39).

• M ake sure the system is connected app r opriately.

The surround effect is difficult to hear when you are playing a Dolby Digital or MPEG audio sound track.

• M ak e sure the sound field function is on (page 38).

• Check the speaker connections and set tin g (page s 7 and 31).

• Depending on the DVD, the output signal may not be the entire 5.1 channel. It may be monaural or stereo even if the sound track is rec or d e d in the Dolby Digital or MPEG audio format.

The recording was not done properly when making a digital recording from the disc player of this system to an optional component connected to the DIGITAL OUT jack.

• Audio data is output from the DIGITAL OUT jack without any surround effects or other sound processing, so that the audio data is output slightly ahead of the sound from the speakers . Therefore, start the optional component recording in advance when making a digital recording to a conne ct ed optional component (MD deck, etc.).

There is excessive wow or flutter when recording audio from a DVD.

• Set “LFE” in “SPEAKER SETUP” to “OFF” (page 31).

You inserted an 8 cm disc in the DISC 1–5 slots.

• Unpl ug the power cord. Lift the main unit and remove the disc from underneath the disc tray. (However, do not lift the disc tray during this procedure.) Plug in the power cord once more.


There is no picture.

• Press FUNCTION +/– repeatedly until “DVD” appears.

• Check that the system is connected securel y .

• The video cord is damaged. Replace it with a new one.

• Make sure you connect the system to the video input jack of your TV (page 7).

• Make sure you turn on the TV and operate th e TV correctly.

• Make sure you select the video input on the TV so that you can view the pictures from the system.

• When you play a Video CD, make sure you set the color system correctly, according to your TV (color) system.

• To force the system to switch to interlace when PROGRESSIVE is selected, make sure the function is set to DVD, then hold down press DSGX and MIC – on the unit.

x and

Page 53

Picture noise appears.

• Cl ea n the disc.

• If video from this system has to go through your VCR to get to your TV, the copy-pr ote c tion applied to some DVD programs could affect picture quality. If you still experie nc e problems after checking your connections, ple as e try connecting this system directly to your TV’s S video input jack, if your TV is equipped with this input (page 7).

• When you play a Video CD, the color system is different. Set the color system to match your TV (page 27).

The aspect ratio of the screen cannot be changed even though you set “TV TYPE” in “SCREEN SETUP” in the Setup Display when you play a wide picture.

• The aspect ratio is fixed on your DVD.

• If you conn ec t the system with the S video cord, connect directly to the TV. Otherwise, you may not change the aspect ratio.

• Depending on the TV, you may not change the aspect ratio.

Messages do not appear on the screen in the language you want.

• Sel ect the la nguage you want for the on-screen display in “OSD” under “LANGUAGE SETUP” in the Setup Display (page 23).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played.

• The DVD prohibits changing the angles.

Tuner

Severe hum or noise/stations cannot be received.

• Set the proper band and frequency (page 33).

• Connect the antenna properly (page 7).

• Find a place and an orientation that provide good reception, then set up the a nte nna again. If you cannot obtain good reception, we recommend you connect a commercially av ai lab le external antenna.

• T he supplied FM lead antenna receives signals along its entire length, so make sure you extend it fully.

• Keep the antennas away from the system and other components.

• Consult your nearest Sony dealer if the supplied AM antenna has come off the plastic stand.

• Try turning off surrounding electrical equipments.

• S et “DVD POWER” and “OFF” by the DVD power manage function (page 33).

A stereo FM program cannot be received in stereo.

• Press FM MODE until “MONO” disappears in the display.

Tape deck

The tape does not record or play, or there is a decrease in sound level.

• T he heads are dirty. Clean them (page 57).

• The record/playback heads are magnetized. Demagnetize them (page57).

The tape does not erase completely.

• The record/playback heads are magnetized. Demagnetize them (page57).

There is excessive wow or flutter, or the sound drops out.

• The capstans in the tape deck are di rt y . Clean them using a cleaning cassette (page57).

Noise increases or the high frequencies are erased.

• The record/playback heads are magnetized. Demagnetize them (page57).

The tape does not record.

• No cassette is loaded. Load a cassette.

• The tab has been removed from the cassette. Cover the broken tab with adhesive tape (page 57).

• The tape has wound to the end.

Troubleshooting

Page 54

Optional components

There is no sound.

• Re fer to Gen era l it em “Th ere is no sound.” (page 50) and check the condition of the sys tem.

• Connect the component properly (page 47) while checking if: – The cords ar e conne c ted pr ope r ly.

– The cord plugs are firmly inserted all the way.

• Turn on the connected component.

• R e fer to the ope r at ing instructions supplied with the connected component and sta r t pla ying.

• Press FUNCTION repeatedly until “MD” or “VIDEO” appears (page 48).

The sound is distorted.

• Set the volume of the connected component lower.

If the system still does not operate properly after performing the above measures, reset the system as follows:

Use buttons on the unit for the operation.

1 Disconnect the power cord. 2 Reconnect the power cord. 3 Press ?/1 to turn on the system. 4 Press x, DIRECTION and ?/1 at the same

time.

The system is reset to the factory settings. You should set the settings you made, such as the preset stations, clock, and timer.

To return the DVD setup to the default settings*, perform reset as follows:

1 Press DVD SETUP in stop mode. 2 Press M/m repeatedly to select “SET UP”,

then press ENTER.

3 Press M/m repeatedly to select “RESET”,

then press ENTER.

4 Press M/m repeatedly to select “YES”, then

press ENTER. It takes a few seconds to complete. Do not press ?/1 when resetting the system.

* Except for Parental Control settings

Page 55

Messages

One of the follow i ng messages may appe ar or flash in the display during operation.

DVD/Video CD/CD/MP3/JPEG

NO DISC

There is no disc in the unit.

NO STEP

You pressed CLEAR when no track (step) is programmed.

CHECK DISC

• You inserted a disc in the slot of the c u r r ently playing disc.

• You inserted a disc with non-standard shapes.

CANT PLAY

• A disc that cannot be played was inserted.

• A disc with an unsupported region code was inserted.

DATA ERR

The JPEG file is an unsupported forma t.

NOT IN USE

You pressed an invalid button .

PLAY LMT

The MP3 file cannot be played.

PUSH STOP

You pressed PLAY MODE or CD SYNC on the unit during playback.

STEP FULL

You tried to program 26 or more tracks (steps).

READING

The system is reading TOC information of the disc. Some buttons are not available.

Tape

NO TAB

You cannot record the tape beca use the tab has been removed from the cassette.

NO TAPE

There is no tape in the tape deck.

TAPE OPEN

The lid of the tape deck is open.

Timer

SET TIMER

You cannot select the timer function when Play Timer or Rec Timer is not set.

TIME NG

The start and end times of Play Timer or Rec Timer are set to the sam e ti me.

PUSH SELECT

You tried to set the clock or timer during timer operation.

SET CLOCK

You tried to select the timer with the cl ock not set.

Other

NOT IN USE

You pressed an invalid button.

Troubleshooting

Tuner

COMPLETE

The preset operation ended normally.

Page 56

Additional Information

Precautions

On operating voltage

• Before operating the system, check that the operating voltage of your system is identical with the voltage of your local power supply.

• The voltage selector is located at the rear of the apparatus.

On safety

• The unit is not disconnected from the AC powe r source (mains) as long as it is connected to the wall outlet, even if th e unit itself has been turned of f.

• Unplug the system from the wal l o utlet (mains) if it is not to be used for an extended period of time. To disconnect the power cord (mains lead), pull it out by the plug. Never pull the cord itself.

• Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.

• AC power cord must be changed only at the qualified service shop.

On placement

• Do not place the system in an inclined position.

• D o not place the system in lo ca tions where it is: – Extremely hot or cold – Dusty or dirty – Very humid – Subject to vibrations – Subject to direct sunlight

• Use caution when placing the unit or speake r s on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.

On heat buildup

• Al though the system heats up during operation, this is not a malfunction.

• Place the system in a location with adequate ventilation to prevent hea t build-up in the system.

• If you continuously use this system at a high volume, the cabinet temperature of the top, side an d bo tt om rises considerably. To avoid burning yourself, do not touch the cabinet.

• To prevent a malfunction, do not cover the ventilation hole.

In case color irregularity is observed on nearby a TV screen

With the magneti cally shiel ded type of speak er system, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on the type of your TV set.

If color irregularity is observed…

Turn off the TV set once, then turn it on after 15 to 30 minutes.

If color irregularity is observed again…

Place the speakers farther away from th e TV s et.

IMPORTANT NOTICE

Caution: This system is ca pab le o f holding a still video image or on-screen displa y image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisio ns are especi ally suscep tibl e to this.

On operation

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may co ndense on the lens in side the disc player. Should this occur, the system will not operate properly. Remove the disc and leave the system turned on for about an hour until the moisture evaporates.

• Whe n you move the system, take out any disc.

If you have any questions or problems concerning your system, please consult your near es t Son y deal er.

Page 57

Notes on discs

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use so lve n ts such as benzene, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

• Do not use di sc s encirc le d with a protection ring. This may cause a malfunction to the syst e m.

• Whe n using discs that have glue or similar ta ck y substance on the label side of the disc or that used a special ink when the label was printed, there is a chance that the di sc or lab el may be come atta ched to parts inside this unit. When this occurs, it may not be possible to remove the disc, and may also cause this unit to malfunction . Be sure to check that the label side of the disc is not sticky before using. The following types of disc should not be use d: – Rental or used d iscs wit h atta che d seals where the

glue extends beyond the seal. The perimeter of the seal on the disc is tacky.

– Discs that have labels printed using a special ink

that feels tacky when touched.

• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.

Cleaning the cabinet

Clean the cabinet, panel and controls wit h a soft c lot h slightly moistened with mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as thinner, benzene or alcohol.

To save a tape permanently

To prevent a tape from being accidentally re corde d over, break off the cassette tab from side A or B as illustrated.

When using a tape longer than 90 minutes

The tape is very elas tic. Do not change the tape operations such as play, stop, and fast -winding frequently. The tape may get ent an gle d in the tape deck.

Cleaning the tape heads

Clean the tape heads after every 10 hours of use. Be sure to clean the tape heads before you st art an important recording or after playing an old tape. Use a separately sold dry-type or wet-type cleaning cassette. For details, refer to the instructions of the clea nin g cassette.

Demagnetizing the tape heads

Demagnetize the tape heads and th e met a l parts that have contact with the tape after every 20 to 30 hours of use with a separately sold demagnetizing cassette. For details, refer to the instru c ti ons of the de magnetizing cassette.

Additional Information

Break off the cassette tab

If you later want to reuse the tape for recording, cover the broken tab with adhesive tape.

Before placing a cassette in the tape deck

Take up any slack in the tape. Otherwise, the tape may get entangled in the parts of the tape deck and become damaged.

Page 58

Specifications

Main unit (HCD-HPX11D)

Amplifier section

The following measured at AC 120, 127, 220, 240 V, 50/60 Hz DIN power output (rated): 55 + 55 W

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (referen ce) :

70 + 70 W (6 ohms at 1 kHz, 10%

THD) Inputs MD/VIDEO (phono jacks):

Sensitivity 450/250 mV,

impedance 47 kilohms MIC (mini jack): Sensitivity 1 mV,

impedance 10 kilohms Outputs PHONES (stereo mini jack):

Accepts headphones with

an impedance of 8 ohms or

more. SPEAKER: Accepts impedance of 6 to

16 ohms.

Disc player section

System Compact d is c and digital

audio and video system Laser Se mi con duc tor la se r

(DVD: λ= 645 – 660 nm,

CD: λ= 770 – 800 nm)

Emission duration:

continuous Frequency response 20 Hz – 20 kHz Video color system format:

NTSC, PAL

Tape deck section

Recording system 4-track 2-channel, stereo Frequency response 50 – 13,000 Hz (±3 dB),

using Sony TYPE I

cassettes Wow and flutter ±0.15% W. Peak (IEC)

0.1% W. RMS (NAB)

±0.2% W. Peak (DIN)

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz

AM tuner section

Tuning range Saudi Arabian models: 531 – 1,602 kHz

(with the interval set at 9 kHz)

Other models: 530 – 1,710 kHz

(with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the interval set at 9 kHz)

Antenna AM loop antenna, external

antenna terminal

Intermediate frequency 450 kHz

Speaker (SS-CHPX11D/SS-CHPX11DN)

Speaker system 3-way, bass-reflex type,

mangnetically shielded

type Speaker units Super tweeter: 2 cm dia., cone type Woofer: 12 cm dia., cone type Tweeter: 4 cm dia., cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 170 × 300 × 208

mm Mass Approx. 3.4 kg net per

speaker

General

Power requirements Australian model: 230 – 240 V AC, 50/60 Hz Saudi Arabian model: 120 – 127, 220 or 230 –

240 V AC, 50/60 Hz

Adjustable with voltage

selector Thai model: 220 V AC, 50/60 Hz Other models: 120, 220 or 230 – 240 V

AC, 50/60 Hz

Adjustable with voltage

selector Power consumption 140 W Dimensions (w/h/d) Approx. 196 × 270 × 402

mm incl. projecting parts

and controls Mass Approx. 9.7 kg

Supplied accessories Remote Commander (1)

R6 (size AA) batter ies (2)

AM loop antenna (1)

FM lead antenna (1)

Video cord (1)

Design and specifications are subject to change without notice.

Page 59

Language code list

For details, see pages 11, 22 and 23. The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlin

1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan) Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-Romance 1482 Kirundi 1483 Romanian

1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volap k 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703

Not specified

Additional Information

Page 60

List of items that can be displayed and selected by disc type

When you press DVD DISPLAY, the fol lo w i ng control menu items ar e displayed.

Control Menu items Function

DISC Displays the disc name or disc type inserted into the syst em.

Selects the disc to be pla y ed .

TITLE (DVD only) SCENE (Video CD in PBC

playback only)

TRACK (Video CD only) CHAPTER (DVD only)

INDEX (Video CD only) ALBUM (MP3 only) Selects the album (MP3) to be played.

TRACK (CD or MP3 only) Selects the track (CD or MP3) to be played.

INDEX (CD only) Displays the index (CD).

TIME Checks the elapsed time and the remaining playback time.

AUDIO (DVD only) Changes the audio setting.

SUBTITLE (DVD only) Displays the subtitles.

ALBUM (JPEG only) Selects the album (JPEG) to be played.

Selects the title (DVD), or the track (Video CD) to be played. Displays the scene (Video C D i n PBC playback ).

Selects the chapter (DVD) or the index (Video CD) to be played.

Inputs the time code for picture and music searching.

Changes the subtitle language.

FILE (JPEG only) Selects the file (JPEG) to be played.

DATE (JPEG only) Displays the date information.

ANGLE (DVD only) Changes the angle.

PLAY MODE Selects the play mode (Normal Play/Shuffle Play/Program Play)

REPEAT Plays the entire disc (all titles/all tracks/all files), one title/chapter/

CUSTOM PARENTAL CONTROL

Tips

• Each time you press DVD DISPLAY, the Control Menu display changes cyclically as follows: Control Menu display

• The Control Menu items differ dependi ng on the disc .

• The “REPEAT” indicator lights up in gree n when you select any item except “OFF”.

• The “ANGLE” indicator lights up in green only when multiple angles are recorded on th e disc.

t Control Menu display off

for the di sc.

album/track or contents of progr am repe a te dly. Sets the disc to prohibit playback.

Page 61

System setup item list

When you press DVD SETUP, the following settings are displayed. The default settings are underlined.

LANGUAGE SETUP (page 23)

OSD Select the language you want to

DVD MENU Select the language you want to

AUDIO Select the language you want to

SUBTITLE Select the language you want to

SCREEN SETUP (page 25)

TV TYPE 16:9

SCREEN SAVER ON

BACKGROUND JACKET PICTURE

COMPONENT OUT

use from the displayed language list.

4:3 LETTER BOX 4:3 PAN SCAN

OFF

GRAPHICS 1 – 5 BLUE BLACK

INTERLACE PROGRESSIVE

CUSTOM SETUP (pages 23, 25, 27)

VCD COLOR SYSTEM

PARENTAL CONTROLt

TRACK SELECTION

AUDIO DRC OFF

DATA CD PRIORITY

JPEG DATE MM/DD/YYYY

AUTO PAL NTSC

OFF AUTO

STANDARD MAX

MP3 JPEG

YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

SPEAKER SETUP (page 31)

LFE ON

OFF

SET UP (pages 10, 54)

QUICK RESET YES

Additional Information

Page 62

Glossary

Album

Section of a music pi ece on a data CD containing MP3 audio tracks or JPEG image files.

Auto Pause

An automatic pauses according to the signal encoded on the disc w hi le pl ayi ng a Video CD. If the disc pla yer does not re sume play fo r a long time, press

Chapter

Sections of a picture or a music piece on a DVD that are smaller than titles. A title i s composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Dolby Digital

This sound format for movie theaters is more advanced than Dolby Surround Pro Logic. In this format, the surround speakers output stereo sound with an expanded frequency range and a subwoofer channel for deep bass is independently provided. This form at is also called “5.1” because the subwoofer channel is counted as 0.1 chan nel (since it functions onl y when a deep bass effect is needed). All six channels in this format are recorded separately to realize superior channel separation. Furthermore, since all the si gnals are proce ssed digitally, less signal degradation occurs.

Dolby Surround Pro Logic

As one method of de coding Dolby Surround, Dolby Surround Pro Logic produces four channels from t w o- channel sound. Com pared with the former Dolby Surr ound system, Dolby Surround Pro Logic reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby Surround Pro Logic, you should have one pair of surround speakers and a center speaker. The surround speakers output monaural sound.

nN to resume play m anually.

DTS

Digital audio compression technology that the Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surrou nd. The surround chan nel is stereo and there i s discrete sub woofer channel in this format. DTS provides the same 5. 1 di screte channels of hi gh quality digital audio. The good channel separatio n is realize d because the all chann el data is recorded dis cr et e and processed in digital.

DVD

A disc that contain s up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and singlesided DVD, at 4.7 GB (giga byte), is 7 times that of a CD. Furthermore , the data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 G B . The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The pict ur e data is compressed to about 1/40 of its original size. The DVD al so uses the variable rate coding technology that changes the data to be allocate d according to the status of the picture. The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more realistic audio pr esence. Furthermor e, various advanced functions suc h as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

File

Section of a picture on a data CD containing JPEG image files.

Film based software, Video based software

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sitcoms, displays images at 30 frames (or 60 fields) per second.

Page 63

Index (CD) / Video Index (Video CD)

A number that divides a track into sections to easily locate the point you w ant on a V id eo CD or a CD. Depending on the disc, no indexes may be recorded.

Interlace format (Interlaced scanning)

The Interlace format is the NTSC standard method for displaying TV images at 30 frames per second. Each fra m e i s s canned twice alternately between the even numbered scanning lines and then odd nu m bered scanning lines , at 60 times per second.

Menu Playback

Playback using the menu screens re corded on Video CDs with the PBC function. You can enjoy simple interactive software using the menu playback function.

Multi-angle function

Various angles, or viewpoints of the video camera, for a scene are recorded on some DVDs.

Multilingual function

Several languages for the sound or subtitles in a picture are recorded on some DVDs.

Multi Session

This is a recording method that enables adding of data using the Track-At-Once method. Conventional CDs begi n at a CD control area called the Lead-in and end at an area called Lead-out. A Multi Session CD is a CD having multiple sessions, with each segment from Lead-in to Lea d-out re garded as a singl e session . CD-Extra: This forma t recor ds audio (audio CD data) on the tracks in session 1 and data on the tracks in session 2.

Parental Control

A function of the DVD to limit playback of the disc by the age of th e users according t o t he limitation level in each country/region. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.

Playback Control (PBC)

Signals enc ode d o n V ide o CD s (Ve rs ion2.0) to control playback. By using menu screens recorded on Video CDs with PBC functions, you can enjoy playing simple interactive programs, programs with s earch functions, and so on. This system co nforms to Ver. 1.1 and Ver. 2.0 of Video CD standards. You can enjoy two kinds of playback depending on the disc type.

• Video CDs without the PBC function (Ver. 1.1 discs)

Enjoy video playback (moving pictures) as well as music.

• Video CDs with the PBC function (Ver. 2.0 discs)

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreove r, you can play highresolution still pictures, if they are included on the disc.

Progressive format (sequential scanning)

Compared to the Int erlace format that alternately shows every other line of an image (field) to create one frame, the Progress i v e format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames (60 fi el ds) in one second, the Progressive for m at can show 60 fram es in one second. The overall picture quality increases and still images, text , an d horizontal lines appear sharper. This player is compatible with 525 progressive format.

Region Code

This system is used to protect copyri ghts. A region number is allocated on each DVD system or DVD disc according to the sales r egion. Eac h region code is shown on the sy stem as well as on the disc packaging. The system can play the discs that match its region code. The system can also play discs with the “ ” mark. Even when

ALL

the region code is not shown on the DVD, the region limit may still be activated.

Additional Information

continued

Page 64

Scene

On a Video CD with th e PBC function (page 16), the menu screens , moving pictures, and still pictures are d ivided in to sections called “scenes”. Ea ch scene is ass igned a scene n umber enabling you to lo cate the scene you wan t.

Title

The longest sections of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video so ft war e; o r an al bum, et c. , for a music piece on audio software. Ea ch title is assigned a title number enabling you to locate the title you want.

Track

Sections of a pictur e or a music piece on a CD, Video CD, MP3 or JPEG. Each track is assigned a track number enabling you to locate the track you want.

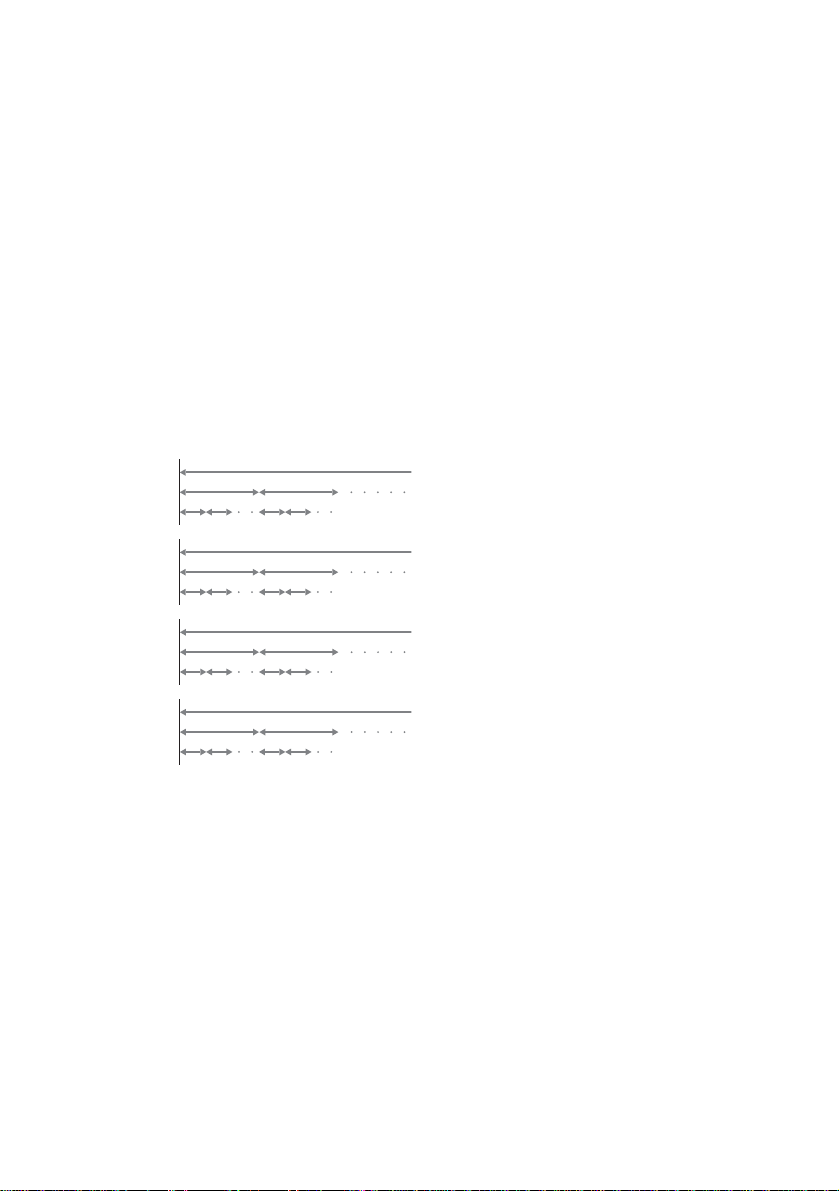

Disc

DVD structure

Video CD or CD structure

MP3 structure

JPEG structure

Title

Chapter

Track

Index

Album

Track

Album

File

Disc

Video CD

A compact disc that contains moving pictures. The picture data uses the MPEG 1 format, one of the worldwide standards for digit al compression technology. The pict ur e data is compressed to about 1/140 of its original size. Consequently, a 12 cm Video CD can contain up to 74 minutes of moving pictures. Video CDs also contai n compact audio data. Sounds outside th e range of human hearin g are compressed whil e t he sounds we can hear ar e not compressed. Video CDs can hold 6 times the audio informatio n of conventional audio C D s. There are 2 versions of V ideo CDs.

• Version 1.1: You can play only moving pictures and sounds.

• Version 2.0: You can play high-resolution still pictures and enj oy the PBC function .

This system conform s t o both versions.

Virtual

Creates 5 sets of virtual speakers surrounding the listene r fro m a si ngle pa ir of act ual su rrou nd speakers.

Page 65

List of button locations and reference pages

Illustrati

12 3 4

qhq

How to use this page

Use this page to find the location of buttons and other parts of the system that are mentioned in the text.

Main unit

ALPHABETICAL ORDER

A – E F – Z

Cassette compartment 4 CD SYNC ws (36) DIRECTION qj (35, 36, 37, 40,

54) DISC 1 – 5, +1 wg (14, 17) DISC SKIP 5 (14, 17) Disc tray qs (12) Display window 3 DSGX 6 (27, 37) ECHO qh (39) EQ EDIT qg (38) EQ EDIT +/– qf (38) EX-CHANGE w; (12, 14)

FUNCTION 9 (13, 18, 32, 33,

35, 48) MIC VOL +/– qf (39) PLAY MODE qj (13, 17, 18, 51) Remote sensor 2 TUNER/BAND 0 (32, 33) TUNING +/– 8 (32, 33) TUNING MODE qj (32, 33) VOLUME 7 (41, 50)

on number

DISC SKIP 5 (14, 17)

Name of button/part Reference page

BUTTON DESCRIPTIONS

?/1 (power) 1 (9, 10, 33, 41, 42,

54)

lm/ML (skip back/

skip forward, rewind/fast forward) 8 (14, 17)

x (stop) wf (14, 15, 35, 54) z START (record) wd (36, 37,

40)

DVD/NX (play/pause) ql (13,

18, 51)

TAPE/hH (play) wa (35, 36,

37, 40)

Z (eject) qa (12, 14)

m (mic) jack qd (39) i (phones) jack qk

Additional Information

wg wf wd ws wa w; ql

+/1

5 6

lj JL

HShH

8 9

0 qa qs

continued

Page 66

Remote control

ALPHABETICAL ORDER

A – E

ALBUM + 7 (14, 17) ALBUM – qa (14, 17) ANGLE qk (25) AUDIO qk (22) BAND wg (32, 33) CLEAR wl (18, 21) CLOCK/TIMER SELECT e;

(42, 43, 50)

CLOCK/TIMER SET e; (10, 41,

42) DISC SKIP wf (14, 17) DISPLAY wa (43, 44, 45) DVD DISPLAY wh (16, 17, 20,

22, 23, 25, 27, 45) DVD MENU 7 (15) DVD SETUP ws (11, 23, 25, 28

31, 54, 61) DVD TOP MENU qa (15) ENTER wj (10, 11, 15, 16, 17, 18,

20, 22, 25, 27, 31, 41, 54)

wl wk

wj wh wg

F – Z

FM MODE 5 (34, 53) FUNCTION +/– 0 (13, 17, 32,

33, 35, 48) KARAOKE/MPX qf (39) KEY CONTROL Number buttons qd (15, 16, 21,

24, 25, 28) PLAY MODE 4 (13, 17, 18, 51) REPEAT 5 (16) SLEEP qh (41) SOUND FIELD +/– wd (38) SUBTITLE qk (23) TUNER MEMORY 3 (32) TUNING MODE 4 (32, 33) TUNING +/– wk (32, 33) TV CH +/– qg (9) TV/VIDEO ea (9) TV VOL +/– 2 (9) VOLUME +/– 8 (41, 50)

+–+

–

+–

mM.>

XbB

+––

–

#/2 9 (39)

BUTTON DESCRIPTIONS

?/1 (power) 1 (9, 10, 33, 41, 42,

54)

nN (play) 6 (13, 14, 15, 16,

17, 18, 30, 35, 51)

X (pause) 6 (14, 35)

x (stop) 6 (14, 15, 35, 54)

>10* qs TV ?/1 qj (9) O RETURN ql (11, 16, 18, 21,

28, 29)

m (rewind) w; (14, 35) M (fast forward) w; (14, 35)

SLOW /y w; (14) M/m/</, wj (10, 14, 15, 16,

18, 20, 22, 25, 27, 31, 41, 42,

54)

. (go back) wk (14, 17) > (go forward) wk (14, 17)

* This button does not funct ion.

+–+

2qg

–

3 4 5

+–

mM.>

XbB x

+–

–

6 7

–

Page 67

Page 68

Sony Corporation Printed in China
