SONY CHASSIS AE5 Service Manual

SERVICE MANUAL AE-5

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

CHASSIS

MODEL

KV-29FS60A
KV-29FS60B
KV-29FS60D
KV-29FS60E
KV-29FS60K
KV-29FS60R
KV-29FS60U

COMMANDER DEST CHASSIS NO.

RM-891 Italian SCC-Q12E-A

RM-891 French SCC-Q13E-A

RM-891 AEP SCC-Q11E-A

RM-891 Spanish SCC-Q14E-A

RM-891 OIRT SCC-Q16G-A

RM-891 OIRT SCC-Q16H-A

RM-891 UK SCC-Q15D-A

MODEL

COMMANDER DEST CHASSIS NO.

KV-32FS60A
KV-32FS60B
KV-32FS60D
KV-32FS60E

RM-891 Italian SCC-Q12F-A

RM-891 French SCC-Q13F-A

RM-891 AEP SCC-Q11F-A

RM-891 Spanish SCC-Q14F-A

MICROFILM

TRINITRON

1

COLOR TV

®

®

ITEM MODEL Television System Stereo System Channel Coverage Color System

Italian

French

AEP

Spanish

OIRT

UK

B/G/H,D/K GERMAN Stereo

B/G/H, D/K,L,I GERMAN/NICAM

B/G/H, D/K GERMAN Stereo

B/G/H, D/K GERMAN/NICAM

B/G/H, D/K

I NICAM Stereo UHF : B21-B69

Stereo

Stereo

KV-29FS60K
GERMAN/NICAM
Stereo

KV-29FS60R
GERMAN Stereo

ITALIA VHF : A-H2 (C) UHF : 21-69 PAL
B/G/H VHF : E2-E12 UHF : E21-E69
CABLE TV (1) : S1-S41
CABLE TV (2) : S01-S05,M1-M10,U1-U10
DK VHF : R01-R12 UHF : R21-R69

L VHF : F02-F10 UHF : F21-F60
CABLE : B-Q B/G/H VHF : E2-E12
UHF : E21-E69
CABLE TV (1) : S1-S41
CABLE TV (2) : S01-S05, M1-M10, U1-U10
ITALIA VHF : A-H2 (C) UHF : 21-69
I UHF : B21-B69

PAL B/G/H/ VHF : E2-E12 : E21-E69
CABLE TV (1) : S1-S41
CABLE TV (2) : S01-S05, M1-M10, U1-U10
ITALIA VHF : A-H2 (C) UHF : 21-69
D/K VHF : R01-R12 UHF : R21-R69

PAL B/G/H/ VHF : E2-E12 : E21-E69
CABLE TV (1) : S1-S41
CABLE TV (2) : S01-S05, M1-M10, U1-U10
ITALIA VHF : A-H2 (C) UHF : 21-69

B/G/H/ VHF : E2-E12 UHF : E21-E69
CABLE TV (1) : S1-S41
D/K VHF : R01-R12 UHF : R21-R69

PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)

PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)

PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)

PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)

PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)

PAL
NTSC4.43, NTSC3.58
(VIDEO IN)

MODEL 29FS60A 29FS60B 29FS60D 29FS60E 29FS60K 29FS60R 29FS60U 32FS60A 32FS60B 32FS60D 32FS60E

Power

Consumption

[PICTURE TUBE]
KV-29FS60

KV-32FS60

149Wh 148Wh 148Wh 148Wh 148W 148W 148Wh 144Wh 149Wh 149Wh 149Wh

[FRONT]

FD Trinitron
Approx. 72 cm (29 inches)
(Approx. 68 cm picture measured
diagonally)
102 degree deflection

FD Trinitron
Approx. 82 cm (32 inches)
(Approx. 76 cm picture measured
diagonally)
102 degree deflection

Video output - phono jack

3

Audio inputs - phono jacks

3

S Video input - 4 pin DIN

3

Headphone jack : stereo minijack

Sound output 2x25W (Music Power)
Power requirements 220 - 240V

Dimensions
KV-29FS60 Approx 738 x 588 x 507 mm (w/h/d)
KV-32FS60 Approx 867 x 564 x 558 mm (w/h/d)

Input/Output Terminals

[REAR]

21-pin Euro connector (CENELEC standard).

1

- Inputs for Audio and Video signals.

- Inputs for RGB.

- Outputs of TV Video and Audio signals.
21-pin Euro connector

S

2

- Inputs for Audio and Video signals.

- Inputs for S video.

- Outputs forVideo and Audio signals (selectable).

S

21-pin Euro connector

3

- Inputs for Audio and Video signals.

- Inputs for S video.

External speaker terminals : 2-pin DIN (5)

Weight
KV-29FS60 Approx 55kg
KV-32FS60 Approx 68kg

Supplied accessories RM-891 Remote Commander (1)

IEC designated R6 battery (2)

Other features NICAM*, FASTEXT, TOPTEXT

* (KV-29FS60B/29FS60E/29FS60K/

29FS60U/32FS60B/32FS60E only)

2

[RM-891]

Remote control system Infrared control
Power requirements 3V dc

2 batteries IEC designation

R6 (size AA)
Dimensions Approx 210x56x24mm (w/h/d)
Weight Approx 110g (Not including battery)

Design and specifications are subject to change without notice.

Model Name

Item
Pal Comb
PIP
RGB Priority
Woofer Box
Scart 1
Scart 2
Front in (3)
Scart 4
Projector
AKB in 16:9 mode
Norm B/G
Norm I
Norm D/K
Norm AUS
Norm L

KV-29FS60A

KV-32FS60A

ON ON ON ON ON ON ON

OFFOFFOFFOFFOFFOFFOFF

ON ON ON ON ON ON ON

OFFOFFOFFOFFOFFOFFOFF

ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON
ON ON ON ON ON ON ON

OFFOFFOFFOFFOFFOFFOFF

ON ON ON ON ON ON ON
ON ON ON ON ON ON OFF

OFF ON OFF OFF OFF OFF ON

ON ON ON ON ON ON OFF
OFFOFFOFFOFFOFFOFFOFF
OFF ON OFF OFF OFF OFF OFF

KV-29FS60B

KV-32FS60B

KV-29FS60D

KV-32FS60D

KV-29FS60E

KV-29FS60K KV-29FS60R KV-29FS60U

KV-32FS60E

Norm SAT
Norm M
Teletext
Nicam Stereo
Language Preset

WARNING

The flexible mains lead is supplied connected to a
having a fuse of
use a

5 AMP FUSE

ASA

mark.

T

IF THE PLUG SUPPLIED WITH THIS APPLIANCE IS NOT SUITABLE
FOR THE OUTLET SOCKETS IN YOUR HOME, IT SHOULD BE CUT
OFF AND AN APPROPRIATE PLUG FITTED. THE PLUG SEVERED
FROM THE MAINS LEAD MUST BE DESTROYED AS A PLUG WITH
BARED WIRES IS DANGEROUS IF ENGAGED IN A LIVE OUTLET
SOCKET.
When an alternative type of plug is used it should be fitted with a

, otherwise the circuit should be protected by a

FUSE

distribution board.

(KV-29FS60U only)

5 AMP

approved by

OFFOFFOFFOFFOFFOFFOFF
OFFOFFOFFOFFOFFOFFOFF

ON ON ON ON ON ON ON
OFF ON OFF ON ON OFF ON

Italian French German Spanish OIRT OIRT English

capacity. Should the fuse need to be replaced,

ASTA

to

B.S. 1363

BS 1362

fused plug

, ie one that carries the

5 AMP

5 AMP FUSE

at the

How to replace the fuse.
Open the fuse compartment with
a screwdriver blade and replace
the fuse.

FUSE

3

21 pin connector

1/

21
19
17
15
13
11

9
7
5
3
1

Pin No 1 2 4 Signal Signal level

1

S

S

2

3

2

3

1

L/G/S/I

R/D/D/D

L/G/S/I

R/D/D/D

G

S

S

2

3
4
5
6

7

8

9

10

20
18

11

12
13

16

14

14

15

12

_ (S signal Chroma

16

10

8

17

6

18

19

Audio output B
(right)

Audio output B
(right)

Audio output A
(left)

Ground (audio)
Ground (blue)
Audio input A

(left)
Blue input 0.7 +/- 3dB, 75 ohms positive

Function select
(AV control)

Ground (green)
Open
Green Green signal : 0.7 +/- 3dB, 75 ohms,

Open
Ground (red)
Ground (blanking)

_ _ Red input 0.7 +/- 3dB, 75 ohms, positive

input)
Blanking input

(Ys signal)
Ground (video

output)
Ground (video

input)
Video output 1V +/- 3dB, 75ohms, positive sync 0.3V

4
2

20

21

_ _ Video input 1V +/- 3dB, 75ohms, positive sync 0.3V

_ Video input

Y (S signal)
Common ground

(plug, shield)

Standard level : 0.5V rms
Output impedence : Less than 1kohm*

Standard level : 0.5V rms
Output impedence : More than 10kohm*

Standard level : 0.5V rms
Output impedence : Less than 1kohm*

Standard level : 0.5V rms
Output impedence : More than 10kohm*

High state (9.5-12V) : Part mode
Low state (0-2V) : TV mode
Input impedence : More than 10K ohms
Input capacitance : Less than 2nF

positive

0.3 +/- 3dB, 75 ohms, positive

High state (1-3V) Low state (0-0.4V)
Input impedence : 75 ohms

(-3+10dB)

(-3+10dB)
1V +/- 3dB, 75ohms, positive sync 0.3V

(-3+10dB)

Pin No.

1
2
3
4

Signal
Ground
Ground
Y (S signal) input
C (S signal) input

Signal Level

1V 3dB 75 ohm, positive Sync. 0.3V -3 + 10dB

0.3V 3dB 75 ohm, positive Sync.

Connected Not Connected (open) * at 20Hz - 20kHz

S

3

L/G/S/I R/D/D/D

3

3

4

AE-5 SELF DIAGNOSTIC SOFTWARE

The identification of errors within the AE-5 chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event
of one of these situations arising the software will first try to release the bus if b usy (F ailure to do so will report with continuous flashing LED) and
then communicate with each device in turn to establish if a device is f aulty. If a device is found to be faulty the relevant device number will be dis­played through the LED (Series of flashes which must be counted) See table 1., non fatal errors are reported using this method.

Diagnostic Item

Description

Power does not turn on Does not light Power cord is not plugged in

+B Overcurrent (OCP) 2 times H.OUT (Q6803/6804) is shorted. (D Board)

Vertical Deflection stopped 4 times +15V is not supplied R6835 open (D Board)

No of times Standby

LED Flashes

Fuse is burned out

Linearity FET (Q6806) is shorted. (D Board)
IC6604 Power IC is shorted. (D Board)

-15V is not supplied R6834 open (D Board)
IC6700 is shorted (D Board)

ERROR

No error 00
Not allowed (may be confused with Sircs response

flash!)
Over Current Protection 02
Over Voltage Protection 03
Vertical Protection 04
AKB 05
H - Protection 06
Speaker Protection 07
General IIC Line 0 error 08
MEGATEXT 09
NVM 10
Main colour decoder 11
Feature Box 12
D/A converter 13
Backend 14
Multi sound processor 15
Auto Wide 16
External RAM 17

Probable cause

Location

ERROR
COUNT

LED

01

Detected Symptoms

Power does not come on
No power is supplied to the TV
AC power supply is faulty

Power does not come on

Load on power line has shorted
Vertical deflection pulse has stopped

Power line has shorted

Flash Timing Example : e.g. error number 3

StBy LED

ON ON ON

OFF OFF

5

ERROR DETECTION MONITOR

Device acknowledge is used to check IIC errors. Device acknowledge is checked by sending an IIC start sequence during CRT power on. Each
device is checked three times, if there is no acknowledge after every attempt, it will be regarded as an error.
There are three steps to check errors

1. IIC line 0
If all devices except the NVM have errors, IIC line 0 error is displayed

2. Board check
If all devices mounted on one board have errors, board error is displayed

3. Each device check
If IIC line error and board error are not detected then the device with an error is displayed

The detected errors can be displayed as follows:

1. Error Monitor Menu

2. Error Reader

1. ERROR MONITOR MENU

The error monitor menu is displayed by selecting TT33. The following menu will be displayed:

ERROR MONITOR

Operating Time :

930360h 15h

Saved Errors :

1. 100h = A-Board

2. 401h = BP-B CXD2069 MID

3. 704h = J-B TDA9320 Main Col Dec

4. 000h = no error occured

5. 000h = no error occured

Actual Error :

New error code sequence is starting

Ignore Errors : [off]

6

2. ERROR READER DISPLAY

The error reader display is connected to the service connector to read actual error codes. The part number for the error reader display is S-188-900-10.
Once an error has been detected it will then be displayed on the two digit error reader. The errors displayed refer to the following table :

Send Data to Error Reader

Error Code Data high Data Low Error type Function

00 00h - f0h no device

Gen.IIC Error

00 01h f0h 01h IIC 0 line
00 02h f0h 02h IIC 1 line not used

Board Error

01 00h f1h 00h A Board
02 00h f2h 00h B1 Board
03 00h f3h 00h B2 Board
04 00h f4h 00h BP Board
05 00h f5h 00h D1 Board
06 00h f6h 00h E Board
07 00h f7h 00h J Board

Device Error

A Board

01 01h f1h 01h CXA1875 Port Expander
01 02h f1h 02h TU1326 Main Tuner
01 03h f1h 03h TU1350 Sub Tuner

B1 Board

02 01h f2h 01h P83C654 Feature Box
02 02h f2h 02h SDA9280 D/A Converter

B2 Board

03 01h f3h 01h SAA4977 Basic
03 02h f3h 02h SAA4950 Memory

BP Board

04 01h f4h 01h CXD2069 MID

D1 Board

05 01h f5h 01h CXA8070 Dynamic Conv.
05 02h f5h 02h CXA1875 Port Expander

E Board

06 01h f6h 01h CXD2100 Backend

J Board

07 01h f7h 01h CXD2057 Auto Wide
07 02h f7h 02h SDA9288 PIP
07 03h f7h 03h TDA9320 Sub Colour
07 04h f7h 04h TDA9320 Main Colour
07 05h f7h 05h CXA1875 Sub Sound
07 06h f7h 06h TDA7309 HP Amp
07 07h f7h 07h TEA6422DT Audio SW
07 08h f7h 08h MSP3410D Sound Proc
07 09h f7h 09h TC9337F Sound DSP

7

TABLE OF CONTENTS

Section Title Page Section Title Page

Warning and Caution .....................3

Self-Diagnostic Function .....................5

1. GENERAL

Overview .....................9

Installation .....................10

Advanced Operations .....................11

Teletext .....................16

2. DISASSEMBLY

2-1. Rear Cover Removal .....................17

2-2. Chassis Assy Removal .....................17

2-3. Service Position .....................17

2-4. U Board Removal .....................17

2-5. J Board Removal .....................18

2-6. J Shield Removal .....................18

2-7. B1 Board Removal .....................18

2-8. Picture Tube Removal .....................19

Removal and Replacement of the

Main-Bracket bottom plates .....................20

3. SET-UP ADJUSTMENTS

3-1. Beam Landing .....................21

3-2. Convergence .....................22

3-3. Focus .....................24

3-4. Screen [G2] White Balance .....................24

4. CIRCUIT ADJUSTMENTS

4-1. Electrical Adjustments .....................26

4-2. Volume Electrical Adjustments .....................32

4-3. Test Mode 2 .....................33

5. DIAGRAMS

5-1. Block Diagram (1) .....................35

Block Diagram (2) .....................40

Block Diagram (3) .....................45

Block Diagram (4) .....................50

5-2. Circuit Board Location .....................55

5-3. Schematic Diagrams and

Printed Wiring Boards .....................55

* C Board .....................57

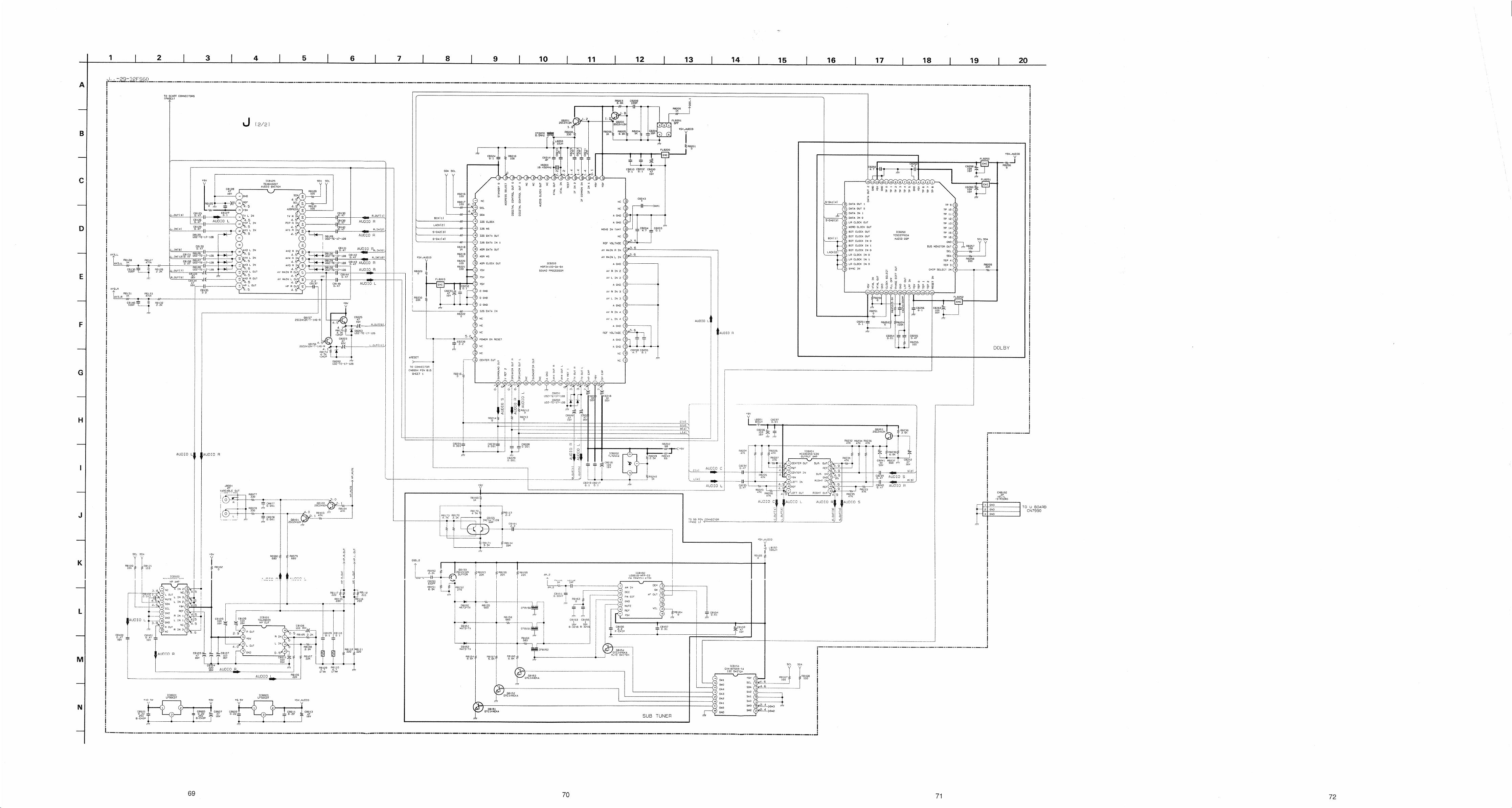

* J Board .....................65

* U Board .....................74

* A Board .....................81

* BP Board .....................85

* VM Board .....................92

* B1 Board .....................95

* D1 Board .....................99

* F Board .....................103

* F1 Board .....................106

* M Board .....................107

* E Board .....................111

* D Board .....................116

* H1 Board .....................122

5-4. Semiconductors .....................125

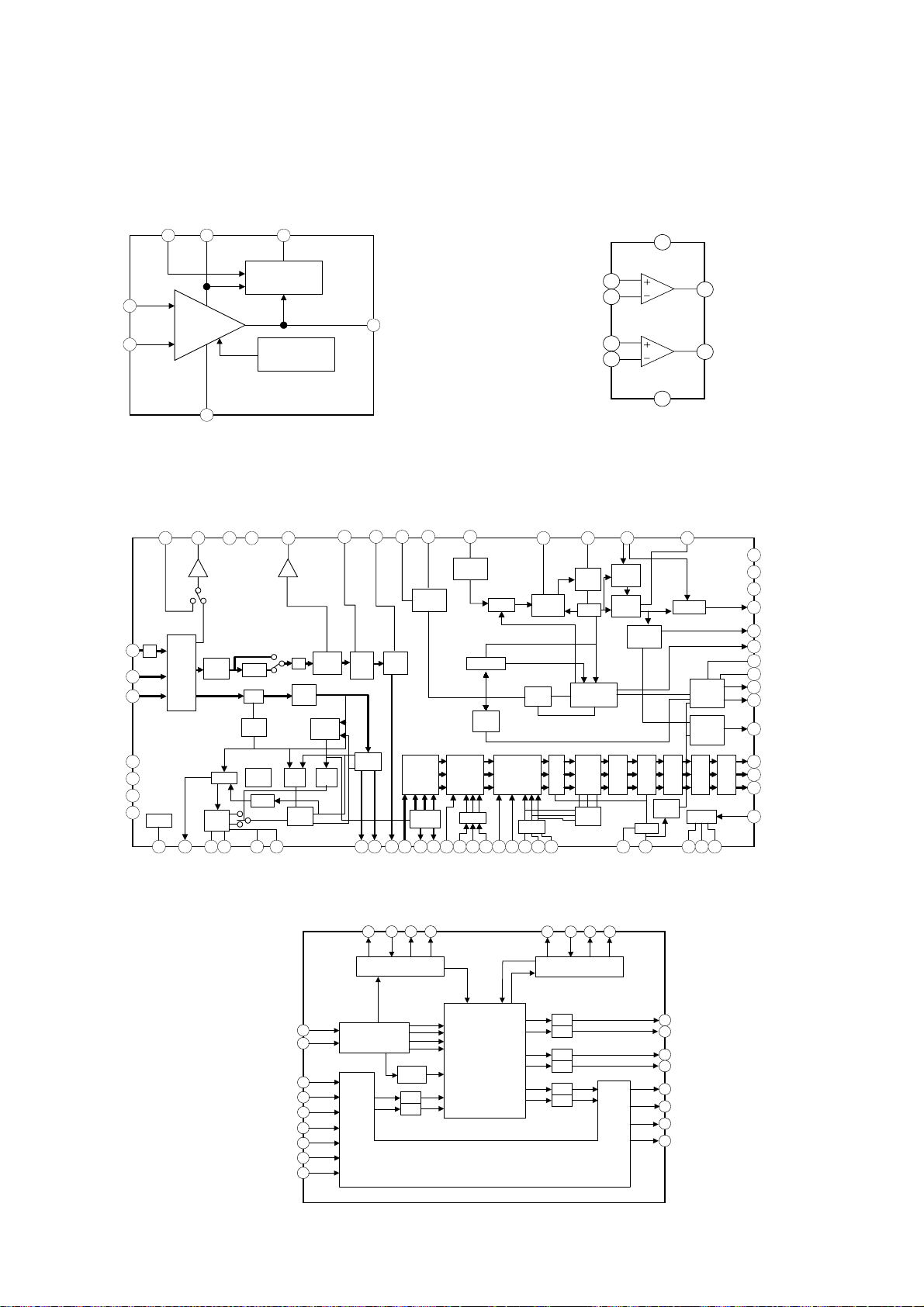

5-5. IC Blocks .....................128

6. EXPLODED VIEWS

6-1. Chassis .....................129

6-2. Picture Tube .....................131

7. ELECTRICAL PARTS LIST

.....................133

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE
ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE
CARBON PAINTED ON THE CRT, AFTER REMOVAL OF THE
ANODE CAP

WARNING !!

AN ISOLATING TRANSFORMER SHOULD BE USED DURING ANY
SERVICE WORK TO AVOID POSSIBLE SHOCK HAZARD DUE TO
LIVE CHASSIS. THE CHASSIS OF THIS RECEIVER IS DIRECTLY
CONNECTED TO THE POWER LINE.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY SHADING AND MARKED ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION

APRES AVOIR DECONNECTE LE CAP DE’LANODE,
COURT-CIRCUITER L’ANODE DU TUBE CATHODIQUE ET
CELUI DE L’ANODE DU CAP AU CHASSIS METALLIQUE
DE L’APPAREIL, OU AU COUCHE DE CARBONE PEINTE
SUR LE TUBE CATHODIQUE OU AU BLINDAGE DU TUBE
CATHODIQUE.

ATTENTION !!

AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION PROVENANT
D’UN CHÁSSIS SOUS TENTION, UN TRANSFORMATEUR
D’ISOLEMENT DOIT ETRE UTILISÈ LORS DE TOUT DÈPANNAGE.
LE CHÁSSIS DE CE RÈCEPTEUR EST DIRECTMENT RACCORDÈ
Á L’ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS Á LA

SÈCURITÈ !!

LES COMPOSANTS IDENTIFIÈS PAR UNE TRAME ET PAR UNE
MARQUE SUR LES SCHÈMAS DE PRINCIPE, LES VUES

EXPLOSÈES ET LES LISTES DE PIECES SONT D’UNE IMPORTANCE
CRITIQUE POUR LA SÈCURITÈ DU FONCTIONNEMENT, NE LES
REMPLACER QUE PAR DES COMPSANTS SONY DONT LE NUMÈRO
DE PIÈCE EST INDIQUÈ DANS LE PRÈSENT MANUEL OU DANS
DES SUPPLÈMENTS PUBLIÈS PAR SONY.

8

SECTION 1

GENERAL

The operating instructions mentioned here are partial abstracts from the Operating
Instruction Manual. The page numbers of the Operating Instruction Manual remain

as in the manua

l.

Overview

This section briefly describes the buttons and controls on the TV set and the Remote Control.
Open the flaps at the front and back of his Instruction Manual for detailed illustrations.
For more information refer to the page numbers given in the overview.

Remote Control

Symbol Description See page

I/

u TV: standby mode on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

1 TV

+

2

3

R Teletext: Freezing a subpage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Å/a

4

5 > PIP: Selecting the source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

6

´/´

7 1, 2, … 9, 0 Number buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8

9

0

9

!¡ Joystick for menu selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

!™ MENU Switching on and off of Menu system . . . . . . . . . . . . . . . . . . . . . . . . . . 31

!£ PROGR +/– TV: Channel selection up- and downwards . . . . . . . . . . . . . . . . . . . . . 32

TV: on-screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Teletext: index page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Selecting of input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

PIP: Swapping the screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

PIP: Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Back to the channel last selected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Selecting of screen format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

No function on this set

Press OK to confirm

Teletext: Page selection up-and downwards . . . . . . . . . . . . . . . . . . . . . 42

TV-set – front and top

Symbol Description See page

2

A

B q 3 S-video input jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

C … 3,

≤

3 Phono video/audio inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

D u Indicator for Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

E U Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

F … Selecting input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

G ¸ +/– Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

H PROGR +/– Channel selection up- and downwards . . . . . . . . . . . . . . . . . . . . . . 37

I CONTROL Control panel: Switching on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

F G H I

+–+

Headphone jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

PROGR
–

CONTROL

L/G/S/I

R/D/D/D

S

S

2

3

1/

2

3

1

R/D/D/D

M NLKJ

G

S

S

L/G/S/I

L/G/S/I

R/D/D/D

!¢ ¸ +/– Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

!∞

!§

!¶

-/--

!•

!ª

@º

f

@¡

;

¤

@™
@£ VIDEO

I/

u VCR: Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Buttons under cover

@¢

˚

@∞ CH +/– VCR operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

VTR 1 2 3 4 MDP Video equipment selector
0 z ) p P r Buttons for VCR operation

@§

?

Picture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Equaliser mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Selection of double digit channel numbers . . . . . . . . . . . . . . . . . . . . . . 32

Freezing of TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

No function on this set

Teletext: Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

TV: Selecting of TV mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Teletext: Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Muting of sound on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Displaying of the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Resetting of picture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

L/G/S/I R/D/D/D

S

A B C

333

ED

OP

TV-set – rear

Symbol Description See page

1 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Y

1/

J

K

Y

2/j2 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

L

Y

3/j3 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

M

˘

N R/D/D/D, L/G/S/I, External speaker terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

|, |

S, | C (Centre, Surround)

O L/G/S/I

P

R/D/D/D

™

R/D/D/D

L/G/S/I Audio phono jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

|

Aerial socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Left and right speaker terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

28

33

10

Installation

B Connecting the TV Set

1 Connect the TV set to the mains socket (220-240 V. AC, 50 Hz).
2a Connect a conventional aerial cable to the socket marked ˘ M on the rear of the TV set

or

2b Connect your Satellite Receiver to one of the Scart connectors J K L of the TV set.

When connecting a VCR to your TV set:

We recommend that you use the preset function Manual Programme Preset (page 38) to tune
in the VCR signal to programme position 0.

L/G/S/I

L/G/S/I

R/D/D/D

R/D/D/D

OUT IN

C Inserting the Batteries into the Remote Control

Make sure to insert the batteries using the correct polarities.
Dispose of exhausted batteries according to your local regulations.

VIDEO

SAT

Step 2 Basic Presetting

A The Menu System

Your TV uses an on-screen menu system to guide you through the operations.
Use the following buttons on the Remote Control to operate the menu system:

Press MENU !™ to switch the menu on and off.

•

Use “, ”, 4, $ of the joystick !¡ to select within the menu system.

•

Press OK to store.

•

When menu is switched off:

•

Press “ to return to the last menu screen.

B Selecting Language and Country

1 Press the MENU !™ button.

The menu Language/Country appears on the screen.

2 Push the joystick !¡ to ”. Push the joystick !¡ to $ to select the language.

Press OK !¡.
The menus appear in the selected language.

3 Push the joystick !¡ to $ to select Country. Push the joystick !¡ to ”.
4 Select the country in which you will operate the TV set using $ or 4 .

Select Off if you wish an automatic tuning without ACI (fast presetting with a
given channel sequence).
Confirm by pressing OK !¡.

•

The menu Auto Tuning appears.

Language/Country

Language

Country

Select: Enter:

Language/Country

Language

Country

Select: Enter:

Language/Country

Language

Country

Select Country:

English

Off

English

Off

Czech Rep.

Confirm: OK

English

Austria

Belgium

Bulgaria
Denmark

Finland

Off

D Switching on the TV Set

Press the switch U E at the front of the TV set.

•

If the standby mode indicator u D on the TV is lit, press TV I/u 1 on the
Remote Control to switch on the TV set.

C Automatic Tuning In of Channels

Push the joystick !¡ to ” for more than 2 sec..

•

After all available channels are stored, the TV goes back to the programme
position with which you started the automatic tuning. Your TV is now ready
for use.



To stop the automatic tuning: Press OK !¡.



If you wish to change the sequence of the stored channels, go to
Sorting Programme Positions in Advanced Presetting.



If you need to change or repeat the tuning afterwards (e.g. when you move

ED

First Time Operation

35

house) : select the menu Auto Tuning in the Set Up

menu.

1
2
3
4
5

Searching

CO2
CO3
CO4
CO7
CO8

Set Up

Auto Tuning

Programme Sorting
AV Preset
Installation

Start Auto Tuning:

Select:

First Time Operation

Start

31

11

Step 3 Basic TV operation

This section explains the most important functions for the daily use of your TV
set. When using the control panel on the top of the TV set, first press CONTROL
I, then F, G or H.

Function Operation

Switching on/off

Switching off temporarily
(Standby mode) TV is now in standby mode. Indicator u D lights

Switch on from standby
mode button 7.

Selecting channels

Using the Channel
overview Push to $ or 4 to select a channel, push to z to

Going to the channel
last selected

Adjusting the volume

Muting the sound

Selecting Equaliser mode
(See also page 39) following modes: Personal, Vocal, Jazz,

Selecting Picture mode
(see also page 38) of the following modes: Personal, Movie or Live.

Freezing the picture

Changing the
screen format (imitation of wide screen format).

Resetting picture/sound
settings to factory levels Press ? @§.

Displaying on-screen

indications
Displaying the time

(only when teletext is Press ˚ @¢ to switch time on or off.
broadcast)

Using Teletext
(see also page 42) Select a page using the number buttons 7.

Viewing the input signal
of a connected device source.
(see also page 44) Press ; @¡ to return to the TV picture.

32

First Time Operation

Press U E on the TV set.

•

To save energy, we recommend to switch off the
TV completely when set is not in use.

Press TV I/

•

•

•

•

u 1.

up.
After 15 min. without any TV signal and no
pressing of a button, the TV automatically goes into
standby mode.

Press TV I/

u 1

, PROGR +/– !£ H or any number

Press PROGR +/- !£ H or the number buttons 7.
For a double
the two number buttons.

digit number first press -/-- !¶, then

Press OK !¡.

confirm.

Press 8.

•

Press ¸ + or – !¢ G.

•

Press ¤ @™ to switch sound off or on.

•

Press repeatedly !§ to select one of the

•

Rock, Pop or Flat
Press repeatedly !∞ to select one

•

Press !• if you wish to make a note of an

•

information, e.g., a telephone number.
Press again to return to the normal TV screen.

Press 9 repeatedly to select 4:3 or 16:9

•

Open the cover of the Remote Control.

•

+

2 to switch indications on or off.

Press

•

Open the cover of the Remote Control.

•

Press f @º to switch on. Press ; @¡ to switch off.

•

E.g. for page 125 press 1,2 and 5.
Select the index page by pressing

Press … 3 repeatedly to select the desired input

•

+

2.

10

12
13
14

8
9

11

VIVA
RTL
SAT 1
S3
VIVA 2
PRO 7
ARD

+–+

–

Soul Music
News
Game Show
Animal Report
Stones in Interviev
Pink Panther
Afternoon Report

J K

Advanced Operation

Advanced Presetting

Sorting of Programme Positions

After having used Automatic Tuning of channels you may wish to rearrange
the order of the channels.

1 Press MENU. Select the symbol
2 Select Programme Sorting using $. Push to ” to enter.
3 Select the programme position of the channel you wish to sort using 4 or $.

Push to ” to enter.

4 Move the channel to the new programme position using 4 or $. Store by

pressing OK.
The channel is now at the new position. The other programme positions
move accordingly.

5 To sort other programme positions repeat steps 3 to 4.
6 Press MENU to return to the normal TV screen.

Manual Tuning In of Channels

Use this function to preset channels or a video input source one by one to
programme positions of your choice.

1 Press MENU. Select the symbol
2 Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3 Select the programme position by pushing to 4 or $. Push twice to ”.

The column SYS is highlighted.

4 Select the TV system using 4 or $. Push to ” to enter.

Available TV systems are B/G for western European countries,
D/K for eastern European countries, EXT for a video input source
(please go to step 5c after selecting EXT)
The column CH is highlighted.

5 Select your method for the channel tuning using 4 or $. Push to ” to enter.

You have the choice between C for a terrestrial channel, S for a cable channel,
F for direct frequency input.

a Direct Channel Input - S, C or F

For channel numbers input a two digit number, for the channel frequency a
three digit number.

Select the two or three digits by using the number buttons 0 to 9.

•

To start the search and to store the channel, press OK.

•

To preset other channels repeat steps 3 to 5a.

•

b Channel search (SEARCH)

Use Search if you do not know the channel number or frequency
Start the search for the next available channel by pushing to $.

•

Store the channel by pressing OK or continue the search by pushing again to $.

•

To search for other channels repeat steps 3 to 5b.

•

c For video input sources (EXT)

Select the Video Input source using 4 or $.

•

Store your selection by pressing OK.

•

To allocate other sources repeat steps 3 to 5c.

•

6 Press MENU to return to the normal TV screen.

using $. Push to ”.

using $. Push to ”.

Set Up

Auto Tuning

Programme Sorting

AV Preset
Installation

Select: Enter:

Programme Sorting

PROG CH LABEL

TV 5

C03

1

PRO 7

C05

2

EU-SP

C07

3

SWF

C08

4

RTL

C09

5

SAT

C11

6

MDR

C12

7

DDI

C13

8

DSF

C14

9

RTL 2

C15

10

KAB 1

C16

11

Select Prog.: Confirm:

Programme Sorting

PROG CH LABEL

1

TV 5

C03

2

PRO 7

C05

3

EU-SP

C07

4

SWF

C08

5

RTL

C09

6

SAT

C11

7

MDR

C12

8

DDI

C13

9

DSF

C14

10

RTL 2

C15

11

KAB 1

C16

Select Position: Move: OK

Installation

Language/Country

Manual Programme Preset

Further Programme Preset
RGB Set Up
Picture Rotation
Personal ID

Select: Enter:

Manual Programme Preset

PROGCHSYSSKIP LABEL

1

C09

B/G

Off

2

C10

B/G

Off

3

Off

4

Off

5

Off

6

Off

7

Off

8

Off

9

Off

10

Off

11

Off

Select: Enter:

PROG

SKIP

SYS LABEL

B/G

Off

1

D/K
EXT

PROG SYS

SKIP LABEL

C

Off

1 B/G

S
F

PROG SYS

SKIP LABEL
Off

1 B/G

PROGCHSYS

SKIP LABEL
Off

0 EXT

First Time Operation

C03 TV 5

- - - - - - -

CH

CH

CH

AV1

AV2
AV3

ARD
BBC

03

SEARCH

O

AV1

33

12

Advanced Presetting

Captioning a Station Name

During presetting the channels are usually labelled automatically.
You can, however, individually name a channel or a video input source.

1 Press MENU. Select the symbol
2 Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3 Select the programme position of the channel or the video source you wish to

label by pushing to $ or 4. Push repeatedly to ” until the first element of the
position LABEL is highlighted.

4 Select a number, a letter, + or a blank using 4 or $. Push to ” to confirm.

Select the other four characters in the same way.

using $. Push to ”.

5 Store your selection by pressing OK.
6 To label other channels or video sources repeat steps 3 to 5.
7 Press MENU to return to the normal TV screen.

Skipping of Programme Positions

In case of 100 programme positions there may be unused positions, which
you can skip in the menu Manual Programme Preset. When changing
channels with the PROGR +/– buttons they do then not appear.
You can, however, still select them using the number buttons.

1 Press MENU. Select the symbol
2 Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3 Select the programme position you wish to skip by pushing to 4 or $.

Push to ” to enter.
The column SKIP is highlighted.

4 Select ON using $.
5 Store by pressing OK.
6 To skip other programme positions repeat steps 3 to 5.
7 Press MENU to return to the normal TV screen.

using $. Push to ”.

Manual Programme Preset

PROG CHSYSSKIP LABEL

C09

ARD

B/G

Off

1

C10

BBC

B/G

Off

2

Off

3

Off

4

Off

5

Off

6

Off

7

Off

8

Off

9

Off

10

Off

11

Select: Enter:

PROG CHSYS

SKIP LABEL

C07 TE

Off

6 B/G

Manual Programme Preset

PROG CHSYSSKIP LABEL

51

C09

ARD

B/G

Off

52

C10

BBC

B/G

Off

53

Off

54

Off

55

Off

56

Off

57

Off

58

Off

59

Off

60

Off

61

Off

Select: Enter:

PROG CHSYSSKIP LABEL

F189 - - - Off

53 B/G

On

Advanced Presetting

Selecting your NexTView Provider*

*depending on availability of service

NexTView is an on-screen electronic programme guide, providing you with
programme information on many broadcasters. Your TV set automatically
selects a NexTView provider. This provider will be available about 30 minutes
after the channel tuning. You can however, also select a provider of your choice.
See Using NexTView on page 48 for information on the operation of NexTView.

When using a satellite receiver make sure to connect the receiver to the aerial
socket of your TV set.

1 Press MENU. Select the symbol
2 Select Select NexTView using $. Push z to enter.

A list is displayed containing all available NexTView providers and the
supported broadcasters.

using $. Push z to enter.

3 Select the desired NexTView provider by using 4 or $. Store by pressing OK.
4 Press MENU to return to the normal TV screen.

Using of Further Programme Preset

Using the menu Further Programme Preset you can
a) individually attenuate the strength of a channel signal in case of a strong

local aerial signal (striped picture).
b) individually adjust the volume level of each channel.
c) improve the quality of a weak channel (picture or sound distortions) with

manual fine tuning.
d)preset the AV output for programme positions of those channels with

scrambled signals (e.g. from a Pay TV decoder). In this way a connected

Smartlink VCR records the unscrambled signal.

1 Press MENU. Select the symbol
2 Select Installation using $. Push ” to enter. Select Further Programme Preset

using $. Push ” to enter.

3 Select the programme position of the desired channel by pushing 4 or $.

Push ” repeatedly to select:
ATT (RF attenuator), VOL (Volume Offset), AFT (Automatic Fine Tuning) or
DECODER.
The selected item changes colour.

4a ATT

Push $ to select ON. Store by pressing OK.
Repeat steps 3 and 4a if you wish to attenuate other channels.

b VOL

Push 4 or $ to adjust the volume level (range -7 to +7) of the channel.
Store by pressing OK.
Repeat steps 3 and 4b if you wish to adjust the volume level of other channels.

c AFT

Push 4 or $ to fine tune the channel (range -15 to +15). Store by pressing OK.
Repeat steps 3 and 4c if you wish to fine tune other channels.

d DECODER

Push to 4 or $ to select AV1 (Euro AV socket 1) or AV2 (Euro AV socket 2) as
output for the video source on this programme position. Store by pressing OK.
Repeat steps 3 and 4d if you wish to preset the AV output of other video sources.

Should you use Auto Tuning afterwards, this setting will
be cancelled.

5 Press MENU to return to the normal TV screen.

using $. Push ” to enter.

Channels:
EURON

DRS 3SAT ARTE

VOX

Select Next View

Swiss Text

Euro News

Installation

Language/Country
Manual Programme Preset

Further Programme Preset

RGB Set Up
Picture Rotation
Personal ID
Demo

Select: Enter:

Further Programme Preset

PROG AFTVOLATT DECODER

Select: Enter:

PROG AFTVOLATT DECODER

1

PROG AFTVOLATT DECODER

1

PROG AFTVOLATT DECODER

1 On -5

PROG AFTVOLATT DECODER

1 On -5 On

- - - - - - -

1

Off

0

Off

On

2

Off

0

Off

On

3

Off

0

Off

On
4
5
6
7
8
9
10
11

Off

On

On 0

On

AV1
AV2

O

Off

34

Advanced Operation

40

Advanced Operation

Advanced Presetting

Advanced Presetting

13

Adjusting the Picture Geometry
for an RGB Source

When connecting an RGB source such as a Sony playstation you may need to
readjust the picture geometry.

1 Select the connected RGB source

2 Press MENU. Select the symbol
3 Select Installation using $. Push to ” to enter. Select RGB Set Up using $.

Push to ” to enter.

4 Select H Centre by pushing to ”. Adjust the centre of the picture

(range from -10 to +10) using 4 or $. Store by pressing OK.

5 Select H Size using $. Push to ” to enter. Adjust the horizontal coordinates

(range from -10 to +10) using 4 or $. Store by pressing OK.

by pressing … repeatedly.

using $. Push to ”.

6 Press MENU to return to the normal TV screen.

Adjusting the Picture Rotation

Because of the earth magnetism the picture might slant. In this case you can
readjust the picture.

1 Press MENU. Select the symbol
2 Select Installation using $. Push to ” to enter. Select Picture Rotation using $.

Push to ” to enter.

3 Adjust the Picture Rotation (adjusting range -5 to +5) by pushing to 4 or $.

Store by pressing OK.

4 Press MENU to return to the normal TV picture.

using $. Push to ”.

RGB Set Up
H Centre

H Size

Adjust Position: Confirm: OK

RGB Set Up

H Centre

H Size

Adjust Size: Confirm: OK

Installation

Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up

Picture Rotation

Personal ID

Rotate: Confirm: OK

Inputting Your Personal ID

You can programme your TV with a safety code, so that you can be traced if
your TV is stolen and recovered. This code can only be input once!

O

O

O

O

Make sure to write it down in this Instruction Manual.

1 Press MENU. Select the symbol
2 Select Installation using $. Push to ” to enter. Select Personal ID using $.

Push to ” to enter.

3a Select the first of a total of 11 characters (letter, number, + or a blank) by

using 4 or $.

b Push to ” to go to the next character.
c Repeat a and b for all characters.

using $. Push to ”.

4 Store by pressing OK.
5 Press MENU to return to the normal TV screen.

Installation

Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Picture Rotation

Personal ID

Select A-Z, 0-9

: Store: OK

- - - - - -

Presetting and Labelling of Input Sources

1 Press MENU. Select the symbol
2 Select AV Preset using $. Push to ” to enter.
3 Select the desired AV input (AV 1, 2 or 3) using 4 or $. Push to ” enter.

After each step you have the choice between memorizing (press OK) or going to
the next item (push to ”).

O

4 To label the source:

a Push to ” to select Label.
b Select the first character using 4 or $. Push to ” to confirm.
c Repeat step b to select the other 4 characters.

d Store by pressing OK.
5 Repeat steps 3 to 4 for the other AV inputs.
6 Selecting the AV3 Input Source:

In case of AV3 you have the choice between the front AV3 sockets BCor the
rear Scart 3 L connector.

a Push to $ to select AV3 Input. Push to ” to enter.

b Select Front or Rear using 4 or $.

c Store by pressing OK.
7 Press MENU to return to the normal TV screen.

using $. Push to ”.

AV Preset

INPUT LABEL

VIDEO

AV 1

VIDEO

AV 2

VIDEO

AV 3

AV 3 Input Rear

Select: Enter:

AV Preset

INPUT LABEL

AV 1

VIDEO

AV 2

VIDEO

AV 3

VIDEO

Front

AV 3 Input

Select Mode: Confirm: OK

Rear

36

Advanced Operation

Advanced Operation

37

14

Advanced TV operation

Adjusting Picture and Sound

Picture and sound are adjusted at the factory. You can however, adjust
them individually.

1 Press MENU.

Select the symbol
Push to ” to enter.
The menu Picture or Sound Control is displayed.

2 Select the desired item using 4 or $. Push to ” to enter.
3 Adjust the selected item using 4, $, ” and “. Press OK to store.

Refer to the tables on this and the following page for more information.

4 Repeat steps 2 and 3 to adjust other items.
5 Press MENU to return to the normal TV screen.

Picture Control
Item Effect/Operation

Picture Mode $ Live (for live broadcasts)

Contrast Less “” More
Brightness* Darker “” Brighter
Colour* Less “” More
Hue** Reddish “” Greenish
Sharpness* Softer “” Sharper
Reset Resets picture to the factory preset levels
AI 4 Off: normal

(Artificial Intelligence) $ On: Automatic optimization of contrast level

Noise Reduction 4 Off: Normal

Digital Mode $ Normal: 100 Hz

* Only if Personal is selected in Picture Mode
** Only available for NTSC colour signal (e.g. US video tapes)

Sound Control
Item Effect/Operation

Equaliser mode Select between the following sound settings

for Picture or for Sound using 4 or $.

Personal (for individual settings)

4 Movie (for movie broadcasts)

according to the TV signal

$ On: Reduces picture noise in case of a weak

broadcasting signal

Digital+: 100 Hz plus line flicker reduction

4 Advanced: Digital+ plus smoothing of motions

$ Personal

Vocal
Jazz
Rock
Pop

4 Flat (fixed setting, cannot be adjusted)

Picture Adjustment

Picture Mode

Contrast
Brightness
Color
Sharpness
Reset
AI
Noise Reduction
Digital Mode

Select Mode: Enter:

Picture Mode

Contrast

AI

Noise Reduction

Digital Mode

Audio Adjustment

Equaliser Mode

Equaliser
Adjustment
Surround Mode
SRS Mode
Auto Vol. Control
Dual Sound
Volume
Dual Sound

Select Mode: Confirm: OK

Personal

Advanced

Personal

Personal

Normal

Digital+

Personal

SRS 2

Normal

Movie

Vocal

Mono

Mono

Advanced TV operation

Sound Control (continued)
Item Effect/Operation

Equaliser adjustment

On
On

Surround mode 4 Off: Normal

Live

SRS-Mode* 4 SRS 1
*only when SRS is selected SRS 2
in Surround mode $ SRS 3

Auto Volume Control 4 On: volume level of the channels will stay the same

Dual Sound For a bilingual broadcast:

On

Off

On

Off

Jazz
Rock

Pop
Flat

SRS

Off

Headphones

2 Volume Less “ ” More
2 Dual Sound For a bilingual broadcast:

** TruSurround is a trademark of SRS Labs, Inc. SRS and the SRS symbol are
registered trademarks of SRS Labs, Inc. in the Unites States and selected foreign
countries. SRS and TruSurround are incorporated under license from SRS Labs, Inc.
and is protected under United States Patent Nos. 4,748,669 and 4,841,572 with
numerous additional issued and pending foreign patents. Purchase of this product
does not convey the right to sell recordings made with the Tr uSurround technology.

You can adjust the mode selected in Equaliser
mode by cutting and boosting of 5 selected
frequency bands.
Only the changes made in Personal can be stored,
the others return to factory setting.
Select the desired bar using ” or “, adjust using 4

•

and $.
Press OK to store.

Dolby Sur. (Pro Logic or Tru Surround **)
Select when receiving a Dolby broadcast.
After the broadcast return to off, otherwise the
TV automatically selects Dolby for any stereo
broadcast and the sound will be distorted.
SRS
Hall
Church
Disco

$ Stadium

independent of the broadcast signal
(e.g. in case of advertisements)

$ Off: volume level changes according to the

broadcast signal

$ A for channel 1
4 B for channel 2

For a stereo broadcast:

$ Mono
4 Stereo

$ A for channel 1
4 B for channel 2

PAP
When PAP is switched on, you can additionally
select the PAP sound for the headphones

Equaliser Adjustment

Personal

+
0
–

120 150 1,5K 5 K 10 K

Sel: Adjust: Confirm:OK

Audio Adjustment

Equaliser Mode
Equaliser

Adjustment

Surround Mode

SRS Mode
Auto Vol. Control
Dual Sound
Volume
Dual Sound

Select Mode: Confirm: OK

SRS Mode

Auto Vol. Control

Dual Sound

Personal

Volume

Dual Sound

Stadium

Dolby Sur.

Church

SRS 2

Stereo

Disco

Mono

Mono

SRS 2

Mono

Hall

SRS

Off

SRS

Off

Off

On

A

B

44

Advanced Operation

Advanced Operation

45

Advanced TV operation

Advanced TV operation

15

Using the Features Menu

1 Press MENU. Select the symbol using $. Push z to enter.
2 Select the desired menu item using $. Push z to enter.
3 Select the desired setting using 4 or $.
4 Store by pressing OK.
5 Press MENU to return to the normal TV screen.

Features
Item Effect/Operation

Auto Format* 4 On: Automatic selection of the screen format
*only for aerial signal $ Off: Normal mode

Format Correction* 4 On: Smart mode is selected automatically for 4:3/
*only if Auto Format is on 14:9 broadcasts

Sleep Timer

Parental Lock $ Off: Normal mode

AV2 Source

$ Off: 4:3/14:9 is selected

You can select a time period after which the TV
switches itself into standby mode

4 Off

10 min.
20 min.

.

.

.

$ 90 min.

4 On: TV can only be switched on out of

standby-mode using the Remote Commander,
the buttons on the TV do not work.

You can select the source to be output from the
Scart connector
record from this socket while watching another
source.

4 TV audio/video signal from the aerial ˘

AV1 audio/video signal from Scart 1
AV2 audio/video signal from Scart 2

$ AV3 audio/video signal from front or rear connectors

Y

2/j2. In this way you can

Using Multi PIP

Multi PIP (picture in picture) mode displays a succession of 12 still pictures
and a 13th that is live. You can manually select which channel you wish to
watch, either full-screen or in the PIP mode.

1 Press

2 Press PROGR +/- repeatedly to get the next or the preceding 12 programme

3 Use 4, $, “ and ” to move within the 13 displayed channels.

4 When the centre channel is framed, press OK to get the channel full screen or

.
Now 13 programme positions appear on the screen, with the current channel in
the centre.

positions .

Press OK to select the framed channel.
The selected channel moves to the centre.

to return to the normal TV mode.

press

Features

Auto Format

Format Correction
Sleep Timer

Parental Lock
AV 2 Source

Select: Enter:

Auto Format

Format Correction

Sleep Timer

Parental Look

AV 2 Source

04

03 05

02

01 06

13

12

10

11 09 08

10 min

AV 3
AV 2
AV 1

07

Using Screen Mode

On

On

Off
Off
TV

Off

On

Off

On

Off

On

TV

When Auto Format in the Features menu is preset to »On« and a format signal
is being transmitted, the TV set automatically selects the detected screen format.
Screen mode, however, lets you select the screen format of your choice.

Press 9 repeatedly to get one of the following formats:

•

Smart imitation of wide screen effect for 4:3 broadcasts, parts of the top and

bottom of the picture are cut off
4:3 conventional 4:3 aspect ratio, full picture information
14:9 compromise between 4:3 and 16:9 aspect ratios
Zoom imitation of wide screen effect for letterboxed movies
Wide for 16:9 broadcasts

In Zoom and 14:9 modes parts of the top and the bottom of the screen are cut
off. Using 4 and $ you can adjust the position of the image onscreen to e.g.
read subtitles. Press OK to confirm.

Operating PAP (Picture and Picture)

PAP divides the screen into two for watching two channels simultaneously
(with a video source on one if you want).
The sound of the left screen is on the TV loudspeakers, the sound of the right
screen is selectable via headphones.

Switching PAP on and off

Press

•

PAP off.

Selecting a PAP source

1 Press > 5.

The symbol > appears in the right screen.

2 Select the desired source using the number buttons (for a TV channel) 7 or

…3 (for a video source).

Swapping screens

Press

•

Zooming the screens

Using the joystick buttons “ and ” you can change the size of the two screens.

•

When you press ” repeatedly the right screen gets bigger, while the left screen
gets smaller.

6 once to display the screens in format 4:3 and twice to switch

´/´

Å/a

4 to swap the two screens.

Smart

Zoom

Wide

46

Advanced Operation

Advanced Operation

47

16

Teletext

Most TV channels broadcast information via teletext. The index page of the teletext
service (usually page 100) gives you information on how to use the service.

Make sure to use a TV channel with a strong signal, otherwise there may be
Teletext errors.

Direct Access Functions

Switching Teletext on and off

1 Select the TV channel which carries the teletext service you want to view.
2a Press f @º once for Picture and Teletext (P&T).

The screen is divided in two, with the TV channel in the right corner and the
Teletext display on the left.
P&T mode: Press

TV screen. Push “ or ” to change the size of the TV screen.
Press

b Press f twice to get Teletext only.

c Press f three times for Mix mode.

The TV broadcast and the Teletext display are overlapped.

3 Press

Selecting a Teletext Page

Direct Page Selection

Input the three digits of the page number using the number buttons 7.

•

If you have made a mistake:
Type in any three digits, then re-enter the correct page number.

Page Catching
1 Select a teletext page which has several page numbers on it (e.g., the index

page).

2 Press OK !¡.

Page Catching is displayed.

3 Select the desired page number using 4 or $ !¡ and press OK.

The requested page is displayed after some seconds.

Selecting the next or the preceding page

Press

•

Selecting the index page

Press

•

Selecting a subpage

A teletext page may consist of several subpages. In this case an information line
is displayed, showing the number of subpages.
Select the mode by pushing 4. Select the subpage by using 4 or $.

•

Freezing a Teletext subpage

1 Press !• or R 3

The symbol R is displayed and the subpage is not updated.

2 Press f @º to resume normal teletext reception.

Using Fastext*

*depending on availability of service

Fastext lets you access pages with one button stroke. When Fastext is broadcast,
a colour-coded menu appears at the bottom of the screen. The colours of this
menu correspond to the red, green, yellow and blue buttons 9, !º, !∞, !§ on
the Remote Control.
Press the coloured button which corresponds to the colour in the

•

colour-coded menu.

50

Advanced Operation

Å/a

4. Press PROGR +/- !£ to change the channel of the

Å/a

4 again to resume normal teletext reception.

;

@¡ or press f a fourth time to switch teletext off.

!£ (Page +) or

+

2.

(Page -).

100

Teletext TV

216-02

01 03 04 05 06 07 0802

Teletext

Using the Teletext Menu

This TV set has a menu-guided teletext system. When teletext is switched on
you can use the joystick buttons to operate the teletext menu.

Select the menu functions as follows:

1 Press MENU !™.

The Teletext menu is superimposed onto the teletext display.

2 Select the teletext function using 4 or $ !¡. Push ” to enter.

01

Top/Bottom/Full

For convenient reading of a Teletext page you can enlarge it.
After having selected the function, a sub menu Top 4 Bottom $ Full OK is
displayed.

Push 4 to enlarge the upper half of the screen, push $ to enlarge the lower

•

half. Press OK to resume the normal size.
Press f to resume the normal Teletext operation.

Text Clear

After having selected the function, you can watch a TV channel while waiting
for a requested Teletext page. As soon as the page is available, the symbol f
changes colour.

Press f to view the page.

•

Reveal

Some teletext pages contain hidden information (e.g., for a quiz), which you can
reveal.
After having selected the function, the hidden information appears.

Press f to resume the normal Teletext operation.

•

Time Page*

*depending on availability of service

You can call up a time-coded page - such as an alarm page - at a time specified
by you.

After having selected the function a sub menu is displayed.

1 Select On using 4 or $. Push ” to enter.
2 Enter the three digits of the desired page using the number buttons 7.
3 Enter the four digits of the desired time using the number buttons 7.
4 Press OK to store.

The time is displayed in the top left-handed corner of the screen.
At the requested time the page is displayed.

Teletext

Top / Bottom / Full

Text Clear
Reveal
Time Page

Select: Enter Menu:

Top: Bottom: Full: OK

Time Page

PAGE TIME

– – – - - : - -

Select: Enter:

Advanced Operation

51

SECTION 2

DISASSEMBLY

2-1. REAR COVER REMOVAL

2 Rear Cover

CAUTION:

Take care not to damage the C Board when removing
or refitting the rear cover.

2-2. CHASSIS ASSY REMOVAL

1
6 Screws
BTV 4x16

2-3. SERVICE POSITION

2-4. U BOARD REMOVAL

1 Push the
claw in the
direction of the
arrow and
remove.

2 Pull the Board in
the direction of the
arrow and remove.

17

2-5. J BOARD REMOVAL

2-6. J SHIELD REMOVAL

1 Push the claw in
the direction of the
arrow and remove.

1 Push the claw in
the direction of the
arrow and remove.

3 Remove the shield in
the direction of the arrow.

2 Push the
claw in the
direction of
the arrow
and remove.

2 Pull the Board in
the direction of the
arrow and remove.

NOTE

All other boards are removed in a
similar manner to those shown

2-7. B1 BOARD REMOVAL

18

2-8. PICTURE TUBE REMOVAL

Degaussing coils 8

Spring tension 9

C board 3

VM board 4

Neck assy 5

Deflection yolk 6

Anode cap 1

7 DGC holder

2 Chassis assy

10 Four PT screws

Picture tube 11

Cushion

• REMOVAL OF ANODE-CAP

Note : Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon paint on the CRT, after removing the anode.

* REMOVING PROCEDURES.

c

Anode button

a

1

Turn up one side of the rubber cap in
the direction indicated by the arrow a

• HOW TO HANDLE THE ANODE-CAP

b

2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow b

b

3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling it up in
the direction of the arrow c

1 To prevent damaging the surface of the anode-cap do not use sharp materials.
2 Do not apply too great a pressure on the rubber, as this may cause damage to

the anode connector.

3 A metal fitting called a shatter hook terminal is fitted inside the rubber cap.

Do not turn the rubber foot over excessively this may cause damage if the
shatter hook sticks out.

19

REMOVAL AND REPLACEMENT OF THE MAIN-BRACKET
BOTTOM PLATES.

For safety reasons, on no account should the plates be

£

removed and not refitted after servicing.

(1) REMOVING THE PLATES

In the event of servicing being required to the solder side of the D Board printed
wiring board, the bottom plates fitted to the main chassis bracket require to be
removed.
This is performed by cutting the gates with a sharp wire cutter at the locations
indicated by arrows.

Note :There are 4 plates fitted to the main bracket and secured by 4 gates.

Only remove the necessary plate to gain access to the printed wiring board.

20

(2) REFITTING THE PLATES

Because the plates differ in size it is important that the correct plates are refitted in
their original location.

Please note that the plates need to be rotated 180 degrees from the cut position to
allow the tabs to be fitted in the catch positions.

Catch

Tab

SECTION 3

SET-UP ADJUSTMENTS

• When complete readjustment is necessary or a new
picture tube is installed, carry out the following
adjustments.

• Unless there are specific instructions to the contrary,
carry out these adjustments with the rated power supply.

• Unless there are specific instructions to the contrary, set the
controls and switches to the following settings:

Contrast ............... normal

Brightness ............... normal

3-1.BEAM LANDING

Preparation:

1. In order to reduce the influence of geomagnetism on the set’s
picture tube, face it in an easterly or westerly direction.

2. Switch on the set’s power and degauss with the
degausser.

(1) Adjustment of Correction Magnet for Y-Splitting

Axis

1. Input a crosshatch signal from the pattern generator.

2. Set the Picture control to minimum and confirm that the
Brightness control is set to normal.

3. Position the neck assembly as indicated in Fig.3-2.

4. Move the deflection yolk as far forward as is possible.

5. Adjust the upper and lower pin symmetrically by opening or
closing the Y-splitting axis correction magnets located on the
neck assembly.

6. Return the deflection yolk to its original position.

Carry out the following adjustments in this order:

3-1. Beam Landing
3-2. Convergence
3-3. Focus
3-4. White balance

Note: Test equipment required

1. Color bar/pattern generator.

2. Degausser.

3. Digital multimeter.

4. Oscilloscope.

(2) Landing

Note :Before carrying out the following adjustments

adjust the magnets as indicated below [See Fig.3-3].

1. Input an all-white signal from the pattern generator.
Maximize the picture setting and adjust the Brightness
setting.

2. Rough-adjust the focus an d horizontal convergence.

3. Loosen the deflection yolk screws and align the purity
adjustment knob to its central position. [See Fig.3-1].

4. Switch from the all-white pattern to an all-green pattern.

5. Move the deflection yolk backwards and adjust with the
purity magnet so that the green is at the centre and it aligns
symmetrically . [See Fig.3-4].

6. Move the deflection yolk forward and adjust so that the
entire screen becomes green.

7. Switch the raster signal to red, then to blue and verify the
landing condition.

8. When the position of the deflection yolk has been determined,
fasten the deflection yolk with the screw.

9. If the beam does not land correctly in all the corners of the
screen, use magnets to correct it. [See Fig.3-5].

Y-splitting axis correction magnet

Caution :

High voltages are present on the Deflection yolk terminals - take care
when handling the Deflection yolk whilst carrying out adjustments.

21

Purity

Fig.3-1

Deflection yoke

Align the bottom edge
of the neck assy with
the G3 hole centre.

Fig.3-3

Align Pips
on each

magnet

Neck assy

Fig.3-2

GREEN

Center dot

RED

BLUE

Fig.3-4

H.STAT

convergence

control

V.S TAT

vertical static magnet

Disk magnets or
rotatable disk

Purity control corrects
this area.

magnets correct
these areas (a-d).

H.STAT VR on

mount side
RV5376

Screen (G2)

H.STAT convergence

• If the horizontal dots are unable to coincide with the variable
range of the H.STAT convergence, adjust together with the

Deflection yoke positioning
corrects these areas

V.ST AT conv ergence while tracking.
[Adjust the convergence by tilting the V.STAT convergence or
by opening and closing the V.STAT convergence.]

(Open)

(Close)

Fig. 3-5

3-2.CONVERGENCE

(1) Screen centre convergence

[Static convergence]

1. Input a dot signal from the pattern generator.
Normalize the picture setting.

2. [Moving horizontally], adjust the H.STAT control so that the
horizontal red, green and blue dots coincide at the centre of the
screen.

3. [Moving vertically], adjust the V.STAT magnet so that the
vertical red, green and blue dots coincide at the centre of the
screen.

4. Movement of the red, green and blue dots by tilting the
V.STAT magnet and by opening or closing the V.STAT
magnet.

a). By opening or closing the V. STAT magnet, the red, green and

blue dots move as indicated
below.

B
G

R

B
G

R

b). By rotating the V.STAT magnet counter

clockwise, the red,
green and blue
dots move as

B

GR

indicated
below.

22

c). By rotating the V.STAT magnet clockwise, the red, green and

blue dots move in the direction indicated below.

B

GR

HAMP

d). By opening or closing the V.STAT magnet, the red, green and

blue dots move in the direction indicated below.

R

G

Note : If the blue dot does not coincide with the red and

green points correct the points by using the BMC
[Hexapole] magnet.

5. Correction for HMC [horizontal mis-convergence] and
VMC [vertical mis-convergence] by using the BMC
[Hexapole] magnet.

a). HMC correction by BMC [Hexapole] magnet and movement

of the electron beam.

HMC correction(A) HMC correction(B)

A < B

RG B

B

G

A > B

R

RGB

B

7. HTIL correction can be performed by adding a THL correction
ASSY to the DY.

TLH correction Assy

4-057-714-01

HTIL

A = B

RG B

b). VMC correction by BMC [Hexapole] magnet and movement

of the electron beam.

VMC correction(A) VMC correction(B)

C < D

C

D

C = D C > D C = D

R
G

B

R

C

G

D

B

R
G

B

A = B

R
G

B

RG B

23

Layout of each control

3-3.FOCUS

Purity magnet
BMC (Hexaploe) magnet

V STAT convergence magnet
Y-splitting axis correction magnet

Fig 3-5

Note : If you are unable to adjust the corner convergence

properly , this can be corrected with the use of
permalloys.

a

b

1. Receive a television broadcast signal.

2. Normalize the picture setting.

3. Adjust the focus control located on the flyback transformer to
obtain the best focus at the centre of the screen.
Bring only the centre area of the screen into focus, the
magenta-ring appears on the screen. In this case, adjust the
focus to optimize the screen uniformly.

FOCUS

Permalloy Assy
X-4387-214-1

a-d: screen-corner
convergence defect

c

d

3-4.SCREEN (G2), WHITE BALANCE

[Adjustment in the service mode using the remote
commander]

G2 adjustment (RV5376)

1. Input a dot signal from the pattern generator.

2. Set the Picture, Brightness and Colour to minimum.

3. Apply 175V DC from an external power supply to the
R, G and B cathodes of the CRT.

4. Whilst watching the picture, adjust the G2 control
RV5376 [SCREEN] located on the C Board to the point
just before the flyback return lines disappear.

Convergence adjustment with permalloy

24

White balance adjustment for TV mode

Backend

1. Input an all-white signal.

2. Enter into the Service Mode by pressing ‘TEST’, ‘TEST’ and
‘MENU’ ‘MENU’on the Service Commander.

3. Select ‘Backend’ from the on screen menu
display and press ‘OK’.

4. The ‘Backend’ menu will appear on the screen.

5. Set the contrast to MAX.

6. Set the ‘R DRIVE’ to 41.

7. Adjust the ‘G DRIVE’ and ‘B DRIVE’ so that the white
balance becomes optimum.

8. Press the ‘OK’ button to write the data for each item.

9. Set the contrast to MIN.

10. Set the ‘R CUT-OFF’ to 31.

11. Adjust the ‘G CUT-OFF’, and ‘B CUT-OFF’ with the left and
right buttons on the remote commander so that the white balance
becomes optimum.

12. Press the ‘OK’ button to write the data for each item.

No Descr. Def Min Max Data

1R-on ONOFFON ON
2G-on ONOFFON ON
3 B-on ON OFF ON ON
4 D-col OFF OFF ON ON
5Color-axis 2032
6Contrast 6306363
7Limit-Luv 3033
8Hue 3106331

9Colour 3106328
10CTI -Level 2032
11 Brightness 31 0 63 31
12Gamma 2032
13 Sharpness 31 0 63 44
14LTI-Level 0030
15 R-Drive 41 0 63 40
16 BLK-Bottom 0030
17G-Drive 4106338
18ABL-TH 0030
19 B-Drive 41 0 63 21
20ABL-Mode 2032
21 Sub Bright 31 0 63 32
22VM-Level 2032
23 R-Cutoff 31 0 63 41
24Preover 2032
25 G-Cutoff 31 0 63 45
26DPIC-Level 2032
27 B-Cutoff 31 0 63 48
28DC-Tran 1031
29 Sub-Cont 7 0 15 7
30 LRGB2-Lvl 12 0 15 12
31 P-Abl 15 0 15 15
32 DL-Pass OFF OFF ON OFF
33 Sharp.Fo ON OFF ON ON
34 Aging-W OFF OFF ON OFF
35 Aging-B OFF OFF ON OFF
36 CB-offset1 7 0 15 7
37 CR-offset1 7 0 15 7
38 CB-offset2 7 0 15 7
39 CR-offset2 7 0 15 7
40 Sub Colour 0 -8 8 -1

25

SECTION 4

CIRCUIT ADJUSTMENTS

4-1.ELECTRICAL ADJUSTMENTS

Service adjustments to this model can be performed using the supplied Remote Commander RM-891.

HOW TO ENTER INTO SERVICE MODE

1. Turn on the main power switch of the set while pressing PROG + (plus) and PROG - (minus) buttons on the top panel.

PROGR

+

–

2. "TT" will appear in the upper right corner of the screen.

3. Press the ‘MENU’ button twice on the remote commander to obtain the service menu on the screen.

+

–

CONTROL

SERVICE MENU

Initialising
Reset Devices
Monitoring
Backend
Deflection
Dynamic Convergence

RESET DEVICES

Backend
Deflection
Dynamic Convergence
Colour Decoder 1
Colour Decoder 2
Feature Box
PIP
Sound

4. Push the joystick up or down on the remote commander to select the adjustment item.

5. Push the right button to proceed to the next menu.

6. If the required adjustment item is ‘Deflection’, push the down button to move to ‘Deflection’.

7. Push the joystick to the right to enter into ‘Deflection’.

8. Change the data in order to comply with each standard.

NOTE:

• Before performing any adjustments assure that the correct model has been selected in the Model Setting menu.

• After carrying out the service adjustments, to prevent the customer accessing the Service Menu switch the TV set OFF and then ON.

Colour Decoder 1
Colour Decoder 2
Feature Low - End
PIP
Special Adjustment

Select :

Next Menu

INITIALISING

Model Setting
Basic Setting
Feature Setting

MONITORING

Device Status monitor
Error Monitor
Production Monitor
NVM Monitor
Line 23 Monitor

26

Model Setting

Backend

1 KV-29FX60A/D/E
2KV-29FX60B
3KV-29FX60U
4 KV-29FC60A/D/E
5 KV-29FC60B
6 KV-29FC60K
7 KV-29FC60R
8 KV-29FS60A/D/E

9KV-29FS60B
10 KV-29FS60K
11 KV-29FS60R
12 KV-28/32FX60A/D/E
13 KV-28/32FX60B
14 KV-28/32FX60K
15 KV-28/32FX60R
16 KV-28/32FX60U
17 KV-29FS60A/D/E
18 KV-29FS60B

Fig.4-1

Basic setting

No Descr. Min Max Data

1 Sys.B/G OFF ON ON
2 Sys.D/K OFF ON ON
3Sys.L OFFON ON
4 Sys I (UK) OFF ON OFF
5 Sys I (IRL) OFF ON OFF
6 Russian sound OFF ON OFF
7 TXT Nod.option 1 4 3
8 simp le PAT OF F ON OFF

9 16:9 CRT OFF ON OFF
10 Sub-woofer OFF ON ON
11 Auto stand-by OFF ON ON
12 comb-filter OFF ON OFF
13 Auto YC det OFF ON ON
14 Auto comb det OFF ON OFF
15 AV2 Available OFF ON ON
16 AV3 Available OFF ON ON
17 AV4 Available OFF ON OFF
18 AV3 Front & rear OFF ON ON
19 SECAM Tape OFF ON OFF

No Descr. Def Min Max Data

1R-on ONOFFON ON
2G-on ONOFFON ON
3 B-on ON OFF ON ON
4 D-col OFF OFF ON ON
5Color-axis 2032
6Contrast 6306363
7Limit-Luv 3033
8Hue 3106331

9Colour 3106328
10CTI -Level 2032
11 Brightness 31 0 63 31
12Gamma 2032
13 Sharpness 31 0 63 44
14LTI-Level 0030
15 R-Drive 41 0 63 40
16 BLK-Bottom 0030
17G-Drive 4106338
18ABL-TH 0030
19 B-Drive 41 0 63 21
20ABL-Mode 2032
21 Sub Bright 31 0 63 32
22VM-Level 2032
23 R-Cutoff 31 0 63 41
24Preover 2032
25 G-Cutoff 31 0 63 45
26DPIC-Level 2032
27 B-Cutoff 31 0 63 48
28DC-Tran 1031
29 Sub-Cont 7 0 15 7
30 LRGB2-Lvl 12 0 15 12
31 P-Abl 15 0 15 15
32 DL-Pass OFF OFF ON OFF
33 Sharp.Fo ON OFF ON ON
34 Aging-W OFF OFF ON OFF
35 Aging-B OFF OFF ON OFF
36 CB-offset1 7 0 15 7
37 CR-offset1 7 0 15 7
38 CB-offset2 7 0 15 7
39 CR-offset2 7 0 15 7
40 Sub Colour 0 - 8 8 -1

Fig.4-3

Fig.4-2

NOTE:

The above table is dependant on model, destination & size.

27

Feature setting

Deflection

No Descr. Min Max Data

1PIP OFFON ON

Fig.4-4

Colour Decoder 1

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF
2Gain set 1031
3 Y-Delay 7 0 15 7
4Phase Time 0030
5 Vid Ident Md OFF OFF ON OFF
6 Sync Mode OFF OFF ON OFF
7 Vid Ident Sw ON OFF ON ON
8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF
10 IF Circuit ON OFF ON ON
11 GP Delay OFF OFF ON OFF

No Descr. Def Min Max Data

1 V-Size 31 0 63 34
2V-Position 3106321
3V-Comp 1031
4 V-Linear 7 0 15 7
5S-Corr 7 0158
6 H-Size 31 0 63 29
7 EW-DC OFF OFF ON OFF
8 Pin-Amp 31 0 63 36

9Up-Cpin 3106335
10M-Pin 2032
11 Lo-Cpin 31 0 63 37
12 Trapezium 7 0 15 7
13 H-Position 31 0 63 25
14 AFC-Bow 7 0 15 7
15 AFC-Angle 7 0 15 9
16 Up-Vlin 0 0 15 0
17 Lo-Vlin 0 0 15 0

Fig.4-7

Fig.4-5

Colour Decoder 2

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF
2Gain set 1031
3 Y-Delay 7 0 15 7
4Phase Time 0030
5 Vid Ident Md OFF OFF ON OFF
6 Sync Mode OFF OFF ON OFF
7 Vid Ident Sw ON OFF ON ON
8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF
10 IF Circuit ON OFF ON ON
11 GP Delay OFF OFF ON OFF

Fig.4-6

Dynamic Convergence

No Descr. Def Min Max Data

1 Range 63 0 63 32
2 H Stat 33 0 63 33
3 H amp L 37 0 63 37
4 H amp R 36 0 63 36
5Up Y 3106331
6Low Y 3306333
7Y Up L 3006330
8Y Up R 3006330

9Y Low L 3106331
10 Y Low R 30 0 63 30
11Mbow Up L 3106331
12Mbow Up R 3206332
13 Mbow Low L 32 0 63 32
14 Mbow Low R 32 0 63 32
15 V Stat 32 0 63 3 2
16 Linearity 128 0 255 104
17 H Centre 32 0 63 32
18 H Trap 32 0 63 32
19 Rotation 0 0 255 0
20 Focus Phase 128 0 255 128

28

Fig.4-8

Feature Low-End

Feature Low-End(Cont.)

No Descr. Def Min Max Data

1 F.S.F.M OFF OFF ON OFF
2 G-Mode OFF OFF ON OFF
3 Picture Pos 0 0 3 0
4 Comp Mode OFF OFF ON OFF
5 CompSW OFF OFF ON OFF
6 Acqu.freq OFF OFF ON OFF
7 Still Pic OFF OFF ON OFF
8 Init OFF OFF ON OFF

9 Dis Feature ON OFF ON ON
10 Dis Vlimit ON OFF ON ON
11 Scr Fade 0 0 3 0
12 Hwe Delay 20 0 255 20
13 Auto Vshift OFF OFF ON OFF
14 Vwe Delay 0 0 127 0
15 SFR sw OFF OFF ON OFF
16IPQ 0030
17 D.Col Dec OFF OFF ON OFF
18 Blankfield 0 0 15 0
19 P1.5 OFF OFF ON OFF
20 P1.4 OFF OFF ON OFF
21 P1.3 OFF OFF ON OFF
22 P1.2 OFF OFF ON OFF
23 P1.1 OFF OFF ON OFF
24 Set Vdba OFF OFF ON OFF
25 Set Sidep ON OFF ON ON
26 Set Hwe OFF OFF ON OFF
27 Set Clv OFF OFF ON OFF
28 Set Hddel OFF OFF ON OFFF
29 Set Hblnd OFF OFF ON OFF
30 Set Hre ON OFF ON ON
31 Set Hbda ON OFF ON ON
32 Set Hdav ON OFF ON ON
33 Vbdasta 0 0 255 0
34 Vsdasto 0 0 255 0
35 Msbhwesto OFF OFF ON OFF
36 Msbhwesta OFF OFF ON OFF
37 Msbvbdasto OFF OFF ON OFF
38 Msbvbdasta OFF OFF ON OFF
39 Hdavsta 40 0 255 40
40 Hdavsto 255 0 255 255

No Descr. Def Min Max Data

41 Hbdasta 223 0 255 223
42 Hbdasto 222 0 255 222
43 Hresta 38 0 255 38
44 Hresto 202 0 255 202
45 Hblndsta 31 0 255 31
46 Hblndsto 30 0 255 30
47 MsbHblndsta OFF OFF ON OFF
48 MsbHblndsto OFF OFF ON OFF
49 Msb Hresto ON OFF ON ON
50 Msb Hresta OFF OFF ON OFF
51 Msbhbdasta ON OFF ON ON
52 Msbhbdasto ON OFF ON ON
53 Msbhdavsto ON OFF ON ON
54 Msbhdavsta OFF OFF ON OFF
55 Hddel 0 0 15 0
56 Clvsta 0 0 255 0
57 Clvsto 9 0 255 9
58 Hwesta 44 0 255 44
59 Hwesto 208 0 255 208
60 Ex-Thres OFF OFF ON OFF
61 Wes ON OFF ON OFF
62 Demo mode ON OFF ON OFF
63Limerick NR 0040
64 Nthr 0 0 255 2
65 Wval 200 0 255 200
66 Agc Ych 203 0 255 203
67 Agc Uvch 209 0 255 209
68 Aal-Bypass OFF OFF ON OFF
69 Stby Fr OFF OFF ON OFF
70 Lsb Agc-Uv OFF OFF ON OFF
71 Lsb Agc-Y OFF OFF ON OFF
72Vcl cor 0030
73Ucl cor 0030
74Uv cor mode 0030
75Uvcl tau 3033
76Uvcol Lvl 0030
77 Fil Mem OFF OFF ON OFF
78Overl Thr 1031
79Y delay f 4074
80 Dcti pdxsel ON OFF ON ON

Fig.4-9

29

Feature Low-End (Cont.)

PIP

No Descr. Def Min Max Data

81 Dcti Thres 0 0 15 0
82Dcti Gain 0070
83 Dcti Super ON OFF ON ON
84 Dcti Fil ON OFF ON ON
85 Dcti Prot ON OFF ON ON
86 Dcti Sep ON OFF ON ON
87Dcti Limit 2032
88Peak Beta 0070
89Peak Alpha 2072
90Peak Neg g 0030
91Peak Delta 0030
92Peak Tau 0070
93 Peak Corth 0 0 15 0
94Overlay V 00150
95Overlay U 0 0150
96 Overlay Y 10 0 255 10
97 Sid ep sta 240 0 255 240
98 Sidep sto 36 0 255 36

99Y delay B 7077
100 Invert UV ON OFF ON ON
101 Output Range ON OFF ON ON
102Sidep Fdel 0030

No Descr. Def Min Max Data

1 Freeze OFF OFF ON OFF
2Frame ONOFFON ON
3Pipon ONOFFONOFF
4 Seldel 1 0 15 1
5 Mixdis ON OFF ON ON
6H-Poshi 0030
7 H-Pos 137 0 255 137
8 V-Pos 59 0 255 59

9Y-Delay 0070
10 V-Dec OFF OFF ON OFF
11 H-Dec OFF OFF ON OFF
12 Insvh ON OFF ON ON
13 Chrins ON OFF ON ON
14Pmod 0030
15Imod 0030
16 Clisw ON OFF ON ON
17 H side 4 0 15 4
18 Vsiisq OFF OFF ON OFF
19 Vsidel 0 0 31 0
20 Parasynd ON OFF ON ON
21 Vspisq OFF OFF ON OFF
22 Vspdel 10 0 31 10
23Con 1 0151
24Fry 8 0158
25Frv 3 0153
26Fru 4 0154
27 Sel Down OFF OFF ON OFF
28Frwidv 1031
29Frwidh 2072
30Mat 4074
31 Daconst OFF OFF ON OFF
32Plltc 1031
33 Dacontle OFF OFF ON OFF
34 Left 83 0 255 83
35RightHi 1031
36 Right 192 0 255 192
37 Up 46 0 255 46
38 Down 189 0 255 189

30

Fig.4-10

Sound

Special Adjustment

No Descr. Def Min Max Data

1 Ref.Level 40 0 20 40
2 Auto-gain ON OFF ON ON
3Ana-in 0010
4 Corr-mute ON OFF ON ON
5 Clock out ON OFF ON ON
6 AM-gain ON OFF ON ON
7 Clip mode 0 0 2 0
8SCART1 Vol 79 0 127 79

9SCART2 Vol 79 0 127 79
10 SCART Pr 27 0 127 27
11 Izs1-pr 16 0 127 16
12 Izs2-pr 16 0 127 16
13 FM pr 27 0 127 27
14 BG Nic-pr 53 0 127 53
15 L Nic-pr 59 0 127 59
16 DK Nic-pr 53 0 127 53
17 I Nic-pr 97 0 127 97
18 Irl Nic-pr 97 0 127 97
19AVC-Decay 2082
20 Subw-vol 0 0 -127 0
21 Subw-freq 20 5 40 20
22 Subw-Hpuss OFF OFF ON OFF
23 Spat-stre 127 0 -1 127
24 Spat-Coeff 0 0 8 0
25 Bass offs 0 -3 3 0
26 Treble offs 0 -3 3 0
27 Loudn offs 0 0 9 0
28 Hp-voloffs -2 -5 5 -2
29 M-S Lim it 30 -128 127 30
30 M-B Limit -30 -128 127 -30
31 S-M Lim it 12 -128 127 12
32 S-B Limit -20 -128 127 -20
33 B-M Limit -12 -128 127 -12
34 B-S Limit 20 -128 127 20
35 Err.Max 40 0 255 40
36 Err.Min 14 0 255 18

No Descr. Min Max Data

1RGB Level 070
2 RGB Gain 0 31 9
3 RGB PatLevel 0 7 7
4 RGB Patgain 0 31 31
5 RGB H-position -10 10 -1
6 Extra Fw 0 255 255
7 EPG Chks Check OFF ON ON
8 Slicer High OFF ON ON

9 FCW Wide OFF ON ON
10 High Pll OFF ON OFF
11 Panic offset 0 2 0
12 Wide Mute OFF ON ON

Fig.4-12

Fig.4-11

31

DEFLECTION SYSTEM ADJUSTMENT

1. Enter into the service mode and select ‘Deflection ’. The
‘Deflect ’ adjustment menu will be displayed.

2. Select and adjust each item to obtain the optimum image.

V SIZE

V POS

4-2.VOLUME ELECTRICAL ADJUSTMENTS

Sub Colour Adjustment

1. Input a PAL colour bar signal.

2. Connect an oscilloscope to CN5400 pin 5 on the C board.

3. Enter into the ‘SERVICE MODE’.

4. Choose ‘Backend’.

5. Adjust Sub Colour data so that the right sides of the
waveforms are of equal height.

Same Level

B-Out Wavef orm

V LIN

H SIZE

H PIN CUSH

H TIL T

H UP COR

H LOWER COR

AFC V BOW

32

AFC V ANGLE

H POS

4-3. TEST MODE 2:

Is available by pressing ‘TEST’ button twice, OSD ‘TT’ appears. The functions described below are available by pressing the two numbers. To
release the T est mode 2, press 0, 10, 20 ... twice or switch the TV set into Stand-by Mode. Pressing the tw o Local Control b uttons ( + and - ) during
Power ON will also switch into ‘TT’ mode.
In ‘TT’ mode, it is possible to remove the Menu from the screen by pressing the Speaker Off button once. Pressing the Speaker OFF button a
second time will cause the menu to reappear. The Function is kept even when the menu is not displayed !!.

00

Switch back to normal mode - ‘TT’ mode off

01

Set picture maximum

02

Set picture minimum

03

Set speaker/headphone Volume to 30%

04

Set speaker/headphone Volume to 50%

05

Set speaker/headphone Volume to 65%

06

Set speaker/headphone Volume to 80%

07

Ageing Mode

08

Shipping Condition

09

Language Reset

10

No function

11

Sub picture adjustment

12

Sub colour adjustment

13

Display software version and TV set configuration

14

Production Info Display

15

Picture Rotation

16

Picture level 50%

17

Audio mute on

18

No function

19

Sub brightness adjustment

20

See ‘TT10’

21

Destination A includes text settings, display TV status

22

Destination L includes text settings, display TV status

23

Destination E includes text settings, display TV status

24

Destination U includes text settings, display TV status

25

Destination D includes text settings, display TV status

26

Destination B includes text settings, display TV status

27

Destination K includes text settings, display TV status

28

Destination R includes text settings, display TV status

30

See ‘TT10’

31

Geometry Adjustment 1

32

Geometry Adjustment 2

33

Error monitor

34

No function

35

CRT 4:3 < > 16:9 ; Display TV status

36

Line 23 detection switch

37

Velocity Modulation (VM) test

38

No function

39

No function

40

See ‘TT10’

41

Screen mode check

42

Re initialise geometry

43

No function

44

No function

45

No function

46

Reserved for dealer commander

47

Re initialise NVM

48

Set NVM as non virgin

49

Set NVM as virgin

50

See ‘TT10’

51

Set Dolby volume to 90%

52

Dolby on left speaker only

53

Dolby on right speaker only

54

Dolby on left centre only

55

Dolby on surround speaker on ly

56

-

No function

59
60

See ‘TT10’

61

Service mode

62

Production mode

65

Reset error codes

68

Ignore errors on

69

Ignore errors off

70

See ‘TT10’

71

-

No function

72
73

Clear programs

74

-

No function

79
80

See ‘TT10’

81

PAP H adjustment left image

82

PAP H adjustment right image

83

-

No function

86
87

Personal ID reset

88

Parental Lock off

89

No function

90

See ‘TT10’

33

5-1 BLOCK DIAGRAMS (1)

CN8900

AV1

7

BLUE IN
GREEN IN

11
15

RED IN

16

BLANKING

20

VIDEO IN

19

VIDEO OUT

8

MODE

1

RIGHT OUT (1)

2

RIGHT IN (2)

3

LEFT OUT (3)

6

LEFT IN (4)

CN8901

AV2

15

C IN

20

VIDEO IN

19

VIDEO OUT

8

MODE

10

AV LINK

1

RIGHT OUT (5)
RIGHT IN (6)

2
3

LEFT OUT (7)

6

LEFT IN (8)

CN8101

(1/2)

A13

AV LINK I/O

A10

CVBS 1 IN

B13

MODE (PIN 8)

A14

SDA

B14

SCL

TO A BOARD

CN1801

1

A17

IDENT

A12

CVBS 2 IN

A7

AV3 CHROMA IN

A8

AV3 LUMINANCE IN

B9

AM1

A9

Q551 IN

B6

AV3 LEFT IN

A6

AV3 RIGHT IN

B15

AUDIO RESET

A5

HEADPHONE MUTE

A12 QSS2
B11 AM2

CN8902

8

MODE

AV4

15

C IN

20

VIDEO IN

1

RIGHT OUT (9)

2

RIGHT IN (10)

3

LEFT OUT (11)

6

LEFT IN (12)

CN8101
(2/2)

B25

Y MAIN OUT

AM 2

IC8150

FM DEMODULATOR

12

SW

5

MUTE

3

FM SIF

1

AM IN

AMPLIFIER

Q8310

A25

U MAIN OUT

AMPLIFIER

Q8309

A24

V MAIN OUT

AMPLIFIER

Q8308

B22

H-PULSE MAIN OUT

A23

V-PULSE MAIN OUT

A16

VIDEO OUT

AMPLIFIER

Q8311

TO A BOARD

CN1801

A21

Y SUB OUT

A20

U SUB OUT

B19

V SUB OUT

B18

H PULSE SUB OUT

A19

V PULSE SUB OUT

A15

CVBS OUT (TEXT)

B4

HEADPHONE LEFT OUT

A4

HEADPHONE RIGHT OUT

A3

SURROUND SPEAKER (4)

A2

CENTRE SPEAKER (1)

B1

RIGHT SPEAKER (2)

A1

LEFT SPEAKER (3)

12

AF OUT

AUDIO
RESET

FL8201

QSS1

BAND PASS

BUFFER

1 3

FILTER

Q8200

AM1

RIGHT OUT (1)

LEFT OUT (3)

RIGHT OUT (9)

BUFFERS

LEFT OUT (11)

Q8156, Q8157

16

AV MAIN L OUT

17

AV MAIN R OUT

25

TV R IN

4

RIGHT IN (2)

LEFT IN (4)

RIGHT OUT (5)

RIGHT IN (6)

LEFT OUT (7)

LEFT IN (8)

RIGHT IN (10)

LEFT IN (12)

SCL

SDA

AV3 LEFT IN

AV3 RIGHT IN

HEADPHONE MUTE

AMPLIFIER

Q8158

TV L IN

23

AV1 R IN

6

AV1 L IN

13

AV2 R OUT

20

AV2 R IN

12

AV2 L OUT

9

AV2 L IN

19

AV4 R IN

10

AV4 4 IN

27

SCL

14

HPL OUT

28

SDA

15

HPR OUT

11

AV3 L IN

18

AV3 R IN

5

PIP L IN

24

PIP R IN

IC8125

AUDIO SWITCH

BUFFER
Q8201

18.432MHz

IC8100

HP AMP

5

SCL

SCL

4

SDA

SDA

13

L IN 1

17

L IN 2

18

L IN 3

20

R IN 2

14

R IN 1

11

R IN 3

IC8200

SOUND PROCESSOR

4

I25 CLOCK

5

I25 WS

21

POWER ON RESET

IF IN1

67

68

69

60

71

X8200

72

56

57

36

37

2

SCL

3

SDA

2

L OUT

9

R OUT

6 19

I25 DATA OUT DATA IN 0

IF COMMON IN

7 16

I25 DATA IN1 DATA OUT 1

IF IN 2

SURROUND OUT

MONO IN (AM)

SPEAKER OUT R

SPEAKER OUT L

XTAL IN

SUBWOOFER OUT

XTAL OUT

CENTER OUT

AV MAIN L IN

AV MAIN R IN

TV OUT R

TV OUT L

SCL

SDA

IC8101
HP OUT

678

L OUT

L IN

1

R OUT

R IN

HP MUTE SWITCH

Q8100, Q8101

IC8201

OUTPUT AMP

25

12

SUR. IN SUR. OUT

27

10

RIGHT IN RIGHT OUT

28

5

LEFT IN

LEFT OUT

3

30

CENTER OUT

CENTER IN

24

17 15

HEADPHONE L OUT

HEADPHONE R OUT

SURROUND SPEAKER (4)

14

8

7

CENTER SPEAKER (1)

1

49

Y OUT

14

CVBS IN TV1

38

B IN AV1

50

U OUT
V OUT

37

51

50

36

R IN AV1

G IN AV1

39

BLK AV1

18

CVBS IN AV1

13

GB DEL OUT

60

HA/CLP

12

GP DEL IN

61

17

MODE AV1

21

C IN AV2

20

Y IN AV2

34

AV2 OUT

15

MODE AV2

IC8300
MAIN
COLOR

DECODER

PIP OUT

XTAL 3.6

SCL

46

XTAL 4.4

47

SDA

53

SEC DEC

19

PO

23

Y IN AV3/AV4

24

C IN AV3/AV4

22 58

P1

VA

AMPLIFIER

26

Q8301

IC8400

SUB

COLOR DECODER

BUFFER

16

Q8245

18

32

CVBS IN PIP

X8401

57

XTAL 3.6

54

XTAL 4.4

X8400

CVBS OUT (TEXT)

AMPLIFIER

49

Y OUT

Q8407

AMPLIFIER

50

U OUT

Q8406

AMPLIFIER

51

V OUT

Q8405

60

HA/CLP

61

VA

34

58

HPLL

X8301

3.58MHz

57

54

X8300

4.4MHz

13

GB DEL OUT

BUFFER

14

CVBS IN TV2

Q8400

HPLL

12

GP DEL IN

46

SCL

SDA

SCL

47

SDA

22

P1

6

AD IN

11

16

SDA

15

SCL

IC8700

AUTOWIDE

SWITCH

Q8151, 8152,

8153, 8154

QSS2

BUFFER
Q8150

BUFFERS

BUFFER

Q8304, Q8305

BUFFER
Q8900,
Q8903

Q8343

KV-29FS60/

32FS60
ONLY

KV-32FS60A/D/

E/K/R/U

BUFFER

Q8303

4

DA3

9

SW2

5

DA2

10

SW3

6

DA1

14

SDA

IC8151

12C SWITCH

7

DA0

15

SCL

3

DA4

2

SW0

SCL
SDA

15

AV3 C IN

10

SWITCH

3

Y OUT

2

AV3 Y IN

13

C OUT

IC8451

Y/C SWITCH

11

AV4 C IN

4

AV4 Y IN

RIGHT SPEAKER (2)

LEFT SPEAKER (3)

J8901

VARIABLE OUT

L

R

J (

45

24

25

26

27

28

29

30

46

RESET IN

BIT CLOCK IN 0
BIT CLOCK IN 1
BIT CLOCK IN 0

LR CLOCK IN 0
LR CLOCK IN 1
LR CLOCK IN 0
SYNC IN

CHIP SELECT IN

IC8250

AUDIO DSP

INTERFACE / PIP /

AUDIO / CHROMA /

AUDIO DSP

VELOCITY MODULATION

(

VM

CN5602

Q.P

3

TO

D1 BOARD

4

Q.P +

CN6502

8

CN5402

VM IN

2

TO E BOARD

CN4502

9

CN7977

4

3

2

1

CN7101

5

GND L

6

LEFT AUDIO

7

GND R

TO

A BOARD

RIGHT AUDIO

8

CN1701

2

CENTER AUDIO

4

3

)

GND C

AUDIO INTERFACE /

U (

SPL

3

1

2

SPR

6

4

3

)

-

VM BUFFER

VM AMP

Q5402,5403,

Q5400,5401

5404,5405

)

OUTPUT

J7952

CN7988

1

3

SUBWOOFER

35 36 37 38 39

CN5444

QP-

1

Q.P

2

-

Q.P +

VM OUT

Q5406,5407

CN7103

TO A BOARD

CN1703

3

TO

3
4

7

8

1

3

5

7

9

11

HEADPHONE R IN

HEADPHONE L IN

AV3 CHROMA OUT

AV3 LUMINANCE OUT

AV3 L OUT

AV3 R OUT

QP+

VM

NECK
ASSY

4 3

2 1

Y/C

VIDEO

L

R

H1 (

J7925

HEADPHONE

J7900

AV3 INPUT

)

BLOCK DIAGRAMS (2)

TO A BOARD

CN1901

IC9105

MAIN MICRO-CONTROLLER

CN9101

1

MID BUSY

11

AVLINK OUT

SWITCH

Q9100

90

AV LINK IN

79

23

15

14

3

VP 100

4

HP 100

15

3

EO

14

IC9110

MASTER RESET I.C.

CLOCK

2

1

6

/STR

MTX RES

7

DATA

DSD OFF

11

IC9500

TEXT BLANKING GENERATOR

13

1

SWITCH
Q9504,9503

12

2

4
5

IC9502

MEGATEXT I.C.

CVBS

VS
HS

R

G

GPO

RES

B

A20

B5

B17
B18

B9
B16

B12
B13
B14

AMPLIFIER

Q9500,9501,

9502

10

TCS

61

62

63

8

3

16

17

18

22

68

67

66

17

2

64

56
55

57

54

AD13
AD12

AD15
AD14

D(16)
D(15)
D(14)
D(13)

52
51

53

50

46
45

47

44

AD8
AD7
AD6
AD5
AD4

AD11
AD10

AD9

D(12)
D(11)
D(10)

D(6)

D(7)

D(8)

D(9)

D(5)

42
41

43

40

AD0

AD3
AD2
AD1

D(4)
D(3)
D(2)
D(1)

81

83

33

34

28
27

29

26

A17
A16

A19
A18

A(19)
A(18)
A(17)
A(16)

74
73

75

72

70
69

71

68

A12
A11
A10
A9
A8

A15
A14
A13

A(15)
A(14)
A(13)

A(9)

A(10)

A(11)

A(12)

A(8)

64
63

65

62

60
59

61

58

A4
A3
A2
A1
A0

A7
A6
A5

A(7)
A(6)
A(5)

A(1)

A(2)

A(3)

A(4)

A(0)

2
3
35

37
38

36

39

41
42

40

43

IC9109

PROGRAMMABLE O.T.P.

5
6

4

7

9
10

8

11

30
28

32

26

20
18

22

16

Q12
Q11
Q10

Q9
Q8

Q15A-1

Q14
Q13

29
27

31

25

19
17

21

15

Q4
Q3
Q2
Q1
Q0

Q7
Q6
Q5

12

14

5
9

8

2

3
4

28

10

IC9107
R.A.M.

A3

A8
A7
A6
A5
A4

A9

A14
A13
A12
A11
A10

A2

12
13

11

14

16
17

15

25
24

26

23

20
19

22

18

D4
D3
D2
D1
D0

D7
D6
D5

D(7)
D(6)
D(5)

D(1)

D(2)

D(3)

D(4)

D(0)

6

7

XOUT

XIN

X9500

20.480MHZ

1
6

27

/RST OUT

CLOCK

DATA

/STR

KEY2

A3

B6

B1

9

87

86

30

94

SCLO

DISABLE

SWITCH

Q9105

A4

AGC MONITOR

RESP LED

KEY2

TC INT

WP

SDA1

SDA0

CS/DISABLE

SCLO

SCL1

SWITCH
Q9110

7

6

SDA
SCL
WP

IC9108

SDAO

B7

5

10

95

99

2

12

6

7

XTAL2

XTAL1
X9101
16MHZ

KEY1

AGC MON

7

1

OUT2+2

5

3

IC9100

KEY PAD DRIVER

OUT1

32

WDT CLK

31

8

7

PULSE

1

IC9104

ENABLE

6

RESET

A10

100

A2

B3

KEY1

RESP. LED

+1

WDT EN

PIN8

91

13

98

ST.BY

SIRCS

PIN8

93

92

AC ON.OFF

PROT

SIRCS

B4
A5
A12
A13
A14

ST BY
PROT
AC ON/OFF

78

RST
IN

13

12

11

RES. AUDIO

RES. PICTURE

TC LED

AUDIO MUTE

B8

B10

A11

B20

RES. AUDIO

RESET 100

TC LED

AUDIO MUTE

VP 100

HP 100

9

6

10

8

B15

B11

TXT CLK

TXT BLK

VIDEO

TCS

TXT B

TXT G

TXT R

M3LEN

SCLK

MTSR

MRST

CS0

/WR

/RD

CS2

A(18)
A(17)
A(16)
A(15)

A(17)
A(16)

A(19)
A(18)

A(12)
A(11)
A(10)
A(9)
A(8)

A(15)
A(14)
A(13)

A(4)
A(3)
A(2)
A(1)

A(7)
A(6)
A(5)

E

CS0

G

/RD

D(15)
D(14)
D(13)
D(12)
D(11)
D(10)

D(6)

D(7)

D(8)

D(9)

D(5)
D(4)
D(3)
D(2)
D(1)
D(0)

BLAN

CLK

A(14)
A(13)

A(9)

A(10)

A(11)

A(12)

A(8)
A(7)
A(6)
A(5)

A(1)

A(2)

A(3)

A(4)

A(0)

A(14)
A(13)

A(9)

A(10)

A(11)

A(12)

A(8)
A(7)
A(6)
A(5)

A(1)

A(2)

A(3)

A(4)

A(0)

A1
A0

RD
WR

CS

CS2

SWITCH
Q9106,9107

SWITCH

Q9108,9109

RST IN

MID BUSY

AV LINK

M (

)

MICRO, TEXT

13

CN7611

F7626

1

2

AC FILTER FUSE

F1 ( )

TO A BOARD

1

2

CN7600CN7633 CN7644

FOR

CHECK

D ( )

CN6700

AC IN

1

5

CN6620

3

DGC

DGC

2

1

CN6700

DGC

1

CHECK

DGC CHECK

2

+4.5V RECT

+4.5V

+135V

AC ON/OFF

CN6102

19
18

+6.5V

+10.5V

+135V

+22V

17
16
15
13

TO A BOARD

CN1602

10
9

5

7
5
14

CN6600

A5

E/W

B7

AFC PULSE

A9

EX PARA

B9

RGB AFC

B13

HD IN

A16

DYN FOCUS

B16

VMOD

B15

V PROT

A17

V SAW +

B17

V SAW -

A19
B19

HD2 OUT

A23

H-OUT DRIVE

HDT

Q6801

T6801

HD1 OUT

A22

H-OUT DRIVE

HDT

Q6802

TO D1 BOARD

CN6601

B24

6

B25

A25

CN6101

B18

13
11

B20 HP2

TO A

BOARD

9

A7 HP1

CN1601

1

A24

7

A14

T6802

H SAW

2

+135V

­1

+
3
6

­7

+

5

IN PIN

L IN
H CENTER

ABL

DF DRIVE

IC6801

RELAY
RY601

AC IN

RELAY

MAIN RECT

RY602

D6604

IC6604

REG OUT

T6651

5

3

1 37

4

IC6667

2

D

S

C

IC6651

15

IC6654

1 2

+5VREG

1

4

Q6667

+5V

D6620

T6601

17

6

7

+6.5V RECT

16

D6619

15

1

14

+10.5V RECT

2

13

D6616

3

12

10

+135V RECT

9

D6617

4

8

5

+22V RECT

D6618

T6600 PRT

3 1

IC603

POWER MODULE

4

OVER CURRENT PROT
OVER VOLTAGE PROT

+5V

STANDBY

IC6700
V-OUT

1

7

H-OUT
Q6803,
Q6804

AMP
Q6809
Q6810

Q6805

Q6806

V OUT

5

Q6700

CN6500

G2

1

TO C BOARD

4

H

CN5601

12

CN6611

DY ASSY

V+

6

V- DY+

V- DY-

V-

5

V DY
4

3

2

1

H- DY-

H- DY+

TO PICTURE TUBE

TO C BOARD

FV

H DY

HV

Q6808

T6805

T6804 FBT

HV

1

+200V RECT

+200V

4

D6805

+135V

-15V RECT

-15V
D6809

+15V RECT

+15V

D6808

FV

2

6

5

7

8

9

10

DFT

14

T6852

13

11

H-

H+

DF DRIVE

Q6851

S7601

POWER

1

1

2

2

CN7100

D7125

RESP

4

SIRCS

3

CN1700

2

IC7125

4

RECEIVER

STBY+5V

2

1

POWER SWITCH AND

F ( )

RESPONSE LED, IR Rx

40 41 42 43 44

POWER SUPPLY AND DEFLECTION

BLOCK DIAGRAMS (3)

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

TO A BOARD

CN1200

10

CN2100

(1/2)

A18

V MAIN IN

A17

U MAIN IN

A16

Y MAIN IN

A20

HP MAIN IN

A5

VM

A1

HP 100

B1

VP100

A19

VP MAIN IN

B1 ( )

FL2301

BAND PASS

FILTER

100 Hz DIGITAL PLUS

IC2302

FY (7)

9

D7

31

0.82 VPP
FY (6)

7

0.83 VPP

D6

30

FY (5)

29

D5

0.72 VPP

3

FY (4)

28

D4

FY (3)

27

D3

FY (2)

15

CLP

26

D2

FY (1)

25

D1

FY (0)

24

D0

FU (1)

22

UV3

FU (0)

21

UV2

FV (1)

20

UV1

FV (0)

19

UV0

CEN

14

CLK

17

WE1

8

SWC1/2

6
3

IC2301

4

IC2314

4

5

SWC1

LLA

13

3

HRA

5

11

RE2

19

ALDVV

17

10

37

2

HDFL

VDFL

38

39

VACQ

IC2304

FY (7)
FY (6)
FY (5)
FY (4)
FY (3)
FY (2)
FY (1)
FY (0)
FU (1)
FU (0)
FV (1)
FV (0)

IC2303

IE1

SRC1

RSTW1

RE1

HRDFL

LLDFL

HY (7)

YI 7

37

YO7

29

HY (6)

YI 6

38

YO6

28

HY (5)

39

YI 5

27

YO5

HY (4)

40

YI 4

26

YO4

HY (3)

41

YI 3

25

YO3

HY (2)

YI 2

42

24

YO2

HY (1)

YI 1

43

23

YO1

HY (0)

44

22

YI 0

YO0

HU (11)

1

UI 1

21

UO1

HU (10)

UI 0

2

20

UO0

HV (9)

VI 1

3

19

VO1

HV (8)

VI 0

4

18

VO0

31

17

CLK

WE 0

7

WE 1

7
4
42

18

IC2305

5

35

33

3

IC2306

HY (7)
HY (6)
HY (5)
HY (4)
HY (3)
HY (2)
HY (1)

HY (0)
HU (11)
HU (10)

HV (9)

HV (8)

CY (7)

D0

13

Q0

24

CY (6)

D1

12

Q1

25

CY (5)

11

D2

26

Q2

CY (4)

D3

10

27

Q3

CY (3)

D4

9

28

Q4

CY (2)

D5

8

Q5

29

CY (1)

D6

7

30

Q6

CY (0)

6

D7

Q7

31

CU (1)

D8

5

30

Q8

CU (0)

D9

4

Q9

33

CV (1)

D10

3

Q10

34

CV (0)

2

D11

Q11

35

14

SWCK

21

RE

16

WE

22

RSTR

17

IE

23

SRCK
RSTW

15

CLK

62

CY (7)

VA7

13

CY (6)

12

VA6

CY (5)

11

VA5

CY (4)

10

VA4

CY (3)

VA3

9

CY (2)

VA2

8

CY (1)

7

VA1

CY (0)

6

VA0

CU (1)

VA11

5

CU (0)

VA10

4

CV (1)

VA9

3

CV (0)

2

VA8

28

RE 1

61

RE IN

45

RSTR

IC2307

BY (7)

VC7

25

BY (6)

VC6

24

BY (5)

23

VC5

BY (4)

21

VC4

BY (3)

19

VC3

BY (2)

VC2

18

BY (1)

17

VC1

BY (0)

VC0

16

BU (1)

15

VC11

BU (0)

VC10

14

BV (1)

VC9

13

BV (0)

VC8

12

AY (7)

VB7

65

AY (6)

VB6

66

AY (5)

67

VB5

AY (4)

68

VB4

AY (3)

69

VB3

AY (2)

VB2

70

AY (1)

71

VB1

AY (0)

VB0

72

AU (1)

73

VB11

AU (0)

VB10

74

AV (1)

VB9

75

AV (0)

76

VB8

WE2

11

V (0)

VD8

59

V (1)

VD9

58

U (0)

57

VD10

U (1)

56

VD11

Y (0)

55

VD0

Y (1)

VD1

54

Y (2)

53

VD2

Y (3)

VD3

52

Y (4)

51

VD4

Y (5)

VD5

50

Y (6)

VD6

49

Y (7)

VD7

48

77 21

VD8

IC2309

SWCK

14

SRCK

23

BY (7)

D11

2

BY (6)

3

D10

BY (5)

D9

4

BY (4)

5

D8

BY (3)

D7

6

BY (2)

D6

7

BY (1)

8

D5

BY (0)

9

D4

BU (1)

D3

10

BU (0)

D2

11

BV (1)

D1

12

BV (0)

13

D0

AY (7)

Q11

35

AY (6)

34

Q10

AY (5)

Q9

33

AY (4)

32

Q8

AY (3)

Q7

31

AY (2)

Q6

30

AY (1)

29

Q5

AY (0)

28

Q4

AU (1)

Q3

27

AU (0)

Q2

26

AV (1)

Q1

25

AV (0)

24

Q0

16

WE

RSTW

15

22

RSTR

IE

17

RE

IC2311

CLL

39

V (0)

UV4

13

54

V (1)

1.3VPP

UV5

12

U (0)

11

UV6

1.05VPP

51

U (1)

UV7

10

47

0.64VPP

Y (0)

YUV0

9

Y (1)

YUV1

8

Y (2)

YUV2

7

Y (3)

6

YUV3

Y (4)

YUV4

5

Y (5)

YUV5

4

Y (6)

YUV6

3

Y (7)

2

YUV7

CN2100

(2/2)

U100 OUT

A3

AMPLIFIER

Q2305,
Q2306,

Q2307

TO A BOARD

A4

V100 OUT

CN1200

Y100 OUT

A2

10

TO A BOARD

CN1401

CN4101

B1

EXTRA PARABOLA

D FOCUS

A3

B18

Y100

B19

U100

B20

V100

B15

SWITCH (PORT 3)

B14

YMID

B13

UMID

VMID

B12

HDEFL

A1

A6

VDEFL

A16

SDA2

B16

SDL2

11

RED

A10

B10

GREEN

B11

BLUE

A11

BLK

A20

DPIC SW

A2

HD

B2

FB PULSE

B3

EW

B8

ABL

A8

XRAY

63

EXTRA PARA

DF PARA

64

52

YIN

53

CG2 IN

54

CR2 IN

55

H2 IN

56

FS

57

Y2 IN

58

CR2 IN

HS IN

59

60

VS IN

61

SDA

62

SDL

36

R2 IN

35

G2 IN

34

B2 IN

33

YS/YM2

43

DPIC DCTR

17

HD

18

HP IN

1

EW

22

ABL IN

23

ABL FIL

13

SCP

19

L2 FJL

30

R OUT

28

G OUT

26

B OUT

25

IK IN

45

VM OUT

X4300

503.5 kHz

15

500K

IC4301

E (

RGB OUT / CHROMA

)

CN4500

1

RED

3

GREEN

5

BLUE

8

IK

CN4502

2

TO VM BOARD

CN5402

9

CRT DRIVE

C (

)

POWER ON

+12V

SWITCH

Q5375, 5376

STANBY SW

STANBY SW

STANBY SW

Q5350

Q5300

Q5325

Q5351

CN5400

R

1

G

3

B

5

IK

8

VOLTAGE DET

+12V

45 46 47 48 49

IC5300

VIDEO OUT (RED)

1

VB

3

VI

9

VDF

5

IK

IC5325

VIDEO OUT (GREEN)

1

VB

3

VI

9

VDF

5

IK

IC5350

VIDEO OUT (BLUE)

1

VB

3

VI

9

VDF

5

IK

FV

TO D BOARD

FV (T6804)

J5375

G4

R

8

VO

8

VO

8

VO

8

G

7

B

6

G2

1

H1

3

PICTURE TUBE

HV

TO D BOARD

HV (T6804)

CN5600

H1

4

TO D BOARD

CN6500

G2

1

RV5375

12

G2

BLOCK DIAGRAMS (4)

TU1326

SCL

4

SDA

5

AGC

11

MONITOR

AM1

14

BUFFER

QSS1

15

Q1328,
Q1329

16

CVBS1

CN1801

A9

QSS 1 OUT

B9

AM 1

A10

CVBS 1 OUT

A11

QSS2 OUT

B11

AM 2 OUT

A12

CVBS 2 OUT

AUDIO LEFT

A1

A3

AUDIO SURROUND

A2

AUDIO CENTER

B1

AUDIO RIGHT

A5

HEADPHONE MUTE

HEADPHONE RIGHT IN

A4

HEADPHONE LEFT IN

B4

A6

AV3 RIGHT OUT

B6

AV3 LEFT OUT

AV3 CHROMA OUT

A7

AV3 LUMINANCE OUT

A8

AV LINK I/O

A13

TO J BOARD

CN8101

MODE (PIN B)

B13

1

A15

CVBS IN (TEXT)

AUDIO RESET

B15

B18

H PULSE SUB IN

A19

V PULSE SUB IN

B19

V SUB IN

A20

U SUB IN

A21

Y SUB IN

H PULSE MAIN IN

B22

A23

V PULSE MAIN IN

A24

V MAIN IN

A25

U MAIN IN

B25

Y MAIN IN

CN1901

AV LINK I/

B5

O
MODE (PIN 8)

B4

B9

CVBS IN (TEXT)

B8

AUDIO RESET

B11

TEXT BLANKING IN

B12

BLUE TEXT IN

B13

GREEN TEXT IN

TO M BOARD

RED TEXT IN

B14

CN9101

B17

V SYNC TEXT

13

B18

H SYNC TEXT

A12

STANDBY

A13

PROTECTION

A14

AC ON/OFF

B20

AUDIO MUTE

B3

AGC MONITOR

A4

RESPONSE LED

A5

SIRCS

CN1300

A3

BLUE TEXT OUT

A4

GREEN TEXT OUT

TO BP BOARD

CN0300

RED TEXT OUT

A5

16

B9

V SYNC TEXT

B10

H SYNC TEXT

SCL
SDA
AGC MONITOR

CN6601

(1/2)

A24

TO D BOARD

CN6600

ABL1

A5

E/W

B20

HP2

B13

HDIN

6

B3

SCL

A4

SDA2

A7

HP1

A9

EX PARA

B5

VFB

5

6

2

3

ACTIVE HORIZONTAL SIZE

ADJUSTMENT CONTROL

V PROT
Q6403, Q6404
Q6402, Q6401

+

7

-

­1

+

IC6102

+

2

3

-

-

5

6

+

IC6100

HORIZONTAL DRIVE PULSE GENERATOR

+

5

6

-

-

2

3

+

IC6101

HORIZONTAL DRIVE PULSE GENERATOR

+

3

2

-

-

6

5

+

IC6103

HORIZONTAL LINEARITY & INNER PIN CONTROL

-

6

5

+

+

3

2

-

IC6350

QP SIGNAL SHAPING

+12V

+

3

1

2

-

5

+

7

6

-

IC6351

QP SIGNAL SHAPING

3

+

4

-

+

6

7

-

IC6356

ROTATION POWER AMPLIFIER

+

3

2

-

+5V

5

+

6

-

IC6355

ROTATION PRE-AMPLIFIER

P5

4

P4

P2

7

P7

P6

IC6302

D/A FOR FOCUS, ROTATION, H? TRAP

1

7

7

1

1

7

7

1

2

8

1

7

5

2

6

SWITCH
Q6104
Q6106

SWITCH
Q6104
Q6106

14

HD

17

SCL

16

SDA

IC6250

MAIN HDY & VDY CONVERGANCE CONTROLLER

+

5

6

-

+

3

2

-

IC6352

QP OUTPUT DRIVE STAGE

IC6354

H? TRAP MULTIPLEXER/SIGNAL

CONDITIONER & H? LIN

6

8

9

VSTST

8

HSTAT

REFVOU

5

T

6

HDYCON

3

VSAW

QP OUT

7

Q6358

1

1

+

3

2

-

IC6251

O/P DRIVE STAGE FOR DYNAMIC

CONVERGNCE

6

D1 (

TU1350

(SUB-TUNER)

BUFFER
Q1326,

Q1327

CVBS2

AUDIO AMPLIFIER

9

10

MUTE SW
Q1201

10

9

STANDBY

+6.5V

1 2

1 2

SIGNAL AND AUDIO AMP

)

A (

4

SCL

5

SDA

14

AM2

15

QSS2

16

IC1126

LEFT

INPUT

OUTPUT

STBY/MUTE

STBY/MUTE

OUTPUT

INPUT

4

IC1601
+5VREG

4

IC1602
+5VREG

TO F1 BOARD

BUFFER

Q1328,
Q1329

1

1

IC1126
AUDIO AMPLIFIER
RIGHT

+5V

ANALOGUE

+5V

DIGITAL

CN7100

4

TO D BOARD

IC1400

I/O EXPANDER

1

OV PROT

9

AUDIO PROT

10

OC PROT

AUDIO

PROTECTION

Q1226,1227,

1626

SURROUND

13

INST+

CENTER

8

INC+

1

OUTS

MUTE SW

6

MUTE

Q1208

3

OUTC

11

MUTE

IC1176

AUDIO AMPLIFIER

CENTER AND

SURROUND

CN1602

9

13

7

15

5

17

CN6102

18

5

10

19

14

6

16

4

+9V

1 2

+10.5

IC1604

+9VREG

HP-SUB OUT

4

V-PULSE SUB OUT

+3.5V

1 2

+4.5V

5

4

V SUB OUT
U SUB OUT

IC1605

Y SUB OUT

+3.5VREG

Y MAIN OUT

U MAIN OUT
V MAIN OUT

CN1700

V-PULSE MAIN OUT

SIRCS

H-PULSE MAIN OUT

TO TOP

CONTROL

LED

V-PULSE MAIN OUT
V-PULSE MAIN OUT

V MAIN OUT

U MAIN OUT
Y MAIN OUT
Y MAIN Y SUB OUTOUT

U SUB OUT

V SUB OUT

V-PULSE SUB OUT

H-PULSE SUB OUT

STANDBY

AC ON/OFF

OVER VOLTAGE

OVER CURRENT PROT

AUDIO LEFT
AUDIO

SURROUND
AUDIO CENTER

AUDIO RIGHT

HEADPHONE RIGHT OUT

HEADPHONE LEFT OUT

AV3 CHROMA IN

AV3 LUMINANCE IN

AV3 LEFT OUT

AV3 RIGHT OUT

HORIZONTAL DEFL

VERTICAL DEFL

RED TEXT OUT

GREEN TEXT OUT

TEXT BLANKING OUT

BLUE TEXT OUT

EXTRA PARABOLA

HORIZONTAL DRIVE

FLYBACK PULSE

DYNAMIC FOCUS

EAST/WEST

VERTICAL SAW+

VERTICAL PROTECT

RGB AFC

VERTICAL SAW-

X-RAY

ABL

VM MODULATION

Y-100 OUT

U-100 OUT

DPIC SW

V-100 OUT

Y-100 IN

U-100 IN

V-100 IN

DPIC SW

CN1601

5

9

TO D BOARD

11

CN6101

7

13

CN1701

6

2

TO U BOARD

CN7101

4

2

8

CN1703

1

3

5

TO H1 BOARD

7

CN7103

3

9

11

CN1401

A1

A6

A10

B10

A11

B11

B1

A2

B2

A3

B3

TO E BOARD

A4

CN4101

A5

11

B5

A7

A8

B8

B7

B18

B19

A20

B20

CN1200

A2

A3

A4

A5
A6
A10

TO B1 BOARD

A11

CN2100

A12

10

A13
A14
A16
A17
A18
A19
A20

CN1301

A1

A2
A3
A4

TO BP BOARD

A5

CN0301

A7

15

A8
A9
A10
A11

CN6622

CY-

3

1

CY+

CN6601

(2/2)

A23

HD2OUT

CN0301

(1/2)

A1

TO A BOARD

CN1301

TO A BOARD

CN1300

HP MAIN IN

A2

V PULSE MAIN IN

A3

V MAIN IN

A4

U MAIN IN

15

A5

Y MAIN IN

FL301

A14

SDA

B14

SCL

A7

Y SUB IN

FL300

A8

U SUB IN

A9

V SUB IN

A10

V PULSE SUB IN

A11

H PULSE SUB IN

CN0300

A3

BLUE TEXT IN

A4

GREEN TEXT IN

A5

RED TEXT IN

B9

V SYNC TEXT

16

B10

H SYNC TEXT

IC300

RGB/YUV CONVERTER

28

YinA

27

UinA

26

VinA

24

VPinA

25

HPinA

4

BinB

3

GinB

5

RinB

7

VPinB

6

HPinB

X300

27MHz

21

Yout

20

Uout

19

Vout

17

HPout

16

VPout

HD1OUT

A22

CY AMP

Q6253,

6254

TO D BOARD

B25

IN PIN

CN6600

6

A25

L IN

VM MOD

B16

A14

DF DRIVE

V PROT

B15

CN6502

QP-

3

TO VM BOARD

CN5602

8

CN6633

1

TO

ROTATION

3

COIL

DEFLECTION

)

153

CLKI

172

ADCKI

174

CKO1

MIA1

MIA1

115

DIV1

MIA2

MIA2

114

MIA3

MIA3

113

MIA4

MIA4

112

DEA

MIA5

MIA5

111

REA

MIA6

MIA6

110

RXIA

MIA7

MIA7

109

RRA

MIA8

MIA8

107

MIA9

RADEA

MIA9

106

MIA10

RXADA

MIA10

105

RCLKA

MIA11

MIA11

104

MIA12

MDA1

MIA12

103

MDA2

WCLKA

102

WCLKA

MDA3

WXADA

WXADA

101

MDA4

WADEA

WADEA

100

MDA5

WRAEA

WRA

99

MDA6

WEA

WEA

97

MDA7

WXIA

WXIA

96

MDA8

IEA

IEA

95

MDA9

FINI

95

MDA10
MDA11

154

FVI1

MDA12

162

ADI3

EXFV

166

ADI2

EXFH

161

ADI2

79

XTLO

OUT3

78

XTLI

OUT2

ADI4

196

OUT1

ADI5

199

ADI6

204

DIV3

SDA

158

SDA

CLKI
FIN3

SCL

159

SCL

CKD3

FIN2

183

4

FVI2

WXIB

90

FVI3

WEB
WRB

WADEB

MIB(12)

MIB12

45

WXADB

MIB(11)

MIB11

44

WCLKB

MIB(10)

MIB10

43

MOB12

MIB(9)

MIB9

42

MOB11

MIB(8)

40

MIB8

MOB10

MIB(7)

39

MOB9

MIB7

MIB(6)

38

MOB8

MIB6

MIB(5)

MIB5

37

MOB7

MIB(4)

MIB4

36

MOB6

MIB(3)

MIB3

MOB5

35

MIB(2)

MIB2

MOB4

34

MIB(1)

33

MIB1

MOB3

OEB

31

OEB

MOB2

REB

REB

MOB1

30

RXIB

RXIB

29

AAB

28

AAB

RADEB

RADEB

27

DIV2

RXADB

RXADEB

26

RCLKB

ADLK2

RCLKB

25

CLK2

IC303

2

155

OEA

117

REA

118

RXIA

119

RRA

120

RADEA

121

RXADA

122

RCLKA

123

MOA(1)

124

MOA(2)

126

MOA(3)

127

MOA(4)

128

MOA(5)

129

MOA(6)

130

MOA(7)

131

MOA(8)

132

MOA(9)

133

MOA(10)

135

MOA(11)

136

MOA(12)

137

94

93

77

76

71

92

91
88
80

IEB

45

IEB

WXIB

44

WEB

43

WRB

42

WADEB

40

WXADB

39

WCLKB

38

MOB(12)

37

MOB(11)

36

MOB(10)

35

MOB(9)

34

MOB(8)

33

MOB(7)

31

MOB(6)

30

MOB(5)

29

MOB(4)

28

MOB(3)

27

MOB(2)

26

MOB(1)

25

3

193

5

4

1

+5V

+5V

1

2

OEA

IC305

14

REA

LEVEL SHIFT

+5V

LEVEL SHIFT

DAC FILTER &

OUTPUT BUFFER

1

2

IC301

13

RXIA

12

RRA

11

RADEA

10

RXADA

9

RCLKA

8

MOA(1)

7

MOA(2)

6

MOA(3)

5

MOA(4)

4

MOA(5)

3

MOA(6)

2

MOA(7)

44

MOA(8)

43

MOA(9)

42

MOA(10)

41

MOA(11)

40

MOA(12)

39

Q311, 326

FL305

DAC FILTER &

OUTPUT BUFFER

Q312, 327

4

IC308
LEVEL SHIFT

IE

32

WXIB

33

WEB

34

WRB

35

WADEB

36

WXADB

37

WCLKB

38

MOB(12)

39

MOB(11)

40

MOB(10)

41

MOB(9)

42

MOB(8)

43

MOB(7)

44

MOB(6)

2

MOB(5)

3

MOB(4)

4

MOB(3)

5

MOB(2)

6

MOB(1)

7

4

50 51 52 53 54

FIELD MEMORY

OE
RE
RXINC
RR
RADE/
RX
RXAD
RCLK
DIN0
DIN1
DIN2
DIN3
DIN4
DIN5
DIN6
DIN7
DIN8
DIN9
DIN10
DIN11

FIELD MEMORY

IE
WXINC
WE
WR/TR
WADE/RX
WXAD
WCLK
DIN11
DIN10
DIN9
DIN8
DIN7
DIN6
DIN5
DIN4
DIN3
DIN2
DIN1
DIN0

IC307

DAC FILTER &

OUTPUT BUFFER

Q313, 328

IC306

4

FINA

3

VCOOUT

10

VCOINH

2

SEL

5

FINB

IC302

MIA(1)

A CH PLL

15

DO0

MIA(2)

16

DO1

MIA(3)

18

DO2

MIA(4)

19

DO3

MIA(5)

21

DO4

MIA(6)

22

DO5

MIA(7)

D06

24

MIA(8)

25

DO7

MIA(9)

27

DO8

MIA(10)

28

D09

MIA(11)

30

DO10

MIA(12)

31

DO11

IEA

32

IE

WXIA

33

WXINC

WEA

34

WE

WRAEA

WR/

35

TR

WADEA

36

WADE/RX

WXADA

37

WXAD

WCLKA

IC311

38

WCLK

2 1

IC312

2 1

5

FINB

10

VCOINH

3

VCOUT

4

FINA

2

SEL

IC309

READ PLL

RCLKB

RCLK

8

RXADB

RXAD

9

RADEB

RADE/RX

10

RRB

RR

11

RXIB

12

RXINC

REB

13

RE

OEB

14

OE

MIB(1)

15

DO0

MIB(2)

DO1

16

MIB(3)

DO2

18

MIB(4)

DO3

19

MIB(5)

DO4

21

MIB(6)

22

DO5

MIB(7)

DO6

24

MIB(8)

DO7

25

MIB(9)

DO8

27

MIB(10)

DO9

28

MIB(11)

DO10

30

IC304

MIB(12)

DO11

31

BCH PLL

5

FINB

2

SEL

10

VCOINH

4

FINA

BP (

ADVANCED 100Hz

VP OUT MID

HP OUT MID

Y OUT MID

U OUT MID

V OUT MID

CN0301

(2/2)

A17

B17

TO A BOARD

B16

CN1301

15

B19

B20

)

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

RTV servis Horvat

Kešinci, 31402 Semeljci
031-856-139
031-856-637
098-788-319

[e-mail]

Croatia

Waveforms A Board

1

2

3

Waveforms D Board

1

40 mVp-p (H)

6

180 Vp-p (H)

11

0.1 Vp-p (H)

Waveforms J1(1/2) Board

1

1.0 Vp-p (H)

2

0.8 Vp-p (H)

7

20 mVp-p (H)

12

2.0 Vp-p (V)

2

2.0 Vp-p (H)

3

20 mVp-p (H)

8

2.0 Vp-p (H)

13

0.3 Vp-p (H)

3

2.0 Vp-p (H)

4

2.0 Vp-p (H)

9

1.1 KVp-p (H)

14

20 Vp-p (H)

5

1.1 KVp-p (H)

10

180 Vp-p (H)

4

0.4 Vp-p (H)

5

0.2 Vp-p (H)

Waveforms C Board

1

124.0 Vp-p (H)

6

2

122.0 Vp-p (H)

0.2 Vp-p (H)

1.2 Vp-p (H)

7

3

120.0 Vp-p (H)

1.2 Vp-p (H)

1.0 Vp-p (H)

1.0 Vp-p (H)

4

23.0 Vp-p (H)

5-4 SEMICONDUCTORS

7

1

20

1

( TOP VIEW )

11

10

BA7046F
BA7046F-T1
LM393PS-E20
MB3793-42NF
MB3793-42NF-ER
NJM2240M
NJM2240M(TE2)
NJM3404AD

85

1

4

( TOP VIEW )

CXA1855Q-T6

25

36

37

48

1

( TOP VIEW )

24

13

12

CXA1875AM-T4
HE4094BT
MC14052BDR2
MC74F157ADR2
SN74LS221D
74HCT4046AD/S470

KA78R05TU
KA78R09TU
KA78R33TU

1

2

3

1 : V IN
2 : V OUT
3 : GND
4 : ON/OFF CONTROL

4

LM393D
M5216P
M24C32-BN6
ST24C16FB6
TDA2822M
UPC393C

7

8

2

1

LM78L05ACZ
LM78L12ACZ
L78L05ACZ-AP
L78L12ACZ-AP

M27C800-100K1

640144

7

17

18 28

( TOP VIEW )

39

29

TC55257DFTL-70V-EL

TDA7309D013TR

PC123F2
PC123FY2

4

3

1

2

6

5

3

4

SBX1981-51

SDA9288X-B121
TDA9143/N2
TDA9144/N2
TDA9170T

32

1

( TOP VIEW )

17

16

TDA9320H-N1-518

SDA9361

2333

34

22

51

52

33

32

16 9

1

( TOP VIEW )

CXD2053S
TDA4780/V3

28 15

1

( TOP VIEW )

IN

OUT

GND

MB3793-42PNF-ER

44

1

STV9379

12

11

64

1

(TOP VIEW)

20

19

TEA6422DT
LM393N

8

MSP3410D-QA-B4
SAA7185WP
SDA5273P-C134-GEG
SDA5275

9

14

10

18

26

( TOP VIEW )

61

60

52

44

433527

68

1

SAB-C161R1-LM

IN

TOP209P

85

14

( TOP VIEW )

GND

OUT

125

E

C

B

E

C

B

U2860B-BFPG3
74LVC08D

14 8

IMZ1A-T109

2SC2500-B
2SC2551-O

4

5

6

2SC2551O-TPE2

DAN202K
DAN202K-T-146

3

1

BC546B
BC556B

S

G

BF199
BF199-AMMO

E

B

BF421-AMMO

( TOP VIEW )

D

C

3

2

1

6

5

4

7

1

3

2

E

B

C

IRF614
IRF620

2SC2688-LK

2

DAP202K
DAP202K-T-146

2SC3840K

B

E

C

DA204K

1

2

3

1

3

1

2

2

1

3

DA204K-T-146

DTA144EK
DTA144EK-T146
DTC114EK
DTC114YKA-T146
DTC123EK
DTC123EK-T146
DTC124EKA-T146

DTA144ESA
DTA144ESA-TP
DTC114ESA-TP
DTC144ESA-TP
2SA1175-HFE
2SA733-K

DTC144EK
DTC144EK-T146
2SA1037K-T-146-R
2SA1162-G
2SC2412K-QR
2SC2412K-T-146-R

C

E

B

2SA933AS-RT
2SA933AS-QRT
2SA933S-RT
2SC1740S-RT
2SC2785-HFE

2SC3997CA

MARKING SIDE VIEW

2SC4793

3

1

2

3

2

1

D1NL20-TA
D1NL20U-TR
D1N54-TR

B

C

E

EGP20G
EL1Z
GP08D
GP08DPKG23

RGP02-20EG23
RGP10GPKG23
RGP15GPKG23
S2LA20F
1SS133T-77
1SS83
1SS83TD

R2K-V1

CATHODE

E

C

B

ANODE

BF87-127

B

C

E

2SA1837

E

B

C

B

C

E

B

2SD2396H

C

E

D10SC4M
D10SC6M

3

2

1

1

3

2

126

D4SB60L
D4SB60L-F
RBA-402L

ESAC39M-06C
ESAC39M-06CF38

1

2

3

1

3

2

UF4005PKG23

ANODE

CATHODE

ERA38-06TP1
ERA82-004TP1
GP08DPKG23
MTZJ-T-77-12
MTZJ-T-77-15
MTZJ-T-77-2.2B
MTZJ-T-77-22
MTZJ-T-77-33C
MTZJ-T-77-3.6B
MTZJ-T-77-4.7B

ERC04-06SE

MTZJ-T-77-5.6B
MTZJ-T-77-6.8
MTZJ-T-77-7.5B
MTZJ-T-77-9.1
MTZJ-33C
RD5.6ESB2
RD9.1ESB2
PGKE200AG23
1SS119-25
1SS119-25TD

CATHODE

ANODE

CATHODE

ANODE

MA3033-L
MA3033L-TX
MA3056M-TX
MA3062M-TX
MA3030-H-(TX)

3

23

MA3051L-TX

CATHODE

ANODE

MA73-TX

1

2

NC

1

ERD08M-15

CATHODE

ANODE

RD12SB2
UDZ-TE-17-6.2B
UDZ-TE-17-6.8B
UDZ-TE-12B

ANODE

CATHODE

127

5-5. IC BLOCK DIAGRAMS

D BOARD IC6700 STV 9379 J BOARD IC8101 TDA2822D

2 6 3

FLYBACK

GENERATOR

1

7

-

POWER

AMPLIFIER

+

THERMAL

PROTECTION

4

E BOARD IC4301 CXA2100Q-TL

56 48

S

53

SEP

VIDEO

55

SW

57

59
20

2
9

I REF

51 50 49

SUB

CONT

APC

VCO

TRAP

ACC

ACC
DET

PAL/

NTSC

HUE

PAL

DL

ID

DEM
AXIS

TOT

SHARP

NESS

KILLER

DET

fsc

ID

5

54 52 45 46 47

H SYNC

V SYNC

SEP

DC

D PIC

TRAN

CLP

DEM

Y/C

MIX

COLOR

&AXIS

YS

SW

SEP

CLP

50/60 ID

INTER-

LACE

GATE

7
8

6
5

40 41 39

PHASE

32fH
VCO

YS/YM

SW

CLP

GATE

PHASE

DET

PIC

1/32

Count Down

525/625

OSD
MIX

DIG

PHASE

D-

COL

38

DET

SHIFT

y

SAND

CASTLE

BRT

ABL

2

4

HV

COMP

GB

DRV

H.DRIVE

Sawtooth

Parabola

21141387654343

CUT
OFF

AKB

1

3

WIDE

Gen.

WIDE

Gen.

36
44
42

37

10
30
34

35
32
31

33

22
24

BLK

26

27

2523282919181716151211164616260

J BOARD IC8200 MSP3410D-QA-B4

6

6
5

SBUS Interface

2
5

2
3

2
8
3
1

30

3
4
3
3

37
36

DEMODULATOR

8

DENT

A/D
A/D

13

DFP

SCART Switching Facilities

128

I2C Interface

D/A
D/A

D/A
D/A

D/A
D/A

7 645

5
6

5
7

5
9

6
0

4
7

4
8
5
0

5
1

NOTE :

• Items with no part number and no description are not
stocked because they are seldom required for routine
service.

• The construction parts of an assembled part are indi­cated with a collation number in the remarks column.

6-1. CHASSIS

32

29

28

29

31

24

25

26

18

17

19

20

21

22

23

24

SECTION 6

EXPLODED VIEWS

• Items marked “ * “ are not stocked

since they are seldom required for
routine service. Some delay should
be anticipated when ordering
these items.

13

12

14

15

16

2

1

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

35

37

11

10

9

8

7

30

6

5

4

3

28

36

35

34

33

29

29

27

25

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

1 *A-1624-073-A F BOARD, COMPLETE (KV-29FS60)

*A-1624-075-A F BOARD, COMPLETE (KV-32FS60)

2 *4-204-551-01 BRACKET, F (KV-29FS60)

*4-204-551-11 BRACKET, F (KV-32FS60)
3 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
4 *1-204-549-01 BRACKET, MAIN
5 *A-1640-342-A D BOARD (29”), COMPLETE (KV-29FS60)

*A-1640-326-A D BOARD (32”), COMPLETE (KV-32FS60)
6 £ 1-453-272-11 TRANSFORMER ASSY, FLYBACK

(NX-4512/U2B4)
7 4-204-476-01 BRACKET, J1
8 *A-1651-102-A J BOARD, COMPLETE (KV-29FS60A/29FS60D/

29FS60E/29FS60K/

29FS60R/29FS60U)
*A-1651-106-A J BOARD, COMPLETE (KV-29FS60B)
*A-1651-101-A J BOARD, COMPLETE (KV-32FS60A/32FS60D/

32FS60E)

*A-1651-107-A J BOARD, COMPLETE (KV-32FS60B)

9 *A-1640-320-A D1 BOARD, COMPLETE (KV-29FS60)

*A-1640-325-A D1 BOARD, COMPLETE (KV-32FS60)

10 *A-1640-319-A E BOARD, COMPLETE (KV-29FS60)

*A-1640-324-A E BOARD, COMPLETE (KV-32FS60)

11 *A-1648-018-A U BOARD, COMPLETE (KV-29FS60)

*A-1648-017-A U BOARD, COMPLETE (KV-32FS60)

12 *A-1620-117-A BP BOARD, COMPLETE (KV-29FS60)

*A-1620-115-A BP BOARD, COMPLETE (KV-32FS60)
13 4-204-477-01 BRACKET, J2
14 *A-1620-116-A B1 BOARD, COMPLETE (KV-29FS60)

*A-1620-114-A B1 BOARD, COMPLETE (KV-32FS60)
15 1-790-082-11 CABLE, RF
16 1-693-338-11 TUNER/VIF (AEP)

(KV-29FS60A/29FS60D/29FS60E/29FS60K

29FS60R/32FS60A/32FS60D/32FS60E)
1-693-340-11 TUNER/VIF (FR) (KV-29FS60B/32FS60B)
1-693-339-11 TUNER/VIF (UK) (KV-29FS60U)

129

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

17 £ 1-574-062-61 CORD, POWER (WITH CONNECTOR)

(KV-29FS60A/29FS60B/29FS60D/29FS60E/29FS60K/

29FS60R/32FS60A/32FS60B/32FS60D/32FS60E)

£ 1-590-762-21 CORD, POWER (WITH UK PLUG) (KV-29FS60U)

18 *A-1624-074-A F1 BOARD, COMPLETE (KV-29FS60)

*A-1624-076-A F1 BOARD, COMPLETE (KV-32FS60)
19 *4-204-552-01 BRACKET, F1
20 *A-1646-170-A H1 BOARD, COMPLETE (KV-29FS60)

*A-1646-174-A H1 BOARD, COMPLETE (KV-32FS60)
21 *A-1634-049-A M BOARD, COMPLETE (KV-29FS60)

*A-1634-048-A M BOARD, COMPLETE (KV-32FS60)
22 4-204-550-01 BRACKET, H (KV-29FS60)

4-204-550-11 BRACKET, H (KV-32FS60)
23 *A-1630-980-A A BOARD, COMPLETE

(KV-29FS60A/29FS60D/29FS60E/
29FS60K/29FS60R)

*A-1630-993-A A BOARD, COMPLETE (KV-29FS60B)

24 4-039-358-01 SCREW (4X16), (+) BV TAPPING
25 1-529-153-11 SPEAKER (4.8X20CM)
26 1-771-599-11 SWITCH, ARRAY
27 A-1678-188-A WOOFER (R) ASSY 28-30
28 1-529-144-11 SPEAKER (13CM)
29 4-039-355-01 SCREW (4X12), (+) BV TAPPING
30 *A-1678-158-A WOOFER (R) ASSY, SP FX
31 *A-1678-157-A WOOFER (L) ASSY, SP FX
32 A-1678-150-A WOOFER (L) ASSY 28,29,31
33 4-204-508-01 COVER, REAR (KV-29FS60)

4-204-367-11 COVER, REAR (KV-32FS60)

34 4-204-460-01 COVER, SCREW (LEFT) (KV-29FS60)

4-204-369-01 COVER, SCREW (LEFT) (KV-32FS60)
35 4-302-404-03 SCREW (WASHER HEAD) (+P 4X16)
36 4-204-458-01 COVER, PORT
37 4-039-461-01 COVER, SCREW (RIGHT) (KV-29FS60)

4-204-370-01 COVER, SCREW (RIGHT) (KV-32FS60)

*A-1630-994-A A BOARD, COMPLETE (KV-29FS60U)
*A-1630-979-A A BOARD, COMPLETE (KV-32FS60A/32FS60D/

32FS60E)

*A-1630-995-A A BOARD, COMPLETE (KV-32FS60B)

130

6-2. PICTURE TUBE

51

70

76

69

77
78

79

80

61

75

74

72

73

71

62

68

69

68

67

66

64

63

65

57

52

58

53

54

52

59

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

51 X-4200-423-1 BEZNET ASSY (KV-29FS60)

52 4-204-473-01 GRILLE, SPEAKER (KV-29FS60)

53 4-042-192-11 CATCHER, PUSH (KV-29FS60)

54 4-204-492-01 WINDOW, ORNAMENTAL
55 4-204-438-01 BUTTON, POWER
56 4-202-964-11 SPRING
57 4-204-439-01 GUIDE, LIGHT
58 4-202-555-01 SHAFT, DOOR
59 4-204-435-21 DOOR
60 4-045-250-01 DAMPER

60

A-1605-585-A BEZNET ASSY (KV-32FS60)

4-204-368-01 GRILLE, SPEAKER (KV-32FS60)

4-042-192-01 CATCHER, PUSH (KV-32FS60)

56

55

61

61 4-203-098-01 SUPPORTER, CRT (KV-32FS60A/32FS60B/

32FS60D/32FS60E)

62 £ 8-451-504-11 DEFLECTION YOKE Y29RSC-M (KV-29FS60)

£ 1-451-480-11 DEFLECTION YOKE Y32RVC2 (KV-32FS60)
63 1-452-896-11 COIL, NA ROTATION (RT200)
64 £ 8-453-011-11 NECK ASSY, NA299-M
65 *A-1644-094-A VM BOARD, COMPLETE (KV-29FS60)

*A-1644-095-A VM BOARD, COMPLETE (KV-32FS60)

66 *A-1638-123-A C BOARD, COMPLETE (KV-29FS60)

*A-1638-122-A C BOARD, COMPLETE (KV-32FS60)

67 4-200-433-01 SPRING, EXTENSION (KV-29FS60)

4-369-318-51 SPRING, TENSION (KV-32FS60)

131

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

68 £ 1-416-654-11 COIL, DEMAGNETIC (KV-29FS60)

£ 1-416-769-11 COIL, DEMAGNETIC (KV-32FS60)
69 *4-202-988-01 CUSHION, BOX
70 *4-060-802-01 HOLDER, DGC (KV-29FS60)

*4-059-569-01 HOLDER, DGC (KV-32FS60)
71 3-704-372-01 HOLDER, HV CABLE
72 £ 1-251-317-31 CAP ASSY, HIGH-VOLTAGE

75 4-036-188-01 SCREW, SELF TAPPING (KV-29FS60)

4-203-043-01 SCREW (PT) (KV-32FS60)
76 4-308-870-00 CLIP, LEAD WIRE
77 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM
78 1-425-032-00 MAGNET, DISK; 10MM
79 X-4387-214-1 PERMALLOY ASSY, CORRECTION
80 3-701-007-00 BAND, BINDING

73 3-704-495-01 SPACER, DY
74 £ 8-735-053-05 PICTURE TUBE (M68LNH060X) (KV-29FS60)

£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (SD-302)

(KV-32FS60)

132

SECTION 7

ELECTRICAL PARTS LIST

• Items marked “ * “ are not stocked since
they are seldom required for routine serv­ice. Some delay should be anticipated
when ordering these items.

•

• All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.

•

RESISTORS

• All resistors are in ohms.

• F : nonflammable.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

When indicating parts by reference number,
please include the board
name.

CAPACITORS COILS

MF : mF, PF : mmF MMH : mH , uH

B1

*A-1620-116-A B1 BOARD, COMPLETE (KV-29FS60)
******************
*A-1620-114-A B1 BOARD, COMPLETE (KV-32FS60)
******************

< CAPACITOR >

C2301 1-126-934-11 ELECT 220MF 20% 16V
C2302 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2303 1-126-964-11 ELECT 10MF 20% 50V
C2304 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C2305 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C2306 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C2307 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2308 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C2309 1-126-934-11 ELECT 220MF 20% 16V
C2311 1-126-963-11 ELECT 4.7MF 20% 50V

C2312 1-126-963-11 ELECT 4.7MF 20% 50V
C2313 1-126-963-11 ELECT 4.7MF 20% 50V
C2314 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C2315 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V
C2316 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V

C2317 1-162-638-11 CERAMIC CHIP 1MF 16V
C2318 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V
C2319 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V
C2320 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V
C2323 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2325 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2327 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2328 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2329 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2330 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2331 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2332 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C2333 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C2334 1-126-964-11 ELECT 10MF 20% 50V

C2335 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
C2337 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C2338 1-126-934-11 ELECT 220MF 20% 16V
C2339 1-164-005-11 CERAMIC CHIP 0.47MF 25V

C2340 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2342 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2343 1-126-961-11 ELECT 2.2MF 20% 50V
C2344 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2345 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2346 1-126-964-11 ELECT 10MF 20% 50V
C2347 1-163-097-00 CERAMIC CHIP 15PF 5% 50V
C2348 1-163-097-00 CERAMIC CHIP 15PF 5% 50V
C2349 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2351 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2354 1-126-934-11 ELECT 220MF 20% 16V
C2356 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2357 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2358 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2361 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2362 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2363 1-126-934-11 ELECT 220MF 20% 16V
C2364 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C2366 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2367 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2368 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2371 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C2372 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2374 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2377 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2378 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2380 1-163-145-00 CERAMIC CHIP 0.0015MF 5% 50V
C2381 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2382 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2383 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2385 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C2387 1-136-250-11 FILM 0.001MF 2% 100V

133

The components identified by
shading and marked are critical
for safety
Replace only with the part number

B1

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C2388 1-136-479-11 FILM 0.001MF 1% 100V
C2389 1-163-085-00 CERAMIC CHIP 2PF 0.25PF 50V
C2390 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C2391 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C2704 1-126-934-11 ELECT 220MF 20% 16V

C2705 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

< CONNECTOR >

CN2100 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< FILTER >

FL2300 1-236-071-11 ENCAPSULATED COMPONENT
FL2301 1-233-767-21 FILTER
FL2302 1-236-071-11 ENCAPSULATED COMPONENT
FL2303 1-236-071-11 ENCAPSULATED COMPONENT
FL2305 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC2300 8-759-991-41 IC LM78L05ACZ
IC2301 8-759-295-09 IC TLC2932IPW
IC2302 8-759-257-59 IC TDA8755T-T
IC2303 8-759-438-64 IC SAA4952WP/V1
IC2304 8-759-546-02 IC SAA4995WP-V1-T3
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

IC2305 8-759-295-09 IC TLC2932IPW
IC2306 8-759-439-27 IC TMS4C2972-26DTR
IC2307 8-759-546-04 IC SAA4991WP-V1-T3
IC2309 8-759-439-27 IC TMS4C2972-28DTR
IC2310 8-759-991-41 IC LM78L05ACZ

IC2311 8-759-467-19 IC SDA9280B22
IC2314 8-759-439-26 IC SN74LS221D

< COIL >

L2300 1-408-597-31 INDUCTOR 3.3UH
L2301 1-410-435-21 INDUCTOR 220UH
L2302 1-410-435-21 INDUCTOR 220UH
L2303 1-408-597-31 INDUCTOR 3.3UH
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

L2304 1-414-186-31 INDUCTOR 33UH
L2305 1-408-603-31 INDUCTOR 10UH
L2306 1-414-186-31 INDUCTOR 33UH
L2307 1-414-384-11 INDUCTOR 5.6UH

< TRANSISTOR >

< RESISTOR >

R2300 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R2301 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R2302 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R2303 1-216-059-00 RES,CHIP 2.7K 5% 1/10W
R2304 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R2305 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R2306 1-216-295-91 SHORT 0
R2307 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2310 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2312 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2313 1-216-047-91 RES,CHIP 820 5% 1/10W
R2314 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R2315 1-216-113-00 RES,CHIP 470K 5% 1/10W
R2316 1-216-073-00 RES,CHIP 10K 5% 1/10W
R2317 1-216-025-91 RES,CHIP 100 5% 1/10W

R2320 1-216-295-91 SHORT 0
R2321 1-216-295-91 SHORT 0
R2334 1-233-574-11 RES, CHIP NETWORK 10
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

R2335 1-233-574-11 RES, CHIP NETWORK 10
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
R2336 1-233-574-11 RES, CHIP NETWORK 10
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

R2337 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2338 1-216-295-91 SHORT 0
R2341 1-216-295-91 SHORT 0
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R2342 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

R2345 1-216-025-91 RES,CHIP 100 5% 1/10W
R2348 1-216-089-91 RES,CHIP 47K 5% 1/10W
R2354 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

R2355 1-216-295-91 SHORT 0
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R2356 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R2358 1-216-295-91 SHORT 0
R2359 1-216-001-00 RES,CHIP 10 5% 1/10W

Q2301 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q2302 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q2303 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q2304 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q2305 8-729-216-22 TRANSISTOR 2SA1162-G

Q2306 8-729-216-22 TRANSISTOR 2SA1162-G
Q2307 8-729-216-22 TRANSISTOR 2SA1162-G

R2360 1-216-085-00 RES,CHIP 33K 5% 1/10W
R2361 1-216-085-00 RES,CHIP 33K 5% 1/10W
R2364 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2365 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2366 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2367 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2368 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

134

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

BPB1

R2369 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2370 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2371 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2372 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R2373 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R2374 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2375 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2376 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2377 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2378 1-216-029-00 RES,CHIP 150 5% 1/10W

R2379 1-216-076-00 RES,CHIP 13K 5% 1/10W
R2380 1-216-073-00 RES,CHIP 10K 5% 1/10W
R2381 1-216-021-00 RES,CHIP 68 5% 1/10W
R2382 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2383 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2384 1-216-021-00 RES,CHIP 68 5% 1/10W
R2385 1-216-037-00 RES,CHIP 330 5% 1/10W
R2386 1-216-295-91 SHORT 0
R2387 1-216-027-00 RES,CHIP 120 5% 1/10W
R2388 1-216-037-00 RES,CHIP 330 5% 1/10W

R2389 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R2390 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2391 1-216-025-91 RES,CHIP 100 5% 1/10W
R2392 1-216-295-91 SHORT 0
R2393 1-216-295-91 SHORT 0

R2723 1-216-027-00 RES,CHIP 120 5% 1/10W
R2724 1-216-295-91 SHORT 0
R2725 1-216-021-00 RES,CHIP 68 5% 1/10W
R2726 1-216-295-91 SHORT 0
R2727 1-216-295-91 SHORT 0

R2734 1-216-295-91 SHORT 0
R2735 1-216-021-00 RES,CHIP 68 5% 1/10W
R2736 1-216-295-91 SHORT 0
R2738 1-216-025-91 RES,CHIP 100 5% 1/10W

< CRYSTAL >

X2300 1-579-175-11 VIBRATOR, CERAMIC

*************************************************************

*A-1620-117-A BP BOARD, COMPLETE (KV-29FS60)
*****************
*A-1620-115-A BP BOARD, COMPLETE (KV-32FS60)
*****************

< CAPACITOR >

C300 1-164-222-11 CERAMIC CHIP 0.22MF 25V
C301 1-164-222-11 CERAMIC CHIP 0.22MF 25V
C302 1-164-222-11 CERAMIC CHIP 0.22MF 25V
C303 1-164-222-11 CERAMIC CHIP 0.22MF 25V
C304 1-164-222-11 CERAMIC CHIP 0.22MF 25V

R2394 1-216-295-91 SHORT 0
R2395 1-216-295-91 SHORT 0
R2396 1-216-295-91 SHORT 0
R2397 1-216-295-91 SHORT 0
R2398 1-216-295-91 SHORT 0

R2410 1-216-037-00 RES,CHIP 330 5% 1/10W
R2411 1-216-037-00 RES,CHIP 330 5% 1/10W
R2412 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W
R2413 1-216-664-11 METAL CHIP 3.6K 0.50% 1/10W
R2415 1-216-295-91 SHORT 0
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R2416 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
R2711 1-216-001-00 RES,CHIP 10 5% 1/10W
R2712 1-216-295-91 SHORT 0

R2713 1-216-295-91 SHORT 0
R2714 1-216-295-91 SHORT 0
R2715 1-216-295-91 SHORT 0
R2716 1-216-295-91 SHORT 0
R2717 1-216-295-91 SHORT 0

R2718 1-216-295-91 SHORT 0
R2719 1-216-295-91 SHORT 0
R2720 1-216-295-91 SHORT 0
R2721 1-216-295-91 SHORT 0
R2722 1-216-295-91 SHORT 0

C305 1-126-967-11 ELECT 47MF 20% 50V
C306 1-126-967-11 ELECT 47MF 20% 50V
C307 1-126-967-11 ELECT 47MF 20% 50V
C308 1-126-964-11 ELECT 10MF 20% 50V
C309 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C310 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C311 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C312 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C313 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C314 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C315 1-126-964-11 ELECT 10MF 20% 50V
C316 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C317 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C318 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C319 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C320 1-126-967-11 ELECT 47MF 20% 50V
C321 1-126-967-11 ELECT 47MF 20% 50V
C322 1-126-967-11 ELECT 47MF 20% 50V
C323 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C324 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C325 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C326 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C327 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C328 1-126-964-11 ELECT 10MF 20% 50V
C329 1-126-964-11 ELECT 10MF 20% 50V

C330 1-126-964-11 ELECT 10MF 20% 50V

135

The components identified by
shading and marked are critical
for safety
Replace only with the part number

BP

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C331 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C332 1-126-964-11 ELECT 10MF 20% 50V
C333 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C334 1-126-964-11 ELECT 10MF 20% 50V
C335 1-126-964-11 ELECT 10MF 20% 50V

C336 1-126-964-11 ELECT 10MF 20% 50V
C337 1-126-964-11 ELECT 10MF 20% 50V
C338 1-126-964-11 ELECT 10MF 20% 50V
C339 1-126-964-11 ELECT 10MF 20% 50V
C340 1-126-964-11 ELECT 10MF 20% 50V

C341 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C342 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C343 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C344 1-126-964-11 ELECT 10MF 20% 50V
C345 1-126-964-11 ELECT 10MF 20% 50V

C346 1-126-964-11 ELECT 10MF 20% 50V
C347 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C348 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C349 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C350 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C351 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C352 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C353 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C354 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C355 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C384 1-126-964-11 ELECT 10MF 20% 50V
C385 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C386 1-126-964-11 ELECT 10MF 20% 50V
C387 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C388 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C389 1-126-964-11 ELECT 10MF 20% 50V
C391 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C392 1-126-964-11 ELECT 10MF 20% 50V
C393 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C394 1-126-964-11 ELECT 10MF 20% 50V

C395 1-126-933-11 ELECT 100MF 20% 16V
C396 1-126-933-11 ELECT 100MF 20% 16V
C397 1-126-933-11 ELECT 100MF 20% 16V
C398 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C399 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C400 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C401 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C402 1-126-964-11 ELECT 10MF 20% 50V
C403 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C404 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C405 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C406 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C407 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C408 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C409 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C357 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C358 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C359 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C361 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C362 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C363 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C364 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C365 1-126-964-11 ELECT 10MF 20% 50V
C366 1-126-964-11 ELECT 10MF 20% 50V
C367 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C368 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C369 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C370 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C371 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C372 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C373 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C374 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C375 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C376 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C377 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C378 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C379 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C380 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C381 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C382 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C383 1-163-099-00 CERAMIC CHIP 18PF 5% 50V

C410 1-163-038-91 CERAMIC CHIP 0.1MF 25V

< CONNECTOR >

CN300 1-695-300-11 CONNECTOR, BOARD TO BOARD 20P
CN301 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< FILTER >

FL300 1-233-505-21 FILTER, LOW PASS
FL301 1-233-505-21 FILTER, LOW PASS
FL302 1-236-071-11 ENCAPSULATED COMPONENT
FL303 1-236-071-11 ENCAPSULATED COMPONENT
FL304 1-236-071-11 ENCAPSULATED COMPONENT

FL305 1-233-446-11 FILTER, LOW PASS
FL306 1-233-446-11 FILTER, LOW PASS
FL307 1-233-446-11 FILTER, LOW PASS

< IC >

IC300 8-752-067-36 IC CXA1815S
IC301 8-759-485-79 IC TC7SET08FU(TE85L)
IC302 8-759-295-09 IC TLC2932IPW
IC303 8-752-392-55 IC CXD2079Q
IC304 8-759-295-09 IC TLC2932IPW

IC305 8-759-485-79 IC TC7SET08FU(TE85L)
IC306 8-759-467-22 IC MSM548331TS-K
IC307 8-759-467-22 IC MSM548331TS-K
IC308 8-759-485-79 IC TC7SET08FU(TE85L)

136

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

BP

IC309 8-759-295-09 IC TLC2932IPW
IC311 8-759-062-66 IC TC7S66F
IC312 8-759-062-66 IC TC7S66F

< COIL >

L300 1-412-029-11 INDUCTOR CHIP 10UH
L301 1-410-435-21 INDUCTOR 220UH
L302 1-410-435-21 INDUCTOR 220UH
L303 1-412-029-11 INDUCTOR CHIP 10UH
L304 1-410-435-21 INDUCTOR 220UH

L305 1-410-435-21 INDUCTOR 220UH
L306 1-412-029-11 INDUCTOR CHIP 10UH
L307 1-412-029-11 INDUCTOR CHIP 10UH
L308 1-412-029-11 INDUCTOR CHIP 10UH
L309 1-412-029-11 INDUCTOR CHIP 10UH

L311 1-412-029-11 INDUCTOR CHIP 10UH
L312 1-412-029-11 INDUCTOR CHIP 10UH
L313 1-412-029-11 INDUCTOR CHIP 10UH
L314 1-412-029-11 INDUCTOR CHIP 10UH
L315 1-412-029-11 INDUCTOR CHIP 10UH

L316 1-412-029-11 INDUCTOR CHIP 10UH
L317 1-412-029-11 INDUCTOR CHIP 10UH
L318 1-412-029-11 INDUCTOR CHIP 10UH
L319 1-412-029-11 INDUCTOR CHIP 10UH
L320 1-412-029-11 INDUCTOR CHIP 10UH

L321 1-412-004-31 INDUCTOR CHIP 6.8UH
L322 1-412-004-31 INDUCTOR CHIP 6.8UH
L323 1-412-004-31 INDUCTOR CHIP 6.8UH

< TRANSISTOR >

Q300 8-729-620-06 TRANSISTOR 2SC3052-EF
Q301 8-729-620-06 TRANSISTOR 2SC3052-EF
Q302 8-729-620-06 TRANSISTOR 2SC3052-EF
Q303 8-729-620-06 TRANSISTOR 2SC3052-EF
Q304 8-729-620-06 TRANSISTOR 2SC3052-EF

Q305 8-729-620-06 TRANSISTOR 2SC3052-EF
Q306 8-729-216-22 TRANSISTOR 2SA1162-G
Q307 8-729-216-22 TRANSISTOR 2SA1162-G
Q308 8-729-216-22 TRANSISTOR 2SA1162-G
Q309 8-729-216-22 TRANSISTOR 2SA1162-G

Q310 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q311 8-729-216-22 TRANSISTOR 2SA1162-G
Q312 8-729-216-22 TRANSISTOR 2SA1162-G
Q313 8-729-216-22 TRANSISTOR 2SA1162-G
Q314 8-729-216-22 TRANSISTOR 2SA1162-G

Q315 8-729-620-06 TRANSISTOR 2SC3052-EF
Q316 8-729-216-22 TRANSISTOR 2SA1162-G
Q317 8-729-620-06 TRANSISTOR 2SC3052-EF
Q318 8-729-216-22 TRANSISTOR 2SA1162-G
Q319 8-729-216-22 TRANSISTOR 2SA1162-G

Q320 8-729-620-06 TRANSISTOR 2SC3052-EF

Q322 8-729-620-06 TRANSISTOR 2SC3052-EF
Q324 8-729-620-06 TRANSISTOR 2SC3052-EF
Q325 8-729-620-06 TRANSISTOR 2SC3052-EF
Q326 8-729-216-22 TRANSISTOR 2SA1162-G
Q327 8-729-216-22 TRANSISTOR 2SA1162-G

Q328 8-729-216-22 TRANSISTOR 2SA1162-G
Q329 1-801-806-11 TRANSISTOR DTC144EKA-T146

< RESISTOR >

R300 1-216-049-91 RES,CHIP 1K 5% 1/10W
R301 1-216-049-91 RES,CHIP 1K 5% 1/10W
R302 1-216-642-11 METAL CHIP 430 0.50% 1/10W
R303 1-216-045-00 RES,CHIP 680 5% 1/10W
R304 1-216-045-00 RES,CHIP 680 5% 1/10W

R305 1-216-656-11 METAL CHIP 1.6K 0.50% 1/10W
R306 1-216-037-00 RES,CHIP 330 5% 1/10W
R307 1-216-037-00 RES,CHIP 330 5% 1/10W
R308 1-216-643-11 METAL CHIP 470 0.50% 1/10W
R309 1-216-045-00 RES,CHIP 680 5% 1/10W

R310 1-216-045-00 RES,CHIP 680 5% 1/10W
R311 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R312 1-216-654-11 METAL CHIP 1.3K 0.50% 1/10W
R313 1-216-037-00 RES,CHIP 330 5% 1/10W
R314 1-216-037-00 RES,CHIP 330 5% 1/10W

R315 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R316 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W
R317 1-216-049-91 RES,CHIP 1K 5% 1/10W
R318 1-216-049-91 RES,CHIP 1K 5% 1/10W
R319 1-216-025-91 RES,CHIP 100 5% 1/10W

R320 1-216-025-91 RES,CHIP 100 5% 1/10W
R321 1-216-041-00 RES,CHIP 470 5% 1/10W
R322 1-216-041-00 RES,CHIP 470 5% 1/10W
R323 1-216-041-00 RES,CHIP 470 5% 1/10W
R324 1-216-017-91 RES,CHIP 47 5% 1/10W

R325 1-216-025-91 RES,CHIP 100 5% 1/10W
R326 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W
R327 1-216-049-91 RES,CHIP 1K 5% 1/10W
R328 1-216-049-91 RES,CHIP 1K 5% 1/10W
R329 1-216-025-91 RES,CHIP 100 5% 1/10W

R330 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R331 1-216-025-91 RES,CHIP 100 5% 1/10W
R332 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R333 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R336 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R337 1-216-049-91 RES,CHIP 1K 5% 1/10W
R338 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R339 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R340 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R341 1-216-049-91 RES,CHIP 1K 5% 1/10W

R342 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R343 1-216-623-11 METAL CHIP 68 0.50% 1/10W

137

The components identified by
shading and marked are critical
for safety

BP

Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R344 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R345 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R346 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R347 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R351 1-216-049-91 RES,CHIP 1K 5% 1/10W

R352 1-216-025-91 RES,CHIP 100 5% 1/10W
R353 1-216-049-91 RES,CHIP 1K 5% 1/10W
R357 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R358 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R359 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R360 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R361 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R362 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R363 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R364 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R365 1-216-623-11 METAL CHIP 68 0.50% 1/10W
R368 1-216-025-91 RES,CHIP 100 5% 1/10W
R369 1-216-025-91 RES,CHIP 100 5% 1/10W
R371 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R372 1-216-049-91 RES,CHIP 1K 5% 1/10W

R373 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R374 1-216-033-00 RES,CHIP 220 5% 1/10W
R375 1-216-037-00 RES,CHIP 330 5% 1/10W
R376 1-216-117-00 RES,CHIP 680K 5% 1/10W
R377 1-216-041-00 RES,CHIP 470 5% 1/10W

R406 1-216-017-91 RES,CHIP 47 5% 1/10W
R407 1-216-025-91 RES,CHIP 100 5% 1/10W
R408 1-216-017-91 RES,CHIP 47 5% 1/10W
R409 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R410 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R411 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R412 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R413 1-216-041-00 RES,CHIP 470 5% 1/10W
R414 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R415 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R417 1-216-117-00 RES,CHIP 680K 5% 1/10W
R418 1-216-033-00 RES,CHIP 220 5% 1/10W
R419 1-216-037-00 RES,CHIP 330 5% 1/10W
R420 1-216-033-00 RES,CHIP 220 5% 1/10W
R421 1-216-037-00 RES,CHIP 330 5% 1/10W

R422 1-216-017-91 RES,CHIP 47 5% 1/10W
R423 1-216-017-91 RES,CHIP 47 5% 1/10W
R424 1-216-017-91 RES,CHIP 47 5% 1/10W
R425 1-216-017-91 RES,CHIP 47 5% 1/10W
R426 1-216-017-91 RES,CHIP 47 5% 1/10W

R427 1-216-017-91 RES,CHIP 47 5% 1/10W
R429 1-216-295-91 SHORT 0
R431 1-216-029-00 RES,CHIP 150 5% 1/10W
R432 1-216-029-00 RES,CHIP 150 5% 1/10W
R433 1-216-029-00 RES,CHIP 150 5% 1/10W

R378 1-216-041-00 RES,CHIP 470 5% 1/10W
R379 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R380 1-216-033-00 RES,CHIP 220 5% 1/10W
R381 1-216-117-00 RES,CHIP 680K 5% 1/10W
R382 1-216-037-00 RES,CHIP 330 5% 1/10W

R383 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R385 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W
R386 1-216-025-91 RES,CHIP 100 5% 1/10W
R387 1-216-643-11 METAL CHIP 470 0.50% 1/10W
R388 1-216-025-91 RES,CHIP 100 5% 1/10W

R389 1-216-025-91 RES,CHIP 100 5% 1/10W
R390 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W
R391 1-216-651-11 METAL CHIP 1K 0.50% 1/10W
R393 1-216-037-00 RES,CHIP 330 5% 1/10W
R394 1-216-033-00 RES,CHIP 220 5% 1/10W

R395 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R396 1-216-636-11 METAL CHIP 240 0.50% 1/10W
R397 1-216-636-11 METAL CHIP 240 0.50% 1/10W
R398 1-216-049-91 RES,CHIP 1K 5% 1/10W
R399 1-216-025-91 RES,CHIP 100 5% 1/10W

R400 1-216-638-11 METAL CHIP 300 0.50% 1/10W
R401 1-216-025-91 RES,CHIP 100 5% 1/10W
R402 1-216-025-91 RES,CHIP 100 5% 1/10W
R403 1-216-025-91 RES,CHIP 100 5% 1/10W
R404 1-216-017-91 RES,CHIP 47 5% 1/10W

R434 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R436 1-216-049-91 RES,CHIP 1K 5% 1/10W
R438 1-216-041-00 RES,CHIP 470 5% 1/10W
R439 1-216-653-11 METAL CHIP 1.2K 0.50% 1/10W
R440 1-216-049-91 RES,CHIP 1K 5% 1/10W

R441 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R442 1-216-041-00 RES,CHIP 470 5% 1/10W
R444 1-216-049-91 RES,CHIP 1K 5% 1/10W
R445 1-216-041-00 RES,CHIP 470 5% 1/10W
R447 1-216-049-91 RES,CHIP 1K 5% 1/10W

R448 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R449 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R450 1-216-049-91 RES,CHIP 1K 5% 1/10W
R451 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R452 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R453 1-216-049-91 RES,CHIP 1K 5% 1/10W
R454 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R455 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R456 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R457 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R458 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R459 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R460 1-216-041-00 RES,CHIP 470 5% 1/10W
R461 1-216-037-00 RES,CHIP 330 5% 1/10W
R462 1-216-037-00 RES,CHIP 330 5% 1/10W

R405 1-216-017-91 RES,CHIP 47 5% 1/10W

R463 1-216-041-00 RES,CHIP 470 5% 1/10W

138

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

BP F1

F

A

R464 1-216-638-11 METAL CHIP 330 0.50% 1/10W
R465 1-216-636-11 METAL CHIP 240 0.50% 1/10W
R466 1-216-049-91 RES,CHIP 1K 5% 1/10W
R468 1-216-017-91 RES,CHIP 47 5% 1/10W
R469 1-216-017-91 RES,CHIP 47 5% 1/10W

R470 1-216-017-91 RES,CHIP 47 5% 1/10W
R471 1-216-033-00 RES,CHIP 220 5% 1/10W
R472 1-216-033-00 RES,CHIP 220 5% 1/10W
R473 1-216-033-00 RES,CHIP 220 5% 1/10W
R474 1-216-033-00 RES,CHIP 220 5% 1/10W

R475 1-216-033-00 RES,CHIP 220 5% 1/10W
R476 1-216-033-00 RES,CHIP 220 5% 1/10W

< CRYSTAL >

X300 1-767-262-31 VIBRATOR, CRYSTAL

*************************************************************

*A-1624-073-A F BOARD, COMPLETE (KV-29FS60)
*****************
*A-1624-075-A F BOARD, COMPLETE (KV-32FS60)
*****************

*4-203-258-11 HOLDER, LED

*A-1624-074-A F1 BOARD, COMPLETE (KV-29FS60)
******************
*A-1624-076-A F1 BOARD, COMPLETE (KV-32FS60)
******************

< CAPACITOR >

C7626 £ 1-136-527-12 FILM 0.47MF 20% 300V

< CONNECTOR >

CN7611 £ *1-580-844-11 PIN, CONNECTOR (POWER)
CN7622 1-695-915-11 TAB (CONTACT)
CN7633 £ *1-580-843-11 PIN, CONNECTOR (POWER)

< FUSE >

F7626 £ 1-532-299-11 FUSE 5A/250V
£ *1-533-725-11 HOLDER, FUSE (F7626)

< FILTER >

LF7627 £ 1-433-488-11 TRANSFORMER, LINE FILTER

< RESISTOR >

R7626 £ 1-202-719-00 SOLID 1M 20% 1/2W

< CAPACITOR >

C7125 1-126-969-11 ELECT 220MF 20% 50V

< CONNECTOR >

CN7100 *1-568-879-11 PIN, CONNECTOR 4P
CN7600 £ *1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P
CN7644 £ *1-580-844-11 PIN, CONNECTOR (POWER)

< DIODE >

D7125 8-719-030-11 DIODE SLA-570KT3F

< IC >

IC7125 8-749-014-59 IC TSOP1740KS1

< RESISTOR >

R7125 1-247-815-91 CARBON 220 5% 1/4W
R7126 1-249-411-11 CARBON 330 5% 1/4W

< SWITCH >

S7601 £ 1-571-433-21 SWITCH, PUSH (AC POWER)

< VARISTOR >

VDR762 £ 1-801-073-31 VARISTOR ERZV14D471

*********************************************************************

*A-1630-980-A A BOARD, COMPLETE (KV-29FS60A/29FS60D/
****************** 29FS60E/29FS60K/
29FS60R)
*A-1630-993-A A BOARD, COMPLETE (KV-29FS60B)
*****************
*A-1630-994-A A BOARD, COMPLETE (KV-29FS60U)
*****************
*A-1630-979-A A BOARD, COMPLETE (KV-32FS60A/32FS60D/
***************** 32FS60E)
*A-1630-995-A A BOARD, COMPLETE (KV-32FS60B)
*****************

4-204-625-01 HEAT SINK, AUDIO
4-382-854-11 SCREW (M3X10), P, SW (+)
*4-931-401-01 HEAT SINK, V.OUT

< CAPACITOR >

C1100 1-104-664-11 ELECT 47MF 20% 25V
C1101 1-104-666-11 ELECT 220MF 20% 25V
C1126 1-162-568-11 CERAMIC CHIP 0.33MF 10% 16V
C1127 1-136-177-00 FILM 1MF 5% 50V
C1128 1-163-135-00 CERAMIC CHIP 560PF 5% 50V

C1129 1-130-777-00 FILM 0.1MF 5% 63V
C1130 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C1131 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

139

The components identified by
shading and marked are critical
for safety
Replace only with the part number

A

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C1132 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C1133 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1134 1-126-961-11 ELECT 2.2MF 20% 50V
C1135 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1136 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1137 1-126-953-11 ELECT 2200MF 20% 35V
C1138 1-126-953-11 ELECT 2200MF 20% 35V
C1139 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V
C1140 1-111-216-91 ELECT 150MF 20% 63V
C1151 1-162-568-11 CERAMIC CHIP 0.33MF 10% 16V

C1152 1-136-177-00 FILM 1MF 5% 50V
C1153 1-163-135-00 CERAMIC CHIP 560PF 5% 50V
C1154 1-130-777-00 FILM 0.1MF 5% 63V
C1155 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C1156 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1157 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C1158 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1159 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1160 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1161 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C1162 1-111-216-91 ELECT 150MF 20% 63V
C1176 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1177 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1178 1-126-964-11 ELECT 10MF 20% 50V
C1179 1-126-964-11 ELECT 10MF 20% 50V

C1614 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1615 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1617 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

< CONNECTOR >

CN1111 *1-564-520-11 PLUG, CONNECTOR 5P
CN1200 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P
CN1300 1-695-297-11 CONNECTOR, BOARD TO BOARD 20P
CN1301 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P
CN1401 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P

CN1402 1-573-296-11 CONNECTOR, BOARD TO BOARD 10P
(KV-29FS60B/32FS60B)
CN1600 1-900-903-64 CONNECTOR ASSY, 20P
CN1601 1-900-903-64 CONNECTOR ASSY, 20P
CN1602 1-900-903-64 CONNECTOR ASSY, 20P

CN1700 *1-568-879-11 PIN, CONNECTOR 4P
CN1701 1-573-296-11 CONNECTOR, BOARD TO BOARD 10P
CN1702 *1-568-880-51 PIN, CONNECTOR 5P
CN1703 *1-564-514-11 PLUG, CONNECTOR 11P
CN1801 1-695-299-11 CONNECTOR, BOARD TO BOARD 50P

CN1901 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P

< COMPOSITION CIRCUIT BLOCK >

CP1300 1-251-658-11 SPLITTER RF

C1180 1-126-952-11 ELECT 1000MF 20% 35V
C1181 1-126-952-11 ELECT 1000MF 20% 35V
C1182 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1183 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1184 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C1185 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C1226 1-104-661-91 ELECT 330MF 20% 16V
C1300 1-126-933-11 ELECT 100MF 20% 16V
C1301 1-163-059-91 CERAMIC CHIP 0.01MF 10% 50V
C1326 1-163-059-91 CERAMIC CHIP 0.01MF 10% 50V

C1327 1-126-934-11 ELECT 220MF 20% 10V
C1328 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C1350 1-163-059-91 CERAMIC CHIP 0.01MF 10% 50V
C1351 1-126-934-11 ELECT 220MF 20% 10V
C1601 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1602 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1603 1-126-933-11 ELECT 100MF 20% 16V
C1604 1-126-933-11 ELECT 100MF 20% 16V
C1605 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1607 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1608 1-126-934-11 ELECT 220MF 20% 16V
C1609 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1610 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C1611 1-126-933-11 ELECT 100MF 20% 16V
C1612 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1613 1-126-933-11 ELECT 100MF 20% 16V

< DIODE >

D1100 8-719-914-43 DIODE DAN202K
D1101 8-719-914-44 DIODE DAP202K
D1102 8-719-914-43 DIODE DAN202K
D1103 8-719-914-43 DIODE DAN202K
D1401 8-719-105-99 DIODE RD6.2M-B1

D1402 8-719-105-99 DIODE RD6.2M-B1
D1403 8-719-105-99 DIODE RD6.2M-B1
D1404 8-719-105-99 DIODE RD6.2M-B1
D1626 8-719-914-43 DIODE DAN202K
D1627 8-719-914-43 DIODE DAN202K

D1629 8-719-914-43 DIODE DAN202K

< FERRITE BEAD >

FB1126 1-535-143-61 LEAD, JUMPER (5.0MM)
FB1151 1-535-143-61 LEAD, JUMPER (5.0MM)

< IC >

IC1126 8-759-544-25 IC TDA7482
IC1151 8-759-544-25 IC TDA7482
IC1176 8-759-333-24 IC LM1876TF
IC1400 8-752-072-94 IC CXA1875AM-T4
IC1401 8-759-439-64 IC HEF4053BT

IC1601 8-759-457-44 IC KA78R05TU
IC1602 8-759-544-09 IC KA278R05TU

140

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

A

IC1603 8-759-295-82 IC L78L08ACZ-AP
IC1604 8-759-544-13 IC KA78R09TU
IC1605 8-759-544-11 IC KA78R33TU

< COIL >

L1126 1-416-966-11 CHOKE, COIL 30uH
L1127 1-414-158-11 INDUCTOR 2.2UH
L1128 1-535-143-61 LEAD, JUMPER (5.0MM)
L1151 1-416-966-11 CHOKE, COIL 30uH
L1152 1-414-158-11 INDUCTOR 2.2UH

L1153 1-535-143-61 LEAD, JUMPER (5.0MM)
L1300 1-414-183-41 INDUCTOR 10UH
L1326 1-414-183-41 INDUCTOR 10UH
L1350 1-414-183-41 INDUCTOR 10UH

< TRANSISTOR >

Q1100 8-729-216-22 TRANSISTOR 2SA1162-G
Q1201 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1202 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1203 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1204 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1226 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1227 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1229 8-729-027-38 TRANSISTOR DTA144EKA-T146
Q1300 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q1326 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1327 8-729-216-22 TRANSISTOR 2SA1162-G
Q1328 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1329 8-729-216-22 TRANSISTOR 2SA1162-G
Q1350 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1351 8-729-216-22 TRANSISTOR 2SA1162-G

Q1400 8-729-046-47 TRANSISTOR KSC2500-BTA
Q1601 8-729-620-06 TRANSISTOR 2SC3052-EF
Q1626 8-729-620-06 TRANSISTOR 2SC3052-EF

< RESISTOR >

R1001 1-216-295-91 SHORT 0
R1002 1-216-295-91 SHORT 0
R1003 1-216-295-91 SHORT 0
R1004 1-216-295-91 SHORT 0
R1005 1-216-295-91 SHORT 0

R1006 1-216-295-91 SHORT 0
R1100 1-216-025-91 RES,CHIP 100 5% 1/10W
R1101 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R1102 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R1126 1-216-631-11 METAL CHIP 150 0.50% 1/10W

R1127 1-216-075-00 RES,CHIP 12K 5% 1/10W
R1128 1-216-041-00 RES,CHIP 470 5% 1/10W
R1151 1-216-631-11 METAL CHIP 150 0.50% 1/10W
R1152 1-216-075-00 RES,CHIP 12K 5% 1/10W
R1153 1-216-041-00 RES,CHIP 470 5% 1/10W

R1176 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R1177 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R1178 1-216-357-00 METAL OXIDE 4.7 5% 1W F
R1179 1-216-357-00 METAL OXIDE 4.7 5% 1W F
R1180 1-216-081-00 RES,CHIP 22K 5% 1/10W

R1181 1-216-045-00 RES,CHIP 680 5% 1/10W
R1182 1-216-081-00 RES,CHIP 22K 5% 1/10W
R1183 1-216-045-00 RES,CHIP 680 5% 1/10W
R1184 1-216-089-91 RES,CHIP 47K 5% 1/10W
R1185 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1201 1-216-089-91 RES,CHIP 47K 5% 1/10W
R1202 1-216-083-00 RES,CHIP 27K 5% 1/10W
R1203 1-216-083-00 RES,CHIP 27K 5% 1/10W
R1204 1-216-071-00 RES,CHIP 8.2K 5% 1/10W
R1205 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1206 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1207 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R1208 1-216-089-91 RES,CHIP 47K 5% 1/10W
R1209 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R1210 1-216-089-91 METAL CHIP 47K 5% 1/10W
(KV-29FS60A/29FS60D/29FS60E/29FS60K/
29FS60R/32FS60A/32FS60D/32FS60E)
1-216-691-11 METAL CHIP 47K 0.50% 1/10W
(KV-29FS60B/29FS60U/32FS60B)

R1226 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1227 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1228 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1229 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1230 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R1232 1-216-295-91 SHORT 0
R1233 1-216-049-91 RES,CHIP 1K 5% 1/10W
R1300 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1301 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1326 1-216-025-91 RES,CHIP 100 5% 1/10W

R1327 1-216-025-91 RES,CHIP 100 5% 1/10W
R1328 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1329 1-216-025-91 RES,CHIP 100 5% 1/10W
R1330 1-216-041-00 RES,CHIP 470 5% 1/10W
R1331 1-216-041-00 RES,CHIP 470 5% 1/10W

R1332 1-216-041-00 RES,CHIP 470 5% 1/10W
R1333 1-216-075-00 RES,CHIP 12K 5% 1/10W
R1334 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R1335 1-216-025-91 RES,CHIP 100 5% 1/10W
R1336 1-216-041-00 RES,CHIP 470 5% 1/10W

R1337 1-216-041-00 RES,CHIP 470 5% 1/10W
R1338 1-216-001-00 RES,CHIP 10 5% 1/10W
R1339 1-216-041-00 RES,CHIP 470 5% 1/10W
R1340 1-216-043-91 RES,CHIP 560 5% 1/10W
R1342 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1350 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1351 1-216-025-91 RES,CHIP 100 5% 1/10W
R1352 1-216-025-91 RES,CHIP 100 5% 1/10W

141

The components identified by
shading and marked are critical
for safety
Replace only with the part number

A

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

M

specified.

R1353 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1354 1-216-025-91 RES,CHIP 100 5% 1/10W
R1355 1-216-041-00 RES,CHIP 470 5% 1/10W
R1356 1-216-041-00 RES,CHIP 470 5% 1/10W
R1357 1-216-041-00 RES,CHIP 470 5% 1/10W

R1400 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R1401 1-216-081-00 RES,CHIP 22K 5% 1/10W
R1402 1-216-097-91 RES,CHIP 100K 5% 1/10W
R1405 1-216-025-91 RES,CHIP 100 5% 1/10W
R1406 1-216-025-91 RES,CHIP 100 5% 1/10W

R1407 1-216-025-91 RES,CHIP 100 5% 1/10W
R1408 1-216-025-91 RES,CHIP 100 5% 1/10W
R1409 1-216-025-91 RES,CHIP 100 5% 1/10W
R1410 1-216-025-91 RES,CHIP 100 5% 1/10W
R1601 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R1602 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R1603 1-216-025-91 RES,CHIP 100 5% 1/10W
R1605 1-216-049-91 RES,CHIP 1K 5% 1/10W
R1609 1-216-089-91 RES,CHIP 47K 5% 1/10W
R1610 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1615 1-216-025-91 RES,CHIP 100 5% 1/10W
R1616 1-216-304-11 RES,CHIP 3.3 5% 1/10W
R1617 1-216-304-11 RES,CHIP 3.3 5% 1/10W
R1618 1-216-295-91 SHORT 0
R1621 1-216-027-00 RES,CHIP 120 5% 1/10W

C9105 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9110 1-165-321-11 CERAMIC CHIP 0.68MF 10% 16V
C9111 1-164-157-11 CERAMIC CHIP 0.068MF 10% 25V
C9112 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9113 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9114 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9115 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9117 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9118 1-104-664-11 ELECT 47MF 20% 25V
C9119 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C9121 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9122 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9123 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9124 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9125 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9126 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C9127 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C9128 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C9129 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C9130 1-163-105-00 CERAMIC CHIP 33PF 5% 50V

C9131 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C9132 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9400 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9500 1-104-664-11 ELECT 47MF 20% 25V
C9502 1-104-664-11 ELECT 47MF 20% 25V

R1622 1-216-029-00 RES,CHIP 150 5% 1/10W
R1623 1-216-033-00 RES,CHIP 220 5% 1/10W
R1625 1-216-295-91 SHORT 0

< TUNER >

TU1326 1-693-338-21 TUNER/VIF (AEP)
(KV-29FS60A/29FS60D/29FS60E/29FS60K/
29FS60R/32FS60A/32FS60D/32FS60E)
1-693-340-21 TUNER/VIF (FR) (KV-29FS60B/32FS60B)
1-693-339-21 TUNER/VIF (UK) (KV-29FS60U)

TU1350 1-693-338-21 TUNER/VIF (AEP)
(KV-29FS60A/29FS60D/29FS60E/29FS60K/
29FS60R/32FS60A/32FS60D/32FS60E)
1-693-340-21 TUNER/VIF (FR) (KV-29FS60B/32FS60B)
1-693-339-21 TUNER/VIF (UK) (KV-29FS60U)

**********************************************************************

*A-1634-049-A M BOARD, COMPLETE (KV-29FS60)
*****************
*A-1634-048-A M BOARD, COMPLETE (KV-32FS60)
*****************

< CAPACITOR >

C9100 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9101 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9104 1-104-664-11 ELECT 47MF 20% 25V

C9503 1-126-964-11 ELECT 10MF 20% 50V
C9504 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9505 1-104-665-11 ELECT 100MF 20% 25V
C9506 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9507 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9508 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9509 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9510 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9511 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9512 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9513 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C9514 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C9515 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C9516 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C9517 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C9518 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C9519 1-126-964-11 ELECT 10MF 20% 50V
C9520 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

CN9101 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< DIODE >

D9100 8-719-988-62 DIODE 1SS355
D9101 8-719-988-62 DIODE 1SS355
D9102 8-719-988-62 DIODE 1SS355

142

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

M

D9103 8-719-988-62 DIODE 1SS355
D9104 8-719-056-83 DIODE UDZ-TE-17-6.8B
D9105 8-719-914-43 DIODE DAN202K
D9107 8-719-025-31 DIODE 02CZ5.6-TE85L
D9108 8-719-914-44 DIODE DAP202K

D9109 8-719-105-91 DIODE RD5.6M-B2
D9110 8-719-914-43 DIODE DAN202K
D9111 8-719-105-91 DIODE RD5.6M-B2

< FILTER >

FL9101 1-236-071-11 ENCAPSULATED COMPONENT
FL9500 1-236-071-11 ENCAPSULATED COMPONENT
FL9501 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC9100 8-759-988-13 IC LM393PS
IC9104 8-759-259-18 IC MB3793-42PNF
IC9105 8-759-544-30 IC SAB-C161R1-LM
IC9107 8-759-395-27 IC TC55257DFTL-70V
IC9108 8-759-531-64 IC M24C32-BN6

IC9109 8-759-544-32 IC M27C800-100K1
IC9110 8-759-559-96 IC HEF4094BT
IC9400 8-759-481-78 IC M29F040-120N1
IC9500 8-759-034-47 IC MC74F00M-T2
IC9501 8-759-483-52 IC HYB514400BJ-60

R9102 1-216-033-00 RES,CHIP 220 5% 1/10W
R9103 1-216-025-91 RES,CHIP 100 5% 1/10W
R9104 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9105 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9107 1-216-025-91 RES,CHIP 100 5% 1/10W

R9108 1-216-025-91 RES,CHIP 100 5% 1/10W
R9109 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9110 1-216-081-00 RES,CHIP 22K 5% 1/10W
R9111 1-216-025-91 RES,CHIP 100 5% 1/10W
R9112 1-216-025-91 RES,CHIP 100 5% 1/10W

R9113 1-216-033-00 RES,CHIP 220 5% 1/10W
R9114 1-216-083-00 RES,CHIP 27K 5% 1/10W
R9115 1-216-081-00 RES,CHIP 22K 5% 1/10W
R9116 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9117 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9119 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9120 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9121 1-216-017-91 RES,CHIP 47 5% 1/10W
R9122 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9123 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9127 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9138 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9140 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R9141 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9142 1-216-041-00 RES,CHIP 470 5% 1/10W

IC9502 8-759-438-62 IC SDA5275

< COIL >

L9400 1-412-029-11 INDUCTOR CHIP 10UH
L9401 1-412-029-11 INDUCTOR CHIP 10UH

< TRANSISTOR >

Q9100 8-729-620-06 TRANSISTOR 2SC3052-EF
Q9101 8-729-620-06 TRANSISTOR 2SC3052-EF
Q9102 8-729-216-22 TRANSISTOR 2SA1162-G
Q9103 8-729-620-06 TRANSISTOR 2SC3052-EF
Q9105 8-729-620-06 TRANSISTOR 2SC3052-EF

Q9106 8-729-027-46 TRANSISTOR DTC114YKA-T146
Q9107 8-729-027-46 TRANSISTOR DTC114YKA-T146
Q9108 8-729-027-46 TRANSISTOR DTC114YKA-T146
Q9109 8-729-027-46 TRANSISTOR DTC114YKA-T146
Q9110 8-729-620-06 TRANSISTOR 2SC3052-EF

Q9500 8-729-216-22 TRANSISTOR 2SA1162-G
Q9501 8-729-216-22 TRANSISTOR 2SA1162-G
Q9502 8-729-216-22 TRANSISTOR 2SA1162-G
Q9503 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q9504 1-801-806-11 TRANSISTOR DTC144EKA-T146

< RESISTOR >

R9100 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9101 1-216-033-00 RES,CHIP 220 5% 1/10W

R9143 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9144 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R9145 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9146 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9147 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9148 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9149 1-216-025-91 RES,CHIP 100 5% 1/10W
R9150 1-216-025-91 RES,CHIP 100 5% 1/10W
R9151 1-216-025-91 RES,CHIP 100 5% 1/10W
R9153 1-216-025-91 RES,CHIP 100 5% 1/10W

R9159 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9161 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9162 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9164 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9166 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9168 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9169 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9172 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R9173 1-216-295-91 SHORT 0
R9174 1-216-025-91 RES,CHIP 100 5% 1/10W

R9175 1-216-025-91 RES,CHIP 100 5% 1/10W
R9176 1-216-025-91 RES,CHIP 100 5% 1/10W
R9177 1-216-025-91 RES,CHIP 100 5% 1/10W
R9178 1-216-025-91 RES,CHIP 100 5% 1/10W
R9184 1-216-025-91 RES,CHIP 100 5% 1/10W

R9185 1-216-025-91 RES,CHIP 100 5% 1/10W

143

The components identified by
shading and marked are critical
for safety
Replace only with the part number

M C

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R9186 1-216-025-91 RES,CHIP 100 5% 1/10W
R9187 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R9188 1-216-025-91 RES,CHIP 100 5% 1/10W
R9189 1-216-025-91 RES,CHIP 100 5% 1/10W
R9190 1-216-025-91 RES,CHIP 100 5% 1/10W

R9191 1-216-025-91 RES,CHIP 100 5% 1/10W
R9192 1-216-025-91 RES,CHIP 100 5% 1/10W
R9193 1-216-097-91 RES,CHIP 100K 5% 1/10W
R9194 1-216-097-91 RES,CHIP 100K 5% 1/10W
R9195 1-216-097-91 RES,CHIP 100K 5% 1/10W

R9196 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9197 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9500 1-216-295-91 SHORT 0
R9501 1-216-295-91 SHORT 0
R9502 1-216-295-91 SHORT 0

R9504 1-216-041-00 RES,CHIP 470 5% 1/10W
R9505 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R9506 1-216-073-00 RES,CHIP 10K 5% 1/10W
R9507 1-216-097-91 RES,CHIP 100K 5% 1/10W
R9508 1-216-017-91 RES,CHIP 47 5% 1/10W

R9509 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9510 1-216-017-91 RES,CHIP 47 5% 1/10W
R9511 1-216-049-91 RES,CHIP 1K 5% 1/10W
R9512 1-216-017-91 RES,CHIP 47 5% 1/10W
R9513 1-216-017-91 RES,CHIP 47 5% 1/10W

R9514 1-216-017-91 RES,CHIP 47 5% 1/10W
R9515 1-216-295-91 SHORT 0
R9516 1-216-295-91 SHORT 0
R9517 1-216-295-91 SHORT 0
R9518 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9519 1-216-039-00 RES,CHIP 390 5% 1/10W
R9520 1-216-039-00 RES,CHIP 390 5% 1/10W
R9521 1-216-039-00 RES,CHIP 390 5% 1/10W
R9522 1-216-295-91 SHORT 0
R9523 1-216-295-91 SHORT 0

R9524 1-216-295-91 SHORT 0
R9525 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R9526 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R9527 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R9528 1-216-025-91 RES,CHIP 100 5% 1/10W

*A-1638-123-A C BOARD, COMPLETE (KV-29FS60)
*****************
*A-1638-122-A C BOARD, COMPLETE (KV-32FS60)
*****************

1-671-108-11 PWB, C IC
4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C5301 1-102-129-00 CERAMIC 0.01MF 10% 50V
C5302 1-128-528-11 ELECT 470MF 20% 16V
C5304 1-107-666-11 ELECT 1MF 20% 350V
C5305 1-136-207-11 FILM 0.047MF 10% 400V
C5306 1-102-157-00 CERAMIC 560PF 10% 500V

C5325 1-102-959-00 CERAMIC 22PF 5% 50V
C5326 1-102-157-00 CERAMIC 560PF 10% 500V
C5327 1-102-129-00 CERAMIC 0.01MF 10% 50V
C5328 1-128-528-11 ELECT 470MF 20% 16V
C5329 1-107-666-11 ELECT 1MF 20% 350V

C5330 1-136-207-11 FILM 0.047MF 10% 400V
C5350 1-107-907-11 ELECT 22MF 20% 50V
C5352 1-102-157-00 CERAMIC 560PF 10% 500V
C5353 1-102-129-00 CERAMIC 0.01MF 10% 50V
C5354 1-128-528-11 ELECT 470MF 20% 16V

C5355 1-107-666-11 ELECT 1MF 20% 350V
C5356 1-136-207-11 FILM 0.047MF 10% 400V
C5375 1-107-902-11 ELECT 1MF 20% 50V
C5377 1-162-115-00 CERAMIC 330PF 10% 2KV
C5378 1-162-116-00 CERAMIC 680PF 10% 2KV

C5379 1-162-116-00 CERAMIC 680PF 10% 2KV
C5380 1-107-652-11 ELECT 10MF 20% 250V
C5381 1-162-116-00 CERAMIC 680PF 10% 2KV
C5382 1-162-114-00 CERAMIC 0.0047MF 2KV

< CONNECTOR >

CN5400 1-564-511-11 PLUG, CONNECTOR 8P
CN5511 1-695-915-11 TAB (CONTACT)
CN5522 1-695-915-11 TAB (CONTACT)
CN5600 1-508-766-00 PIN, CONNECTOR (5MM PITCH) 4P

< DIODE >

R9529 1-216-025-91 RES,CHIP 100 5% 1/10W
R9530 1-216-025-91 RES,CHIP 100 5% 1/10W
R9531 1-216-295-91 SHORT 0

< CRYSTAL >

X9101 1-781-107-21 RESONATOR
X9500 1-760-551-21 VIBRATOR, CERAMIC

D5300 8-719-911-19 DIODE 1SS119-25
D5302 8-719-901-83 DIODE 1SS83
D5325 8-719-911-19 DIODE 1SS119-25
D5326 8-719-923-60 DIODE MTZJ-T-77-9.1A
D5327 8-719-901-83 DIODE 1SS83

D5350 8-719-911-19 DIODE 1SS119-25
D5351 8-719-991-33 DIODE 1SS133T-77
D5353 8-719-901-83 DIODE 1SS83
D5375 8-719-991-33 DIODE 1SS133T-77
D5376 8-719-991-33 DIODE 1SS133T-77

D5377 8-719-908-03 DIODE GP08D

144

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C

E

D5378 8-719-921-88 DIODE MTZJ-13B
D5379 8-719-982-96 DIODE MTZJ-T-77-2.2A
D5380 8-719-982-96 DIODE MTZJ-T-77-2.2A
D5381 8-719-031-34 DIODE RGP02-20EG23

< IC >

IC5300 8-759-360-83 IC TDA6111Q/N4
IC5325 8-759-360-83 IC TDA6111Q/N4
IC5350 8-759-360-83 IC TDA6111Q/N4

< SOCKET >

J5375 £ 1-540-071-22 SOCKET, CRT

< COIL >

L5300 1-408-599-31 INDUCTOR 4.7UH
L5325 1-408-599-31 INDUCTOR 4.7UH
L5350 1-408-599-31 INDUCTOR 4.7UH
L5375 1-410-671-31 INDUCTOR 47UH
L5376 1-412-525-31 INDUCTOR 10UH

L5377 1-414-183-41 INDUCTOR 10UH

< TRANSISTOR >

Q5300 8-729-255-12 TRANSISTOR 2SC2551-O
Q5325 8-729-255-12 TRANSISTOR 2SC2551-O
Q5350 8-729-029-56 TRANSISTOR DTA144ESA
Q5351 8-729-255-12 TRANSISTOR 2SC2551-O
Q5375 8-729-119-78 TRANSISTOR 2SC2785-HFE

R5354 1-249-418-11 CARBON 1.2K 5% 1/4W
R5355 1-249-408-11 CARBON 180 5% 1/4W
R5356 1-249-417-11 CARBON 1K 5% 1/4W
R5357 1-202-565-00 SOLID 470 20% 1/2W
R5358 1-215-926-00 METAL OXIDE 33K 5% 3W F

R5359 1-247-863-91 CARBON 22K 5% 1/4W
R5360 1-249-424-11 CARBON 3.9K 5% 1/4W
R5361 1-249-425-11 CARBON 4.7K 5% 1/4W
R5375 1-249-435-11 CARBON 33K 5% 1/4W
R5376 1-249-429-11 CARBON 10K 5% 1/4W

R5377 1-249-430-11 CARBON 12K 5% 1/4W
R5378 1-249-429-11 CARBON 10K 5% 1/4W
R5379 1-249-438-11 CARBON 56K 5% 1/4W
R5380 1-247-863-91 CARBON 22K 5% 1/4W
R5381 1-249-420-11 CARBON 1.8K 5% 1/4W

R5382 1-202-549-00 SOLID 100 20% 1/2W
R5383 1-216-392-11 METAL OXIDE 6.8 5% 3W F
R5384 1-216-392-11 METAL OXIDE 6.8 5% 3W F
R5385 1-202-549-00 SOLID 100 20% 1/2W
R5386 1-202-884-11 SOLID 820K 20% 1/2W

R5387 1-202-884-11 SOLID 820K 20% 1/2W
R5388 1-215-911-11 METAL OXIDE 100 5% 3W F
R5389 1-249-417-11 CARBON 1K 5% 1/4W F

< VARIABLE RESISTOR >

RV5375 1-241-656-21 RES, ADJ, METAL FILM 110M
RV5376 1-230-641-11 RES, ADJ, METAL GLAZE 2.2M

Q5376 8-729-026-41 TRANSISTOR 2SA933AS-QRT

< RESISTOR >

R5300 1-249-417-11 CARBON 1K 5% 1/4W
R5301 1-249-415-11 CARBON 680 5% 1/4W
R5302 1-249-408-11 CARBON 180 5% 1/4W
R5303 1-249-417-11 CARBON 1K 5% 1/4W
R5304 1-202-565-00 SOLID 470 20% 1/2W

R5305 1-215-926-00 METAL OXIDE 33K 5% 3W F
R5306 1-249-424-11 CARBON 3.9K 5% 1/4W
R5307 1-247-863-91 CARBON 22K 5% 1/4W
R5325 1-249-417-11 CARBON 1K 5% 1/4W
R5326 1-249-415-11 CARBON 680 5% 1/4W

R5327 1-249-408-11 CARBON 180 5% 1/4W
R5328 1-249-417-11 CARBON 1K 5% 1/4W
R5329 1-202-565-00 SOLID 470 20% 1/2W
R5330 1-215-926-00 METAL OXIDE 33K 5% 3W F
R5331 1-249-424-11 CARBON 3.9K 5% 1/4W

R5332 1-247-863-91 CARBON 22K 5% 1/4W
R5350 1-249-417-11 CARBON 1K 5% 1/4W
R5351 1-249-415-11 CARBON 680 5% 1/4W
R5352 1-249-416-11 CARBON 820 5% 1/4W
R5353 1-249-421-11 CARBON 2.2K 5% 1/4W

**********************************************************************

*A-1640-319-A E BOARD, COMPLETE (KV-29FS60)
*****************
*A-1640-324-A E BOARD, COMPLETE (KV-32FS60)
*****************

< CAPACITOR >

C4316 1-104-664-11 ELECT 47MF 20% 25V
C4317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4318 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4319 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4320 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4321 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4322 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4325 1-163-093-00 CERAMIC CHIP 10PF 5% 50V
C4329 1-126-963-11 ELECT 4.7MF 20% 50V

C4330 1-136-165-00 FILM 0.1MF 5% 50V
C4331 1-126-959-11 ELECT 0.47MF 20% 50V
C4332 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4333 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4334 1-126-967-11 ELECT 47MF 20% 50V

C4336 1-126-967-11 ELECT 47MF 20% 50V

145

The components identified by
shading and marked are critical
for safety

E

E

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

Replace only with the part number
specified.

C4338 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4340 1-126-967-11 ELECT 47MF 20% 50V
C4342 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C4343 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4344 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C4345 1-126-967-11 ELECT 47MF 20% 50V
C4346 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4347 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4348 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4349 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4351 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C4352 1-126-967-11 ELECT 47MF 20% 50V
C4353 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C4354 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C4355 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4356 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4357 1-164-004-11 CERAMIC CHIP 0.1MF 10% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
C4358 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4359 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C4360 1-126-963-11 ELECT 4.7MF 20% 50V
C4362 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4363 1-126-967-11 ELECT 47MF 20% 50V
C4364 1-126-967-11 ELECT 47MF 20% 50V

C4366 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C4367 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C4369 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4370 1-126-967-11 ELECT 47MF 20% 50V
C4371 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C4377 1-126-960-11 ELECT 1MF 20% 50V
C4379 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C4380 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
C4381 1-163-249-11 CERAMIC CHIP 82PF 5% 50V
C4518 1-162-638-11 CERAMIC CHIP 1MF 16V

< CONNECTOR >

CN4101 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P
CN4500 1-564-511-11 PLUG, CONNECTOR 8P
CN4502* 1-568-878-51 PIN, CONNECTOR 3P

< DIODE >

D4304 8-719-923-60 DIODE MTZJ-T-77-9.1A
D4305 8-719-923-60 DIODE MTZJ-T-77-9.1A
D4311 8-719-914-43 DIODE DAN202K
D4312 8-719-914-43 DIODE DAN202K

D4313 8-719-401-63 DIODE MA3062M-TX

< FERRITE BEAD >

FB4387 1-216-295-91 SHORT 0
FB4388 1-216-295-91 SHORT 0
FB4389 1-216-295-91 SHORT 0

< IC >

IC4301 8-752-086-23 IC CXA2100Q-TL

< COIL >

L4301 1-414-183-41 INDUCTOR 10UH
L4302 1-414-183-41 INDUCTOR 10UH
L4303 1-414-183-41 INDUCTOR 10UH
L4304 1-414-183-41 INDUCTOR 10UH
L4305 1-414-183-41 INDUCTOR 10UH

L4306 1-414-183-41 INDUCTOR 10UH
L4308 1-408-609-41 INDUCTOR 33UH
L4309 1-408-609-41 INDUCTOR 33UH

< TRANSISTOR >

Q4304 8-729-216-22 TRANSISTOR 2SA1162-G
Q4307 8-729-216-22 TRANSISTOR 2SA1162-G
Q4308 8-729-216-22 TRANSISTOR 2SA1162-G
Q4309 8-729-216-22 TRANSISTOR 2SA1162-G
Q4310 8-729-216-22 TRANSISTOR 2SA1162-G

Q4315 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q4316 8-729-620-06 TRANSISTOR 2SC3052-EF
Q4317 8-729-900-53 TRANSISTOR DTC114EK
Q4318 8-729-902-21 TRANSISTOR 2SA1037K-T-146-R
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

< RESISTOR >

R4301 1-216-025-91 RES,CHIP 100 5% 1/10W
R4302 1-216-025-91 RES,CHIP 100 5% 1/10W
R4303 1-216-025-91 RES,CHIP 100 5% 1/10W
R4304 1-216-025-91 RES,CHIP 100 5% 1/10W
R4305 1-216-025-91 RES,CHIP 100 5% 1/10W

R4306 1-216-025-91 RES,CHIP 100 5% 1/10W
R4313 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R4314 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R4331 1-216-073-00 RES,CHIP 10K 5% 1/10W
R4332 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4333 1-216-073-00 RES,CHIP 10K 5% 1/10W
R4334 1-216-025-91 RES,CHIP 100 5% 1/10W
R4335 1-216-025-91 RES,CHIP 100 5% 1/10W
R4336 1-216-025-91 RES,CHIP 100 5% 1/10W
R4337 1-216-025-91 RES,CHIP 100 5% 1/10W

R4339 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4340 1-216-111-00 RES,CHIP 390K 5% 1/10W
R4341 1-216-295-91 SHORT 0

146

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

E

D1

R4343 1-216-025-91 RES,CHIP 100 5% 1/10W
R4344 1-216-025-91 RES,CHIP 100 5% 1/10W
R4345 1-216-677-11 METAL CHIP 12K 0.50% 1/10W
R4346 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R4347 1-216-025-91 RES,CHIP 100 5% 1/10W

R4348 1-216-025-91 RES,CHIP 100 5% 1/10W
R4350 1-216-025-91 RES,CHIP 100 5% 1/10W
R4354 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R4358 1-216-071-00 RES,CHIP 8.2K 5% 1/10W
R4359 1-216-041-00 RES,CHIP 470 5% 1/10W

R4360 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R4361 1-216-133-00 RES,CHIP 3.3M 5% 1/10W
R4363 1-216-025-91 RES,CHIP 100 5% 1/10W
R4365 1-216-025-91 RES,CHIP 100 5% 1/10W
R4366 1-216-025-91 RES,CHIP 100 5% 1/10W

R4367 1-216-025-91 RES,CHIP 100 5% 1/10W
R4370 1-216-077-00 RES,CHIP 15K 5% 1/10W
R4371 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R4372 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4373 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4374 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4375 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4376 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4377 1-216-049-91 RES,CHIP 1K 5% 1/10W
R4378 1-216-101-00 RES,CHIP 150K 5% 1/10W

R4403 1-216-073-91 RES,CHIP 10K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R4404 1-216-073-91 RES,CHIP 10K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R4405 1-216-087-91 RES,CHIP 39K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4406 1-216-105-91 RES,CHIP 220K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R4407 1-216-091-91 RES,CHIP 56K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R4504 1-216-295-91 SHORT 0

R4505 1-216-295-91 SHORT 0
R4506 1-216-295-91 SHORT 0
R4507 1-216-129-00 RES,CHIP 2.2M 5% 1/10W
R4518 1-216-025-91 RES,CHIP 100 5% 1/10W
R4519 1-216-025-91 RES,CHIP 100 5% 1/10W

R4520 1-216-295-91 SHORT 0
R4521 1-216-295-91 SHORT 0
R4522 1-216-295-91 SHORT 0
R4523 1-216-295-91 SHORT 0

< CRYSTAL >

X4300 1-767-127-11 VIBRATOR, CERAMIC

**********************************************************************

R4380 1-216-073-00 RES,CHIP 10K 5% 1/10W
R4381 1-216-125-00 RES,CHIP 1.5M 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-127-11 RES,CHIP 1.8M 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4382 1-216-073-00 RES,CHIP 10K 5% 1/10W
R4383 1-216-089-91 RES,CHIP 47K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-079-00 RES,CHIP 18K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4384 1-216-025-91 RES,CHIP 100 5% 1/10W
R4387 1-216-025-91 RES,CHIP 100 5% 1/10W
R4388 1-216-025-91 RES,CHIP 100 5% 1/10W
R4389 1-216-025-91 RES,CHIP 100 5% 1/10W
R4395 1-216-295-91 SHORT 0

R4396 1-216-295-91 SHORT 0
R4398 1-216-025-91 RES,CHIP 100 5% 1/10W
R4401 1-216-107-00 RES,CHIP 270K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-099-00 RES,CHIP 120K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4402 1-216-133-91 RES,CHIP 56K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

*A-1640-320-A D1 BOARD, COMPLETE (KV-29FS60)
******************
*A-1640-325-A D1 BOARD, COMPLETE (KV-32FS60)
******************

4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C6100 1-136-165-00 FILM 0.1MF 5% 50V
C6101 1-136-165-00 FILM 0.1MF 5% 50V
C6102 1-136-165-00 FILM 0.1MF 5% 50V
C6103 1-163-205-00 CERAMIC CHIP 0.001MF 5% 50V
C6104 1-163-205-00 CERAMIC CHIP 0.001MF 5% 50V

C6105 1-126-967-11 ELECT 47MF 20% 50V
C6106 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C6108 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C6109 1-126-967-11 ELECT 47MF 20% 50V
C6110 1-126-967-11 ELECT 47MF 20% 50V

C6111 1-126-967-11 ELECT 47MF 20% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
C6112 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C6113 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C6114 1-126-964-11 ELECT 10MF 20% 50V

C6115 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C6116 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V
C6117 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V
C6119 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

147

The components identified by
shading and marked are critical
for safety
Replace only with the part number

D1

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C6121 1-126-964-11 ELECT 10MF 20% 50V
C6122 1-126-967-11 ELECT 47MF 20% 50V
C6125 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C6126 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V
C6127 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6128 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C6129 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-164-336-11 CERAMIC CHIP 0.33MF 10% 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6130 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
C6131 1-126-964-11 ELECT 10MF 20% 50V
C6132 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C6199 1-163-229-11 CERAMIC CHIP 12PF 5% 50V
C6207 1-126-967-11 ELECT 47MF 20% 50V
C6208 1-126-967-11 ELECT 47MF 20% 50V
C6209 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C6210 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C6250 1-104-664-11 ELECT 47MF 20% 16V
C6253 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V
C6254 1-136-177-00 FILM 1MF 5% 50V
C6255 1-136-177-00 FILM 1MF 5% 50V
C6256 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C6257 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V
C6258 1-163-127-00 CERAMIC CHIP 270PF 5% 50V
C6259 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V
C6260 1-104-664-11 ELECT 47MF 20% 16V
C6261 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C6367 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V
C6368 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C6370 1-137-493-11 FILM 0.0047MF 5% 630V
C6371 1-137-493-11 FILM 0.0047MF 5% 630V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6373 1-136-153-00 FILM 0.01MF 5% 50V
C6374 1-137-499-11 FILM 0.015MF 5% 630V
C6375 1-102-110-00 CERAMIC 220PF 10% 50V
C6376 1-104-664-11 ELECT 47MF 20% 16V
C6377 1-128-551-11 ELECT 22MF 20% 25V

C6378 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V
C6380 1-136-165-00 FILM 0.1MF 5% 50V
C6381 1-126-960-11 ELECT 1MF 20% 50V
C6385 1-104-664-11 ELECT 47MF 20% 25V
C6386 1-104-664-11 ELECT 47MF 20% 25V

C6388 1-126-964-11 ELECT 10MF 20% 50V
C6389 1-126-964-11 ELECT 10MF 20% 50V
C6392 1-104-664-11 ELECT 47MF 20% 25V
C6401 1-126-964-11 ELECT 10MF 20% 50V
C6402 1-107-714-11 ELECT 10MF 20% 50V

C6407 1-136-161-00 FILM 0.047MF 5% 50V
C6408 1-136-161-00 FILM 0.047MF 5% 50V
C6409 1-126-964-11 ELECT 10MF 20% 50V

< CONNECTOR >

CN6502* 1-568-881-51 PIN, CONNECTOR 6P
CN6601 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
CN6622* 1-568-878-51 PIN, CONNECTOR 3P
CN6633* 1-568-878-51 PIN, CONNECTOR 3P

< DIODE >

C6262 1-136-165-00 FILM 0.1MF 5% 50V
C6263 1-163-109-00 CERAMIC CHIP 47PF 5% 50V
C6264 1-126-964-11 ELECT 10MF 20% 50V
C6306 1-126-964-11 ELECT 10MF 20% 50V
C6307 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C6351 1-126-967-11 ELECT 47MF 20% 50V
C6353 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V
C6354 1-136-159-00 FILM 0.033MF 5% 50V
C6355 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C6356 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V
C6357 1-136-165-00 FILM 0.1MF 5% 50V
C6358 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V
C6359 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V
C6360 1-107-714-11 ELECT 10MF 20% 50V

C6361 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C6362 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C6363 1-104-665-11 ELECT 100MF 20% 25V
C6364 1-137-493-11 FILM 0.0047MF 5% 630V
C6365 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

D6100 8-719-914-43 DIODE DAN202K-T-146
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
D6101 8-719-921-40 DIODE MTZJ-T-77-4-7B
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
D6102 8-719-914-43 DIODE DAN202K

D6104 8-719-914-43 DIODE DAN202K
D6105 8-719-914-43 DIODE DAN202K
D6106 8-719-914-43 DIODE DAN202K
D6108 8-719-921-40 DIODE MTZJ-4.7C
D6127 8-719-914-43 DIODE DAN202K

D6128 8-719-914-43 DIODE DAN202K
D6129 8-719-914-43 DIODE DAN202K
D6198 1-535-303-00 LEAD, JUMPER (5.0MM)
D6253 8-719-911-19 DIODE 1SS119-25
D6254 1-535-303-00 LEAD, JUMPER (5.0MM)

D6350 8-719-914-43 DIODE DAN202K
D6351 8-719-914-43 DIODE DAN202K
D6352 8-719-914-43 DIODE DAN202K
D6353 8-719-987-87 DIODE ERA85-009
D6354 8-719-914-43 DIODE DAN202K

148

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D1

D6355 8-719-914-43 DIODE DAN202K
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W
D6358 8-719-914-43 DIODE DAN202K
D6359 8-719-302-43 DIODE EL1Z

D6401 8-719-914-43 DIODE DAN202K
D6402 8-719-982-03 DIODE MTZJ-3.6A
D6403 8-719-921-63 DIODE MTZJ-7.5B
D6404 8-719-914-43 DIODE DAN202K
D6405 8-719-921-63 DIODE MTZJ-7.5B

< IC >

IC6100 8-759-450-95 IC LM393N
IC6101 8-759-450-95 IC LM393N
IC6102 8-759-701-50 IC NJM3404AD
IC6103 8-759-450-95 IC LM393N
IC6250 8-759-478-66 IC CXA8070P

IC6251 8-759-903-16 IC LM318P
IC6302 8-752-072-94 IC CXA1875AM-T4
IC6350 8-759-008-70 IC LM358N
IC6351 8-759-450-95 IC LM393N
IC6352 8-759-450-95 IC LM393N

IC6353 8-759-231-53 IC TA7805S
IC6354 8-759-325-48 IC CA0005AD
IC6355 8-759-008-70 IC LM358N
IC6356 8-759-822-38 IC LA6510

< FILTER >

LF6350 1-406-989-21 INDUCTOR 0UH
LF6351 1-406-989-21 INDUCTOR 0UH

< IC LINK >

PS6376 £ 1-532-637-00 LINK, IC 1A (ICP-N25)

< TRANSISTOR >

Q6100 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6101 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6102 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6103 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6104 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6105 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6106 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6107 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6108 8-729-216-22 TRANSISTOR 2SA1162-G
Q6110 8-729-216-22 TRANSISTOR 2SA1162-G

Q6112 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6113 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6118 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6119 8-729-216-22 TRANSISTOR 2SA1162-G
Q6120 8-729-216-22 TRANSISTOR 2SA1162-G

Q6123 8-729-216-22 TRANSISTOR 2SA1162-G
Q6125 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6126 8-729-216-22 TRANSISTOR 2SA1162-G
Q6127 8-729-216-22 TRANSISTOR 2SA1162-G
Q6128 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6129 8-729-216-22 TRANSISTOR 2SA1162-G
Q6130 8-729-216-22 TRANSISTOR 2SA1162-G
Q6131 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6201 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6202 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6250 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6251 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6252 8-729-216-22 TRANSISTOR 2SA1162-G
Q6253 8-729-017-06 TRANSISTOR 2SC4793
Q6254 8-729-017-05 TRANSISTOR 2SA1837

Q6350 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6351 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6352 8-729-140-97 TRANSISTOR 2SB734-34
Q6353 8-729-140-97 TRANSISTOR 2SB734-34
Q6354 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6356 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6358 8-729-038-83 TRANSISTOR 2SK2251-01-F19
Q6401 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q6402 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q6403 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6404 8-729-216-22 TRANSISTOR 2SA1162-G
Q6405 8-729-216-22 TRANSISTOR 2SA1162-G
Q6455 8-729-620-06 TRANSISTOR 2SC3052-EF
Q6465 8-729-620-06 TRANSISTOR 2SC3052-EF

< RESISTOR >

R6100 1-216-033-00 RES,CHIP 220 5% 1/10W
R6101 1-216-033-00 RES,CHIP 220 5% 1/10W
R6102 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6103 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6104 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6105 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6106 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6107 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6108 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6109 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

Q6122 8-729-216-22 TRANSISTOR 2SA1162-G

149

The components identified by
shading and marked are critical
for safety
Replace only with the part number

D1

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R6110 1-216-679-11 METAL CHIP 15K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6111 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6112 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6113 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6114 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6115 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6116 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6117 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6118 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6119 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6120 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6121 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6122 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6123 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6124 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6125 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6126 1-216-037-00 RES,CHIP 330 5% 1/10W
R6127 1-216-663-11 RES,CHIP 3.3K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6128 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R6129 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R6130 1-218-768-11 METAL CHIP 470K 0.50% 1/10W
R6131 1-216-037-00 RES,CHIP 330 5% 1/10W

R6132 1-216-037-00 RES,CHIP 330 5% 1/10W
R6133 1-216-037-00 RES,CHIP 330 5% 1/10W
R6134 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R6135 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-057-00 RES,CHIP 2.2K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6142 1-216-672-11 METAL CHIP 7.5K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6143 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6145 1-216-045-00 RES,CHIP 680 5% 1/10W
R6146 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-065-91 RES,CHIP 4.7K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6147 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6148 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6149 1-216-025-91 RES,CHIP 100 5% 1/10W
R6154 1-216-651-11 METAL CHIP 1K 0.50% 1/10W
R6155 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R6158 1-216-663-11 METAL CHIP 6.8K 0.50% 1/10W
R6159 1-216-295-91 SHORT 0
R6160 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-655-11 METAL CHIP 1.5K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6161 1-216-673-11 METAL CHIP 8.2K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-669-11 METAL CHIP 5.6K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6162 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6165 1-216-699-11 METAL CHIP 100K 0.50% 1/10W
R6168 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R6169 1-216-699-11 METAL CHIP 100K 0.50% 1/10W
R6170 1-216-037-00 RES,CHIP 330 5% 1/10W

R6171 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6174 1-216-075-00 RES,CHIP 12K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-081-00 RES,CHIP 22K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6136 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R6137 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R6138 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R6139 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R6140 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6141 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-671-11 METAL CHIP 6.8K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6175 1-216-075-00 RES,CHIP 12K 5% 1/10W
R6176 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-295-91 SHORT 0
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6177 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R6178 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6179 1-216-655-11 METAL CHIP 1.5K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-061-00 METAL CHIP 3.3K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

150

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D1

R6180 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6182 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6183 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6186 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-049-91 METAL CHIP 1K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6187 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R6189 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-049-91 RES,CHIP 1K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6190 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6191 1-215-925-11 METAL OXIDE 22K 5% 3W F
R6192 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6194 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R6195 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-695-11 METAL CHIP 68K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6196 1-249-377-11 CARBON 0.47 5% 1/4W F
R6198 1-216-081-00 RES,CHIP 22K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-089-00 RES,CHIP 47K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6215 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-089-91 RES,CHIP 47K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6216 1-216-089-91 RES,CHIP 47K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-065-00 RES,CHIP 4.7K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6217 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6254 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6255 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R6256 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6257 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R6258 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6259 1-216-097-91 RES,CHIP 100K 5% 1/10W
R6260 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6261 1-216-097-91 RES,CHIP 100K 5% 1/10W
R6262 1-260-321-71 CARBON 270 5% 1/2W

R6263 1-216-025-91 RES,CHIP 100 5% 1/10W
R6264 1-216-025-91 RES,CHIP 100 5% 1/10W
R6265 1-216-097-91 RES,CHIP 100K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-103-00 RES,CHIP 180K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6267 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6268 1-216-085-00 RES,CHIP 33K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R6269 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W
R6270 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

R6199 1-216-081-00 RES,CHIP 22K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-089-00 RES,CHIP 47K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6200 1-218-762-11 METAL CHIP 270K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R6205 1-216-025-91 RES,CHIP 100 5% 1/10W
R6206 1-216-105-91 RES,CHIP 220K 5% 1/10W
R6207 1-216-101-00 RES,CHIP 150K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-109-00 RES,CHIP 330K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6208 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6210 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6211 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6212 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6271 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6272 1-216-081-00 RES,CHIP 22K 5% 1/10W
R6273 1-216-081-00 RES,CHIP 22K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

R6276 1-216-689-11 METAL CHIP 39K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-686-11 METAL CHIP 30K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6277 1-216-686-11 METAL CHIP 30K 0.50% 1/10W
R6278 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6279 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6280 1-249-377-11 CARBON 0.47 5% 1/4W F
R6281 1-249-377-11 CARBON 0.47 5% 1/4W F

R6282 1-215-886-11 METAL OXIDE 100 5% 2W F
R6283 1-216-393-00 METAL OXIDE 2.2 5% 3W F

151

The components identified by
shading and marked are critical
for safety
Replace only with the part number

D1

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R6284 1-216-113-00 RES,CHIP 470K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-109-00 RES,CHIP 330K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6285 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6286 1-216-073-00 RES,CHIP 10K 5% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-069-00 RES,CHIP 6.8K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6287 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6313 1-216-295-91 SHORT 0
R6322 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6323 1-216-049-91 RES,CHIP 1K 5% 1/10W
R6324 1-216-025-91 RES,CHIP 100 5% 1/10W

R6325 1-216-025-91 RES,CHIP 100 5% 1/10W
R6350 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6351 1-218-762-11 METAL CHIP 270K 0.50% 1/10W
R6353 1-216-668-11 METAL CHIP 5.1K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-671-11 METAL CHIP 6.8K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6355 1-218-774-11 METAL CHIP 820K 0.50% 1/10W
R6356 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R6357 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6358 1-216-047-91 RES,CHIP 820 5% 1/10W
R6359 1-216-097-91 RES,CHIP 100K 5% 1/10W

R6360 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6361 1-216-097-91 RES,CHIP 100K 5% 1/10W
R6362 1-216-687-11 METAL CHIP 33K 0.50% 1/10W
R6363 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R6364 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6365 1-216-033-00 RES,CHIP 220 5% 1/10W
R6366 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6367 1-216-679-11 METAL CHIP 15K 0.50% 1/10W
R6368 1-218-758-11 METAL CHIP 180K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-218-760-11 METAL CHIP 220K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6369 1-218-762-11 METAL CHIP 270K 0.50% 1/10W
R6370 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-677-11 METAL CHIP 12K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6371 1-216-473-11 METAL OXIDE 56 5% 3W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-474-11 METAL OXIDE 82 5% 3W F
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6372 1-216-033-00 RES,CHIP 220 5% 1/10W
R6373 1-216-681-11 METAL CHIP 18K 0.50% 1/10W
R6374 1-216-689-11 METAL CHIP 39K 0.50% 1/10W
R6375 1-216-041-00 RES,CHIP 470 5% 1/10W
R6377 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

R6378 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R6379 1-216-295-91 SHORT 0
R6380 1-218-754-11 METAL CHIP 120K 0.50% 1/10W
R6381 1-216-045-00 RES,CHIP 680 5% 1/10W
R6382 1-218-754-11 METAL CHIP 120K 0.50% 1/10W

R6383 1-216-687-11 METAL CHIP 33K 0.50% 1/10W
R6384 1-216-043-91 RES,CHIP 560 5% 1/10W
R6385 1-216-295-91 SHORT 0
R6386 1-216-699-11 METAL CHIP 100K 0.50% 1/10W
R6387 1-216-677-11 METAL CHIP 12K 0.50% 1/10W

R6391 1-249-417-11 CARBON 1K 5% 1/4W
R6394 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R6395 1-216-081-00 RES,CHIP 22K 5% 1/10W
R6397 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R6398 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6399 1-218-758-11 METAL CHIP 180K 0.50% 1/10W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-218-756-11 METAL CHIP 150K 0.50% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6400 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R6401 1-216-295-91 SHORT 0
R6402 1-216-295-91 SHORT 0
R6403 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W
R6404 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6405 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6409 1-216-025-91 RES,CHIP 100 5% 1/10W
R6410 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6411 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6412 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6413 1-216-679-11 METAL CHIP 15K 0.50% 1/10W
R6414 1-216-679-11 METAL CHIP 15K 0.50% 1/10W
R6415 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6416 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6418 1-216-093-00 RES,CHIP 33K 5% 1/10W

R6419 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6420 1-216-091-00 RES,CHIP 22K 5% 1/10W
R6421 1-216-637-11 METAL CHIP 270 0.50% 1/10W
R6422 1-216-639-11 METAL CHIP 330 0.50% 1/10W
R6423 1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W

R6426 1-216-081-00 RES,CHIP 22K 5% 1/10W
R6427 1-216-081-00 RES,CHIP 22K 5% 1/10W
R6428 1-216-107-00 RES,CHIP 150K 5% 1/10W
R6429 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R6430 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

152

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D1

D

R6431 1-216-113-00 RES,CHIP 470K 5% 1/10W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)
R6432 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R6433 1-216-073-00 RES,CHIP 10K 5% 1/10W
R6437 1-249-422-11 CARBON 2.7K 5% 1/4W

R6438 1-249-421-11 CARBON 2.2K 5% 1/4W
R6439 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6440 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R6441 1-216-673-11 METAL CHIP 8.2K 0.50% 1/10W
R6442 1-216-039-00 RES,CHIP 390 5% 1/10W

R6455 1-216-295-91 SHORT 0
R6456 1-216-097-91 RES,CHIP 100K 5% 1/10W
R6457 1-216-075-00 RES,CHIP 12K 5% 1/10W
R6458 1-216-089-91 RES,CHIP 47K 5% 1/10W
R6459 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6460 1-249-393-11 CARBON 10 5% 1/4W
R6461 1-249-411-11 CARBON 330 5% 1/4W
R6462 1-249-406-11 CARBON 120 5% 1/4W
R6463 1-216-095-00 RES,CHIP 82K 5% 1/10W
R6464 1-216-079-00 RES,CHIP 18K 5% 1/10W

**********************************************************************

*A-1640-342-A D BOARD, COMPLETE (KV-29FS60)
*****************
*A-1640-326-A D BOARD, COMPLETE (KV-32FS60)
*****************

4-201-023-01 SPACER, INSULATING
4-202-373-01 SPRING, IC
4-382-854-11 SCREW (M3X10), P, SW (+)
*4-931-401-01 HEAT SINK, V.OUT

C6626 1-164-625-11 CERAMIC 680PF 10% 500V
C6627 1-164-625-11 CERAMIC 680PF 10% 500V
C6628 1-126-936-11 ELECT 3300MF 20% 16V
C6629 1-128-548-11 ELECT 4700MF 20% 25V
C6630 1-110-626-11 ELECT 330MF 20% 160V

C6631 1-126-955-11 ELECT 4700MF 20% 35V
C6632 1-126-955-11 ELECT 4700MF 20% 35V
C6633 1-126-935-11 ELECT 470MF 20% 16V
C6634 1-136-165-00 FILM 0.1MF 5% 50V
C6635 1-104-664-11 ELECT 47MF 20% 25V

C6636 1-102-129-00 CERAMIC 0.01MF 10% 50V
C6637 1-102-129-00 CERAMIC 0.01MF 10% 50V
C6638 1-137-368-11 FILM 0.0047MF 5% 50V
C6639 1-102-228-00 CERAMIC 470PF 10% 500V
C6641 1-126-967-11 ELECT 47MF 20% 50V

C6642 1-126-964-11 ELECT 10MF 20% 50V
C6647 1-104-664-11 ELECT 47MF 20% 25V
C6649 1-126-965-11 ELECT 22MF 20% 50V
C6651 1-162-599-12 CERAMIC 0.0047MF 250V
C6652 1-107-679-91 ELECT 10MF 20% 450V

C6653 1-126-968-11 ELECT 100MF 20% 50V
C6654 1-162-117-00 CERAMIC 100PF 10% 500V
C6655 1-109-879-11 CERAMIC 22PF 5% 2KV
C6656 1-126-967-11 ELECT 47MF 20% 50V
C6657 1-126-941-11 ELECT 470MF 20% 25V

C6658 1-104-665-11 ELECT 100MF 20% 25V
C6659 1-104-665-11 ELECT 100MF 20% 25V
C6661 1-117-753-11 ELECT(BLOCK) 470MF 20% 450V
C6662 1-136-165-00 FILM 0.1MF 5% 50V
C6664 1-136-153-00 FILM 0.01MF 5% 50V

< CAPACITOR >

C6600 £ 1-161-744-00 CERAMIC 0.01MF 400V
C6603 1-126-933-11 ELECT 100MF 20% 16V
C6604 1-126-767-11 ELECT 1000MF 20% 16V
C6605 £ 1-119-888-51 CERAMIC 2200PF 20% 250V
C6606 £ 1-119-888-51 CERAMIC 2200PF 20% 250V

C6607 £ 1-107-565-11 FILM 0.33MF 20% 300V
C6608 £ 1-162-599-12 CERAMIC 0.0047MF 250V
C6609 £ 1-162-599-12 CERAMIC 0.0047MF 250V
C6610 1-162-599-12 CERAMIC 0.0047MF 250V
C6611 1-162-599-12 CERAMIC 0.0047MF 250V

C6612 1-161-744-00 CERAMIC 0.01MF 400V
C6616 1-164-625-11 CERAMIC 680PF 10% 500V
C6617 1-164-625-11 CERAMIC 680PF 10% 500V
C6618 1-136-175-00 FILM 0.68MF 5% 50V
C6619 1-137-194-91 FILM 0.47MF 5% 50V

C6620 1-136-618-11 FILM 0.047MF 5% 1.25KV
C6621 1-136-175-00 FILM 0.68MF 5% 50V
C6622 1-164-625-11 CERAMIC 680PF 10% 500V
C6623 1-137-194-91 FILM 0.47MF 5% 50V
C6624 1-126-968-11 ELECT 100MF 20% 50V

C6665 1-136-165-00 FILM 0.1MF 5% 50V
C6666 1-136-165-00 FILM 0.1MF 5% 50V
C6667 1-126-933-11 ELECT 100MF 20% 16V
C6668 1-126-933-11 ELECT 100MF 20% 16V
C6669 1-136-165-00 FILM 0.1MF 5% 50V

C6670 1-136-165-00 FILM 0.1MF 5% 50V
C6671 1-104-664-11 ELECT 47MF 20% 16V
C6672 1-104-664-11 ELECT 47MF 20% 16V
C6673 1-104-664-11 ELECT 47MF 20% 16V
C6677 1-136-165-00 FILM 0.1MF 5% 50V

C6679 1-130-495-00 FILM 0.1MF 5% 50V
C6680 1-137-370-11 FILM 0.01MF 5% 50V
C6681 1-126-964-11 ELECT 10MF 20% 50V
C6682 1-107-680-91 ELECT 22MF 20% 450V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)

C6700 1-102-129-00 CERAMIC 0.01MF 10% 50V
C6703 1-128-527-11 ELECT 330MF 20% 25V
C6704 1-126-968-11 ELECT 100MF 20% 50V
C6705 1-128-527-11 ELECT 330MF 20% 25V
C6706 1-106-228-00 MYLAR 0.22MF 10% 100V

153

The components identified by
shading and marked are critical
for safety
Replace only with the part number

D

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C6707 1-129-702-00 FILM 0.001MF 10% 400V
C6708 1-106-220-00 MYLAR 0.1MF 10% 100V
C6709 1-102-129-00 CERAMIC 0.01MF 10% 50V
C6710 1-130-785-11 MYLAR 0.47MF 10% 100V
C6727 1-102-228-00 CERAMIC 470PF 10% 500V

C6801 1-104-664-11 ELECT 47MF 20% 25V
C6802 1-126-960-11 ELECT 1MF 20% 50V
C6803 1-126-960-11 ELECT 1MF 20% 50V
C6804 1-102-114-00 CERAMIC 470PF 10% 50V
C6805 1-102-114-00 CERAMIC 470PF 10% 50V

C6808 1-102-030-00 CERAMIC 330PF 10% 500V
C6809 1-102-030-00 CERAMIC 330PF 10% 500V
C6810 1-107-368-11 FILM 0.047MF 10% 200V
C6811 1-107-368-11 FILM 0.047MF 10% 200V
C6812 1-162-131-11 CERAMIC 220PF 10% 2KV

C6813 1-162-558-11 CERAMIC 100PF 10% 2KV
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-162-134-11 CERAMIC 470PF 10% 2KV
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6814 1-117-640-11 FILM 6800PF 3% 1.2KV
C6815 1-117-835-11 FILM 6200PF 3% 2KV
C6816 1-137-364-11 FILM 0.001MF 5% 50V
C6817 1-125-893-11 FILM 680PF 3% 2KV
C6818 1-125-893-11 FILM 680PF 3% 2KV

C6843 1-136-177-00 FILM 1MF 5% 50V
C6851 1-162-131-11 CERAMIC 220PF 10% 2KV
C6852 1-162-129-00 CERAMIC 150PF 10% 2KV
C6853 1-137-536-11 FILM 0.0022MF 5% 630V
C6855 1-136-205-11 FILM 0.022MF 10% 400V

C6856 1-102-030-00 CERAMIC 330PF 10% 500V
C6857 1-130-785-11 FILM 0.47MF 10% 100V
C6861 1-137-364-11 FILM 0.001MF 5% 50V
C6862 1-137-364-11 FILM 0.001MF 5% 50V

< CONNECTOR >

CN6100 1-785-802-11 20PIN CONNECTOR
CN6101 1-785-802-11 20PIN CONNECTOR
CN6102 1-785-802-11 20PIN CONNECTOR
CN6500 1-508-766-00 PIN, CONNECTOR (5MM PITCH) 4P
CN6600 1-695-299-11 CONNECTOR, BOARD TO BOARD 50P

CN6611 *1-785-270-11 PIN, DY CONNECTOR (PC BOARD)
CN6620 £ 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P
CN6655 1-695-915-11 TAB (CONTACT)
CN6666 £ 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P
CN6677 1-695-915-11 TAB (CONTACT)

CN6688 1-695-915-11 TAB (CONTACT)
CN6700 £ *1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P

< DIODE >

C6819 1-125-893-11 FILM 680PF 3% 2KV
C6820 1-125-893-11 FILM 680PF 3% 2KV
C6824 1-107-846-11 FILM 0.1MF 5% 200V
C6825 1-107-846-11 FILM 0.1MF 5% 250V
C6826 1-115-518-11 FILM 0.47MF 5% 250V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-115-519-11 FILM 0.56MF 5% 250V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6827 1-115-511-11 FILM 0.12MF 5% 250V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-107-846-11 FILM 0.1MF 5% 250V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6828 1-127-681-11 CAPACITOR 10000PF 2% 100V
C6829 1-127-680-11 CAPACITOR 4700PF 2% 100V
C6830 1-107-655-11 ELECT 47MF 20% 250V
C6831 1-102-228-00 CERAMIC 470PF 10% 500V
C6832 1-126-941-11 ELECT 470MF 20% 25V

C6833 1-126-941-11 ELECT 470MF 20% 25V
C6834 1-102-228-00 CERAMIC 470PF 10% 500V
C6835 1-102-228-00 CERAMIC 470PF 10% 500V
C6836 1-123-024-21 ELECT 33MF 160V
C6837 1-106-375-12 MYLAR 0.022MF 10% 250V

C6840 1-137-370-11 FILM 0.01MF 5% 50V
C6841 1-104-664-11 ELECT 47MF 20% 16V
C6842 1-136-207-11 FILM 0.047MF 10% 400V

D6600 8-719-911-19 DIODE 1SS119-25
D6601 8-719-510-64 DIODE S2LA20F
D6602 8-719-109-89 DIODE RD5.6ESB2
D6603 8-719-911-19 DIODE 1SS119-25
D6604 8-719-510-53 DIODE D4SB60L

D6610 8-719-510-64 DIODE S2LA20F
D6613 8-719-911-19 DIODE 1SS119-25
D6615 8-719-911-19 DIODE 1SS119-25
D6616 8-719-510-12 DIODE D10SC4M
D6617 8-719-500-71 DIODED8LC40

D6618 8-719-047-31 DIODE RBA-402L
D6619 8-719-510-12 DIODE D10SC4M
D6620 8-719-510-09 DIODE D10SC6M
D6621 8-719-991-33 DIODE 1SS133T-77
D6622 8-719-991-33 DIODE 1SS133T-77

D6623 8-719-911-19 DIODE 1SS119-25
D6624 8-719-991-33 DIODE 1SS133T-77
D6625 8-719-991-33 DIODE 1SS133T-77
D6627 8-719-982-27 DIODE MTZJ-33C
D6628 8-719-109-97 DIODE RD6.8ESB2

D6629 8-719-991-33 DIODE 1SS133T-77
D6630 8-719-991-33 DIODE 1SS133T-77
D6651 8-719-068-00 DIODE ERC04-06SE
D6652 8-719-923-78 DIODE MTZJ-T-77-12
D6653 8-719-510-64 DIODE S2LA20F

D6654 8-719-059-23 DIODE P6KE200AG23

154

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D

D6655 8-719-979-64 DIODE UF4005PKG23
D6656 8-719-510-64 DIODE S2LA20F
D6658 8-719-068-00 DIODE ERC04-06SE
D6659 8-719-510-64 DIODE S2LA20F
D6676 8-719-991-33 DIODE 1SS133T-77

D6677 8-719-921-40 DIODE MTZJ-4.7C
D6678 8-719-921-40 DIODE MTZJ-4.7C
D6679 8-719-991-33 DIODE 1SS133T-77
D6700 8-719-908-03 DIODE GP08D
D6701 8-719-110-41 DIODE RD15ESB2

D6803 8-719-908-03 DIODE GP08D
D6804 1-535-143-11 LEAD, JUMPER (10.0MM)
D6805 8-719-302-43 DIODE EL1Z
D6806 8-719-979-85 DIODE EGP20G
D6807 8-719-510-73 DIODE S3L20UF4

D6808 8-719-510-73 DIODE S3L20UF4
D6809 8-719-991-33 DIODE 1SS133T-77
D6810 8-719-110-41 DIODE RD15ESB2
D6811 8-719-110-41 DIODE RD15ESB2
D6812 8-719-991-33 DIODE 1SS133T-77

D6813 8-719-110-41 DIODE RD15ESB2
D6851 8-719-970-87 DIODE ERA38-06
D6852 8-719-970-87 DIODE ERA38-06

< FERRITE BEAD >

FB6602 1-410-396-41 FERRITE 0.45UH
FB6603 1-410-396-41 FERRITE 0.45UH

< IC >

IC6600 1-810-051-11 POWER MODULE DM-48
IC6604 8-729-045-40 TRANSISTOR MX0842A-F
IC6651 8-759-468-89 IC TOP209P
IC6652 8-759-604-39 IC M5F78M12L
IC6653 8-759-544-13 IC KA78R09TU

IC6654 8-759-457-44 IC KA78R05TU
IC6667 8-759-908-15 IC TL431CLP
IC6676 8-759-908-15 IC TL431CLP
IC6700 8-759-192-71 IC STV9379
IC6801 8-759-103-93 IC UPC393C

< COIL >

L6607 1-412-525-31 INDUCTOR 10UH
L6651 1-414-183-41 INDUCTOR 10UH
L6700 1-412-524-11 INDUCTOR 8.2UH
L6801 1-412-519-11 INDUCTOR 3.3UH
L6802 1-412-519-11 INDUCTOR 3.3UH

L6803 1-412-519-11 INDUCTOR 3.3UH
L6805 1-408-947-00 INDUCTOR 2.2MMH
L6806 1-410-397-21 FERRITE 1.1UH
L6807 1-410-397-21 FERRITE 1.1UH
L6808 1-406-675-11 INDUCTOR 0UH

L6851 1-535-303-00 LEAD, JUMPER (5.0MM)

< FILTER >

LF6603 1-406-660-41 INDUCTOR 0UH
LF6604 1-406-660-41 INDUCTOR 0UH
LF6801 1-406-985-11 INDUCTOR 0UH
LF6851 1-406-674-11 INDUCTOR 0UH

< IC LINK >

PS6601 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250
PS6602 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250
PS6603 £ 1-801-549-21 PROTECTOR MODULE 4.0A MP250
PS6604 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250
PS6605 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250

< TRANSISTOR >

Q6600 8-729-046-47 TRANSISTOR KSC2500-BTA
Q6602 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6603 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6605 8-729-046-47 TRANSISTOR KSC2500-BTA
Q6606 8-729-029-56 TRANSISTOR DTA144ESA

Q6607 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6608 8-729-029-66 TRANSISTOR DTC114ESA
Q6651 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6652 8-729-029-86 TRANSISTOR DTC124ESA
Q6667 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6676 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6677 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6678 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q6679 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6680 8-729-029-66 TRANSISTOR DTC114ESA

L6601 1-408-947-00 INDUCTOR 2.2MMH
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-535-303-00 LEAD, JUMPER (5.0MM)
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

L6602 1-412-529-11 INDUCTOR 22UH
L6603 1-412-529-11 INDUCTOR 22UH
L6604 1-412-525-31 INDUCTOR 10UH
L6605 1-412-525-31 INDUCTOR 10UH
L6606 1-412-525-31 INDUCTOR 10UH

Q6681 8-729-029-66 TRANSISTOR DTC114ESA
Q6700 8-729-039-68 TRANSISTOR IRF620
Q6801 8-729-119-80 TRANSISTOR 2SC2688-LK
Q6802 8-729-119-80 TRANSISTOR 2SC2688-LK
Q6803 8-729-046-18 TRANSISTOR 2SC5480-01

Q6804 8-729-046-18 TRANSISTOR 2SC5480-01
Q6805 8-729-038-83 TRANSISTOR 2SK2251-01-F19
Q6806 8-729-930-91 TRANSISTOR IRF740
Q6807 8-729-030-02 TRANSISTOR DTC144ESA
Q6809 8-729-119-78 TRANSISTOR 2SC2785-HFE

155

The components identified by
shading and marked are critical
for safety
Replace only with the part number

D

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

Q6810 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6851 8-729-043-95 TRANSISTOR 2SC3840(3)

< RESISTOR >

R6601 £ 1-202-968-11 CEMENTED 1.2 5% 10W
R6603 1-249-430-11 CARBON 12K 5% 1/4W
R6604 1-249-421-11 CARBON 2.2K 5% 1/4W
R6605 1-249-417-11 CARBON 1K 5% 1/4W F
R6606 £ 1-202-968-11 CEMENTED 1.2 5% 10W

R6608 £ 1-220-797-11 CEMENTED 0.47 5% 10W F
R6611 1-260-125-11 CARBON 150K 5% 1/2W
R6612 1-260-125-11 CARBON 150K 5% 1/2W
R6613 1-216-369-00 METAL OXIDE 1 5% 2W F
R6614 1-260-125-11 CARBON 150K 5% 1/2W

R6615 1-260-125-11 CARBON 150K 5% 1/2W
R6616 1-216-369-00 METAL OXIDE 1 5% 2W F
R6619 1-249-425-11 CARBON 4.7K 5% 1/4W
R6620 1-249-443-11 CARBON 0.47 5% 1/4W F
R6624 1-249-425-11 CARBON 4.7K 5% 1/4W
R6625 1-249-429-11 CARBON 10K 5% 1/4W

R6626 1-247-807-31 CARBON 100 5% 1/4W
R6627 1-249-429-11 CARBON 10K 5% 1/4W
R6628 1-260-129-11 CARBON 330K 5% 1/2W
R6629 1-260-129-11 CARBON 330K 5% 1/2W
R6630 1-249-417-11 CARBON 1K 5% 1/4W

R6666 1-202-933-61 FUSIBLE 0.1 10% 1/2W F
R6667 1-215-441-00 METAL 6.8K 1% 1/4W
R6668 1-249-429-11 CARBON 10K 5% 1/4W
R6669 1-249-413-11 CARBON 470 5% 1/4W
R6670 1-249-429-11 CARBON 10K 5% 1/4W

R6676 1-249-417-11 CARBON 1K 5% 1/4W
R6677 1-249-417-11 CARBON 1K 5% 1/4W
R6678 1-249-417-11 CARBON 1K 5% 1/4W
R6679 1-215-479-00 METAL 270K 1% 1/4W
R6681 1-215-467-00 METAL 82K 1% 1/4W

R6682 1-215-447-00 METAL 12K 1% 1/4W
R6683 1-215-429-00 METAL 2.2K 1% 1/4W
R6684 1-247-807-31 CARBON 100 5% 1/4W
R6685 1-249-417-11 CARBON 1K 5% 1/4W
R6686 1-215-449-00 METAL 15K 1% 1/4W

R6687 1-249-431-11 CARBON 15K 5% 1/4W
R6688 1-249-417-11 CARBON 1K 5% 1/4W
R6700 1-215-441-00 METAL 6.8K 1% 1/4W
R6701 1-215-437-00 METAL 4.7K 1% 1/4W
R6702 1-215-441-00 METAL 6.8K 1% 1/4W

R6703 1-215-437-00 METAL 4.7K 1% 1/4W
R6704 1-249-383-11 CARBON 1.5 5% 1/4W F
R6705 1-247-791-91 CARBON 22 5% 1/4W
R6707 1-215-888-00 METAL OXIDE 220 5% 2W F
R6708 1-214-798-21 METAL 1.8 1% 1/2W

R6631 1-249-425-11 CARBON 4.7K 5% 1/4W
R6632 1-207-905-00 WIREWOUND 0.27 10% 2W F
R6633 1-249-429-11 CARBON 10K 5% 1/4W
R6635 1-249-443-11 CARBON 0.47 5% 1/4W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-535-303-00 LEAD, JUMPER (5.0MM)
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6637 1-249-421-11 CARBON 2.2K 5% 1/4W
R6638 1-247-895-91 CARBON 470K 5% 1/4W
R6639 1-249-416-11 CARBON 820 5% 1/4W
R6640 1-249-417-11 CARBON 1K 5% 1/4W
R6641 1-260-127-11 CARBON 220K 5% 1/2W

R6642 1-249-389-11 CARBON 4.7 5% 1/4W F
R6643 1-249-417-11 CARBON 1K 5% 1/4W F
R6644 1-249-429-11 CARBON 10K 5% 1/4W
R6645 1-260-131-11 CARBON 470K 5% 1/2W
R6646 1-249-429-11 CARBON 10K 5% 1/4W

R6647 1-249-410-11 CARBON 270 5% 1/4W
R6648 1-247-863-91 CARBON 22K 5% 1/4W
R6649 1-215-926-00 METAL OXIDE 33K 5% 3W F
R6651 1-247-791-91 CARBON 22 5% 1/4W
R6652 1-249-389-11 CARBON 4.7 5% 1/4W F

R6653 1-249-421-11 CARBON 2.2K 5% 1/4W
R6655 1-249-429-11 CARBON 10K 5% 1/4W
R6656 £ 1-218-265-11 METAL 8.2M 5% 1W
R6657 1-215-425-00 METAL 1.5K 1% 1/4W

R6709 1-214-798-21 METAL 1.8 1% 1/2W
R6710 1-247-843-11 CARBON 3.3K 5% 1/4W
R6711 1-249-418-11 CARBON 1.2K 5% 1/4W
R6801 1-215-440-00 METAL 6.2K 1% 1/4W
R6802 1-214-915-00 METAL 120K 1% 1/2W

R6803 1-249-421-11 CARBON 2.2K 5% 1/4W
R6804 1-247-807-31 CARBON 100 5% 1/4W
R6805 1-247-807-31 CARBON 100 5% 1/4W
R6806 1-249-411-11 CARBON 680 5% 1/4W
R6807 1-249-411-11 CARBON 330 5% 1/4W

R6808 1-260-340-11 CARBON 10K 5% 1/2W
R6809 1-260-340-11 CARBON 10K 5% 1/2W
R6810 1-215-920-11 METAL OXIDE 3.3K 5% 3W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-216-460-11 METAL OXIDE 3.9K 5% 3W F
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6811 1-216-461-00 METAL OXIDE 5.6K 5% 2W F
R6812 1-215-895-11 METAL OXIDE 3.3K 5% 2W F
R6813 1-215-920-11 METAL OXIDE 3.3K 5% 3W F
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-215-895-11 METAL OXIDE 3.3K 5% 2W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6814 1-215-880-00 METAL OXIDE 10 5% 2W F
R6815 1-215-880-00 METAL OXIDE 10 5% 2W F
R6816 1-216-361-00 METAL OXIDE 0.22 5% 2W F

156

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D

VM

R6817 1-216-361-00 METAL OXIDE 0.22 5% 2W F
R6818 1-247-807-31 CARBON 100 5% 1/4W
R6819 1-247-807-31 CARBON 100 5% 1/4W
R6831 1-260-124-11 CARBON 120K 5% 1/2W
R6832 1-216-434-11 METAL OXIDE 1.8K 5% 1W F

R6833 1-202-972-61 FUSIBLE 1 5% 1/4W F
R6834 1-249-377-11 CARBON 0.47 5% 1/4W F
R6835 1-249-377-11 CARBON 0.47 5% 1/4W F
R6836 1-249-431-11 CARBON 15K 5% 1/4W
R6837 1-215-919-11 METAL OXIDE 2.2K 5% 3W F
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-215-894-11 METAL OXIDE 2.2K 5% 2W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6838 1-214-905-11 METAL 47K 1% 1/2W
R6839 1-215-919-11 METAL OXIDE 2.2K 5% 3W F
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-215-894-11 METAL OXIDE 2.2K 5% 2W
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6840 1-247-843-11 CARBON 3.3K 5% 1/4W
R6842 1-260-123-11 CARBON 100K 5% 1/2W
R6843 1-249-429-11 CARBON 10K 5% 1/4W
R6844 1-249-441-11 CARBON 100K 5% 1/4W
R6845 1-247-863-91 CARBON 22K 5% 1/4W

R6896 1-249-443-11 CARBON 0.47 5% 1/4W F
R6897 1-215-485-00 METAL 470K 1% 1/4W
R6898 1-215-493-00 METAL 1M 1% 1/4W
R6899 1-215-493-00 METAL 1M 1% 1/4W

< RELAY >

RY6601 £ 1-755-266-11 RELAY, AC POWER
RY6602 £ 1-755-167-11 RELAY, AC POWER

< TRANSFORMER >

T6600 £ 1-431-616-11 TRANSFORMER, CONVERTER
T6601 £ 1-433-516-11 TRANSFORMER, CONVERTER
T6651 1-431-732-11 TRANSFORMER, CONVERTER (SRT)
T6801 1-433-489-11 TRANSFORMER, FERRITE (HDT)
T6802 1-433-489-11 TRANSFORMER, FERRITE (HDT)

T6804 £ 1-453-272-11 TRANSFORMER FLYBACK ASSEMBLY NX-4512/U2B4
T6805 1-429-741-11 TRANSFORMER, DRIVE
T6852 1-426-896-11 TRANSFORMER, FERRITE (DFT)

< THERMISTOR >

TH6600 £ 1-809-827-11 THERMISTOR, POSITIVE
TH6700 1-800-193-00 THERMISTOR

*****************************************************************

R6851 1-260-123-11 CARBON 100K 5% 1/2W
R6852 1-260-123-11 CARBON 100K 5% 1/2W
R6853 1-260-123-11 CARBON 100K 5% 1/2W
R6854 1-249-417-11 CARBON 1K 5% 1/4W
R6856 1-216-485-11 METAL OXIDE 5.6K 5% 3W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-215-922-11 METAL OXIDE 6.8K 5% 3W F
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6857 1-216-485-11 METAL OXIDE 5.6K 5% 3W
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U)
1-215-922-11 METAL OXIDE 6.8K 5% 3W F
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6858 1-215-922-11 METAL OXIDE 6.8K 5% 3W F
R6859 1-215-922-11 METAL OXIDE 6.8K 5% 3W F
R6880 1-215-436-00 METAL 4.3K 1% 1/4W
R6885 1-215-493-00 METAL 1M 1% 1/4W
R6886 1-215-477-00 METAL 220K 1% 1/4W

R6887 1-215-461-00 METAL 47K 1% 1/4W
R6888 1-249-441-11 CARBON 100K 5% 1/4W
R6889 1-249-421-11 CARBON 2.2K 5% 1/4W
R6890 1-247-887-00 CARBON 220K 5% 1/4W
R6891 1-247-895-91 CARBON 470K 5% 1/4W

R6892 1-249-437-11 CARBON 47K 5% 1/4W
R6893 1-249-429-11 CARBON 10K 5% 1/4W
R6894 1-535-303-00 LEAD, JUMPER (5.0MM)
R6895 1-249-443-11 CARBON 0.47 5% 1/4W F

*A-1644-094-A VM BOARD, COMPLETE (KV-29FS60)
******************
*A-1644-095-A VM BOARD, COMPLETE (KV-32FS60)
******************

4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C5400 1-107-883-11 ELECT 330MF 20% 16V
C5401 1-126-935-11 ELECT 470MF 20% 16V
C5402 1-137-370-11 FILM 0.01MF 5% 50V
C5403 1-126-935-11 ELECT 470MF 20% 6.3V
C5405 1-126-933-11 ELECT 100MF 20% 16V

C5406 1-126-935-11 ELECT 470MF 20% 6.3V
C5407 1-104-989-91 FILM 0.0022MF 5% 200V
C5408 1-104-989-91 FILM 0.0022MF 5% 200V
C5409 1-107-649-11 ELECT 2.2MF 20% 250V
C5410 1-137-364-11 FILM 0.001MF 5% 50V

C5411 1-137-364-11 FILM 0.001MF 5% 50V
C5412 1-126-933-11 ELECT 100MF 20% 16V
C5413 1-126-933-11 ELECT 100MF 20% 16V
C5414 1-107-638-11 ELECT 33MF 20% 160V
C5415 1-107-363-91 FILM 0.0068MF 10% 200V

C5416 1-102-106-00 CERAMIC 100PF 10% 50V
C5419 1-101-880-00 CERAMIC 47PF 5% 50V
C5430 1-162-117-00 CERAMIC 100PF 10% 500V

157

The components identified by
shading and marked are critical
for safety
Replace only with the part number

VM

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

H1

U

specified.

< CONNECTOR >

CN5402 *1-568-878-51 PIN, CONNECTOR 3P
CN5444 *1-770-723-11 CONNECTOR, BOARD TO BOARD 8P
CN5555 1-695-915-11 TAB (CONTACT)
CN5602 *1-568-881-51 PIN, CONNECTOR 6P

< DIODE >

D5400 8-719-991-33 DIODE 1SS133T-77
D5401 8-719-510-02 DIODE D1NS4
D5402 8-719-991-33 DIODE 1SS133T-77
D5403 8-719-991-33 DIODE 1SS133T-77
D5404 8-719-991-33 DIODE 1SS133T-77

D5405 8-719-924-11 DIODE MTZJ-T-77-22
D5406 8-719-924-11 DIODE MTZJ-T-77-22

< FERRITE BEAD >

FB5400 1-410-397-21 FERRITE 1.1UH
FB5401 1-410-396-41 FERRITE 0.45UH

< COIL >

L5400 1-410-784-41 INDUCTOR 0.18UH

< TRANSISTOR >

Q5400 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5401 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5402 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5403 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5404 8-729-026-41 TRANSISTOR 2SA933AS-QRT

R5417 1-249-432-11 CARBON 18K 5% 1/4W
R5418 1-249-414-11 CARBON 560 5% 1/4W
R5419 1-249-421-11 CARBON 2.2K 5% 1/4W
R5420 1-249-421-11 CARBON 2.2K 5% 1/4W
R5421 1-249-383-11 CARBON 1.5 5% 1/4W F

R5422 1-249-400-11 CARBON 39 5% 1/4W F
R5423 1-215-914-11 METAL OXIDE 330 5% 3W F
R5425 1-249-419-11 CARBON 1.5K 5% 1/4W

*****************************************************************

*A-1646-170-A H1 BOARD, COMPLETE (KV-29FS60)
******************
*A-1646-174-A H1 BOARD, COMPLETE (KV-32FS60)
******************

< CAPACITOR >

C7900 1-101-810-00 CERAMIC 100PF 5% 500V
C7901 1-101-810-00 CERAMIC 100PF 5% 500V
C7925 1-137-372-11 FILM 0.022MF 5% 50V
C7926 1-137-372-11 FILM 0.022MF 5% 50V

< CONNECTOR >

CN7103* 1-564-514-11 PLUG, CONNECTOR 11P

< JACK >

J7900 1-779-947-21 TERMINAL BLOCK, S
J7925 1-764-606-11 JACK

< COIL >

Q5405 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q5406 8-729-017-05 TRANSISTOR 2SA1837
Q5407 8-729-017-06 TRANSISTOR 2SC4793

< RESISTOR >

R5400 1-249-401-11 CARBON 47 5% 1/4W
R5401 1-249-421-11 CARBON 2.2K 5% 1/4W
R5402 1-249-413-11 CARBON 470 5% 1/4W
R5403 1-249-393-11 CARBON 10 5% 1/4W F
R5404 1-249-417-11 CARBON 1K 5% 1/4W

R5405 1-249-425-11 CARBON 4.7K 5% 1/4W
R5406 1-249-425-11 CARBON 4.7K 5% 1/4W
R5407 1-249-399-11 CARBON 33 5% 1/4W
R5408 1-247-807-31 CARBON 100 5% 1/4W
R5409 1-247-815-91 CARBON 220 5% 1/4W

R5410 1-249-401-11 CARBON 47 5% 1/4W
R5411 1-249-401-11 CARBON 47 5% 1/4W
R5412 1-249-429-11 CARBON 10K 5% 1/4W
R5413 1-249-414-11 CARBON 560 5% 1/4W F
R5414 1-249-432-11 CARBON 18K 5% 1/4W

R5415 1-260-311-11 CARBON 39 5% 1/2W
R5416 1-249-383-11 CARBON 1.5 5% 1/4W F

L7925 1-414-183-41 INDUCTOR 10UH
L7926 1-414-183-41 INDUCTOR 10UH

< RESISTOR >

R7900 1-535-303-00 LEAD, JUMPER (5.0MM)
R7901 1-249-417-11 CARBON 1K 5% 1/4W
R7902 1-247-895-91 CARBON 470K 5% 1/4W
R7903 1-247-895-91 CARBON 470K 5% 1/4W
R7904 1-535-303-00 LEAD, JUMPER (5.0MM)

R7905 1-249-417-11 CARBON 1K 5% 1/4W
R7906 1-535-303-00 LEAD, JUMPER (5.0MM)

*****************************************************************

*A-1648-018-A U BOARD, COMPLETE (KV-29FS60)
*****************
*A-1648-017-A U BOARD, COMPLETE (KV-32FS60)
*****************

< CAPACITOR >

C7952 1-101-005-00 CERAMIC 0.022MF 50V
C7953 1-101-005-00 CERAMIC 0.022MF 50V
(KV-32FS60A/32FS60B/32FS60D/32FS60E)

158

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

U

J

C7961 1-101-005-00 CERAMIC 0.022MF 50V
C7962 1-101-005-00 CERAMIC 0.022MF 50V

< CONNECTOR >

CN7101 1-573-299-21 CONNECTOR, BOARD TO BOARD 10P
CN7977* 1-564-519-11 PLUG, CONNECTOR 4P
CN7988* 1-564-519-11 PLUG, CONNECTOR 4P
CN7990* 1-564-518-11 PLUG, CONNECTOR 3P
CN7999* 1-564-519-11 PLUG, CONNECTOR 4P

< JACK >

J7951 1-694-470-11 TERMINAL BOARD
J7952 1-537-339-11 TERMINAL BOARD

< COIL >

L7950 1-402-711-11 INDUCTOR 0UH
L7952 1-402-711-11 INDUCTOR 0UH
L7954 1-402-711-11 INDUCTOR 0UH
L7956 1-402-711-11 INDUCTOR 0UH

**********************************************************************

*A-1651-102-A J BOARD, COMPLETE (KV-29FS60A/29FS60D/29FS60E/
***************** 29FS60K/29FS60R/29FS60U)
*A-1651-106-A J BOARD, COMPLETE (KV-29FS60B)
*****************
*A-1651-101-A J BOARD, COMPLETE (KV-32FS60A/32FS60D/32FS60E)
*****************
*A-1651-107-A J BOARD, COMPLETE (KV-32FS60B)
*****************

< CAPACITOR >

C8134 1-104-664-11 ELECT 47MF 20% 16V
C8135 1-164-505-11 CERAMIC CHIP 2.2MF 16V
C8136 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8137 1-164-505-11 CERAMIC CHIP 2.2MF 16V
C8138 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8139 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8140 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8141 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8142 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8143 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8144 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8145 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8146 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8150 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8151 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8152 1-164-346-11 CERAMIC CHIP 1MF 16V
C8153 1-107-682-11 CERAMIC CHIP 1MF 10% 16V
C8154 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8155 1-107-682-11 CERAMIC CHIP 1MF 10% 16V
C8156 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C8157 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8159 1-104-664-11 ELECT 47MF 20% 16V
C8161 1-164-505-11 CERAMIC CHIP 2.2MF 16V
C8200 1-104-664-11 ELECT 47MF 20% 16V
C8201 1-163-241-11 CERAMIC CHIP 39PF 5% 50V

C8202 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8203 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8204 1-164-506-11 CERAMIC CHIP 4.7MF 16V
C8205 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C8208 1-164-506-11 CERAMIC CHIP 4.7MF 16V

C8100 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8101 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8102 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C8103 1-104-664-11 ELECT 47MF 20% 16V
C8104 1-126-934-11 ELECT 220MF 20% 16V

C8105 1-126-933-11 ELECT 100MF 20% 16V
C8106 1-126-933-11 ELECT 100MF 20% 16V
C8107 1-126-933-11 ELECT 100MF 20% 16V
C8108 1-126-933-11 ELECT 100MF 20% 16V
C8109 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8110 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8111 1-126-933-11 ELECT 100MF 20% 16V
C8125 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8126 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8127 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8128 1-104-664-11 ELECT 47MF 20% 16V
C8129 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8130 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8131 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8132 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8133 1-104-664-11 ELECT 47MF 20% 16V

C8209 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8210 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8211 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C8212 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C8213 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V

C8214 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V
C8215 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C8216 1-126-933-11 ELECT 100MF 20% 16V
C8217 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8218 1-126-964-11 ELECT 10MF 20% 50V

C8219 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8220 1-126-964-11 ELECT 10MF 20% 50V
C8221 1-104-664-11 ELECT 47MF 20% 16V
C8222 1-104-664-11 ELECT 47MF 20% 16V
C8223 1-104-664-11 ELECT 47MF 20% 16V

C8224 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8225 1-104-664-11 ELECT 47MF 20% 16V
C8228 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C8229 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C8230 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8231 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

159

The components identified by
shading and marked are critical
for safety
Replace only with the part number

J

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C8232 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8233 1-104-664-11 ELECT 47MF 20% 16V
C8234 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8235 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8236 1-126-933-11 ELECT 100MF 20% 16V

C8237 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8238 1-164-505-11 CERAMIC CHIP 2.2MF 16V
C8239 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8240 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8241 1-126-964-11 ELECT 10MF 20% 50V

C8242 1-104-664-11 ELECT 47MF 20% 16V
C8243 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V
(KV-29FS60B/32FS60B)
C8250 1-164-506-11 CERAMIC CHIP 4.7MF 16V
C8251 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8252 1-164-506-11 CERAMIC CHIP 4.7MF 16V
C8253 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C8254 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8255 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C8256 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8258 1-126-933-11 ELECT 100MF 20% 16V
C8260 1-126-933-11 ELECT 100MF 20% 16V
C8263 1-126-933-11 ELECT 100MF 20% 16V
C8300 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8301 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8302 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8303 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8304 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8305 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8306 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8307 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8308 1-126-933-11 ELECT 100MF 20% 16V
C8310 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8311 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8312 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8313 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8314 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8315 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8316 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8318 1-126-933-11 ELECT 100MF 20% 16V
C8319 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8320 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8321 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8322 1-126-933-11 ELECT 100MF 20% 16V

C8323 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C8324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8325 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8326 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C8327 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8328 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8329 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8330 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C8331 1-126-960-11 ELECT 1MF 20% 50V
C8332 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8343 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
(KV-29FS60B/32FS60B)

C8344 1-163-173-00 CERAMIC CHIP 47PF 5% 50V
(KV-29FS60B/32FS60B)
C8345 1-126-933-11 ELECT 100MF 20% 16V
(KV-29FS60B/32FS60B)
C8401 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8402 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8403 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8404 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8405 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8406 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8407 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8408 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C8409 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8410 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8411 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8412 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8413 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8414 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C8415 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C8416 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8417 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8418 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8419 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8420 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8421 1-126-933-11 ELECT 100MF 20% 16V

C8422 1-126-960-11 ELECT 1MF 20% 50V
C8423 1-126-933-11 ELECT 100MF 20% 16V
C8424 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8425 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8426 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8427 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8450 1-104-664-11 ELECT 47MF 20% 16V
C8451 1-104-664-11 ELECT 47MF 20% 16V
C8455 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
(KV-29FS60A/29FS60B/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U/
32FS60A/32FS60D/32FS60E)

C8456 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8500 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8501 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8502 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8503 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8504 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8505 1-126-933-11 ELECT 100MF 20% 16V
C8506 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C8507 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

160

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

J

C8508 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8509 1-126-933-11 ELECT 100MF 20% 16V
C8510 1-104-664-11 ELECT 47MF 20% 16V
C8511 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8512 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8513 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8514 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8515 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8516 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8517 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8518 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8519 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8520 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8521 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C8601 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8602 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8605 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8606 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8607 1-104-664-11 ELECT 47MF 20% 16V
C8608 1-104-664-11 ELECT 47MF 20% 16V

C8609 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8610 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8611 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8612 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V
C8613 1-104-664-11 ELECT 47MF 20% 16V

C8614 1-104-664-11 ELECT 47MF 20% 16V
C8700 1-126-964-11 ELECT 10MF 20% 50V
C8701 1-104-664-11 ELECT 47MF 20% 16V
C8702 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C8703 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8704 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8705 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C8706 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C8707 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C8708 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8709 1-126-964-11 ELECT 10MF 20% 50V
C8710 1-126-933-11 ELECT 100MF 20% 16V
C8900 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8901 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8902 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8903 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8904 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8905 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8906 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8907 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8908 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8909 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8910 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C8911 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C8916 1-126-933-11 ELECT 100MF 20% 16V

C8977 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8978 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

< FILTER >

CF8150 1-760-106-11 FILTER, CERAMIC
CF8151 1-567-100-00 FILTER, CERAMIC
CF8152 1-760-450-21 FILTER, CERAMIC
CF8200 1-409-327-00 TRAP, CERAMIC (6.5MHZ)

< CONNECTOR >

CN1402 1-573-296-11 CONNECTOR, BOARD TO BOARD 10P
(KV-29FS60B/32FS60B)
CN8101 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
CN8102* 1-564-518-11 PLUG, CONNECTOR 3P
CN8900 1-561-534-41 SOCKET, PIN 21P

CN8901 1-695-293-11 SOCKET 21P
CN8902 1-695-293-11 SOCKET 21P

< DIODE >

D8125 8-719-158-49 DIODE RD12SB2
D8126 8-719-158-49 DIODE RD12SB2
D8127 8-719-158-49 DIODE RD12SB2
D8128 8-719-158-49 DIODE RD12SB2
D8129 8-719-158-49 DIODE RD12SB2

D8130 8-719-158-49 DIODE RD12SB2
D8131 8-719-158-49 DIODE RD12SB2
D8132 8-719-158-49 DIODE RD12SB2
D8150 8-719-421-57 DIODE MA73-TX
D8151 8-719-421-57 DIODE MA73-TX

D8152 8-719-421-57 DIODE MA73-TX
D8200 8-719-158-49 DIODE RD12SB2
D8201 8-719-158-49 DIODE RD12SB2
D8202 8-719-158-49 DIODE RD12SB2
D8203 8-719-158-49 DIODE RD12SB2

D8349 8-719-914-42 DIODE DA204K-T-146 (KV-29FS60B/32FS60B)
D8432 8-719-914-42 DOIDE DA204K-T-146 (KV-29FS60B/32FS60B)
D8450 8-719-158-49 DIODE RD12SB2
D8451 8-719-158-49 DIODE RD12SB2
D8900 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8901 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8902 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8903 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8904 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8905 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8906 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8907 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8908 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8909 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8910 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8911 8-719-056-85 DIODE UDZ-TE-17-8.2B
D8912 8-719-158-49 DIODE RD12SB2
D8913 8-719-158-49 DIODE RD12SB2

161

The components identified by
shading and marked are critical
for safety
Replace only with the part number

J

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D8914 8-719-158-49 DIODE RD12SB2
D8915 8-719-158-49 DIODE RD12SB2
D8922 8-719-056-84 DIODE UDZ-TE-17-7.5B
D8923 8-719-978-04 DIODE DTZ-TT11-3.3B

< FILTER >

FL8200 1-236-071-11 ENCAPSULATED COMPONENT
FL8201 1-233-764-21 FILTER
FL8203 1-236-071-11 ENCAPSULATED COMPONENT
FL8250 1-236-071-11 ENCAPSULATED COMPONENT
FL8251 1-236-071-11 ENCAPSULATED COMPONENT

FL8252 1-236-071-11 ENCAPSULATED COMPONENT
FL8300 1-236-071-11 ENCAPSULATED COMPONENT
FL8301 1-236-071-11 ENCAPSULATED COMPONENT
FL8400 1-236-071-11 ENCAPSULATED COMPONENT
FL8401 1-236-071-11 ENCAPSULATED COMPONENT

FL8500 1-236-071-11 ENCAPSULATED COMPONENT
FL8501 1-236-071-11 ENCAPSULATED COMPONENT
FL8502 1-233-765-21 FILTER
FL8503 1-233-768-21 FILTER (SMD)
FL8504 1-233-766-21 FILTER

FL8700 1-236-071-11 ENCAPSULATED COMPONENT
FL8701 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC8100 8-759-352-94 IC TDA7309D013TR
IC8101 8-759-085-34 IC TDA2822D
IC8125 8-759-351-01 IC TEA6422DT
IC8150 8-759-478-90 IC U2861B-MFP-G3
IC8151 8-752-072-94 IC CXA1875AM-T4

L8343 1-410-421-11 INDUCTOR 15UH
(KV-29FS60B/32FS60B)

< TRANSISTOR >

Q8100 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8101 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8150 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8151 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q8152 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q8153 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q8154 1-801-806-11 TRANSISTOR DTC144EKA-T146
Q8155 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8156 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8157 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8200 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8201 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8202 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8300 8-729-216-22 TRANSISTOR 2SA1162-G
Q8301 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8302 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8303 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8304 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8305 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8306 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8307 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8308 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8309 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8310 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8311 8-729-620-06 TRANSISTOR 2SC2412K-T-146-R
(KV-29FS60B/32FS60B)

IC8200 8-759-544-10 IC MSP3410D-QA-B4
IC8201 8-759-701-36 IC NJM3403AM
IC8202 8-759-908-15 IC TL431CLP
IC8250 8-759-567-38 IC TC9337F-034
IC8300 8-759-546-01 IC TDA9320H-N1-518

IC8400 8-759-546-01 IC TDA9320H-N1-518
IC8451 8-759-385-76 IC MC14052BDR2
IC8500 8-752-390-37 IC CXD2064Q-T6
IC8601 8-759-544-24 IC LF90CDT
IC8602 8-759-544-23 IC LF80CDT

IC8603 8-759-544-22 IC LF50CDT
IC8604 8-759-544-22 IC LF50CDT
IC8700 8-752-390-35 IC CXD2057M-T6

< JACK >

J8901 1-774-747-11 JACK BLOCK, PIN

< COIL >

L8150 1-414-757-11 INDUCTOR 100UH
L8200 1-412-006-31 INDUCTOR CHIP 10UH
L8201 1-412-064-11 INDUCTOR CHIP 100UH

Q8343 8-729-620-06 TRANSISTOR 2SC2412K-T-146-R
(KV-29FS60B/32FS60B)
Q8400 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8401 8-729-216-22 TRANSISTOR 2SA1162-G
Q8403 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8404 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8405 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8406 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8407 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8425 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8450 8-729-216-22 TRANSISTOR 2SA1162-G
Q8453 8-729-216-22 TRANSISTOR 2SA1162-G
Q8456 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8459 8-729-216-22 TRANSISTOR 2SA1162-G
Q8461 8-729-216-22 TRANSISTOR 2SA1162-G

Q8500 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8501 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8503 8-729-216-22 TRANSISTOR 2SA1162-G
Q8504 8-729-216-22 TRANSISTOR 2SA1162-G
Q8700 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8900 8-729-620-06 TRANSISTOR 2SC3052-EF

162

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

J

Q8901 8-729-620-06 TRANSISTOR 2SC3052-EF
Q8903 8-729-620-06 TRANSISTOR 2SC3052-EF

< RESISTOR >

R8100 1-216-025-91 RES,CHIP 100 5% 1/10W
R8101 1-216-025-91 RES,CHIP 100 5% 1/10W
R8102 1-216-295-91 SHORT 0
R8103 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8104 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8105 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8106 1-216-081-00 RES,CHIP 22K 5% 1/10W
R8107 1-216-081-00 RES,CHIP 22K 5% 1/10W
R8108 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8109 1-249-389-11 CARBON 4.7 5% 1/4W F

R8110 1-249-389-11 CARBON 4.7 5% 1/4W F
R8111 1-216-033-00 RES,CHIP 220 5% 1/10W
R8112 1-216-033-00 RES,CHIP 220 5% 1/10W
R8113 1-216-095-00 RES,CHIP 82K 5% 1/10W
R8114 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8115 1-216-033-00 RES,CHIP 150 5% 1/10W
R8116 1-216-033-00 RES,CHIP 150 5% 1/10W
R8117 1-216-033-00 RES,CHIP 150 5% 1/10W
R8118 1-216-033-00 RES,CHIP 150 5% 1/10W
R8125 1-216-295-91 SHORT 0

R8126 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8127 1-216-113-00 RES,CHIP 470K 5% 1/10W
R8128 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8129 1-216-025-91 RES,CHIP 100 5% 1/10W
R8130 1-216-025-91 RES,CHIP 100 5% 1/10W

R8131 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8132 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8133 1-216-113-00 RES,CHIP 470K 5% 1/10W
R8150 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8151 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R8152 1-216-035-00 RES,CHIP 270 5% 1/10W
R8153 1-216-081-00 RES,CHIP 22K 5% 1/10W
R8154 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R8155 1-216-043-91 RES,CHIP 560 5% 1/10W
R8156 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8157 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R8158 1-216-043-91 RES,CHIP 560 5% 1/10W
R8159 1-216-081-00 RES,CHIP 22K 5% 1/10W
R8160 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R8161 1-216-043-91 RES,CHIP 560 5% 1/10W

R8162 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8163 1-216-295-91 SHORT 0
R8164 1-216-295-91 SHORT 0
R8165 1-216-295-91 SHORT 0
R8167 1-216-025-91 RES,CHIP 100 5% 1/10W

R8168 1-216-025-91 RES,CHIP 100 5% 1/10W
R8169 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8170 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R8171 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R8172 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R8173 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R8174 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R8175 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R8200 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8201 1-216-295-91 SHORT 0
R8202 1-216-021-00 RES,CHIP 68 5% 1/10W
R8203 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R8204 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8205 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R8206 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8208 1-216-037-00 RES,CHIP 330 5% 1/10W
R8209 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

R8210 1-216-025-91 RES,CHIP 100 5% 1/10W
R8212 1-216-295-91 SHORT 0
R8213 1-216-295-91 SHORT 0
R8214 1-216-295-91 SHORT 0
R8215 1-216-295-91 SHORT 0

R8216 1-216-025-91 RES,CHIP 100 5% 1/10W
R8217 1-216-025-91 RES,CHIP 100 5% 1/10W
R8218 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8219 1-216-025-91 RES,CHIP 100 5% 1/10W
R8220 1-216-025-91 RES,CHIP 100 5% 1/10W

R8221 1-216-025-91 RES,CHIP 100 5% 1/10W
R8222 1-216-295-91 SHORT 0
R8223 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8224 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8225 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8226 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8227 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8228 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8229 1-216-295-91 SHORT 0
R8230 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8231 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8232 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8233 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8234 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8235 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8236 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8237 1-216-043-91 RES,CHIP 560 5% 1/10W
R8238 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R8239 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R8240 1-216-651-11 METAL CHIP 1K 0.50% 1/10W

R8243 1-216-021-00 RES,CHIP 68 5% 1/10W
R8250 1-216-295-91 SHORT 0
R8251 1-216-295-91 SHORT 0
R8252 1-216-295-91 SHORT 0
R8253 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8254 1-216-097-91 RES,CHIP 100K 5% 1/10W

163

The components identified by
shading and marked are critical
for safety
Replace only with the part number

J

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R8255 1-216-025-91 RES,CHIP 100 5% 1/10W
R8256 1-216-295-91 SHORT 0
R8257 1-216-025-91 RES,CHIP 100 5% 1/10W
R8258 1-216-025-91 RES,CHIP 100 5% 1/10W
R8259 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8300 1-216-041-00 RES,CHIP 470 5% 1/10W
R8302 1-216-017-91 RES,CHIP 47 5% 1/10W
R8303 1-216-041-00 RES,CHIP 470 5% 1/10W
R8304 1-216-041-00 RES,CHIP 470 5% 1/10W
R8305 1-216-049-91 RES,CHIP 1K 5% 1/10W
(KV-29FS60B/32FS60B)

R8306 1-216-295-91 SHORT 0
R8307 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8308 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8309 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8310 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8311 1-216-085-00 RES,CHIP 33K 5% 1/10W
R8312 1-216-077-00 RES,CHIP 15K 5% 1/10W
R8313 1-216-041-00 RES,CHIP 470 5% 1/10W
R8314 1-216-043-91 RES,CHIP 560 5% 1/10W
R8316 1-216-295-91 SHORT 0

R8317 1-216-025-91 RES,CHIP 100 5% 1/10W
R8318 1-216-025-91 RES,CHIP 100 5% 1/10W
R8319 1-216-295-91 SHORT 0
R8320 1-216-295-91 SHORT 0
R8321 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8346 1-216-295-91 SHORT 0
(KV-29FS60A/29FS60D/29FS60E/
29FS60K/29FS60R/29FS60U/
32FS60A/32FS60D/32FS60E)
R8347 1-216-025-91 RES,CHIP 100 5% 1/10W
(KV-29FS60B/32FS60B)

R8348 1-216-295-91 SHORT 0
(KV-29FS60B/32FS60B)
R8349 1-216-121-91 RES,CHIP 1M 5% 1/10W
(KV-29FS60B/32FS60B)
R8350 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8351 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8352 1-216-089-91 RES,CHIP 47K 5% 1/10W
(KV-29FS60B/32FS60B)
R8353 1-216-081-00 RES,CHIP 22K 5% 1/10W
(KV-29FS60B/32FS60B)

R8354 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R8355 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8356 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8400 1-216-041-00 RES,CHIP 470 5% 1/10W
R8402 1-216-295-91 SHORT 0

R8403 1-216-041-00 RES,CHIP 470 5% 1/10W
R8404 1-216-295-91 SHORT 0
R8405 1-216-025-91 RES,CHIP 100 5% 1/10W
R8406 1-216-025-91 RES,CHIP 100 5% 1/10W
R8407 1-216-295-91 SHORT 0

R8322 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8323 1-216-097-91 RES,CHIP 100K 5% 1/10W
R8325 1-216-041-00 RES,CHIP 470 5% 1/10W
R8326 1-216-041-00 RES,CHIP 470 5% 1/10W
R8327 1-216-041-00 RES,CHIP 470 5% 1/10W

R8328 1-216-041-00 RES,CHIP 470 5% 1/10W
R8329 1-216-041-00 RES,CHIP 470 5% 1/10W
R8330 1-216-041-00 RES,CHIP 470 5% 1/10W
R8331 1-216-041-00 RES,CHIP 470 5% 1/10W
R8332 1-216-041-00 RES,CHIP 470 5% 1/10W

R8333 1-216-041-00 RES,CHIP 470 5% 1/10W
R8334 1-216-017-91 RES,CHIP 47 5% 1/10W
R8335 1-216-017-91 RES,CHIP 47 5% 1/10W
R8337 1-216-077-00 RES,CHIP 15K 5% 1/10W
R8338 1-216-017-91 RES,CHIP 47 5% 1/10W

R8339 1-216-017-91 RES,CHIP 47 5% 1/10W
R8340 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8343 1-216-045-00 RES,CHIP 680 5% 1/10W
(KV-29FS60B/32FS60B)
R8344 1-216-033-00 RES,CHIP 220 5% 1/10W
(KV-29FS60B/32FS60B)

R8345 1-216-033-00 RES,CHIP 220 5% 1/10W
(KV-29FS60B/32FS60B)

R8408 1-216-295-91 SHORT 0
R8409 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8410 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8411 1-216-097-91 RES,CHIP 100K 5% 1/10W
R8412 1-216-041-00 RES,CHIP 470 5% 1/10W

R8413 1-216-041-00 RES,CHIP 470 5% 1/10W
R8414 1-216-041-00 RES,CHIP 470 5% 1/10W
R8416 1-216-041-00 RES,CHIP 470 5% 1/10W
R8417 1-216-041-00 RES,CHIP 470 5% 1/10W
R8418 1-216-041-00 RES,CHIP 470 5% 1/10W

R8419 1-216-041-00 RES,CHIP 470 5% 1/10W
R8420 1-216-041-00 RES,CHIP 470 5% 1/10W
R8421 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8422 1-216-017-91 RES,CHIP 47 5% 1/10W
R8423 1-216-017-91 RES,CHIP 47 5% 1/10W

R8424 1-216-025-91 RES,CHIP 100 5% 1/10W
R8425 1-216-077-00 RES,CHIP 15K 5% 1/10W
R8426 1-216-017-91 RES,CHIP 47 5% 1/10W
R8427 1-216-017-91 RES,CHIP 47 5% 1/10W
R8428 1-216-017-91 RES,CHIP 47 5% 1/10W

R8429 1-216-041-00 RES,CHIP 470 5% 1/10W
R8430 1-216-041-00 RES,CHIP 470 5% 1/10W
R8431 1-216-017-91 RES,CHIP 47 5% 1/10W
R8432 1-216-121-91 RES,CHIP 1M 5% 1/10W
(KV-29FS60B/32FS60B)

164

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

J

R8433 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8434 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8450 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8451 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8453 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8454 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8455 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8460 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8462 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8467 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8468 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8469 1-216-033-00 RES,CHIP 220 5% 1/10W
R8470 1-216-022-00 RES,CHIP 75 5% 1/10W
R8472 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8473 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8474 1-216-033-00 RES,CHIP 220 5% 1/10W
R8475 1-216-022-00 RES,CHIP 75 5% 1/10W
R8500 1-216-017-91 RES,CHIP 47 5% 1/10W
R8501 1-216-075-00 RES,CHIP 12K 5% 1/10W
R8502 1-216-041-00 RES,CHIP 470 5% 1/10W

R8503 1-216-069-00 RES,CHIP 6.8K 5% 1/10W
R8504 1-216-041-00 RES,CHIP 470 5% 1/10W
R8505 1-216-047-91 RES,CHIP 820 5% 1/10W
R8506 1-216-091-00 RES,CHIP 56K 5% 1/10W
R8507 1-216-295-91 SHORT 0

R8508 1-216-043-91 RES,CHIP 560 5% 1/10W
R8509 1-216-045-00 RES,CHIP 680 5% 1/10W
R8510 1-216-067-00 RES,CHIP 5.6K 5% 1/10W
R8511 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8513 1-216-295-91 SHORT 0

R8514 1-216-017-91 RES,CHIP 47 5% 1/10W
R8517 1-216-295-91 SHORT 0
R8519 1-216-037-00 RES,CHIP 330 5% 1/10W
R8520 1-216-041-00 RES,CHIP 470 5% 1/10W
R8521 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R8522 1-216-041-00 RES,CHIP 470 5% 1/10W
R8523 1-216-033-00 RES,CHIP 220 5% 1/10W
R8525 1-216-295-91 SHORT 0
R8526 1-216-061-00 RES,CHIP 3.3K 5% 1/10W
R8527 1-216-047-91 RES,CHIP 820 5% 1/10W

R8528 1-216-047-91 RES,CHIP 820 5% 1/10W
R8529 1-216-055-00 RES,CHIP 1.8K 5% 1/10W
R8530 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R8531 1-216-053-00 RES,CHIP 1.5K 5% 1/10W
R8532 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8700 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8701 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8702 1-216-025-91 RES,CHIP 100 5% 1/10W
R8703 1-216-025-91 RES,CHIP 100 5% 1/10W
R8704 1-216-025-91 RES,CHIP 100 5% 1/10W

R8705 1-216-295-91 SHORT 0
R8706 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8707 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8708 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8900 1-216-039-00 RES,CHIP 390 5% 1/10W

R8901 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8902 1-216-039-00 RES,CHIP 390 5% 1/10W
R8903 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8904 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8905 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8906 1-216-039-00 RES,CHIP 390 5% 1/10W
R8907 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8908 1-216-039-00 RES,CHIP 390 5% 1/10W
R8909 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8911 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R8913 1-216-022-00 RES,CHIP 75 5% 1/10W

R8914 1-216-071-00 RES,CHIP 8.2K 5% 1/10W
R8915 1-216-022-00 RES,CHIP 75 5% 1/10W
R8916 1-216-033-00 RES,CHIP 220 5% 1/10W
R8917 1-216-033-00 RES,CHIP 220 5% 1/10W
R8918 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8919 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8922 1-216-022-00 RES,CHIP 75 5% 1/10W
R8923 1-216-022-00 RES,CHIP 75 5% 1/10W
R8924 1-216-022-00 RES,CHIP 75 5% 1/10W
R8925 1-216-022-00 RES,CHIP 75 5% 1/10W

R8926 1-216-033-00 RES,CHIP 220 5% 1/10W
R8927 1-216-033-00 RES,CHIP 220 5% 1/10W
R8928 1-216-033-00 RES,CHIP 220 5% 1/10W
R8929 1-216-039-00 RES,CHIP 390 5% 1/10W
R8930 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8931 1-216-039-00 RES,CHIP 390 5% 1/10W
R8932 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8933 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8934 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8935 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8936 1-216-113-00 RES,CHIP 470K 5% 1/10W
R8937 1-216-039-00 RES,CHIP 390 5% 1/10W
R8938 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8939 1-216-039-00 RES,CHIP 390 5% 1/10W
R8940 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8941 1-216-063-91 RES,CHIP 3.9K 5% 1/10W
R8942 1-216-009-00 RES,CHIP 22 5% 1/10W
R8943 1-216-022-00 RES,CHIP 75 5% 1/10W
R8944 1-216-071-00 RES,CHIP 8.2K 5% 1/10W
R8945 1-216-022-00 RES,CHIP 75 5% 1/10W

R8946 1-216-033-00 RES,CHIP 220 5% 1/10W
R8947 1-216-039-00 RES,CHIP 390 5% 1/10W
R8948 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8949 1-216-022-00 RES,CHIP 75 5% 1/10W
R8950 1-216-089-91 RES,CHIP 47K 5% 1/10W

165

The components identified by
shading and marked are critical
for safety
Replace only with the part number

J

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R8951 1-216-033-00 RES,CHIP 220 5% 1/10W
R8952 1-216-113-00 RES,CHIP 470K 5% 1/10W
R8953 1-216-039-00 RES,CHIP 390 5% 1/10W
R8954 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8955 1-216-039-00 RES,CHIP 390 5% 1/10W

R8956 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8957 1-216-049-91 RES,CHIP 1K 5% 1/10W
R8958 1-216-089-91 RES,CHIP 47K 5% 1/10W
R8959 1-216-022-00 RES,CHIP 75 5% 1/10W
R8960 1-216-033-00 RES,CHIP 220 5% 1/10W

R8961 1-216-022-00 RES,CHIP 75 5% 1/10W
R8963 1-216-113-00 RES,CHIP 470K 5% 1/10W
R8964 1-216-039-00 RES,CHIP 390 5% 1/10W
R8965 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8968 1-216-022-00 RES,CHIP 75 5% 1/10W
R8969 1-216-033-00 RES,CHIP 220 5% 1/10W

R8977 1-216-037-00 RES,CHIP 330 5% 1/10W
R8978 1-216-037-00 RES,CHIP 330 5% 1/10W
R8979 1-216-045-00 RES,CHIP 680 5% 1/10W
R8980 1-216-045-00 RES,CHIP 680 5% 1/10W
R8981 1-216-085-00 RES,CHIP 33K 5% 1/10W

R8982 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8983 1-216-077-00 RES,CHIP 15K 5% 1/10W
R8990 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8991 1-216-097-91 RES,CHIP 100K 5% 1/10W
R8992 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

MISCELLANEOUS
*************

£ 1-416-654-11 COIL DEMAGNETIC (KV-29FS60)
£ 1-416-769-11 COIL DEMAGNETIC (KV-32FS60)
1-425-032-00 MAGNET, DISK: 10MM
1-452-094-00 MAGNET, ROTATABLE DISK; 15MM
£ 1-453-272-11 TRANSFORMER ASSY, FLYBACK (NX-4512/U2B4)

1-529-153-11 SPEAKER (4.8X20CM)
1-529-144-11 SPEAKER (13CM)
1-452-896-11 COIL, NA ROTATION (RT200)
£ 1-571-433-21 SWITCH, PUSH (AC POWER)
£ 1-574-062-61 CORD POWER (WITH CONNECTOR)
(KV-29FS60A/29FS60B/29FS60D/
29FS60E/29FS60K/29FS60R/
32FS60A/32FS60B/32FS60D/
32FS60E)

£ 1-590-762-21 CORD POWER (WITH UK PLUG) (KV-29FS60U)
1-693-338-11 TUNER/VIF (AEP)
(KV-29FS60A/29FS60D/29FS60E/
29FS60K/29FS60R/
32FS60A/32FS60D/32FS60E)

1-693-340-11 TUNER/VIF (FR) (KV-29FS60B/32FS60B)
1-693-339-11 TUNER/VIF (UK) (KV-29FS60U)
£ 8-735-053-05 PICTURE TUBE (M68LNH060X) (KV-29FS60)
£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (SD-302)(KV-32FS60)
£ 8-451-504-11 DEFLECTION YOKE (KV-29FS60)

R8993 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R8994 1-216-073-00 RES,CHIP 10K 5% 1/10W
R8995 1-216-089-91 RES,CHIP 47K 5% 1/10W

< CRYSTAL >

X8200 1-781-148-21 VIBRATOR, CRYSTAL
X8300 1-567-504-11 OSCILLATOR, CRYSTAL
X8301 1-567-505-11 OSCILLATOR, CRYSTAL
X8400 1-567-504-11 OSCILLATOR, CRYSTAL
X8401 1-567-505-11 OSCILLATOR, CRYSTAL

X8700 1-767-342-21 VIBRATOR, CRYSTAL

£ 1-451-480-11 DEFLECTION YOKE (KV-32FS60)
£ 8-453-011-11 NECK ASSY, NA299-M
£ 1-251-317-31 CAP ASSY, HIGH VOLTAGE
*1-204-549-01 BRACKET, MAIN
1-790-082-11 CABLE, RF

1-771-599-11 SWITCH ARRAY

********************************************************************

166

The components identified by
shading and marked are critical
for safety
Replace only with the part number
specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

ACCESSORIES AND PACKAGING MATERIALS (KV-29FS60)
***********************************

1-765-654-11 CABLE,SPEAKER
4-204-589-41 MANUAL, INSTRUCTION (KV-29FS60A)
(ITALIAN)
4-204-589-51 MANUAL, INSTRUCTION (KV-29FS60B)
(FRENCH/GERMAN/ITALIAN/DUTCH)

4-204-589-11 MANUAL, INSTRUCTION (KV-29FS60D)
(GREEK/ENGLISH/DUTCH/TURKISH)
4-204-589-71 MANUAL, INSTRUCTION (KV-29FS60E)
(SPANISH)
4-204-589-81 MANUAL, INSTRUCTION (KV-29FS60E)
(PORTUGUESE/FINNISH/DANISH/NORWEGIAN/SWEDISH)

4-204-589-91 MANUAL, INSTRUCTION (KV-29FS60K/29FS60R)
(RUSSIAN/BULGARIAN/ENGLISH/POLISH/HUNGARIAN)
4-204-589-61 MANUAL, INSTRUCTION (KV-29FS60U)
(ENGLISH)
*4-204-476-01 BAG PROTECTION

*4-204-475-01 INDIVIDUAL CARTON
*4-204-553-01 CUSHION (UPPER) (ASSY)
*4-204-556-01 CUSHION (LOWER) (ASSY)

**********************************************************************

ACCESSORIES AND PACKAGING MATERIALS (KV-32FS60)
***********************************

1-765-654-11 CABLE, SPEAKER
4-204-562-41 MANUAL, INSTRUCTION (KV-32FS60A)
(ITALIAN)
4-204-562-51 MANUAL, INSTRUCTION (KV-32FS60B)
(FRENCH/GERMAN/ITALIAN/DUTCH)

4-204-562-11 MANUAL, INSTRUCTION (KV-32FS60D)
(ENGLISH/GERMAN)
4-204-562-71 MANUAL, INSTRUCTION (KV-32FS60E)
(SPANISH/PORTUGUESE/FINNISH/
DANISH/NORWEGIAN/SWEDISH)

*4-060-976-01 BAG PROTECTION
*4-204-475-01 INDIVIDUAL CARTON
*4-204-380-01 CUSHION (UPPER) (ASSY)
*4-204-381-01 CUSHION (LOWER) (ASSY)

********************************************************************

REMOTE COMMANDER
****************

1-418-047-11 REMOTE COMMANDER (RM-891)

167
