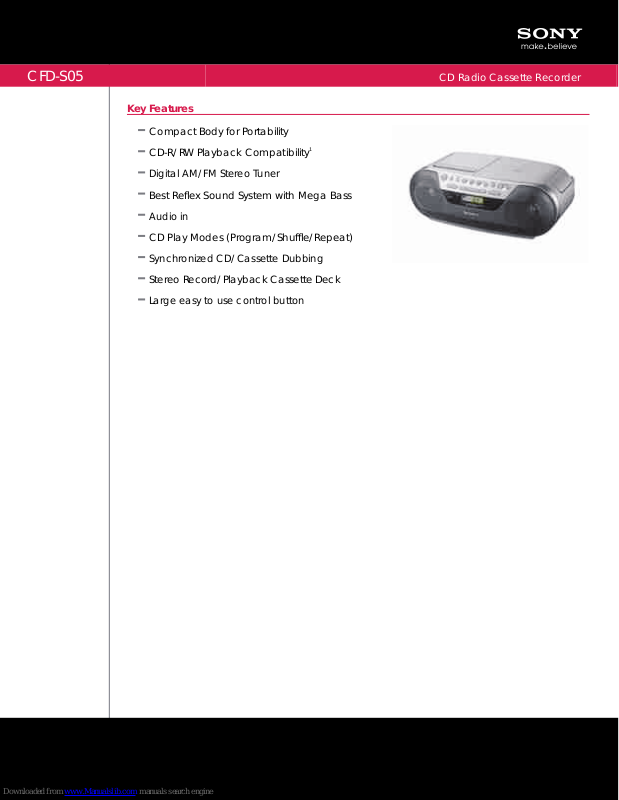

CFD-S05
CD Radio Cassette Recorder
Key Features
Compact Body for Portability
CD-R/RW Playback Compatibility
1
Digital AM/FM Stereo Tuner
Best Reflex Sound System with Mega Bass
Audio in
CD Play Modes (Program/Shuffle/Repeat)
Synchronized CD/Cassette Dubbing
Stereo Record/Playback Cassette Deck
Large easy to use control button
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 06/03/2010
CFD-S05
CD Radio Cassette Recorder
Please visit the Dealer Source for current
information at www.sony.com/dealersource
Specifications
General
Type of Use: Portable Boombox
Tray Type: Vertical Loading Single CD
Disc Capacity:
1
Audio
Digital
-to-Analog Converter:
1 Bit
Frequency Response:
CD: 20-20000Hz (+0/-1dB)
Cassette: 50-
13000Hz (±3dB)
Format(s) Supported: CD-R/RW Playback Compatibility
Tuning: Auto Scan Radio
Antenna System: AM: Built-in Ferrite Bar Antenna; FM:
Telescopic Antenna
Tape System: 4 Track, 2 Channel Stereo Cassette,
Synchronized CD/Cassette Dubbing
Frequency Range:
AM: 530-1710kHz; FM: 87.5-108.0MHz
CD Play Mode(s): Program, Shuffle, Repeat, 20 Track
RMS Programming
Station Preset(s):
30 (10 AM, 20 FM)
Sound Enhancer: Mega Bass®
Equalizer: 4 Preset (Rock, Pop, Jazz, Vocal)
Tape Operation: Single Stereo Cassette (fast winding)
Tuner Type:
Digital
Features
Convenience
Timer Events: Fall Asleep to Music (Select from 6 Timed
Shut Offs)
Hardware
Display:
LCD
Power
Power Requirements:
AC 120V, 60Hz
Output Power: 3.4W Total (1.7W + 1.7W (at 3.2 ohms,
10% harmonic distortion))
Battery Type: Unit: "C" x 6 (optional); Remote: "AAA" x 2
Power Handling Capacity:
With 3.2-ohm loads, both
channels driven from 100-10000Hz; rated 1.7W per
channel minimum RMS power, with no more than
10% total harmonic distortion in AC operation.
Battery Life (Approx): Unit: up to 20 hours (with Sony®
Alkaline Batteries)
Speaker
Speaker System:
Built
-In Stereo
Speaker Dimensions:
4" (10cm) x 2
Inputs and Outputs
Input(s):
Audio in
Headphone Input(s):
1
DC
-In:
1
Dimensions
Weight:
5 lbs 11 oz (2.6kg)
Measurements:
14 1/4 x 5 3/8 x 9 3/8" (360 x 141 x
235mm)(whd)
Supplied Accessories
AC Power Cord
Operation Manual
UPC Code:
027242780262
1. CD/R-RW media/formats are not universally compatible.
©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited.
All rights reserved. Sony, Mega Bass, Remote Commander, and
like.no.other are trademarks of Sony.
1
Features and specifications are subject to change without notice. Non
-
metric weights and measures are approximate.
