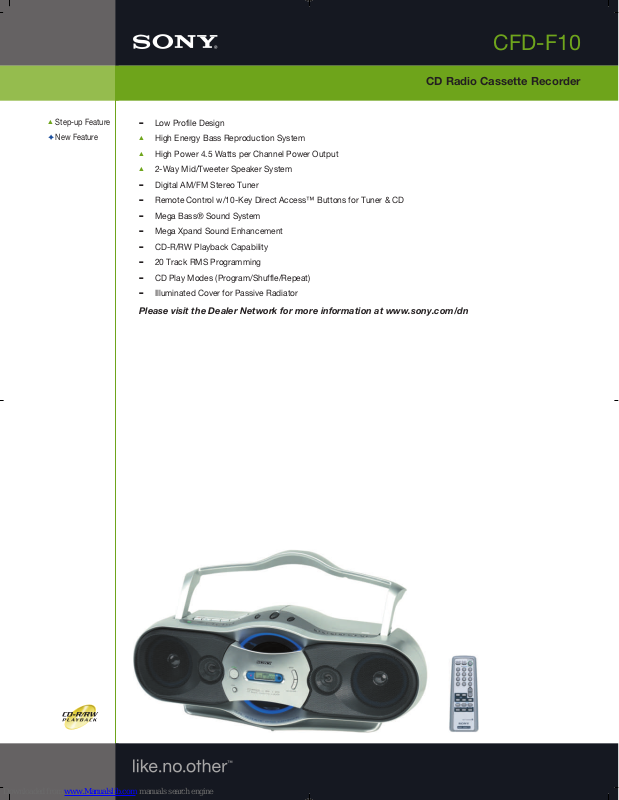

Page 1
CFD-F10
CD Radio Cassette Recorder
T
Step-up Feature
'
New Feature
O
Low Profile Design
T
High Energy Bass Reproduction System
T
High Power 4.5 Watts per Channel Power Output
T
2-Way Mid/Tweeter Speaker System
O
Digital AM/FM Stereo Tuner
O
Remote Control w/10-Key Direct Access™ Buttons for Tuner & CD
O
Mega Bass® Sound System
O
Mega Xpand Sound Enhancement
O
CD-R/RW Playback Capability
O
20 Track RMS Programming
O
CD Play Modes (Program/Shuffle/Repeat)
O
Illuminated Cover for Passive Radiator
Please visit the Dealer Network for more information at www.sony.com/dn
Page 2
CFD-F10
®
CD Radio Cassette Recorder
features
O
Low Profile Design establishes a sleek new look in portable entertainment
T
High Energy Bass Reproduction System a new design in bass reproduction
gives this model a full rich bass reproduction by combining bass reflex and air
suspension within a single cabinet design
T
High Power 4.5 Watts per Channel Power Output gives this boombox
dynamic sound quality
T
2-Way Mid/Tweeter Speaker System provides crisper highs for better sound
separation
O
Digital AM/FM Stereo Tuner provides the most accurate drift-free tuning of
AM and FM radio stations and lets you choose from the wide variety of radio talk
shows and music programs, with the added enjoyment of stereo sound
O
Remote Control w/10 Key Direct Access™ Buttons for Tuner and CD
provides full function remote control of power on/off, compact disc, tuner and
volume convenient, one-button access to preset AM/FM stations or tracks of CD
player
O
Mega Bass® Sound System produces rich, deep, bass tones for more
powerful overall sound
O
Mega Xpand Sound Enhancement further enhances the sound field for a fuller
sounding listening area
O
CD-R/RW Playback Compatibility plays all compact discs including CD-R
recordable and CD-RW rewritable
O
20 Track RMS Programming can pre-program up to 20 tracks on a CD to play
back in any order
O
CD Play Modes (Program/Shuffle/Repeat) lets you hear tracks in sequence
as recorded, in program (RMS) order in program (RMS) order or a single track
over and over, or all tracks in random (Shuffle) order
O
Blue Illumination around Passive Radiator gives this boombox a high tech
look and feel
specifications
Digital Filter: 8X Oversampling
D/A Conversion: 1 Bit
Frequency Response: 20-20000Hz, +0, -1dB (CD)
Frequency Range: AM: 530-1710kHz; FM: 87.6-108MHz
Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Telescopic Antenna
Tape System: 4 Track, 2 Channel Stereo Cassette
Output(s): Headphone (stereo mini jack)
Battery Life (Approx.): 20 Hours FM Radio, 15 Hours Cassette Playback; 7 Hours CD play (at
80% volume) w/Sony Alkaline Batteries
Power Requirements: "C" x 6 Batteries (optional) AC 120V, 60Hz; "AAA" x 2 for remote
(optional), "AA" x 3 for clock, memory (optional)
Output Power: JEITA 2.3W/Channel
Speaker Unit: 4" (10cm) x 2
Weight: 8 lbs 12 1/3 oz (4kg) w/batteries
Dimensions (WHD): 16 1/2" x 6 1/2" x 10" (420 x 165 x 256mm)
Color: Silver
UPC Code: 0272426369650
