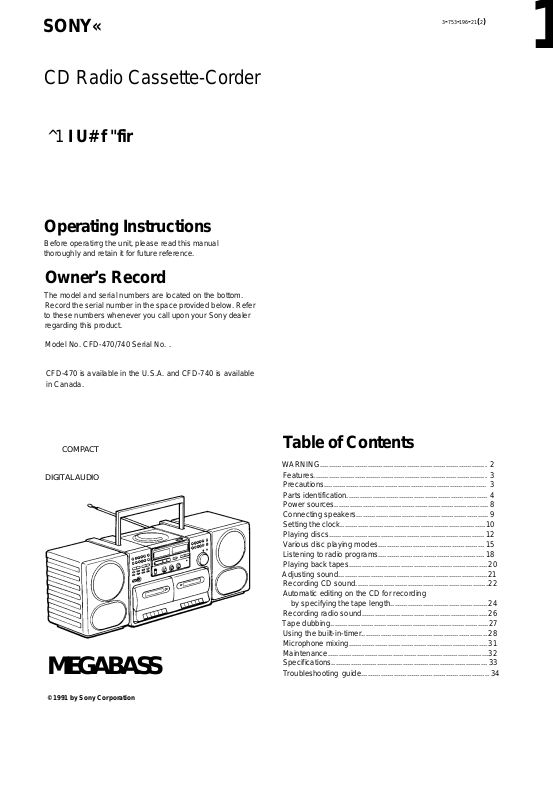

SONY«
CD Radio Cassette-Corder
^1 I U# f "fir
Operating Instructions
Before operatirrg the unit, please read this manual
thoroughly and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom.
Record the serial number in the space provided below. Refer
to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. CFD-470/740 Serial No. .
3-753-196-21(2)
1
CFD-470 is available in the U.S.A. and CFD-740 is available
in Canada.
COMPACT
DIGITAL AUDIO
MEGABASS
© 1991 by Sony Corporation
Table of Contents
WARNING............................................................................. 2
Features................................................................................ 3
Precautions
Parts identification................................................................. 4
Power sources....................................................................... 8
Connecting speakers............................................................. 9
Setting the clock...................................................................10
Playing discs........................................................................12
Various disc playing modes
Listening to radio programs
Playing back tapes................................................................20
Adjusting sound.....................................................................21
Recording CD sound.............................................................22
Automatic editing on the CD for recording
Recording radio sound..........................................................26
Tape dubbing.........................................................................27
Using the built-in-timer
Microphone mixing................................................................31
Maintenance..........................................................................32
Specifications
Troubleshooting guide
...........................................................................
.................................................
.................................................
by specifying the tape length.............................................24
..........................................................
........................................................................
...........................................................
15
18
3
28
33
34
WARNING
To prevent fire or shock hazard, do not ex
pose the unit to rain or moisture.
CAUTION
i RISK OF ELECTRIC SHOCK
I
DO NOT OPEN
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR SACK).
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of elec
tric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and mainte
nance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this product will
Increase eye hazard.
Information
This equipment generates and uses radio frequency energy
and if not installed and used properly, that is, in strict accor
dance with the manufacturer's instructions, may cause
Interference to radio and television reception. It has been
type tested and found to comply with the limits for a Class B
computing device In accordance with the specifications in
Subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference in a
residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause interference to radio or television
reception, which can be determined by turing the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient the receiving antenna
Relocate the equipment with respect to the receiver
Move the equipment away from the receiver
Plug the equipment into a different outlet so that
equipment and receiver are on different branch circuits.
If necessary, the user should consult the dealer or an expe
rienced radio/television technician for additional sugges
tions. The user may find the following booklet prepared by
the Federal Communications Commission helpful:
“How to Identify and Resolve Radio-TV Interference
Problems”. This booklet is available from the U.S.
Government Printing Office, Washington, DC 20402, Stock
No. 004-000-00345-4.
Features
Memory preset tuning
A total of 20 stations can be stored in any order.
High quaiity sound
The Sony MEGA BASS system produces a powerfui bass.
A high performance, high fideiity CD piayer
with many functions
• An 8 cm (3-inch) CD can be played without using an
adaptor.
• Repeat function allows playing either the entire disc or a
single selection.
• Program play for playing selections in the order desired.
• Shuffle play for playing selections repeatedly in random
order.
Precautions
On safety
• Operate the unit only on 120V AC or 15V DC.
For AC operation, use the AC power cord supplied: do not
use any other type.
For battery operation, use ten size D (R20) batteries.
• Unplug the unit from the wall outlet when it is not to be used
for an extended period of time.
• When the internal batteries are not to be used, remove
them to avoid damage caused by battery leakage and
corrosion.
• As the laser beam used in the CD player section is harmful
to the eyes, do not attempt to disassemble the casing.
Refer servicing to qualified personnel only.
• Should any solid object or liquid fall into the unit, unplug
the unit, and have it checked by qualified personnel before
operating it any further.
On installation
• Do not leave the unit in a location near heat sources, or in a
place subject to direct sunlight, excessive dust, or mechan
ical shock.
• If the unit is left in a car parked in the sun, be sure to
choose a location in the car where the unit will not be
subject to the direct rays of the sun,
• Do not place anything within 10 mm of the side of the
cabinet. The ventilation holes must be unobstructed for
the proper operation of the unit and to prolong the life of its
components.
• Since a strong magnet is used for the speakers, keep per
sonal credit cards using magnetic coding or springwound
watches away from the unit to prevent possible damage
from the magnet.
• A synchronized CD starting system for recording.
• An automatic editing function—The CD player automati
cally edits the selections on a CD depending on the tape
length.
Digital clock timer
• You can listen to CD or radio at a preset time.
Others
High or normal speed tape dubbing
On operation
• If the unit is brought directly from a cold to a warm location,
or is placed in a very damp room, moisture may condense
on the lenses inside the CD player section. Should this
occur, the player will not operate properly. In this case,
remove the disc and wait about an hour for the moisture to
evaporate.
• If the unit has not been used for a long time, set it in the
playback mode to warm it up for a few minutes before
inserting a cassette.
• The use of cassettes longer than 90 minutes is not recom
mended except for long continuous recording or playback.
Whether you are going to operate the unit on AC power or on
batteries, make sure to insert three size AA (R6) batteries for the
clock/timer/memory functions.
• If a cassette cannot be removed
If the power was accidentally cut off (for example, the AC
power cord was disconnected, the batteries fell out or an in
terruption of the main power source occurred) after REC
or HI-SPEED DUB was pressed, it may not be possible to
eject the cassette. In this case, supply power to the unit again
and then press ■ ± to remove the cassette.
• If the cassette holder cannot be closed firmly
Press ■ ^ to remove the cassette and rei nsert it i nto the
holder. Do not attempt to play back or record when the cas
sette holder is not firmly closed. Otherwise, the cassette may
be damaged.
If you have any question or problem concerning your unit, please
consult the nearest Sony dealer.
Parts Identification Refer to the pages indicated in # for details.
RmHo CasMlto^^cmter Section
»■PLAY
REW (rewind)
»»- FF (fast forward)
II PAUSE
»-PLAY
•«4 REW (rewind)
»»■ FF (fast forward)
II PAUSE
CD/TIMER/CLOCK MULTI OPERATION DISPLAY window
TIMER Indication 9 AUTO SPACE Indication 9
FM,AM indication 9 MHz, kHz indication 9
' . • » *'
7
Power Sources
Two separate power sources are needed to operate this unit: one for the unit itself and one for the clock/timer/memory.
You can use the unit either with house current, or batteries. In either case, be sure to insert batteries for the
clock/timer/memory.
Notes
• The unit cannot be operated on the internal batteries when the AC
power cord is connected to the unit.
• For critical recordings or disc playing, operating the unit on house
current is recommended.
8
Battery replacement
Batteries for the operation of the radio cassette-corder:
When the batteries become weak, the OPR/BATT indicator
will become faint. In this case, replace all the batteries with
new ones.
Batteries for clock/timer/memory:
When the batteries become weak, the indication in the dis
play window becomes faint. Replace the batteries with new
ones and then adjust the clock to the current time, reset the
timer setting, if necessary.
Note
When you replace the batteries for clock/timer/memory, be sure to
connect the AC power cord to the unit and to the wall outlet and turn
the power on before you remove the batteries.
Connecting Speakers
Align the grooves and slide the speaker box down.
To detach speakers ®
Unlock the speaker and slide the speaker box all the way up
and away from the main unit.
To connect the speaker wire
• Turn off the power before connecting or disconnecting the
speaker cords.
• Connect the speaker cord of the right speaker to the R con
nectors and left speaker to the L connectors.
• Connect black wires to - terminals and red wires to + ter
minals.
Q Size AA (R6) batteries for clock/timer/memory
O01liny iri0 OlOCK should be inserted into the battery compartment.
Turn the power off. Press CLOCK for about 4
I..a •
seconds until the CLOCK
indication appears in the
display window.
D-n n
u
10
Time indication
AM 12:00 = midnight
PM 12:00 = noon
Press for about 4 seconds
until the CLOCK Indication
1
appears in the display
window.
Press three times
until ” comes to the
last digit.
c
“—” shows the position where
the next number witi be entered.
"—” moves to the ieft by pressing |-
To set seconds exactly
Ex.: To set the clock to PM7:00 (00 seconds)
Set the clock to PM6:59; then continue to keep CLOCK
down. At a signal indicating the exact hour (ex. a radio
broadcast or telephone “time” service), release the button.
Press the number buttons to enter the hour and then the
minute.
If the hour and/or minute has one digit, be sure to press 0 before the
number.
Select AM or PM by +10/AM/PM.
Example: To set to PM 8:45.
CLOCK CIOCK
-n.nn ^
u uu ^
ua- u
” shows the position where the next
nu«rt»i«Wbeentefed.
"flS - 4 -
“CSfS -► -SSHS
Press CLOCK again.
The moment you release the
button, the clock starts.
To check the current time
The display window shows the current time except when the
CD playing. To check the time while playing the CD, press the
CLOCK button.
i"' ' f:j:i3rrs:itrisr
«'x;. ■' ■■
11
Playing Discs You can play an 8 cm (3-inch) CD without using an adaptor for it.
1
Press POWER (xi ON). Set FUNCTION TO “CD”
“X-ji::«* 3
«X-
L
J
To adjust the volume and tone
Use the VOLUME and ROTARY EQUALIZER controls.
(See page 20.)
CD operating buttons
If you want to
Play
Stop play
pause for a moment
resume play after pausing
remove a disc
After use
Turn the power off (n).
Presé
C>
□
OD
DO
□—OPEN
The selection being played
Press DISPLAY once.
The disc being played
Press DISPLAY twice.
1Q
• TUNER
• DUBBING
• TAPE
Important
Since the CD system offers a wide dynamic range, the
peaks of high level inputs are recorded with high fidelity,
and the noise level is very low. Do not turn up the volume
while listening to a portion with no audio signals or very
low level inputs. It you do, the speakers may be damaged
when a peak level portion is played.
Notes on Compact Disc
Handle the disc by its
edge, and to keep the
disc ciean, do not touch
the surface.
12
For normal display, press DISPLAY again.
Note
During shuffle or repeat playing, the remaining time of the disc
being played cannot be displayed.
Do not stick paper or
tape or write anything
on the surface.
The disc starts to rotate and the
indication appears as follows.
Music Caiendar
I Total playing time
Total selection number
The indication will return to “00”
after about 4 seconds.
Press >.
%
Playing of the first selection
starts.
O
Selection number being played
Note
Do not open the disc holder
while playing the disc.
2l3
Elapsed playing time
-- -----
r ' r ■
TMS'S-Vvrtfe
While CD player is set In pause
Pause indicator appears.
Between selections
The remaining time for the next selection is displayed.
n C n nn 3
u u u uu J
Before playing,
clean the disc with the
optional CD cleaner.
Wipe the disc from the
center out.
Notes
• If the disc is played near a TV or radio, noise may occur on the TV
or radio.
• If there is no disc in the disc holder, the following indication ap
pears in the display window.
no disc
> Up to 20 selections are displayed in the music calendar.
»If the disc has more than 21 selections, OVER 20 appears in the
display window.
2 3 4 5
9 10
678
n n
u u
The remaining time of the selection from the 21st selection appears
as “----------:
To see the “total selection number” and “total playing time” while
the CD player is set in the stop mode, press DISPLAY.
Do not use solvents such as benzine, thinner, commercially available
cleaners or anti-static spray intended for analog discs.
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or heat source such as hot
air ducts, or leave it in a car parked in direct sunlight where there can
be considerable rise in the temperature.
------
Elapsed playing time is displayed during playing.
11 12 131415
19 20
161718
13
Be sure the SHUFFLE and PROGRAM laWM indications
are not displayed in the display window. Otherwise, press
theSHUFFLE/PROGRAM button.
Press or during play or pause.
To locate a previous selection
Press once to locate the beginning of the selection
being played.
Press continuously to locate a previous selection.
-«-SEND—
J
To locate a selection ahead
Press once to locate the next selection after that being
played.
Press continuously to locate a selection ahead.
«•—SEND—►
In pause mode
The player pauses at the beginning of each selection. To start
playing, press GO.
During program play
If you press or (•H fho player plays the selections in the
memorized order.
During shuffle play
The disc does not locate a previous selection but the begin
ning of the selection being played when the button is
pressed.
*AMS: Automatic Music Sensor
If a selection number is less than 10
Press a selection number by using the number buttons.
Example:
To select the 10th selection
+ 1U
Press
Press
Press -«4 or during play or pause.
To review disc playing To advance disc playing
INTRO SCAN PGM CHECK INTRO SCAN PGM CHECK
c
o
AM/PM
a
3 c
I n
I U
To select the 33rd selection
Press
Press
Press
Press
pp 1
%
14
If a selection number is more than 10
Press -no first then the number buttons.
To select the 30th selection
+10
o
AM/PM
+10
o
AM/PM
+10
o
AM/PM
O’
1
1
3-
33
Release the button at the point desired, located by monitor
ing the high-speed sound.
In the pause mode, you can search rapidly. However, you
cannot hear the sound. Observe the time counter.
Press
Press
Press
Press
+10
AM/PM
+ 10
AM/PM
+10
AM/PM
1
t
3-
30
Various Disc Playing Modes
Each time you press the SHUFFLE/PROGRAM button, the
playing mode changes in sequence as indicated in the
dispiay window: SHUFFLE -» PROGRAM idrtw -*■ normai
play.
To stop shuffle play
Press □.
To release shuffle play
Press SHUFFLE/PROGRAM until the SHUFFLE or
PROGRAM USQ indication disappears from the display
window.
Normal play begins from the selection being played.
To start shuffle play from normal play
Press SHUFFLE/PROGRAM during normal play.
Shuffle play begins from the selection being played.
To display the remaining time of the selection being
played
Press DISPLAY once.
ainijgThe remaining time of the selection
being played.
To return to the normal display, press DISPLAY again.
From the 21st selection, the remaining time will be displayed
as“
----------:------
Note
During shuffle play, the remaining time of the disc is not displayed.
15
Various Disc Playing Modes
lb Play the Seiecttons in ttw Onter DMrired
To stop program play
Press □.
To reprogram the selections
• Open and close the disc holder to erase the previous pro
gram and repeat the steps from the beginning. Be sure the
OPR/BATT indicator iights up; otherwise, the selections
programmed cannot be erased.
• Press PGM CLEAR/EDIT to erase the last selection
programmed.
Each press of PGM CLEAR/EDIT erases one selection.
Press the number button to program in a new order.
To program a pause
Be sure that the AUTO SPACE indication does not appear in
the display window. Press QD at the position desired. Each
press of OOcounls as one selection.
3
8
P
04
During program play the player will be set in pause when it
comes to R To resume playing, press
To check the programmed selections
During programming, press ►►/PGM CHECK. You can
check the selections from the beginning. Each press of
►►/PGM CHECK shows the programmed selections in
order.
DD
again.
№
To check the total playing time of the selections
programmed
During programming, press DISPLAY. The total playing time
of the selections programmed appears in the display window.
If there is a PAUSE in the programmed selections, the play
ing time after the PAUSE appears.
To return to the normal display, press DISPLAY again.
When the programmed selections are finished
The selection number in the music calendar disappears one
by one, but the programmed selections are memorized until
the lid of the disc holder is open.
To release program play
Press SHUFFLE/PROGRAM until the PROGRAM MelH
indication disappears from the display window.
_____
16
To R<H>eM ilbde
Press REPEAT 1/ALL.
Each time you press the REPEAT 1/ALL button, the repeat
mode changes in sequence as indicated in the display win
dow: REPEAT 1 -» REPEAT ALL-» normal play.
To repeat only one selection
To stop repeat play
Press □.
To release the repeat play
Press REPEAT 1/ALL until the REPEAT indication disappears
from the display window.
To repeat the program play
During program play, press REPEAT 1/ALL. The PROGRAM
REPEAT indication appears in the display window, and the
programmed selections will be repeated.
You can scan the beginning of the selections in normal play,
shuffle play and program play for 10 seconds by pressing
-4^INTR0 scan while the disc player is in the stop mode.
—№peat 1 pitv
While playing the
selection you repeat
want to repeat. '/all
Be sure REPEAT 1 indication
appears in the display window.
Di H33B
To repeat the shuffle play
During shuffle play, press REPEAT 1/ALL. The SHUFFLE
REPEAT indication appears in the display window, and the
shuffle play will be repeated.
Note
During repeat play, the remaining time of the disc being played can
not be displayed.
To release INTRO SCAN, press any button for disc play.
Notes
• If PAUSE is programmed in program play, the INTRO SCAN
function skips the PAUSE.
• During REPEAT 1 play, the INTRO SCAN function does not work.
To repeat the entire disc
—Repeat all play
While playing the
disc you want to repeat
repeat.
Be sure REPEAT ALL indication
appears in the display window.
033 3
Press
D
17
Listening to Radio Programs
To adjust the volume and tone
Use the VOLUME and ROTARY EQUALIZER controls.
(See page 20.)
1
Press POWER (xi ON).
POWER
To turn off the radio
Press POWER (n OFF).
Set FUNCTION to
“TUNER”.
• CD
• TUNER
• DUBBING
r
• TAPE
Once you preset the stations, you can listen to the station
desired just by pressing the number buttons. You can preset
up to 20 stations at random.
To tune in a preset station
After memorizing in the example above: press the preset
tuning button 2. Memorized station FM 89.2 MHz will be
tuned.
To erase the previous station
Enter a new station on the preset button, and the previous
station will be erased automatically.
18
Select the band desired,
FM or AM.
BAND
C on
3 3 LI
AM or FM
(If the station desired is preset, skip
this step.)
Tune in a station desired, or press the number
button if the stations are preset.
When the station desired is tuned in, the TUNING indicator
lights. MEMORY
TUNING
o'aaao' o
( - I + )
O'o O'a a o
b
AM
The frequency increases (or deceases) by 10 kHz for AM
and by 0.1 MHz for FM each time you press + (or -) of
TUNING.
in nn
lU ULI
kHz
b
If a preset number is more
than 10
Ex. Preset number: 15
Press +10, then press 5 within 5
seconds.
When an FM stereo program is tuned in
FM ST indicator lights up.
If the received FM stereo is too weak
The reception becomes monaural, and the FM ST indicator
will go out.
Select the band desired,
FM or AM.
BAND
Tune in a station desired.
TUNING
( - I + )
b
FM SENS selector
While listening to FM programs, normally, set the selector to
DX.
However, if a very strong station signal causes noise or if mul
tipath signals are heard, set it to LOCAL. The noise will be
reduced.
■'M
While keeping MEMORY
pressed, press a preset
number desired.
TUNER
2 /■ —
aao^
aao"
If a preset number
desired is more than 10
Ex. Preset number
desired: 15
While keeping MEMORY
pressed, press + 10, then
press 5.
fU 1^ —J |— UHi
O
/.
3
Antenna adjustment
FM
™ n n
n
™
O
AM
n n ~l
U 3-C
¥Hz
'‘2” appears.
19
Playing Back Tapes (on either deck)
To adjust the volume and tone
Use the VOLUME and ROTARY EQUALIZER controls.
Tape operating buttons
If you want to Prras
play
stop play
pause for a moment
resume play after pause
remove a cassette
After winding with or press to release or
After use
Turn the power off (n).
For private listening, connect stereo headphones to
PHONES jack.
►
m±
II
II
(twice)
When both decks A and B are in moving mode
When both decks are in playback mode, only playback from
deck B will be audible.
20
Insert a cassette into deck A or B.
Tape side down
□ ^
Use the TYPE I (normal) tape.
Press PLAY.
On the deck with the tape inside
Adjusting Sound
To Obtain Powerful Bass
The “MEGA BASS” system produces a powerful bass with
the use of a bass reflex system added to a normal speaker
system.
ROTARY EQUALIZER
n
Powerful bass
err.—
IJJJJJJ
____
^
Powerful bass
To Equalize the Sound Reproduced
Turn each ROTARY EQUALIZER control toward +10 or -10,
When the equalizer is not used, set the controis to o (center
position).
100 Hz: Boost or cut heavy bass.
1 kHz: Provide more presence for vocais.
10 kHz: Adjust the brightness of the sound or reduce tape
hiss.
ftOTfcfrr EOUALIZCR
21
Recording CD Sound (Deck B)
To stop recording
Press □ of CD player and ■ ± of deck B.
After recording
Turn the power off (n).
The recording level is adjusted automatically.
The settings of VOLUME and ROTARY EQUALIZER will not
affect the recording level.
Note
You cannot turn off the power even if you press POWER during
recording.
22
Set FUNCTION to “CD”.
Use TYPE 1 (normal) tape.
Deck 6
Press REC.
1 Press POWER and set FUNCTION to “CD”.
2 Select shuffle or program play.
3 Press the REC button.
Playback of the disc and recording starts automatically after
a tew seconds.
^ is pressed automatically.
After approx. 8 seconds, CD
starts automatically and the
recording starts. (CD syn
chronized starting system)
O
Press AUTO SPACE.
A Four-second blank space is automatically recorded on the
tape.
AUTO SPACE
n n
u u
shtoe
Press AUTO SPACE again tor normal recording.
1 2 3
6
16
7 8 9
12 13
17 18
4 5
14
19 20j
10
«
23
Automatic Editing on the CD for Recording by Specifying
This CD radio cassette-recorder automatically edits the
selections on a disc according to the tape length (recording
length).
The recording length can be specified up to 99 minutes.
To edit automatically, use the PGM CLEAR/EDIT button.
Each time PGM CLEAR/EDIT you press, the editing mode
change in sequence as indicated in the display window:
EDIT 1 -► EDIT 2 -» normal recording.
^ ,, ■»»V
-t ss
EDIT 1: This unit programs the selections beginning from the
first one on the disc, summing up the playing time. When the
accumulated playing time exceeds half of the specified tape
length (= tape length of the front side), the last selection is
arranged to be recorded on the reverse side of the tape.
EDIT 2: This unit programs the selections beginning from the
first one on the disc, summing up the playing time. When the
accumulated playing time exceeds half of fhe specified tape
length (= tape length of the front side), the last selection will
be eliminated. Then, the unit looks for a selection whose
length is within the remaining tape length of the front side,
and substitutes it for the one eliminated.
-/Mi
EDITI
Insert a disc.
(Steps 1 through 3 in
“Playing Discs”)
Be sure the SHU^LE, the
PROGRAM Q9H or AUTO
SPACE indication disappears in
the display window; otherwise,
press SHUFFLE/PROGRAM or
AUTO SPACE.
EDIT 2
Select EDIT 1 or EDIT 2.
PGM CLEAR
Press
once.
EDIT
%
PGM CLEAR
EDIT
Press
twice
To check the programmed selections
Press ►►/PGM CHECK. You can check the selections from
the beginning one by one.
24
Press REC.
is pressed automatically.
6 :
Insert a blank cassette in
deck B.
Use TYPE I (normal) tapes.
When recording on the front side is finished
The CD player is set to the pause mode and the cassette
deck is set to the stop mode. Operate as follows:
© Take out the cassette and reverse the recording side.
@ Reinsert the cassette and press REC of fhe cassette
deck and II of the CD player.
The CD player starts to play and the cassette deck starts to
record on the reverse side.
the Tape Length
Example: To record on a 46-minute-tape
EDIT 1: Frontside:
EDIT 2: Front side:
(23 minutes for each side)
1 2 3,4 5,6,7
Disc 20 min.
Reverse side:
c J
u ut C
5 min. 2 min. 4 min. 8 min. 2 min.
[TliUlja
total 20 minutes
total 21 minutes
total 22 minutes
total 19 minutes
I Enter the total length by
# pressing the number
buttons.
Ex. 46-minute tape
Ex. 90-minute tape
Press *'9”, then “0”,
3 “4”, then‘‘6”.
HBE I
Notes
• Use a tape which is longer than the total playing time.
• Up to 20 selections can be edited automatically.
• When PGM CLEAR/EDIT is pressed, the selection order
memorized for program play will be erased.
• To record the selections which cannot be recorded on the specified
tape, after the selection programmed for automatic editing, press
SHUFFLE/PROGRAM and record them in the program play.
• When the disc holder is open, the selection order programmed for
automatic editing will be erased.
Press PGM CLEAR/
EDIT.
PGM CLEAR
EDIT
O
When the total playing time is short
er than the tape length, the CD
player will be set in the program
mode.
!B
When the total playing time is
longer than the tape, change the
tape for a longer one and repeat
from step 3.
After approx. 8 second, CD starts automatically and the recording
starts. (CD synchronized starting system.)
To stop recording
Press □ ofthe CD player and ofthe cassette deck.
After recording
Turn the power off (n).
25
Recording Radio Sound (Deck B)
To stop recording
Press
After recording
Turn the power off (n).
The settings of VOLUME and ROTARY EQUALIZER will
not affect the recording level.
Note
• You cannot turn off the power even if you press POWER during
recording.
To reduce noise during AM recording
If a whistling noise is heard, which was inaudible before the
REC button is pressed, set the ISS switch on the rear panel to
1,2 or 3, depending on which one best reduces the noise.
26
Tape Dubbing (from deck A to deck B)
To Stop dubbing
Press of deck A and then deck 6.
After dubbing
Turn the power off (n).
No volume adjustment is necessary during dubbing
Recording level is automatically set. So turn down the
volume if you do not want to hear the high speed sound
during high speed dubbing.
Notes
• If deck A’s tape finishes first, ^ will automatically be released and
deck B will also stop. • and ^ are still depressed. To release them,
press!
• If deck B’s tape finishes first, • and ^ will automatically be
released. Deck A will continue to play.
• You cannot turn off the power even if you press POWER during
dubbing.
27
Using the Built-in Timer
If the timer is preset by mistake
Repeat the above steps. The previous preset goes off.
1 Make sure the STANDBY
indication does not appear
in the display window. (If
it appears, press the
STNADBY switch.)
To check the preset time
Press TIMER in the standby mode.
Press POWER ON).
2 Press TIMER,
%
Seiect the sound source
desired.
1
TUNER
DUBBING
TAPE
tmf
At the preset time
The sound will come on automatically at the preset time, and
will turn off automatically after two hours have elapsed.
To release the timer standby mode
Press STANDBY. The STANDBY indication disappears from
the display window.
28
To listen to the discs in various playing modes at the time
desired
1 Press POWER (= ON).
2 Set FUNCTION to "CD".
3 Be sure that the disc player is in the stop mode and select
the playing mode desired from REPEAT 1/ALL, SHUFFLE
and PROGRAM. (See page 15-17.)
4 Set the timer.
5 Turn the power off (n OFF (TIMER/SUEEP)).
6 Press STANDBY so that the STANDBY indication will
appear in the display window.
The playing will start automatically at the preset time.
rB
~-Ei
Press the number buttons to program the
starting time.
Ex. Set to 6:15 a.m.
Press TiMER.
«10 TIMER
The TIMER indication appears.
Note
Be sure to program AM and PM correctly.
FUNCTION
selector
To listen
to a disc
To listen
to a radio
TUN ER
If you want to listen to the sound at the same time in the
next day
The preset time is memorized once you set it so that you do not need
to set it again. Press STANDBY again if STANDBY indication does not
appear in the display window.
Preparation
Insert a dis c
CD
into the dis c
hold er
Select the ban d
and tun e in the
station des ired .
Set the timer.
(See above.)
"06 IS
Turn the power off(n
OFF(TIMER/SLEEP)).
The current time appears in the
display window.
AM 12:00=midnight
PM 12:00=noon
Press STANDBY.
STANDBY
Make sure that the STANDBY
indication appears in the display
window.
29
Using the Built-in Timer
To release the sleep function before 60 minutes have
elapsed
Press SLEEP again to erase the SLEEP indication.
Ybu can fall asleep with the sound desired and you will be
awaked by the same program at the preset time.
1 Follow the steps as described in "To Fall Asleep with the
Sound Desired”.
2 Follow the steps as described in "To Listen to the Sound at
the Time Desired" (See page 28).
The SLEEP and STANDBY indications are displayed in the
display window.
30
. Microphone sounds can be mixed with CD,
Microphone Mixing radio or the tape
A'-
.
■ ■ ■ .
..-r, -r,v,rr/.v'
■■■ ■■
= /Air
;.i3 7vA r
'--■3
"a.;:-aS
/■;A
■■■■.' ■
1
Connect a microphone (not
supplied) to MIX MIC.
If the microphone has a power
switch, set it to on.
Use a monaural microphone.
Select the sound source desired.
Sound source
CD sound
Radio programs
Tape sound«
* Insert a cassette to be played back into deck
A.
Play the sound source and
speak or sing Into the
microphone.
Press POWER (x^ ON).
FUNCTION selector
CD
TUNER
DUBBING
Adjust VOLUME.
Insert a cassette into deck B and press the REC button.
adcbms sy^em
1 Connect a microphone to MIX MIC.
If the microphone has a power switch, set it to on.
2 Press POWER (xi ON).
3 Set FUNCTION to “TAPE".
4 Adjust VOLUME.
Notes
• If a howling (acoustic feedback) occurs, move the microphone
away from the speakers.
• It is not recommended to use a microphone equipped with echo
function.
31
Maintenance
Cleaning the heads and tape path
Contaminated heads cause insufficient recording or sound
drop-out in playback.
We recommend cleaning after every 10 hours of operation.
To make the best possible recordings, however, you should
clean all surfaces over which tape travels before making
each recording.
Wipe the heads, the pinch rollers and the capstans with a
cleaning tip slightly moistened with cleaning fluid or alcohol.
After cleaning the heads, rollers and tape path, insert a
cassette when the areas cleaned are completely dry.
Demagnetizing heads
After 20 to 30 hours of use, enough residual magnetism will
have built up on the heads to begin to cause loss of high
frequencies and hiss. At this time you should demagnetize
the heads and all metal parts in the tape path with a
commercially available head demagnetizer.
Cleaning the lens
If you have accidentally touched the lens of the CD player
section with dirty fingers or the dust has accumulated on the
lens, the unit will not operate properly. In such cases, clean
the lens with lens cleaning kit (not supplied).
Cleaning the cabinet
Celan the cabinet, panel and controls with a soft cloth slightly
moistened with a mild detergent solution. Do not use any
type of abrasive pad, scouring powder or solvent such as al
cohol or benzine.
32
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 6-ohm loads, both channels driven from 500-10,OOOHz; rated 2W per channel-minimum RMS
power, with no more than 10% total harmonic distortion in AC operation.
OTHER SPECIFICATIONS
CD player section
System
Laser diode properties
Spindle speed
Error correction
Number of channels
Frequency response
Wow and flutter
Radio section
Frequency range
Tape recorder section and general
Recording system 4-track 2-channel stereo
Fast winding time Approx. 2 min, with Sony cassette C60
Frequency response ♦ Total with TYPE 1 (NORMAL) cassette:
Speaker Two-way speakers:
Power output Model for Canada
Inputs Mixing microphone input jack (minijack)
Outputs Headphones jack (stereo minijack)
Power requirements 120V AC, 60HZ
Power consumption 25W
Compact disc digital audio system
Material: GaAIAs
Wavelength 780nm
Emission duration: Continuous
Laser output: Less than 44.6/iW *
«This output is the value measured at a dis
tance of about 200mm from the objective
lens surface on the optical pick-up block.
200 r.p.m. to 500 r.p.m. (CLV)
Sony Super Strategy Cross Interleave Read
Solomon Code
2
20—20flOOHzt“2 dB
Below measurable limit
FM: 87.5—108MHz
AM: 530—1,710kHz
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
80—10,000Hz
• Playback with TYPE 1 (NORMAL)
cassette: 60—12,OOOHz
Full-range: 10cm dia., cone type
Woofer: 8cm dia.
Two-way speakers: 6W + 6W (at 3.2
ohms, 315Hz, 10% harmonic distortion)
Sensitivity 25mV
For low impedance microphone
For 16—68 ohms impedance headphones
DC 15V, 10 size D (R20) batteries for CD
radio cassette-corder
DC 4.5V, 3 size AA (R6) batteries for
clock/timer/memory
Battery life
Sony SUM-1 (NS)
Sony Alkaline AM 1 (N)
Weight
Supplied accessory
Design and specifications subject to change without notice.
OPTIONAL ACCESSORIES
Stereo headphones Sony “MDR” Headphone Series
Dynamic microphone Sony “DYNAMIC MICROPHONE” series
Cassette erase BE-A200
Head demagnetizer HE-5C
Head cleaning stick CLH-5
Cleaning kits KK-4
CDcleaner XP-CD1.XP-CD4
Batteries for CD radio cassette-corder
Recording
approx. 9H approx. 4H
approx. 16H approx. 8H approx. 4H
696 X 255 X 236mm (w/h/d)
(27V2 X lOVs X 9^/8 inches)
not incl. projecting parts and controls
Approx. 9.4kg, incl. batteries
(Approx. 20 lb12oz)
AC power cord (1)
Playback CD playing
approx. 1.5H
33
Troubleshooting Guide
Trouble Cause and remedy
The unit does not operate. • The AC power cord is not connected (for AC operation).
No audio
The sound is cracked or distorted.
Trouble Cause and remedy
The unit does not operate. • The disc inserted with the labeled surface facing down.
Skipping of sound
• Incorrect polarity of batteries (See page 8.)
• Weak batteries (See page 8.)
• Turn the VOLUME control toward MAX.
• Check the FUNCTION selector setting.
• The headphones are plugged into PHONES jack (when listening
through the speakers).
• Speakers are not connected. (See page 9.)
• Turn down the VOLUME control.
• Dusty or defective disc (See page 13.)
• Dirty or dusty lens (See page 32.)
• The disc holder lid is not closed.
• Moisture condensation
• When the CD operation buttons cannot be activated, turn off the
unit and begin again.
• Improper setting of the FUNCTION selector.
• Dusty or defective disc (See page 13.)
• Dirty lens (See page 38.)
• Strong vibrations
Trouble
Tape does not move.
The REC button cannot be activated.
Recording or playback cannot be made or there is a decrease
in sound level.
Unsatisfactory erasing
Excessive wow or flutter, or sound drop-out
Clock
Trouble
Clock does not operate correctly.
Timer does not operate correctly.
34
Cause and remedy
• The cassette is being inserted improperly.
• The tape is slack.
• The cassette holder lid is not closed.
• No cassette in the cassette holder.
• The tab is removed from the cassette. (See page 22.)
• Dirty heads (See page 32.)
• Improper setting of the FUNCTION selector.
• Dirty erase head (See page 32.)
• Weak batteries (See page 8.)
• Contamination of the capstan or pinch roller (See page 32.)
• Magnetic contamination of the head (See page 32.)
• Weak batteries (See page 8.)
Cause and remedy
* Incorrect polarity of batteries for clock/tuner/memory. (See page 8.)
• Weak batteries. (See page 8.)
• Check if the clock is correctly set. (See page 10.)
• Check if timer setting is correct. (See page 28.)
• Weak batteries. (See page 8.)
Loading...
