Page 1
10
2000 MOBILE ES PRODUCT GUIDE
CDX-C8050X
CD Receiver
• CD/MD/TV Control, Custom File, HX DSP
• 4 Volt F/R/S Preout, <200Ω source imped.
• 50 W x 4 High Power Output
• Fold Down Detachable Face
• Supplied Wireless Remote
• X-tal Lock SSIR-EXA Tuner, Station Memo
• 18FM & 12AM Memory Presets
• 8X Oversampling, 1-Bit D/A, Active Servo Control
• Adj. Hi/Lo Pass Filters, Sub Pre-Out w/LPF level
• Multi-Color Dot Matrix LCD w/EL Backlight
General
Output Lead
DSP EQ
Power Requirements
Dimensions (w/h/d)
Mounting Dimension (w/h/d)
Weight
Supplied Accessories
Optional Accessories
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable Sensitivity
Selectivity
Signal-to-Noise Ratio
Harmonic Distortion @ 1 kHz
Separation
Frequency Response
87.5-107.9 MHz
External Antenna Connector
10.7 MHz
8 dBf
75 dB at 400 kHz
66 dB (stereo); 72 dB (mono)
0.6% (stereo); 0.3% (mono)
35 dB (@ 1 kHz)
30-15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530-1,710 kHz
External Antenna Connector
450 kHz
30 µV
CD Player Section
Mechanism Type
System
Frequency Response
Signal-to-Noise Ratio
Wow and Flutter
MG-383V-121//Q
Compact Disc Digital Audio System
10-20,000 Hz
90 dB
Below measurable limit
Power Amplifier Section
Speaker Outputs
Speaker Impedance
Maximum Power Output
RMS Power Output
Distortion
Front/Rear Outputs
4-8 ohms
50W x 4 (@ 4 Ω)
19W x 4 (20-20kHz, 4 Ω)
1% THD
Preamplifier Section
Line Outputs
Line Output Impedance
Bus Input Impedance
Max Line Output Level
Front/Rear/Sub (RCA)
200 ohms
50k ohms
4.0 Volts, < 1.0% THD
Design and specifications subject to change without notice.
Harness Plug Configuration
Plug shown with wires facing viewer
Pin Number Wire Color Description
1 White Left Front Positive
2 Green Left Rear Positive
3 Violet Right Rear Positive
4 Grey Right Front Positive
5 Blue/White Amp Remote
6 Blue Antenna Remote
7 Red Accessory +12 VDC
8 Black Ground
9 White/Black Left Front Negative
10 Green/Black Left Rear Negative
11 Violet/Black Right Rear Negative
12 Grey/Black Right Front Negative
13 Sky Blue Telephone Attenuate
14 Orange Illumination
15 N/C
16 Yellow Constant +12 VDC
Line Outputs (2), Power Antenna, Relay Control Lead, Power Amplifier Control Lead,
Telephone ATT Control Lead
±12dB at 62Hz, 157Hz, 396Hz, 1kHz, 2.5kHz, 6.3kHz, 16kHz
12VDC Car Battery (negative ground)
Approx.188 x 58 x 182 mm (71/2 x 23/8x 71/8 in.) (including trim)
Approx. 182 x 53 x 162 mm (73/
16
x 2 x 61/2in.)
Approx. 1.3 kg (2 lb. 14 oz.)
Parts for Installation and Connections (1 set); Front Panel Case (1), Wireless Remote (RM-X91)
Wired Remote (RM-X4S)

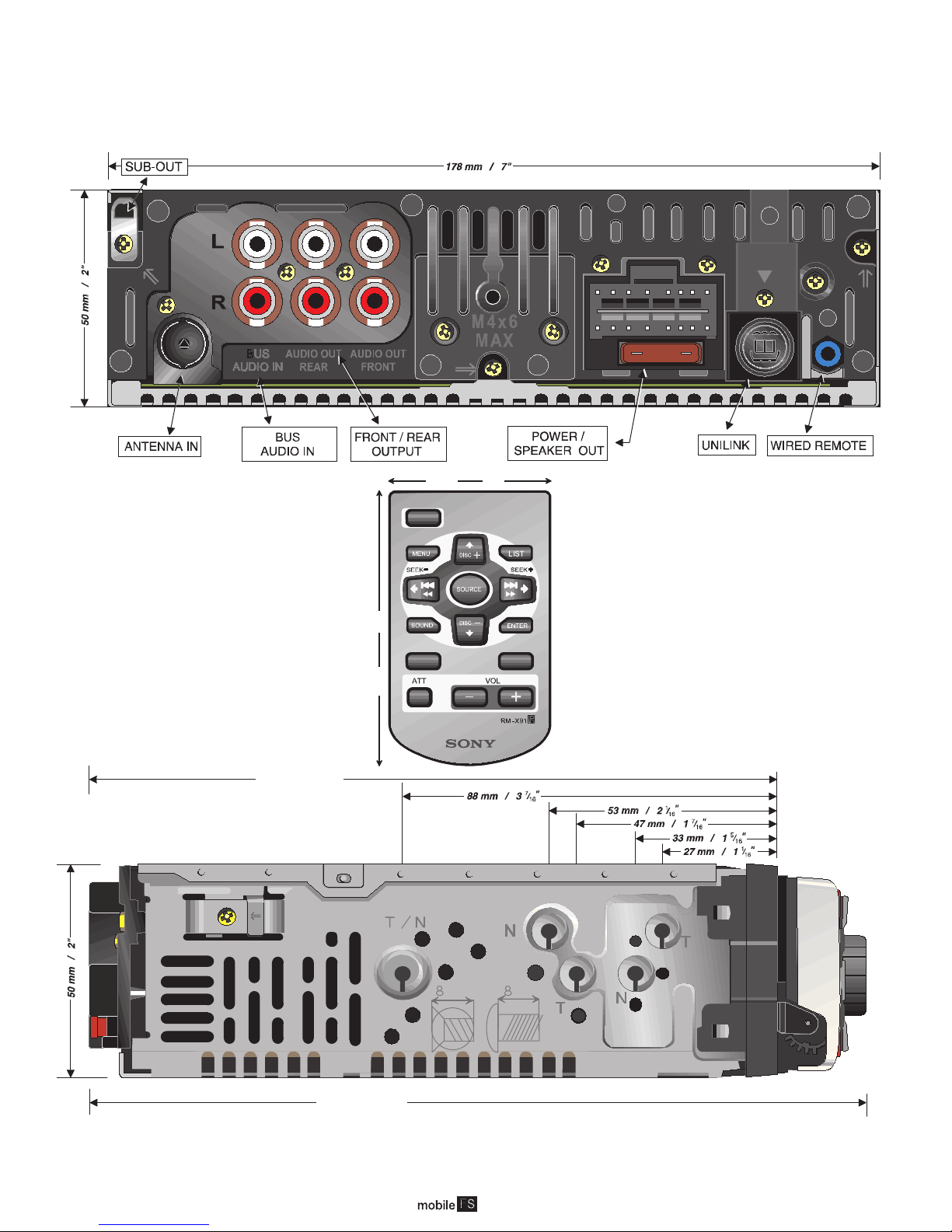

Page 2
11
2000 MOBILE ES PRODUCT GUIDE
CDX-C8050X
CD Receiver
10
161 mm / 6 5/16˝
3.5˝
89 mm
OFF
DSPL
52 mm
2.1˝
MODE
182 mm / 7
MAXMAX
3
/16˝
