2000 MOBILE PRODUCT GUIDE – PART 1
• CD/MD/TV Control w/Custom File™Memory
• D-Bass w/Auto Level Adjust
• Xplo-d 50 W x 4 Design, F&R Preouts
• Rotary Encoder, 3-color LCD, Clock
• Optional Wired/Wireless Remote
• X-tal Lock SSIR-EXA Tuner, Station Memo
• 18FM + 12AM Presets, BTM
• 8X Oversampling, 1-Bit, CD-R Playback†, CD TEXT
• Detachable Face, Active Display w/Demo Mode
• Repeat 1/2, Shuffle Play

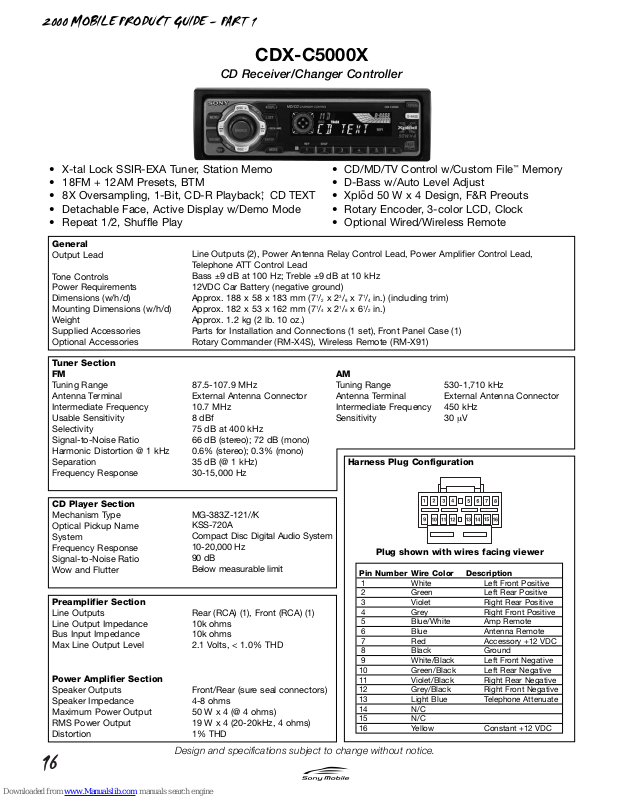

CDX-C5000X
CD Receiver/Changer Controller
General
Output Lead
Tone Controls
Power Requirements
Dimensions (w/h/d)
Mounting Dimensions (w/h/d)
Weight
Supplied Accessories
Optional Accessories
Line Outputs (2), Power Antenna Relay Control Lead, Power Amplifier Control Lead,
Telephone ATT Control Lead
Bass ±9 dB at 100 Hz; Treble ±9 dB at 10 kHz
12VDC Car Battery (negative ground)
Approx. 188 x 58 x 183 mm (7
1
/2x 23/8x 71/4in.) (including trim)
Approx. 182 x 53 x 162 mm (71/4x 21/8x 61/2in.)
Approx. 1.2 kg (2 lb. 10 oz.)
Parts for Installation and Connections (1 set), Front Panel Case (1)
Rotary Commander (RM-X4S), Wireless Remote (RM-X91)
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable Sensitivity
Selectivity
Signal-to-Noise Ratio
Harmonic Distortion @ 1 kHz
Separation
Frequency Response
87.5-107.9 MHz
External Antenna Connector
10.7 MHz
8 dBf
75 dB at 400 kHz
66 dB (stereo); 72 dB (mono)
0.6% (stereo); 0.3% (mono)
35 dB (@ 1 kHz)
30-15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530-1,710 kHz
External Antenna Connector
450 kHz
30 µV
CD Player Section
Mechanism Type
Optical Pickup Name
System
Frequency Response
Signal-to-Noise Ratio
Wow and Flutter
MG-383Z-121//K
KSS-720A
Compact Disc Digital Audio System
10-20,000 Hz
90 dB
Below measurable limit
Power Amplifier Section
Speaker Outputs
Speaker Impedance
Maximum Power Output
RMS Power Output
Distortion
Front/Rear (sure seal connectors)
4-8 ohms
50 W x 4 (@ 4 ohms)
19 W x 4 (20-20kHz, 4 ohms)
1% THD
Preamplifier Section
Line Outputs
Line Output Impedance
Bus Input Impedance
Max Line Output Level
Rear (RCA) (1), Front (RCA) (1)
10k ohms
10k ohms
2.1 Volts, < 1.0% THD
Design and specifications subject to change without notice.

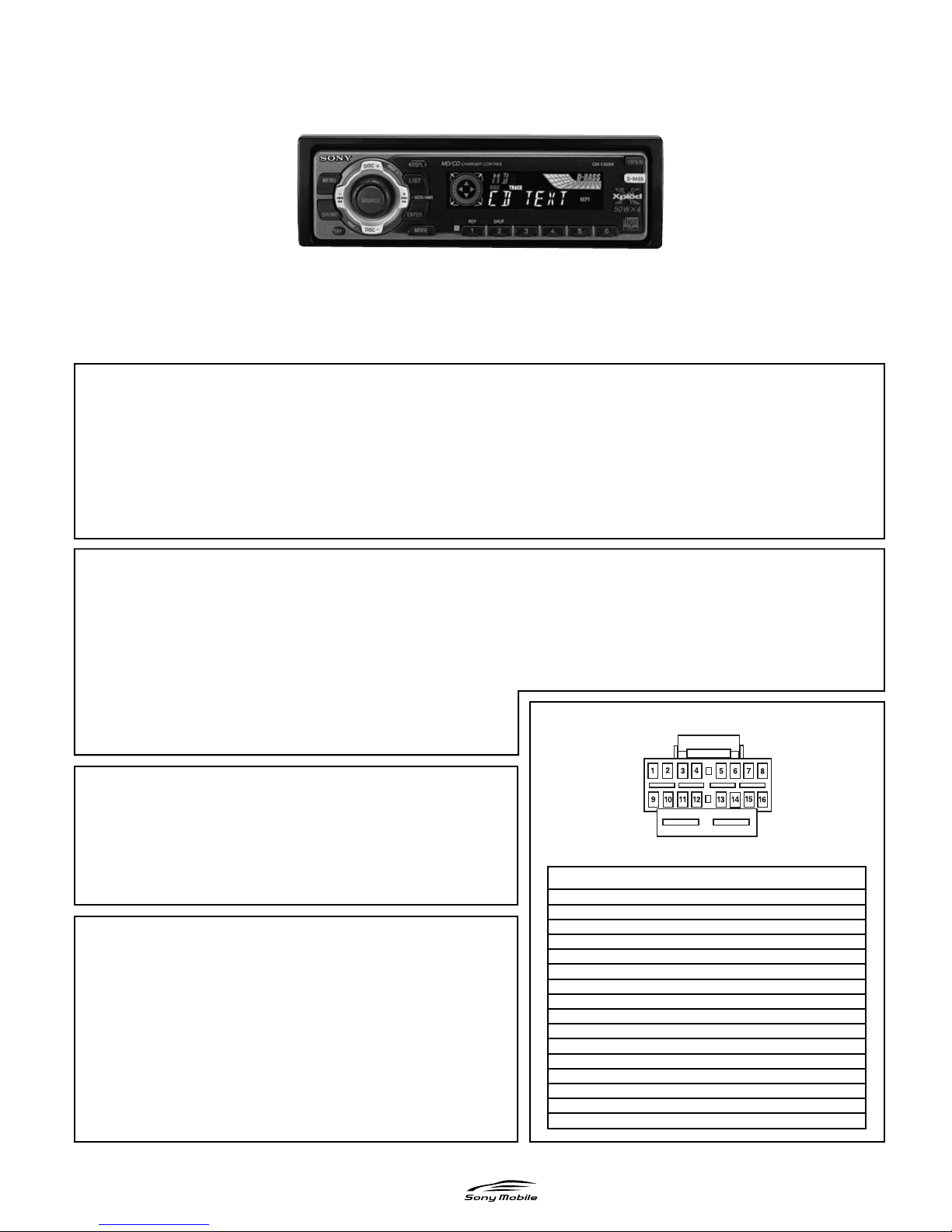

Harness Plug Configuration
Plug shown with wires facing viewer
Pin Number Wire Color Description
1 White Left Front Positive
2 Green Left Rear Positive
3 Violet Right Rear Positive
4 Grey Right Front Positive
5 Blue/White Amp Remote
6 Blue Antenna Remote
7 Red Accessory +12 VDC
8 Black Ground
9 White/Black Left Front Negative
10 Green/Black Left Rear Negative
11 Violet/Black Right Rear Negative
12 Grey/Black Right Front Negative
13 Light Blue Telephone Attenuate
14 N/C
15 N/C
16 Yellow Constant +12 VDC
Page 2
17
2000 MOBILE PRODUCT GUIDE – PART 1

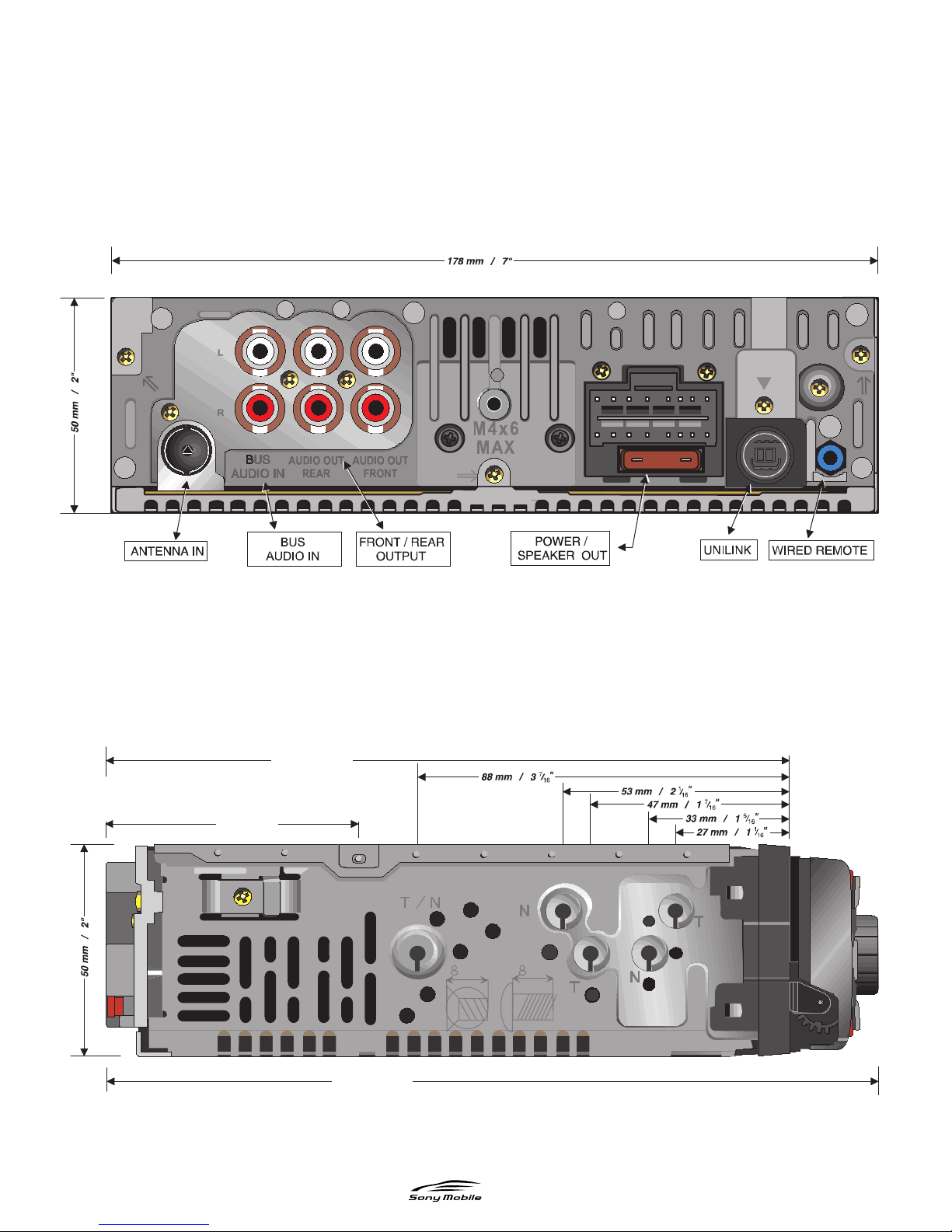

CDX-C5000X
CD Receiver/Changer Controller
10
59.50 mm
161 mm / 6 5/16 ˝
MAXMAX
182 mm / 7 3/16 ˝
