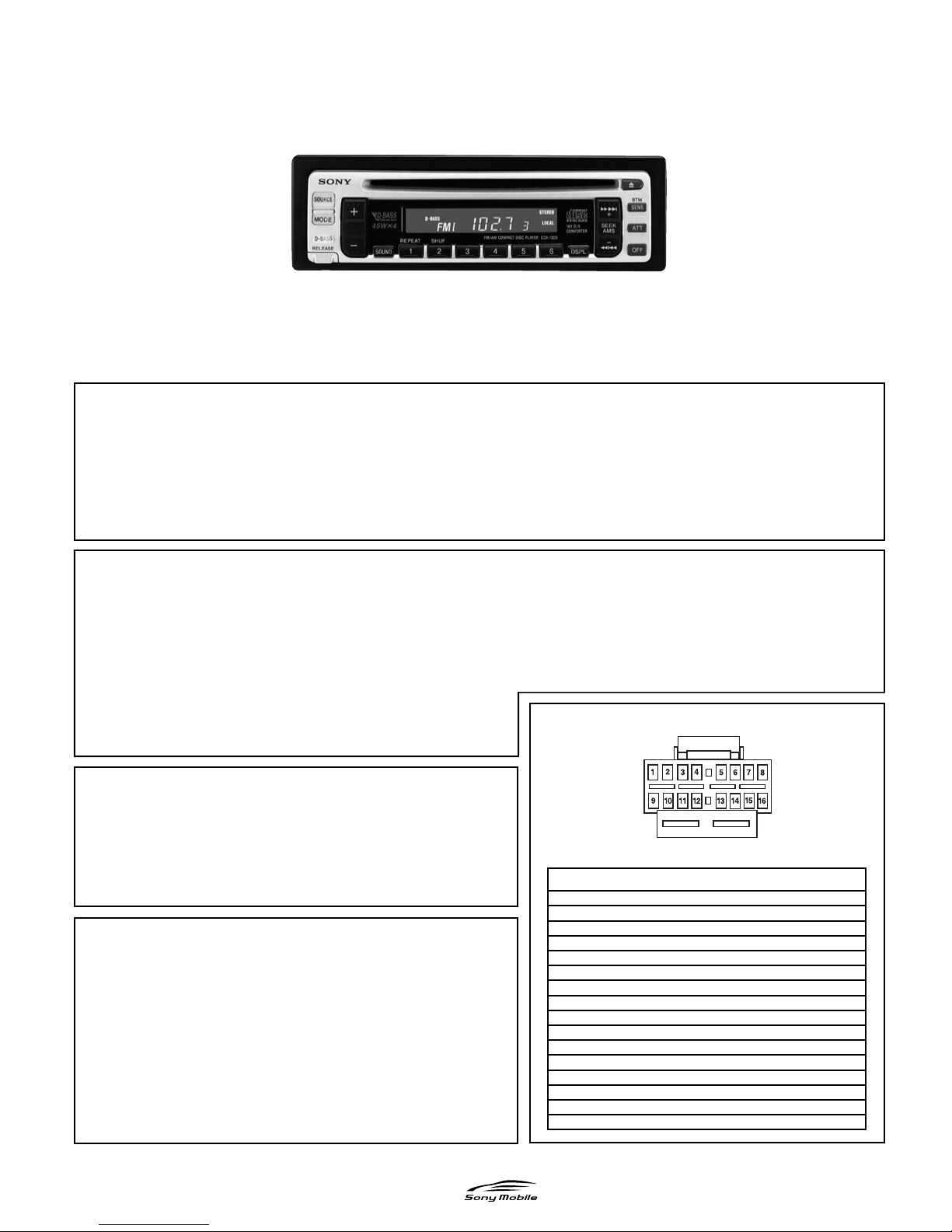

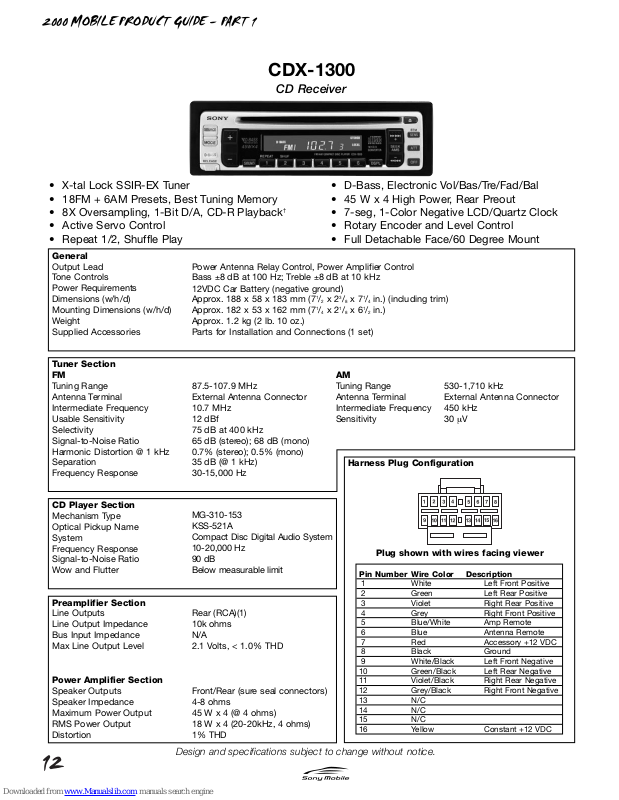

2000 MOBILE PRODUCT GUIDE – PART 1
• D-Bass, Electronic Vol/Bas/Tre/Fad/Bal
• 45 W x 4 High Power, Rear Preout
• 7-seg, 1-Color Negative LCD/Quartz Clock
• Rotary Encoder and Level Control
• Full Detachable Face/60 Degree Mount
• X-tal Lock SSIR-EX Tuner
• 18FM + 6AM Presets, Best Tuning Memory
• 8X Oversampling, 1-Bit D/A, CD-R Playback
†
• Active Servo Control
• Repeat 1/2, Shuffle Play
General
Output Lead
Tone Controls
Power Requirements
Dimensions (w/h/d)
Mounting Dimensions (w/h/d)
Weight
Supplied Accessories
Power Antenna Relay Control, Power Amplifier Control
Bass ±8 dB at 100 Hz; Treble ±8 dB at 10 kHz
12VDC Car Battery (negative ground)
Approx. 188 x 58 x 183 mm (7
1
/2x 23/8x 71/4in.) (including trim)
Approx. 182 x 53 x 162 mm (7
1
/4x 21/8x 61/2in.)
Approx. 1.2 kg (2 lb. 10 oz.)
Parts for Installation and Connections (1 set)
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable Sensitivity
Selectivity
Signal-to-Noise Ratio
Harmonic Distortion @ 1 kHz
Separation
Frequency Response
87.5-107.9 MHz
External Antenna Connector
10.7 MHz
12 dBf
75 dB at 400 kHz
65 dB (stereo); 68 dB (mono)
0.7% (stereo); 0.5% (mono)
35 dB (@ 1 kHz)
30-15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530-1,710 kHz
External Antenna Connector
450 kHz
30 µV
CD Player Section
Mechanism Type
Optical Pickup Name
System
Frequency Response
Signal-to-Noise Ratio
Wow and Flutter
MG-310-153
KSS-521A
Compact Disc Digital Audio System
10-20,000 Hz
90 dB
Below measurable limit
Power Amplifier Section
Speaker Outputs
Speaker Impedance
Maximum Power Output
RMS Power Output
Distortion
Front/Rear (sure seal connectors)
4-8 ohms
45 W x 4 (@ 4 ohms)
18 W x 4 (20-20kHz, 4 ohms)
1% THD
Preamplifier Section
Line Outputs
Line Output Impedance
Bus Input Impedance
Max Line Output Level
Rear (RCA)(1)
10k ohms
N/A
2.1 Volts, < 1.0% THD
CDX-1300
CD Receiver
Design and specifications subject to change without notice.

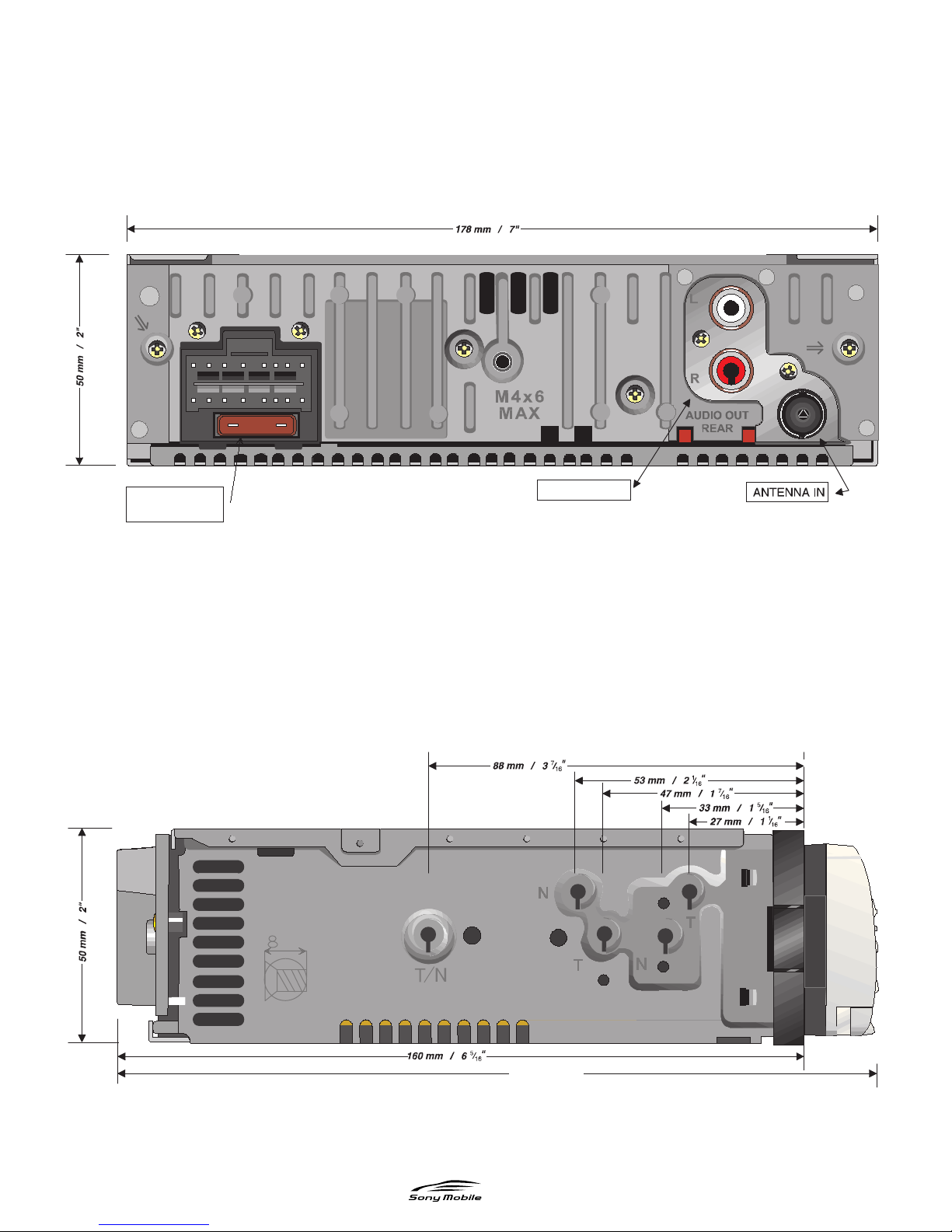

Harness Plug Configuration
Plug shown with wires facing viewer
Pin Number Wire Color Description
1 White Left Front Positive
2 Green Left Rear Positive
3 Violet Right Rear Positive
4 Grey Right Front Positive
5 Blue/White Amp Remote
6 Blue Antenna Remote
7 Red Accessory +12 VDC
8 Black Ground
9 White/Black Left Front Negative
10 Green/Black Left Rear Negative
11 Violet/Black Right Rear Negative
12 Grey/Black Right Front Negative
13 N/C
14 N/C
15 N/C
16 Yellow Constant +12 VDC
