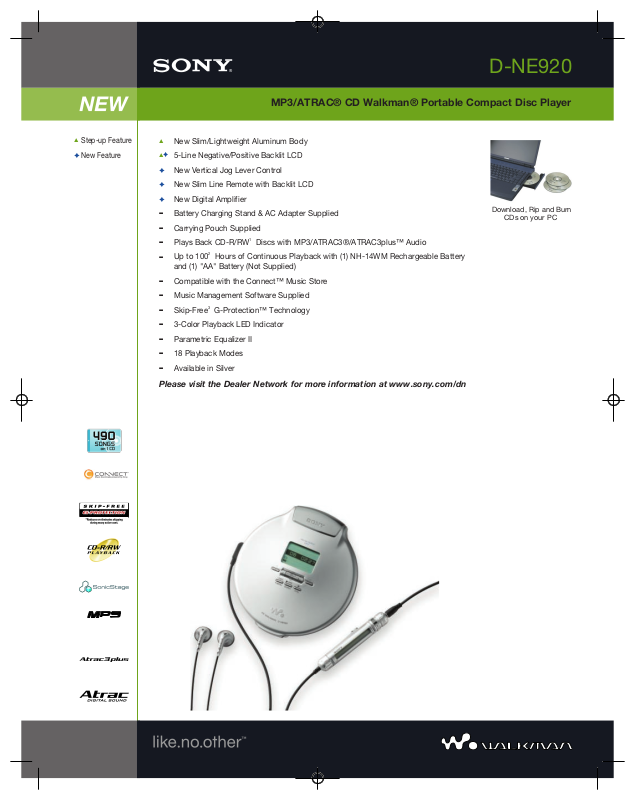

Page 1
D-NE920
MP3/ATRAC® CD Walkman® Portable Compact Disc Player
T
Step-up Feature
'
New Feature
T
New Slim/Lightweight Aluminum Body
T'
5-Line Negative/Positive Backlit LCD
'
New Vertical Jog Lever Control
'
New Slim Line Remote with Backlit LCD
'
New Digital Amplifier
O
Battery Charging Stand & AC Adapter Supplied
O
Carrying Pouch Supplied
O
Plays Back CD-R/RW1Discs with MP3/ATRAC3®/ATRAC3plus™ Audio
O
Up to 1002Hours of Continuous Playback with (1) NH-14WM Rechargeable Battery
and (1) "AA" Battery (Not Supplied)
O
Compatible with the Connect™ Music Store
O
Music Management Software Supplied
O
Skip-Free3G-Protection™ Technology
O
3-Color Playback LED Indicator
O
Parametric Equalizer II
O
18 Playback Modes
O
Available in Silver
Please visit the Dealer Network for more information at www.sony.com/dn
Download, Rip and Burn
CDs on your PC
Page 2
D-NE920
MP3/ATRAC® CD Walkman® Portable Compact Disc Player
features
T
New Slim/Lightweight Aluminum Body Exceptionally thin aluminum body with
a new high tech look that sets it apart from the typical portable CD player.
T'
5-Line Negative/Positive Backlit LCD allows the user to select the display
properties of the LCD providing a unique way to view CD information. Provides
track, title, album and artist information of ATRAC or MP3 CDs. Allows for fast
and easy identification and location of specific songs and information.
'
New Vertical Jog Lever Control High speed, intuitive file navigation.
'
New Slim Line Remote with Backlit LCD fits naturally into your hand during
jogging or other activity and allows you to access all essential operations using
only your thumb.
'
New Digital Amplifier More efficient then traditional analog amplifiers by using
less energy to produce the same signal. This also allows for a much smaller
amplifier then traditional analog amplifiers.
O
Battery Charging Stand & AC Adapter Supplied lets you simply place the CD
Walkman® player on its specially-designed stand to charge the rechargeable
batteries, with no need to press buttons or flip switches.
O
Carrying Pouch Supplied New high tech carry case supplied.
O
Plays Back CD-R/RW1Discs with MP3/ATRAC3®/ATRAC3plus™ Audio
For customers who already have extensive music libraries, use the included
software and hardware to manage, burn and playback their collection of MP3s.
ATRAC3plus is an advanced audio compression technology offering multiple bit
rates, allowing you to create music compilations tailored to your listening
preference with the ability to get up to 4904songs on 1 CD-R/RW disc @
48kbps.
O
Up to 1002Hours of Continuous Playback with (1) NH-14WM
Rechargeable Battery and (1) "AA" Battery (Not Supplied) Advanced Sony
DSP technology and new mechanism which provides dramatically extended
battery life from predecessor models
O
Compatible with the Connect™ Music Store Offers one of the most
extensive music collections online. Unique features such as Moodmix, Connect
Sets and live radio, make this a choice destination for customers looking to
expand their music collection. It's easy to discover, find and purchase single
tracks or entire albums. Choose from top hits and tracks from independent
artists.
O
Music Management Software Supplied is easy to use and allows you to
create your own ATRAC3plus music file compilations on CD-R/RW media using
your PC's CD-Rom drive. The ability to add your own titles and edit your music
groups allows for an element of customization in your portable music.
O
Skip-Free3G-Protection™ Technology continues to provide quick recovery
from both horizontal and vertical shock.
O
3-Color Playback LED Indicator gives you a visual indication if you are in play,
fast forward or rewind.
O
Parametric Equalizer II allows the user to set not only the amount in dB by
which a certain frequency band is boost or cut, but also the width and/or center
frequency of this band. Providing extremely precise control of the tonal balance.
O
18 Playback Modes offer many predetermined choices in the playback of CDs,
including hearing one track over and over, hearing a selection of tracks in a
desired order, or listening to tracks randomly.
specifications
Digital-to-Analog Converter: 1 Bit
D/A Conversion: 1 Bit Quartz Time-Axis Control
Frequency Range: 20-20000Hz, 1/-2dB
Output(s): Headphone (stereo mini jack)
Input(s): DC-In 3.0V
Battery Life (Approx.): 100 Hours with "Gum type NH-14WM" x 1 "AA" Sony Alkaline
Batteries x 1 (ATRAC CD recorded at 48kbps/G-Protection 2)
Power Requirements: DC 1.5V x 1 ("AA" x 1 Batteries)
Weight: 6 oz (160 g)
Dimensions (WHD): 5 x 5 3/8 x 9/11" (127 x 136.4 x 20.8mm)
Color: Silver
Supplied Accessories: Stereo Headphones
CD-ROM (SonicStage® Software)
LCD Remote Commander® Remote Control with Backlit LCD
Battery Charging Stand
Rechargeable Battery (NH-14WM x1)
External Battery Case (AA x 1)
Carrying Pouch
AC Power Adapter
Optional Accessories: DCC-E345 Car Battery Cord
RK-G129HG/G136HG Connecting Cord
AC-E30HG/E30A AC Adapter
UPC Code: 0272426558670
1. CD- R/RW med ia/fo rmats ar e not un ivers ally com patib le.
2. Act ual b atter y lif e may va ry ba sed o n usa ge pa ttern s.
3. Eli minat es or re duces sk ippin g dur ing m any a ctive us es.
4. Est imate d at 4 m inute s per so ng, u sing 700 MB CD -R/RW me dia, com press ing i n ATR AC3pl us @4 8kbps .
©20 05 So ny El ectro nics Inc .
Rep roduc tion in who le or in pa rt wi thout wr itten pe rmiss ion i s pro hibit ed. A ll ri ghts res erved . Son y, AT RAC,
ATR AC3, ATR AC3pl us, C onnec t, G- Prote ction , Son icSta ge an d Wal kman are tr adema rks o f Son y.
Fea tures an d spe cific ation s are su bject to ch ange wit hout not ice. Non -metr ic we ights an d mea sures ar e
app roxim ate.
®
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated 2005-04-14
