3-810-585-23 (1)
Operating Instructions
CDP-CE505
CDP-CE405
CDP-CE305
CDP-C450Z
CDP-C350Z
CDP-C250Z
CDP-C661
ã 1995 by Sony Corporation
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
INFORMATION
|
This equipment has been tested and |
|
found to comply with the limits for a |
|
Class B digital device, pursuant to Part |
|
15 of the FCC Rules. These limits are |
|
designed to provide reasonable |
|
protection against harmful interference |
|
in a residential installation. This |
|
equipment generates, uses, and can |
|
radiate radio frequency energy and, if |
|
not installed and used in accordance |
|
with the instructions, may cause harmful |
|
interference to radio communications. |
|
However, there is no guarantee that |
|
interference will not occur in a particular |
|
installation. If this equipment does cause |
|
harmful interference to radio or |
|
television reception, which can be |
|
determined by turning the equipment off |
|
and on, the user is encouraged to try to |
|
correct the interference by one or more of |
2 |
the following measures: |
|
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.
Owner’s Record
The model and serial numbers are located at the rear of the unit. Record the serial number in the space
provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. _________________________
Serial No. _________________________
For the customers in Australia
The following caution label is located inside the unit.
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.
Precautions
On safety
•Caution — The use of optical instruments with this product will increase eye hazard.
•Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.
On power sources
•Before operating the player, check that the operating voltage of the player is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the player.
•The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.
•If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
•AC power cord must be changed only at the qualified service shop.
On placement
•Place the player in a location with adequate ventilation to prevent heat build-up in the player.
•Do not place the player on a soft surface such as a rug that might block the ventilation holes on the bottom.
•Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
On operation
•If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about an hour until the moisture evaporates.
On adjusting volume
•Do not turn up the volume while listening to a portion with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level portion is played.
On cleaning
•Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any questions or problems concerning your player, please consult your nearest Sony dealer.
Welcome!
Thank you for purchasing the Sony Compact Disc Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.
About This Manual
The instructions in this manual are for models CDP-CE505, CDP-CE405, CDPCE305, CDP-C450Z. CDP-C350Z, CDPC250Z and CDP-C661. The CDP-CE505 is the model used for illustration purposes, unless otherwise mentioned. Any difference in operation is clearly indicated in the text, for example, “CDPCE505 only.”
Conventions
•Instructions in this manual describe the controls on the player.
You can also use the controls on the remote if they have the same or similar names as those on the player.
•The following icons are used in this manual:
Indicates that you can do the
task using the remote. (Note that the CDP-CE305, CDP-C250Z and CDP-C661 cannot do the tasks marked with this icon.)
Indicates hints and tips for making the task easier.
TABLE OF CONTENTS |
|
Getting Started |
|
Unpacking ........................................................................................................ |
4 |
Hooking Up the System ................................................................................. |
4 |
Playing a CD ........................................................................................................ |
6 |
Playing CDs |
|
Using the Display ........................................................................................... |
8 |
Replacing Discs While Playing a Disc ......................................................... |
8 |
Locating a Specific Disc ................................................................................. |
9 |
Locating a Specific Track or a Particular Point in a Track ........................ |
9 |
Playing Tracks Repeatedly .......................................................................... |
10 |
Playing in Random Order (Shuffle Play) .................................................. |
10 |
Creating Your Own Program (Program Play) .......................................... |
11 |
Recording From CDs |
|
Recording Your Own Program ................................................................... |
13 |
Recording a CD by Specifying Tape Length (Time Edit) |
|
(except for CDP-C450Z, CDP-C350Z and CDP-C250Z) .......................... |
13 |
Fading In or Out ............................................................................................ |
14 |
Adjusting the Recording Level (Peak Search) |
|
(except for CDP-C450Z, CDP-C350Z and CDP-C250Z) .......................... |
15 |
Storing Information About CDs (Custom Files) |
|
(CDP-CE505 and CDP-C450Z only) |
|
What You Can Do With the Custm Files................................................... |
16 |
Grouping Tracks (Music Clip) .................................................................... |
16 |
Storing Specific Tracks (Delete Bank) ........................................................ |
17 |
Additional Information |
|
Notes on CDs ................................................................................................. |
18 |
Troubleshooting ............................................................................................ |
19 |
Specifications ................................................................................................. |
19 |
Index |
|
Index ................................................................................................ |
Backcover |
3
Getting Started
Unpacking
Check that you received the following items:
•Audio connecting cord (1)
•Remote commander (remote) (except for CDPCE305, CDP-C250Z and CDP-C661) (1)
•Sony SUM-3 (NS) batteries (except for CDP-CE305, CDP-C250Z and CDP-C661) (2)
Inserting batteries into the remote (except for CDP-CE305, CDP-C250Z and CDP-C661)
You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the + and – on the batteries. When using the remote, point it at the remote sensor gon the player.
When to replace batteries
With normal use, the batteries should last for about six months. When the remote no longer operates the player, replace all the batteries with new ones.
Notes
•Do not leave the remote near an extremely hot or humid place.
•Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
•Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
•If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
Hooking Up the System
Overview
This section describes how to hook up the CD player to an amplifier. Be sure to turn off the power of each component before making the connections.
CD player
Line output |
Line output |
|
(R) |
(L) |
To an AC outlet |
|
|
|
Audio input |
Audio input |
|
(L) |
(R) |
Amplifier |
: Signal flow To an AC outlet
What cords will I need?
Audio cord (supplied) (1)
White |
White |
|
(L) |
(L) |
|
Red |
Red |
|
(R) |
||
(R) |
||
|
4
Getting Started
Hookups
When connecting an audio cord, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise.
CD player |
Amplifier |
LINE OUT |
INPUT |
|
CD |
L |
L |
R |
R |
You can adjust the output level to the amplifier (except for CDP-CE305, CDP-C250Z and CDP-C661)
Press LINE OUT LEVEL +/– on the remote. You can reduce the output level up to –20Ê dB.
When you reduce the output level, FADE appears in the display.
When you turn off the player, the output level automatically returns to the maximum level.
Note
If you press the LINE OUT LEVEL +/– buttons on the remote while recording, the recording level will change even when it is preset on the tape deck, etc. (except for CDP-CE305, CDPC250Z and CDP-C661).
•If you have a digital component such as a digital amplifier, D/A converter, DAT or MD (CDP-CE505 and CDP-C450Z only)
Connect the component via the DIGITAL OUT (OPTICAL) connector using the optical cable (not supplied). Take off the cap and plug in the optical cable.
Note that you cannot use fading in or out (page 14) and Time Fade (page 15) functions when making this connection.
POC-15
Optical cable (not supplied)
CD player |
Digital component |
||||||
DIGITAL |
|
DIGITAL |
|||||
OUT |
|
INPUT |
|
||||
OPTICAL |
|
OPTICAL |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note
When you connect via the DIGITAL OUT (OPTICAL) connector, noise may occur when you play CD software other than music, such as a CD-ROM.
If you have a component with the CONTROL A1 connector (CDP-CE505 only)
Connect the component via the CONTROL A1 connector. You can control the player with the connected component. For details, refer to the supplementary instructions.
Connecting the AC power cord
Connect the AC power cord to a wall outlet.
Transporting the player
Before transporting the player, follow the procedure below to return the internal mechanisms back to their original position.
1Remove all the discs from the disc tray.
2Press ¤OPEN/CLOSE to close the disc tray. “no DISC” appears in the display.
3Wait for 10 seconds, then press POWER to turn off the player.
5

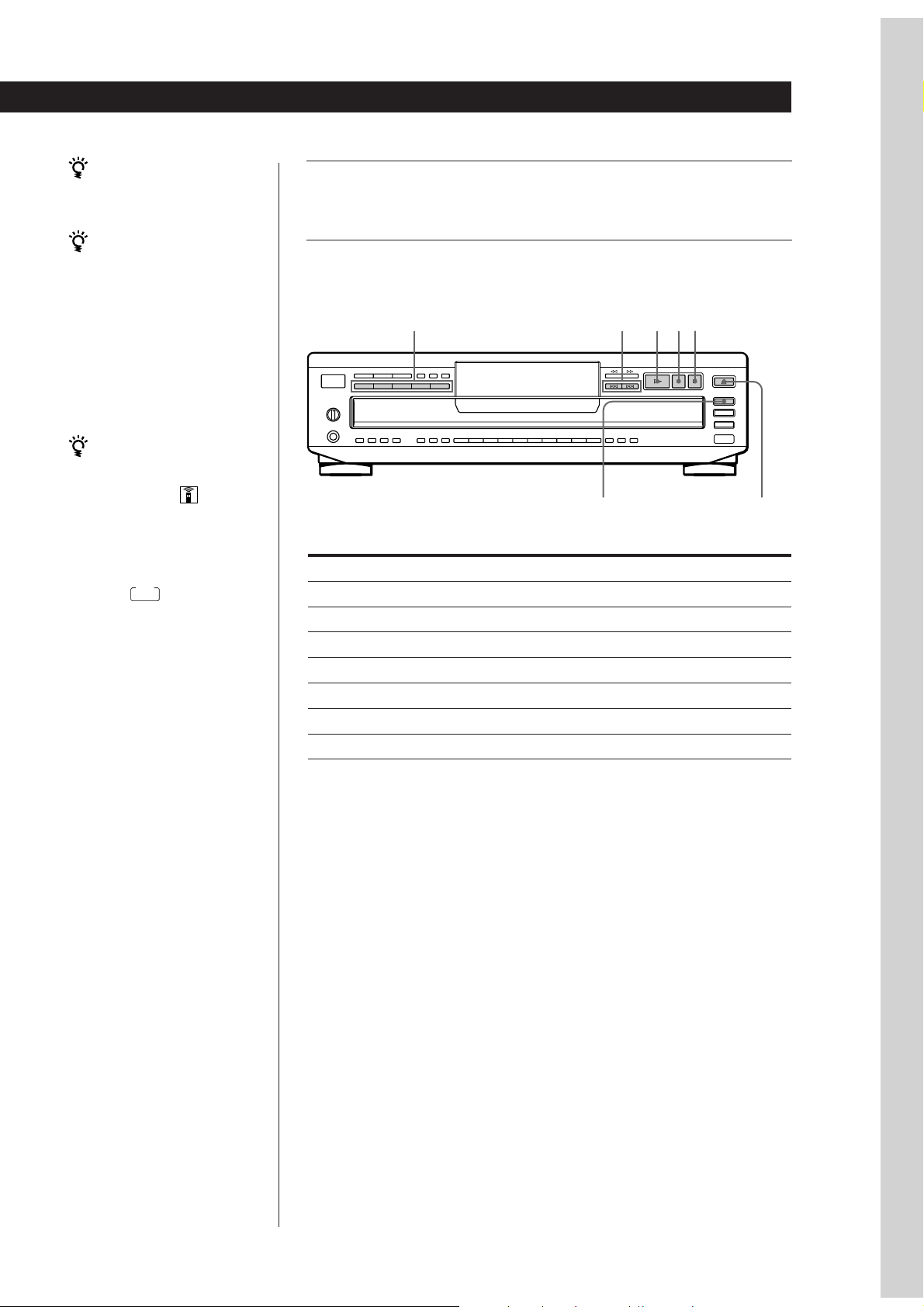

Basic Operations
Playing a CD |
|
|
2 5 |
6 |
3 4 |
CONTINUE |
SHUFFLE |
PROGRAM |
CHECK |
CLEAR REPEAT |
POWER |
|
|
|
|
DISC 1 |
DISC 2 |
DISC 3 |
DISC 4 |
DISC 5 |
ON OFF |
|
|
|
|
OPEN/CLOSE |
AMS |
Adjust the headphone volume.*
Connect the headphones.*
DISC SKIP
PHONE LEVEL
EX-CHANGE
DISC CHECK
PHONES
|
MUSIC CLIP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EDIT/ |
PEAK |
|
A |
B |
C |
D |
FILE |
ERASE |
TIME |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
>10 TIME FADE |
SEARCH |
*CDP-CE505 and CDP-C450Z only
∙See pages 4 – 5 for the hookup information.
1 |
Turn on the amplifier and select the CD player position so that |
you can listen to the sound from this player. |
|
2 |
Press POWER to turn on the player. |
|
|
3 |
Press ¤Ê OPEN/CLOSE, and place a disc on the disc tray. |
|
|
With the label side up |
Disc number |
|
|
|
|
|
|
||
4 |
To place other discs, press DISC SKIP and place the discs in the |
|
|||
order you want to play. |
|
|
|||
|
Each time you press the button, the disc tray turns and you can |
|
|||
|
place the discs in the empty disc compartments. The player |
|
|||
|
plays the disc in front of you first. |
|
|
||
|
|
|
|
||
5 |
Press CONTINUE to select ALL DISCS or 1 DISC Continuous |
|
|||
Play mode. |
|
|
|
||
|
Each time you press CONTINUE, “ALL DISCS” or “1Ê DISC” |
|
|||
|
appears in the display. |
|
|
||
|
|
|
|
|
|
|
|
When you select |
The player plays |
|
|
|
|
|
|
|
|
|
|
ALL DISCS |
All discs in the player consecutively in the order of |
|
|
|
|
|
disc number |
|
|
|
|
|
|
|
|
|
|
1Ê DISC |
Only the disc you’ve selected |
|
|
|
|
|
|
|
|
6
