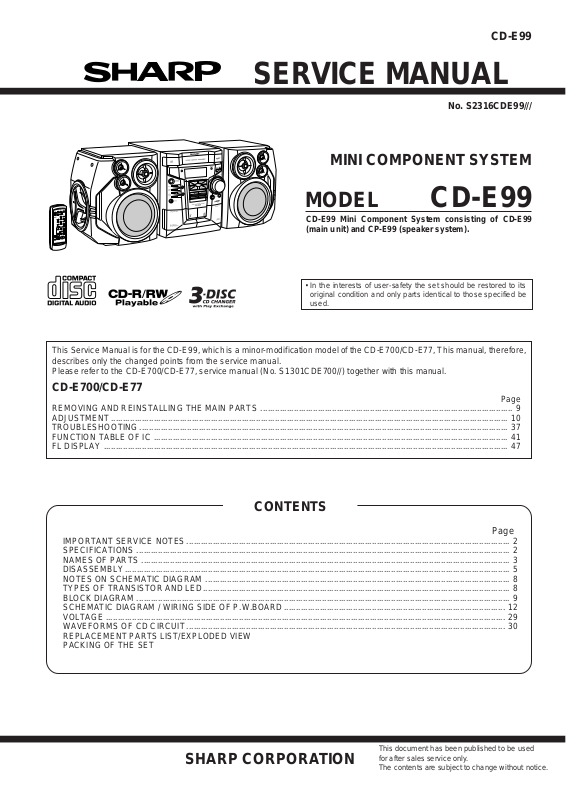

Sony CDE99 Service Manual

CD-E99

SERVICE MANUAL

No. S2316CDE99///

MINI COMPONENT SYSTEM

MODEL CD-E99

CD-E99 Mini Component System consisting of CD-E99 (main unit) and CP-E99 (speaker system).

• In the interests of user-safety the set should be restored to its original condition and only parts identical to those specified be used.

This Service Manual is for the CD-E99, which is a minor-modification model of the CD-E700/CD-E77, This manual, therefore, describes only the changed points from the service manual. Please refer to the CD-E700/CD-E77, service manual (No. S1301CDE700//) together with this manual.

CD-E700/CD-E77

Page

REMOVING AND REINSTALLING THE MAIN PARTS .......................................................................................................... 9

ADJUSTMENT....................................................................................................................................................................... 10

TROUBLESHOOTING........................................................................................................................................................... 37

FUNCTION TABLE OF IC ..................................................................................................................................................... 41

FL DISPLAY .......................................................................................................................................................................... 47

CONTENTS

Page

IMPORTANT SERVICE NOTES........................................................................................................................................ 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

DISASSEMBLY.................................................................................................................................................................. 5

NOTES ON SCHEMATIC DIAGRAM ................................................................................................................................ 8

TYPES OF TRANSISTOR AND LED................................................................................................................................. 8

BLOCK DIAGRAM ............................................................................................................................................................. 9

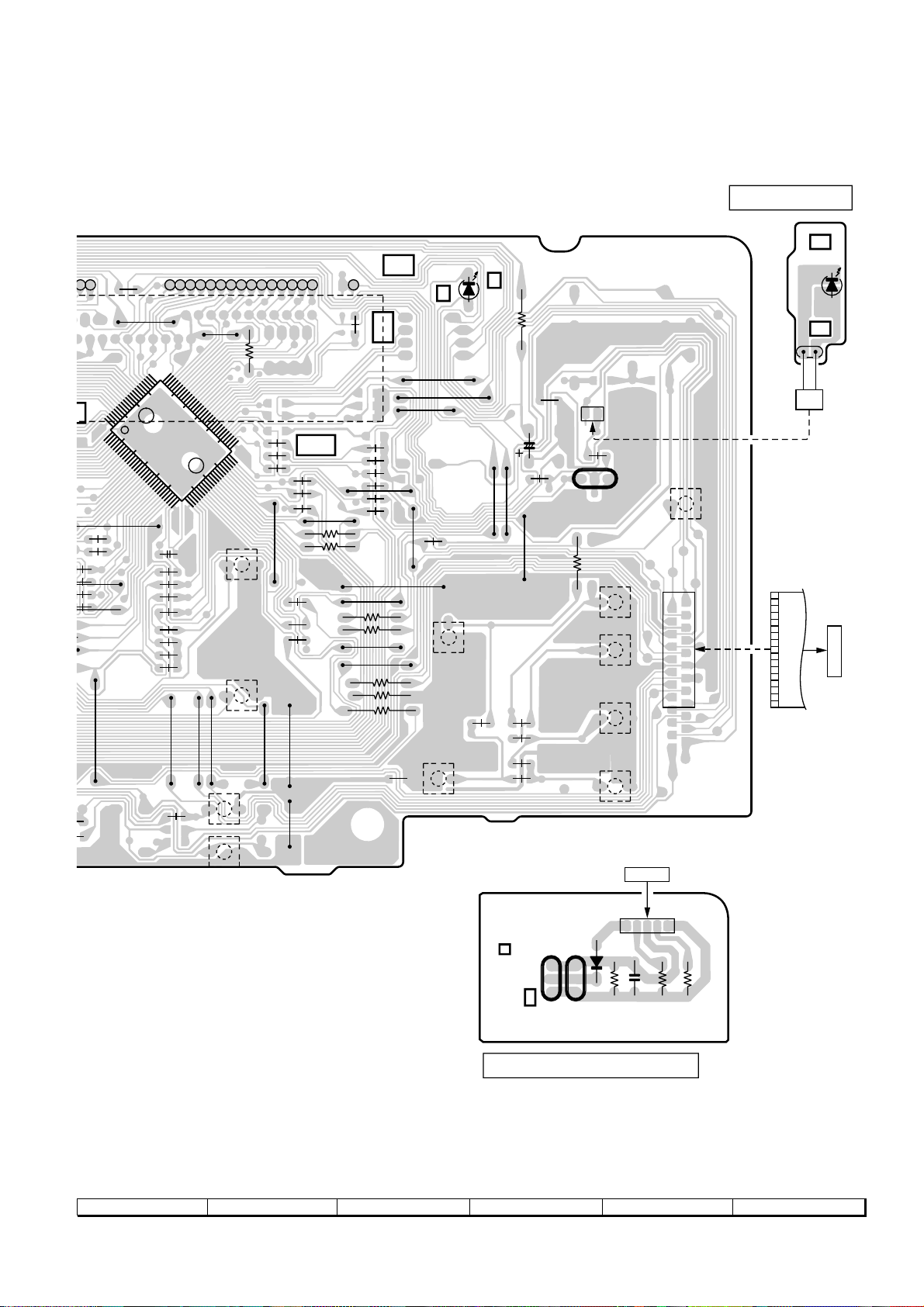

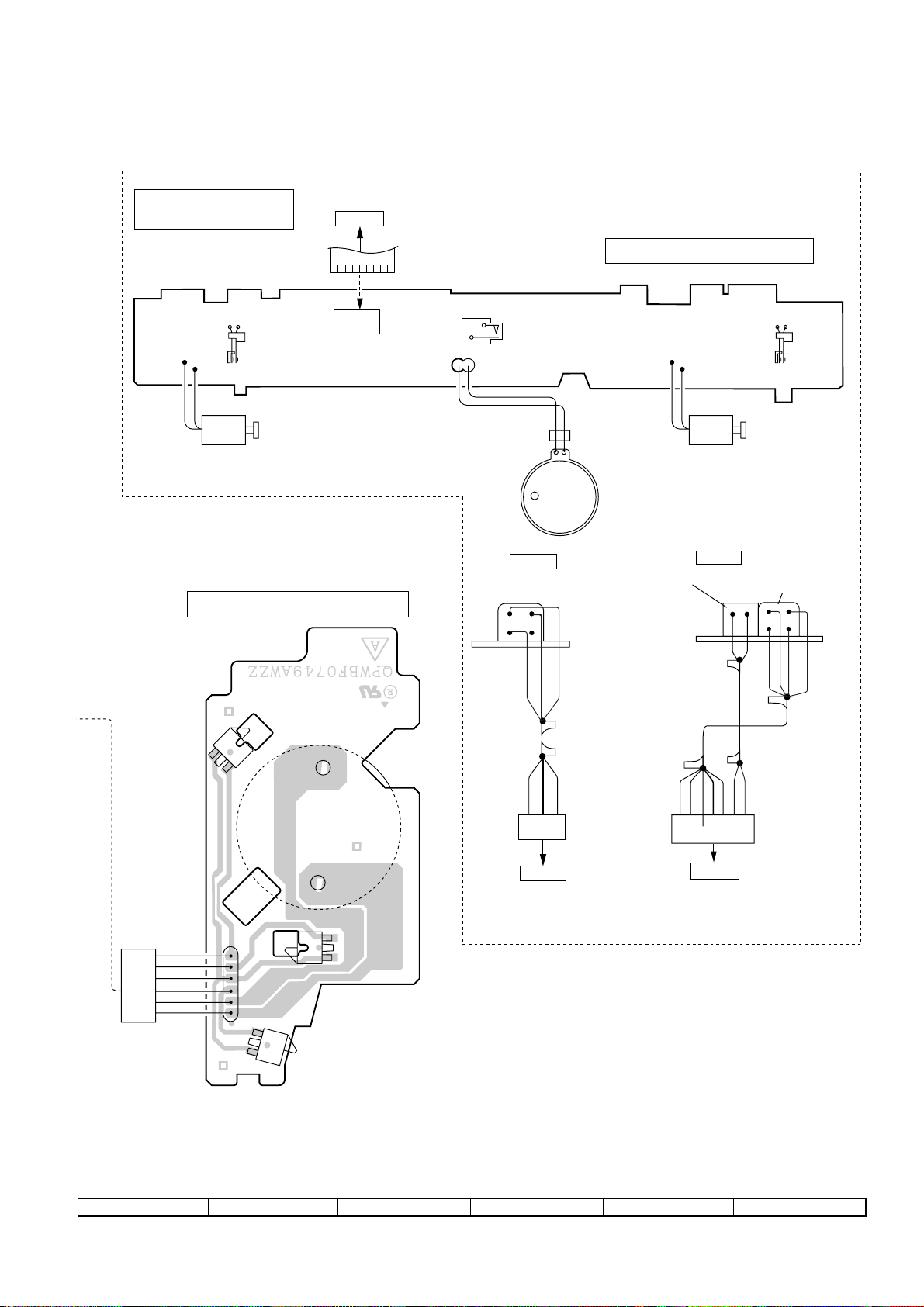

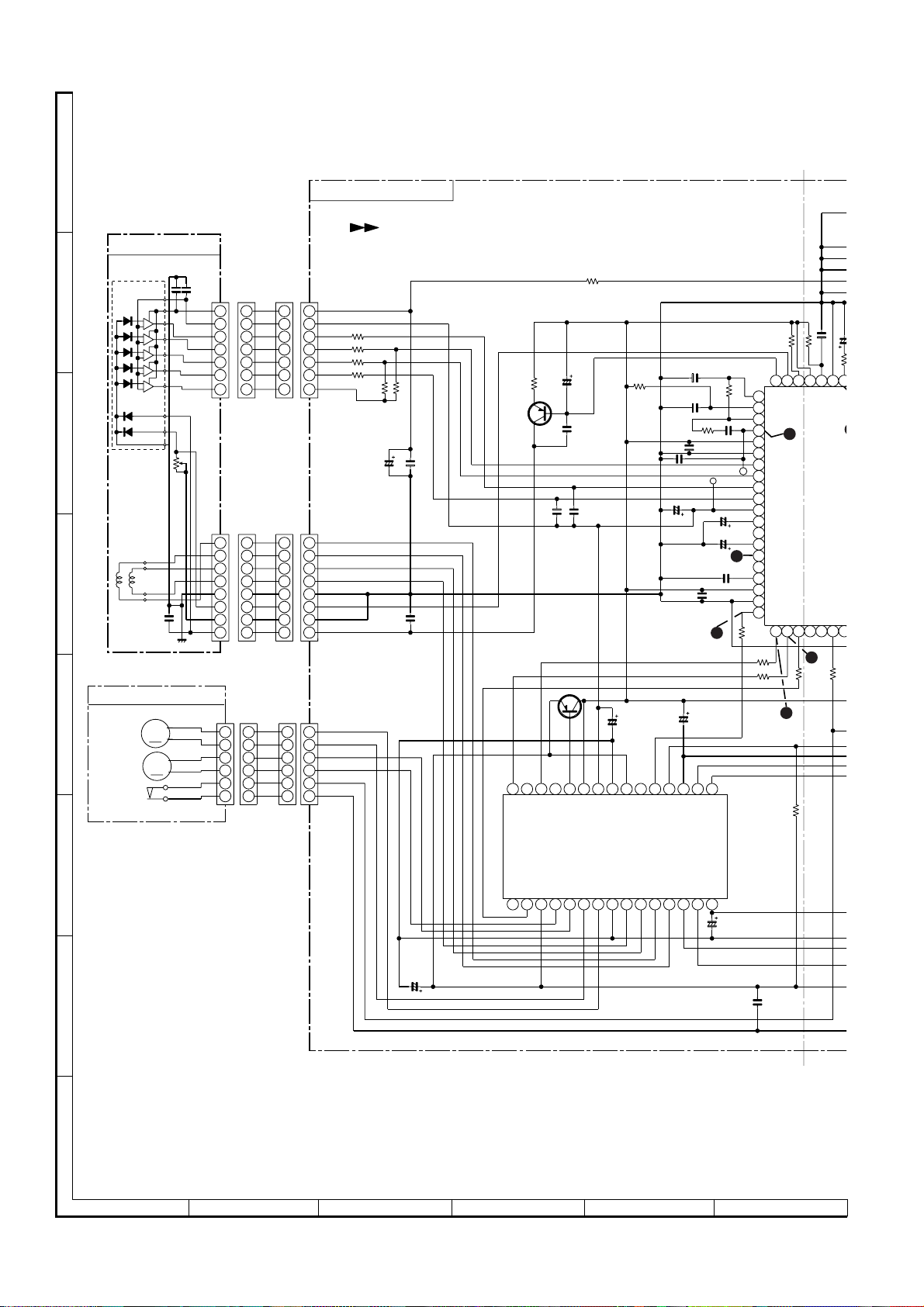

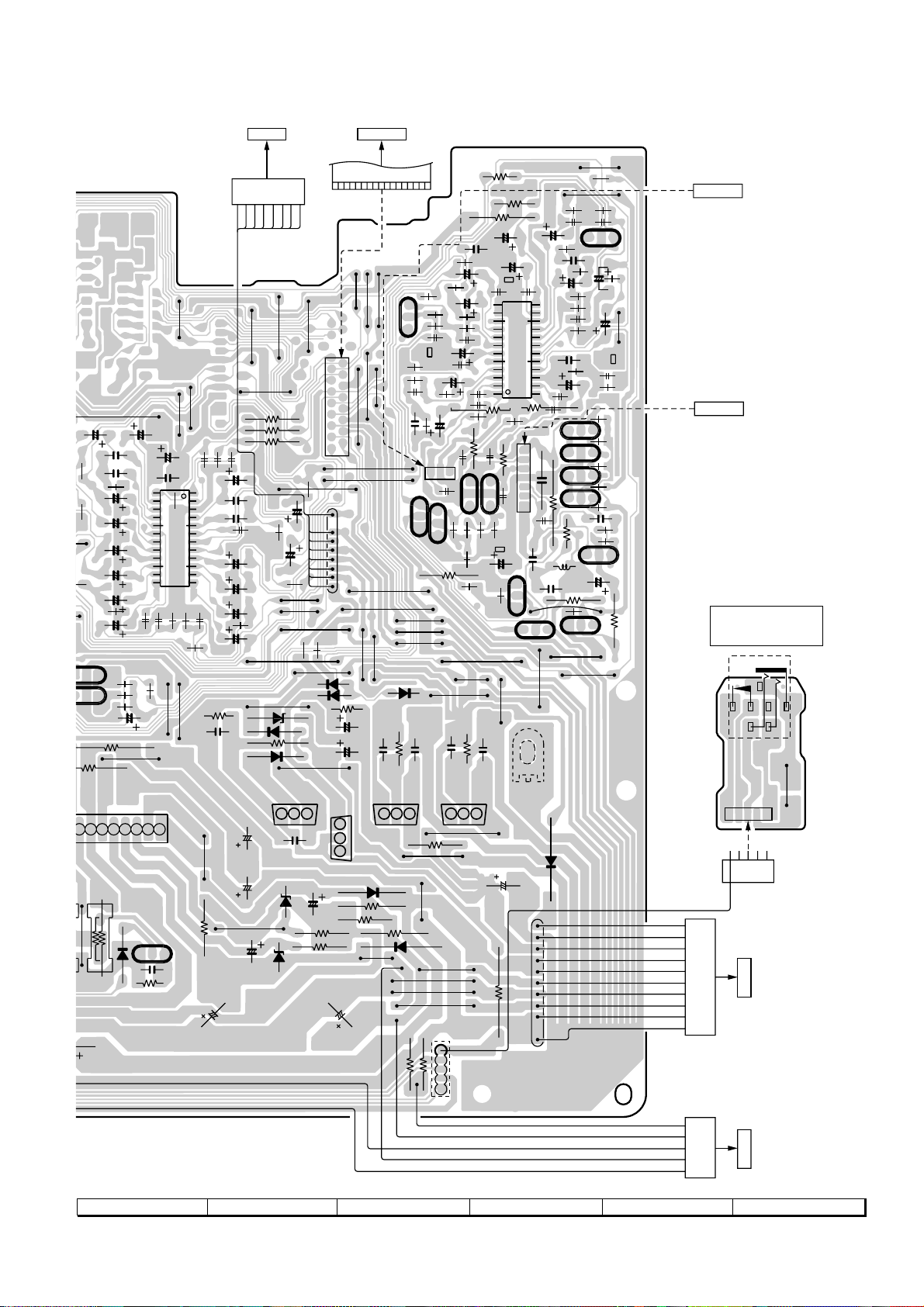

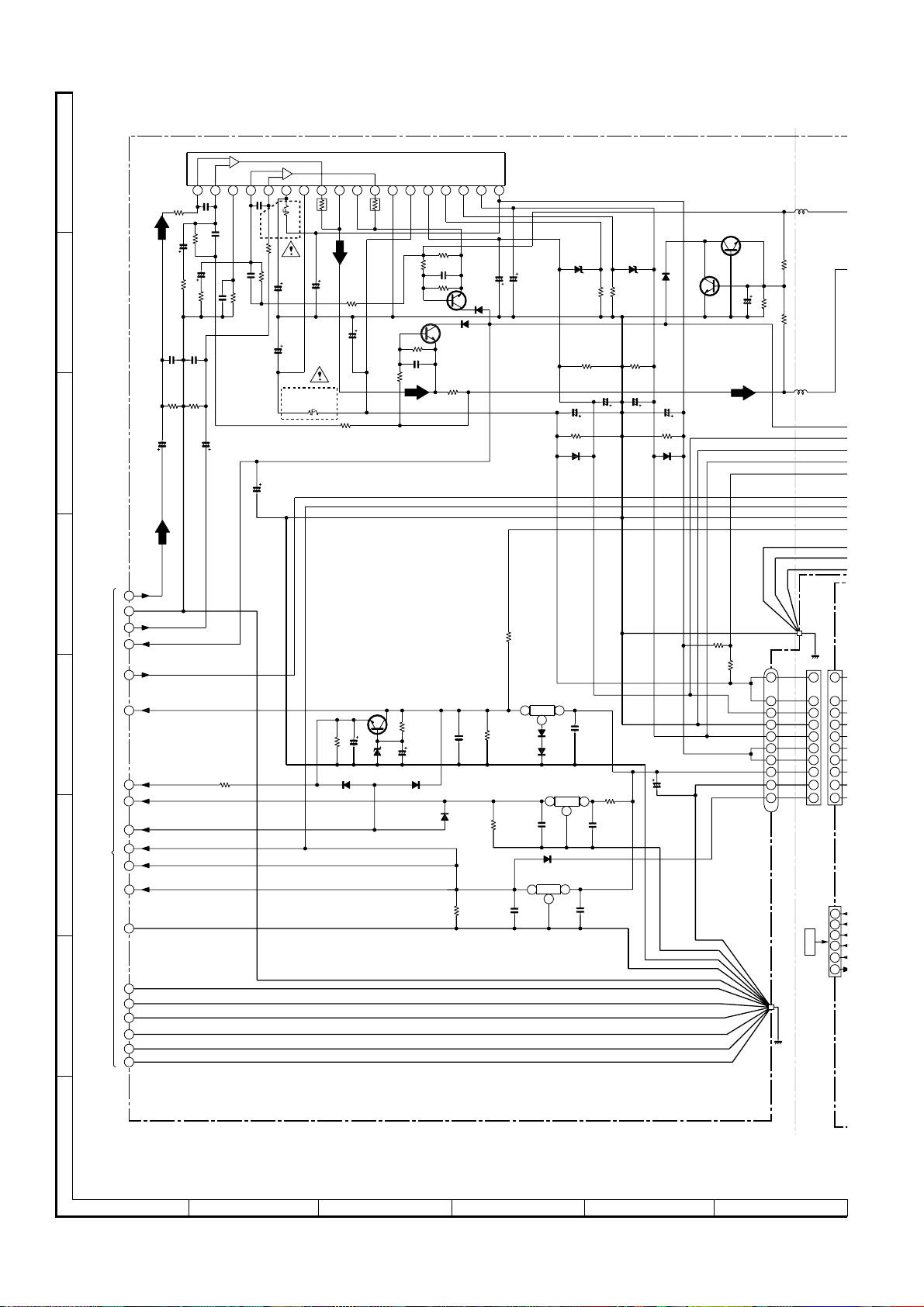

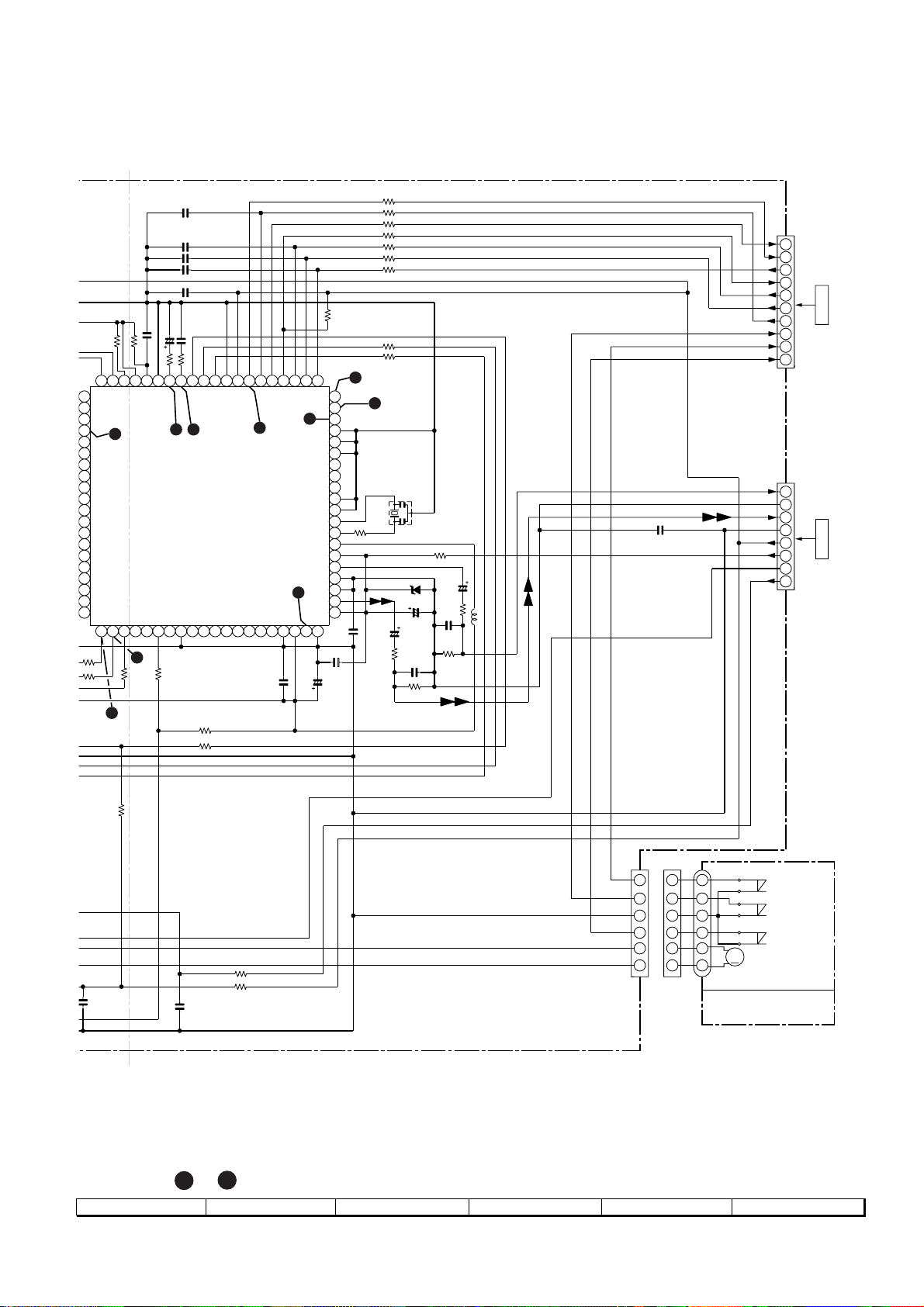

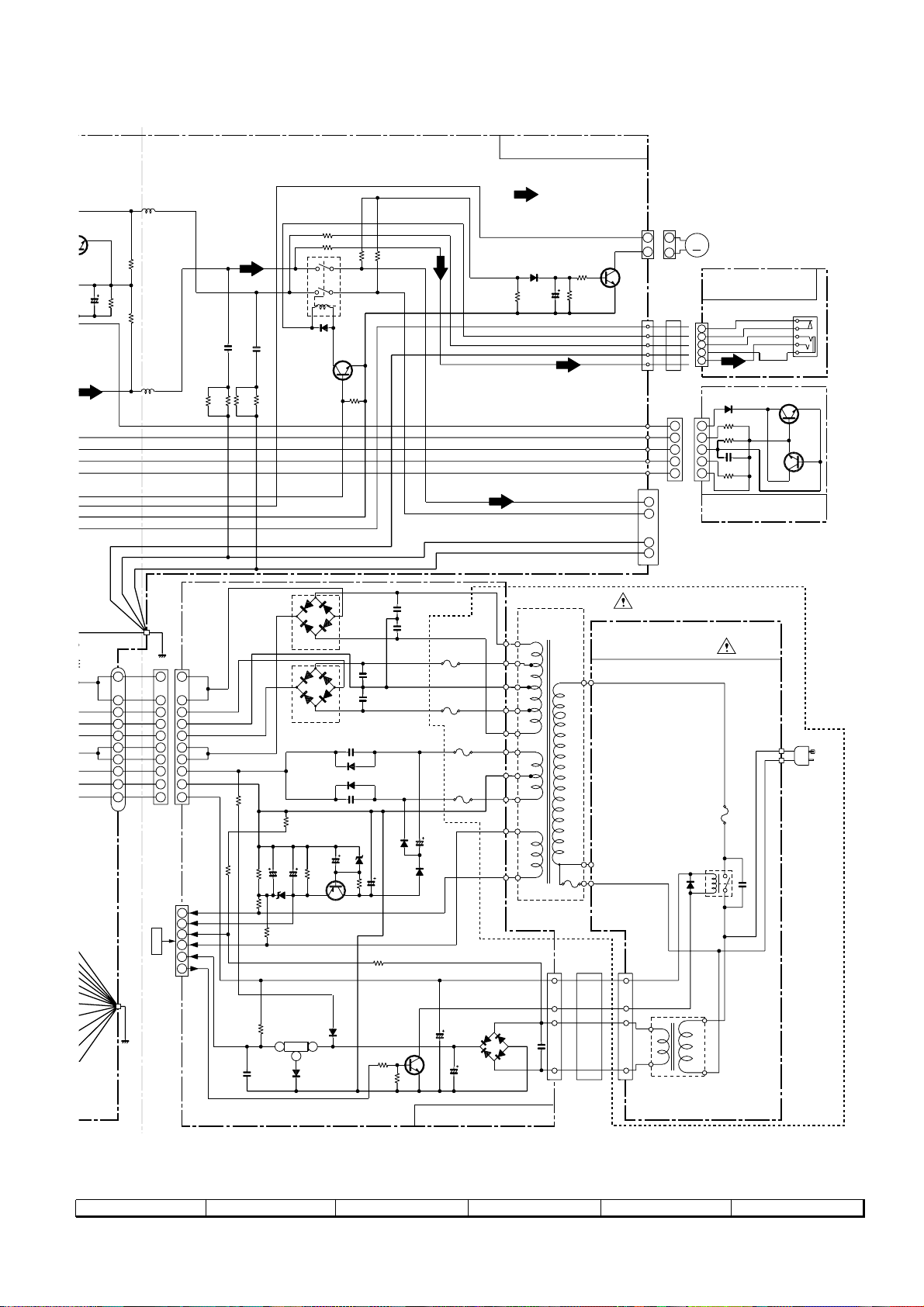

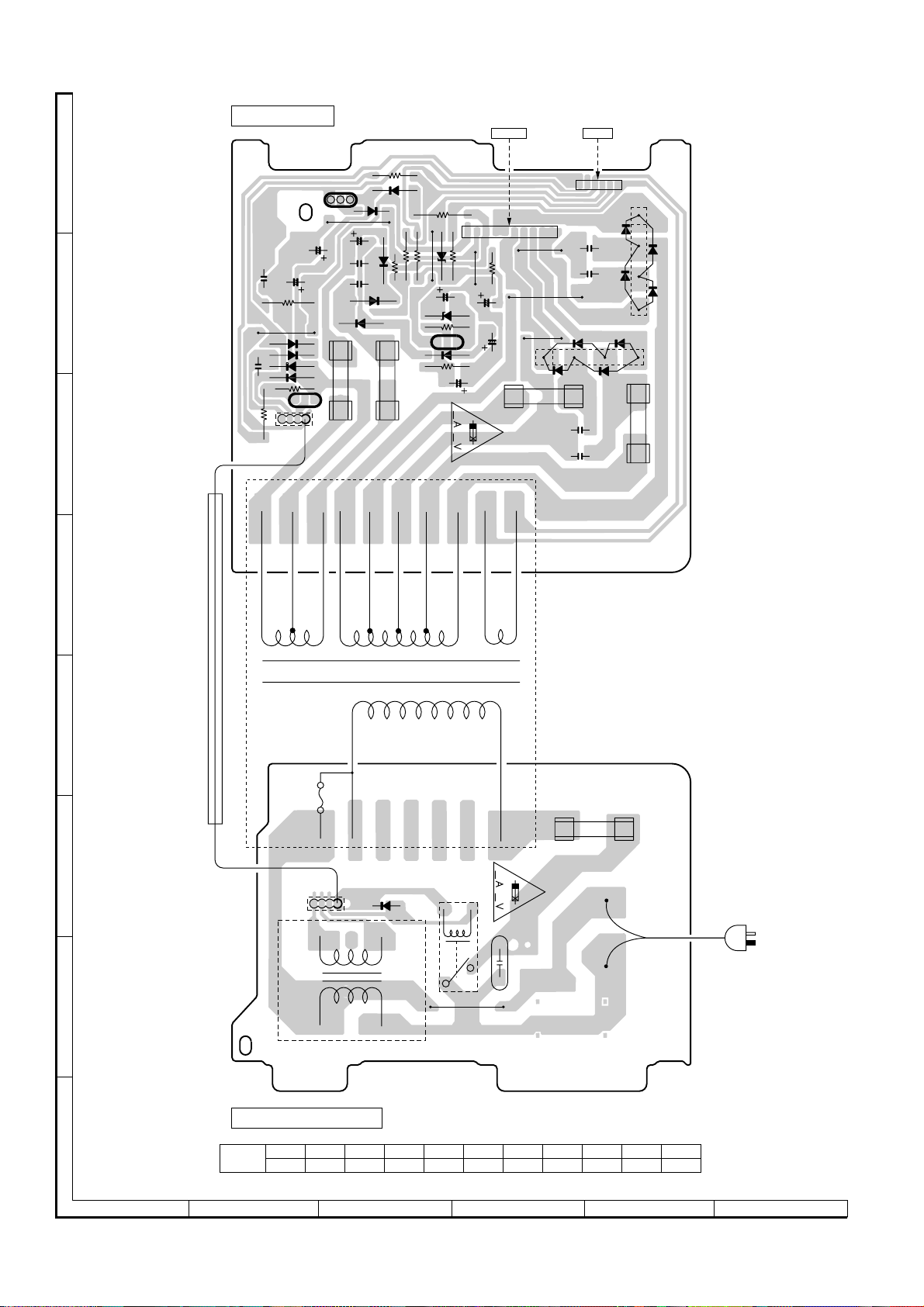

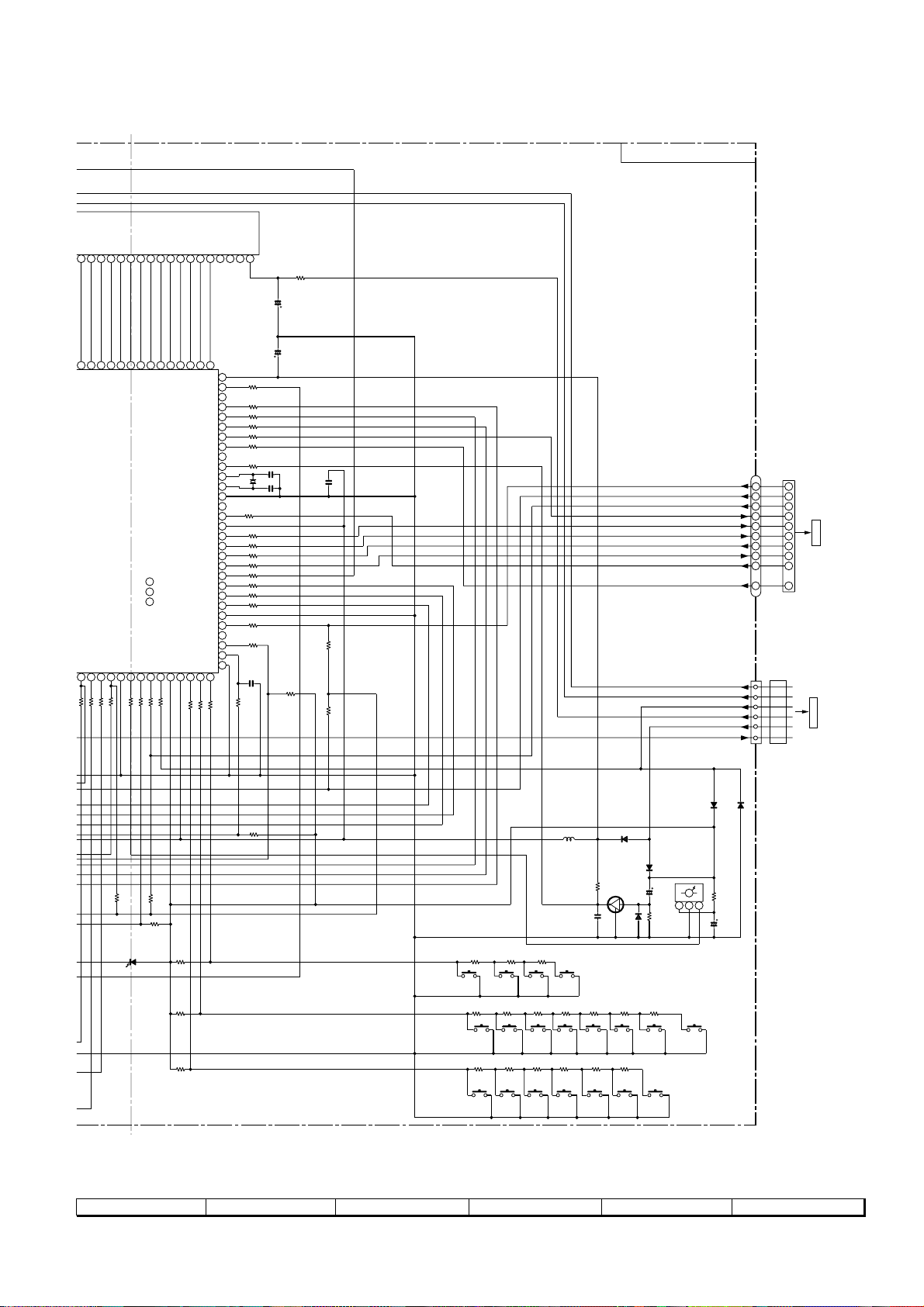

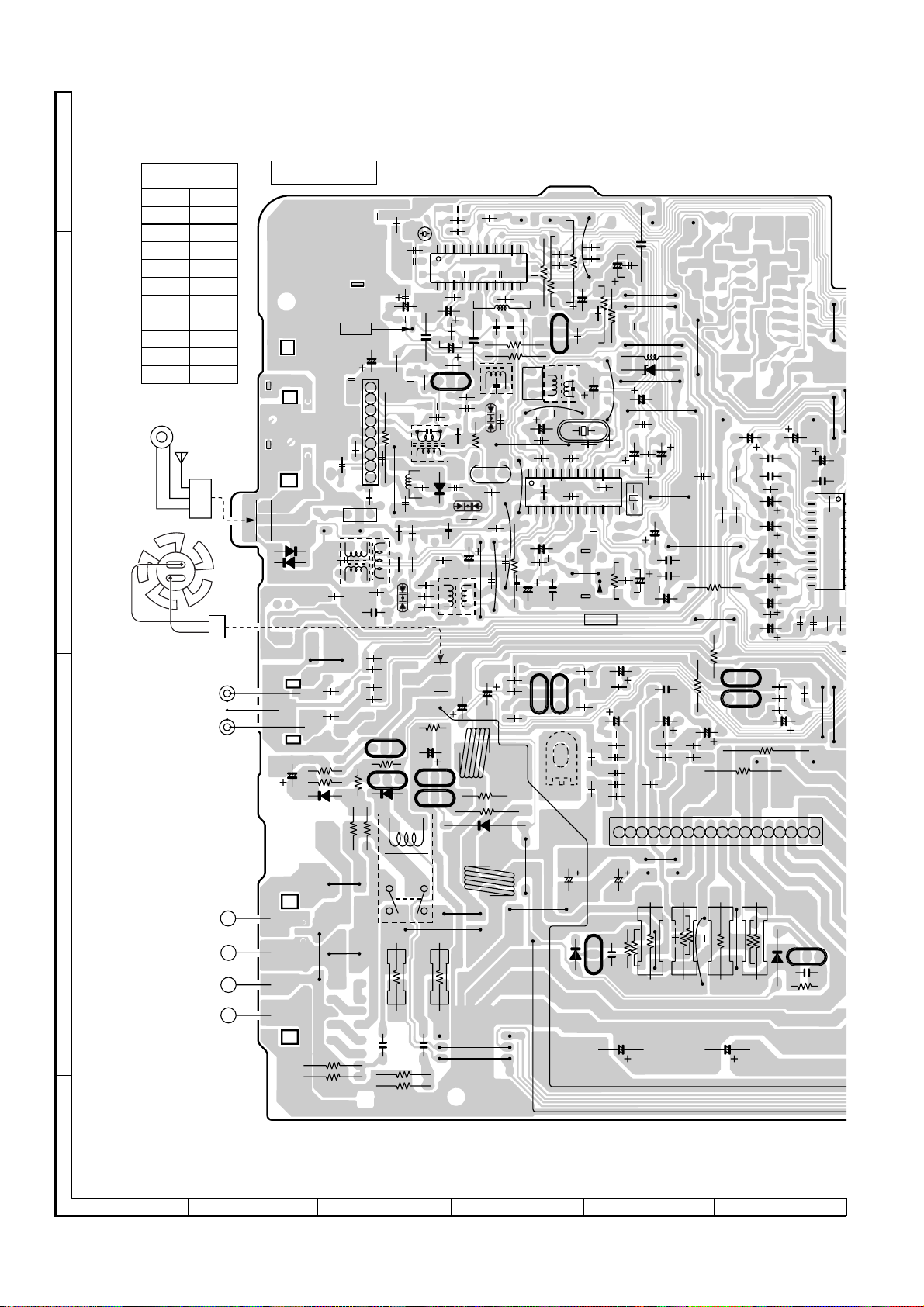

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 12

VOLTAGE ........................................................................................................................................................................ 29

WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 30

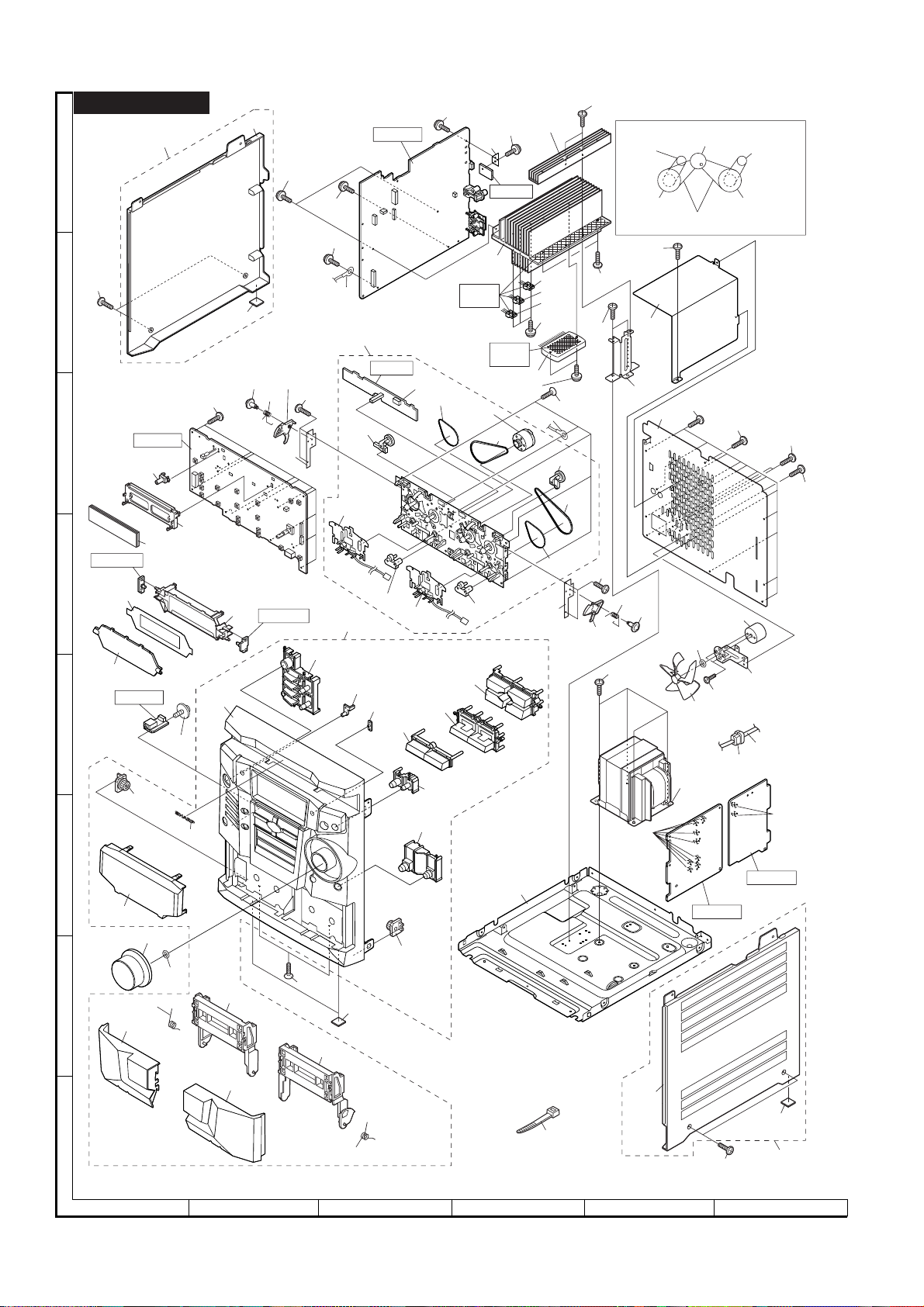

REPLACEMENT PARTS LIST/EXPLODED VIEW PACKING OF THE SET

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

CD-E99

IMPORTANT SERVICE NOTES

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard) Before returning the audio product to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,

cabinet, terminal board, adjustment and compartment covers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage

current in the following manner. * Plug the AC line cord directly into a 120 volt AC outlet. * Using two clip leads, connect a 1.5 kohm, 10 watt resistor

paralleled by a 0.15 µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the resistor (See diagram).

* Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

VTVM

AC SCALE

1.5 kohms 10 W

0.15 µF

TO EXPOSED

TEST PROBE

METAL PARTS

CONNECT TO KNOWN EARTH GROUND

All check must be repeated with the AC line cord plug connection reversed. Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp. AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the audio product to the owner.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL.

SPECIFICATIONS

CD-E99

General

Power source AC 120 V, 60 Hz Power

consumption Dimensions Width: 10-5/8" (270 mm)

Weight 19.6 lbs. (8.9 kg)

Amplifier

Output power 180 watts minimum RMS per channel into 6

Output terminals Speakers: 6 ohms

Input terminals Video/Auxiliary (audio signal): 500 mV/47 k

CD player

Type 3-disc multi-play compact disc player Signal readout Non-contact, 3-beam semiconductor laser

D/A converter 1-bit D/A converter Frequency

response Dynamic range 90 dB (1 kHz)

165 W

Height: 13" (330 mm) Depth: 13-15/16" (355 mm)

ohms from 60 Hz to 20 kHz, 10% total harmonic distortion

Headphones: 16 - 50 ohms (recommended: 32 ohms)

ohms

pickup

20 - 20,000 Hz

Tuner

Frequency range FM: 87.5 - 108 MHz

AM: 530 - 1,720 kHz

Cassette deck

Frequency response

Signal/noise ratio 55 dB (TAPE 1, playback)

Wow and flutter 0.3 % (WRMS)

CP-E99

Type 3-way 4-speaker system with passive radia-

Maximum input power

Rated input power 180 W Impedance 6 ohms Dimensions Width: 10-7/8" (277 mm)

Weight 11.2 lbs. (5.1 kg)/each

50 - 14,000 Hz (normal tape)

50 dB (TAPE 2, recording/playback)

tor Super tweeter 2 2" (5 cm) tweeter 6-1/2" (16 cm) woofer 6-1/2" (16 cm) passive radiator 360 W

Height: 13" (330 mm) Depth: 10-3/4" (273 mm)

Specifications for this model are subject to change without prior notice

– 2 –

CD-E99

Front panel

CD-E99

NAMES OF PARTS

1. Disc Tray

2. Timer Set Indicator

3. Memory/Set Button

4. Power On/Stand-by Button

5. Clock Button

6. Timer/Sleep Button

7. Tuning and Time Up Button

8. Tuning and Time Down Button

9. Headphone Jack

10. Tape 2 Record Pause Button

11. Tape 1 Cassette Compartment

12. Equalizer Mode Select Button

13. Extra Bass/Demo Mode Button

14. Volume Control

15. Disc Tray Open/Close Button

16. Disc Skip Button

17. Tape 2 Cassette Compartment

18. CD Button

19. Tape (1 2) Button

20. CD or Tape Stop Button

21. CD Track Down or Fast Reverse, Tape 2 Rewind, Tuner Preset Down Button

22. Tuner (Band) Button

23. Video/Auxiliary Button

24. CD Play or Repeat, Tape Play Button

25. CD Track Up or Fast Forward, Tape 2 Fast Forward, Tuner Preset Up Button

10 11

1 2

12

3 4

13 5 6

14 7

8

15 9

16

17

18 19

20 21

22 23

24 25

Display

1. CD Pause Indicator

2. Extra Bass Indicator

3. Disc Number Indicators

4. Tape 2 Record Indicator

5. FM Stereo Mode Indicator

6. FM Stereo Receiving Indicator

7. Timer Play Indicator

8. Sleep Indicator

9. Timer Recording Indicator

10. CD Play Indicator

11. CD Repeat Play Indicator

12. Tape Play Indicator

13. Memory Indicator

Rear panel

1. Cooling Fan

2. AC Power Cord

3. FM/AM Loop Antenna Jack

4. Video/Auxiliary (Audio Signal) Input Jacks

5. Speaker Terminals

Note:

This product is equipped with a cooling fan inside, which begins to run at a specified volume level for better heat radiation.

10 11

2456791 8

3

1

12 13

3 4

– 3 –

5

2

CD-E99

Remote control

1. Remote Control Transmitter

2. Disc Number Select Buttons

3. Program Clear Button

4. CD Memory Button

5. CD Track Down or Fast Reverse,

Tape 2 Rewind Button

6. CD Pause Button

7. CD or Tape Stop Button

8. Tape 2 Record Pause Button

9. CD Button

10. Tape (1 2) Button

11. Power On/Stand-by Button

12. CD Random Button

13. Direct Search Buttons

14. Tuner Preset Up and Down Buttons

15. CD Track Up or Fast Forward,

Tape 2 Fast Forward Button

16. CD Play or Repeat, Tape Play Button

17. Extra Bass Button

18. Equalizer Mode Select Button

19. Volume Up and Down Buttons

20. Tuner (Band) Button

21. Video/Auxiliary Button

Buttons with " " mark in the illustration or highlighted in bold on the right can be operated on the remote control only.

10

1

2 3

11 12

4

13

5

14 15

16

6 7 8

9

17 18 19

20 21

CP-E99

1. Super Tweeters

2. Woofer

3. Tweeter

4. Passive Radiator

5. Speaker Wire

1

2

3

4

5

– 4 –

DISASSEMBLY

Lock Lever

CD Player Unit (Bottom View)

Caution on Disassembly

Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange the leads where they were before disassembling.

4. Take sufficient care on static electricity of integrated circuits and other circuits when servicing.

CD-E99

STEP

10 Turntable 1. Hook ........................ (K1) x2 6-3

11 Loading Tray 1.

12 CD Servo PWB 1. Screw ...................... (M1) x2 6-5

13 CD Mechanism 1. Hook........................ (N1) x2 6-6

Note 1: How to open the changer manually. (Fig. 5-3)

1. In this state, turn fully the lock lever in the arrow direction through

2. After that, push forward the Loading tray.

REMOVAL

1 Top Cabinet 1. Screw ...................... (A1) x4 5-1

2 Side Panel 1. Screw ...................... (B1) x8 5-1

(Left/Right)

3 CD Tray Cover/ 1. Turn on the power supply,.. 5-2

CD Player Unit open the disc tray, take out

4 Rear Panel with 1. Screw ...................... (D1) x9 5-2

Fan Motor 2. Socket ..................... (D2) x1

5 Main PWB/ 1. Screw ...................... (E1) x1 6-1

Protect Circuit 2. Fan Cover ............... (E2) x1

PWB 3. Screw ...................... (E3) x3

6 Front Panel 1. Screw .......................(F1) x2 6-1

7 Display PWB 1. Knob........................ (G1) x1 6-2

8 Tape Mechanism 1. Open the cassette holder. 6-2

9

Headphones PWB

(Note 2) 2. Hook........................ (M2) x1

the hole on the loading tray bottom.

the CD tray cover, and close. (Note 1)

2. Screw ...................... (C1) x1

3. Hook........................ (C2) x3

4. Hook........................ (C3) x2

5. Socket ..................... (C4) x2

4. Socket ..................... (E4) x3 6-1

5. Flat Cable ............... (E5) x1

6. Flat Wire.................. (E6) x1

2. Hook.........................(F2) x2

3. Flat Wire...................(F3) x1

2. Screw ....................(G2) x10

3. Flat Cable ............... (G3) x1

2. Screw...................... (H1) x5

1. Screw ....................... (J1) x1 6-2

2. Stabilizer Holder ..... (K2) x1

2.

3. Socket .....................(M3) x4

2. Hook........................ (N2) x2

PROCEDURE

Turn fully the lock lever in the

arrow direction.

Push the loading tray backward to engage the claw with the groove and remove it in the direction of the arrow

...

(L1) x6

FIGURE

5-2, 6-1

5-3 6-4

CD-E99

Side Panel (Right)

(B1)x2 ø3x12mm

(B1)x4 ø3x12mm

(C3)x1

Pull

Rear Panel

(C1)x1 ø3x12mm

Fan Motor

(D2)x1

Main PWB

(A1)x2 ø3x12mm

Rear Panel

(C4)x2

CD Servo PWB

Top Cabinet

Figure 5-1

(D1)x8

ø3x12mm

Figure 5-2

2

(E3)x1 ø3x10mm

Front

Panel

(B1)x2 ø3x12mm

CD Tray Cover

1

(E3)x1

(D1)x1 ø3x10mm

ø3x10mm

CD-E99

(A1)x2 ø3x12mm

Side Panel (Left)

(C2)x3

1

2

CD Player Unit

(C3)x1

Main PWB

Lug Wire

Note 2:

1. After removing the connector for the optical pickup from the connector, wrap the conductive aluminium foil around the front end of the connector so as to protect the optical pickup from electrostatic damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front movement.

Figure 5-3

– 5 –

CD-E99

Power PWB

Transformer PWB

(E1)x1

ø3x6mm

(E2)x1

(E4)x1

(F2)x1

(E3)x1

ø3x6mm

(E4)x2

(E5)x1

(F3)x1

Protect Circuit PWB

Figure 6-1

Front Panel

(E6)x1

(F2)x1

(F1)x2

ø3x10mm

(G3)x1

Front Panel

Headphones PWB

Main PWB

(G1)x1

(L1)x3

Loading Tray

3

2

1

(L1)x3

Figure 6-4

(M1)x2 ø3x10mm

Loading

CD Servo

PWB

Tray

(H1)x5 ø3x10mm

(J1)x1

ø3x10mm

Display PWB

(G2)x10 ø3x10mm

Tape Mechanism

Headphones PWB

(K2)x1

Figure 6-2

Lug Wire

Open

Cassette Holder

Turntable

(M3)x2

(M2)x1

(M3)x2

(N1)x1

CD Mechanism

Figure 6-5

(N2)x2

(N1)x1

Loading Tray

(K1)x2

Loading Tray

Figure 6-6

CD Player Unit

Figure 6-3

– 6 –

(A3)x4 ø4x16mm

(B2)x4 ø4x16mm

(D1)x2 ø3x12mm

(C1)x2 ø3x12mm

(D1)x2 ø3x12mm

Speaker Box

Woofer

Tweeter

Super Tweeter

Passive Radiator

CP-E99

STEP

REMOVAL

1 Passive Radiator 1. Screw ...................... (A1) x4 7-1

2. Side Panel .............. (A2) x1

3. Screw ...................... (A3) x4 7-3

2 Woofer 1. Front Panel ............. (B1) x1 7-2

2. Screw ...................... (B2) x4 7-3

3 Tweeter 1. Screw ...................... (C1) x2 7-3

4 Super Tweeter 1. Screw ...................... (D1) x4 7-3

PROCEDURE

Speaker Box

(A2)x1

CD-E99

FIGURE

Screwdriver

Figure 7-1

(B1)x1

Driver should be pried away from Speaker Box.

Figure 7-2

Figure 7-3

(A1)x4 ø4x40mm

Speaker Box

– 7 –

CD-E99

NOTES ON SCHEMATIC DIAGRAM

• Resistor: To differentiate the units of resistors, such symbol as K and M are used: the symbol K means 1000 ohm and the symbol M means 1000 kohm and the resistor without any symbol is ohm-type resistor. Besides, the one with “Fusible” is a fuse type.

• Capacitor: To indicate the unit of capacitor, a symbol P is used: this symbol P means pico-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression “capacitance/withstand voltage” is used. (CH), (TH), (RH), (UJ): Temperature compensation (ML): Mylar type (P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this model are subject to change for improvement without prior notice.

• The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.

1. In the tuner section,

indicates AM indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ 1 ” ( ) are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

REF. NO

JOG701 JOG VOLUME ON—OFF SW1 OPEN/CLOSE ON—OFF SW2 CLAMP ON—OFF SW3 DISC NUMBER ON—OFF SW4 PICKUP IN ON—OFF SW701 POWER ON—OFF SW702 MEMORY/SET ON—OFF SW703 REC PAUSE ON—OFF SW704 TUNING/TIME DOWN ON—OFF SW705 TUNING/TIME UP ON—OFF SW706 SW707

TIMER/SLEEP CLOCK

DESCRIPTION

POSITION

ON—OFF ON—OFF

TYPES OF TRANSISTOR AND LED

FRONT

VIEW

REF. NO DESCRIPTION POSITION

SW711 SW712 TUNER (BAND) ON—OFF SW713 VIDEO/AUX ON—OFF SW714 TAPE ON—OFF SW715 STOP ON—OFF SW716 PLAY/REPEAT ON—OFF SW717 FAST FORWARD/TUNING UP ON—OFF SW718 FAST REWIND/TUNING DOWN ON—OFF SW721 X-BASS/DEMO ON—OFF SW722 EQUALIZER ON—OFF SW723 OPEN/CLOSE ON—OFF SW724 DISC SKIP ON—OFF

FRONT

VIEW

CD

ON—OFF

FRONT VIEW

E C B

(S) (G) (D)

(1) (2) (3)

KRA107 M KRC102 M KRC104 M KTA1266 GR KTA1273 Y KTA1274 Y

KTA1271 Y KTC3194 Y KTC3199 GR KTC3200 GR KTC3203 Y

B C E

KTC2026

– 8 –

304VT2E1 A503BC2E

CD-E99

XL1

16.9344 MHz

Q4

+3.3V

CONSTANT

VOLTAGE

TO MAIN SECTION

(+B8)

A5V

(+B4)

D_GND

+6.5V

8 7 1 2 3 4 5 6

CNP5

(+B7)

R-CH

AGND

L-CH

D5V

DGND

45

42

CE

61

CL

62

DI

63

DO

64

*WRQ

65

*RES

66

DRF

67

LCHO

RCHO

LC78646E

CD SERVO

XOUT

48

XIN

49

LVDD

41 18 10 9 8 7 5

+3.3V

38

VDD

VVDD

RFVDD

ADAVDD

XVDD68VDD5

47 46

IC1

RVDD

Q1

FIN2

FIN1

LASER

DRIVER

TO DISPLAY SECTION

WRQ

DRF CEDOCLDI

71 70

CONT3

CONT2

CONT 5

SLDO

SPDO

LDD

LDS

TIN2

TIN1

80 79 77

SW1

+6.5V

+5V

OPEN/CLOSE

1

VCC2

22 12

CLAMP SW

O/C,

CD RES

FD0 TD0

DISC NO

10 3 1 9 8 7 6 52 4

CNP6

75 69 57 56 55 51 50 43 44 40

37 28 19

6

26

23 22 21 20

SW3

CLAMP

15 13 1 7 24

SLDO

DISC

NUMBER

M3

M

T/T UP/DOWN

LOADING MOTOR

+

–

CNS4

CNP4

28 27

SPO

BI4

SW2

2 3 1 4 6 5

FD

TO

IC2

LA6574H

FOCUS/TRACKING/

SPIN/SLED

DRIVER

3 2

30

29

26

+5V (+B7)

PICKUP UNIT

+3.3V

COIL

TRACKING

FOCUS COIL

Figure 9 BLOCK DIAGRAM (1/3)

– 9 –

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

M

9

8 7 6 5 4

10 11

+

–

+

–

IC

SW4

PICKUP

IN

CD-E99

AM LOOP

ANTENNA

+B3

FM

ANTENNA

CNP301

MOTOR DRIVER

Q706

Q707 Q708

SOLENOID

DRIVER

FROM CD SECTION

BF301

B.P.F

CNP5

TA7358AP

FM FRONT END

1

3

L312 T301

FM RF

AM TRACKING

T303 T306

TAPE

MECHANISM

ASS'Y

BI601

1 2 3

IC301

6

4

5

8

7

FM

OSC

OSC BUFF

9

FM

OSC

AM BAND COVERAGE

IC302

LC72131

PLL(TUNER)

JK690

VIDEO/AUX IN

L

AUX

R

FM IF

T302

Q302

FM+B

SWITCHING

VT

+B5

Q360

CF303

20

FM

TUNER

4.5 MHz

1

AM IF

21

AM MIX

AM OSC IN

AM OSC OUT

AM RF IN

X352

22 111615

OSC

7

TAPE

CD

+B6

T351

450 kHz

CF352

7

4

AM IF

+B6

1821 12162324

985

GND

FM/AM

OUT

FM+B

10.7 MHz

CF351

FM

DET

MPXIN

IC303

STEREO

LA1832S

FM IF DET./

FM MPX./

AM IF

CLK

DO

DI

CE

5436

21

IC601

18

17

+B5

23

CLK

3

MO/ST

FM/AM

9

10

9

L

16

R

L

10 15

R

LC75341

L

11 14

AUDIO PROCESSOR

R L

12 13

R

7

17

+B5

DI

CE

VCO

ZD351

5.1V

X351

456 kHz

13

14

L

MO/ST

R

15

FM/AM

1 2

24

R

21

4

L

–20dB ATT

+B5

Q601 Q602

Q603 Q604

MUTE

SYSTEM

TAPE 1

P.B. HEAD

TAPE 2

REC./P.B.

HEAD

L-CH R-CH

L-CH

R-CH

ERASE

P.B.

AC BIAS

HEAD

REC.

SWITCHING Q101~ Q104

Q105 Q106

Q111

L103

BIAS OSC

L(T1)

1

24

R(T1) L(T2)

2

23

R(T2)

6

+B5

Q112

T1/T2 REC

9

16 11

12

NOR/

15

HIGH

SWITCHING

POP REDUCE

L REC R REC

SWITCHING

P.B

H/N

T1/T2

19

Q114

Q113

SWITCHING

13

4

21

7

18

10

Q109

+B5

L

PB

R

RECRL

IC101 AN7345K PLAYBACK AND RECORD

ALC

/PLAYBACK AMP.

+B5

Q110 BIAS

+B5

LED703, LED704

MUTING

LED

DRIVER

Q710

Q107 Q108

REC/PLAY

JOG701

JOG

VOLUME

49 50

63

IC701

IX0553AW

SYSTEM

MICROCOMPUTER

(2/2)

47

T1/T2

BIAS

VF1

Figure 10 BLOCK DIAGRAM (2/3)

– 10 –

CD-E99

FL701

FL DISPLAY

45

~

32

51

19

~

27

33

~

41

+B10

TO CD

SECTION

TAPE

MECHANISM

ASS'Y

Q603 Q604

/PLAY

MUTE

SYSTEM

SP DET.

D905~D907

IC901

STK41243

POWER AMP.

18

L

14

R

7

1

5

2

6

+B1

-B1

70

~

78 79

80

~~

85

86

100

+B10

11

8

38 52 51

VLOAD

MICROCOMPUTER

VDD

12456 78

L-OUT R-OUT

54

IC701

IX0553AW

SYSTEM

RESET

Q709

Q901~ Q904

55

40

46

48

25 13 30

VDD

AVDD

(1/2)

RESET

XL701

4.194304 MHz

VDD

CEDIDO

+B10

SP RELAY

ON-OFF

D801

~

Q905

11 12 1 0 16 1 7 20 21 22 23 24

Q885 Q886

39

34 33

~

31

37 26 15

CLK

41

FAN MOTOR

DRIVER

RL914

+B10

RX701

REMOTE

3

SENSOR

2

KEY SW701-SW707 SW711-SW718 SW721-SW724

TO CD

SECTION

Q906

+B3

HEADPHONES

MAIN POWER

TRANSFORMER

1

+B10

+B7

M901

M

FAN

MOTOR

SO901 SPEAKER TERMINAL

JK701

PT801

47

UTER

T1/T2

BIAS

VF1

M_13V

+B3

LD+7V

+B4

A_10V

+B5

+B10

+B7 +B8 +B9

UNSW_5.6V

D_5V A_5V SW_5V

–VF

VF2

IC853, IC854

VOLTAGE REGULATOR

AC_RLY

-B2

+B2

IC855

VOLTAGE

REGULATOR

IC854

AN78L05

Q841

RELAY

DRIVER

IC851

KIA7812AP

VOLTAGE

REGULATOR

IC851

D802

IC852

F802

5A/125V

F801

5A/125V

KIA7810AP

VOLTAGE

IC852

D853

IC853

KIA7805AP

D855

REGULATOR

D803, D804

Q801

D842~ D845

2A/125V

F803

2A/125V

VOLTAGE

REGULATOR

Figure 11 BLOCK DIAGRAM (3/3)

– 11 –

F804

T.F.

PT841

SUB POWER

TRANSFORMER

F805

5A/125V

RL841

AC POWER

SUPPLY CORD

AC 120 V, 60 Hz

CD-E99

7

3

2

Vcc

T

1 1

A

B

C

D

CNS601

1

2 3 4

CNP5

5

P21 12 - D

6

TO CD SERVO PWB

7 8

R-CH

1

A_GND

3

L-CH

4

CD_GND

5

CD_+B

6 7

D_GND

8

LD+7V

9

10 11 12

13

14

P16 1 - F

15

TO POWER SECTION

16

17

18

BI601

+B +B

+B

LD+7V A_5V

D+5V

CD_GND

L-CH

A_GND

R-CH

CD_D_GND

CD_A_GND

Q603, Q604: SYSTEM MUTE

R619

330

R618

330

Q603

KTC3199 GR

Q604

KTC3199 GR

FM SIGNAL PLAYBACK SIGNAL

RECORD SIGNAL CD SIGNAL VIDEO SIGNAL

22/50

R615

R614

KTC3199 GR

5.6K

KTC3199 GR

22K

R620

R617

2.2K

R616

2.2K

C640

R613

R612

R601

1K

R602

220P

C652

C609

R605

1/50

10K

390

Q601

R611

2.2K

R610

2.2K

Q602

390

22K

1/50

R621

C639

R607

3.9K C611

0.0022

C625

0.0022

C607

0.12

C605

0.1

C613 1/50

C615 4.7/50

C617 1/50

C619 1/50

C621

1/50

C623

1/50

1.2K

R609

1K

220P

C651

IC601

LC75341

AUDIO PROCESSOR

1

DI CE

2

3

4

5

6

7

8

9

10

11

12

VSS LOUT

LBASS

LTRE

LIN

LSEL0

L4

L3

L2

L1

INTERFACE

–

+

–

CCB

+

–

+

TUNER

AUX

DECK

CD

24

23

22

21

20

C606

0.1

19

C614 1/50

18

C616 4.7/50

17

C618 1/50

16

C620 1/50

15

C622 1/50

14

13

C624 1/50

C626

0.0022

C601

220/16

+B

C603 22/50

C608

0.12

1.2K

R608

C653 220P

CLK

VDD

–

+

VREF

+

–

ROUT

–

+

RBASS

–

+

RTRE

RIN

RSEL0

–

+

R4 R3

R2

R1

R149

C121

C119

0.022

0.0022

R150

68K

R128

5.6K

R127

C143

C150

R126

3.3/50

4.7K

150

0V

47/50

C124 270P

4.7K

18 19

Hich=CHROME

R129

C123

REC_R

R138

10K

0.7V

Q108

KTC3199 GR

MUTING

100

R132

C130

0.0033 C132

R130 1.5K

C128

0.022

C126

22/50

17 16 15 14 1

–

56K

+

56K

–

8 9

C125 22/50

100

R133

C127 0.022

R131 1.5K

C131

C129 0.0033

5.6K

270P

R139

10K

R134

47/25

C133 22/50

Nor/CrO2

ALC

10 11 1

47/25

10K

R135

R136 220K

0.

Q

KTC3

MU

C134 220/10

RIPPLE

ALC

SWITCHING

Q113

R147

10K

R148

4.7K

L

R116

56

C112

47/25

C114

0.033 R118

100K

C110

R114

330P

1K

23 22 21

24

2 3 4

1

R113

C109

1K

330P

R117 100K

C113

0.033

C111

47/25

R115

56

KRC104 M

0V

23

1

0V

1

0V

2

Q114

KRC104 M

SWITCHING

C116 560P

R120

3.9K

–

112K

+

Hich=T1

+

112K

–

R119

3.9K

C115 560P

R146

10K

9.3V

8.6V

Q112

9.3V

KTA1266 GR

R112

15K

R102

1K

R101

1K

47K

0V

Q106

KTC3199 GR

SWITCHING

0V

SWITCHING

C106 560P

PLAYBACK

RECORD/

PLAYBACK

560P

C105

R111 15K

R

C108 330P

L

C107 330P

IC101

AN7345K

AND

AMP.

E

TAPE 1

PLAYBACK HEAD

R-CHL-CH

F

ERASE

HEAD

R-CH

L-CH

TAPE 2

RECORD/

G

PLAYBACK HEAD

CNP101

T1_R

1

A_GND

2

T1_L

3

M_GND

1

ERASE

2

T2_R2

3

A_GND

4

T2_R1

5

T2_L1

6

T2_L2

7

CNP102

C102 560P

C101

560P

C104 180P

C103 180P

SWITCHING

Q102

KTC3200 GR

0V

Q104

KTC3200 GR SWITCHING

KTC3200 GR

0V

Q101

KTC3200 GR SWITCHING

R104

2.2K

0.7V

R106

3.3K

0.7V

SWITCHING

Q103

0.7V

R105

3.3K

0.7V

R103

2.2K

R109

4.7K

R107

R108

0V

4.7K

R110

SWITCHING

Q105

KTC3199 GR

0V

47K

3.4V

3

R122 15K

R124

5.6K

C118 47/25

IC101

AN7345K

20

5 6 7

C117 47/25

R123

5.6K

R121

15K

C141

C120

100/16

R

0.0022

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.

1

23456

Figure 12 SCHEMATIC DIAGRAM (1/10)

– 12 –

MAIN PWB-A1(1/3)

CD-E99

SOR

–

+

R149

150

VREF

ROUT

RBASS

RTRE

RSEL0

CLK

VDD

RIN

R4 R3

R2

R1

C653 220P

24

23

22

21

20

19

C614 1/50

18

C616 4.7/50

17

C618 1/50

16

C620 1/50

15

C622 1/50

14

13

C624 1/50

C626

C606

0.1

0.0022

+B

C603

22/50

C601

220/16

C608

0.12

R608

C602

0.022

R603

1K

C610

1/50

R606

R604

3.9K

10K

C612

0.0022

R642

10K

R644

6.8K

R643

6.8K

R641

10K

1.2K

+B

R691

R690

6.8K

C691 390P

C690 390P

R693

33K

R692

33K

CHASSIS

+B

A+10V

DGND

TUN_R

AGND

TUN_L

L-CH

JK690

VIDEO/AUX

IN

R-CH

CE

1

2

3

DI

4

CLK

5 6

P15 11 - H

7

TO TUNER SECTION

8

DO

9

REC_R

R139

R138

10K

0.7V

0V

Q108

KTC3199 GR

MUTING

100

R132

C130

0.0033

C124 270P

8

Hich=CHROME

7

5.6K

R129

270P

C123

C132

R130 1.5K

C128

0.022

C126

22/50

17 16 15 14 13

–

56K

+

56K

–

C125 22/50

100

R133

C127 0.022

C129 0.0033

10 11 12

C131

8 9

R131 1.5K

R136 220K

10K

KTC3199 GR

10K

R134

47/25

C133 22/50

Nor/CrO2

ALC

47/25

10K

R135

0.7V

Q107

MUTING

C134 220/10

C135 0.022

Vcc

RIPPLE

R137

220K

REC_L

0V

FFC701

16

15

14

13

12

11

10

9

8

7

6

5 4

3 2 1

1

CNP701A

P18 1 - F

TO DISPLAY PWB

C137

0.047

R158

R143

R144

(ML)

220

47K

22K

0V

+B

R140

11.6V

Q109 KTA1266 GR SWITCHING

R142

82 (1/2W)

0V

C138

0.0082

C139

0.039(ML)

CE DO

CLK

DI

BIAS

Q110

KRC104 M

47K

11.6V

0V

23

R141

4.7K

0V

1

+B

SP_DET

+B

SP_RLY

0V

Q111

BIAS OSC.

KTC3203 Y

0V

4.7

L103

R145

C140

47/25

330 µH

M_GND

19 20 21 22 23 24 25 26 27 28

(AUDIO PRO)

TAPE_A_GND

AGND

A+10V

+B_PROTECT

P16 1 - F

TO POWER SECTION

D_GND

M_+13V

SW_5V

+B_PROTECT

D_GND

S_MUTE

T_T1/T2

REC/PLAY

T_BIAS

A+10V+B

M_+13V

SW_5V

SP_DET SP_RLY

–20dB

CNP701B

7

8 9 10 11 12

Figure 13 SCHEMATIC DIAGRAM (2/10)

– 13 –

CD-E99

3

CE

L

C350 0 022

3 /

C394

C362

A

B

C

D

E

F

G

ANTENNA

AM LOOP

FM

ANTENNA

1 2 3 3

BAND PASS FILTER

CNP301

1 2

C302

0.001

C338 0.001 D301 DS1SS133

D302 DS1SS133

BF301

1 2 3

D305

DS1SS133

C308

4.7P (CH)

C314

FM FRONT END

10P

C303

C304

0.01

C309

0.001

FM RF

L312

R311 100K

R314

22

0.0047

C315

0.0047

C316

C323

0.022

IC301

TA7358AP

4

3 2 1

5

C305

4.7P

C320

0.001VD302

SVC211C

R313

C317

0.022

T306

AM OSC.

AM BAND

COVERAGE fL

6

7

R302

10

C311

18P

C310

15P(CH)

FM OSC.

C312

0.022

33K

R325

47K

0.001

R327

33

AM TRACKING

AM ANTENNA

8

9

C306

0.022

C324

4.7P(UJ)

T301

R322

680

KTC3194 Y OSC BUFFER

T303

C335

560P (HB)

T302

Q302

C334

22P

(CH)

C307 10/50

COVERAGE fL

SVC211C

C313

22P

(CH)

FM IF

C318 100P

C330

15P (UJ)

R323

FM BAND

VD303

1

2

C331

0.047 C332

0.022

VD301

SVC348S

68K

R309

10K

3

CF303

R316

4.7K

10K

R336

TP301

C342

0.022

+B

R382

C381

12P(CH)

X352

4.5 MHz C382

15P(CH)

150

C397

0.022

R375

470

10K

R365

R358

3.9K

24

5.6K

R351

1

C351 0.022

C352 10/50

C389 0.00

10K

R381

21 20

22

VSS

X IN X OUT

1 2

C383

47P

+B

AM OSC OUT

FM IF IN

C

1

AOUT

R374 1K

FM SIGNAL AM SIGNAL

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.

1

23456

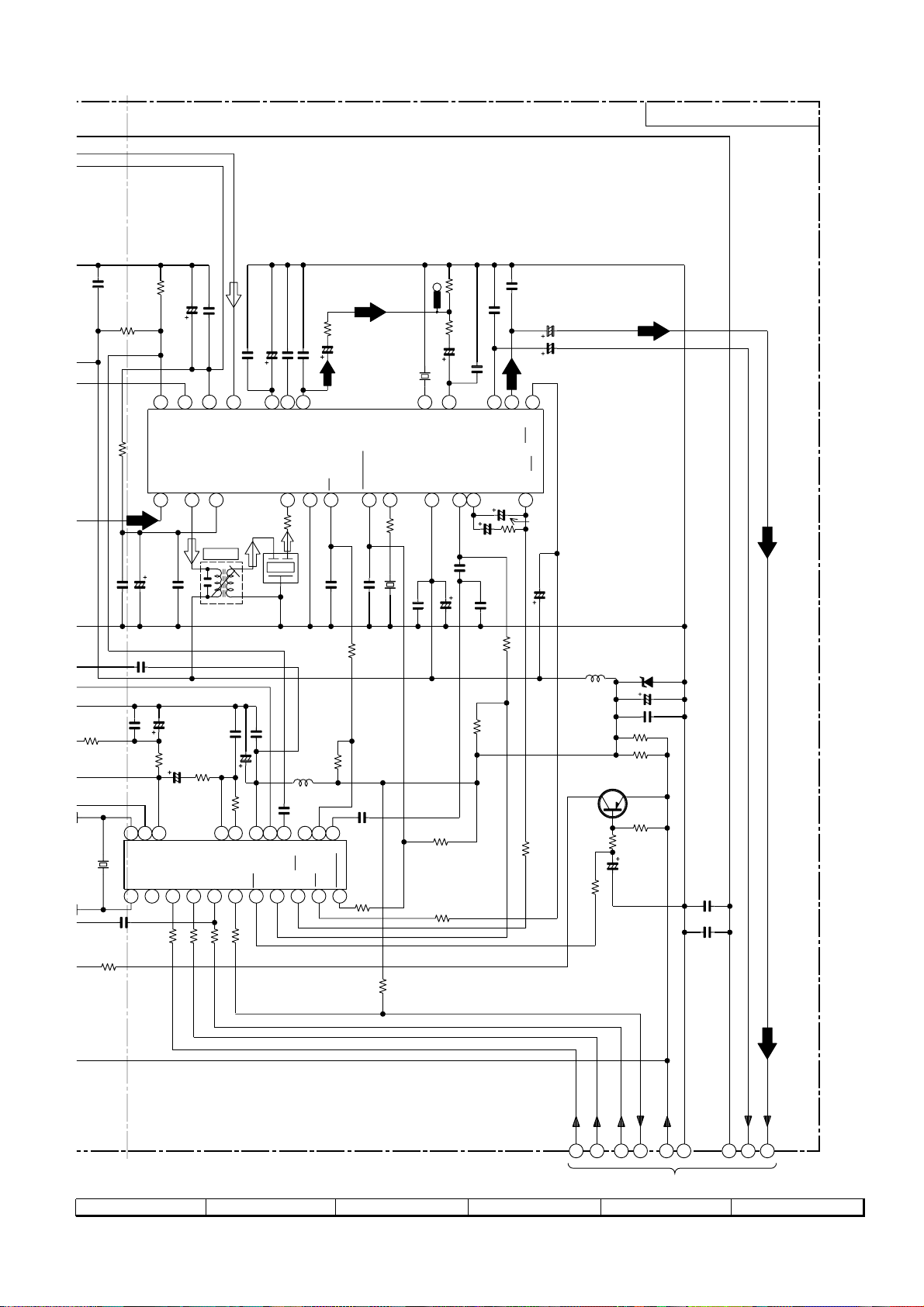

Figure 14 SCHEMATIC DIAGRAM (3/10)

+B

– 14 –

MAIN PWB-A1 (2/3)

CD-E99

42 22

R382

150

1

H)

52

Hz

2

H)

R375

470

10K

R365

R358

3.9K

24

5.6K

R351

AM OSC OUT

1

C351 0.022

C352 10/50

C389 0.001

C397

0.022

10K

R381

C393

1/50

21 20

22

VSS

AOUT

LC72131

X IN X OUT

1 2 3 4 5

C383

47P

R374 1K

+B

STEREO

0.022

C354 0.022

R393

1K

47K

R377

C386 330P

R376

1K

TP302

FM DET

R353

270

CF351

R386

22K

C361

0.022

C362

3.3/50

C363 0.022

C364 2.2/25

C365 0.022

21 22 23

AM RF IN

R352

R379

PD

VDD

DO

FM/AM

1K

VSM

AM LOW CUT

1K 1

2

C387

0.022

100 µH

2.2K

15 16 17 18

FM IN

CONT

IF

FM AFC

AM OSC IN

REG

AM MIX OUT

FM IF IN

2 3 4 5 6 7 8 9

T351

AM IF

C350 0.022

C392

C394

47/25

0.001 C380

10/50

R380

1.5K

19

IC302

CE

AIN

CL

DI

R372 1K

R373 1K

R378

R350

C366 0.001

18 19 20

FM/AM OUT

AM IF IN

GND

3

CF352

L351

0.01

C385

12 13 14

SD

IF IN

AM IN

FM/AM

MO/ST

9 8 7 6

11

10

2.7K C367

1/50

SD

C353

ST IND

IC302

LC72131

PLL (TUNER)

X351

456 kHz

C399

0.022

470K

R357

1K

R356

1/50

C368

27P

C369

16 17

MPX IN

MPX VCO

VCC

IF OUT

10 11 12

C357

2.2/50 C356

0.001

C398

100/10

R395

47K

R360

4.7K

C374 0.015

R-CH OUT

PHASE

R355

3.3K

22P

C355

3.9K

R388

5.6K

R387

C373

0.015 C371

1/50

C372

1/50

13 14 15

MO/ST

L-CH OUT

(FM/AM)

PHASE

1/50

C358

SWITCHING

1.8K

R359

IC303

LA1832S

FM IF DET./FM MPX./AM IF

1/50

C370

L352

100 µH

100/10

Q360

KTA1266 GR

R385

5.6K

R384

+B

C396

R392

270

5.6K

ZD351

DZ5.1BSB

C395

0.022

R391

270

+B

R383

5.6K

C391

47/25

C388

0.001

C384

0.001

+B

CE

DI

CLK

DO

A+10V

AGND

DGND

TUN_L

TUN_R

45927 6381

P13 12 - C

TO MAIN SECTION

7

8 9 10 11 12

Figure 15 SCHEMATIC DIAGRAM (4/10)

– 15 –

CD-E99

R939

P

A

B

C

D

E

F

G

C901

0.1/50

14

15

16

27

28

25

10

22

23

12

11

TO MAIN SECTION

P12 1 - B, P13 10 - H

26

13

21 19 24

17 18 20

+ –

18 17 16 15 14 13 12 11

C913 100P

C907

R903

100P

1K

C905

47/50

R905

560

C903

0.001

R901

56K

L_CH

A_GND

R-CH

SP_DET

SP_RLY

M_+13V

LD+7V

A+10V

+B_PROTECT

D+5V

A_5V

SW_5V

CD_GND

AGND(AUDIO PRO)

M_GND D_GND

CD_D_GND

CD_A_GND TAPE_A_GND

C904

0.001

R902

56K

C906

R906

47/50

560

+B

R907

56K

0.1(ML)

C902

0.1/50

R961

C909

C908

1

3.3P(CH)

C910

R909

3.3P(CH) 33K

100/100

C946

0.1/50

R904

R911

C911

– +

R912

Fusible

100(1/4W)

1K

56K

100(1/4W)Fusible

C912

100/100

R958

+B

R913

0.22(3W)

10

C914

100/100

R908

22K

R859

D857

DS1SS133

-B

R910

1K

KTC2026 SILICON

R916

0.22(3W)

C915

100/100

-B

IC855

C863

22/50

ZD852

DZ8.2BSB

R921

1.5K

GND

-B

R918

1.5K

R920

1K

0.01(ML)

R860

220

10/50

D852

DS1SS133

VL–

VH–

-B

0.1(3W)

0.01(ML)

R919

1K

Q902

KTC3199 GR

C919

C865

D851

3 4 5 6 7 8 9

R917

C917

100/50

DS1SS133

D905

DS1SS133

Q901

KTC3199 GR

R922

0.1(3W)

SP_DET

IC851

KIA7812AP

VOLTAGE

REGULATOR

C851

0.1

R852

10K

IC901

STK41243

POWER AMP.

VL+

VH+

1

2

-B

C918

C916

100/50

D906

-B

VH–

+B

R856

3.3(1/2W)

-B

IC851

KIA7812AP

13V

3 1

+B

2

22K

VOLTAGE REGULATOR

D858

DS1SS133

D859

DS1SS133

IC852

KIA7810AP

VOLTAGE REGULATOR

3

+B

C854

0.1(ML)

D855 DS1SS133

+B

3

2

C858

0.1

(ML)

IC853

KIA7805AP

R853

22K

R854

ZD902

DZ12BSB

C920

3900/85

R929

47K

D909

1N4004S

2

1

R925

1.5K

(1/2W)

R927

39K

4700/50

VL–

-B

C864

0.1(ML)

1

C855

0.1(ML)

C859

0.1(ML)

C921

+B

R857

3.3(1/2W)

ZD903

DZ12BSB

R926

1.5K

(1/2W)

R928

39K

4700/50

+B

C922

+B

Q903

KTC3199 GR

D907

DS1SS133

Q904

KTC3199 GR

C925

47/50

C923

3900/85

R930

47K

D910

1N4004S

VH+

VL+

R963

47K

R962

47K

+B

C856

3300/35

+B

L902 3µH

R

56K

R934

56K

R937

56K

R935

L901

3µH

L

CHASSIS

BI801

1

3 4 5 6 7 8

9 10 11

CHASSIS

CN

1

2

3

4

5

6

7

8

9

10

CNS801

1 2 3 4

FW701

P19 12 - E

5 6

FROM DISPLAY PWB

CNP802

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.

1

23456

Figure 16 SCHEMATIC DIAGRAM (5/10)

– 16 –

MAIN PWB-A1 (3/3)

CD-E99

3 9 GR

R962

C925

47K

47/50

56K

R937

BI801

1

3 4 5 6 7 8

9 10 11

L902 3µH

56K

R934

56K

R935

L901

3µH

CHASSIS

1

2 3 4 5 6 7 8 9

10

CNS801

FW701

P19 12 - E

FROM DISPLAY PWB

CHASSIS

R

L

CNP801

1

2 3 4 5 6 7 8 9

10

1 2 3 4 5 6

R939

CNP802

L

R

C929

0.1

(ML)

R941

10(1/2W)

-B

VH–

VL–

VL+

VH+

VF2 –VF

P_IN VF1

+B

AC_RLY

UNSW_

+B

10(1/2W)

-B

100K

R801

C861

0.022

-B

5.6V

R858

R938

220

10(1/2W)

82

R844

12K

R803

47

R804

+B

R942 680(2W)

R

R943 680(2W)

L

RL914

D911

DS1SS133

C928

0.1(ML) Q905

KTC3199 GR

SP RELAY

ON - OFF

R940

10(1/2W)

+B

D801

D10XB60F

+B

D802

D10XB60F

+B

R802

47K

C801

100/35

ZD801

DZ6.2BSA

C802

47/50

Q801

KTA1274 Y

VOLTAGE

REGULATOR

R805

47

IC854

AN78L05

VOLTAGE

REGULATOR

3 1

2

D856

D804

1N4004S

D803

1N4004S

47K

R806

DS1SS133

R945

1.5K

0.2V

4.4V

R946

47K

-B

C806

0.1(ML)

C807 0.1(ML)

C803

47/50

R808

2.2K(1/2W)

D853

1N4004S

+B

C809

0.1

(ML)

C808

0.1

(ML)

ZD803

R841 220K

+B

R842

R944

1.5K L1_OUT

R1_OUT

C810

0.22 (ML)

C811

0.22 (ML)

5A/125V

C805

22/100

D805

1N4004S

DZ30BSB

C804

1K

220/63

R843

47K

RELAY DRIVER

D806

1N4004S

C841

1000/6.3

Q841

KTC3199 GR

POWER PWB-B1

F802

5A/125V

F801

2A/125V

F804

2A/125V

F803

D845

1N4004S

D844

1N4004S

C842

470/35

+B

FM SIGNAL

CNS971

CNP971

+

2

Q906

L-CH

1

KTC3203 Y

DRIVER

FAN MOTOR

5

1

5

2 1

1

FW901

CNS885

1 2 3 4 5

SP_L1CH SP_R1CH

6 OHMS MIN SP_L1CH_GND

SP_R1CH_GND SO901

SPEAKER

TERMINAL

+B

D912

C931 10/50

R949

1K

R950

68K

WTM901

M_+13.5V

SP_RLY

R-CH GND

SPK_DET (A2)

VL– (A4)

GND (A3)

VL+ (A5)

VH (A1)

R947

15K

DS1SS133

M901

M

FAN MOTOR

–

HEADPHONES PWB-A3

+B

CNP705

1 2 3 4 5

D885

DS1SS133

R886

22K

1

R885

1K

2 3 4

C885

0.1(ML)

5

R887

22K

PROTECT CIRCUIT PWB-G

JK701

HEADPHONES

Q885

KTC3199 GR

Q886

KTC3199 GR

TRANSFORMER PWB-B2

AC POWER

SUPPLY CORD

AC 120 V, 60 Hz

F805

5A/125V

RL841

C844

0.047/250

MAIN POWER

TRANSFORMER

D842

1N4004S

D843

1N4004S

PT801

1

C843

0.047(ML)

WTM802

4

T.F.

FW802

WTM801

1

4

D846

DS1SS133

PT841

SUB POWER

TRANSFORMER

7

8 9 10 11 12

Figure 17 SCHEMATIC DIAGRAM (6/10)

– 17 –

CD-E99

+

R

A

LED A PWB-A4

B

LED B PWB-A5

C

D

E

F

G

LED703

A503BC2E

LED704

A503BC2E

CNP701B

P13 12 - G

TO MAIN PWB

BI703

BI704

FFC701

1 2

16

1

CNS703

CNS704

1 21

1 2

2

1 2

16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

+10V

CNP703

CNP704

CNP701A

TAPE MECHANISM PWB-F

M

+ –

+B

A+10V

CE DO

CLK DI

M_+13V SW_5V SP_DET SP_RLY –20dB

R751

330

R749

330

PROTECT D_GND S_MUTE T_T1/T2 REC/PLAY T_BIAS

SOL SOL

+B +B

LED DRIVER

Q710

KRC102 M

23

1

7 6

5 4 3 2 1

FFC702

FL701

FL DISPLAY

R794

1.5

C707

1/50

R750 47K

R772

10K

+B +B

R770

10K

+B

77

T2 RUN

7

+MTR

6

SOL2

5

SOL1

4

F_REC

3

T1 RUN

2

GND

1

11

CNP702

D710

DS1SS133

R740

4.7K

P21

P20

P19

P18

P17

P16

P15

P14

P13

P12

P11

P10

P09

P08

MOTOR DRIVER

Q706

KTA1273 Y

R757

1K

R746 1K R734 1K R735 1K

R732

1K

3

2

Q711

KRA107 M

R777

R778

10K

R779

10K

P07

NXNXNXNXNXNXNX

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

S11

80

S12

79

VLOAD

78

S13

77

S14

76

S15

75

S16

74

DIST3/S17

73

DIST2/S18

72

DIST1/S19

71

DIST0/S20

70

S21

69

DIST

68

STOP LED

67

REV_PLY_LED

66

FOR_PLY_LED 65 64 63

ILU_LED1 62

ESS DO

ESS DI

61

ESS STB

60 59

ESS ACK 58

MPEG POWER 57

DISC NO SW V_ONLY 56

KARAOKE LATCH

MIC SW

55 54

O/C_SW 53 52

T1 RUN 51

T2 RUN

50 49 48 47 46

JOG2

R758 1K

+B

1

M_+13V

+B

10K

C709 0.0047

+B

NP

F

45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

FPA/FPB

D716

1SS133

Q712

KRC104 M

23

1

SOLENOID

DRIVER

Q707

KTA1273 Y

Q708

KTA1273 Y

SOLENOID

DRIVER

D709

DS1SS133

C712

47/25

P06

P05

P04

P03

P02

S6S7S8

S9

S10

IC701

IX0553AW

SYSTEM MICROCOMPUTE

T_SOL_B

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

VDD

AC_RLY

45 44 43 42 41

JOG1

SP_RLY

1K

R730

R764 1K

R731 10K

+B

10K

R780

R775

10K

R776

10K

JOG701

JOG VOLUME

R762

+B

R728 2.2K

R729 560

10K

C710

0.0047

R725 1K

R726 680

R727 680

P01

G09

S1S2S3S4S5

G9G8G7G6G5

REMOCON

VSS

40

39 38

R724 1K

4.7K

R765

LED701

304VT2E1

G08

33 32 31

SP DET

37 36 35

R736 1K

R733 1K

R761

10K

G05

G06

G07

9

KEY 0 KEY 1 KEY 2

P_IN

AVREF

CD CLAMP SW

R721 1K

4.7K

R756

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.

1

23456

Figure 18 SCHEMATIC DIAGRAM (7/10)

– 18 –

DISPLAY PWB-A2

R728

2

2K

C710

CD-E99

P05

P04

P03

P02

P01

18 17 16 15 14 13 12 11 10

87 88 89 90 91 92 93 94 95 96 97

S1S2S3S4S5

IC701

IX0553AW

EM MICROCOMPUTER

VSS

SMUTE

T_SOL_A

T_MOTOR

T_SOL_B

40

44 43 42 41

.

R725 1K

R726 680

R727 680

G05

G06

G07

G08

G09

9 8 7 6 5 4 3 2 1

G9G8G7G6G5G4G3G2G1

KEY 0

33 32

KEY 1

31

KEY 2

CD CLAMP SW

P_IN

REMOCON

AVREF

SP DET

39 38

37 36 35

R736 1K

R733 1K

R721 1K

R724 1K

+B

G02

G03

G04

99 98

–20dBATT

DSA_STB

T-BIAS

T_T1/T2

REC/PLAY

CD RESOUT

WRQ

SPAN

RESET

VPP/IC

VDD

CD CLK

CD DI CD DO CD CE

AVSS

DISC_NO SW/

DSA DATA

TUN SM

DSA_ACK

T2_PLAY SW/

FPA/FPB SW

PROTECT LVL_DET

AVDD

34

33

32 31

R719 1K

R720 1K

G01

100

1 2 3 4 5 6 7 8 9

10

X2

11

X1

12 13 14

XT2

DRF

15 16 17 18 19 20

CE

21

CLK

22

DI

23

DO

24 25 26 27 28 29 30

R718 1K

NP

F

C701 1/50

VDD

R763 1K

R702 1K R703 1K R704 1K R705 1K R706 1K

R708

1K

XL701

4.194304 MHz

R769 1K

R709 1K R710 1K R711 1K R712 1K R713 1K R714 1K R715 1K R716 1K

R717 100

R739 1K

C720

0.022

R722

1K

R795

1.5

C702

220/10

+B +B

C704

15P

C721

0.022

C705

18P

+B

R791

4.7K

R747

+B

4.7K

R759

5.6K

DISC NO

O/C_SW

CLAMP SW

RES OUT

CD CLK

CD DI

CD DO

CD CE

DRF

WRQ(DSP)

WTM701

VF2 –VF

P_IN

VF1

+B

UNSW5.6

AC RELAY

CTR

BI701

10

11 10

9

8

7 6

5

CNP6

P21 12 - B

4

5 4

3

TO CD SERVO PWB

2

3

1

CNS701

FW701

1

CNP802

P17 7 - G

6

TO POWER PWB

0.0047

4.7K

R765

LED701

304VT2E1

D712

D711

DS1SS133

R773

10K

+B

4.7K

R756

R761

10K

R768

10K

R767

10K

R766

10K

7

+B

KEY 2

KEY 1

KEY 0

8 9 10 11 12

+B

5V BACK UP

SW721

X-BASS/

DEMO

RD19

680

RD10

680

SW711

RD01

680

SW701

POWER

EQUALIZER

CD

SW722

RD11

820

SW712 TUNER (BAND)

RD02

SW702

MEMORY/

SET

RD20

820

RD21

1K

SW723 OPEN/

CLOSE

RD12

1K

SW713 VIDEO/

AUX

RD031KRD04

SW703

REC

PAUSE

L701

100 µH

SW724

DISC SKIP

RD13

1.5K

SW714

TAPE

1.5K

SW704

TUNING/

TIME DOWN

R781

47K

C715

0.01

RD14

SW715

STOP

SW705

TUNING/

TIME UP

+B

2.2K

RD05

2.2K

D713

DS1SS133

D714

DS1SS133

RESET

Q709

KRC102 M

23

1

D715

DS1SS133

RD15

2.7K

SW716

PLAY/

FORWARD/

REPEAT

PRESET UP

RD06

2.7K

SW706 TIMER/ SLEEP

+B

C714

3.3/50

SW717

FAST

RD16

3.9K

SW707 CLOCK

100K

R782

PRESET DOWN

REMOTE SENSOR

RX701

GPUM271

1 2 3

SW718

FAST

REWIND/

DS1SS133

+B

R783

100

C717 47/25

Figure 19 SCHEMATIC DIAGRAM (8/10)

– 19 –

CD-E99

4

7

PDO2

K

2

0 22/50

A

PICKUP UNIT

HPC1LX

B

C

D

CD MOTOR PWB-D

E

F

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

SW4

PICKUP IN

TR+

TR–

FO+ FO–

M M

TR+

FO+

GND

+

– +

–

VCC VREF

E A B F C

1

TR–

PD VR LD

CNP3A

CD SERVO PWB-C

C3

CD SIGNAL

+B

TO

VIN4

C5

0.047(ML)

C19

0.022

C45

22P(CH)

C9

3.3/16

VCONT

+B

C6

0.1

C43

0.022

C40

100/10

GND

R12 330

C11

0.22/50

2

REV

FWD

10K

R11

C8

0.0027

TP1

TP2

C10

10/25

4

C12

100P

R14

R13 15K

1K

R42

1.2K

LDS

LDD

80 79 78 77 76 75 7

1

SLCO

2

SLCIST

3

EFMIN

4

RF

5

RFVDD RSVSS

6 7

FIN1 A

8

FIN2 B TIN1 E

9

TIN2 F

10

VREF

11

REF1

12

FE

13

TEC

14

TE

15

RFMON

16

JITTC

17

ADAVDD

18

ADAVSS

19

TDO

20

FDO

SPDO

21 22 23 24 25 26

R15

1K

1

R7

C20

0.001

CONSTANT

VOLTAGE

VIN3

C3

47/25

C4

0.001

C21

0.001

VCC

REG-IN

REG-OUT

47

+B

R10 27K

+B

(OS)

+B

C39

100/10

+B

VREF

VCC

GNDGND

VREF

CNS1A

CNS1B

7

6

5

4

3

2

1

CNS2B

1

2

3

4

5

6

7

8

CNS3B

6

5

4

3

2

1

7 6 5 4 3 2

1

1 2 3 4 5 6 7 8

6 5 4 3 2 1

CNS2A

CNS3A

7 6 5 4 3 2

1

1 2 3 4 5 6 7 8

6 5 4 3 2 1

CNP1

CNP2

CNP3

VCC VREF E A B F

C

TR– TR+ FO+ FO– GND PD VR LD

SP+ SP– SL+ SL– PUIN GND

R6 22K R5 8.2K R4 8.2K R3 22K

R1

8.2K

C1

47/25

C38

0.01

R9

R2

8.2K

C2

0.01

+B

10

Q1

KTA1266 GR

LASER DRIVER

Q4

KTA1271 Y

SPO

FD

15 16 17 18 19 20 21 29 22 23 24 25 26 27 28

VIN2

IC2

LA6574H

SLED DRIVER

FOCUS/TRACKING/SPIN/

14

VIN1

VCC1

VO–

VO+

VO2–

VO2+

VO3+

VO3–

VO4–

VO4+

VCC2

VO5+

8

10 11 12 13

9

30

VO5–

1 2 3 4 5 6 7

C17

M–

M+

100/10

R41

FR

SLDO

R16

1K

R8

10K

C37

12K

VVDD

GPDAC

6

C3 C2 C2

C

0.1

R40

VVSS

PCKIST

CONT5

CONT4

R1

C36

680

2

1

C41

100/10

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.

1

23456

Figure 20 SCHEMATIC DIAGRAM (9/10)

+B

– 20 –

C48

0.001

+B+B

CD-E99

FOCUS/TRACKING/SPIN/

C33 100P

C30 100P C29 100P C28 100P

C35

(ML)

0.047

680

R39

CONT2

CONT3

CONT1

78

IC1

LC78646E

FSEQ

V/*P

DEFECT

R20

10K

R19 15K

+B

VSS

MON11

C27 0.022

0.1

C37

C36

R16

R41

6

1K

12K

VVDD

PCKIST

CONT4

GPDAC

680

R40

VVSS

CONT5

27 28 29 30 31 32 33 34 35 36 37 38 39 40 21 22 23 24 25 26

R18

1K

PDO2

0.22/50

PDO1

CD SERVO

SBCK/FG

R42

1.2K

LDS

DD

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 61 62 63 64 65

1

FR

SLCO

2

SLCIST

3

EFMIN

4

RF

5

RFVDD RSVSS

6 7

FIN1 A FIN2 B TIN1 E

9

TIN2 F

10

VREF

11

REF1

12

FE

13

TEC

14

TE

15

RFMON

16

JITTC

17

ADAVDD

18

ADAVSS

19

TDO

20

FDO

SLDO

SPDO

3

K

4

R15

1K

1

DRF

VDD5

MON13

MON12

*RES

3

MON14

C13

0.022

DO

*WRQ

FSX/16MIN

VSS

MON15

DI

CL

10

ASDFIN

ASDACK

ASLRCK IGMOUT

EFLG

C2F

XVSS

XIN XOUT XVDD

RVDD RCHO

RVSS

LVSS

9

LCHO

DOUT

VDD

60

CE

59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

TEST

0.001

C22

0.01

C14

100/10

R31

4.7K

C44

12

DATA BCK LRCK

R38 1K R37 1K R36 1K R35 1K R34 1K R33 1K R32 1K

R29 2.2K R28 2.2K

11

R43

220

+B

10/25

XL1

16.9344 MHz

ZD1

DZ3.3BSB

LVDD

C23

R24

2.2K

C16

330/6.3

C25

0.0015 (ML)

R26 10K

R22

100

10/25

0.0015

C24

R25

2.2K

C26

(ML)

R27 10K

DRF

CD RES

WRQ

1 2

CE

O/C,

R-CH AGND L-CH DGND

D5V A5V

+6.5V

3

DO

4

DI

5

CL

6

CNS701

P19 12 - D

FROM DISPLAY PWB

CNS601

P12 1 - B

FROM MAIN PWB

CNP6

7 8 9

10

1 2 3 4 5 6 7 8

CNP5

+B +B

CLAMP SW

DISC NO

+B

L1

0.82 µH

+B

C42

0.01

+B

D_GND

10K

SLED DRIVER

+B

• The numbers 1 to 12 are waveform numbers shown in page 30.

R8

+B

R21 1 R46 1

C15

0.001

7

8 9 10 11 12

+B

CNS4

1

2

3

4

5

6

+B

CNP4

6

+B

BI4

+

–

M3

M

T/T UP DOWN

LOADING MOTOR

DISC NUMBER

CD LOADING

SW1

OPEN/CLOSE

SW2

CLAMP

SW3

MOTOR PWB-E

Figure 21 SCHEMATIC DIAGRAM (10/10)

– 21 –

CD-E99

6

R609

1

A

B

C

COLOR TABLE

BROWN

BR

OR

YL

GR

BL VL

GY

BK PK

RED ORANGE YELLOW

GREEN

BLUE

VIOLET

GRAY WHITE BLACK

PINK

FM

ANTENNA

1 2 3

RD(R)

WH(W)

AM LOOP

ANTENNA

D

BR

2

M901

FAN MOTOR

E

F

G

RD

CNS971

R-CH

JK690

VIDEO/AUX IN

L-CH

SO901

SPEAKER

TERMINAL R-CH

L-CH

R-CH

L-CH

1

+

– –

MAIN PWB-A1

1 2 3

CNP301

D301

C323

D302

C338

R692

R693

R949

C931

R950 D912

R939 R941

TP301

C304

BF301

T303

C331

C302

C306

IC301

C305

C303

123

C330

R947

R945

R944

C394

R381

C307

9 8 7 6 5 4 3 2 1

R690 C690

R691 C691

BCE

Q905

ECB

D911

RL914

C929

R940 R938

R314

C315

C317

VD301

Q906

C384

C382

C381

R322

T302

L312

C314

R946

X352

C397

R302 C310

C308

R336

R323

C332

C335

R943

C928

1

22 C392 C380

C393

Q302

BCE

R325

R316

C334

CNP971

R937

C925

BCE ECB

R379

20

R380

C320

R327

D305

C316

T306

2 1

R374 R373 R372

C311

C309 VD302

R313

C946

Q903

Q904

R942

5

IC302

L351

C389

R375

T301

VD303

R309

C312

CF303

123

R365

C362

C901

L901

R378

15

C318

C324

R311

C342

R619 R612

L902

R934

D907

C387

C385

C361

R935

10

11

C386

12

R387

R377

R393

R382

CF352

3 2 1

C351

C352

C313

C350

R352

15

R351

C367

R350

R358

C363

C364

Q602

E C

R614

B

R610

LG4

R359

R360

R384

B C

Q360

E

C353

IC303

C366

C365

Q601

E C B

C912

D905

R388

R376

R386

R383

C354

R392

C391

R385

T351

10

C399

152024

C369

TP302

R613 R615

R611

R905 R901 C903

R903

R908

B C E

Q901

C398

R357

C911

C920

C396

R395

R391

L352

ZD351

CF351

R353

12

13

C905

C907 C908 R907

C919

R920

R355

X351

R356

C639

R621

R921

C383

C395

C370

C357

C368

R906 C904 C913

C356

C372

C909

C906

R922

C355

C371

R909

C358

C910

C373 C374

R902

R904

R913

C388

R642

R604

R618

C902

IC901

R911

R910

C610

R917

C923

C606

C614

C620

C622

R644

Q604

ECB

Q603

R912

C624

R958

R918

C608

C616

C618

R916

R606

R616 R617 R620

C917

C603

C602

C640

Q902

D906

ECB

R919

24

13

20

15

C612

R605

123456789101112131415161718

C60

5

IC601

10

C626

R608

R

H

1

23456

Figure 22 WIRING SIDE OF P.W.BOARD (1/7)

– 22 –

CD-E99

0

Q604

CB

Q603

R912

3

C606

C614

C620

C622

R644 C624

C616

C618

R958

R918

C608

R916

R606

R616 R617 R620

C917

C603

C602

C640

Q902

D906

ECB

R919

24

13

C612

12345678

20

15

C626

R605

C601

1

5

IC601

10

12

R608

R641

TO CD SERVO PWB

CNS601

C651

C653

C609 C607

C605

C617

C619

C625

R609

C621

C623

R854

C851

R927

P26 4 - A

CNP5

12345678

RDBLBLBLBL

GRGRGR

R601 R603

C611

R643

ZD852

D859

R860

D858

R602

C615

R607

C613

D852

C652

IC851

C915

C864

C914

R926

R925

C916

ZD902

C921

D857

123

ZD903

TO DISPLAY PWB

FFC701

1

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CNP701B

1

RD BL

GR BL GR BL GR BL

9

R961

C863

C865

E C B

C918

P25 12 - D

CNP701A

BI601

R859

IC855

C922

Q107

R121 R119

C115

D851

C854

IC852

D910 R930

R928

E C B

C113

Q113

R853

R929

D909

R963

R139

C101

3 2 1

R149

16

R135

R133

R127 R137 C119

C143

C121

C117

R123

R117 CNP101

3 2 1

Q114

R147

C855

1

R962

5

R136

R138

R158

C134

C127

C131

C129 R124

C125

12

R131 R129 C123

5

C107

C109

R115

R101

C111

C102

R113

123

E

C

B

Q105

R110

R109

R107

R148

C141

R852

C858

123123

R857

WTM901

C133

10 15

1

R116

C105

R114

C106

Q106

R108

E C B

R146

C859

IC853

C856

R856

R132

C135

IC101

24

R102

7 6

5 4 3 2 1

C104

CNP102

Q112

3

21

Q110

11

1

C128

13

20

C103

BI801

R134 C130

R130

C126

R111

C138

R140

D855

C132

R126 R128 C124 R150

C114

L103

C139

LG3

R118

C112

C110

C108

ECB

R141

ECB

Q109

BCE

Q108

R145

ECB

C140

C150

C118

Q103

Q101

Q102 Q104

R122 C120

R105

R103

R104 R112 R106

C137

TAPE1 PLAYBACK HEAD

C116 R120

TAPE2 RECORD/PLAYBACK

R144

R143

Q111

R142

GR WH GR WH GR WH

GR WH

GR RD

P27 10 - F

FROM

P27 11 - F

FROM HEAD

HEADPHONES PWB-A3

JK701

HEADPHONES

CNP705

12345

15

FW901

10

9 8 7 6 5 4 3 2 1

CNS801

CNS885

5 4 3 2 1

CNP801

P28 4 - A

CNP885

P25 11 - F

TO POWER PWB

TO PROTECT

CIRCUIT PWB

7

8 9 10 11 12

Figure 23 WIRING SIDE OF P.W.BOARD (2/7)

– 23 –

CD-E99

0

A

DISPLAY PWB-A2

LED B PWB-A5

B

C

P26 3 - A

D

TO CD SERVO PWB

P28 4 - A

TO POWER PWB

E

COLOR TABLE

RD(R)

F

WH(W)

LED704

CNP6

CNP802

BR

OR

YL

GR

BL VL

GY

BK PK

1

BI704

2

CNS704

CNS701

10

9 8 7 6 5 4 3 2 1

FW701

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY WHITE BLACK

PINK

3

RX701

R756

Q712

123 123

R777 R778 R779

R740

Q711

Q706

1 2

R763

R702

C702

R728

R704

R703

R780

R791

R759

R705

R706

R708 C721

R709 R710

R769

REPEAT

SW712 TUNER (BAND)

D716

VIDEO/

SW716

PLAY/

L701

R717

R739

SW713

AUX

SW717

FAST

FORWARD/

PRESET UP

R783

Q707

Q708

SW724

DISC

SKIP

R776 R775

ECB

C717

C701

ECB

D710

D709

SW722

EQUALIZER

SW721

1 2

WH YL WH YL WH YL WH YL WH RD

SW723 OPEN/

CLOSE

11

6

RD20

1

WTM701

D712

D711

RD21

BI701

Q709

321

D715

R782 C715

X-BASS/DEMO

RD19

12

CNP704

R795

JOG701

JOG VOLUME

C709

C714

C710

R781

D713

D714

CNP702

7

P27 9 - A

TO TAPE MECHANISM PWB

ECB

C712

23456

1

FFC702

XL701

RD10

RD11 RD12

FL701

C704 C705

RD13

19181716151413121110987651

100

1

R713 R716

R714

R715

RD15 RD16

95

R71 R71

9

G

H

1

23456

Figure 24 WIRING SIDE OF P.W.BOARD (3/7)

– 24 –

CD-E99

LED A PWB-A4

1

100

1

R713 R716

R714

R715

RD15 RD16

95

R711 R712

90

5

10

80

81

85

75

IC701

15

20

25

30

65

70

60

55

45

35

40

31

C720 R722

R718 R719

R720 R766

R767 R768 R773

RD14

SW718

FAST

REWIND/

PRESET DOWN

R750

51

R746 R735

50

SW711

CD

SW714

TAPE

SW715

STOP

R734

R724

R736

R758 R764

R730

R747 R770 R772

R731 R732

R729

R727 R726

R733 R765

R725

R762 R721

454140393837363534333231302928271918

R757

R761

SW702

MEMORY/SET

RD02

SW703

REC PAUSE

LED701

R794

C707

R749

RD06 RD05

RD04 RD03

12

R751

321

Q710

RD01

SW706 TIMER/ SLEEP

TUNING/TIME

CNP703

SW707

CLOCK

SW705

UP

SW704

DOWN

P23 12 - H

FROM MAIN PWB

CNS885

12345

CNP885

SW701

POWER

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

CNP701A

BI703

FFC701 1

16

2

LED703

1

12

CNS703

CNP701B

P23 9 - A

TO MAIN PWB

E

B

C

B

E

D885

Q885

Q886

R885

C885

R886

R887

PROTECT CIRCUIT PWB-G

7

8 9 10 11 12

Figure 25 WIRING SIDE OF P.W.BOARD (4/7)

– 25 –

CD-E99

P24 1 - D

FROM DISPLAY PWB

CD SERVO PWB-C

A

B

7 8

5

C

4

D

C41

C1

Q1

C4

B

C38

C

8

E 7 6 5 4 3 2 1

7 6 5 4 3 2 1

C17

1

7

8

14

CNP2

R41

C2

CNP1

R7

5

IC2

10

C36

C35

C37

R8

25

20

R9

R40

R28

C45

CNS701

123456 1234567878910

CNP6

C3

R37

R38

R36

C33

C27

R39

28

22

21

15

R29

C8

R19

C40

R12

R2 R1

C39

R11

R31

R10

E C B

Q4

R35

C19

C20 C21

R42

C6

R34

R33

C30

C5

R5 R4 R3

R6

C9

CNP3

C29

80

FROM MAIN PWB

3

C42

R32

C26

C28

70

75

1

5

10

C43

R13

C10

C11

P23 8 - A

CNS601

CNP5

R27

ZD1

61

60

65

55

IC1

30

15

25

20 21

R14

C12

CNP4

123456654321

50

R15

1211

R24

R26

R22

R25

C25

C16

XL1

45

35

C24

C23

R43

41

40

C13

C22

L1

C44

C14

10

9 6 1

2

R18

R20

C48 C15

R16

R46 R21

COLOR TABLE

BR

BROWN

E

RD(R)

WH(W)

F

CNS1A

1 2 3 4 5 6 7

1 2

CNS2A

3 4 5 6 7 8

G

H

OR

YL

GR

BL VL

GY

BK PK

RED ORANGE YELLOW

GREEN

BLUE

VIOLET

GRAY WHITE BLACK

PINK

RD WH

BL

WH

BL

WH

BL

RD WH GY WH GY WH GY WH

CNS1B

1 2 3 4 5 6 7

1 2 3 4 5 6 7 8

CNS2B

PICKUP UNIT(306)

17

8

1

CNS3A

CNS3B

–

6

GR

WH

6

CNP3A

SW4

PICKUP IN

+

SPINDLE MOTOR

WH

12345

RD

12345

–

M1

CD MOTOR PWB-D

+

M2

SLED MOTOR

• The numbers 1 to 12 are waveform numbers shown in page 30.

1

23456

Figure 26 WIRING SIDE OF P.W.BOARD (5/7)

– 26 –

TAPE MECHANISM ASSEMBLY

P30 3 - F

TO DISPLAY PWB

CNP702

CD-E99

1

34567

SW

SOLENOID

1

2

CD LOADING MOTOR PWB-E

SW1

OPEN/CLOSE

+

FFC702

7

M3

T/T UP/DOWN

LOADING

MOTOR

TAPE MECHANISM PWB-F

SW

2

1

+

-

TAPE 1

PLAYBACK HEAD

PK

BK

WH

GR

TAPE

MOTOR

ERASE HEAD

SOLENOID

TAPE 2

SW

RECORD/PLAYBACK

HEAD

BK

WH

YL

BL

PK

WH

GR

CNS4

7

BK

WH

PK

23

1

–

RD

1

WH

2

BK

3

WH

4

BK

5

WH

6

1

BI4

6

NUMBER

SW3 DISC

SW2

CLAMP

CNP101

P23 12 - A

TO MAIN PWB

BL

YL

WH

BK

WH

PK

7 6 5 4 3 2 1

CNP102

P23 12 - C

TO MAIN PWB

BK

8 9 10 11 12

Figure 27 WIRING SIDE OF P.W.BOARD (6/7)

– 27 –

CD-E99

POWER PWB-B1

D804

D803

2A/125V

D856

R802

R841 D853

Q801

F803

2A/125V

R801

C803 ZD803

R805

R808

D806 R806

R844

E

C802

A

IC854

321

C842

C805

D845 D844 D843 D842

BCE

C806

C807

D805

F804

1

WTM802

C841

C861

C843

R842

R858

R843

Q841

4

B

P23 12 - G

FROM MAIN PWB

CNS801

10987654321

CNP801

ZD801

R804

C801

CB

C804 R803

F802

5A/125V

C

P24 1 - D

FROM DISPLAY PWB

FW701

123456

CNP802

C810

C811

D802

C809

C808

F801

D801

5A/125V

D

FW802

PT801

E

T.F.

MAIN POWER TRANSFORMER

F805

5A/125V

F

WTM801

D846

14

RL841

BK

WH

C844

AC POWER

SUPPLY CORD

AC 120 V, 60 Hz

G

PT841

SUB POWER TRANSFORMER

TRANSFORMER PWB-B2

YL

H

COLOR

TABLE

1

BR

BROWN

ORANGE

YELLOW

GREEN

RED

23456

OR

RD(R)

GR

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W) BK

BLACK

WHITE

PK

PINK

Figure 28 WIRING SIDE OF P.W.BOARD (7/7)

– 28 –

VOLTAGE

PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE

10 V

0 V

0 V1

2

1 1.6 V 1 4.85 V 51 0 V

PIN NO. VOLTAGE

20 V

0 V

2 3 4

1.0 V 2 4.78 V 0 V

52 53 54

4.93 V

1 2 3

7.59 V

3 0.56 V 3

5

1.6 V 3

0 V

4 1.996 V

N.C.

4 5 V 0.532 V 4

0 V

2.1 V

2.0 V

2.1 V

55 V

5 V

563.3 V 5 4.71 V

0 V

55 0 V

0 V

N.C.

4

6 1.303 V

0 V

6 7

0 V 6 4.75 V 56 0 V

5

75 V

5 V 5 V

7 8 9

1.6 V 7 4.78 V 57 0 V

6

8 0.587 V 8 1.6 V 8 0.39 V

0 V

58590 V

0 V

7 8

9 3.54 V 9 1.6 V 9

2.1 V

10 3.46 V 10 5 V 10 1.6 V 10 4.89 V 60 0 V

9

11 0 V 11 5 V 11 1.6 V 11 2.32 V 61 0 V

10 2.1 V

12 0 V 12 5 V 12 1.6 V 12 2.014 V 62 0 V

11 2.1 V

13 7.03 V 13 5 V 13 1.5 V 13 0 V 63 4.82 V

12 4.86 V

14 4.2 V 14 5 V 14 1.855 V 14 4.78 V 64 N.C.

13 1.642 V

15 0 V 15 5 V 15 1.852 V 15 0 .43V 65 N.C.

14 1.654 V

16 3.46 V 16 5 V 16 N.C. 16 4.79 V 66 N.C.

15 1.642 V

17 0.587 V 17 5 V 17 2.046 V 17 4.72 V 67 N.C.

16 1.655 V

18 0 V 18 5 V 18 3.2 V 18 0.14 V 68 N.C.

17 1.647 V

19 2.68 V 19 5 V 19 0 V 19 0.594 V 69 -28.96 V

18 1.655 V

20 N.C. 20 5 V 20 1.6 V 20 0.1 V 70 -28.89 V

19 4.18 V

21 2.02 V 21 5 V 21 1.6 V 21 0 V 71 -28.89 V

20 3.27 V

22 0.561 V 22 5 V 22 1.6 V 22 0 V 72 -17.00 V

21 1.659 V

23 0 V 23 10.0 V 23 1.6 V 23 0 V 73 -28.88 V

22 4.85 V

24 0 V 24 0 V 24 1.6 V 24 5.02 V 74 -25.92 V

23 1.652 V

25 0 V 25 0 V 75 -25.91 V

24 1.645 V

26 3.2 V 26 4.93 V 76 -19.97 V

25 5.60 V

27 0 V 27 0. V 77 -22.78 V

26 0 V

PIN NO. VOLTAGE 28 0 V 28 5.08 V 78 -25.92 V

27 0 V

PIN NO. VOLTAGE 1 2.13 V 29 0 V 29 5.07 V 79 -14.05 V

28 0 V

1 18.34 V 2 5.15 V 30 0 V 30 0 V 80 -25.93 V 2 1.282 V 3 2.13 V 31 0 V 31 5.08 V 81 -17.00 V 3 13.6 V 4 2.13 V

0 V

32330 V

0 V

32335.04 V 82 -25.91 V 5 5.08 V 83 -22.93 V 6 5.23 V 34 0 V 34 4.79 V 84 -26.88 V 7 5.23 V 35 0 V 35 5.08 V 85 -19.98 V

PIN NO. VOLTAGE 8 3.6 V 36 0 V 36 1.555 V 86 -14.01 V

1 16.03 V

0 V

9105.15 V 37 0 V 37 4.96 V 87 -28.90 V

2 4.43 V 38 3.2 V 38 5.09 V 88 -28.88 V 3 9.95 V 11 1.836 V 39 1.639 V 39 4.95 V 89 -28.89 V

12 1.265 V 40 0 V 40 0 V 90 -28.90 V 13 2.32 V 41 3.7 V 41 1.951 V 91 -25.92 V 14 1.25 V 42 1.745 V 42 13.23 V 92 -26.06 V

PIN NO. VOLTAGE 15 1.269 V 43 0 V 43 13.23 V 93 -25.98 V

1 16.3 V

0 V

4.95 V

16 17 18

2.12 V

2.1 V

44450 V 44 13.23 V 94 -25.98 V 3 1.744 V 45 3.82 V 95 -25.96 V 2 0 V 46 3.2 V 46 4.79 V 96 -25.95 V

19 2.167 V 47 3.2 V 47 4.78 V 97 -25.96 V 20 1.441 V 48 1.564 V 48 4.54 V 98 -25.96 V

PIN NO. VOLTAGE 21 2.09 V 49 1.634 V 49 4.96 V 99 -25.96 V

1 12.1 V 22 2.09 V 50 0 V 50 4.93 V 100 -25.91 V 2 0.57 V 23 5.06 V 51 0 V 3 5.62 V 24 3.55 V 52 3.2 V IC901

53 0 V PIN NO. VOLTAGE

54 0 V 1 61.3 V

PIN NO. VOLTAGE PIN NO. VOLTAGE 55 0 V 2 28.26 V

1 2.5 V

0 V 0 V 0 V 0 V

1 2 3 4 5

0.871 V 56 0 V 3 16.2 V 2 1.588 V 57 0 V 4 -28.27 V 3 5.43 V 58 1.638 V 5 -28.27 V 4 1.565 V 59 0 V 6 -61.7 V 5 0 V 60 0 V 7 0 V 6 5.07 V 6 5.45 V 61 0 V 8 0 V 7 10.0 V 7 4.72 V 62 4.7 V 9 0 V 8 4.78 V

0 V

895.41 V 63 0.1 V 10 0 V

9 5.45 V 64 4.9 V 11 0 V

10 0 V 65 4.9 V 12 -59.2 V 11 5.23 V 66 4.9 V 13 59.2 V 12 0 V 67 0 V 14 0 V 13 5.23 V 68 4.9 V 15 0 V 14 0 V PIN NO. VOLTAGE 69 0 V 16 -58.1 V 15 0 V E 7.67 V 70 0 V 17 0 V 16 2.6 V B 0 V 71 0 V 18 0 V 17 5.25 V C 8.26V 72 5.43 V 18 0 V 73 0.6 V 19 0 V 74 0.1 V 20 9.94 V 75 0 V 21 0 V 76 1.66 V 22 2.71 V 77 3.2 V

78 2.535 V 79 0 V 80 3.2 V

IC2

IC601 IC1 IC701IC101

IC302

IC303

IC301

IC855

IC852

IC851

IC854

IC853

29 0 V 30 0 V

CD-E99

– 29 –

CD-E99

IC1 21

1

T

1

Stopped

CH1=500 mV

FDO

DC 10:1

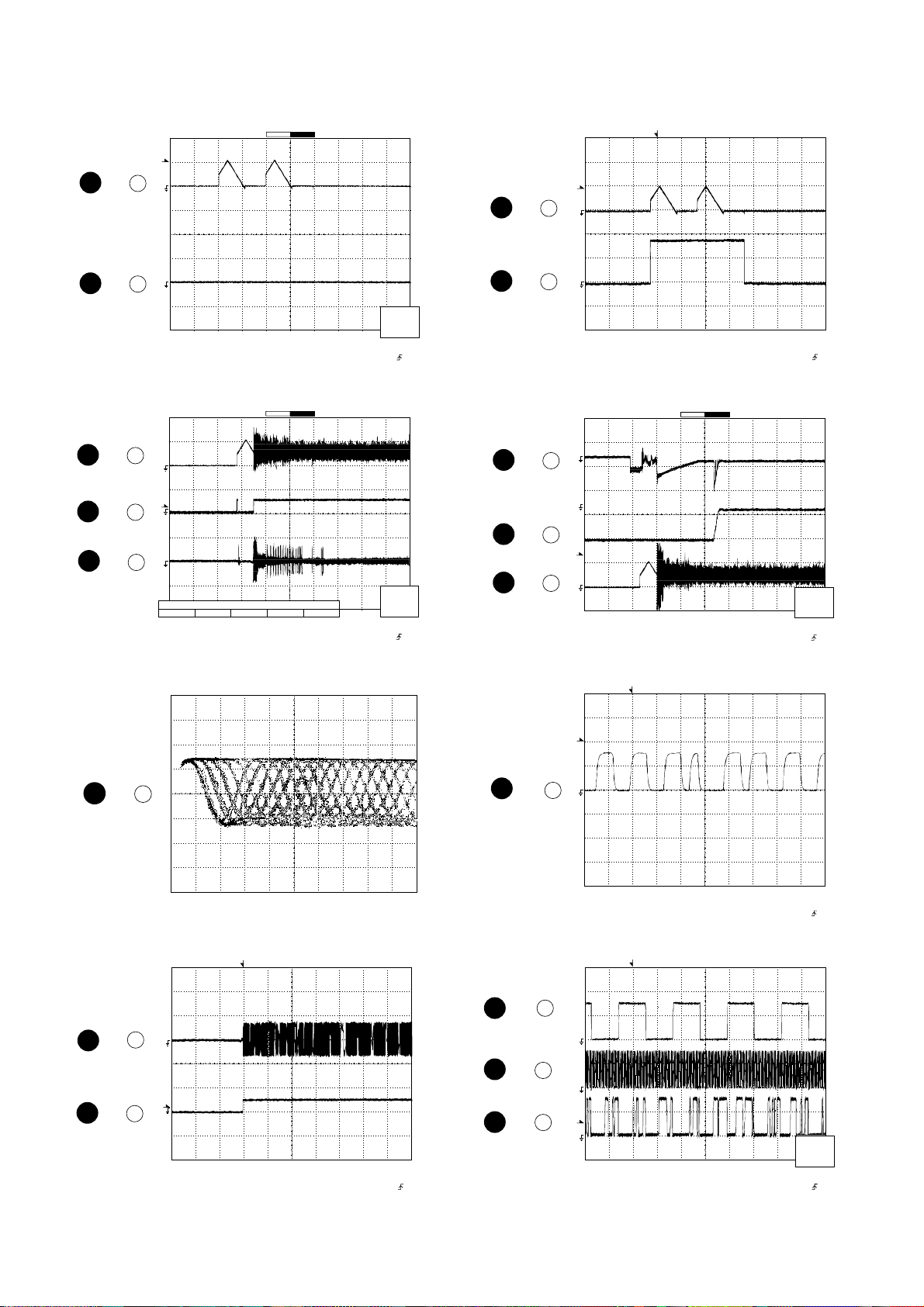

WAVEFORMS OF CD CIRCUIT

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

1

IC1 21

T

2

Stopped

FDO

CH1=200 mV

DC 10:1

T

CH2=500 mV

DC 10:1

1999/04/07 09:51:15

500 ms/div

(500 ms/div)

NORM:20 kS/s

2

1

3

4

IC1 20

IC1 21

IC1 67

IC1 15

TDO

3

Smoothing : ON CH1 : 0.000 V BW : FULL

Stopped

1

T 2

3

-3 div -1 div 0 div +1 div +3 div

Smoothing : ON CH1 : 0.000 V BW : FULL

CH1=500 mV

DC 10:1

FDO

DRF

TE

CH2 : 0.0 V CH3 : 0.000 V CH4 : 0.00 V

CH2=10 V DC 10:1

CH Position To

CH2 : 0.0 V CH3 : 0.00 V CH4 : 0.00 V

=Record Length=

Main : 100 K Zoom : 2 K

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K Zoom : 2 K

CH1 v/DIV 500 mV

=Trigger==Filter= =Offset= Mode : AUTO Type : EDGE CH1 Delay : 0.0 ns Hold off : 0.2 µs

500 ms/div

(500 ms/div)

NORM:20 kS/s

CH2 Position

0.20 div

=Trigger==Filter= =Offset= Mode : AUTO Type : EDGE CH1 Delay : 0.0 ns Hold off : 0.2 µs

6

7

8

1

IC1 22

IC1 73

IC1 74

IC1 21

SPDO

1

Smoothing : ON CH1 : 0.000 V BW : FULL

Stopped

3

4

T

1

Smoothing : ON CH1 : 0.000 V BW : FULL

Stopped

T

CH1=500 mV

DC 10:1

PDO1

PDO2

FDO

CH1=2 V

DC 10:1

CH2 : 0.000 V CH3 : 0.00 V CH4 : 0.00 V

CH2 : 0.0 V CH3 : 0.00 V CH4 : 0.00 V

T

=Record Length=

Main : 100 K Zoom : 2 K

CH3=1 V

DC 10:1

=Record Length=

Main : 100 K Zoom : 2 K

=Trigger==Filter= =Offset= Mode : NORMAL Type : EDGE CH2 Delay : 2.924 ms Hold off : 0.2 µs

1999/04/05 17:33:17

CH4=1 V

500 ms/div

(500 ms/div)

DC 10:1

NORM:20 kS/s

=Trigger==Filter= =Offset= Mode : AUTO Type : EDGE CH2 Delay : 0.0 ns Hold off : 0.2 µs

1999/04/07 09:25:28

500 ns/div

(500 ns/div)

NORM:200 MS/s

CH1 v/DIV 500 mV

3

4

5

IC1 4

IC1 15

IC1 67

Stopped

CH1=10 V

DC 10:1

TE

2

DRF

T 1

Smoothing : ON CH1 : 0.0 V BW : FULL

T

CH2=1 V

DC 10:1

CH2 : 0.00 V CH3 : 0.00 V CH4 : 0.00 V

=Record Length=

Main : 100 K Zoom : 2 K

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Trigger==Filter= =Offset= Mode : NORMAL Type : EDGE CH1 Delay : 2.924 ms Hold off : 0.2 µs

10

11

12

9

IC1 39

IC1 58

IC1 59

IC1 60

1

DOUT

Smoothing : ON CH1 : 0.00 V BW : FULL

Stopped

1

2

T

3

Smoothing : ON CH1 : 0.00 V BW : FULL

CH1=2 V

LRSY

DATACK

DATA

DC 10:1

CH2 : 0.00 V CH3 : 0.00 V CH4 : 0.00 V

T

CH2=2 V

DC 10:1

CH2 : 0.00 V CH3 : 0.00 V CH4 : 0.00 V

=Record Length=

Main : 1 K Zoom : 100

CH3=2 V

DC 10:1

=Record Length=

Main : 5 K Zoom : 100

=Trigger==Filter= =Offset= Mode : NORMAL Type : EDGE CH1 Delay : 2.887 ms Hold off : 0.2 µs

1999/04/05 20:50:17

5 µs/div

(5 µs/div)

NORM:100 kS/s

CH3 v/DIV 2 V

=Trigger==Filter= =Offset= Mode : AUTO Type : EDGE CH3 Delay : 0.0 ns Hold off : 0.2 µs

– 30 –

PARTS GUIDE

MINI COMPONENT SYSTEM

MODEL CD-E99

CD-E99 Mini Component System consisting of CD-E99 (main unit) and CP-E99 (speaker system).

CD-E99

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%, "C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor, Please call Toll-Free; 1-800-BE-SHARP

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5% carbon-film type.

CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH SAME TYPE F801, F802 5A, 125V / F803, F804 2A, 125V / F805 5A, 125V FUSES

ATTENTION:POUR ASSURER UNE LONGUE PROTECTION CONTRE UNINCENDIE, REMPLACER SEULEMENT PAR UN FUSIBLE DE TYPE F801, F802 5A, 125V / F803, F804 2A, 125V / F805 5A, 125V

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set. Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

CD-E99

NO.

PART CODE

PRICE

RANK

DESCRIPTION

CD-E99

INTEGRATED CIRCUITS

IC1 VHILC78646E-1 J AY CD Servo,LC78646E IC2 VHILA6574H+-1 J AN Focus/Tracking/Spin/Sled Driver,

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131 IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC601 VHILC75341/-1 J AM Audio Processor,LC75341 IC701 RH-IX0553AWZZ J AX System Microcomputer,

IC851 VHIKIA7812AP1 J AF Voltage Regulator,KIA7812AP IC852 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP IC853 VHIKIA7805AP1 J AF Voltage Regulator,KIA7805AP IC854 VHIAN78L05/-1 J AE Voltage Regulator,AN78L05 IC855 VSKTC2026//-1 J AF Silicon,NPN,KTC2026 IC901 VHISTK41243-1 J BE Power Amp.,STK41243

LA6574H Amp.,AN7345K

LA1832S

IX0553AW

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q4 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y Q101~104 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q105~108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q110 VSKRC104M//-1 J AC Digital,NPN,KRC104 M Q111 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q113,114 VSKRC104M//-1 J AC Digital,NPN,KRC104 M Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q601~604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q706~708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y Q709,710 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q711 VSKRA107M//-1 J AE Digital,PNP,KRA107 M Q712 VSKRC104M//-1 J AC Digital,NPN,KRC104 M Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y Q841 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q885,886 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q901~905 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q906 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

DIODES

D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133 D305 VHDDS1SS133-1 J AB Silicon,DS1SS133 D709~716 VHDDS1SS133-1 J AB Silicon,DS1SS133 D801,802 VHDD10XB60F-1 J AL Silicon,D10XB60F D803~806 VHD1N4004S/-1 J AB Silicon,1N4004S D842~845 VHD1N4004S/-1 J AB Silicon,1N4004S

1 D846 VHDDS1SS133-1 J AB Silicon,DS1SS133

D851,852 VHDDS1SS133-1 J AB Silicon,DS1SS133 D853 VHD1N4004S/-1 J AB Silicon,1N4004S D855 VHDDS1SS133-1 J AB Silicon,DS1SS133 D856 VHDDS1SS133-1 J AB Silicon,DS1SS133 D857~859 VHDDS1SS133-1 J AB Silicon,DS1SS133 D885 VHDDS1SS133-1 J AB Silicon,DS1SS133 D905~907 VHDDS1SS133-1 J AB Silicon,DS1SS133 D909,910 VHD1N4004S/-1 J AB Silicon,1N4004S D911,912 VHDDS1SS133-1 J AB Silicon,DS1SS133 LED701 VHP304VT2E1-1 J AC LED,Red,304VT2E1 LED703,704 VHPA503BC2E-1 J AN LED,White,A503BC2E ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB ZD801 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA ZD803 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB ZD852 VHEDZ8R2BSB-1 J AB Zener,8.2V,DZ8.2B ZD902,903 VHEDZ120BSB-1 J AB Zener,12V,DZ12BSB

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz CF351 RFILF0003AWZZ J AK FM IF CF352 RFILA0009AWZZ J AE AM IF

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

TRANSFORMERS

1 PT801 RTRNP0489AWZZ J BH Power 1 PT841 RTRNP0483AWZZ J AL Power

T301 RCILB0065AWZZ J AC OSC,FM T302 RCILI0017AWZZ J AB FM IF T303 RCILA0052AWZZ J AE AM Antenna T306 RCILB0067AWZZ J AD OSC,AM T351 RCILI0019AWZZ J AD AM IF

COILS

L1 VP-XHR82K0000 J AC 0.82 µH,Choke L103 VP-MK331K0000 J AB 330 µH,Choke L312 RCILR0056AWZZ J AB FM RF L351,352 VP-DH101K0000 J AB 100 µH,Choke L701 VP-DH101K0000 J AB 100 µH,Choke L901,902 RCILZ0024AWZZ J AC 3 µH,Choke

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S VD302,303 VHCSVC211C/-1 J AG Silicon,Variable Capacitance,

SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz XL1 RCRM-0047AWZZ J AE Ceramic,16.9344 MHz XL701 RCRSP0003AWZZ J AH Crystal,4.194304 MHz

CAPACITORS

C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C2 VCTYMN1CY103N J AA 0.01 µF,16V C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C4 VCKYMN1HB102K J AA 0.001 µF,50V C5 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar C6 VCTYPA1CX104K J AB 0.1 µF,16V C8 VCTYMN1CX272K J AA 0.0027 µF,16V C9 RC-EZ0004AWZZ J AD 3.3 µF,16V,Electrolytic C10 RC-EZY106AF1E J AB 10 µF,25V,Electrolytic C11 RC-EZY224AF1H J AB 0.22 µF,50V,Electrolytic C12 VCKYMN1HB101K J AA 100 pF,50V C13 VCTYMN1EF223Z J AA 0.022 µF,25V C14 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic C15 VCKYMN1HB102K J AA 0.001 µF,50V C16 RC-EZY337AF0J J AA 330 µF,6.3V,Electrolytic C17 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic C19 VCTYMN1EF223Z J AA 0.022 µF,25V C20,21 VCKYMN1HB102K J AA 0.001 µF,50V C22 VCTYMN1CY103N J AA 0.01 µF,16V C23,24 RC-EZY106AF1E J AB 10 µF,25V,Electrolytic C25,26 VCQYKA1HM152K J AB 0.0015 µF,50V,Mylar C27 VCTYMN1EF223Z J AA 0.022 µF,25V C28~30 VCKYMN1HB101K J AA 100 pF,50V C33 VCKYMN1HB101K J AA 100 pF,50V C35 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar C36 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic C37 VCTYPA1CX104K J AB 0.1 µF,16V C38 VCTYMN1CY103N J AA 0.01 µF,16V C39~41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic C42 VCTYMN1CY103N J AA 0.01 µF,16V C43 VCTYMN1EF223Z J AA 0.022 µF,25V C44 VCKYMN1HB102K J AA 0.001 µF,50V C45 VCCCMN1HH220J J AA 22 pF (CH),50V C48 VCKYMN1HB102K J AA 0.001 µF,50V C101,102 VCKYMN1HB561K J AA 560 pF,50V C103 VCKYBT1HB181K J AA 180 pF,50V C104 VCKYMN1HB181K J AA 180 pF,50V C105,106 VCKYMN1HB561K J AA 560 pF,50V C107~110 VCKYMN1HB331K J AA 330 pF,50V C111,112 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C113,114 VCTYPA1EX333K J AA 0.033 µF,25V C115,116 VCKYMN1HB561K J AA 560 pF,50V C117,118 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C119,120 VCTYMN1CX222K J AA 0.0022 µF,16V C121 VCTYMN1EF223Z J AA 0.022 µF,25V C123,124 VCKYMN1HB271K J AA 270 pF,50V

– 1 –

CD-E99

NO. PART CODE

C125,126 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic C127,128 VCTYPA1CX223K J AA 0.022 µF,16V C129,130 VCTYMN1CX332K J AA 0.0033 µF,16V C131,132 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C133 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic C134 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic C135 VCTYMN1EF223Z J AA 0.022 µF,25V C137 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar C138 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene C139 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar C140 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C141 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic C143 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic C150 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic C302 VCKYMN1HB102K J AA 0.001 µF,50V C303 VCCCMN1HH100J J AA 10 pF (CH),50V C304 VCTYMN1CY103N J AA 0.01 µF,16V C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V C306 VCTYMN1EF223Z J AA 0.022 µF,25V C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic C308 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V C309 VCKYMN1HB102K J AA 0.001 µF,50V C310 VCCCMN1HH150J J AA 15 pF (CH),50V C311 VCCSMN1HL180J J AA 18 pF,50V C312 VCTYMN1EF223Z J AA 0.022 µF,25V C313 VCCCMN1HH220J J AA 22 pF (CH),50V C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V C316 VCTYMN1EF223Z J AA 0.022 µF,25V C317 VCKYMN1HB102K J AA 0.001 µF,50V C318 VCKYMN1HB101K J AA 100 pF,50V C320 VCKYBT1HB102K J AA 0.001 µF,50V C323 VCTYMN1EF223Z J AA 0.022 µF,25V C324 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V C331 VCKZPA1HF473Z J AA 0.047 µF,50V C332 VCTYMN1EF223Z J AA 0.022 µF,25V C334 VCCCMN1HH220J J AA 22 pF (CH),50V C335 VCKYMN1HB561K J AA 560 pF,50V C338 VCKYMN1HB102K J AA 0.001 µF,50V C342 VCTYMN1EF223Z J AA 0.022 µF,25V C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V C355 VCCSMN1HL220J J AA 22 pF,50V C356 VCKYMN1HB102K J AA 0.001 µF,50V C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C361 VCTYMN1EF223Z J AA 0.022 µF,25V C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic C363 VCTYMN1EF223Z J AA 0.022 µF,25V C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic C365 VCKZPA1HF223Z J AA 0.022 µF,50V C366 VCKYMN1HB102K J AA 0.001 µF,50V C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C373,374 VCTYPA1CX153K J AA 0.015 µF,16V C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic C381 VCCCMN1HH120J J AA 12 pF (CH),50V C382 VCCCMN1HH150J J AA 15 pF (CH),50V C383 VCCSBT1HL470J J AA 47 pF,50V C384 VCKYMN1HB102K J AA 0.001 µF,50V C385 VCTYMN1CY103N J AA 0.01 µF,16V C386 VCKYMN1HB331K J AA 330 pF,50V C387 VCTYMN1EF223Z J AA 0.022 µF,25V C388 VCKYMN1HB102K J AA 0.001 µF,50V C389 VCKYBT1HB102K J AA 0.001 µF,50V C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C392 VCKYMN1HB102K J AA 0.001 µF,50V C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C395 VCTYMN1EF223Z J AA 0.022 µF,25V C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic C397 VCTYMN1EF223Z J AA 0.022 µF,25V C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic C399 VCTYMN1EF223Z J AA 0.022 µF,25V C601 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic C602 VCKZPA1HF223Z J AA 0.022 µF,50V C603 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic C605,606 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film C607,608 VCFYHA1HA124J J AB 0.12 µF,50V,Thin Film C609,610 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

PRICE RANK

DESCRIPTION

NO.

C611,612 VCTYMN1CX222K J AA 0.0022 µF,16V C613,614 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C615,616 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic C617~624 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C625,626 VCTYMN1CX222K J AA 0.0022 µF,16V C639 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C640 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic C651~653 VCKYMN1HB221K J AA 220 pF,50V C690,691 VCKYMN1HB391K J AA 390 pF,50V C701 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C702 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic C704 VCCSMN1HL150J J AA 15 pF,50V C705 VCCSMN1HL180J J AA 18 pF,50V C707 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic C709,710 VCTYMN1CX472K J AA 0.0047 µF,16V C712 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C714 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic C715 VCTYMN1EF103Z J AB 0.01 µF,25V C717 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic C720,721 VCTYMN1EF223Z J AA 0.022 µF,25V C801 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic C802,803 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic C804 VCEAZA1JW227M J AD 220 µF,63V,Electrolytic C805 VCEAZA2AW226M J AC 22 µF,100V,Electrolytic C806~809 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C810,811 VCQYKU2AM224K J AB 0.22 µF,100V,Mylar C841 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic C842 VCEAZA1VW477M J AD 470 µF,35V,Electrolytic C843 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

1 C844 RC-KZ002LAWZZ J AC 0.047 µF,250V,Ceramic

C851 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C854,855 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C856 VCEAZW1VW338M J AH 3300 µF,35V,Electrolytic C858,859 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C861 VCKZPA1HF223Z J AA 0.022 µF,50V C863 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic C864 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C865 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic C885 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C901,902 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic C903,904 VCKYMN1HB102K J AA 0.001 µF,50V C905,906 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic C907 VCKYMN1HB101K J AA 100 pF,50V C908 VCCCMN1HH3R3C J AA 3.3 pF (CH),50V C909 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C910 VCCCMN1HH3R3C J AA 3.3 pF (CH),50V C911,912 VCEAZA2AW107M J AD 100 µF,100V,Electrolytic C913 VCKYMN1HB101K J AA 100 pF,50V C914,915 VCEAZA2AW107M J AD 100 µF,100V,Electrolytic C916 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic C917 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar C918 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic C919 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar C920 RC-EZ0124AWZZ J AR 3900 µF,85V,Electrolytic C921,922 RC-EZ0065AWZZ J AN 4700 µF,50V,Electrolytic C923 RC-EZ0124AWZZ J AR 3900 µF,85V,Electrolytic C925 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic C928,929 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar C931 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic C946 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

PRICE RANK

DESCRIPTIONPARTS CODE

RESISTORS

R1,2 VRD-MN2BD822J J AA 8.2 kohms,1/8W R3 VRD-MN2BD223J J AA 22 kohms,1/8W R4,5 VRD-MN2BD822J J AA 8.2 kohms,1/8W R6 VRD-MN2BD223J J AA 22 kohms,1/8W R7 VRD-ST2CD470J J A A 47 ohms,1/6W R8 VRD-ST2CD103J J A A 10 kohm,1/6W R9 VRD-MN2BD100J J AA 10 ohm,1/8W R10 VRD-MN2BD273J J AA 27 kohms,1/8W R11 VRD-MN2BD103J J AA 10 kohm,1/8W R12 VRD-MN2BD331J J AA 330 ohms,1/8W R13 VRD-ST2CD153J J AA 15 kohms,1/6W R14,15 VRD-MN2BD102J J AA 1 kohm,1/8W R16 VRD-ST2CD102J J AA 1 kohm,1/6W R18 VRD-MN2BD102J J AA 1 kohm,1/8W R19 VRD-ST2CD153J J AA 15 kohms,1/6W R20 VRD-MN2BD103J J AA 10 kohm,1/8W R21 VRD-ST2EE1R0J J AA 1 ohm,1/4W R22 VRD-ST2CD101J J AA 100 ohm,1/6W

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

– 2 –

CD-E99

NO.

R24,25 VRD-MN2BD222J J AA 2.2 kohms,1/8W R26,27 VRD-MN2BD103J J AA 10 kohm,1/8W R28,29 VRD-ST2CD222J J AA 2.2 kohms,1/6W R31 VRD-ST2CD472J J AA 4.7 kohms,1/6W R32~38 VRD-ST2CD102J J AA 1 kohm,1/6W R39,40 VRD-MN2BD681J J AA 680 ohms,1/8W R41 VRD-MN2BD123J J AA 12 kohms,1/8W R42 VRD-MN2BD122J J AA 1.2 kohms,1/8W R43 VRD-MN2BD221J J AA 220 ohms,1/8W R46 VRD-ST2EE1R0J J AA 1 ohm,1/4W R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W R111 VRD-ST2CD153J J AA 15 kohms,1/6W R112 VRD-MN2BD153J J AA 15 kohms,1/8W R113,114 VRD-ST2CD102J J AA 1 kohm,1/6W R115,116 VRD-ST2CD560J J AA 56 ohms,1/6W R117,118 VRD-MN2BD104J J AA 100 kohm,1/8W R119,120 VRD-MN2BD392J J AA 3.9 kohms,1/8W R121,122 VRD-MN2BD153J J AA 15 kohms,1/8W R123,124 VRD-MN2BD562J J AA 5.6 kohms,1/8W R126,127 VRD-MN2BD472J J AA 4.7 kohms,1/8W R128,129 VRD-MN2BD562J J AA 5.6 kohms,1/8W R130,131 VRD-MN2BD152J J AA 1.5 kohms,1/8W R132,133 VRD-MN2BD101J J AA 100 ohm,1/8W R134,135 VRD-MN2BD103J J AA 10 kohm,1/8W R136 VRD-ST2CD224J J AA 220 kohms,1/6W R137 VRD-MN2BD224J J AA 220 kohms,1/8W R138 VRD-ST2CD103J J AA 10 kohm,1/6W R139 VRD-MN2BD103J J AA 10 kohm,1/8W R140 VRD-MN2BD473J J AA 47 kohms,1/8W R141 VRD-ST2CD472J J AA 4.7 kohms,1/6W R142 VRD-RT2HD820J J AA 82 ohms,1/2W R143 VRD-MN2BD473J J AA 47 kohms,1/8W R144 VRD-MN2BD223J J AA 22 kohms,1/8W R145 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W R146,147 VRD-MN2BD103J J AA 10 kohm,1/8W R148 VRD-MN2BD472J J AA 4.7 kohms,1/8W R149 VRD-ST2EE151J J AA 150 ohms,1/4W R150 VRD-MN2BD683J J AA 68 kohms,1/8W R158 VRD-ST2EE221J J AA 220 ohms,1/4W R302 VRD-MN2BD100J J AA 10 ohm,1/8W R309 VRD-ST2CD103J J AA 10 kohm,1/6W R311 VRD-MN2BD104J J AA 100 kohm,1/8W R313 VRD-MN2BD333J J AA 33 kohms,1/8W R314 VRD-ST2CD220J J AA 22 ohms,1/6W R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W R322 VRD-MN2BD681J J AA 680 ohms,1/8W R323 VRD-MN2BD683J J AA 68 kohms,1/8W R325 VRD-MN2BD473J J AA 47 kohms,1/8W R327 VRD-MN2BD330J J AA 33 ohms,1/8W R336 VRD-MN2BD103J J AA 10 kohm,1/8W R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W R352 VRD-MN2BD102J J AA 1 kohm,1/8W R353 VRD-MN2BD271J J AA 270 ohms,1/8W R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W R356 VRD-MN2BD102J J AA 1 kohm,1/8W R357 VRD-ST2CD474J J AA 470 kohms,1/6W R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W R365 VRD-MN2BD103J J AA 10 kohm,1/8W R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W R375 VRD-ST2CD471J J AA 470 ohms,1/6W R376 VRD-MN2BD102J J AA 1 kohm,1/8W R377 VRD-MN2BD473J J AA 47 kohms,1/8W R378 VRD-MN2BD102J J AA 1 kohm,1/8W R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W R381 VRD-MN2BD103J J AA 10 kohm,1/8W R382 VRD-ST2EE151J J AA 150 ohms,1/4W R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W R386 VRD-ST2CD223J J AA 22 kohms,1/6W R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W R393 VRD-MN2BD102J J AA 1 kohm,1/8W

PART CODE

PRICE

RANK

DESCRIPTION

NO. PARTS CODE

R395 VRD-MN2BD473J J AA 47 kohms,1/8W R601~603 VRD-ST2CD102J J AA 1 kohm,1/6W R604 VRD-ST2CD103J J AA 10 kohm,1/6W R605 VRD-MN2BD103J J AA 10 kohm,1/8W R606,607 VRD-MN2BD392J J AA 3.9 kohms,1/8W R608,609 VRD-MN2BD122J J AA 1.2 kohms,1/8W R610,611 VRD-MN2BD222J J AA 2.2 kohms,1/8W R612,613 VRD-MN2BD391J J AA 390 ohms,1/8W R614,615 VRD-MN2BD562J J AA 5.6 kohms,1/8W R616,617 VRD-MN2BD222J J AA 2.2 kohms,1/8W R618 VRD-ST2CD331J J AA 330 ohms,1/6W R619 VRD-MN2BD331J J AA 330 ohms,1/8W R620,621 VRD-MN2BD223J J AA 22 kohms,1/8W R641 VRD-MN2BD103J J AA 10 kohm,1/8W R642 VRD-ST2CD103J J AA 10 kohm,1/6W R643,644 VRD-MN2BD682J J AA 6.8 kohms,1/8W R690,691 VRD-MN2BD682J J AA 6.8 kohms,1/8W R692,693 VRD-MN2BD333J J AA 33 kohms,1/8W R702 VRD-MN2BD102J J AA 1 kohm,1/8W R703,704 VRD-ST2CD102J J AA 1 kohm,1/6W R705 VRD-MN2BD102J J AA 1 kohm,1/8W R706 VRD-ST2CD102J J AA 1 kohm,1/6W R708~716 VRD-MN2BD102J J AA 1 kohm,1/8W R717 VRD-ST2CD101J J AA 100 ohm,1/6W R718~720 VRD-MN2BD102J J AA 1 kohm,1/8W R721 VRD-ST2CD102J J AA 1 kohm,1/6W R722 VRD-MN2BD102J J AA 1 kohm,1/8W R724 VRD-MN2BD102J J AA 1 kohm,1/8W R725 VRD-ST2CD102J J AA 1 kohm,1/6W R726,727 VRD-ST2CD681J J AA 680 ohms,1/6W R728 VRD-ST2CD222J J AA 2.2 kohms,1/6W R729 VRD-MN2BD561J J AA 560 ohms,1/8W R730 VRD-MN2BD102J J AA 1 kohm,1/8W R731 VRD-MN2BD103J J AA 10 kohm,1/8W R732 VRD-MN2BD102J J AA 1 kohm,1/8W R733 VRD-ST2CD102J J AA 1 kohm,1/6W R734~736 VRD-MN2BD102J J AA 1 kohm,1/8W R739 VRD-ST2CD102J J AA 1 kohm,1/6W R740 VRD-ST2CD472J J AA 4.7 kohms,1/6W R746 VRD-MN2BD102J J AA 1 kohm,1/8W R747 VRD-MN2BD472J J AA 4.7 kohms,1/8W R749 VRD-MN2BD331J J AA 330 ohms,1/8W R750 VRD-ST2CD473J J AA 47 kohms,1/6W R751 VRD-MN2BD331J J AA 330 ohms,1/8W R756 VRD-MN2BD472J J AA 4.7 kohms,1/8W R757,758 VRD-MN2BD102J J AA 1 kohm,1/8W R759 VRD-ST2CD562J J AA 5.6 kohms,1/6W R761 VRD-MN2BD103J J AA 10 kohm,1/8W R762 VRD-ST2CD103J J AA 10 kohm,1/6W R763,764 VRD-MN2BD102J J AA 1 kohm,1/8W R765 VRD-ST2CD472J J AA 4.7 kohms,1/6W R766~768 VRD-MN2BD103J J AA 10 kohm,1/8W R769 VRD-MN2BD102J J AA 1 kohm,1/8W R770 VRD-MN2BD103J J AA 10 kohm,1/8W R772,773 VRD-MN2BD103J J AA 10 kohm,1/8W R775~780 VRD-MN2BD103J J AA 10 kohm,1/8W R781 VRD-MN2BD473J J AA 47 kohms,1/8W R782 VRD-MN2BD104J J AA 100 kohm,1/8W R783 VRD-ST2CD101J J AA 100 ohm,1/6W R791 VRD-MN2BD472J J AA 4.7 kohms,1/8W R794,795 VRD-ST2EE1R5J J AA 1.5 ohms,1/4W R801 VRD-ST2CD104J J AA 100 kohm,1/6W R802 VRD-ST2CD473J J AA 47 kohms,1/6W R803 VRD-ST2CD123J J AA 12 kohms,1/6W R804,805 VRD-ST2EE470J J AA 47 ohms,1/4W R806 VRD-ST2CD473J J AA 47 kohms,1/6W R808 VRD-RT2HD222J J AA 2.2 kohms,1/2W R841 VRD-ST2CD224J J AA 220 kohms,1/6W R842 VRD-ST2CD102J J AA 1 kohm,1/6W R843 VRD-ST2CD473J J AA 47 kohms,1/6W R844 VRD-ST2EE820J J AA 82 ohms,1/4W R852 VRD-ST2CD103J J AA 10 kohm,1/6W R853,854 VRD-ST2CD223J J AA 22 kohms,1/6W R856,857 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W R858 VRD-ST2CD221J J AA 220 ohms,1/6W R859 VRD-ST2CD223J J AA 22 kohms,1/6W R860 VRD-ST2EE221J J AA 220 ohms,1/4W R885 VRD-ST2CD102J J AA 1 kohm,1/6W R886,887 VRD-ST2CD222J J AA 22 kohms,1/6W R901,902 VRD-MN2BD563J J AA 56 kohms,1/8W R903,904 VRD-MN2BD102J J AA 1 kohm,1/8W R905,906 VRD-MN2BD561J J AA 560 ohms,1/8W

PRICE

RANK

DESCRIPTION

– 3 –

CD-E99

NO. PART CODE

R907 VRD-MN2BD563J J AA 56 kohms,1/8W R908 VRD-MN2BD102J J AA 1 kohm,1/8W R909 VRD-MN2BD333J J AA 33 kohms,1/8W R910 VRD-MN2BD102J J AA 1 kohm,1/8W R911 VRD-ST2CD563J J AA 56 kohms,1/6W

1 R912 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R913 VRN-VV3LAR22J J AC 0.22 ohms,3W R916 VRN-VV3LAR22J J AC 0.22 ohms,3W R917 VRN-VV3LAR10J J AD 0.1 ohm,3W R918 VRD-ST2CD152J J AA 1.5 kohms,1/6W R919,920 VRD-ST2CD102J J AA 1 kohm,1/6W R921 VRD-ST2CD152J J AA 1.5 kohms,1/6W R922 VRN-VV3LAR10J J AD 0.1 ohm,3W R925,926 VRD-RT2HD152J J AA 1.5 kohms,1/2W R927,928 VRD-ST2EE393J J AA 39 kohms,1/4W R929,930 VRD-ST2EE473J J AA 47 kohms,1/4W R934,935 VRD-ST2CD563J J AA 56 kohms,1/6W R937 VRD-ST2CD563J J AA 56 kohms,1/6W R938~941 VRD-RT2HD100J J AA 10 ohm,1/2W R942,943 VRS-VV3DA681J J AC 680 ohms,2W R944,945 VRD-ST2CD152J J AA 1.5 kohms,1/6W R946 VRD-ST2CD473J J AA 47 kohms,1/6W R947 VRD-ST2CD153J J AA 15 kohms,1/6W R949 VRD-ST2CD102J J AA 1 kohm,1/6W R950 VRD-ST2CD683J J AA 68 kohms,1/6W

1 R958 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R961 VRD-MN2BD1R0J J A A 1 ohm,1/8W R962,963 VRD-ST2CD473J J AA 47 kohms,1/6W RD01 VRD-ST2CD681J J AA 680 ohms,1/6W RD02 VRD-MN2BD821J J AA 820 ohms,1/8W RD03 VRD-MN2BD102J J AA 1 kohm,1/8W RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W RD10 VRD-MN2BD681J J AA 680 ohms,1/8W RD11 VRD-MN2BD821J J AA 820 ohms,1/8W RD12 VRD-MN2BD102J J AA 1 kohm,1/8W RD13 VRD-ST2CD152J J AA 1.5 kohms,1/6W RD14 VRD-MN2BD222J J AA 2.2 kohms,1/8W RD15 VRD-MN2BD272J J AA 2.7 kohms,1/8W RD16 VRD-MN2BD392J J AA 3.9 kohms,1/8W RD19 VRD-MN2BD681J J AA 680 ohms,1/8W RD20 VRD-ST2CD821J J AA 820 ohms,1/6W RD21 VRD-MN2BD102J J AA 1 kohm,1/8W

PRICE RANK

DESCRIPTION

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin BI601/CNS601 QCNWN2465AWZZ J AG Connector Ass’y,9/8Pin BI701/CNS701 QCNWN2466AWZZ J AH Connector Ass’y,11/10Pin BI703/CNS703 QCNWN2505AWZZ J AC Connector Ass’y,2/2Pin BI704/CNS704 QCNWN2505AWZZ J AC Connector Ass’y,2/2Pin BI801/CNS801 QCNWN2469AWZZ J AH Connector Ass’y,11/10Pin CNP1 QCNCM704GAWZZ J AC Plug,7Pin CNP2 QCNCM704HAWZZ J AC Plug,8Pin CNP3 92LCONE6P53253 J AC Plug,6Pin CNP3A 92LCONE6P53254 J AC Plug,6Pin CNP4 QCNCM705FAFZZ J AB Plug,6Pin CNP5 92LCONE8P53254 J AC Plug,8Pin CNP6 92LCONEAP53254 J AD Plug,10Pin CNP101 QCNCM705CAFZZ J AA Plug,3Pin CNP102 QCNCM705GAFZZ J AB Plug,7Pin CNP301 92LCONE3P5268 J AC Plug,3Pin CNP701A QCNCWZY16AWZZ J AD Socket,16Pin CNP701B QCNCWZX16AWZZ J AD Socket,16Pin CNP702 QCNCWZY07AWZZ J AC Socket,7Pin CNP703,704 92LCONE2P53253 J AB Plug,2Pin CNP705 QCNCW012EAWZZ J AC Socket,5Pin CNP801 92LCONEAP5267X J AC Plug,10Pin CNP802 QCNCW012FAWZZ J AC Plug,6Pin CNP885 92LCONE5P53253 J AB Plug,5Pin CNP971 92LCONE2P53253 J AB Plug,2Pin CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin CNS885 QCNWN2591AWZZ J Connector Ass’y,5Pin CNS971 QCNWN1389AWZZ J AC Connector Ass’y,2Pin

1 F801,802 QFS-D502DAWNI J AC Fuse,5A/125V 1 F803,804 QFS-D202DAWNI J AC Fuse,2A/125V 1 F805 QFS-D502DAWNI J AC Fuse,5A/125V

FFC701 QCNWN2471AWZZ J AF Flat Cable,16Pin FFC702 QCNWN2495AWZZ J AD Flat Cable,7Pin

NO.

FL701 VVKNA09SS29-1 J AX FL Display FW701 QCNWN2467AWZZ J AC Flat Wire,6Pin FW802 QCNWN2473AWZZ J AC Flat Wire,4Pin FW901 QCNWN2470AWZZ J AC Flat Wire,5Pin JK690 QSOCJ0224AWZZ J AC Jack,Video/AUX In JK701 QJAKM0004AWZZ J AK Jack,Headphones JOG701 QSW-Z0015AWZZ J AF Switch,Push Type [Jog Volume] LG3,4 QLUGP0001AWZZ J AC Lug M1 92LMTR2790CASY J BB Motor with Chassis [Spindle] M2 92LMTR1854BASY J AP Motor with Gear [Sled] M3 RMOTV0373AFZZ J AL Motor with Worm Pulley

M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

1 RL841 RRLYD0018AWZZ J AH Relay

RL914 RRLYD0016AWZZ J AH Relay RX701 VHLGP1UM271-1 J AH Remote Sensor,GP1UM271 SO901 QTANA0423AWZZ J AE Terminal,Speaker SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close] SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Clamp] SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number] SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In] SW701 92LSWICHT1663T J AC Switch,Key Type [Power] SW702 92LSWICHT1663T J AC Switch,Key Type [Memory/Set] SW703 92LSWICHT1663T J AC Switch,Key Type [REC Pause] SW704 92LSWICHT1663T J AC Switch,Key Type

SW705 92LSWICHT1663T J AC Switch,Key Type SW706 92LSWICHT1663T J AC Switch,Key Type [Timer/Sleep]

SW707 92LSWICHT1663T J AC Switch,Key Type [Clock] SW711 92LSWICHT1663T J AC Switch,Key Type [CD] SW712 92LSWICHT1663T J AC Switch,Key Type [Tuner (Band)] SW713 92LSWICHT1663T J AC Switch,Key Type [Video/AUX] SW714 92LSWICHT1663T J AC Switch,Key Type [Tape] SW715 92LSWICHT1663T J AC Switch,Key Type [Stop] SW716 92LSWICHT1663T J AC Switch,Key Type [Play/Repeat] SW717 92LSWICHT1663T J AC Switch,Key Type

SW718 92LSWICHT1663T J AC Switch,Key Type SW721 92LSWICHT1663T J AC Switch,Key Type [X-Bass/Demo]

SW722 92LSWICHT1663T J AC Switch,Key Type [Equalizer] SW723 92LSWICHT1663T J AC Switch,Key Type [Open/Close] SW724 92LSWICHT1663T J AC Switch,Key Type [Disc Skip] WTM701 QCNCW019FAWZZ J AB Holder,Flat Wire,6Pin WTM801,802 QCNCW015DAWZZ J AB Holder,Flat Wire,4Pin WTM901 QCNCW019EAWZZ J AB Holder,Flat Wire,5Pin

PRICE RANK

DESCRIPTIONPARTS CODE

[T/T Up Down Loading Motor]

[Tuning/Time Down] [Tuning/Time Up]

[Fast Forward/Preset Up] [Fast Rewind/Preset Down]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle 302 NGERH0012AWZZ J AC Gear,Drive 303 MLEVP0080AWZZ J AC Rail,Guide 304 NSFTM0020AWFW J AD Shaft,Guide 305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit 306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack 701 XBSSD26P06000 J AA Screw,ø2.6×6mm 702 XHBSD20P05000 J AA Screw,ø2×5mm 703 XBBSD20P03000 J AA Screw,ø2×3mm 704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm M1 92LMTR2790CASY J BB Motor with Chassis [Spindle] M2 92LMTR1854BASY J AP Motor with Gear [Sled] SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

(Not Replacement Item)

CABINET PARTS

201 92LCAB5183AASY J Front Panel Ass’y 201- 1 ———— — Front Panel

201- 2 GCOVA1467AWSB J AH Cover,Cassette [Tape 1] 201- 3 GCOVA1468AWSB J AH Cover,Cassette [Tape 2] 201- 4 GDORF0118AWSA J AE Holder,Cassette [Tape 1] 201- 5 GDORF0119AWSA J AE Holder,Cassette [Tape 2] 201- 6 HDECQ0963AWSA J AG Panel,AMP. 201- 7 JKNBZ0921AWSB J AF Button,Power/Tuning 201- 8 JKNBZ0922AWSB J AE Button,Open/Close 201- 9 JKNBZ0923AWSA J AG Button,Operation A

(Not Replacement Item)

– 4 –

CD-E99

NO.

201-10 JKNBZ0924AWSA J AK Button,Operation B 201-11 JKNBZ0925AWSA J AL Button,Function 201-12 JKNBZ0926AWSA J AE Button,X-BASS/Equalizer 201-13 GCOVA1460AWSA J AC Cover,Sensor 201-14 GCOVA1351AWSA J AB Cover,Timer LED 201-15 MSPRD0151AWFJ J AB Cassette Spring,Tape 1 201-16 MSPRD0152AWFJ J AB Cassette Spring,Tape 2 201-17 MLIFP0008AWZZ J AD Damper 201-18 HBDGB1007AWSA J AD Badge,SHARP 202 92LCAB3839BASY J AN Side Panel Ass’y,Left 202- 1 ———— — Side Panel,Left

202- 2 PCUSG0022AWZZ J AB Cushion,Leg 203 92LCAB3839CASY J AN Side Panel Ass’y,Right 203- 1 ———— — Side Panel,Right

203- 2 PCUSG0022AWZZ J AB Cushion,Leg 204 GCAB-1197AWZZ J AM Loading Tray 205 GCAB-1215AWSB J AR Top Cabinet 206 GCOVA1469AWSB J AK Cover,CD Tray 207 GITAR1205AWSA J AM Rear Panel 208 KMECB0032AWZZ J BD Tape Mechanism Ass’y 208- 1 92LF513-894 J BE Head Plate Block [Tape 2] 208- 2 92LF525-357 J BD Motor with Pulley [Tape] 208- 3(PWB-F) 92LF567-719 J — Tape Mechanism PWB Ass’y 208- 4 92LF522-063 J AZ Clutc Ass’y Block [Tape 2] 208- 5 92LFF20D-12 J AN Belt,Main [Tape 2] 208- 6 92LF514-131 J AT Pinch Roller 208- 7 92LFF19S-31 J AL Belt,FF/REW [Tape 1] 208- 8 92LFF20B-13 J AN Belt,Main [Tape 1] 208- 9 92LF522-061 J AZ Clutc Ass’y Block [Tape 1] 208-10 92LFF19S-52 J AL Belt,FF/REW [Tape 2] 208-11 92LF513-895 J BD Head Plate Block [Tape 1] 209 LANGK0110AWFW J AE Bracket,Cassette Lock,Tape 1 210 LANGK0111AWFW J AE Bracket,Cassette Lock,Tape 2 211 LANGK0317AWFW J AF Bracket,Fan Support 212 LBSHC0005AWZZ J AD Bushing,AC Power Supply Cord 213 LCHSM0174AWFW J AN Chassis,Main 214 LCHSM0155AWZZ J AS Chassis,Loading 215 LHLDM1018AWZZ J AE Stabilizer 216 LHLDZ1455AWZZ J AF Holder,CD Mechanism 217 LHLDZ1358AWZZ J AF Stabilizer Holder 218 LHLDZ1433AWZZ J AD Holder,Gear 219 LHLDZ1410AWZZ J AD Holder,FL Display 220 LHLDZ1412AWZZ J AC Holder,LED 221 MCAMP0010AWZZ J AE Gear,Can Upper 222 MCAMP0011AWZZ J AE Gear,Can Lower 223 MLEVP0109AWZZ J AB Lever,Cam Lock 224 MLEVP0110AWZZ J AB Lever,Switch A 225 MLEVP0111AWZZ J AB Lever,Switch B 226 MLEVP0112AWZZ J AB Turntable Actuator 227 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1 228 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2 229 MSPRC0033AWFJ J AB Spring,Friction 230 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1 231 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2 232 MSPRP0057AWFW J AC Spring,Tray Lock 233 MSPRP0068AWFW J AB Spring,Motor Gear 234 NFANP0001AWZZ J AD Rotary Fan 235 NGERH0152AWZZ J AC Gear,Turntable Drive 236 NGERH0153AWZZ J AC Gear,Drive 237 NGERW0020AWZZ J AC Gear,Center 238 NGERW0021AWZZ J AC Gear,Idler 239 NGERW0022AWZZ J AD Gear,Worm 240 NGERW0023AWZZ J AC Motor Gear 241 NTNT-0022AWZZ J AK Turntable 242 PCUSG0022AWZZ J AB Cushion,Leg 243 PMAGF0007AWZZ J AD Magnet 244 PRDAR0267AWFW J AZ Heat Sink,Main

1 245 QACCD0022AWZZ J AM AC Power Supply Cord

246 QCNWN1860AWZZ J AC Lug Wire

1 247 QFSHD0001AWZZ J AB Holder,Fuse

248 92LCSPR1431C J AA Spring,Ring 250 92LNBAND1318A J AA Nylon Band,80mm 251 92LPT0303002 J AB Roller 252 LANGK0359AWFW J AD Bracket,Heat Sink 253 HDECQ0964AWSA J AF Panel,Edge Light 254 LHLDZ1451AWZZ J AC Holder,Edge Light 255 JKNBK0095AWSA J AK Knob,Volume 257 PSHEP0119AWZZ J AD Sheet,Edge Light 258 MLEVF0117AWFW J AC Plate,Support 259 92LSUPT1749D J AA Support,Magnet

PART CODE

PRICE

RANK

DESCRIPTION

(Not Replacement Item)

NO. PARTS CODE

260 LANGT0042AWFW J AC Bracket,PWB Support 261 PCOVQ7004AWFW J AK Cover,Fan 262 PRDAR0293AWFW J AN Heat Sink,Sub 601 XJBSD30P12000 J AA Screw,ø3×12mm 602 XEBSD30P12000 J AA Screw,ø3×12mm 603 LX-EZ0010AWFD J AA Screw,Special 604 LX-JZ0044AWFF J AB Screw,ø3×10mm 605 LX-HZ0009AWFD J AC Screw,ø2×13mm 606 XHBSD26P04000 J AA Screw,ø2.6×4mm 607 92LSC0314WBZI J AB Screw,ø3×14mm 608 XJBSD20P05000 J AA Screw,ø2×5mm 609 XHBSD40P08000 J AA Screw,ø4×8mm 610 XBBSD20P04000 J AA Screw,ø2×4mm 611 LX-JZ0010AFFD J AA Screw,ø3×10mm 612 XJSSD30P10000 J AA Screw,ø3×10mm 614 XHBSD30P06000 J AA Screw,ø3×6mm 615 LX-JZ0036AWFD J AB Screw,Special 616 LX-JZ0037AWFD J AB Screw,ø3×18mm 617 XEBSD30P10000 J AA Screw,ø3×10mm 618 XESSD30P10000 J AA Screw,ø3×10mm 621 XJBSD30P10000 J AA Screw,ø3×10mm 622 92LSC2608RBZI J AA Screw,ø2.6×8mm 623 92LSC0310RBZI J AB Screw,ø3×10mm

PRICE

RANK

DESCRIPTION

ACCESSORIES

QANTL0007AWZZ J AK AM/FM Loop Antenna TINSE0527AWZZ J AE Operation Manual TINSZ0924AWZZ J AB Quick Guide TLABZ0593AWZZ J AB Energy Star Label (Set) TLABZ1322AWZZ J AC Label,Feature [Tape 2] TLABZ1389AWZZ J AC Label,Feature [Tape 1] RRMCG0361AWSA J AS Remote Control GFTAT1017AWSA J AK Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~5 92LPWB5183MANS J —

1 PWB-B1,2 92LPWB5183PWRS J — Power/Transformer

PWB-C 92LPWB4896CDUS J — CD Servo PWB-D QPWBF0027AWZZ J AD CD Motor (PWB Only) PWB-E QPWBF0749AWZZ J AD CD Loading Motor (PWB Only) PWB-F(208-3) 92LF567-719 J — Tape Mechanism PWB-G 92LPWB5183PTCS J — Protect Circuit

Main/Display/Headphones/LED A/

LED B (Combined Ass’y) (Combined Ass’y)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

CP-E99

SPEAKER BOX PARTS

901 GBOXS2024AWSC J BE Speaker Box Ass’y,Right 901 GBOXS4024AWSC J BE Speaker Box Ass’y,Left 902 CPNLS1076AW02 J AX Front Panel Ass’y,Right 902 CPNLS1077AW02 J AX Front Panel Ass’y,Left 903 HPNLS1078AWSD J AY Side Panel,Right 903 HPNLS1079AWSD J AY Side Panel,Left 904 RSPXZ0003AWZX J AY Passive Radiator 905 XJBSD40P16000 J AB Screw,ø4×16mm 906 XJBSD30P12000 J AA Screw,ø3×12mm 907 XMPSF40P40000 J AC Screw,ø4×40mm 908 XMBSF40P16000 J AC Screw,ø4×16mm 909 TSPC-1238AWZZ J AD Label,Specifications 910 PFLT-0046AWZZ J AC Felt 911 QCNWN2487AWZZ J AM Speaker Cord Ass’y

912 PCUSG0141AWZZ J Cushion,Leg 913 PFLT-0079AWZZ J Felt SP1,2 RSPA10094AW6W J BE Woofer SP3,4 RSPA00081AW6T J AW Tweeter SP5~8 LHLDZ1457AWM1 J AT Super Tweeter Ass’y

(with Capacitor C1,2)

– 5 –

CD-E99

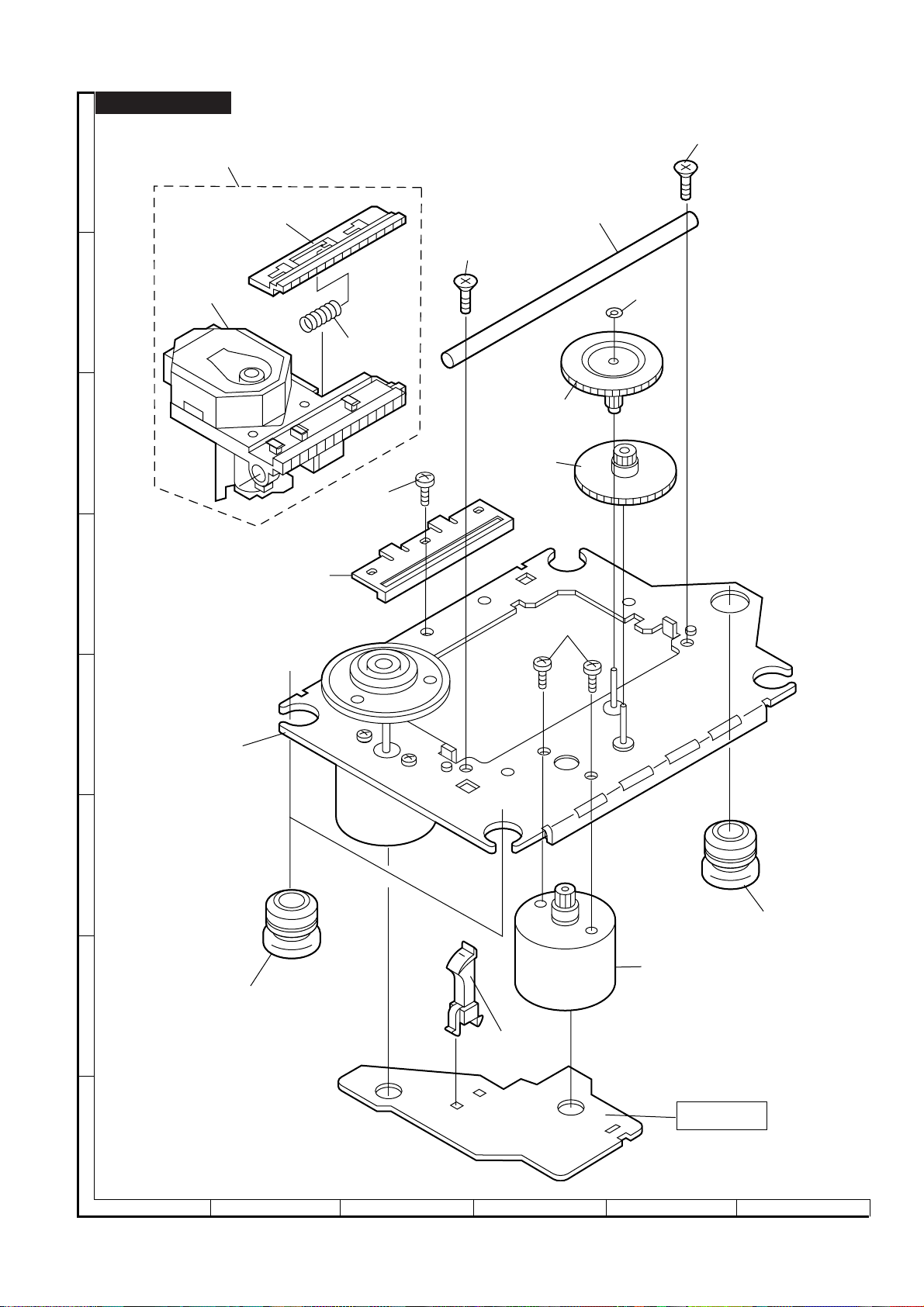

701

306

A

306-2

304

701

B

306-1

704

306-3

302

C

301

702

D

303

703x2

E

M1

F

305

M2

G

305x2

SW4

PWB-D

H

1

23456

Figure 6 CD MECHANISM EXPLODED VIEW

– 6 –

CD-E99

202-1

202

A

601x2

B

C

D

E

PWB-A2

220

FL701

PWB-A4

257

253

PWB-A3

603

201-17

202-2

617x10

219

254

201-1

201-18

605

604x2

227

230

209

PWB-A5

611

606x2

201-7

PWB-A1

246

208

PWB-F

208-9

208-11

208-6

208-1

201

201-14

201-13

201-9

208-3

201-10

201-8

208-7

201-11

201-12

611

Silicon Grease

208-2

208-6

611

260

PWB-G

244

Silicon Grease

208-8

IC901

616x2

262

IC851 IC852 IC853

615x3

246

208-10

210

618x5

208-4

208-5

601x2

621x2

614x2

606x2

228

FF/REW ROLLER ASS'Y

FLYWHEEL ASS'Y TAPE2

614

261

252

231

605

609x4

247x8

BELT CONNECTION

Tape Motor

FLYWHEEL

601

M901

610x2

212

ASS'Y TAPE1

MAIN BELT

207

PT801

601x12

248

234

FF/REW ROLLER ASS'Y

614x2

211

245

247x2

614

F

213

201-6

255

248

G

201-15

201-2

201-4

201-3

H

612x2

242x2

201-5

201-16

201-17

250

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

1

23456

Figure 7 CABINET EXPLODED VIEW (1/2)

– 7 –

203-1

PWB-B1

601x2

PWB-B2

203-2

203

CD-E99

A

259 243

B

241

C

251

D

251

217

215

CD MECHANISM

216

235

226

224

622x2

PWB-E

240

602x2

258

M3

225

SW3

205

602x2

SW2

SW1

M3

204

E

232

214

PWB-C

251

F

223

623x2

607

236

238

229

237

239

236

233

608

218

221

G

222

206

H

251

607

1

23456

Figure 8 CABINET EXPLODED VIEW (2/2)

– 8 –

CD-E99

CP-E99

A

SUPER TWEETER

B

C

D

SP5, 6

SUPER TWEETER

RD

BK

SP7, 8

SP1, 2

WOOFER

BK

RD

910

BKRD

SP3, 4

TWEETER

C1, C2 Capacitor

1.8 µF, 250 V Electrolytic

BK

RD

910

SP3,4

906x2

SUPER TWEETER

SP5,6

SP7,

8

SP5,

6

SP3,

TWEETER

SP1,

WOOFER

4

C1, C2 Capacitor

1.8 µF, 250 V Electrolytic

2

909

901

904

SP7, 8

906x2

910

E

SP1, 2

910

912x4

903

908x4

F

905x4

902

G

913

911

H

1

913

23456

907x4

Figure 9 SPEAKER EXPLODED VIEW

– 9 –

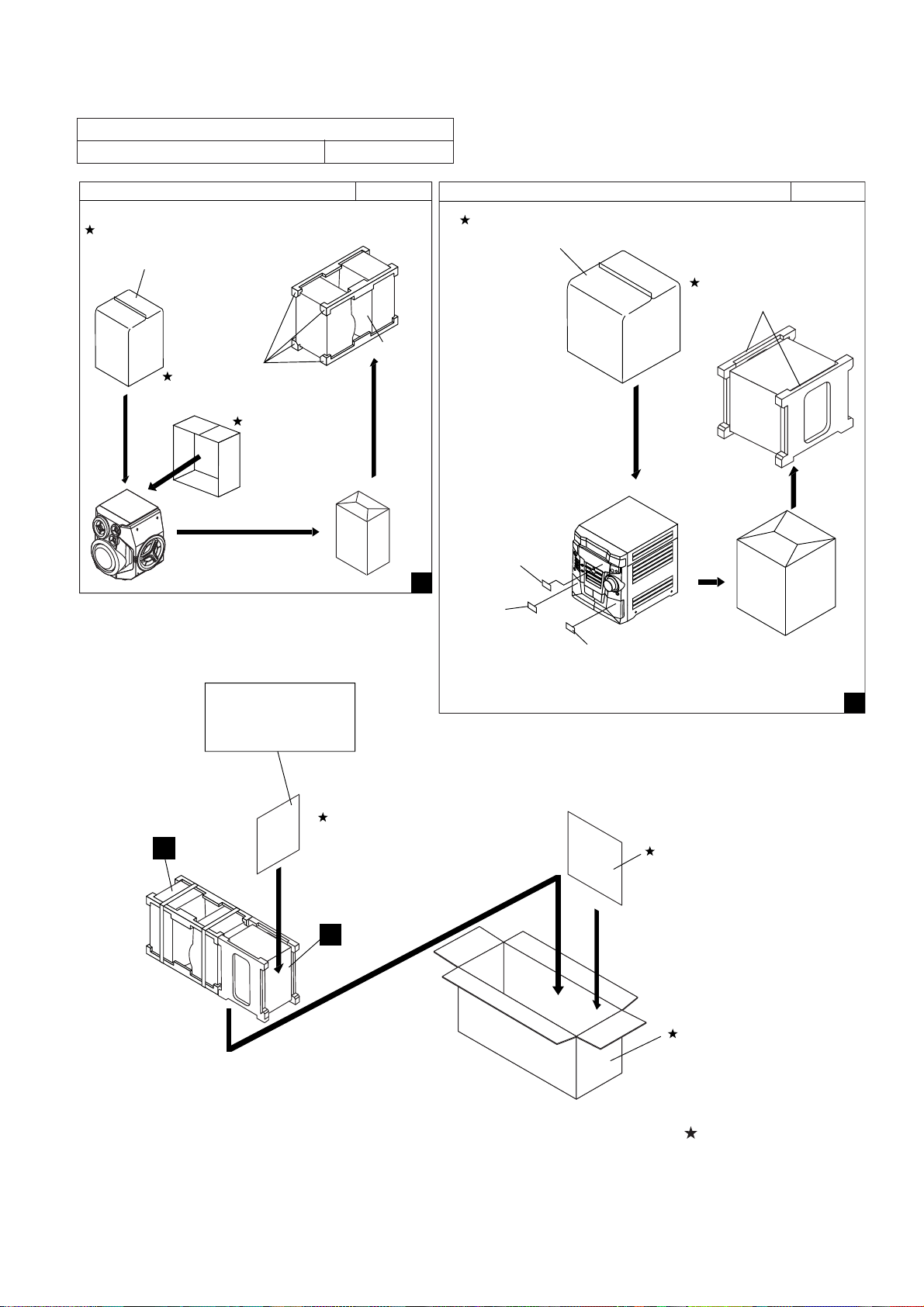

PACKING OF THE SET

Setting position of switches and knobs

Tape Mechanism STOP

CD-E99

SPEAKER

SSAKH0053AWZZ Polyethylene Bag, Speaker

SPAKA0416AWZZ Packing Add., Top/Bottom

TOP

REAR

SIDE

SPAKZ1033AWZZ Protection Sheet

BOTTOM

CP-E99

SIDE

FRONT

UNIT

A

Feature Label [Tape1]

CD-E99

SPAKP0032AWZZ Polyethylene Bag,Unit

SPAKA0431AWZZ Packing Add., Left/Right

TOP

FRONT

BOTTOM

Energy Star Label

Feature Label [Tape2]

AM/FM Loop Antenna Operation Manual

B

Quick Guide Remote Control

92LBAG1460C1 Polyethylene Bag,

A

Accessories

SPAKZ1034AWZZ Side Pad

TOP

REAR

B

SPAKC1627AWZZ Packing Case

– 10 –

Not Replacement Item

CD-E99

— M E M O —

– 11 –

— M E M O —

CD-E99

– 12 –

CD-E99

©

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

SHARP CORPORATION AV Systems Group Audio Systems Division Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0302-1459DS•HA•M

SC
