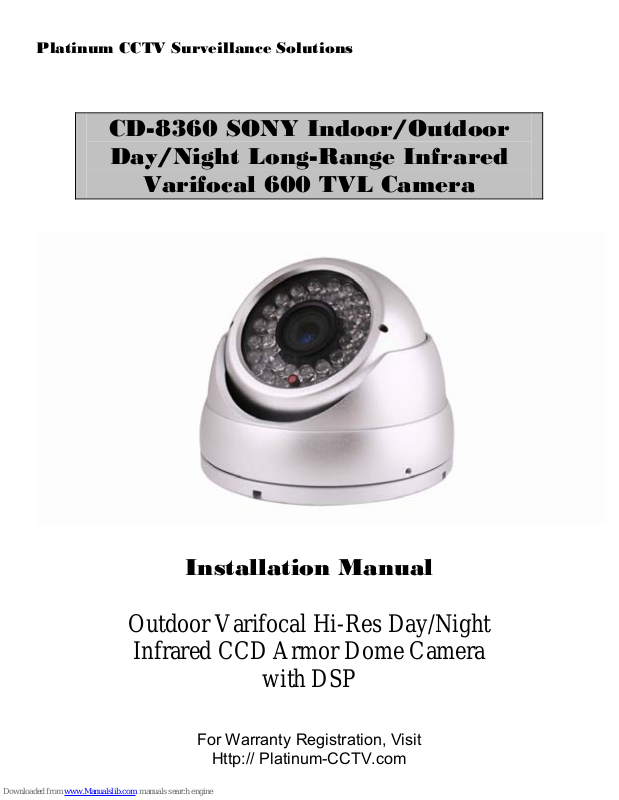

Page 1
Platinum CCTV Surveillance Solutions
CD-8360 SONY Indoor/Outdoor
Day/Night Long-Range Infrared
Varifocal 600 TVL Camera
Installation Manual
Outdoor Varifocal Hi-Res Day/Night
Infrared CCD Armor Dome Camera
For Warranty Registration, Visit
with DSP
Http:// Platinum-CCTV.com
Page 2
Platinum CCTV Surveillance Solutions
Camera Installation
1. Camera Mounting:
Items Needed:
Screwdriver, Drill, Mounting Hardware (not
included), Pencil

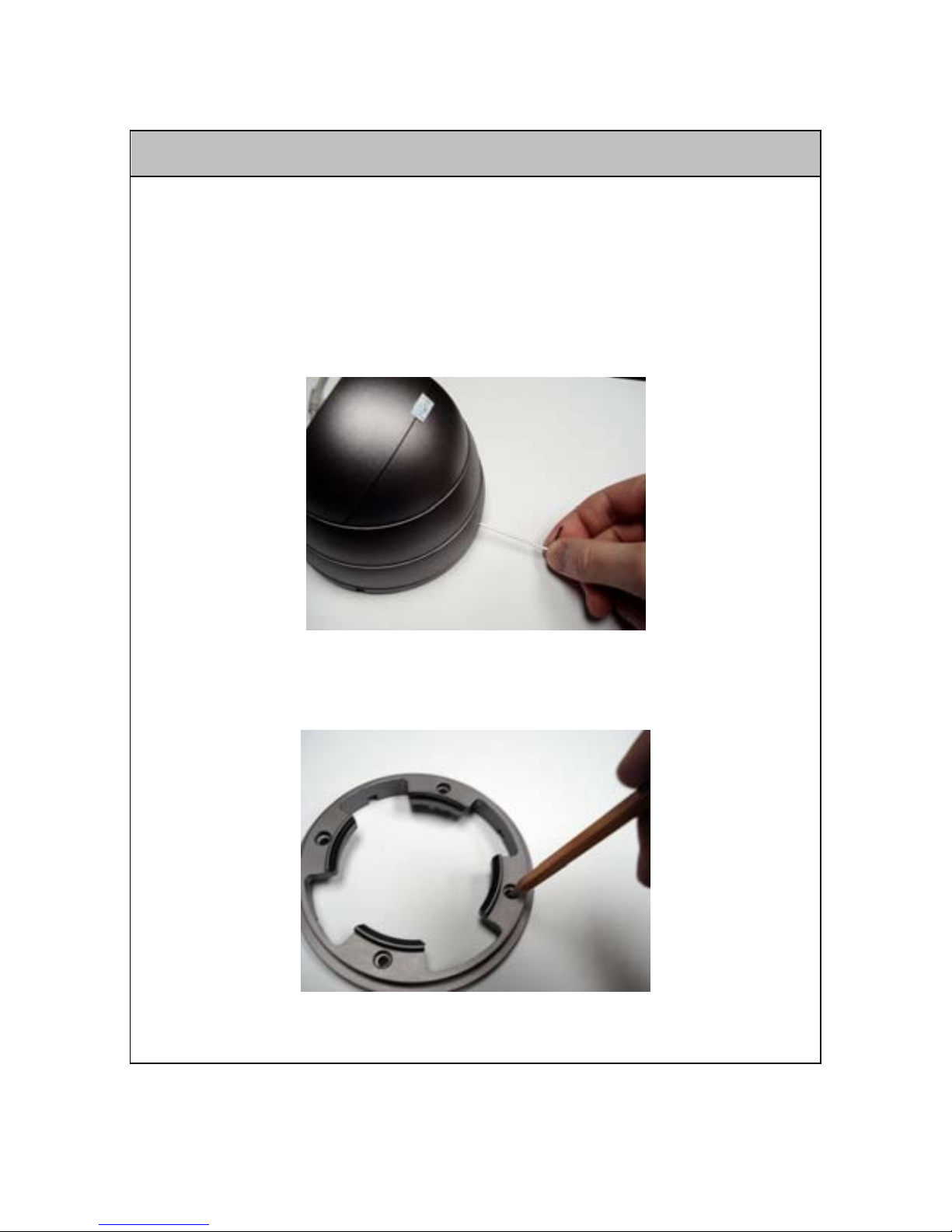

2. Loosen and remove the 3 allen screws near the
base with included allen wrench
3. Place the bracket on the wall and mark to drill
holes. Mount bracket to wall or ceiling.
Page 3
Platinum CCTV Surveillance Solutions
Camera Installation

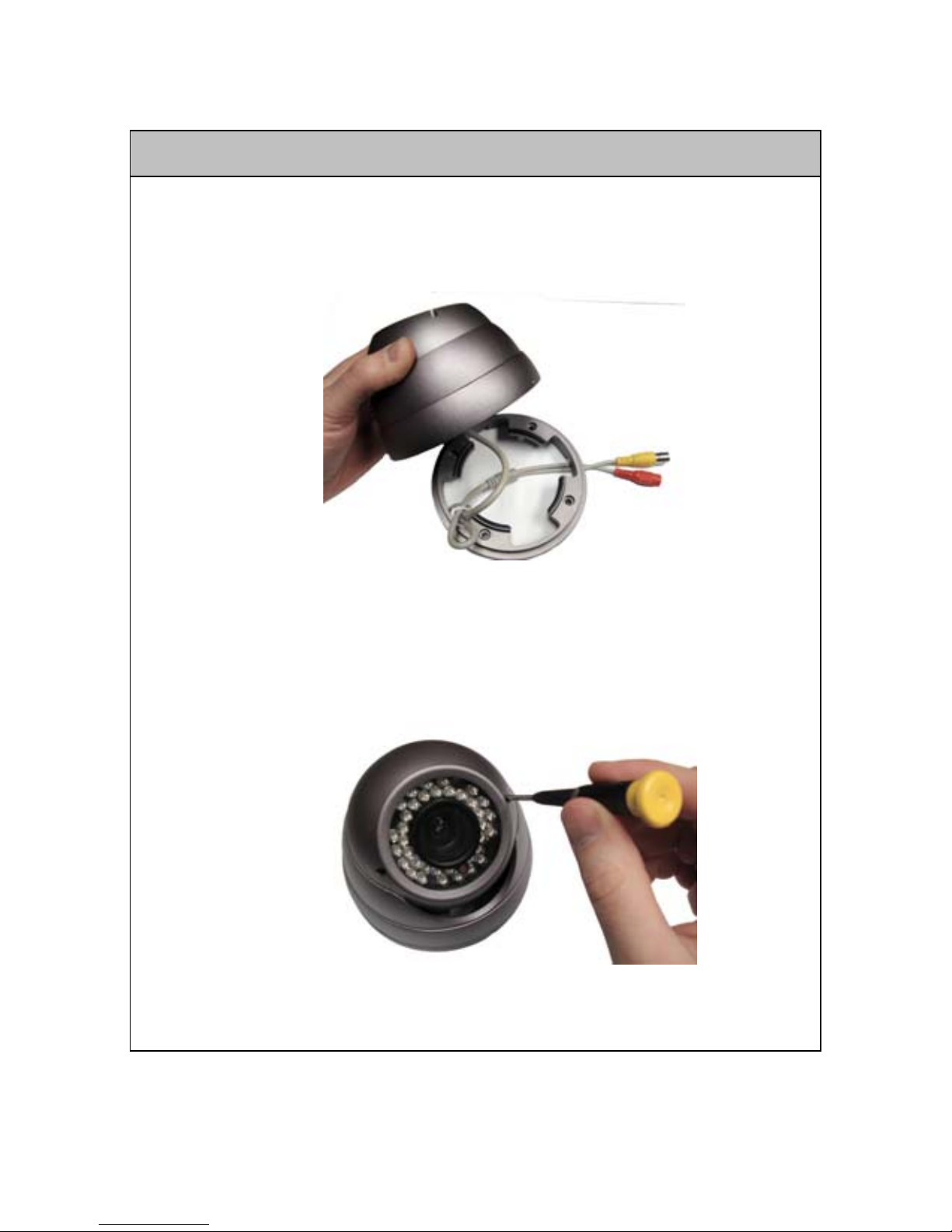

4. Reinstall camera ball onto the bracket and adjust
camera to the proper angle then re-tighten allen
screws to hold the camera solid.
5. Adjust Zoom/Focus with 2 adjustment screws
Note: BOTH adjustments need to be adjusted.
Page 4
Platinum CCTV Surveillance Solutions
CD-8360 Long Range IR CCD Camera
Image Sensor 1/3” SONY Low-Light CCD DSP
Number of Pixels NTSC: 768 (H) x 494 (V)
Scanning System 15.7343Khz (H), 60 Hz (V)
Sync System Internal Synchronization
Resolution 600 TVL
Lens 3.5-8mm Varifocal Lens (Ext. Adjust)
Video Output 1.0Vp-p75Ω
S/N Ratio >52dB
Shutter Time 1/60-1/100,000 Sec.
Operation Temp. -20°C ~ +50°C
Storage Temp. -30°C ~ +60°C
Useable
Illumination
Power Source DC 12V 700mA
0.0003 Lux (F:2.0), 0 Lux (IR On)
Installation Notes
For Indoor or Outdoor Use
Disassembly of camera will void warranty
Remove protective film from lens before use
Handle with care
Never touch lens directly
Clean the lens occasionally with a dry micro-fiber
cloth, or plastic cleaner only – Do not use abrasivetype cleaners as they will scratch lens
