3-198-136-11(1)
Component Video
Switcher
Installation Manual
Owner’s Record
The model and serial numbers are located on the rear panel. Record the model and
serial numbers in the spaces provided below. Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No. Serial No.
CAV-CVS12ES
2007 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of fire or electric
shock, do not place objects filled
with liquids, such as vases, on the
apparatus.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
WARNING
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Important Safety Instruction
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one wider
than the other. A grounding type plug has
two blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11 Only use attachments/accessories specified
by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13 Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14 Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Welcome!
Thank you for purchasing the Component
Video Switcher. Before operating the unit, please
read this manual thoroughly and retain it for
future reference.
US
2
Table of ConTenTs
Chapter 1
Getting Started
Features 4
Unpacking 5
Parts and Controls 6
Chapter 2
Setting up the
Component Video Switcher
Installing the Component Video Switcher 8
Hooking up the Component Video Switcher 10
Chapter 3
Other Information
Precautions 12
Troubleshooting 13
Specifications 14
US
3
Chapter 1
Features
Getting
Started
This chapter provides information on the
features, parts, and controls of the
Component Video Switcher.
You can control up to twelve video sources in up to twelve zones
(e.g., rooms or areas) with this CAV-CVS12ES Component
Video Switcher.
The Component Video Switcher allows you to:
– Distribute HD video signals in up to twelve zones.
– Up-convert up to four composite video signals to component
video signals for higher quality.
– Control the source component in synchronization with the
CAV-M1000ES via RS-232C commands.
– Control the source component via IR control signal.
– Transmit video signals throughout the house using a CAT5
(Category 5e) cable.
US
4
Unpacking
The CAV-CVS12ES Component Video Switcher includes the
following:
CAV-CVS12ES Component Video Switcher
AC power cord
Installation Manual (this manual)
Rack-mount brackets (2)
Getting Started
US
5
ZONE
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
POWER
SOURCE
Parts and Controls
Getting Started

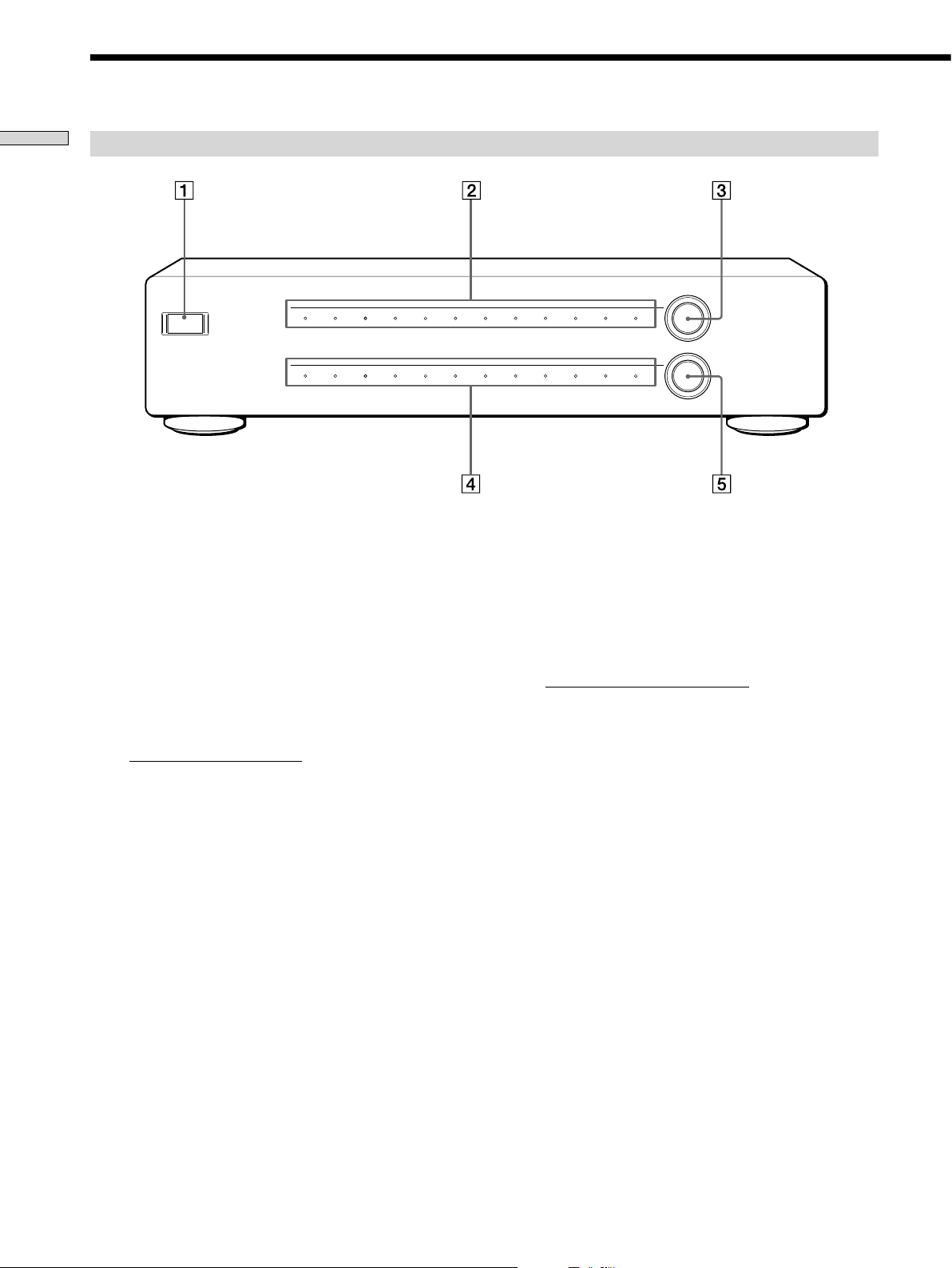

Front panel of the Component Video Switcher
POWER switch
Press to turn the power on or off.
ZONE indicator
The selected zone number lights up.
ZONE selector
Turn to select the zone. Each time you turn the ZONE
selector, the zone changes cyclically as shown below.
1 2 3
…
10 11 12
SOURCE selector
Turn to select the source component. Each time you turn the
SOURCE selector, the source component changes cyclically
as shown below.
1 2 3
…
10 11 12
OFF
When the OFF is selected, no SOURCE indicator lights up.
SOURCE indicator
The source number selected for the zone lights up. When the
zone does not select any source component, no SOURCE
indicator lights up.
Note
When you assign two or more source components to the same
source number, the assigned source numbers of the SOURCE
indicator blink as an error indication.
US
6
Rear panel of the Component Video Switcher
~
AC IN
SOURCE 12
OUTIN
S12
ASSIGNABLE
SOURCE 11
OUTIN
S11
ASSIGNABLE
SOURCE 10
OUTIN
S10
ASSIGNABLE
SOURCE 9
OUTIN
S9
ASSIGNABLE
SOURCE 8
OUTIN
SOURCE 7
OUTIN
SOURCE 6
OUTIN
SOURCE 5
OUTIN
SOURCE 2
OUTIN
SOURCE 1
OUTIN
Y
PB
PR
SOURCE 4
OUTIN
SOURCE 3
OUTIN
ZONE 3
VIDEO OUT
ZONE 2
VIDEO OUT
ZONE 1
VIDEO OUT
ZONE 4
VIDEO OUT
ZONE 5
VIDEO OUT
ZONE 6
VIDEO OUT
ZONE 7
VIDEO OUT
ZONE 8
VIDEO OUT
ZONE 9
VIDEO OUT
ZONE 10
VIDEO OUT
ZONE 11
VIDEO OUT
ZONE 12
VIDEO OUT
IR REMOTE
IN
RS-232C
CAVAUX
Getting Started
SOURCE 1 ~ 8 connection jacks
a) VIDEO IN
An RCA jack for component video input from a source
component.
b) VIDEO OUT
An RCA jack for connecting a video source to another local
component.
Note
The video loop-through output is not active when the Main Unit is
turned off.
SOURCE 9 ~ 12 connection jacks
a) VIDEO IN
An RCA jack for composite video input from a source
component.
b) VIDEO OUT
An RCA jack for connecting a video source to another local
component. The composite video signal is up-converted to
the component video signal automatically.
Note
The video loop-through output is not active when the Main Unit is
turned off.
AC IN
Connects the supplied AC power cord to AC IN.
ZONE VIDEO OUT
A CAT5 RJ45 connector that sends a source video signal to
the component video input of a zone. Use a CAT5 cable for
the connection.
IR REMOTE IN
A 3.5 mm monaural mini jack for receiving the SIRCS code
from the connected IR-controlled component. The Main
Unit can be equally controlled by the RS-232C commands.
Note
The remote control is not supplied.
RS-232C
a) AUX
Connects to other RS-232C components, allowing the Main
Unit to be controlled by other RS-232C components. Use an
RS-232C cross cable for the connection.
b) CAV
Connects to the CAV-M1000ES, allowing the Main Unit to
be controlled by the CAV-M1000ES. Use an RS-232C cross
cable for the connection.
ASSIGNABLE switch for SOURCE 9 ~ 12
Assign the source component connected to source 9 ~ 12 to
source 1 ~ 8. For example, when the SOURCE 9
ASSIGNABLE switch is set to “1”, the source 9 video signal is
distributed to the zone selected for source 1.
Notes
Set the ASSIGNABLE switch to “0” when you do not use the
assign function.
When you assign two or more source components to the same
source number, the assigned source numbers of SOURCE
indicator blink as an error indication.
US
7
Chapter 2
Setting up the
Component
Video Switcher
This chapter provides information on the
Component Video Switcher regarding
installation, hookups and settings.
Installing the Component Video
Switcher
When installing the Component Video Switcher, note the
following:
Place the Component Video Switcher on a flat and level
surface.
When installing the Component Video Switcher in a cabinet,
make sure the back of the cabinet is open to allow adequate
ventilation, prevent heat buildup, and prolong the life of the
unit.
Place a board under the Component Video Switcher if it is
located on a carpet to allow adequate ventilation on the
bottom.
Make sure the weight is equally distributed on each of its four
feet.
Do not place anything on the top of the Component Video
Switcher that might block the ventilation holes and cause
malfunction.
Do not place anything on the front or rear panel that might
damage the Component Video Switcher’s control buttons and
connectors.
Use caution when placing the unit on surfaces that have been
specially treated (with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
US
8US8
Using rack-mount brackets
POWER
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
ZONE
SOURCE
You can also mount the Component Video Switcher into a rack.
Make sure that you measure the space needed before mounting.
1 Detach the four feet of the Component Video Switcher.
2 Detach the six screws attached to the Component Video
Switcher as shown below.
Screws
Rack-mount bracket
Screws
(supplied)
4 Mount the Component Video Switcher into the rack as
shown below.
Make sure that the Component Video Switcher is installed
securely.
Setting up the Component Video Switcher
Screws
3 Install the rack-mount brackets onto the Component
Video Switcher with the six screws detached in step 2 as
shown below.
Make sure that the rack-mount brackets are installed
securely.
Rack
Screws (not supplied)Screws (not supplied)
Notes
Use the M4 × 11/32 inch (8mm) screws (attached to the Component
Video Switcher) for installing the rack-mount brackets onto the
Component Video Switcher. In case the screws are missing, use M4
screws with a maximum diameter of 1/2 inch (12mm).
Use screws with a minimum diameter of 3/16 inch (4mm) when you
mount the Component Video Switcher into the rack.
Make sure you check the rack manufacturer’s specifications before you
mount the Component Video Switcher into the rack. This is to ensure
mechanical stability.
This Component Video Switcher requires 2U height when you mount
the Component Video Switcher on a standard rack.
Rack
Rack-mount bracket
(supplied)
Screws
US
9
Hooking up the Component Video Switcher
Before hooking up the Component Video Switcher, be sure the AC power cord is unplugged.
Refer to the illustration below for the connection.
Zone 1 ~ 12 Display
Setting up the Component Video Switcher
Audio/Video
Source 1 ~ 8
Audio/Video
Source 9 ~ 12
(VHS, etc.)
Component Video
Composite
Video
Audio L/R
Audio L/R
CAV-CVS12ES
CAV-M1000ES
CAV-M1000ES
RS-232C cable
RS-232C cable
CAT5 cable
Keypad
Component Video Balun
CAV-CVB1
Component Video
cable
Speaker
Speaker
The CAT5 cable can extend up to 300 feet.
10US10
US
CAT5 RJ45 Video Pinout
White/Orange
Wire color
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
Pin No.
2
3
4
5
6
7
8
White/Orange
Wire color
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
Pin No.
2
3
4
5
6
7
8
The CAT5 RJ45 pinouts use the T568B standard.
Refer to the illustration below.
Pinout Wire color
Pin 1 BLUE/Pb (R) White/Orange
Pin 2 BLUE/Pb (T) Orange
Pin 3 GREEN/Y (R) White/Green
Pin 4 GND Blue
Pin 5 +11V White/Blue
Pin 6 GREEN/Y (T) Green
Pin 7 RED/Pr (R) White/Brown
Pin 8 RED/Pr (T) Brown
CAT5 cable
Before installation, be sure to verify the CAT5 wiring connection is correct.
Use Category 5e or Category 6 cable.
Setting up the Component Video Switcher
CAT5 cable
RJ45 connector
RJ45 connector
11
US
Chapter 3
Precautions
Other
Information
This chapter provides additional
information that will help you understand
and maintain your system.
On safety
Should any solid object or liquid fall into the cabinet, unplug the
Component Video Switcher and have it checked by a qualified service
technician before operating it any further.
On power sources
Before operating the unit, check that the operating voltage of the unit
is identical to that of your local power supply. The operating voltage is
indicated on the nameplate on the back of the unit.
If you are not going to use the unit for a long time, be sure to
disconnect it from the AC power source. To disconnect the lead, grasp
the plug itself; never pull the cord.
Install this system so that the power cord can be unplugged from the
wall socket immediately in the event of trouble.
On placement
Place the unit in a location with adequate ventilation to prevent heat
build-up in the Component Video Switcher.
Do not place the unit on a soft surface such as a rug that might block
the ventilation holes on the bottom.
Do not place the unit in a location near heat sources, or in a place
subject to direct sunlight, excessive dust, or mechanical shock.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth slightly
moistened with a mild detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
On operation
If the system is brought directly from a cold to a warm location,
moisture may condense on the surface of the unit or inside the unit.
Should this occur, the system may not operate properly. In this case,
turn off and leave the system until the moisture evaporates. Do not
use the system until the moisture evaporates, otherwise it may cause a
malfunction.
If you have any questions or problems concerning the
Component Video Switcher, please consult your nearest Sony
dealer.
12
US
Troubleshooting
If you experience any of the following difficulties while using the
Component Video Switcher, use this troubleshooting guide to
help you to remedy the problem. Should any problem persist,
consult your nearest Sony dealer.
There is no picture, or an unclear picture appears on the
TV screen or monitor.
Select the appropriate input on the Main Unit.
Set your TV to the appropriate input mode.
Move your TV away from the audio components.
The picture does not appear properly.
Check that the Component Video Switcher is connected
correctly. For details on how to make the connection,
refer to “Hooking up the Component Video Switcher”
on page 10.
The multiple SOURCE indicators blink.
Two or more source components are assigned to the
same source number. Set the ASSIGNABLE switch to the
appropriate source number.
Other Information
The source does not change even after turning the
SOURCE selector.
Check that you are watching video in the zone indicated
by the lit ZONE indicator.
RS-232C does not function.
Check that the RS-232C cross cable is used for the
connection.
Check that the baud rate setting on the CAV-M1000ES is
set to “9600 bps”.
Check that the RS-232C commands are correct.
13
US
Other Information
Specifications
Video input
Y: 1.0Vp-p/75 ohm
Pb: 0.7Vp-p/75 ohm
Pr: 0.7Vp-p/75 ohm
Video output
CAT5 RJ45 output
General
IR input: accept 40 kHz IR modulation frequency
Power requirements: 120 V AC, 60 Hz
Power consumption: 33 W
Operating temperature: 0°C to 40°C (32°F to 104°F)
Dimensions: 435 100 290 mm
(17 1/4 4 11 1/2 inches) (w/h/d)
(including projecting parts)
Mass: 4.5 kg (9 lbs 15 oz)
(excluding AC power cord)
Design and specifications are subject to change without notice.
14
US
Sony Corporation Printed in Malaysia
Loading...
