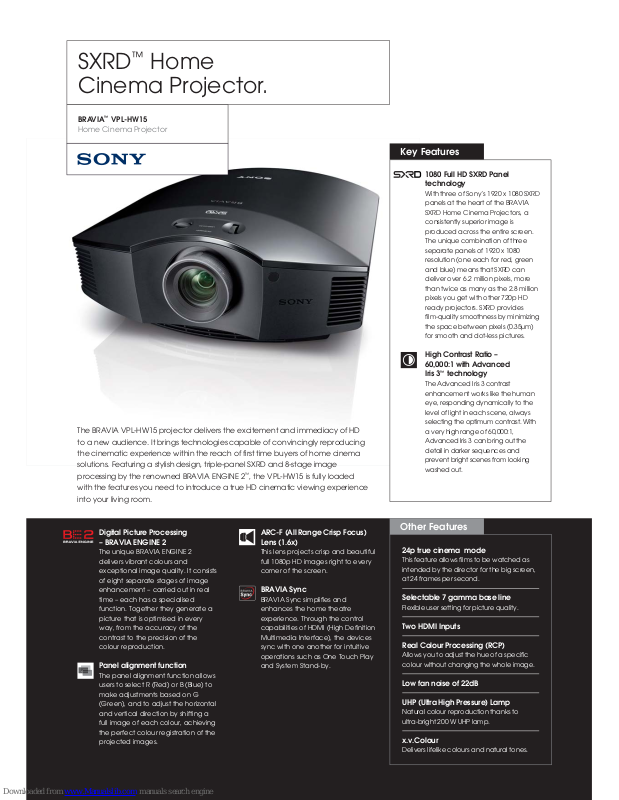

Sony BRAVIA VPL-HW15 Specifications
The BRAVIA VPL-HW15 projector delivers the excitement and immediacy of HD
to a new audience. It brings technologies capable of convincingly reproducing
the cinematic experience within the reach of first time buyers of home cinema
solutions. Featuring a stylish design, triple-panel SXRD and 8-stage image
processing by the renowned BRAVIA ENGINE 2™, the VPL-HW15 is fully loaded
with the features you need to introduce a true HD cinematic viewing experience
into your living room.
SXRD™ Home
Cinema Projector.
BRAVIA™ VPL-HW15
Home Cinema Projector
Other Features
Digital Picture Processing
– BRAVIA ENGINE 2
The unique BRAVIA ENGINE 2
delivers vibrant colours and
exceptional image quality. It consists
of eight separate stages of image
enhancement – carried out in real
time – each has a specialised
function. Together they generate a
picture that is optimised in every
way, from the accuracy of the
contrast to the precision of the
colour reproduction.
Panel alignment function
The panel alignment function allows
users to select R (Red) or B (Blue) to
make adjustments based on G
(Green), and to adjust the horizontal
and vertical direction by shifting a
full image of each colour, achieving
the perfect colour registration of the
projected images.
ARC-F (All Range Crisp Focus)
Lens (1.6x)
This lens projects crisp and beautiful
full 1080p HD images right to every
corner of the screen.
BRAVIA Sync
BRAVIA Sync simplifies and
enhances the home theatre
experience. Through the control
capabilities of HDMI (High Definition
Multimedia Interface), the devices
sync with one another for intuitive
operations such as One Touch Play
and System Stand-by.
24p true cinema mode
This feature allows films to be watched as
intended by the director for the big screen,
at 24 frames per second.
Selectable 7 gamma base line
Flexible user setting for picture quality.
Two HDMI Inputs
Real Colour Processing (RCP)
Allows you to adjust the hue of a specific
colour without changing the whole image.
Low fan noise of 22dB
UHP (Ultra High Pressure) Lamp
Natural colour reproduction thanks to
ultra-bright 200 W UHP lamp.
x.v.Colour
Delivers lifelike colours and natural tones.
1080 Full HD SXRD Panel
technology
With three of Sony’s 1920 x 1080 SXRD
panels at the heart of the BRAVIA
SXRD Home Cinema Projectors, a
consistently superior image is
produced across the entire screen.
The unique combination of three
separate panels of 1920 x 1080
resolution (one each for red, green
and blue) means that SXRD can
deliver over 6.2 million pixels, more
than twice as many as the 2.8 million
pixels you get with other 720p HD
ready projectors. SXRD provides
film-quality smoothness by minimizing
the space between pixels (0.35µm)
for smooth and dot-less pictures.
High Contrast Ratio –
60,000:1 with Advanced
Iris 3™ technology
The Advanced Iris 3 contrast
enhancement works like the human
eye, responding dynamically to the
level of light in each scene, always
selecting the optimum contrast. With
a very high range of 60,000:1,
Advanced Iris 3 can bring out the
detail in darker sequences and
prevent bright scenes from looking
washed out.
Key Features
VPL-HW15 Specifications
www.sonybiz.net/homecinemaprojectors
Distributed by
© 2009 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and
specifications are subject to change without notice. All non-metric weights and measurements are approximate. ‘Sony’,
‘24p True Cinema’, ‘Advanced Iris 3’, ‘BRAVIA’, ‘BRAVIA ENGINE 2’, ‘Motionflow Dark Frame Insertion’ and ‘x.v.Colour’ BRAVIA
sync are trademarks of Sony Corporation, Japan. Blu-ray Disc and the Blu-ray Disc logo are trademarks of the Blu-ray Disc. Full HD
logo is a trademark of EICTA. All other trademarks are acknowledged. Whilst the information given here is true at the point of printing,
small production changes in the course of the Company’s policy of improvement through research and design might not necessarily
be indicated in the specification.
VPL-HW15 – Inputs
Optical
Panel Resolution 1920 x 1080 HD
Pixels 6,220,800 (3x 2,073,600)
Pixel Size /
Inter-pixel Spacing
7µm / 0.35µm
Technology SXRD™ by Sony
Panel Size 0.61 inch
Lens Type ARC-F (All Range Crisp Focus)
Zoom Ratio 1.6x
F / f 2.50 – 3.40/ 18.5 – 29.6mm
Zoom & Focus Manual
Lens Shift Vertical 65%, Horizontal 25%
Contrast Ratio 60,000:1
Brightness 1000 ANSI Lumen
Lamp LMP-H201 200W UHP
Screen Size (16:9 diagonal) 40” – 300” / 1m – 7.6m
Throwing Distance 1.4m – 14.3m
Throw Ratio (16:9 diagonal) 1.47m – 2.18m
Input / Output
HDMI™ 19-pin connector 2
Component
Video
3x RCA connectors 1
S-Video Mini 4-pin DIN 1
Composite
Video
RCA connector 1
Input A HD 15-pin D-sub 1 (Analogue RGB, Component)
Trigger Out Mini Jack -
Remote RS-232C: 9-pin
D-sub
1 (AMX Protocol Supported)
RJ45: Ethernet -
Acceptable
Video Signals
720p 720/60p, 720/50p
1080i 1080/60i, 1080/50i
1080p (HDMI™) 1080/60p, 1080/50p, 1080/24p
General
Body Colour Cosmic Black
Fan Noise 22dB
Power Consumption Max. / Standby
Mode / Low
300W / 8W / 0.5W
Dimensions (W x H x D) / Weight 407.4 x 179.2 x 463.9 mm / 10kg
Features
Enhancement
Motionflow Dark
Frame Insertion
-
BRAVIA ENGINE BRAVIA ENGINE 2
Digital Reality
Creation (DRC)
-
Dynamic Detail
Enhancer (DDE)
Film (2-3 pull-down) / Progressive / Off
Colour
Enhancement
x.v.Colour YES
Real Colour
Processing (RCP)
YES
Contrast
Enhancement
Advanced Iris 3 Advanced Iris 3
Features
Connectivity
Enhancement
24p True Cinema YES
‘BRAVIA’ Theatre
Sync
‘BRAVIA’ Sync
Panel Alignment
Function
Area / H-V
Adjustment Range
Full Screen / ± 2.0 pixel in 0.1 pixel steps
Picture Mode
Settings
Dynamic / Standard / Cinema / User 1 /
User 2 / User 3
Wide Mode
Settings
Wide Zoom / Normal / Full / Zoom
Anamorphic
Zoom Mode
Project a full 2,35:1
image*
-
Noise Reduction Normal High / Middle / Low / Off
MPEG (Digital
Signal)
Block NR / Mosquito NR
Gamma
Adjustment
Software
Image Director 3 -
On-screen Display Available
Languages
English, French, German, Italian, Spanish,
Portuguese, Japanese, 2 x Chinese, Korean,
Russian, Dutch, Norwegian, Swedish, Thai, Arabic
Accessories
Illuminated
Remote Control
Supplied RM-PJVW70
Batteries for
Remote Control
Supplied 2x Size AA (R6)
CD-ROM
for Gamma
Adjustment
Supplied -
Replacement
Lamp (incl. air
filter)
Optional LMP-H201, 200W UHP
Ceiling Bracket Optional PSS-H10
European
Warranty
Supplied within the
EU and Switzerland
3 years PrimeSupport
®
Service
All Sony Professional’s home cinema projectors come supplied with a 3-year support pack
which offers unique extra services and benefits.
• 3 years’ cover
• Free telephone helpdesk support in 5 languages
• Collection and delivery anywhere in EU, Norway and Switzerland
www.sonybiz.net/primesupport
