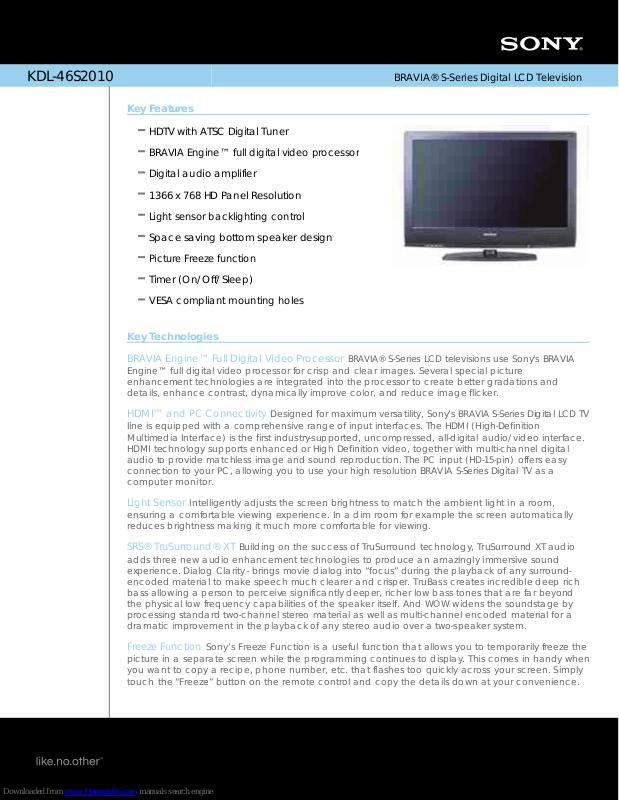

Sony BRAVIA KDL-46S2010 Features & Specifications

KDL-

46S2010

BRAVIA® S-

Series Digital LCD Television

Key Features

HDTV with ATSC Digital Tuner

BRAVIA Engine

™

full digital video processor

Digital audio amplifier

1366 x 768 HD Panel Resolution

Light sensor backlighting control

Space saving bottom speaker design

Picture Freeze function

Timer (On/Off/Sleep)

VESA compliant mounting holes

Key Technologies

BRAVIA Engine

™ Full Digital Video Processor

BRAVIA® S-Series LCD televisions use Sony's BRAVIA

Engine™ full digital video processor for crisp and clear images. Several special picture
enhancement technologies are integrated into the processor to create better gradations and
details, enhance contrast, dynamically improve color, and reduce image flicker.

HDMI™

and PC Connectivity

Designed for maximum versatility, Sony’

s BRAVIA S-Series Digital LCD TV

line is equipped with a comprehensive range of input interfaces. The HDMI (High-Definition
Multimedia Interface) is the first industry-supported, uncompressed, all-digital audio/video interface.
HDMI technology supports enhanced or High Definition video, together with multi-channel digital
audio to provide matchless image and sound reproduction. The PC input (HD-15-pin) offers easy
connection to your PC, allowing you to use your high resolution BRAVIA S-Series Digital TV as a
computer monitor.

Light Sensor

Intelligently adjusts the screen brightness to match the ambient light in a room,

ensuring a comfortable viewing experience. In a dim room for example the screen automatically
reduces brightness making it much more comfortable for viewing.

SRS® TruSurround

® XT Building on the success of TruSurround technology, TruSurround XT audio

adds three new audio enhancement technologies to produce an amazingly immersive sound
experience. Dialog Clarity - brings movie dialog into “focus” during the playback of any surround

­encoded material to make speech much clearer and crisper. TruBass creates incredible deep rich
bass allowing a person to perceive significantly deeper, richer low bass tones that are far beyond
the physical low frequency capabilities of the speaker itself. And WOW widens the soundstage by
processing standard two-channel stereo material as well as multi-channel encoded material for a
dramatic improvement in the playback of any stereo audio over a two-speaker system.

Freeze Function

Sony’s Freeze Function is a useful function that allows you to temporarily freeze the

picture in a separate screen while the programming continues to display. This comes in handy when
you want to copy a recipe, phone number, etc. that flashes too quickly across your screen. Simply
touch the “Freeze” button on the remote control and copy the details down at your convenience.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 800.222.7669 • www.sony.com

Last Updated: 05/23/2008

KDL-

46S2010

BRAVIA® S-

Series Digital LCD Television

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

General

Video Label:

Yes

Closed Captions (CC):

Yes

On-Screen Display:

Menu

Video

Video Processing: Yes (BRAVIA Engine™ System)
Noise Reduction:

Yes

Picture Modes:

Vivid, Standard, Custom

Display Technology: LCD (178° wide viewing

angle LCD display panels)

High Definition:

Yes (720p)

3D Comb Filter:

Yes

Audio

SRS®

TruSurround

® XT Audio Effect:

Yes

Auto SAP:

Yes

Steady Sound® Automatic Volume Control:

Yes

Dolby®: Dolby® Digital (AC3/ATSC only)
SRS®: SRS®

TruSurround

® XT Audio Effect

Convenience

Channel Label:

Yes

Channel Skip/Add:

Yes

Favorite Channel:

Yes

Parental Control (V-Chip):

Yes

Sleep Timer: 15, 30, 45, 60, 90, Off
Timer Events:

Timer 1, Timer 2

Clock:

Yes

Power Save Mode:

Standard, Reduced, Picture Off

Picture Freeze:

Yes

Input Skip:

Yes

Remote Control:

Yes

ID-

1 Detection:

Yes

LightSensor™:

Yes

Specifications

General

Aspect Ratio:

16:9

Television Type: Flat Panel LCD HDTV

Video

Panel Response Time:

8ms (gray to gray)

Advanced Video Processor: CineMotion® /Film

Mode/Cinema Drive, Contrast enhancer circuit,
Green and blue enhancer, Motion and edge
adaptive I/P converter, MPEG Noise Reduction

Audio

Audio Power Output:

20W (10W x2)

Sound Enhancer:

Dynamic, Standard, Custom

Convenience

Timer Clock:

Yes

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s):

2 (Rear)

Composite Video Input(s): 3 (2 Rear/1 Side)
Digital Audio Output(s):

1 (Rear)

RF Connection Input(s):

1 (Rear)

S-Video Input(s): 2 (1 Rear/1 Side)
Headphone Output(s):

1 (Side)

PC Audio Input(s):

1 (Rear)

PC Video Input(s):

1 (Rear)

Analog Audio Input(s) (Total): 5 (4 Rear/1 Side)
Audio Out:

1 (Rear)

2

HDMI™

Connection(s) (Total):

1 (Rear)

HDMI™ Connection(s) (w/ Analog Audio In): 1

with L/R RCA audio connections

Power

Power Consumption (in Operation):

200W

Power Consumption (in Standby):

Less than 0.1W

Power Requirements (voltage):

AC 120-240V,

50/60Hz

Regulation and Standard Compliance

Energy Star

® Compliant:

Yes

VESA® Hole Spacing Compatible:

Yes

VESA® Hole Pitch:

200 x 200 hole pattern / M6

thread size / 14mm hole depth

Service and Warranty Information

Limited Warranty: 1 Year Parts / 1 Year Labor

Dimensions

Weight: 74.96lbs (34.0kg) with pedestal; 61.73lbs

(28.0kg) without pedestal

Supplied Accessories

Tabletop Stand
RM

-YD005 Remote Control
AA x 2 Batteries
Coaxial Cable (x1)
HD-15 to HD15 Cable (x1)
Support belt and screws
Operation Manual

Optional Accessories

SU-WL51 Wall Mount Bracket
SU

-PW2 Wall Mount Bracket

Color: Black
UPC Code: 027242704046

1. Screen Size measured diagonally.

2. Limited to resolutions supported by both the PC and the Sony TV. See
Sony TV users manual and PC documentation for supported
resolutions
