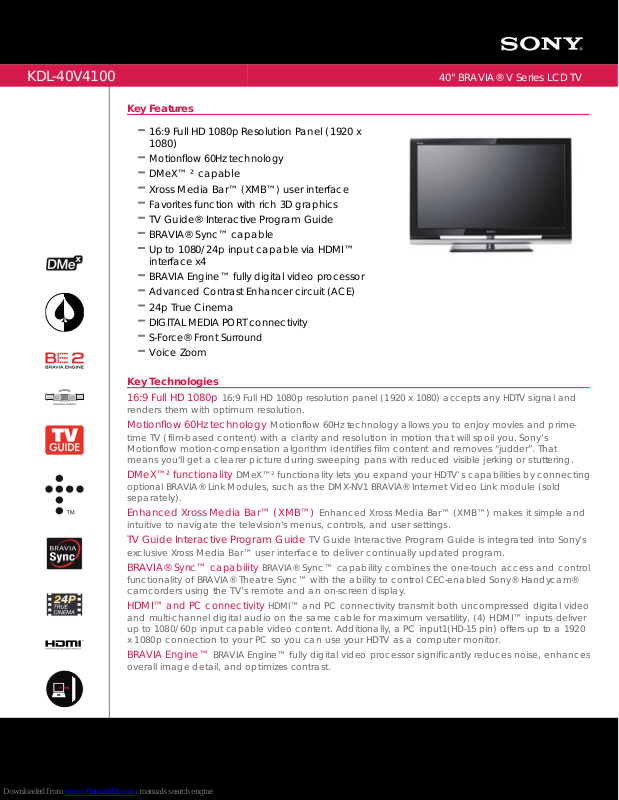

Sony BRAVIA KDL-40V4100 Features & Specifications

KDL-

40V4100

40" BRAVIA® V Series LCD TV

Key Features

16:9 Full HD 1080p Resolution Panel (1920 x

1080)

Motionflow 60Hz technology

DMeX

™ ² capable

Xross Media Bar™ (XMB™) user interface

Favorites function with rich 3D graphics

TV Guide® Interactive Program Guide

BRAVIA®

Sync

™ capable

Up to 1080/24p input capable via HDMI™
interface x4

BRAVIA Engine

™

fully digital video processor

Advanced Contrast Enhancer circuit (ACE)

24p True Cinema

DIGITAL MEDIA PORT connectivity

S-Force® Front Surround

Voice Zoom

Key Technologies

16:9 Full HD 1080p 16:9 Full HD 1080p resolution panel (1920 x 1080) accepts any HDTV signal and

renders them with optimum resolution.

Motionflow 60Hz technology Motionflow 60Hz technology allows you to enjoy movies and prime

-

time TV (film-based content) with a clarity and resolution in motion that will spoil you. Sony’s
Motionflow motion-compensation algorithm identifies film content and removes “judder”. That
means you'll get a clearer picture during sweeping pans with reduced visible jerking or stuttering.

DMeX™ ²

functionality

DMeX™

²

functionality lets you expand your HDTV’s capabilities by connecting

optional BRAVIA® Link Modules, such as the DMX-NV1 BRAVIA® Internet Video Link module (sold
separately).

Enhanced Xross Media Bar™ (XMB™ ) Enhanced Xross Media Bar™ (XMB™ ) makes it simple and

intuitive to navigate the television's menus, controls, and user settings.

TV Guide Interactive Program Guide TV Guide Interactive Program Guide is integrated into Sony’s

exclusive Xross Media Bar™ user interface to deliver continually updated program.

BRAVIA®

Sync

™

capability

BRAVIA® Sync™ capability combines the one-touch access and control

functionality of BRAVIA® Theatre Sync™ with the ability to control CEC-enabled Sony® Handycam

®

camcorders using the TV’s remote and an on-screen display.

HDMI™

and PC connectivity

HDMI

™ and PC connectivity transmit both uncompressed digital video

and multi-channel digital audio on the same cable for maximum versatility. (4) HDMI™ inputs deliver
up to 1080/60p input capable video content. Additionally, a PC input1(HD-15 pin) offers up to a 1920
x 1080p connection to your PC so you can use your HDTV as a computer monitor.

BRAVIA Engine

™ BRAVIA Engine™ fully digital video processor significantly reduces noise, enhances

overall image detail, and optimizes contrast.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 05/21/2009

KDL-

40V4100

40" BRAVIA® V Series LCD TV

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

General

Closed Caption Button: Yes
Closed Captions (CC): Yes
On-Screen Display: 3D GUI + xmb
Auto CC on Mute: Yes
Finish (Surface Color):

Piano Black

BRAVIA® Link Module support: Yes

Display

Backlight Type: CCFL
Display Device:

LCD

Display Technology:

LCD (178° wide viewing angle LCD

display panels)

Video

Video Processing:

Bravia Engine 2

™ Technology

CineMotion® Reverse 3:2 Pulldown Technology: Yes
Game Mode: Yes
Wide Mode: Wide Zoom, Normal, Full, H Stretch, Zoom
3D Comb Filter: Yes
MPEG Noise Reduction: Yes
Auto Wide: Yes
4:3 Default: Yes
24p True Cinema™ Technology: Yes
Picture Mode: Vivid, Standard, Cinema, Custom, Photo-

Vivid, Photo-Standard, Photo-Original, Photo-Custom

Advanced Contrast Enhancer (ACE): Yes
Motionflow™ Technology: Motionflow™

60Hz

Audio

Digital Amplifier:

Yes

Voice Zoom: Yes
Auto SAP:

Yes

Steady Sound® Automatic Volume Control: Yes
Audio Out: Yes
Sony Original Surround: S-Force® Front
Stereo System: MTS
Dolby

®:

Dolby® Digital

Alternate Audio (Digital):

Yes

Sound Booster: Yes

5.1 Channel Audio Out: Yes
Sound Mode: Dynamic, Standard, Clear Voice

Convenience

Channel Jump: Yes
Favorite Channel: Yes
Program Guide Access: Yes
Multiple Language Display: English, Spanish, French
Info Banner: Yes
Sleep Timer: Yes
Power Save Mode: Picture Off, Yes
Input Skip: Yes (Auto)
Channel Surf: Yes
Channel Block (with password): Yes
Edit Channel Labels: Yes
Label Inputs: Yes
ID-1 Detection: Yes
Initial Setup: Yes
On/Off Timer: Yes
PAP (Picture & Picture):

Yes

Swap Sound: Yes
Theatre Mode (Theatre Button): Yes
Show/Hide Channels: Yes
PAP (Fixed or Variable):

Fixed

BRAVIA® Sync™ : Yes
Parental Control: Yes

BRAVIA® Sync™ Menu Button: Yes
Freeze: Yes
On-Screen Display for External Input: Yes
PIP (Picture in Picture): PC Input
Channel Labels: Yes
On-Screen Clock: Yes
XMB™ (Xross Media Bar™ ): Yes
TV Guide On-Screen: Yes

Specifications

General

Television Type: Flat Panel LCD HDTV

Display

Viewing Angle (Right/Left):

178

°

Viewing Angle (Up/Down):

178

°

On-screen Contrast Ratio:

2,500:1 (typ)

Dynamic Contrast Ratio:

25,000:1 (typ)

Screen Size (measured diagonally):

40"

Native Resolution:

1920 x 1080

Display Resolution:

1920 x 1080p (Full HD)

Color Range (u'v'):

90%

Color Range (xy):

72%

TV System

Tuner (Cable): QAM Tuner
Tuner (Terrestrial): NTSC Tuner
Channel Coverage: VHF: 2-

13
UHF: 14-69
CATV (analog): 1-

135

CATV (digital) : 1-

135

TV System (Analog): M
Number of Tuners (Analog):

1

Number of Tuners (Digital): 1(Hybrid)
TV System (Digital): ATSC
Color System:

NTSC 3.58

Video

Video Signal:

480/60i, 480/60p, 720/60p, 1080/60i, 1080/24p

(HDMI™

only), 1080/60p (HDMI

™ / Component)

Audio

Audio Power Output: 20W (10W + 10W)

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s): 2 (Rear)
Composite Video Input(s): 3 (1 Side/2 Rear)
Digital Audio Output(s): 1 (Rear) Optical Digital Output
RF Connection Input(s): 1 (Rear)
S

-Video Input(s): 1 (Rear)
Analog Audio Input(s) (Total): 6 (1 Side/5 Rear)
Audio Out: 1 (Rear)
HDMI™ Connection(s) (Total): 4 (1 Side/3 Rear)
PC In (D-Sub) + Audio In (Stereo Mini): 1 (Rear)
HDMI™ PC Input: Yes
S

-Video Detection: Yes
AC Power Input: 1 (Rear)
Analog Audio Input(s) for HDMI™ : Yes
USB 1.1: 1 (Rear) service only

Power

Power Consumption (in Standby): 0.1W
Power Requirements (voltage):

AC 120V

Power Consumption (in Operation) max.:

220W

Regulation and Standard Compliance

VESA

® Hole Spacing Compatible: Yes

VESA® Hole Pitch:

300 x 300 mm, M6 Screw Type, 16mm

Screw Length

Service and Warranty Information

Limited Warranty Term: 1 Year Parts / 1 Year Labor

Energy Saving & Efficiency

LightSensor™ Technology: Yes

Dimensions

Weight: 51 lbs. (23kg) with pedestal; 45 lbs. (20kg)

without pedestal

Measurements:

38 7/8 x 27 x 11 in (986 x 684 x 279mm)
with pedestal; 38 7/8 x 25 1/2 x 4 3/8 in (986 x 646 x
110mm) without pedestal

Supplied Accessories

RM-YD023 Remote Control
Batteries (2 x AA)
AC Power Cord (attached)
Operating Instructions
Quick Setup Guide
Warranty Card
On-line Registration Card
Cable Clamper
Pedestal (separate)

Optional Accessories

RHT-

G900 Stand

WS-

S10LS Stand

SU-WL500 Wallmount Bracket

Color:

Piano Black

UPC Code:

027242736559

1. Resolution Limited. See Sony TV and PC manuals.
