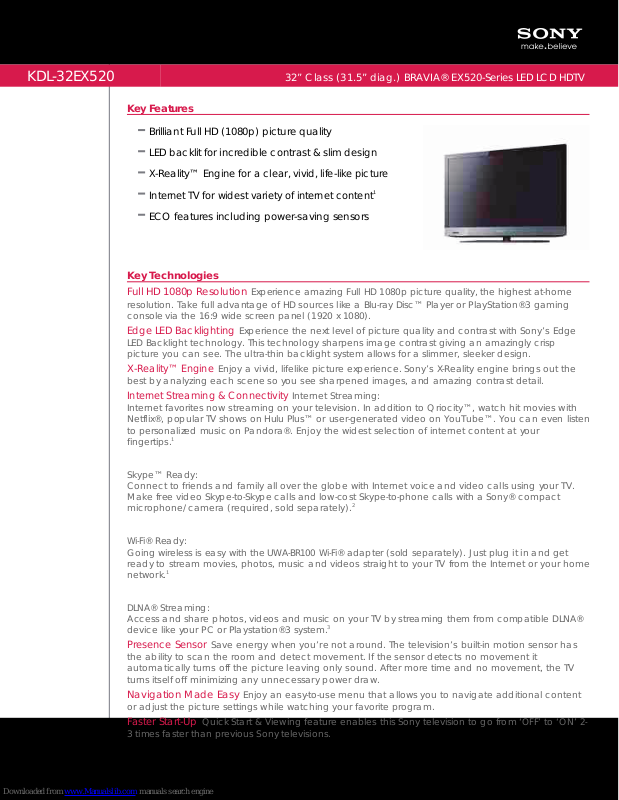

Page 1
KDL-
32EX520
32” Class (31.5” diag.) BRAVIA® EX520-Series LED LCD HDTV
Key Features
Brilliant Full HD (1080p) picture quality
LED backlit for incredible contrast & slim design
X
-Reality™
Engine for a clear, vivid, life-like picture
Internet TV for widest variety of internet content
1
ECO features including power-saving sensors
Key Technologies
Full HD 1080p Resolution Experience amazing Full HD 1080p picture quality, the highest at
-
home
resolution. Take full advantage of HD sources like a Blu-ray Disc™ Player or PlayStation®3 gaming
console via the 16:9 wide screen panel (1920 x 1080).
Edge LED Backlighting
Experience the next level of picture quality and contrast with Sony’s Edge
LED Backlight technology. This technology sharpens image contrast giving an amazingly crisp
picture you can see. The ultra-thin backlight system allows for a slimmer, sleeker design.
X-
Reality
™
Engine
Enjoy a vivid, lifelike picture experience. Sony’s X
-
Reality engine brings out the
best by analyzing each scene so you see sharpened images, and amazing contrast detail.
Internet Streaming & Connectivity
Internet Streaming:
Internet favorites now streaming on your television. In addition to Qriocity™ , watch hit movies with
Netflix®, popular TV shows on Hulu Plus™ or user-generated video on YouTube™ . You can even listen
to personalized music on Pandora®. Enjoy the widest selection of internet content at your
fingertips.
Skype™ Ready:
Connect to friends and family all over the globe with Internet voice and video calls using your TV.
Make free video Skype-to-Skype calls and low-cost Skype-to-phone calls with a Sony® compact
microphone/camera (required, sold separately).
Wi-Fi® Ready:
Going wireless is easy with the UWA-BR100 Wi-Fi® adapter (sold separately). Just plug it in and get
ready to stream movies, photos, music and videos straight to your TV from the Internet or your home
network.
DLNA® Streaming:
Access and share photos, videos and music on your TV by streaming them from compatible DLNA
®
device like your PC or Playstation®3 system.
1
2 1 3
Presence Sensor
Save energy when you’re not around. The television’s built
-
in motion sensor has
the ability to scan the room and detect movement. If the sensor detects no movement it
automatically turns off the picture leaving only sound. After more time and no movement, the TV
turns itself off minimizing any unnecessary power draw.
Navigation Made Easy Enjoy an easy
-to-
use menu that allows you to navigate additional content
or adjust the picture settings while watching your favorite program.
Faster Start
-Up Quick Start & Viewing feature enables this Sony television to go from ‘
OFF
’ to ‘ON’ 2-
3 times faster than previous Sony televisions.
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 01/12/2011
KDL-
32EX520
32” Class (31.5” diag.) BRAVIA® EX520-Series LED LCD HDTV
Please visit the Dealer Source for current
information at www.sony.com/dealersource
Features
General
Closed Captions (CC): Analog, Digital
Finish (Surface Color):
Black
Audio Return Channel:
Yes
HDMI™
InstaPort:
Yes
Start Up Sony Logo Display:
Yes
Display
Backlight Type: Edge LED
Display Device: LCD
Video
Video Processing: X-Reality™ Engine
CineMotion®
Reverse 3:2 Pulldown Technology:
Yes
Wide Mode: Full, Normal, Wide Zoom, Zoom,
Caption, Normal/Full1/Full2 for PC
Deep Color:
Yes
3D Comb Filter:
Yes
PhotoTV HD:
Yes
Auto Wide:
Yes
4:3 Default:
Yes
24p True Cinema
™ Technology:
Yes
Picture Mode:
Vivid, Standard, Photo-Vivid,
Photo-Standard, Photo-Original, PhotoCustom, Cinema, Game-Standard, GameOriginal, Graphics, Sports, Animation
Advanced Contrast Enhancer (ACE):
Yes
Live Color™ Technology:
Yes
Intelligent Image Enhancer:
Yes
Intelligent MPEG Noise Reduction:
Yes
Audio
Auto SAP:
Yes
Auto Mute (on no signal):
Yes
Audio Out: Fixed/variable
Sony Original Surround: S-
Force Front Surround 3D
Stereo System:
MTS
Dolby®: Dolby Digital, Dolby Digital Plus, Dolby
Pulse
Alternate Audio (Digital):
Yes
Surround Effect:
Cinema, Sports, Music, Game
Sound Booster:
Yes
5.1 Channel Audio Out:
Yes
Sound Mode: Dynamic, Standard, Clear Voice,
Custom
5.1ch Through Out (Handycam):
Yes
Sound Enhancer:
Yes
S-
Master:
Yes
Invisible Speaker (w/Sound Elevation):
Yes
Headphone/Speaker Link:
Yes
Convenience
Channel Jump:
Yes
Multiple Language Display:
English, French,
Spanish
Info Banner:
Yes
Sleep Timer:
Yes
Input Skip: Automatic
Channel Surf:
Yes
Channel Block (with password): Analog & Digital
Edit Channel Labels:
Yes
Label Inputs:
Yes
On/Off Timer:
Yes
USB Application(s):
Yes
Show/Hide Channels:
Yes
Auto Shut
-off:
Yes
PAP (Fixed or Variable): PAP(Variable)
BRAVIA®
Sync™:
Yes
Parental Control:
Yes
On-Screen Display for External Input:
Yes
PIP (Picture in Picture):
Yes
Control for HDMI™ (HDMI™ CEC):
Yes
On-Screen Clock:
Yes
Picture Adjustments Lock:
Yes
Scene Select:
Photo, Music, Cinema, Game,
Graphics, Sports, Animation
On-Screen Operating Instructions:
Yes
Picture Frame Mode:
Yes
Skin Naturalizer:
Yes
Network
DLNA:
Yes
BRAVIA®
Internet Video:
Yes
BRAVIA®
Internet Widgets:
Yes
Photo MAP:
Yes
Wireless LAN:
Ready (UWA-BR100 required, sold
separately)
HTML Browser:
Yes
Sensing
Presence Sensor:
Yes
LightSensor
™ Technology:
Yes
Broadcast
TV Guide On-Screen:
Yes
Design
Stand Swivel:
Yes
Stand Swivel Range:
Left 20
° /Right 20°
Stand Tilt:
Yes
Stand Tilt Range: 0° - 6° Flexible
Specifications
Display
Viewing Angle (Right/Left): 176°
Viewing Angle (Up/Down): 176°
Screen Size (measured diagonally): 32" (31.5")
Display Resolution: Full HD 1080p
Aspect Ratio:
16:9
Panel Frequency:
60Hz
TV System
Tuner (Cable):
Clear QAM
Tuner (Terrestrial):
ATSC
Channel Coverage: VHF: 2-
13, UHF: 14
-69, CATV:
1-135
TV System (Analog):
M
Number of Tuners (Analog):
1
Number of Tuners (Digital):
1
TV System (Digital): ATSC
Color System: NTSC
Video
Video Signal: 1080/24p (HDMI™ only), 1080/60i,
1080/60p (HDMI™ / Component), 720/60p,
480/60i, 480/60p
Audio
Audio Power Output:
10W + 10W
Inputs and Outputs
Component Video (Y/Pb/Pr ) Input(s): 1
(Rear/Hybrid)
Composite Video Input(s): 2 (1 Rear/1 Hybrid)
Digital Audio Output(s):
1 (Rear)
RF Connection Input(s):
1 (Rear)
Headphone Output(s):
1 (Side/Hybrid)
Analog Audio Input(s) (Total):
2 (Rear)
Audio Out: 1 (Side/Hybrid)
HDMI™
Connection(s) (Total):
4 (1 Side/3 Rear)
PC In (D-
Sub) + Audio In (Stereo Mini):
D-Sub 1
(Side), Mini 1(Rear)
USB 2.0: 2 (Side)
HDMI™
PC Input:
Yes
AC Power Input:
1 (Rear)
Ethernet Connection(s):
1 (Rear)
Power
Power Consumption (in Standby): 0.20W (120V) /
0.30W (240V)
Power Requirements (voltage):
AC 120V for
UL,cUL; AC 110
-240V for other
Power Requirements (frequency):
60Hz for UL,cUL;
50/60Hz for other
Power Consumption (in Operation) max.:
77W
Power Consumption (in Download Acquisition
Mode):
0.02kWh / Day
Regulation And Standards Compliance
VESA® Hole Spacing Compatible:
Yes
VESA® Hole Pitch: 200 x 200 mm
Service and Warranty Information
Limited Warranty Term: 1Year Labor / 1 Year Parts
Energy Saving & Efficiency
Energy Star
® compliant:
Yes (Exceeds v5.0)
Dynamic Backlight Control:
Yes
Backlight Off Mode:
Yes
Recycled & Recyclable Materials
Packaging Materials: Recycled Carton (more
than 40%)
Weights and Measurements
Weight (Approx.): 17 lbs (7.7 Kg) without stand;
22.5 lbs (10.2 Kg) with stand
Dimensions (Approx.): 29 3/4 x 19 x 1 11/16" (755
x 480 x 42mm) without stand; 29 3/4 x 20 1/8 x
8 1/2" (755 x 510 x 216mm) with stand
Packaging (Approx.): 33 5/8 x 24 3/4 x 5
1/4" (851 x 628 x 132mm); 30 lbs (14 Kg)
Supplied Accessories
Remote Control (RM-YD063)
AC Power Cord (attached)
Table Top Stand (separate, assembly required)
Optional Accessories
Wallmount Bracket (SU-
WL500)
UPC Code: 027242817180
1. Broadband internet connection speed of at least 2.5 Mbps
recommended (10 Mbps for HD content). Video quality and picture
size vary and are depended upon broadband speed and delivery by
content provider. Select content provided subject to change.
Premium content may require additional fees, a subscription and/or
PC registration
2. Broadband internet connection speed of at least 2.5 Mbps
recommended (10 Mbps for HD content). Video quality and picture
size vary and are depended upon broadband speed and delivery by
content provider. Premium content may require additional fees, a
subscription and/or PC registration. Feature is subject to Skype’s
terms and conditions, which Skype has the ability to change at
anytime.
3. Requires all devices to be connected to the same home network.
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony BRAVIA, BRAVIA
Sync, LightSensor, and X-Reality are trademarks of Sony. Wi-Fi is a
registered trademark of the Wi-Fi Alliance. Skype is a trademark of Skype
Limited. DLNA is a registered trademark of the Digital Living Network
Alliance. All other trademarks are trademarks of their respective owners.
Features and specifications are subject to change without notice. Non
-
metric weights and measures are approximate and may vary.
