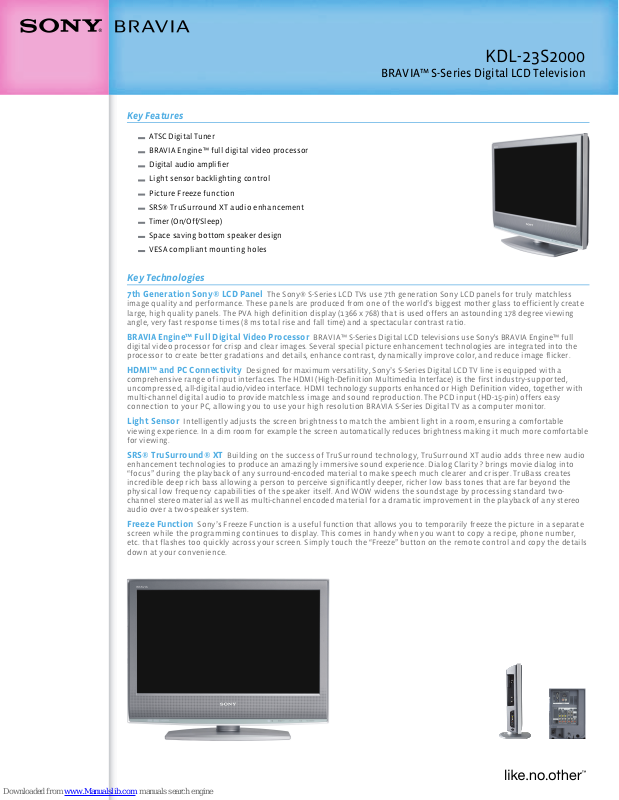

Page 1
KDL-23S2000
BRAVIA™ S-
Series Digital LCD Television
Key Features
ATSC Digital Tuner
BRAVIA Engine™ full digital video processor
Digital audio amplifier
Light sensor backlighting control
Picture Freeze function
SRS® TruSurround XT audio enhancement
Timer (On/Off/Sleep)
Space saving bottom speaker design
VESA compliant mounting holes
Key Technologies
7th Generation Sony® LCD Panel
The Sony® S-Series LCD TVs use 7th generation Sony LCD panels for truly matchless
image quality and performance. These panels are produced from one of the world’s biggest mother glass to efficiently create
large, high quality panels. The PVA high definition display (1366 x 768) that is used offers an astounding 178 degree viewing
angle, very fast response times (8 ms total rise and fall time) and a spectacular contrast ratio.
BRAVIA Engine™ Full Digital Video Processor
BRAVIA™ S-Series Digital LCD televisions use Sony's BRAVIA Engine™ full
digital video processor for crisp and clear images. Several special picture enhancement technologies are integrated into the
processor to create better gradations and details, enhance contrast, dynamically improve color, and reduce image flicker.
HDMI™ and PC Connectivity
Designed for maximum versatility, Sony’s S-Series Digital LCD TV line is equipped with a
comprehensive range of input interfaces. The HDMI (High-Definition Multimedia Interface) is the first industry-supported,
uncompressed, all-digital audio/video interface. HDMI technology supports enhanced or High Definition video, together with
multi-channel digital audio to provide matchless image and sound reproduction. The PCD input (HD-15-pin) offers easy
connection to your PC, allowing you to use your high resolution BRAVIA S-Series Digital TV as a computer monitor.
Light Sensor
Intelligently adjusts the screen brightness to match the ambient light in a room, ensuring a comfortable
viewing experience. In a dim room for example the screen automatically reduces brightness making it much more comfortable
for viewing.
SRS® TruSurround® XT
Building on the success of TruSurround technology, TruSurround XT audio adds three new audio
enhancement technologies to produce an amazingly immersive sound experience. Dialog Clarity ? brings movie dialog into
“
focus” during the playback of any surround-encoded material to make speech much clearer and crisper. TruBass creates
incredible deep rich bass allowing a person to perceive significantly deeper, richer low bass tones that are far beyond the
physical low frequency capabilities of the speaker itself. And WOW widens the soundstage by processing standard twochannel stereo material as well as multi-channel encoded material for a dramatic improvement in the playback of any stereo
audio over a two-speaker system.
Freeze Function
Sony’s Freeze Function is a useful function that allows you to temporarily freeze the picture in a separate
screen while the programming continues to display. This comes in handy when you want to copy a recipe, phone number,
etc. that flashes too quickly across your screen. Simply touch the “Freeze” button on the remote control and copy the details
down at your convenience.
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 06/22/2006
KDL-23S2000
BRAVIA™ S-
Series Digital LCD Television
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
General
Auto SAP: Yes
Closed Caption (CC): Yes
ID1 Detection:
Yes
Video Label: Yes
Video
Screen or Display Technology: PVA LCD display
panel
Tuner: ATSC
Video Processing: Yes (BRAVIA Engine™ System)
Noise Reduction: Yes
Comb Filter: 3D Digital Comb Filter
Light Sensor: Yes
Picture Modes: Vivid, Standard, Custom
Wide Mode: Yes
Audio
Sound Mode: Dynamic, Standard, Custom
MTS Stereo Decoder:
Yes
A/V Synch: Off/1/2/3
Digital Amplifier:
Yes
SRS
® TruSurround® XT Audio Effect: Yes
Dolby®
Digital:
Yes (AC3 for ATSC)
Convenience
Channel Label: Yes
Channel Skip/Add: Yes
Favorite Channel: Yes
Parental Control (V-Chip): Yes
Sleep Timer:
15, 30, 45, 60, 90, Off
Timer Events:
Timer 1, Timer 2
Clock: Yes
Power Save Mode: Standard, Reduced, Picture
Off
Picture Freeze:
Yes
Input Skip: Yes
Specifications
General
Aspect Ratio: 16:9
Screen Size:
23"
Video
Contrast Ratio: 1300:1
Display Resolution: 1366 x 768
Viewing Angle:
Right/Left: 178°, Up/Down: 178
°
Panel Response Time: 8ms (gray to gray)
Advanced Video Processor:
CineMotion® /Film Mode/Cinema Drive,
Contrast enhancer circuit, Green and blue
enhancer, Motion and edge adaptive I/P
converter, MPEG noise reduction
1
Audio
Audio Power Output: 20W (10W + 10W)
Steady Sound® Automatic Volume Control:
Yes (with BBE® Technology)
Convenience
Timer Clock: Yes
Inputs and Outputs
Analog Audio Input(s): 5 (4 Rear/1 Side)
Audio Out (Variable/Fixed):
1 (Rear)
Component Video (Y/Pb/Pr ) Input(s): 2 (Rear)
Composite Video Input(s): 3 (1 Side/2 Rear)
Digital Audio Output(s):
1 (Rear)
RF Connection Input(s): 1 (Rear)
S
-Video Input(s): 2 (1 Side/1 Rear) rear input
has Auto S Video Input Detection
Headphone Output(s): 1 (Side)
PC Video Input(s): 1 (Rear) with D-sub 15 and
L/R stereo mini plug connection
HDMI™ Connection(s): 1 (Rear) with L/R RCA
audio connections
Power
Power Consumption (in Operation): 105W
Power Consumption (in Standby): Less than
0.01W
Power Requirements: AC 120-240V, 50/60Hz
Regulation and Standard Compliance
Energy Star
® Compliant: Yes
VESA: Yes (200 x 100 hole pattern/ M4 thread
size/ 14mm hole depth)
Service and Warranty Information
Limited Warranty:
1 Year Parts / 1 Year Labor
Dimensions
Weight:
22.5lbs (10.2kg) including pedestal;
16.4lbs (7.4kg) without pedestal
Measurements: 22.24" x 17.6" x 8.23" (565 x 447 x
209mm) with pedestal; 22.24" x 16.14" x
3.5" (565 x 410 x 90mm) without pedestal
Supplied Accessories
Tabletop Stand
RM-YD005 Remote Control
AA x 2 Batteries
Coaxial Cable (x1)
HD-15 to HD15 Cable (x1)
Support belt and screws
Operation Manual
Optional Accessories
SU
-WL31 Wall Mount Bracket
Color: Medium Silver
UPC Code: 027242698239
1. Screen Size measured diagonally.
©2006 Sony Electronics Inc. All rights reserved.
Sony, BRAVIA, BRAVIA Engine, and CineMotion are trademarks of Sony. SRS
and the SRS symbol, TruSurround are trademarks of SRS Labs, Inc. Dolby
Digital is a regis
tered trademark of Dolby Laboratories. This TV incorporates
High-Definition Multimedia Interface (HDMI™) technology. HDMI, the HMDI
logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC. All other trademarks are property of
their respective owners.
Features and specifications are subject to change without notice. Non
-
metric weights and measures are approximate.
