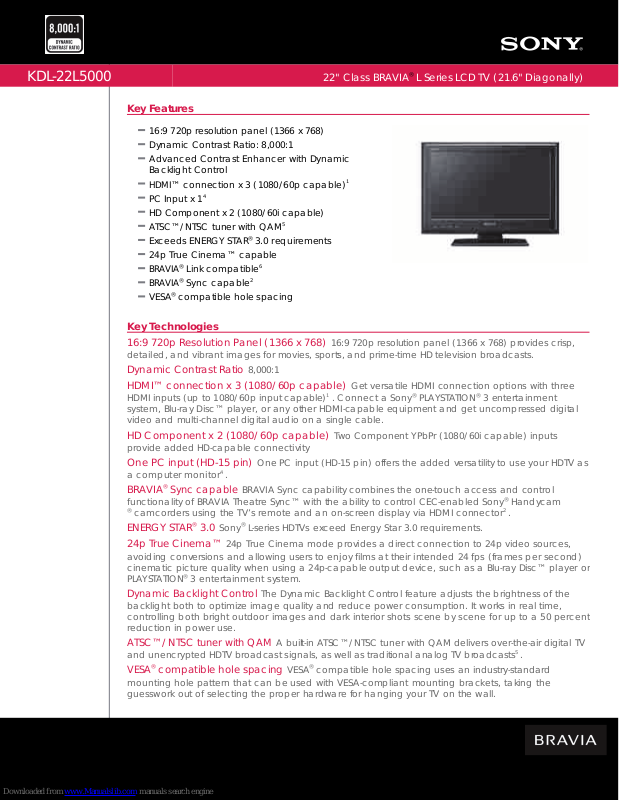

Page 1
KDL-
22L5000
22" Class BRAVIA L Series LCD TV (21.6" Diagonally)
®
Key Features
16:9 720p resolution panel (1366 x 768)
Dynamic Contrast Ratio: 8,000:1
Advanced Contrast Enhancer with Dynamic
Backlight Control
HDMI
™ connection x 3 (1080/60p capable)
1
PC Input x 1
4
HD Component x 2 (1080/60i capable)
ATSC
™ /NTSC tuner with QAM
5
Exceeds ENERGY STAR 3.0 requirements
®
24p True Cinema™ capable
BRAVIA
Link compatible
®
6
BRAVIA
Sync capable
®
2
VESA compatible hole spacing
®
Key Technologies
16:9 720p Resolution Panel (1366 x 768) 16:9 720p resolution panel (1366 x 768) provides crisp,
detailed, and vibrant images for movies, sports, and prime-time HD television broadcasts.
Dynamic Contrast Ratio 8,000:1
HDMI™ connection x 3 (1080/60p capable) Get versatile HDMI connection options with three
HDMI inputs (up to 1080/60p input capable) . Connect a Sony PLAYSTATION 3 entertainment
system, Blu-ray Disc™ player, or any other HDMI-capable equipment and get uncompressed digital
video and multi-channel digital audio on a single cable.
1 ® ®
HD Component x 2 (1080/60p capable) Two Component YPbPr (1080/60i capable) inputs
provide added HD-capable connectivity
One PC input (HD-15 pin) One PC input (HD
-
15 pin) offers the added versatility to use your HDTV as
a computer monitor .
4
BRAVIA
Sync capable
BRAVIA Sync capability combines the one
-
touch access and control
functionality of BRAVIA Theatre Sync™ with the ability to control CEC-enabled Sony Handycam
camcorders using the TV’s remote and an on-screen display via HDMI connector .
® ® ®
2
ENERGY STAR 3.0 Sony L
-
series HDTVs exceed Energy Star 3.0 requirements.
®
®
24p True Cinema™ 24p True Cinema mode provides a direct connection to 24p video sources,
avoiding conversions and allowing users to enjoy films at their intended 24 fps (frames per second)
cinematic picture quality when using a 24p-capable output device, such as a Blu-ray Disc™ player or
PLAYSTATION 3 entertainment system.
®
Dynamic Backlight Control
The Dynamic Backlight Control feature adjusts the brightness of the
backlight both to optimize image quality and reduce power consumption. It works in real time,
controlling both bright outdoor images and dark interior shots scene by scene for up to a 50 percent
reduction in power use.
ATSC
™ /
NTSC tuner with QAM
A built
-
in ATSC™ /NTSC tuner with QAM delivers over-the-air digital TV
and unencrypted HDTV broadcast signals, as well as traditional analog TV broadcasts .
5
VESA
compatible hole spacing VESA compatible hole spacing uses an industry
-
standard
mounting hole pattern that can be used with VESA-compliant mounting brackets, taking the
guesswork out of selecting the proper hardware for hanging your TV on the wall.
®
®
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 06/13/2009
KDL-
22L5000
22" Class BRAVIA L Series LCD TV (21.6" Diagonally)
®
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
General
Closed Captions (CC):
Analog, Digital
On-Screen Display:
Traditional
Auto CC on Mute:
Yes
Finish (Surface Color):
Black
Demo Mode:
Yes
BRAVIA®
Link Module support:
Yes (except BRAVIA®
Internet Video Link)
Display
Backlight Type:
CCFL
Display Device:
LCD
Video
CineMotion® Reverse 3:2 Pulldown Technology:
Yes
Wide Mode:
Normal, Zoom, Wide Zoom, Full (Full1-2 for PC)
3D Comb Filter:
Yes
Auto Wide:
Yes
4:3 Default:
Yes
24p True Cinema
™
Technology:
Yes
Picture Mode:
Vivid, Standard, Cinema
Advanced Contrast Enhancer (ACE):
Yes
Audio
Digital Amplifier:
Standard
Auto SAP:
Yes
Auto Mute (on no signal):
Yes
Steady Sound® Automatic Volume Control:
Yes
Audio Out:
Fixed
Stereo System: MTS
Dolby®: Dolby® Digital
Alternate Audio (Digital):
Yes
5.1 Channel Audio Out:
Yes
Sound Mode:
Dynamic, Standard, Clear Voice
5.1ch Through Out (Handycam):
Yes
Convenience
Channel Jump:
Yes
Favorite Channel:
Yes
Multiple Language Display:
English, French, Spanish
Info Banner:
PSIP, XDS
Sleep Timer:
Yes
Input Skip:
Manual
Channel Surf:
Yes
Channel Block (with password):
Yes
Edit Channel Labels:
Yes
Label Inputs:
Yes
ID-1 Detection:
Yes
Theatre Mode (Theatre Button):
Yes
Show/Hide Channels:
Yes
BRAVIA® Sync™: Yes
Parental Control:
Yes
BRAVIA® Sync™ Menu Button: Yes (on Remote Control)
On-Screen Display for External Input:
Yes
PIP (Picture in Picture):
PC Input/TV Channel
Channel Labels:
Yes
Program Block:
Yes
Control for HDMI™ (HDMI™
CEC):
Yes
Short Banner:
Yes
Picture Adjustments Lock:
Yes
White Balance:
RGB Gain/Bias
Favorites Menu:
Text
Stand Tilt:
Yes
Stand Tilt Range:
Forward 3
° / Back 8°
Specifications
General
Television Type:
Flat Panel LCD HDTV
Display
Viewing Angle (Right/Left):
170 (85/85)
Viewing Angle (Up/Down):
160 (80/80)
On-screen Contrast Ratio:
800:1
Dynamic Contrast Ratio:
8,000:1
Screen Size (measured diagonally):
21.6"
Native Resolution:
1366 X 768
Display Resolution:
1366 X 768p (HD)
Panel Bit: 6-
bit+Hi FRC
Aspect Ratio:
16:9
Color Range (u'v'):
88% OF NTSC
Color Range (xy):
72% OF NTSC
TV System
Tuner (Cable):
Clear QAM
Tuner (Terrestrial):
ATSC™ / NTSC
Channel Coverage:
VHF: 2-13ch
UHF: 14-69ch
CATV (analog): 1-135ch
CATV (digital) : 1-135ch
TV System (Analog):
M
Number of Tuners (Analog):
1
Number of Tuners (Digital):
1 (Hybrid)
TV System (Digital):
ATSC
Color System: NTSC
Video
Video Signal:
1080/60p (HDMI™ / COMPONENT), 1080/60i, 1080/24p
(HDMI™ ONLY), 720/60p, 480/60p, 480/60i
Audio
Audio Power Output:
10W (5W X 2)
Speakers (Total):
2
Speaker Configuration:
2
Inputs and Outputs
Component Video (Y/Pb/Pr ) Input(s):
2 (Rear) (1 fixed/1 selectable)
Composite Video Input(s):
2 (1 Side/1 Rear -
selectable)
Digital Audio Output(s):
Optical Digital Output -
1 (Rear)
RF Connection Input(s):
1 (Rear)
S-Video Input(s):
1 (Side)
Analog Audio Input(s) (Total):
5 (1 Side, 4 Rear)
Audio Out:
1 (Rear)
HDMI™
Connection(s) (Total):
3 (1 Side, 2 Rear)
PC In (D-Sub) + Audio In (Stereo Mini):
1 (Rear) (see owner's manual for
supported timings)
USB 2.0:
1 (Side for Service Only)
HDMI™
PC Input:
Yes (see owner's manual for supported timings)
S-Video Detection:
Yes
AC Power Input:
1 (Rear)
Analog Audio Input(s) for HDMI™:
1 (Rear)
Power
Power Consumption (in Standby):
Less Than 1W
Power Requirements (voltage):
AC 120V
Power Requirements (frequency):
50/60 Hz
Power Consumption (in Operation) max.:
55 W
Regulation and Standard Compliance
VESA®
Hole Spacing Compatible:
Yes
VESA®
Hole Pitch:
100x100 M4/8-12 mm
Service and Warranty Information
Limited Warranty Term: 1 Year Labor / 1 Year Parts
Energy Saving & Efficiency
Power Saving Modes:
Yes
Energy Star®
compliant:
Exceeds Energy Star®
Version 3.0
Eco Settings:
Yes
Dynamic Backlight Control:
Yes
Backlight Off Mode:
Yes
PC Power Management:
Yes
Estimated Annual Energy Consumption (kWh):
82kWh
Idle TV Standby:
Yes
Power Consumption (On Mode) for Energy Star:
43.47W
Power Consumption (Standby Mode) for Energy Star:
0.39W
Recycled & Recyclable Materials
Packaging Materials:
RECYCLED Carton (MORE THAN 40%)
Printed Materials:
RECYCLED PAPER (MORE THAN 20%)
Dimensions
Weight:
15.2 lbs. (6.9kg) with pedestal; 13.5 lbs. (6.1kg) without pedestal
Measurements:
22 x 16 1/2 x 8 1/2 in (558 x 417 x 215mm) with pedestal;
22 x 14 5/8 x 3 1/8 in (558 x 370 x 79mm) without pedestal
Supplied Accessories
RM-YD028 Remote Control
Batteries (AA x2)
AC Power Cord (attached)
Operating Instructions
Quick Setup Guide
Warranty Card
Pedestal (separate, assembly required)
3 Screws (for pedestal)
Optional Accessories
SU-WL100 Wallmount Bracket
UPC Code:
027242753051
1. 22" class (21.6" measured diagonally).
2. HDMI™
connector required and sold separately.
3. Works with BRAVIA Sync™ or Theatre Sync™ –
labeled home
audio/video products when connected via HDMI.
4. Distance will vary depending upon environmental conditions.
5. Limited to resolutions supported by both the PC and the Sony
HDTV.
See Sony TV user's manual and PC documentation for the supported
resolutions.
6. Check with your local TV station or cable company for details on
accessing or subscribing to HD content.
7. The DMX-DVD, DMX-WL1 and DMX-SW1 BRAVIA Link modules cannot
be installed on to the rear of the KDL-22L5000 and the KDL-26L5000
