Page 1

Television

Reference Guide

KD-75S9000B / 65S9000B

Page 2

Table of Contents

Safety information . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Table-Top Stand

(Alternative) . . . . . . . . . . . . . . . . . . . . . . . . 6

Hiding the camera . . . . . . . . . . . . . . . . . . . . . 7

Using the Remote Control. . . . . . . . . . . . . 7

Displaying the Touchpad Operation

Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Launching the Touchpad Tutorial . . . . . . . . . 8

Connecting Other Devices. . . . . . . . . . . . . 8

Installing the TV to the Wall . . . . . . . . . . .11

SU-WL500 (KD-75S9000B only) . . . . . . . . . . 11

SU-WL450 (KD-65S9000B only) . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . 17

Troubles and Solutions . . . . . . . . . . . . . . . . 17

Specifications . . . . . . . . . . . . . . . . . . . . . . 18

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture re ference .

Note

• Before operating the TV, please read “Safety information” (page 2).

• Instructio ns about “Installing th e TV to the Wall” are included within this TV’s instructions manual.

• Images an d illustrations used in Quick Start Guide and this manual are for reference only and may differ from actual product appearance.

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

This television is designed for use in Hong Kong and ensured the usage in Hong Kong on ly.

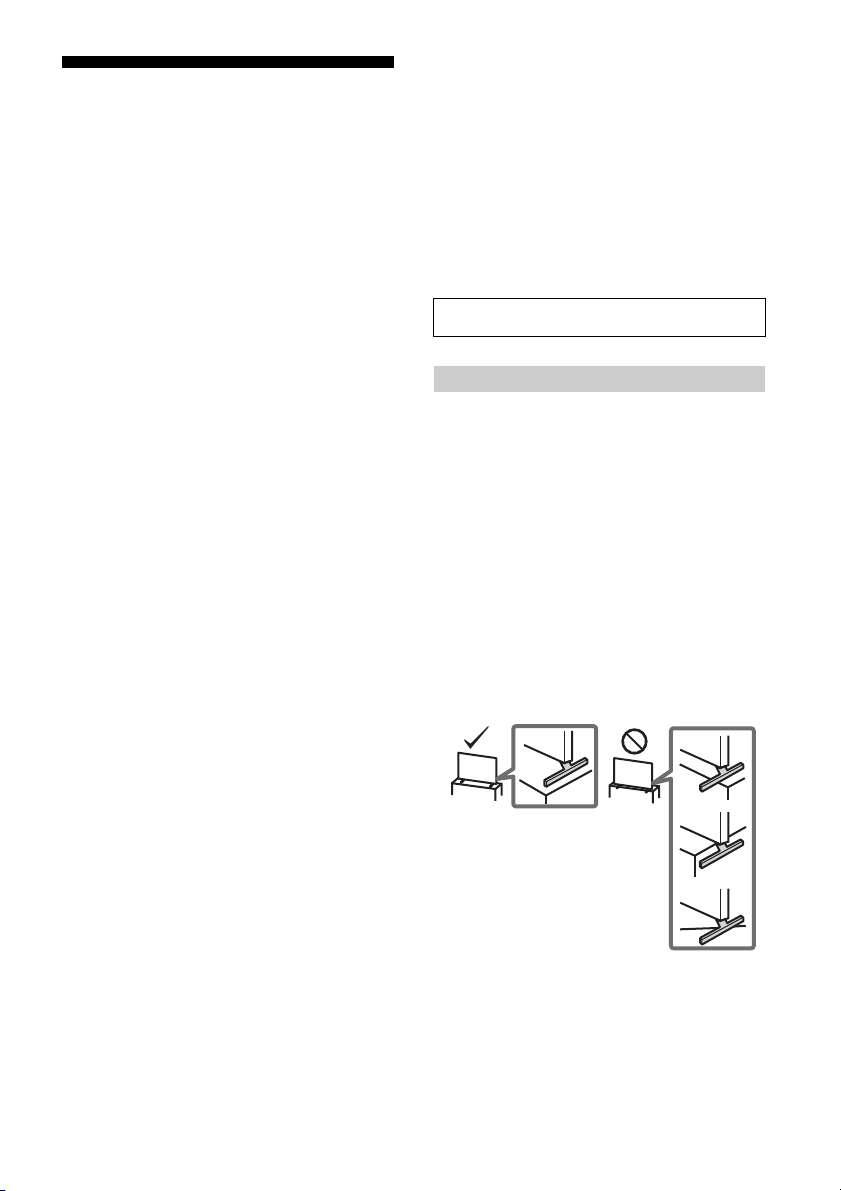

Safety information

WARN ING

Batteries must not be expose d to excessive heat such as sunshine, fire or the like.

Installation/Set-up

Install and use the TV s et in accordance with the instructi ons below in order to avoid any risk of fire, electrical shock or damage and/or in juries.

Installation

• To avoid slipping and causing personal injury, do not step on the TV protection bag when unpacking the TV set.

• The TV se t should be insta lled near an easi ly accessible AC power outlet (mains socket).

• Place the TV set on a stable, level surface to avoid it from falling down and cause pe rsonal injury or dam age to the TV.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV s o that the TV's Table-Top Stand does not protrudes out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to top ple over, fall down, and cause pe rsonal injury or damage to the TV.

• Only qualified service personnel should carry out wall installations.

• For safety reasons, it i s strongly recommended that y ou use Sony accessories, inc luding:  Wall-Mo unt Bracket

SU-WL500 (KD-75S9000B) SU-WL450 (KD-65S9000B)

Page 3

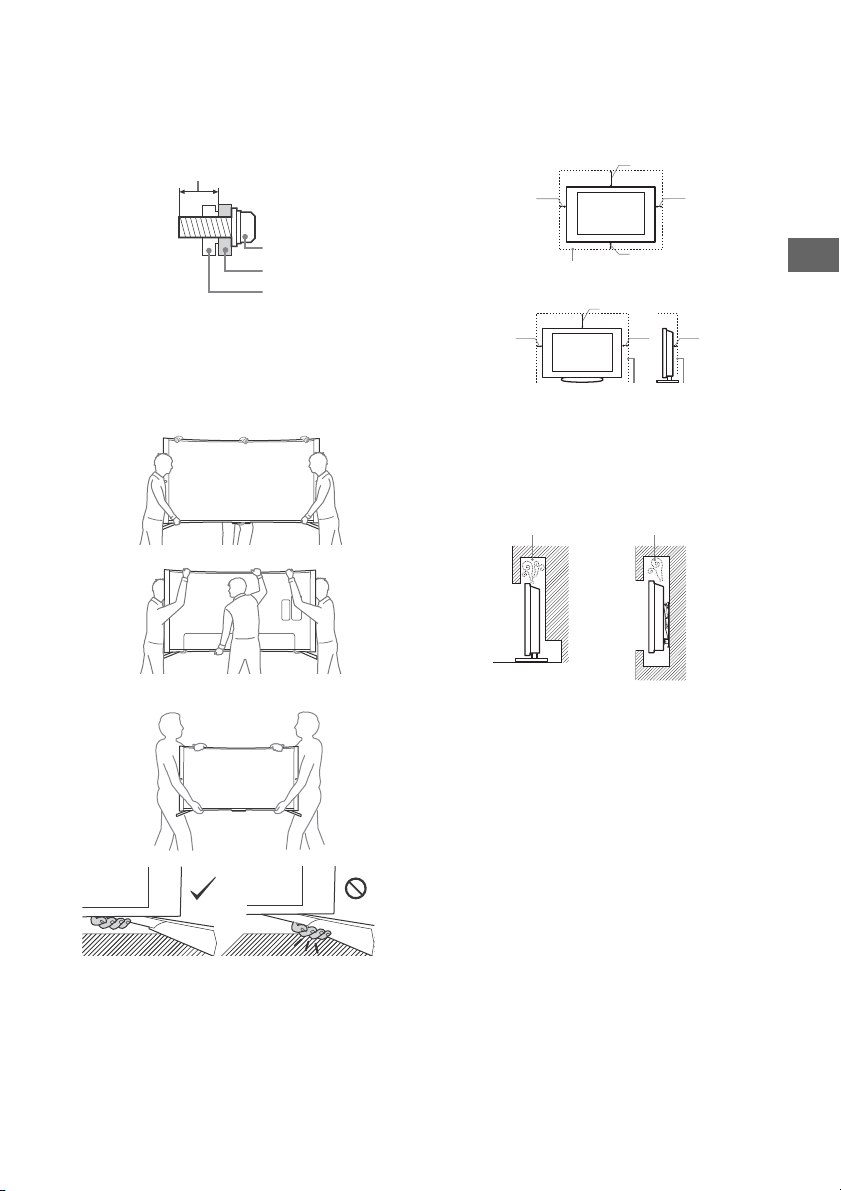

• Be sure to use the screws supplied with the Wall-Mount Bracket

Screw (supplied with the Wall-Mount Bracket)

Wall-Mount Bracket

12 mm - 16 mm

TV's rear cover

30 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

when attaching the Wall-Moun t Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

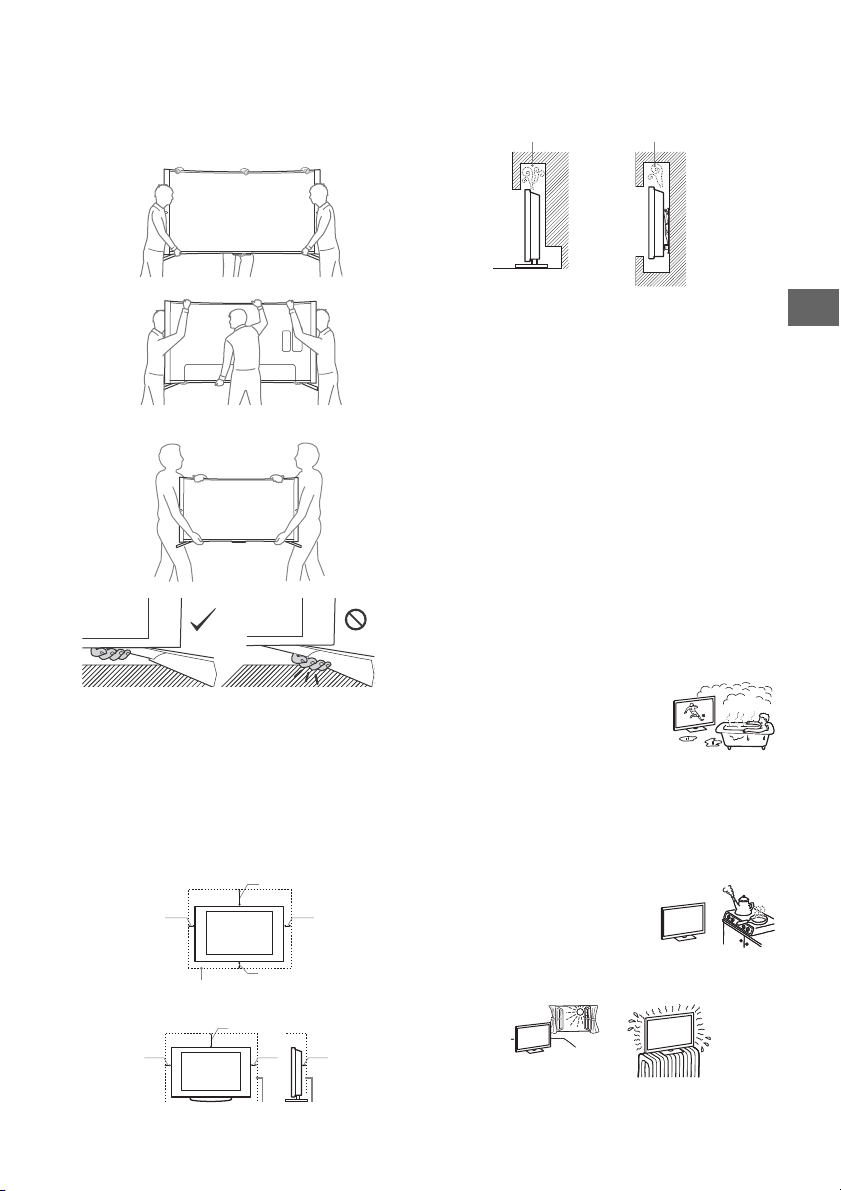

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or more people (three or more people for KD-75S9000B) are needed to transport a la rge TV set.

• When transpo rting the TV set by han d, hold it as shown bel ow. Do not put stress on the LCD pane l and the frame around th e screen.

KD-75S9000B

Ventilation

• Never cover the ventilation holes or insert anything in the cabin et.

• Leave space around the TV set as shown below.

• It is strongly recomme nded that you use a Sony Wall-Mo unt Bracket in order to provide adequate air-circulation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do not la y the TV set flat, install u pside down, backw ards, or

sideways.

 Do not pla ce the TV set on a shelf, rug, bed o r in a closet.  Do not cover the TV set with a cloth , such as curtains, or item s

such as newspapers, etc.

 Do n ot install the TV set as show n below.

KD-65S9000B

• When transpo rting the TV set, do not su bject it to jolts or excessive vibration.

• When transpo rting the TV set for repairs or when moving, pac k it using the original carton and packing material.

Topple prevention

• Be sure to use stro ng cord that is capable of sup porting the weight of the TV.

AC power cord (mains lead)

Handle the AC power cord (ma ins lead) and outlet (m ains socket) as follows in order to avo id any risk of fire, electrical shock or damage and/or injuries:

 In sert the plug fully i nto the AC power outlet (ma ins socket).  Operate the TV set on a 220–240 V AC supply only.  W hen wiring cables, be sure to unplug th e AC power cord

(mains lead) for you r safety and take care not to catch your feet on the cables.

 Di sconnect the AC power cord (mai ns lead) from the AC power

outlet (mains socket) before working on or moving the TV set.

 Keep the AC power cord (mains lea d) away from heat sources.  Un plug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its insulation may deteriorate, whic h could result in a fire.

Note

• Do not pinch, bend, or twist the AC pow er cord (mains lead) excessively. The core conductors may be exposed or broken.

• Do not mod ify the AC power cord (main s lead).

• Do not put a nything heavy on the AC po wer cord (mains lead).

• Do not pull o n the AC power cord (mains lea d) itself when disconnecting the AC powe r cord (mains lead).

• Do not connec t too many appliances to the same AC power outlet (mains socket).

• Do not use a poor fitting AC power outl et (mains socket).

Prohibited Usage

Do not install/use th e TV set in locations, environ ments or situations such as th ose listed below, or the TV set m ay malfunction and cause a fire, electrical shock, damage and/or injuries.

Page 4

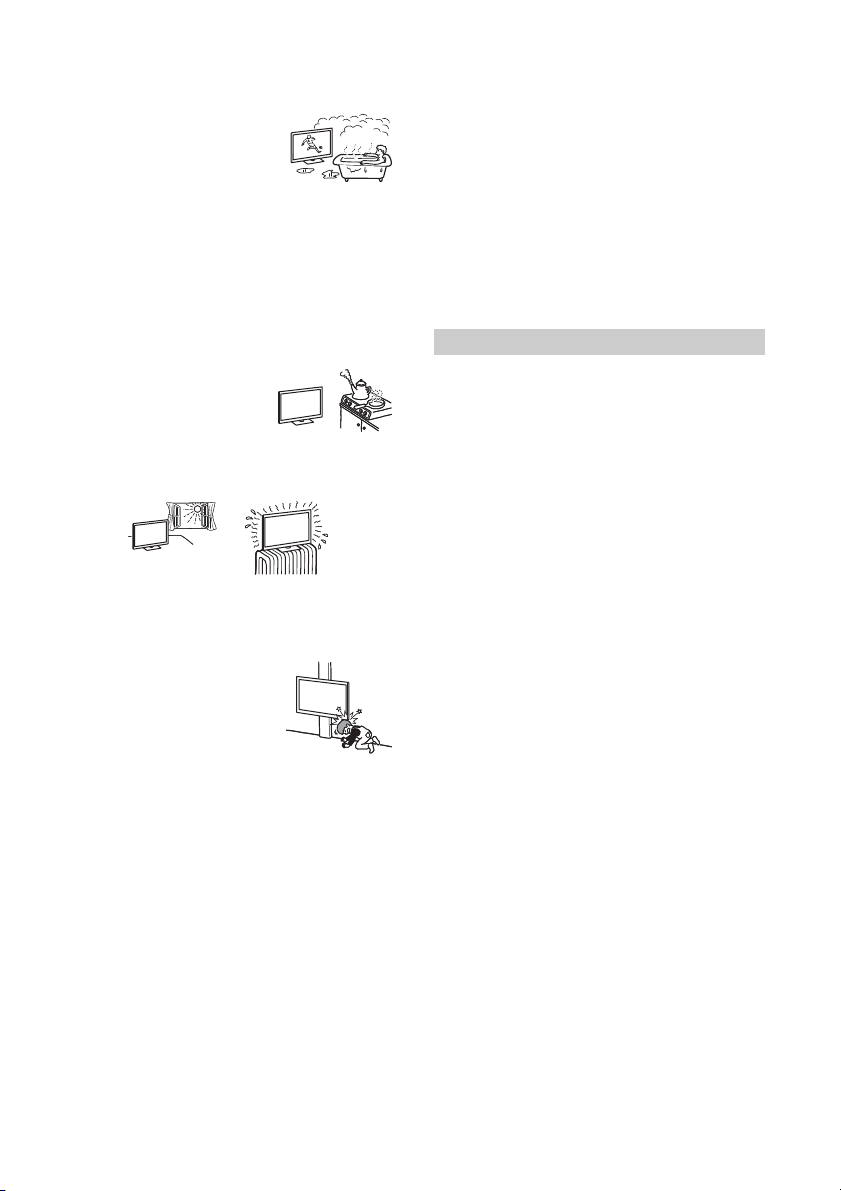

Location:

• Outdoors (in d irect sunlight), at the seash ore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or s moke.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. S udden room temperature changes m ay cause moisture condensati on. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evap orate completely before powering the TV on.

Environment:

• Places that are hot, hu mid, or excessively dusty; where insects may enter; where it mig ht be exposed to mechani cal vibration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as va ses, shall be placed on th e TV.

• Do not place the TV in a humid or d usty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping ma y result.

• Do not install the TV in places subject to extreme te mperature, such as in direct sunligh t, near a radiator or a heating vent. The TV may overheat in such conditions which can caus e deformation of the enclosure and/or TV malfunction.

Situation:

• Do not use when your hands are w et, with the cabinet removed, or with attachments n ot recommended b y the manufacturer. Disconnect the TV s et from AC power outlet (m ains socket) and antenna (aerial) during li ghtning storms.

• Do not install the TV so that it sticks out into an open space. Injur y or damage from a person or o bject bumpin g into the TV may result.

Broken pieces:

• Do not throw anything at the TV set. Th e screen glass may break by the impact and cause serious injury.

• If the surface of the T V set cracks, do not touch it until you ha ve unplugged the AC power cord (mains lead). Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for sev eral days, the TV set should be disconnected from the AC power (mains) for environmental and safety rea sons.

• As the TV set is not disconnected from the AC po wer (mains) when the TV set is just turned off, pull the plug from the AC power outlet (main s socket) to disconnect the TV s et completely.

• However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow chi ldren to climb on the TV se t.

• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the T V set and unplug the AC p ower cord (mains lead) immediately if any of th e following p roblems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

 AC pow er cord (mains lead) is damage d.  Poor fittin g of AC power outlet (mai ns socket).  TV set is damaged by being dropped, hit or having something

thrown at it.

 Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot wh en touching there by the hand.

Precautions

Viewing the TV

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) whil e watching 3D video image s or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3 D video images or playi ng stereoscopic 3D games. T he length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video im ages or playing stereoscop ic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should als o review (i) the in struction manual of any other device or m edia used with this television and (ii) our website (http://www.sony-asia.com/support) for the latest information . The vision of young children (especiall y those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• Do not use, store, or lea ve the 3D Glasses or battery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

• When using the simulated 3D funct ion, please note that the displayed image is modified from the ori ginal due to the conversion done by this television.

• View the TV in moderate light, as viewing t he TV in poor light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as he aring damage m ay result.

LCD Screen

• Although th e LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, blac k dots may appear or bright points of light (red, blue, or green) may appear constant ly on the LCD screen. This is a structural property of the LCD screen an d is not a malfunction.

• Do not push or sc ratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghos ting may occ ur when stil l pictures are d isplayed continuously. It may disappear af ter a few moments.

• The screen an d cabinet get warm wh en this TV set is in use. This is not a malfunction.

• The LCD screen con tains a small amount of liquid cr ystal. Follow your local ordinances and regulations for disposal.

Page 5

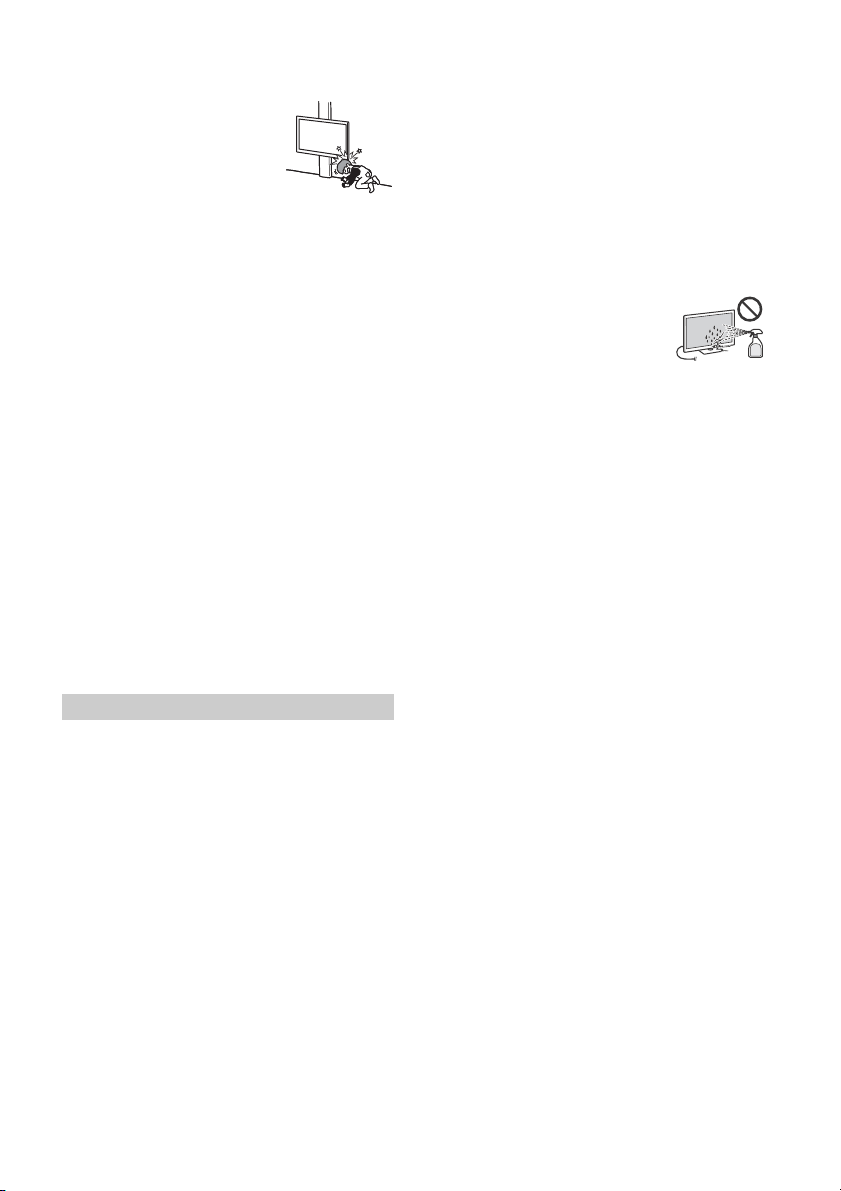

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC pow er cord (mains lead) connected to the TV set from AC power outlet (mains socket) before cleaning. To avoid material degradation or screen coating deg radation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened w ith a diluted mild detergent so lution.

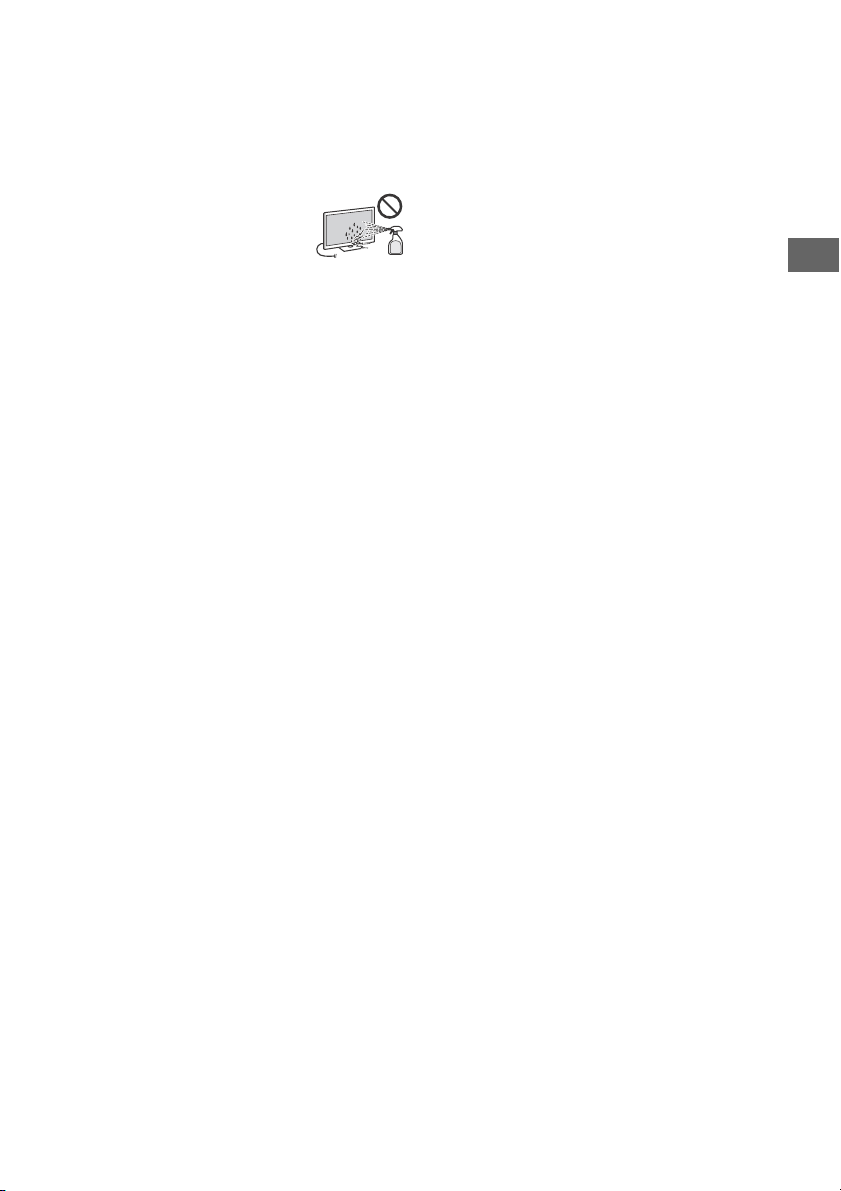

• Never spray water or d etergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV s et, and may cause dam age to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile so lvent, such as alcoh ol, benzene, thinner o r insecticid e. Using such materials or maintainin g prolonged contact wi th rubber or vinyl m aterials may result in damage to the screen sur face and cabinet material.

• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.

• Do not handle the speakers with excessive force during c leaning or maintenance to prevent any damages.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation awa y from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this un it near medical equipmen t (pacemaker, etc.), as malfunction of the medical equipment may result.

• Althoug h this unit transmits/ receives scrambled sig nals, be careful of unauthorise d interception. We cannot be respon sible for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use di fferent types of batteries togethe r or mix old and new batteries.

• Dispose o f batteries in an environmenta lly friendly way. Certain regions may regulate the disposal of batterie s. Please consult your local a uthority.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the rem ote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Page 6

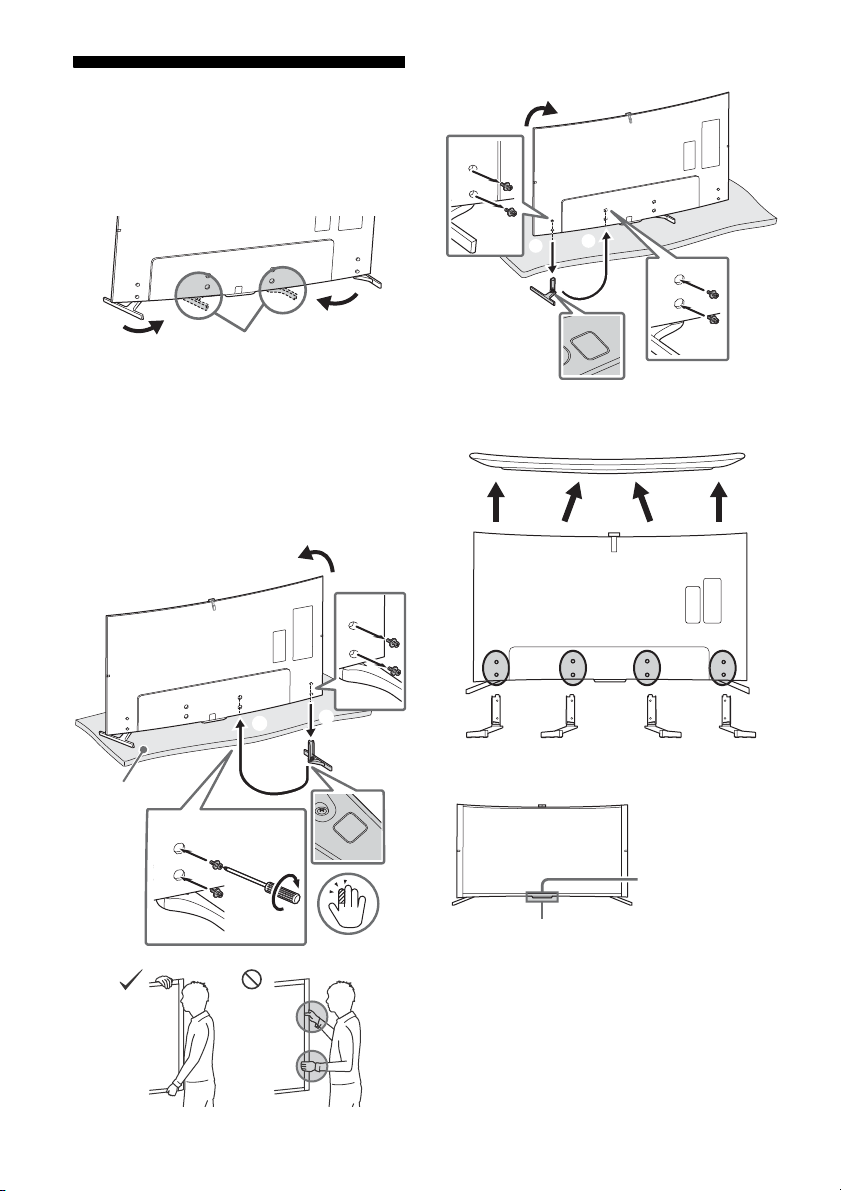

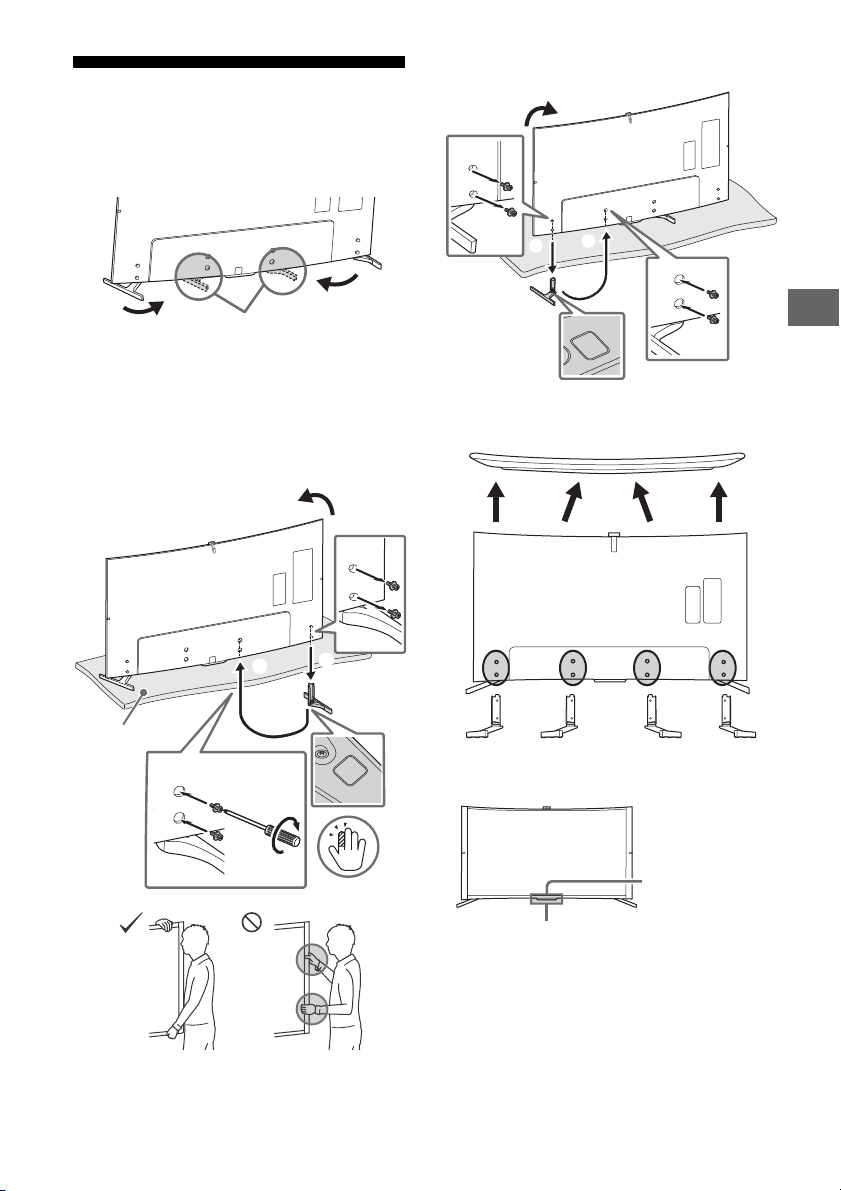

Attaching the Table-Top Stand

Middle position

Thick cushion

1.5 N∙m {15 kgf∙cm}

IR Sensor

3D Sync Transmitter

(Alternative)

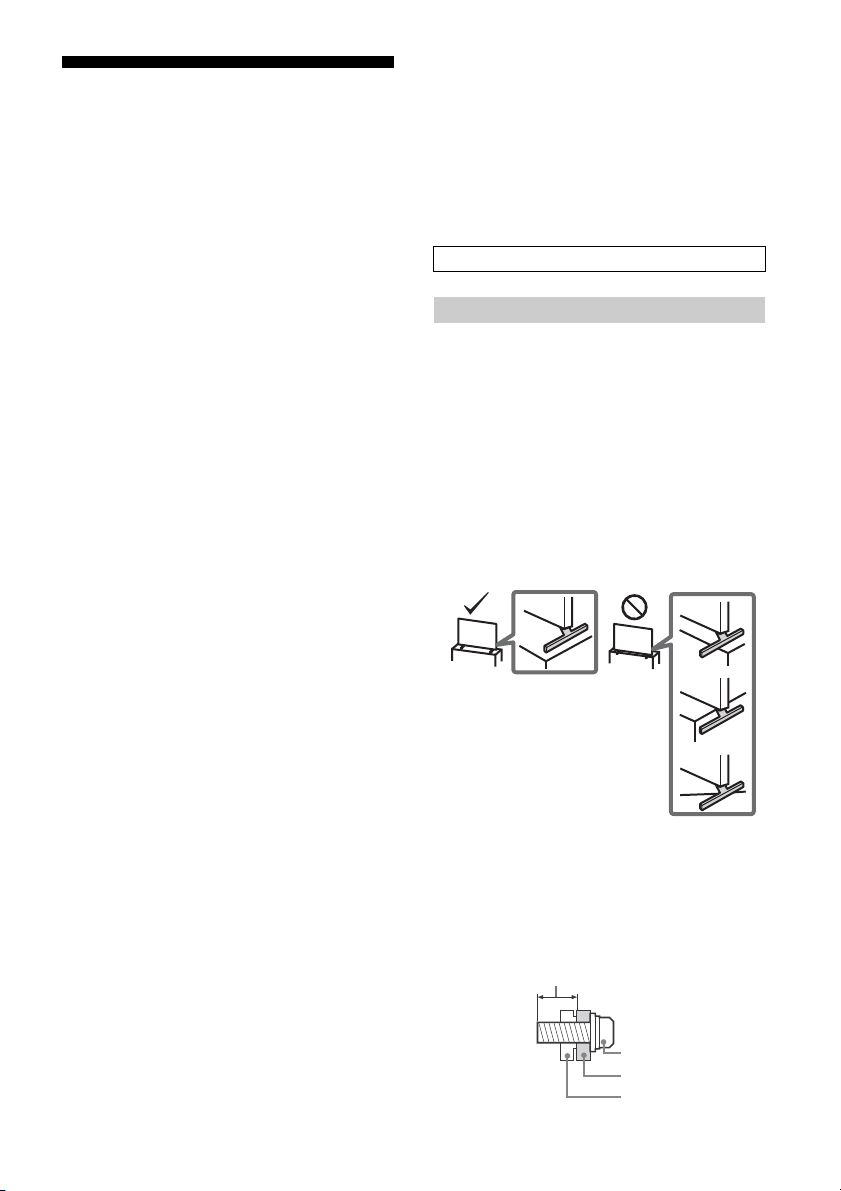

You can change the Table-Top Stand from the edge to the middle position by referring to the instructions below.

Note

• Two or more people (three or more people for

KD-75S9000B) are needed to carry out this installation.

• Keep children away when assembling the Table-Top

Stand.

• Hold the top and bottom of the TV frame firmly. Make

sure not to hold the speaker grill area.

Note

• Screw direction to attach the Table-Top Stand to the TV differs between edge and middle position.

• Ensure that there are no objects in front of the TV.

Page 7

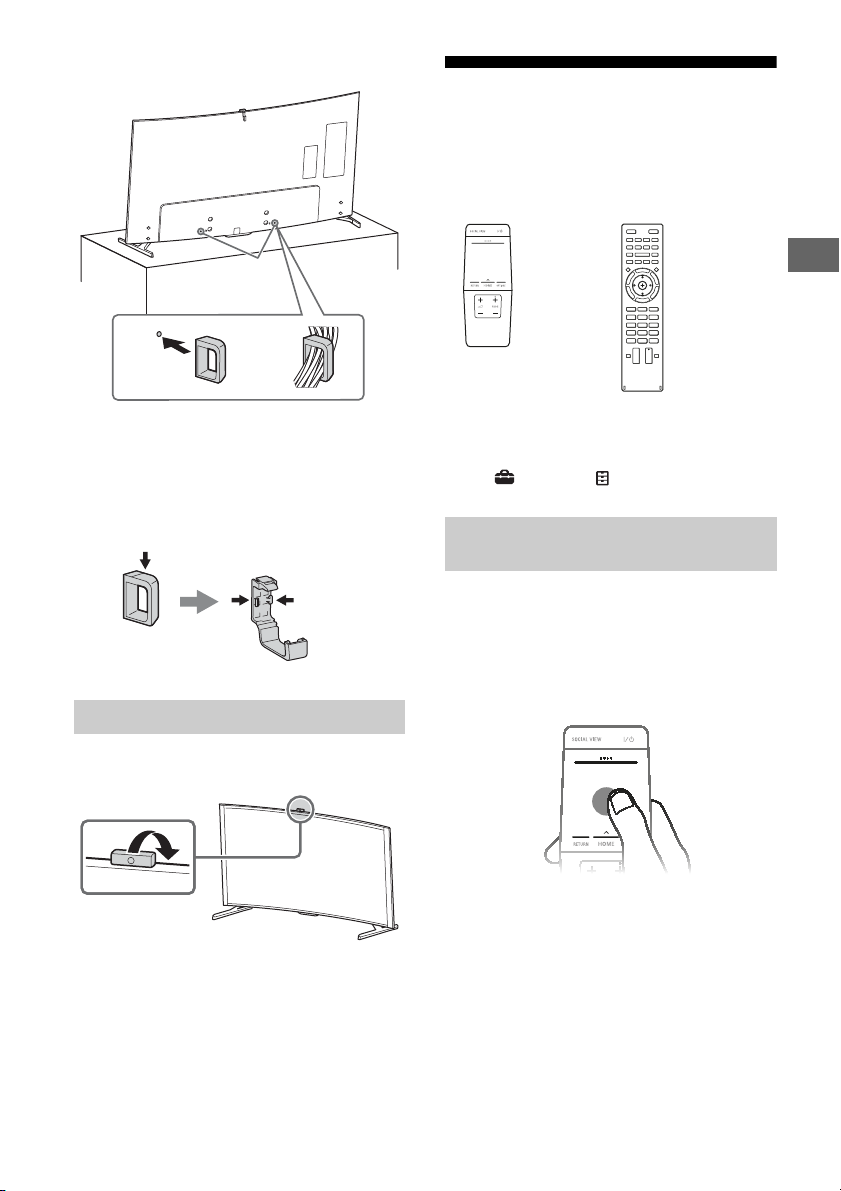

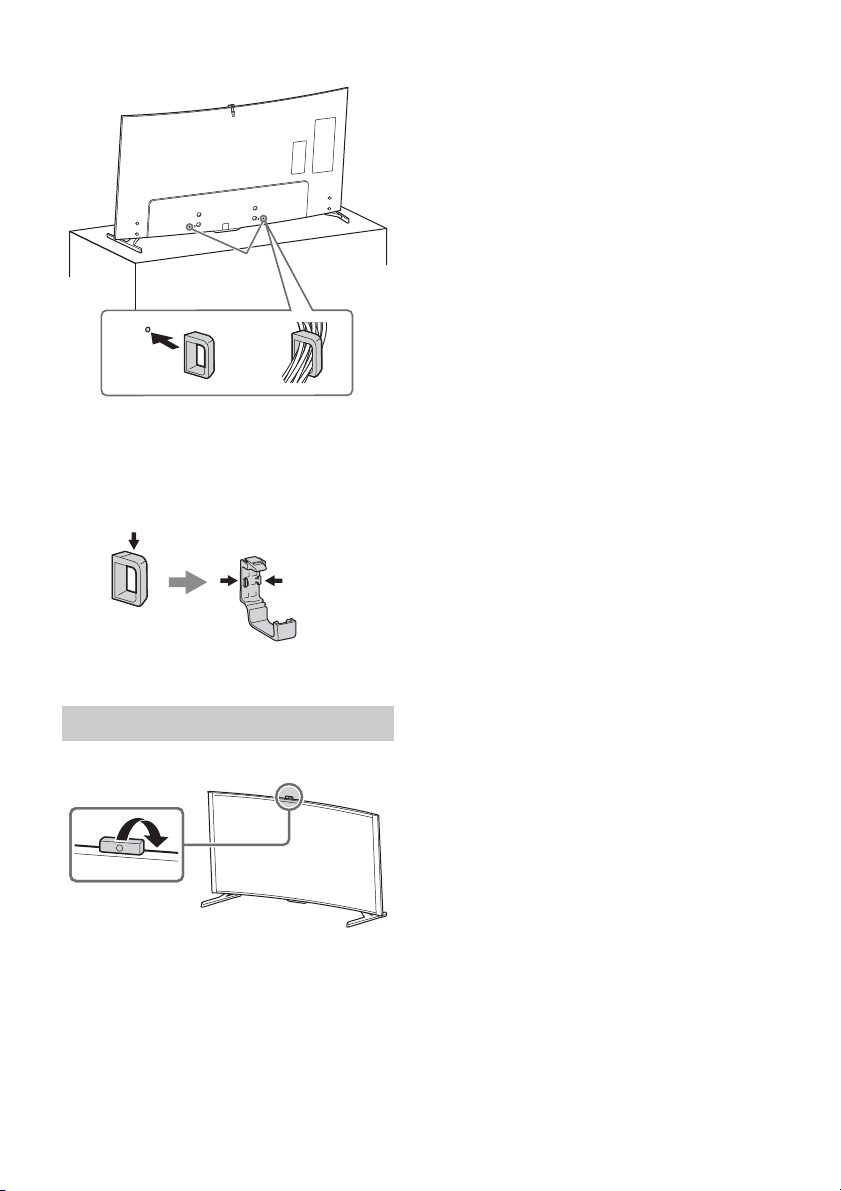

To bundle the cables









Touchpad Remote Control

IR Remote Control

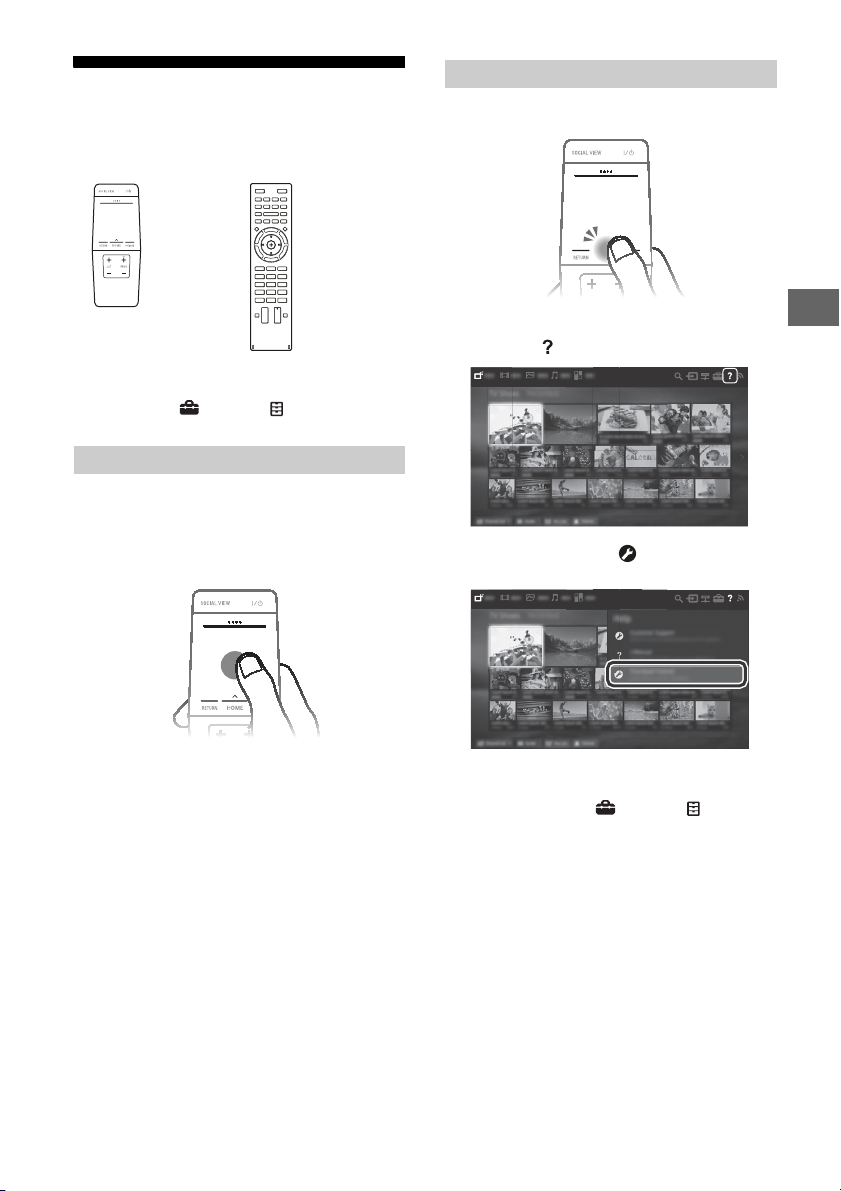

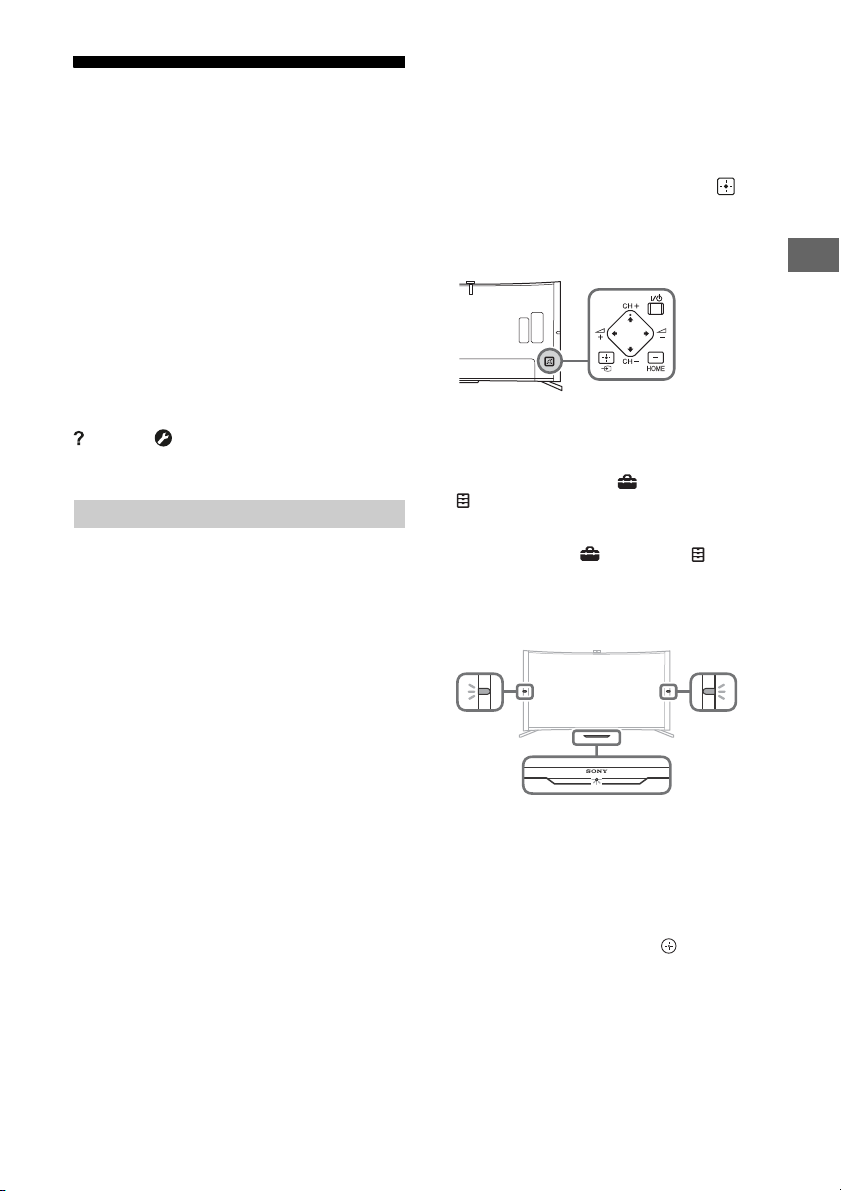

Using the Remote Control

You can operate the TV by using the supplied Touchpad Remote Control or IR (infrared) Remote Control.

* Location of cable clamper when the Table-Top Stand

is attached to middle position.

Note

• To detach the cable clamper from the TV, press the

top of the clamper 1, then pinch 2 as illustrated.

Hiding the camera

If you do not wish to use the camera, hide it as illustrated.

Note

• Touchpad Remote Control can only be used after registration with the TV. You can register the Touchpad Remote Control by pressing HOME, then select [Settings] t [System Settings] t [Touchpad Remote Control Setup].

Displaying the Touchpad Operation Guide

Touchpad Operation Guide allows you to see the main gesture commands that are available for the current TV screen.

1 Touch and keep your finger on the

centre of the touchpad to display the Touchpad Operation Guide.

Page 8

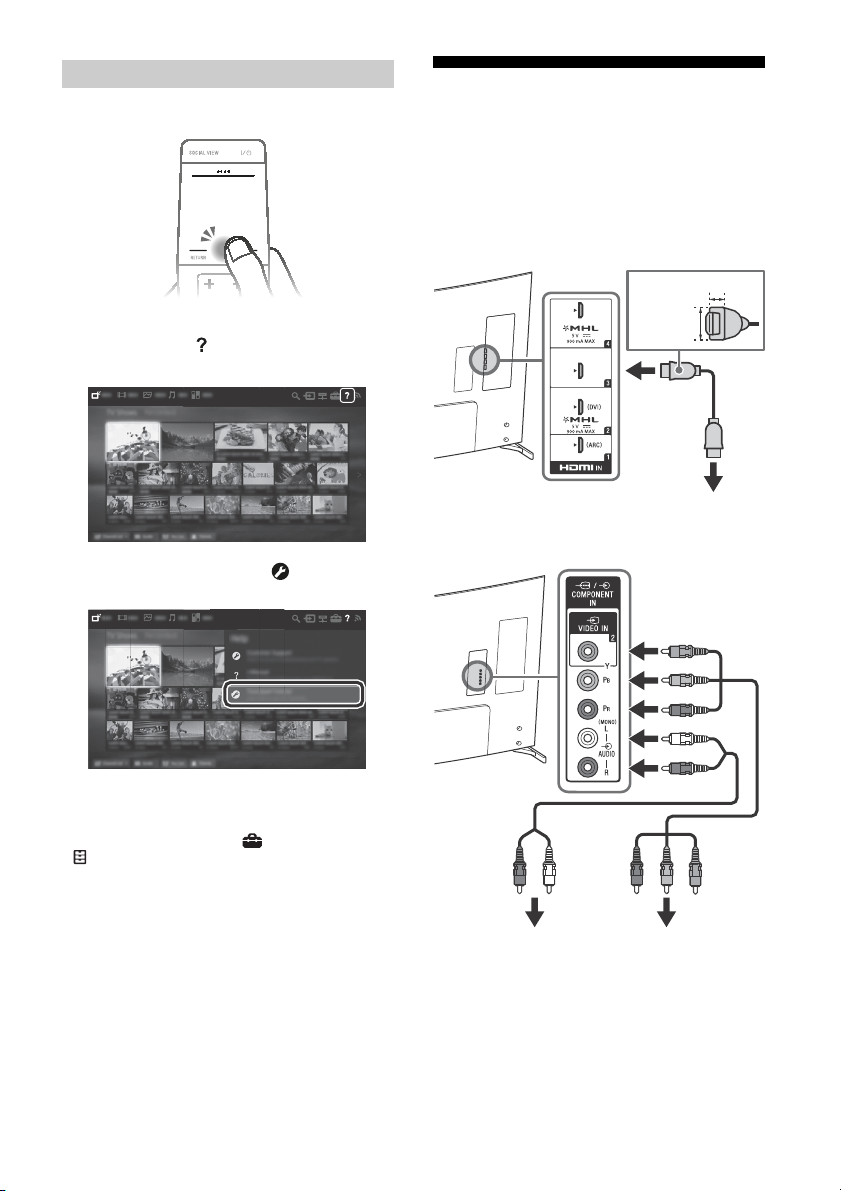

Launching the Touchpad Tutorial

To H D MI OU T

< 12 mm

< 21 mm

To AUDIO OUT

To C OMP O NEN T OUT (P

R/PB/Y)

1 Press HOME.

2 Slide to select [Help], then press the

touchpad.

3 Slide up/down to select [Touchpad

Tutorial], then press the touchpad.

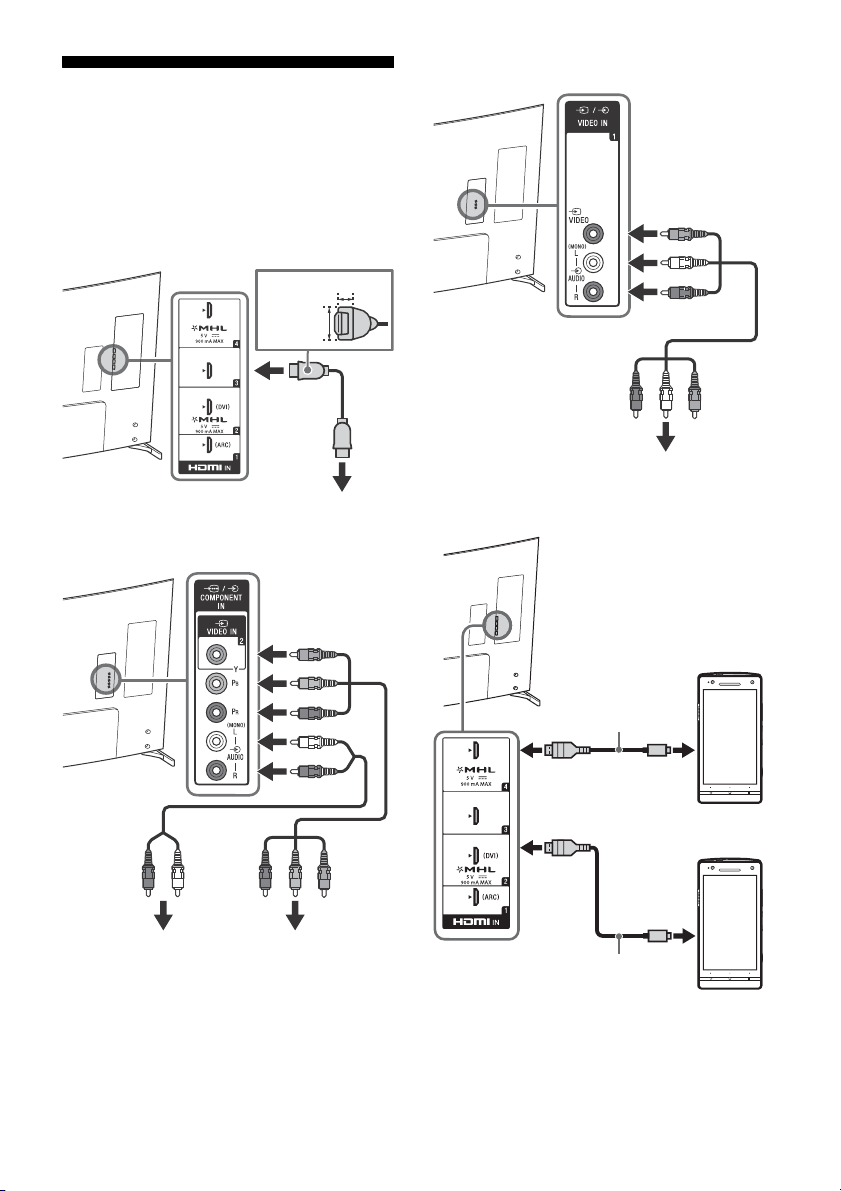

Connecting Other Devices

For more information on connections, refer to the i-Manual.

To connect with an HDMI cable

Note

• Connect 4K devices (4K Media Player, 4K Set Top Box, etc.) to the HDMI IN 2 or HDMI IN 1 jack of the TV to enjoy copyright protected content.

To connect with component cables

Follow the instructions on the screen.

Note

• You can also launch the Touchpad Tutorial by pressing HOME, then select [Settings] t

[System Settings] t [Touchpad configurations] t

[Start Tutorial].

Page 9

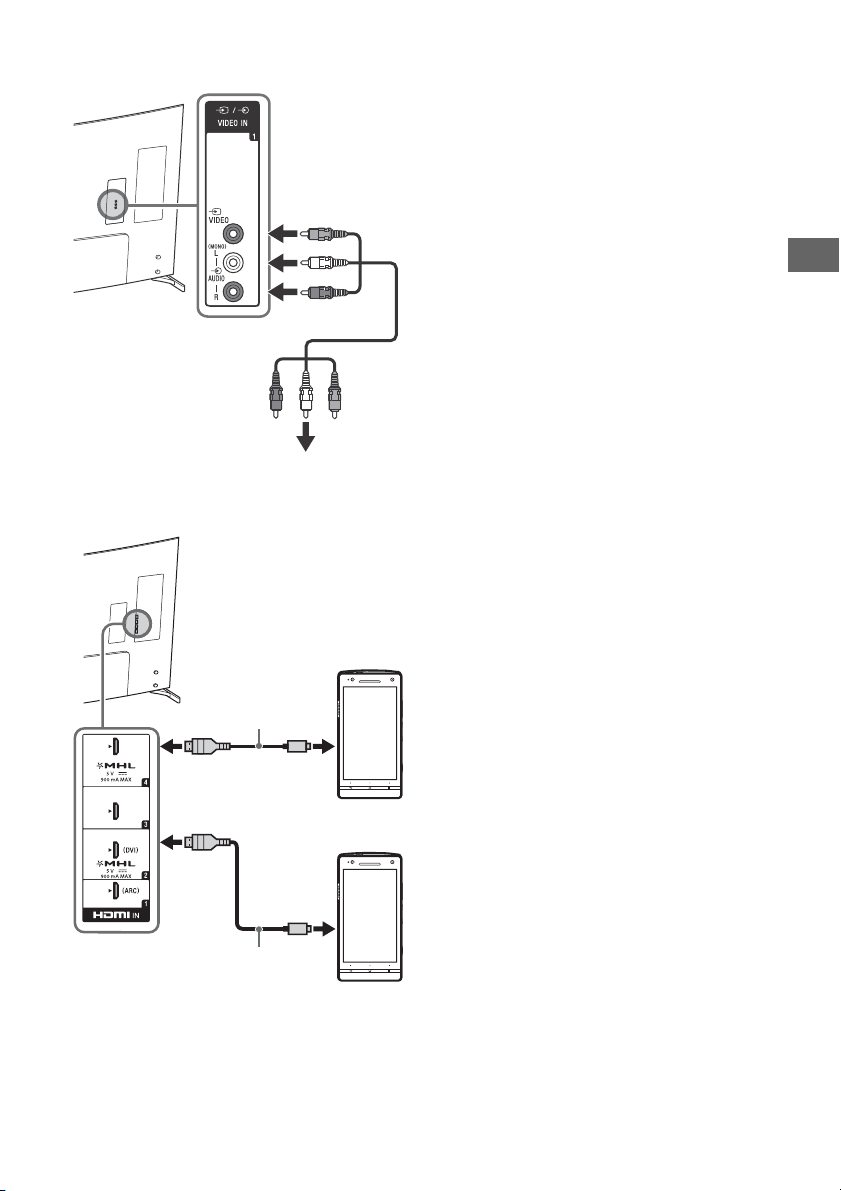

To connect with AV composite cables

To VIDEO OUT

Use authorized

MHL 3 CABLE

with MHL logo

(not supplied)

Use authorized

MHL 2 CABLE

with MHL logo

(not supplied)

MHL 3 device

MHL 2 device

To connect MHL De v i ce

The TV simultaneously charges the MHLcompatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHLcompatible device.

Note

• If [Auto Input Change (MHL)] is set to [On], the TV automatically switches to HDMI IN 2/MHL or HDMI IN 4/MHL from other input when MHL-compatible device is connected to HDMI IN 2/MHL or HDMI IN 4/ MHL jack. The availability of [Auto Input Change (MHL)] depends on whether the MHL-compatible device can support this feature.

• If [MHL Charging during Standby] is set to [On], you can continue charging the MHL-compatible device even when the TV is in standby mode.

• Connect the 4K smartphone or mobile devices to the HDMI IN 2/MHL jack.

• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.

Page 10

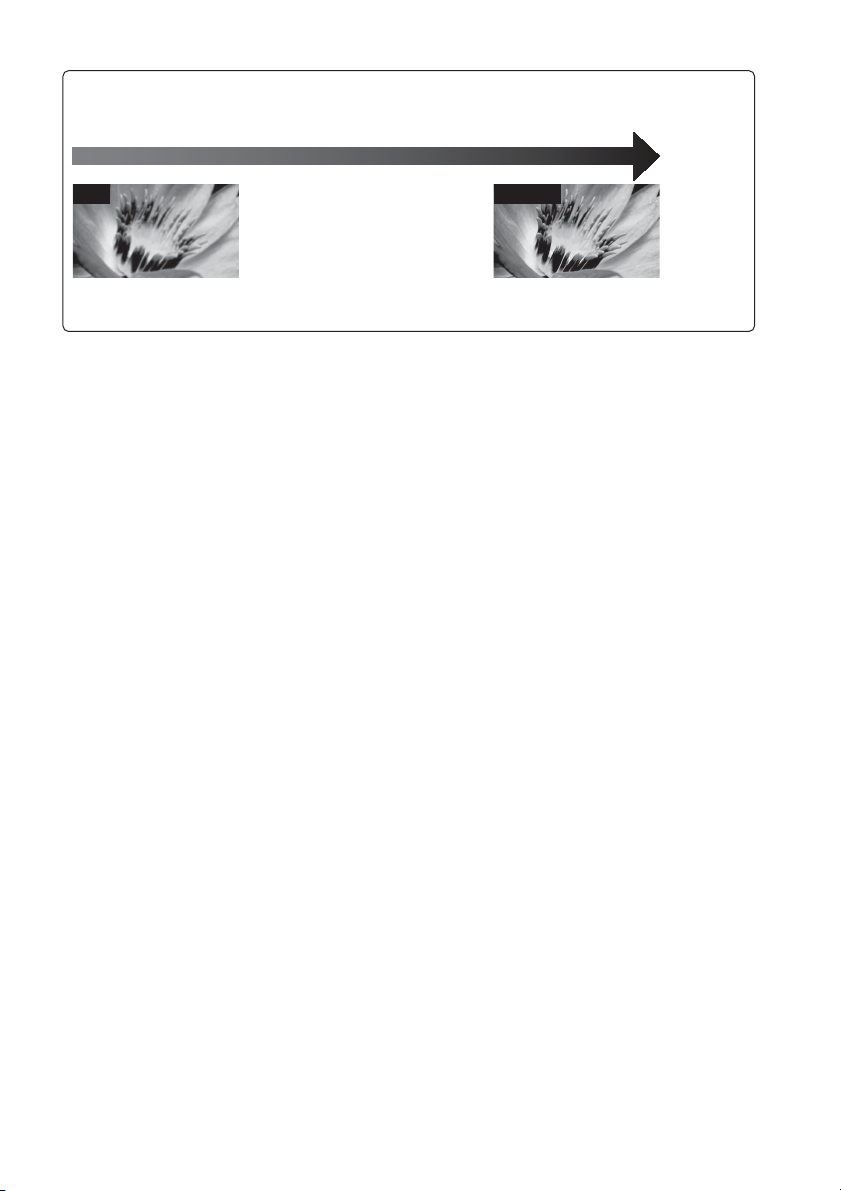

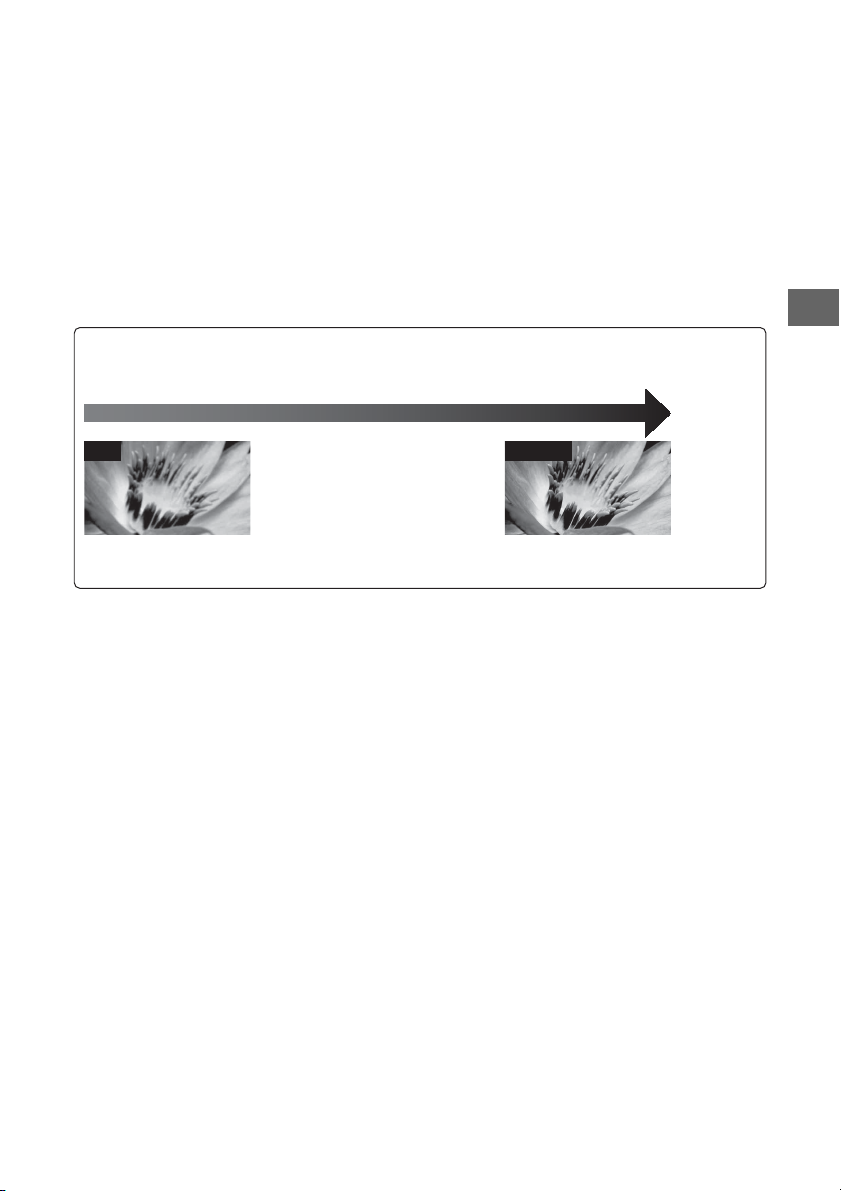

SD 4K/HD

Picture Quality

• AV composite cable

• Antenna (aerial) cable

Standard definition (SD) videos have picture signals with a vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines .

• Component cable • HDMI cable

High definition (HD) videos have picture signals with a vertical resolu tion of 720 or 1,080 line s. (For 4K vertical resol ution: 2,160 lines)

Page 11

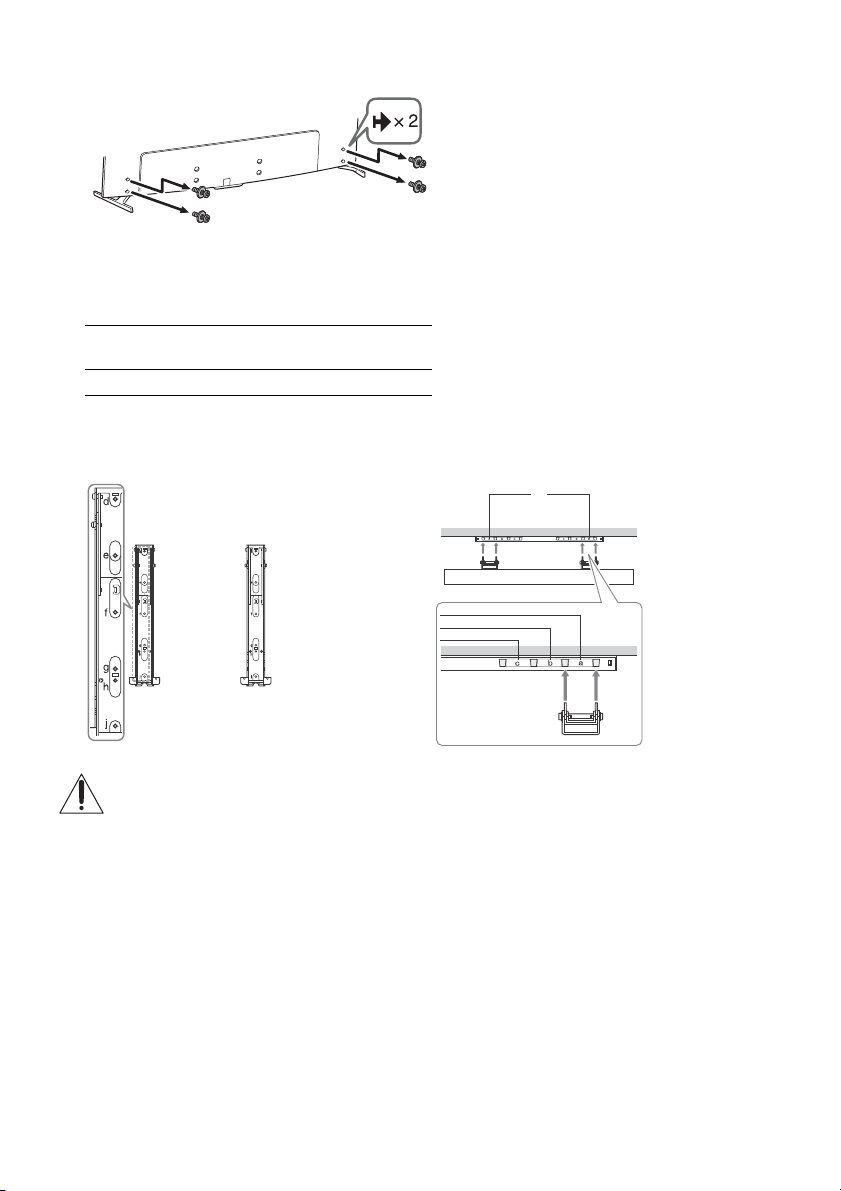

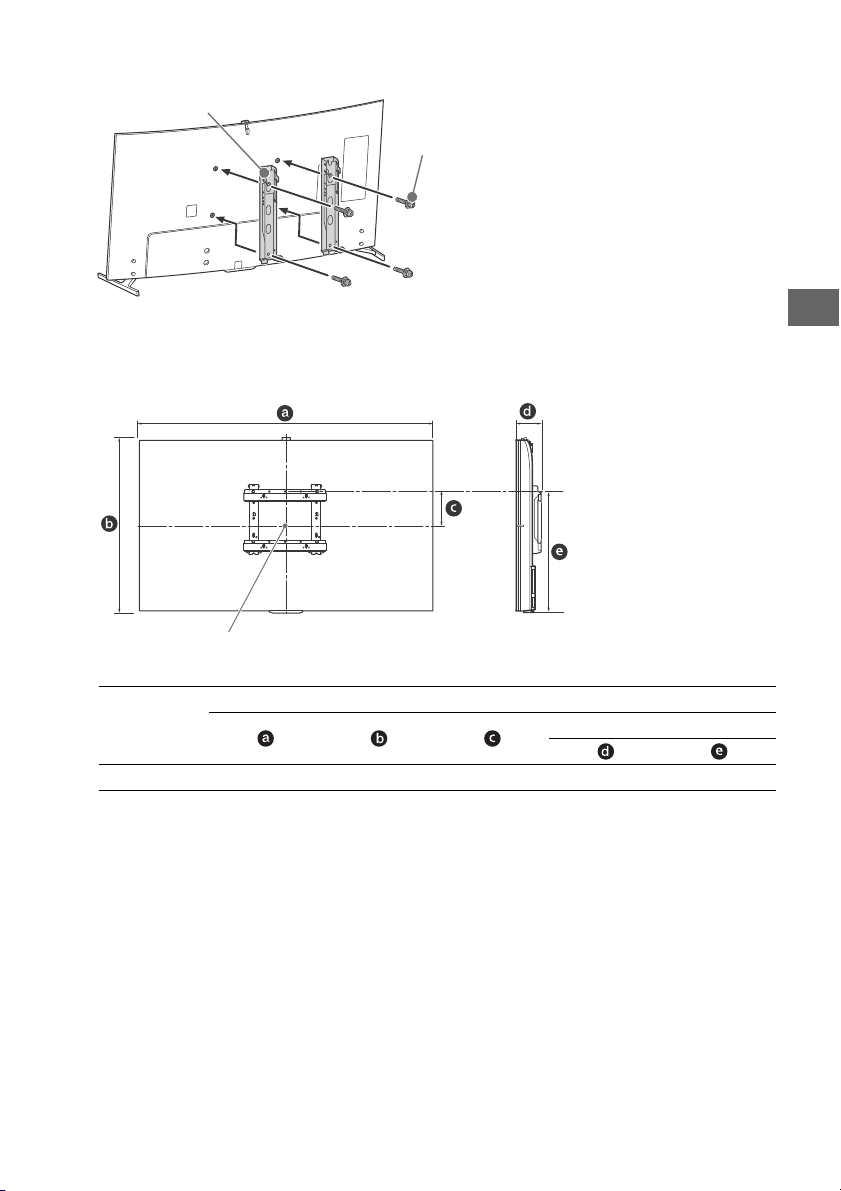

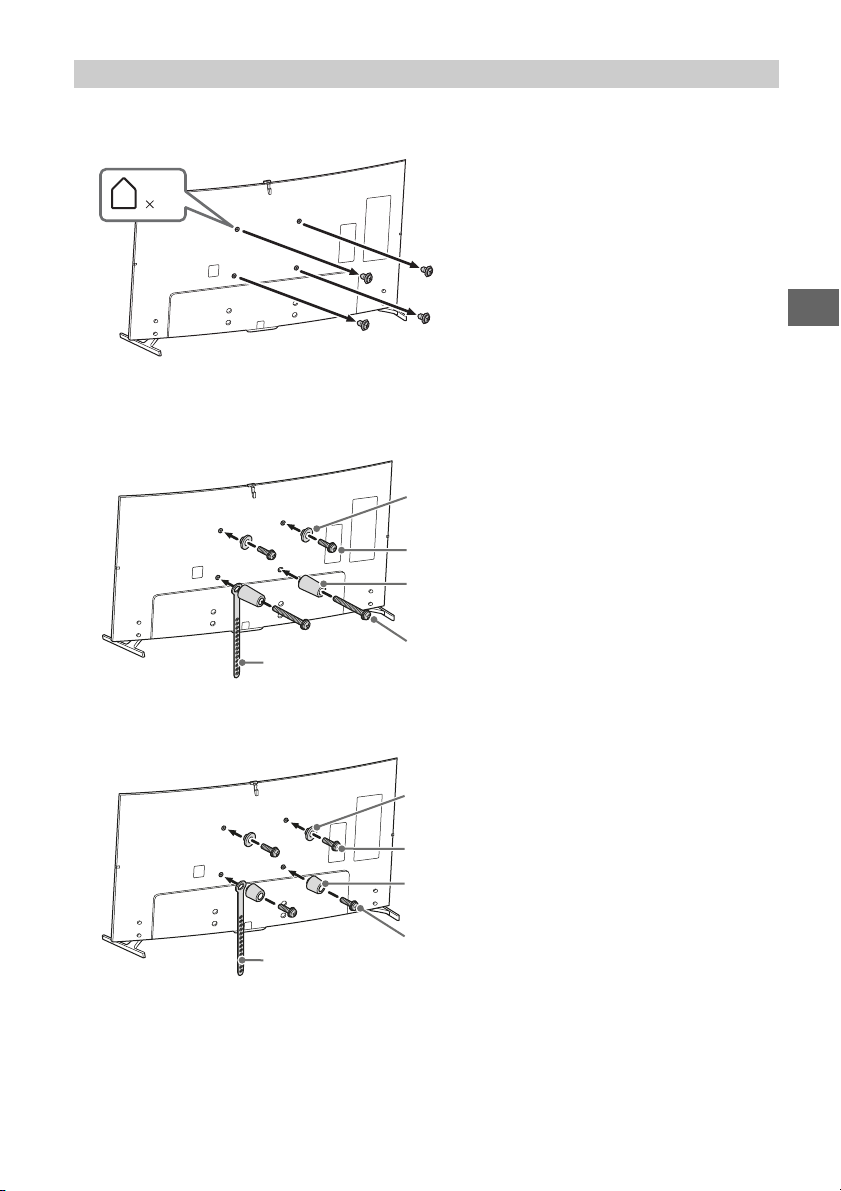

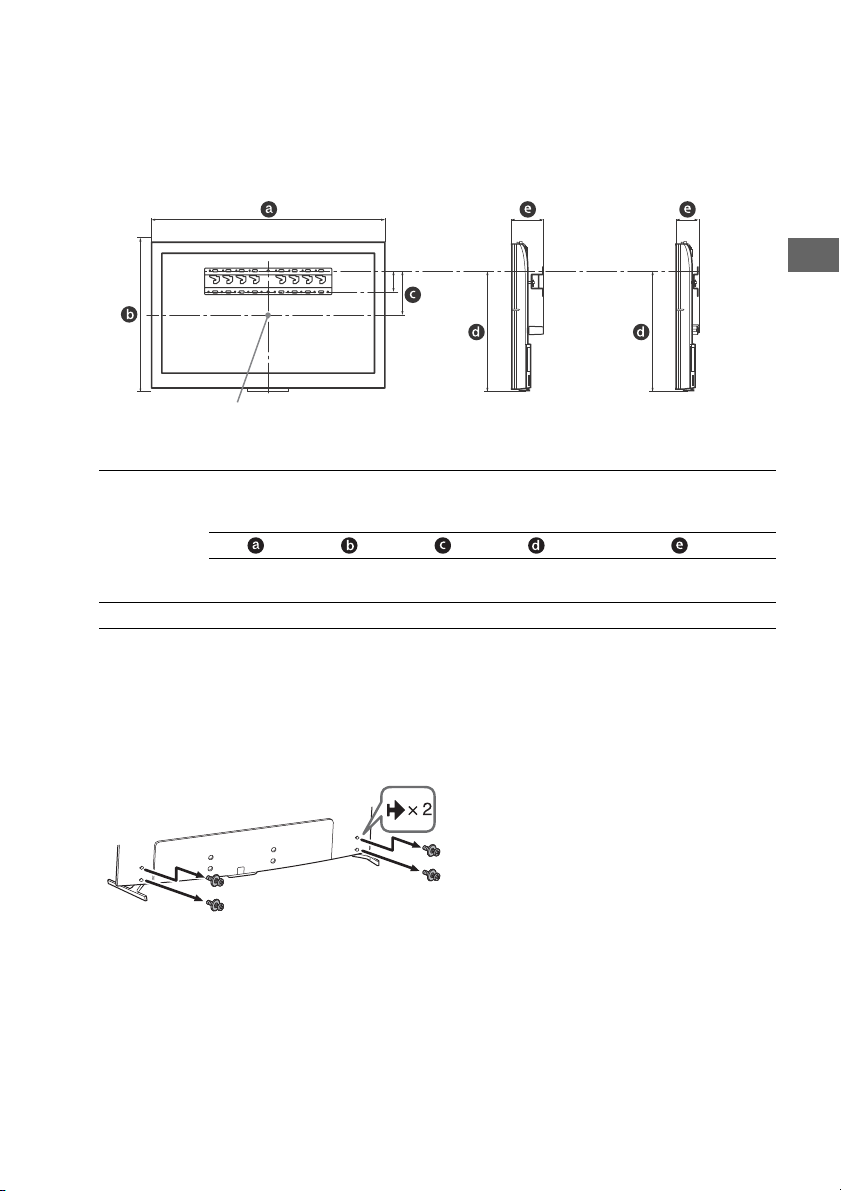

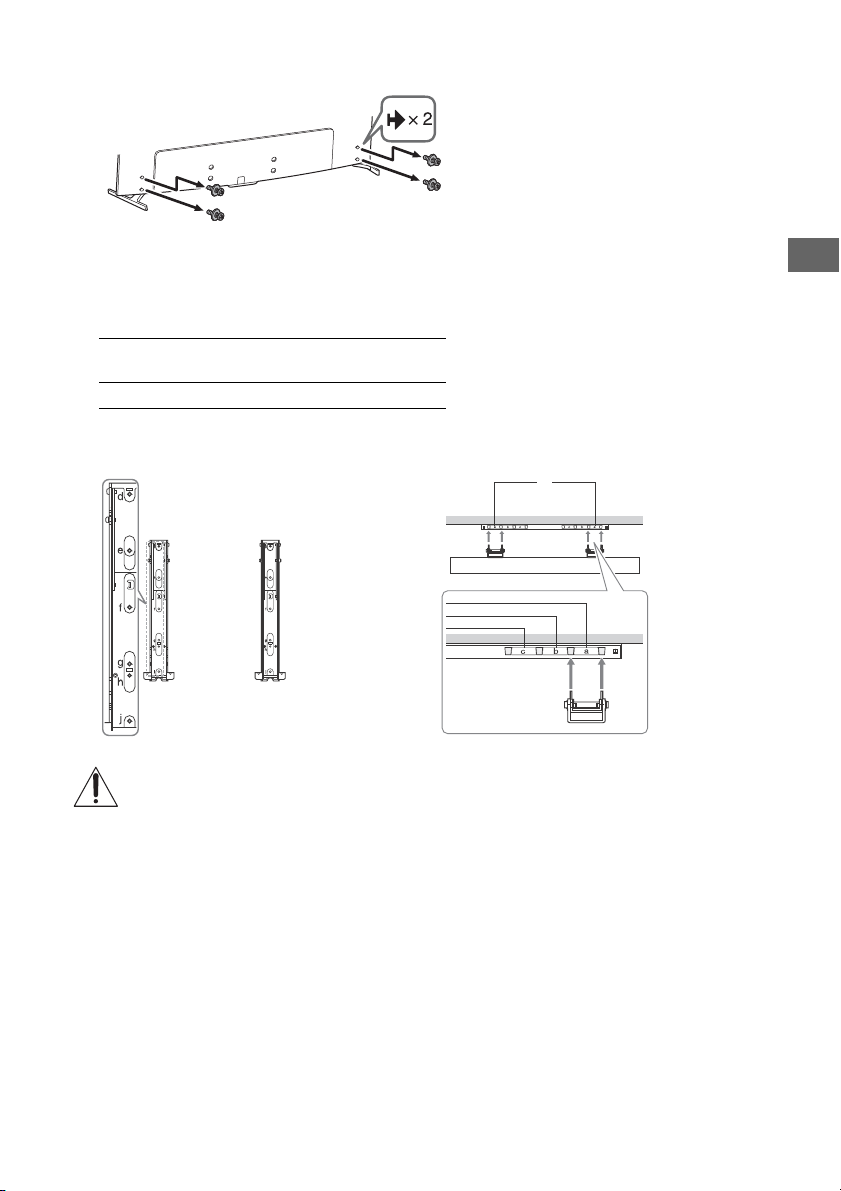

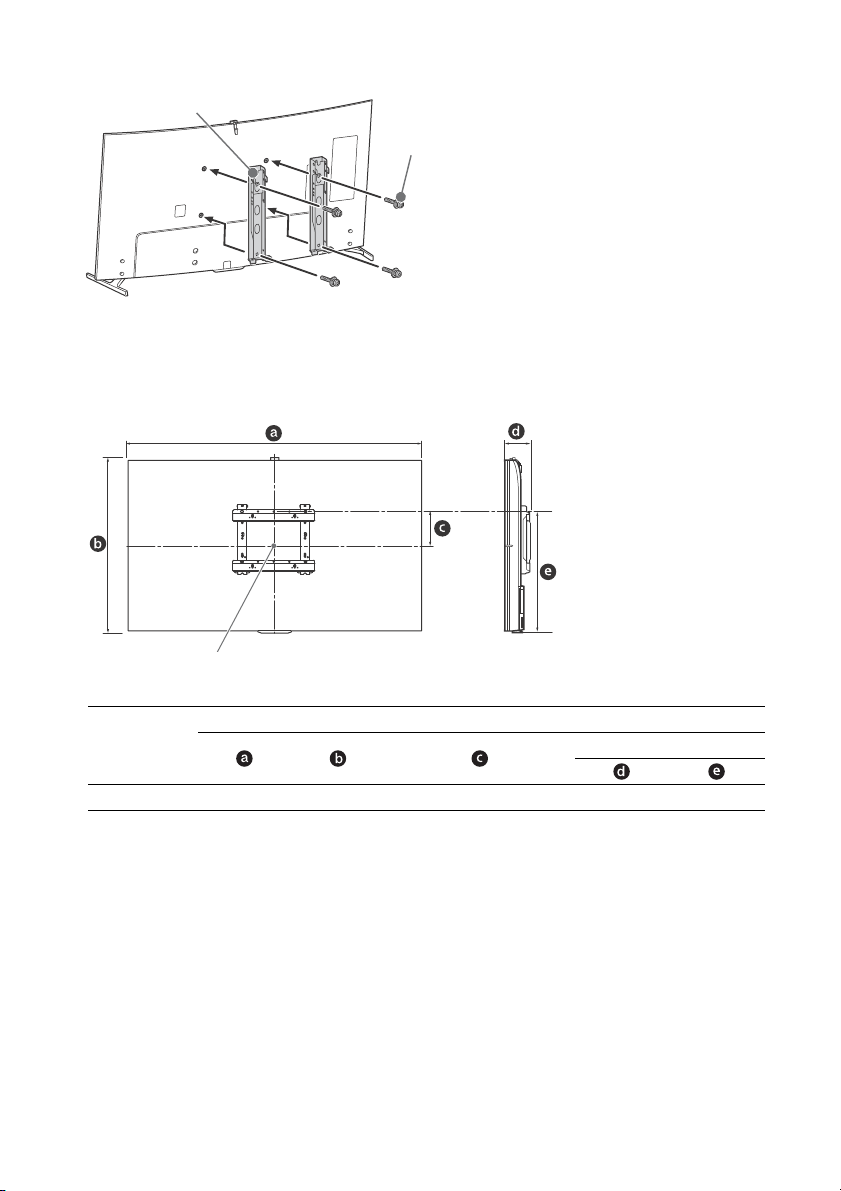

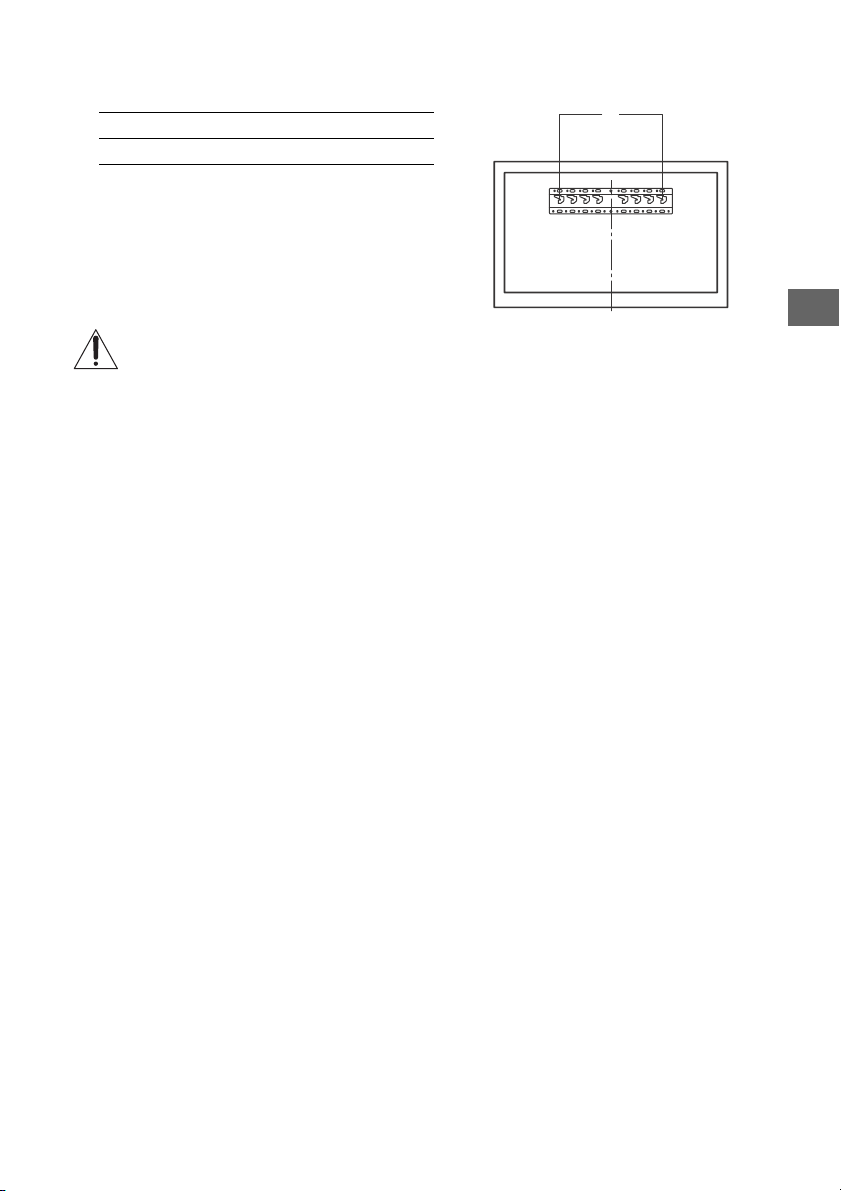

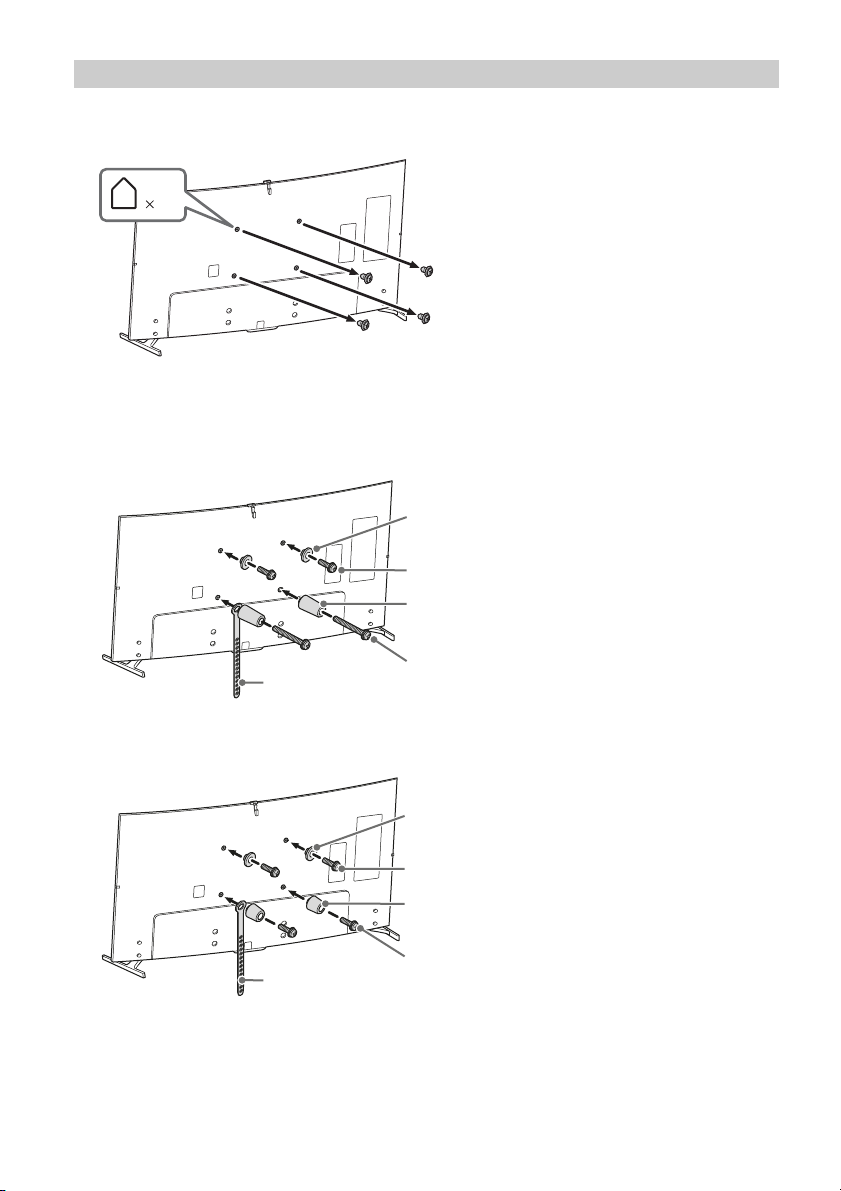

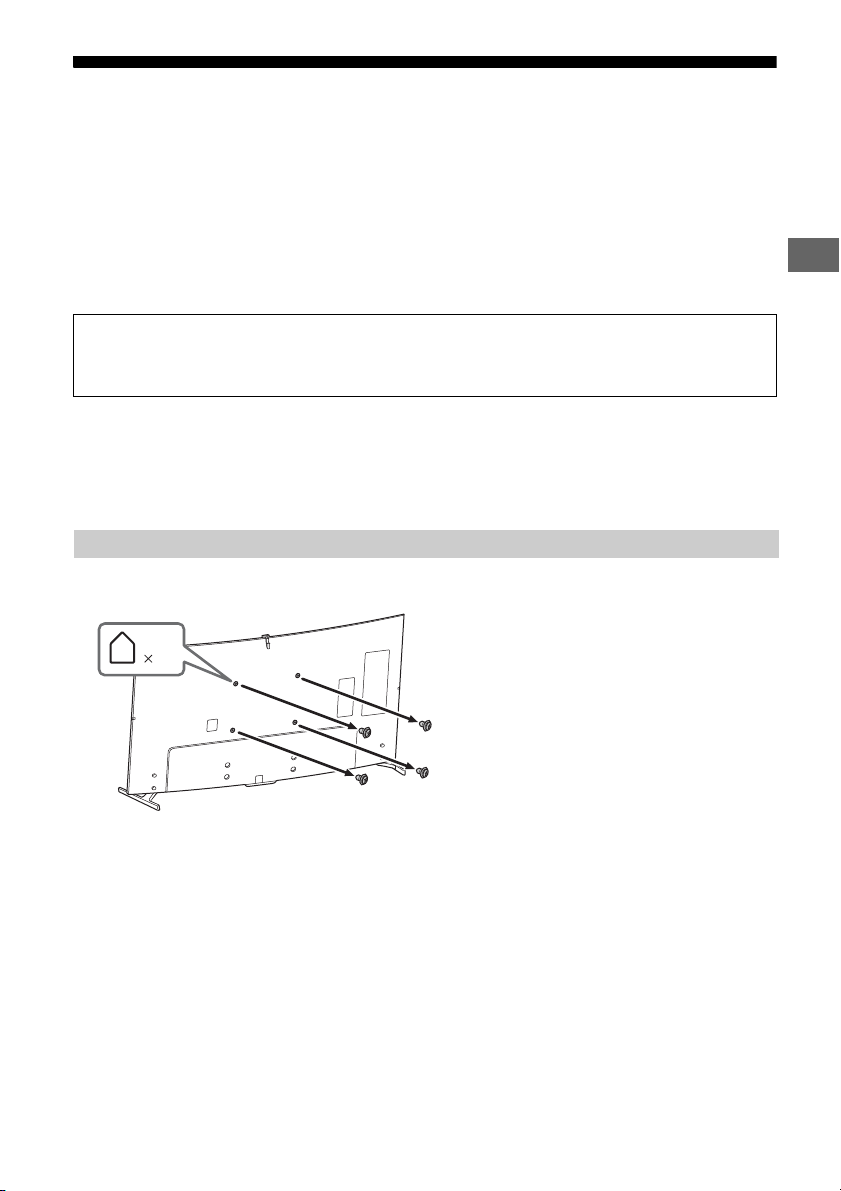

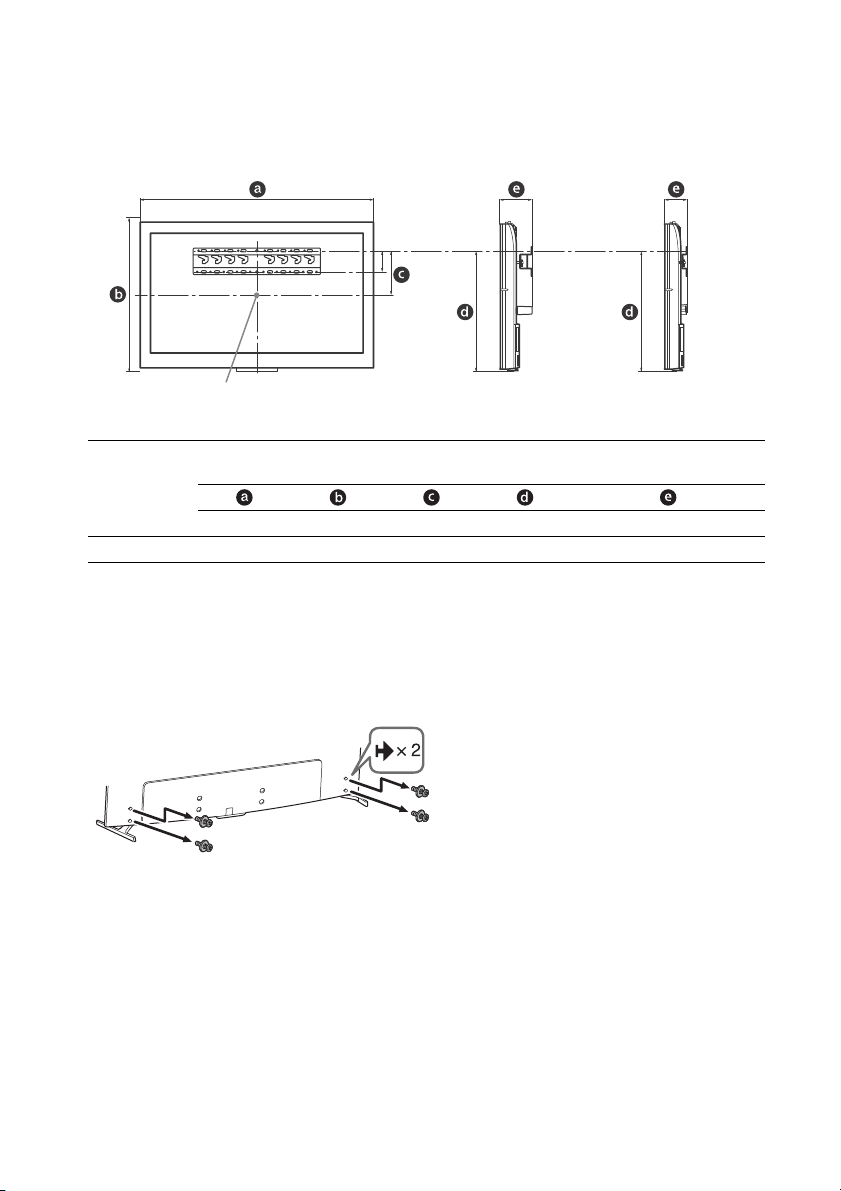

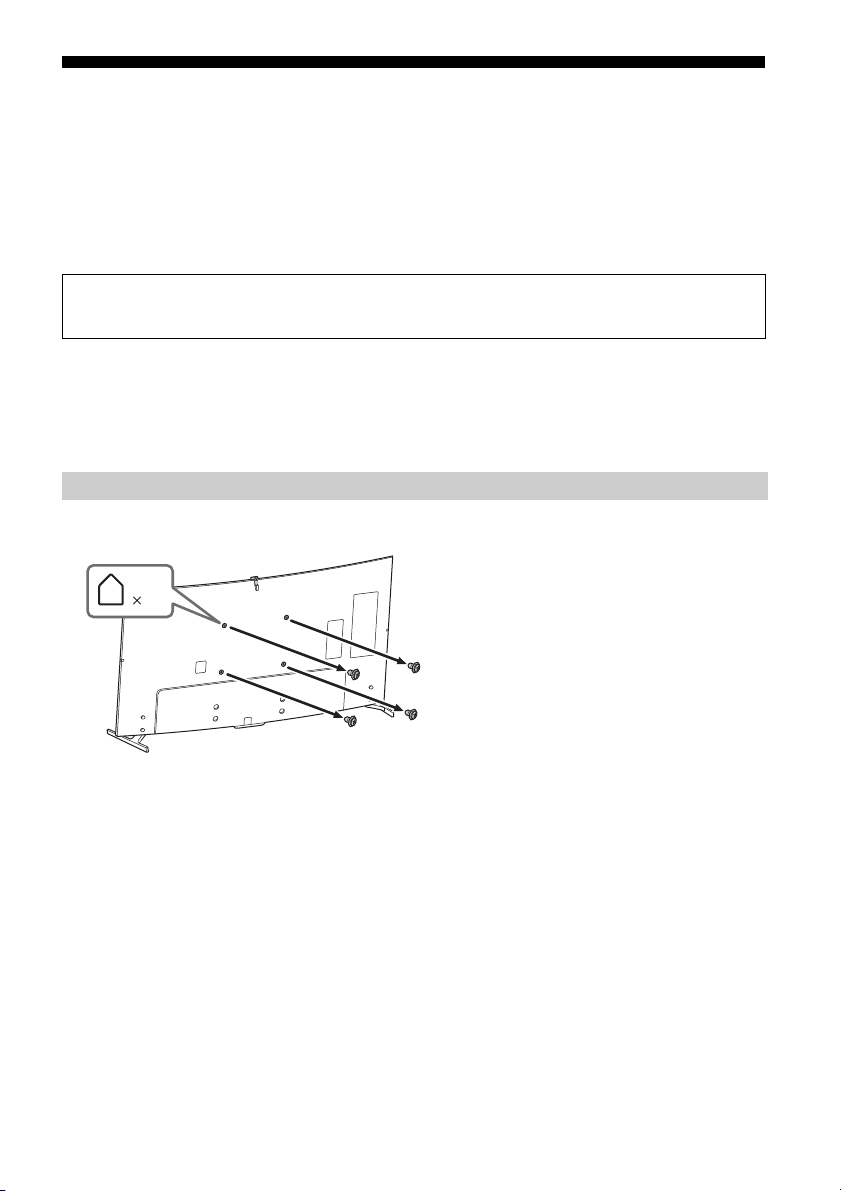

Installing the TV to the Wall

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To C u s tomers :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL500 (not supplied) (KD-75S9000B) or SU-WL450 (not supplied) (KD-65S9000B) to install the TV to the wall.

Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

SU-WL500 (KD-75S9000B only)

1 When installing the TV on the wall, remove the screws from the rear of the TV.

Page 12

2 Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.

Mounting Hook

Screw (+PSW 6 × 16)

Screen centre point

3 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 18-21 (Specifications) for the TV’s weight.

Model Name

KD-

75S9000B 1,773 997 226 171 724

* Only applicable for 0° for this TV model.

Note

• Figures in the table may differ slightly depending on the installation.

Display dimensions Screen centre dimension Length for mounting

Angle (0°)*

4 Connect necessary cables to the TV.

Unit: mm

Page 13

5 Detach the Table-Top Stand from the TV.

Hook location

When installing the TV onto the Base Bracket.

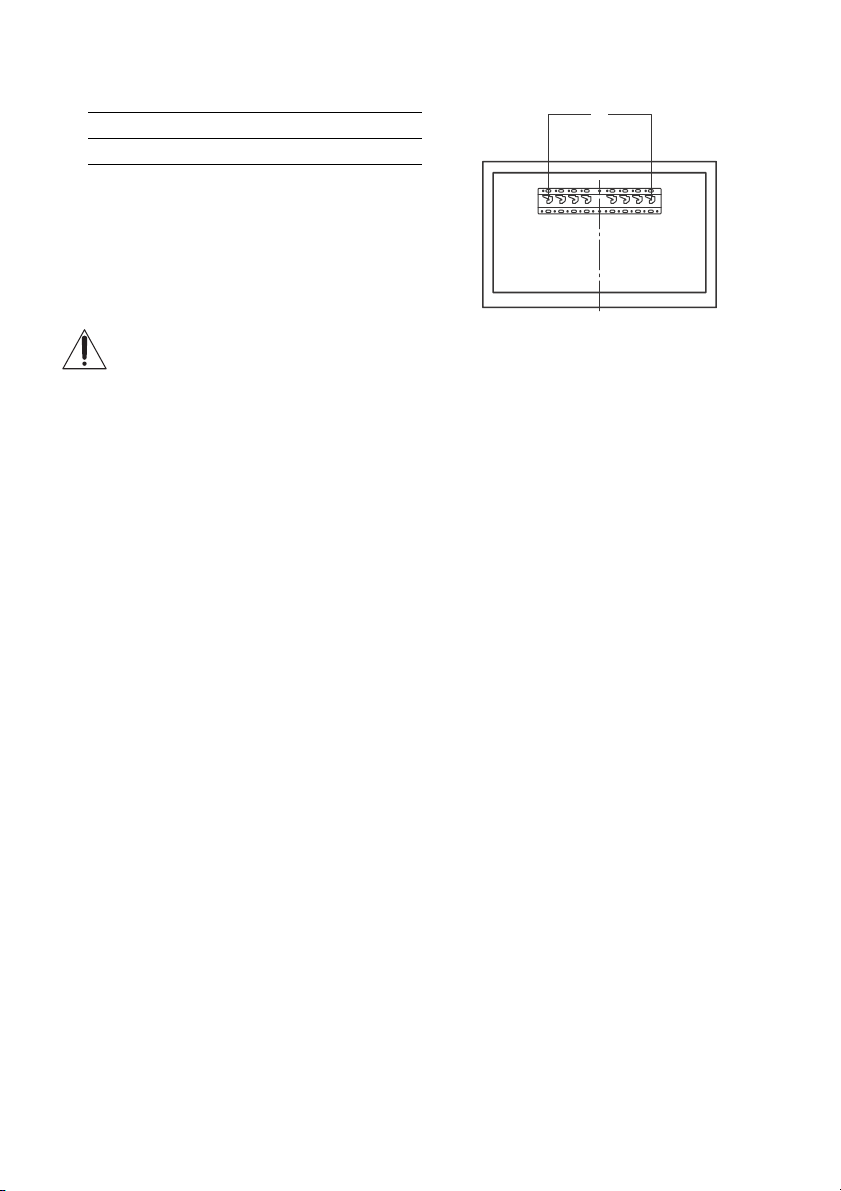

Screw location

When installing the Mounting Hook on the TV.

Note

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

6 Install the TV on the wall.

Model Name

KD-

75S9000B e, j a

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Screw location Hook location

Page 14

SU-WL450 (KD-65S9000B only)

Pulley 

Screw (+PSW 6 x 20) 

Spacer (60 mm) 

Screw (+PSW 6 x 50) 

Belt 

Pulley 

Screw (+PSW 6 x 20) 

Spacer (20 mm) 

Screw (+PSW 6 x 20) 

Belt 

1 Remove the screws from the rear of the TV.

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

referring to "1" of the Wall-Mount Bracket Installation Guide.

Standard mounting

Slim mounting

Note

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Page 15

3 Make sure that the wall has enough space for the TV and is capable of supporting a

Screen centre point

Standard mounting

Slim mounting

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 18-21 (Specifications) for the TV’s weight.

KD-65S9000B

Display dimensions

Model Name

KD-

65S9000B 1,549 873 231 666 159 117

Note

• Figures in the table may differ slightly depending on the installation.

Screen

centre

dimension

Length for mounting

Standard

mounting

Slim

mounting

4 Connect necessary cables to the TV.

Note

• You cannot access to any terminal after installing the TV to the wall.

5 Detach the Table-Top Stand from the TV.

Unit: mm

Page 16

6 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KD- Hook location

65S9000B a

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Page 17

Rear of TV

Troubleshooting

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the Illumination LED flashes red (interval time is three seconds). Press / on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to [Troubleshooting] in the i-Manual or perform self-diagnosis by selecting

[Help]  [Customer Support]  [Self

Diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press / on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial).

The remote control does not function.

 Replace the batteries.  Your TV may be in SYNC mode.

Press Control Bar (….) and slide left/right to select [SYNC MENU] then press the touchpad. Select [TV Control] and then select [Home (Menu)] or [Options] to control the TV. When using IR Remote Control, press SYN C MENU, select [TV Control] and then select [Home (Menu)] or [Options] to control the TV.

The [Parental Lock] password has been forgotten.

 Enter 9999 for the PIN code. (PIN code 9999 is

always accepted.)

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes, then plug it in again.

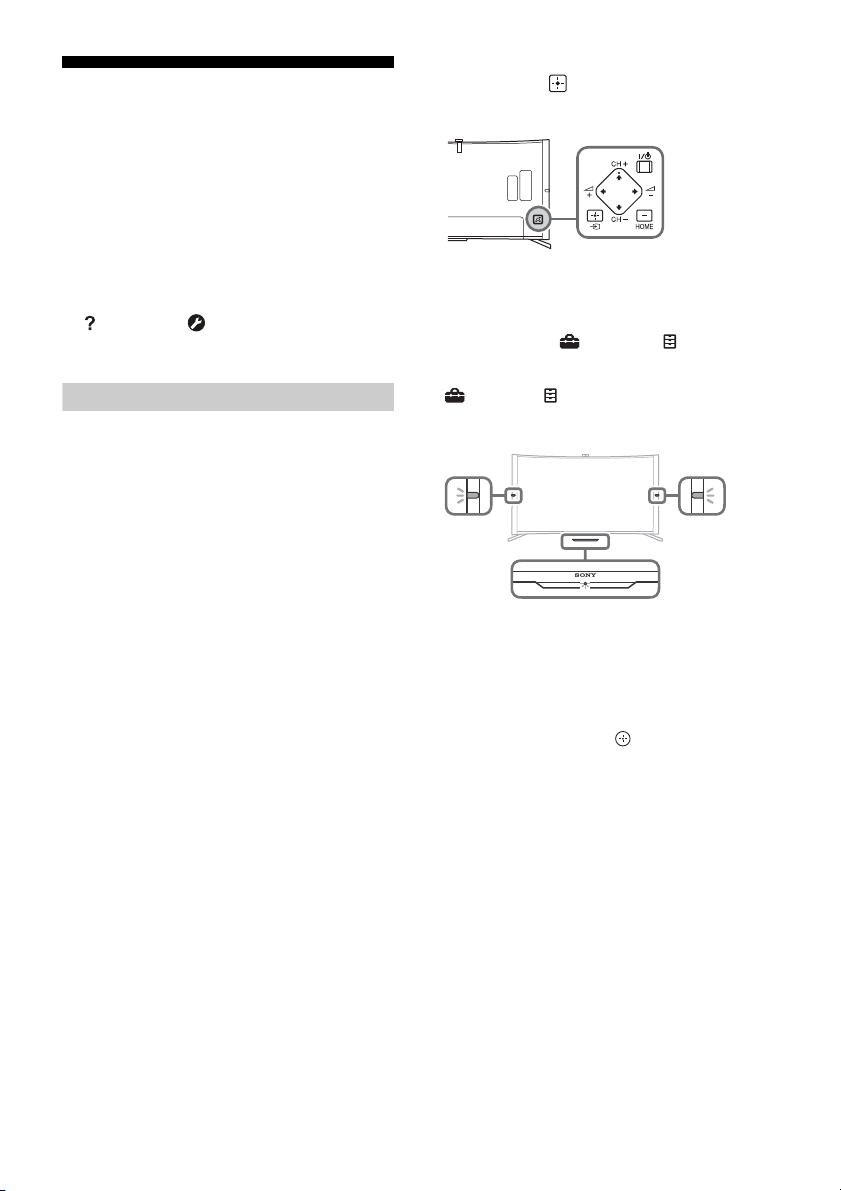

The /, CH+/–,  +/–, ///, , and HOME buttons cannot be located on the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to illuminate the centre and

side illumination LED, you can turn it off later. Press HOME, then select [Settings] t

[System Settings] t [General Set-up] t [Illumination LED] t [Off]. To turn off the side illumination LED only, press HOME, then select [Settings] t [System Settings] t [General Set-up] t [Illumina tion LED] t [Side Illumination LED Off]. You can also press OPTIONS to get [Illumination LED] setting.

Cannot connect to a wireless router by WPS.

• If you use WEP security, select [Easy] t [Wi-Fi] t [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Cannot find the required network name in network setup.

• Select [Manual Entry] and press to enter network name.

Page 18

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: B/G, I, D/K, M, L Digital: DTMB

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the i-Manual

Channel coverage

Analogue: UHF/VHF/Cable Digital: UHF

Sound output

10 W + 10 W + 10 W + 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE802.11a/b/g/n

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN 1

Video/Audio input (phono jacks)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono jacks)

VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution)

Video (2D): 4096 × 2160p (50, 60 Hz)*, 4096 × 2160p (24 Hz), 3840 × 2160p (50, 60 Hz)*, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats *YC

bCr 4:2:0 / 8 bit

Video (3D):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p Side-by-Side: 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital ARC (Audio Return Channel) (HDMI IN 1 only)

MHL (common with HDMI IN 2/4)

Video (2D): 4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30 Hz)*, 1080p (50, 60 Hz)*, 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i * HDMI IN 2 only Video (3D):

Frame Packing*: 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p Side-by-Side: 1080p (50, 60 Hz)*, 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Over-Under: 1080p (50,60 Hz)*, 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

* HDMI IN 2 only Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital)

HDMI 2 AUDIO IN

Analogue audio input (stereo mini jack)

AUDIO OUT/

Audio output (stereo mini jack) Headphones jack (supports Subwoofer out)

1, 2, 3

USB port

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASETX communication rate and communication quality are not guaranteed for this TV.)

Page 19

Others

Optional accessories

Wall-Mount Bracket: SU-WL500 (KD-75S9000B) SU-WL450 (KD-65S9000B) Wireless subwoofer: SWF-BR100 MHL cable: DLC-MC10/DLC-MC20 Active 3D Glasses: TDG-BT500A

Operating temperature

0 ºC – 40 ºC

Operating humidity

10 % – 80 % RH (non-condensing)

Power and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

KD-75S9000B: 75 inches / 189.3 cm KD-65S9000B: 65 inches / 163.9 cm

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Powe r consumption

Indicated on the rear of the TV

Output Rating

USB 1, 3: 5 V, 500 mA MAX USB 2: 5 V, 800 mA MAX MHL (HDMI IN 2, 4): 5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-75S9000B: 1,780 × 1,030 × 366 mm

KD-65S9000B: 1,549 × 904 × 332 mm

without Table-Top Stand

KD-75S9000B: 1,773 × 997 × 130 mm

KD-65S9000B: 1,549 × 873 × 115 mm

Stand width (Approx.)

Edge position:

KD-75S9000B: 1,780 mm

KD-65S9000B: 1,549 mm

Middle position:

KD-75S9000B: 594 mm

KD-65S9000B: 593 mm

Mass (Approx.)

with Table-Top Stand

KD-75S9000B: 51.6 kg

KD-65S9000B: 41.8 kg

without Table-Top Stand

KD-75S9000B: 50.2 kg

KD-65S9000B: 40.7 kg

Note

• Optional accessories availability depends on

countries/region/TV model/stock.

• Design and specifications are subject to change

without notice.

• This TV set incorporates MHL 2 for HDMI IN 4/MHL

and MHL 3 for HDMI IN 2/MHL.

Page 20

Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, Gracenote MusicID, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

• “Sony Entertainment Network logo” and “Sony Entertainment Network” are trademarks of Sony Corporation.

• MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• Designed with UEI Technology

Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Page 21

Page 22

螺絲（隨附於壁掛式支架）

壁掛式支架

12 毫米 - 16 毫米

電視機後蓋

安全資訊 . . . . . . . . . . . . . . . . 2

預先注意事項 . . . . . . . . . . . . . . 4

安裝桌面底座（可替代位置）. . . . . . 5

隱藏相機 . . . . . . . . . . . . . . . . 6

使用遙控器 . . . . . . . . . . . . . . 7

顯示觸控板操作指南 . . . . . . . . . . . 7

啟動觸控板教學課程 . . . . . . . . . . . 7

連接其他設備 . . . . . . . . . . . . .8

將電視機安裝在牆上 . . . . . . . . . 10

SU-WL500 ( 僅限 KD-75S9000B) . . . . . 10

SU-WL450 ( 僅限 KD-65S9000B) . . . . . 13

故障排除 . . . . . . . . . . . . . . 16

故障及解決方案 . . . . . . . . . . . . 16

規格 . . . . . . . . . . . . . . . . 17

簡介

感謝您購買這項 Sony 產品。使用電視機之前，請詳閱本手冊，並保留下來以便將來參考。

註

• 使用電視機之前，請詳讀 “ 安全資訊 ”( 第 2 頁 )。

• 有關 “ 將電視機安裝在牆上” 的指令已包含在這台電視機的說明手

冊。

• 快速設定指南和本說明書中使用的影像和插圖僅作參考並可能與實

際產品的外觀不同。

識別標籤的位置

電視機型號和電源等級的標籤位於電視機背面。

本電視設計在香港使用，只保證能在香港使用。

安全資訊

警告

不可將電池曝露於如陽光、火或類似的過熱源。

安裝 / 設定

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來安裝和使用電視機。

安裝

• 為了避免滑倒而造成人員的傷害，請勿在電視拆開時踩在電視保護

袋上。

• 應將電視機安裝在易於插拔的 AC 電源插座附近。

• 將電視機擺在平穩的水平表面上，以防止傾倒而造成人員的傷害或

者損及電視機。

• 將電視機安裝在其不能被拉動、推動或撞翻的地方。

• 合理安裝電視機，使電視機的台式底座不會從電視機座（未提供）

中伸出。如果台式底座從電視機座中伸出，可能會使電視機翻倒、掉落，造成人員受傷或損壞電視機。

• 僅可由合格的維修人員執行掛壁安裝。

• 為了安全起見，強烈建議您使用 Sony 配件，包括：

 壁掛式支架

SU-WL500 (KD-75S9000B) SU-WL450 (KD-65S9000B)

• 將掛牆式支架安裝於電視機上時，務必要使用隨附於壁掛式支架的

螺絲。隨附螺絲如插圖所示設計從壁掛式支架安裝表面量起。螺絲的直徑和長度會因為壁掛式支架的型號而有所不同。使用隨附螺絲以外的螺絲可能會造成電視機內部損壞或者掉落等等。

Page 23

搬動

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

6厘米

空氣流通被阻擋。

牆壁牆壁

• 搬動電視機之前，請斷開所有訊號線的連接。

• 大尺寸電視機需要兩個或兩個人以上（KD-75S9000B 需至少三人）

搬動。

• 用手搬動電視機時，請如下圖所示抓握。請勿對液晶面板以及螢幕周圍的框邊施加壓力。

KD-75S9000B

• 為了確保正確通風及防止髒物或灰塵堆積：

 請勿將電視機平放、上面朝下安裝、向後安裝或側面安裝。  請勿將電視機放置於架子、地毯、床或壁櫥中。  請勿用布（如窗簾）或物件（如報紙等）覆蓋電視機。  請勿如下圖所示安裝電視機。

KD-65S9000B

• 搬動電視機時，請勿使其受到搖晃或過度震動。

• 搬動電視機以進行維修或移動時，請使用原有的紙箱和包裝材料進

行包裝。

防止傾倒

• 請務必使用能夠支撐電視機重量的高強度繩索。

通風

• 切勿遮擋通風孔或將任何物體插入機殼內。

• 如下圖所示，在電視機周圍保留通風空間。

• 強烈建議您使用 Sony 壁掛式支架以確保足夠的空氣流通。

安裝在牆壁上

AC 電源線

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來處理 AC 電源線和插座 :

 將插頭完全插入 AC 電源插座。  僅可在 220-240 V AC 電源上使用電視機。  連接訊號線時，為了安全起見請務必拔下 AC 電源線，以免被訊號線

絆到腳。

 在進行作業或移動電視機之前，請從AC 電源插座上斷開AC 電源線的

連接。

 保持 AC 電源線遠離熱源。  拔下 AC 電源插頭，定期進行清潔。如果插頭上有積灰並帶有濕氣，

則其絕緣品質可能已經劣化，並可能會造成火災。

註

• 請勿過度擰捏、彎曲或扭轉 AC 電源線。否則線芯可能會曝露在外或折斷。

• 請勿改裝 AC 電源線。

• 請勿將任何重物放在 AC 電源線上。

• 斷開 AC 電源線連接時，請勿拉扯 AC 電源線。

• 請勿在相同的 AC 電源插座上連接太多設備。

• 請勿使用不適當的 AC 電源插座。

使用限制

請勿在下列地點、環境或情況條件下安裝 / 使用電視機，否則電視機可能會發生故障並造成火災、觸電、損壞及 / 或受傷等危險。

地點：

• 室外（在直射的陽光中），海邊，船上或其他船艦上，車內，醫療機構中，不穩定的場所，靠近水、雨、濕氣或煙霧的地方。

• 如果放置電視機在公共浴室或溫泉的更衣室內，電視機可能會被空降硫磺等損壞。

• 若要獲得最佳的畫面品質，請勿將螢幕放在直射光源或陽光下。

• 避免將電視機從寒冷的區域移至溫熱的區域。突然的室溫變化可能

導致濕氣凝結。這可能造成電視機顯示劣質圖像及 / 或暗淡的顏色。如果發生這種情形，讓濕氣完全蒸發之後才開啟電視機。

環境：

• 炎熱、潮濕或太多灰塵的地方；昆蟲可能進入的地方；可能受到機械式震動的地方；靠近易燃物體（蠟燭等）的地方。不應該讓液體滴濕或噴濕電視機，而且裝滿液體的物體（例如花瓶）不應該擺在電視機上。

• 不要放置電視機在潮濕或多塵的空間，或有油煙或蒸氣的場所（靠近灶台或加濕器）。這可能導致火災、觸電或本機彎曲。

安裝在底座上

• 請勿將電視機安裝在會遭受極端溫度的位置，如陽光直射、靠近散熱器或加熱裝置通風孔的地方。電視機在這種環境下可能會過熱而導致外殼變形及 / 或電視機故障。

Page 24

情況條件：

• 手濕，機殼拆除或採用非製造商所建議的配件時切勿使用本電視機。出現雷電時請將電視機電源線從 AC 電源插座和天線拔下。

• 不要把電視機安裝在延伸出開放的空間。這可能導致人或物體碰撞電視機而受傷或損壞。

打破電視機螢幕：

• 請勿將任何物品丟向電視機。否則螢幕可能會因為受到撞擊而破裂並造成嚴重傷害。

• 如果電視機的表層破裂，在拔下 AC 電源線以前請勿觸摸它。否則可能導致觸電。

不使用時

• 如果您不使用電視機數天，為了環保和安全原因，應將電視機電源線從 AC 電源插座上拔下。

• 關閉電視機電源時，電視機並未與 AC 電源斷開連接，請將插頭從 AC 電源插座上拔下以完全斷開電視機的電源連接。

• 但是，某些電視機可能具有需要將電視機保持在待命模式下才能正常工作的特點。

對於兒童

• 請勿讓兒童爬上電視機。

• 將體積小的配件放在兒童拿不到的地方，以便不會被兒童誤吞。

如果出現下列問題 …

如果出現以下任何問題，請立刻關閉電視機並拔下 AC 電源線。請諮詢您的經銷商或 Sony 服務中心以交由合格的服務人員進行檢查。

當：

 AC 電源線損壞。  AC 電源插座不適當。  電視機由於跌落、敲擊或撞擊而損壞。  任何液體或固體物件通過開口處掉入機殼內。

關於液晶螢幕溫度

長時間使用液晶螢幕時，面板周圍溫度會升高。用手觸摸這些地方時可能會覺得很燙。

預先注意事項

觀賞電視

• 在觀看 3D 視訊影像或打立體的 3D 電玩期間，有些人可能會感到不適（如眼睛疲勞、疲累或噁心）。Sony 建議所有觀賞者在觀看 3D 視訊影像或打立體的 3D 電玩期間要定期休息。休息的長度和頻率因人而異。由您自行決定。若您感到任何不適，請停止觀看 3D 視訊影像或打立體的 3D 電玩，直到不適感消失；若有必要，請就醫。關於最新資訊，也請您參閱（i）用於電視機的其他設備或媒體的使用說明書，以及（ii）我們的網站

（http://www.sony-asia.com/ support）。兒童（尤其是低於六歲

的兒童）的視力還在發育。讓兒童觀看 3D 視訊影像或打立體的 3D 電玩前，請諮詢醫師（如小兒科醫師或眼科醫師）。成人應監督兒童，確保他們遵守上列建議事項。

• 不要在靠近火源或高溫地方如直射陽光或太陽曬熱的汽車內使用、貯存或留下 3D 眼鏡或電池。

• 使用模擬 3D 功能時，請注意本電視轉換後顯示的影像與原始影像不同。

• 請在適當光線條件下觀賞電視，因為在光線不足條件下或長時間觀賞電視會損傷您的眼睛。

• 使用耳機時，請調整音量以免音量過高損傷聽力。

LCD 螢幕

• 雖然 LCD 螢幕採用最精密技術製造且 99.99% 以上的畫素有效，但還是可能會出現黑點或 LCD 螢幕上可能會經常出現亮點（紅、藍或綠色）。這是 LCD 螢幕的結構特性，並不是故障。

• 請勿按壓或刮傷前濾光面板或在電視機頂部放置物件。畫面可能會不均，或者 LCD 螢幕可能會損壞。

• 如果在寒冷地點使用本電視機，畫面上可能會出現模糊或變暗。這並不是故障。溫度上升後這些現象就會消失。

• 畫面靜止不動將會產生重影。片刻後該現象將消失。

• 電視機使用過程中，螢幕和機殼會變熱。這不是故障。

• LCD 螢幕包含少量液晶。請按照您當地的法規進行廢棄物處理。

使用和清潔電視機的螢幕表層 / 機殼

清潔前，務必將電視機的 AC 電源線從 AC 電源插座上斷開連接。為了避免物質或螢幕塗層剝離，請遵照下列預先注意事項。

• 若要擦去螢幕表層 / 機殼上的灰塵，請用軟布輕輕擦拭。如果灰塵較難除去，請用稍稍蘸有稀釋中性清潔溶劑的軟布進行擦拭。

• 絕對不能將水或清潔劑直接噴灑在電視上。液體可能滴落在螢幕的底部或外部零件上並滲入電視內，而毀壞電視。

• 切勿使用任何類型的磨砂墊、鹼性 / 酸性清潔劑、擦洗粉或揮發溶劑，如酒精、汽油、稀釋劑或殺蟲劑。使用上述材料或與橡膠或乙烯材料長時間接觸可能會造成螢幕表層和機殼材料的損壞。

• 建議您定期使用真空吸塵清理通風口以確保通風順暢。

• 請勿在清潔或維修揚聲器時過度用力處理以避免任何損壞。

選購設備

將產生電磁輻射的選購元件或任何其他設備遠離電視機。否則可能會造成畫面失真及 / 或噪聲。

本機的無線功能

• 請勿在醫療設備（心臟起搏器等等）附近操作本機，這將導致該醫療設備故障。

• 雖然本機發送 / 接收加擾信號，請小心未經授權的截取。我們不對此造成的任何問題負責。

注意有關處理遠程控制

• 安裝電池時請注意正確的極性位置。

• 請勿同時使用不同類型的電池或混合使用新舊電池。

• 請以符合環境保護規定的方式來丟棄電池。特定地區可能有制訂廢

棄電池的相關規定。請向您當地的主管機關查詢。

• 請小心拿取遙控器。請勿讓遙控器掉落或踩在遙控器上，或是讓任何液體濺到遙控器。

• 請勿將遙控器放置在接近熱源的地方，放置在受日光直射地方或潮濕的房間。

Page 25

安裝桌面底座（可替代位

中間位置

厚軟墊

1.5 N∙m {15 kgf∙cm}

紅外線感應器

3D 同步傳送器

置）

您可參照下方指示將桌面底座從兩側更換至中間位置。

註

• 本安裝需要至少兩人（KD-75S9000B 需至少三人）進行。

• 組裝桌面底座時，請勿讓兒童靠近。

• 請牢牢握住電視機的上下邊框。一定不要抓握揚聲器的

格柵區域。

註

• 將桌面底座裝到電視機上時請注意，邊緣和中間位置螺絲釘的擰緊方向不同。

• 確定電視機前沒有障礙物。

Page 26

綁扎纜線









* 桌面底座裝在中間位置時纜線夾的位置。

註

• 要將纜線夾從電視機上拆下，請按照圖示，先按住纜線

夾的頂部 1, 然後再用手捏住 2。

隱藏相機

如果您不希望使用相機，請如圖所示將其隱藏。

Page 27

使用遙控器

觸控板遙控器 IR 遙控器

您可使用隨附的觸控板遙控器或 IR （紅外線）遙控器操控電視機。

註

• 觸控板遙控器只可在註冊於電視機之後使用。按 HOME 按鈕，然後選擇 [ 觸控板遙控器設定 ]，即可註冊觸摸板遙控器。

[設定] t [ 系統設定 ] t

顯示觸控板操作指南

您可於觸控板操作指南中檢視目前電視機螢幕中可用的手勢指令。

1 長按觸控板中央位置以顯示觸控板操作指

南。

啟動觸控板教學課程

1 按 HOME.

2 滑動選擇 [ 說明 ]，然後按觸控板。

3 向上/向下滑動，選擇 [ 觸控板教學課程 ]，

然後按觸控板。

請按照螢幕上的指示操作。

註

• 亦可按 HOME，然後選擇 [設定] t [系統設定]

t [ 觸控板設定 ] t [ 開始教學課程 ]，啟動觸控板教

學課程。

Page 28

連接其他設備

至 HDMI OUT

< 12 毫米

< 21 毫米

至 AUDIO OUT

至 COMPONENT OUT (P

R/PB/Y)

至 VIDEO OUT

請使用備有 MHL 標誌且經授權的

MHL 3 訊號線

( 非附件）

請使用備有 MHL 標誌且經授權的

MHL 2 訊號線

(非附件）

MHL 3 裝置

MHL 2 裝置

更多關於連接的資訊，請參閱 i-Manual

(

線上手冊 )。

以 HDMI 訊號線連接

註

• 將 4K 裝置（4K 媒體播放機、4K 機頂盒等）連接至電視機的 HDMI IN 2 或 HDMI IN 1 插孔，盡享受版權保護的內容。

以色差訊號線連接

以 AV 複合訊號線連接

連接 MHL 裝置

Page 29

電視機在播放照片 / 音樂 / 視訊檔案的同時可對連

SD 4K/HD

圖像品質

• AV 複合訊號線

• 天線的連接訊號線

標準清晰度（SD）視訊圖像信號的垂直解析度為 480 （NTSC）或 576 （PAL/SECAM）條線。

• 色差訊號線 • HDMI 訊號線

高清晰度（HD）視訊圖像信號的垂直解析度為 720 或 1080 條線。 (4K 垂直解析度︰ 2160 行 )

線的 MHL- 兼容設備進行充電。您可以使用電視機遙控器控制已連線的 MHL- 兼容設備。

註

• 當[ 自動輸入變更 (MHL)] 設定為[開]時，如果 HDMI IN

2/MHL 或 HDMI IN 4/MHL 插孔上連結有 MHL- 兼容設備，電視機將自動從其他輸入切換至 HDMI IN 2/MHL 或 HDMI IN 4/MHL。[ 自動輸入變更 (MHL)] 的可用性取決於 MHL- 兼容設備是否支援該功能。

• 當[ 在待機狀態下為 MHL 充電]設定為 [開 ]時，即使電視

機已進入待機模式，您也可以繼續為該 MHL- 兼容設備充電。

• 將 4K 智能電話或行動設備連結至 HDMI IN 2/MHL 插

孔。

• 連線 4K 智能電話或行動設備應使用獲得授權並帶有

MHL 標誌的 MHL 3 線。

Page 30

將電視機安裝在牆上

本電視機安裝手冊僅說明將電視機安裝到牆上前的安裝準備步驟。

致客戶 : 基於保護產品和安全考量，Sony 強烈建議務必委由 Sony 經銷商或經授權的承包商進行電視機的安

裝。請勿試圖自行安裝。

致 Sony 經銷商和承包商 : 請在安裝、定期維修和檢查本產品時特別注意安全。

安裝本產品，尤其是在確定牆壁強度是否能夠支撐電視機重量方面，需要足夠的專業知識。將本產品安裝於牆上的工作務必要委託 Sony 經銷商或經過授權的承包商進行，而且安裝時要特別注意安全。Sony 對於任何因為錯誤操作或不當安裝所造成的損壞或傷害恕不負責。

請使用壁掛式支架 SU-WL500 型（非附件 ) (KD-75S9000B）或 SU-WL450 型（非附件 ) (KD-65S9000B）將電視機裝到牆壁上。

正確的安裝程序請參照壁掛式支架所隨附的說明書。

註

• 請務必將取下的螺絲放置在安全的地方，讓螺絲遠離兒童。

SU-WL500 ( 僅限 KD-75S9000B)

1 將電視機安裝在牆壁上時，從電視機背面取下螺絲。

Page 31

2 使用壁掛式支架隨附的四根螺絲安裝掛鉤。

掛鉤

螺絲 (+PSW 6 × 16)

螢幕中心點

3 確保牆壁有足夠空間以及能支撐至少電視機四倍的重量。請參閱以下列表有關在牆上安裝電視

機。請參閲第 17-19 頁（規格）有關電視機的重量。

型號名稱

顯示幕螢幕中心尺寸安裝的長度

KD-

75S9000B 1773 997 226 171 724

* 此電視機型號僅限 0°。註

• 製表內的數字視安裝而可能略有不同。

4 將必要纜線連接至電視機。

角度 (0°)*

單元 : 毫米

Page 32

5 從電視機拆卸桌面底座。

掛鉤位置將電視機安裝在底座支架上時。

螺絲位置將掛鉤安裝在電視機上時。

註

• 再次安裝桌面底座時，務必將（之前取下的）螺絲鎖緊至電視機背面的原始孔。

6 將電視機安裝在牆上。

型號名稱

KD-

75S9000B e, j a

螺絲位置置掛鉤位置

請參閱符合您的電視機型號的壁掛式支架所附帶的指示將電視機安裝在牆上。

Page 33

SU-WL450 ( 僅限 KD-65S9000B)

滑輪 

螺絲 (+PSW 6 x 20)



墊片 (60 毫米 ) 

螺絲

(+PSW 6 x 50) 

帶子 

滑輪 

螺絲 (+PSW 6 x 20)



墊片 (20 毫米 ) 

螺絲

(+PSW 6 x 20) 

帶子 

1 從電視機後部拆下螺絲。

2 安裝壁掛式支架的隨附附件。請參閱 “ 壁掛式支架安裝指南 ” 中的步驟 “1” 檢查隨附附件。

標準安裝

薄安裝

註

• 將壁掛式附件連接至電視機時，請務必將其擰緊。

• 如果使用電動螺絲刀，請將轉矩設定為 1.5 N·m {15 kgf·cm} 左右。

Page 34

3 確保牆壁有足夠空間以及能支撐至少電視機四倍的重量。請參閱以下列表有關在牆上安裝電視

螢幕中心點

標準安裝

薄安裝

機。請參閲第 17-19 頁（規格）有關電視機的重量。

KD-65S9000B

單元 : 毫米

型號名稱

顯示幕

KD-

65S9000B 1549 873 231 666 159 117

註

• 製表內的數字視安裝而可能略有不同。

螢幕中心

尺寸

安裝的長度

標準安裝薄安裝

4 將必要纜線連接至電視機。

註

• 將電視機安裝至牆壁後，您將無法接觸任何端子。

5 從電視機拆卸桌面底座。

Page 35

6 安裝電視機至基座。請參閱随壁掛式支架一起提供的“操作手冊”之“安裝指南”和“ 將電視機

安裝至牆壁 ” 中的步驟 “5”。

型號名稱 KD- 掛鉤位置

65S9000B a

請參閱符合您的電視機型號的壁掛式支架所附帶的指示將電視機安裝在牆上。

Page 36

故障排除

電視機背面

當照明 LED 閃紅燈時，計算閃爍次數（間隔時間為三秒）。如果照明 LED 閃紅燈，從電視機拔下 AC 電源線，待兩分鐘之後再打開電視機，以進行電視機重設。如果問題仍然存在，請聯繫您的經銷商或 Sony 服務中心並告知照明 LED 閃紅燈的次數（間隔時間為三秒）。按電視機上的 / 將其關閉，拔掉 AC 電源線，然後告訴您的經銷商或 Sony 服務中心。

當發光 LED 沒有閃爍，檢查以下列表中的項目。您也可參閱 i-Manual 中的 [ 故障排除 ] 或通過選擇

[說明]  [用戶支援]  [ 自行診

斷 ] 以進行自行診斷。如果問題仍然存在，請將您的電視機交給合格的維修人員修理。

故障及解決方案

沒有畫面（螢幕是黑的）也沒有聲音。

 檢查天線 / 訊號線連接。  將電視機連接至 AC 電源，然後按電視機或遙控器上

的 /。

無法調諧某些節目。

 檢查天線。

遙控器無效。

 更換電池。  電視機可能處於 SYNC 模式。

按控制列 (….) 左右滑動選擇 [ 同步選單 ] 然後按觸控板。選擇 [ 電視控制 ] 然後選擇 [ 主選單 ] 或 [ 選項 ] 控制電視機。當使用紅外線遙控器時，按 SYNC MENU，選擇 [電視控制]然後選擇[主選單]或[選項]即可控制電視機。

忘記[親子鎖碼]密碼。

 PIN 碼輸入 9999。（PIN 碼 9999 總是可以接受。）

電視機周圍溫度升高。

 當長時間使用電視機時，電視機周圍溫度會升高。

用手觸摸這些地方時可能會覺得很燙。

停頓音訊或視訊、空白螢幕或電視機對電視或遙控器按鈕沒有反應。

 拔下 AC 電源線兩分鐘之後再次連接以進行簡單的電

視機重設。

在電視機上找不到 /, CH+/–,  +/–,

///, , 和 HOME 按鈕。

 請參閲下圖有關電視機上按鈕的位置。

照明 LED 開啓。

 若不想讓中央和側邊的 LED 燈亮起，可稍後再關

閉。按 HOME，然後選擇 t [ 一般設定 ] t [ 照明 LED] t [關]。要僅關閉側邊的 LED 燈，請先按 HOME，然後選擇

[設定] t [ 系統設定 ]

[設定] t [系統設定] t [一般設定] t

[ 照明 LED] t [ 關閉側邊照明 LED]。您也可以按 OPTIONS，然後選擇 [ 照明 LED]。

無法以 WPS 連接無線路由器。

 如果您使用 WEP安全加密，選擇 [簡易] t [Wi-Fi]

t [ 依掃描清單連接 ]。然後，選擇您要連接的網絡

名稱（SSID）。

無法在網絡設定中找到所需的網絡名稱。

 選擇 [[ 手動輸入 ]] 和按以輸入網絡名稱。

Page 37

規格

系統

面板系統

LCD （液晶顯示）面板 , LED 背光源

電視系統

類比：B/G, I, D/K, M, L 數位：DTMB

彩色 / 視訊系統

類比：PAL, SECAM, NTSC3.58, NTSC4.43 數位：參閲功能操作教學

頻道涵蓋範圍

類比：UHF/VHF/ 訊號線數位：UHF

聲音輸出

10 瓦 + 10 瓦 + 10 瓦 + 10 瓦 + 10 瓦 + 10 瓦

無線技術

IEEE802.11a/b/g/n 協議

輸入 / 輸出插孔

天線/訊號線

VHF/UHF 的 75 歐姆外接端子

/ VIDEO IN 1

視訊 / 音訊輸入（Phono 插孔）

/ COMPONENT IN

YPBPR ( 色差視頻 )：1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i 音訊輸入（Phono 插孔）

VIDEO IN 2

視訊輸入 ( 備有 Y 輸入的常見 phono 針 )

HDMI IN 1, 2, 3, 4 （支援 4K 解析度）

視訊 (2D)：4096×2160p (50, 60 Hz)*, 4096×2160p (24 Hz), 3840×2160p (50, 60 Hz)*, 3840×2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC 格式

*YC

bCr 4:2:0 / 8 位元

視訊 (3D)：

幀封裝：1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p 並排：1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) 上下格式：1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz) 音訊：5.1 聲道線性 PCM：32，44.1 和 48 kHz， 16，20 和 24 位元，Dolby Digital ARC （音頻回傳信道）（僅限 HDMI IN 1)

MHL ( 與 HDMI IN 2/4 共用 )

視訊 (2D)：4096×2160p (24 Hz)*, 3840×2160p (24, 25, 30 Hz)*, 1080p (50, 60 Hz)*, 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i * 僅限 HDMI IN 2 視訊 (3D)：

幀封裝 *：1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p 並排：1080p (50, 60 Hz)*, 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) 上下格式：1080p (50, 60 Hz)*, 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

* 僅限 HDMI IN 2 音訊：5.1 聲道線性 PCM：32, 44.1 和 48 kHz, 16, 20 和 24 位元，Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

數位光纖插孔（兩聲道線性 PCM，Dolby Digital）

HDMI 2 AUDIO IN

類比音訊輸入（立體聲迷你插孔）

AUDIO OUT/

音訊輸出（立體聲迷你插孔）耳機插孔 ( 支援重低音揚聲器輸出 )

1, 2, 3

USB 埠

LAN

10BASE-T/100BASE-TX 接頭（視網絡的作業環境而定，連線速度可能不同。不保證本電視的 10BASE-T/ 100BASE-TX 通訊率和通訊品質。）

其他

選用的配件

壁掛式支架： SU-WL500 (KD-75S9000B) SU-WL450 (KD-65S9000B) 無線重低音揚聲器：SWF-BR100 MHL 訊號線：DLC-MC10/DLC-MC20 主動式 3D 眼鏡：TDG-BT500A

作業溫度

0 ºC - 40 ºC

操作濕度

10% - 80% 相對濕度（非冷凝）

Page 38

電源和其他規格

電源需求

220 V – 240 V AC, 50 Hz

螢幕尺寸（對角測量） ( 大約 )

KD-75S9000B: 75 英寸 / 189.3 厘米 KD-65S9000B: 65 英寸 / 163.9 厘米

顯示解析度

3840 點 ( 水平 ) × 2160 條線 ( 垂直）

耗電量

標示於電視機背面上

額定輸出

USB 1, 3: 5 V, 500 mA MAX USB 2: 5 V, 800 mA MAX MHL (HDMI IN 2, 4): 5 V, 900 mA MAX

尺寸（大約）（寬 × 高 × 深）

包含桌面底座

KD-75S9000B: 1780 × 1030 × 366 毫米 KD-65S9000B: 1549 × 904 × 332 毫米

不含桌面底座

KD-75S9000B: 1773 × 997 × 130 毫米 KD-65S9000B: 1549 × 873 × 115 毫米

底座寬度 ( 大約 )

兩側位置 :

KD-75S9000B: 1780 毫米 KD-65S9000B: 1549 毫米

中間位置 :

KD-75S9000B: 594 毫米 KD-65S9000B: 593 毫米

質量（大約）

包含桌面底座

KD-75S9000B: 51.6 千克 KD-65S9000B: 41.8 千克

不含桌面底座

KD-75S9000B: 50.2 千克 KD-65S9000B: 40.7 千克

註

• 選購配件的供應視國家 / 區域 / 電視機型號 / 存貨而定。

• 設計與規格可能變更而不事先通知。

• 本電視機配置了 MHL 2 （用於 HDMI IN 4/MHL）和

MHL 3 （用於 HDMI IN 2/MHL）。

商標資訊

• HDMI 和 HDMI High-Definition Multimedia Interface 專用名詞以及 HDMI 標誌是 HDMI Licensing LLC 在美國和其他國家的商標或註冊商標。

• DLNA®、DLNA 標誌和 DLNA CERTIFIED® 是 Digital Living Network Alliance 的商標、服務標誌或認證標誌。

• 本產品經過杜比實驗室的授權而製造。 Dolby 和雙 D 記號是杜比實驗室的註冊商標。

• “BRAVIA” 和是 Sony Corporation 的商標。

• TrackID 是 Sony Mobile Communications AB 的商標或註冊商標。

• Gracenote、Gracenote eyeQ、Gracenote VideoID、Gracenote Video Explore、 Gracenote MusicID、Gracenote 標誌和標誌字型以及 “Powered by Gracenote” 標誌是 Gracenote 在美國和 / 或其他國家的註冊商標或商標。

• Wi-Fi，Wi-Fi Direct 和 Miracast 是 Wi-Fi Alliance 的商標或註冊商標。

• “Sony Entertainment Network logo” 和 “Sony Entertainment Network” 是 Sony Corporation 的商標。

• MHL、Mobile High-Definition Link 和 MHL 標誌是 MHL Licensing，LLC 的商標或注冊商標。

• Bluetooth® 字標和標誌乃 Bluetooth SIG, Inc. 所有，Sony Corporation 在授權下使用這些標記。其他的商標和商品名稱屬於其各自的所有者。

• N Mark 是 NFC Forum, Inc. 在美國和其他國家的商標或註冊商標。

Under

Page 39

Page 40

Customer Support and Contact:

用戶支援和聯絡：
