Power Supply Systems
BP-GL95A/BP-GL65A/BP-L80S/BP-L60S
Battery Pack
BC-L70/BC-L160/BC-L500
Battery Charger
AC-DN10/AC-DN2B
AC Adaptor
BKW-L200/BKW-R1/BKW-R4/BKW-L601/BKP-L551
Battery Adaptor
BP-U90/BP-U60/BP-U30
Battery Pack
BC-U2/BC-U1
Battery Charger
The importance of power supply in portable equipment markets is continually growing. Demands for smaller
size, reduced mass, and extra power are profoundly impacting laptop computer, cellular phone and other
mobile markets. Yet power supply needs are incomparably higher in broadcast and professional video
applications where environment is a key operational concern.
Sony has an unparalleled track record in the professional video industry, producing an appropriate line of
video production equipment according to increasing demands from frontline professionals. Sony power
supply systems are designed to answer the essential demands of professional users, providing full functionality
and cutting-edge features.
Page 2
V-mount Batteries
BP-GL Series and BP-L Series Lithium-ion Battery Packs come
with a durable V-mount mechanism, which provides high
compatibility with a variety of Sony professional
camcorders, some portable VTRs, and video monitors.
The BP-GL Series boasts high power in a compact and
lightweight body, plus intelligent functions.
The BP-L Series is characterized by long life.
Improved Cycle Life
(BP-GL95A/GL65A)
The BP-GL Series prolongs cycle life over its predecessor
model. Utilizing highly durable cells, it retains 30%
higher capacity at 250 cycles than its earlier model.*
*1 Actual battery life may vary based on different operating conditions and settings.
1
Intelligent INFO Function
(BP-GL95A/GL65A)
The BP-GL Series is equipped with a professional INFO
function that shows the remaining capacity, charging
time, and charge cycles on INFO-compatible
equipment such as Sony chargers and camcorders.
Battery Remaining Display
on Viewfinder
When using the BP-GL Series with a compatible
camcorder from Sony, users can see the remaining
capacity on the camcorder’s viewfinder, in terms of
percentage (in 10% steps) or voltage. When using
the BP-L Series, the remaining capacity is indicated in
terms of voltage.
Four-step Remaining Capacity
LED Display
The four-step LED display on the side of the battery
provides an accurate and at-a-glance indication of
remaining capacity.
BP-GL95A/GL65A/L80S/L60S
100 to 80% 79 to 60% 59 to 40% 39 to 20%
BP-GL95A/GL65A
19 to 15% 14 to 10% 9 to 6% 5 to 0% Empty
Remaining Capacity Indicaion
High Reliability, Compliant with
International Transport Regulations
BP-GL and BP-L Series lithium-ion batteries are
designed to be highly safe and reliable, compliant
with the various international transportation
regulations.*
long-term shooting associated with travel.
*1 All of these lithium-ion battery packs have a rated capacity of less than 100 Wh, and
can therefore be transported as non-hazardous lithium-ion batteries. Related laws
and regulations are subject to change. For detailed conditions regarding the transport
of battery packs, please consult your respective air transport company.
2
1
They are therefore suitable for the
Page 3
V-mount Battery Lineup
BP-GL95A BP-GL65A BP-L80S BP-L60S
Features
“INFO” function
Remaining capacity display on camcorder Percentage or voltage Percentage or voltage Voltage Voltage
Referenced regulations/guidelines ICAO, IATA (International Air Transport Association) transport regulations for regular aircraft transportation,
Manual of Tests and Criteria of the UN Recommendations on the Transport of Dangerous Goods, Part III, sub-section 38.3.
Specifications
Maximum voltage 16.8 V DC
Nominal voltage 14.8 V DC 14.4 V DC
Nominal capacity 98 Wh 66 Wh 83.5 Wh 64.8 Wh
Operating temperature -4°F to +113°F (-20°C to +45°C)
Dimensions (W x H x D) 4 x 6 5/8 x 1 1/2 inches
Weight 1 lb 11 oz (765 g) 1 lb 4 oz (565 g) 2 lb 7 oz (1100 g) 1 lb 12 oz (800 g)
Supplied accessory Operating Instructions (1)
l l
(101 x 169 x 37 mm)
U.S. Department of Transportation guidelines, FAA safety guidelines
3 5/8 x 5 1/2 x 1 5/8 inches
(92 x 138 x 41 mm)
4 x 6 3/4 x 2 1/8 inches
– –
(101 x 169 x 52 mm)
4 x 6 3/4 x 1 1/2 inches
(101 x 169 x 37 mm)
Approximate Operating Time
Camcorders Batteries (capacity)
Model name Power consumption BP-GL95A (98 Wh) BP-GL65A (66 Wh) BP-L80S (83.5 Wh) BP-L60S (64.8 Wh)
SRW-9000PL 65.2 W* 70 – 60 –
HDW-F900R 38 W* 120 80 110 80
HDW-650/650P/650F 39 W* 120 80 100 80
PDW-700/F800 44 W** 110 70 90 70
PDW-680 39 W** 120 80 100 80
PMW-500 29 W** 160 110 140 110
PMW-350L/350K 18 W* 260 180 220 170
PMW-TD300 32 W* 150 100 130 100
– The above operating time may change according to operating conditions, and assumes that an on-camera light is not used.
* REC mode with viewfinder.
** REC mode with viewfinder and color LCD ON.
(unit: minutes)
3
Page 4

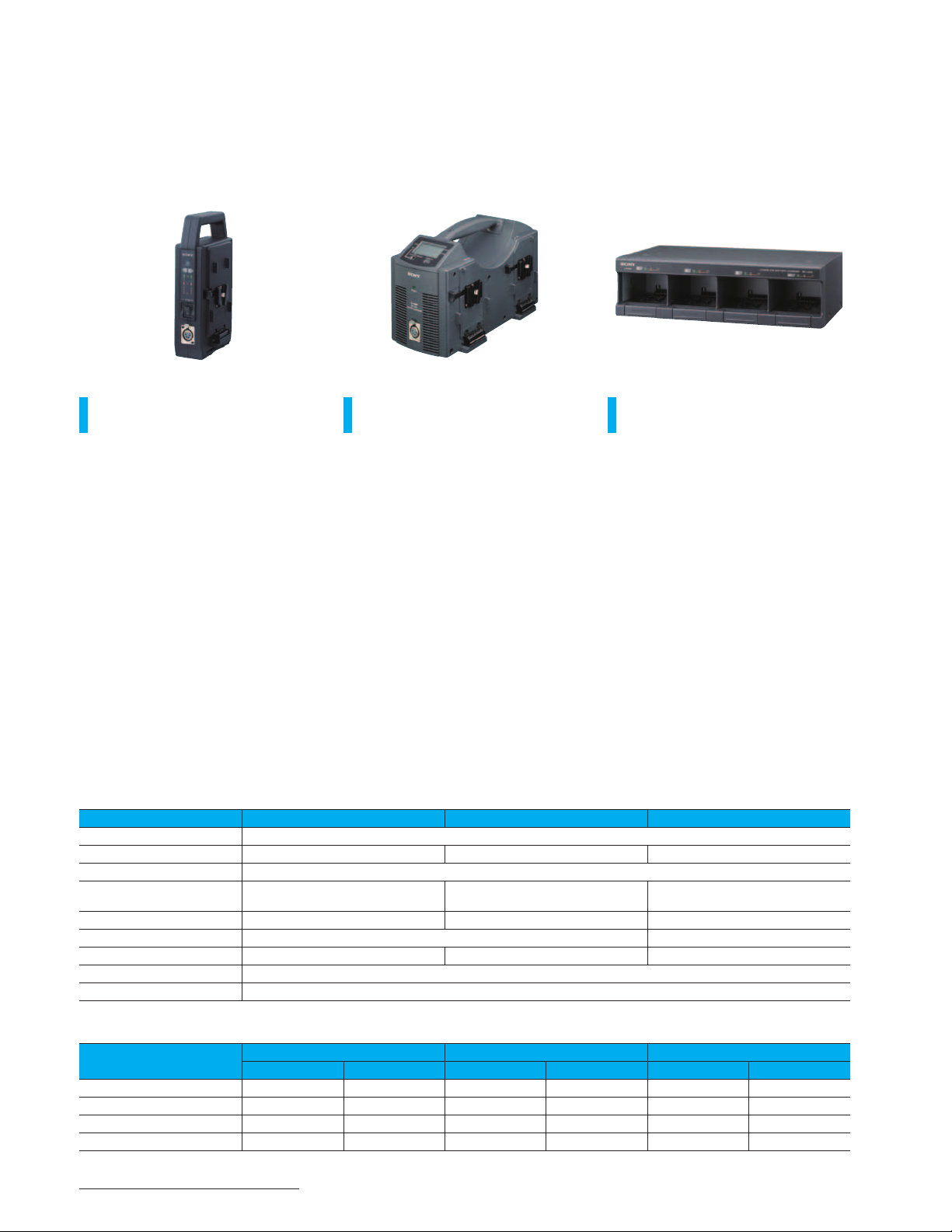

V-mount Battery Chargers
BC-L70 BC-L160 BC-L500
Two-channel Simultaneous
Charger
•Compact and lightweight
two-channel portable charger
•Quick and efficient simultaneous
charging
- One BP-GL95A battery can be
fully charged in approximately
145 minutes
- Two BP-GL95A batteries can be
fully charged in approximately
290 minutes
•Charging mode selectable
(full or 90% capacity)
•Max. 100 W DC power supply
(XLR-4-pin)
Four-channel Simultaneous
Charger
•Compact and lightweight
four-channel portable charger
•Quick simultaneous charging
- One BP-GL95A battery can be
fully charged in approximately
145 minutes
- Four BP-GL95A batteries can be
fully charged in approximately
145 minutes
•Battery information display on LCD*
- Displays remaining capacity,
remaining charge time, charge/
discharge cycles
•Charging mode selectable
(full or 90% capacity)
Desktop-type Four-channel
Simultaneous Charger
•Desktop-type four-channel quick
charger
•Quick simultaneous charging
- One BP-GL95A battery can be
fully charged in approximately
145 minutes
- Four BP-GL95A batteries can be
fully charged in approximately
145 minutes
1
•Charging mode selectable
(full or 90% capacity)
•Space-saving design
- 3U high, 19-inch rack mountable
- Front slot mechanism
- Two chargers stackable
•Max. 100 W DC power supply
(XLR-4-pin)
*1 The battery information display is only available for
BP-GL Series.
Specifications
BC-L70 BC-L160 BC-L500
Power requirements 100 V AC to 240 V AC, 50/60 Hz
Power consumption 168 VA 480 VA 480 VA
Operating temperature 0°C to 45°C (32°F to 113°F)
Dimensions (W x H x D) 2 3/8 x 9 3/8 x 5 3/8 inches
(60 x 237 x 134 mm)
Weight 2 lb 10 oz (1.2 kg) 5 lb 12 oz (2.6 kg) 12 lb 6 oz (5.6 kg)
DC output Max. 16.8 V, 6A –
Number of mountable batteries 2 4 4
Chargable battery BP-GL95A/GL65A/L80S/L60S
Supplied accessories Operation Manual (1), AC power cord (USA only) (1), Plug holder (1)
4 3/4 x 7 1/8 x 11 1/4 inches
(120 x 180 x 285 mm)
17 1/4 x 5 x 9 3/8 inches
(435 x 124 x 235 mm)
Approximate Charge Time
Model name (capacity)
BP-GL95A (98 Wh) 145 290 145 145 145 145
BP-GL65A (66 Wh) 155 190 155 155 155 155
BP-L80S (83.5 Wh) 210 250 210 210 210 210
BP-L60S (64.8 Wh) 150 180 150 150 150 150
4
1 battery 2 batteries 1 battery 4 batteries 1 battery 4 batteries
BC-L70 BC-L160 BC-L500
(Unit: minutes)
Page 5
AC Adaptors
AC-DN10 AC-DN2B
AC Adaptor/Charger
•Max. 100 W DC power supply
•V-mount mechanism for direct attachment to a
compatible camcorder
•XLR-4-pin output for attachment to other equipment
•Compact and lightweight
•Charging capability of a V-mount battery (full charge)
- BP-GL95A/GL65A/L80S/L60S
AC Adaptor/Charger
•Max. 150 W DC power supply
•V-mount mechanism for direct attachment to SRW-1
or a camcorder
•XLR-4-pin output for attachment to other equipment
•Charging capability of a V-mount battery by 85%
capacity
- BP-GL95A/GL65A/L80S/L60S
•Quick charging
- One BP-GL95A battery can be fully charged in
approximately 145 minutes
•Can charge a V-mount battery while supplying DC
power to other equipment
Specifications
AC-DN10 AC-DN2B
Power requirements 100 V AC to 240 V AC, 50/60 Hz
Operating temperature 32°F to 113°F (0°C to 45°C) 32°F to 104°F (0°C to 40°C)
Dimensions (W x H x D) 4 x 6 3/4 x 1 15/16 inches (101 x 169 x 48 mm) 4 x 6 3/4 x 2 7/8 inches (101 x 169 x 70 mm)
Weight 1 lb 14 oz (850 g) 2 lb 2 oz (950 g)
DC output 16.7 V, 6 A 16.7 V, 9 A
Supplied accessories Operational Manual (1), AC power cable cord (angle type) (1)
Approximate Charge Time
Model name (capacity) AC-DN10 AC-DN2B
BP-GL95A (98 Wh) 145* 330**
BP-GL65A (66 Wh) 155* 240**
BP-L80S (83.5 Wh) 200* 330**
BP-L60S (64.8 Wh) 155* 270**
* When using the charging function only.
** Approximate charging time by 85%.
(Unit: minutes)
5
Page 6

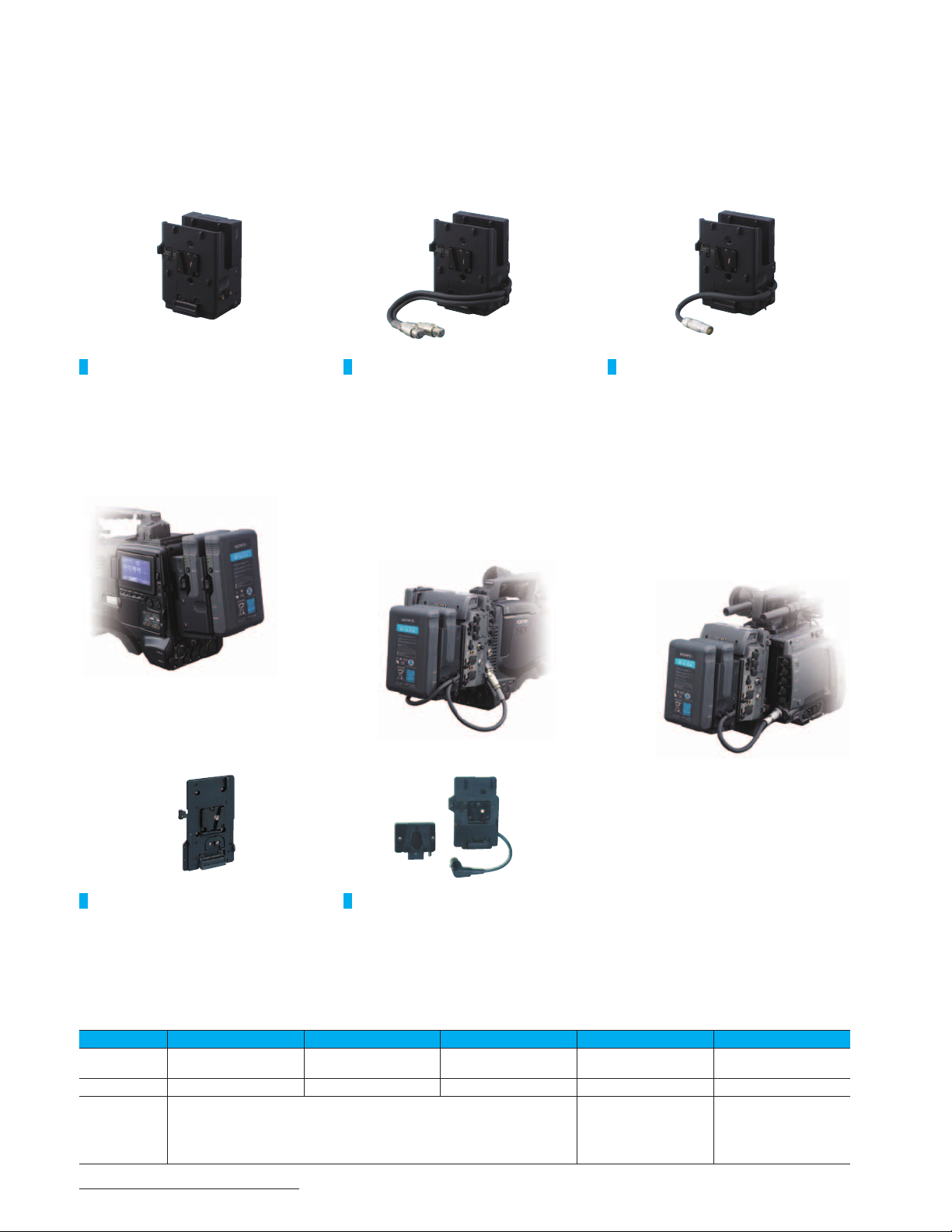

V-mount Battery Adaptors
BKW-L200 BKW-R1 BKW-R4
Dual Battery Adaptor
•Extended operating time
•V-mount mechanism for direct
attachment to an HDCAM™ or
XDCAM
®
camcorder
•One or two BP-GL95A batteries can
be mounted
Dual Battery Adaptor for SR-R1
•Simultaneously supplies power to
both SR-R1 SRMASTER™ portable
recorder and a Sony professional
camcorder
•Two XLR-4-pin (female) DC output
connectors
•One or two BP-GL95A batteries can
be mounted
•Cable length: approximately
11 7/8 inch (300 mm)
BKW-L601 BKP-L551
Dual Battery Adaptor for SR-R4
•Enables DC operation of Sony F65
digital motion picture camera and
SR-R4 SRMASTER portable recorder
•LEMO 8-pin DC output connector
•One or two BP-GL95A batteries can
be mounted
•Approximate 1.8 hours of F65RS
operating time with two BP-GL95A
batteries
•Cable length: approximately
9 7/8 inch (250 mm)
Battery Adaptor
•Enables a non V-mount camcorder
to mount a V-mount battery
Battery Adaptor
•Enables a Sony portable camera to
mount a V-mount battery
•V-shoe attachment for quick and
easy battery change
Specifications
BKW-L200 BKW-R1 BKW-R4 BKW-L601 BKP-L551
Dimensions
(W x H x D)
Weight 1 lb 2 oz (500 g) 1 lb 7 oz (650 g) 1 lb 5 oz (600 g) 4 oz (110 g) 7 oz (200 g)
Supplied
accessory
6
4 5/8 x 5 3/4 x 3 7/8 inches
(115.5 x 144 x 96 mm)
4 5/8 x 5 3/4 x 3 3/8 inches
(115.5 x 144 x 83 mm)
Operation Instructions (1) Operation Guide (1) Operation Manual (1),
4 5/8 x 5 3/4 x 3 3/8 inches
(115.5 x 144 x 83 mm)
3 5/8 x 5 5/8 x 9/16 inches
(89 x 141.4 x 14.2 mm)
3 7/8 x 5 3/4 x 15/16 inches
(98 x 143 x 23.5 mm)
Attachment (1),
Hexagonal wrench (1),
M4 x 16 screws (2),
M4 x 6 screws (3)
Page 7

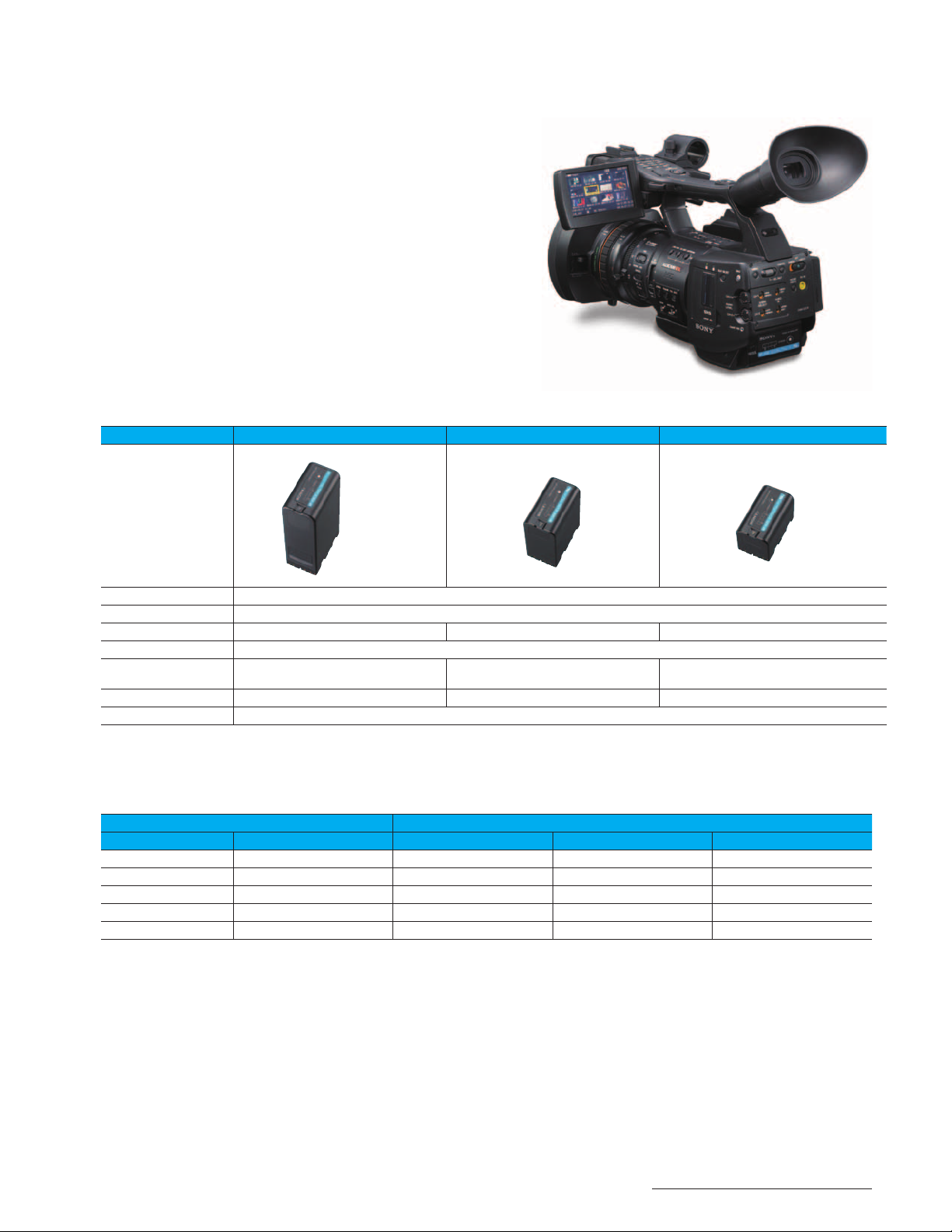

Batteries for XDCAM Handy Camcorders
Sony provides the BP-U Series compact lithium-ion battery for
handy type of XDCAM products. This battery boasts high
power in a compact body.
Compact Battery Lineup
Specifications
BP-U90 BP-U60 BP-U30
Maximum voltage 16.4 V DC
Nominal voltage 14.4 V DC
Nominal capacity 85 Wh 57 Wh 28 Wh
Operating temperature -4°F to +113°F (-20°C to +45°C)
Dimensions (W x H x D) 1 11/16 x 4 7/8 x 2 3/4 inches
(41.5 x 120.7 x 69.7 mm)
Weight 1 lb 6 oz (630 g) 15 oz (420 g) 8 oz (220 g)
Supplied accessory Operating Instructions (1)
1 11/16 x 3 1/4 x 2 3/4 inches
(41.5 x 82.5 x 69.7 mm)
1 11/16 x 1 13/16 x 2 3/4 inches
(41.5 x 45.1 x 69.7 mm)
Approximate Operating Time
Camcorders Batteries (capacity)
Model name Power consumption BP-U90 (85 Wh) BP-U60 (57 Wh) BP-U30 (28 Wh)
PMW-F3L/F3K 18 W* 250 170 –
PMW-100 12 W** 360**** 240 120
PMW-EX3 13.5 W*** 310 210 100
PMW-EX1R 12.5 W** 360 240 120
PHU-220R 4 W – 240 120
– The above operating time may change according to operating conditions.
* Dual-Link OFF, REC mode with viewfinder.
** REC mode with viewfinder.
*** REC mode with color LCD ON.
**** When using the PMW-100 with the BP-U90 attached for extended recording periods, Sony recommends attaching the camcorder to a tripod.
(unit: minutes)
7
Page 8
Compact Battery Chargers and Accessory Kit
BC-U2 BC-U1
Two-channel Simultaneous Battery
Charger
•Simultaneously charges two
Battery Charger
•Charges one BP-U90/U60/U30 battery
•12 V DC power output
ACC-U60
Accessory Kit
•Consists of BC-U2 charger and
a 16 GB SxS-1™ memory card
BP-U90/U60/U30 batteries
•Can charge one battery while
supplying DC power to a camcorder
Specifications
BC-U2 BC-U1
Power requirements 100 V AC to 240 V AC, 50/60 Hz
Power consumption 85 W 38 W
Operating temperature 32°F to 113°F (0°C to 45°C)
Dimensions (W x H x D) 7 x 8 1/8 x 5 1/2 inches (177 x 53.2 x 137 mm) 5 1/8 x 1 13/16 x 3 7/8 inches (128 x 45 x 98 mm)
Weight 1 lb 7 oz (650 g) 12 oz (330 g)
DC output 12 V, 2.0 A
Number of mountable batteries 2 1
Chargable battery BP-U90/BP-U60/U30
Supplied accessories Operating Instructions (1), DC output cable (1), Warranty Booklet (1)
Approximate Charge Time
Model name (capacity)
BP-U90 (85 Wh) 190 190 220
BP-U60 (57 Wh) 150 150 170
BP-U30 (28 Wh) 130 130 130
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
V-2537 (MK10482V3)
1 battery 2 batteries 1 battery
BC-U2 BC-U1
©2012 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Weights and measurements are approximate.
Sony, XDCAM, SRMASTER, HDCAM, SxS-1 and the Sony make.believe logo are trademarks of Sony.
All other trademarks are the trademarks of their respective owners.
(unit: minutes)
Printed in USA (6/12)
Loading...
