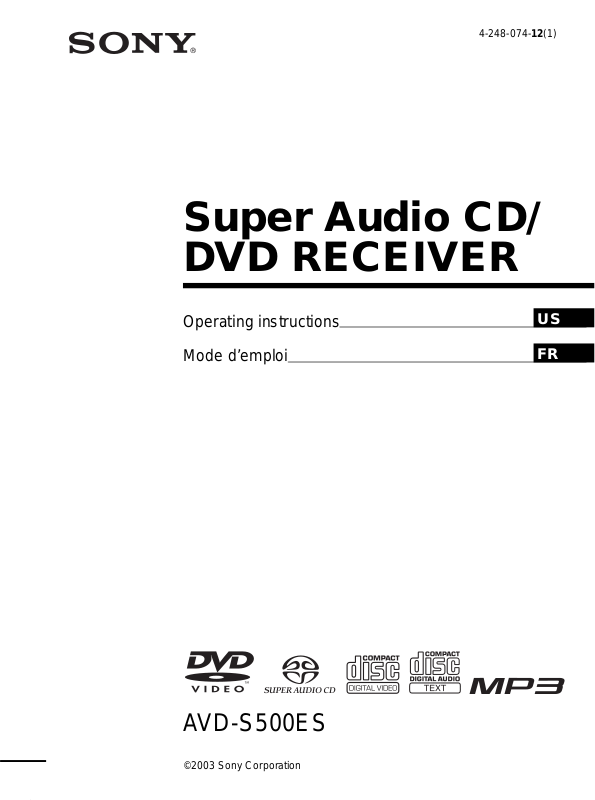

4-248-074-12(1)

Super Audio CD/ DVD RECEIVER

Operating in struction s Mode d’emploi

AVD-S500ES

WARNING

Caution – The use of optical instruments with this product will increase eye hazard.

For the customers in the U.S.A To prevent fire or shock hazard, do not expose the unit to rain or moi st u r e.

This symbol is int ended to alert the user to the presence of uninsulated “d an ge ro u s

voltage” within the pr o duct’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is int ended to alert the user to

the presence of important oper ating and

maintenance (servicing) instructions in the literature accompanying the ap pliance.

Owner’s Record

The model and seri al numbers are l ocated at the rear of the unit. Record the serial number in th e space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. AVD-S500ES Serial No.______________

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectio n aga i nst ha r mf ul interference in a residential installation. This equipment generates, uses, and ca n r adia te radio frequency energy and, if not in sta ll ed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the rec eiv ing antenna. – Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modif icat ions not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 o f th e N E C that provides guidelines for proper ground ing a nd, in particular, specifies that the cable ground shall be connected to the grounding system of the buil ding, as close to the point of cable entry as practical.

For the customers in Canada CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ENERGY STAR registered mark. As an ENERGY STAR Sony Corporation has determine d that this product meets the ENERGY STAR energy efficiency.

is a U.S.

partner,

guidelines for

Precautions

Safety

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel be f or e operating it any further.

• The unit is not disconnected from the ma ins as long as it is connec ted to the mains outlet, ev en if the unit itself has been turned of f .

• Unplug the unit from the wall outlet if you do not intend to use it for an extended per iod of time. To disconnect the cord, pull it out by the plug, nev er by the cord.

Installing

• Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

• Allow adeq u ate air circulation to prevent internal heat buildup.

• Do not place the uni t on surfaces (rugs, blank ets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

• Do not install the unit in an incline d position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ove ns, or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may co nde nse inside the receiver and cause damage to the lenses. When you first install the unit, or when you move it from a cold to a warm location, wait for about 30 minute s be fo re ope r ating the unit.

Welcome!

Thank you for p ur chasing this Sony Su per Audio CD/DVD RECEIVER. Before operating this system, please read this manual thoro u ghly and retain it for future ref erence.

Precautions

On safety

Should any solid object or liquid f all into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.

On placement

• Place the receiver in a location with adequate ventilation to prevent heat build-up in the receiver.

• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction. However, touching the cabinet should be avoided. Do not place the unit in a confined space where ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything on the receiver. The receiver is equipped with a high power amplifier. If the ventilation slots on the top surface are blocked, the unit can overheat and malfunction.

• Do not place the receiver on a soft surface such as a rug that might block the ventilation holes on the bottom.

• Do not place the receiver in a loca tion near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shoc k.

On operation

• If the receiver is brought dire ct ly f r om a col d to a warm location, or is placed in a very damp room , moisture may condense on th e lense s inside the receiver. Should this occur, the receiver may not operate properly. In this case, remove the disc and leave the receiver turned on for abou t ha lf an hour until the moisture evapor ates.

• When you move the receiver, take out any disc. If you don’t, the disc may be damaged.

• For power saving purposes, the receiver can be completely turned off by the POWER button on the main unit. Though the LED remains lit for a while, the receiver is completely off.

continued

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio sig na ls. If you do, the speakers may be damaged when a pea k le ve l section is played.

On cleaning

Clean the cabinet, p anel, and co ntrol s with a s oft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine . If you have any questions or problems concerning your receiver, please consult your nearest Sony dealer.

On cleaning discs

Do not use a commercially available CD/ DVD cleaning disc. It may cause a malfunction.

On your TV’s color

If the speakers should cause the TV screen to have color irregularit y, tu rn o ff the T V at on ce the n tur n it on after 15 to 30 minutes. If color irregularity should persist, place the speakers farther away from the set.

The nameplate is located on the rear of the unit.

IMPORTANT NOTICE

Caution: This receiver is capabl e of holding a still video image or on-screen displa y image on your television screen indefinitely. If you leave the still video image or on-screen displa y image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

On moving the receiver

When you carry the receiver, use th e following procedure to protect the inner mechanism. Remove the disc. “NO DISC” is displayed in the front panel display. Turn off the receiver and remove the AC power cord from a wall outlet.

Table of Contents

Welcome!................................................3

Precautions..............................................3

About this Manual...................................7

This receiver Can Play the Following

Discs .................................................7

Terms for discs........................................7

Notes about Discs...................................9

Guide to the Control Menu Display......11

Getting Started

Unpacking.............................................13

Inserting Batteries into the Remote.......13

Step 1: Speaker System Hookup...........14

Step 2: Antenna Hookups .....................17

Step 3: TV and Video Component

Hookups..........................................19

Step 4: Connecting the AC Power Cord

(mains lead)....................................21

Speaker Setup........................................22

Playing Discs

Playing Discs ........................................23

Resuming Playback from the Point Where

You Stopped the Disc .....................25

(Resume Play)

Using the DVD’s Menu........................26

Playing VIDEO CDs with PBC Functions

(Ver. 2.0).........................................26

(PBC Playback)

Playing an MP3 Audio Track ...............27

Playing JPEG Image Files ....................29

Creating Your Own Program ................31

(Program Play)

Playing in Random Order .....................32

(Shuffle Play)

Playing Repeatedly...............................33

(Repeat Play) Searching for a Particular Point on a

Disc.................................................34

(Scan, Slow-motion Play) Searching for a Title/Chapter/Track/

Index/Album/File............................35

Viewing Disc Information ....................37

Sound Adjustments

Changing the Sound..............................42

Enjoying Surround Sound ....................44

Selecting the Surround Back Decoding

Mode...............................................48

Selecting the Decode Priority...............49

Changing the Speaker Impedance

Value .............................................. 50

Using Various Additional Functions

Changing the Angles............................ 51

Displaying Subtitles.............................. 52

Adjusting the Playback Picture.............53

(PICTURE MODE)

Locking Discs .......................................54

(CUSTOM PARENTAL

CONTROL, PARENTAL

CONTROL)

Other Operat io n s

Controlling Other Unit s with the Suppl ied

Remote ........................................... 59

Using Other Units.................................62

Enjoying the Radio............................... 62

Changing the Brightness of the Front

Panel............................................... 65

Settings and Adjustments

Using the Setup Display .......................66

Setting the Display or Sound Track

Language........................................ 67

(LANGUAGE SETUP)

Settings for the Display........................68

(SCREEN SETUP)

Custom Settings.................................... 69

(CUSTOM SETUP)

Settings for the Speakers ...................... 70

(SPEAKER SETUP)

continued

Additional Inform ation

Troubleshooting....................................74

Specifications........................................77

Glossary................................................78

Index to Parts and Controls...................81

Language Code List..............................85

DVD Setup Menu List..........................86

Index .....................................................88

About this Manual

• The instructions in this manual describe the controls on the remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote.

• The following symbols are used in this manual.

Symbol Meaning

Functions available for DVD VIDEOs and DVD-Rs/DVD-RWs in video mode or DVD+Rs/ DVD+RWs in video mode

Functions avai la ble in VIDEO CD mode

Functions avai la ble in CD mode

Functions available in Super Audio CD and Audio CD mode

Functions available for MP3* audio tracks

Functions avai la ble for JPEG files

* MP3 (MPEG1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

This receiver Can Play the Following Discs

Format of discs

DVD VIDEO

Super Audio CD

VIDEO CD

Disc logo

Format of discs

Audio CD

CD-R/CD-RW (audio data) (MP3 files) (JPEG fil es)

The “DVD VIDEO” logo is a trademark.

Disc logo

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

• Chapter

Section of a picture or a music piece that is smaller than titles. A title is composed of several chapters . Depending on the di sc, no chapters may be record ed.

• Album

Section of a music piece or an image on a data CD containing MP3 au di o t ra cks or JPEG files.

• Track

Section of a picture or a m usic piece on a VIDEO CD, Super Audio CD, CD, or MP3.

• Index (Super Audio CD, CD) / Video

Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD, Super Audio CD or CD. Depending on the disc, no indexes ma y be recorded.

• Scene

On a VIDEO CD with PBC functions (page 26), the menu scre ens, moving pictures and still pictures ar e di vided into sections called “sce nes.”

• File

Section of a picture on a da ta C D containing JPEG image files.

continued

Disc

DVD structure

VIDEO CD, Super Audio CD, or CD structure

MP3 structure

JPEG structure

Title

Chapter

Track

Index

Album

Track

Album

File

Disc

Note on PBC (Playback Control) (VIDEO CDs)

This receiver conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback depending on the disc type.

Disc type You can

VIDEO CDs without PBC functions (Ver. 1.1 discs)

VIDEO CDs with PBC functions (Ver. 2.0 discs)

Enjoy video playback (moving pictures) as well as music.

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play highresolution still pictures, if they are included on the disc.

About Multi Session CD

• This rece i ver can play Multi Session CDs when an MP3 aud io tr ac k is contained in the first session. Any subsequent MP 3 audio tracks recorded in later session s can also be played back.

• This rece i ver can play Multi Session CDs when a JP EG image file is cont a ined in the first sessio n. Any subse quent JPEG i mage files recorded in later sessions can also be played back.

• If audio trac ks and i mages i n musi c CD form at or video CD form at are recorded in the f irst session, only the first session will be played back.

Region code

Your receiver has a region code printed on the back of the unit and will only play DVDs labelled with the same region code.

DVDs labelled will also play on this

ALL

receiver. If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV scree n. D epending on the DVD, no region code indication may be given even though playing the DVD is prohibited by area restrictions.

Examples of discs that the receiver cannot play

The receiver cann ot play the followi ng di scs:

• CD-ROMs (except for extension “.MP 3,” “.JPG,” or “.JPEG” )

• CD-Rs/CD-RWs other t han those recorded in the following formats:

– music CD format – video CD format – MP3/JPEG format that conforms to

ISO9660* Level 1/Level 2, or its extended format, Joliet

• Data part of CD-Extra s

• DVD-ROMs

• DVD Audio discs

• DVD-RAMs

• DVD-RWs in VR (Video Recording) mode

• DVD+RWs in VR (Video Recording) mode

• Progressive JPEG file

* A logical format of files and folders on CD-ROMs,

defined by ISO (International Standard Organization)

Do not load the follo wing discs:

• A DVD with a different region code (page 8,

79).

• A disc that is n ei ther standard nor circular (e.g., card, heart, or star shape).

• A disc with paper or sticker s on it.

• A disc that has adhesive or cellopha ne tape stil l left on it.

Notes about CD-R/CD-RW/DVD-R/DVD-RW (Video mode)/DVD+R/DVD+RW (Video mode)

In some cases, CD-R/CD-RW/DVD-R/DVD-RW (Video mode)/DVD+R/DVD+RW (Video mode) cannot be played on this player due to the rec or ding quality or physical condition of th e disc, or the characteristics of the recordi ng de vic e and a uthoring software. The disc will not play if it has not been correctly finalized. For more informat ion, se e the ope r ating instructions for the recor d ing device. Note that discs created in the Packet Write format cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standar d.

Recently, various music discs encoded with copyright protection technol o gies ar e mark eted by some record companies. Please be aware that am ong those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this receiver plays DVDs and VIDEO CDs according to the disc contents the software producers designed, som e playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

home and other limited viewing uses onl y unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolb y* Digital and Dolby Pro Logic ( II) adaptive matrix surround decoder and the DTS** Digi t al Surround System.

* Manufactured under license f ro m Dolby

Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

**Manufactured under license from Digital Theater

Systems, Inc. “DTS”, “DTS-ES” and “Neo:6” are trademarks of Digital Theater Systems, Inc.

Notes about Discs

On handling discs

• To keep the disc clean, handle the d isc by its edge. Do not touch the surface.

• Do not stick paper or tape on the di sc .

• Do not expose the disc to direct sunlight or heat sources such as hot air du cts, or l eave it in a car parked in dir ect sunlight as the temperature may rise considerably inside the car.

• After pl aying, store the disc in its case.

On cleaning

• Before pl aying, clean the disc w ith a cleaning cloth. Wipe the disc from the center out.

Copyrights

This product i ncorporates copyright protection technology that is protected by U.S. patents and other intellectual pro perty rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for

continued

• Do not use s o l vents such as benzine, thinner, commercially available clean ers, o r an ti-sta tic spray intended for viny l LPs.

This receiver can onl y play back a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star sha pe) may cause a malfunction.

Do not use a disc that has a commercially available accessory attached, such as a label or ring.

Guide to the Control Menu Display

Use the Control Menu to select a function that you would like to use. The Control Menu display appears when the DVD DISPLAY button is pressed. For details, refer to the page in parentheses.

Total number of Currently playing title number (Video CD/ Super Audio CD/CD: track number)

Disc name or disc

Currently playing chapter number (Video CD/Super Audio CD/CD: index number)

Playing time

Icon of selected Control Menu item

Control Menu items

type

titles or tracks

recorded

Currently playing title name

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4

1 : 3 2 : 5 5

1: ENGLISH

2: FRENCH

3: SPANISH

Total number of chapters or indexes recorded

Playback status (NPlayback, XPause, xStop, etc.)

DVD

Type of disc being played back

Current setting Options

Function name of selected Control Menu item

Operation message

SUBTITLE Select:

List of Control Menu Items

DISC Displays the disc name or the disc type inserted into the

TITLE (DVD only) (page 35)/ SCENE (only VIDEO CD in PBC playback) / TRACK (VIDEO CD only) (page 35)

CHAPTER (DVD only) (page 36)/ INDEX (VIDEO CD only) (page 36)

ALBUM (MP3 only) (page 28, 35) Selects the album (MP3) to be play ed .

TRACK (Super Audio CD/ CD/MP3 only) (page 28, 35)

INDEX (Super Audio CD/CD only) (page 36)

TIME (page 37) Checks the elapsed time and the remaining playback time.

AUDIO (DVD/VIDEO CD/Super Audio CD/CD/MP3 only) (page42)

SUBTITLE (DVD only) (page 52) Displays the subtitles.

ENTER

receiver.

Selects the title (DVD), or the track (VIDEO CD) to be played. Displays the scene (V I D E O CD in P BC playback).

Selects the chapter (DVD) or the index (VIDEO CD) to be played.

Selects the track (Super Audio CD/CD/MP3) to be played.

Displays the index and selects the index (Super Audio CD) to be played.

Inputs the time code for picture and music searching.

Changes the audio setting.

Changes the subtitle language.

continued

ALBUM (JPEG only) (page29, 35) Selects the album (JP EG ) to be played. FILE (JPEG only) (page 29, 35) Selects the file (JPEG) to be played. DATE (JPEG only) (page 41) Displays the date information. ANGLE (DVD onl y) (p a ge 51) Changes the angle. PLAYMODE (VIDEO CD/Super

Audio CD/CD/MP3/JPEG only) (page32)

REPEAT (page 33) Plays the entire disc (all titles/all tr ac ks), one title/chapter/

PICTURE MODE (DVD/VIDEO

CD/JPEG only) (page 53)

CUSTOM PARENTAL CONTROL

(page 54)

Tips

• Each time you press DVD DISPLAY, the Control Menu display changes as follows: Control Menu display

Selects the play mod e.

track/album, or contents of pr ogr a m repe a te dl y .

Adjusts the video signal from the receiver in various ways. Selects the setting that suits the program you are watching.

Sets the disc to prohibit p la ying.

Control Menu display off

The Control Menu items vary, depending on the disc.

• The Control Menu icon indic a tor lights up in green t unless you set the REPEAT setting to

“OFF.”

• The “ANGLE” indicator lights up in green only when multiple angles are recorded on the disc.

• The “PICTURE MODE” indicator lights up in green i f “STANDARD” is not selected.

Getting Started

Unpacking

Check that you have the following items:

• AM loop antenna (1)

• FM wire antenna (1)

• S Video co rd (1)

• Remote Commander (remote) RM-SP50 0 (1)

• R6 (size AA) batteries (2)

• Operating instructions (1)

Inserting Batteries into

Getting Started

the Remote

You can control the receiver using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote s ensor on the receiver.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replac ing th e ba tteries.

• Do not expose the remote senso r to dir ect li ght from the sun or lighting apparatus. Doi ng so ma y c au se a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corros ion.

• When you operate the receiver, select DVD or TUNER function.

Step 1: Speaker System Hookup

You can enjoy surround sound by connecting 6 speakers (front L/R speakers, center speaker, surround L/R speakers, surround back spea ker) and active subwoofer to the receiver. If you do not connect 6 speakers and active subw oofer to the receiver, the receiver offers the means to optimize the signal depending on the number of connected speakers. When you connect 2 speakers to the receiver, connect the speakers to the SPEAKERS FRONT L/R jacks.

Notes

• Be sure to match the speaker cords to their appropriate terminal: 3 to 3, # to #, L to L, and R to R jack.

• Use high performance speakers.

• Use suitable sized speakers of sim il ar pe rformance for the front, center, surround and surr ound back speakers.

• To obtain the best possible surrou nd sound, specify the speaker paramete r s (s iz e , dis ta nc e, level, etc.) on page 70.

Terminals for conne cting the speakers

Connect To the

Front speakers SPEAKERS FRONT L and R terminals Surround speakers SPEAKERS SURROUND L and R terminals Surround back speaker SPEAKERS SURROUND BACK terminal Center speaker SPEAKERS CENTER terminal Subwoofer SUBWOOFER AUDIO OUT jack

Getting Started

ANTENNA

FM 75

COAXIAL

COAXIAL IN TV/SAT

TV/SAT VIDEO2

OPTICAL IN OPTICAL

DIGITAL

AUDIO

OUT

TV/SAT

Front speaker (R)

+–

Surround speaker (R)

COMPONENT VIDEO OUT

(DVD ONLY)

B/CBPR/CR

AUDIO

VIDEO2

VIDEO1

–

MONITOR

TV/SAT

VIDEO2

VIDEO1

S VIDEO

BACK

Center speaker

MONITOR

VIDEO

OUT

Subwoofer

S VIDEO

OUT

(active type)

Surround back speaker

TV/SAT

VIDEO2

VIDEO1

VIDEO

SURROUND

SPEAKERS

+–

L R L

CENTER FRONT

IMPEDANCE USE 4-16

+–

Front speaker (L)

Surround speaker (L)

AUDIO OUT

SUB

WOOFER

+–

continued

Note for connecting the speaker cords to the receiver

Remove about 10 mm (3/8 inch) of insulation at the end of the cord, then twist the exposed wires. Connect the stripped ends of the cords to the terminals, taking care to avoid contact between the cords. Make sure the cor ds are firmly connected to the speak er and receiver terminals.

10 mm

(3/8 in.)

To avoid short -circuiting the speakers

Short-circuiting of the speakers may damage the receiver. To prevent this, be su re to follow these precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch another speaker terminal or the bare wire of another speaker cord.

Examples of poor speaker cord connection

Stripped speaker cord is touching another speaker terminal.

Stripped cords are touching each other due to excessive removal of insulation.

After connecting all the components, speakers , and AC power cord (mains lead) , outpu t a test to ne to check that all the speakers are connec te d correctly. For det ai ls on outputting a test to ne, see page 72. If no sound is heard from a speaker while output t i ng a test tone, or a test tone is output from a speaker other than the one curren tly disp laye d in the f ront pa nel disp lay, the spe aker may be shor t-cir cuited. If this happens, check t he speaker connectio n again.

Notes

• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords are reversed, the sound will be distor te d and will lack bass.

• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

• When connecting the stripped ends of the speaker cords, make sure the ends do not touch each other or neighbouring terminals.

Step 2: Antenna Hookups

Connect the supplied AM/FM anten nas for listening to the radio.

Terminals for conne ct ing the antennas

Connect the To the

AM loop antenna AM terminals FM wire antenna FM 75Ω COAXIAL j ack

AM loop antenna

Getting Started

COAXIAL IN TV/SAT

COAXIAL

ANTENNA

TV/SAT VIDEO2

OPTICAL IN OPTICAL

DIGITAL

OUT

COMPONENT VIDEO OUT

AUDIO

TV/SAT

VIDEO2

MONITOR

TV/SAT

VIDEO2

VIDEO1

MONITOR

TV/SAT

VIDEO2

S VIDEO

(DVD ONLY)

B/CBPR/CR

AUDIO

VIDEO1

S VIDEO

OUT

BACK

VIDEO1

VIDEO

SURROUND

L R L

SPEAKERS

CENTER FRONT

IMPEDANCE USE 4-16

AUDIO

SUB

WOOFER

OUT

FM wire antenna

Notes

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

• When you connect the supplied AM loop antenna, connect the black cord (A) to the U terminal, and the white cord (B) to the other terminal.

continued

If you have poor FM reception

Use a 75-ohms coaxial cable (not supplie d) to con ne ct the receiver to an outdoor FM antenna as shown below.

Outdoor FM antenna

Receiver

ANTENNA

COAXIAL

Earth wire

(not supplied)

To earth

Note

If you connect the receiver to an outdoor antenna, ground it to protect against lightning. To prevent a gas explosion, do not connect the earth wire to a gas pipe.

Step 3: TV and Video Component Hookups

Required cords

S Video cord for connecting a TV monitor

Audio/Video cords (not supplied)

When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.

Yellow (Video)

White (L/audio)

Red (R/audio)

Jacks for connecting video components

Connect a To the

TV monitor MONITOR (S VIDEO OUT or VIDEO OUT) jack VCR VIDEO 1 or VIDEO 2 (S VIDEO IN or VIDEO IN/AUDIO L/R IN) jacks Digital satellite receiver TV/SAT (S VIDEO IN or VIDEO IN/AUDIO L/R IN) jacks

Note

When the receiver is not set to “DVD” mode, no signa l is output from the COMPONENT VIDEO OUT jacks.

Tip

When using the COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR) instead of the S Video jack s or the Video jacks, your TV monitor must also be connected via COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR). If your TV accepts progressive format signals, you must use this connection and set “COMPONENT OUT” to “PROGRESSIVE” in “SCREEN SETUP” (page 69).

Getting Started

continued

TV with COMPONENT VIDEO IN jacks

COMPONENT

VIDEO IN

PB/C

PR/C

TV with

S VIDEO IN jack

INPUT

S VIDEO

INPUT

VIDEO

COAXIAL IN TV/SAT

COAXIAL

FM 75

ANTENNA

OPTICAL IN OPTICAL

TV/SAT VIDEO2

DIGITAL

OUT

COMPONENT VIDEO OUT

AUDIO

TV/SAT

VIDEO2

MONITOR

TV/SAT

VIDEO2

VIDEO1

MONITOR

TV/SAT

VIDEO2

S VIDEO

(DVD ONLY)

B/CBPR/CR

AUDIO

VIDEO1

S VIDEO

OUT

BACK

VIDEO1

VIDEO

SURROUND

SPEAKERS

OUT

ININ

L R L

CENTER FRONT

IMPEDANCE USE 4-16

AUDIO OUT

SUB

WOOFER

OUTOUT OUT OUTOUT

S VIDEO

OUT

AUDIO

OUT

OUTPUT

OPTICAL

Digital satellite receiver

S VIDEO

OUT

AUDIO

OUT

AV MULTI OUT

VCR

DIGITAL OUT

(OPTICAL)

PlayStation 2

If you connect a digital satellite receiver with an OPTICAL OUT jack or a COAXIAL OUT jack

The digital satellite re ceiv er c an b e co nnecte d to th e TV/ SAT (OPTICAL or COAXIAL) INPUT jack instead of the AUDIO IN L/R jacks of the receiver. The receiver can accept both the digital and analogue signals. Digital signals have priority ov er analogue signals . I f th e digital signal ceas es, the analogue sig nal w ill be processed after 2 seconds.

If you connect a digital satellite receiver without an OPTICAL OUT jack

Connect the digital sat ell ite receiver to the S VIDEO IN or VIDEO IN and AUDIO IN L/ R jacks only of the receiver.

To listen to the TV or game machine (ex: PlayStation 2) sound by using the receiver

Connect the audio output jacks of the TV or game machine to the VIDEO 2 (AUDIO L/R IN or OPTICAL IN) jacks of the receiver.

Step 4: Connecting the AC Power Cord (mains lead)

Before connecting the AC power cord (mains lead) of this receiv er to a wall outlet (mains) , connect the speakers to the receiver (see page14).

Getting Started

Speaker Setup

For the best possible surround sound, all the speakers other than the subwoofer should be the same distance from the listening position (A). However, this receiver allows you to place the center speaker up to 1.5 metres a) closer (B) and the surround and the surround back speakers up to 4.5 metres b) closer (C, D) to the listening position. The front speakers can be placed from 0.9 to

6.9 metres c) (A) from the listening position.

Canadian numerical equivalents: a) 5 feet (1.5 metres) b) 15 feet (4.5 metres) c) 3 to 23 feet (0.9 to 6.9 metres)

Place speakers as illustrate d belo w

When color irregularity occurs on the TV

If speakers are i nstalled too close, color irregularity may occur on the screen. If color irregularity occurs, tu rn off the TV set once, th en turn it on after 15 to 30 minutes. If color irregularity occurs again, place th e s ubw oofer farther away from the TV set. If color irregularity still occurs after performing the above, make sure that no magnetic object is placed near the subwoofer. Color irregularity may occur as a result of interaction between the subwoofer and the magnetic object. Examples of possib le sources of magnetic interference include: magnetic latches on a TV stand, etc., healthcare devices, toys, etc.

Specifying the speaker parameters

A A

Note

Do not place the center, surround and the surround back speakers farther away from the listening position than the front speakers.

To obtain the best possible surround sound, first specify the size and the distance of the speakers from your listening position, then set the level and balance. Use the test tone to adjust the speaker level and balance to the same lev el . Select “SPEAKER SET U P” i n t he setup display. For details, see “Settings for the Speakers” (page 70). Also change th e i mpe dan ce val ue de pend in g on your speaker’s impedance. For details, see “Changing the Speaker Impedance Value” (page 50).

Playing Discs

Depending on the DVD or VIDEO CD, some operations may be different or rest ricted. Refer to the operat ion det ails su pplied with you r disc.

STANDBY indicator

POWER

Connect headphones

DVD

FUNCTION –/+

POWER

STANDBY

SOUND FIELD

A. F. D.2CH

MODE

TUNER/PRESET FUNCTION

PHONES

DISPLAY

Disc tray

VOLUME

Adjust the volume

"/1

OPEN/CLOSE

1 Turn on your TV. 2 Switch the input selector on the TV to

this receiver.

3 Press POWER on the receiver.

The receiver enters standby mode and the STANDBY indicato r l i ght s up in red.

4 Press Z on the receiver or OPEN/

CLOSE on the remote, and place a disc with the label side up on the disc tray.

The receiver automatically tu rns on and the STANDBY indicator turns off.

When you play an 8 cm disc, place it on the inner circle of the tray

5 Press H.

The disc tray closes, and the receiver starts playback (continuous play). Adjust the volume on the receiver.

After following Step 5

Depending on the di sc, a menu may appear o n the TV screen. You can play the disc interactively by followin g the instructions on th e menu. (DVD: page 26), (VIDEO CD: page 26).

To remove the disc

Press Z on the receiver or OPEN/CLOSE on the remote. “OPEN” appears in the front panel display. Remove the disc after the disc tray slides out from the receiver.

To turn on the receiver

Press POWER on the receiver. The receiver enters standby mode and the STANDBY indicator lights up in red. Press "/1 on the remote. The receiver turns on and the STANDBY indicator turns off. In standby mode, the receive r al so turns on by pressing Z, FUNCTION –/+ or N on the receiver or by pressing DVD, OPEN/CLOSE or H on the remote.

Playing Discs

continued

To turn off the receiver

Press "/1 on the remote. The receiver enters standby mode and the STANDBY indicator lights up in red. To turn off the receiver completely, pre ss PO WER on the receiver . While playing a disc, d o not turn of f the receive r by pressing POW ER. Doing so may canc el th e menu settings. When you turn off the receiver, first press x to stop playback and then press "/1 on the remote.

Saving power in standby mode

Press "/1 on the remote once.

Tip

While the receiver is in standby mode, the STANDBY indicator on the receiver lights up.

To cancel standby mode

Press "/1 on the remote once.

Additional operations

./>

To Press

Stop play and remove the disc

Mute the sound MUTING. To cancel

* You cannot pause during JPEG playback.

Notes

• Do not push the disc tray when closing it. Press Z on the receiver or OPEN/CLO SE on the r emot e to clo se the disc tray.

• If DVD playback is paused for approximately one hour, the receiver automatically turns off.

Z on the receiver or OPEN/CLOSE on the remote.

muting; press it again or VOLUME + to adjust the sound volume.

To Press

Stop x Pause* X Resume play from pause X or H Go to the next chapter,

track, scene, or file in continuous play mode

Go back to the preceding chapter, track, scene, or file in continuous play mode

OPEN/ CLOSE

VOLUME +/–

MUTING

Resuming Playback from the Point Where You

Tip

To play from the beginning of the disc, press x twice, then press H.

Stopped the Disc

(Resume Play)

When you stop the disc, the receiver remembers the point where you pressed x and “RESUME” appears in the front panel display. As long as you do not remove the di sc, Resume Play will work even if the receiver enters standby mode by pressing "/1.

1 While playing a disc, press x to stop

playback.

“RESUME” appears in the front panel display, so you can restart the disc from the point where you stop ped the disc. If “RESUME” does not appear, Resume Play is not available.

2 Press H.

The receiv er starts playback from the point where you stopped the disc in Step 1.

Notes

• Depending on where you stop the disc, the receive r may not resume playback fro m ex act ly the same point.

• The point where you stopped playing is clea red if:

– you change the play mode. – you change the setting on the Setu p Me nu.

Playing Discs

Using the DVD’s Menu

Playing VIDEO CDs with PBC Functions (Ver. 2.0)

A DVD is divided into long sections, which make up a picture or music feature. Thes e sections are called “titles.” When you play a DVD which contains several titles, you can select the title you want using TOP MENU/ GUIDE. When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound , select these items using AV MENU.

Number buttons

TOP MENU/ GUIDE

ENTER

C/X/x/c

AV MENU

1 Press TOP MENU/GUIDE or AV MENU.

The disc’s menu ap pears on the TV screen. The contents of the menu vary from disc to disc.

2 Press C/X/x/c or the number buttons to

select the item you want to play or change.

3 Press ENTER.

Note

If the DVD top menu or a DVD menu is displayed during DVD playback for approximately one hour, the receiver automatically turns off.

(PBC Playback)

With PBC (Playback Control) functions, you can enjoy simple interactive operat ions, search functions, and ot her such operatio n s . PBC playback allows you to play VIDEO CDs interactively by following the menu on the TV screen.

Number buttons

./>

ENTER

X/x

O RETURN/

EXIT

1 Start playing a VIDEO CD with PBC

functions.

The menu for your sel ection appears.

2 Select the item number you want by

pressing X/x or the number buttons.

3 Press ENTER. 4 Follow the instructions in the menu for

interactive operations.

Refer to the operation de tails supplie d with the disc, as the operating procedure may differ, depending on the VIDEO CD.

To go back to the menu

Press O RETURN/EXIT.

Notes

• Depending on the VIDEO CD, the menu does not appear in Step 1.

• Depending on the VIDEO CD, “Press ENTER” in Step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

Tip

To play without using PBC, press ./> or the number buttons w hile the receiver is stopped to select a track, then press H or ENTER . “Play without PBC” appears on the TV screen and the receiver starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice, then pre ss H.

Playing an MP3 Audio Track

Playing Discs

You can play MP3 a udi o tracks on CD-ROMs, CD-Rs, or CD-RWs. However, the di scs must be recorded according to ISO9660 level 1, level 2, or Joliet format for t he rece iver to rec ognize the tracks. You can also pla y discs rec orded in Mult i Session. See the instructions of the CD-R/RW device or recording software (not supplied) for details on th e recording format.

1 Load a data disc recorded in MP3 into

the receiver.

2 Press H.

The receiver starts to play the first MP3 audio track in the first album on the disc.

Notes

• The receiver can play MP3 (MPEG1 Audio Layer3) audio. The receiver cannot play audio tracks in MP3PRO format.

• This receiver can play Multi Sessio n CDs when an MP3 audio track is located in the f ir st se ssion. Any subsequent MP3 audio tracks, rec or de d in the la te r sessions, can also be played back.

• Maximum number of albums on a disc: 99 (The maximum number of MP3 audio tracks that can be contained in an album is 250.)

• An album that does not include an MP3 audio track is skipped.

• If you put the extension “.MP 3” to da ta no t in MP 3 format, the receiver canno t recognize the data properly and will generate a loud nois e which c ould damage your speaker system.

• If the receiver cannot play MP3, remove the disc and select “CUSTOM SETUP” from the set up items. Then select “DATA CD PRIORITY” and set to “MP3” (page 70) and insert the disc again.

• The receiver can p lay to a depth of 8 directories.

continued

Selecting an album and track

ALBUM– ALBUM+

ENTER

C/X/x/c

DVD DISPLAY

O RETURN/ EXIT

1 Press DVD DISPLAY.

The Control Menu an d name of the MP3 data disc appear.

2 Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contained in the disc appears.

HOME TOWN

ROCK BEST HIT KARAOKE JAZZ R&B MY FAVORITE SONGS CLASSICAL SALSA OF CUBA BOSSANOVA

MP3

3 Select an album you want to play using

X/x and press ENTER.

4 Select (TRACK) using X/x

and press ENTER.

The list of tracks conta ined in the current album appear s.

HOME TOWN

ROCK BEST HIT

HIGHWAY1.

VIEW POINT

MY CHILDREN

DANCING

GOOD TASTE

DESTINATION

MARATHON

PLACE-KICK

TAKE IT EASY

10.

PORT TOWER

11.

STANDARD

MP3

When the list of all tracks or albums cannot be displaye d on the window, the jump bar appears. Press c to select the jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. Press C or O RETURN/EXIT to return to the track or the album list.

5 Select a track using X/x and press

ENTER.

The selected track starts playing.

To return to the previous display

Press O RETURN/EXIT or C.

To turn off the Control Menu

Press DVD DISPLAY.

Notes

• Only alphabetical letters and numbers can be used for album or track names. Anything els e is displ ayed as “ ”.

• If the MP3 file you play back has an ID3 tag, the ID3 tag information is displaye d as a tra ck na m e.

• ID3 tag applies only to version 1.

• If an MP3 file of VBR (variable bit rate) is played, indicated elapsed time ma y be di fferent from the actual time.

Tip

When an MP3 data disc is inserted, you can select an album using the ALBUM– or ALBUM+ on the remote.

Playing JPEG Image Files

Selecting an album and file

You can play JPEG image files on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2 or Joliet format for th e re ceiver to re cognize t he files. You can also play discs record ed in Multi Session. See the instructions of the CD-R/RW device or recording software (not supplie d) for details on the recording format.

1 Load a data disc recorded in JPEG into

the receiver.

2 Press H.

The receiver starts to play the first JPEG image file in th e fi rst album on the disc.

Notes

• The receiver can play the extension “.JP G” or “.JPEG.”

• The receiver can play Multi Session CDs.

• Maximum number of albums on a disc: 99 (The maximum number of JPEG image files that can be contained in an album is 250.)

• An album that does not include a JPEG file is skipped.

• When the receiver cannot play JPEG, remove the disc and select “CUSTOM SETUP” from the setup items. Then select “DATA CD PRIORITY” and set to “JPEG” (page 70) and insert the disc again.

• A JPEG image file of a length or width of more than 4,720 dots cannot be played.

• Some CD-Rs or CD-RWs cannot be played on this receiver depending on file format.

• The receiver can play to a depth of 8 directories.

• Progressive JPEG image files cannot be played on this receiver.

ALBUM–

ENTER

C/X/x/c

DVD DISPLAY

ALBUM+

O RETURN/ EXIT

1 Press DVD DISPLAY.

The Control Menu and name of the JPEG data disc appear.

2 Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contained in the disc appears.

MOUNTAIN

FAMILY FLOWER GARDEN TRAIN CAR

JPEG

3 Select an album you want to play using

X/x and press ENTER.

4 Select (FILE) using X/x and

press ENTER.

The list of files contained in the curren t album appears.

MOUNTAIN

FAMILY

HAPPY1.

BIRTHDAY

CELEBRATION

CHRISTMAS

MOM

BASEBALL

PARTY

DAD

TRAVEL

10.

FRIEND

11.

DRIVE

JPEG

Playing Discs

continued

When the list of all files or albums cannot be displayed on the w indow, the jump bar appears. Press c to select the jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. P ress C or O RETURN/EXIT to return to the file or the album list.

5 Select a file using X/x and press

ENTER.

The selected file starts playing.

To return to the previous display

Press O RETURN/EXIT or C.

To turn off the Control Menu

Press DVD DISPLAY.

Note

Only alphabetical letters and num be r s can be use d for album or file names. Anything else is disp la ye d as “ ”.

Tip

When a JPEG data disc is inserted, you can select an album using the ALBUM– or ALBUM+ on the remote.

Enjoying Sli de Show on a JPEG data disc

To change the interval time of Slide Show

Each time you press M during Slide Show, the interval time changes. With each press, the indication chan ges as follows:

FF1M t FF2M t FF3M

FF3M interval time is faster than FF2M.

Note

Slide Show can play in only one direction.

To rotate the current image

C/c

1 Press M while displaying a JPEG

image.

Slide Show starts from the current image.

2 Press H when you want to exit Slide

Show.

Return to norm al play from the current image.

Rotate the current image using C/c

Each time you press c, the image turns clockwise by 90°. Each time you press C, the image turns counterclockwis e by 90°.

Note

You cannot rotate an image during Sli de Show. Pre ss H to return to normal play before this operation.

Creating Your Own Program

(Program Play)

You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own Program. You can program up to 25 steps .

PLAY MODE

Number buttons

ENTER

C/X/x/c

REPEAT

CLEAR

O RETURN/ EXIT

1 In stop mode, press PLAY MODE

repeatedly until “PROGRAM” appears in the front panel display.

The program menu appears on the TV screen.

Program Total Time 0:00

1 2 3 4 5 6 7 8 9

2 Press c.

The cursor moves to the track (i n t his case , “1”). Before programming the MP3 tr acks, it is required to select the album.

Program

1 2 3 4 5 6 7 8 9

Track

1 2 3 4 5 6 7 8 9

TRACK1 TRACK2 TRACK3 TRACK4 TRACK5 TRACK6 TRACK7 TRACK8 TRACK9 TRACK10

Total Time 0:00

When the list of all tracks cannot be displayed on the window, the jump bar appears. Pres s c to select the jump ba r icon, and then scroll the jump bar to display the rest of the list usin g X/x. Press C or O RETURN/EXIT to return to the track list.

3 Select the track you want to program.

For example, se le ct track “7.”

Program

1 2 3 4 5 6 7 8 9

Track

1 2 3 4 5 6 7 8 9

TRACK1 TRACK2 TRACK3 TRACK4 TRACK5 TRACK6 TRACK7 TRACK8 TRACK9 TRACK10

Total Time 0:00

4 Press X/x or the number buttons to

select “7” then press ENTER.

Total time of the programmed tracks (except MP3)

Program Total Time 12:34

1 TRACK7 2 3 4 5 6 7 8 9

Playing Discs

5 To program other tracks, repeat Steps

2 to 4.

The programmed tracks are displayed in the selected order.

continued

6 Press H to start Program Play.

Program Play begins. When the program ends, you can restart the same program ag ai n by pressing H.

Playing in Random Order

(Shuffle Play)

Other Operations

To Do this

Return to normal play

Turn off the program menu

Cancel the programmed order

Notes

• The Program Play function is not available for DVDs and JPEG.

• When you Pr ogram MP3 tracks, “--:--” is displayed as the total time of the pr ogr ammed tracks.

• When you remove t he disc , Progr am Pla y is canc elled and the program you creat ed is c lea red.

Tip

You can perform Repeat Play of pr ogrammed tracks. Press REPEAT, or set “REPEAT” to “ALL” in the Control Menu display durin g pro gr am Pl ay (page 33).

Press CLEAR during playback.

In stop mode, press PLAY MODE to turn off the program menu.

Press CLEAR while the program window is displayed and the last program is cancelled.

You can have the receiver “shuffle” tracks and play them in rando m order. Subsequent “shuffling” wil l produce a different pl aying order.

PLAY MODE

CLEAR

1 In stop mode, press PLAY MODE

repeatedly until “SHUFFLE” appears in the front panel display .

When you play an MP3 disc, you can play all tracks in albums in random order. For details on alb um shuffle, see page 33.

2 Press H.

To return to normal play

In stop mode, press PLAY MODE three times to cancel SHUFFLE or twice to cancel SHUFFLE (ALBUM). Or during p layback, press CLEAR to return to normal play.

Setting the shuffle mode in the Control Menu

You can select either normal shuffle or album shuffle (MP3 onl y).

ENTER

X/x

DVD DISPLAY

Playing Repeatedly

(Repeat Play)

Playing Discs

You can play all the titl es/trac ks/files or a single title/chapter/track/album on a disc. In Shuffle or Program Play mode, the receiver repeats tracks in shuffled or programmed order. You cannot perform Repeat Play during PBC playback of VIDEO CDs (page 26).

REPEAT

1 Press DVD DISPLAY.

The Control Menu ap pears.

2 Press X/x to select (PLAY

MODE), then press ENTER.

HOME TOWN

8 ALBUM

CONTINUE CONTINUE(ALBUM) SHUFFLE SHUFFLE(ALBUM) PROGRAM

MP3

3 Select SHUFFLE or SHUFFLE (ALBUM)

using X/x and press ENTER.

SHUFFLE: Plays tra cks on the disc in random order.

SHUFFLE (ALBUM): Plays tracks from a selected album in r andom order.

4 Press H.

The selected Shuffle Play begins.

Note

Shuffle Play is cancelled when you eject the disc. The play mode changes in th e f ollowing sequence:

SHUFFLE t CONTINUE SHUFFLE (ALBUM) t CONTINUE (ALBUM)

CLEAR

ENTER

X/x

DVD DISPLAY

1 Press DVD DISPLAY.

The Control Menu a ppears.

2 Press X/x to select

(REPEAT), then press ENTER.

If you do not select “OFF,” the “REPEAT” indicator lights up in g reen.

3 Select the Repeat Play setting, then

press ENTER.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ALL TITLE CHAPTER

DVD

continued

x When playing a DVD

•OFF: does not play repeatedly.

• ALL: repeats all the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

x When playing a VIDEO CD/Super Audio CD/CD/MP3, and when Program Play is set to OFF

•OFF: does not play repeatedly.

• ALL: repeats all the tracks on the disc, or repeats the curr ent album (only when CONTINUE (ALBUM) or SHUFFLE (ALBUM) in the play mode is selected).

• TRACK: repe at s the cur r ent t ra ck.

x When playing a JPEG

•OFF: does not play repeatedly.

• ALL: repeats all the files on the disc (when CONTINUE is selected in the play mode), or rep eats the current album (when CONTINUE (ALBUM) is selected in the pl ay mode).

x When Program Play is set to ON

•OFF: does not play repeatedly.

• ALL: repeats Program Play .

To cancel Repeat Play

Press CLEAR.

Notes

• Depending on the DVD disc, repeat play does not work.

• Repeat Play is cancelled when you eje ct the disc .

• If “ALL” is selected, repeat play is limited to 5 times.

Tips

• You can set Repeat Play during stop mode. After selecting the “REPE A T” it em , press H . The receiver starts Repeat Play.

• You can quickly display the “REPEAT” sta tu s. Press REPEAT on the remote.

• You can perform Repeat Play for DVD titles that contain chapters.

Searching for a Particular Point on a Disc

(Scan, Slow-motion Play)

You can locate a particular point on a disc quickly by monitoring the picture or by playing back slowly.

m/M

Notes

• Depending on the DVD/VIDEO CD, you may not be able to perform some of the operation s des crib ed .

• During scan or slow-motion play, no sound is output.

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

1 Press m or M while playing a disc. 2 When you find the point you want,

press H to return to normal speed.

To change the scan speed (DVD/ VIDEO CD only)

Each time you press m or M during scan, the playback speed changes. Two speeds ar e available. With each press, the indica t io n changes as follows:

Playback direction FF1M t FF2M

Opposite dire ction FR1m t FR2m

FF2M/FR2m playback speed is faster than FF1M/FR1m.

Watching frame by frame (Slow-motion play) (DVD/VIDEO CD only)

Press or y when the receiver is in the pause mode.

To return to normal speed, press H.

To change the speed of Slowmotion play

Each time you press or y during Slowmotion play, the play back speed changes. Tw o speeds are available. With each press, the indicati on change s as follows:

Playback direction SLOW 2

y t SLOW 1y

Searching for a Title/ Chapter/Track/Index/ Album/File

You can search a title (DVD), chapter (DVD), track (CD, VIDEO CD, Super Audio CD, MP3), index (VIDEO CD, Super Audio CD), album (MP3, JPEG), and file (JPE G). As title s, tracks , albums and files are assigned individual names on the disc, you can select the desired one from the Control Menu. Also chapters and indexes are assigned individual numbers on the disc, so you select the desired one by entering its n umber. Or you can search a part ic ul ar point using the time code (TIM E S EARCH).

Number buttons

CLEAR

ENTER

C/X/x/c

DVD DISPLAY

O RETURN/ EXIT

Playing Discs

Opposite direction (DVD only) SLOW 2 t SLOW 1

SLOW 2 slower than SLOW 1

y/SLOW 2 playback speed is

y/SLOW 1 .

Searching for a title/track/ album/file

1 Press DVD DISPLAY.

The Control Menu a ppears.

2 Press X/x to select the search method,

then press ENTER.

continued

x When playing a DVD

(TITLE)

x When playing a VIDEO CD

(TRACK)

x When playing a Super Audio CD

(TRACK)

x When playing a CD

(TRACK)

x When playing an MP3

(ALBUM) o r

(TRACK)

x When displaying a JPEG file

(ALBUM) or (FILE)

Example: when you select (TRACK) The list of tracks cont ai ne d in the disc appears.

GREATEST HITS

HIGHWAY1. VIEW POINT

2. MY CHILDREN

3. DANCING

4. GOOD TASTE

5. DESTINATION

MARATHON PLACE-KICK

8. TAKE IT EASY

9. PORT TOWER

10.

11.

STANDARD

Searching for a chapter/index

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press X/x to select the search method.

x When playing a DVD

(CHAPTER)

x When playing a VIDEO CD

(INDEX)

x When playing a Super Audio CD

(INDEX)

Example: when you select (CHAPTER)

“** (**)” is selected (** refe rs to a number). The number in parentheses indicates the total number of titles, chapters, tracks, or indexes.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD

When the list of all trac ks cannot be displayed on the window, the jump bar appears. Press c to select the jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. P ress C or O RETURN/EXIT to return to the track list.

GREATEST HITS

13.

STAY

14.

BAD

15.

BEAUTIFUL

16.

HOLD.ME

17.

FIRST TIME

18.

BLUE SKY

19.

OUR EARTH

20.

NO NAME

21.

SWEETEST

22.KISS ME

23.

FIRE

24.

ANGEL

3 Press X/x to select the desired track,

then press ENTER.

The receiver star t s pl ayback from the selected track.

3 Press ENTER.

“** (**)” changes to “-- (**).”

DVD

1 2 ( 2 7 ) MAKING SCENE

)

– – ( 3 4 T

1 : 3 2 : 5 5

DVD

4 Press X/x or the number buttons to

select the chapter or index number you want to search.

If you make a mistake

Cancel the number by pressing CLEAR, then select an other number.

5 Press ENTER.

The receiver starts playback from the selected number.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

To search for a particular point using the time code (TIME SEARCH)

Example: If you search for the playing tim e of the current title on a DVD.

1 In Step 2, select (TIME).

“T **:**:**” (playing time of the current title) is selected.

2 Press ENTER.

“T--:--:--” appears above “T**:**:**.”

3 Input the time code using the number

buttons, then press ENTER. For example, to find a desired point at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.”

Notes

• The title, chapter or track num ber displayed on the TV screen is reco rded data in the disc.

• You cannot search a scene of a VIDEO CD.

• If you play a DVD, input the playing time of the current title using the time code. If you play a CD, Super Audio CD, VIDEO CD, or MP3, input the playing time of the current track using the time code.

Tip

You can change the display to show playing time or remaining time. For details, see “Checking the Playing Time and Remaining Time in the Contr ol Menu” (page 40).

Viewing Disc Information

Viewing the Playing Time an d Remaining Time in the Front Panel Display

You can check disc information, such as the remaining time, total nu mber of ti tles in a DVD, or tracks in a Super Audio CD, CD, VIDEO CD or MP3, using the front panel display (page 82).

DISPLAY/ JUMP

Press DISPLAY/JUMP.

Each time you press DISPLAY/JUMP while playing the disc, the di splay chang es as shown in the charts.

Playing Discs

continued

When playing a DVD When playing a VIDEO CD

Playing time and number of the current title

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

Remaining time of the current title

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

Playing time and number of the current chapter

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

Remaining time of the current chapter

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

Title name*

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

96/24 AAC

(without PBC functions), Super Audio CD or CD

Playing time and current track number (When playing a CD)

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

Remaining time of the current track

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

Playing time of the disc

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

Remaining time of the disc

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

Track name*

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

ANGLE

VIDEO CD

PBC NTSC

MP3

VIDEO CD

MP3

VIDEO CD

MP3

VIDEO CD

MP3

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX PRO LOGIC

96/24 AAC

DIGITAL EX PRO LOGIC

96/24 AAC

DIGITAL EX PRO LOGIC

96/24 AAC

DIGITAL EX PRO LOGIC

96/24 AAC

DIGITAL EX PRO LOGIC

96/24 AAC

When playing an MP3

Playing time and current track number

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

Remaining time of the current track

DVDSACD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

PBC NTSC

PROGRESSIVE

MP3

VIDEO CD

MP3

Track (file) name

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

PBC NTSC

MP3

PROGRESSIVE

Album (folder) name

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

PBC NTSC

MP3

PROGRESSIVE

When playing a JPEG

Current file number

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

File name

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

96/24 AAC

Tips

• When playing VIDEO CDs with PBC functions, only the playing time of the scen e is displayed.

• The playing time and rem aining time of the current chapter, title, track , scene, or disc will also appear on your TV screen. See the following section “Checking the Playing Time and Remaining Time” for details on

Playing Discs

how to read this information.

Album (folder) name

DVDSACD

VIDEO CD

ANGLE

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

96/24 AAC

* “NO TEXT” appear s if na me information does no t

exist.

Notes

• Depending on the type of disc being played a nd the playing mode, the disc informa tion may not be displayed.

• ID3 tag applies only to version 1.

• If the MP3 file you play back has an ID3 tag, the ID3 tag information is displa yed as a track name.

• Only alphabetical letters and numbers can be used for album or track names. Anything else is di spla ye d as “ ”.

• In the following cases, elapsed pla ying time and current track remaining time may not be displayed accurately.

– when an MP3 file of VBR (variable bit rate) is

played.

continued

Checking the Playing Time and Remaining Time in the Control Menu

You can check the playing time an d remaining time of the current title, chapter, or track, and th e total playing time or remaining ti me of the dis c. You can also check the DVD/CD/Super Audio CD text and MP3 folder name/file name /ID3 tag (only song title) recorded on the disc.

DISPLAY/ JUMP

DVD DISPLAY

1 Press DVD DISPLAY during playback.

The Control Men u appears.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

Time information

DVD

Disc type

2 Press DISPLAY/JUMP repeatedly to

change the time information.

The display and the kinds of time that you can check depend o n th e disc you are playing.

x When playing a DVD

• T **:**:** Playing time of the current title

• T–**:**:** Remaining time of the current title

• C **:**:** Playing time of the current c hapter

• C–**:**:** Remaining time of the current c hap ter

• **:**:** Playing time of the menu or current title without a chapter

x When playing a VIDEO CD (with PBC functions)

• **:** Playing time of the current scene

x When playing a VIDEO CD (without PBC functions), Super Audio CD or CD

•T **:** Playing time of the current track

• T–**:** Remaining time of the current track

•D **:** Playing time of the current disc

• D–**:** Remaining time of the current disc

x When playing an MP3

•T **:** Playing time of the current track

• T–**:** Remaining time of the current track

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Notes

• Only alphabetical letters and num be r s can be displayed.

• Depending on the type of disc being play ed, the receiver can only display a limited number of characters. Also, depending on the disc, not all text characters will be displayed.

Checking the date information (J P E G onl y )

You can check the date information during playback when the Exif* tag is recorded in the JPEG image data.

DVD DISPLAY

Press DVD DISPLAY during playback.

The Control Menu appears.

MOUNTAIN

FAMILY

) BIRTHDAY

1 ( 2 0 01 / 01 / 2003

Date information

JPEG

Playing Discs

* “Exchangeable Image File Fo rmat” is a digital

camera image format defined by the Japan Electronics & Information Te c hnol ogy I ndustries Association.

Note

If there is no date information or data is dam aged on the disc, the receiver cannot di spla y the date information.

Tip

You can change the date information ord er in JP EG DATE of CUSTOM SETUP (page 70).

Sound Adjustments

Changing the Sound

If a DVD is recorded with mu ltilingual tracks, you can select the lan guage you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can select the audio format you want while playing the DVD. With stereo CDs, VIDEO CDs or MP3, you can select the sound from the left and right channel and listen to the sound of the selected channel through both the left and right speaker s (i n th is case, the sound loses its stereo effect). For example, when playing a disc containing a song with the vocals on the ri ght channel and the instruments on the l eft channel, you can se l ect the left channel and hear only the instruments from both speakers.

AUDIO

ENTER

X/x

DVD DISPLAY

1 Press DVD DISPLAY during playback.

The Control Menu is displayed.

2 Press X/x to select (AUDIO),

then press ENTER.

The options for A UDIO appear.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ENGLISH 2: FRENCH 3: SPANISH

3 Press X/x to select the desired audio

signal. x When playing a DVD

Depending on the DVD, the choice of language varies.

When 4 digits are displayed, they represent the language code. Ref er to the la nguage code list on page 85 to see which language the code represents. When the same language is displayed two or more times, the DVD is recorded in multiple audio formats.

x When playing a VIDEO CD, CD, or MP3

The default setting is underlined.

• STEREO

: The standard stereo sound

• 1/L: The sound o f the left channel (monaural)

• 2/R: The so und of the right channe l (monaural)

x When playing a Super Audio CD

In stop mode, depending on the Super Audio CD, the choice of settings varies.

• MULTI: The disc has a multi-channel playback area.

• 2CH: The disc has a 2 chan nel playback area.

• CD: When you want to play the disc as a convention al CD.

Note

Not all discs give you the three choices above when in Super Audio CD playback. It all depends on the layer configuration of the Super Audio CD to be played.

4 Press ENTER.

DVD

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Notes

• For discs not in multiple audio format, you cannot change the sound.

• During DVD playback, the sound may change automatically.

Tip

You can select “AUDIO” directly by pressing AUDIO. Each time you press the button, the item cha nge s.

Displaying the audio information of th e disc (DVD only)

When you select “AUDIO,” the channels being played are displayed on the screen. For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the numbe r of recorded channels may differ.

Current audio format*

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ENGLISH

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

DVD

The display examples are as follows:

•PCM (stereo)

PROGRAM FORMAT

PCM 48kHz 24bit

• Dolby Surround

PROGRAM FORMAT

DOLBY DIGITAL 2/0 DOLBY SURROUND

• Dolby Digital 5.1ch

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

•DTS

PROGRAM FORMAT

DTS 3/2.1

Tips

• When the signal contains surround signal components such as LS, RS, or S, the surround effect is enhanced.

• If you play MPEG AUDIO sound tracks, the receiver outputs PCM (stereo) signals.

• Even though the audio stream contains a surround back component, the surround back cha nne l is not displayed. Dolby Digital-EX or DTS-ES source is displayed as “3/2.1”on the screen

Sound Adjustments

*“PCM,” “MPEG,” “DTS,” or “DOLBY

DIGITAL” is displayed. For “DOLBY DIGITAL,” the channels in the playing track are di splayed numericall y as follows: For Dolby Digita l 5 .1 ch:

Surround component 2

DOLBY DIGITAL

Front component 2 + Center component 1

3 / 2 . 1

LFE (Low Frequency Effect) component 1

Enjoying Surround Sound

Sound field Display

AUTO FORMAT DIRECT AUTO

A.F.D. AUTO

You can take advantage of surround so und simply by selecting on e of receiver’s preprogrammed so und fields. They bring the exciting and powerful sound of movie theatres into your home. To select sound field, press A.F.D., 2CH, or MODE on the remote repeatedly until the sound field you want appears in the front panel display.

Automatic decoding of the audio input signal (AUTO FORMAT DIRECT AUTO)

The auto decoding function automatically detects the t yp e of audio signal being input (Dolby Digital, D T S, or standard 2 channel stereo) and performs the proper decoding if necessary. This m ode presents the sound as it was recorded/encoded, withou t ad ding any effects (e.g. reverberation). However, if there are no low frequency signals (Dolby Digital LFE, etc.), it will generate a low frequency signal for output to the subwoofer.

A.F.D.

Using only the front speaker (2 CHANNEL STEREO)

This mode outputs the sound from the fro nt lef t and right speaker s. St andard two channel (stereo) sources completely bypass the sound field processing. Multi channel surround formats are dow n mixed to two chan nels. This allows you to play any source using only the front left and right speakers.

2CH

Press 2CH on the remote.

“2CH STEREO” appears in the front panel display.

Sound field Display

2CHANNEL STEREO 2CH STEREO

Press A.F.D. on the remote repeatedly until “A.F.D. AUTO” appears in the front panel display.

Selecting a sound field (A.F.D.button)

A.F.D.

Press A.F.D. on the remote repeatedly until the sound field you want appears in the front panel display.

Sound field Display

PRO LOGIC PRO LOGIC PRO LOGIC II MOVIE P LII MOVIE PRO LOGIC II MUSIC PLII MUSIC Neo:6 Cinema NEO:6 CIN Neo:6 Music NEO:6 MUS

x PRO LOGIC

Performs Dolby Pr o Logic decoding. A sour ce recorded in 2 chan nels is decoded into 4 channels.

x PRO LOGIC II MOVIE

Performs Dolby Pr o Logic II Movie mode decoding. This setting is ideal for movies encoded in Dolby Su rround. In addition, thi s mode can reproduce sound in 5.1 channel when watching videos of old m ovies or with dubbed language.

x PRO LOGIC II MUSIC

Performs Dolby Pr o Logic II Music mode decoding. This setting is ideal for standard stereo source s, su ch as CDs.

x Neo:6 Cinema

Performs the DTS Neo:6 Cinema mode decoding.

x Neo:6 Music

Performs the DTS Neo:6 Music mode decoding. This setting is ideal for standard stereo sour ces, such as CDs.

Advanced setting

When a DTS 96/24 si gnal is input, you can change the sampling frequency.

ENTER

X/x

AMP MENU

1 Press AMP MENU.

Set the function of the remote to DVD, and then press AMP MENU.

2 Press X/x repeatedly until “dts 96/24”

appears in the front panel display, then press ENTER.

3 Press X/x to select “96/24 AUTO” then

press ENTER or AMP MENU.

• AUTO: When a DTS 96/24 signal is input, it is played back at the 96 kHz sampling frequency.

• OFF: Even w hen a DTS 96/24 sign al is input, it is played back at the 48 kHz sampling frequency.

Notes

• When the input signal is a multi-channel source, PRO LOGIC, PRO LOGIC II MOVIE/MUSIC, and Neo:6 Cinema/Music are cancelled and the multi channel source is output directly.

• Neo:6 Cinema/Music mode decoding is not available for DTS 2channel signal.

• When decoding by DTS 96/24 (except A.F.D. mode) in the sound field, output signals will be converted to 48 kHz (sampling frequency).

• When any speaker is set to “SMALL” or subwoof e r is set to “NONE” in the speaker setting, output signals will be converted to 48 kHz (sampling frequency).

continued

Sound Adjustments

Selecting a sound field (MODE button)

MODE

Press MODE on the remote repeatedly until the sound field you want appears in the front panel display.

FOR MOVIE

Sound field Display

CINEMA STUDIO EX A C.ST.EX A* CINEMA STUDIO EX B C.ST.EX B* CINEMA STUDIO EX C C.ST.EX C* V.MULTI DIMENSION V.M.DIM

* Use DCS Technology

About DCS (Digital Cinema Sound)

In collaboration with Sony P ictures Entertainment, So ny m easured the sound environment of th ei r studios and integr at ed the data of the measure m ent and Sony’s own DS P (Digital Signal Processor) technol ogy to develop “Digital Cinema Sound.” “Digital Cinema Sound” sim ul at es in a home theatre an ideal movie theatre sound environment based on the preference of the movie director.

x C.ST.EX A (Cinem a Studio EX A)

Reproduces the s ound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movie.

x C.ST.EX B (Cinem a Studio EX B)

Reproduces the s ound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound e ffects.

x C.ST.EX C (Cinem a Studio EX C)

Reproduces the s ound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or classic films where music is featured in the soundtrack.

x V.M.DIM (VIRTUAL MULTI DIMENSION) *

Uses 3D sound imag i n g t o create an arra y of virtual surround speakers positioned higher than listener from a si ngle pair of actual surround speakers. This mode creates 5 sets of virtual speakers surrounding the listener at approximately a 30º angle of elevation.

* “VIRTUAL” sound field: Sound field with virtual

speakers.

About Cinema Studio EX

Cinema Studio EX is ideal for enjoyin g the movie softwar e encoded with mul ti channel format, such as the Dolby Digital DVD. This mode reproduces the sound characteristics of Sony Pictures Entertainment’s studios. Cinema Studio EX consists of the following three elements.

• Virtual Multi Dimension Creates 5 sets of virtual speakers surrounding the listener from a single pair of actual surround speakers.

• Screen Depth Matching In a movie theatre, sound seems to come from inside the image refl ected on the movie s creen. This element crea te s t he same sensation in your listening roo m by shifting the sound o f the front speakers “into” the screen.

• Cinema Studio Reverberation Reproduces the reverberations peculiar to a movie theatre.

Cinema Studio EX is the integrated mode which operates these elements simultaneously.

Notes

• The virtual speaker effe ct ma y cause incr eas ed noise in the playback signal.

• When listening with sound fields that employ virtual speakers, you will not be able to hea r any sound coming directly from the surround speakers.

FOR MUSIC

Sound field Display

HALL HALL JAZZ CLUB JAZZ CLUB LIVE CONCERT L.CONCERT

x HALL

Reproduces the ac oustics of a rectangular concert hall.

x JAZZ CLUB

Reproduces the ac oustics of a jazz club .

x L. CONCERT (Live Concert)

Reproduces the ac oustics of a 300-seat l iv e concert.

When using headphones

Sound field Display

HEADPHONE THEATER HP.THEATER HEADPHONE 2CH HP.[2CH]

x HP. THEATER (HEADPHONE THEATER)

This mode is very effective with 5.1 c h dis cr ete signal sources like Dolby Digital and DTS.

x HP.[2CH] (HEADPHONE 2CH)

This mode outputs th e sound from the headphone L/R . St andard 2 channel (stereo) sources complet el y bypass the sound field processing. Mult i channel surround f or mats are downmixed to two channels.

To turn the surround effect off

Press A.F.D. on the remote repeatedly until “A.F.D AUTO” appears in the front p anel display, or press 2CH on the remote to displ ay “2CH STEREO.”

Notes

• This function is unavaila ble when playing Super Audio CDs.

• When you play a Super Audio CD (Direct Stream Digital), the sound field changes to “AUTO FORMAT DIRECT AUTO” automatically.

• For PCM96 kHz sources, 2CH, A.F.D. and MODE is not available.

Tips

• When you want to output the TV sound or stereo sound of a 2 channel source from the 7 speakers, select any sound field other than “AUTO FORMAT DIRECT AUTO” or “2CH STEREO.”

• Whenever you select a function such as DVD or TUNER, the sound field that was last applied to tha t function is automatically applied again. For example, if you listen to DVD with HALL as the sound field, then change to another function, and then return to DVD, HALL will be applied again. With the tuner, sound fields are memorized s ep arat ely for all preset stations.

• You can identify the enc oding format of program software by looking at its packaging.

– Dolby Digital discs are labelle d wit h the

logo.

– DTS-ES or DTS 96/24 encoded programs are

marked with DTS-ES or DTS 96/24.

– Dolby Surround encoded programs are labelled

with the logo.

– DTS Digital Surround discs are marked with DTS.

Sound Adjustments

Selecting the Surround Back Decoding Mode

This function lets you select the decoding mode for the surround back signals of th e m ulti channel input stream. By decoding the surround bac k signal of DVD software, etc., recorded in Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete 6.1 format, etc., you can enjoy t he kind of surround soun d originally intended for the film (page 78).

Input stream Output

Dolby Digital

5.1 DTS 5.1 5.1 — Dolby Digital

EX DTS-ES Matrix

6.1 DTS-ES

Discrete 6.1

channel

5.1 —

6.1 Matrix decoder conforms

6.1 DTS M atrix de cod er

6.1 D TS Dis crete de co der

Applied surrou nd back decoder

to Dolby Digita l EX

When selecting “SB MATRIX”

Dolby Digital EX is applied to decode the surround back si gnal regardless of the 6.1 channel decode fla ga) in the input stream. This decoder conform s to D ol by Digital EX, and functions the same as the decoderse) used in movie th e atres.

ENTER

X/x

AMP MENU

1 Press AMP MENU.

Set the function of the remote t o DVD, and then press AMP ME NU.

2 Press X/x repeatedly until “SurrB

DEC.” appears in the front panel display, then press ENTER.

3 Press X/x to select the surround back

mode you want according to the input stream, then press ENTER or AMP MENU.

The default setting is “SB AUTO.”

When selecting “SB AUTO”

When you inp ut st ream cont ains the 6. 1 ch anne l decoding flag applied to decode the surround bac k si gnal.

, the appropriate decoder is

Input stream Output

Dolby Digital

5.1 DTS 5.1 6.1 Matrix decoder conforms

Dolby Digital

EX DTS-ES Matrix

6.1 DTS-ES

Discrete 6.1

channel

6.1 Matrix decoder conforms

Applied surrou nd back decoder

to Dolby Digita l EX

When selecting “SB OFF”

Surround back dec oding is not performe d.

a) 6.1 channel decode flag is information recorded in

software like DVD.

b) Dolby Digital DVD that includes a Surround EX

flag. Check the Dolby Corporation web page help for information about Sur ro und EX fi lm s.

c) Software encoded with a flag to denote it has both

Surround EX and 5.1 channel signals.

d) Software encoded with both 5.1 channel signals and

an extension stream designed for returning those signals to 6.1 discrete channel s. Dis cre te 6.1 channel signals are DVD specific signals, not used in movie theatres.

e) This decoder can be used for all 6.1 format s (Dolby

Digital EX, DTS-ES Matrix 6.1, and DTS-ES Discrete 6.1).

Notes

• You can select the surround back decoding only when A.F.D. mode is selected (page 45). In other sound fields, this function is bypassed internally.

• Some discs have no Dolby Digital EX flag, even though their packaging may contain a Dolby Digital Surround EX logo. In this case, select “SB MATRIX.”

Selecting the Decode Priority

This function lets you select the decode priority when digital signals are input from the DIGITAL IN (OPTICAL IN/COAXIAL IN) jack, or digital signals are processed in DVD mode.

ENTER

X/x

AMP MENU

1 Press AMP MENU.

Set the function of the remote to DVD, and then press AMP MENU.

2 Press X/x repeatedly until “DEC. PRI.”

appears in the front panel display, then press ENTER.

3 Press X/x to select the decode priority

you want, then press ENTER or AMP MENU.

The default setting is “PCM.”

When selecting “PCM”

PCM signals are given priority (to prevent the interruption w hen playback starts) . E ven when other signals are input, the sound will be output. However, when DTS-CD signals are output, no sound or noise will be heard. In this case, select “AUTO.”

When selecting “AUTO”

The most suitable decode method is automatically selected from DTS, Dolby Digital, or PCM. However, when PCM signal pla yback starts, sound will not be output initially.

Tip

As long as DVD mode is selected, you can play DTSCD even if “PCM” is selected.

Sound Adjustments

Changing the Speaker Impedance Value

You can change the impedance value in accordance with your speaker’s impedance. The default settin gs are underlined.

ENTER

X/x

AMP MENU

1 Press AMP MENU.

Set the function of the remote t o DVD, and then press AMP ME NU.

2 Press X/x repeatedly until “SP. IMP.

(Ω)” appears in the front panel display, then press ENTER.

3 Press X/x to select “SP 4Ω/6Ω” or “SP

8Ω” in accordance with impedance, then press ENTER or AMP MENU.

Speaker impedance

To enjoy the best possible multi channel surround, conn ect speakers with a n om i n al impedance of 8 ohms or higher to the FRONT, CENTER, SURROUND and SURROUND BACK terminals, and set the value to “SP 8Ω.” Refer to the operating i nstructions s upplied with your speakers if yo u ar e not sure of their impedance. (This information is often on the back of the speaker. ) Alternatively, you may connect speakers of nominal impedance between 4 and 8 ohms to any or all of the speaker terminals. In this case, be sure to set the value to “SP 4Ω/6Ω” even if you connect just one speaker of nominal impedance between 4 and 8 ohms.

SP 8Ω

SP 4Ω/6Ω

Notes

• Use high performance speakers.

• Use suitably sized speak ers of sim ilar performance for the front, center, surround, and surround back speakers.

Select this if the speaker impedance value is 8 ohms or higher.

Select this if the speaker impedance value is under 8 ohms.

Using Various Additional Functions

Changing the Angles

If various angles (multi-angles) for a scene are recorded on a DVD, you can change the viewin g angle. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train, or from the right window without having the train’s movement interrupted.

Number Buttons

ANGLE

3 Press ENTER.

The angle number changes to “-.”

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

)

– ( 9

DVD

4 Select the angle number using the

number buttons or X/x, then press ENTER.

The angle is change d t o the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change the angles, even if multi-angles are recorded on the DVD.

Tip

You can select the angle directly by pressing ANGLE. Each time you press the button, the angle changes.

Using Various Additional Functions

ENTER X/x

DVD DISPLAY

1 Press DVD DISPLAY during playback.

The Control Menu ap pears.

2 Press X/x to select (ANGLE).

The angle number appears. The number in parentheses indicates the total number of angles. The “ANGLE” indicator lights up in green when angles are recorded on the di sc.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

)

( 9

DVD

Displaying Subtitles

If subtitles are r ecorded on a disc, yo u can turn the subtitles on or off while playing. If multilingual subtitles are recorded on the disc, you can change the subtitle language wh i le playing, or tur n t he subt it l es on or of f whe nev er you want. You can select the language you want to practice, for example, turn on the subtitles for better understanding.

SUBTITLE

ENTER X/x

DVD DISPLAY

3 Press X/x to select the language.

Depending on the DVD, the choice of language varies. When 4 digits are dis pl ayed, they indicate the language code. Ref er to the la nguage code list on page 85 to see which language the code represents.

4 Press ENTER.

To cancel the SUBTITLE setting

Select “OFF” in Step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change the subtitles, even if multilingual subtitles are recorded on it.

Tip

You can select SUBTITLE directly by pre ssing SUBTITLE. Ea ch time you press the button, the item changes.

1 Press DVD DISPLAY during playback.

The Control Men u appears.

2 Press X/x to select

(SUBTITLE), then press ENTER.

The options for SUBTITLE appear.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF 1: ENGLISH 2: FRENCH 3: SPANISH

DVD

Adjusting the Playback Picture

(PICTURE MODE)

You can adjust t h e vi deo signal of the DVD, VIDEO CD or JPEG from the receiver to obtain the pictur e q ual it y you wan t. Ch oose th e s ett in g that best suits the pro gr am you are watching.

ENTER X/x

DVD DISPLAY

1 In stop mode, press DVD DISPLAY.

The Control Menu ap pears.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD

• CINEMA 2: Bright colo rs beco me brigh ter and dark colors become richer, and color contrast is increased.

3 Select the PICTURE MODE you want

using X/x, then press ENTER.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Tip

When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommen de d.

Note

The setting you select in PICTURE MODE is reflected in all screen displays.

Using Various Additional Functions

STANDARD DYNAMIC 1 DYNAMIC 2 CINEMA 1 CINEMA 2

2 Press X/x to select (PICTURE

MODE), then press ENTER.

The options for PICTU R E MODE appear.

• STANDARD:

• DYNAMIC 1: Produces a bold dynamic picture by increasing the picture cont rast and the color intensity.

• DYNAMIC 2: Produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and the color intensity.

• CINEMA 1: Enhances det ail in dark areas by increasing the black level.

Displays a standard picture.

Locking Discs

(CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

You can set two kinds of playback rest ri ct ions for a disc.

• Custom Parental Control You can set the playback restrictions so that the receiver will not play inappropriate discs.

• Parenta l Control Playback of some DVDs can be limited according to a predetermined level, such as the age of the viewer .

The same password is used for both Parental Control and Cus t om Parental Control.

Custom Parental Control

You can set the sam e Custom Parental Contr ol password for up to 25 discs. If you set a 26th disc, the playback restriction of the disc for which yo u fi rst set the pa ssword is c a ncelled.

3 Press X/x to select (CUSTOM

PARENTAL CONTROL), then press ENTER.

“CUSTOM PARENTAL CONTROL” is selected.

DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

ON PASSWORD

DVD

4 Press X/x to select “ON t,” then press

ENTER. x If you have not entered a password

yet

The display for registering a new password appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Number buttons

ENTER C/X/x/c

DVD DISPLAY

1 Insert the disc you want to lock.

If the disc is playing, press x to stop playback.

2 In stop mode, press DVD DISPLAY.

The Control Men u appears.

O RETURN/

EXIT

Enter a 4-digit pass w or d by using the number buttons, then pre ss EN TER. The display for confirming the pass w ord appears.

x If you have already registered a password

The display for entering the password appears.

CUSTOM PARENTAL CONTROL

Enter password, then press .

ENTER

5 Enter your 4-digit password by using

the number buttons, then press ENTER.

“Custom parental control is set.” appears and the screen returns to the Cont ro l Men u display.

If you make a mistake entering your password

Press C before you press ENTER and input the correct numb er.

If you make a mistake

Press O RETURN/EXIT, then start from Step 3 again.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

To turn off the Custom Parental Control function

1 In Step 4, select “OFF t,” then press

ENTER.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

To change the password

1 In Step 4, press X/x to select “PASSWORD

t,” then press ENTER. The display for entering the password appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

3 Enter a new 4-digit password using the

number buttons, then press ENTER.

4 To confirm your password, re-enter it using

the number buttons, then press ENTER.

Playing the disc for which Custom Parental Control is set

1 Insert the disc for which Custom

Parental Control is set.

The CUSTOM PARENTAL CONTROL display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press .

2 Enter your 4-digit password using the

number buttons, then press ENTER.

The receiver i s ready for playback.

Notes

• When you change the layer or area in a Super Audio CD which has Custom Parental Cont ro l se t, the display for entering the password may appear.

• When you set the Custom Parental Control password for a Hybrid Super Audio CD, the Custom Par e nta l Control setting only works for the current layer.

Tip

If you forget your password, enter the 6-digit number “199703” using the number buttons when the CUSTOM PARENTAL CONTROL display asks you for your password, then press ENTER. The displa y will ask you to enter a new 4-digit password.

Using Various Additional Functions

continued

Limiting pla yback for c hildren (Parental Control) (DVD only)

x If you have not entered a password

The display for registering a new password appears.

Playback of some DVDs can be limited according to a predetermined leve l , s uch as the age of the viewer. The “Parental Control ” function allows you to set a p la yback limitation level. A scene that is limited is not played, or it is replaced by a diffe rent scene.

Number buttons

ENTER C/X/x/c

O RETURN/ EXIT

DVD SETUP

1 In stop mode, press DVD SETUP.

The Setup Display appears.

2 Press X/x to select “CUSTOM SETUP,”

then press ENTER.

“CUSTOM SETUP” is displayed.

CUSTOM SETUP

PARENTAL CONTROL TRACK SELECTION AUDIO DRC:

OFF OFF MP3DATA CD PRIORITY:

MM/DD/YYYYJPEG DATE:

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit pass w or d using the number buttons, then press ENTE R. The display for confirming the pass w ord appears.

x When you have already registered a password

The display for entering the password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

ENTER

4 Enter your password using the number

buttons, then press ENTER.

The display for set t ing the playback limitation level and c hangin g th e p as sword appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

USA

3 Press X/x to select “PARENTAL

CONTROL t,” then press ENTER.

5 Press X/x to select “STANDARD,” then

press ENTER.

The selection items for “STANDARD” are displayed.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OTHERS

OFF USA

6 Press X/x to select a geographic area

as the playback limitation level, then press ENTER.

The area is selected. If you select “O THERS t,” select and enter the standard co de in the table on

page 58 using the number butto ns.

7 Press X/x to select “LEVEL,” then

press ENTER.

The selection it em s for “LEVEL” are displayed.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

OFFLEVEL:

NC17

6: 5:

PG13

3: 2:

If you make a mistake

Press O RETURN/EXIT to go back to the previous screen.

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup Display is turned off.

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” in St ep 8.

To change the password

1 In Step 5, select “CHANGE PASSWORD

t” using x, then press ENTER. The display for entering the password appears.

2 Follow Step 3 to enter a new password.

Using Various Additional Functions

8 Select the level you want using X/x,

then press ENTER.

The Parental Control setting is complete.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

The lower the value, the more strict the limitation.

PG134:LEVEL:

USA

continued

Playing the disc for which Parental Control is set

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

The receiver star t s pl ayback.

Notes

• If you play a DVD which does not have the Parental Control function, playback cannot be limited on this receiver.

• Depending on the DVD, you may be asked to change the parental control level whil e playi ng the disc. In this case, enter your password, then change the level. If the Resume Play mode is ca nc elled, the level returns to the original le vel.

Tip

If you forget your password, remove the disc and repeat Step 1 to 3 of “Limiting playback for children.” When you are asked to enter your password, ent er “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password in Step 3, replace the disc in the receiver and press H. When the PARENTAL CONTROL display appears, enter your new password.

Area Code

Standard Code number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong 2219 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184

Other Operations

Controlling Other Units with the Supplied Remote

By adjusting the remote signal, you can co nt rol your TV, satellite receiver or VCR with the supplied remote.

Notes

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number may reset itself to the default (SONY) setting. Reset the appropri at e code n umber.

Tip

You can set the code number for your TV or sate llite receiver separately.

Controlling TVs with the remote

TV ?/1

RM SET UP

Number* buttons

TV CH +/–

TV VOL +/–

AV ?/1

ENTER

TV/VIDEO

4 Press ENTER.

When registration is completed, the RM SET UP indicator flashes twice. If registration is incomplete, the RM SET UP indicator rapidly flashes 4 time s.

* Use the number buttons only to ent er the code

number of controllable TVs.

Code numbers of controllable TVs

If more than one code number is liste d , tr y entering them one at a time until you find th e one that works with your TV.

Manufacturer Code number

SONY 501,502 AIWA 501,502 DAEWOO 504,505,506,507,515,544 FISHER 508 GOLDSTAR 503,511,512,515,534,544 GRUNDIG 517,534 HITACHI 513,514,515,544 ITT/NOKIA 521,522 JVC 516 MAGNAVOX 503,518,544 MITSUBISHI/MGA 503,519,544 NEC 503,520,544 PANASONIC 509,524 PHILIPS 515,518 PIONEER 509,525,526,540 RCA/PROSCAN 510,527,528,529,544 SAMSUNG 503,515,531,532,533,534,544 SANYO 508,545,546,547 SHARP 535 TELEFUNKEN 523,536,537,538 THOMSON 530,537,539 TOSHIBA 535,540,541 ZENITH 542,543

Other Operations

1 Press RM SET UP and AV [/1

simultaneously.

The RM SET UP indicator lights up.

2 Press TV [/1.

The RM SET UP indicator flashes once.

3 Enter your TV manufacturer code (see

the table) using the number buttons.

Controlling the TV

You can control your TV using the buttons below.

By pressing You can

TV [/1 Turn the TV on or off. TV/VIDEO Switch the TV’s input source

between the TV and other input sources.

continued

By pressing You can

TV VOL +/– adjust the TV volume. TV CH +/– change the TV channel.

Note

Depending on the TV, you may not be able to control your TV or to use some of the buttons above.

Controlling satellite receivers with the remote

RM SET UP

Number buttons

AV ?/1

TV/SAT

ENTER

1 Press RM SET UP and AV [/1

simultaneously.

The RM SET UP indicato r l i ght s up.

2 Press TV/SAT. 3 Enter your Satellite receiver’s

manufacturer code (see the table) using the number buttons.

4 Press ENTER.

When registration i s completed, the RM SET UP indicator flas hes twice.

Code numbers of controllable satellite receivers

If more than one code number is listed, try entering them one at a time until you find the one that works with your satellite receiver.

Manufacturer Code number

SONY 801,802,803,804 JERROLD/G.I. 806,807,808,809,810,811,

PANASONIC 818 RCA 805,819 S.ATLANTA 815,816,817

812,813,814

Controlling the satellite receiver

Press TV/SAT. Sources that can be controlled by the remote change depending on the setting of TV/SAT. You can control your satelli te receiv er using t he buttons below.

By pressing You can

AV [/1 Turn the satellite receiver on or

JUMP Jump Number butto ns Sele ct a channel. ENTER Confirm the selected channel. AUDIO Change the audio. CH +/– Change channels. TOP MENU/

GUIDE AV MENU Display the menu. DVD DISPLAY Turn the display on or off. O RETURN/EXIT Return to the previous display

C/X/x/c/ ENTER Select the item in th e pr ogr am

Notes

• Depending on the satellite receiver, you may not be able to control your satelli te rec ei ve r or to use some of the buttons above.

• To operate a DVD player, press DVD, and th en change the mode of the receiver to DVD.

off.

Display the program guide.

in the program guide or menu.

guide or menu.

Controlling the VCR with the remote

RM SET UP

VIDEO1

Number buttons

AV ?/1

VIDEO2

ENTER

1 Press RM SET UP and AV [/1

simultaneously.

The RM SET UP indicator lights up.

2 Press VIDEO1 or VIDEO2. 3 Enter your VCR’s manufacturer code

(see the table) using the number buttons.

4 Press ENTER.

When the registration is compl eted, the RM SET UP indicator flashes twice.

Code numbers of controllable VCR

Press VIDEO1 or VIDEO2. If more than one code number is listed, try entering them one at a time until you find the one that works with your VCR.

Manufacturer Code num be r

SONY 701,702,703,704,705,706 AIWA 710,750,757,758 AKAI 707,708,709,759 BLAUPUNKT 740 EMERSON 711,712,713,714,715,716,750 FISHER 717,718,719,720 GENERAL

ELECTRIC GOLDSTAR 723,753

721,722,730

Manufacturer Code number

GRUNDIG 724 HITACHI 722,725,729,741 ITT/NOKIA 717 JVC 726,727,728,736 MAGNAVOX 730,731,738 MITSUBISHI/MGA 732,733,734,735 NEC 736‘ PANASONIC 729,730,737,738,739,740 PHILIPS 729,730,731 PIONEER 729 RCA/PROSCAN 722,729,730,731,741,747 SAMSUNG 742,743,744,745 SANYO 717,720,746 SHARP 748,749 TELEFUNKEN 751,752 TOSHIBA 747,755,756 ZENITH 754

Controlling the VCR

Press the button “VI D EO 1,” or “VIDEO2.” Sources that can be controlled by the remote change depending on the setting of VIDEO1 or VIDEO2. You can control your VCR using the buttons below.

By pressing You can

AV [/1 Turn the VCR on or off. Number buttons Select a channel. ENTER Confirm the selected channel. AUDIO Change the audio. CH –/+ Change VCR channels.

m/M Fast Forward or fast Reverse. H Play. X Pause. x Stop.

AV MENU Display the menu. DVD DISPLAY The display is on or off. C/X/x/c/ ENTER Select the item in the program

guide or menu.

Notes

• Depending on the VCR, you may not be able to control your VCR, or use some of the buttons above.

• To operate a DVD player, press DVD, and then change the mode of the receiver to DVD.

Other Operations

Using Other Units

Enjoying the Radio

You can use VCRs or ot her units connected to the VIDEO1, TV/SAT, or VIDEO2 jacks. Refer to the operation manual supplied with the other unit for further information on its operation.

TV/SAT

VIDEO1

VIDEO2

Press the button “VIDEO1,” “VIDEO2,” or “TV/SAT” you want to use.

When you press the button you want to use, the mode of the recei ver changes and the currently selected unit name appears in the front panel display.

Tip

You can also select the mode using FUNCTION –/+ on the receiver. Each time you press FUNCTION –/+, the mode of the receiver changes in the following sequence.

DVD t VIDEO1 t VIDEO2 t TV/SAT t TUNER t DVD…

Presetting Radio St at ions

You can preset 20 stations for FM and 10 stations for AM. Before tuning, make sure to turn down the volume to minimum.

"/1

BAND

PRESET –/+

ENTER X/x

TUNING –/+

AMP MENU

1 Press BAND repeatedly until the b and

you want appears in the front panel display.

Each time you press BA N D, the band toggles between A M and FM.

The BAND button is available only the DVD function is selected on the remote.

2 Press and hold TUNING + or –, then

release.

Scanning stops when the receiver tunes in a station. “TUNE D ” and “ST” (for ster eo program) appear in the front panel display.

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

3 Press AMP MENU. 4 Press X or x repeatedly until

“MEMORY” appears in the front panel display.

5 Press ENTER.

A preset number appears in the front panel display. The preset number blinks on and off.

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE REPEAT1

FM AM

PROGRAM

MEMORY

6 Press PRESET + or – to select the

preset number you want.

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

7 Press ENTER.

The station is stored.

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

VIDEO CD

ANGLE

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

8 Repeat 1 to 7 to store other stations.

To change the preset number

Restart from step 1.

To change the AM tuning interval

The AM tuning interval can be se t to either 9 kHz or 10 kHz (defau lt ). To change the AM tuning interval, turn off the receiver by pressing "/1 on the remote. While holding down x (on the receiver), press "/1 on the remote to turn on the power. If you change the interval, the AM preset stations will be erased. To reset the interval, repeat the same procedure.

Listening to the Radio

Preset radio stations in the receiver’s memory first (see “Pre setting Radio Sta ti ons” on page 62).

"/1

BAND

DISPLAY /JUMP

PRESET –/+

FM MODE

TUNING –/+

VOLUME +/–

1 Press BAND repeatedly until FM or AM

appears in the front panel display.

The last received station is tuned in. The Band button is available only the DVD

function is selected on the remote.

DVDSACD

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

MP3

PBC NTSC

VIDEO CD

ANGLE

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE

FM AM

REPEAT1 PROGRAM

MEMORY

2 Press PRESET + or – repeatedly to

select the preset station you want.

Each time you press the button, t he receiver tunes in one pres et station. Every time you pres s BA N D, the band toggles between AM or FM.

3 Adjust the volume by pressing

VOLUME +/–.

To turn off the radio

Press "/1 on the remote or P OWER on the receiver.

Other Operations

continued

To listen to non-preset radio stations

Use manual or automatic tuning in Step 2. For manual tuning, press TUNING + or – on the remote repeatedly. For automatic tuning, press and hold TUNING + or – on the remote.

Tips

• If an FM program is noisy, press FM MODE on the remote so that “MONO” appears in the front panel display. There will be no stereo effect , but the reception will improve. Pre ss the button again to restore the s tereo effe ct.

• To improve reception, reorient the supplied antennas.

To check the frequency

Press DISPLAY/JUMP repeatedly. Each time you press DISPLAY/JUMP, the front panel displa y changes as follows: index name of the station* t frequency t index name of the station... *This is displayed if you ha ve entered a name

for a preset stati on, see “Naming Pre set Stations” (page 64).

Naming Preset Stations

You can enter a nam e of up to 8 characters for preset stations. These names (for example, “XYZ”) appear in the receiver’s front panel display when a station is selected. Note that no more than one n ame can be entered for each preset st at i on.

BAND

1 Press BAND repeatedly until FM or AM

appears in the front panel display.

The last station you r eceived is tuned in. Each time you press BA N D, the band toggles between A M or FM. The Band button is available only the DVD function is selected on the remote.

2 Press PRESET + or – repeatedly to

select the preset station you want to create an index name for.

3 Press AMP MENU. 4 Press X or x repeatedly until “NAME

INPUT” appears.

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE REPEAT1

FM AM

PROGRAM

MEMORY

5 Press ENTER. 6 Create an index name by using the

cursor buttons:

Press X/x to select a ch aracter, t hen press c to move the cursor to the next position.

If you make a mistake

Press C or c repeatedly until the character to be changed fla she s, then press X/x to select the desired character.

7 Press ENTER.

The station name is stored.

DVDSACD

ANGLE

VIDEO CD

MP3

PBC NTSC

PROGRESSIVE

DIGITAL EX

PRO LOGIC dB PCM DSD NEO: kHz DTS-ES

96/24

MHz MPEG-2

AAC

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED MMONOST S SHUFFLE REPEAT1

FM AM

PROGRAM

MEMORY

Note

You cannot input the name during ma nua l tuning. (“Not in Use” appears in the front panel display.)

PRESET –/+

ENTER C/X/x/c

AMP MENU

Changing the Brightness of the Front Panel

There are four levels of brightness for the front panel display. Adjust the brightness according to your room’s lighting conditions. The default setting is “DIMMER OFF.”

ENTER X/x

AMP MENU

1 Press AMP MENU.

Set the function of the remote to DVD, and then press AMP MENU.

2 Press X/x repeatedly until “DIMMER”

appears in the front panel display, then press ENTER.

3 Press X/x to change the brightness,

then press ENTER or AMP MENU.

x DIMMER OFF

The front panel display and the MULTI CHANNEL DECODING indicator are brightly lit.

x DIMMER 1

The front panel display and the MULTI CHANNEL DECODING indicator are half lit.

x DIMMER 2

The front panel display and the MULTI CHANNEL DECODING indicator are dimly lit.

x DISP OFF

Turns off the front panel display and the MULTI CHANNEL DECODING indicator. When the receiver accepts an incoming remote signal, it lights for 5 seconds at DIMMER 2 bright ness.

Each time you change the setting, the br ightness of the front panel di splay changes as follows: DIMMER OFF t DIMMER 1 t DIMMER 2 t DISP OFF t DIMMER OFF...

Other Operations

Settings and Adjustments

Using the Setup Display

2 Press X/x to select the setup item from

the displayed list: “LANGUAGE SETUP,” “S CREEN SETUP,” “C USTOM SETUP,” “SPEAKER SETUP,” and “RESET

The selected Setup item appears. Example: “SCREEN SETUP”

.” Then press ENTER or c.

By using the Setup Display, you can make various adjustments to items, such as picture and sound. You can also set the subtitle language and the Setup Displ ay, among other things. For details on each Setup Displa y item, see p age67-

73. For an overall list of Setup Display items, see page 86, 87.

How to use the Setup Display

ENTER C/X/x/c

O RETURN/ EXIT

DVD SETUP

1 In stop mode, press DVD SETUP.

The Setup Display appears.

LANGUAGE SETUP

Main item

OSD : DVD MENU : AUDIO : SUBTITLE :

ENGLISH ENGLISH ENGLISH ENGLISH

SCREEN SETUP

SCREEN SAVER: BACKGROUND: COMPONENT OUT:

4:3 LETTER BOXTV TYPE:

JACKET PICTURE

INTERLACE

3 Select an item using X/x, then press

ENTER or c.

The options for the selected item appear. Example: “TV TYPE”

SCREEN SETUP

TV TYPE: 4:3 LETTER BOX SCREEN SAVER: BACKGROUND: COMPONENTOUT:

4:3 PAN SCAN

16:9

Options

Press C or O RETURN/EXIT to return to setup items.

4 Select a setting using X/x, then press

ENTER.

The setting is selected an d setup is complete.

Example: “4:3 PAN SCAN”

Selected setting

SCREEN SETUP

TV TYPE: 4:3 PAN SCAN SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

INTERLACE

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup Display is turned off.

* When you select “RESET” in step 2, the

following ite ms ar e r eturned to the default setting s.

• Setup Menu (except for the PARENTAL CONTROL) (page 86, 87)

After you select “RESET” and press ENTER, select “YES” to reset the settings (it takes a few second s to complete). Select “NO” a n d p r ess ENTER to cancel. Do not press POWER on the receiver, when re se tti ng the receiver.

Setting the Display or Sound Track Language

(LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-scree n di splay or sound track.

Select “LANGUAGE SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 66).

LANGUAGE SETUP

OSD : DVD MENU : AUDIO : SUBTITLE :

x OSD (On-Screen Display)

Selects the display language on the screen. Selects the language from the displayed list.

x DVD MENU (DVD only)

Selects the desired language for the DVD menu.

x AUDIO (DVD only)

Selects the langua ge of the sound track. Selects the language from the displayed list.

x SUBTITLE (DVD only)

Selects the language of the subtitle. Selects the language from the displayed list.

Note

If you select a language that is not recorded on the DVD, one of the recorded languages will be automatically selected (except for “OSD”).

Tip

If you select “OTHERS t” in “DVD MENU,” “SUBTITLE,” or “AUDIO,” select and enter the language code from the list usi ng the number buttons (page 85). After you have made a selection, the langua ge co de (4 digits) is displayed the next time you select “OTHERS t.”

ENGLISH ENGLISH ENGLISH ENGLISH

Settings and Adjustments

Settings for the Display

(SCREEN SETUP)

Choose settings according to the TV to be connected.

4:3 LETTER BOX

4:3 PAN SCAN

Select “SCREEN SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 66). The default settin gs are underlined.

SCREEN SETUP

TV TYPE: 4:3 LETTER BOX SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

INTERLACE

x TV TYPE (DVD only )

Selects the aspect ratio of the connected TV (4:3 standard or w ide).

4:3 LETTER BOX

4:3 PAN SCAN

16:9

Select this if you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

Select this if you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

Select this if you connect a widescreen TV or a TV with a w ide mode function.

16:9

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automati call y in st ead of “ 4:3 PAN SCAN” or vice versa.

x SCREEN SAVER

Turns the screen saver on and off so that the screen saver im age appears when you leave the receiver in pause or stop mode for 15 minutes, or when you playback a CD, a Super Audio CD, an MP3 or a JPEG file (except during the slide show) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (afterimage). Press H to turn off the screen saver.

ON OFF

Turns on the screen saver. Turns off the screen saver.

x BACKGROUND

Selects the background color or picture on the TV screen in stop mode or while playing a C D .

JACKET PICTURE

GRAPHICS

BLUE BLACK

The jacket picture (still pict u re) appears in the background, but only if a jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears.

A preset picture stored in the receiver appears in th e background.

The background color is blue. The background color is black.

x COMPONENT OUT

This will change the ty pe of signal output from the COMPONENT VIDEO OUT jacks on the receiver. See page 79 for mo re information about the different ty pes.

Custom Settings

(CUSTOM SETUP)

INTERLACE

PROGRESSIVE

Note

If you set “COMPONENT OUT” in “SCREEN SETUP” to “PROGRESSIVE” even though your TV cannot accept the signal in progressive format, press and hold x and . simultaneously for a few seconds. The “COMPONENT OUT” setting returns to “INTERLACE.”

Select this when you are connected to a standard (interlace format) TV.

Select this when you have a TV that can accept progressi v e signals.

Allows setting up Parental Control and other settings.

Select “CUSTOM SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 66). The default sett i ngs are underlined.

CUSTOM SETUP

PARENTAL CONTROL TRACK SELECTION AUDIO DRC:

OFF OFF MP3DATA CD PRIORITY:

MM/DD/YYYYJPEG DATE:

x PARENTAL CONTROL t (DVD only)

Sets a password and playback limitation level for DVDs with playback limitati on for child ren. For details, see “Limitin g p lay b ac k fo r c hildren (Parental Control)” (page56).

x TRACK SELECTION (DVD only)

Gives the sound track having the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, MPEG audio, DTS, or Dolby Digital format) are recorded.

OFF AUTO

No priority given. Priority given.

Settings and Adjustments

Notes

• When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting ha s higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 67).

• If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the sa me number of cha nnels, the recei ver selects PCM, DTS, Dolby Digital, and MPEG audio sound tracks in this order.

• Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS, Dolby Digi ta l, or MPEG audio format by selecting “AUTO.”

continued

x AUDIO DRC (AUDIO DYNAMIC RANGE COMPRESSION)

Narrows the DYNAMIC range of the sound track. Useful for watching movies at low v ol ume late at night.

OFF

STANDARD

MAX

Note

DYNAMIC range compression only applies to Dolby Digital sources.

No compression of DYNAMIC range.

Reproduces the soundtrack with the kind of DYNAMIC range that the recording engineer intended .

Narrows the DYNAMIC range fully.

x DATA CD PRIORITY (MP3, JPEG only)

Set priority data you want to play, when you play a DATA CD (CD-ROM/CD-R/CD-RW) containing MP3 audio tracks and JPEG image files.

MP3

JPEG

Notes

• When you play multi-session CDs, the receiver decides a target to play for the last session or session linked with the last session.

• If you change this setting, rei nse r t the disc.

If an MP3 file exists on a disc, the receiver recognises the disc as an “MP3 Disc.” If only JPEG files exist on the disc, the receiver recognises the disc as a “JPEG Disc.”

If a JPEG file exists on the disc, the receiver recognises the disc as a “JPEG Disc.” If only MP3 files exist on the disc, the receiver recognises the disc as an “MP3 Disc.”

x JPEG DATE

Change the date in formation order of a JPEG image in the Control Menu.

MM/DD/YYYY YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

YYYY: Year MM: Month DD: Day

Settings for the Speakers

(SPEAKER SETUP)

To obtain the best possible surround sound, set for the size of the s peakers you have connected and their distance from your listening position. Then use the test tone to adjust the level and the balance of the spea kers to the same level.

Select “SPEAKER SET U P” i n t he setup display. For detai ls , see “Using the Setup Display” (page 66). The default settings are underlined.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL: BALANCE: TEST TONE:

To return to the default setting when changing a setting

Select the item, then pr ess CLEAR. Only the selected item is retu rn ed to the de fa ul t setting.

x SIZE

If you use small sp eakers, do not conn ect a center, surroun d speakers, or surr ound back speaker, or move the surround speakers, set the parameters for FRONT, CENTER, SURROUND, SURROUND BACK, and SUBWOOFER.

FRONT

CENTER

LARGE: Normally selec t this. SMALL: Selec t this if small

speakers are used for the front speaker.

LARGE: Normally selec t this. SMALL: Selec t this if small speakers are used for the center speaker. NONE: Select this if no center speaker is used.

SURROUND

SURROUND BACK

SUBWOOFER

LARGE (BEHIND, LOW), LARGE (BEHIND, HIGH), LARGE (SIDE, LOW), LARGE (SIDE, HIGH), SMALL (BEHIND, LOW), SMALL (BEHIND, HIGH), SMALL (SIDE, LOW), SMALL (SIDE, HIGH): Specify the size, position, and height to implement the Digi ta l Cinema Surround modes in the sound field (page 46) properly. Fo r deta ils, see “Specifying the surround position and height” as below.

NONE: Select this if no surround speaker is used.

LARGE: Normally selec t this. SMALL: Select this if small speakers are used for the surround back speaker. NONE: Select this if no surround back speaker is used.

YES: Select this if a subw oof er is used.

NONE: Select this if no subwoofer is used.

Setting restrictions

Size setup has some restrictions. Some settings are changed automatically.

If “FRONT” is set to “SMALL”

“CENTER,” “SURROUND,” and “SURROUND BACK” must be set to either “SMALL” or “NONE.”

If “SURROUND” is set to either “LARGE” or “SMALL”

“SURROUND BACK” must be set to the same setting or “ NON E . ”

If “SUBWOOFER” is set to “NONE”

“FRONT” must be set to “LARGE.”

Notes

• When you select an item, the sound cuts off for a moment.

• Depending on the settings, subwoofer output may be excessive.

Specifying the surround speaker position and height

If you select anything other than “NONE” in “SURROUND,” specify the size, position, and height of the sur round speakers.

BEHIND (LOW):

BEHIND (HIGH):

SIDE (LOW):

SIDE (HIGH):

These parameters are no t available when “SURROUND” is set to “NONE.”

Position diagram

Height diagram

Tip

Select this if the surround speakers are located in section B and D.

Select this if the surround speakers are located in section B and C.

Select this if the surround speakers are located in section A and D.

Select this if the surround speakers are located in section A and C.

Surround speak er position and height is designed specifically for CINEMA STUDIO EX mode.

Settings and Adjustments

continued

x DISTANCE

The default distance setting for the speakers in relation to the listening po sition is s hown below.

x LEVEL

You can vary the level of each speaker as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment.

(10ft)

Be sure to change the value in the Setup Display when you move the speakers.

FRONT 3 m/10 ft

CENTER 3 m/10 ft

SURROUND 3 m/10 ft

SURROUND BACK 3m/10ft

Notes

• When you set the distance, the sound cuts off for a moment.

• If all front and surround speakers are not placed at an equal distance from your liste ning position, set the distance according to the closest speaker.

• Do not place the surround speakers farther away from your listening position than the front speakers.

Front speaker distance from the listening position can be set in 0. 3 metre (1 ft) increments from 0. 9 to 6.9 metres (3 to 23 ft).

Center speaker distan ce can be moved up to 1.5 metres (5 ft) forward closer to your listening position from the front speaker position, in 0.3 metr e (1 ft) increments.

Surround speaker distance can be moved up to 4.5 metres (15 ft) closer to your listening position from the front speaker position, in 0.3 metr e (1 ft) increments.

Surround back speaker distance can be moved up to 4.5 metres (15 ft) closer to your listening positi on fro m the front speaker position, in 0.3 metre (1 ft) increments.

CENTER 0 dB

Adjusts the level of the center speaker (–10 dB to +10 dB, 1 dB steps).

SURROUND LEFT 0 dB SURROUND RIGHT 0 dB

SURROUND BACK 0 dB

Adjusts the level of the surround speakers (–10 dB to +10 dB, 1 dB steps).

Adjusts the level of the surround back speaker (–10 dB to +10 dB, 1dB steps).

SUBWOOFER 0 dB

Adjusts the level of the subwoofer (–10 dB to +10 dB, 1 dB steps).

x BALANCE

You can vary the bal ance of the left and right speakers as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment.

FRONT CENTER

Adjusts the balance between the front left and right speakers. The center position is shown as “---”. (You can adjust from the center, 6 steps left or right.)

To adjust the volume of all the speakers at one time

Use the VOLUM E control on the receiver, or press VOLUME +/– on the remote.

x TEST TONE

The speakers will emit a test tone to adjust “LEVEL” and “BALAN C E.”

OFF

The test tone is not emi tte d f rom the speakers.

The test tone is emitted from each spe aker in sequence. When “BALANCE” is selected, the te st tone is emitted from both left and right speakers simultaneously. When “LEVEL” is selecte d, the test ton e is emitted from only the spe ak er th at you are adjusting.

Adjusting the speaker balance and level by using the test tone

1 Press DVD SETUP in stop mode.

The Setup Disp l ay appears.

2 Press X or x repeatedly to select

“SPEAKER SETUP,” then press ENTER.

3 Press X or x repeatedly to select “TEST

TONE,” then press ENTER.

4 Press X or x repeatedly to select “ON,”

then press ENTER.

You will hear the tes t t one from each speaker in sequence.

5 From your listening position, adjust the

value of “BALANCE” and “LEVEL” using C/X/x/c.

When selecting “BALANCE,” the test tone is emitted from both left and right speakers simultaneously.

When selecting “L EV EL,” the test tone is emitted from onl y th e speaker which yo u are adjusting.

6 Press ENTER when you have finished

making adjustments.

7 Press X or x repeatedly to select “TEST

TONE,” then press ENTER.

8 Press X or x repeatedly to select

“OFF,” then press ENTER.

Note

When you adjust the speaker settings, the sound cuts off for a moment.

Tip

To adjust the balance or the level without listening to the test tone, select “BALANCE” or “LEVEL” in step 3 and press ENTER . Then adjust the balance or level using X/x and pr ess ENTER.

Settings and Adjustments

Additional Information

Troubleshooting

If you experience any of the following difficulties while usin g the receiver, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult you r nearest Sony dealer.

Power

The power is not turned on.

• Check that the AC power cord is conn ected securely.


There is no picture.

• The video connecting cords are not conne c te d securely.

• The video connecting cords are damage d.

• The receiver is not connected to the corr ect TV input jack (page 19).

• The video input on the TV is not set so that you can view pictures from the receiver.

• You have set “COMPONENT OUT” in “SCREEN SETUP” to “PROGRESSIVE” even though your TV cannot accept the signal in progressive format. In this case, press and hold x and . simultaneously for a few seconds. The “COMPONENT OUT” setting returns to “INTERLACE.”

• Even if your TV is compatible with progressive format (480p) signals, the image may be affected when you set “COMPONENT OUT” to “PROGRESSIVE.” In this case, set “COMPONENT OUT” to “INTERLACE.”

Picture noise appears.

• The disc is dirty or flawed.

• If the picture output from your receiver goes through your VCR to get to your TV, the copyprotection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your receiver directly to your TV, try connecting your receiver to your TV’s S video input (page 19).

Even though you set the aspect ratio in “TV TYPE” of “SCREEN SETUP,” the picture does not fill the scr e e n .

• The aspect ratio on the disc is fixed.

The picture is black and white.

• Depending on the TV, the picture on the screen becomes black and white when you play a disc recorded in the NTSC color system.

Sound

There is no sound.

• The speaker cord is not connected securely.

• C heck the speaker settings (pages 22, 70) .

• The co nne ct ing cord is damaged. Replace it with a new one.

• Press MUTING on the remote if “MUTING ON” is displayed in the front panel display.

• The receiver is in pause mode or in Slow-motion Play mode. Press H to return to normal play mode.

• Fast forward or fast reverse is performed. Press H to return to normal play mode.

• Select “DEC. PRI.” from AM P M ENU and set “AUTO” when playing DTS-CD signals from external equipment using the DIGIT AL IN (OPTICAL IN/COAXIAL IN) jack (page 49).

The left and right sounds are unbalanced or reversed.

• Check that the speakers and componen ts are connected correctly and securely.

• Adjust the balance parame te r in the BALANCE menu (page 72).

There is no sound from the subwoofer.

• Check the speaker connections and settings (pages 15, 70).

• Set the sound field to “AUTO FORMAT DIRECT AUTO” (page 44).

Severe hum or noise is heard.

• Check that the speakers and componen ts are connected securely.

• Check that the connecting cords are away from a transformer or motor, and at least 3 metres (10 feet) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Select “DEC. PRI.” from AM P M ENU and set “AUTO” when playing DTS-CD signals from external equipment using the DIGIT AL IN (OPTICAL IN/COAXIAL IN) jack (page 49).

• Clean the disc.

When CD (PCM signal) playback starts, sound is not output initially.

• Select “DEC. PRI.” from AM P M ENU and set “PCM” (page 49).

The sound loses stereo effect when yo u play a VIDEO CD, a CD, or an MP3.

• Set “AUDIO” to “STEREO” in the Control Menu display (page 42).

• Make sure the receiver is connected appropri ately.

The surround effect is difficult to hear when you are playing a Dolby Digital or MPEG audio sound track.

• Make sure the sound field function is on (page 44).

• Check the speaker connections and setting s (pages 15, 70).

• Depending on the DVD, the output signal may not be the entire 5.1 channel or 6.1channel. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG audio format.

The sound comes from the center speaker only.

• Depending on the disc, the sound may come from the center speaker only.

No sound is heard from the center speaker.

• Check the speaker connections and settings.

• Make sure the sound field function is on (page 44).

No sound or only a very low-level sound is heard from the surround/surround back speakers.

• Check the speaker connections and settings.

• Make sure the surround speakers are set to either “SMALL” or “LARGE.”

• Make sure the sound field function is on (page 44).

• Sel ect a sound fie ld c ont ai ning the word “C.ST.EX” (page 46).

• Depending on the source, the effect of the surround/surround back speaker s ma y be les s noticeable.

Operation

Radio stations cannot be tuned in.

• Check that the antennas are connected securely. Adjust the antennas or connect an external antenna if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use manual tuning.

• No stations have been preset or the preset stati ons have been cleared (when tuning by scanning preset stations). Preset the stations (page 62).

• Press DISPLAY/JUMP so that the frequency appears in t h e d isplay.

The remote does not function.

• The controllable source on the remote is an othe r unit(s). Press DVD,VIDEO1, VIDEO 2, or TV/SAT on the remote (page 62).

• T here are obstacles between the remote and the receiver.

• The distance between the remo te and t he rece iver is too far.

• The remote is not pointed at the remote sensor on the receiver.

• The batteries in the rem ote are weak .

The disc does not play.

• There is no disc inserted.

• The disc is upside down. Insert the disc with the playback side facing down on the disc tr ay.

• The disc is skewed on the disc tra y.

• The receiver cannot play CD-ROMs, etc. (page 8).

• The region code on the DVD does not match the receiver.

• Moisture has condensed inside the receiver. Remove the disc and leav e the receiver turned on for about half an hour (page 3).

The MP3 audio track cannot be played.

• The DATA CD is not recorded in an MP 3 forma t that conforms to ISO9660 Level 1/ Level 2 or Joliet.

• The MP3 audio track does not have the extension “.MP3.”

• The data is not formatted in MP3 even though it has the extension “.MP3.”

• The receiver can only play MP3 (MPEG1 Audio Layer3) audio.

• R emove the disc and select “CUSTOM SETUP” from the setup items. Then select “DATA CD PRIORITY” and set to “MP3” again (page 70).

• There are more than 8 directory levels.

The title of the MP3 audio album or track is not correctly displayed.

• The receiver can only display alpha be tical letters and numbers. Other characters are display ed as “ ”.

continued

Additional Information

The JPEG image file cannot be played

• The DATA CD is not recorded in a JPEG format that conforms to ISO9660 Level1/Leve l 2 or Joliet.

• The JPEG image file does not have the extension “.JPG” or “.JPEG.”

• The data is not formatted in JPEG even th ough it has the extension “.JPG” or “JPEG.”

• Image length or width is more than 4720 dots.

• Remove the disc and select “CUSTOM SETUP” from the setu p items. Then select “DATA CD PRIORITY” and set to “JPEG” again (page70).

• There are more than 8 d irectory levels.

• You cannot play the Progressive JPEG files.

The title of a JPEG album or file is not correctly displayed.

• The receiver can only display alphabe tic a l le tters and numbers. Other characters are disp la ye d as “ ”.

The display for entering the passw o rd does not appear for Super Audio CD, even though Custom Parental Control is set.

• Custom Parental Control is set for different layer s of a Super Audio CD.

A disc does not start playing from the beginning.

• Pr ogr a m Pla y, Shuf f le Pl ay , or Repe at Play ha s been selected (pages 31, 32, 33). Press CLEAR to cancel these func ti ons before playing a disc.

• Resume Play has been selected. During stop, press x on the receiver or the remote and then start playback (page 25).

• The title, DVD or PBC menu automatically appears on the TV screen.

The receiver starts playing the disc automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• S om e di sc s ma y co nta in a n auto pause signal. While playing such a disc, the rece iv er stops playback at the auto pause signal.

The receiver turns off during DVD playback.

• If app roximately one hour passes with DVD playback paused or with the DVD top menu or a DVD menu displayed during DVD playback, the receiver automatically turns off.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play , or Program Pl ay .

• Depending on the disc, you may not be able to perform some of the operations above. See the operating manual that cam e with the disc.

Messages do not appear on the screen in the language you want.

• In the Setup Display, select the desired language for the on-screen display in “OSD” under “LANGUAGE SETUP” (page 67).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multilingual subtitle s ar e not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played (page 51).

• The DVD prohibits changing the angles.

A disc cannot be ejected and “LOCKED” appears in the front panel display.

• Contact your Sony dealer or local authorized Sony service facility.

“PROTECT” appears in the front panel display.

• The spe a ker pr ote c ti on ci r cuit is f unc tioning.

• C heck the speaker connections.

The receiver does not wo rk normally.

• If the receiver’s operation becomes effect ed, press POWER on the receiver to turn off the power, then turn on the power again.

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohm loads, both

channels driven, from 20 – 20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 0.7 % total harmonic distortion from 250 milli watts to rated output.

Amplifier section

Stereo mode 100 W + 100 W (8/4 ohms,

20 – 20,000 Hz, THD 0.7 %)

Surround mode Front: 100 W + 100 W

Center*: 100 W Surround*: 100 W + 100 W Surround back*: 100 W (8/4 ohms, 20 – 20,000 Hz, THD 0.7 %)

* Depending on the sound field settings and the source,

there may be no sound output.

Inputs (Analogue) ANALOG IN:

Sensitivity: 150 mV Impedance: 50 kilohms

Inputs (Digital) DIGITAL IN OPTICAL:

DIGIT AL IN COAXIAL: Impedance: 75 ohms

Outputs (Analogue) SUB WOOFER OUT:

Voltage: 3 V Impedance: 100 ohms PHONES: Accepts low- and highimpedance headpho ne s

Outputs (Digital) DIGITAL OUT

OPTICAL

Super Audio CD/DVD system

Laser Semiconductor laser

(Super Audio CD/DVD: λ = 650 nm) (CD: λ = 780 nm) Emission duration: continuous

Signal format system NTSC

FM tuner section

System PLL quartz-locked digital

Tuning range 87.5 – 108.0 MHz (100

Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz

synthesizer system

kHz step)

AM tuner section

System PLL quartz-locked digital

Tuning range 530 – 1710 kHz (with the

Antenna Loop antenna Intermediate frequency 450 kHz

synthesizer system

interval set at 10 kHz) 531 – 1710 kHz (with the interval set at 9 kHz )

Video section

Inputs Video:

Outputs Video:

1 Vp-p 75 ohms S-video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms

1 Vp-p 75 ohms S-video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms Component: Y: 1 Vp-p 75 ohms

B/CB: 0.7 Vp-p

P P

R/CR: 0.7 Vp-p

General

Power requirements 120 V AC, 60 Hz Power consumption 180 W

Dimensions (approx.) 430 × 100 × 450 mm (17 ×

Mass (approx.) 7.0 kg (15 lb 7 oz ) Operating temperature 5°C to 35°C (41°F to 95°F) Operating humidity 5 % to 90 % Supplied accessories See page 13.

Design and specifications are subject to change without notice.

1 W (at the Power Saving Mode)

/4 inches) (w/h/d)

4 × 17 incl. projecting parts

Additional Information

Glossary

Album

Section of a music pi ece or an image on a da t a CD containing MP3 audio tracks or JPEG files.

Chapter

Subdivision of a title on a DVD. A title is composed of several chapters .

Digital Cinema Sound (DCS)

This is the generic name of the surround sound produced by digit al si gnal processing technolog y develope d by Sony. Unl ike previ ous surround sound fi el ds mainly directed at the reproduction of music, Digital Cinema Sound is designed specifically for the enjoyment of movies.

Dolby Digital

This mov ie theatre sound format is more advanced than Dolby Surround Pro Logi c. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This for m at is al so called “5.1,” with the subwoofer channel designated as th e 0 .1 chan nel (si nce it f un ct ions only when a deep bass effect is needed). All six channels in this format are recorded separately for superior channel separation. Furthermore, since all the s igna ls ar e pr oc esse d di gi ta lly , les s signal degradat i on occurs.

Dolby Digital EX

An enhanced compatible format of Dolby Digital 5.1, developed by Dolby Lab oratories and Lucasfilm THX, which adds an extra surround back ch annel, and can be use d for

6.1(three surr ound speakers) channel playback, using matrix encoding.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth output channels from two-channel sources. This is done using an advanced, high-purity m at rix surround decoder that extracts the spatial properties of the origina l recording without adding any new sounds or tonal colora t ions.

x Movie mode

The Movie mode is for use with stereo television shows and all prog rams encoded in Dolby Surround. The result is enhanced so undfield directionality tha t a pproaches the qualit y of discrete 5.1-ch annel sound.

x Music mode

The Music mode is f or use with an y stereo musi c recordings, and provides a wide and deep sound space.

Dolby Surround Pro Log ic

As one method of decoding Dolby Surround, Dolby Surround Pro Lo gi c produces four channels from two-channel sound. Compared with the form er D olby Surround system, Dolb y Surround Pro Logic r eproduces left-to-r i ght panning more natur al ly and localizes sounds more precisely. To take full advant age of Dolby Surround Pro Logic, you should have one pair of surround speakers and a center speaker. The surround speak ers output monaural sound.

DTS

Digital audio compression technology developed by Digital Theater Systems, Inc. This technology conforms to 5.1-channel surround. This format comprises of stereo surround channels and a discrete subwoofer channel. DTS provides the same 5. 1 di screte channels of hi gh quality digital audio. Superior channel separation is realized due to all ch annel data being recorded discretely and processed digitally.

DTS-ES

An enhanced compatible format of 5.1 channel, which adds an extra surround back channel. There are two form ats: Discrete 6.1 , which processes the surround back signa l independently, and Matrix 6.1, which processes it along with the Surr ound (L/R) channel s.

DVD

A disc that contain s up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and singlesided DVD, at 4.7 GB (Giga Byte), is 7 times that of a CD. Furthermore, the data capacity of a dual-layer and single-sided DVD is 8.5 GB, a

single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 G B . The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The pict ur e data is compressed to about 1/40 of its orig inal size. DVD also uses variable rat e co ding technology that processes allocated data according to the status of the picture. The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more realistic audio pr esence. Furthermor e, various advanced functions s uc h as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

File

Section of a picture on a data CD containing JPEG image files.

Film based software, Video based software

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theatres. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames (or 60 fields) per second.

Interlace format (Interlaced scanning)

The Interlace format is the NTSC standard method for displaying TV images at 30 frames per second. Each fra m e i s s canned twice alternately between the even numbered scanning lines and then odd nu m bered scanning lines , at 60 times per second.

Multi-angle function

Various angles of a s cene, or viewpoints of the video camera are recorded on some DVD s.

Multilingual function

Several languages for the sound or subtitles in a picture are recorded on some DVDs.

Neo:6

Developed by Digital Theater Systems, Inc., applies a conventional 2-channel or D olby Digital source signal to a high-precision, digital matrix decoder to achieve 6.1 channel surround playback. CINEMA mode allows for more separation of

channels to enhance the 6.1 channel ef fect, and is best suited for movies. MUSIC mode allows the front L and R channels to go unprocess ed for optimum stereo, with the addition of the sur ro und components ad di ng a special quality to the sound.

Parental Control

A function of the DVD to limit p layback of the disc by the age of th e vi ewer according to the limitation level in each country . The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are sk ipped or repla ced with other s cenes and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menu sc reens recorded on V I D E O CDs with PBC functions, you can enjoy playing simple interactive program s, programs with search functions, and so on.

Progressive format (sequential scanning)

In contrast to the Interlace format, the progressive format can reproduce 60 frames per second by repro ducing all scanning li nes (525 lines for the NTSC system). The overall picture quality increases and still images, text and horizontal lines appear sharper. This format is compatible wi th the 525 progressive format.

Region Code

This receiver is used to protect copyrights. A region number is allocated on each DVD system or DVD disc according to the sales r egion. Eac h region code is shown on the receiver as well as on the disc packaging. The receiver can play the discs that match its region code. The re ceiver can also play discs with the “ ” mark. Even

ALL

when the region code is not shown on the DVD, the region limit may still be activated.

Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, m ovi ng pictures and still pictures are divided into sections called “scenes.”

Additional Information

continued

Super Audio CD

A Super Audio CD di sc can reproduce sou n ds that are extremely faithful to the original sound by use of DSD (Direct Stream Digital) technology. This technology util izes a sampling frequency of 2.8224 MHz, which is 64 times that of a conventional CD, and 1-bit quantization that enables the disc to hold 4 times the amount of information that a standar d PCM format CD can hold. Super Audio CDs are divided into the following types.

• Super Audi o CD (single layer disc) This disc consis t s of a single HD layer*.

* High density signal layer for the Super Audio CD

HD (high density) layer

• Super Audi o CD (dual layer disc) This disc consist s of dual HD layers and is capable of extended play over long periods. Also, as the dual layer disc consists of dual HD layers on one side only, you do not have to turn the disc over during playback.

HD layer

• Super Audi o CD + CD (Hybrid disc) This disc consists of an H D l ayer and a CD layer. Also, as the dual layers are on one si de only, you do not have to turn the disc over during playback . You can play this CD laye r using a conventi ona l CD player.

• 2 channel + Multi-channel Super Audio CD This disc cons ists o f a 2 cha nnel pl ayback ar ea and a multi-channel playback area.

2 channel playback area Multi-channel playback

area

Title

The longest section of a picture or music feature on a DVD, movie, etc., in video software, o r the entire album in audio software.

Track

Section of a picture or a music piece on a Super Audio CD, CD, VIDEO CD or MP3. An album is composed of sever al tracks (MP3 only).

VIDEO CD

A compact disc that contains moving pictures. The picture data uses th e M P EG 1 format, a worldwide standard of digital compression technology. The pict ur e data is compressed t o about 1/140 of its original size. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures. VIDEO CDs also con t ain compact audio data. Sounds outside th e range of human hear in g ar e compressed while sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio informatio n of conventional audio C D s. There are 2 versions of V ID EO CDs.

• Version 1.1: You can play only moving pictures and sounds.

• Version 2.0: You can play high-res olution still pictures and enjoy PBC functions.

This receiver conforms to both versions.

CD layer

HD layer

Index to Parts and Controls

For more information, refer to the pages indicated in parentheses.

Front Panel

POWER

STANDBY

PHONES

SOUND FIELD

A. F. D.2CH

MODE

TUNER/PRESET FUNCTION

DISPLAY

A Power switch (23) B STANDBY indicator (23) C (remote sensor) (13) D 2CH (44) E A.F.D. (44) F MODE (46) G DISPLAY (37, 63) H Disc Tray (23) I MULTI CHANNEL DECODING indicator

(65)

VOLUME

Additional Information

J Z (open/close) (23) K N (play) (23) L X (pause) (24) M x (stop) (23) N VOLUME control (23) O ./> (24) P Front Panel Display (82) Q FUNCTION –/+ (62) R TUNER/PRESET –/+ (62) S PHONES jack (23)

continued

Front Panel Display

When playing back a DVD

Playing status

Lights up when you can change the angle

ANGLE

Current chapter number

MP3

VIDEO CD

PBC NTSC

Playing time

PROGRESSIVE

dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

HYBRID ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

REPEAT1

PROGRAM

Current mode

DVDSACD

FM AM MEMORY

Current title number

When playing back a Super Audio CD, CD, VIDEO CD, or MP3

Current play mode

HYBRID

Current disc

DVDSACD

ANGLECDMP3 ALL 1DISCS TITLE TRACK CHAPTER INDEX HTUNEDM MONO ST S

SHUFFLE REPEAT1 PROGRAM

FM AM MEMORY

Playing status

Current track

number

Current index number (The index indicator does not appear during Super Audio CD or MP3 play back.)

Lights up during PBC playback (VIDEO CD only)

VIDEO CD

PBC NTSC

Current sound

PROGRESSIVE

dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

Playing time

When listening to the radio

Preset number

HYBRID

DVDSACD

ANGLE

MP3

VIDEO CD ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE REPEAT1 PROGRAM

FM AM

MEMORY

Monaural/Stereo effect

PBC NTSC

PROGRESSIVE

dB PCM DSD NEO:

kHz DTS-ES MHz MPEG-2

DIGITAL EX PRO LOGIC

6 96/24

AAC

Current sound

DIGITAL EX PRO LOGIC

6 96/24 AAC

DIGITAL EX PRO LOGIC

6 96/24 AAC

Current band

Current station

When playing back a JPEG file

Playing status

HYBRID

DVDSACD ALL 1DISCS TITLE TRACK CHAPTER INDEX H TUNED M MONO ST S SHUFFLE

REPEAT1

PROGRAM

Current mode

FM AM MEMORY

Current file number

ANGLE

MP3

VIDEO CD

PBC NTSC

PROGRESSIVE

dB PCM DSD NEO: kHz DTS-ES MHz MPEG-2

DIGITAL EX PRO LOGIC

6 96/24 AAC

Rear Panel

COAXIAL IN TV/SAT

COAXIAL

ANTENNA

TV/SAT VIDEO2

OPTICAL IN OPTICAL

OUT

DIGITAL

COMPONENT VIDEO OUT

AUDIO

TV/SAT

VIDEO2

MONITOR

TV/SAT

VIDEO2

S VIDEO

(DVD ONLY)

B/CBPR/CR

AUDIO

VIDEO1

S VIDEO

OUT

BACK

A FM 75Ω COAXIAL jack (17) B AM terminals (17) C COMPONENT VIDEO OUT jacks (19) D MONITOR (S VIDEO OUT) jack (19) E TV/SAT (S VIDEO IN) jack (19) F VIDEO2 (S VIDEO IN) jack (19) G VIDEO1 (S VIDEO IN) jack (19) H MONITOR (VIDEO OUT) jack (19) I TV/SAT (VIDEO IN) jack (19) J VIDEO2 (VIDEO IN ) ja ck (19)

MONITOR

TV/SAT

VIDEO2

VIDEO

VIDEO1

VIDEO

SURROUND

L R L

SPEAKERS

CENTER FRONT

IMPEDANCE USE 4-16

AUDIO

OUT

SUB

WOOFER

OUT

K VIDEO1 (VIDEO IN) jack (19) L SUB WOOFER (ANALOG OUT) jack

(14)

Additional Information

M SPEAKER terminals (14) N VIDEO1 (AUDIO L/R IN) jack (19) O VIDEO2 (AUDIO L/R IN) jack (19) P TV/SAT (AUDIO L/R IN) jack (19) Q DIGITAL (OPTICAL OUT) jack (20) R DIGITAL (OPTICAL IN VIDEO2) jack

(20)

S DIGITAL (OPTICAL IN TV/SAT) jack (20) T DIGITAL (COAXIAL IN TV/SAT) jack

(20)

continued

Remote

Notes

• This remote control glows in the dark. However, before glowing, the remote must be exposed to light for a while.

• When you operate a DVD player, press DVD 4, and then change the mode of the receiver to DVD.

A RM SET UP (59, 60, 61) B TV [/1 (on/standby) (59) C VIDEO1 (61, 62) D DVD (23) E A.F.D. (44, 45) F 2CH (44)

G PLAY MODE (31, 32) H REPEAT (31, 33) I Number buttons (26, 31, 35, 51, 54, 56,

59, 60, 61)

J ./>, CH –/+, PRESET –/+ (24, 26,

61, 62, 63, 64)

K H (play) (23, 24, 25, 26, 30, 31, 32, 33,

34, 56)

L X (pause) (24) M TOP MENU/GUIDE ALBUM– (26, 28, 29,

60)

N C/X/x/c ENTER (26, 28, 29, 31, 33, 35,

42, 45, 48, 49, 50, 51, 52, 53, 54, 56, 62, 64, 65, 66)

O DVD DISPLAY (28, 29, 33, 35, 40, 41, 42,

51, 52, 53, 54)

P TV CH +/– (59) Q TV VOL +/– (59) R AV [/1 (on/standby) (59, 60, 61) S [/1 (on/standby) (23, 62) T VIDEO2 (61, 62) U MODE (46) V TV/SAT (60, 62) W BAND (62, 63) X DISPLAY/JUMP (37, 63) Y FM MODE (63) Z AUDIO (42)

wj ANGLE (51) wk SUBTITLE (52) wl ENTER (59, 60, 61) e; CLEAR (31, 32, 33, 35) ez m/M, SLOW / , TUNIING –/+

(30, 34, 62, 63)

es x (stop) (23, 24, 25, 26, 54) ed OPEN/CLOSE (23) ef AV MENU ALBUM+ (26, 28, 29, 60) eg VOLUME +/– (24, 63) eh O RETURN/EXIT (26, 28, 29, 31, 35, 56,

66)

ej TV/VIDEO (59) ek MUTING (24) el AMP MENU (45, 48, 49, 50, 62, 64, 65) r; DVD SETUP (56, 66)

Language Code List

The language spellings c onform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlin

1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan) Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-Romance 1482 Kirundi 1483 Romanian

1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volap k 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703

Not specified

Additional Information

DVD Setup Menu List

You can set the following item s with the DVD Setup menu. The default settings are underlined .

LANGUAGE SETUP

OSD

DVD MENU

AUDIO

SUBTITLE

(Selects the language you want to use from the displayed language list.)

SCREEN SETUP

TV TYPE

SCREEN SAVER BACKGROUND

COMPONENT OUT

4:3 LETTER

BOX 4:3 PAN SCAN 16:9 ON OFF JACKET PICTURE GRAPHICS BLUE BLACK INTERLACE PROGRESSIVE

CUSTOM SETUP

PARENTAL CONTROL

TRACK SELECTION

AUDIOb) DRC

DATA CD PRIORITY

JPEG DATE

a) DVD only b) Dolby Digital sources only c) MP3, JPEG only

LEVEL

STANDARD CHANGE PASSWORD

OFF AUTO

OFF STANDARD MAX

MP3 JPEG

MM/DD/YYYY YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

OFF

7. NC17

6. R

4. PG13

3. PG

1. G USA OTHERSt

SPEAKER SETUP

SIZE

DISTANCE

LEVEL CENTER

BALANCE FRONT

TEST TONE

FRONT CENTER

SURROUND

SURROUND BACK

SUBWOOFER

SURROUND LEFT

SURROUND RIGHT

SURROUND BACK

SUBWOOFER

LARGE SMALL LARGE SMALL NONE LARGE (BEHIND, LOW) LARGE (BEH IN D, H IGH ) LARGE (SIDE, LOW) LARGE (SIDE, HIGH) SMALL (BEHIND, LOW) SMALL (BEHIND, HIGH) SMALL (SIDE, LOW) SMALL (SIDE, HIGH) NONE LARGE SMALL NONE YES NONE

FRONT 0.9m – 6.9m/

CENTER 0.9m – 6.9m/

SURROUND 0.9m – 6.9m/

SURROUND BACK

OFF ON

3ft – 23ft (3m/10ft)

0.9m – 6.9m/ 3ft – 23ft (3m/10ft)

–10 dB – +10 dB (0dB) –10 dB – +10 dB (0dB) –10 dB – +10 dB (0dB) –10 dB – +10 dB (0dB) –10 dB – +10 dB (0dB) 6 steps left or r i g h t (CENTER)

Additional Information

RESET

YES NO

Index

Numerics

16:9 68 4:3 LETTER BOX 68 4:3 PAN SCAN 68

ALBUM 28, 35 Album 7, 78 ANGLE 51 Antenna Hookups 17 AUDIO 42, 67 AUDIO DRC 70

BACKGROUND 68 BALANCE 72 Batteries 13

CHAPTER 36 Chapter 7, 78 COMPONENT OUT 69 Continuous play

CD/VIDEO CD/Super Audio

CD/DVD/MP3 23 Control Menu 11 CUSTOM PARENTAL

CONTROL 54 CUSTOM SETUP 69

DATA CD PRIORITY 70 Decode Priority 49 Digital Cinema Sound 78 DIMMER 65 DISPLAY 37 DISTANC E 72 Dolby Digital 78 Dolby Digita l EX 78 Dolby Surr ound Pro Logic 78 DTS 78 DTS-ES 78 DVD 78 DVD MENU 26, 67

Fast forward 34 Fast reverse 34 File 7, 79 FM MODE 63 Front Panel 81 Front panel display 82

Handling discs 9

INDEX 36 Index 7

JPEG 29 JPEG DATE 70

LANGUAGE SETUP 67 LEVEL 72 Listening to the Radio 63

MP3 27 Multi-angle function 51, 79 Multiling u al function 42 , 7 9 MUTING 24

Neo:6 79

On-screen display

Control Menu display 11

OSD 67

P ARENT AL C ONTROL 5 6, 69,

79 PBC Playback 26, 79 PICTURE MODE 53 PLAY MODE 31, 32 Power Saving 24 Program Play 31

Radio 63 Rear Panel 83 Region Code 8, 79 Remote 59, 84 REPEAT 33 RESET 67 Resume Play 25

S VIDEO 19 Scan 34 SCENE 11 Scene 7, 79 SCREEN SAVER 68 SCREEN SETUP 68 Setup Disp l ay 66 SHUFFLE 32 Shuffle Play 32 SIZE 70 Slide Show 30 Slow-motion 34 Sound Field 44 Speaker Impedance 50 SPEAKER SETUP 70 Speaker System Hookup 14 SUBTITLE 67 Super Audio CD 80 Surround Back Decodi ng Mode

48, 49

TEST TONE 72 TIME SEARCH 35 TITLE 35 Title 7, 80 TRACK 35 Track 7, 80 TRACK SELECTION 69 Troubleshooting 74 TV and Video Component

Hookups 19

TV TYPE 68

Usable discs 7

VIDEO CD 80

AVERTISSEMENT

Attention – L’utilisation d’instruments optiques avec ce produit augmente le risque de lésion oculaire.

Pour les clients canadiens ATTENTION

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR EVTER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

ENERGY STAR® est une marque déposée aux Etats-Unis. En tant que partenaire d’ENERGY

STAR

, Sony atteste que son produit répond aux recommandations d’ENERGY

en matière d’économie

STAR d’énergie.

Précautions

Sécurité

• Si un objet ou du liquide venait à pénétrer à l’intérieur du boîtier, débranchez l’ap pa rei l et fait es-le vérifier par un personnel qualifié avant de le reme ttre en marche.

• L’appareil n’est pas déconne ct é du sec te ur ta nt qu’ il reste branché sur la pri se secteur, m ême s’il a ét é mis, proprement dit, hors tension.

• Débranchez l’appareil de la pris e m ur ale si vous prévoyez de ne pas l’utiliser penda nt une longue période. Pour débrancher le cordon, tirez sur la fiche, ne tirez jamais sur le cordon lui-même.

Installation

• N’installez pas l’appareil dans un espace confiné comme dans une bibliothèque ou un meuble encastré.

• Prévoyez une circulation d’ai r su ffisante de manière à éviter toute surchauffe interne.

• Ne placez pas l’appareil sur une surface moelleuse (comme un tapis, une couverture, etc.) ou près de tissus (comme un rideau ou une tenture) risqua nt de bloquer les fentes d’aération.

• N’installez pas l’appareil à proximité de sources de chaleur telles que des radiat eu rs ou des cond uites d’air chaud, ni à des endroits exposés à la lumière directe du soleil, à une poussière excessive, à des vibrations mécaniques ou à des chocs.

• N’installez pas l’a ppa re il en position inclinée. L’appareil est conçu pour fonction n e r unique m ent à l’horizontale.

• Gardez l’appareil et les disques à l’écart de tout équipement contenant des aimants magnétiques puissants, par exemple des fours à micro-ondes ou de puissants haut-parleur s.

• Ne posez pas d’objets lourds sur l’ ap pa reil.

• Si vous transportez l’appareil directement d’une pièce froide dans une pièce chaude, de l’humidité peut apparaître par condensation à l’inté r ie ur de l’appareil et endommager les lentilles. La première fois que vous installez l’appareil ou lorsque vous le déplacez d’un endroit frais vers un endroit chaud, attendez environ une heure avant de le faire fonctionner.

Félicitations !

Nous vous remercions d’avoir fait l’acquisition de cet ampli-tuner Sup er Audio CD/DVD de Sony. Avant de le faire fonctionner, lisez attentiv ement ce mod e d’empl oi et cons ervez- le pour toute référence ultérieure.

Précautions

Sécurité

Si un objet ou du liquide venait à pénétrer à l’intérieur du boîtier, débranchez l’ampli-tuner et faites-le vérifier par un personnel qualifié avan t de le r em e ttr e en marche.

Installation

• Installez l’ampli-tuner dans un endroit suffisamment ventilé pour éviter toute surcha uf f e in te rne.

• En cas de volume élevé sur de longues péri ode s, le boîtier devient chaud au toucher. Il ne s’agit pas d’un dysfonctionnement. Cependant, il est conseillé de ne pas le toucher. N’installez pas l’appar e il da ns un espace confiné où la ventilation est faible car il y a un risque de surchauffe.

• Ne bouchez pas les orifices de vent il at ion e n posant quelque chose sur l’ampli-t une r. Le systè me est équipé d’un amplificateur haute puissance. Si les orifices de ventilation de la partie supérieure sont bouchés, l’ampli-tu ne r peut surchauffer et mal fonctionner.

• N’installez pas l’ampli-tuner sur une surface molle, telle qu’un tapis, qui risquerait de boucher les orifices de ventilation situés sous l’ampli-tuner.

• N’installez pas votre ampli-tuner à proximité de sources de chaleur ou dans un endroit soum is a ux rayons du soleil, à une poussière exce ssive ou à des chocs mécaniques.

Fonctionnement

• Si l’ampli-tuner est transporté directement d’un endroit froid à un endroit chaud ou s’il est installé dans une pièce très humide, de la condensation risque de se former sur l’optique située à l’intéri eur d e l’ampli-tuner. Si cela se produit, votre ampli-tuner risque de ne pas fonctionner correctement. Dans ce cas, retirez le di sque et laissez l’ampli-tuner sous tension pendant environ 30 minutes jusqu’à ce que l’humidité se soit complètement évaporée.

• Avant de déplacer votre ampli-tuner, retirez tous les disques. Sinon, vous risquez de les endommager.

• Par souci d’économie d’énergie, le système peut être mis complètement hors tension à l’aide de

l’interrupteur POWER de l’a ppa r ei l pr inc ipal. Bien que le voyant reste allumé pendant quelques temps, le système est complètement hor s te nsion.

Réglage du volume

N’augmentez pas le volume lorsque vous écoutez un passage avec de très faibles nive a ux d’ en tr é e ou sans signal audio. Vous risqueriez d’endommager les enceintes au moment du passage caractérisé par un niveau sonore de crête.

Entretien

Nettoyez le boîtier, le panneau et les co mmande s avec un chiffon doux légèrement imprégné d’une solution détergente neutre. N’utili se z pas de ta mpons abrasifs, de poudre à récurer ou de solvant tel que l’alcool ou la benzine. Pour toute question ou tout problème concernant votre ampli-tuner, n’hésitez pas à consulte r vot re revende ur Sony le plus proche.

Entretien des disques

N’utilisez pas les disques de nettoyage CD/DVD disponib les dans le commerce. Ils risquent d’endommager votre ampl i- tuner.

Couleurs de votre écran de téléviseur

Si les enceintes entraîne nt de s irrégularités de couleur sur votre écran de téléviseur, mettez ce dernier hors tension, puis remettez-le sous tension 15 à 30 minutes après. Si les irrégularités de couleurs persistent, éloignez les enceinte s du té lév iseur.

L’étiquette est située à l’arrière de l’appareil.

IMPORTANT

Attention : Cette ampl i-t u ner est capable de maintenir indéfinimen t l’affichage d’une image vidéo fixe ou d’un menu sur l’écran de votre téléviseur. En laissant une image vidéo fixe ou un menu affiché sur votre téléviseu r penda nt une période prolongée, vous risquez de provoquer des dommages irréversibles a u nive a u de votr e éc ran . Les téléviseurs de projection sont pa r ti cul iè r em e nt sensibles à ce ph énomène.

Transport de l’ampli-tuner

Lorsque vous transportez l’a mpli-tuner, appliquez la procédure ci-dessous afin de prot ég er l e mécan i s me interne. Retirez le disque. « NO DISC » s’affiche dans la fenêtre d’affichage du panneau frontal. Mettez l’amplituner hors tension et débranchez son cordon d’alimentation de la prise secteur.

Table des matières

Félicitations ! ..........................................3

Précautions..............................................3

A propos de ce mode d’emploi...............6

Cet ampli-tuner peut lire les disques

suivants.............................................6

Terminologie relative aux dis q ues..........6

Remarques sur les disques......................9

Utilisation du menu de commande.......10

Préparation

Déballage..............................................12

Insertion des piles dans la

télécommande.................................12

Etape 1 : Raccordement des

enceintes.........................................13

Etape 2 : Raccordements des

antennes..........................................16

Etape 3 : Raccordements du téléviseur et

des composants vidéo.....................18

Etape 4 : Raccordement du cordon

d’alimentation secteur.... .... .... .........20

Réglage des enceintes...........................21

Lecture de disques

Lecture de disques.................................22

Reprise de la lecture à l’endroit où vous

avez arrêté le disque.......................24

(Reprise de la lecture)

Utilisation du menu du DVD................25

Lecture de CD VIDEO dotés de fonctions

PBC (Ver. 2.0)................................25

(Lecture PBC)

Lecture d’une plage aud io MP3............26

Lecture des fichiers image JPEG ..........28

Création de votre propre programme....30

(Lecture programmée)

Lecture dans un ordre aléatoire.............32

(Lecture aléatoire)

Lecture répétée......................................33

(Lecture répétée) Recherche d’un point spécifique sur un

disque..............................................35

(Balayage, Lecture au ralenti) Recherche d’un titre/chapitre/plage/index/

album/fichier...................................36

Visualisation des informations relatives au

disque ............................................. 38

Réglages du son

Commutation du son............................. 43

Utilisation du son ambiophonique........ 45

Sélection du mode de dé c od a ge Surr o un d

Back................................................ 49

Sélection du décodage prioritaire......... 50

Modification de la valeur d’impédance des

enceintes ......................................... 51

Utilisation de diverse s fonctions complémentaires

Commutation des angles....................... 53

Affichage des sous-titres ......................54

Réglage de l’image lue.........................55

(MODE IMAGE)

Verrouillage de disques........................56

(VERROUILLAGE PARENTAL

PERSONNALISE, CONTROLE

PARENTAL)

Fonctions complémentaires

Commande d’autres appareils avec la

télécommande fournie....................61

Utilisation d’autres appareils................ 64

Utilisation de la radio...........................65

Modification de la lu m ino s ité d u p a nn ea u

frontal............................................. 68

Sélections et réglages

Utilisation du menu de configuration... 69 Sélection de la langue des menus ou de la

bande son........................................ 70

(CHOIX DE LA LANGUE)

Réglages de l’écran............................... 71

(REGLAGE DE L’ECRAN)

Réglages personnalisés......................... 73

(REGLAGE PERSONNALISE)

Réglages des enceintes ......................... 74

(REGLAGE H-P)

Informations complémentaires

Dépannage.............................................78

Spécifications........................................81

Glossaire ...............................................83

Index des compos a nts et des

commandes.....................................87

Liste des codes de langue......................92

Liste des paramètres du menu de

configuration DVD..................... ... .93

Index .....................................................95

A propos de ce mode d’emploi

Format des disques

CD audio

Logo des disques

• Les instructions contenues dans le présent

mode d’emploi décrivent les commandes de la télécommande. V ous pouvez également utiliser les commandes de l’ampli-tuner si elles portent le même nom ou un nom analogue à celles de la télécommande.

• Les symb ol es suivants sont uti l is és dans ce

mode d’emploi.

Symbole Signification

Fonctions disponibles pour les DVD VIDEO et les DVD-R/DVDRW en mode vidéo ou pour les DVD+R/DVD+RW en mode vidéo

Fonctions disponibles en mod e C D VIDEO

Fonctions disponibles en mod e C D

Fonctions disponibles en mod e Super Audio CD et CD audio

Fonctions disponibles pour les plages audio MP3*

Fonctions disponibles pour les fichiers JPEG

* MP3 (MPEG1 Audio Layer 3) est un format

standard de compression des donn ées a udio défini par l’ISO/MPEG.

Cet ampli-tuner peut lire les disques suivants

Format des disques

DVD VIDEO

Super Audio CD

CD VIDEO

Logo des disques

CD-R/CD-RW (données audio) (fichiers MP3) (fichiers JPEG)

Le logo « DVD VIDEO » est une marque commerciale.

Terminologie relative au x disques

• Titre

Il s’agit de la sectio n l a pl us longue d’une image ou d’un morceau musical sur un DVD, d’un film, etc., pour un logiciel vidéo ou de l’album entier pour un logiciel audio.

• Chapitre

Il s’agit d’une section d’une image ou d’un morceau musical plus petite que les titres. Un titre est composé de plusieurs chapitres. Suivant le disque, il e st possible qu’aucun chapitre ne soit enregistré.

• Album

Il s’agit d’une section d’un morceau musical ou d’une image sur un CD de données contenant des pla ges audio MP3 ou des fichiers JPEG.

• Plage

Il s’agit des sections d’une image ou d’un morceau musical sur un CD VIDEO, Super Audio CD, CD ou MP3.

• Index (Super Audio CD, CD) / Index

vidéo (CD VIDEO)

Il s’agit d’un nom br e di vi sant une plage en sections pour localiser facilemen t l’ en d ro it d e votre choix sur un CD VI D EO, Super Audio CD ou CD. Selon le disque, il est possible qu’aucun index ne soit enregistré.

• Scène

Sur un CD VIDEO dot é de fonctions PBC (page 25), les écrans de me nu, les images animées et les im ages fixes sont divisés en sections appelé es « scè nes ».

• Fichier

Il s’agit d’une section d’un CD de données contenant des fichiers image JPEG.

Disque

Structure du DVD

Structure du CD VIDEO, Super Audio CD ou CD

Structure MP3

Structure JPEG

Titre

Chapitre

Plage

Index

Album

Plage

Album

Fichier

Disque

Remarque sur les fonctions PBC (commande de lecture) (CD VIDEO)

Cet ampli-tuner est compatible av ec les versions

1.1 et 2.0 des normes CD VIDEO. Vous pouvez bénéficie r de deux types de lec ture se lon l e type du disque.

Type de disque

CD VIDEO sans fonctions PBC (Disques version 1.1)

CD VIDEO avec fonctions PBC (Disques version 2.0)

Vous pouvez

Lire des vidéos (images animées) et de la musique.

Lire des logiciels interactifs à l’aide des écrans de menu affichés sur votre écran de téléviseur (lectu re PBC), en plus des fonctions de lecture vidéo des disques Version 1.1. En outre, vous pouvez lire des images fixes de haute résolution, si elles sont disponibles sur le disque.

A propos des CD multi-session

• L’ampli-tuner peut lire des CD multi-session lorsqu’une plage audio MP3 est contenue dans la première session. Toutes les plages audio MP3, enregistrées dans les sessions suivantes, peuvent également être lues.

• Cet ampli-tuner peut lire des CD multi-session lorsqu’un fichi er image JPEG es t conte nu dans la première session. Tous les fichiers image JPEG, enregistrés dans les sessions suivantes, peuvent également être lus.

• Si des plages audio et des images au format de CD musical ou au format de CD VIDEO sont enregistrées dans la première session, seule celle-ci est lue.

Code local

Votre ampli-tuner est identif ié par un co de local indiqué à l’arrière de l’appareil et elle ne peut lire que les DVD identifiés par un code local identique.

Les DVD identifiés par peuvent également

ALL

être lus sur cet appareil. Si vous tentez de lire un autre DVD, le me ssage « Lecture de ce disque interdite en raison des limites de zone. » apparaît sur l’écran du téléviseur. Suivant les DVD, il se peut qu’aucune indication de code local ne soit fournie, même si la lecture des DVD est int erdite par les limites de zone.

Exemples de disques que votre ampli-tuner ne pe ut pas lire

Il n’est pas en mesure de lire les disques suivants :

• Les CD-ROM (à l’exception des extensions «.MP3», «.JPG» ou «.JPEG»)

• Les CD-R/CD-RW autres que ceux enregistrés dans les formats suivants :

– Format de CD musicaux – Format de CD VIDEO – Format MP3/JPEG conform e à l a norme

ISO9660* Niveau 1/Niveau 2 ou à son format étendu, Joliet

suite

• Les sections de données sur des CD-Extra

• Les DVD-ROM

• Les DVD audio

• Les DVD-RAM

• Les DVD-RW en mode d’enregistrement vidéo (VR)

• Les DVD+ RW en mode d’enregistrement vidéo (VR)

• Les fichiers JPEG progressifs

* Il s’agit d’un format logiq ue de fi c hie r s et de

dossiers sur les CD-ROM, défini pa r l’IS O (Organisation internat iona le de normalisation).

Ne chargez pas les di sques suivants :

• Les DVD ayant un code local différent (page 7, 83).

• Les disques qui ne sont ni standard, ni de forme circulaire (par exemple, en forme de carte, de cœur ou d’étoile).

• Les disques recouverts de papier ou d’autocollants.

• Les disques sur lesquels il reste des traces de bande adhésiv e ou de cellophane.

Remarques au sujet des CD-R/CD-RW/DVDR/DVD-RW (mode vidéo)/DVD+R/DVD+RW (mode vidéo)

Dans certains cas, les CD-R/CD-RW/DVD-R/DVDRW (mode vidéo)/DVD+R/DVD+RW (mode vidéo) ne peuvent pas être reproduits sur ce lec te ur en rai son de la qualité de l’enregistrement, de l’état du disque, ou encore des caractéristiques de l’appareil ou du logiciel d’enregistrement. Le disque ne peut pas être lu s’il n’a pas été correctement finalisé. Po ur obte nir davantage d’informations, consultez le mode d’emploi de l’appareil d’enregist rement. Remarquez qu’il n’est pas possible de lire des disques au format Packet Write (écriture par paquets).

Disques audio encodés par des technologies de protection des droits d’auteur

Cet appareil est conçu pour la lect ure de disques conformes à la norme Compact Disc (CD). Récemment, des disques audio encodés par des technologies de protection des droits d’auteur ont été mis en vente par certaines compagnies de disques. Veuillez noter que, parmi ces disques, certains ne sont pas conformes à la norme CD et qu’il e st possible qu’ils ne puissent pas être lus sur cet ap pare il.

Remarque sur la lecture des DVD et CD VIDEO

Certaines opérations de lecture de DVD et de CD VIDEO peuvent avoir été intentionnellement définies par les éditeurs de logiciels. Etant donné que cet ampli-tuner lit des DVD et des CD VIDEO conformément au contenu déf i ni par les éditeurs de lo giciels, il se peut que certaines fonctions de lecture ne soient pas accessib les. Veui llez égale ment vous ré férer aux instructions fournies avec les DVD ou les CD VIDEO.

Droits d’auteur

Ce produit est doté d’une technologie de protection des droi t s d’ auteur protégée par des brevets américains et autres droits sur la propriété intellectuelle. L’emploi de cette technologie de prot ection des droits d’au te ur doit faire l’objet d’une autorisation par Macrovisio n et est exclusivement réservé à un e utilisation dans le c ercle familial et à d’autres types de visionnage limités, sauf autorisation expresse de Macrovision. Les opératio ns d’ingénierie inve rse et de démontage sont interdites.

Cet appareil dispose du décodeur ambiophonique à matrice adaptative Dolby* Digital et Dolby Pro Logi c (II) ainsi que du Système DTS** Di gi ta l Surround.

* Fabriqué sous licence Dolby Laboratories.

« Dolby », « Pro Logic » et le symbole double-D sont des marques commercial es de Dolby Laboratories.

**Fabriqué sous licence de Digital Theater Systems,

Inc. « DTS », « DTS-ES » et « Neo:6 » sont des marques commerciales de Digital Theater Systems, Inc.

Remarques sur les disques

Manipulation des disques

• Pour que les disques restent p ropr es, te nez-le s par la partie périphériqu e. Ne touchez jamais la surface.

• Ne collez ni papier, ni ruban adhésif sur le disque.

• N’exposez pas les disques au rayonnement direct du soleil ou à des sources de chaleur , telles que des cond ui t s de chauffage, et ne les laissez pas dans une voiture garée en plein soleil étant donné que la température à l’intérieur de l’habitacle risque d’augmenter considérablement.

• Après avoi r lu un disque, rang ez- le dans son boîtier.

Entretien

• Avant de lire un di sque, nettoyez-le à l’a id e d’un chiffon de nettoyage. Essuyez les disques en allant du centre vers l’extérieur.

• N’utilisez pas de solva n ts, tels que la benzine, les diluants, les nettoyants di sponib les da ns le commerce ou les sprays antistatiques destinés aux disques en vinyle.

Cet ampli-tuner peut uniquement lire les disques de forme circulaire standard. L’utilisation d’un autre type de disqu e (par exemple en fo rme de carte, de cœur ou d’étoile) peut entraîne r un dysfonctionnement.

N’utilisez pas de disqu e accompagné d’un accessoire disponib le dans le commerce, c omme une étiquette ou un anneau.

Utilisation du menu de commande

Utilisez le menu de commande pour sélectionner la fonction souhaitée. Le menu de commande s’affiche lorsque la tou che DVD DISPLAY est enfoncée. Pou r plus de détails , reportez-vous a ux pages indiquées ent re parenthèses.

Numéro du titre en cours de lecture (CD VIDEO/Super Audio CD/CD : numéro de plage)

Numéro du chapitre en cours de lecture (CD VIDEO/Super Audio CD/CD : num ér o d’index)

Durée de lecture

Icône du paramètre du menu de commande sélectionné

Paramètres du menu de commande

Nom de la fonction du paramètre du menu de commande sélectionné

Message d’instruction

Nom du disque ou type de disq ue

Liste des paramètres d’affichage du menu de commande

DISQUE Affiche le nom du disque ou le type de disque in sé ré da ns

Nombre total de titres ou de plages enregistrés

DVD

1 2 ( 2 7 ) MAKING SCENE 1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ANGLAIS

2: FRANÇAIS 3: ESPAGNOL

SOUS-TITRE Sélectionner :

Nom du titre en cours de lecture

)

ENTER

l’appareil.

Nombre total de chapitres ou d’index enregistrés

Statut de lecture (NLecture, XPause, xArrêt, etc.)

DVD

Type du disque en cours de lecture

Réglage courant Options

TITRE (DVD uniquement) (page 36)/SCENE (CD VIDEO uniquement en mode de lecture PBC) /PLAGE (CD VIDEO uniquement) (page36)

CHAPITRE (DVD uniquement) (page 37)/INDEX (CD VIDEO uniquement) (page 37)

ALBUM (MP3 uniquement) (page 27, 36)

PLAGE (Super Audio CD/CD/ MP3 uniquement) (page 27, 36)

INDEX (Super Audio CD/CD uniquement) (page37)

TEMPS (page 37) Véri fie le temps écoulé et la durée de lecture restante.

Sélectionne le titre (DVD) ou la plage (CD VIDEO) à lire . Affiche la scène (CD VIDEO en mode de lecture PBC).

Sélectionne le chapitre (DVD) ou l’index (CD VIDEO) à lire.

Sélectionne l’album (MP3) à lire.

Sélectionne la plage (Super Audio CD/CD/MP3) à lire.

Affiche l’index et sélectionne l’index (Super Audio CD) à lire.

Saisit le code temporel pour reche r c h e r une image et de la musique.

AUDIO (DVD/CD VIDEO/ Su per

Audio CD/CD/MP3 uniquement) (page43)

Modifie le réglage audio.

SOUS-TITRE (DVD uniquement )

(page 54)

ALBUM (JPEG uniquement)

(page 28, 36)

FICHIER (JPEG uniquement)

(page 28, 36)

DATE (JPEG uniquement)

(page 42)

ANGLE (DVD uniquement)

(page 53)

MODE DE LECTURE (VIDEO CD/Super Audio CD/CD/MP3/JPEG uniquement)(page 32)

REPETEE (page 33) Lit tout le disque (tous les titres/toutes les plages), un titre/

MODE IMAGE (DVD/CD VIDEO/ JPEG uniquement) (page55)

VERROUILLAGE PARENTAL PERSONNALISE (page 56)

Affiche les sous-titres. Modifie la langue des sous-titr e s.

Sélectionne l’album (JPEG) à lire.

Sélectionne le fichier (JPEG) à lire.

Affiche les informations relatives à la date.

Modifie l’angle.

Sélectionne le mode de lecture.

chapitre/plage/alb um ou le contenu d’un programme en boucle.

Règle de diverses manières le signa l vidé o pr ove na nt d e l’ampli-tuner. Sélectionne le rég lage le mieux adapté au programme regardé.

Définit des restrictions de lectu re pour le disque.

Conseils

• Chaque fois que vous appuyez sur DVD DISPLAY, l’affichage du menu de commande change comme indiqué ciaprès:

Affichage du menu de commande

Affichage du menu de commande désactivé

Les paramètres du menu de command e va rie nt se lon le disque.

• Le témoin icône du menu de commande s’allume en vert t sauf si vou s réglez le paramètre REPETEE sur « NON » .

• Le témoin « ANG LE » s’allume en vert uniqueme nt lorsque plusieurs angles sont enregist rés sur le disque.

• Le témoin « MODE IMAGE » s’a llu me en vert si « STANDARD » n’est pas sélectionné.

Préparation

Déballage

Assurez-vous que vous disposez de l’ensemble des accessoire s suivants :

• Antenn e cadre AM (1)

• Fil d’ante nne FM (1)

• Cordon S vi déo (1)

• Télécomm ande RM-SP500 (1)

• Piles R6 (AA) (2)

• Mode d’emploi (1)

Insertion des piles dans la télécommande

Vous pouvez commander l’ampli-tuner au moyen de la télécommande fournie. Insérez deux piles R6 (AA) en faisant correspondre les pôles 3 et # des piles avec les signes représentés à l’intérieur du compartiment. Pour faire fonctionner la télécommande, diri ge z- la vers le capteur de télécommande de l’amplituner.

Remarques

• Ne laissez pas la télécommande dans un endroit extrêmement chaud ou humide.

• N’utilisez pas une pile neuve et une pi le usa gé e ensemble.

• Ne laissez rien tomber da ns le boîtier de la télécommande, en particulier lorsque vous remplacez les piles.

• N’exposez pas le capteur de télécommande à la lumière directe du soleil ou d’ une lampe. Vous risqueriez de l’endommager .

• Si vous prévoyez de ne pas utiliser la télécommande pendant une période prolongée, retirez les piles pour éviter qu’elles fuient et génèrent de la cor r osion, endommageant ainsi la télécomma nde .

• Lorsque vous utilise z l’ a mpli-tuner, sélectionnez la fonction DVD ou TUNER.

Sony AVD-S500ES User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
