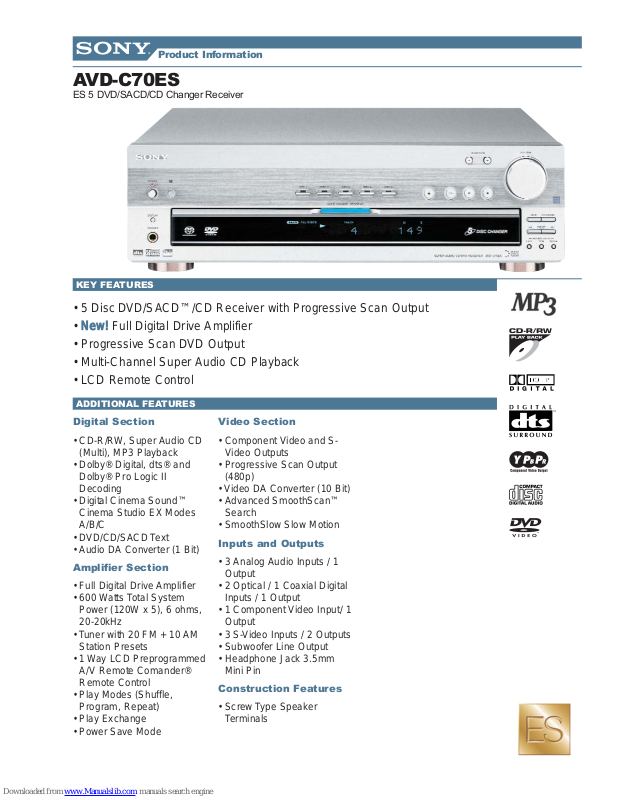

Page 1
AVD-C70ES
ES 5 DVD/SACD/CD Changer Receiver
• 5 Disc DVD/SACD™/CD Receiver with Progressive Scan Output
•
NNeeww!!
Full Digital Drive Amplifier
• Progressive Scan DVD Output
• Multi-Channel Super Audio CD Playback
• LCD Remote Control
Digital Section
• CD-R/RW, Super Audio CD
(Multi), MP3 Playback
• Dolby® Digital, dts® and
Dolby® Pro Logic II
Decoding
• Digital Cinema Sound™
Cinema Studio EX Modes
A/B/C
• DVD/CD/SACD Text
• Audio DA Converter (1 Bit)
Amplifier Section
• Full Digital Drive Amplifier
• 600 Watts Total System
Power (120W x 5), 6 ohms,
20-20kHz
• Tuner with 20 FM + 10 AM
Station Presets
• 1Way LCD Preprogrammed
A/V Remote Comander®
Remote Control
• Play Modes (Shuffle,
Program, Repeat)
• Play Exchange
• Power Save Mode
Video Section
• Component Video and SVideo Outputs
• Progressive Scan Output
(480p)
• Video DA Converter (10 Bit)
• Advanced SmoothScan™
Search
• SmoothSlow Slow Motion
Inputs and Outputs
• 3 Analog Audio Inputs / 1
Output
• 2 Optical / 1 Coaxial Digital
Inputs / 1 Output
• 1 Component Video Input/ 1
Output
• 3 S-Video Inputs / 2 Outputs
• Subwoofer Line Output
• Headphone Jack 3.5mm
Mini Pin
Construction Features
• Screw Type Speaker
Terminals
KEY FEATURES
ADDITIONAL FEATURES
Product Information
Page 2
AVD-C70ES
ES 5 DVD/SACD/CD Changer Receiver
The Ultimate Home Theater Solution From signal to ampli-
fication, Sony has achieved a quantum leap in technology, the digital handshake.Traditionally once signal is output from a SACD,
DVD, or CD processing occurs in the digital domain where the signal is converted back to analog to be amplified. It is within this
process where noise can be introduced into the signal. However,
with the new Digital Drive Amplifier the signal to amplification, the
process occurs entirely in the digital domain.This allows for greater
linearity, improved signal to noise ratio and lower signal distortion.
Specifications
Amplifier Section
• Total Power Output 600W:
Front:120 Watts x 2
Center: 120 Watts x 1
Surround: 120 Watts x 2
(6 ohms, 20-20kHz, 0.7%
THD)
• Analog Audio Input
Sensitivity and Impedance:
150mV, 50 kohms
• Coaxial Digital Input
Sensitivity and Impedance:
0.5V, 75 ohms
• Analog Audio Output Level
and Impedance:
2V, 1 kohms
• Subwoofer Output Level
and Impedance:
3V, 47 kohms
• Subwoofer Output Level
and Impedance:
3V, 47 kohms
• CD Frequency Response:
2-20kHz ±1.0dB
• Signal-to-Noise Ratio
(Video 1 Audio Connectors
Only): More than 80dB
• Harmonic Distortion:
Less than 0.03%
• FM Signal-to-Noise Ratio
(Mono/Stereo): 73dB/71dB
• FM Alternate Channel
Selectivity: 60dB
• FM Stereo Separation (1
kHz): 32dB
Video Section
• Input Sensitivity/Impedance:
S-Video In(Y):1Vp-p/75 ohm
S-VideoIn(C):0.286Vp-p/75
ohm
• OutputSensitivity/Impedance:
S-VideoOut(Y): 1Vp-p/75
ohm
S-VideoOut(C): 0.286Vpp/75 ohm
• DVD-Video Frequency
Response:PCM: 2-22kHz,
±1.0dB
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption (in
Standby): 1.5W
• Power Consumption (in
Operation): 180W
Accessories
Supplied Accessories
• Instruction Manual
• AV Cable
• 1 Way LCD Remote Control
• AA Battery x 2
Weights & Measures
• Dimensions (W x H x D):
16.9" x 5.2" x 17.9"
• Weight: 19.8 lbs.
ADDITIONAL FEATURES
KEY TECHNOLOGY
Product Information
©2002 Sony Electronics Inc. All rights
reserved. Features and specifications are
subject to change without notice.
