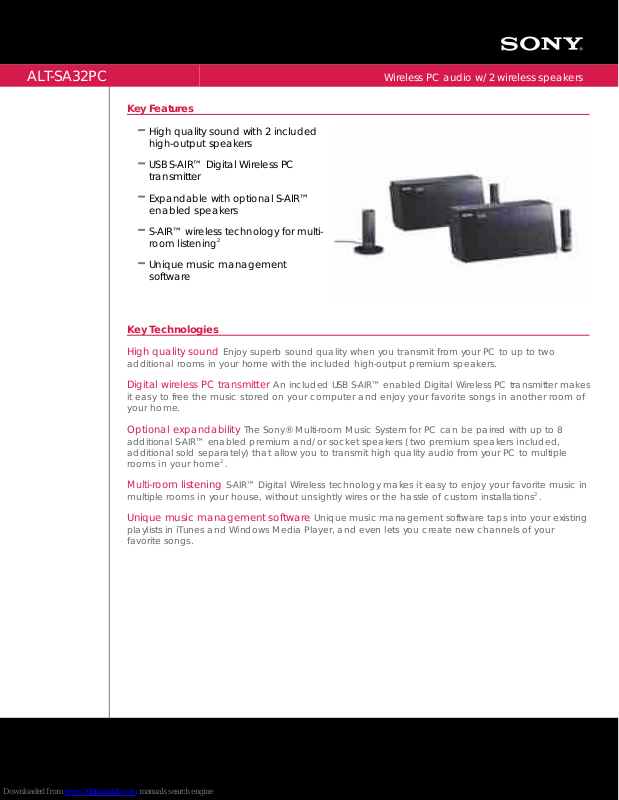

ALT-SA32PC
Wireless PC audio w/2 wireless speakers
Key Features
High quality sound with 2 included
high
-output speakers
USB S
-AIR™ Digital Wireless PC
transmitter
Expandable with optional S
-AIR™
enabled speakers
S
-AIR™
wireless technology for multi
-
room listening
2
Unique music management
software
Key Technologies
High quality sound
Enjoy superb sound quality when you transmit from your PC to up to two
additional rooms in your home with the included high-output premium speakers.
Digital wireless PC transmitter
An included USB S
-
AIR
™ enabled Digital Wireless PC transmitter makes
it easy to free the music stored on your computer and enjoy your favorite songs in another room of
your home.
Optional expandability
The Sony
®
Multi-room Music System for PC can be paired with up to 8
additional S-AIR
™ enabled premium and/or socket speakers (two premium speakers included,
additional sold separately) that allow you to transmit high quality audio from your PC to multiple
rooms in your home .
2
Multi
-room listening S
-
AIR
™ Digital Wireless technology makes it easy to enjoy your favorite music in
multiple rooms in your house, without unsightly wires or the hassle of custom installations .
2
Unique music management software Unique music management software taps into your existing
playlists in iTunes and Windows Media Player, and even lets you create new channels of your
favorite songs.
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 11/09/2009
ALT-SA32PC
Wireless PC audio w/2 wireless speakers
Please visit the Dealer Network for current
information at www.sony.com/dn
Specifications
Audio
Format(s) Supported: S-
AIR Specification
version 1.0, Modulation method - DSSS,
16bit / 48kHz Linear PCM, Data Transfer
Rate: 11Mbps. (Max)
Antenna System:
Module (EZW-RT10A)
Frequency Range: 2400MHz - 2483.5MHz
Impedance: 8 ohms
Hardware
Display: 1 line LCD Display
Remote Control: RM-ANU062
Power
Power Requirements: 120V AC, 60Hz
Software
Supplied Software: Application software "S
-
AIR CAST" (CD-ROM)
Amplifier
Audio
Equalizer:
Yes - DSP Edit/ EQ Edit
Inputs and Outputs
Audio Line IN: Stereo mini plug (not
included)
Power
Output Power: 8W x 2
Front Speaker
Audio
Impedance: 8 ohms
Speaker
Speaker Type: 57mm, mica type (2)
Speaker System: Full range, bass-reflex
System Requirements
General: One of the following Microsoft
®
Windows® operating systems:
Windows 7 Home Premium
Windows 7 Professional
Windows 7 Ultimate
Windows Vista® Home Basic
Windows Vista Home Premium
Windows Vista Business
Windows Vista Ultimate
Windows XP Home Edition (with Service
Pack 2 or 3)
Windows XP Professional (with Service
Pack 2 or 3)
Windows XP Media Center Edition 2004
(with Service Pack 2 or 3)
Windows XP Media Center Edition 2005
(with Service Pack 2 or 3)
Notes:
Windows 7 Starter, Windows 7 Home
Basic, and Windows 7 Enterprise
operating systems are not supported
64 Bit versions of Windows XP operating
system are not supported
CPU: Pentium® 1 GHz or higher, Celeron
®
1 GHz or higher, or better CPU
Note: 2 GHz or higher CPU is
recommended
Memory (RAM):
For Windows XP and Windows Vista
operating systems: 512 MB or more
For Windows 7 32-bit operating systems: 1
GB or more
For Windows 7 64-bit operating systems: 2
GB or more
Hard Disk Drive: 201 MB or more available
space
Display: High Color (16 bit) or higher,
1024 x 768 or higher resolution
USB Port: Available USB 1.1 or 2.0 port (to
connect the AIR-PC10T Wireless Audio
Transmitter to the computer)
Sound Card
Software: Internet Explorer 6.0 or higher
Dimensions
Weight: AIR-PC10T: .7 oz., AIR-SA50R: 13.4
oz.
Measurements: AIR-PC10T: 1 1/32 x 1/2 x 3
7/16 in,
AIR-SA50R: 9.8 x 4.8 x 5 in.
Supplied Accessories
Stand
Extension cable
Remote control x 2 (RM-ANU062)
Color:
Black
UPC Code:
027242768178
1. List of compatible operating systems.
Windows 7 Home Premium
Windows 7 Professional
Windows 7 Ultimate
Windows Vista Home Basic (SP1 or without SP)
Windows Vista Home Premium (SP1 or without SP)
Windows Vista Ultimate (SP1 or without SP)
Windows Vista Business (SP1 or without SP)
Windows XP Home Edition (SP2, SP3)
Windows XP Professional (SP2, SP3)
Windows XP Media Center Edition 2004 (SP2, SP3)
Windows XP Media Center Edition 2005 (SP2, SP3)
Notes:
Windows 7 Starter, Windows 7 Home Basic, and Windows 7 Enterprise
operating systems are not supported
64 Bit versions of Windows XP operating system are not supported
2.Transmits up to 164 feet away. Signal and sound quality may vary.
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony and S-AIR, and the
Sony, Altus, and S-AIR logos are trademarks of Sony. All other trademarks
are trademarks of their respective owners. Non-metric weights and
measurements are approximate and may vary.
