Sony AITE390, AITE520, AITE90, AITE260, AITE130 Operating Instructions

AIT Drive

Operating Instructions

2-688-457-11(1)

AIT-4 TAPE DRIVE

AITe520

AIT-3 Ex TAPE DRIVE

AITe390

AIT-3 TAPE DRIVE

AITe260

AIT-2 TAPE DRIVE

AITe130

AIT-1 TAPE DRIVE

AITe90

Safety Regulations

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to them whenever you call upon your dealer regarding this product.

Model No. Serial No. ________________________ __________________________________

Information

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Model No. for Regulatory Compliance

Your AITe520, AITe390 is assigned a Model No. ATDEA4 for regulatory compliance certifications. Your AITe260 is assigned a Model No.: ATDEA3 for regulatory compliance certifications. Your AITe130, AITe90 is assigned a Model No.: ATDEA2 for regulatory compliance certifications. The number is indicated on the model number label on your drive along with the rated voltage and current.

For the customers in the USA

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

WARNING Note: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device requires shielded interface cables to comply with FCC emission limits.

2 Safety Regulations

CAUTION

The mains plug on this equipment must be used to disconnect mains power. Please ensure that the socket outlet is installed near the equipment and shall be easily accessible.

ACHTUNG

Zur Trennung vom Netz ist der Netzstecker aus der Steckdose zu ziehen, welche sich in der Nähe des Gerätes befinden muß und leicht zugänglich sein soll.

Hinweis: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß ISO 7779

NOTICE

Use the power cord set approved by the appropriate testing organization for the specific countries where this unit is to be used.

HINWEIS

Die 3-adrige Geräteanschlußleitung muß Typ H05VV-F oder H05VVH2-F sein und nach DIN VDE 0625 geprüft sein. Der Stecker und die Gerätesteckdose müssen nach DIN VDE 0620 bzw DIN VDE 0625 geprüft sein. Der Leitungsquerschnitt kann 0,5 mm2 betragen wenn die Anschlußleitung eine Länge von 2 m nicht überschreitet. Anderenfalls muß der Leitungsquerschnitt mindestens 0,75 mm2 betragen.

If you have any questions about this product, please refer to Sony contact in the instruction manual.

DECLARATION OF CONFORMITY

Trade Name: SONY Model: ATDEA2 or ATDEA3 or ATDEA 4 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo San Diego, CA.

92127 U.S.A. Telephone number: 858-942-2230 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Für Kunden in Deutschland

Diese Ausrüstung erfüllt die Europäischen EMC-Bestimmungen für die Verwendung in folgender/folgenden Umgebung(en):

– Wohngegenden – Gewerbegebiete

– Leichtindustriegebiete (Diese Ausrüstung erfüllt die Bestimmungen der Norm EN 55022, Klasse B.)

Safety Regulations 3

4 Safety Regulations

IMPORTANT SAFEGUARDS

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.

Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

USE

Power Sources – This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power, consult your dealer or local power company.

For the unit with a three-wire grounding type ac plug:

If you are unable to insert the plug into the outlet, contact your electrician to have a suitable plug installed. Do not defeat the safety purpose of the grounding plug.

AC Power cord:

The AC power cord should have appropriate safety approvals or marking for the country in which the equipment will be used. Consult your dealer or local power company.

Cleaning – Unplug the unit from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the unit.

Object and Liquid Entry – Never push objects of any kind into the unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

Safety Regulations 5

INSTALLATION

Water and Moisture – Do not use power-line operated units near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection – Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories – Do not place the unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or an adult, and serious damage to the unit. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

Ventilation – The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the unit, and to protect it from overheating, these slots and openings must never be blocked or covered.

• Never cover the slots and openings with a cloth or other materials.

• Never block the slots and openings by placing the unit on a bed, sofa, rug or other similar surface.

• Never place the unit in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

SERVICE

Damage Requiring Service – Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled or objects have fallen into the unit.

• If the unit has been exposed to rain or water.

• If the unit has been subject to excessive shock by being dropped, or the cabinet has been damaged.

• If the unit does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.

• When the unit exhibits a distinct change in performance - this indicates a need for service.

Servicing – Do not attempt to service the unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer to all servicing to qualified service personnel.

6 Safety Regulations

How to Use this Guide ...................................................................... 8

Part 1. Introduction

Part 2. Preparation

Part 3. Operation

Part 4. Care and Maintenance

About AIT Drives ............................................................................... 9

Features.................................................................................................... 9

Usable Cartridges .................................................................................. 11

System Components .............................................................................. 11

Part Names and Functions ............................................................. 12

Front Panel............................................................................................. 12

Rear Panel .............................................................................................. 13

Supplied Items................................................................................. 14

Interconnections ............................................................................. 15

SCSI ID Setting ................................................................................ 15

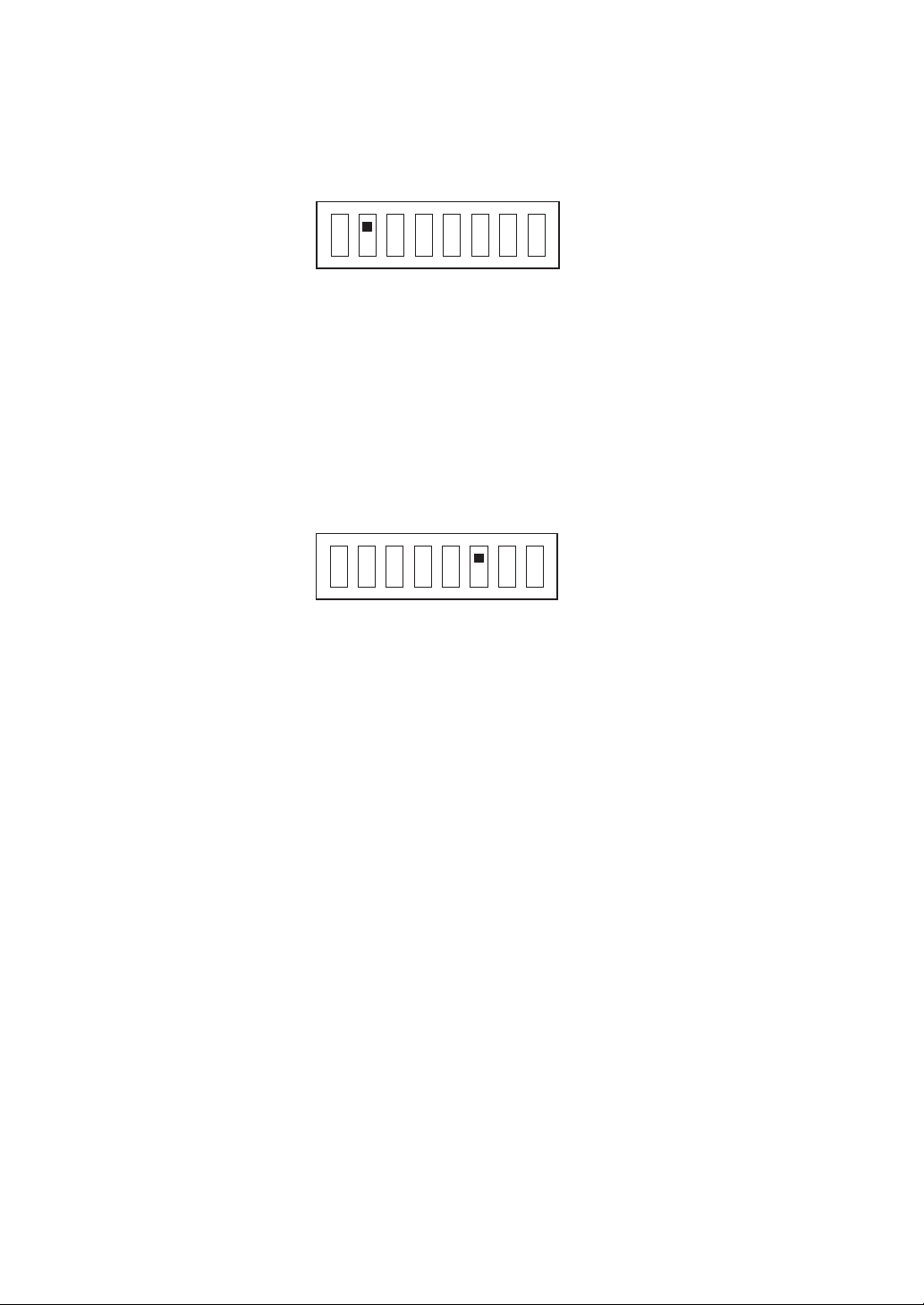

Option Switches (DIP Switch) ........................................................ 16

How to use the AIT Drive ................................................................ 19

Cartridge Removal................................................................................. 20

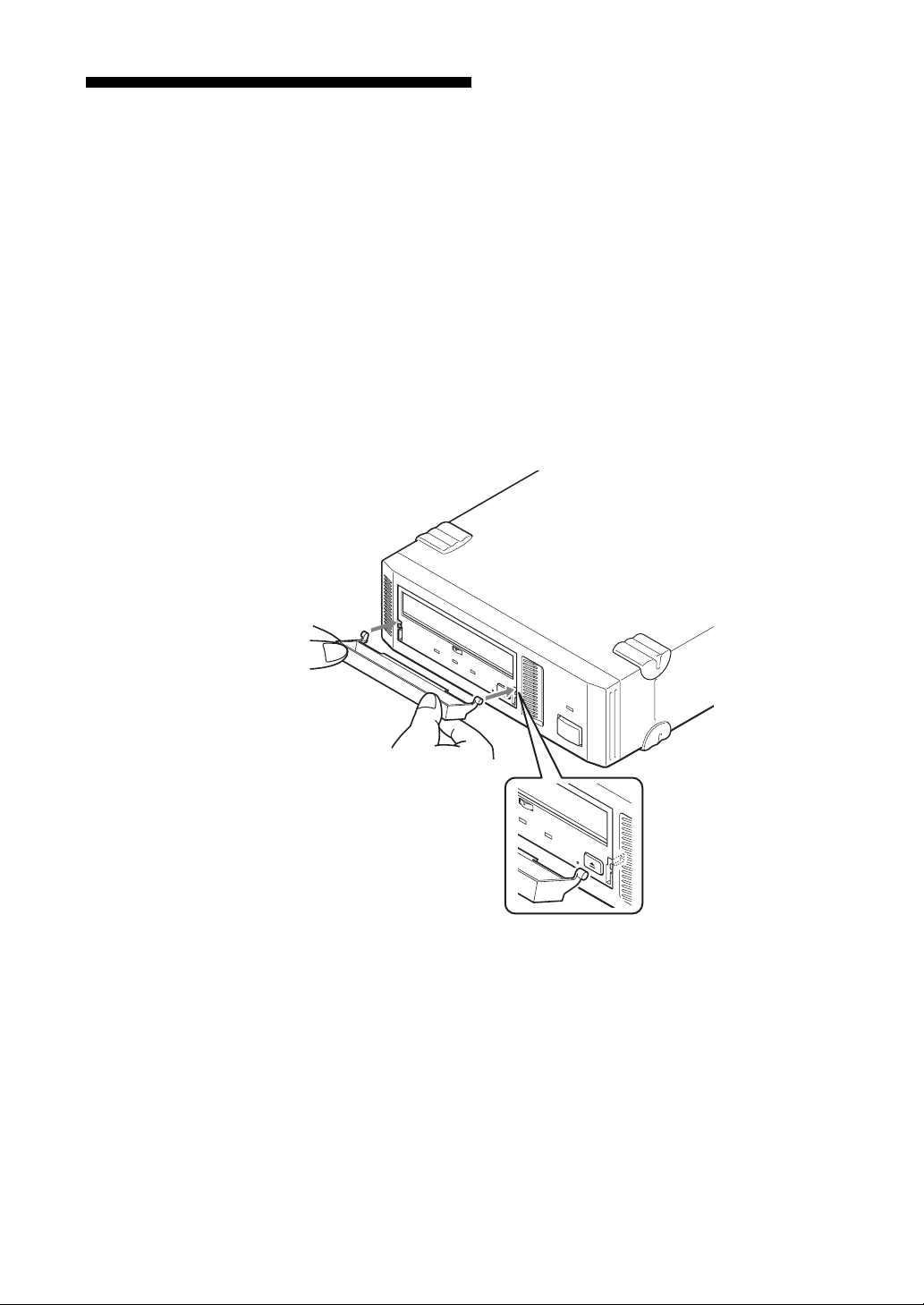

Attaching the Dust Cover ............................................................... 21

WORM Function .............................................................................. 23

Taking Care of the Drive ................................................................. 25

Safety Considerations ............................................................................25

Avoiding Damage .................................................................................. 25

Taking Care of Cartridges .............................................................. 27

Use Precautions ..................................................................................... 27

Storage Precautions ............................................................................... 27

Cleaning ........................................................................................... 28

How to Clean .........................................................................................28

Appendix

Specifications (AITe520)................................................................. 29

Specifications (AITe390)................................................................. 30

Specifications (AITe260)................................................................. 31

Specifications (AITe130)................................................................. 32

Specifications (AITe90)................................................................... 33

Sony Contacts ................................................................................. 34

• Sony cannot accept liability for data written to cartridges lost as a result of using this product.

• Sony bears no responsibility for any financial damages, lost profits, or claims made by third parties arising from the use of this product.

Table of Contents 7

How to Use this Guide

This Guide describes the AIT Drive Unit AITe520/AITe390/AITe260/ AITe130/AITe90, and how to take care of it. Please read it carefully before using the unit, and keep it handy for future reference. The Guide consists of four parts, plus the specifications. Refer to the parts that relate to your use of the drive.

Part 1 describes the features of the drive, its system components, and the name and function of each part.

Part 2 describes the necessary connections between the drive and the host computer. If other SCSI devices are being used, you may need to change the SCSI ID setting. Read this part if you are installing the drive.

Part 3 describes how to use the drive, including how to turn it on, and how to insert and remove cartridges. Read this part if you are going to operate the drive.

Part 4 describes how to take care of the drive and cartridges, and how to clean the drive. Read this part before using the drive.

Appendix provides the major specifications of the AITe520/AITe390/ AITe260/AITe130/AITe90.

8 How to Use this Guide

Part 1. Introduction

About AIT Drives

The AITe520 is an external AIT drive unit that uses data cartridges conforming to the AIT-4 format. The AITe390 is an external AIT drive unit that uses data cartridges conforming to the AIT-3 Ex format. The AITe260 is an external AIT drive unit that uses data cartridges conforming to the AIT-3 format. The AITe130 is an external AIT drive unit that uses data cartridges conforming to the AIT-2 format. The AITe90 is an external AIT drive unit that uses data cartridges conforming to the AIT-1 format. The AITe520 supports AIT-4 format. The AITe390 supports the AIT-1 (Read only), AIT-2 (Read only), AIT-3 and AIT-3 Ex formats. The AITe260 supports the AIT-1, AIT-2 and AIT-3 formats. The AITe130 supports the AIT-1 and AIT-2 formats. The AITe90 only supports the AIT-1 format.

Features

The AIT Drive Unit AITe520 has the following features:

• Supports reading and writing to data cartridges conforming to theAIT-4 format.

• The second-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-4 format.

• Data compression provides 520 gigabytes of storage on SDX4-200C. The native capacity is 200 gigabytes of storage on SDX4-200C.

• Stored data are automatically checked for compression.

• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITe390 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-3 and AIT-3 Ex formats.

• Supports reading from data cartridges conforming to the AIT-1 and AIT-2 formats.

• The second-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-3 Ex format.

• The third-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-1, AIT-2 and AIT-3 formats.

• Data compression provides 390 gigabytes of storage on SDX3X-150C.

The native capacity is 150 gigabytes of storage on SDX3X-150C.

• Stored data are automatically checked for compression.

• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

This is assuming 2.6:1 compression ratio. The degree of data compression attained while recording data varies according to system environment and data type.

Part 1. Introduction 9

The AIT Drive Unit AITe260 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1, AIT-2 and AIT-3 formats.

• Read After Write Function and third-level error correction code guarantee high data reliability.

• Data compression provides 260 gigabytes of storage on SDX3-100C.

The native capacity is 100 gigabytes of storage on SDX3-100C.

• Stored data is automatically checked for compression.

• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITe130 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1 and AIT-2 formats.

• Read After Write Function and third-level error correction code guarantee high data reliability.

• Data compression provides 130 gigabytes of storage on SDX2-50C.

The native capacity is 50 gigabytes of storage on SDX2-50C.

• Stored data is automatically checked for compression.

• Wide Ultra SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITe90 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1 format.

• Read After Write Function and third-level error correction code guarantee high data reliability.

• Data compression provides 91 gigabytes of storage on SDX1-35C.

The native capacity is 35 gigabytes of storage on SDX1-35C.

• Stored data is automatically checked for compression.

• Wide Ultra SCSI LVD/SE interface is fully supported for host computer access.

10 Part 1. Introduction

This is assuming 2.6:1 compression ratio. The degree of data compression attained while recording data varies according to system environment and data type.

Usable Cartridges

Data cartridges used with the AITe90 must be marked with the AIT-1 logo. The AITe130 can be used with data cartridges marked with the AIT-1 or AIT-2 logo. The AITe260 can be used with data cartridges marked with the AIT-1, AIT-2, or AIT-3 logo. The AITe390 can be used with data cartridges marked with the AIT-1 (read only), AIT-2 (read only), AIT-3 or AIT-3 Ex logo. The AITe520 can be used with data cartridges marked with the AIT-4 logo.

AIT-1 LOGO AIT-2 LOGO AIT-3 LOGO

AIT-3 Ex LOGO AIT-4 LOGO

Caution

• Be sure to use only the cartridges designed specifically for AIT.

• Do not use anything but AIT cartridges with this system, as doing so can damage the AIT drive. Although commercially available 8mm videotapes resemble AIT cartridges in appearance, they have entirely different specifications and cannot be used.

System Components

The AITe520/AITe390/AITe260/AITe130/AITe90 connects to the host computer via on Ultra Wide LVD/SE SCSI interface.

Host Computer

AITe260/AITe130/

AITe90

Peripheral DevicesAITe520/AITe390/

Terminator

Part 1. Introduction 11
