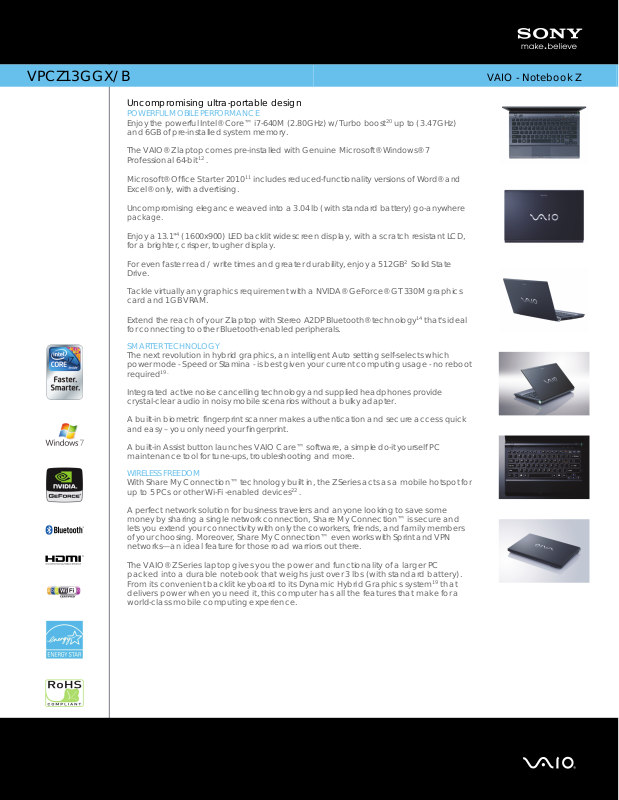

VPCZ13GGX/B

VAIO - Notebook Z

Uncompromising ultra-portable design

POWERFUL MOBILE PERFORMANCE

Enjoy the powerful Intel® Core™ i7-640M (2.80GHz) w/Turbo boost up to (3.47GHz) and 6GB of pre-installed system memory.

The VAIO® Z laptop comes pre-installed with Genuine Microsoft® Windows® 7 Professional 64-bit

Microsoft® Office Starter 2010 includes reduced-functionality versions of Word® and Excel® only, with advertising.

Uncompromising elegance weaved into a 3.04 lb (with standard battery) go-anywhere package.

Enjoy a 13.1" (1600x900) LED backlit widescreen display, with a scratch resistant LCD, for a brighter, crisper, tougher display.

For even faster read / write times and greater durability, enjoy a 512GB Solid State Drive.

Tackle virtually any graphics requirement with a NVIDA® GeForce® GT 330M graphics card and 1GB VRAM.

Extend the reach of your Z laptop with Stereo A2DP Bluetooth® technology that's ideal for connecting to other Bluetooth-enabled peripherals.

SMARTER TECHNOLOGY

The next revolution in hybrid graphics, an intelligent Auto setting self-selects which power mode - Speed or Stamina - is best given your current computing usage - no reboot

required Integrated active noise cancelling technology and supplied headphones provide

crystal-clear audio in noisy mobile scenarios without a bulky adapter. A built-in biometric fingerprint scanner makes authentication and secure access quick

and easy

– you only need your fingerprint.

A built-in Assist button launches VAIO Care™ software, a simple do-it yourself PC maintenance tool for tune-ups, troubleshooting and more.

WIRELESS FREEDOM

With Share My Connection™ technology built in, the Z Series acts as a mobile hotspot for up to 5 PCs or other Wi-Fi -enabled devices

A perfect network solution for business travelers and anyone looking to save some money by sharing a single network connection, Share My Connection™ is secure and lets you extend your connectivity with only the coworkers, friends, and family members of your choosing. Moreover, Share My Connection™ even works with Sprint and VPN networks— an ideal feature for those road warriors out there.

The VAIO® Z Series laptop gives you the power and functionality of a larger PC packed into a durable notebook that weighs just over 3 lbs (with standard battery).

From its convenient backlit keyboard to its Dynamic Hybrid Graphics system that delivers power when you need it, this computer has all the features that make for a world-class mobile computing experience.

11 4

19.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 02/07/2011

VPCZ13GGX/B

VAIO - Notebook Z

Specifications

General

Computer Type: Laptop Type of Use: Ultra-portable Action Buttons: VAIO, ASSIST, Performance Select,

Windows Arrangement, Wireless on / off

Pointing Device:

Electro-static touchpad (Multi-Finger)

Security: Biometric Fingerprint Sensor

Trusted Platform Module (TPM) TCG Ver.1.2 compliant

Hardware

Keyboard: QWERTY, 82 keys with 2.0mm stroke and

19.05mm pitch

Camera:

Built

-in MOTION EYE® camera and microphone

with face-tracking technology

Backlit Keyboard: Yes

Processor

Type: Intel® Core™

i7 - 640M

Speed:

2.80GHz

with Turbo Boost Technology up to

3.47GHz

Cache:

3MB

Memory

Installed:

6GB (4GBx1+2GBx1)

Maximum:

8GB

Type/Speed:

DDR3/1066MHz

Hard Drive

Capacity:

512GB

(256GB+256GB)

Type:

Solid State Drive

Optical Drive

CD Support: Read / Write (CD/-R/-RW) DVD Support:

Read / Write (DVD±R/±RW/±R DL/-RAM)

Expansion Slots

Multimedia Card Reader: One Memory Stick PRO™

(STD / Duo) media slot with MagicGate® functionality One ExpressCard® /34 media slot One Secure Digital (SD memory card) media slot

Audio

Sound System: Intel® High Definition Audio

Display

Screen Size:

13.1"

Resolution:

1600 x 900

Back Light Technology: LED

Graphics

Processor:

NVIDIA

® GeForce® GT 330M GPU with Intel®

HD Graphics

Video RAM: 1GB of dedicated video RAM Technology: Dynamic Hybrid Graphics System

Inputs and Outputs

Headphone Jack:

Microphone Input:

Port Replicator Connector(s): 1 (Bottom) USB Port(s): 3 (2.0 compliant) VGA Output(s):

-In:

Internal Microphone:

HDMI™ Output(s):

Power

Battery Type: Standard Capacity Lithium-ion Battery DVD Playback:

Up to 3.5 hours Standard Capacity

Battery

Default Brightness: Up to 7 hours Standard Capacity

Battery Up to 10.5 hours Large Capacity Battery

Maximum Brightness: Up to 6.5 hours Standard

Capacity Battery Up to 9.5 hours Large Capacity Battery

Start-up Times

Average Boot Time: 60 sec Average Resume Time from Suspend: 2 sec First Boot Time:

5 min

20 2 4

Wireless/Networking

Ethernet Protocol:

10Base-T/100Base-TX/1000Base

-T

Ethernet Speed: Fast Ethernet (RJ-

45)

Bluetooth® Technology: Bluetooth Integrated Stereo

A2DP (2.1 + EDR)

Mobile Broadband: Sprint and Verizon Wireless Mobile

Broadband Built-In

GPS:

Yes

WiFi Adapter:

Intel® Centrino® Advanced-

N 6200

(802.11a/b/g/n)

Software

Operating System: Genuine Microsoft® Windows®

Professional 64-

bit

Supplied Software: Microsoft® Office 2010 Starter Anti

-Virus Software: Norton Internet Security™

2010 30-Day

Trial Offer

System Maintenance and Support: VAIO Care™ -

System diagnostics and maintenance

Sony®

Creativity Suite:

PMB – VAIO® Edition

- Import, organize, edit and publish in one easy-to-use program. *Please access VAIO® Help and Support from your PC for a complete list of software applications and trials.

Service and Warranty Information

Telephone Support:

1 year toll

-free technical assistance

available 24/7 at 888-476

-6972. For priority support,

please call 239-768-7605

Online and Email Support:

Available at

http://www.esupport.sony.com/EN/VAIO

Onsite/In-Home Service: 1 year limited warranty with

Onsite/In-Home Service . See actual warranty for details.

International Service: 1 year international service plan.

Registration required. See www.sony.com/IRSP for details.

Limited Warranty Term: 1 year limited warranty . See

actual warranty for details.

Environmental Information

EPEAT

™ :

Gold

RoHS®: Compliant ENERGY STAR®:

5.0

Dimensions

Weight: 3.04 lbs (with Standard Capacity Battery) Measurements: 12.4"(W) x 1.0-1.3"(H) x 8.3"(D)

Supplied Accessories

Standard Capacity Lithium-ion battery (5400mAh) AC Adapter Power Cord Noise Canceling Headphones

Optional Accessories

Stick AC Adapter (VGP-

AC19V30)

Additional Standard Capacity Battery (VGP-

BPS20)

Large Capacity Battery (VGP-

BPL20) Neoprene Case (VGP-AMC3) Docking Station (VGP-PRZ10) Carrying Case (VGP-CKS3/B) Privacy Filter/ LCD Screen Protector (VGP-FL14) Bluetooth® Keyboard (VGP-

BKB1)

VAIO

® Carrying Case (VGP-

CCB4/B)

Bluetooth® Remote Mouse (VGP-

BMS80)

Bluetooth® Aluminum Slider Mouse (VGP-

BMS10)

Color:

Black

UPC Code:

027242814752

1. GHz denotes microprocessor internal clock speed and may vary.

2. GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. A portion of hard disk space is reserved as a recovery partition.

3. Requires 802.11n compatible access point. Some functionality may require Internet services.

4. Viewable area measured diagonally.

5. Measured at the narrowest point

6. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connector. All products with an i.LINK connector may not communicate with each other.

7. Estimates only based upon Sony engineering testing. Actual performance will vary based on notebook settings, environmental conditions, and usage. Battery capacity decreases over time and use.

14 3 12

13 9 15 8 5

8. See actual limited warranty for details. For a copy of Sony's warranty, please visit www.sony.com/pcsupport, call toll-free 888-476-6972 (888-4SONYPC) or write to Sony Electronics, 12451 Gateway Boulevard, Fort Myers, FL 33913.

9. For certain third party software applications, Sony provides first level phone support. Additional telephone support may be available from the applicable 3rd party vendor. Availability and schedule for any such support is determined by the aplicable software vendor. Long distance charges may apply

10. Broadband Internet service required along with third party services which may require a subscription or other service fee.

11.Includes Microsoft® Office 2010 preloaded. Purchase a Product Key to activate a full Microsoft Office 2010 suite.

12. Compatibility and performance in a 64-bit environment may vary.

13. Norton Internet Security™ 2010 30-day subscription is pre-installed on your Sony VAIO PC. You need to activate the software for the product to work. After your 30-days are finished, buy Norton Internet Security to continue to be protected from viruses, hackers and identify theft.

14. Interoperability and compatibility among Bluetooth

® devices vary.

15. When available, Sony will provide Onsite/In-Home Service in fulfillment of its limited warranty obligations. Any such services are subject to the terms and conditions of the limited warranty. See actual Limited Warranty for details. Onsite/In-Home Service will be provided via third-party technician to be dispatched as needed following phone-based troubleshooting. Some repairs may be accomplished with self repair kits. Onsite/In-Home Service may not be available in all locations.

16. Requires high definition-capable display with HDMI

™

connector.

Image quality will vary.

17. Based on original factory image and will vary with product configuration changes and additional software added to the hard drive.

18. Excluding end user interaction

19. Windows® 7 is required for feature functionality. Rebooting is necessary on pre-installed and downgraded Windows® XP Professional models.

20. Intel®

Turbo Boost Technology requires a PC with a processor with Intel Turbo Boost Technology capability. Intel Turbo Boost Technology performance varies depending on hardware, software and overall system configuration.

21. GPS is available in the U.S. and Canada only. Map detail will vary.

22. Sprint and Verizon Wireless Mobile Broadband service sold separately. Mobile Broadband is available to more than 285 million people in 264 major metro areas in the U.S. Offers and coverage, varying by service, not available everywhere. Network details & coverage maps at vzw.com.

Computer Interface: For this product, there are a multitude of varying software packages and add-on hardware options. This product is not manufactured to work with any specific software, and Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware options except those mentioned here. Sony hereby disclaims any representations or warranties that this product is compatible with any combination of non-Sony products you may choose to connect to it. While Sony representatives or Sony authorized dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance. Software titles pre-installed on the Sony computer are subject to change without notice. Preinstalled software may not be identical to retail versions or have all documentation. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate and may vary. ©2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, VAIO, VAIO Care, Memory Stick PRO, MagicGate, MOTION EYE, and i.LINK are trademarks of Sony in the U.S. and in other countries. Microsoft and Windows are trademarks of the Microsoft Corporation in the U.S. and in other countries. Intel and Centrino are registered trademarks and Core is a trademark of the Intel Corporation in the U.S. and in other countries. Bluetooth and the Bluetooth logo are registered trademarks of SIG, Inc. Symantec, the Symantec Logo, and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation or its affiliates in the U.S. and other countries. Blu-ray Disc and the Blu-ray Disc logo are trademarks. HDMI is a trademark of HDMI Licensing LLC. ENERGY STAR is a registered U.S. trademark. All other trademarks are trademarks of their respective owners.
