SONY A70 Diagram

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

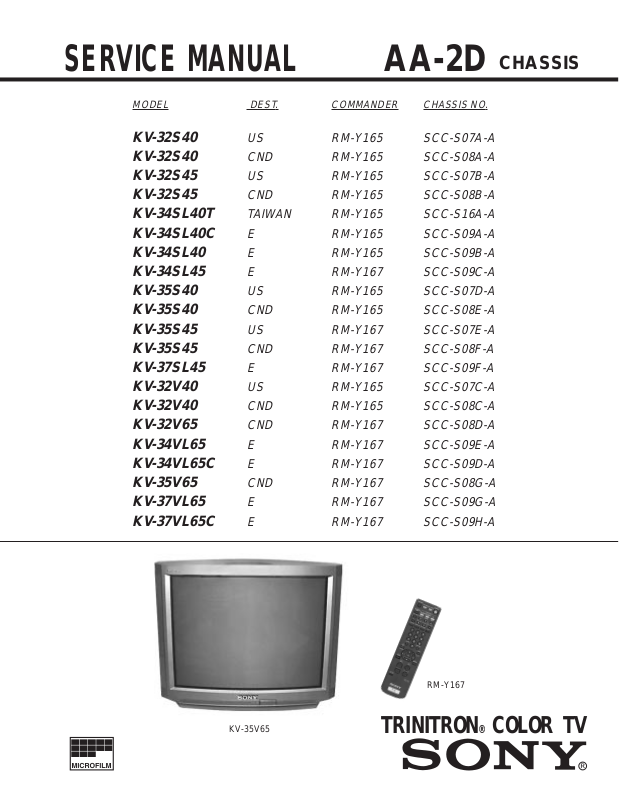

SERVICE MANUAL

MODEL DEST. COMMANDER CHASSIS NO.

KV-32S40
KV-32S40
KV-32S45
KV-32S45
KV-34SL40T
KV-34SL40C
KV-34SL40
KV-34SL45
KV-35S40
KV-35S40
KV-35S45
KV-35S45

US RM-Y165 SCC-S07A-A
CND RM-Y165 SCC-S08A-A
US RM-Y165 SCC-S07B-A
CND RM-Y165 SCC-S08B-A
TAIWAN RM-Y165 SCC-S16A-A
E RM-Y165 SCC-S09A-A
E RM-Y165 SCC-S09B-A
E RM-Y167 SCC-S09C-A
US RM-Y165 SCC-S07D-A
CND RM-Y165 SCC-S08E-A
US RM-Y167 SCC-S07E-A
CND RM-Y167 SCC-S08F-A

AA-2D

CHASSIS

KV-37SL45
KV-32V40
KV-32V40
KV-32V65
KV-34VL65
KV-34VL65C
KV-35V65
KV-37VL65
KV-37VL65C

E RM-Y167 SCC-S09F-A
US RM-Y165 SCC-S07C-A
CND RM-Y165 SCC-S08C-A
CND RM-Y167 SCC-S08D-A
E RM-Y167 SCC-S09E-A
E RM-Y167 SCC-S09D-A
CND RM-Y167 SCC-S08G-A
E RM-Y167 SCC-S09G-A
E RM-Y167 SCC-S09H-A

KV-35V65

RM-Y167

TRINITRON® COLOR TV

— 1 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SPECIFICATIONS

KV-32S40 KV-32S45 KV-32V65 KV-35S40/45 KV-35V65

KV-34SL40/40T KV-34SL40C KV-34SL45 KV-32V40 KV-34VL65/65C KV-37SL45 KV-37VL65 KV-37VL65C

Power requirements 120V,60Hz 220V,50/60Hz 120V,60Hz 120V,60Hz 120V,60Hz(65) 120V,60Hz 120V,60Hz 220V,50/60Hz

Number of inputs/outputs

1)

Video

2)

S Video

3)

Audio
Audio Out

1 123 3 2 33
1 111 2 1 22

4)

1 123 3 2 33
1 111 1 1 11

220V,50/60Hz(65C)

Monitor Out ---1 1 - 11
TV out - --- 1 - 11
S-Link - - - - YES - YES YES

Speaker output(W) 5W x 2 5W x 2 5W x 2 5W x 2 10W x 2 5W x 2 10W x 2 10W x 2
Power Consumption(W)

In use(Max)

180W 175W 180W 180W 200W(65), 195W(65C) 210W 230W 225W

In standby 2W 3W 2W 2W 2W(65), 3W(65C) 2W 2W 3W

Dimensions(W/H/D)

(mm)
(in) 31 x 27

Mass

(kg)
(lbs)

Television system

American TV standard

791 x 707 x 604.5mm 821 x 675.3 x 587mm 870 x 761 x 653mm 920 x 730.8 x 641.8mm

13/16

3/4

x 23

71.4kg 72.7kg 70kg 83kg 90kg
157lbs 160lbs 154lbs 183lbs 203lbs

32

3/8

x 26

5/8

x 23

1/8

1)

2)

C: 0.286 Vp-p (Burst signal), 75 ohms

3)

4)

1/4

34

1 Vp-p 75 ohms unbalanced, sync negative
Y: 1 Vp-p 75 ohms unbalanced, sync negative

500 mVrms (100% modulation), Impedance: 47 kilohms
More than 408 mVrms at the maximum volume setting (variable)

x 30 x 25

5/8

36

1/4

x 28

3/4

x 25

1/4

Channel coverage

VHF:2-13/UHF:14-69/CATV:1-125

Visible screen size

32-inch picture measured (KV-32S40/32S45/32V65/34SL40/34SL40C/34SL40T/34SL45/32V40/34VL65/34VL65C)

35-inch picture measured (KV-35S40/35S45/37SL45/35V65/37VL65/37VL65C)

Actual screen size

34-inch picture measured (KV-32S40/32S45/32V65/34SL40/34SL40C/34SL40T/34SL45/32V40/34VL65/34VL65C)

37-inch picture measured (KV-35S40/35S45/37SL45/35V65/37VL65/37VL65C)

Antenna

75 ohm external terminal for VHF/UHF

Supplied Accessories

Remote commander (w/2 size AA (R6) batteries)

RM-Y165: (KV-32S40/32S45/34SL40/34SL40T/34SL40C/35S40/32V40)

(l ) SRS (SOUND RETRIEVAL SYSTEM)

The ( l ) SRS (SOUND RETRIEVAL SYSTEM) is manufac­tured by Sony Corporation under license from SRS Labs,

RM-Y167: (KV-34SL45/35S45/37SL45/32V65/34VL65/

34VL65C/35V65/37VL65/37VL65C)

Optional Accessory

Connecting Cables: VMC-810S/820S

VMC-720M,YC-15V/30V,RK-74A

TV-Stand: SU-32A3,SU-35A3
VHF/UHF Mixer: EAC-66

Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S.
and foreign patents pending.

The word ‘SRS’ and the SRS symbol (l ) are registered
trademarks of SRS Labs, Inc.

BBE and BBE symbol are trademarks of BBE Sound,Inc.
and are licensed by BBE Sound, Inc. under USP 4638258
and USP 4482866.

Design and specifications are subject to change without notice.

— 2 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

TABLE OF CONTENTS

Section Title PageSection Title Page

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

1. GENERAL

Connecting and Installing the TV ......................................... 5

Operating Video Equipment................................................... 7

Operating a Cable Box or DBS Receiver............................... 8

Troubleshooting..................................................................... 8

2. DISASSEMBLY

2-1.Rear Cover Removal ...................................................... 9

2-2.Chassis Assembly Removal .......................................... 10

2-3.Service Position ............................................................. 10

2-4.Control Switch Removal ................................................ 10

2-5-1. Picture Tube Removal (32"/34")................................. 11

2-5-2. Picture Tube Removal (35"/37")................................. 11

3. SET-UP ADJUSTMENTS

3-1.Beam Landing................................................................. 12

3-2.Convergence................................................................... 13

3-3.Focus............................................................................... 14

3-4.Screen (G2)..................................................................... 14

3-5.White Balance Adjustments............................................ 14

4. SAFETY RELATED ADJUSTMENTS ................................. 15

5. CIRCUIT ADJUSTMENTS .................................................... 16

6. DIAGRAMS

6-1. S Series Block Diagram.................................................. 23

6-2. V Series Block Diagrams ................................................ 27

6-3. Circuit Boards Location................................................... 34

6-4.Printed Wiring Boards and Schematic Diagrams ............ 34

• A Board...................................................................... 35

• AV Board.................................................................... 48

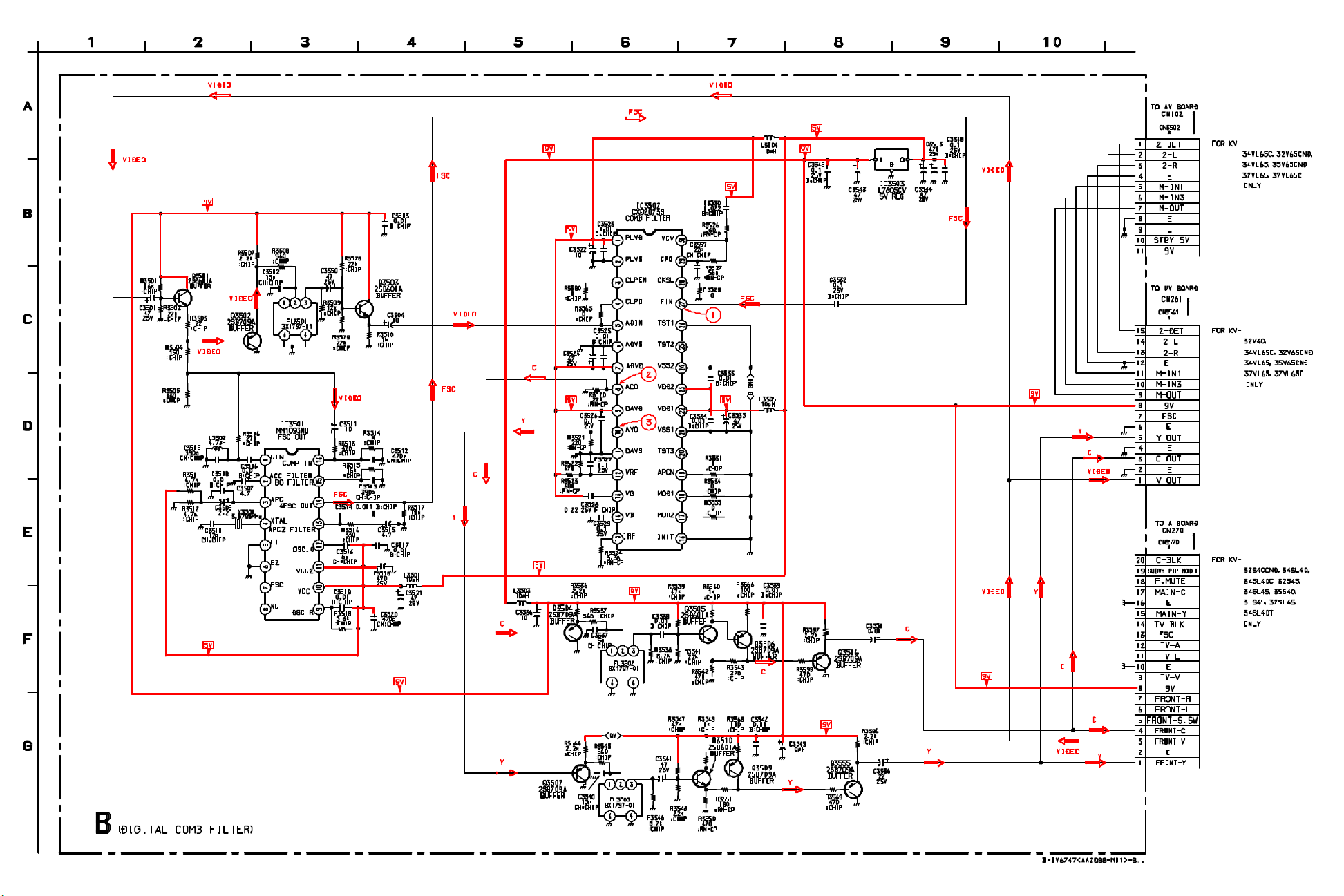

• B Board ..................................................................... 48

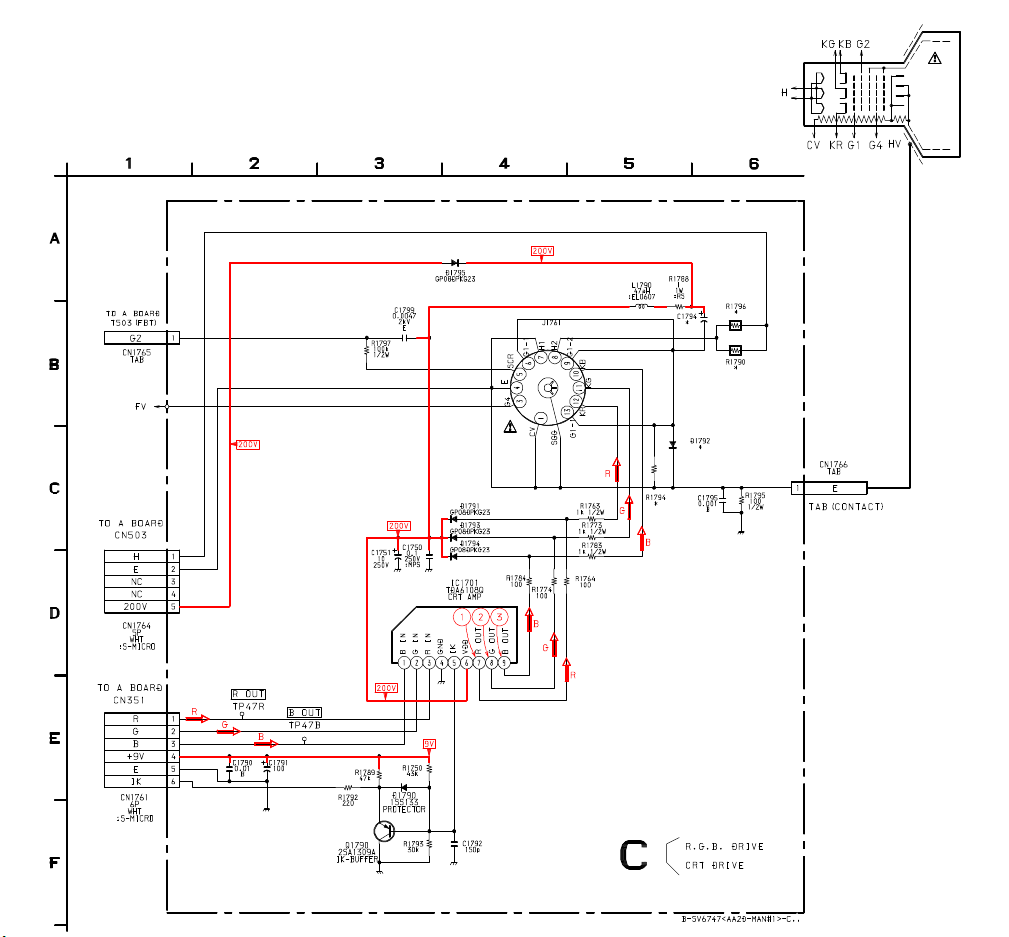

• C Board .................................................................... 51

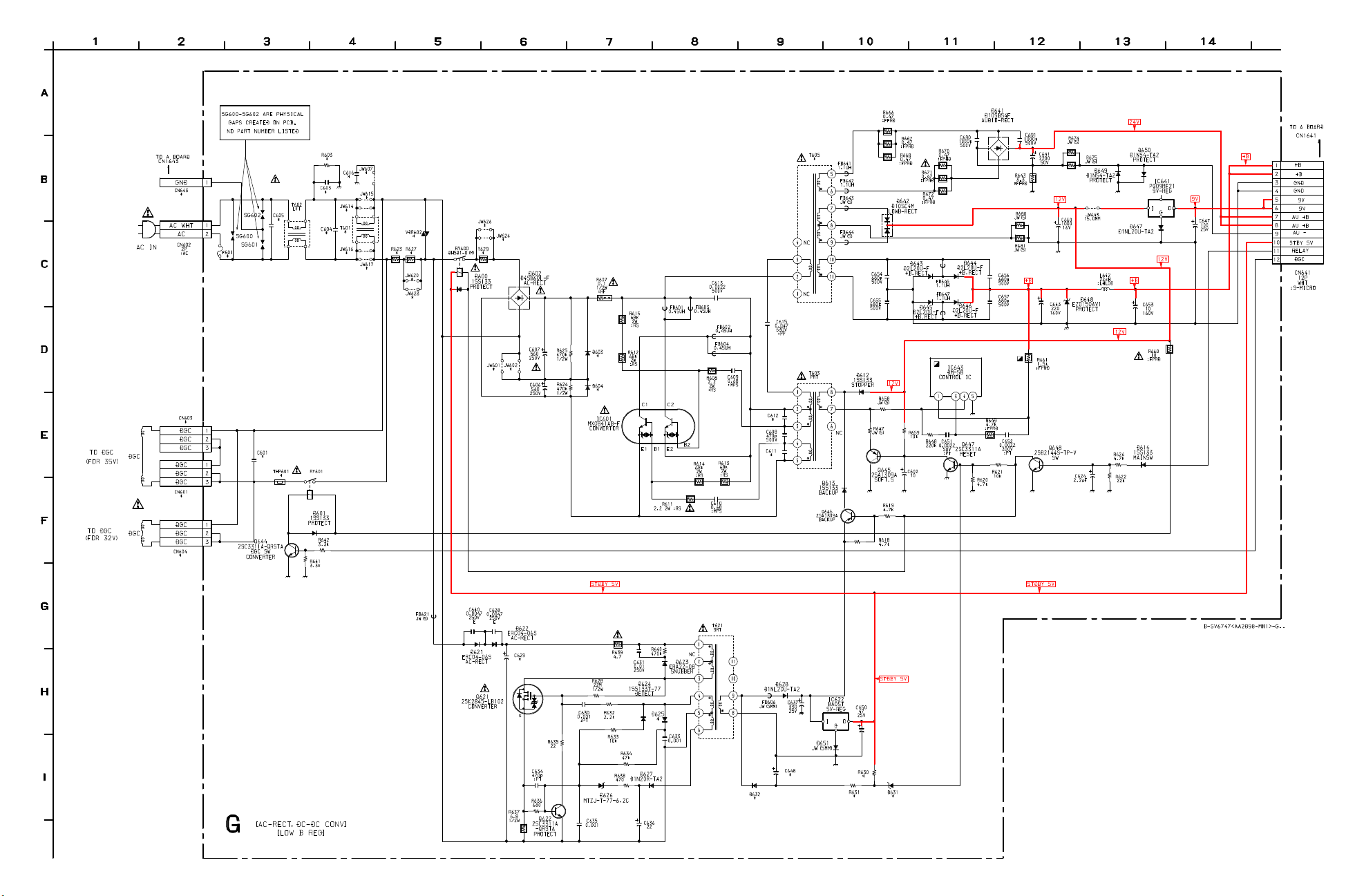

• G Board .................................................................... 52

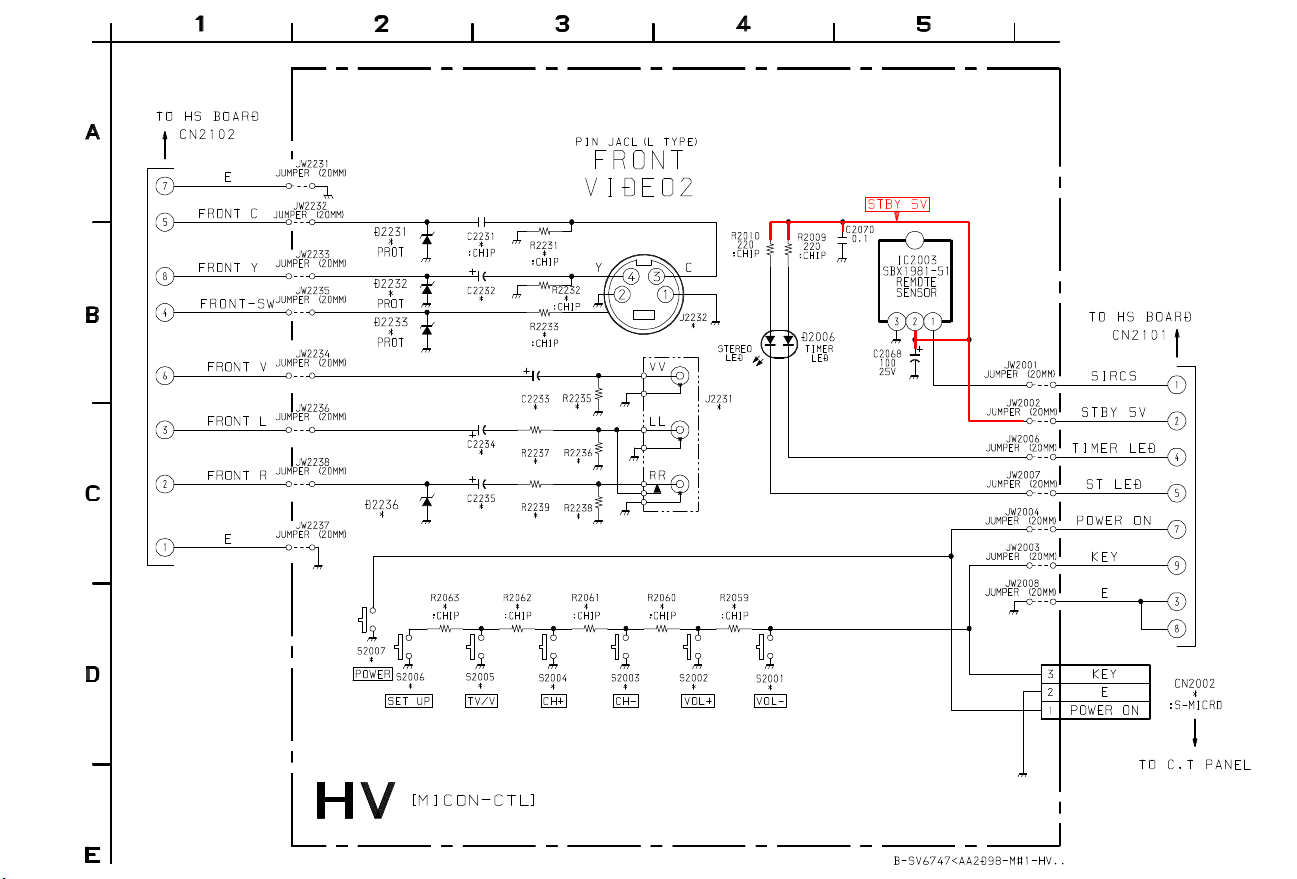

• HV Board................................................................... 55

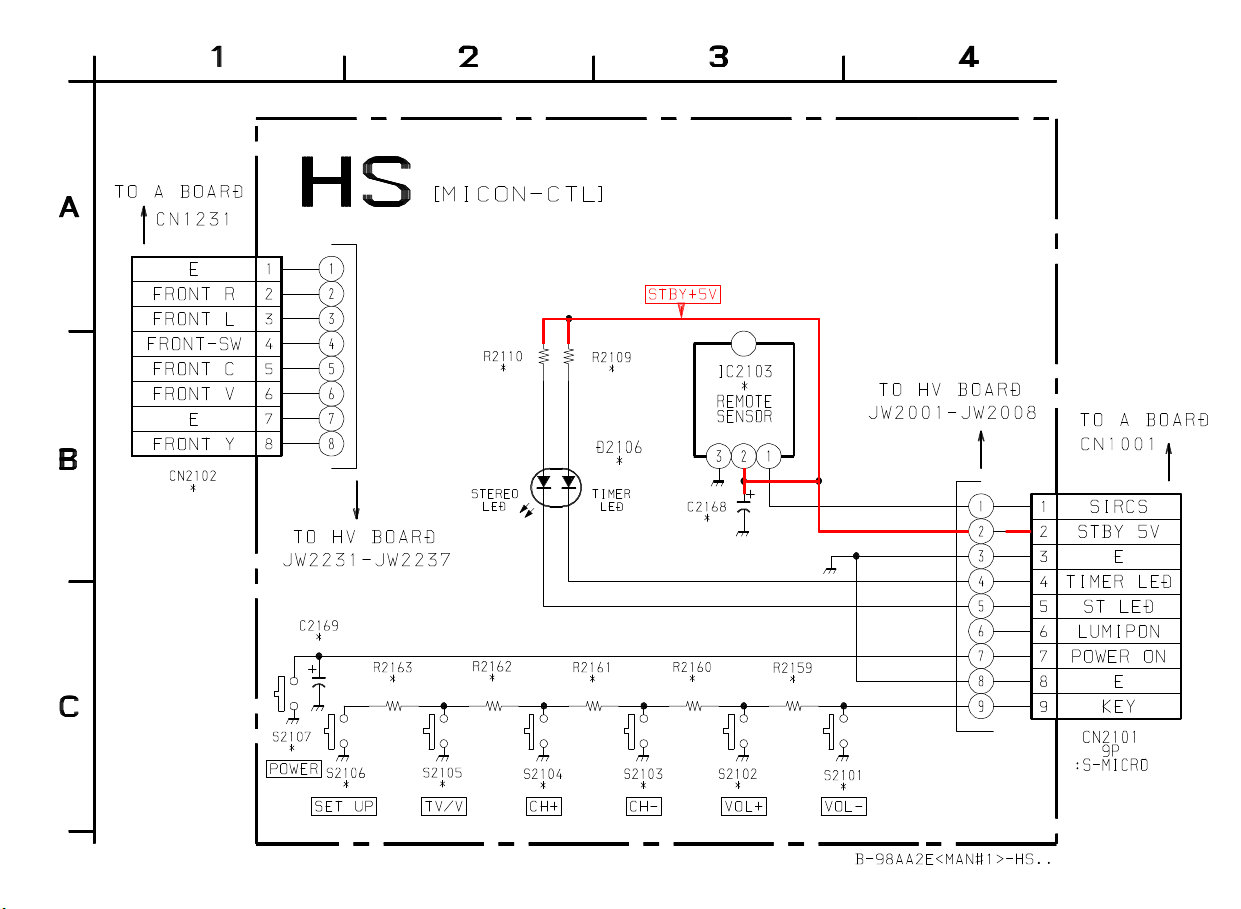

• HS Board .................................................................. 55

• K Board...................................................................... 56

• P Board...................................................................... 57

• WB Board.................................................................. 58

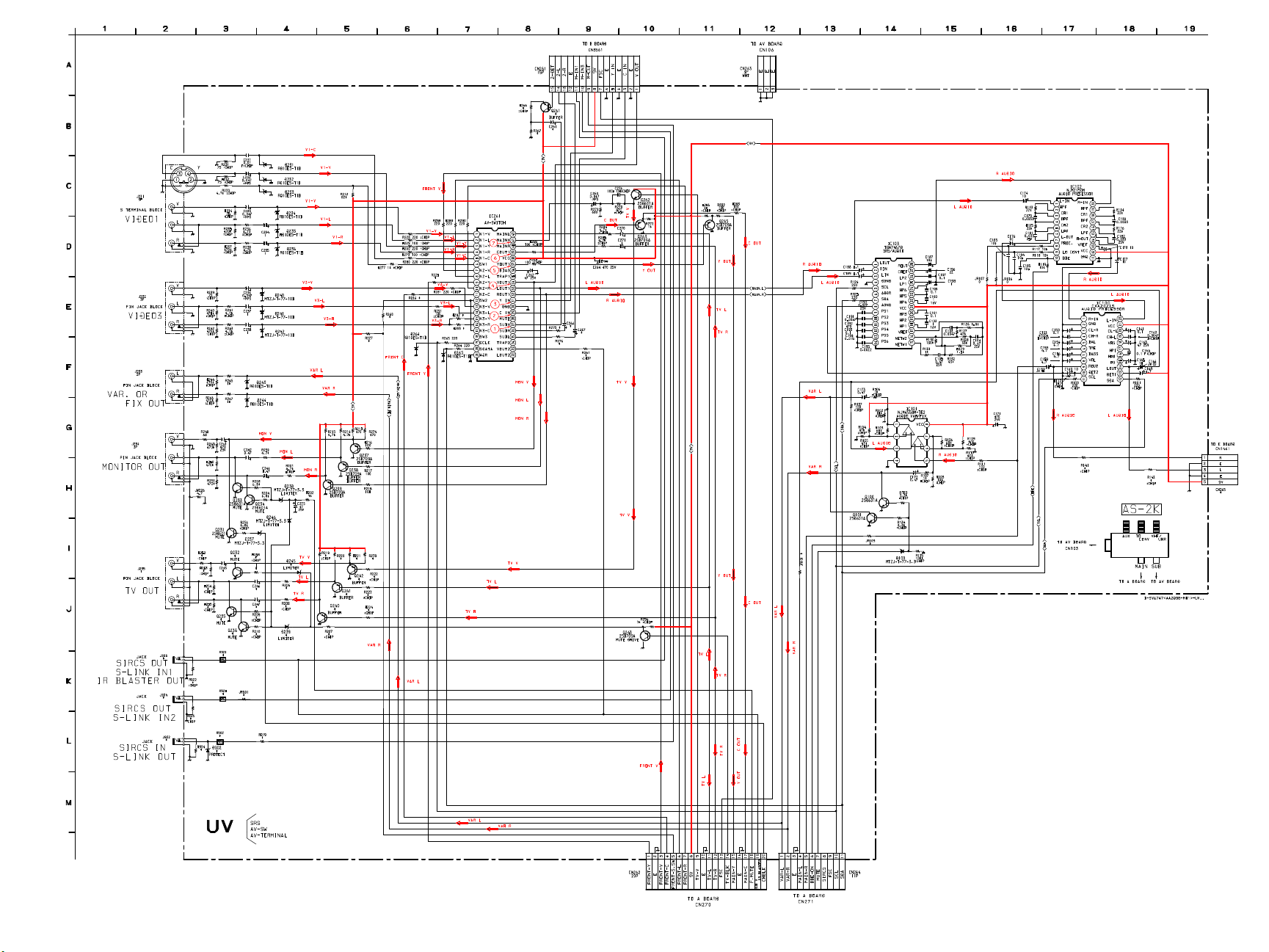

• UV Board................................................................... 59

• WA Board................................................................... 63

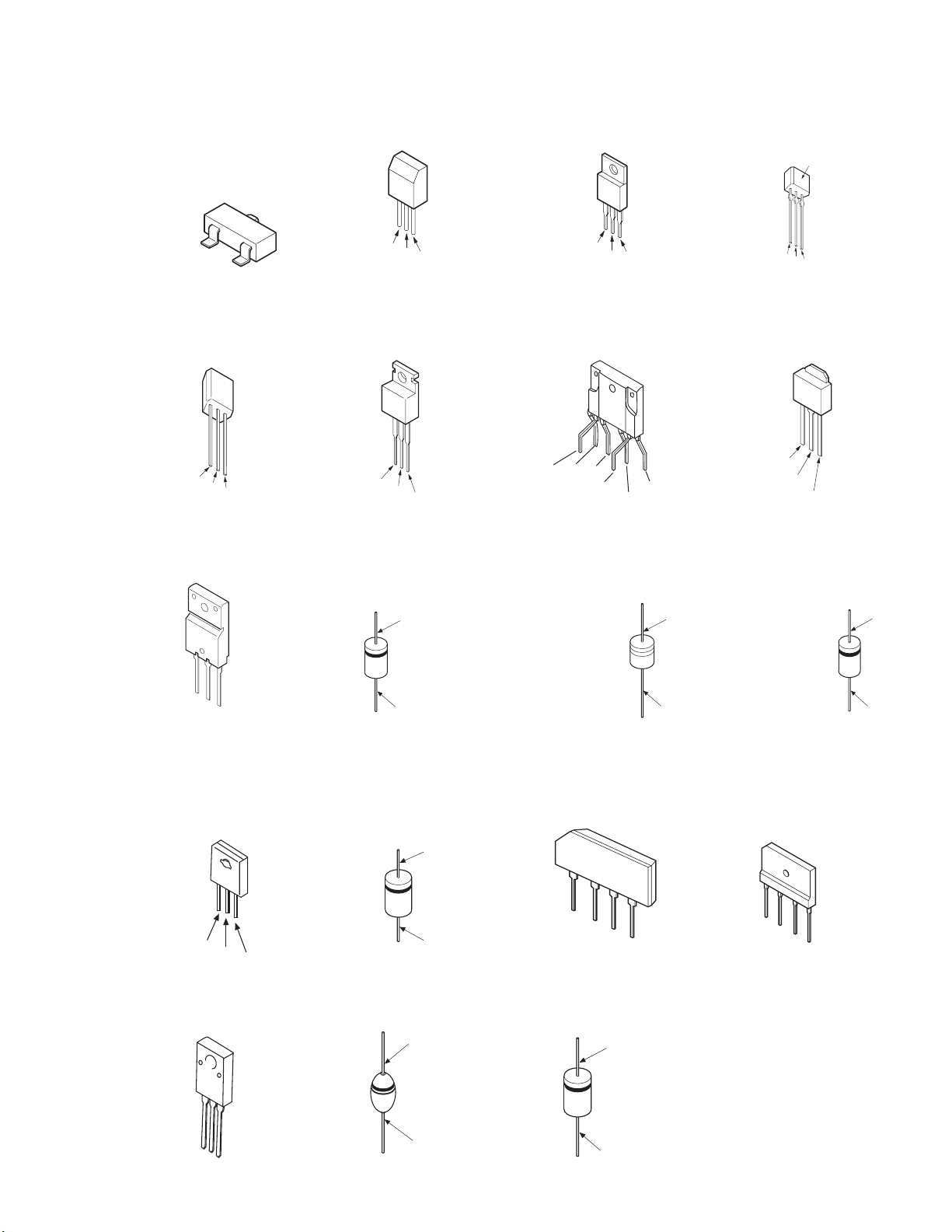

6-5.Semiconductors.............................................................. 65

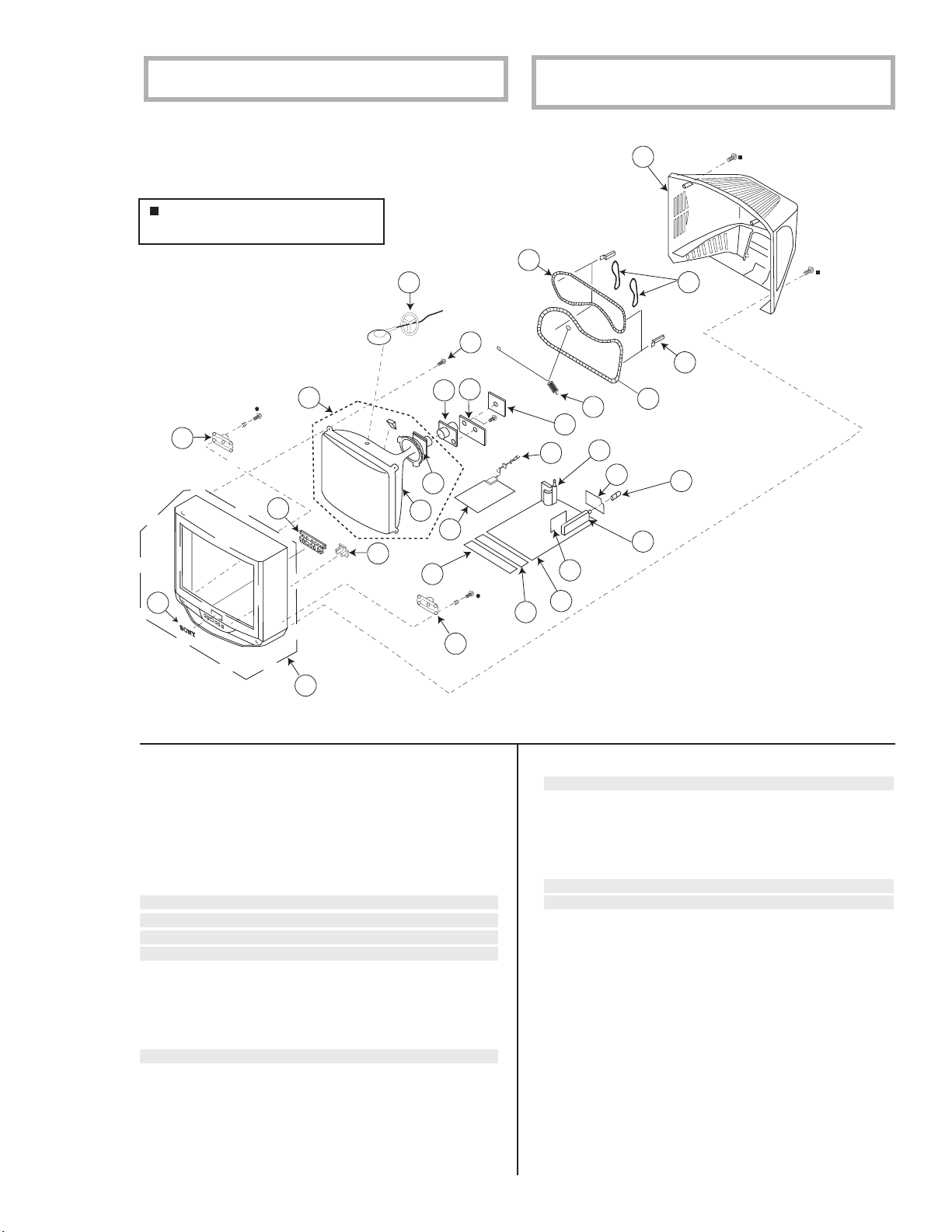

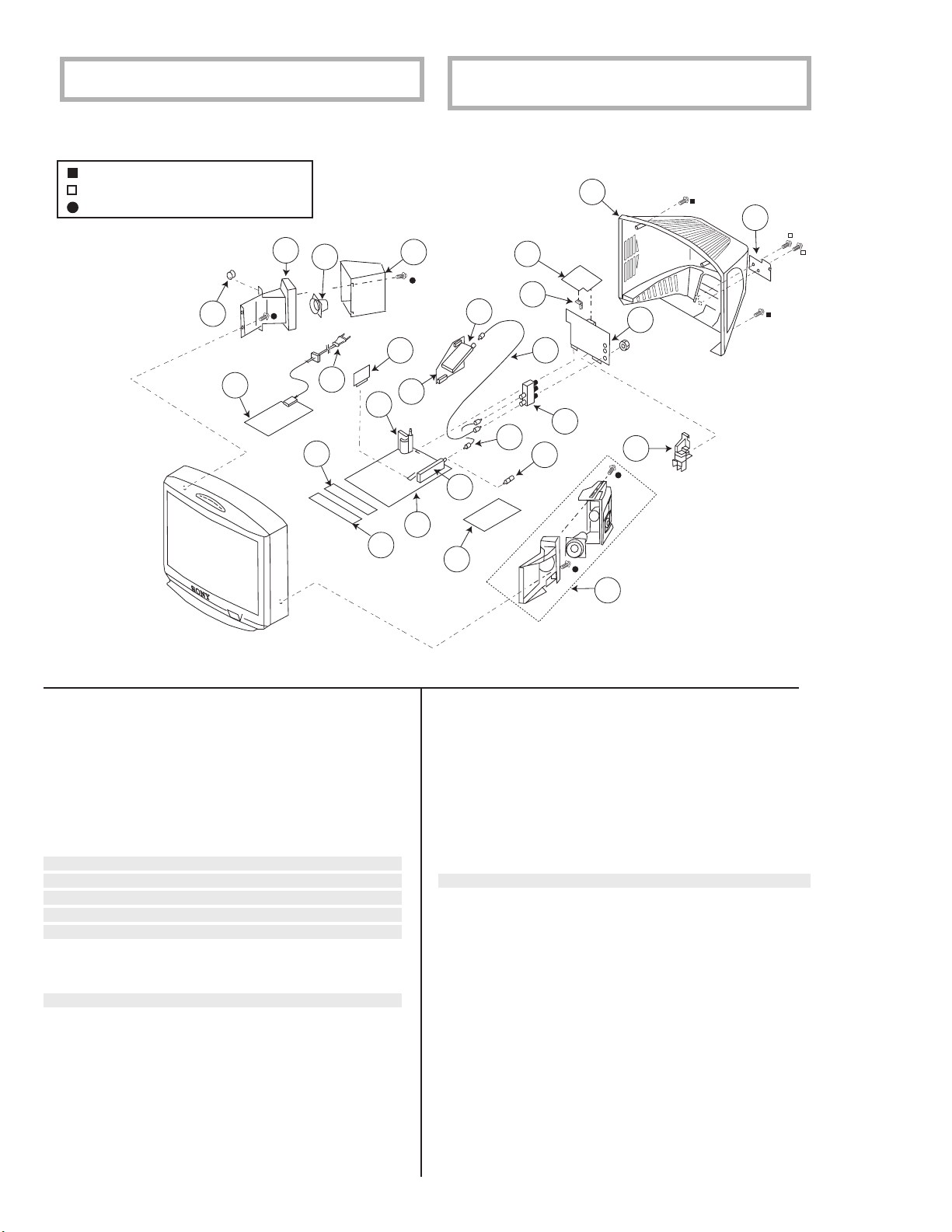

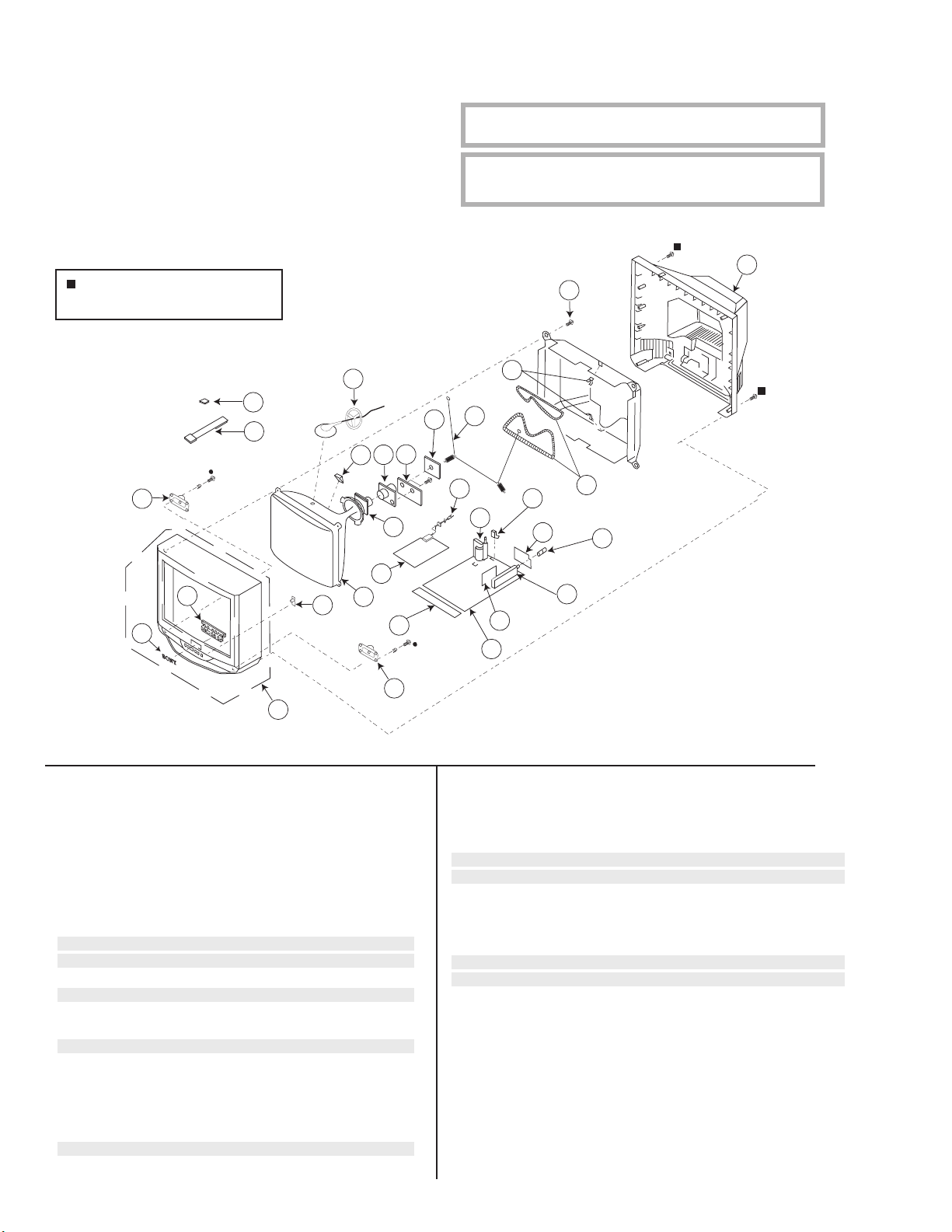

7. EXPLODED VlEWS

7-1. Chassis ......................................................................... 66

(KV-32S40/34SL40/34SL40C/32S45/34SL45/34SL40T)

7-2. Chassis.......................................................................... 67

(KV-35S40/35S45/37SL45)

7-3. Chassis.......................................................................... 68

(KV-32V40/32V65/34VL65/35VL65C/
35V65/37VL65/37VL65C)

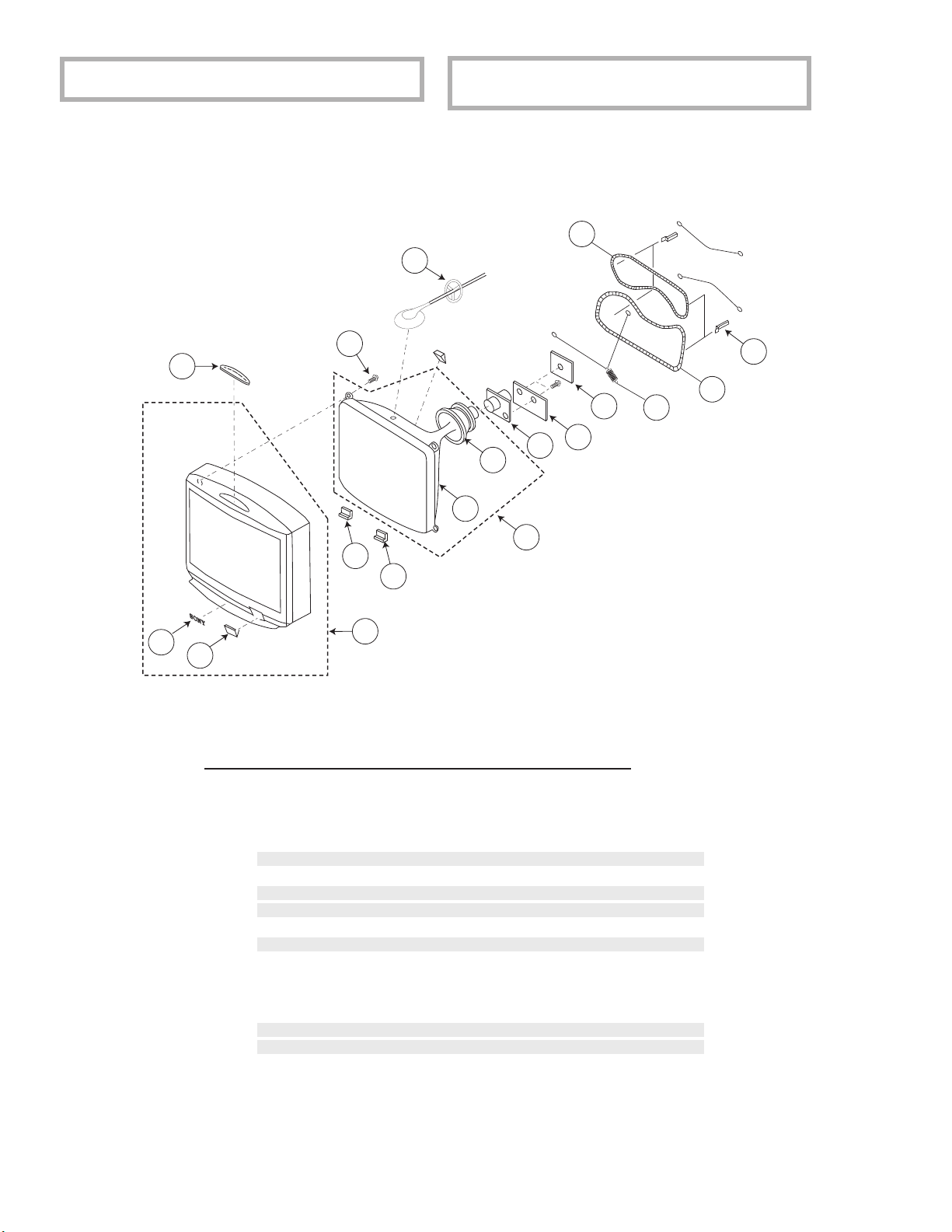

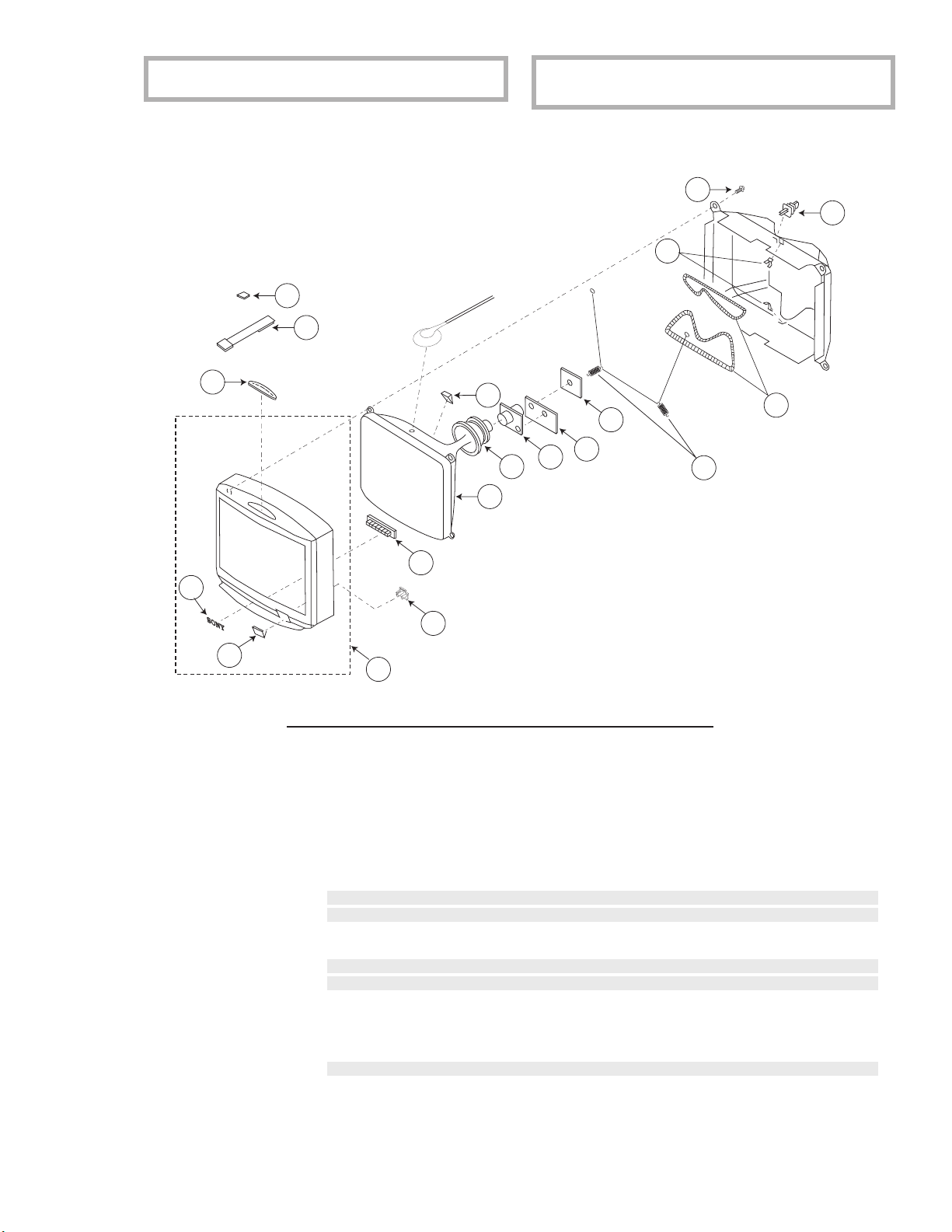

7-3. Picture Tube .................................................................. 69

(KV-32V40/32V65/34VL65)

7-3. Picture Tube .................................................................. 70

(KV-35VL65C/35V65/37VL65/37VL65C)

8. ELECTRICAL PARTS LIST

• Table of Contents for Parts List.................................. 71

• Parts Listings............................................................. 72

WARNINGS AND CAUTIONS

CAUTION!

AFTER REMOVING THE ANODE, SHORT CIRCUIT THE ANODE
OF THE PICTURE TUBE AND THE ANODE CAP TO THE METAL
CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT.

WARNING!!

AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY
SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF
LIVE CHASSIS.THE CHASSIS OF THIS RECEIVER IS DIRECTLY
CONNECTED TO THE AC POWER LINE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ¡ ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT
ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION
ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE
PROCEDURES WHENEVER CRITICAL COMPONENTS ARE
REPLACED OR IMPROPER OPERATION IS SUSPECTED.

ATTENTION

APRES AVOIR DECONNECTE LE CAP DE L'ANODE, COURT-CIRCUITER L'ANODE
DU TUBE CATHODIQUE ET CELUI DE L'ANODE DU CAP AU CHASSIS METALLIQUE
DE L'APPAREIL, OU AU COUCHE DE CARBONE PEINTE SUR LE TUBE CATHODIQUE
OU AU BLINDAGE DU TUBE CATHODIQUE.

ATTENTION!!

AFIN D'EVITER TOUT RESQUE D'ELECTROCUTION PROVENANT D'UN CHÁSSIS
SOUS TENSION, UN TRANSFORMATEUR D'ISOLEMENT DOIT ETRE UTILISÉ LORS
DE TOUT DÉPANNAGE. LE CHÁSSIS DE CE RÉCEPTEUR EST DIRECTEMENT
RACCORDÉ À L'ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR UNE MARQUE ¡ SUR
LES SCHEMAS DE PRINCIPE, LES VUES EXPLOSEES ET LES LISTES DE PIECES
SONT D'UNEIMPORT ANCE CRITIQUE POUR LA SECURITE DU FONCTIONNEMENT.
NE LES REMPLACER QUE PAR DES COMPOSANTS SONY DONT LE NUMERO DE
PIECE EST INDIQUE DANS LE PRESENT MANUEL OU DANS DES SUPPLEMENTS
PUBLIES PAR SONY. LES REGLAGES DE CIRCUIT DONT L'IMPORT ANCE EST CRI­TIQUE POUR LA SECURITE DU FONCTIONNEMENT SONT IDENTIFIES DANS LE
PRESENT MANUEL. SUIVRE CES PROCEDURES LORS DE CHAQUE
REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU'UN MAUVAIS

FONTIONNEMENT SUSPECTE.

— 3 —

— 5 —

3

Using This Manual

Precautions

Welcome!

Thank you for purchasing the Sony
Trinitron

®

Color TV. This manual is written
for the models listed below. Before reading,
check the model number located on the front
of this manual or on the rear of your TV.

Model KV-35S45 is used for menu and
illustration purposes. Differences in
operation are indicated in the text; for
example, “KV-35S45 only”.

This manual is divided into four major
sections. We recommend that you carefully
review the contents of each section in the
order presented to ensure that you fully
understand the operation of your new TV.

1 Connecting and Installing the TV

This section guides you through your
initial set up. It shows how to connect to
your antenna or cable, and connect any
accessories or components.

2 Basic Set Up

This section teaches you the basic skills
needed to operate your new TV. It shows
you how to operate special functions of
the remote control.

3 Using your New TV

This section shows you how to begin
using your new TV. It shows how to use
the Easy Set Up Guide feature, and how to
use your remote control.

4 Using your Menus

This section teaches you how to access
on-screen menus and adjust your TV's
settings.

Instructions in this manual are written for the
remote control. Similar controls may be found on
the TV console.

Safety

• Operate the TV only with 120 V AC .

• The plug is designed, for safety purposes,
to fit in the wall outlet only one way. If
you are unable to insert the plug fully into
the outlet, contact your dealer.

• If any liquid or solid object should fall
inside the cabinet, unplug the TV
immediately and have it checked by
qualified personnel before operating it
further.

• If you will not be using the TV for several
days, disconnect power by pulling the
plug itself. Never pull on the cord.

For details concerning safety precautions, see the
supplied leaflet “IMPORTANT SAFEGUARDS”.

Installing

• To prevent internal heat build-up, do not
block the ventilation openings.

• Do not install the TV in a hot or humid
place, or in a place subject to excessive
dust or mechanical vibration.

Model
Number

Single tuner

(VCR required for PIP)

Dual tuner

("Ready to Use" PIP)

SRS

FAVORITE CHANNEL

with Preview

KV-32S40
KV-32S45
KV-32S65
KV-32V40
KV-32V65
KV-35S40
KV-35S45
KV-35S65
KV-35V65

AUTO VOLUME

Control

SURROUND

4

Cable or antenna only 5
Cable and antenna (KV-32S65, 32V65, 35S65, 35V65 only) 5
Cable box 6
Cable box and cable to view scrambled channels (KV-32S65, 32V65, 35S65,

35V65 only) 6
V

CR and cable or antenna 7
VCR and cable box 7
Direct Broadcast Satellite Receiver (DBS) 8
VCR and Direct Broadcast Satellite Receiver (DBS) 8
Digital Versatile Disc player (DVD) 9
Audio system 9
A/V receiver 10
Two VCR's for tape editing (KV-32V40, 32V65, 35V65 only) 10
Camcorder to view tapes 11
S-Link connections (KV-32S65, 32V65, 35S65, 35V65 only) 12

Making Connections

Connecting and Installing the TV

Refer to the table below, it will direct you to the diagram suitable to the components you will be
connecting.

If you will be connecting See page

5

B

• VHF only
or

• UHF only
or

• VHF/UHF

C

• VHF

and

• UHF

Cable or Antenna Connections

Connecting directly to cable or an
antenna

The connection you choose will depend on the
cable found in your home. Newer homes will
be equipped with standard coaxial cable
(see

A); older homes will probably have

300-ohm twin lead cable (see

B); still other

homes may contain both (see

C).

A

• VHF only
or

• VHF/UHF
or

• Cable

Antenna connector

(Rear of TV)

VHF/UHF

300-ohm twin
lead cable

(Rear of TV)

VHF/UHF

75-ohm
coaxial cable

75-ohm coaxial cable

300-ohm twin lead cable

(Rear of TV)

VHF/UHF

EAC-66 U/V mixer
(not supplied)

(No connection "TO
CONVERTER" in this case)

CATV cable

Antenna cable

TO CONVERTER

VHF/UHF

(Rear of TV)

AUX

Cable and antenna

• KV-32S65, 32V65, 35S65, 35V65 only

If your cable provider does not feature local
channels, you may find this set up convenient
for viewing both local and cable channels.

Select cable or antenna mode by pressing
ANT on the remote control. You will be able
to alternate between the two input sources.

Note

• In order to receive channels with an
antenna, you will need to turn your CABLE
to OFF (see page 26) and perform the
AUTO PROGRAM function.

6

Connecting and Installing the TV (continued)

Cable Box Connections

Some pay cable TV systems use scrambled or
encoded signals that require a cable box to
view all channels.

Cable box

1 Connect the coaxial connector from your

cable to the IN on your cable box.

2 Using a coaxial cable, connect OUT on

your cable box to VHF/UHF on your TV.

Cable box and cable

• KV-32S65, 32V65, 35S65, 35V65 only

For this set up, you can switch between
scrambled channels (through your cable box),
and normal (CATV) channels by pressing
ANT on your remote control.

Notes

• Your Sony remote control can be
programmed to operate your cable box.
(see page 32)

• When using PIP, you cannot view the
AUX input in the window picture.

Tip z

Pressing ANT switches between these inputs.

Cable box

Cable

OUTIN

(Rear of TV)

VHF/UHF

TO CONVERTER

Cable box

VHF/UHF

(Rear of TV)

AUX

75-ohm coaxial

cable (not supplied)

CATV cable

(unscrambled channels)

(signal)

scrambled

channels

If you will be controlling all channel selection
through your cable box, you should consider using
the CHANNEL FIX feature discussed on page 26.

If you are connecting a cable box through the AUX input and would
like to switch between the AUX and normal (CATV) input you should
consider using the CHANNEL FIX feature discussed on page 26.

SECTION 1 GENERAL

The instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers shown reflect those of the Operating Instruction Manual.

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

— 6 —

7

AUDIO R AUDIO L VIDEO

S VIDEO

LINE

OUT

OUT

IN

OUT

IN

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

L

R

Disconnect all power sources before making any connections.

VCR must be connected and
turned on to operate PIP
(KV-32S45, 35S45 only).

VCR Connections

Connecting an antenna/cable TV
system with a VCR

1 Attach the coaxial connector from your cable

or antenna to IN on your VCR.

2 Using A/V connectors, connect AUDIO and

VIDEO OUT on your VCR to AUDIO and
VIDEO IN on your TV.*

3 Using a coaxial connector, connect OUT on

your VCR to VHF/UHF on your TV.

* If you are connecting a monaural VCR, connect only the

single white audio output to the left input on your TV.

Connecting a VCR and TV with a
cable box

You will need a splitter (not supplied) for the
following connection.

1 Connect the single (input) jack of the splitter

to your incoming cable connection. Connect
the other two (output) jacks (using coaxial
cable) to IN on your cable box and VHF/UHF
on your TV.

2 Using a coaxial connector, connect OUT on

your cable box to IN on your VCR.

3 Using A/V connectors, connect AUDIO and

VIDEO OUT on your VCR to AUDIO and
VIDEO IN on your TV.

Coaxial cable

(Rear of TV)

VMC-810S/820S (not supplied)

Cable

VCR

3

1

2

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

VMC-810S/820S (not supplied)

Cable box

Splitter

(not supplied)

3

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

VCR

Cable

Coaxial cable

2

1

For optimum picture quality, use S VIDEO instead of
the yellow A/V cable. S Video does not provide sound,
your audio connectors must still be connected.

(Rear of TV)

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

AUDIO R AUDIO L VIDEO

S VIDEO

LINE
OUT

OUT

IN

L

R

8

AUDIO R AUDIO L VIDEO

AUDIO R AUDIO L VIDEO

SATELLITE IN

VHF/UHF

S VIDEO

OUT

IN

LINE OUT

LINE IN

VHF/UHF

S VIDEO

OUT

IN

LINE OUT

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

L

R

Disconnect all power sources before making any connections.

DBS receiver

Satellite
antenna
cable

VMC-810S/820S (not supplied)

1

3

2

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

Connecting and Installing the TV (continued)

For optimum picture quality, use S VIDEO
instead of the yellow A/V cable. S Video does
not provide sound, your audio connectors
must still be connected.

DBS Connections

Connecting a DBS (Direct
Broadcast Satellite) receiver

1 Connect the cable from your satellite

antenna to your DBS receiver.

2 Attach the coaxial connector from your

cable or antenna to VHF/UHF on your TV.

3 Using A/V connectors, connect AUDIO

and VIDEO OUT on your DBS receiver to
AUDIO and VIDEO IN on your TV.

Connecting a DBS (Direct Broadcast
Satellite) receiver and a VCR

1 Connect the cable from your satellite

antenna to your DBS receiver.

2 Attach the coaxial connector from your

cable or antenna to VHF/UHF IN on your
VCR.

3 Using a coaxial connector, connect

VHF/UHF OUT on your VCR to
VHF/UHF on your TV.

4 Using A/V connectors, connect AUDIO

and VIDEO OUT on your DBS receiver to
AUDIO and VIDEO IN on your VCR.

5 Using A/V connectors, connect AUDIO

and VIDEO OUT on your VCR to AUDIO
and VIDEO IN on your TV.

(Rear of TV)

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

1

2

3

VMC-810S/820S (not supplied)

VMC-810S/820S (not supplied)

4

5

(Rear of TV)

DBS receiver

VCR

Pressing TV/VIDEO on the remote
control will allow you to view from
the DBS or VCR.

VHF/UHF

S VIDEO

OUT

IN

LINE OUT

SATELLITE IN

AUDIO R AUDIO L VIDEO

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

L

R

Cable/Antenna

Cable/Antenna

9

Additional Connections

The following connections are for accessories
that will enhance your viewing options.

Connecting a DVD Player

1 Using A/V connectors, connect LINE OUT

on your DVD to VIDEO IN on your TV.

Connecting an audio system

For enhanced sound, connect your audio
system to your TV.

1 Using AUDIO connectors, connect AUDIO

OUT on your TV to one of the unused line
inputs (e.g. TV, AUX, TAPE 2) on your
stereo.

2 Set your stereo to the chosen line input.

Refer to page 24 of this manual for
additional audio setup instructions.

VMC-810S/820S (not supplied)

1

(Rear of DVD player)

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

Line
input

AUDIO-R (red)

AUDIO-L (white)

RK-74A

(not supplied)

1

2

Disconnect all power sources before making any connections.

For optimum picture quality, use S VIDEO
instead of the yellow A/V cable. S Video
does not provide sound, your audio
connectors must still be connected.

(Rear of TV)

(Rear of TV)

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

HRD

AUDIO R AUDIO L VIDEO

S VIDEO

LINE OUT

AUDIO OUT

(

VAR/FIX

)

VIDEO

IN

12

VHF/UHF

S VIDEO

VIDEO

L

R

AUDIO

(

MONO

)

L

R

10

HRD

L

R

AUDIO

(

MONO

)

S VIDEO

VIDEO

IN

VIDEO 1

VIDEO 3

TV MONITOR

AUDIO

(VAR/FIX)

OUT

S-LINK

L

R

AUDIO

(

MONO

)

S VIDEO

VIDEO

IN

VIDEO 1

VIDEO 3

TV MONITOR

AUDIO

(VAR/FIX)

OUT

S-LINK

LINE
OUT

OUT

IN

LINE
IN

OUT

IN

AUDIO R AUDIO L VIDEO AUDIO R AUDIO L VIDEO

Disconnect all power sources before making any connections.

Connecting an A/V receiver

• KV-32V65, 35V65 only

1 Using A/V cables, connect TV OUT on your

TV to TV IN on your A/V receiver.

2 Using a single video connector, connect

Monitor OUT on your A/V receiver to
VIDEO 1 IN on your TV.

Tip

z

You may want to use CHANNEL FIX to set your TV's
input to the A/V receiver. See page 26.

Connecting two VCRs

• KV-32V40, 32V65, 35V65 only

MONITOR OUT gives you the ability to use a
second VCR to record a program being played
by the primary VCR or to perform tape
editing and dubbing.

1 Connect the VCR intended for playback

using the setup instructions on page 7 of
this manual.

2 Using A/V connectors, connect AUDIO

and VIDEO IN on your VCR intended for
recording to MONITOR AUDIO and
VIDEO OUT on your TV.

VCR (for playback)

VCR (for recording)

VMC-810S/820S (not supplied)

VMC-810S/820S (not supplied)

(Rear of KV-35V65)

VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)

1

2

You cannot change video
inputs while editing using
MONITOR OUT.

(Rear of KV-35V65)

VMC-10HG/30HG (not supplied)

VIDEO (yellow)

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

VMC-810S/820S (not supplied)

A/V inputs

A/V receiver

A/V outputs

2

1

Connecting and Installing the TV (continued)

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

— 7 —

11

VIDEO 2 INPUT

L

(

MONO

)

-

AUDIO

-RVIDEO

VIDEO 2 INPUT

VIDEO

L

(

MONO

)

-

AUDIO

-

R

S VIDEO

Connecting a camcorder

This connection is convenient for viewing a
picture directly from your camcorder.

Using A/V connectors, connect AUDIO and
VIDEO OUT on your camcorder to AUDIO
and VIDEO IN on your TV.

Connection can also be made directly to your
A/V input located on the rear of your TV.

Note

•

If you are connecting a monaural camcorder,
connect only the single white audio output
to the left input on your TV.

If you have an S VIDEO equipped
camcorder, you can use an S Video
cable for optimum picture quality.

AUDIO-L (white)

AUDIO-R (red)

VIDEO (yellow)

AV output

VMC-810S/820S

(not supplied)

(Front of KV-32V40*, 32V65, 35V65 only)

Disconnect all power sources before making any connections.

* KV-32V40 does not have S VIDEO on the front panel.

12

Connect to the CONTROL
S-IN on your VCR.

LINE
OUT

AUDIO R AUDIO L VIDEO

S-LINK

L

R

AUDIO

(

MONO

)

S VIDEO

VIDEO

IN

VIDEO 1

VIDEO 3

TV MONITOR

AUDIO

(VAR/FIX)

OUT

S-LINK

SATELLITE IN

LINE
OUT

OUTIN

AUDIO R AUDIO L VIDEO

S-LINK

CONTROL S

L

R

AUDIO

(

MONO

)

S VIDEO

VIDEO

IN

VIDEO 1

VIDEO 3

TV MONITOR

AUDIO

(VAR/FIX)

OUT

S-LINK

Disconnect all power sources before making any connections.

S-Link connections

• KV-32S65, 32V65, 35S65, 35V65 only

S-Link is designed to allow your Sony
components to ”communicate“.

Connecting S-Link to a VCR

S-Link will automatically power on the TV
and switch to the correct video input when a
tape is inserted in the VCR.

1 Using A/V connectors, connect AUDIO

and VIDEO OUT on your VCR to AUDIO
and VIDEO IN on your TV.

2 Using an S-Link connector (mono mini

plug), connect S-LINK/CONTROL S-IN on
your VCR to S-LINK on your TV.

Connecting S-Link to a DBS

S-Link will automatically power on the TV
and switch to the correct video input when
you power on the DBS.

1 Using A/V connectors, connect AUDIO

and VIDEO OUT on your DBS to AUDIO
and VIDEO IN on your TV.

2 Using an S-Link connector (mono mini

plug), connect S-LINK on your DBS to
S-LINK on your TV.

VCR

RK-G69HG

(not supplied)

(Rear of KV-35V65)

AUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

1

2

VMC-810S/820S

(not supplied)

(Rear of KV-35V65)

RK-G69HG

(not supplied)

VMC-810S/820S (not supplied)

Satellite
Antenna

Cable

DBS Receiver

21

AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

Connecting and Installing the TV (continued)

The S-Link connector must be in the
same VIDEO-IN jacks as the A/V cables
on your TV.

30

Programming the remote

You can use the supplied remote control to
operate Sony or non-Sony video equipment.

Operating Video Equipment

1 Press CODE SET.
2 Press VTR/DVD (FUNCTION).
3 Use the 0-9 buttons to key in the

manufacturer's code number from the
following chart.

4 Press ENTER.

VCR code numbers

Manufacturer Code

Sony 301, 302, 303
Admiral (M. Ward) 327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathis 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340

Goldstar 332
Hitachi 306, 304, 305,338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330, 314, 336, 337
JVC 314, 336, 337, 345, 346, 347
Kenwood 314, 336, 332, 337
LXI (Sears) 332, 305, 330, 335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309, 311,

312, 313, 310, 329
Realistic 309, 330, 328, 335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321, 335, 323, 324, 325, 326
Sharp 327, 328
Shintom 315
Signature 2000 (M. Ward) 338, 327
SV2000 338
Sylvania 308, 309, 338, 310
Symphonic 338

Tashiro 332
Tatung 314, 336, 337
Teac 314. 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335, 331, 332
Yamaha 314, 330, 336, 337
Zenith 331

Operating a VCR

To turn on or off
To select a channel

directly
To change

channels
To record

To play
To stop
To fast forward
To rewind the tape
To pause

To scan

To change input
mode

Buttons on the
remote control

Press VTR/DVD (POWER).
Press the 0 – 9 buttons.

Press CH +/–.

Press ( and r
simultaneously.

Press (.
Press p.
Press ).
Press 0.
Press P.

To resume normal playback,
press again or press (.

Press ) or 0 during
playback.
To resume normal playback,
release the button.

Press TV/VTR.

31

MDP (Multi Disc Player)
code numbers

Manufacturer Code

Sony 701
Panasonic 704, 710
Pioneer 702

Operating an MDP

To turn on or off
To play
To stop
To pause

To scan

To search the chapter
forward or backward

Tip z

If you will not be programming a DBS or cable box into
the DBS/CABLE input, you can use it to program other
video equipment (e.g. DVD, MDP, or second VCR).
(see page 30)

DVD (Digital Versatile Disc)
code numbers

Manufacturer Code

Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754

Operating a DVD
player

To turn on or off
To play
To stop
To pause

To scan

To search the
chapter forward or
backward

To select chapters
directly

MENU
To move cursor in

menu

Buttons on the remote
control

Press VTR/DVD (POWER).
Press (.
Press p.
Press P.

To resume normal playback,
press again or press (.

Press ) or 0 during
playback.
To resume normal playback,
press (.

Press CH +/–.

0–9 + ENTER.

Press to display DVD menu.
Use your arrow buttons

V, v, B, b.

Buttons on the remote
control

Press VTR/DVD (POWER).
Press (.
Press p.
Press P.

To resume normal playback,
press again or press (.

Press ) or 0 during
playback.
To resume normal playback,
press (.

Press CH +/–.

Tips z

• In some rare cases, you may not be able to operate
your non-Sony video equipment with the supplied
remote control. In this case, please use the
equipment’s own remote control.

• When you remove the batteries, the code number may
revert to the factory setting.

• The code numbers for Sony VCR's are assigned at the
factory as follows:

VHS VCR 301

(preset code for the

supplied remote control)
8 mm VCR 302
Beta, ED Beta VCRs 303

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

— 8 —

32

Manufacturer

Hamlin/Regal
Jerrold/G. I.

Oak
Panasonic
Pioneer
Scientific Atlanta
Tocom
Zenith

Programming the remote

You can program the supplied remote control
to operate a cable box or DBS receiver.

1 Press CODE SET.
2 Press DBS/CABLE (FUNCTION).
3 Use the 0-9 buttons to key in the

manufacturer's code number from the
following chart.

4 Press ENTER.

For more details on operating the
cable box or DBS receiver

Refer to the operating instructions that were
supplied with the equipment.

If the remote control doesn’t work

• First, try repeating the setup procedures
using the other codes listed for your
equipment.

Tips z

• If more than one code number is listed, try entering
them one by one until you come to the correct code for
your equipment.

• If you enter a new code number, the code number you
previously entered at that setting is erased.

•

In some rare cases, you may not be able to operate

your equipment with the supplied remote control. In
this case, use the equipment’s supplied remote control.

• Whenever you remove the batteries the code numbers
may revert to the factory setting.

Cable box code numbers

Code

222, 223, 224, 225, 226

201, 202, 203, 204, 205, 206,

207, 208, 218
227, 228, 229
219, 220, 221

214, 215

209, 210, 211

216, 217
212, 213

DBS receiver code numbers

Manufacturer

Sony

General Electric
Hitachi
Hughes
Panasonic
RCA/PROSCAN
Toshiba

Code

801 (preset code for

remote control)

802
805
804

803
802, 808
806, 807

Operating a Cable Box or DBS Receiver

33

Problem What it could be What you can do

Cannot operate single tuner PIP
(KV-32S45, 35S45)

A red light keeps flashing on the
TV for more than a few seconds

TV makes a noise when turned
on

Screen is not lit and there is no
sound

Poor or no picture (screen lit),
good sound

Good picture, no sound

No color

Troubleshooting

Consult the table below; it suggests solutions to specific problems.

• VCR may not be connected to your TV properly.

• VCR may not be turned on.

• The remote control may not be programmed to
operate the VCR.

• Your TV may need service.

• This is a normal function of your TV.

• Power cord may not be plugged in.

• Batteries may not have been placed with the correct
polarity.

• TV/VIDEO setting may be incorrect.

• VIDEO menu settings may not be adjusted correctly.

• Antenna/cable connections may be faulty.

• VIDEO LABEL inputs may be set to WEB. (This label
darkens the screen for ideal WebTV viewing)

• Sound may be set to MUTING.

• Your TV may be set to SAP.

• Speaker may not be set correctly.

• Color settings may not be adjusted correctly.

•

Ensure that you have set your VCR correctly. (see page 7)

• Program your remote control to operate the VCR.
(see page 30)

• Call your local Sony service center.

• Press TV/VIDEO until you receive a channel.

• Readjust your VIDEO menu settings.(see page 22)

• Check your VIDEO LABEL settings. (see page 28)

• Press MUTE.

•

Check the MTS setting in the AUDIO menu. (see page 23)

• Check your SPEAKER settings. (see page 23)

• Adjust the COLOR settings in the VIDEO menu.
(see page 22)

34

Problem What it could be What you can do

If, after reading these operating instructions, you have additional questions related to the use of your Sony
television, please call our Direct Response Center at 1-800-222-SONY (7669). (U.S. residents only)

• Ensure that you have selected the
correct CABLE mode in the
SET UP menu. (see page 26)

• Press ANT on your remote
control to change the input mode.
(see page 16)

•

Ensure that CABLE is set to OFF
in the SET UP menu. (see page 26)

• Use AUTO PROGRAM to add
receivable channels that are not
presently in TV memory. (see
page 26)

• Ensure that CABLE is set to ON
in the SET UP menu. (see page 26)

• Use AUTO PROGRAM to add
receivable channels that are not
presently in TV memory. (see
page 26)

• Press TV (FUNCTION) and
adjust the TV's volume.

• Check your CHANNEL FIX
settings. (see page 26)

• CABLE may not be set correctly
in the SET UP menu.

• Antenna/cable connections may
not be correct.

• TV may be set to AUX mode.

• CABLE setting may not be correct
in the SET UP menu.

• CABLE setting may not be set
correctly in the SET UP menu.

• Volume may not be adjusted on
your cable box.

• CHANNEL FIX settings may not
be correct.

Only snow and noise
appear on the screen

Cannot receive upper
channels (UHF) when
using an antenna

Cannot receive any
channels when using
cable

Cannot gain enough
volume when using a
cable box

TV is fixed to one
channel

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SECTION 2

DISASSEMBLY

2-1. REAR COVER REMOVAL

(KV-32S40/34SL40/34SL40C/32S45/34SL45/34SL40T/ (KV-35S40/35S45/37SL45/37VL65/37VL65C)
32V40/32V65/34VL65/34VL65C)

1 1

1 Eleven Screws

1 1

1 Eleven Screws

1 1

(BVTP 4x16)

1 1

(BVTP 4x16)

2 2

2 Two Screws

2 2

(BVTP 3x12)

2 2

2 Two Screws

2 2

2-2. CHASSIS ASSEMBLY REMOVAL

(KV-32S40/34SL40/34SL40C/32S45/ (KV-32V40/32V65/34VL65/34VL65C/35V65/
34SL45/35S40/35S45/37SL45/34SL40T) 37VL65/37VL65C)

1 1

1 Claw

1 1

1 1

1 Claw

1 1

3 3

3 G Board

3 3

(BVTP 4x16)

4 4

4 G Board

4 4

2 2

2 Chassis Assembly

2 2

— 9 —

2 2

2 K Board

2 2

3 3

3 Chassis Assembly

3 3

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

2-3. SERVICE POSITION

1 1

1 A Board

1 1

2 2

2 G Board

2 2

2-4. CONTROL SWITCH REMOVAL

(KV-32V65/34VL65/34VL65C/35VL65/35VL65C/37VL65C)

1 1

1 Control Switch

1 1

2 2

2 Four Claws

2 2

ANODE-CAP REMOVAL

WARNING:

NOTE: After removing the anode, short circuit the anode of the picture tube and the anode cap to either the metal chassis, CRT shield

High voltage remains in the CRT even after the power is disconnected. To avoid electrical shock, discharge CRT before
attempting to remove the anode cap. Short between anode and coated earth ground strap of CRT.

or carbon painted on the CRT.

REMOVAL PROCEDURES

Turn up one side of the rubber cap in

the direction indicated by arrow .

Use your thumb to pull the rubber cap

firmly in the direction indicated by
arrow .

HOW TO HANDLE AN ANODE-CAP

Do not use sharp objects which may cause damage to the sur-

face of the anode-cap.

Do not squeeze the rubber covering too hard to avoid damag-

ing the anode-cap. A material fitting called a shatter-hook ter­minal is built into the rubber.

Do not force turn the foot of the rubber cover. This may cause

the shatter-hook terminal to protrude and damage the rubber.

When one side of the rubber cap sepa-

rates from the anode button, the anode­cap can be removed by turning the rub­ber cap and pulling it in the direction of
arrow .

— 10 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

2-5-1. PICTURE TUBE REMOVAL (KV-32S40/34SL40/34SL40C/32S45/34SL45/34SL40T/32V40/32V65/34VL65/34VL65C)

WARNING -- Before removing
anode cap:

High voltage remains in the CRT even
after the power is disconnected.

To avoid electrical shock, discharge CRT
before attempting to remove the anode
cap. Short between anode and coated
earth ground strap of CRT.

Picture tube
shield assy

C board

Four screws

(Tapping screw 7)

G board

Chassis

Neck assy

Deflection yoke

Anode cap

Coated earth ground strap

2-5-2. PICTURE TUBE REMOVAL (KV-35S40/35S45/37SL45/37VL65/37VL65C)

WARNING -- Before removing
anode cap:

High voltage remains in the CRT even
after the power is disconnected.

To avoid electrical shock, discharge CRT
before attempting to remove the anode
cap. Short between anode and coated
earth ground strap of CRT.

Neck assy

Degaussing coil

C board

K board

(KV-32V65/34VL65/
34VL65C)

Picture tube

Cushion

G board

Chassis assy

K board

(KV-35V65/37VL65
/37VL65C)

Coated earth ground strap

Deflection yoke

Two Degaussing
coil holders

Four screw

(Tapping
screw )

Anode cap

— 11 —

Tension spring(B)

Claw

Two Degaussing
coil holders

Picture tube

Cushion

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SET-UP ADJUSTMENTS

SECTION 3

The following adjustments should be made when a

Perform the adjustments in order as follows:
complete realignment is required or a new picture
tube is installed.

1. Beam Landing

2. Convergence

These adjustments should be performed with rated
power supply voltage unless otherwise noted.

The controls and switch should be set as follows

3. Focus

4. Screen (G2)/White Balance

Note: Test Equipment Required
unless otherwise noted:

1. Color Bar Pattern Generator

PICTURE control ................. normal

2. Degausser

3. DC Power Supply

BRIGHTNESS control ......... normal

4. Digital Multimeter

3-1. BEAM LANDING

Preparation:

• Input a white pattern signal.

• Face the picture tube in a East or West direction to reduce the influence of geomagnetism.

NOTE: Do not use the hand degausser because it magnetizes the CRT .

1. Input white pattern from pattern generator.

2. Loosen the deflection yoke mounting screw, and set
the purity control to the center as shown below:

5. Move the deflection yoke forward, and adjust so that the
entire screen becomes green.

3. Input green pattern from pattern generator.

4. Move the deflection yoke backward, and adjust with
the purity control so that green is in the center and
red and blue are even on both sides.

BR

G

6. Switch over the raster signal to red and blue and confirm
the condition.

7. When the position of the deflection yoke is determined,
tighten it with the deflection yoke mounting screw.

8. When landing at the corner is not right, adjust by using
the disk magnets.

Purity control

corrects this area.

Disk magnets or

ab

rotatable disk

cd

Deflection yoke positioning

corrects these areas.

a

d

magnets correct

these areas(a-d).

b

c

— 12 —

3-2. CONVERGENCE

Purity
V. STAT

BMC (Hexapole)

Preparation:

• Before starting, perform FOCUS, V. LIN and V. SIZE adjustments.

• Set BRIGHTNESS control to minimum.

• Input dot pattern.

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

(1) Vertical and Horizontal Static Convergence

1. Adjust V. STAT magnet to converge red, green and blue
dots in the center of the screen. (Vertical movement)

Center dot

R
G

B

V.STAT
Magnet

Tilt the V. STAT magnet and adjust static convergence
to open or close the V. STAT magnet.

Operation of BMC (Hexapole) Magnet

The respective dot positions resulting from moving each
magnet interact, so perform adjustment while tracking.

Use the VSTAT tabs to adjust the red, green, and blue dots
so they line up at the center of the screen (move the dots in
a horizontal direction.)

RG B

RGB RGB

RGB

RGB

RGB

Y Separation Axis Correction Magnet Adjustment

1. Input cross-hatch pattern, adjust PICTURE to
minimum and BRIGHTNESS to normal.

2. When the V. STAT magnet is moved in the direction of
arrow a and b, red, green, and blue dots move as
shown below:

b

1

2

3

a

a

b

a

b

b

R

b

a

B

G

R

a

G

a

RG B

b

BG R

B

B

b
B
G

R

b

G

R

— 13 —

2. Adjust the deflection yoke upright so it touches the
CRT.

3. Adjust so that the Y separation axis correction magnet
on the neck assembly is symmetrical from top to
bottom (open state).

4. Return the deflection yoke to its original position.

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

( 2 ) Dynamic Convergence Adjustment

• Before starting, perform Horizontal and Vertical
Static Convergence Adjustment.

1. Slightly loosen deflection yoke screw.

2. Remove deflection yoke spacers.

3. Move the deflection yoke for best convergence as
shown below:

R

B

BGR

G

G

RGB

R

RGB

BGR

B

B

RGB

G

BGR

R

R
G
B

RGB RGB

4. Tighten the deflection yoke screw.

5. Install the deflection yoke spacers.

3-4. SCREEN (G2)

1. Input dot pattern from the pattern generator.

2. Set the PICTURE and BRIGHT controls at normal.

3. Adjust S BRT, G CUT, B CUT in service mode with an
oscilloscope so that voltages on the red, green, and blue
cathodes are 170Vdc for 35"/37" and 180Vdc for 32"/34".

4. Observe the screen and adjust SCREEN (G2) VR

to obtain the faintly visible background of dot signal.

N

NN

NN

170Vdc

170 V dc/ 180 V dc

GND

NN

NN

N

N

NN

NN

pedestal

3-5. WHITE BALANCE ADJUSTMENTS

NO. Disp. Item Avg/32" Avg/35"

16 GDRV Green Drive 33 45
17 BDRV Blue Drive 33 45
18 GCUT Green Cut-off 3 6
19 BCUT Blue Cut-off 2 6
23 SBRT Sub Bright 14 10

(3) Screen-corner Convergence

Affix a permalloy assembly corresponding to the
misconverged areas:

b

c

a

ab

a-d : screen-corner
misconvergence

cd

d

3-3. FOCUS

Adjust FOCUS control for best picture.

1. Input an entire white signal.

2. Set to Service adjustment Mode.

3. Set DCOL to "0"

4. Set the PICTURE and BRIGHT to minimum.

5. Adjust with SBRT if necessary.

6. Select GCUT and BCUT with 1 and 4 .

7. Adjust with 3 and 6 for the best white balance.

8. Set the PICTURE and BRIGHT to maximum.

9. Select GDRV and BDRV with 1 and 4 .

10. Adjust with 3 and 6 for the best white balance.

11. Reset DCOL to "1".

12. Write into the memory by pressing

then **.

— 14 —

dejital

ge

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SECTION 4

SAFETY RELATED ADJUSTMENTS

R530, R531 CONFIRMATION METHOD (HOLD-DOWN CONFIRMATION) AND READJUSTMENTS

Always perform the following adjustments when replacing the following
components marked with a ] mark on the schematic diagram:

A BOARD: IC351, IC501, D519, D520, D521, C531,

C532, R387, R529, R530, R531, R532,
R533, R550, T503

G BOARD: IC643, R661

Step 1 Preparation before Confirmation

Turn the POWER switch ON.

Input a white signal and set the PICTURE and BRIGHT
controls to maximum.

Confirm that the voltage at the check terminal of TP85 is
more than 18.0 V DC when the set is operating normally.

At AC input: 120.0 ± 2.0 VAC

or220.0 ± 2.0 VAC (for 34SL40C/34VL65C/37VL65C only)

R531

R531

DC Power Supply

A BOARD - CONDUCTOR SIDE

digital multimeter

multimeter

+

-

TP85

TP85

R530

R530

+

-

dc power supply

T503

T503
FBT

FBT

11

ammeter

ammeter
3mA dc ran

3mA DC range

A

+

-

1T40

Step 2

Step 3

Step 4

Input a white signal and verify that I ABL is within the
specified range:

2160 + 100 µA.

At AC input: 120.0 ± 2.0 VAC

or 220.0 ± 2.0 VAC (for 34SL40C/34VL65C/37VL65C only)

T504

FBT

ammeter

3.0 mA DC
range

ABL

+

I ABL

-

A

Record the voltage between TP85 and ground.

Using an external DC power supply, apply voltage
between TP85 and ground.

Step 5

Confirm that a voltage of more than 18.0 V DC appears
between TP85 and ground.

At AC input: 120.0 ± 2.0 VAC

or 220.0 ± 2.0 VAC (for 34SL40C/34VL65C/37VL65C only)

B+ VOL TAGE CONFIRMATION AND ADJUSTMENT

Always perform the following adjustments when replacing the
following components marked with ] on the schematic diagram:

G BOARD: IC643, R661

1) Using Variac, apply AC input voltage: 130

(or 220.0 ± 2.0 VAC

for 34SL40C/34VL65C/37VL65C only)

2) Input a monoscope signal.

3) Set the PICTURE control and the BRIGHT control to
initial reset value.

+ 2.0 VAC

Increase the voltage gradually and confirm that the
holdown works (raster disappears) at lower than the
voltage recorded in Step 3.

Lower than 22.05 V DC

At AC input: 120.0 ± 2.0 VAC

or 220.0 ± 2.0 VAC (for 34SL40C/34VL65C/37VL65C only)

— 15 —

4) Confirm the voltage of G BOARD CN641 between
pin 1 to ground is less than 135.5

+ 1.0 V DC.

5) If step 4 is not satisfied, replace the R661and repeat the
above steps.

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SECTION 5
CIRCUIT ADJUSTMENTS

ELECTRICAL ADJUSTMENT BY REMOTE COMMANDER

Use Remote Commander (RM-Y167) to perform the following circuit adjustments:

NOTE : Test Equipment Required:

1. Pattern Generator

2. Frequency Counter

3. Digital Multimeter

4. Audio OSC

(1) Method of Setting the Service

Adjustment Mode

SERVICE MODE PROCEDURE

1. Standby mode. (Power off)

2.

on the

Remote Commander.
(Press each button within a second.)

SERVICE ADJUSTMENT MODE IN

Disp.

Item

(Item)

data

SERVICE AFC 0

3. The CRT displays the item being adjusted.

4. Press

5. Press

or on the Remote Commander to select the item.
or on the Remote Commander to change the

data.

6. Press

then to write into memory**.

8. Turn set off and on to exit. * CAUTION: Wait at least
10 seconds before turning off set.

(2) Memory Write Confirmation Method

1. After adjustment, pull out the plug from the AC outlet,
then replace the plug in the AC outlet again.

2. Turn the power switch ON and set to Service Mode.

3. Call the adjusted items again to confirm they were adjusted.

(3) Adjust Buttons and Indicator

SERVICE ADJUSTMENT MODE MEMORY

SERVICE RESET

Green

Red

7. Press

then on the Remote Commander to

initialize.

SERVICE WRITE

Carry out step 7 when adjusting
IDs 0 to 4 and when replacing
and adjusting IC002.

RM-Y167

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

— 16 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

p

g

p

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

(4) Service Data

Register

No.

Name

Description Data Adj/Fix Initial Average Data** Comments

Range Data 32" 35"

A B C D E

VP CXA2095S

1

VPOS V-Position 0-63 Adj 20 23 27 0:Down, 63:Up

2

VSIZ V-Size 0-63 Adj 20 27 26 0:Min, 63:Max

3

VCOM V-Compensation 0-3 Fix 1 1 0:Min, 3:Max

4

VLIN V-Linearity 0-15 Adj 7 9 0:Min, 15:Max

5

VSCO S-Correction 0-15 Adj 7 6 9 0:Min, 15:Max

6

HPOS H-Position 0-15 Adj 7 11 10 0:Right, 15:Left

7

HSIZ H-Size 0-63 Adj 20 23 28 0:Min, 63:Max

8

PAMP Pin Compensation 0-63 Adj 31 2 7 24 0:Min, 63:Max

9

UPIN Upper Corner Pin 0-15 Adj 7 4 7 0:Min, 15:Max

10

LPIN Lower Corner Pin 0-15 Adj 7 6 1 0 0:Min, 15:Max

11

PPHA Pin Phase 0-15 Adj 7 4 5 0:Min(small picture), 15:Max

12

AFC AFC 0-3 Fix 2 2 0:Freerun, 1:Min, 3:Max

13

VBOW AFC Bow 0-15 Adj 7 6 5 0:Right, 15:Left

14

VANG AFC Angle 0-15 Adj 7 6 4 0:Right, 15:Left

15

REF Reference Line 0-3 Fix 2 2 0:22H(Rch), 3:16H(Rch)

16

GDRV Green Drive 0-63 Adj 31 22 35 0:Min, 63:Max

17

BDRV Blue Drive 0-63 Adj 31 30 26 0:Min, 63:Max

18

GCUT Green Cutoff 0-15 Adj 7 5 8 0:Min, 15:Max

19

BCUT Blue Cutoff 0-15 Adj 7 7 6 0:Min, 15:Max

20

SCON Sub Contrast 0-15 Adj 7 10 8 0:Min, 15:Max

21

SHUE Sub Hue (RF only) 0-15 Adj 7 7 (flat-1) 8 (flat-1) 0:+10deg, 15:-10deg

22

1SHU Sub Hue (composite & S-video) 0-15 Adj 7 7 7 0:+10deg, 15:-10deg

23

SCOL Sub Color (RF only) 0-15 Adj 7 11 (flat+2) 9 (flat+2) 0:Min, 15:Max

24

1SCO Sub Color (composite & S-video) 0-15 Adj 7 14 13 0:Min, 15:Max

25

SBRT Sub Brightness 0-63 Adj 31 26 0:Min, 63:Max

26

SSHP Sub Sharpness (RF & Composite video) 0-15 Fix by model 7 8 8 0:Min, 15:Max

27

1SSP Sub Sharpness (S-video only) 0-15 Fix by model 7 10 10 0:Min, 15:Max

28

GMMA Gamma Correction 0-3 Fix by model 1 0 0 0:Off, 1:Min, 3:Max

29 CDM2 Countdown Mode 2 0-1 Fix 0 0

30

EYSW External Y Switch 0-1 Fix 0 0 0: Normal 1: EYin disabled

31

DPIX Dynamic Picture 0,1 Fix 1 1 0:Off, 1:On

32

Y-DC DC Transmission Ratio 0,1 Fix 1 1 0:100%, 1:82%

33 ABLM ABL Mode 0,1 Fix 1 1

34

AXIS Color Demodulation Axis 0,1 Fix 1 1 0:Japan, 1:US

35

NOTC Chroma Trap Filter 0,1 Fix 0 0 0:Off, 1:On

36

CROM Chroma Trap Adjust 0-15 Fix 7 7 0:+300kHz, 1:-300kHz

37

TOT TOT Filter (RF only) 0,1 Fix 1 1 0:Off, 1:On

38

1TOT TOT Filter (Composite & S-video) 0,1 Fix 1 0 0:Off, 1:On

39

PREL Pre/Overshoot Ratio (RF & Composite) 0-3 Fix by model 3 1 0: 2:1, 3: 5:1

40

1PRE Pre/Overshoot Ratio (S-video only) 0-3 Fix by model 3 3 0: 2:1, 3: 5:1

41

SHPF Sharpness fo (RF & Composite) 0-3 Fix by model 2 1 0:2.5MHz, 3:4.0MHz

42

1SPF Sharpness fo (S-video only) 0-3 Fix by model 2 3 0:2.5MHz, 3:4.0MHz

43

RON Red Off 0,1 Fix 1 1 0:Off, 1:On

44

GON Green Off 0,1 Fix 1 1 0:Off, 1:On

45

BON Blue Off 0,1 Fix 1 1 0:Off, 1:On

46

DCOL Dynamic Color 0,1 Fix 0 1 0:Off, 1:On

47

CDMD V Countdown Mode 0,1 Fix 0 0 0:Auto, 1:Fix

48

HBSW H Blanking Switch 0,1 Fix 0 0 0:Off, 1:On

49

LBLK Left Blanking 0-15 Fix 0 7 0:Min, 15:Max

50 RBLK Righ t Blanking 0-15 Fix 0 7

0: Normal 1: High Speed
Countdown Res

0:PictureABL,
1:Picture/Bri

0:Min, 15:Max

AP CXA2021

51 SVOL Sub Volume 0-15 Fix 0 6

52

SBAL Sub Balance 0-15 Adj 7 7 0: +Right, 15:+Left

53

SBAS Sub Bass 0-15 Fix by model 7 10 8 10 8 0:-7 Steps, 15: +8 steps

54 STRE Sub Treble 0-15 Fix by model 7 710710

0:-0 Volume steps, 15:-15
Volume ste

0:-7 Steps, 15: +8 steps

MM1311/1313

55

AUSW Audio Att Sw 0,1 Fix 1 1

0:-6dB, 1:0dB (Only for VIDEO
input)

onse

htnessABL

s

**AVERAGE DATA MODEL GROUPINGS:

32"/34" A: KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45 35"/37" D: KV-35S40/35S45/37SL45

B: KV-32V40 E: KV-35V65/37VL65/37VL65C
C: KV-32V65/32VL65/34VL65C

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

— 17 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

)

)

p

)

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

Service Data (cont.)

Register

No.

Name

Description Data Adj/Fix Initial Average Data** Comments

Range Data 32" 35"

A B C D E

PI SDA9288

56

PYSD Select Delay 0-15 Fix by P-bd 3 3 0:Right, 15:Left

57

PIPH PIP H-position 0-127 Fix 78 78 0:Right, 127:Left

58

PIPV PIP V-position 0-63 Fix 1 8 18 0:Up, 63:Down

59

PYDL PIP Y-delay 0-7 Fix 0 0 0:Right, 7:Left

60

PHDL H-pulse delay 0-15 Fix by P-bd 3 0 0:Right, 15:Left

61 PMVD Main V-pulse delay 0-31 Fix 1 6 16

62 PIVD Inset V-pulse delay 0-31 Fix 2 2 22

63

PCON Inset Contrast 0-15 Fix 7 7 0:Min, 15:Max

64

FRMY Frame Y 0-15 Fix 7 7 0:Dark, 15:Bright

65 CHRI Input Polarity 0,1 Fix by P-bd 1 1

66 CHRO Output Polarity 0,1 Fix 1 1

67

IPER Inset Pedestal R-Y 0-15 Fix 0 0 0:Center, 7:Max, 8:Min

68

IPEB Inset Pedestal B-Y 0-15 Fix 0 0 0:Center, 7:Max, 8:Min

69 PCPS CLPS Bit Control 0,1 Fix 0 0

70

PCPF CLPFIX Bit Control 0,1 Fix 0 0 0: 3Clamp line, 1: 2Clamp line

71

PSEL SELDOWN Bit Control 0,1 Fix by P-bd 1 1 0:Open out, 1:TTL out

72

PPLL PLL Filter Bits 0-3 Fix 0 0 Fixed value only

73 PVNR VSPISQ VSP NR 0-1 Fix 0 1

IC CXA2019

74

ISCO CDec Sub Contrast 0-15 Fix 7 15 PiP sub contrast

75

ISHP CDec Sharpness 0-15 Fix 7 8 PiP sharpness

76

ISCL CDec Sub Color 0-15 Fix 7 9 PiP sub color

77

ISHU CDec Sub Hue 0-15 Fix 7 6 PiP sub hue

78

ITOT CDec TOT on 0,1 Fix 0 1 PiP TOT 0:Off, 1:On

79

IAFC CDec AFC 0-3 Fix 2 2 0:Max, 2:Min, 3:Freerun

80

ICD2 CDec Countdown Mode2 0,1 Fix 0 0 0:Standard, 1:Fast

81

IYDR CDec Y drive 0-31 Fix 1 5 7 PiP Y-drive gain

82

IVPE CDec V pedestal 0-15 Fix 7 6 PiP V-ped DC

83

IUPE CDec U pedestal 0-15 Fix 7 6 PiP U-ped DC

84

IRVP CDec RV pedestal 0-15 Fix 7 6 PiP V-ped DC (re-input)

85

IRUP CDec RU pedestal 0-15 Fix 7 6 PiP U-ped DC (re-input)

86

IDCT CDec DC transfer 0-7 Fix 2 0 PiP DC transfer 0:Max, 7:Min

87

IRYD CDec RY drive 0-31 Fix 1 5 20 PiP RY Drive (re-input)

88

IABO CDec ABL off 0,1 Fix 1 1 PiP ABL (RY-OUT) 0:On, 1:Off

89

IPRE CDec Pre/Over shoot 0-3 Fix 3 3 PiP Pre/over shoot 0: 1:1, 1: 4:1

90 IRUD CDec RU Drive 0-31 Fix 1 5 20

91

IABL CDec ABL 0,1 Fix 1 1 PiP ABL gain 0:Std, 1:Min

92

IABC CDec ABL Cent 0-3 Fix 1 1 PiP ABL Center 0:Min, 1:Max

93

IRVD CDec RV drive 0-31 Fix 15 17 PiP RY Drive (re-input)

94 IDLY CDec Delay 0-3 Fix 0 0

95 ISCR CDec SCP BGR 0-3 Fix 0 0

96

ISCF CDec SCP BGF 0-3 Fix 0 0

CC CXP8584a-011s

97 CRIL CC CRI count low 0-15 Fix 2 2

98

CFLD CC Caption Fixed Field Count Fix 5 5 Fixed value only

99

CCDI CC CCD int 0-7 Fix 3 3 Fixed value only

100

CRIP CC CRI & polarity 0-7 Fix 4 4 Fixed value only

101

CRIT CC CRI time constant 0-3 Fix 1 1 Fixed value only

102

CSB1 CC Sync Slice Bias 1 0-3 Fix 3 3 Fixed value only

103

CSB2 CC Synce Slice Bias 2 0-7 Fix 4 4 Fixed value only

104

CREP CC CRI signal end position 0-255 Fix 1 42 142 Fixed value only

105

CDSD CC Data start delay 0-31 Fix 8 8 Fixed value only

106

CCDS CC Caption data threshold 0-31 Fix 9 9 Fixed value only

107

CHMK CC P8_HMASK 0-63 Fix 4 2 42 Hmask

108

CHSY CC P8_HSYC 0-255 Fix 1 36 136 Hsyc

109

DISP TV OSD H Position 0-63 Adj 1 2 3 0:Off, 1:Left, 63: Right

110 RTCO Rotation Coil 0-63 Fix 3 2 32

**AVERAGE DATA MODEL GROUPINGS:

32"/34" A: KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45 35"/37" D: KV-35S40/35S45/37SL45

B: KV-32V40 E: KV-35V65/37VL65/37VL65C

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

C: KV-32V65/32VL65/34VL65C

7-21: Available (1-6/22-31 Not
Avail
16-28 Available (1-15/29-31 Not
Avail

0:+(B-Y)+(R-Y), 1:-(B-Y)-(R-Y)

0:+(B-Y)+(R-Y), 1:-(B-Y)-(R-Y)

0:Depend on HSIDEL, 1:Not

end

de

SDA9288 IC bypass use 1

PiP RU-gain out 0:-6dB,
31:+3.3bD

PiP Y-delay 0:0ns, 1:60ns,
2:120ns, 3:180ns
PiP SCP riseup phase 0:+0.4us,
1:cent, 2:-0.8us
PiP SCP falldown phase
0:+0.4us, 1:cent, 2:-0.8us

7 Clock Run-In Lower Limit (field
1

Fixed value only

— 18 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

Service Data (cont.)

Register

No.

Name

Description Data Adj/Fix Initial Average Data** Comments

Range Data 32" 35"

A B C D E

ID MAP

111

ID-0 ID-0 (Language/Color Systems) 0-255 Fix by model 8 9 See ID map

112

ID-1 ID-1 (Input/Output Conifguration) 0-255 Fix by model 5 5 See ID map

113

ID-2 ID-2 (Audio) 0-255 Fix by model 1 75 See ID map

114

ID-3 ID-3 (OSD/Timer/V-chip/Ch Fix) 0-255 Fix by model 0

115

ID-4 ID-4 (CC/Spot Killer/etc) 0-255 Fix by model 15 5

116

ID-5 ID-5 (V-series Features/etc) 0-255 Fix by model 141 See ID map

117

ID-6 ID-6 (PiP/Ant Sw related) 0-255 Fix by model 6 See ID map

118

ID-7 ID-7 (Special Models/etc) 0-255 Fix by model 0

**AVERAGE DATA MODEL GROUPINGS:

32"/34" A: KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45 35"/37" D: KV-35S40/35S45/37SL45

B: KV-32V40 E: KV-35V65/37VL65/37VL65C
C: KV-32V65/32VL65/34VL65C

refer to

NVM ID Chart

See ID map
See ID map

See ID map

SERVICE IDO 25

(5) Feature ID Map

Note: Items 1-118 show adjustment order

KV-

DESTINATION

ID-0

ID-1

ID-2

ID-3

ID-4

ID-5

ID-6

1 32S40 (US/CND) 89 17 31 10 27 129 0 0
2 32S45 (US/CND) 89 21 31 10 27 129 1 0
3 32V40 (US/CND) 89 23 175 10 27 129 0 0
4 32V65 (CND) 89 55 175 10 27 141 6 0
6 35S40 (US/CND) 89 21 31 10 155 129 6 0
7 35S45 (US/CND) 89 21 31 10 155 129 1 0
8 35V65 (CND) 89 55 175 10 155 141 6 0

9 34SL40C (E) 25 17 159 74 59 129 0 0
10 34VL65C (E) 25 55 175 74 59 141 6 0
11 37VL65C (E) 25 55 175 74 187 141 6 0
12 34SL40 (E) 25 17 159 74 59 129 0 0
13 34SL45 (E) 25 21 159 74 59 129 1 0
14 34VL65 (E) 25 55 175 74 59 141 6 0
15 37SL45 (E) 25 21 159 74 187 129 1 0
16 37VL65 (E) 25 55 175 74 187 14 6 0
17 34SL40T (TAIWAN) 9 17 15 9 10 27 1 2 9 0 0

ID-7

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

— 19 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

SUB BRIGHT ADJUSTMENT (SBRT)

1. Set to Service adjustment Mode.

2. Input a gray scale pattern signal.

3. Set the PICTURE to minimum, and BRIGHT to normal.

4. Select SBRT with and .

5. Adjust SUB BRIGHT level with and so that the stripe
second from the right is faintly visible.

6. Write into the memory by pressing then

**.

white

second from the right

black

SUB CONTRAST ADJUSTMENT (SCON)

1. Input a color-bar signal.

2. Set to Service adjustment Mode.

3. Select the item DCOL to "0" level.

4. Set the conditions as follows.

10. Return the following back to normal after adjustment.

PICTURE . . . . . . . . . . . MAX

COLOR . . . . . . . . . . . CENTER

BRIGHT . . . . . . . . . . . CENTER

R ON . . . . . . . . . . . ON (1)

G ON . . . . . . . . . . . ON (1)

B ON . . . . . . . . . . . ON (1)

DISPLAY POSITION ADJUSTMENT (DISP)

1. Input a color-bar signal.

2. Set to Service adjustment Mode.

3. Select DISP with

and .

4. Adjust with and for adjustment of characters to center .

5. Write the memory by pressing

SERVICE AFC 0

then **.

PICTURE . . . . . . . . . . . MAX

COLOR . . . . . . . . . . . MIN

BRIGHT . . . . . . . . . . . CENTER

R ON . . . . . . . . . . . ON (1)

G ON . . . . . . . . . . . OFF (0)

B ON . . . . . . . . . . . OFF (0)

1: ON
0: OFF

SERVICE RON 1

5. Connect an oscilloscope probe to C Board, CN1761 pin 1
(RED OUT).

6. Select SCON with

7. Adjust with

and .

and for: 2.10 ± 0.01 Vp-p.

White

n

2.10 ± 0.1 Vp-p

n

Black

SUB HUE, SUB COLOR ADJUSTMENT (SHUE, SCOL)

1. Input a color-bar signal.

2. Set to Service adjustment Mode.

3. Connect oscilloscope probe to C Board, CN1761 Pin3
(BLUE OUT).

4. Select SHUE and SCOL with and .

5. Adjust with

and for the V1 = V4 ± 0.1Vp-p (SCOL)

and V2 = V3 ± 0.1Vp-p (SHUE).

V1

V2 V3

V4

6. Change data according to the following table;

SCOL SHUE
32" +2 steps -1 steps
35" +2 steps -1 steps

7. Write into the memory by pressing

then **.

8. Reset the item DCOL to "1" level.

9. Write the memory by pressing then ** .

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

— 20 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

V. SIZE ADJUSTMENT ( VSIZ)

1. Input a cross-hatch signal.

2. Set to Service adjustment mode.

3. Select VSIZ with

4.Adjust with

5.Write into the memory by pressing

and .

and for the best vertical size.

V. SIZE

/

V. POSITION ADJUSTMENT (VPOS)

1.Input a cross-hatch signal.

2.Set to Service adjustment Mode.

3.Select VPOS with

4.Adjust with

5.Write into the memory by pressing

V. POSITION

and .

and for the best vertical center.

then **.

/

then **.

PIN AMP (PAMP)

PIN PHASE (PPHA)

V ANGLE (VANG), V BOW (VBOW), UPPER PIN (UPIN)
AND LOW PIN (LPIN) ADJUSTMENTS

1. Input a cross hatch signal.

2. Set to Service adjustment Mode.

3. Select VVANG, VBOW, UPIN, and LPIN with

4. Adjust with

5. Write the memory by Pressing

V ANGLE (V ANG)

V BOW (VBOW)

and for the best picture.

then ** .

and .

H. POSITION ADJUSTMENT (HPOS)

1. Input a cross-hatch signal.

2. Set the Service adjustment Mode.

3. Select HPOS with

4. Adjust with

5. Write into the memory by pressing

and .

and for the best horizontal center.

then **.

H. POSITION

V LINEARITY (VLIN), V CORRECTION (VSCO), PIN AMP
(PAMP) AND PIN PHASE (PPHA) ADJUSTMENTS

1. Input a cross-hatch signal.

2. Set to Service adjustment Mode.

3. Select VLIN, VSCO, PAMP, and PPHA with and .

4. Adjust with

5. Write the memory by Pressing

V LINEARITY(VLIN)

VS CORRECTION (VSCO)

and for the best picture.

then ** .

UPPER PIN (UPIN)

LOW PIN (LPIN)

P BOARD ADJUSTMENTS

PIP V. POSITION (PIPV), PIP H. POSITION (PIPH)

1. Input a color bar signal.

2. Set to service adjustment mode.

3. Select PHOP with and .

4. Adjust with
corner P in P display position.

5. Adjust P in P put at lower right position.

6. Write the memory by Pressing then **.

and for the best balanced position at four

**WARNING: Do NOT turn off the power or AC immediately after pressing then . Wait at least 10 seconds.

— 21 —

6-3. CIRCUIT BOARDS LOCATION

S MODELS

V MODELS

C

HS

(KV-32S45/32SL45/
35S40/35S45/37SL45)

WA

(KV-32S40/34SL40/
34SL40C/32S45/34SL45)

HV

(KV-35S40/
35S45/37SL45)

WB

(KV-35S40/32SL45/
35S45/37SL45)

G

P

(EXCEPT
KV-32V40)

A

P

(KV-32S45/32SL45/35S45/37SL45)

B

K

(EXCEPT KV-32V40)

6-4. PRINTED WRING BOARDS AND SCHEMATIC DIAGRAMS

• All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less are not
indicated except for electrolytics and tantalums.

• All electrolytics are in 50V unless otherwise specified.

• All resistors are in ohms.
KΩ=1000Ω, MΩ=1000kΩ

• Indication of resistance, which does not have one for rating electrical power, is
as follows. Pitch : 5mm

Rating electrical power :

•1/

W in resistance, 1/

4

•

•

•

•

• All variable and adjustable resistors have characteristic curve B, unless other-

• The components identified by

• When replacing components identified by , make the necessary adjust-

• When replacing the part in below table, be sure to perform the related adjust-

• Readings are taken with a color-bar signal input.

• Readings are taken with a 10MΩ digital multimeter.

• Voltages are DC with respect to ground unless otherwise noted.

• Voltage variations may be noted due to normal production tolerances.

: nonflammable resistor.

: fusible resistor.

: internal component.

: panel designation and adjustment for repair.

wise noted.

carefully factory-selected for each set in order to satisfy regulations regarding
X-ray radiation.
Should replacement be required, replace only with the value originally used.

ments indicated. If results do not meet the specified value, change the compo­nent identified by and repeat the adjustment until the specified value is
achieved. (Refer to R530 and R531 adjustment on Page 15.)

ment.

Part replaced(

W and 1/

10

W in chip resistance.

8

in this basic schematic diagram have been

) Adjustment( )

IC351,IC501,D519,D520,D521

1

/

W

4

R530,R531
C531,C532,R387,R529,R530,R531,

R532,R533,R550,T503......A BOARD

IC643,R661.......................G BOARD

• All voltages are in V.
S : Measurement impossibillity.

•

•
(Actual measured value may be different).

• : signal path. (RF)

• Circled numbers are waveform references.

Reference information
RESISTOR : RN METAL FILM

COIL : LF-8L MICRO INDUCTOR
CAPACIT OR : TA TANTALUM

The symbol display is on the component side.
The components identified by shading and mark are

critical for safety. Replace only with part number specified.
The symbol indicate fast operating fuse.

Replace only with fuse of same rating as marked.

Les composants identifiés per un tramé et une marque
sont critiques pour la sécurité. Ne les remplacer que par une

piéce portant le numéro spécifié.
Le symbole indique une fusible a action rapide. Doit

etre remplacee par une fusible de meme yaleur, comme maque.

B

HS

HV

AV

(EXCEPT KV-32V40)

: B+line.

v

: B-line.

: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT

ADJUSTMENT RESISTOR

:

: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE

C

WA

(KV-35V65/37VL65/
37VL65C)

WB

(KV-32V40/34VL65C/
32V65/34VL65)

G

A

UV

— 34 —

— 10 —

VIDEO1

J1232

VIDEO3

S

CY

25

34

16

12

34

V

V

L

L

R

R

V

V

L

J1233

*

L

R

R

L

J1234

R

VARI OUT

CN270

20P

:BTOB-P

L
E
D

K

O

L

M

B

IP

H

:P

C

V
B
U
S

9

0

1

2

9

8

6

1

A

A

E

MAIN-C

P.MUTE

8

7

6

1

1

1

2

7

1

3

A

A

TO B BOARD CN3570 (S1/S5 MODELS)

C
S
F

TV-R

MAIN-Y

5
1

4

8

1

6

A

A

TV-LETV-V

TV BLK

4

3

2

1

0

1

1

0

1

0

6

1

A

A

9

1

1

1

2

3

6

1

A

A

B12

R1234

100k

B6

R1243

100k

9V

FRONT-R

FRONT-L

FRONT-C

FRONT-VEFRONT-Y

8

FRONT-S.SW

7

6

5

4

3

2

1

*

*

*

202

809

JR

JW

0

2

1

8

1

B

B

B

1
1
B

*

*

*

200

201

808

807

JR

JR

JW

JW

R1286

9
B

7
B

VIDEO

Y

Y

2SA1162-G

R1284

100

Q1261

BUFFER

R1288

2SA1162-G

100

Q1262

BUFFER

4

1k

1
A

:CHIP

SCL

0
2

8
6

*

3
D

R386

*

:CHIP

6

9

1

1

A

A

7

3
A

R1287

1k

:CHIP

Q1103

2SD601A

AGC-MUTE

CN3001

*

:BTOB-P

E

PY

PRY

PBY

PYS

SDA

2CHBLK

9

8

7

6

5

4

1

1

1

7

3

1

1

5

4

A

A

A

R1108

10k

:CHIP

3

1

1

1

1

0

9

4

3

A

A

C

C

V
0

V

V

3

5

16V

D1102

+B

9

C

C

C

C

C

C

V

V

V

C1103

22

R1102

22k

2W

:RS

C1104

47

16V

30V

22

L-IN

21

VCC

C1410

CL-L

20

CH-L

19

VRS

18
17

HPI

16

HPO

15

PS

C1413

14

LOUT
DET1
SDA

4.7

13
12

R1425

220

R1107

4.7k

:CHIP

C1109

10

C1101

2200

C1403

(5)
JW

L1261

0.47

30V REF

C1267

R1408

10k

C1404

0.1

C1405

0.0047
C1408

4.7

C1409

4.7

C1416

4.7

C1415

C1420

10

C1236

0.01

:CHIP

R1240

C1237

75

0.047

:CHIP

R1241

75

:CHIP

R1242

4.7k

:CHIP

R1244

C1238

75

0.047

:CHIP

R1246

4.7k

:CHIP

R1245

470k

:CHIP

R1248

R1247

4.7k

470k

:CHIP

:CHIP

C1241

*

R1249

*

:CHIP

C1242

*

R1251

R1250

*

*

:CHIP

:CHIP

C1243

R1253

*

*

:CHIP

R1252

*

:CHIP

1k :CHIP

R1255

R1254

470k

Q1232

:CHIP

2SD601A

MUTE

R1257

1k

:CHIP

R1256

470k

D1247

:CHIP

RD10ESB2

PROTECT

2SD601A

Q1231

MUTE

B5

B3

B6

B1

C1239

1

B2

C1240

1

B4

B13

B14

B15

C1244

0.47

R1258

3.3k

C1245

0.47

R1260

3.3k

R1261

220 :CHIP
R1262

B1

100

R1263

B2

220

R1264

B3

100

R1265

B4

220

R1266

B5

100

R1267

B6

0

R1268

B7

100

B8

B10

* :CHIP

B13

B14

R1274

* :CHIP

B15

R1297

* :CHIP

JR1264

R1277 R1278

220

R1294

1k

R1295

1k

R1259

100k

1

VIDEO1V

VIDEO1L

2

VIDEO1Y

3
4

VIDEO1R

30

VIDEO1C

5
6

Y/CSW1

29

7

VIDEO2V

VIDEO2L

8
9

VIDEO2Y

R1270

100

VIDEO2R

10

VIDEO2C

11

27

Y/CSW2

12

R1273

VIDEO3V

13

VIDEO3L

14
15

R1296

*

VIDEO3R

16
17
18

*

SCL

19

25

SDA

20

ADR

21

IC1261

220

AV-SWITCH

D1248

MTZJ-3.3

MAINTVL

MAINTVV

MAINTVR

28

26

*

C1OUT

Y1OUT

BIAS

V1OUT

L1OUT

R1OUT

Y1IN

C1IN

MUTE

SUBTVV

SUBTVR

SUBTVL

R2OUT

V2OUT

L2OUT

D1262

10ESB2

PROTECT

9V

E

RD10ESB2

PROTECT

D1261

31

R1292

C1268

4.7k
1

:CHIP

42

R1280

41
40
39
38
37
36
35
34
33
32

100

1

C1269

R1293

4.7k

47 16V

C1261

C1262

47

16V

R1282

100
1

C1263

C1264

1

31
30
29
28

R

27

IO
D

26

U
A

25
24
23

R1283

*

22

L
IO

D
U
A

R1402

10k

R1409

10k

R1404

10k

MICON

Y/C/J
TUNER
VOL-CTL

R1410

R1424

1M

AUDIO-AMP

L
IO

D
U
A

4.7

220

0.047

R
IO

D
U
A

C1401

AUDIO-PROCESSOR

1
2
3
4
5
6
7
8
9

10
11

MTZ J-T-77-33A

O
E

ID
V

0.47

IC1401

CXA2021S

R-IN
GND

CL-R
CH-R
BAL
TRE
BASS
VOL
ROUT
DET2

SCL

+B

C

T

G

U
A
D

S

S

A

D1103

RD5.6ESB2

T

A

O

U

F

IF

R

O

L1102

C1105

L1101

47

16V

10

1106

C

L
C
S

5V REF

9V

R096

0.68
:RS

R098

0.68

:FPRD

Q1263

2SD601A-G

C1293

100p

:CHIP

JR1417

0.1

C1407

0.0047
C1402

C1411

0.1

C1406

R1290

470

:CHIP
R1291

680

:CHIP

*

47

25V

0.1

PIN-MOD
V.DEF
H.DEF
AV-SW

TO P BOARD

CN3301

V

E

9V

SUBCOL

SUB HUE

MAIN.V.P

MAIN.H.P

2

1

0

9

8

7

6

12.5MM

:FPRD

5

R094

1

7

9

6

6

A

A

JR4120

0

:CHIP

1

1

1

*

JW246

5

7

3

8

5

4

A

A

A

TU102

*

T

V

U

9

O

C

T

C

C

C

F

V

A

N

N

R1104

C1107

27k

330p

R1105

39k

:CHIP

Q1102

2SC3311A

R1103

1.2k

:CHIP

JW018

E

5
Y
B

SUB.V

MAIN.Y

T
S

4

MAIN.C

3

2

1

R059 R060

STBY 5V

*

JW245

4

7

1

3

A

A

R020

4.7k

A1

:CHIP

* :CHIP

S001 S002 S003 S004 S005 S006

*** ***

VOL- VOL+

R048

1k

* :CHIP

R061

* :CHIP * :CHIP

CH+

CH-

A2

R049

1k

JR001

Q002

2SD601A

R084

R022

BUF

*

*

R036

1k :CHIP

R037

1k :CHIP

R038

1k :CHIP

R092

10k

CH:CHIP
X001

12MHZ/50P

R047

R057

1k

R025

0.0012
B:CHIP

0.1 25V F:CHIP

C009

47

A44

*

JW112

A35

A1

47k

A36

A38

2

T

D

T

U

U

O
T

T O

E

E
D

D

T
U

O
T
E
D

V
IN

A
M

O

D

N

E

IN

O

D

P

IN

O

T

A

M

M

F

S

S

T

T

T

E

U

U

U

T

D

U

O

M

O

O

M

R

S

L

S

MTZ J-T-77-4.3

D011

R137

1k

:CHIP

A7

AUDIO L

C1108

R1106

1

1k

D
LE

T
S

:CHIP

E
T
U
M

AUDIO R

R

L

IN

IN

A

A

M

M

A8
A62
A61

A12

A2

AUDIO R

AUDIO L

R023

100

R029

Q017

2SB709A

R135

10k

:CHIP

R019

4.7k

R136

10k

:CHIP

A7

A8
A43

A14

R083

10k

C012

220

L001

A12

1k :CHIP

A10

A10

10.0MM

JW105

R031

R032

C035

27p

R044

R046

220

1k

R026

R028

1k

220 :CHIP

*

220

220p CH:CHIP

15p CH:CHIP

220

R055

100k :CHIP

0.022 F:CHIP

R056

C023

C061

0.022 F:CHIP

220 :CHIP

C036

C030

0.001

C072

0.0022 B:CHIP

C075

470000p

16V

B:CHIP

C013

1m :CHIP

C010

C014

2200p B:CHIP

R058

A19

A38

A16

B:CHIP

Q001

2SB709A

H-SEP

R003
100k

:CHIP

0.047

R004

1M

:CHIP

D001

1SS133T

R011

4.7k

C005

:CHIP

1

R007

R009

10k

10k

:CHIP

:CHIP

A55

A13
A43

A56

A17

DET OUT

R001

680

:CHIP

C001 C003
220p

CH:CHIP

A69

R062

Q004

2SB709A

BUFF

TV/V

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

R013

4.7k

:CHIP

R063

* :CHIP

O-AGCMT
I-STEREO

O-STLED
I-RMCN
I-2HSYNC
I-HSYNC
I-DAT
O-DAT
O-CLKN
I-BINTN

I-HP

I-VP
I-RESET
GND

O-OSC
I-OSC
LUMIPON
KEY
I-2AFT
I-AFT
MONO
SAP
GND
LFC2
LFC1
I-VIN
5V
CAP
O-2MUTE
O-MUTE

D003

1SS133T

KEY

N.C.

8

9

POWER

SET UP

3

4

CXP85840A -011S

TUNING-MICON

S007

POWER ON

7

*

1

2

IC001

R014

4.7k

:CHIP

2SD601A

INV.BUFF

R016

10k

:CHIP

6

IO-BCLKN
IO-SCLKN

I-POWERN

Q003

ST LED

LUMIPON

5

O-SPKMT

TIMLED

O-ANTAUX
O-2ANTAU

IO-BDAT
IO-SDAT

O-CHBLK

O-ALLYM

O-DOSC

I-DOSC
O-DISPYM
O-OSDBLK

O-2CHBLK

GS RESET

O-TVBLK

I2VP

RELAY

TILTC

M-BUS

O-BBE

R015

:CHIP

E

TIMER LED

4

3

DGC

GND
GND

5V
5V

O-I
O-B
O-G
O-R

10k

STBY 5V

2

64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

CN1001

RM CN

:S-M ICRO

1

D005

*

PROTECT

C062

0.022 F:CHIP

R010

330

220 :CHIP

*

L004

R079

470 :CHIP

C040

47p

C056

47p

C037

47p
C038

47p

C039

47p

IC003

DETECTOR

1 2 3

R002

220

R070

2.2k

R085

*

R072

C051

R067

*

R071
R068

220 :CHIP

220 :CHIP

220 :CHIP

220 :CHIP

220 :CHIP

R078

25V :CHIP

* :CHIP

A43

C1002

10

5
8
A

0
2
A

1 2 3 4 5 6 7 8 9

TDA2009A

AUDIO-AMP

R IN

IC461

AUDIO +B

AUDIO R

C463

2.2

C469

AUDIO +B

R463

33k

(5. 0MM)

JW

C461

100
16V

JW( 5.0mm)

Q461

2SD601A

MUTE

R469

*

R467

C464

6.8k

0.0047

R470

L461

R471

6.8k

R466

3.9

C465

R465

470

R464
100k

R472

2SA1162-G

C462

2.2

A73

A72
A71

JW1416

*

AUDIO L

A16
A19

D1263

RD10ESB2

D1264

RD10ESB2

IC1402

VAR-AMP

R1411

10k

R1413

47k

1

R1412

22k

:CHIP

2

R1414

47k

3

R1415

100

4

VCC

8

7

R1418

22k

:CHIP

6

5

R1421

100

R1407

10k

L1401

1mmH

C1417

1000

16V

R1419

47k

R1420

47k

A12

A59

A74

A60

AUDIO R

1SS133T-77

D462

R461

4.7k

R462

47k

C466

220
25V

R473

27

15k

R474

15k

467
C

*

0.0047

R475

Q462

12k 12k

MUTE

A73

A74

A81

1

3

2

2

8
A

1

8

8

7

7

A

A

A

A

6

5
1
A

6

4
3
A

5

3

2

2

A

A

A

C471

220

C468

25V

47

25V

R477

27

C470

2.2

R476

C472

0.47

R478

1.2k

R479

1.2k

C473 C475

0.22 0.22

R480

2.2

C474
1000

25V

TO

C068

*

220
220

R069

C069

*

220 :CHIP

R073

R074

R075

R076

R077

1k

C028

10p

CH:CHIP

R087

R064

220 :CHIP

R065

220 : CHIP

R066

220 :CHIP

R012

R481

2.2

C063

10 11

HS BOARD C N 2101

HV BOARD C N 2001

R1009 R1010

*

:CHIP

TIMER

LED

C070

47

*

4.7k :CHIP

1SS133

470
16V

L002

C029

10p

CH:CHIP

JW801

20.0MM

220

NCL IN

AUDIO L

PS461

2A/90V

C476
1000

25V

C477
1000

25V

D013

0
7
A

R099

1SS133T

1SS133T

L
IO

D
U
A

D006

341

2

R097

4.7k :CHIP

R030

4.7k

D014

D015

L003

JW802

12.5MM
JW803

15.0MM
JW804

15.0MM

7
1
A

R482

2.2k

R483

2.2k

R
IO

D
U
A

*

:CHIP

*

STEREO

LED

9
7
A

D
N
G

IO
D
U
A

7
4
A

A90

A20

A24
A58

A63

A16

A19

A18

A53
A27

R080

4.7k

:CHIP

A27

A84

A57

8
4
A

:CHIP

+B

NJM2903M-TE2

R052

3.3k

:CHIP

A31

R053

3.3k

:CHIP

A30

A29

2SD601A

A28

A25

A26

A27

A28

A29
A30

A31

A43

A16
A19

R535

*

R516

2.2k

IC501

PIN-CONTROL

R533

*

:RS

RGB9VE

1

2

3

4

Q010

2SD601A

BUFF

R1120

R1109

2.2k

56

:CHIP

:CHIP

10p

M24C02-M N6T

10p CH:CHIP

560k :CHIP

R1125

2.2k :CHIP

C1111

10p CH:CHIP

R1127

560k

:CHIP

R1111

56 :CHIP

Q015

2SD601A

SW

8
7
6
5

IC002
EPROM

C1110

R1122

56 :CHIP

R1110

2.2k :CHIP

C071

0.01

F:CHIP

Q011

2SD601A

BUFF

R054

3.3k

:CHIP

Q012

BUFF

C1112

CH:CHIP

R132
560k

:CHIP

R081

100 :CHIP

R082
100
:CHIP

R039

100

1

VCC

2
3

CLOCK

4

DATA

270 :CHIP

R1130

R1126

2SD601A

2SD601A

270 :CHIP

:CHIP

D004

RD10ESB2

9V

R1121

270

:CHIP

Q013

R133

JR1802

*

A50

R1123

390

:CHIP

SW

JR1803

*

A51

R1128

390

:CHIP

Q014

SW

JR1804

R131

390

*

A52

A14
A37

A16
A19

A53

R

A67

G

B

R1362

0

C1354

R355

0

220

:CHIP

R356

220

220

R1352

A39
A40

A41

A50
A51
A52

CN351

IK

6P

5

6

R1360

6.8k

:CHIP

Q301

2SB709A

Q302

2SB709A

Q303

2SB709A

R1361

4.7k

:CHIP

C357

0.47

C

R358

*

R359

*

R360

*

220

R1353

220 :CHIP

R1354

100 :CHIP

R1355

100 :CHIP

R1356

100 :CHIP

R1357

R

G

B

R093

C370

D353

:FPRD

C1351

100p

CH:CHIP

R374

*

*

R365

*

R364
150k

:CHIP

5
4
A

R367

Q016

2SD601A

R1118

4.7k

R1117

4.7k

R1115

680

:CHIP

C053

0.01

D002

RD5.6ESB2

B:CHIP

R1101

1k

:CHIP

100k

:CHIP

9V

9
4
A

6
5
A

4
8
A

R369
100k

:CHIP

Q358

R368
100k

R372
470k

:CHIP

2SD601A

R366

47k

:CHIP

R373

:CHIP

C369

10k

CH:CHIP

47p

1SS133T

9V

B
+

+B

E
IV
R
.D
H

R501

330

:CHIP

C502

0.47

17

2SC3209
H-DRIVE

C503
330p

B:CHIP

R517

R515

*

C521

*

680

R518

10k

:CHIP

JR501

0

+
C
C
V

1 2 3 4

C532

22

D520

1SS133T

TEMP-CORR

R504

470

3W

:RS

R521

470

3W

:RS

18

Q501

C506

0.047
200V

R503

5.6k

:FPRD

R502

3.3k

:CHIP

+12V

:RN-CP

C504
820p
500V

B

C522

1

R519

330

Q511

2SD601A

PIN-DRIVE

0.0022
B:CHIP

R531

:CHIP

D521

MTZJ-7.5B

PROT-REF

R532

120

RD5.6ESB2

T501

1
2
3

C505
680p
500V

B

R506

47
1W

:RS

C520

*

C519

47p

500V

Q512

2SC4159-E

PIN-OUT

C528

R523

*

:CHIP

5678

C530

0.0022
:PT

-

C571

C
C

47 25V

V

*

R529

R530

12k

*

:RN-CP

D507

1SS133T

D501

4

6

C531

R513

JW(7.5)

L511

D516

1SS133T

R528

22k

:CHIP

H.PRT

22

19

FB502

1.1UH

TP85

H.PULSE

CH:CHIP

220p 500V

C507

680p 2kV

Q502

2SC5148

H-OUT

R507

FB501

0.45UH

D515
EL1Z

C525
220p
500V

R525

8.2k

:CHIP

2SD601A

NECK-PROT

C501
220p

Q561

D519
EL1Z
PROT

R505

15k

R508

6.8k

20

C509

C508

A
F C

47

-P

FB503

1.1UH

C526

22

250V

D518

1SS133T

H.PROT

C511

680p

0.022

2kV

1.2kV

B

C527
680p

2kV

B

IN

C510

0.01
100V

-P
C

F
A

R524

10k

P

ERD29-08J

R566

10k

:CHIP

R563

1.5
1W

:RS

C529

22

25V

R570
100k

:CHIP

R571

22k

:CHIP

C563

220
10V

2SD601A

NECK-PROT

Q562

D504

C513

JW233

12.5MM

ERC06-15S

*

R561

10k

:CHIP

R564

10

R573
100k

:CHIP

R572

22k

:CHIP

TO C BOAR D

CN1761

JW162

*

C1352

100
16V

X353

3.579545

R354

15k

:CHIP

R1351

C358

*

C361

C375

0.01 B :CHIP

0.01 B :CHIP

0.01 B :CHIP

C366

0.1

100 :CHIP

0.1

100 :CHIP

0.1

R363

100

:CHIP

R1358 R1359

100 100

C1353

0.022

B:CHIP

*

R353

1.8k

:RN-CP

C356

C360

JR351

* :CHIP

4
3
A

4.7

220

*

:CHIP

5
1
A

6
5
A

C353

15p

CH:CHIP

C354
470p

:CHIP

C355

0.47

Y

0.01 B :CHIP
C359

100 16V

JR352

C362

* :CHIP

*

C363

C364
C365

R361

C367

R362

C368

3.3

+B

D502

D503

ERC06-15S

1

H.DY(+)

C1501

*

T502

*

8

C518

0.15
200V

:PT

C514

*

L501

6

4 5

23

TDA8172

­E

+

IV

C

R

C

D

V

1 2 3 4 5 6 7

L561

JW(5)

R565

470

2W

:RS

C564

1

IC561
V-OUT

C515

0.001

R509

100V

680

:PT

1/2W

­C
C
V

C565

220

C561

47

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

T
U
O

D561

GP08D

XTAL
APCFIL
BLHOLD

YIN

CIN

SVCC

SCL
SDA
YUVSW
EYIN
ERYIN
EBYIN

YM
YS
RIN
GIN
BIN
RSH

ROUT

GSH
GOUT
BSH
BOUT

L503

R511

C517

2.2

250V

C568

0.22
:MPS

R567

2.2

CXA2095S

VDRIVE-/ VPROT

ABLIN/VCCOM P

*

L502

2.2mmH

24

IC351
Y/C/J

5

6

AFCP IN/HOFFSGND

14

12

E/WDRIVE

7

1O

8

9

C516
200V

R568

:CHIP

B-Y OUT

FSCOUT

16

15

VS FIL

AFCFIL

13

SAWOSC
VAGCSH

VDRIVE+

11

ABLFIL

5
0
5
D

2

10k

L2FIN

HDOUT

IKIN

EGP20G

C539

200V

TP96

R392

500KHz

1SS133T

D530

D531

EGP20G

*

C391

0.001
:CHIP

:FPRD

X354

C371

D362

R543

0.47

D534
EL1Z

Q354

2SD601A

BUFF

R552

6.8k

:CHIP

C541

22

100V

200V

R371

1.5k

:CHIP

4700p

100 :CHIP

C390

R384
330k

:CHIP

R389

C386

0.01

B:CHIP

C379

0.01

B:CHIP

470 16V

R376

10k

:CHIP

C373

1

R388

47k

:CHIP

3
8
A

R536

0.47

:FPRD

R537

0.47

:FPRD

R553

0.47

R541

C542

Q357

2SD601A

BUFF

R396

1k

R394

2.7k :CHIP

A14

R575
470k

2.2

C383

0.1

R383

:CHIP

1SS133T

CH:CHIP

1k

D562

R395

3.3k

:CHIP

C392
100p

L352

A84

A47

R385

2.7k

A49

:FPRD

9V

R027

4.7

R024

1

:FPRD

A56
A83

A48

A63

A46
A45

A58

9V

R574

0.47
2W

:RS

R578

C566

1.2k

10

R576

10k

:CHIP

Q563

2SA1330

O.C.P

C

1

:CHIP

R579
330k

:CHIP

R577
100k

:CHIP

HV

TO WA BOAR D

(FOR (35/37 INCH ONLY))

CN1941

:S-M ICRO

1

VM OUT

2
3
4
5

FBT 15V-P

NS CORR

6

NS MUTE

7
8

TO G BOAR D

CN1641

1
2
3
4
5
6
7

AUDIO(+)

8

AUDIO(+)

9

AUDIO(-)

10

STBY 5V

11

RELAY

12

CN941

8P

9V

+B

CN641

12P

+B
+B

9V
9V

DGC

TO CRT

TO WB BOAR D

CN2941

(FOR (32/34 INCH ONLY))

E

E

E
E

Q356

1

2SA1162

BUFF

C388

0.47

C387

5.6k

R387

1k

:CHIP

C381
330p

C380

B:CHIP

A57

A56

:CHIP

A70

A79
A27
A24

C551

0.022

A58

B:CHIP

2
8
A

200V

4

+B

2

H

6

E

5

C540

33

160V

:HR

*

L541

*

-15V

7

E

8

+15V

9

+28V

10

C545

0.068
200V

:PT

4

R542

3

*

*

2
1

R551

4.7k 1W :RS

T504

*

DFT

T503

*

FBT

DF

13

R580
100k

1
2
3
4
5

TO C BOARD

TO C BOARD

TO C BOARD

CN503

5P

H

E
N.C.
N.C.
200V

CN1764

FV

G2
12

E

JW501

5.0MM

11

ABL

C547

0.001
100V

:PT

C546

0.001

L517

100V

2.2mmH

8

:PT

7
6
5

R550

0.47

1

21

22

H.DY(+)

2

H.DY(+)H.DY(+)
H.DY(-)

3

H.DY(-)

4

V.DY(-)

5
6

V.DY(+)

CN501

6P

48
47

BGP

46

R370

1k

R393

R391

15k

R390

C385

0.0033

C378

0.1

C377

0.1

R382

220

220

R381

220

R380
R379

220

C376

10

IREF

HSIN
VSIN

JGND
CERA

JVCC

VTIM

VM

45
44

560 :CHIP

43
42
41
40
39

270 :CHIP

38
37
36

D356

1SS133T

35
34
33
32
31
30
29
28
27
26
25

R375

C372

100

0.47

:CHIP

D360

RD10ESB2

R397

4.7k

9V

R554

2.2k

:CHIP

-15V

S501

R512

100

2W

:RS

D

D

8

8

0

06

0

P

5

P

D

G

G

R510

33
1W

:RS

+
E

IV
R
D

R569

10k

:CHIP

-15V

+12V

Q551

2SB709A

Q552

2SD601A

6

6

5

4

A

A

-15V

TP99

C537

*

+12V

TP98

R546

*

R538
220k

V.D
R

IV
E

R547

33k
:RN

R549

4.7k
:RN

B-SV6747<AA2D98-M#1S>-A..

0

1

2

3

4

5

6

7

L

R

ABL

CHKCA

N.C.

B OUTEB INT

R OUT

1

8

9

1

1

B DAT

CN1103

B CLK

FOR CHECK

CN461

4P

3

2

1

4

H.DY H.DY V.DY V.DY

EEL

R

SP(L) SP(R)

6-5. SEMICONDUCTORS

DTC114EK
2SC1623-L5L6
2SA1330-06
2SA1162-G
2SD601A-Q

B

2SD2144S-V

E

C

2SC5148

2SC3209LK

2SA1837
2SC4159-E

2SA1175-HFE
2SC2785-HFE

LETTER SIDE

C

E1 C1

B

C

E

C2 B2

E2

CATHODE

E

C

B

2SK2845-LB102

G

D

S

D2L2OU
EL1Z
EZD150AV1
GP08D
MTZJ-T-77-4.3C
EGP20G

CATHODE

E

E

IRF614

B

ERC06-15S
ISSI33T-77

C

B

MX0841

B1

G

D

S

D1NS4
D1N20R
MTZJ-3.3
MTZJ-33A

CATHODE

RD10ESB2
RD39ES-B2
RD5.6ESB2
RD6.2ESB2

B

2SC4834M

D10SC4M

C

E

EGP30D
ERD29-08J

B

C

E

U05G

1

2

3

ANODE

CATHODE

CATHODE

ANODE

ANODE

D10SBS4F

+

D1NL20U

‘

‘

CATHODE

ANODE

ANODE

ANODE

D4SB60L
D1NL40-TA2

{

-

‘

‘

|

— 65 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

The components identified by shading and "
critical for safety. Replace only with specified part number.

• Items with no part number and no description are not stocked
because they are seldom required for routine service.

• The component parts of an assembly are indicated by the reference
numbers in the remarks column.

• Items marked with an asterisk " * " are not stocked since they are
seldom required for routine service. Some delay should be anticipated
when ordering these items.

¡¡

¡" mark are

¡¡

SECTION 7

EXPLODED VIEW

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

The components identified by shading and "
for safety. Replace only with specified part number.

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

7-1. CHASSIS (KV-32S40/34SL40/34SL40C/32S45/34SL45/34SL40T)

7-685-648-79 SCREW +BVTP 3X12
4-388-477-01 SCREW +BVTP 3X16

r

14

¡¡

¡ sont

¡¡

¡¡

¡" a re critical

¡¡

¡¡

¡ sont

¡¡

26

13

19

25

24

16

20

21

15

22

23

29

27
28

9

10

5

17

3

2

1

7

4

12

11

18

8

6

5

REF.NO. PART NO. DESCRIPTION REMARK REF.NO . PART NO. DESCRIPTION REMARK

1 X-4035-771-1 BEZNET ASSY 2-4

(KV-32S40/34SL50C/34SL40/34SL40T)
1 X-4035-772-1 BEZNET ASSY (KV-32S45/34SL45) 2-4
2 4-046-160-11 EMBLEM (NO.9), SONY
3 4-063-573-01 BUTTON, MULTI
4 4-063-570-01 GUIDE, LED

17 * A-1316-389-A G BOARD, COMPLETE

(KV-32S40/34SL40/32S45/34SL45)
17 * A-1316-395-A G BOARD, COMPLETE (KV-34SL40C)
17 * A-1316-396-A G BOARD, COMPLETE (KV-34SL40T)
18 ¡ 1-751-059-11 CORD, POWER (W/CONNECTOR)
19 ¡ 1-453-207-11 TRANSFORMER, FBT ASSY NX-2609//X4C

5 1-504-531-11 SPEAKER (13.1X6.2CM)
6 * A-1372-519-A HS BOARD, COMPLETE (KV-32S45/34SL45)
7 ¡ 8-733-756-05 CRT 34FX2T (A80JYV52X) (KV-34SL40C)
7 ¡ 8-733-757-05 CRT 34FX2T (A80JYV52X) (FOR N.A. AREA)

(KV-32S40/32S45/34SL40/34SL45/34SL40T)

8 ¡ 8-451-482-21 DY Y34FXA2-X

9 4-053-005-01 SPACER, DY
10 ¡ 1-452-579-21 NECK ASSY

11 * A-1372-508-A WB BOARD, MOUNTED
12 * A-1331-837-A C BOARD, COMPLETE
13 4-036-329-01 SPRING (B) TENSION

14 4-041-268-01 SCREW (7), TAPPING
15 ¡ 1-402-952-11 COIL, DEMAGNETIC

16 * 4-371-629-01 STOPPER, WIRE

— 66 —

20 4-064-530-01 CLIP, CHASSIS (KV-32S45/34SL45)
21 * A-1135-950-A B, BOARD COMPLETE
22 1-766-374-11 PLUG, F-PIN
23 ¡ 8-598-431-00 FSS TUNER, BTF-WA411 (EXCEPT KV-34SL40T)
23 ¡ 8-598-477-00 FSS TUNER, BTF-WG411 (KV-34SL40T ONLY)

24 * A-1195-138-A P BOARD, COMPLETE (KV-32S45/34SL45)
25 * A-1298-661-A A BOARD,COMPLETE (KV-34SL40T)
25 * A-1298-630-A A BOARD,COMPLETE (KV-32S40/34SL40/34SL40C)
25 * A-1298-631-A A, BOARD COMPLETE (KV-32S45/34SL45)

26 4-063-852-01 COVER, REAR (KV-32S40/34SL40/34SL40C/34SL40T)
26 4-064-760-01 COVER, REAR (KV-32S45/34SL45)
27 1-452-885-11 MAGNET, LANDING
28 4-062-047-01 PIECE A (110), CONV. CORRECT
29 3-704-372-31 HOLDER, HV

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

The components identified by shading and "
critical for safety. Replace only with specified part number.

¡¡

¡" mark are

¡¡

7-2. CHASSIS (KV-35S40/35S45/37SL45)

7-685-648-79 SCREW +BVTP 3X12
4-388-477-01 SCREW +BVTP 3X16

r

29

6

5

3

4

2

9

8

7

19

28

11

10

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

18

15

17

16

13

14

12

20

21

22

23

24

25

26

27

¡¡

¡ sont

¡¡

5

1

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

1 X-4035-596-1 BEZNET ASSY (KV-35S40) 2
1 X-4035-597-1 BEZNET ASSY (KV-35S45/37SL45) 2
2 4-046-160-01 EMBLEM (NO.9), SONY
3 4-058-053-11 BUTTON, MULTI
4 4-058-054-01 BAR, OPTICAL

5 1-504-531-11 SPEAKER (13.1X6.2CM)
6 ¡ 8-733-761-61 ITC 37GXT-A1 7,8
7 ¡ 8-733-761-05 CRT 37GXT
8 ¡ 8-451-480-11 DY Y37GXA-X
9 ¡ 8-453-007-11 NA324-M (KV-35S40/35S45/37SL45)

10 * A-1372-462-A WA BOARD, MOUNTED
11 4-046-765-01 SCREW, TAPPING
12 * A-1331-843-A C BOARD, COMPLETE
13 4-036-329-01 SPRING (B) TENSION
14 ¡ 1-411-881-11 COIL, DEMAGNETIC

15 ¡ 1-411-882-11 COIL, DEMAGNETIC
16 4-052-900-02 HOLDER, DGC
17 4-059-585-01 TIE, CABLE (KV-35S40/35S45/37SL45)
18 4-058-052-21 COVER, REAR
19 * A-1316-399-A G, BOARD, COMPLETE

20 ¡ 1-751-059-11 CORD, POWER (W/CONNECTOR)
21 ¡ X-4034-797-1 TRANSFORMER, FBT ASSY NX-3005//J1C
22 * A-1135-950-A B, BOARD COMPLETE
23 1-766-374-11 PLUG, F-PIN
24 8-598-431-00 FSS TUNER, BTF-WA411

25 * A-1195-138-A P BOARD, COMPLETE (KV-35S45/37SL45)
26 * A-1298-645-A A, BOARD COMPLETE (KV-35S40)
26 * A-1298-646-A A, BOARD COMPLETE (KV-35S45/37SL45)
27 * A-1372-523-A HV BOARD, COMPLETE
28 * A-1372-507-A HS BOARD, COMPLETE
29 3-704-372-31 HOLDER, HV

— 67 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

The components identified by shading and "
critical for safety. Replace only with specified part number.

¡¡

¡" mark are

¡¡

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

7-3. CHASSIS (KV-32V40/32V65/34VL65/35VL65C/35V65/37VL65/37VL65C)

7-685-648-79 SCREW +BVTP 3X12
7-685-663-79 SCREW +BVTP 3X12
4-388-477-01 SCREW +BVTP 4X16

23

24

25

15

20

14

22

17

18

6

7

5

8

13

9

12

10

2

11

19

4

21

¡¡

¡ sont

¡¡

3

1

16

26

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

1 * A-1372-510-A HS BOARD, COMPLETE
2 * A-1372-505-A HV BOARD, COMPLETE (KV-32V40 ONLY)
2 * A-1372-509-A HV BOARD, COMPLETE (EXCEPT KV-32V40)
3 * A-1298-613-A A BOARD, COMPLETE

(KV-34VL65C/32V65/34VL65)

3 * A-1298-647-A A BOARD, COMPLETE

(KV-35V65/37VL65/37VL65C)

3 * A-1298-611-A A BOARD, COMPLETE (KV-32V40 ONLY)

4 ¡ 8-598-431-00 TUNER, FSS BTF-WA411
5 ¡ 1-453-207-11 TRANSFORMER, FBT ASSY NX-2609//X4C

(KV-32V40/34VL65C/32V65/34VL65)

5 ¡ X-4034-797-1 TRANSFORMER, FBT ASSY NX-3005//J1C

(KV-35V65/37VL65/37VL65C)
6 * A-1195-138-A P BOARD, COMPLETE (EXCEPT KV-32V40)
7 * A-1298-612-A AV BOARD, COMPLETE (EXCEPT KV-32V40)

8 ¡ 8-598-430-00 TUNER, FSS BTF-FA401 (EXCEPT 32V40)
9 * 1-556-056-01 CABLE, P-P (EXCEPT KV-32V40)
10 * 1-557-945-21 CABLE, P-P (EXCEPT KV-32V40)
11 1-766-374-11 PLUG, F-PIN (KV-32V40 ONLY)
12 8-598-414-00 ANTENNA SWITCH (KV-35V65/37VL65/37VL65C)

15 * A-1135-948-A B BOARD, COMPLETE (KV-32V40 ONLY)
15 * A-1135-949-A B BOARD, COMPLETE (EXCEPT KV-32V40)
16 * A-1380-585-A K BOARD, MOUNTED (EXCEPT KV-32V40)

17 * A-1316-389-A G BOARD, COMPLETE (KV-32V40)
17 * A-1316-390-A G BOARD, COMPLETE (KV-34VL65C)
17 * A-1316-391-A G BOARD, COMPLETE (KV-32V65/34VL65)
17 * A-1316-405-A G BOARD, COMPLETE (KV-35V65/37VL65)
17 * A-1316-406-A G BOARD, COMPLETE (KV-37VL65C)

18 ¡ 1-751-059-11 CORD, POWER (WITH CONNECTOR)
19 4-052-905-01 V5/6 BRACKET (KV-35V65/37VL65/37VL65C)
20 4-052-903-11 COVER, REAR (KV-35V65/37VL65/37VL65C)
20 4-053-766-21 COVER, REAR (KV-32V65/34VL65C/34VL65)
20 4-053-766-31 COVER, REAR (KV-32V40)

21 * 4-052-898-41 LABEL, TERMINAL (EXCEPT KV-32V40)
21 * 4-052-899-31 LABEL, TERMINAL (KV-32V40 ONLY)
22 4-374-745-31 CUSHION (A) (KV-32V40/34VL65C/32V65/34VL65)
23 X-4035-400-1 BAFFLE ASSY (KV-32V40/34VL65C/32V65/34VL65)
24 1-503-326-21 SPEAKER (8CM) (KV-34VL65C/32V65/34VL65)
24 1-504-524-31 SPEAKER (8CM) (KV-32V40 ONLY)

13 * A-1394-905-A UV BOARD,COMPLETE (KV-32V40 ONLY)
13 * A-1394-906-A UV BOARD, COMPLETE (EXCEPT KV-32V40)
14 3-696-606-02 HINGE, VI (KV-32V40 ONLY)

25 X-4035-401-1 COVER ASSY

(KV-32V40/34VL65C/32V65/34VL65)

26 1-505-684-11 SPEAKER UNIT, BOX TYPE 2 WAY

(KV-35V65/37VL65/37VL65C)

— 68 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/

32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

The components identified by shading and "
critical for safety. Replace only with specified part number.

¡¡

¡" mark are

¡¡

7-4. PICTURE TUBE (KV-32V40/32V65/34VL65)

67

68

53

57

56

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

66

64

63

61

60

59

58

62

65

¡¡

¡ sont

¡¡

51

54

55

52

50

REF.NO. PART NO. DESCRIPTION REMARK

50 X-4035-591-1 BEZNET ASSY (KV-32V40 ONLY) 51,52
50 X-4035-592-1 BEZNET ASSY (KV-34VL65C/32V65/34VL65) 51,52
51 4-046-160-01 EMBLEM, (NO.9) SONY (KV-32V40 ONLY)
52 4-052-906-01 DOOR, CONTROL (KV-32V40 ONLY)
52 4-052-906-11 DOOR, CONTROL (EXCEPT KV-32V40)

53 1-473-549-21 SWITCH, BLOCK CONTROL (KV-34VL65C/32V65/34VL65)
54 4-052-907-11 BUTTON, MULTI (KV-32V40 ONLY)
55 * 4-052-897-01 GUIDE, LED
56 ¡ 8-733-756-05 CRT 34FX2T A80JYV52X (KV-34VL65C)
56 ¡ 8-733-757-05 CRT34FX2T A80JYV52X (KV-32V40/32V65/34VL65)
57 4-053-005-01 SPACER, DY

58 ¡ 8-451-482-21 DY Y34FXA2-X
59 ¡ 1-452-579-21 NECK ASSY
60 * A-1372-508-A WB BOARD, MOUNTED
61 * A-1331-837-A C BOARD, COMPLETE
62 4-036-329-01 SPRING (B), TENSION

63 ¡ 1-402-952-11 COIL, DEMAGNETIC
64 4-371-629-01 STOPPER, WIRE
65 4-033-681-01 HOLDER, LEAD
66 4-041-268-01 SCREW (7), TAPPING
67 1-452-885-11 MAGNET, LANDING
68 4-062-047-01 PIECE A (110), CORR. CONV.

— 69 —

KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C

The components identified by shading and "
critical for safety. Replace only with specified part number.

¡¡

¡" mark are

¡¡

Les composants identifies per un trame et une marque
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.

7-5. PICTURE TUBE (KV-35VL65C/35V65/37VL65/37VL65C)

115

107

103

106

105

108

113

109

110

111

112

114

¡¡

¡ sont

¡¡

101

104

116

117

100

102

REF.NO. PART NO. DESCRIPTION REMARK

100 X-4035-594-1 BEZNET ASSY 101,102
101 4-046-160-01 EMBLEM, (NO. 9), SONY
102 4-052-906-11 DOOR, CONTROL
103 1-473-549-21 SWITCH, BLOCK CONTROL
104 ¡8-733-761-61 ITC 37GXT-A1 105,106

105 ¡8-733-761-05 CRT 37GXT
106 ¡8-451-480-11 DY Y37GXA-X
107 4-046-765-01 SCREW, TAPPING
108 ¡8-453-007-11 NA324-M
109 * A-1372-462-A WA BOARD, MOUNTED

110 * A-1331-843-A C BOARD, COMPLETE
111 4-036-329-01 SPRING (B), TENSION
112 ¡1-411-882-11 COIL, DEMAGNETIC
113 ¡ 1-411-881-11 COIL, DEMAGNETIC
114 * 4-052-900-02 HOLDER, DGC
115 3-704-372-31 HOLDER, HV

116 4-052-902-01 CRT SUPPORT (L)
117 4-052-901-01 CRT SUPPORT (R)

— 70 —

SECTION 8

ELECTRICAL PARTS LIST

S SERIES
COMMON P ARTS LISTING

PARTS LISTING TABLE OF CONTENTS

A

REF.NO. PART NO. DESCRIPTION REMARK

A BOARD COMMON PARTS LIST (S SERIES): Parts common to all models listed in this manual......................................72

A BOARD VARIANT PARTS LIST (S SERIES): Parts that belong only to the model specified.............................................80

A BOARD COMMON PARTS LIST (V SERIES): Parts common to all models listed in this manual......................................85

A BOARD VARIANT PARTS LIST (V SERIES): Parts that belong only to the model specified.............................................91

Refer to the designated variant parts list when seeking a part indicated by an asterisk (*) on the A board schematic
or by the word "variant" on the common parts list.

REF.NO. PART NO. DESCRIPTION REMARK

Page

Model Page

KV-32S40/34SL40/34SL40C ................... 80

KV-32S45/34SL45 ................................... 81

KV-35S40 ......... ...................................... 82

KV-35S45/37SL45 ................................... 83

KV-34SL40T ............................................ 84

KV-32V40 ................................................ 91

KV-34VL65C/34VL65/32V65CND ........... 92

KV-35V65CND/37VL65/37VL65C............ 93

AV BOARD COMPLETE PARTS LIST (KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only) ................. 94

B BOARD COMPLETE PARTS LIST (All Models)................................................................................................................. 95

C BOARD COMPLETE PARTS LIST (All Models) ................................................................................................................ 97

G BOARD COMPLETE PARTS LIST (All Models)................................................................................................................. 98

HS BOARD COMPLETE PARTS LIST (KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C/32S45/

34SL45/35S40/35S45/37SL45 only) ...................................................................................................................................... 101

HV BOARD COMPLETE PARTS LIST (KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C/35S40/

35S45/37SL45 only) ............................................................................................................................................................... 102

K BOARD COMPLETE PARTS LIST (KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only).................... 104

P BOARD COMPLETE PARTS LIST (KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C/32S45/34SL45/

35S45/37SL45 only) ............................................................................................................................................................... 105

UV BOARD COMPLETE PARTS LIST (KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only) ..... 107

WA BOARD COMPLETE PARTS LIST (KV-35S40/35S45/37SL45/35V65CND/37VL65/37VL65C only) ............................ 111

WB BOARD COMPLETE PARTS LIST (KV-32S40/34SL40/34SL40C/32S45/34SL45/32V40/34VL65C/32V65CND/

34VL65 only) .......................................................................................................................................................................... 113

ACCESSORIES AND PACKAGING (All Models) .................................................................................................................. 114

— 71 —

S SERIES

A

COMMON P ARTS LISTING

SECTION 8

ELECTRICAL PARTS LIST (FOR S SERIES)

Note:

The components identified by shading

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

and mark
Replace only with part number specified.

Note:

Les composants identifies per un trame
et une marque
securite. Ne les remplacer que par une
piece portant le numero specifie.

¡¡

¡

are critical for safety.

¡¡

¡¡

¡ sont critiques pour la

¡¡

The components identified by [ in this manual
have been carefully factory-selected for each
set in order to satisfy regulations regarding X­ray radiation. Should replacement be required,
replace only with the value originally used.

• Items marked " * " are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

• All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.

RESISTORS

• All resistors are in ohms

• F : nonflammable

CAPACITORS

•

MF = µF

INDUCTORS

•

UH = µH, MMH = mH

When indicating parts by reference
number, please include the board name.

REF.NO. PART NO. DESCRIPTION REMARK

A

* A-1298-630-A A BOARD, COMPLETE

(KV-32S40/34SL40/34SL40C only)

* A-1298-631-A A BOARD, COMPLETE
* A-1298-645-A A BOARD, COMPLETE
* A-1298-646-A A BOARD, COMPLETE
* A-1298-661-A A BOARD, COMPLETE

1-923-513-27 WIRE UL1007 AWG22 180MM GRY
4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C001 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C003 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C005 1-126-960-11 ELECT 1MF 20% 50V
C009 1-126-967-11 ELECT 47MF 20% 50V
C010 1-163-033-91 CERAMIC CHIP 0.022MF 50V

C012 1-216-033-00 RES, CHIP 220 5% 1/10W
C013 1-216-121-91 RES, CHIP 1M 5% 1/10W
C014 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C023 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C028 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C029 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C030 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C035 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
C036 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C037 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C038 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C039 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C040 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C051 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C053 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C056 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C061 1-163-033-91 CERAMIC CHIP 0.022MF 50V
C062 1-163-033-91 CERAMIC CHIP 0.022MF 50V
C063 1-126-935-11 ELECT 470MF 20% 16V
C068 VARIANT (SEE VARIANT PARTS LIST)

(KV-32S45/34SL45 only)

(KV-35S40 only)

(KV-35S45/37SL45 only)
(KV-34SL40T only)

— 72 —

REF.NO. PART NO. DESCRIPTION REMARK

C069 VARIANT (SEE VARIANT PARTS LIST)
C070 1-126-967-11 ELECT 47MF 20% 50V
C071 1-164-096-11 CERAMIC CHIP 0.01MF 50V
C072 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C075 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C353 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C354 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C355 1-126-959-11 ELECT 0.47MF 20% 50V
C356 1-126-963-11 ELECT 4.7MF 20% 50V
C357 1-126-959-11 ELECT 0.47MF 20% 50V

C358 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C359 1-126-933-11 ELECT 100MF 20% 16V
C363 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C364 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C365 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C366 1-130-495-00 FILM 0.1MF 5% 50V
C367 1-130-495-00 FILM 0.1MF 5% 50V
C368 1-130-495-00 FILM 0.1MF 5% 50V
C369 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C370 VARIANT (SEE VARIANT PARTS LIST)

C371 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C372 1-126-959-11 ELECT 0.47MF 20% 50V
C373 1-126-960-11 ELECT 1MF 20% 50V
C375 VARIANT (SEE VARIANT PARTS LIST)
C376 1-126-964-11 ELECT 10MF 20% 50V

C377 1-130-495-00 FILM 0.1MF 5% 50V
C378 1-130-495-00 FILM 0.1MF 5% 50V
C379 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C380 1-126-935-11 ELECT 470MF 20% 16V
C381 1-163-003-11 CERAMIC CHIP 330PF 10% 50V

C383 1-130-495-00 FILM 0.1MF 5% 50V
C385 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C386 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C387 1-126-961-11 ELECT 2.2MF 20% 50V
C388 1-126-959-11 ELECT 0.47MF 20% 50V

C390 1-126-960-11 ELECT 1MF 20% 50V
C391 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C392 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

S SERIES
COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

C461 1-126-933-11 ELECT 100MF 20% 16V
C462 1-126-961-11 ELECT 2.2MF 20% 50V
C463 1-126-961-11 ELECT 2.2MF 20% 50V
C464 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C466 1-104-666-11 ELECT 220MF 20% 25V

C467 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C468 1-104-664-11 ELECT 47MF 20% 25V
C470 1-126-961-11 ELECT 2.2MF 20% 50V
C471 1-104-666-11 ELECT 220MF 20% 25V
C472 1-136-173-00 FILM 0.47MF 5% 50V

C473 1-136-169-00 FILM 0.22MF 5% 50V
C474 1-126-942-61 ELECT 1000MF 20% 25V
C475 1-136-169-00 FILM 0.22MF 5% 50V
C476 1-126-942-61 ELECT 1000MF 20% 25V
C477 1-126-942-61 ELECT 1000MF 20% 25V

C501 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C502 1-126-959-11 ELECT 0.47MF 20% 50V
C503 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C504 1-102-212-00 CERAMIC CHIP 820PF 10% 500V
C505 1-102-002-00 CERAMIC CHIP 680PF 10% 500V

C506 1-106-383-00 MYLAR 0.047MF 10% 200V
C507 ¡ 1-162-116-00 CERAMIC CHIP 680PF 10% 2KV

C508 1-102-244-00 CERAMIC CHIP 220PF 10% 500V
C509 1-162-116-00 CERAMIC CHIP 680PF 10% 2KV
C510 1-137-150-11 MYLAR 0.01MF 10% 100V

REF.NO. PART NO. DESCRIPTION REMARK

C545 1-106-387-00 MYLAR 0.068MF 10% 200V
C546 1-106-343-00 MYLAR 0.001MF 10% 100V
C547 1-106-343-00 MYLAR 0.001MF 10% 100V
C551 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C561 1-126-967-11 ELECT 47MF 20% 50V

C563 1-126-934-11 ELECT 220MF 20% 10V
C564 1-126-960-11 ELECT 1MF 20% 50V
C565 1-126-969-11 ELECT 220MF 20% 50V
C566 1-126-964-11 ELECT 10MF 20% 50V
C568 1-136-169-00 FILM 0.22MF 5% 50V

C571 1-104-664-11 ELECT 47MF 20% 25V
C1002 1-126-964-11 ELECT 10MF 20% 50V
C1101 1-126-768-11 ELECT 2200MF 20% 16V
C1103 1-126-965-11 ELECT 22MF 20% 50V
C1104 1-104-664-11 ELECT 47MF 20% 16V

C1105 1-104-664-11 ELECT 47MF 20% 16V
C1106 1-126-964-11 ELECT 10MF 20% 50V
C1107 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C1108 1-126-960-11 ELECT 1MF 20% 50V
C1109 1-126-964-11 ELECT 10MF 20% 50V

C1110 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1111 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1112 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1236 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C1237 1-136-161-00 FILM 0.047MF 5% 50V

C511 ¡ 1-115-460-11 FILM 0.022MF 3% 1.2KV
C513 VARIANT (SEE VARIANT PARTS LIST)
C514 VARIANT (SEE VARIANT PARTS LIST)
C515 1-106-343-00 MYLAR 0.001MF 10% 100V
C516 1-115-461-11 FILM 2MF 5% 200V

C517 1-107-649-11 ELECT 2.2MF 20% 250V
C518 1-106-395-00 MYLAR 0.15MF 10% 200V
C519 1-162-815-11 CERAMIC CHIP 47PF 5% 500V
C520 VARIANT (SEE VARIANT PARTS LIST)
C521 VARIANT (SEE VARIANT PARTS LIST)

C522 1-126-960-11 ELECT 1MF 20% 50V
C525 1-102-244-00 CERAMIC CHIP 220PF 10% 500V
C526 1-107-662-11 ELECT 22MF 20% 250V
C527 1-162-116-00 CERAMIC CHIP 680PF 10% 2KV
C528 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V

C529 1-128-551-11 ELECT 22MF 20% 25V
C530 1-137-366-11 FILM 0.0022MF 5% 50V
C531 1-126-965-11 ELECT 22MF 20% 50V
C532 1-126-965-11 ELECT 22MF 20% 50V
C537 VARIANT (SEE VARIANT PARTS LIST)

C539 VARIANT (SEE VARIANT PARTS LIST)
C540 1-123-024-21 ELECT 33MF 160V
C541 1-128-560-11 ELECT 22MF 20% 100V
C542 VARIANT (SEE VARIANT PARTS LIST)

C1238 1-136-161-00 FILM 0.047MF 5% 50V
C1239 1-126-960-11 ELECT 1MF 20% 50V
C1240 1-126-960-11 ELECT 1MF 20% 50V
C1241 VARIANT (SEE VARIANT PARTS LIST)
C1242 VARIANT (SEE VARIANT PARTS LIST)

C1243 VARIANT (SEE VARIANT PARTS LIST)
C1244 1-126-959-11 ELECT 0.47MF 20% 50V
C1245 1-126-959-11 ELECT 0.47MF 20% 50V
C1261 1-104-664-11 ELECT 47MF 20% 16V
C1262 1-104-664-11 ELECT 47MF 20% 16V

C1263 1-126-960-11 ELECT 1MF 20% 50V
C1264 1-126-960-11 ELECT 1MF 20% 50V
C1267 1-136-161-00 FILM 0.047MF 5% 50V
C1268 1-126-960-11 ELECT 1MF 20% 50V
C1269 1-126-960-11 ELECT 1MF 20% 50V

C1293 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C1351 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C1352 1-126-933-11 ELECT 100MF 20% 16V
C1353 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C1354 1-216-295-91 SHORT

C1401 1-126-959-11 ELECT 0.47MF 20% 50V
C1402 1-104-664-11 ELECT 47MF 20% 25V
C1403 1-126-959-11 ELECT 0.47MF 20% 50V
C1404 1-126-956-91 ELECT 0.1MF 20% 50V

— 73 —

S SERIES

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

C1405 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C1406 1-126-956-91 ELECT 0.1MF 20% 50V
C1407 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C1408 1-126-963-11 ELECT 4.7MF 20% 50V
C1409 1-126-963-11 ELECT 4.7MF 20% 50V

C1410 1-126-956-91 ELECT 0.1MF 20% 50V
C1411 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C1413 1-126-963-11 ELECT 4.7MF 20% 50V
C1415 1-126-964-11 ELECT 10MF 20% 50V
C1416 1-126-963-11 ELECT 4.7MF 20% 50V

C1417 1-126-767-11 ELECT 1000MF 20% 16V
C1420 1-126-963-11 ELECT 4.7MF 20% 50V
C1501 VARIANT (SEE VARIANT PARTS LIST)

CONNECTOR

CN270 1-573-298-11 CONNECTOR, BOARD TO BOARD 20P
CN351 * 1-564-509-11 PLUG, CONNECTOR 6P
CN461 * 1-564-507-11 PLUG, CONNECTOR 4P
CN501 * 1-580-798-11 CONNECTOR 6P
CN503 * 1-564-508-11 PLUG, CONNECTOR 5P

CN1001 VARIANT (SEE VARIANT PARTS LIST)
CN1641 * 1-564-515-11 PLUG, CONNECTOR 12P
CN1941 * 1-564-508-11 PLUG, CONNECTOR 8P
CN3001 VARIANT (SEE VARIANT PARTS LIST)

D515 8-719-302-43 DIODE EL1Z
D516 8-719-991-33 DIODE 1SS133T-77
D518 8-719-991-33 DIODE 1SS133T-77
D519 ¡ 8-719-302-43 DIODE EL1Z
D520 8-719-991-33 DIODE 1SS133T-77

D521 8-719-921-63 DIODE MTZJ-7.5B
D530 8-719-979-85 DIODE EGP20G
D531 8-719-979-85 DIODE EGP20G
D534 8-719-302-43 DIODE EL1Z
D561 8-719-908-03 DIODE GP08D

D562 8-719-991-33 DIODE 1SS133T-77
D1102 8-719-982-24 DIODE MTZJ-33A
D1103 8-719-109-89 DIODE RD5.6ESB2
D1247 8-719-110-17 DIODE RD10ESB2
D1248 8-719-981-99 DIODE MTZJ-3.3

D1261 8-719-110-17 DIODE RD10ESB2
D1262 8-719-110-17 DIODE RD10ESB2
D1263 8-719-110-17 DIODE RD10ESB2
D1264 8-719-110-17 DIODE RD10ESB2

FERRITE BEAD

FB501 1-410-396-41 FERRITE 0.45UH
FB502 1-410-397-21 FERRITE 1.1UH
FB503 1-410-397-21 FERRITE 1.1UH

DIODE

D001 8-719-991-33 DIODE 1SS133T-77
D002 8-719-109-89 DIODE RD5.6ESB2
D003 8-719-991-33 DIODE 1SS133T-77
D004 8-719-110-17 DIODE RD10ESB2
D005 VARIANT (SEE VARIANT PARTS LIST)

D006 VARIANT (SEE VARIANT PARTS LIST)
D011 8-719-983-20 DIODE MTZJ-T-77-4.3C
D013 8-719-991-33 DIODE 1SS133T-77
D014 8-719-991-33 DIODE 1SS133T-77
D015 8-719-991-33 DIODE 1SS133T-77

D353 8-719-991-33 DIODE 1SS133T-77
D356 8-719-991-33 DIODE 1SS133T-77
D360 8-719-110-17 DIODE RD10ESB2
D362 8-719-991-33 DIODE 1SS133T-77
D368 VARIANT (SEE VARIANT PARTS LIST)

D462 8-719-991-33 DIODE 1SS133T-77
D501 8-719-109-89 DIODE RD5.6ESB2
D502 8-719-945-80 DIODE ERC06-15S
D503 8-719-945-80 DIODE ERC06-15S
D504 8-719-900-26 DIODE ERD29-08J

D505 8-719-908-03 DIODE GP08D
D506 8-719-908-03 DIODE GP08D
D507 8-719-991-33 DIODE 1SS133T-77

IC

IC001 8-752-897-18 IC CXP85840A-011S
IC002 8-759-527-74 IC M24C02-MN6T
IC003 VARIANT (SEE VARIANT PARTS LIST)
IC351 8-752-082-73 IC CXA2095S
IC461 8-759-980-43 IC TDA2009A

IC501 8-759-700-07 IC NJM2903M
IC561 8-759-980-58 IC TDA8172
IC1261 VARIANT (SEE VARIANT PARTS LIST)
IC1401 8-752-072-39 IC CXA2021S
IC1402 8-759-100-96 IC UPC4558G2

JACK

J1232 1-774-751-11 TERMINAL BLOCK, S
J1233 VARIANT (SEE VARIANT PARTS LIST)
J1234 1-774-750-11 JACK BLOCK, PIN

CHIP CONDUCTOR

JR351 VARIANT (SEE VARIANT PARTS LIST)
JR352 VARIANT (SEE VARIANT PARTS LIST)
JR501 1-216-295-91 SHORT
JR1264 VARIANT (SEE VARIANT PARTS LIST)
JR1450 1-216-295-91 SHORT
JR1451 1-216-295-91 SHORT

— 74 —

Note:

The components identified
with shading and a critical

¡¡

symbol (
safety. Replace only with
part number specified.

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

S SERIES
COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

JR1454 1-216-295-91 SHORT
JR1455 1-216-295-91 SHORT
JR1801 1-216-295-91 SHORT
JR1802 1-216-295-91 SHORT
JR1803 1-216-295-91 SHORT

JR1804 1-216-295-91 SHORT
JR4120 1-216-295-91 SHORT

COIL

L001 1-408-421-00 INDUCTOR 100UH
L002 1-408-421-00 INDUCTOR 100UH
L003 1-410-470-11 INDUCTOR 10UH
L004 1-410-470-11 INDUCTOR 10UH
L352 1-412-537-31 INDUCTOR 100UH

L461 1-408-602-31 INDUCTOR 8.2UH
L501 ¡ 1-411-976-11 COIL, HORIZONTAL LINEARITY

L502 1-412-552-11 INDUCTOR 2.2MMH
L503 1-406-677-11 INDUCTOR
L511 1-406-607-41 INDUCTOR

L517 1-412-552-11 INDUCTOR 2.2MMH
L541 VARIANT (SEE VARIANT PARTS LIST)
L1101 1-408-421-00 INDUCTOR 100UH
L1102 1-410-470-11 INDUCTOR 10UH
L1401 1-410-494-11 INDUCTOR 1MMH

REF.NO. PART NO. DESCRIPTION REMARK

Q462 8-729-216-22 TRANSISTOR 2SA1162-G
Q501 8-729-140-50 TRANSISTOR 2SC3209LK
Q502 ¡ 8-729-035-75 TRANSISTOR 2SC5148(LBSONY)
Q511 ¡ 8-729-422-27 TRANSISTOR 2SD601A-Q
Q512 ¡ 8-729-809-29 TRANSISTOR 2SC4159-E

Q551 8-729-216-22 TRANSISTOR 2SA1162-G
Q552 8-729-422-27 TRANSISTOR 2SD601A-Q
Q561 8-729-422-27 TRANSISTOR 2SD601A-Q
Q562 8-729-422-27 TRANSISTOR 2SD601A-Q
Q563 8-729-105-08 TRANSISTOR 2SA1330-06

Q1102 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q1103 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q1231 8-729-422-27 TRANSISTOR 2SD601A-Q
Q1232 8-729-422-27 TRANSISTOR 2SD601A-Q
Q1261 8-729-216-22 TRANSISTOR 2SA1162-G

Q1262 8-729-216-22 TRANSISTOR 2SA1162-G
Q1263 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R001 1-216-045-00 RES, CHIP 680 5% 1/10W
R002 1-247-815-91 CARBON 220 5% 1/4W
R003 1-216-097-91 RES, CHIP 100K 5% 1/10W
R004 1-216-121-91 RES, CHIP 1M 5% 1/10W
R007 1-216-073-00 RES, CHIP 10K 5% 1/10W

IC LINK

PS461 ¡ 1-532-984-11 LINK, IC 2A/90V

TRANSISTOR

Q001 8-729-216-22 TRANSISTOR 2SA1162-G
Q002 8-729-422-27 TRANSISTOR 2SD601A-Q
Q003 8-729-422-27 TRANSISTOR 2SD601A-Q
Q004 8-729-216-22 TRANSISTOR 2SA1162-G
Q010 8-729-422-27 TRANSISTOR 2SD601A-Q

Q011 8-729-422-27 TRANSISTOR 2SD601A-Q
Q012 8-729-422-27 TRANSISTOR 2SD601A-Q
Q013 8-729-422-27 TRANSISTOR 2SD601A-Q
Q014 8-729-422-27 TRANSISTOR 2SD601A-Q
Q015 8-729-422-27 TRANSISTOR 2SD601A-Q

Q016 8-729-422-27 TRANSISTOR 2SD601A-Q
Q017 8-729-216-22 TRANSISTOR 2SA1162-G
Q301 8-729-216-22 TRANSISTOR 2SA1162-G
Q302 8-729-216-22 TRANSISTOR 2SA1162-G
Q303 8-729-216-22 TRANSISTOR 2SA1162-G

Q354 8-729-422-27 TRANSISTOR 2SD601A-Q
Q356 8-729-216-22 TRANSISTOR 2SA1162-G
Q357 8-729-422-27 TRANSISTOR 2SD601A-Q
Q358 8-729-422-27 TRANSISTOR 2SD601A-Q
Q461 8-729-422-27 TRANSISTOR 2SD601A-Q

R009 1-216-073-00 RES, CHIP 10K 5% 1/10W
R010 1-216-037-00 RES, CHIP 330 5% 1/10W
R011 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R012 VARIANT (SEE VARIANT PARTS LIST)
R013 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R014 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R015 1-216-073-00 RES, CHIP 10K 5% 1/10W
R016 1-216-073-00 RES, CHIP 10K 5% 1/10W
R019 1-249-425-11 CARBON 4.7K 5% 1/4W
R020 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R022 VARIANT (SEE VARIANT PARTS LIST)
R023 1-216-089-91 RES, CHIP 47K 5% 1/10W
R024 1-249-381-11 CARBON 1 5% 1/4W
R025 1-163-010-11 CERAMIC CHIP 0.0012MF 10% 50V
R026 1-163-038-91 CERAMIC CHIP 0.1MF 25V

R027 1-249-389-11 CARBON 4.7 5% 1/4W
R028 1-249-417-11 CARBON 1K 5% 1/4W
R029 1-216-025-91 RES, CHIP 100 5% 1/10W
R030 1-249-425-11 CARBON 4.7K 5% 1/4W
R031 VARIANT (SEE VARIANT PARTS LIST)

R032 1-247-815-91 CARBON 220 5% 1/4W
R036 1-216-049-91 RES, CHIP 1K 5% 1/10W
R037 1-216-049-91 RES, CHIP 1K 5% 1/10W
R038 1-216-049-91 RES,CHIP 1K 5% 1/10W
R039 1-247-807-31 CARBON 100 5% 1/4W

— 75 —

S SERIES

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

R044 1-216-033-00 RES, CHIP 220 5% 1/10W
R046 1-247-815-91 CARBON 220 5% 1/4W
R047 1-249-417-11 CARBON 1K 5% 1/4W
R048 1-249-417-11 CARBON 1K 5% 1/4W
R049 1-249-417-11 CARBON 1K 5% 1/4W

R052 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R053 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R054 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R055 1-216-097-91 RES, CHIP 100K 5% 1/10W
R056 1-216-033-00 RES, CHIP 220 5% 1/10W

R057 1-249-417-11 CARBON 1K 5% 1/4W
R058 1-216-033-00 RES, CHIP 220 5% 1/10W
R059 VARIANT (SEE VARIANT PARTS LIST)
R060 VARIANT (SEE VARIANT PARTS LIST)
R061 VARIANT (SEE VARIANT PARTS LIST)

R062 VARIANT (SEE VARIANT PARTS LIST)
R063 VARIANT (SEE VARIANT PARTS LIST)
R064 1-216-033-00 RES, CHIP 220 5% 1/10W
R065 1-216-033-00 RES, CHIP 220 5% 1/10W
R066 1-216-033-00 RES, CHIP 220 5% 1/10W

R067 1-216-041-00 RES, CHIP 470 5% 1/10W
R068 1-247-815-91 CARBON 220 5% 1/4W
R069 VARIANT (SEE VARIANT PARTS LIST)
R070 1-249-421-11 CARBON 2.2K 5% 1/4W
R071 1-247-815-91 CARBON 220 5% 1/4W

R133 1-216-039-00 RES, CHIP 390 5% 1/10W
R135 1-216-073-00 RES, CHIP 10K 5% 1/10W
R136 1-216-073-00 RES, CHIP 10K 5% 1/10W
R137 1-216-049-91 RES, CHIP 1K 5% 1/10W
R353 1-208-788-11 RES, CHIP 1.8K 0.50% 1/10W

R354 1-216-077-00 RES, CHIP 15K 5% 1/10W
R355 1-216-033-00 RES, CHIP 220 5% 1/10W
R356 1-216-033-00 RES, CHIP 220 5% 1/10W
R358 VARIANT (SEE VARIANT PARTS LIST)
R359 VARIANT (SEE VARIANT PARTS LIST)

R360 VARIANT (SEE VARIANT PARTS LIST)
R361 1-216-025-91 RES, CHIP 100 5% 1/10W
R362 1-216-025-91 RES, CHIP 100 5% 1/10W
R363 1-216-025-91 RES, CHIP 100 5% 1/10W
R364 1-216-101-00 RES, CHIP 150K 5% 1/10W

R365 VARIANT (SEE VARIANT PARTS LIST)
R366 1-216-089-91 RES, CHIP 47K 5% 1/10W
R367 1-216-097-91 RES, CHIP 100K 5% 1/10W
R368 1-249-441-11 CARBON 100K 5% 1/4W
R369 1-216-097-91 RES, CHIP 100K 5% 1/10W

R370 1-249-417-11 CARBON 1K 5% 1/4W
R371 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R372 1-216-113-00 RES, CHIP 470K 5% 1/10W
R373 1-216-073-00 RES, CHIP 10K 5% 1/10W
R374 VARIANT (SEE VARIANT PARTS LIST)

R072 1-216-033-00 RES, CHIP 220 5% 1/10W
R073 1-216-033-00 RES, CHIP 220 5% 1/10W
R074 1-216-033-00 RES, CHIP 220 5% 1/10W
R075 1-216-033-00 RES, CHIP 220 5% 1/10W
R076 1-216-033-00 RES, CHIP 220 5% 1/10W

R077 1-216-033-00 RES, CHIP 220 5% 1/10W
R078 1-249-417-11 CARBON 1K 5% 1/4W
R079 1-216-033-00 RES, CHIP 220 5% 1/10W
R080 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R081 1-216-025-91 RES, CHIP 100 5% 1/10W

R082 1-216-025-91 RES, CHIP 100 5% 1/10W
R083 1-249-429-11 CARBON 10K 5% 1/4W
R084 1-216-049-91 RES, CHIP 1K 5% 1/10W
R085 VARIANT (SEE VARIANT PARTS LIST)
R087 1-247-815-91 CARBON 220 5% 1/4W

R092 1-249-429-11 CARBON 10K 5% 1/4W
R093 1-249-387-11 CARBON 3.3 5% 1/4W
R094 1-249-381-11 CARBON 1 5% 1/4W
R096 1-216-347-11 METAL 0.68 5% 1W
R097 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R098 1-249-379-11 CARBON 0.68 5% 1/4W
R099 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R131 1-216-035-00 RES, CHIP 270 5% 1/10W
R132 1-216-115-00 RES, CHIP 560K 5% 1/10W

R375 1-216-025-91 RES, CHIP 100 5% 1/10W
R376 1-216-073-00 RES, CHIP 10K 5% 1/10W
R379 1-216-033-00 RES, CHIP 220 5% 1/10W
R380 1-247-815-91 CARBON 220 5% 1/4W
R381 1-247-815-91 CARBON 220 5% 1/4W

R382 1-216-033-00 RES, CHIP 220 5% 1/10W
R383 1-216-049-91 RES, CHIP 1K 5% 1/10W
R384 1-216-109-00 RES, CHIP 330K 5% 1/10W
R385 1-249-422-11 CARBON 2.7K 5% 1/4W
R386 VARIANT (SEE VARIANT PARTS LIST)

R387 1-216-049-91 RES, CHIP 1K 5% 1/10W
R388 1-216-089-91 RES, CHIP 47K 5% 1/10W
R389 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R390 1-216-035-00 RES, CHIP 270 5% 1/10W
R391 1-208-810-11 RES, CHIP 15K 0.50% 1/10W

R392 1-216-025-91 RES, CHIP 100 5% 1/10W
R393 1-216-043-91 RES, CHIP 560 5% 1/10W
R394 1-216-059-00 RES, CHIP 2.7K 5% 1/10W
R395 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R396 1-249-417-11 CARBON 1K 5% 1/4W

R397 1-249-425-11 CARBON 4.7K 5% 1/4W
R461 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R462 1-216-089-91 RES, CHIP 47K 5% 1/10W
R463 1-249-435-11 CARBON 33K 5% 1/4W

— 76 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement

be required, replace only with the value origi­nally used.

S SERIES
COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

R464 1-216-097-91 RES, CHIP 100K 5% 1/10W
R465 1-249-413-11 CARBON 470 5% 1/4W
R466 1-249-388-11 CARBON 3.9 5% 1/4W
R467 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

R469 VARIANT (SEE VARIANT PARTS LIST)
R470 1-216-077-00 RES, CHIP 15K 5% 1/10W
R471 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R472 VARIANT (SEE VARIANT PARTS LIST)
R473 1-249-398-11 CARBON 27 5% 1/4W

R474 1-216-077-00 RES, CHIP 15K 5% 1/10W
R475 1-249-430-11 CARBON 12K 5% 1/4W
R476 1-249-430-11 CARBON 12K 5% 1/4W
R477 1-249-398-11 CARBON 27 5% 1/4W
R478 1-249-418-11 CARBON 1.2K 5% 1/4W

R479 1-249-418-11 CARBON 1.2K 5% 1/4W
R480 1-249-385-11 CARBON 2.2 5% 1/4W
R481 1-249-385-11 CARBON 2.2 5% 1/4W
R482 1-249-421-11 CARBON 2.2K 5% 1/4W
R483 1-249-421-11 CARBON 2.2K 5% 1/4W

R501 1-216-037-00 RES, CHIP 330 5% 1/10W
R502 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R503 1-249-426-11 CARBON 5.6K 5% 1/4W
R504 ¡ 1-215-915-11 METAL 470 5% 3W
R505 1-249-431-11 CARBON 15K 5% 1/4W

REF.NO. PART NO. DESCRIPTION REMARK

R538 1-247-887-00 CARBON 220K 5% 1/4W
R541 VARIANT (SEE VARIANT PARTS LIST)
R542 VARIANT (SEE VARIANT PARTS LIST)
R543 1-249-377-11 CARBON 0.47 5% 1/4W

R546 VARIANT (SEE VARIANT PARTS LIST)
R547 1-215-457-00 METAL 33K 1% 1/4W
R549 1-215-437-00 METAL 4.7K 1% 1/4W
R550 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W
R551 ¡ 1-215-873-00 METAL 4.7K 5% 1W

R552 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R553 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W

R554 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R561 1-216-073-00 RES, CHIP 10K 5% 1/10W
R563 ¡ 1-216-351-00 METAL 1.5 5% 1W

R564 1-249-393-11 CARBON 10 5% 1/4W
R565 ¡ 1-215-890-11 METAL 470 5% 2W

R566 1-216-073-00 RES, CHIP 10K 5% 1/10W
R567 ¡ 1-249-385-11 CARBON 2.2 5% 1/4W

R568 1-216-073-00 RES, CHIP 10K 5% 1/10W

R569 1-216-073-00 RES, CHIP 10K 5% 1/10W
R570 1-216-097-91 RES, CHIP 100K 5% 1/10W
R571 1-216-081-00 RES, CHIP 22K 5% 1/10W
R572 1-216-081-00 RES, CHIP 22K 5% 1/10W
R573 1-216-097-91 RES, CHIP 100K 5% 1/10W

R506 1-215-861-00 METAL 47 5% 1W
R507 1-249-401-11 CARBON 47 5% 1/4W
R508 1-249-427-11 CARBON 6.8K 5% 1/4W
R509 1-247-750-11 CARBON 680 5% 1/2W
R510 ¡ 1-215-860-11 METAL 33 5% 1W

R511 VARIANT (SEE VARIANT PARTS LIST)
R512 ¡ 1-215-886-11 METAL 100 5% 2W

R515 VARIANT (SEE VARIANT PARTS LIST)
R516 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R517 1-249-415-11 CARBON 680 5% 1/4W

R518 1-216-073-00 RES, CHIP 10K 5% 1/10W
R519 1-249-411-11 CARBON 330 5% 1/4W
R521 ¡ 1-215-915-11 METAL 470 5% 3W
R523 VARIANT (SEE VARIANT PARTS LIST)
R524 1-249-429-11 CARBON 10K 5% 1/4W

R525 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R528 1-216-081-00 RES, CHIP 22K 5% 1/10W
R529 VARIANT (SEE VARIANT PARTS LIST)

[

R530 ¡ 1-208-808-11 RES, CHIP 12K 0.50% 1/10W
R531 VARIANT (SEE VARIANT PARTS LIST)

R532 1-208-760-11 RES, CHIP 120 0.50% 1/10W
R533 VARIANT (SEE VARIANT PARTS LIST)
R535 VARIANT (SEE VARIANT PARTS LIST)
R536 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W
R537 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W

R574 ¡ 1-216-365-00 METAL 0.47 5% 2W
R575 1-216-113-00 RES, CHIP 470K 5% 1/10W
R576 1-216-073-00 RES, CHIP 10K 5% 1/10W
R577 1-216-097-91 RES, CHIP 100K 5% 1/10W
R578 1-208-784-11 RES, CHIP 1.2K 0.50% 1/10W

R579 1-208-842-11 RES, CHIP 330K 0.50% 1/10W
R580 1-249-441-11 CARBON 100K 5% 1/4W
R1009 VARIANT (SEE VARIANT PARTS LIST)
R1010 VARIANT (SEE VARIANT PARTS LIST)
R1101 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1102 1-215-900-11 METAL 22K 5% 2W
R1103 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
R1104 1-216-083-00 RES, CHIP 27K 5% 1/10W
R1105 1-216-689-11 RES, CHIP 39K 5% 1/10W
R1106 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1107 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1108 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1109 1-216-019-00 RES, CHIP 56 5% 1/10W
R1110 1-216-019-00 RES, CHIP 56 5% 1/10W
R1111 1-216-019-00 RES, CHIP 56 5% 1/10W

R1115 1-216-045-00 RES, CHIP 680 5% 1/10W
R1117 1-249-425-11 CARBON 4.7K 5% 1/4W
R1118 1-249-425-11 CARBON 4.7K 5% 1/4W
R1120 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1121 1-216-035-00 RES, CHIP 270 5% 1/10W

— 77 —

S SERIES

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

R1122 1-216-115-00 RES, CHIP 560K 5% 1/10W
R1123 1-216-039-00 RES, CHIP 390 5% 1/10W
R1125 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1126 1-216-035-00 RES, CHIP 270 5% 1/10W

R1127 1-216-115-00 RES, CHIP 560K 5% 1/10W
R1128 1-216-039-00 RES, CHIP 390 5% 1/10
R1130 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1234 1-249-441-11 CARBON 100K 5% 1/4W
R1240 1-216-022-00 RES, CHIP 75 5% 1/10W

R1241 1-216-022-00 RES, CHIP 75 5% 1/10W
R1242 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1243 1-249-441-11 CARBON 100K 5% 1/4W
R1244 1-216-022-00 RES, CHIP 75 5% 1/10W
R1245 1-216-113-00 RES, CHIP 470K 5% 1/10W

R1246 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1247 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1248 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1249 VARIANT (SEE VARIANT PARTS LIST)
R1250 VARIANT (SEE VARIANT PARTS LIST)

R1251 VARIANT (SEE VARIANT PARTS LIST)
R1252 VARIANT (SEE VARIANT PARTS LIST)
R1253 VARIANT (SEE VARIANT PARTS LIST)
R1254 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1255 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1256 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1257 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1258 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R1259 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1260 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

R1261 1-216-033-00 RES, CHIP 220 5% 1/10W
R1262 1-216-025-91 RES, CHIP 100 5% 1/10W
R1263 1-216-033-00 RES, CHIP 220 5% 1/10W
R1264 1-216-025-91 RES, CHIP 100 5% 1/10W
R1265 1-216-033-00 RES, CHIP 220 5% 1/10W

R1266 1-216-025-91 RES, CHIP 100 5% 1/10W
R1267 1-216-295-91 SHORT
R1268 1-216-025-91 RES, CHIP 100 5% 1/10W
R1270 1-216-025-91 RES, CHIP 100 5% 1/10W
R1273 VARIANT (SEE VARIANT PARTS LIST)

R1274 VARIANT (SEE VARIANT PARTS LIST)
R1277 1-247-815-91 CARBON 220 5% 1/4W
R1278 1-247-815-91 CARBON 220 5% 1/4W
R1280 1-216-025-91 RES, CHIP 100 5% 1/10W
R1282 1-216-025-91 RES, CHIP 100 5% 1/10W

R1283 VARIANT (SEE VARIANT PARTS LIST)
R1284 1-247-807-31 CARBON 100 5% 1/4W
R1286 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1287 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1288 1-247-807-31 CARBON 100 5% 1/4W
R1290 1-216-041-00 RES, CHIP 470 5% 1/10W
R1291 1-216-045-00 RES, CHIP 680 5% 1/10W
R1292 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1293 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R1294 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1295 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1296 VARIANT (SEE VARIANT PARTS LIST)
R1297 VARIANT (SEE VARIANT PARTS LIST)
R1351 1-247-815-91 CARBON 220 5% 1/4W

R1352 1-247-815-91 CARBON 220 5% 1/4W
R1353 1-247-815-91 CARBON 220 5% 1/4W
R1354 1-216-033-00 RES, CHIP 220 5% 1/10W
R1355 1-216-025-91 RES, CHIP 100 5% 1/10W
R1356 1-216-025-91 RES, CHIP 100 5% 1/10W

R1357 1-216-025-91 RES, CHIP 100 5% 1/10W
R1358 1-247-807-31 CARBON 100 5% 1/4W
R1359 1-216-025-91 RES, CHIP 100 5% 1/10W
R1360 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R1361 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R1362 1-216-295-91 SHORT
R1402 1-249-429-11 CARBON 10K 5% 1/4W
R1404 1-249-429-11 CARBON 10K 5% 1/4W
R1407 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1408 1-249-429-11 CARBON 10K 5% 1/4W

R1409 1-249-429-11 CARBON 10K 5% 1/4W
R1410 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1411 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1412 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1413 1-216-089-91 RES, CHIP 47K 5% 1/10W

R1414 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1415 1-216-025-91 RES, CHIP 100 5% 1/10W
R1418 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1419 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1420 1-216-089-91 RES, CHIP 47K 5% 1/10W

R1421 1-216-025-91 RES, CHIP 100 5% 1/10W
R1424 1-247-815-91 CARBON 220 5% 1/4W
R1425 1-247-815-91 CARBON 220 5% 1/4W

SWITCH

S001 VARIANT (SEE VARIANT PARTS LIST)
S002 VARIANT (SEE VARIANT PARTS LIST)
S003 VARIANT (SEE VARIANT PARTS LIST)
S004 VARIANT (SEE VARIANT PARTS LIST)
S005 VARIANT (SEE VARIANT PARTS LIST)

S006 VARIANT (SEE VARIANT PARTS LIST)
S007 VARIANT (SEE VARIANT PARTS LIST)
S501 1-572-707-11 SWITCH, LEVER

— 78 —

S SERIES
COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

TRANSFORMER

T501 1-437-210-11 TRANSFORMER, HORIZONTAL DRIVE
T502 VARIANT (SEE VARIANT PARTS LIST)
T503 VARIANT (SEE VARIANT PARTS LIST)
T504 VARIANT (SEE VARIANT PARTS LIST)

TUNER

TU102 VARIANT (SEE VARIANT PARTS LIST)

CRYSTAL

X001 1-578-774-11 VIBRATOR, CRYSTAL
X353 1-567-505-11 OSCILLATOR, CRYSTAL
X354 1-577-611-11 OSCILLATOR, CERAMIC

REF.NO. PART NO. DESCRIPTION REMARK

— 79 —

ELECTRICAL PARTS LIST (FOR V SERIES)

Note:

The components identified by shading

REF.NO. PART NO. DESCRIPTION REMARK

and mark
Replace only with part number specified.

Note:

Les composants identifies per un trame
et une marque
securite. Ne les remplacer que par une
piece portant le numero specifie.

¡¡

¡

are critical for safety.

¡¡

¡¡

¡ sont critiques pour la

¡¡

The components identified by [ in this manual
have been carefully factory-selected for each
set in order to satisfy regulations regarding X­ray radiation. Should replacement be required,
replace only with the value originally used.

• Items marked " * " are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

• All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.

SECTION 8

REF.NO. PART NO. DESCRIPTION REMARK

V SERIES

COMMON P ARTS LISTING

RESISTORS

• All resistors are in ohms

• F : nonflammable

CAPACITORS

•

MF = µF

INDUCTORS

•

UH = µH, MMH = mH

When indicating parts by reference
number, please include the board name.

A

REF.NO. PART NO. DESCRIPTION REMARK

A

* A-1298-611-A A BOARD, COMPLETE

(KV-32V40 only)

* A-1298-613-A A BOARD, COMPLETE

(KV-34VL65C/34VL65/32V65CND only)

* A-1298-647-A A BOARD, COMPLETE

(KV-35V65CND/37VL65/37VL65C only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C001 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C003 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C005 1-126-960-11 ELECT 1MF 20% 50V
C009 1-126-967-11 ELECT 47MF 20% 50V
C010 1-163-033-91 CERAMIC CHIP 0.022MF 50V

C012 1-216-033-00 RES, CHIP 220 5% 1/10W
C013 1-216-121-91 RES, CHIP 1M 5% 1/10W
C014 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C023 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C028 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C029 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C030 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C035 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
C036 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C037 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C038 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C039 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C040 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C051 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C053 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C056 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C061 1-163-033-91 CERAMIC CHIP 0.022MF 50V
C062 1-163-033-91 CERAMIC CHIP 0.022MF 50V
C063 1-126-935-11 ELECT 470MF 20% 16V
C069 VARIANT(SEE VARIANT PARTS LIST)

REF.NO. PART NO. DESCRIPTION REMARK

C070 1-126-967-11 ELECT 47MF 20% 50V
C071 1-164-096-11 CERAMIC CHIP 0.01MF 50V
C072 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C075 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V
C353 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C354 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C355 1-126-959-11 ELECT 0.47MF 20% 50V
C356 1-126-963-11 ELECT 4.7MF 20% 50V
C357 1-126-959-11 ELECT 0.47MF 20% 50V
C358 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C359 1-126-933-11 ELECT 100MF 20% 16V
C363 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C364 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C365 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C366 1-130-495-00 FILM 0.1MF 5% 50V

C367 1-130-495-00 FILM 0.1MF 5% 50V
C368 1-130-495-00 FILM 0.1MF 5% 50V
C369 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C370 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C371 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V

C372 1-126-959-11 ELECT 0.47MF 20% 50V
C373 1-126-960-11 ELECT 1MF 20% 50V
C376 1-126-964-11 ELECT 10MF 20% 50V
C377 1-130-495-00 FILM 0.1MF 5% 50V
C378 1-130-495-00 FILM 0.1MF 5% 50V

C379 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C380 1-126-935-11 ELECT 470MF 20% 16V
C381 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C383 1-130-495-00 FILM 0.1MF 5% 50V
C385 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V

C386 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C387 1-126-961-11 ELECT 2.2MF 20% 50V
C388 1-126-959-11 ELECT 0.47MF 20% 50V
C390 1-126-960-11 ELECT 1MF 20% 50V
C391 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C392 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C461 VARIANT(SEE VARIANT PARTS LIST)
C462 VARIANT(SEE VARIANT PARTS LIST)

— 85 —

Note:

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

V SERIES

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

C463 VARIANT(SEE VARIANT PARTS LIST)
C464 VARIANT(SEE VARIANT PARTS LIST)
C466 VARIANT(SEE VARIANT PARTS LIST)
C467 VARIANT(SEE VARIANT PARTS LIST)
C468 VARIANT(SEE VARIANT PARTS LIST)

C470 VARIANT(SEE VARIANT PARTS LIST)
C471 VARIANT(SEE VARIANT PARTS LIST)
C472 VARIANT(SEE VARIANT PARTS LIST)
C473 VARIANT(SEE VARIANT PARTS LIST)
C474 VARIANT(SEE VARIANT PARTS LIST)

C475 VARIANT(SEE VARIANT PARTS LIST)
C476 VARIANT(SEE VARIANT PARTS LIST)
C477 VARIANT(SEE VARIANT PARTS LIST)
C478 VARIANT(SEE VARIANT PARTS LIST)
C479 VARIANT(SEE VARIANT PARTS LIST)

C501 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C502 1-126-959-11 ELECT 0.47MF 20% 50V
C503 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C504 1-102-212-00 CERAMIC CHIP 820PF 10% 500V
C505 1-102-002-00 CERAMIC CHIP 680PF 10% 500V

C506 1-106-383-00 MYLAR 0.047MF 10% 200V
C507 ¡ 1-162-116-00 CERAMIC CHIP2 680PF 10% 2KV

C508 1-102-244-00 CERAMIC CHIP 220PF 10% 500V
C509 1-162-116-00 CERAMIC CHIP 680PF 10% 2KV
C510 1-137-150-11 MYLAR 0.01MF 10% 100V

C542 VARIANT(SEE VARIANT PARTS LIST)
C545 1-106-387-00 MYLAR 0.068MF 10% 200V
C546 1-106-343-00 MYLAR 0.001MF 10% 100V
C547 1-106-343-00 MYLAR 0.001MF 10% 100V
C551 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C561 1-126-967-11 ELECT 47MF 20% 50V
C563 1-126-934-11 ELECT 220MF 20% 10V
C564 1-126-960-11 ELECT 1MF 20% 50V
C565 1-126-969-11 ELECT 220MF 20% 50V
C566 1-126-964-11 ELECT 10MF 20% 50V

C568 1-136-169-00 FILM 0.22MF 5% 50V
C571 1-104-664-11 ELECT 47MF 20% 25V
C1002 1-126-964-11 ELECT 10MF 20% 50V
C1101 1-126-768-11 ELECT 2200MF 20% 16V
C1103 1-126-965-11 ELECT 22MF 20% 50V

C1104 1-104-664-11 ELECT 47MF 20% 16V
C1105 1-104-664-11 ELECT 47MF 20% 16V
C1106 1-126-964-11 ELECT 10MF 20% 50V
C1107 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C1108 1-126-960-11 ELECT 1MF 20% 50V

C1109 1-126-964-11 ELECT 10MF 20% 50V
C1110 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1111 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1112 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C1351 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C511 ¡ 1-115-460-11 FILM 0.022MF 3% 1.2KV
C513 VARIANT(SEE VARIANT PARTS LIST)
C514 VARIANT(SEE VARIANT PARTS LIST)
C515 1-106-343-00 MYLAR 0.001MF 10% 100V
C516 1-115-461-11 FILM 2MF 5% 200V

C517 1-107-649-11 ELECT 2.2MF 20% 250V
C518 1-106-395-00 MYLAR 0.15MF 10% 200V
C519 1-162-815-11 CERAMIC CHIP 47PF 5% 500V
C520 VARIANT(SEE VARIANT PARTS LIST)
C521 VARIANT(SEE VARIANT PARTS LIST)

C522 1-126-960-11 ELECT 1MF 20% 50V
C525 1-102-244-00 CERAMIC CHIP 220PF 10% 500V
C526 1-107-662-11 ELECT 22MF 20% 250V
C527 1-162-116-00 CERAMIC CHIP 680PF 10% 2KV
C528 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V

C529 1-128-551-11 ELECT 22MF 20% 25V
C530 1-137-366-11 FILM 0.0022MF 5% 50V
C531 1-126-965-11 ELECT 22MF 20% 50V
C532 1-126-965-11 ELECT 22MF 20% 50V
C537 VARIANT(SEE VARIANT PARTS LIST)

C539 VARIANT(SEE VARIANT PARTS LIST)
C540 1-123-024-21 ELECT 33MF 160V
C541 1-128-560-11 ELECT 22MF 20% 100V

C1352 1-126-933-11 ELECT 100MF 20% 16V
C1353 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C1354 1-216-295-91 SHORT
C1501 VARIANT(SEE VARIANT PARTS LIST)

CONNECTOR

CN270 1-573-298-11 CONNECTOR, BOARD TO BOARD 20P
CN271 1-573-978-21 CONNECTOR, BOARD TO BOARD 11P
CN351 * 1-564-509-11 PLUG, CONNECTOR 6P
CN461 * VARIANT(SEE VARIANT PARTS LIST)
CN501 * 1-580-798-11 CONNECTOR PIN (DY) 6P

CN503 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1001* 1-564-512-11 PLUG, CONNECTOR 9P
CN1101 VARIANT(SEE VARIANT PARTS LIST)
CN1231 1-564-511-11 PLUG, CONNECTOR 8P
CN1641* 1-564-515-11 PLUG, CONNECTOR 12P

CN1941* 1-564-508-11 PLUG, CONNECTOR 5P
CN3001 VARIANT(SEE VARIANT PARTS LIST)

DIODE

D001 8-719-991-33 DIODE 1SS133T-77
D002 8-719-109-89 DIODE RD5.6ESB2
D003 8-719-991-33 DIODE 1SS133T-77

— 86 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

V SERIES

COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

D004 8-719-110-17 DIODE RD10ESB2
D011 8-719-983-20 DIODE MTZJ-T-77-4.3C
D013 8-719-991-33 DIODE 1SS133T-77
D014 8-719-991-33 DIODE 1SS133T-77
D015 8-719-991-33 DIODE 1SS133T-77

D353 8-719-991-33 DIODE 1SS133T-77
D356 8-719-991-33 DIODE 1SS133T-77
D360 8-719-110-17 DIODE RD10ESB2
D362 8-719-991-33 DIODE 1SS133T-77
D368 VARIANT(SEE VARIANT PARTS LIST)

D462 8-719-991-33 DIODE 1SS133T-77
D501 8-719-109-89 DIODE RD5.6ESB2
D502 8-719-945-80 DIODE ERC06-15S
D503 8-719-945-80 DIODE ERC06-15S
D504 8-719-900-26 DIODE ERD29-08J

D505 8-719-908-03 DIODE GP08D
D506 8-719-908-03 DIODE GP08D
D507 8-719-991-33 DIODE 1SS133T-77
D515 8-719-302-43 DIODE EL1Z
D516 8-719-991-33 DIODE 1SS133T-77

D518 8-719-991-33 DIODE 1SS133T-77
D519 ¡ 8-719-302-43 DIODE EL1Z

D520 8-719-991-33 DIODE 1SS133T-77
D521 8-719-921-63 DIODE MTZJ-7.5B
D530 8-719-979-85 DIODE EGP20G

REF.NO. PART NO. DESCRIPTION REMARK

CHIP CONDUCTOR

JR001 VARIANT(SEE VARIANT PARTS LIST)
JR200 1-216-295-91 SHORT
JR201 VARIANT(SEE VARIANT PARTS LIST)
JR202 VARIANT(SEE VARIANT PARTS LIST)
JR351 VARIANT(SEE VARIANT PARTS LIST)

JR352 VARIANT(SEE VARIANT PARTS LIST)
JR463 VARIANT(SEE VARIANT PARTS LIST)
JR501 1-216-295-91 SHORT
JR1417 VARIANT(SEE VARIANT PARTS LIST)
JR1454 1-216-295-91 SHORT

JR1455 1-216-295-91 SHORT
JR1801 1-216-295-91 SHORT
JR1802 1-216-295-91 SHORT
JR1803 1-216-295-91 SHORT
JR1804 1-216-295-91 SHORT

JR4120 1-216-295-91 SHORT

COIL

L001 1-408-421-00 INDUCTOR 100UH
L002 1-408-421-00 INDUCTOR 100UH
L003 1-410-470-11 INDUCTOR 10UH
L004 1-410-470-11 INDUCTOR 10UH
L352 1-412-537-31 INDUCTOR 100UH

D531 8-719-979-85 DIODE EGP20G
D534 8-719-302-43 DIODE EL1Z
D561 8-719-908-03 DIODE GP08D
D562 8-719-991-33 DIODE 1SS133T-77
D1102 8-719-982-24 DIODE MTZJ-33A

D1103 8-719-109-89 DIODE RD5.6ESB2
D1263 8-719-110-17 DIODE RD10ESB2
D1264 8-719-110-17 DIODE RD10ESB2

FERRITE BEAD

FB501 1-410-396-41 FERRITE 0.45UH
FB502 1-410-397-21 FERRITE 1.1UH
FB503 1-410-397-21 FERRITE 1.1UH

IC

IC001 8-752-897-18 IC CXP85840A-011S
IC002 8-759-527-74 IC M24C02-MN6T
IC351 8-752-082-73 IC CXA2095S
IC461 VARIANT(SEE VARIANT PARTS LIST)
IC501 8-759-700-07 IC NJM2903M

IC561 8-759-980-58 IC TDA8172

L461 VARIANT(SEE VARIANT PARTS LIST)
L501 ¡ 1-411-976-11 COIL, HORIZONTAL LINEARITY

L502 1-412-552-11 INDUCTOR 2.2MMH
L503 1-406-677-11 INDUCTOR
L511 1-406-607-41 INDUCTOR

L517 1-412-552-11 INDUCTOR 2.2MMH
L541 VARIANT(SEE VARIANT PARTS LIST)
L1101 1-408-421-00 INDUCTOR 100UH
L1102 1-410-470-11 INDUCTOR 10UH

IC LINK

PS461 VARIANT(SEE VARIANT PARTS LIST)

TRANSISTOR

Q001 8-729-216-22 TRANSISTOR 2SA1162-G
Q002 8-729-422-27 TRANSISTOR 2SD601A-Q
Q003 8-729-422-27 TRANSISTOR 2SD601A-Q
Q004 8-729-216-22 TRANSISTOR 2SA1162-G
Q010 8-729-422-27 TRANSISTOR 2SD601A-Q

Q011 8-729-422-27 TRANSISTOR 2SD601A-Q
Q012 8-729-422-27 TRANSISTOR 2SD601A-Q
Q013 8-729-422-27 TRANSISTOR 2SD601A-Q

— 87 —

Note:

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

V SERIES

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

Q014 8-729-422-27 TRANSISTOR 2SD601A-Q
Q015 8-729-422-27 TRANSISTOR 2SD601A-Q
Q016 8-729-422-27 TRANSISTOR 2SD601A-Q
Q017 8-729-216-22 TRANSISTOR 2SA1162-G
Q301 8-729-216-22 TRANSISTOR 2SA1162-G

Q302 8-729-216-22 TRANSISTOR 2SA1162-G
Q303 8-729-216-22 TRANSISTOR 2SA1162-G
Q354 8-729-422-27 TRANSISTOR 2SD601A-Q
Q356 8-729-216-22 TRANSISTOR 2SA1162-G
Q357 8-729-422-27 TRANSISTOR 2SD601A-Q

Q358 8-729-422-27 TRANSISTOR 2SD601A-Q
Q461 VARIANT(SEE VARIANT PARTS LIST)
Q462 VARIANT(SEE VARIANT PARTS LIST)
Q501 8-729-140-50 TRANSISTOR 2SC3209LK
Q502 ¡ 8-729-035-75 TRANSISTOR 2SC5148(LBSONY)

Q511 ¡ 8-729-422-27 TRANSISTOR 2SD601A-Q
Q512 ¡ 8-729-809-29 TRANSISTOR 2SC4159-E
Q551 8-729-216-22 TRANSISTOR 2SA1162-G
Q552 8-729-422-27 TRANSISTOR 2SD601A-Q
Q561 8-729-422-27 TRANSISTOR 2SD601A-Q

Q562 8-729-422-27 TRANSISTOR 2SD601A-Q
Q563 8-729-105-08 TRANSISTOR 2SA1330-06
Q1102 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q1103 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX

RESISTOR

R001 1-216-045-00 RES, CHIP 680 5% 1/10W
R002 1-247-815-91 CARBON 220 5% 1/4W
R003 1-216-097-91 RES, CHIP 100K 5% 1/10W
R004 1-216-121-91 RES, CHIP 1M 5% 1/10W
R006 VARIANT(SEE VARIANT PARTS LIST)

R007 1-216-073-00 RES, CHIP 10K 5% 1/10W
R008 VARIANT(SEE VARIANT PARTS LIST)
R009 1-216-073-00 RES, CHIP 10K 5% 1/10W
R010 1-216-037-00 RES, CHIP 330 5% 1/10W
R011 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R012 VARIANT(SEE VARIANT PARTS LIST)
R013 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R014 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R015 1-216-073-00 RES, CHIP 10K 5% 1/10W
R016 1-216-073-00 RES, CHIP 10K 5% 1/10W

R019 1-249-425-11 CARBON 4.7K 5% 1/4W
R020 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R021 1-216-033-00 RES, CHIP 220 5% 1/10W
R022 1-249-429-11 CARBON 10K 5% 1/4W
R023 1-216-089-91 RES, CHIP 47K 5% 1/10W

R024 1-249-381-11 CARBON 1 5% 1/4W
R025 1-163-010-11 CERAMIC CHIP 0.0012MF 10% 50V
R026 1-163-038-91 CERAMIC CHIP 0.1MF 25V

— 88 —

R027 1-249-389-11 CARBON 4.7 5% 1/4W
R028 1-249-417-11 CARBON 1K 5% 1/4W
R029 1-216-025-91 RES, CHIP 100 5% 1/10W
R030 1-249-425-11 CARBON 4.7K 5% 1/4W
R031 VARIANT(SEE VARIANT PARTS LIST)

R032 1-247-815-91 CARBON 220 5% 1/4W
R036 1-216-049-91 RES, CHIP 1K 5% 1/10W
R037 1-216-049-91 RES, CHIP 1K 5% 1/10W
R038 1-216-049-91 RES, CHIP 1K 5% 1/10W
R039 1-247-807-31 CARBON 100 5% 1/4W

R040 VARIANT(SEE VARIANT PARTS LIST)
R041 VARIANT(SEE VARIANT PARTS LIST)
R042 VARIANT(SEE VARIANT PARTS LIST)
R044 1-216-033-00 RES, CHIP 220 5% 1/10W
R045 VARIANT(SEE VARIANT PARTS LIST)

R046 1-247-815-91 CARBON 220 5% 1/4W
R047 1-249-417-11 CARBON 1K 5% 1/4W
R048 1-249-417-11 CARBON 1K 5% 1/4W
R049 1-249-417-11 CARBON 1K 5% 1/4W
R052 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

R053 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R054 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R055 1-216-097-91 RES, CHIP 100K 5% 1/10W
R056 1-216-033-00 RES, CHIP 220 5% 1/10W
R057 1-249-417-11 CARBON 1K 5% 1/4W

R058 1-216-033-00 RES, CHIP 220 5% 1/10W
R064 1-216-033-00 RES, CHIP 220 5% 1/10W
R065 1-216-033-00 RES, CHIP 220 5% 1/10W
R066 1-216-033-00 RES, CHIP 220 5% 1/10W
R067 1-216-041-00 RES, CHIP 470 5% 1/10W

R068 1-247-815-91 CARBON 220 5% 1/4W
R069 VARIANT(SEE VARIANT PARTS LIST)
R070 1-249-421-11 CARBON 2.2K 5% 1/4W
R071 1-247-815-91 CARBON 220 5% 1/4W
R072 1-216-033-00 RES, CHIP 220 5% 1/10W

R073 1-216-033-00 RES, CHIP 220 5% 1/10W
R074 1-216-033-00 RES, CHIP 220 5% 1/10W
R075 1-216-033-00 RES, CHIP 220 5% 1/10W
R076 1-216-033-00 RES, CHIP 220 5% 1/10W
R077 1-216-033-00 RES, CHIP 220 5% 1/10W

R078 1-249-417-11 CARBON 1K 5% 1/4W
R079 1-216-033-00 RES, CHIP 220 5% 1/10W
R080 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R081 1-216-025-91 RES, CHIP 100 5% 1/10W
R082 1-216-025-91 RES, CHIP 100 5% 1/10W

R083 1-249-429-11 CARBON 10K 5% 1/4W
R084 1-216-049-91 RES, CHIP 1K 5% 1/10W
R085 VARIANT(SEE VARIANT PARTS LIST)
R087 1-247-815-91 CARBON 220 5% 1/4W

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

V SERIES

COMMON P ARTS LISTING

A

REF.NO. PART NO. DESCRIPTION REMARK

R088 VARIANT(SEE VARIANT PARTS LIST)
R089 1-216-033-00 RES, CHIP 220 5% 1/10W
R090 VARIANT(SEE VARIANT PARTS LIST)
R092 1-249-429-11 CARBON 10K 5% 1/4W
R093 1-249-387-11 CARBON 3.3 5% 1/4W

R094 1-249-381-11 CARBON 1 5% 1/4W
R096 1-216-347-11 METAL OXIDE 0.68 5% 1W
R097 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R099 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R101 1-249-381-11 CARBON 1 5% 1/4W

R131 1-216-035-00 RES, CHIP 270 5% 1/10W
R132 1-216-115-00 RES, CHIP 560K 5% 1/10W
R133 1-216-039-00 RES, CHIP 390 5% 1/10W
R135 1-216-073-00 RES, CHIP 10K 5% 1/10W
R136 1-216-073-00 RES, CHIP 10K 5% 1/10W

R137 1-216-049-91 RES, CHIP 1K 5% 1/10W
R353 1-208-788-11 RES, CHIP 1.8K 0.50% 1/10W
R354 1-216-077-00 RES, CHIP 15K 5% 1/10W
R355 1-216-033-00 RES, CHIP 220 5% 1/10W
R356 1-216-033-00 RES, CHIP 220 5% 1/10W

R358 VARIANT(SEE VARIANT PARTS LIST)
R359 VARIANT(SEE VARIANT PARTS LIST)
R360 VARIANT(SEE VARIANT PARTS LIST)
R361 1-216-025-91 RES, CHIP 100 5% 1/10W
R362 1-216-025-91 RES, CHIP 100 5% 1/10W

R363 1-216-025-91 RES, CHIP 100 5% 1/10W
R364 1-216-101-00 RES, CHIP 150K 5% 1/10W
R365 1-216-101-00 RES, CHIP 150K 5% 1/10W
R366 1-216-089-91 RES, CHIP 47K 5% 1/10W
R367 1-216-097-91 RES, CHIP 100K 5% 1/10W

R368 1-249-441-11 CARBON 100K 5% 1/4W
R369 1-216-097-91 RES, CHIP 100K 5% 1/10W
R370 1-249-417-11 CARBON 1K 5% 1/4W
R371 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R372 1-216-113-00 RES, CHIP 470K 5% 1/10W

R373 1-216-073-00 RES, CHIP 10K 5% 1/10W
R374 1-216-125-00 RES, CHIP 1.5M 5% 1/10W
R375 1-216-025-91 RES, CHIP 100 5% 1/10W
R376 1-216-073-00 RES, CHIP 10K 5% 1/10W
R379 1-216-033-00 RES, CHIP 220 5% 1/10W

R380 1-247-815-91 CARBON 220 5% 1/4W
R381 1-247-815-91 CARBON 220 5% 1/4W
R382 1-216-033-00 RES, CHIP 220 5% 1/10W
R383 1-216-049-91 RES, CHIP 1K 5% 1/10W
R384 1-216-109-00 RES, CHIP 330K 5% 1/10W

R385 1-249-422-11 CARBON 2.7K 5% 1/4W
R386 VARIANT(SEE VARIANT PARTS LIST)
R387 1-216-049-91 RES, CHIP 1K 5% 1/10W
R388 1-216-089-91 RES, CHIP 47K 5% 1/10W

REF.NO. PART NO. DESCRIPTION REMARK

R389 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R390 1-216-035-00 RES, CHIP 270 5% 1/10W
R391 1-208-810-11 RES, CHIP 15K 0.50% 1/10W
R392 1-216-025-91 RES, CHIP 100 5% 1/10W

R393 1-216-043-91 RES, CHIP 560 5% 1/10W
R394 1-216-059-00 RES, CHIP 2.7K 5% 1/10W
R395 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R396 1-249-417-11 CARBON 1K 5% 1/4W
R397 1-249-425-11 CARBON 4.7K 5% 1/4W

R461 VARIANT(SEE VARIANT PARTS LIST)
R462 VARIANT(SEE VARIANT PARTS LIST)
R463 VARIANT(SEE VARIANT PARTS LIST)
R464 VARIANT(SEE VARIANT PARTS LIST)
R465 VARIANT(SEE VARIANT PARTS LIST)

R466 VARIANT(SEE VARIANT PARTS LIST)
R467 VARIANT(SEE VARIANT PARTS LIST)
R469 VARIANT(SEE VARIANT PARTS LIST)
R470 VARIANT(SEE VARIANT PARTS LIST)
R471 VARIANT(SEE VARIANT PARTS LIST)

R472 VARIANT(SEE VARIANT PARTS LIST)
R473 VARIANT(SEE VARIANT PARTS LIST)
R474 VARIANT(SEE VARIANT PARTS LIST)
R475 VARIANT(SEE VARIANT PARTS LIST)
R476 VARIANT(SEE VARIANT PARTS LIST)

R477 VARIANT(SEE VARIANT PARTS LIST)
R478 VARIANT(SEE VARIANT PARTS LIST)
R479 VARIANT(SEE VARIANT PARTS LIST)
R480 VARIANT(SEE VARIANT PARTS LIST)
R481 VARIANT(SEE VARIANT PARTS LIST)

R482 VARIANT(SEE VARIANT PARTS LIST)
R483 VARIANT(SEE VARIANT PARTS LIST)
R501 1-216-037-00 RES, CHIP 330 5% 1/10W
R502 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R503 1-249-426-11 CARBON 5.6K 5% 1/4W

R504 ¡ 1-215-915-11 METAL OXIDE 470 5% 3W
R505 1-249-431-11 CARBON 15K 5% 1/4W
R506 1-215-861-00 METAL OXIDE 47 5% 1W
R507 1-249-401-11 CARBON 47 5% 1/4W
R508 1-249-427-11 CARBON 6.8K 5% 1/4W

R509 1-247-750-11 CARBON 680 5% 1/2W
R510 ¡ 1-215-860-11 METAL OXIDE 33 5% 1W

R511 VARIANT(SEE VARIANT PARTS LIST)
R512 ¡ 1-215-886-11 METAL OXIDE 100 5% 2W

R515 VARIANT(SEE VARIANT PARTS LIST)

R516 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R517 1-249-415-11 CARBON 680 5% 1/4W
R518 1-216-073-00 RES, CHIP 10K 5% 1/10W
R519 1-249-411-11 CARBON 330 5% 1/4W
R521 1-215-915-11 METAL OXIDE 470 5% 3W

— 89 —

Note:

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

COMMON P ARTS LISTING

V SERIES

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

R523 VARIANT(SEE VARIANT PARTS LIST)
R524 1-249-429-11 CARBON 10K 5% 1/4W
R525 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R528 1-216-081-00 RES, CHIP 22K 5% 1/10W

R529 VARIANT(SEE VARIANT PARTS LIST)
R530 ¡ 1-208-808-11 RES, CHIP 12K 0.50% 1/10W

[

R531 VARIANT(SEE VARIANT PARTS LIST)
R532 1-208-760-11 RES, CHIP 120 0.50% 1/10W
R533 VARIANT(SEE VARIANT PARTS LIST)

R535 1-216-101-00 RES, CHIP 150K 5% 1/10W
R536 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W
R537 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W

R538 1-247-887-00 CARBON 220K 5% 1/4W
R541 VARIANT(SEE VARIANT PARTS LIST)

R542 VARIANT(SEE VARIANT PARTS LIST)
R543 1-249-377-11 CARBON 0.47 5% 1/4W
R546 VARIANT(SEE VARIANT PARTS LIST)
R547 1-215-457-00 METAL OXIDE 33K 1% 1/4W
R549 1-215-437-00 METAL OXIDE 4.7K 1% 1/4W

R550 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W
R551 ¡ 1-215-873-00 METAL OXIDE 4.7K 5% 1W
R552 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R553 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W
R554 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R1107 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1108 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1109 1-216-019-00 RES, CHIP 56 5% 1/10W
R1110 1-216-019-00 RES, CHIP 56 5% 1/10W

R1111 1-216-019-00 RES, CHIP 56 5% 1/10W
R1115 1-216-045-00 RES, CHIP 680 5% 1/10W
R1117 1-249-425-11 CARBON 4.7K 5% 1/4W
R1118 1-249-425-11 CARBON 4.7K 5% 1/4W
R1120 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R1121 1-216-035-00 RES, CHIP 270 5% 1/10W
R1122 1-216-115-00 RES, CHIP 560K 5% 1/10W
R1123 1-216-039-00 RES, CHIP 390 5% 1/10W
R1125 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1126 1-216-035-00 RES, CHIP 270 5% 1/10W

R1127 1-216-115-00 RES, CHIP 560K 5% 1/10W
R1128 1-216-039-00 RES, CHIP 390 5% 1/10W
R1130 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1351 1-247-815-91 CARBON 220 5% 1/4W
R1352 1-247-815-91 CARBON 220 5% 1/4W

R1353 1-247-815-91 CARBON 220 5% 1/4W
R1354 1-216-033-00 RES, CHIP 220 5% 1/10W
R1355 1-216-025-91 RES, CHIP 100 5% 1/10W
R1356 1-216-025-91 RES, CHIP 100 5% 1/10W
R1357 1-216-025-91 RES, CHIP 100 5% 1/10W

R561 1-216-073-00 RES, CHIP 10K 5% 1/10W
R563 ¡ 1-216-351-00 METAL OXIDE 1.5 5% 1W

R564 1-249-393-11 CARBON 10 5% 1/4W
R565 ¡ 1-215-890-11 METAL OXIDE 470 5% 2W

R566 1-216-073-00 RES, CHIP 10K 5% 1/10W

R567 ¡ 1-249-385-11 CARBON 2.2 5% 1/4W
R568 1-216-073-00 RES, CHIP 10K 5% 1/10W
R569 1-216-073-00 RES, CHIP 10K 5% 1/10W
R570 1-216-097-91 RES, CHIP 100K 5% 1/10W
R571 1-216-081-00 RES, CHIP 22K 5% 1/10W

R572 1-216-081-00 RES, CHIP 22K 5% 1/10W
R573 1-216-097-91 RES, CHIP 100K 5% 1/10W
R574 ¡ 1-216-365-00 METAL OXIDE 0.47 5% 2W
R575 1-216-113-00 RES, CHIP 470K 5% 1/10W
R576 1-216-073-00 RES, CHIP 10K 5% 1/10W

R577 1-216-097-91 RES, CHIP 100K 5% 1/10W
R578 1-208-784-11 RES, CHIP 1.2K 0.50% 1/10W
R579 1-208-842-11 RES, CHIP 330K 0.50% 1/10W
R580 1-249-441-11 CARBON 100K 5% 1/4W
R1101 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1102 1-215-900-11 METAL OXIDE 22K 5% 2W
R1103 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
R1104 1-216-083-00 RES, CHIP 27K 5% 1/10W
R1105 1-216-689-11 RES, CHIP 39K 5% 1/10W
R1106 1-216-049-91 RES, CHIP 1K 5% 1/10W

R1358 1-247-807-31 CARBON 100 5% 1/4W
R1359 1-216-025-91 RES, CHIP 100 5% 1/10W
R1360 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R1361 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1362 1-216-295-91 SHORT

SWITCH

S501 1-572-707-11 SWITCH, LEVER

TRANSFORMER

T501 1-437-210-11 TRANSFORMER, HORIZONTAL DRIVE
T502 VARIANT(SEE VARIANT PARTS LIST)
T503 VARIANT(SEE VARIANT PARTS LIST)
T504 VARIANT(SEE VARIANT PARTS LIST)

TUNER

TU102 ¡ 8-598-431-00 TUNER, FSS BTF-WA411

CRYSTAL

X001 1-578-774-11 VIBRATOR, CRYSTAL
X353 1-567-505-11 OSCILLATOR, CRYSTAL
X354 1-577-611-11 OSCILLATOR, CERAMIC CHIP

— 90 —

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -32S40/34SL40/34SL40C

S SERIES

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

REF.NO. PART NO. DESCRIPTION REMARK

A BOARD VARIANT LIST:
KV-32S40/34SL40/34SL40C

* A-1298-630-A A BOARD, COMPLETE
CAPACITOR

C068 1-164-096-11 CERAMIC CHIP 0.01MF 50V
C370 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C375 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C513 ¡ 1-130-895-00 FILM 0.056MF 5% 400V
C514 ¡ 1-104-844-11 FILM 0.62MF 5% 200V

C520 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V
C521 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C537 1-126-941-11 ELECT 470MF 20% 25V
C539 ¡ 1-126-935-11 ELECT 470MF 20% 16V
C1501 1-115-462-11 FILM 0.12MF 5% 200V

DIODE

D005 8-719-991-33 DIODE 1SS133T-77
D006 1-810-039-31 LED UNIT

REF.NO. PART NO. DESCRIPTION REMARK

R535 1-216-101-00 RES, CHIP 150K 5% 1/10W
R546 1-215-453-00 METAL 22K 1% 1/4W
R1009 1-216-033-00 RES, CHIP 220 5% 1/10W
R1010 1-216-033-00 RES, CHIP 220 5% 1/10W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE
S002 1-692-431-21 SWITCH, TACTILE
S003 1-692-431-21 SWITCH, TACTILE
S004 1-692-431-21 SWITCH, TACTILE
S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE
S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T502 ¡ 1-424-545-11 TRANSFORMER FERRITE (PMT)
T503 ¡ 1-453-207-11 FLYBACK TRANSFORMER ASSY, NX-2609//X4C

TUNER

TU102 ¡ 8-598-431-00 TUNER, FSS BTF-WA411

IC

IC003 8-742-014-11 HYB IC SBX1981-51
IC1261 8-759-366-77 IC MM1311AD

CHIP CONDUCTOR

JR351 1-216-295-91 SHORT
JR352 1-216-295-91 SHORT
JR1264 1-216-295-91 SHORT

RESISTOR

R059 1-216-047-91 RES, CHIP 820 5% 1/10W
R060 1-216-049-91 RES, CHIP 1K 5% 1/10W
R061 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R062 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R063 1-216-073-00 RES, CHIP 10K 5% 1/10W

R365 1-216-101-00 RES, CHIP 150K 5% 1/10W
R374 1-216-125-00 RES, CHIP 1.5M 5% 1/10W
R469 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R472 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R511 ¡ 1-215-885-00 METAL 68 5% 2W

R515 1-216-083-00 RES, CHIP 27K 5% 1/10W
R523 1-216-073-00 RES, CHIP 10K 5% 1/10W
R529 1-208-814-11 RES, CHIP 22K 0.50% 1/10W

[

R531 ¡ 1-208-826-11 RES, CHIP 68K 0.50% 1/10W
R533 ¡ 1-215-902-11 METAL 47K 5% 1W

— 80 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

A BOARD VARIANT LIST: KV-32S45/34SL45

* A-1298-631-A A BOARD, COMPLETE

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi-

nally used.

R523 1-216-073-00 RES, CHIP 10K 5% 1/10W
R529 1-208-814-11 RES, CHIP 22K 0.50% 1/10W
R531 ¡ 1-208-826-11 RES, CHIP 68K 0.50% 1/10W

[

R533 ¡ 1-215-902-11 METAL 47K 5% 1W
R535 1-216-101-00 RES, CHIP 150K 5% 1/10W

A

S SERIES

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -32S45/34SL45

CAPACITOR

R546 1-215-453-00 METAL 22K 1% 1/4W

C370 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C513 ¡ 1-130-895-00 FILM 0.056MF 5% 400V
C514 ¡ 1-104-844-11 FILM 0.62MF 5% 200V

C520 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V
C521 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V

C537 1-126-941-11 ELECT 470MF 20% 25V
C539 ¡ 1-126-935-11 ELECT 470MF 20% 16V

C1241 1-136-161-00 FILM 0.047MF 5% 50V
C1242 1-126-960-11 ELECT 1MF 20% 50V
C1243 1-126-960-11 ELECT 1MF 20% 50V

R1249 1-216-022-00 RES, CHIP 75 5% 1/10W
R1250 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1251 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1252 1-216-113-00 RES, CHIP 470K 5% 1/10W

R1253 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1273 1-216-033-00 RES, CHIP 220 5% 1/10W
R1274 1-216-025-91 RES, CHIP 100 5% 1/10W
R1283 1-247-791-91 CARBON 22 5% 1/4W
R1297 1-216-025-91 RES, CHIP 100 5% 1/10W

TRANSFORMER

C1501 1-115-462-11 FILM 0.12MF 5% 200V

CONNECTOR

T502 ¡ 1-424-545-11 TRANSFORMER FERRITE (PMT)
T503 ¡ 1-453-207-11 FLYBACK TRANSFORMER ASSY, NX-2609//X4C

CN1001* 1-564-512-11 PLUG, CONNECTOR 9P
CN3001 1-573-298-11 CONNECTOR, BOARD TO BOARD

DIODE

D368 8-719-991-33 DIODE 1SS133T-77

IC

IC1261 8-759-534-81 IC MM1313AD

JACK

J1233 1-774-749-11 JACK BLOCK, PIN

RESISTOR

R012 1-216-033-00 RES, CHIP 220 5% 1/10W
R022 1-249-429-11 CARBON 10K 5% 1/4W
R031 1-247-815-91 CARBON 220 5% 1/4W
R358 1-247-815-91 CARBON 220 5% 1/4W
R359 1-247-815-91 CARBON 220 5% 1/4W

R360 1-247-815-91 CARBON 220 5% 1/4W
R365 1-216-101-00 RES, CHIP 150K 5% 1/10W
R374 1-216-125-00 RES, CHIP 1.5M 5% 1/10W
R386 1-216-049-91 RES, CHIP 1K 5% 1/10W
R469 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

TUNER

TU102 ¡ 8-598-431-00 TUNER, FSS BTF-WA411

R472 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R511 ¡ 1-215-885-00 METAL 68 5% 2W

R515 1-216-083-00 RES, CHIP 27K 5% 1/10W

— 81 —

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -35S40

S SERIES

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected

for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

REF.NO. PART NO. DESCRIPTION REMARK

A BOARD VARIANT LIST: KV-35S40

* A-1298-645-A A BOARD COMPLETE

CAPACITOR

C069 1-126-964-11 ELECT 10MF 20% 50V
C370 1-163-035-00 CERAMIC CHIP 0.047MF 50V
C375 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C513 ¡ 1-129-720-00 FILM 0.033MF 5% 630V
C514 ¡ 1-136-540-11 FILM 0.82MF 5% 200V

C520 1-101-821-00 CERAMIC CHIP 0.0022MF 500V
C521 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C537 1-126-942-61 ELECT 1000MF 20% 25V
C539 ¡ 1-126-942-61 ELECT 1000MF 20% 25V
C542 1-106-383-00 MYLAR 0.047MF 10% 200V

C1241 1-136-161-00 FILM 0.047MF 5% 50V
C1242 1-126-960-11 ELECT 1MF 20% 50V
C1243 1-126-960-11 ELECT 1MF 20% 50V

CONNECTOR

CN1001* 1-564-512-11 PLUG, CONNECTOR 9P

IC

IC1261 8-759-366-77 IC MM1311AD

JACK

J1233 1-774-749-11 JACK BLOCK, PIN

CHIP CONDUCTOR

REF.NO. PART NO. DESCRIPTION REMARK

R469 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R472 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R511 ¡ 1-215-886-11 METAL 100 5% 2W
R515 1-216-077-00 RES, CHIP 15K 5% 1/10W
R523 1-216-071-00 RES, CHIP 8.2K 5% 1/10W

R529 1-208-812-11 RES, CHIP 18K 0.50% 1/10W

[

R531 ¡ 1-208-838-11 RES, CHIP 220K 0.50% 1/10W
R533 ¡ 1-215-878-00 METAL 33K 5% 1W
R535 1-216-103-00 RES, CHIP 180K 5% 1/10W
R541 1-249-377-11 CARBON 0.47 5% 1/4W

R542 1-249-397-11 CARBON 22 5% 1/4W
R546 1-215-451-00 METAL 18K 1% 1/4W
R1249 1-216-022-00 RES, CHIP 75 5% 1/10W
R1250 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1251 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R1252 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1253 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1273 1-216-033-00 RES, CHIP 220 5% 1/10W
R1274 1-216-025-91 RES, CHIP 100 5% 1/10W
R1283 1-247-791-91 CARBON 22 5% 1/4W

R1296 1-216-025-91 RES, CHIP 100 5% 1/10W

TRANSFORMER

T502 ¡ 1-429-408-11 TRANSFORMER FERRITE (PMT)
T503 ¡ X-4034-797-1 FLYBACK TRANSFORMER ASSY, NX-3005//J1C
T504 1-413-059-00 TRANSFORMER FERRITE (DFT)

TUNER

TU102 ¡ 8-598-431-00 TUNER, FSS BTF-WA411

JR351 1-216-295-91 SHORT
JR352 1-216-295-91 SHORT
JR1264 1-216-295-91 SHORT

COIL

L541 1-406-677-11 INDUCTOR

RESISTOR

R022 1-249-429-11 CARBON 10K 5% 1/4W
R069 1-216-073-00 RES, CHIP 10K 5% 1/10W
R085 1-216-073-00 RES, CHIP 10K 5% 1/10W
R365 1-216-097-91 RES, CHIP 100K 5% 1/10W
R374 1-216-121-91 RES, CHIP 1M 5% 1/10W

— 82 —

Note:

The components identified
with shading and a critical

¡¡

symbol (
safety. Replace only with
part number specified.

¡

) are critical for

¡¡

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Note:

The components identified by [ in this
manual have been carefully factory-selected

for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -35S45/37SL45

S SERIES

A BOARD VARIANT LIST: KV-35S45/37SL45

* A-1298-646-A A BOARD, COMPLETE

CAPACITOR

C069 1-126-964-11 ELECT 10MF 20% 50V
C370 1-163-035-00 CERAMIC CHIP 0.047MF 50V
C513 ¡ 1-129-720-00 FILM 0.033MF 5% 630V
C514 ¡ 1-136-540-11 FILM 0.82MF 5% 200V
C520 1-101-821-00 CERAMIC CHIP 0.0022MF 500V

C521 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C537 1-126-942-61 ELECT 1000MF 20% 25V
C539 ¡ 1-126-942-61 ELECT 1000MF 20% 25V
C542 1-106-383-00 MYLAR 0.047MF 10% 200V
C1241 1-136-161-00 FILM 0.047MF 5% 50V

C1242 1-126-960-11 ELECT 1MF 20% 50V
C1243 1-126-960-11 ELECT 1MF 20% 50V

CONNECTOR

CN1001* 1-564-512-11 PLUG, CONNECTOR 9P
CN3001 1-573-298-11 CONNECTOR, BOARD TO BOARD

DIODE

D368 8-719-991-33 DIODE 1SS133T-77

IC

IC1261 8-759-534-81 IC MM1313AD

JACK

J1233 1-774-749-11 JACK BLOCK, PIN

R386 1-216-049-91 RES, CHIP 1K 5% 1/10W
R469 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R472 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R511 ¡ 1-215-886-11 METAL 100 5% 2W
R515 1-216-077-00 RES, CHIP 15K 5% 1/10W

R523 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R529 1-208-812-11 RES, CHIP 18K 0.50% 1/10W

[

R531 ¡ 1-208-838-11 RES, CHIP 220K 0.50% 1/10W
R533 ¡ 1-215-878-00 METAL 33K 5% 1W
R535 1-216-103-00 RES, CHIP 180K 5% 1/10W

R541 1-249-377-11 CARBON 0.47 5% 1/4W
R542 1-249-397-11 CARBON 22 5% 1/4W
R546 1-215-451-00 METAL 18K 1% 1/4W
R1249 1-216-022-00 RES, CHIP 75 5% 1/10W
R1250 1-216-113-00 RES, CHIP 470K 5% 1/10W

R1251 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1252 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1253 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1273 1-216-033-00 RES, CHIP 220 5% 1/10W
R1274 1-216-025-91 RES, CHIP 100 5% 1/10W

R1283 1-247-791-91 CARBON 22 5% 1/4W
R1297 1-216-025-91 RES, CHIP 100 5% 1/10W

TRANSFORMER

T502 ¡ 1-429-408-11 TRANSFORMER FERRITE (PMT)
T503 ¡ X-4034-797-1 FLYBACK TRANSFORMER ASSY, NX-3005//J1C
T504 1-413-059-00 TRANSFORMER FERRITE (DFT)

TUNER

TU102 ¡ 8-598-431-00 TUNER, FSS 2BTF-WA411

COIL

L541 1-406-677-11 INDUCTOR

RESISTOR

R012 1-216-033-00 RES, CHIP 220 5% 1/10W
R022 1-249-429-11 CARBON 10K 5% 1/4W
R031 1-247-815-91 CARBON 220 5% 1/4W
R069 1-216-073-00 RES, CHIP 10K 5% 1/10W
R085 1-216-073-00 RES, CHIP 10K 5% 1/10W

R358 1-247-815-91 CARBON 220 5% 1/4W
R359 1-247-815-91 CARBON 220 5% 1/4W
R360 1-247-815-91 CARBON 220 5% 1/4W
R365 1-216-097-91 RES, CHIP 100K 5% 1/10W
R374 1-216-121-91 RES, CHIP 1M 5% 1/10W

— 83 —

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV-34SL40T

S SERIES

Note:

The components identified
with shading and a critical

¡¡

symbol (
safety. Replace only with
part number specified.

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

REF.NO. PART NO. DESCRIPTION REMARK

A BOARD VARIANT LIST: KV-34SL40T

* A-1298-661-A A BOARD, COMPLETE

CAPACITOR

C068 1-164-096-11 CERAMIC CHIP 0.01MF 50V
C370 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V
C375 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C513 ¡ 1-130-895-00 FILM 0.056MF 5% 400V
C514 ¡ 1-104-844-11 FILM 0.62MF 5% 200V

C520 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V
C521 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C537 1-126-941-11 ELECT 470MF 20% 25V
C539 ¡ 1-126-935-11 ELECT 470MF 20% 16V
C1501 1-115-462-11 FILM 0.12MF 5% 200V

DIODE

D005 8-719-991-33 DIODE 1SS133T-77
D006 1-810-039-31 LED UNIT

IC

REF.NO. PART NO. DESCRIPTION REMARK

R535 1-216-101-00 RES, CHIP 150K 5% 1/10W
R546 1-215-453-00 METAL 22K 1% 1/4W
R1009 1-216-033-00 RES, CHIP 220 5% 1/10W
R1010 1-216-033-00 RES, CHIP 220 5% 1/10W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE
S002 1-692-431-21 SWITCH, TACTILE
S003 1-692-431-21 SWITCH, TACTILE
S004 1-692-431-21 SWITCH, TACTILE
S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE
S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T502 ¡ 1-424-545-11 TRANSFORMER, FERRITE (PMT)
T503 ¡ 1-453-207-11 FLYBACK TRANSFORMER ASSY, NX-2609//X4C

TUNER

TU102 ¡ 8-598-477-00 FSS TUNER BTF-WG411

IC003 8-742-014-11 HYB IC SBX1981-51
IC1261 8-759-366-77 IC MM1311AD

CHIP CONDUCTOR

JR351 1-216-295-91 SHORT
JR352 1-216-295-91 SHORT
JR1264 1-216-295-91 SHORT

RESISTOR

R059 1-216-047-91 RES, CHIP 820 5% 1/10W
R060 1-216-049-91 RES, CHIP 1K 5% 1/10W
R061 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R062 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R063 1-216-073-00 RES, CHIP 10K 5% 1/10W

R365 1-216-101-00 RES, CHIP 150K 5% 1/10W
R374 1-216-125-00 RES, CHIP 1.5M 5% 1/10W
R469 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R472 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R511 ¡ 1-215-885-00 METAL 68 5% 2W

R515 1-216-083-00 RES, CHIP 27K 5% 1/10W
R523 1-216-073-00 RES, CHIP 10K 5% 1/10W
R529 1-208-814-11 RES, CHIP 22K 0.50% 1/10W

[

R531 ¡ 1-208-826-11 RES, CHIP 68K 0.50% 1/10W
R533 ¡ 1-215-902-11 METAL 47K 5% 1W

— 84 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re-

garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

V SERIES

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -32V40

A BOARD VARIANT LIST: KV-32V40

refno1 partno1 descrip1 volt-

* A-1298-611-A A BOARD, COMPLETE

C463

age1 percent1
1-

A-1298-611-AA COMPLETE
126-

BOARD

C461 1-126-964-11 ELECT 10MF 20% 50V
C462 1-126-961-11 ELECT 2.2MF 20% 50V

961-

C1501 1-115-462-1 1 FILM 5% 200V

C463 1-126-961-11 ELECT 2.2MF 20% 50V

11

C461 1-126-964-11 ELECT 20%

C464 1-163-017-00 CERAMIC 0.0047MF 10% 50V

ELECT

50V

C466 1-104-666-11 ELECT 220MF 20% 25V

20%

C462 1-126-961-11 ELECT 20%

C467 1-163-017-00 CERAMIC 0.0047MF 10% 50V

50V

50V

C468 1-104-664-11 ELECT 47MF 20% 25V

C464

C463 1-126-961-11 ELECT 20%

C470 1-126-961-11 ELECT 2.2MF 20% 50V

1-

C471 1-104-666-11 ELECT 220MF 20% 25V

50V

C472 1-136-173-00 FILM 0.47MF 5% 50V

163-

C464 1-163-017-00 CERAMIC CHIP
017-

10% 5 0 V

C473 1-136-169-00 FILM 0.22MF 5% 50V

00

C466 1-104-666-11 ELECT 20%

C474 1-126-942-61 ELECT 1000MF 20% 25V
C475 1-136-169-00 FILM 0.22MF 5% 50V

CERAMIC

25V

C476 1-126-942-61 ELECT 1000MF 20% 25V

CHIP

C467 1-163-017-00 CERAMIC CHIP

C477 1-126-942-61 ELECT 1000MF 20% 25V

10%

10% 5 0 V

C513 ¡ 1-130-895-00 FILM 0.056MF 5% 400V

50V

C468 1-104-664-11 ELECT 20%

C514 ¡ 1-104-844-11 FILM 0.62MF 5% 200V

C466

25V

C520 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V

1-

C470 1-126-961-11 ELECT 20%

C521 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C537 1-126-941-11 ELECT 470MF 20% 25V

104-

50V
666-

C471 1-104-666-11 ELECT 20%

C539 ¡ 1-126-935-11 ELECT 470MF 20% 16V

11

25V

C1501 1-115-462-11 FILM 0.12MF 5% 200V

ELECT

C472 1-136-173-00 FILM 5% 5 0 V
20%

C473 1-136-169-00 FILM 5% 5 0 V
25V

C474 1-126-942-61 ELECT 20%

CN461 1-564-507-11 PLUG, CONNECTOR 4P

C467

25V
1-

C475 1-136-169-00 FILM 5% 5 0 V
163-

C476 1-126-942-61 ELECT 20%

IC461 8-759-980-43 IC TDA2009A

017-

25V
00

C477 1-126-942-61 ELECT 20%
CERAMIC

25V

JR351 1-216-295-91 SHORT

CHIP

C513 1-130-895-00 FILM 5% 400V

JR352 1-216-295-91 SHORT
JR1417 1-216-295-91 SHORT

10%

C514 1-104-844-11 FILM 5% 200V
50V

C537 1-126-941-11 ELECT 20%
C468

25V

L461 1-410-472-41 INDUCTOR 15UH

1-

C539 1-126-935-11 ELECT 20%
104-

16V

CAPACITOR

CONNECTOR

IC

CHIP CONDUCTOR

COIL

PS461¡ 1-532-984-11 LINK, IC 2A/90V

Q461 8-729-422-27 TRANSISTOR 2SD601A-Q
Q462 8-729-216-22 TRANSISTOR 2SA1162-G
Q1103 8-729-422-27 TRANSISTOR 2SD601A-Q

R461 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R462 1-216-089-91 RES, CHIP 47K 5% 1/10W
R463 1-249-435-11 CARBON 33K 5% 1/4W
R464 1-216-097-91 RES, CHIP 100K 5% 1/10W
R465 1-249-413-11 CARBON 470 5% 1/4W

R466 1-249-385-11 CARBON 2.2 5% 1/4W
R467 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R469 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R470 1-216-077-00 RES, CHIP 15K 5% 1/10W
R471 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

R472 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R473 1-249-398-11 CARBON 27 5% 1/4W
R474 1-216-077-00 RES, CHIP 15K 5% 1/10W
R475 1-249-430-11 CARBON 12K 5% 1/4W
R476 1-249-430-11 CARBON 12K 5% 1/4W

R477 1-249-398-11 CARBON 27 5% 1/4W
R478 1-249-418-11 CARBON 1.2K 5% 1/4W
R479 1-249-418-11 CARBON 1.2K 5% 1/4W
R480 1-249-385-11 CARBON 2.2 5% 1/4W
R481 1-249-385-11 CARBON 2.2 5% 1/4W

R482 1-249-421-11 CARBON 2.2K 5% 1/4W
R483 1-249-421-11 CARBON 2.2K 5% 1/4W
R511 ¡ 1-215-885-00 METAL 68 5% 2W
R515 1-216-083-00 RES, CHIP 27K 5% 1/10W
R523 1-216-073-00 RES, CHIP 10K 5% 1/10W

R529 1-208-814-11 RES, CHIP 22K 0.50% 1/10W

[

R531 ¡ 1-208-826-11 RES, CHIP 68K 0.50% 1/10W
R533 ¡ 1-215-902-11 METAL 47K 5% 1W
R546 1-215-453-00 METAL 22K 1% 1/4W

T502 ¡ 1-424-545-11 TRANSFORMER FERRITE (PMT)
T503 ¡ 1-453-207-11 FLYBACK TRANSFORMER ASSY, NX-2609//X4C

IC LINK

TRANSISTOR

RESISTOR

TRANSFORMER

664-

— 91 —

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

Note:

KV -34VL65C/34VL65/32V65CND

V SERIES

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

The components identified by [ in this
manual have been carefully factory-selected

for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

REF.NO. PART NO. DESCRIPTION REMARK

A BOARD VARIANT LIST:
KV-34VL65C/34VL65/32V65CND

* A-1298-613-A A BOARD COMPLETE

CAPACITOR

C461 1-126-966-11 ELECT 33MF 20% 16V
C478 1-126-934-11 ELECT 220MF 20% 16V
C513 ¡ 1-130-895-00 FILM 0.056MF 5% 400V
C514 ¡ 1-104-844-11 FILM 0.62MF 5% 200V
C520 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V

C521 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C537 1-126-941-11 ELECT 470MF 20% 25V
C539 ¡ 1-126-935-11 ELECT 470MF 20% 16V
C1501 1-115-462-11 FILM 0.12MF 5% 200V

CONNECTOR

CN461 1-564-508-11 PLUG, CONNECTOR 5P
CN1101 1-573-298-11 CONNECTOR, BOARD TO BOARD
CN3001 1-573-298-11 CONNECTOR, BOARD TO BOARD

DIODE

REF.NO. PART NO. DESCRIPTION REMARK

R088 1-216-033-00 RES,CHIP 220 5% 1/10W
R090 1-216-033-00 RES,CHIP 220 5% 1/10W
R358 1-247-815-91 CARBON 220 5% 1/4W
R359 1-247-815-91 CARBON 220 5% 1/4W
R360 1-247-815-91 CARBON 220 5% 1/4W

R386 1-216-049-91 RES,CHIP 1K 5% 1/10W
R466 1-249-382-11 CARBON 1.2 5% 1/4W
R511 ¡ 1-215-885-00 METAL 68 5% 2W
R515 1-216-083-00 RES, CHIP 27K 5% 1/10W
R523 1-216-073-00 RES,CHIP 10K 5% 1/10W

R529 1-208-814-11 RES,CHIP 22K 0.50% 1/10W

[

R531 ¡ 1-208-826-11 RES,CHIP 68K 0.50% 1/10W
R533 ¡ 1-215-902-11 METAL 47K 5% 1W
R546 1-215-453-00 METAL 22K 1% 1/4W

TRANSFORMER

T502 ¡ 1-424-545-11 TRANSFORMER FERRITE (PMT)
T503 ¡ 1-453-207-11 FLYBACK TRANSFORMER ASSY, NX-2609//X4C

D368 8-719-991-33 DIODE 1SS133T-77

CHIP CONDUCTOR

JR001 1-216-295-91 SHORT
JR201 1-216-295-91 SHORT
JR202 1-216-295-91 SHORT
JR463 1-216-295-91 SHORT

COIL

L461 1-408-612-31 INDUCTOR 56UH

TRANSISTOR

Q1103 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R006 1-247-815-91 CARBON 220 5% 1/4W
R008 1-247-815-91 CARBON 220 5% 1/4W
R012 1-216-033-00 RES,CHIP 220 5% 1/10W
R031 1-247-815-91 CARBON 220 5% 1/4W
R040 1-247-815-91 CARBON 220 5% 1/4W

R041 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R042 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R045 1-247-815-91 CARBON 220 5% 1/4W

— 92 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Note:

The components identified by [ in this
manual have been carefully factory-selected
for each set in order to satisfy regulations re­garding X-ray radiation. Should replacement
be required, replace only with the value origi­nally used.

V SERIES

A

BOARD VARIANT PARTS LIST

The parts on this page belong to the following model(s) only:

KV -35V65CND/37VL65/37VL65C

A BOARD VARIANT LIST :
KV-35V65CND/37VL65/37VL65C

* A-1298-647-A A BOARD, COMPLETE

CAPACITOR

C069 1-126-964-11 ELECT 10MF 20% 50V
C461 1-126-964-11 ELECT 10MF 20% 50V
C478 1-126-934-11 ELECT 220MF 20% 16V
C479 1-126-964-11 ELECT 10MF 20% 50V
C513 ¡ 1-129-720-00 FILM 0.033MF 5% 630V

C514 ¡ 1-136-540-11 FILM 0.82MF 5% 200V
C520 1-101-821-00 CERAMIC CHIP 0.0022MF 500V
C521 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C537 1-126-942-61 ELECT 1000MF 20% 25V

C539 ¡ 1-126-942-61 ELECT 1000MF 20% 25V

C542 1-106-383-00 MYLAR 0.047MF 10% 200V

CONNECTOR

CN461 1-564-508-11 PLUG, CONNECTOR 5P
CN1101 1-573-298-11 CONNECTOR, BOARD TO BOARD
CN3001 1-573-298-11 CONNECTOR, BOARD TO BOARD

DIODE

D368 8-719-991-33 DIODE 1SS133T-77

R041 1-216-065-91 “RES,CHIP” 4.7K 5% 1/10W
R042 1-216-065-91 “RES,CHIP” 4.7K 5% 1/10W
R045 1-247-815-91 CARBON 220 5% 1/4W
R069 1-216-073-00 RES,CHIP 10K 5% 1/10W
R085 1-216-073-00 RES,CHIP 10K 5% 1/10W

R088 1-216-033-00 RES,CHIP 220 5% 1/10W
R090 1-216-033-00 RES,CHIP 220 5% 1/10W
R358 1-247-815-91 CARBON 220 5% 1/4W
R359 1-247-815-91 CARBON 220 5% 1/4W
R360 1-247-815-91 CARBON 220 5% 1/4W

R386 1-216-049-91 RES,CHIP 1K 5% 1/10W
R511 ¡ 1-215-886-11 METAL 100 5% 2W

R515 1-216-077-00 RES, CHIP 15K 5% 1/10W
R523 1-216-071-00 RES,CHIP 8.2K 5% 1/10W
R529 1-208-812-11 RES,CHIP 18K 0.50% 1/10W

[

R531 ¡ 1-208-838-11 RES,CHIP 220K 0.50% 1/10W
R533 ¡ 1-215-878-00 METAL 33K 5% 1W
R541 1-249-377-11 CARBON 0.47 5% 1/4W
R542 1-249-397-11 CARBON 22 5% 1/4W
R546 1-215-451-00 METAL 18K 1% 1/4W

TRANSFORMER

T502 ¡ 1-429-408-11 TRANSFORMER FERRITE (PMT)
T503 ¡ X-4034-797-1 FLYBACK TRANSFORMER ASSY, NX-3005//J1C
T504 1-413-059-00 TRANSFORMER FERRITE (DFT)

CHIP CONDUCTOR

JR001 1-216-295-91 SHORT
JR201 1-216-295-91 SHORT
JR202 1-216-295-91 SHORT
JR463 1-216-295-91 SHORT

COIL

L461 1-408-617-31 INDUCTOR 180UH
L541 1-406-677-11 INDUCTOR

TRANSISTOR

Q1103 8-729-120-28 TRANSISTOR 2SC1623-L5L6

RESISTOR

R006 1-247-815-91 CARBON 220 5% 1/4W
R008 1-247-815-91 CARBON 220 5% 1/4W
R012 1-216-033-00 RES,CHIP 220 5% 1/10W
R031 1-247-815-91 CARBON 220 5% 1/4W
R040 1-247-815-91 CARBON 220 5% 1/4W

— 93 —

AV

COMPLETE PARTS LISTING

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

REF.NO. PART NO. DESCRIPTION REMARK

REF.NO. PART NO. DESCRIPTION REMARK

COIL

AV

L102 1-410-470-11 INDUCTOR 10UH

* A-1298-612-A AV BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

CAPACITOR

C101 1-126-960-11 ELECT 1MF 20% 50V
C102 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C104 1-126-964-11 ELECT 10MF 20% 50V
C106 1-104-664-11 ELECT 47MF 20% 25V
C108 1-126-933-11 ELECT 100MF 20% 16V

C109 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C110 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V
C111 1-126-960-11 ELECT 1MF 20% 50V
C113 1-126-934-11 ELECT 220MF 20% 16V
C1904 1-102-129-00 CERAMIC 0.01MF 10% 50V

C1905 1-126-964-11 ELECT 10MF 20% 50V
C1906 1-102-129-00 CERAMIC 0.01MF 10% 50V
C1907 1-126-964-11 ELECT 10MF 20% 50V
C1908 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C1909 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

CONNECTOR

CN101 1-573-301-21 CONNECTOR, BOARD TO BOARD 20P
CN102 1-573-979-21 CONNECTOR, BOARD TO BOARD 11P
CN103 * 1-564-507-11 PLUG, CONNECTOR 4P
CN106 * 1-564-506-11 PLUG, CONNECTOR 3P

DIODE

D101 8-719-109-89 DIODE RD5.6ESB2
D103 8-719-991-33 DIODE 1SS133T-77
D104 8-719-991-33 DIODE 1SS133T-77
D105 8-719-991-33 DIODE 1SS133T-77
D106 8-719-991-33 DIODE 1SS133T-77

IC

IC1901 8-752-058-68 IC CXA1315M
IC1902 8-759-470-63 IC NJM2145M-TE2

CHIP CONDUCTOR

L105 1-408-421-00 INDUCTOR 100UH

TRANSISTOR

Q101 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q103 8-729-216-22 TRANSISTOR 2SA1162-G
Q104 8-729-216-22 TRANSISTOR 2SA1162-G
Q105 8-729-216-22 TRANSISTOR 2SA1162-G
Q1901 8-729-216-22 TRANSISTOR 2SA1162-G

Q1902 8-729-216-22 TRANSISTOR 2SA1162-G

RESISTOR

R101 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R102 1-216-083-00 RES, CHIP 27K 5% 1/10W
R103 1-216-689-11 RES, CHIP 39K 5% 1/10W
R104 1-216-045-00 RES, CHIP 680 5% 1/10W
R106 1-216-081-00 RES, CHIP 22K 5% 1/10W

R107 1-216-081-00 RES, CHIP 22K 5% 1/10W
R108 1-216-081-00 RES, CHIP 22K 5% 1/10W
R109 1-216-081-00 RES, CHIP 22K 5% 1/10W
R112 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R113 1-216-097-91 RES, CHIP 100K 5% 1/10W

R114 1-216-121-91 RES, CHIP 1M 5% 1/10W
R115 1-216-073-00 RES, CHIP 10K 5% 1/10W
R116 1-216-073-00 RES, CHIP 10K 5% 1/10W
R117 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R118 1-216-295-91 SHORT

R121 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1904 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1905 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2904 1-216-033-00 RES, CHIP 220 5% 1/10W
R2905 1-216-033-00 RES, CHIP 220 5% 1/10W

R2909 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2910 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2912 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2913 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2914 1-216-073-00 RES, CHIP 10K 5% 1/10W

JR101 1-216-295-91 SHORT
JR102 1-216-295-91 SHORT
JR103 1-216-295-91 SHORT
JR105 1-216-295-91 SHORT

TUNER

TU101 ¡ 8-598-430-00 TUNER, FSS BTF-FA401

— 94 —

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

C3537 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

B

* A-1135-948-A B BOARD, COMPLETE

(KV-32V40 only)

C3538 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3539 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3540 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C3541 1-104-664-11 ELECT 47MF 20% 25V

* A-1135-949-A B BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/
37VL65/37VL65C only)

* A-1135-950-A B BOARD, COMPLETE

(KV-32S40/34SL40/34SL40C/32S45/34SL45/35S40/35S45/
37SL45/34SL40T only)

C3542 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3543 1-104-664-11 ELECT 47MF 20% 25V
C3544 1-104-664-11 ELECT 47MF 20% 25V
C3545 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C3548 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

B

CAPACITOR

C3501 1-104-664-11 ELECT 47MF 20% 25V
C3502 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C3503 1-163-021-91 CERAMIC 0.01MF 10% 50V
C3504 1-126-964-11 ELECT 10MF 20% 50V
C3505 1-163-131-00 CERAMIC 390PF 5% 50V

C3506 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3507 1-126-963-11 ELECT 4.7MF 20% 50V
C3508 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3509 1-126-961-11 ELECT 2.2MF 20% 50V
C3510 1-163-229-11 CERAMIC CHIP 12PF 5% 50V

C3511 1-126-964-11 ELECT 10MF 20% 50V
C3512 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C3513 1-163-131-00 CERAMIC CHIP 390PF 5% 50V
C3514 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C3515 1-126-963-11 ELECT 4.7MF 20% 50V

C3516 1-163-089-00 CERAMIC CHIP 6PF 0.5PF 50V
C3517 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3518 1-126-941-11 ELECT 470MF 20% 25V
C3519 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3520 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C3521 1-104-664-11 ELECT 47MF 20% 25V
C3522 1-126-964-11 ELECT 10MF 20% 50V
C3523 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3524 1-104-664-11 ELECT 47MF 20% 25V
C3525 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C3526 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3527 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3528 1-164-222-11 CERAMIC CHIP 0.22MF 25V
C3529 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3530 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C3549 1-126-964-11 ELECT 10MF 20% 50V
C3550 1-104-664-11 ELECT 47MF 20% 25V
C3551 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3553 1-126-941-11 ELECT 470MF 20% 25V
C3556 1-128-551-11 ELECT 22MF 20% 25V

C3557 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

CONNECTOR

CN3502 * 1-573-978-21 CONNECTOR, BOARD TO BOARD 11P
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
CN3561 * 1-691-616-21 CONNECTOR, BOARD TO BOARD 15P
(KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
CN3570 * 1-764-816-11 CONNECTOR, BOARD TO BOARD 20P
(KV-32S40/34SL40/34SL40C/32S45/34SL45/35S40/35S45/37SL45/34SL40T only)

FILTER

FL3501 1-239-847-11 FILTER, LOW PASS
FL3502 1-239-847-11 FILTER, LOW PASS
FL3503 1-239-847-11 FILTER, LOW PASS

IC

IC3501 8-759-065-82 IC MM1093ND
IC3502 8-752-385-80 IC CXD2073S
IC3503 8-759-231-53 IC TA7805S

COIL

L3501 1-410-470-11 INDUCTOR 10UH
L3502 1-410-466-41 INDUCTOR 4.7UH
L3503 1-410-470-11 INDUCTOR 10UH
L3504 1-410-470-11 INDUCTOR 10UH
L3505 1-410-470-11 INDUCTOR 10UH

C3532 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C3533 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3534 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C3535 1-104-664-11 ELECT 47MF 20% 25V
C3536 1-126-964-11 ELECT 10MF 20% 50V

— 95 —

B

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

TRANSISTOR

Q3501 8-729-422-27 TRANSISTOR 2SD601A-Q
Q3502 8-729-216-22 TRANSISTOR 2SA1162-G
Q3503 8-729-422-27 TRANSISTOR 2SD601A-Q
Q3504 8-729-216-22 TRANSISTOR 2SA1162-G
Q3505 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3506 8-729-216-22 TRANSISTOR 2SA1162-G
Q3507 8-729-216-22 TRANSISTOR 2SA1162-G
Q3509 8-729-216-22 TRANSISTOR 2SA1162-G
Q3510 8-729-422-27 TRANSISTOR 2SD601A-Q
Q3516 8-729-216-22 TRANSISTOR 2SA1162-G

Q3555 8-729-216-22 TRANSISTOR 2SA1162-G

RESISTOR

R3501 1-216-091-00 RES, CHIP 56K 5% 1/10W
R3502 1-216-081-00 RES, CHIP 22K 5% 1/10W
R3503 1-216-009-00 RES, CHIP 22 5% 1/10W
R3504 1-216-029-00 RES, CHIP 150 5% 1/10W
R3505 1-216-037-00 RES, CHIP 330 5% 1/10W

R3506 1-216-035-00 RES, CHIP 270 5% 1/10W
R3507 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3508 1-216-043-91 RES, CHIP 560 5% 1/10W
R3509 1-216-075-00 RES, CHIP 12K 5% 1/10W
R3510 1-216-049-91 RES, CHIP 1K 5% 1/10W

REF.NO. PART NO. DESCRIPTION REMARK

R3537 1-216-043-91 RES, CHIP 560 5% 1/10W
R3538 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R3539 1-216-089-91 RES, CHIP 47K 5% 1/10W
R3540 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3541 1-216-081-00 RES, CHIP 22K 5% 1/10W

R3542 1-216-041-00 RES, CHIP 470 5% 1/10W
R3543 1-216-035-00 RES, CHIP 270 5% 1/10W
R3544 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3545 1-216-043-91 RES, CHIP 560 5% 1/10W
R3546 1-216-071-00 RES, CHIP 8.2K 5% 1/10W

R3547 1-216-089-91 RES, CHIP 47K 5% 1/10W
R3548 1-216-081-00 RES, CHIP 22K 5% 1/10W
R3549 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3550 1-208-774-11 RES, CHIP 470 0.50% 1/10W
R3551 1-208-764-11 RES, CHIP 180 0.50% 1/10W

R3565 1-216-295-91 SHORT
R3566 1-216-025-91 RES, CHIP 100 5% 1/10W
R3568 1-216-025-91 RES, CHIP 100 5% 1/10W
R3569 1-216-041-00 RES, CHIP 470 5% 1/10W
R3578 1-216-081-00 RES, CHIP 22K 5% 1/10W

R3579 1-216-081-00 RES, CHIP 22K 5% 1/10W
R3580 1-216-295-91 SHORT
R3596 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3597 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3599 1-208-774-11 RES, CHIP 470 0.50% 1/10W

R3511 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3512 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3513 1-216-041-00 RES, CHIP 470 5% 1/10W
R3514 1-216-121-91 RES, CHIP 1M 5% 1/10W
R3515 1-216-077-00 RES, CHIP 15K 5% 1/10W

R3516 1-216-037-00 RES, CHIP 330 5% 1/10W
R3517 1-216-077-00 RES, CHIP 15K 5% 1/10W
R3518 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R3520 1-208-766-11 RES, CHIP 220 0.50% 1/10W
R3521 1-208-766-11 RES, CHIP 220 0.50% 1/10W

R3522 1-208-774-11 RES, CHIP 470 0.50% 1/10W
R3523 1-208-778-11 RES, CHIP 680 0.50% 1/10W
R3524 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W
R3526 1-208-776-11 RES, CHIP 560 0.50% 1/10W
R3527 1-208-824-11 RES, CHIP 56K 0.50% 1/10W

R3529 1-216-295-91 SHORT
R3531 1-216-295-91 SHORT
R3534 1-216-295-91 SHORT
R3535 1-216-295-91 SHORT
R3536 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

CRYSTAL

X3501 1-567-505-11 OSCILLATOR, CRYSTAL

— 96 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

COMPLETE PARTS LISTING

C

TRANSISTOR

C

Q1790 8-729-119-76 TRANSISTOR 2SA1175-HFE

*A-1331-837-A C BOARD, COMPLETE

(KV-32V40/34VL65C/32V65CND/34VL65/32S40/34SL40/
34SL40C/32S45/34SL45/34SL40T only)

*A-1331-843-A C BOARD, COMPLETE

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C1750 1-137-528-11 FILM 0.1MF 10% 250V
C1751 1-107-652-11 ELECT 10MF 20% 250V
C1790 1-102-129-00 CERAMIC CHIP 0.01MF 10% 50V
C1791 1-126-968-11 ELECT 100MF 20% 50V
C1792 1-102-108-00 CERAMIC CHIP 150PF 10& 50V

C1794 1-107-651-11 ELECT 4.7MF 20% 250V

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)
C1795 1-102-074-00 CERAMIC CHIP 0.001MF 10% 50V
C1799 1-162-114-00 CERAMIC CHIP 0.0047MF 2KV

CONNECTOR

CN1761* 1-564-509-11 PLUG, CONNECTOR 6P
CN1764* 1-564-508-11 PLUG, CONNECTOR 5P
CN1765 1-695-915-11 TAB (CONTACT)

DIODE

D1790 8-719-991-33 DIODE 1SS133T-77
D1791 8-719-908-03 DIODE GP08D
D1792 8-719-908-03 DIODE GP08D

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)
D1793 8-719-908-03 DIODE GP08D
D1794 8-719-908-03 DIODE GP08D

R1750 1-247-870-11 CARBON 43K 5% 1/4W
R1763 1-260-099-11 CARBON 1K 5% 1/2W
R1764 1-247-807-31 CARBON 100 5% 1/4W
R1773 1-260-099-11 CARBON 1K 5% 1/2W
R1774 1-247-807-31 CARBON 100 5% 1/4W

R1783 1-260-099-11 CARBON 1K 5% 1/2W
R1784 1-247-807-31 CARBON 100 5% 1/4W
R1788 1-216-349-00 METAL OXIDE 1 5% 1W F
R1789 1-249-437-11 CARBON 47K 5% 1/4W
R1790 1-216-378-11 METAL OXIDE 5.6 5% 2W F

R1790 1-216-369-00 METAL OXIDE 1 5% 2W F

R1792 1-247-815-91 CARBON 220 5% 1/4W
R1793 1-247-866-11 CARBON 30K 5% 1/4W
R1794 1-260-132-11 CARBON 560K 5% 1/2W

R1795 1-260-087-11 CARBON 100 5% 1/2W

R1796 1-216-378-11 METAL OXIDE 5.6 5% 2W F

R1796 1-216-369-00 METAL OXIDE 1 5% 2W F

R1797 1-260-123-11 CARBON 100K 5% 1/2W

RESISTOR

(KV-32V40/34VL65C/32V65CND/34VL65/32S40/34SL40/
34SL40C/32S45/34SL45/34SL40T only)

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)

(KV-32V40/34VL65C/32V65CND/34VL65/32S40/34SL40/
34SL40C/32S45/34SL45/34SL40T only)

(KV-35V65CND/37VL65/37VL65C/35S40/35S45/37SL45 only)

D1795 8-719-908-03 DIODE GP08D

IC

IC1701 8-759-535-08 IC TDA6108Q

JACK

J1761 ¡ 1-251-388-11 SOCKET, CRT

COIL

L1790 1-410-671-31 INDUCTOR 47UH

— 97 —

G

COMPLETE PARTS LISTING

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

REF.NO. PART NO. DESCRIPTION REMARK

G

* A-1316-389-A G BOARD, COMPLETE

(KV-32V40/32S40/34SL40/32S45/34SL45 only)

* A-1316-390-A G BOARD, COMPLETE

(KV-34VL65C only)

* A-1316-391-A G BOARD, COMPLETE

(KV-32V65CND/34VL65 only)

* A-1316-395-A G BOARD, COMPLETE

(KV-34SL40C only)

* A-1316-396-A G BOARD, COMPLETE

KV-34SL40T only)

* A-1316-399-A G BOARD, COMPLETE

(KV-35S40/35S45/37SL45 only)

* A-1316-405-A G BOARD, COMPLETE

(KV-35V65CND/37VL65 only)

* A-1316-406-A G BOARD, COMPLETE

(KV-37VL65C only)

1-533-223-11 HOLDER, FUSE
4-382-854-11 SCREW(M3X10), P, SW (+)

CAPACITOR

REF.NO. PART NO. DESCRIPTION REMARK

C612 1-136-169-00 FILM 0.22MF 5% 50V

(KV-32V40/32S40/34SL40/32S45/34SL45/34SL40C/34SL40T/
35S40/35S45/37VL65 only)

C612 1-136-171-00 FILM 0.33MF 5% 50V

KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
C613 1-164-646-11 CERAMIC CHIP 2200PF 10% 500V
C615 1-129-722-00 FILM 0.047MF 5% 630V
C616 ¡ 1-117-699-11 CERAMIC CHIP 0.001MF 20% 250V

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/34SL40T/

35S40/35S45/37SL45/35V65CND/37VL65 only)

C624 1-126-961-11 ELECT 2.2MF 20% 50V
C628 ¡ 1-113-924-11 CERAMIC CHIP 0.0047MF 20% 250V
C629 ¡ 1-107-679-91 ELECT 10MF 20% 450V

(KV-34VL65C/34SL40C/37VL65C only)
C629 ¡ 1-107-680-91 ELECT 22MF 20% 450V

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/34SL40T/

35S40/35S45/37SL45/35V65CND/37VL65 only)
C630 1-130-471-00 MYLAR 0.001MF 5% 50V

C631 1-137-605-11 FILM 0.01MF 10% 250V
C633 1-130-471-00 MYLAR 0.001MF 5% 50V
C634 1-130-467-00 MYLAR 470PF 5% 50V
C635 1-130-471-00 MYLAR 0.001MF 5% 50V
C636 1-126-965-11 ELECT 22MF 20% 50V

C601 1-136-346-21 FILM 0.22MF 20% 125V

(KV-35S40/35S45/37SL45/35V65CND/37VL65/37VL65C only)
C602 1-126-964-11 ELECT 10MF 20% 50V
C603 ¡ 1-113-907-51 CERAMIC CHIP 0.0022MF 20% 250V

(KV-34VL65C/34SL40C/37VL65C only)
C603 ¡ 1-113-903-11 CERAMIC 0.001MF 20% 250V

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/

35V65CND/37VL65/34SL40T/35S40/35S45/37SL45 only)
C604 ¡ 1-136-346-21 FILM 0.22MF 20% 300V

(KV-34SL40T only)

C605 ¡ 1-136-311-11 FILM 0.47MF 20% 300V

(KV-34VL65C/37VL65C/34SL40C only)
C605 ¡ 1-136-346-21 FILM 0.22MF 20% 125V

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/

35V65CND/37VL65/34SL40T/35S40/35S45/37SL45 only)
C606 ¡ 1-117-894-11 ELECT 560MF 20% 250V
C607 ¡ 1-117-894-11 ELECT 560MF 20% 250V
C608 1-165-127-11 CERAMIC CHIP 470PF 10% 500V

C609 1-136-175-00 FILM 0.68MF 5% 50V
C610 1-136-175-00 FILM 0.68MF 5% 50V
C611 1-136-169-00 FILM 0.22MF 5% 50V

(KV-32V40/32S40/34SL40/32S45/34SL45/34SL40C/34SL40T/

35S40/35S45/37VL65 only)
C611 1-136-171-00 FILM 0.33MF 5% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/

37VL65C only)

C637 1-126-940-11 ELECT 330MF 20% 25V
C640 ¡ 1-113-924-11 CERAMIC CHIP 0.0047MF 20% 250V

C641 1-128-550-11 ELECT 2200MF 20% 50V
C643 1-107-641-11 ELECT 220MF 20% 160V
C647 1-104-665-11 ELECT 100MF 20% 25V

C648 1-126-965-11 ELECT 22MF 20% 50V

(KV-37VL65C/34SL40C/34VL65C only)
C650 1-104-664-11 ELECT 47MF 20% 25V
C651 1-137-366-11 FILM 0.0022MF 5% 50V
C652 1-106-351-00 MYLAR 0.0022MF 20% 200V
C653 1-107-636-11 ELECT 10MF 20% 160V
C654 1-164-625-11 CERAMIC CHIP 680PF 10% 500V

C655 1-164-625-11 CERAMIC CHIP 680PF 10% 500V
C656 1-164-625-11 CERAMIC CHIP 680PF 10% 500V
C657 1-164-625-11 CERAMIC CHIP 680PF 10% 500V
C660 1-126-767-11 ELECT 1000MF 20% 16V
C690 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V

C691 1-164-645-11 CERAMIC CHIP 1000PF 10% 500V

— 98 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

COMPLETE PARTS LISTING

G

CONNECTOR

CN601 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P

(KV-35S40/35S45/37SL45/35V65CND/37VL65/37VL65C only)
CN602 1-580-844-11 PIN, CONNECTOR (POWER) 2P
CN603 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P

KV-35S40/35S45/37SL45/35V65CND/37VL65 only)
CN604 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P

(KV-32V40/32S40/34SL40/32S45/34SL45/34VL65C/32VCND/34VL65/

34SL40C/34SL40T/35S40/35S45/37SL45 only)
CN641 1-564-515-11 PLUG, CONNECTOR 12P

CN643 1-508-784-00 PIN, CONNECTOR (5MM PITCH) 1P

(KV-32V40/32S40/34SL40/32S45/34SL45/34VL65C/32VCND/34VL65/

34SL40C/35S40/35S45/37SL45/35V65CND/35VL65/37VL65C only)

DIODE

D600 ¡ 8-719-991-33 DIODE 1SS133T-77
D601 8-719-991-33 DIODE 1SS133T-77

D602 ¡ 8-719-510-53 DIODE D4SB60L
D603 8-719-052-90 DIODE D1NL40-TA2

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/

34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)
D604 8-719-052-90 DIODE D1NL40-TA2

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/

34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)

D612 8-719-991-33 DIODE 1SS133T-77
D613 8-719-991-33 DIODE 1SS133T-77
D614 8-719-991-33 DIODE 1SS133T-77
D621 ¡ 8-719-911-55 DIODE U05G
D622 ¡ 8-719-911-55 DIODE U05G

D623 8-719-055-18 DIODE ERA22-08TP3
D624 8-719-991-33 DIODE 1SS133T-77
D625 8-719-991-33 DIODE 1SS133T-77

(KV-32V40/32S40/34SL40/32S45/34SL45/34VL65C/32V65CND/

34VL65/34SL40C/34SL40T/35S40/35S45/37SL45/37VL65C only)
D626 8-719-109-93 DIODE RD6.2ESB2
D627 8-719-510-48 DIODE D1N20R

D628 8-719-063-70 DIODE D1NL20U
D631 8-719-109-69 DIODE RD3.6ES-B2

(KV-37VL65C/34SL40C/34VL65C only)
D632 8-719-063-70 DIODE D1NL20U-TA2

(KV-37VL65C/34SL40C/34VL65C only)
D641 8-719-052-92 DIODE D10SBS4F
D642 ¡ 8-719-510-12 DIODE D10SC4M

D643 8-719-028-45 DIODE D2L20U
D644 8-719-028-45 DIODE D2L20U
D645 8-719-028-45 DIODE D2L20U
D646 8-719-028-45 DIODE D2L20U
D647 8-719-063-70 DIODE D1NL20U

D648 8-719-057-52 DIODE EZ0150AV1
D649 8-719-510-02 DIODE D1NS4
D650 8-719-510-02 DIODE D1NS4

FUSE

F601 ¡ 1-576-193-11 FUSE 6.3A/125V

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/34VL65/
34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)

F601 ¡ 1-532-506-51 FUSE 6.3A/250V

(KV-37VL65C/34SL40C/34VL65C only)

FERRITE BEAD

FB601 1-410-396-41 FERRITE 0.45UH
FB602 1-410-396-41 FERRITE 0.45UH
FB603 1-410-396-41 FERRITE 0.45UH
FB604 1-410-396-41 FERRITE 0.45UH
FB641 1-410-397-21 FERRITE 1.1UH

FB642 1-410-397-21 FERRITE 1.1UH
FB645 1-410-397-21 FERRITE 1.1UH
FB647 1-410-397-21 FERRITE 1.1UH

IC

IC601 ¡ 8-729-041-12 TRANSISTOR MX0841AB-F
IC622 8-759-450-47 IC BA05T
IC641 8-759-198-03 IC PQ09RF21
IC643 8-749-012-13 IC DM-58

COIL

L642 1-412-529-11 INDUCTOR 22UH

TRANSISTOR

Q621 ¡ 8-729-044-30 TRANSISTOR 2SK2845-LB102
Q622 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q644 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q645 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q646 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q647 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q648 8-729-922-39 TRANSISTOR 2SD2144S-V

RESISTOR

R603 ¡ 1-219-776-11 CARBON 2.2M 10% 1/2W

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/
34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)

R603 ¡ 1-247-289-00 CARBON 8.2M 5% 1W

(KV-34VL65C/34SL40C/37VL65C only)
R607 ¡ 1-202-933-61 FUSIBLE 0.1 10% 1/2W F
R608 ¡ 1-216-373-11 METAL 2.2 5% 2W F

— 99 —

G

COMPLETE PARTS LISTING

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

REF.NO. PART NO. DESCRIPTION REMARK

R611 ¡ 1-216-373-11 METAL 2.2 5% 2W F
R612 1-215-903-11 METAL 68K 5% 2W F
R613 1-215-903-11 METAL 68K 5% 2W F
R614 1-215-903-11 METAL 68K 5% 2W F

R615 1-215-903-11 METAL 68K 5% 2W F
R618 1-249-425-11 CARBON 4.7K 5% 1/4W
R619 1-249-425-11 CARBON 4.7K 5% 1/4W
R620 1-249-425-11 CARBON 4.7K 5% 1/4W
R621 1-249-429-11 CARBON 10K 5% 1/4W

R622 1-247-863-91 CARBON 22K 5% 1/4W
R623 ¡ 1-205-943-11 CEMENTED 1 5% 20W

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/
34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)

R623 ¡ 1-243-032-11 CEMENTED 3.9 5% 20W

(KV-34VL65C/34SL40C/37VL65C only)
R624 1-260-131-11 CARBON 470K 5% 1/2W
R625 1-260-131-11 CARBON 470K 5% 1/2W

R626 1-249-425-11 CARBON 4.7K 5% 1/4W
R627 ¡ 1-220-797-11 CEMENTED 0.47 5% 10W

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/

34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)
R628 1-240-205-91 CARBON 22M 5% 1/2W

R629 ¡ 1-220-797-11 CEMENTED 0.47 5% 10W

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/

34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)
R630 1-215-421-00 METAL 1K 1% 1/4W

(KV-34VL65C/37VL65C/34SL40C only)

R631 1-215-445-00 METAL 10K 1% 1/4W

(KV-34VL65C/37VL65C/34SL40C only)
R632 1-249-421-11 CARBON 2.2K 5% 1/4W
R633 1-249-429-11 CARBON 10K 5% 1/4W
R634 1-249-437-11 CARBON 47K 5% 1/4W
R635 1-247-791-91 CARBON 22 5% 1/4W

R636 1-249-415-11 CARBON 680 5% 1/4W
R637 1-260-302-51 CARBON 6.8 5% 1/2W
R638 1-249-413-11 CARBON 470 5% 1/4W
R639 ¡ 1-249-389-11 CARBON 4.7 5% 1/4W F
R640 1-215-485-00 METAL 470K 1% 1/4W

REF.NO. PART NO. DESCRIPTION REMARK

R667 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F
R668 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F
R670 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F
R671 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F
R672 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F

RELAY

RY600 ¡ 1-755-266-11 RELAY, AC POWER
RY601 ¡ 1-755-146-11 RELAY, AC POWER

TRANSFORMER

T601 ¡ 1-426-717-11 TRANSFORMER, LINE FILTER (LFT)

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/

34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)
T602 ¡ 1-426-717-11 TRANSFORMER, LINE FILTER (LFT)
T603 ¡ 1-429-992-21 TRANSFORMER, CONVERTER (PRT)
T605 ¡ 1-429-415-11 TRANSFORMER, CONVERTER (PIT)

(KV-32V40/32S40/34SL40/32S45/34SL45/34SL40C/34SL40T/35S40/

35S45/37SL45 only)
T605 ¡ 1-431-467-11 TRANSFORMER, CONVERTER (PIT)

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

T621 ¡ 1-431-852-11 TRANSFORMER, CONVEŸbER (SRT)

THERMISTOR

THP601¡ 1-809-539-11 THERMISTOR, POSITIVE

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/

34VL65/35S40/35S45/37SL45/35V65CND/37VL65 only)
THP601¡ 1-809-827-11 THERMISTOR, POSITIVE

(KV-34VL65C/34SL40C/34SL40T/37VL65C only)

VARISTOR

VDR602 1-801-074-41 VARISTOR ERZV10D271

(KV-32V40/32S40/34SL40/32S45/34SL45/32V65CND/

34VL65/34SL40T/35S40/35S45/37SL45/35V65CND/37VL65 only)
VDR602 1-809-267-41 VARISTOR ERZV10D471

(KV-34VL65C/34SL40C/37VL65C only)

R640 1-247-895-91 CARBON 470K 5% 1/4W
R641 1-247-843-11 CARBON 3.3K 5% 1/4W
R642 1-247-843-11 CARBON 3.3K 5% 1/4W
R643 1-249-387-11 CARBON 3.3 5% 1/4W F
R648 1-247-887-00 CARBON 220K 5% 1/4W

R649 1-249-425-11 CARBON 4.7K 5% 1/4W F
R659 1-249-429-11 CARBON 10K 5% 1/4W
R660 ¡ 1-249-393-11 CARBON 10 5% 1/4W F
R661 1-249-419-11 CARBON 1.5K 5% 1/4W F
R666 ¡ 1-249-377-11 CARBON 0.47 5% 1/4W F

— 100 —

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

HS

SWITCH

HS

* A-1372-507-A HS BOARD, COMPLETE

(KV-35S40/35S45/37SL45 only)

* A-1372-510-A HS BOARD, COMPLETE

(KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/
37VL65/37VL65C only)

* A-1372-519-A HS BOARD, COMPLETE

(KV-32S45/34SL45 only)

S2101 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

S2102 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

S2103 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

S2104 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

S2105 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

CAPACITOR

C2168 1-104-665-11 ELECT 100MF 20% 25V

(KV-32S45/34SL45 only)

C2169 1-126-959-11 ELECT 0.47MF 20% 50V

(KV-32S45/34SL45 only)

CONNECTOR

CN2101 1-564-524-11 PLUG, CONNECTOR 9P
CN2102 1-564-523-11 PLUG, CONNECTOR 8P

(KV-32V40/34VL65C/32V65CND/34VL65/35V65CND/
37VL65/37VL65C/32S45/34SL45 only)

DIODE

D2106 1-810-039-11 LED UNIT

(KV-32S45/34SL45 only)

IC

IC2103 8-742-014-11 HYB IC SBX1981-51

(KV-32S45/34SL45 only)

RESISTOR

R2109 1-216-033-00 RES, CHIP 220 5% 1/10W

(KV-32S45/34SL45 only)

R2110 1-216-033-00 RES, CHIP 220 5% 1/10W

(KV-32S45/34SL45 only)

R2159 1-216-047-91 RES, CHIP 820 5% 1/10W

(KV-32S45/34SL45 only)

R2160 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-32S45/34SL45 only)

R2161 1-216-055-00 RES, CHIP 1.8K 5% 1/10W

(KV-32S45/34SL45 only)

S2106 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

S2107 1-692-431-21 SWITCH, TACTILE

(KV-32S45/34SL45 only)

R2162 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

(KV-32S45/34SL45 only)

R2163 1-216-073-00 RES, CHIP 10K 5% 1/10W

(KV-32S45/34SL45 only)

— 101 —

HV

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

HV

* A-1372-505-A HV BOARD, COMPLETE

(KV-32V40 only)

* A-1372-509-A HV BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

* A-1372-523-A HV BOARD, COMPLETE

(KV-35S40/35S45/37SL45 only)

CAPACITOR

C2068 1-104-665-11 ELECT 100MF 20% 25V
C2070 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C2231 1-163-031-11 CERAMIC CHIP 0.01MF 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

C2232 1-136-161-00 FILM 0.047MF 5% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

C2233 1-136-161-00 FILM 0.047MF 5% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32V40 only)

C2234 1-126-960-11 ELECT 1MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32V40 only)

C2235 1-126-960-11 ELECT 1MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32V40 only)

CONNECTOR

CN2002* 1-564-518-11 PLUG, CONNECTOR 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

DIODE

D2006 1-810-039-11 LED UNIT
D2231 8-719-110-17 DIODE RD10ESB2

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

D2232 8-719-110-17 DIODE RD10ESB2

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

D2233 8-719-110-17 DIODE RD10ESB2

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

D2236 8-719-110-17 DIODE RD10ESB2

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32V40 only)

REF.NO. PART NO. DESCRIPTION REMARK

JACK

J2231 1-691-110-11 JACK, PIN 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32V40 only)

J2232 1-694-063-11 TERMINAL, S

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

RESISTOR

R2009 1-216-033-00 RES, CHIP 220 5% 1/10W
R2010 1-216-033-00 RES, CHIP 220 5% 1/10W
R2059 1-216-047-91 RES, CHIP 820 5% 1/10W

(KV-35S40/35S45/37SL45 only)

R2060 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

R2061 1-216-055-00 RES, CHIP 1.8K 5% 1/10W

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

R2062 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

R2063 1-216-073-00 RES, CHIP 10K 5% 1/10W

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

R2231 1-216-022-00 RES, CHIP 75 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2232 1-216-022-00 RES, CHIP 75 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2233 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2235 1-216-022-00 RES, CHIP 75 5% 1/10W

(KV-32V40 only)
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2236 1-216-113-00 RES, CHIP 470K 5% 1/10W

KV-32V40 only)
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2237 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

KV-32V40 only)
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R2238 1-216-113-00 RES, CHIP 470K 5% 1/10W

KV-32V40 only)
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

IC

IC2003 8-742-014-11 HYB IC SBX1981-51

R2239 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

(KV-32V40 only)
(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

SWITCH

— 102 —

COMPLETE PARTS LISTING

HV

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

S2001 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2002 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2003 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2004 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2005 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2006 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

S2007 1-692-431-21 SWITCH, TACTILE

(KV-32V40 only)
(KV-35S40/35S45/37SL45 only)

— 103 —

K

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

K

REF.NO. PART NO. DESCRIPTION REMARK

IC1461 8-759-089-13 IC TDA7262

* A-1380-585-A K BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

* 1-556-945-21 CABLE, P-P
* 1-557-056-31 CABLE, P-P
* 4-052-905-01 V5/6 BRACKET

8-598-414-00 ANTENNA SWITCH AS-2F

CAPACITOR

C1461 1-126-960-11 ELECT 1MF 20% 50V
C1462 1-126-960-11 ELECT 1MF 20% 50V
C1463 1-126-961-11 ELECT 2.2MF 20% 50V
C1464 1-104-666-11 ELECT 220MF 20% 25V
C1465 1-126-960-11 ELECT 1MF 20% 50V

C1467 1-104-664-11 ELECT 47MF 20% 25V
C1468 1-126-960-11 ELECT 1MF 20% 50V
C1470 1-104-666-11 ELECT 220MF 20% 25V
C1471 1-136-169-00 FILM 0.22MF 5% 50V
C1472 1-136-173-00 FILM 0.47MF 5% 50V

C1473 1-128-550-11 ELECT 2200MF 20% 50V
C1474 1-136-169-00 FILM 0.22MF 5% 50V
C1475 1-128-550-11 ELECT 2200MF 20% 50V
C1476 1-128-550-11 ELECT 2200MF 20% 50V
C1477 1-104-665-11 ELECT 100MF 20% 25V

C1478 1-126-969-11 ELECT 220MF 20% 50V

CONNECTOR

PS1461 1-532-984-11 LINK, IC 2A/90V

Q1461 8-729-422-27 TRANSISTOR 2SD601A-Q
Q1462 8-729-216-22 TRANSISTOR 2SA1162-G
Q1463 8-729-900-53 TRANSISTOR DTC114EK
Q1464 8-729-900-53 TRANSISTOR DTC114EK
Q1465 8-729-216-22 TRANSISTOR 2SA1162-G

R1461 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R1462 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1464 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R1465 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1466 1-216-089-91 RES, CHIP 47K 5% 1/10W

R1467 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1469 1-249-385-11 CARBON 2.2 5% 1/4W F
R1470 1-249-385-11 CARBON 2.2 5% 1/4W F
R1471 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1472 1-216-041-00 RES, CHIP 470 5% 1/10W

R1473 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1474 1-216-077-00 RES, CHIP 15K 5% 1/10W
R1475 1-216-077-00 RES, CHIP 15K 5% 1/10W
R1476 1-247-791-91 CARBON 22 5% 1/4W
R1477 1-249-417-11 CARBON 1K 5% 1/4W F

IC

IC LINK

TRANSISTOR

RESISTOR

CN1461 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1462 * 1-564-507-11 PLUG, CONNECTOR 4P
CN1463 * 1-564-508-11 PLUG, CONNECTOR 5P

DIODE

D1461 8-719-991-33 DIODE 1SS133T-77
D1462 8-719-979-50 DIODE EGP30D
D1463 8-719-991-33 DIODE 1SS133T-77
D1464 8-719-991-33 DIODE 1SS133T-77
D1465 8-719-991-33 DIODE 1SS133T-77

D1466 8-719-979-50 DIODE EGP30D
D1467 8-719-979-50 DIODE EGP30D

R1478 1-247-791-91 CARBON 22 5% 1/4W
R1479 1-249-417-11 CARBON 1K 5% 1/4W F
R1480 1-249-421-11 CARBON 2.2K 5% 1/4W
R1481 1-249-421-11 CARBON 2.2K 5% 1/4W
R1482 1-216-073-00 RES, CHIP 10K 5% 1/10W

R1483 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1487 1-216-025-91 RES, CHIP 100 5% 1/10W
R1488 1-216-073-00 RES, CHIP 10K 5% 1/10W

— 104 —

COMPLETE P ARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

C3369 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

P

* A-1195-138-A P BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
(KV-32S45/34SL45/35S45/37SL45 only)

C3370 1-164-346-11 CERAMIC CHIP 1MF 16V
C3371 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C3372 1-164-005-11 CERAMIC CHIP 0.47MF 25V

CONNECTOR

P

CAPACITOR

C3319 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3320 1-126-960-11 ELECT 1MF 20% 50V
C3321 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C3322 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C3323 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C3324 1-104-664-11 ELECT 47MF 20% 16V
C3328 1-104-664-11 ELECT 47MF 20% 16V
C3329 1-104-664-11 ELECT 47MF 20% 16V
C3330 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3331 1-104-664-11 ELECT 47MF 20% 16V

C3332 1-104-664-11 ELECT 47MF 20% 25V
C3334 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3335 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3336 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3337 1-164-005-11 CERAMIC CHIP 0.47MF 25V

C3340 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3346 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C3347 1-126-960-11 ELECT 1MF 20% 50V
C3348 1-104-664-11 ELECT 47MF 20% 16V
C3349 1-163-121-00 CERAMIC CHIP 150PF 5% 50V

C3350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V
C3352 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3353 1-164-346-11 CERAMIC CHIP 1MF 16V
C3354 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3355 1-126-925-11 ELECT 470MF 20% 10V

CN3301* 1-764-816-11 CONNECTOR, BOARD TO BOARD 20P

IC

IC3302 8-759-231-53 IC TA7805S
IC3303 8-759-533-89 IC SDA9288XE-GEG-B121
IC3304 8-752-086-80 IC CXA2019AQ-T4

COIL

L3301 1-408-607-31 INDUCTOR 22UH
L3302 1-410-473-11 INDUCTOR 18UH
L3303 1-408-612-31 INDUCTOR 56UH

TRANSISTOR

Q3301 8-729-422-27 TRANSISTOR 2SD601A-Q
Q3302 8-729-216-22 TRANSISTOR 2SA1162-G
Q3306 8-729-216-22 TRANSISTOR 2SA1162-G
Q3310 8-729-422-27 TRANSISTOR 2SD601A-Q
Q3312 8-729-216-22 TRANSISTOR 2SA1162-G

Q3314 8-729-216-22 TRANSISTOR 2SA1162-G

RESISTOR

R3301 1-216-295-91 SHORT
R3302 1-216-295-91 SHORT
R3305 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3312 1-216-037-00 RES, CHIP 330 5% 1/10W
R3313 1-216-295-91 SHORT

C3356 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3357 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3358 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3359 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3360 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3361 1-163-038-91 CERAMIC CHIP 0.1MF 25V
C3362 1-126-925-11 ELECT 470MF 20% 10V
C3363 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C3364 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C3365 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C3366 1-164-005-11 CERAMIC CHIP 0.47MF 25V
C3367 1-126-963-11 ELECT 4.7MF 20% 50V
C3368 1-164-005-11 CERAMIC CHIP 0.47MF 25V

R3314 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3323 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3329 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R3330 1-216-295-91 SHORT
R3337 1-216-033-00 RES, CHIP 220 5% 1/10W

R3338 1-216-033-00 RES, CHIP 220 5% 1/10W
R3339 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3340 1-216-041-00 RES, CHIP 470 5% 1/10W
R3341 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3342 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R3343 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3346 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3351 1-216-295-91 SHORT
R3352 1-216-049-91 RES, CHIP 1K 5% 1/10W

— 105 —

P

COMPLETE P ARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

R3358 1-216-047-91 RES, CHIP 820 5% 1/10W
R3359 1-216-047-91 RES, CHIP 820 5% 1/10W
R3360 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R3361 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R3362 1-216-041-00 RES, CHIP 470 5% 1/10W

R3363 1-216-041-00 RES, CHIP 470 5% 1/10W
R3364 1-216-041-00 RES, CHIP 470 5% 1/10W
R3375 1-216-041-00 RES, CHIP 470 5% 1/10W
R3376 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R3377 1-216-073-00 RES, CHIP 10K 5% 1/10W

R3378 1-208-786-11 RES, CHIP 1.5K 0.50% 1/10W
R3379 1-216-077-00 RES, CHIP 15K 5% 1/10W
R3380 1-216-025-91 RES, CHIP 100 5% 1/10W
R3381 1-216-025-91 RES, CHIP 100 5% 1/10W
R3382 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R3383 1-216-025-91 RES, CHIP 100 5% 1/10W
R3384 1-216-033-00 RES, CHIP 220 5% 1/10W
R3385 1-216-109-00 RES, CHIP 330K 5% 1/10W
R3386 1-216-295-91 SHORT
R3387 1-216-295-91 SHORT

R3388 1-216-295-91 SHORT
R3393 1-216-025-91 RES, CHIP 100 5% 1/10W
R3394 1-216-025-91 RES, CHIP 100 5% 1/10W
R3395 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

REF.NO. PART NO. DESCRIPTION REMARK

CRYSTAL

X3302 1-760-095-21 VIBRATOR, CRYSTAL
X3303 1-577-611-11 OSCILLATOR, CERAMIC
X3304 1-567-505-11 OSCILLATOR, CRYSTAL

— 106 —

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

C192 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

UV

* A-1394-905-A UV BOARD, COMPLETE

(KV-32V40 only)

C193 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C194 1-163-023-00 CERAMIC CHIP 0.015MF 10% 50V
C195 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V
C196 1-126-965-11 ELECT 22MF 20% 50V

UV

* A-1394-906-A UV BOARD, COMPLETE

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

CAPACITOR

C100 1-164-346-11 CERAMIC CHIP 1MF 16V
C101 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C102 1-164-346-11 CERAMIC CHIP 1MF 16V
C103 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C104 1-164-005-11 CERAMIC CHIP 0.47MF 25V

C105 1-164-005-11 CERAMIC CHIP 0.47MF 25V
C150 1-126-956-91 ELECT 0.1MF 20% 50V
C153 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V
C154 1-126-963-11 ELECT 4.7MF 20% 50V
C155 1-126-963-11 ELECT 4.7MF 20% 50V

C156 1-126-963-11 ELECT 4.7MF 20% 50V
C158 1-126-963-11 ELECT 4.7MF 20% 50V
C160 1-126-964-11 ELECT 10MF 20% 50V
C161 1-126-956-91 ELECT 0.1MF 20% 50V
C162 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C163 1-104-664-11 ELECT 47MF 20% 25V
C164 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C165 1-126-964-11 ELECT 10MF 20% 50V
C168 1-126-963-11 ELECT 4.7MF 20% 50V
C171 1-126-941-11 ELECT 470MF 20% 25V

C197 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C198 1-126-960-11 ELECT 1MF 20% 50V
C199 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C231 1-163-031-11 CERAMIC CHIP 0.01MF 50V
C232 1-136-161-00 FILM 0.047MF 5% 50V

C233 1-136-161-00 FILM 0.047MF 5% 50V
C234 1-126-960-11 ELECT 1MF 20% 50V
C235 1-126-960-11 ELECT 1MF 20% 50V
C236 1-136-161-00 FILM 0.047MF 5% 50V
C237 1-126-960-11 ELECT 1MF 20% 50V

C238 1-126-960-11 ELECT 1MF 20% 50V
C241 1-126-941-11 ELECT 470MF 20% 25V
C242 1-126-959-11 ELECT 0.47MF 20% 50V
C244 1-126-959-11 ELECT 0.47MF 20% 50V
C245 1-126-941-11 ELECT 470MF 20% 25V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

C246 1-126-959-11 ELECT 0.47MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

C247 1-126-959-11 ELECT 0.47MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

C261 1-136-161-00 FILM 0.047MF 5% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
C262 1-104-664-11 ELECT 47MF 20% 25V
C263 1-136-161-00 FILM 0.047MF 5% 50V

C172 1-126-959-11 ELECT 0.47MF 20% 50V
C173 1-126-959-11 ELECT 0.47MF 20% 50V
C174 1-126-964-11 ELECT 10MF 20% 50V
C176 1-126-964-11 ELECT 10MF 20% 50V
C177 1-126-964-11 ELECT 10MF 20% 50V

C178 1-126-964-11 ELECT 10MF 20% 50V
C179 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C180 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V
C181 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V
C182 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V

C183 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C184 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C185 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C187 1-126-964-11 ELECT 10MF 20% 50V
C188 1-126-956-91 ELECT 0.1MF 20% 50V

C189 1-126-956-91 ELECT 0.1MF 20% 50V
C190 1-163-986-00 CERAMIC CHIP 0.027MF 10% 25V
C191 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C264 1-126-941-11 ELECT 470MF 20% 25V
C266 1-126-960-11 ELECT 1MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
C267 1-126-960-11 ELECT 1MF 20% 50V

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
C270 1-126-960-11 ELECT 1MF 20% 50V
C271 1-126-960-11 ELECT 1MF 20% 50V

C275 1-104-664-11 ELECT 47MF 20% 25V
C276 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

CONNECTOR

CN261 1-691-632-21 CONNECTOR, BOARD TO BOARD 15P
CN262 1-573-301-21 CONNECTOR, BOARD TO BOARD 20P
CN263 * 1-564-506-11 PLUG, CONNECTOR 3P
CN264 1-573-979-21 CONNECTOR, BOARD TO BOARD 11P
CN265 1-564-508-11 PLUG, CONNECTOR 5P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

— 107 —

UV

COMPLETE PARTS LISTING

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

REF.NO. PART NO. DESCRIPTION REMARK

DIODE

D100 8-719-981-99 DIODE MTZJ-3.3
D231 8-719-110-17 DIODE RD10ESB2
D232 8-719-110-17 DIODE RD10ESB2
D233 8-719-110-17 DIODE RD10ESB2
D234 8-719-110-17 DIODE RD10ESB2

D235 8-719-110-17 DIODE RD10ESB2
D236 8-719-110-17 DIODE RD10ESB2
D237 8-719-981-99 DIODE MTZJ-3.3
D238 8-719-981-99 DIODE MTZJ-3.3
D239 8-719-981-99 DIODE MTZJ-3.3

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/
37VL65Conly)

D240 8-719-110-17 DIODE RD10ESB2
D241 8-719-110-17 DIODE RD10ESB2
D242 8-719-110-17 DIODE RD10ESB2
D243 8-719-110-17 DIODE RD10ESB2
D244 8-719-110-17 DIODE RD10ESB2

D245 8-719-981-99 DIODE MTZJ-3.3

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/

37VL65C only)
D246 8-719-981-99 DIODE MTZJ-3.3
D264 8-719-110-17 DIODE RD10ESB2
D265 8-719-110-17 DIODE RD10ESB2
D902 8-719-110-17 DIODE RD10ESB2

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/

37VL65C only)

IC

IC100 8-752-072-39 IC CXA2021S
IC101 8-759-100-96 IC UPC4558G2
IC102 8-759-537-25 IC NJM2150M
IC103 8-759-537-26 IC TDA7467D
IC261 8-759-366-77 IC MM1311AD

(KV-32V40 only)

IC261 8-759-534-81 IC MM1313AD

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/

37VL65C only)

JACK

J231 1-750-515-11 TERMINAL BLOCK, S 3P
J232 1-750-517-11 JACK BLOCK, PIN 3P
J233 1-750-516-11 JACK BLOCK, PIN 2P
J234 1-750-517-11 JACK BLOCK, PIN 3P
J235 1-750-517-11 JACK BLOCK, PIN 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/

37VL65C only)

REF.NO. PART NO. DESCRIPTION REMARK

J902 1-764-143-11 JACK 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

J903 1-764-143-11 JACK 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

J904 1-764-143-11 JACK 3P

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

CHIP CONDUCTOR

JR101 1-216-295-91 SHORT

(KV-32V40 only)
JR106 1-216-295-91 SHORT
JR107 1-216-295-91 SHORT
JR109 1-216-295-91 SHORT

(KV-32V40 only)
JR201 1-216-295-91 SHORT

JR204 1-216-295-91 SHORT
JR205 1-216-295-91 SHORT
JR269 1-216-295-91 SHORT
JR270 1-216-295-91 SHORT
JR272 1-216-295-91 SHORT

JR273 1-216-295-91 SHORT
JR274 1-216-295-91 SHORT
JR276 1-216-295-91 SHORT
JR901 1-216-295-91 SHORT

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

TRANSISTOR

Q100 8-729-422-27 TRANSISTOR 2SD601A-Q
Q101 8-729-422-27 TRANSISTOR 2SD601A-Q
Q231 8-729-422-27 TRANSISTOR 2SD601A-Q
Q232 8-729-422-27 TRANSISTOR 2SD601A-Q

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q233 8-729-422-27 TRANSISTOR 2SD601A-Q

Q234 8-729-422-27 TRANSISTOR 2SD601A-Q
Q235 8-729-422-27 TRANSISTOR 2SD601A-Q

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q236 8-729-422-27 TRANSISTOR 2SD601A-Q

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q237 8-729-216-22 TRANSISTOR 2SA1162-G
Q238 8-729-216-22 TRANSISTOR 2SA1162-G

Q239 8-729-216-22 TRANSISTOR 2SA1162-G
Q240 8-729-216-22 TRANSISTOR 2SA1162-G

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q241 8-729-216-22 TRANSISTOR 2SA1162-G

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q242 8-729-216-22 TRANSISTOR 2SA1162-G

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q243 8-729-216-22 TRANSISTOR 2SA1162-G

— 108 —

Note:

The components identified
with shading and a critical
symbol (
safety. Replace only with
part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡¡

¡

) are critical for

¡¡

Note:

Les composants identifies per
un trame et une marque
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.

¡¡

¡ sont

¡¡

COMPLETE PARTS LISTING

UV

Q261 8-729-422-27 TRANSISTOR 2SD601A-Q

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
Q262 8-729-422-27 TRANSISTOR 2SD601A-Q
Q263 8-729-216-22 TRANSISTOR 2SA1162-G
Q265 8-729-216-22 TRANSISTOR 2SA1162-G

RESISTOR

R100 1-216-033-00 RES, CHIP 220 5% 1/10W
R101 1-216-033-00 RES, CHIP 220 5% 1/10W
R102 1-216-073-00 RES, CHIP 10K 5% 1/10W
R103 1-216-093-00 RES, CHIP 68K 5% 1/10W
R104 1-216-089-91 RES, CHIP 47K 5% 1/10W

R105 1-216-089-91 RES, CHIP 47K 5% 1/10W
R106 1-216-049-91 RES, CHIP 1K 5% 1/10W
R107 1-216-049-91 RES, CHIP 1K 5% 1/10W
R108 1-216-073-00 RES, CHIP 10K 5% 1/10W
R109 1-216-089-91 RES, CHIP 47K 5% 1/10W

R110 1-216-089-91 RES, CHIP 47K 5% 1/10W
R111 1-216-025-91 RES, CHIP 100 5% 1/10W
R112 1-216-121-91 RES, CHIP 1M 5% 1/10W
R113 1-216-081-00 RES, CHIP 22K 5% 1/10W
R114 1-216-081-00 RES, CHIP 22K 5% 1/10W

R115 1-216-081-00 RES, CHIP 22K 5% 1/10W
R116 1-216-081-00 RES, CHIP 22K 5% 1/10W
R117 1-216-073-00 RES, CHIP 10K 5% 1/10W
R118 1-216-073-00 RES, CHIP 10K 5% 1/10W
R119 1-216-073-00 RES, CHIP 10K 5% 1/10W

R124 1-216-033-00 RES, CHIP 220 5% 1/10W
R125 1-216-033-00 RES, CHIP 220 5% 1/10W
R126 1-216-063-91 RES, CHIP 3.9K 5% 1/10W
R127 1-216-089-91 RES, CHIP 47K 5% 1/10W
R128 1-216-085-00 RES, CHIP 33K 5% 1/10W

R129 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R130 1-216-100-00 RES, CHIP 130K 5% 1/10W
R131 1-216-049-91 RES, CHIP 1K 5% 1/10W
R132 1-216-088-00 RES, CHIP 43K 5% 1/10W
R133 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

R142 1-216-295-91 SHORT

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R201 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R202 1-216-049-91 RES, CHIP 1K 5% 1/10W
R203 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R204 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

R206 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R207 1-216-295-91 SHORT

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R208 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R209 1-216-069-00 RES, CHIP 6.8K 5% 14W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R210 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R212 1-249-440-11 CARBON 82K 5% 1/4W
R213 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R214 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R215 1-249-413-11 CARBON 470 5% 1/4W
R216 1-216-025-91 RES, CHIP 100 5% 1/10W

R217 1-216-025-91 RES, CHIP 100 5% 1/10W
R218 1-216-025-91 RES, CHIP 100 5% 1/10W
R219 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R220 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R221 1-249-413-11 CARBON 470 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R222 1-216-025-91 RES, CHIP 100 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R223 1-216-025-91 RES, CHIP 100 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R224 1-216-025-91 RES, CHIP 100 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R225 1-247-815-91 CARBON 220 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R226 1-247-815-91 CARBON 220 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R134 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R135 1-216-097-91 RES, CHIP 100K 5% 1/10W
R136 1-216-093-00 RES, CHIP 68K 5% 1/10W
R137 1-216-025-91 RES, CHIP 100 5% 1/10W
R141 1-216-295-91 SHORT

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

— 109 —

R227 1-249-440-11 CARBON 82K 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R228 1-216-033-00 RES, CHIP 220 5% 1/10W
R229 1-216-025-91 RES, CHIP 100 5% 1/10W
R230 1-216-033-00 RES, CHIP 220 5% 1/10W
R231 1-216-022-00 RES, CHIP 75 5% 1/10W

R232 1-216-022-00 RES, CHIP 75 5% 1/10W
R233 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R234 1-216-022-00 RES, CHIP 75 5% 1/10W
R235 1-216-113-00 RES, CHIP 470K 5% 1/10W

UV

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

R236 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R237 1-216-113-00 RES, CHIP 470K 5% 1/10W
R238 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R239 1-216-022-00 RES, CHIP 75 5% 1/10W
R240 1-216-113-00 RES, CHIP 470K 5% 1/10W

R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R242 1-216-113-00 RES, CHIP 470K 5% 1/10W
R243 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R244 1-216-113-00 RES, CHIP 470K 5% 1/10W
R245 1-249-417-11 CARBON 1K 5% 1/4W

R246 1-216-113-00 RES, CHIP 470K 5% 1/10W
R247 1-249-417-11 CARBON 1K 5% 1/4W
R248 1-216-021-00 RES, CHIP 68 5% 1/10W
R249 1-216-113-00 RES, CHIP 470K 5% 1/10W
R250 1-216-113-00 RES, CHIP 470K 5% 1/10W

R251 1-216-113-00 RES, CHIP 470K 5% 1/10W
R252 1-216-019-00 RES, CHIP 56 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R253 1-216-113-00 RES, CHIP 470K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R254 1-216-113-00 RES, CHIP 470K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R255 1-216-113-00 RES, CHIP 470K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R256 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R258 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R259 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R260 1-247-807-31 CARBON 100 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R261 1-216-009-00 RES, CHIP 22 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R264 1-247-815-91 CARBON 220 5% 1/4W
R265 1-247-815-91 CARBON 220 5% 1/4W
R266 1-216-043-91 RES, CHIP 560 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R267 1-249-415-11 CARBON 680 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R268 1-216-025-91 RES, CHIP 100 5% 1/10W

REF.NO. PART NO. DESCRIPTION REMARK

R275 1-249-425-11 CARBON 4.7K 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R276 1-249-425-11 CARBON 4.7K 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R277 1-216-049-91 RES, CHIP 1K 5% 1/10W
R278 1-249-413-11 CARBON 470 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R279 1-216-025-91 RES, CHIP 100 5% 1/10W

R280 1-216-033-00 RES, CHIP 220 5% 1/10W
R281 1-216-033-00 RES, CHIP 220 5% 1/10W
R282 1-216-025-91 RES, CHIP 100 5% 1/10W
R283 1-216-025-91 RES, CHIP 100 5% 1/10W
R284 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R285 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R286 1-216-049-91 RES, CHIP 1K 5% 1/10W
R288 1-247-815-91 CARBON 220 5% 1/4W
R289 1-247-815-91 CARBON 220 5% 1/4W
R290 1-247-815-91 CARBON 220 5% 1/4W

R291 1-216-025-91 RES, CHIP 100 5% 1/10W
R292 1-216-025-91 RES, CHIP 100 5% 1/10W

(KV-32V40 only)
R293 1-216-025-91 RES, CHIP 100 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R294 1-216-049-91 RES, CHIP 1K 5% 1/10W
R902 1-249-405-11 CARBON 100 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R919 1-216-295-91 SHORT

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R920 1-249-405-11 CARBON 100 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R921 1-249-405-11 CARBON 100 5% 1/4W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R922 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)
R923 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R924 1-216-049-91 RES, CHIP 1K 5% 1/10W

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C only)

R269 1-216-025-91 RES, CHIP 100 5% 1/10W
R270 1-216-041-00 RES, CHIP 470 5% 1/10W
R271 1-249-415-11 CARBON 680 5% 1/4W
R272 1-249-417-11 CARBON 1K 5% 1/4W
R274 1-249-413-11 CARBON 470 5% 1/4W

— 110 —

COMPLETE PARTS LISTING

WA

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

IC

WA

* A-1372-462-A WA BOARD, COMPLETE

(KV-35S40/35S45/37SL45/35V65CND/37VL65/37VL65C only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C941 1-126-935-11 ELECT 470MF 20% 16V
C944 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C945 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C946 1-126-933-11 ELECT 100MF 20% 16V
C949 1-161-830-00 CERAMIC CHIP 0.0047MF 500V

C950 1-126-933-11 ELECT 100MF 20% 16V
C951 1-107-638-11 ELECT 33MF 20% 160V
C952 1-104-999-11 MYLAR 0.1MF 10% 200V
C953 1-106-383-00 MYLAR 0.047MF 10% 200V
C954 1-137-364-11 FILM 0.001MF 5% 50V

C955 1-107-667-11 ELECT 2.2MF 20% 160V
C956 1-137-364-11 FILM 0.001MF 5% 50V
C957 1-106-383-00 MYLAR 0.047MF 10% 200V
C958 1-126-933-11 ELECT 100MF 20% 16V
C961 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C962 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C965 1-163-035-00 CERAMIC CHIP 0.047MF 50V
C966 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V
C967 1-129-718-00 FILM 0.022MF 5% 630V
C968 1-137-579-11 FILM 0.068MF 5% 100V

C969 1-163-035-00 CERAMIC CHIP 0.047MF 50V
C981 1-126-941-11 ELECT 470MF 20% 25V
C983 1-137-366-11 FILM 0.0022MF 5% 50V

CONNECTOR

CN941 1-564-511-11 PLUG, CONNECTOR 8P
CN961 * 1-770-723-11 CONNECTOR, BOARD TO BOARD 8P
CN981 * 1-564-506-11 PLUG, CONNECTOR 3P

DIODE

D941 8-719-991-33 DIODE 1SS133T-77
D946 8-719-110-88 DIODE RD39ESB2
D947 8-719-110-88 DIODE RD39ESB2
D961 8-719-109-89 DIODE RD5.6ESB2
D962 8-719-991-33 DIODE 1SS133T-77

D964 8-719-302-43 DIODE EL1Z

IC961 8-759-700-07 IC NJM2903M
IC981 8-759-603-37 IC M5216P

COIL

L942 1-215-863-11 METAL OXIDE 100 5% 1W F
L962 1-406-989-21 INDUCTOR
L963 1-406-675-11 INDUCTOR

JUMPER WIRE

JW919 1-136-165-00 FILM 0.1MF 5% 50V

TRANSISTOR

Q943 8-729-422-27 TRANSISTOR 2SD601A-Q
Q944 8-729-422-27 TRANSISTOR 2SD601A-Q
Q945 8-729-422-27 TRANSISTOR 2SD601A-Q
Q946 8-729-017-05 TRANSISTOR 2SA1837
Q947 8-729-017-06 TRANSISTOR 2SC4793

Q962 8-729-931-45 TRANSISTOR IRF614
Q963 8-729-216-22 TRANSISTOR 2SA1162-G
Q965 8-729-422-27 TRANSISTOR 2SD601A-Q
Q966 8-729-216-22 TRANSISTOR 2SA1162-G
Q981 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R943 1-216-025-91 RES, CHIP 100 5% 1/10W
R948 1-216-049-91 RES, CHIP 1K 5% 1/10W
R949 1-216-049-91 RES, CHIP 1K 5% 1/10W
R950 1-216-049-91 RES, CHIP 1K 5% 1/10W
R951 1-216-049-91 RES, CHIP 1K 5% 1/10W

R952 1-216-037-00 RES, CHIP 330 5% 1/10W
R953 1-216-021-00 RES, CHIP 68 5% 1/10W
R954 1-216-033-00 RES, CHIP 220 5% 1/10W
R955 1-216-047-91 RES, CHIP 820 5% 1/10W
R956 1-216-295-91 SHORT

R957 1-216-073-00 RES, CHIP 10K 5% 1/10W
R958 1-216-295-91 SHORT
R959 1-216-021-00 RES, CHIP 68 5% 1/10W
R960 1-216-689-11 RES, CHIP 39K 5% 1/10W
R961 1-216-073-00 RES, CHIP 10K 5% 1/10W

R962 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R963 1-216-097-91 RES, CHIP 100K 5% 1/10W
R964 1-216-073-00 RES, CHIP 10K 5% 1/10W
R965 1-216-073-00 RES, CHIP 10K 5% 1/10W
R966 1-216-097-91 RES, CHIP 100K 5% 1/10W

— 111 —

WA

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK

R967 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R968 1-216-083-00 RES, CHIP 27K 5% 1/10W
R969 1-216-295-91 SHORT
R970 1-216-033-00 RES, CHIP 220 5% 1/10W
R971 1-247-899-11 CARBON 680K 5% 1/4W

R972 1-216-073-00 RES, CHIP 10K 5% 1/10W
R973 1-216-121-91 RES, CHIP 1M 5% 1/10W
R974 1-216-073-00 RES, CHIP 10K 5% 1/10W
R975 1-216-446-00 METAL OXIDE 18 5% 2W F
R976 1-216-423-11 METAL OXIDE 27 5% 1W F

R979 1-216-017-91 RES, CHIP 47 5% 1/10W
R981 1-216-081-00 RES, CHIP 22K 5% 1/10W
R982 1-216-081-00 RES, CHIP 22K 5% 1/10W
R983 1-216-081-00 RES, CHIP 22K 5% 1/10W
R984 1-216-081-00 RES, CHIP 22K 5% 1/10W

R987 1-216-049-91 RES, CHIP 1K 5% 1/10W
R988 1-216-295-91 SHORT
R989 1-216-304-11 RES, CHIP 3.3 5% 1/10W
R992 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1941 1-260-311-11 CARBON 39 5% 1/2W

R1942 1-249-384-11 CARBON 1.8 5% 1/4W F
R1943 1-249-414-11 CARBON 560 5% 1/4W F
R1944 1-249-432-11 CARBON 18K 5% 1/4W
R1945 1-216-476-11 METAL OXIDE 180 5% 3W F
R1946 1-249-417-11 CARBON 1K 5% 1/4W F

REF.NO. PART NO. DESCRIPTION REMARK

R1947 1-249-432-11 CARBON 18K 5% 1/4W
R1948 1-249-414-11 CARBON 560 5% 1/4W
R1949 1-249-384-11 CARBON 1.8 5% 1/4W F
R1950 1-249-400-11 CARBON 39 5% 1/4W F

— 112 —

COMPLETE PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

WB

RESISTOR

WB

*A-1372-508-A WB BOARD, COMPLETE

(KV-32V40/34VL65C/32V65CND/34VL65/32S40/
34SL40/34SL40C/32S45/34SL45 only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C2941 1-126-935-11 ELECT 470MF 20% 16V
C2944 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V
C2946 1-126-933-11 ELECT 100MF 20% 16V
C2949 1-161-830-00 CERAMIC CHIP 0.0047MF 500V
C2950 1-126-933-11 ELECT 100MF 20% 16V

C2951 1-107-638-11 ELECT 33MF 20% 160V
C2952 1-104-999-11 MYLAR 0.1MF 10% 200V
C2953 1-106-383-00 MYLAR 0.047MF 10% 200V
C2954 1-137-364-11 FILM 0.001MF 5% 50V
C2955 1-107-667-11 ELECT 2.2MF 20% 160V

C2956 1-137-364-11 FILM 0.001MF 5% 50V
C2957 1-106-383-00 MYLAR 0.047MF 10% 200V
C2958 1-126-933-11 ELECT 100MF 20% 16V
C2975 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

CONNECTOR

R2943 1-216-025-91 RES,CHIP 100 5% 1/10W
R2948 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2949 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2950 1-216-049-91 RES,CHIP 1K 5% 1/10W
R2951 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2952 1-216-037-00 RES,CHIP 330 5% 1/10W
R2953 1-216-021-00 RES,CHIP 68 5% 1/10W
R2954 1-216-033-00 RES,CHIP 220 5% 1/10W
R2955 1-216-047-91 RES,CHIP 820 5% 1/10W
R2956 1-216-295-91 SHORT

R2957 1-216-073-00 RES,CHIP 10K 5% 1/10W
R2958 1-216-295-91 SHORT
R2959 1-216-021-00 RES,CHIP 68 5% 1/10W
R2979 1-216-017-91 RES,CHIP 47 5% 1/10W
R4941 1-260-311-11 CARBON 39 5% 1/2W

R4942 1-249-384-11 CARBON 1.8 5% 1/4W F
R4943 1-249-414-11 CARBON 560 5% 1/4W F
R4944 1-249-432-11 CARBON 18K 5% 1/4W
R4945 1-216-476-11 METAL OXIDE 180 5% 3W F
R4946 1-249-417-11 CARBON 1K 5% 1/4W F

R4947 1-249-432-11 CARBON 18K 5% 1/4W
R4948 1-249-414-11 CARBON 560 5% 1/4W
R4949 1-249-384-11 CARBON 1.8 5% 1/4W F
R4950 1-249-400-11 CARBON 39 5% 1/4W F

CN2941* 1-564-508-11 PLUG, CONNECTOR 5P

DIODE

D2941 8-719-991-33 DIODE 1SS133T-77
D2946 8-719-110-88 DIODE RD39ESB2
D2947 8-719-110-88 DIODE RD39ESB2

COIL

L2942 1-215-863-11 METAL OXIDE 100 5% 1W F

TRANSISTOR

Q2943 8-729-422-27 TRANSISTOR 2SD601A-Q
Q2944 8-729-422-27 TRANSISTOR 2SD601A-Q
Q2945 8-729-422-27 TRANSISTOR 2SD601A-Q
Q2946 8-729-017-05 TRANSISTOR 2SA1837
Q2947 8-729-017-06 TRANSISTOR 2SC4793

Q2965 8-729-422-27 TRANSISTOR 2SD601A-Q
Q2966 8-729-216-22 TRANSISTOR 2SA1162-G

— 113 —

ACCESSORIES AND PACKING MATERIALS

REF.NO. PART NO. DESCRIPTION REMARK

S SERIES

REF.NO. PART NO. DESCRIPTION REMARK

V SERIES

ACCESSORIES AND PACKING MATERIALS

4-041-259-01 * BAG, PROTECTION (KV-32S40/34SL40/34SL40C/32S45/
34SL45/34SL40T)
4-053-658-01 * BAG, PROTECTION (KV-35S40/35S45/37SL45)

4-063-179-01 * CARTON, INDIVIDUAL (KV-32S40/32S45/34SL40T)
4-056-782-01 * CARTON, INDIVIDUAL (KV-35S40/35S45/37SL45)
4-065-233-01 * CARTON, INDIVIDUAL (KV-34SL40/34SL40C/34SL45)

4-056-783-01 * CUSHION, UPPER ASSY (KV-35S40/35S45/37SL45)
4-063-180-01 * CUSHION, UPPER ASSY (KV-32S40/34SL40/34SL40C/32S45/

34SL45/34SL40T)

4-056-784-01 * CUSHION, LOWER ASSY (KV-35S40/35S45/37SL45)
4-063-181-01 * CUSHION, LOWER ASSY (KV-32S40/34SL40/34SL40C/32S45/
34SL45/34SL40T)

3-862-568-21 MANUAL, INSTRUCTION (KV-32S40/32S45/35S40/35S45)
3-862-708-41 MANUAL, INSTRUCTION (KV-34SL40/34SL40C/34SL45/

37SL45)

3-864-098-71 MANUAL, INSTRUCTION (KV-34SL40T)

4-041-259-01 * BAG, PROTECTION (KV-32V40/34VL65C/32V65/34VL65)
4-053-658-01 * BAG, PROTECTION (KV-35V65/35VL65/35V65C)

4-065-159-01 * INDIVIDUAL CARTON (KV-34VL65C/34VL65)
4-053-276-01 * INDIVIDUAL CARTON (KV-35V65/35VL65/35V65C)
4-054-073-12 * INDIVIDUAL CARTON (KV-32V40/32V65)

4-053-277-01 * CUSHION, UPPER ASSY (KV-35V65/35VL65/35V65C)
4-054-067-01 * CUSHION, UPPER ASSY (KV-32V40/34VL65C/32V65/34VL65)

4-054-070-01 * CUSHION, LOWER ASSY (KV-32V40/34VL65C/32V65/34VL65)
4-053-278-01 * CUSHION, LOWER ASSY (KV-35V65/35VL65/35V65C)

3-862-568-21 MANUAL, INSTRUCTION (KV-32V40)
3-862-568-31 MANUAL, INSTRUCTION (KV-32V40CND/32V65CND/35V65CND)
3-862-708-41 MANUAL, INSTRUCTION (KV-34VL65C/34VL65/37VL65C/37VL65)

ACCESSORIES AND PACKING MATERIALS

REMOTE COMMANDER

REMOTE COMMANDER

1-475-801-11 REMOTE COMMANDER (RM-Y165)

(KV-32S40/34SL40/34SL40C/32S45/35S40/34SL40T)

4-978-977-01 BATTERY COVER (FOR REMOTE)

(KV-32S40/34SL40/34SL40C/32S45/35S40/34SL40T)

1-475-802-11 REMOTE COMMANDER (RM-Y167)

(KV-34SL45/35S45/37SL45)

4-978-977-01 BATTERY COVER (FOR REMOTE)

(KV-34SL45/35S45/37SL45)

1-475-801-11 REMOTE COMMANDER (RM-Y165)

(KV-32V40)

4-978-977-01 BATTERY COVER (FOR REMOTE)

(KV-32V40)

1-475-802-11 REMOTE COMMANDER (RM-Y167)

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C)

4-978-977-01 BATTERY COVER (FOR REMOTE)

(KV-34VL65C/32V65CND/34VL65/35V65CND/37VL65/37VL65C)

— 114 —
