Z750a__UG_AE_1200_9984_1_12.book Page 1 Friday, July 27, 2007 5:22 PM
Congratulations on your purchase of the Sony Ericsson Z750a. Capture and share quality moments. For additional phone content, go to www.sonyericsson.com/fun.
Register now to get a suite of tools, free online storage, special offers, news and competitions at www.sonyericsson.com/myphone.
For product support, go to www.sonyericsson.com/support.
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 2 Friday, July 27, 2007 5:22 PM
Added dimensions – More for your phone
Bluetooth™ Headset HBH-PV710
Stylish and compact handsfree solution with exceptional performance.
Bluetooth™ Car Speakerphone
HCB-120
A handsfree solution with caller display.
For use in the car, office or home.
Desk Stand CDS-65
Your phone’s best assistant: connect a USB cable, charger and portable handsfree.
These accessories can be purchased separately but may not be available in every market. To view the full range go to www.sonyericsson.com/accessories.
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 1 Friday, July 27, 2007 5:22 PM
Contents |
|
Getting started ................... |
5 |
Assembly ........................................ |
5 |
Turning on the phone ..................... |
6 |
Help in your phone ........................ |
7 |
Charging the battery ....................... |
7 |
Phone overview ............................. |
8 |
Menu overview ............................. |
10 |
Navigation .................................... |
12 |
File manager ................................ |
13 |
Phone language ........................... |
14 |
Entering text ................................. |
15 |
Calling ............................... |
16 |
Making and receiving calls ........... |
16 |
Contacts ....................................... |
17 |
Call list .......................................... |
21 |
Speed dial ..................................... |
21 |
Voicemail ...................................... |
22 |
Voice control ................................ |
22 |
Voice dialing ................................. |
23 |
Forwarding calls ........................... |
24 |
More than one call ........................ |
24 |
My numbers .................................. |
26 |
Accept calls ................................. |
26 |
Restricted dialing .......................... |
26 |
Fixed dialing ................................. |
27 |
Call time and cost ......................... |
27 |

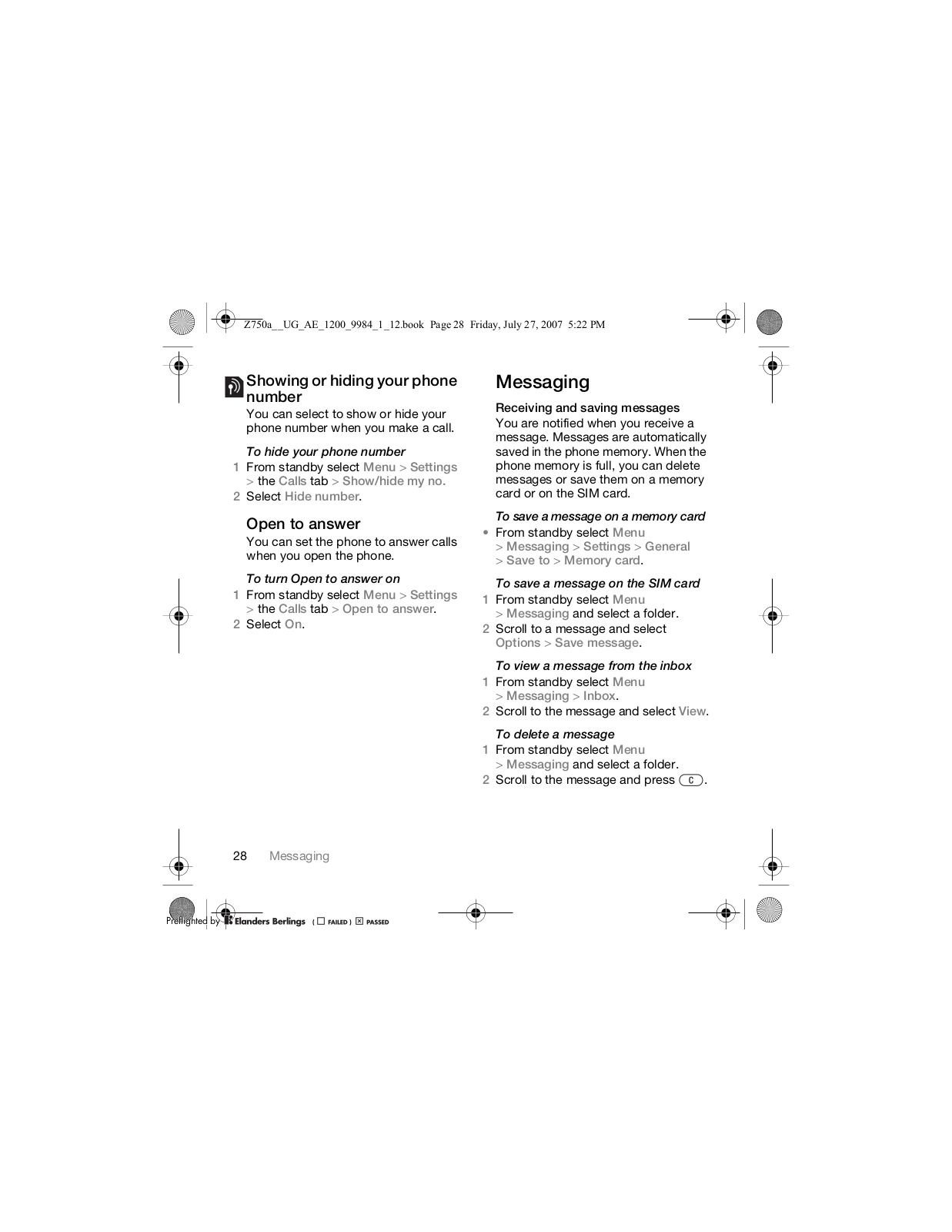

Showing or hiding |
|
your phone number ...................... |
28 |
Open to answer ............................ |
28 |
Messaging ........................ |
28 |

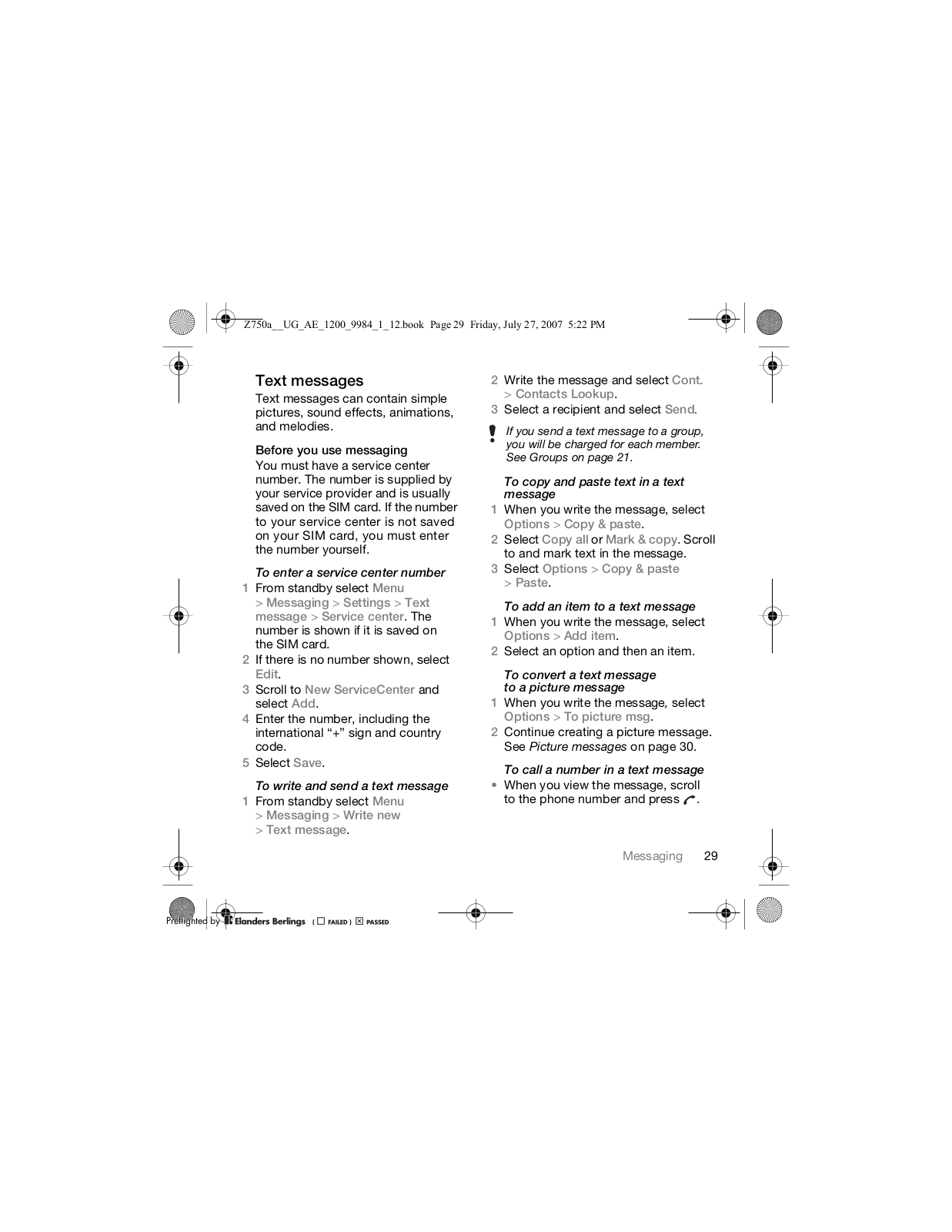

Text messages .............................. |
29 |

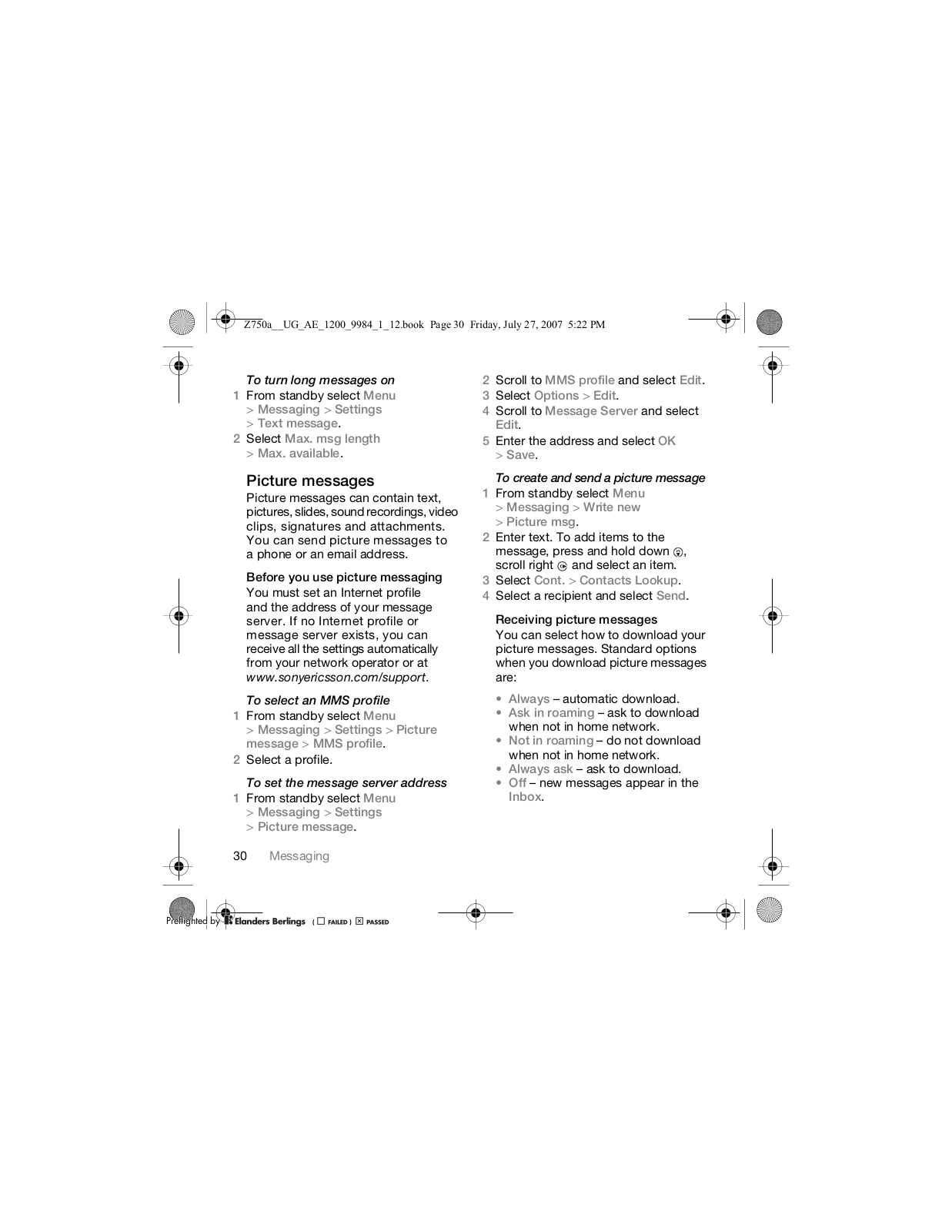

Picture messages ......................... |
30 |

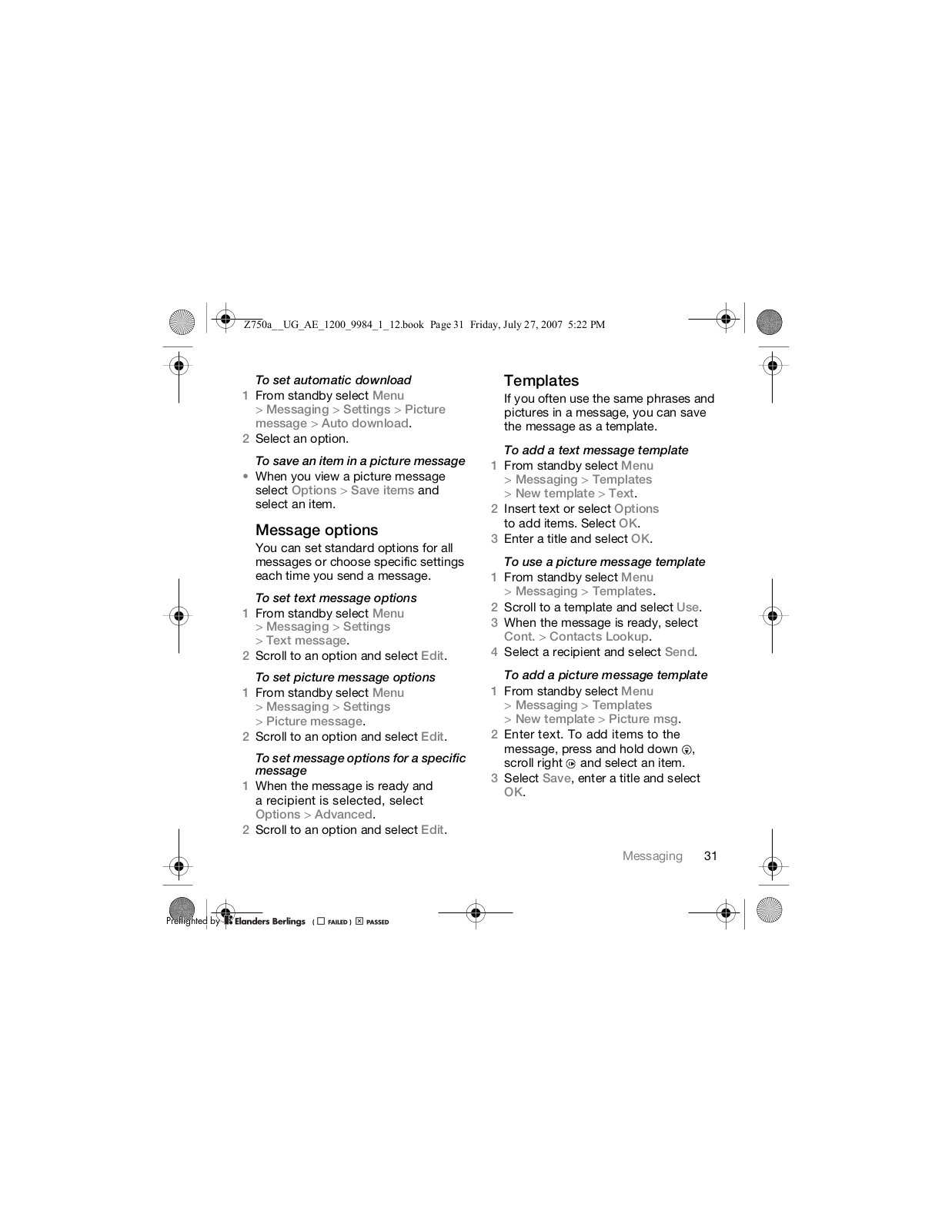

Message options .......................... |
31 |
Templates ..................................... |
31 |

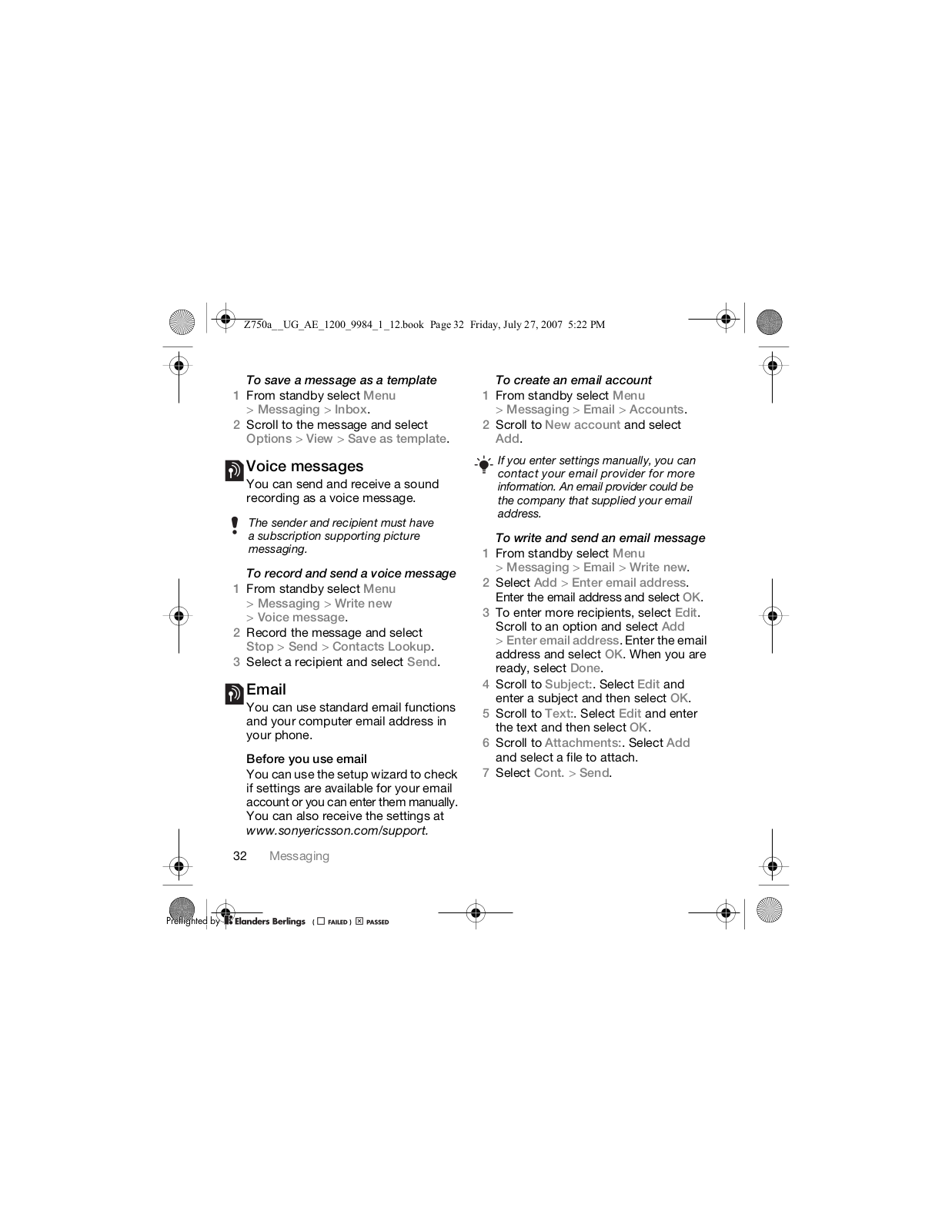

Voice messages ............................ |
32 |

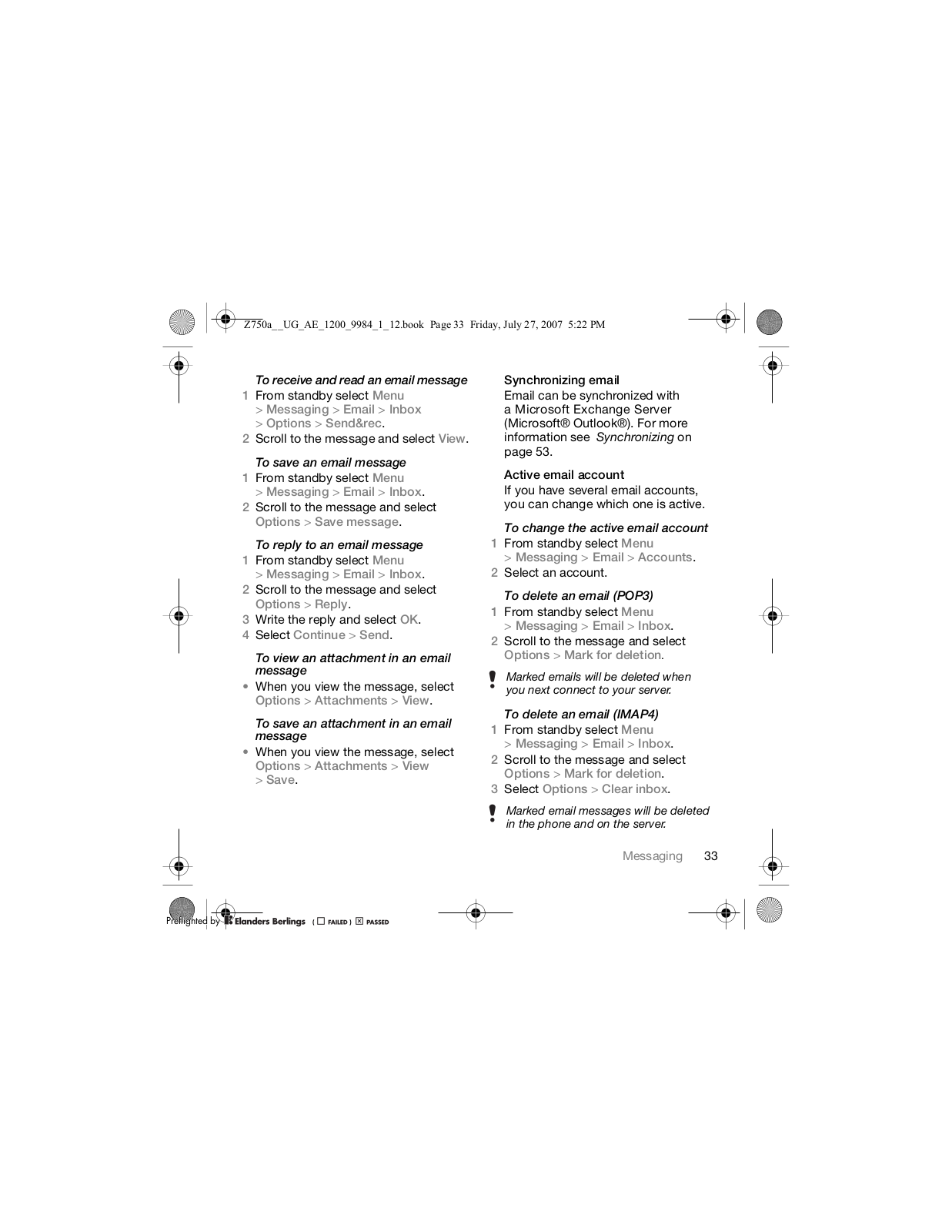

Email ............................................ |
32 |

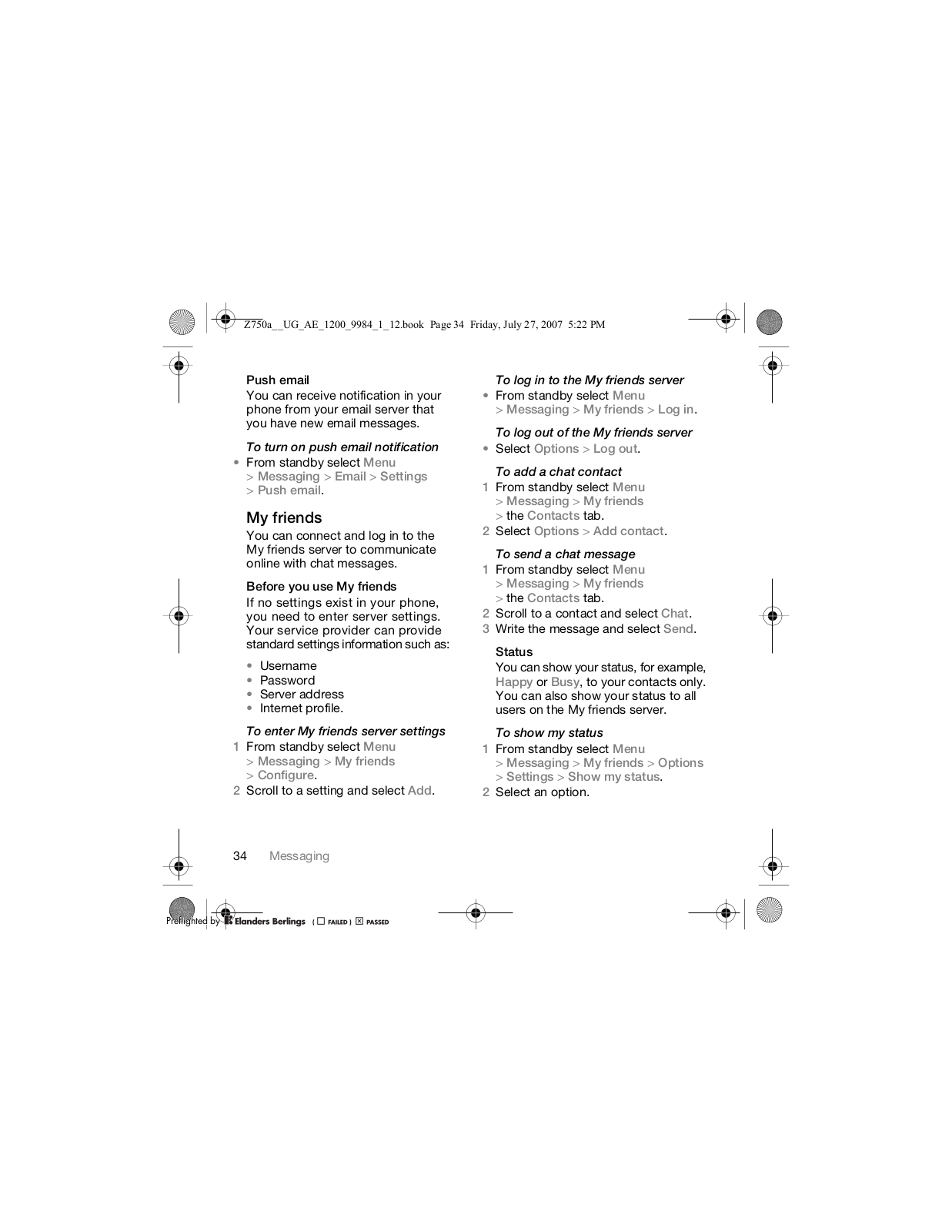

My friends ..................................... |
34 |

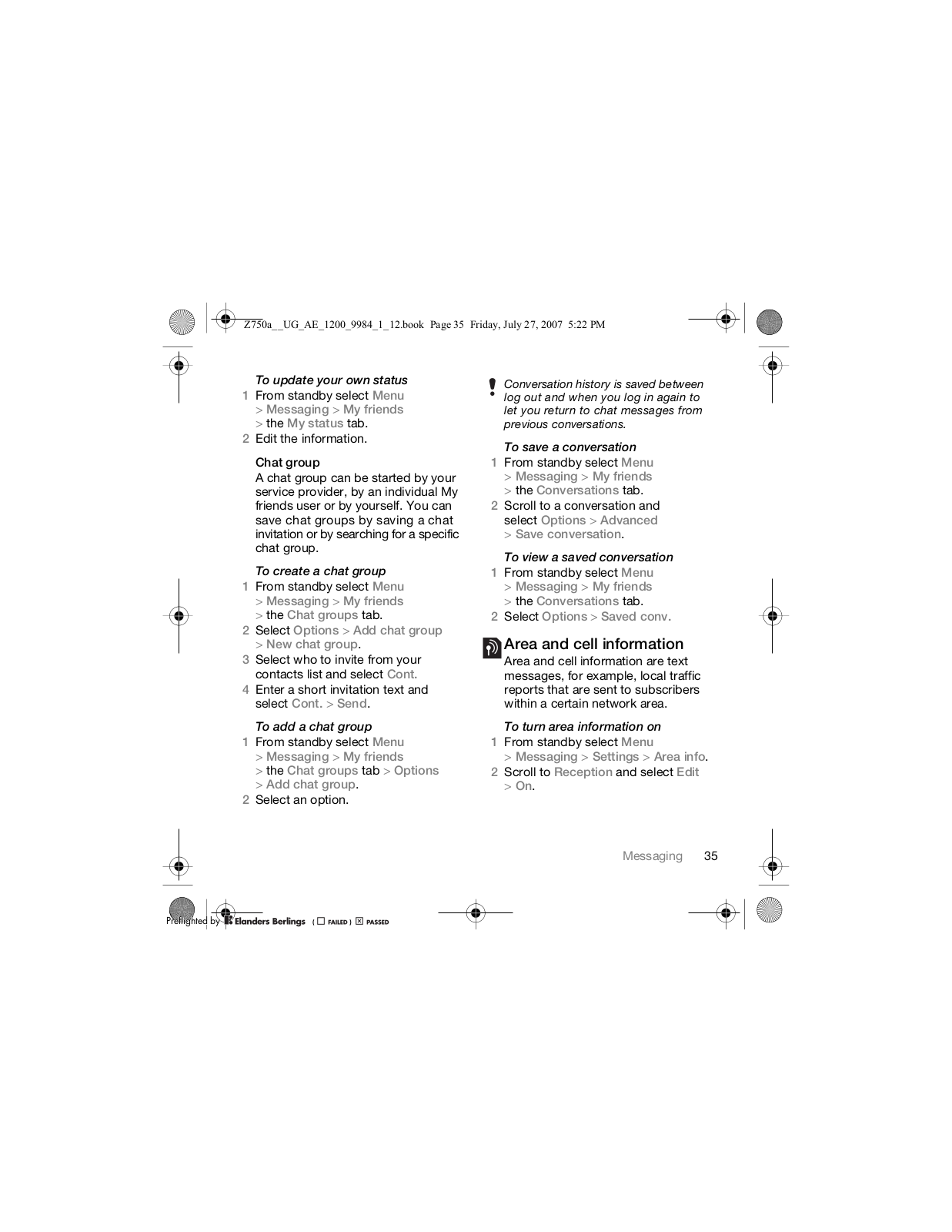

Area and cell information .............. |
35 |

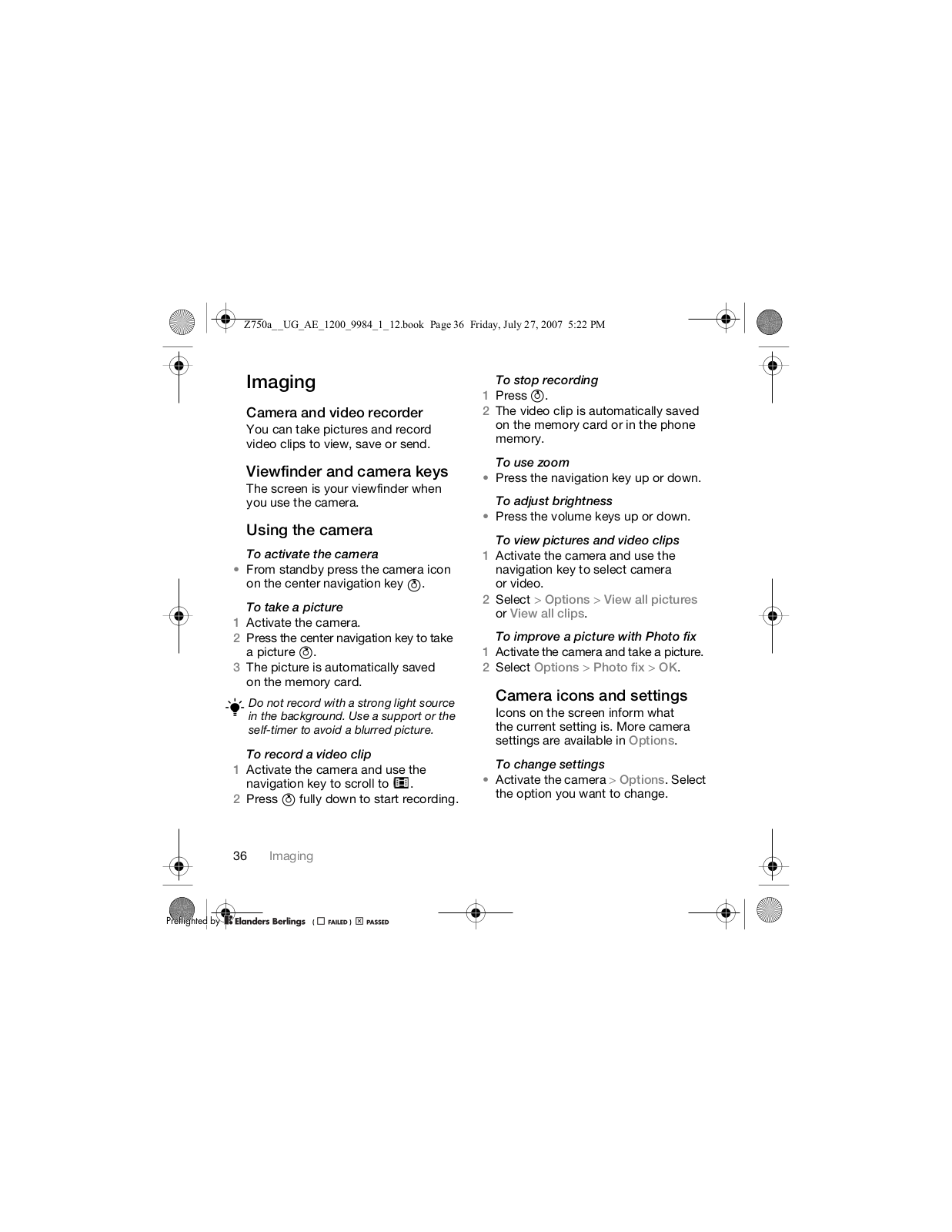

Imaging ............................ |
36 |
Camera and video recorder ......... |
36 |
Viewfinder and camera keys ........ |
36 |
Using the camera .......................... |
36 |
Camera icons and settings ........... |
36 |

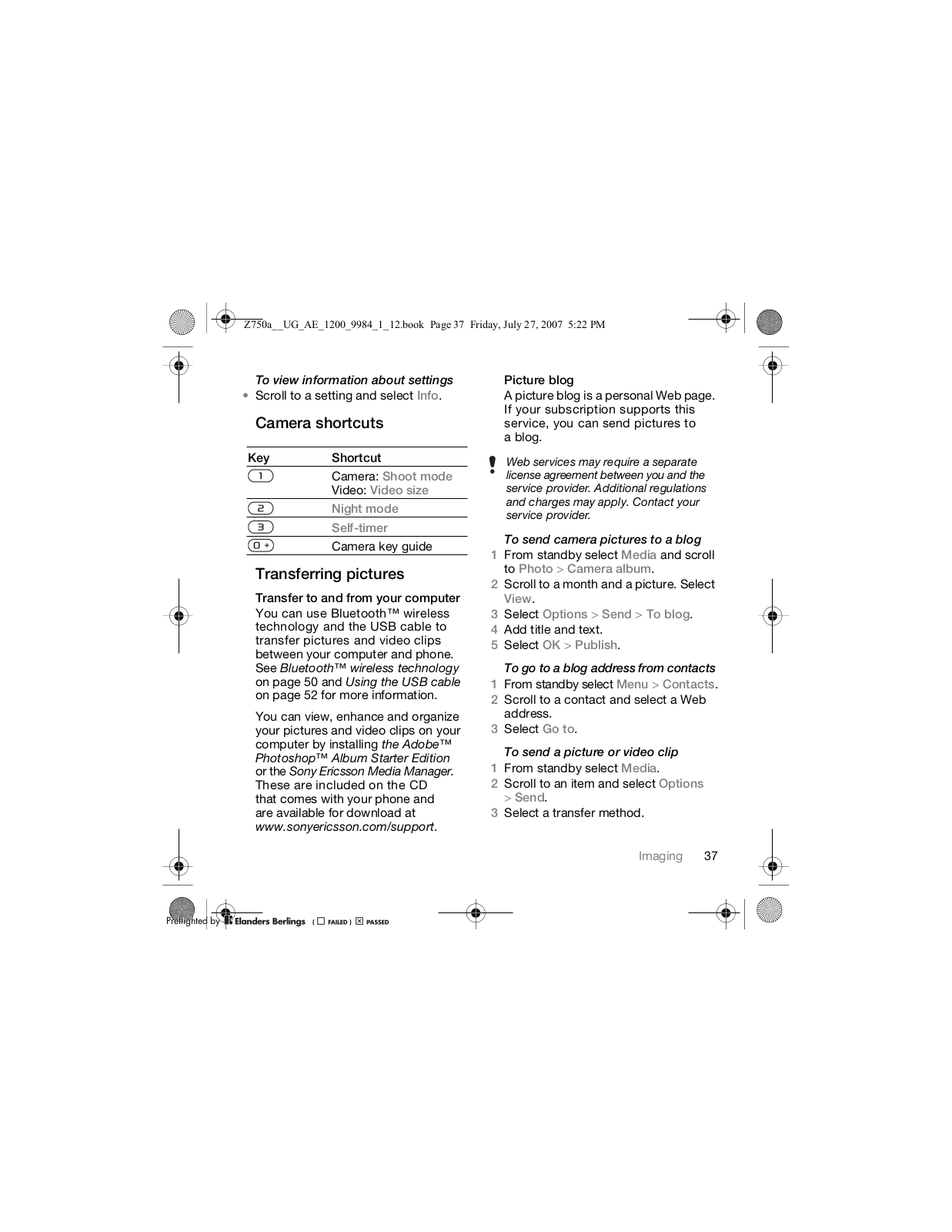

Camera shortcuts ......................... |
37 |
Transferring pictures ..................... |
37 |

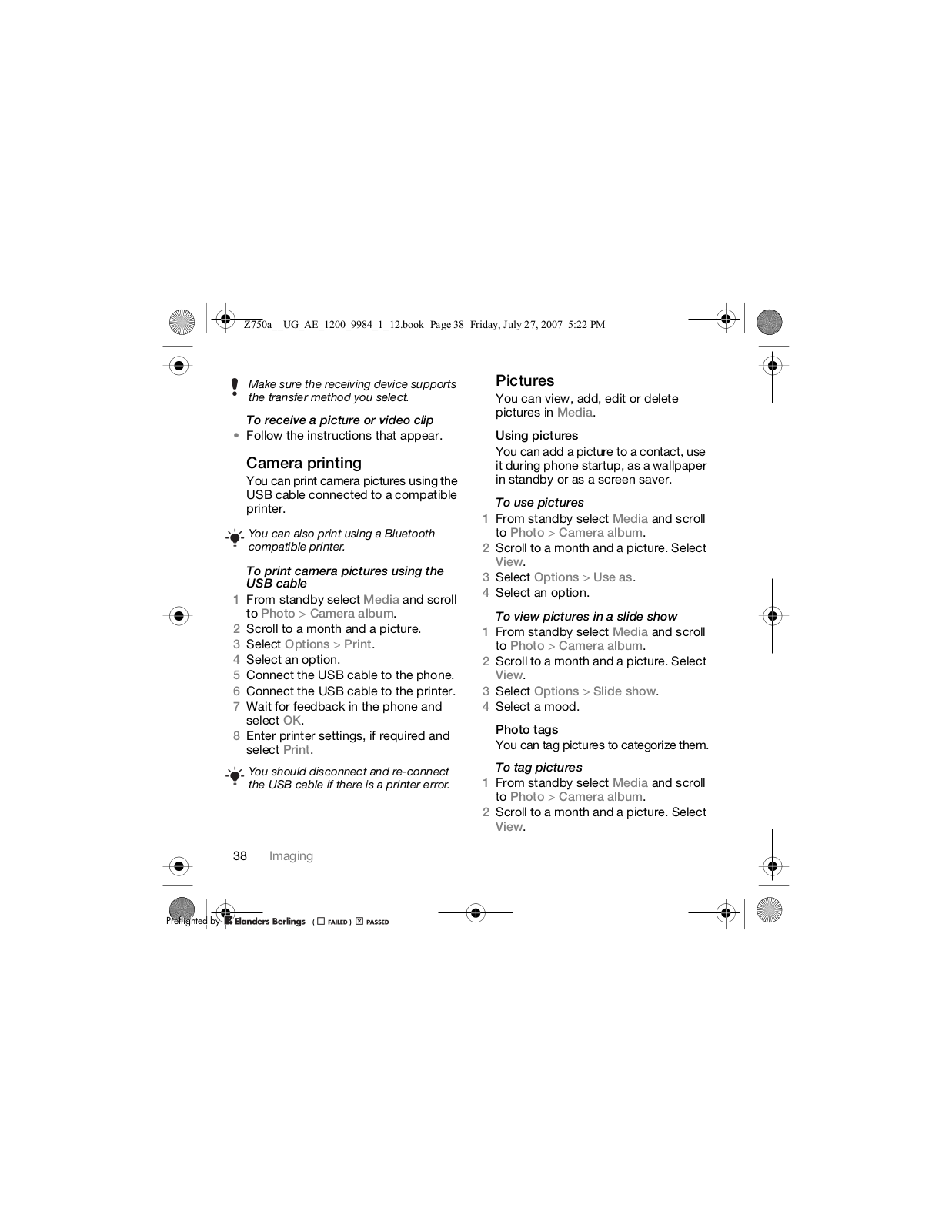

Camera printing ............................ |
38 |
Contents 1
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 2 Friday, July 27, 2007 5:22 PM
Pictures ......................................... |
38 |

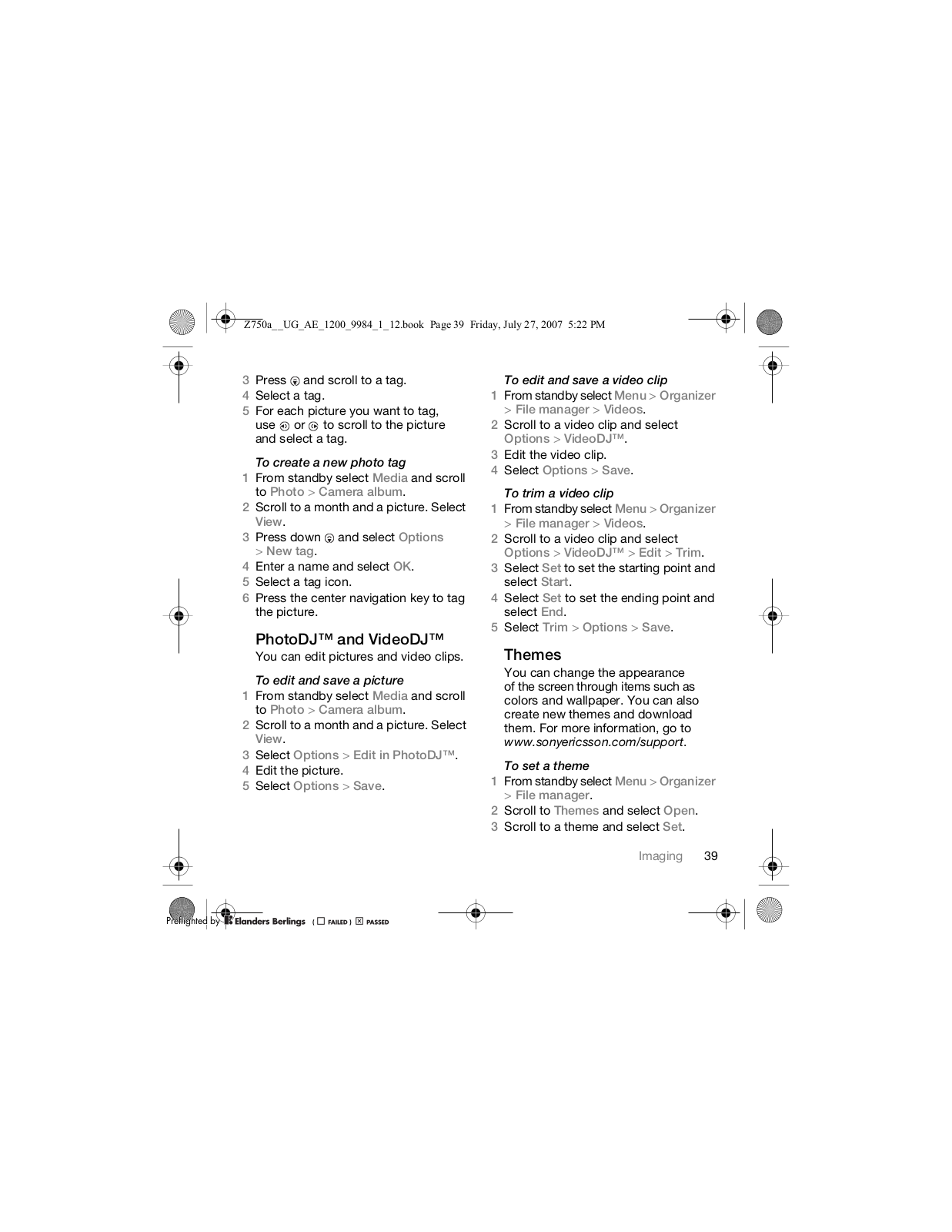

PhotoDJ™ and VideoDJ™ ........... |
39 |
Themes ......................................... |
39 |

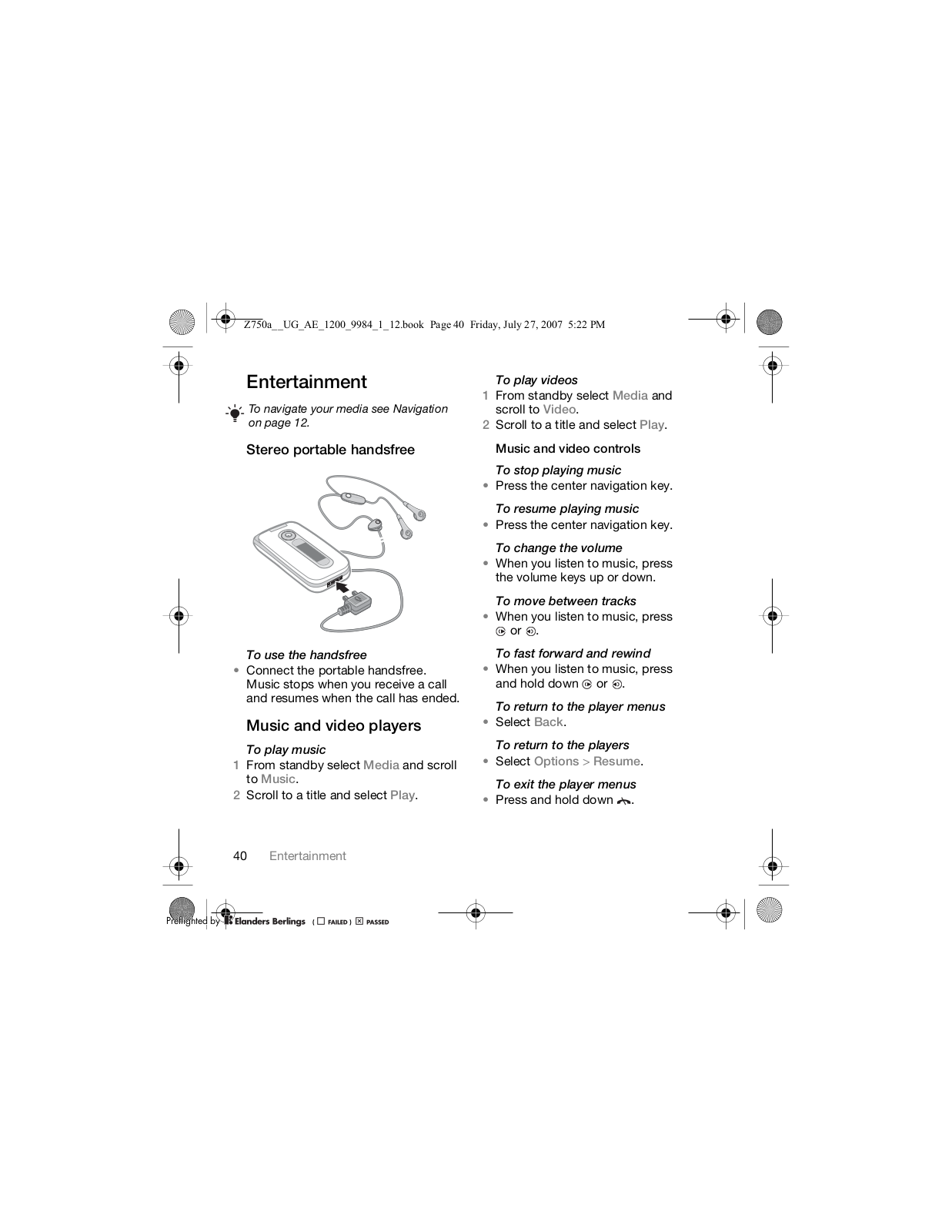

Entertainment .................. |
40 |
Stereo portable handsfree ............ |
40 |
Music and video players ............... |
40 |

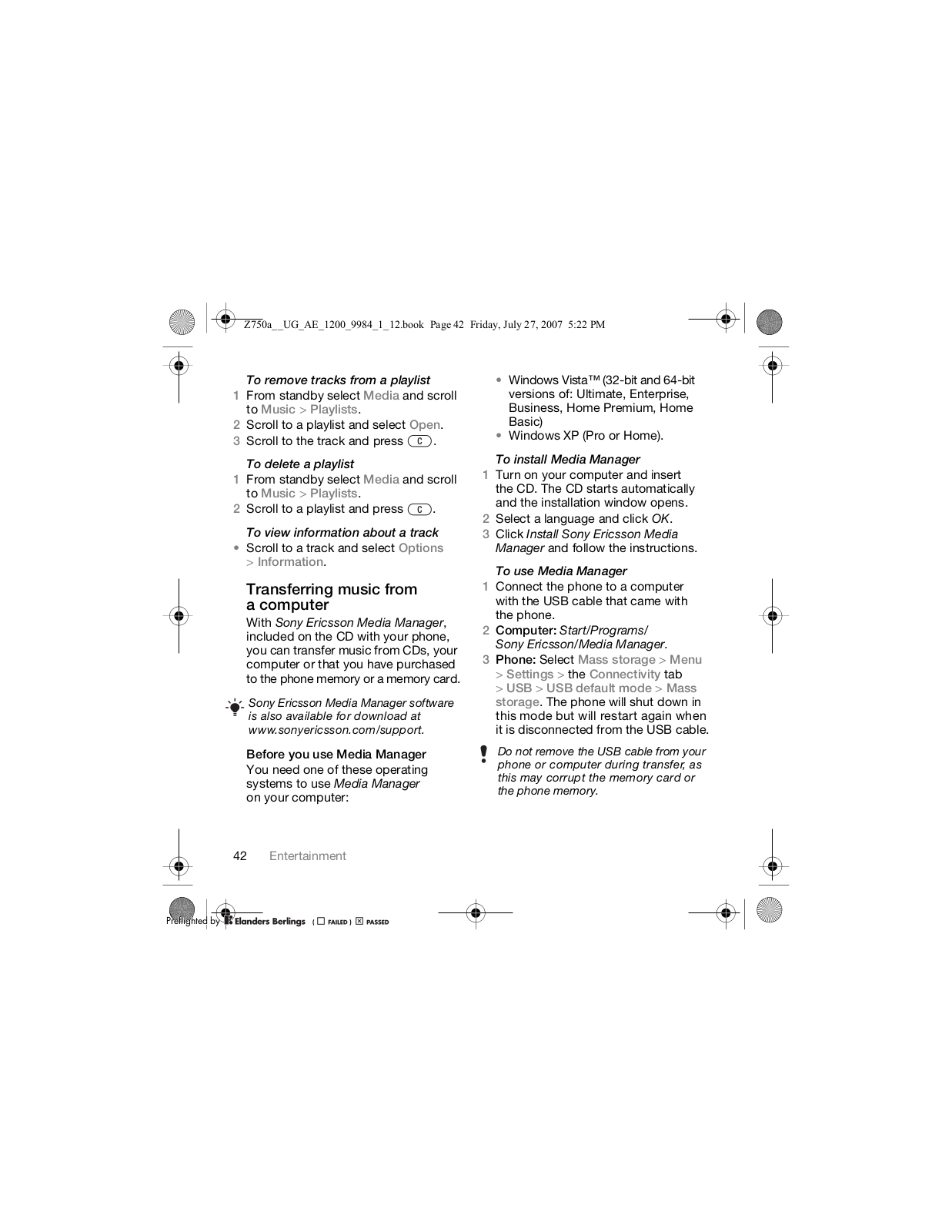

Transferring music |
|
from a computer ........................... |
42 |
TrackID™ ...................................... |
43 |
Radio ........................................... |
43 |

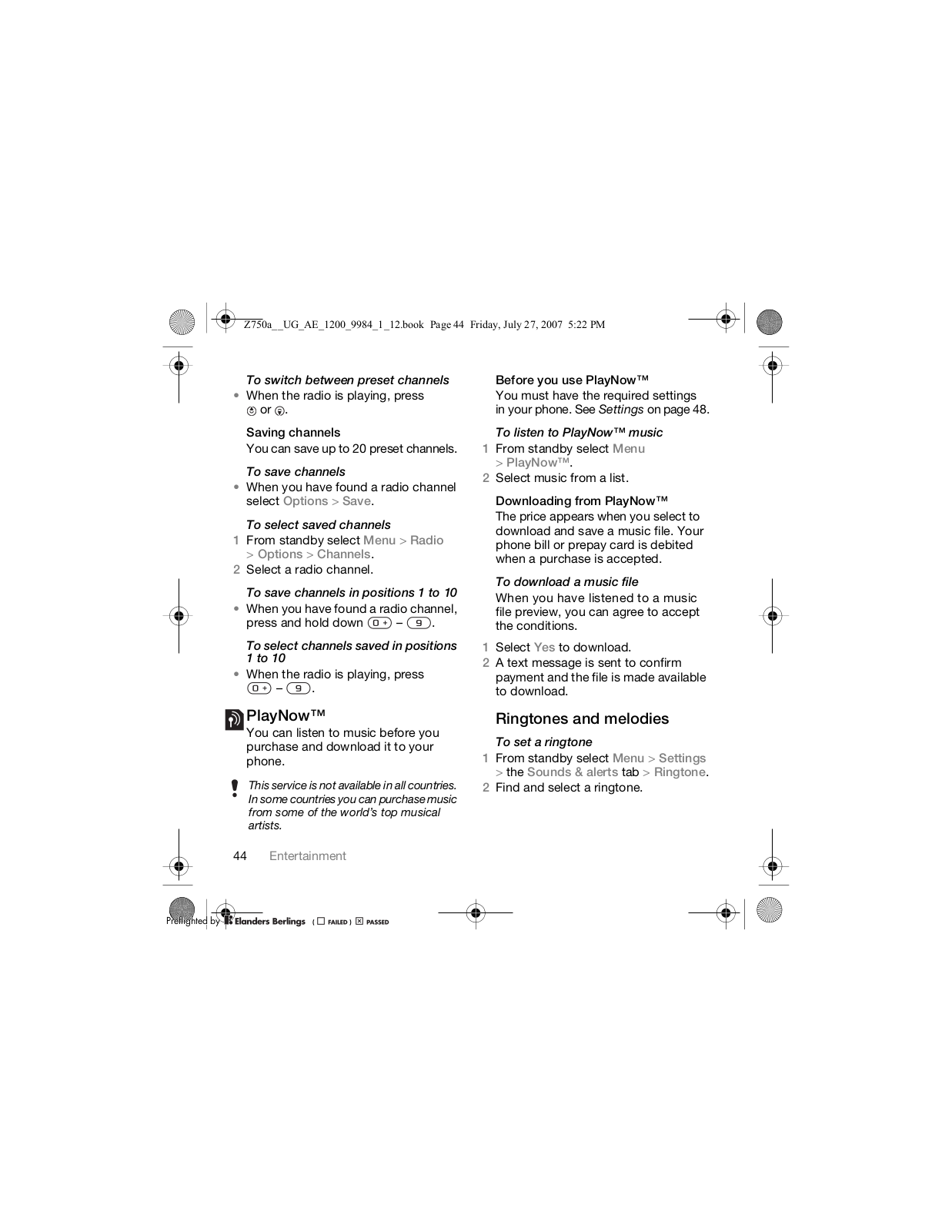

PlayNow™ .................................... |
44 |
Ringtones and melodies ............... |
44 |

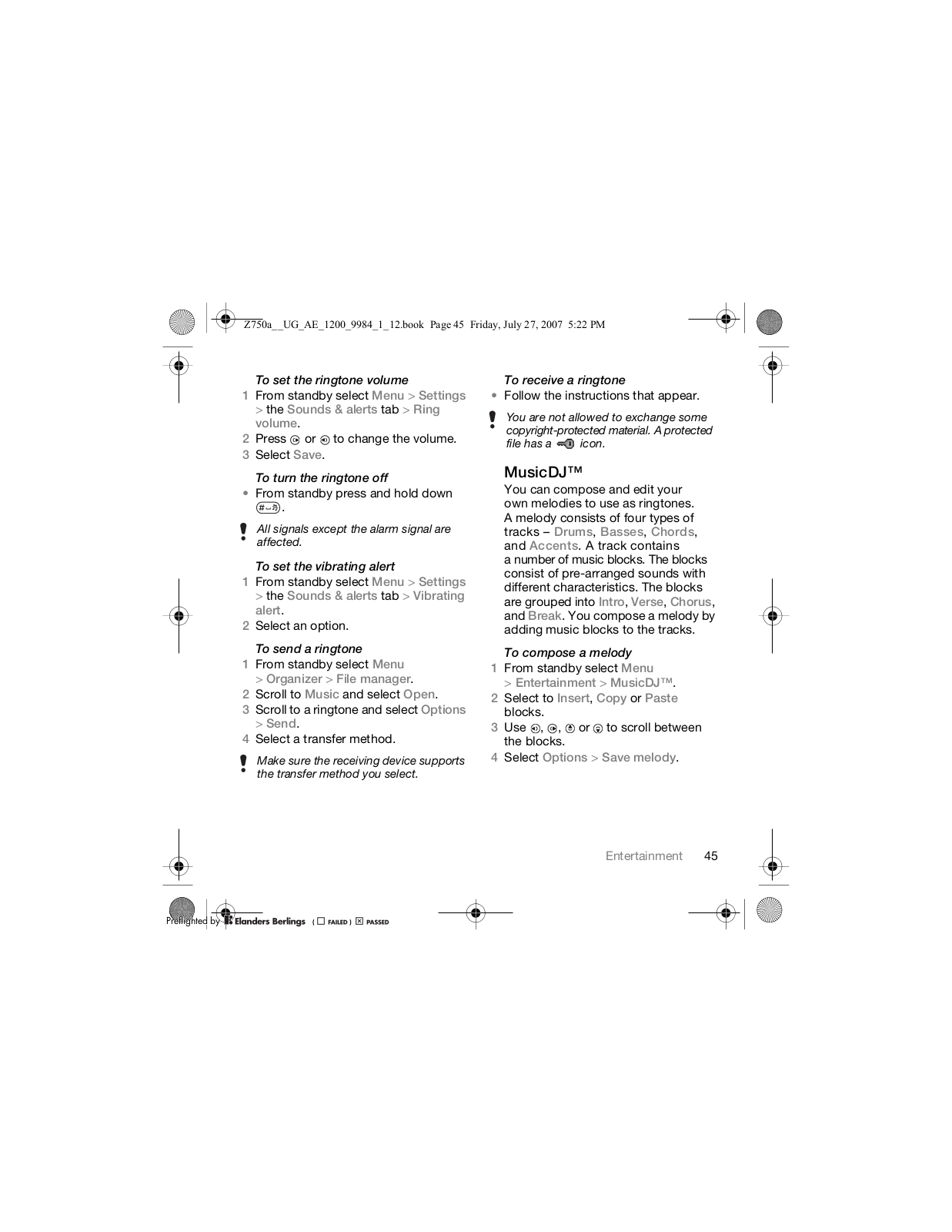

MusicDJ™ .................................... |
45 |

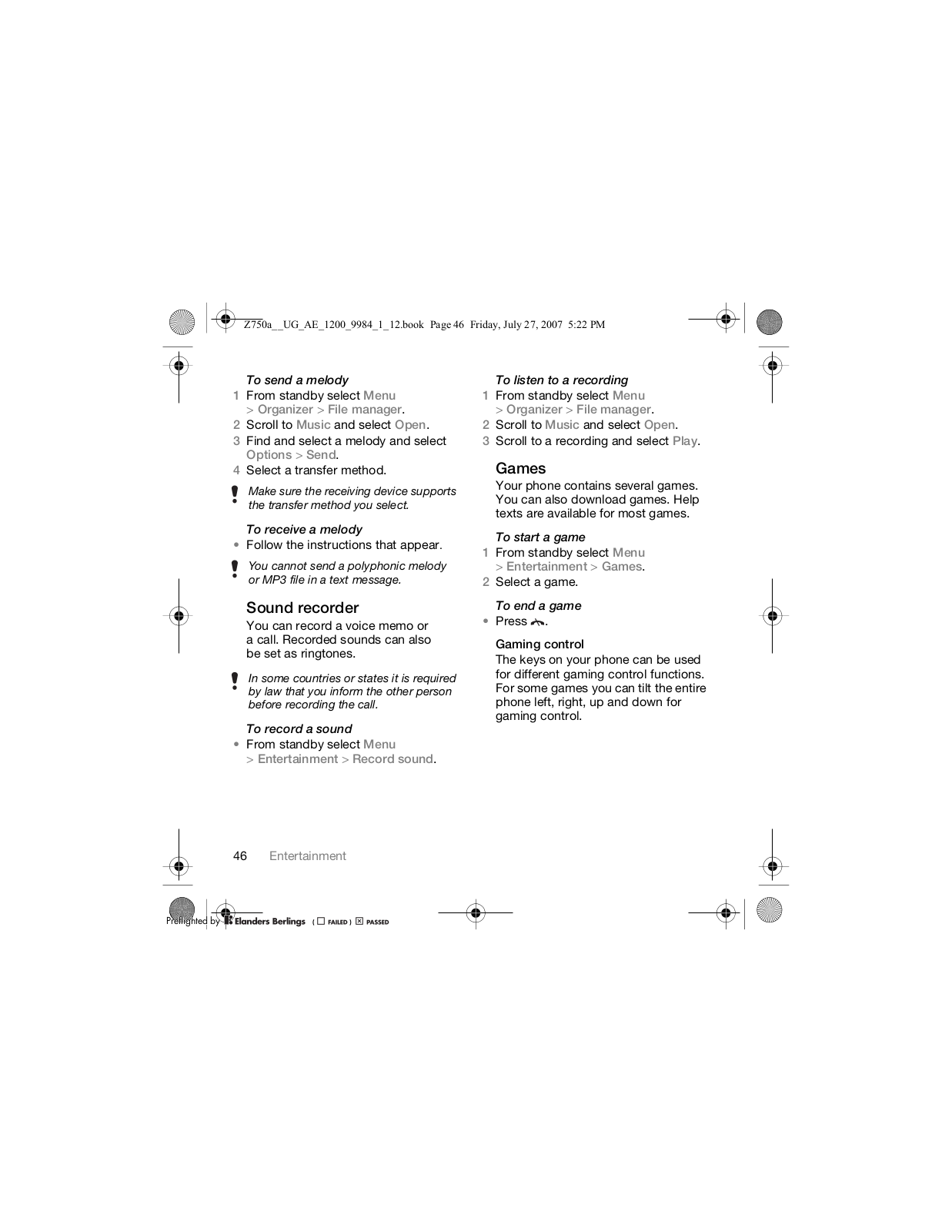

Sound recorder ............................. |
46 |
Games .......................................... |
46 |

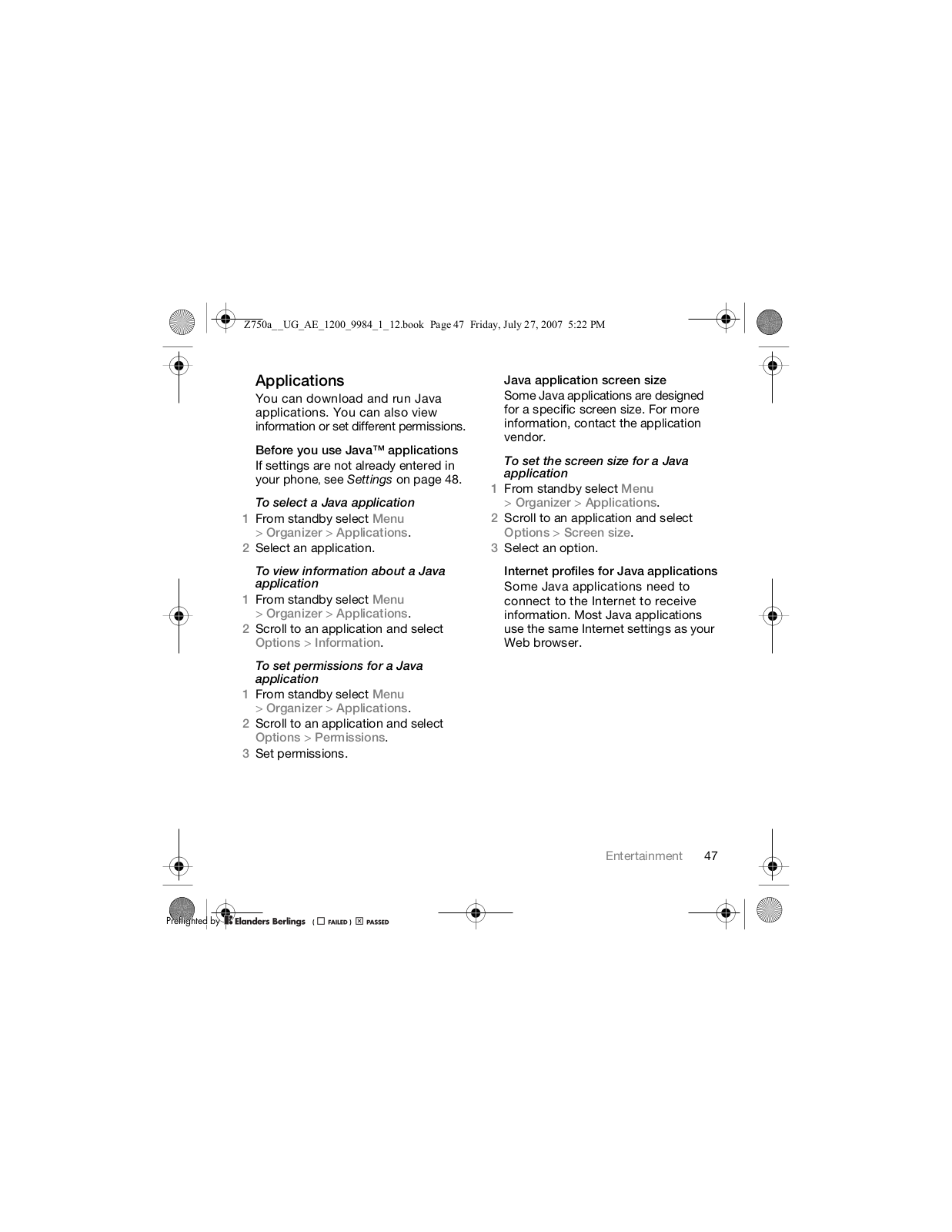

Applications .................................. |
47 |
Connectivity ...................... |
48 |
Settings ........................................ |
48 |
Phone name .................................. |
48 |

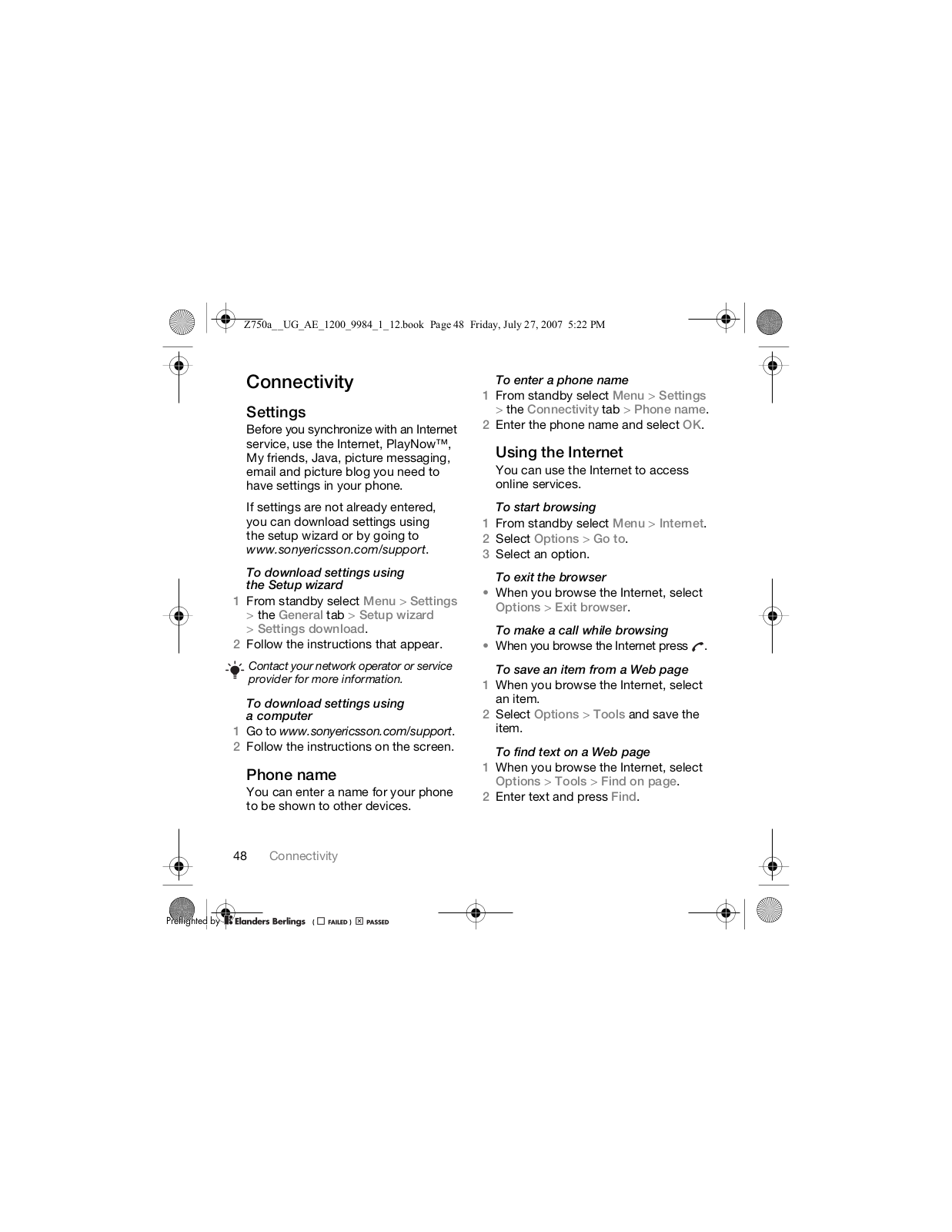

Using the Internet ......................... |
48 |

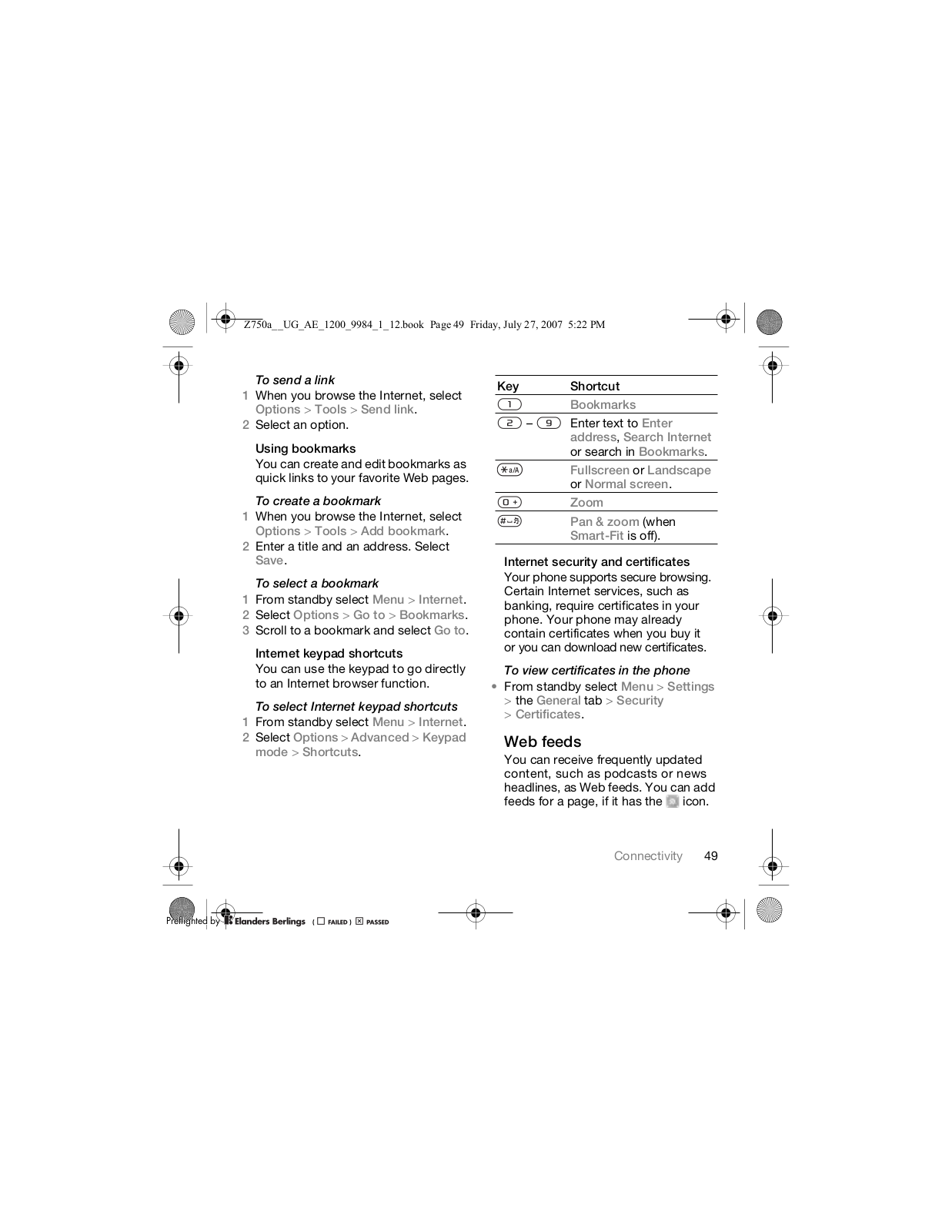

Web feeds ..................................... |
49 |

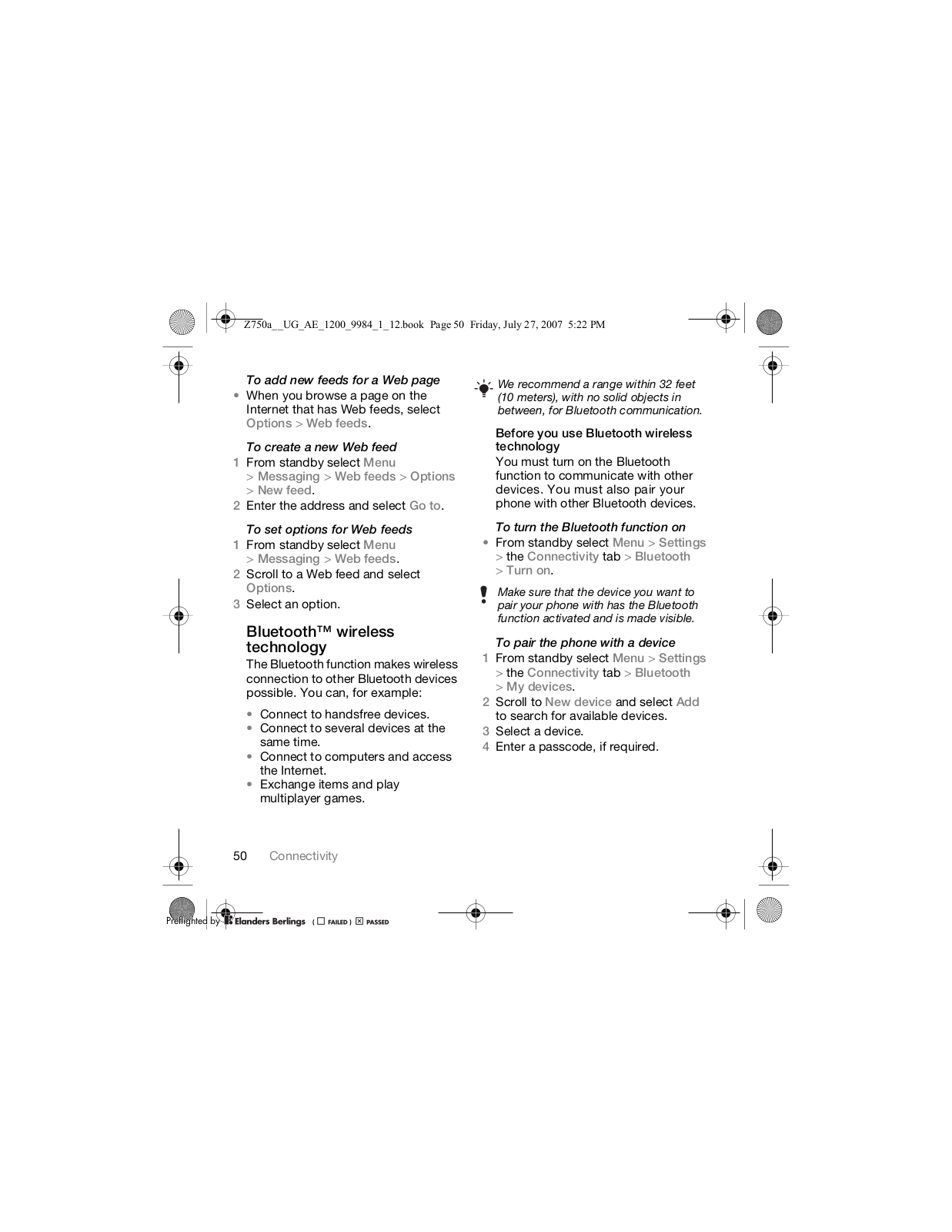

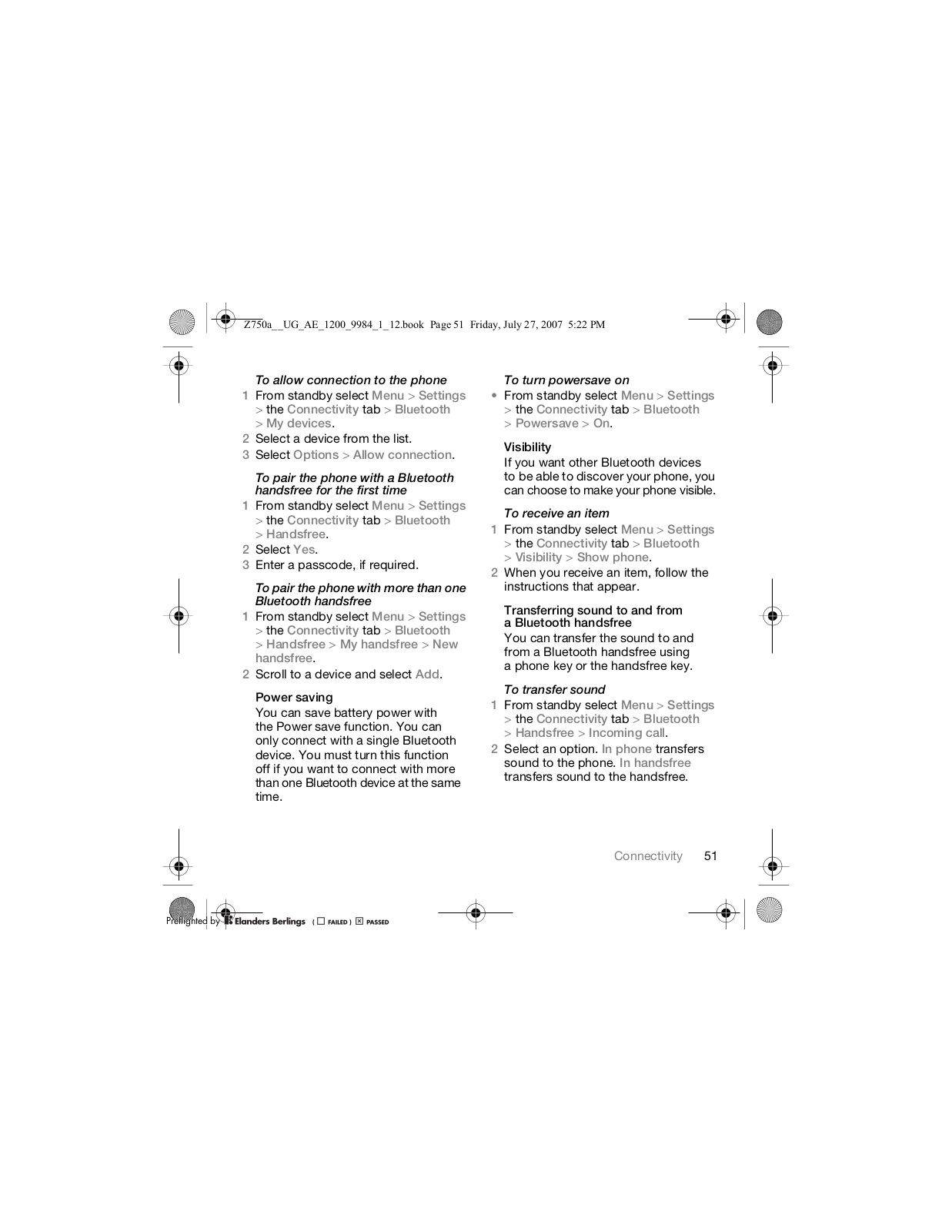

Bluetooth™ wireless technology |
. 50 |

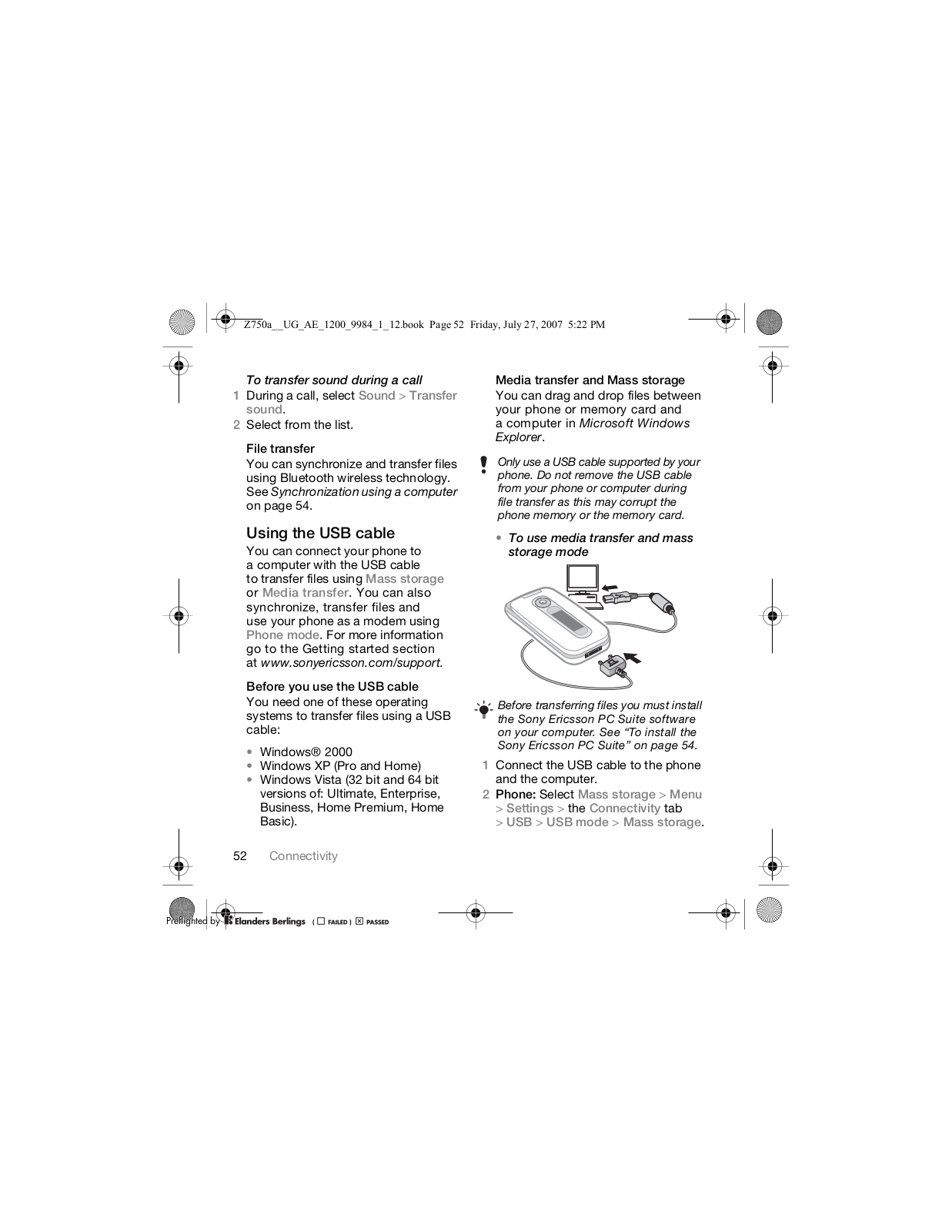

Using the USB cable .................... |
52 |

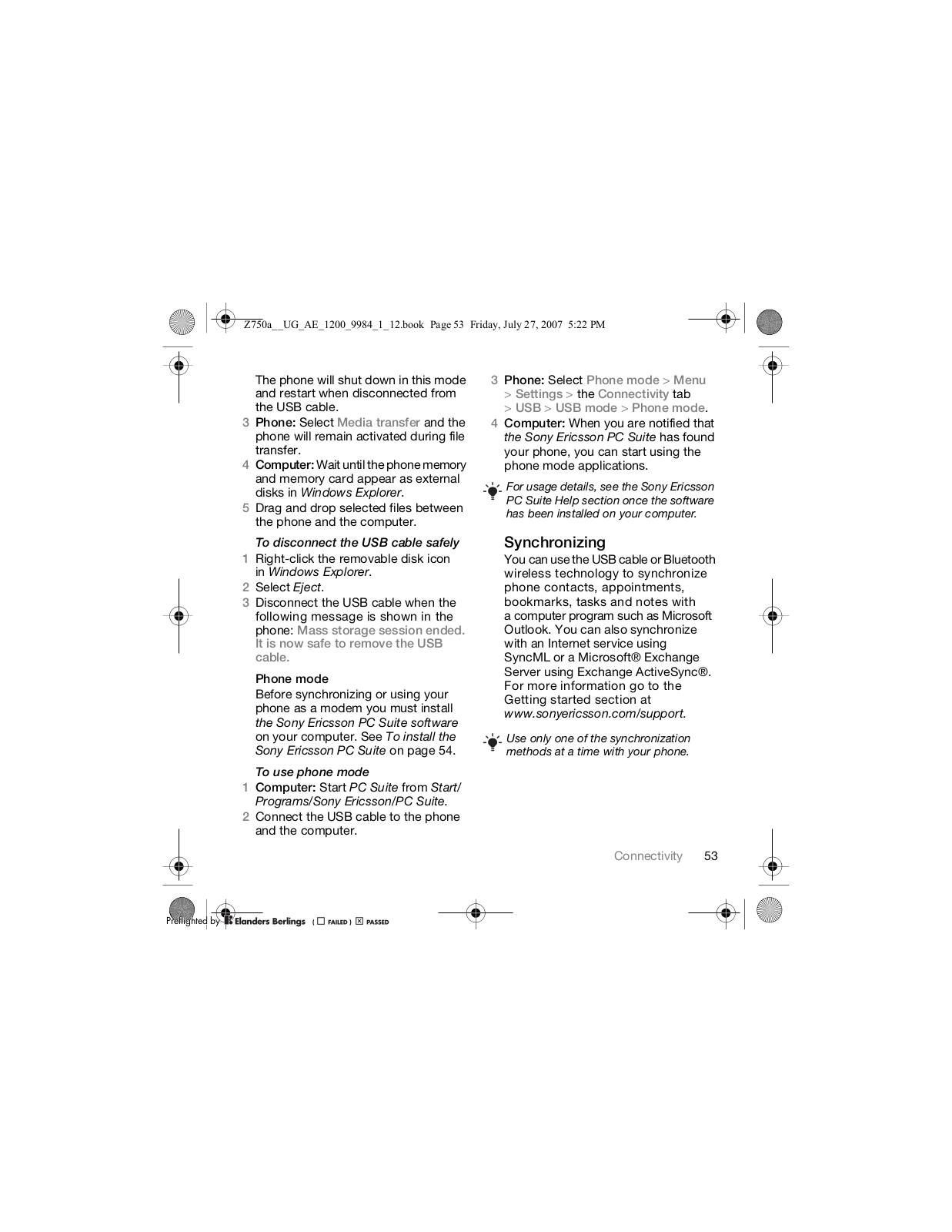

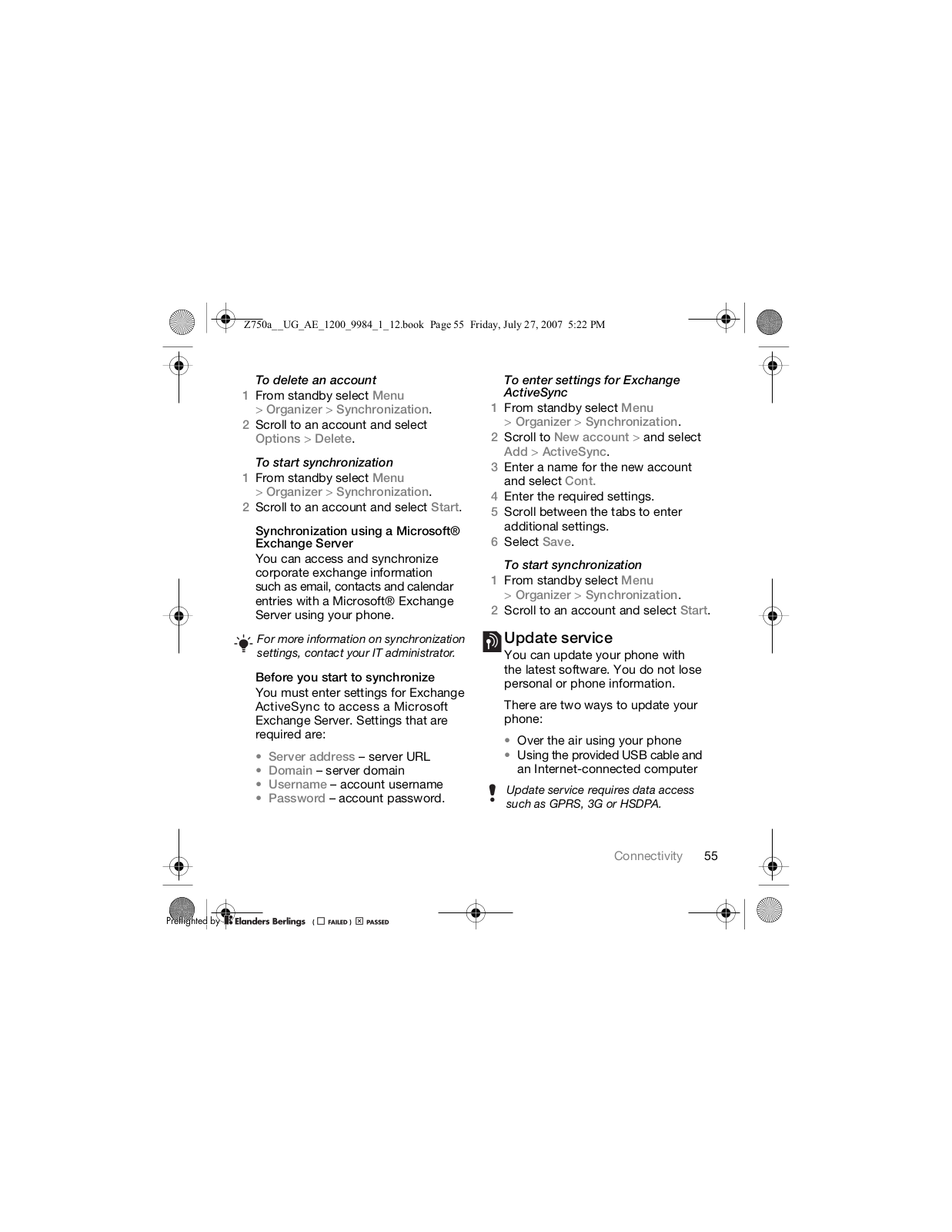

Synchronizing .............................. |
53 |
Update service ............................. |
55 |

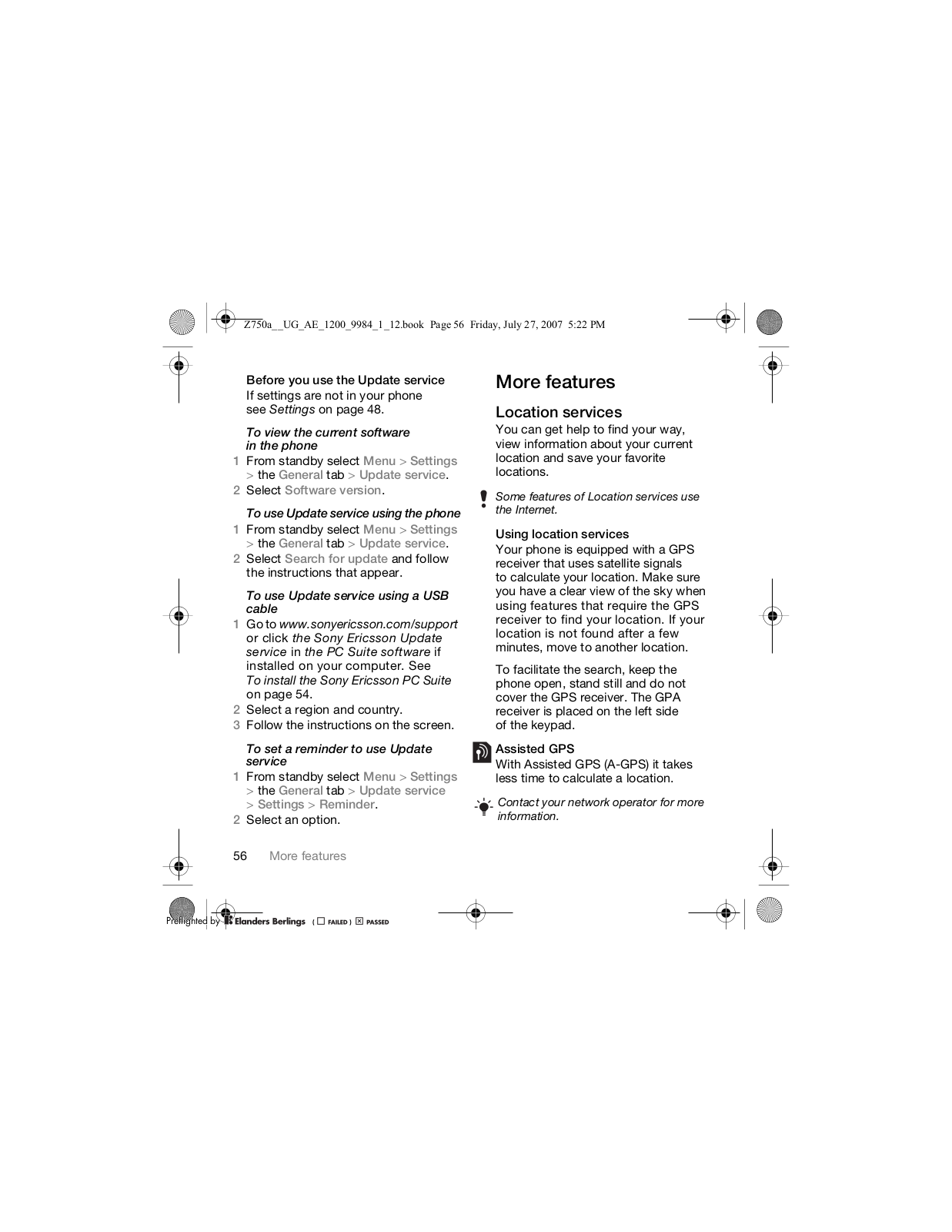

More features ................... |
56 |

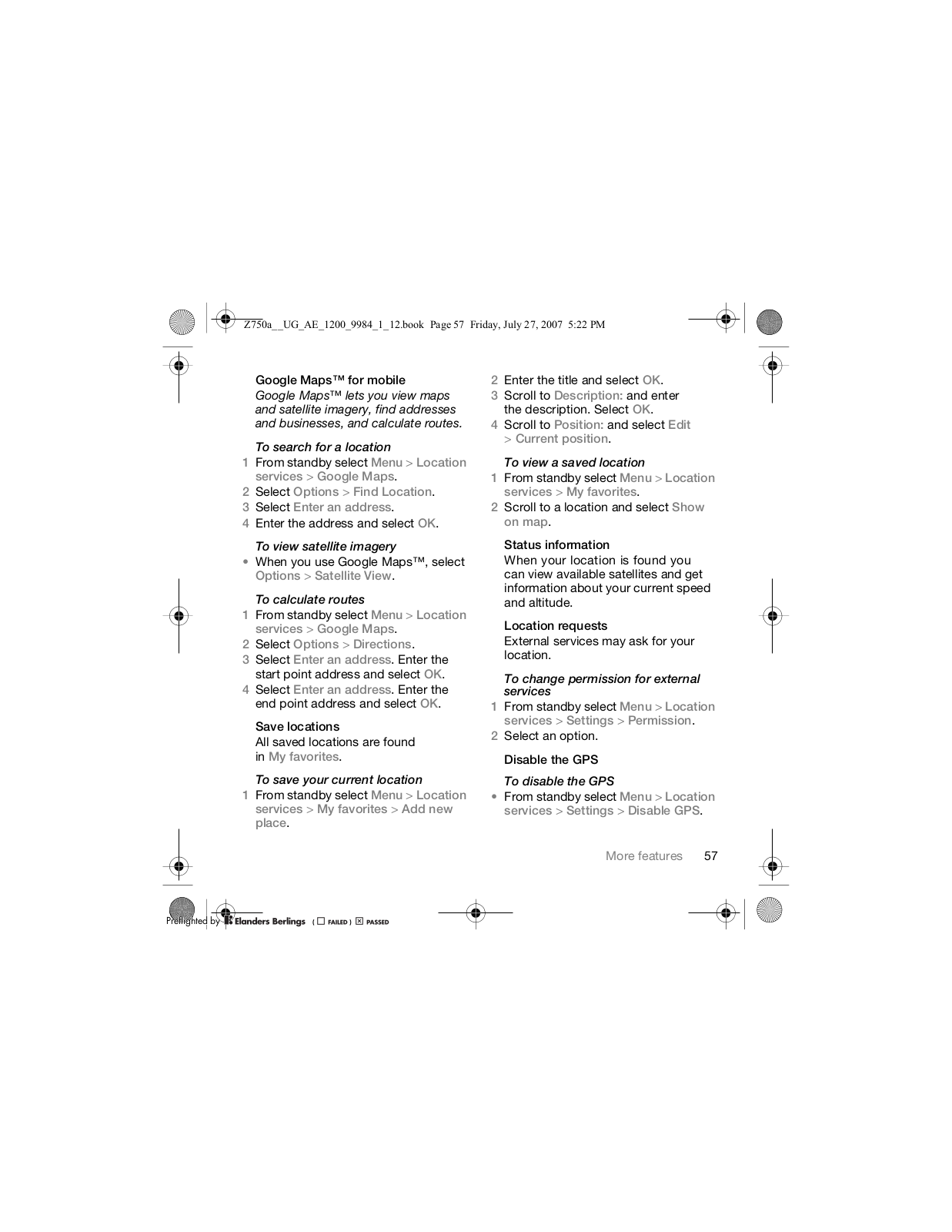

Location services .......................... |
56 |
Alarms ........................................... |
58 |

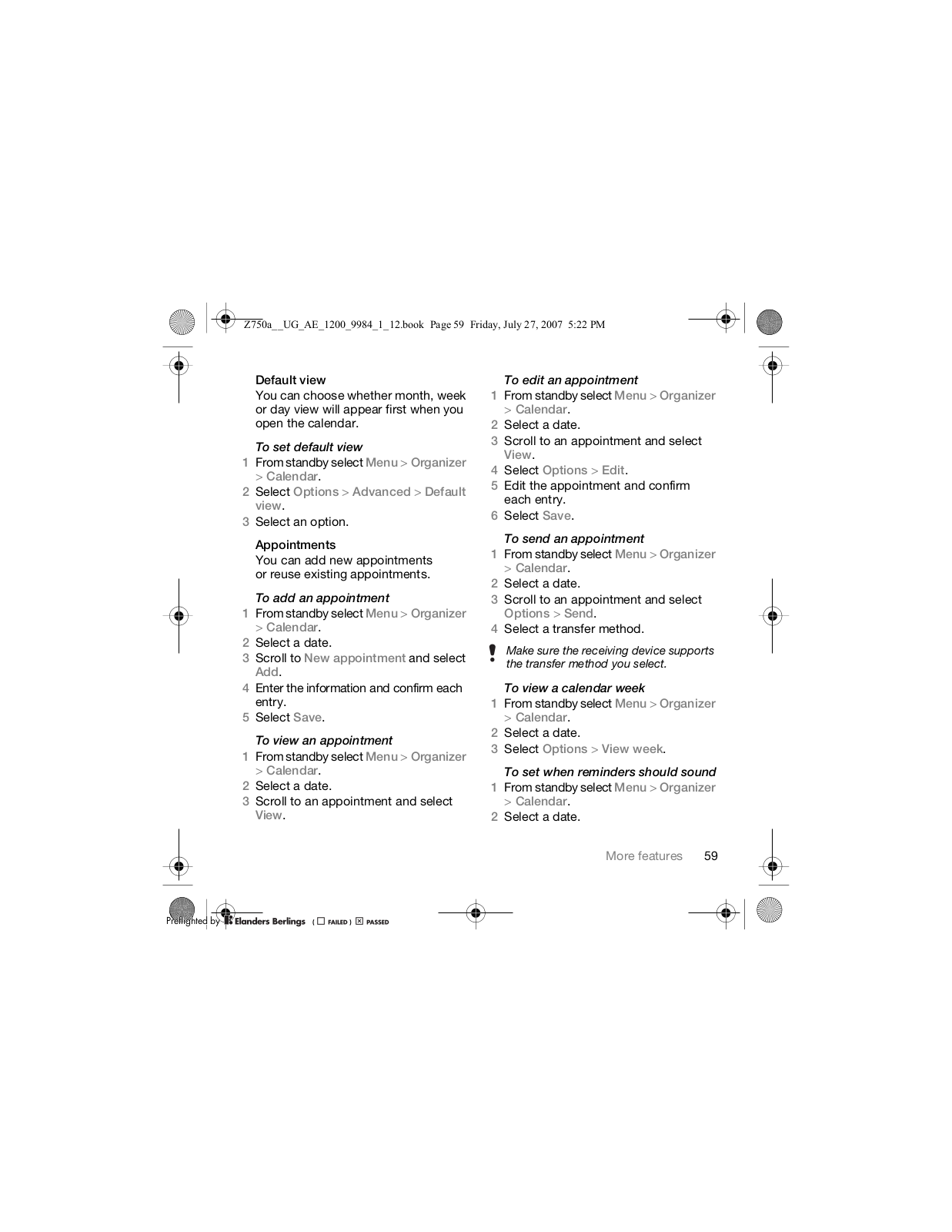

Calendar ....................................... |
58 |
Tasks ............................................ |
60 |
Notes ............................................ |
60 |

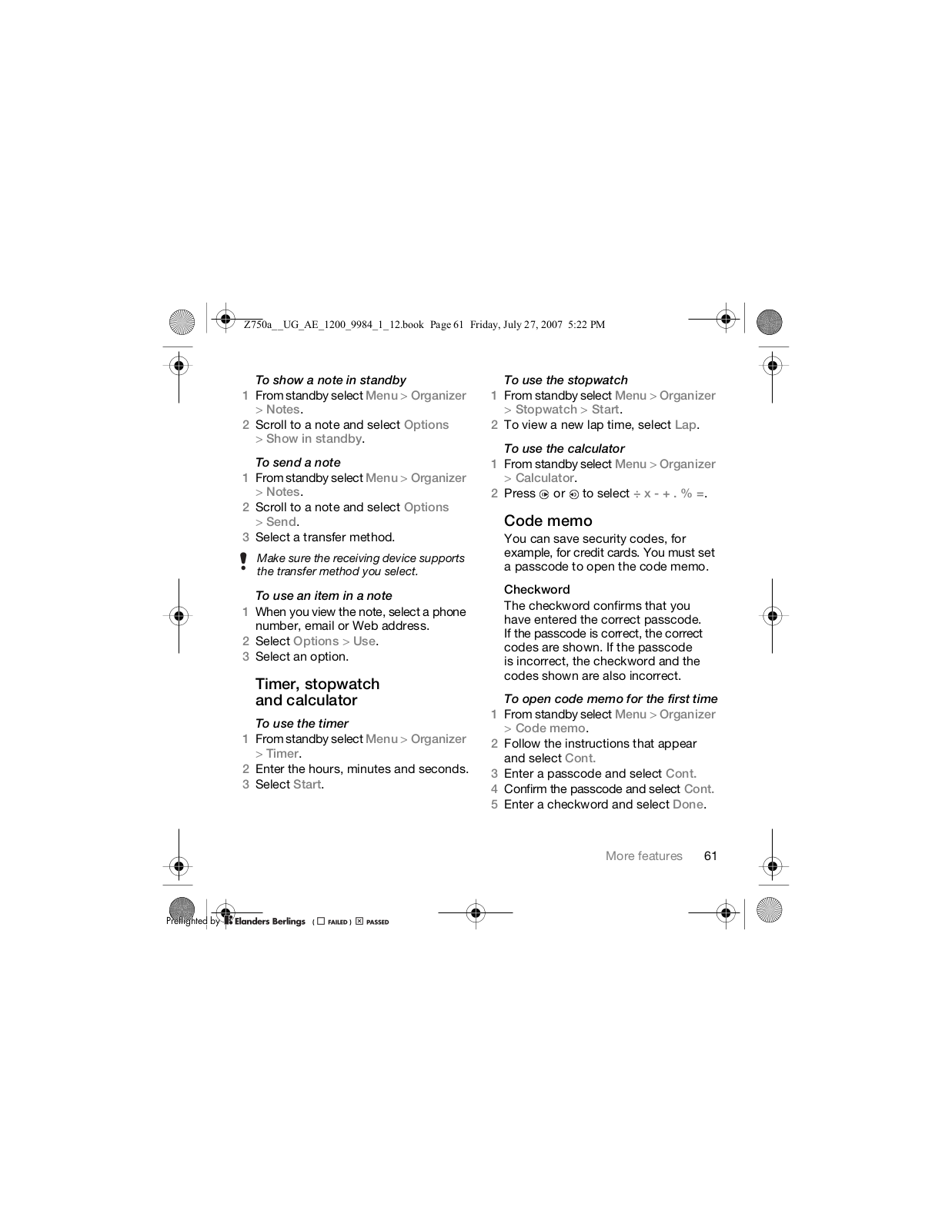

Timer, stopwatch |
|
and calculator ............................... |
61 |
Code memo .................................. |
61 |
Profiles .......................................... |
62 |

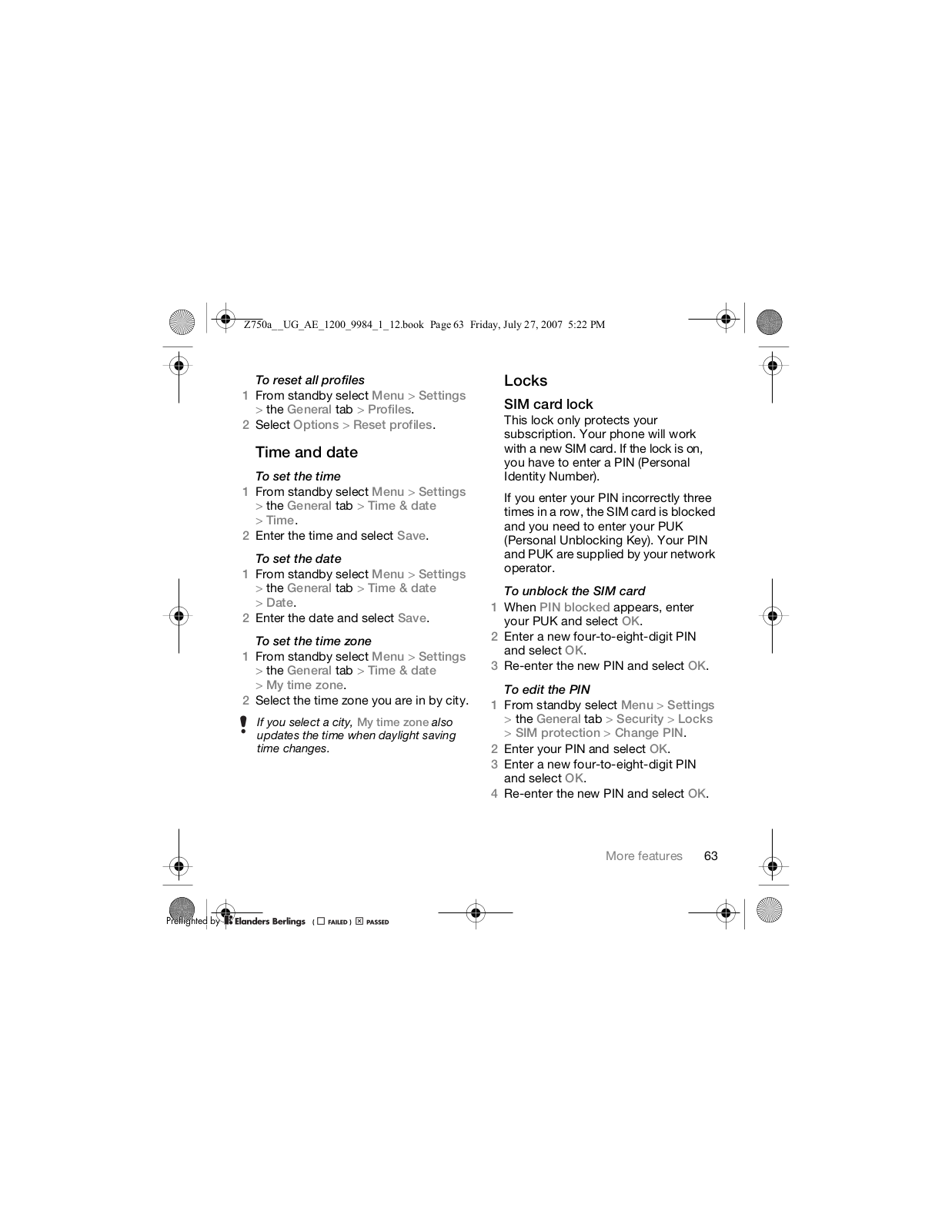

Time and date ............................... |
63 |

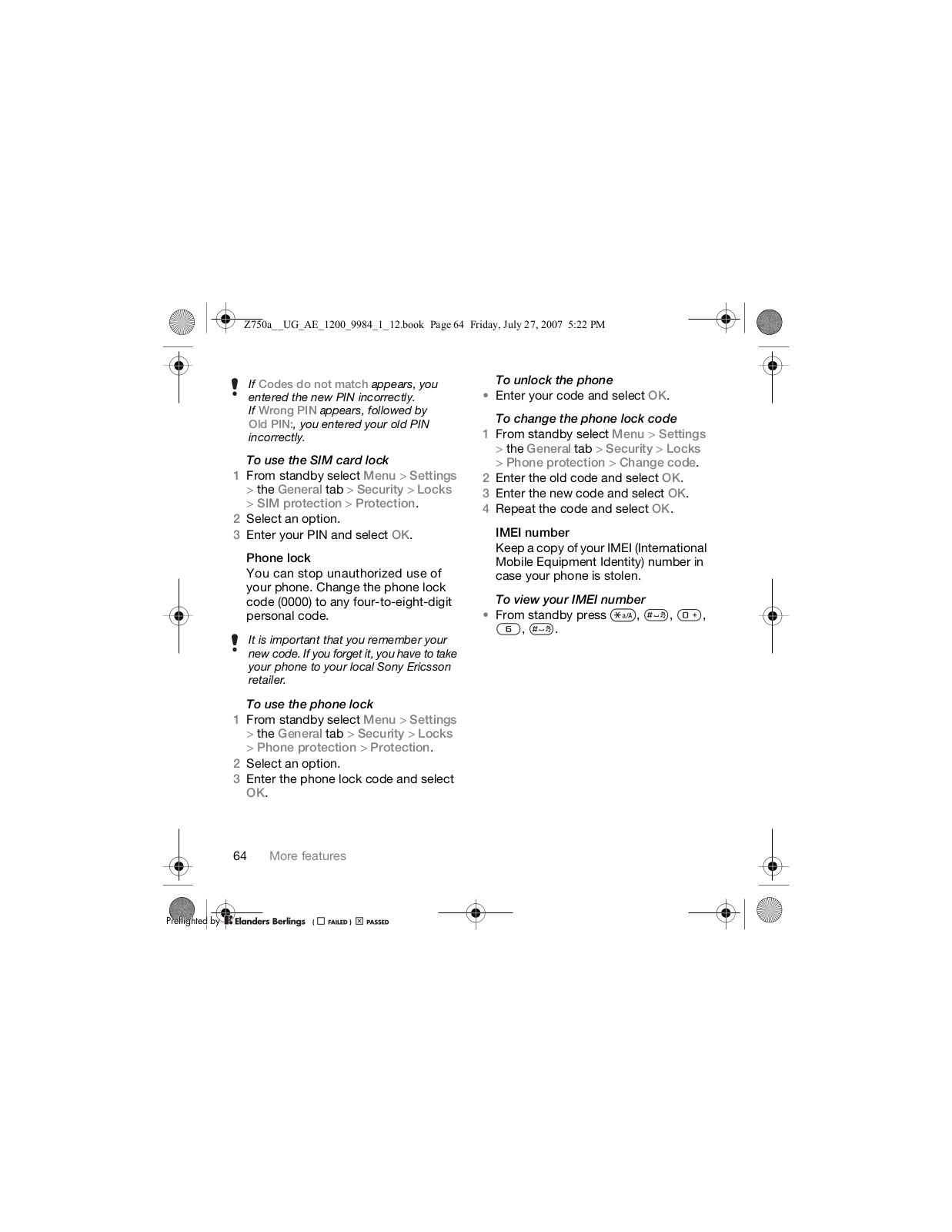

Locks ............................................ |
63 |

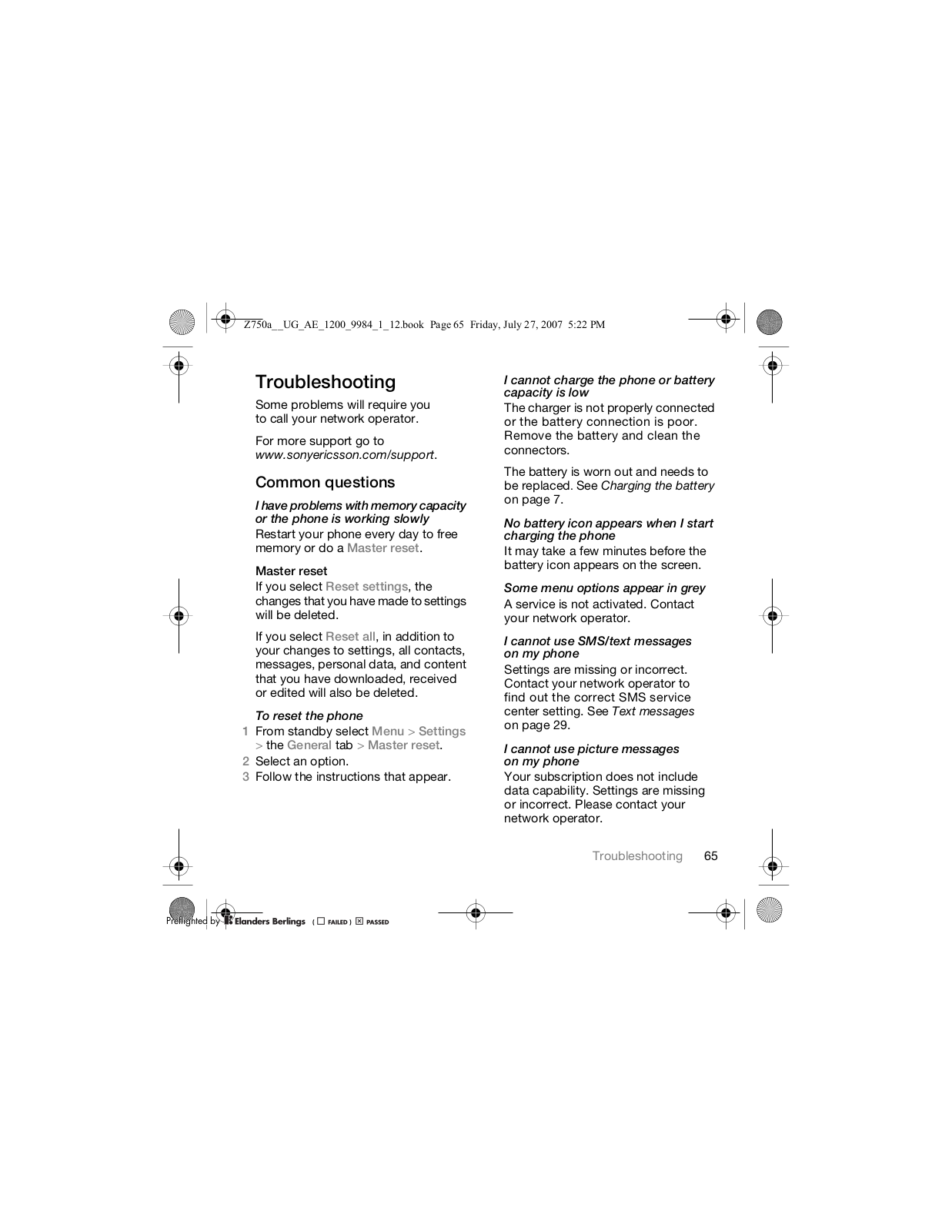

Troubleshooting ............... |
65 |
Common questions ...................... |
65 |

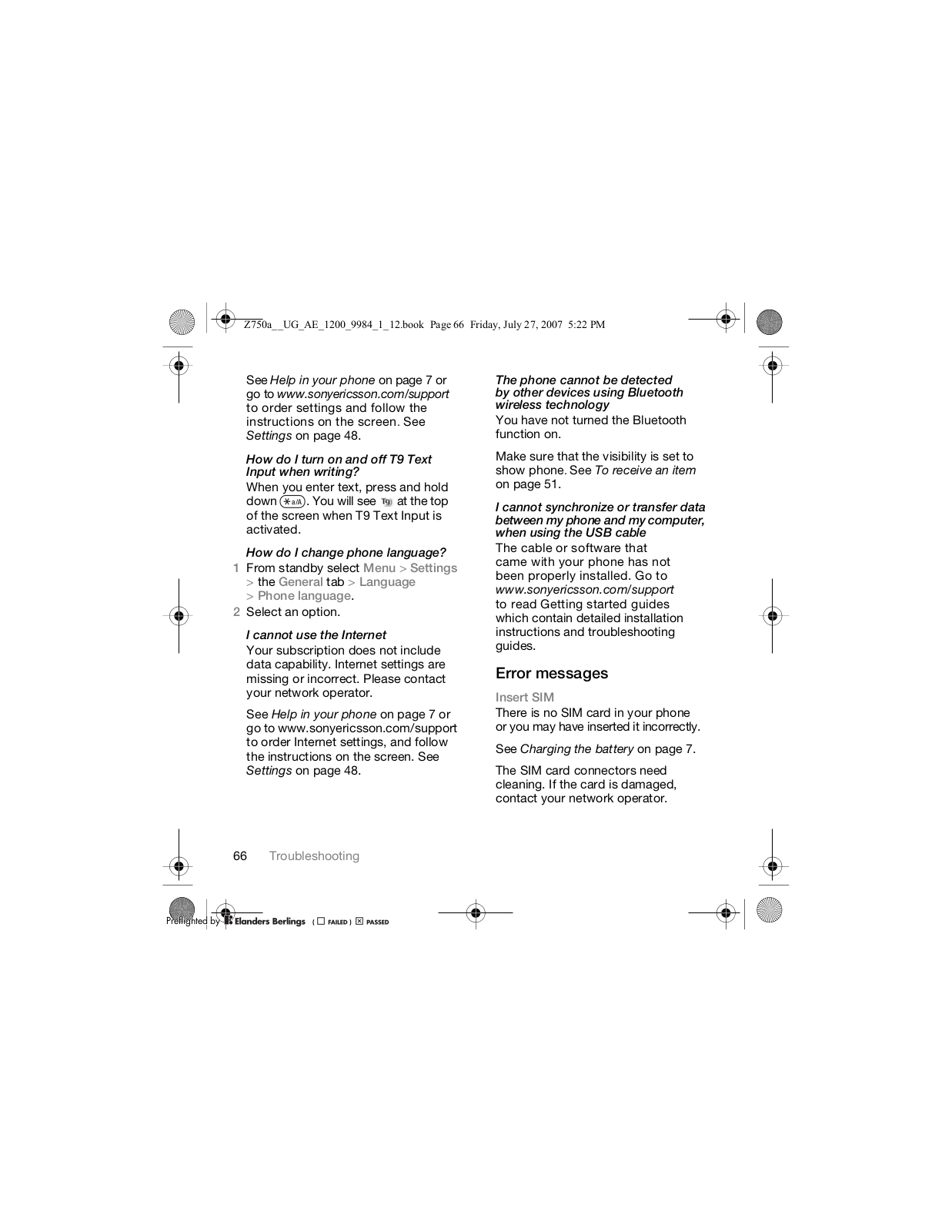

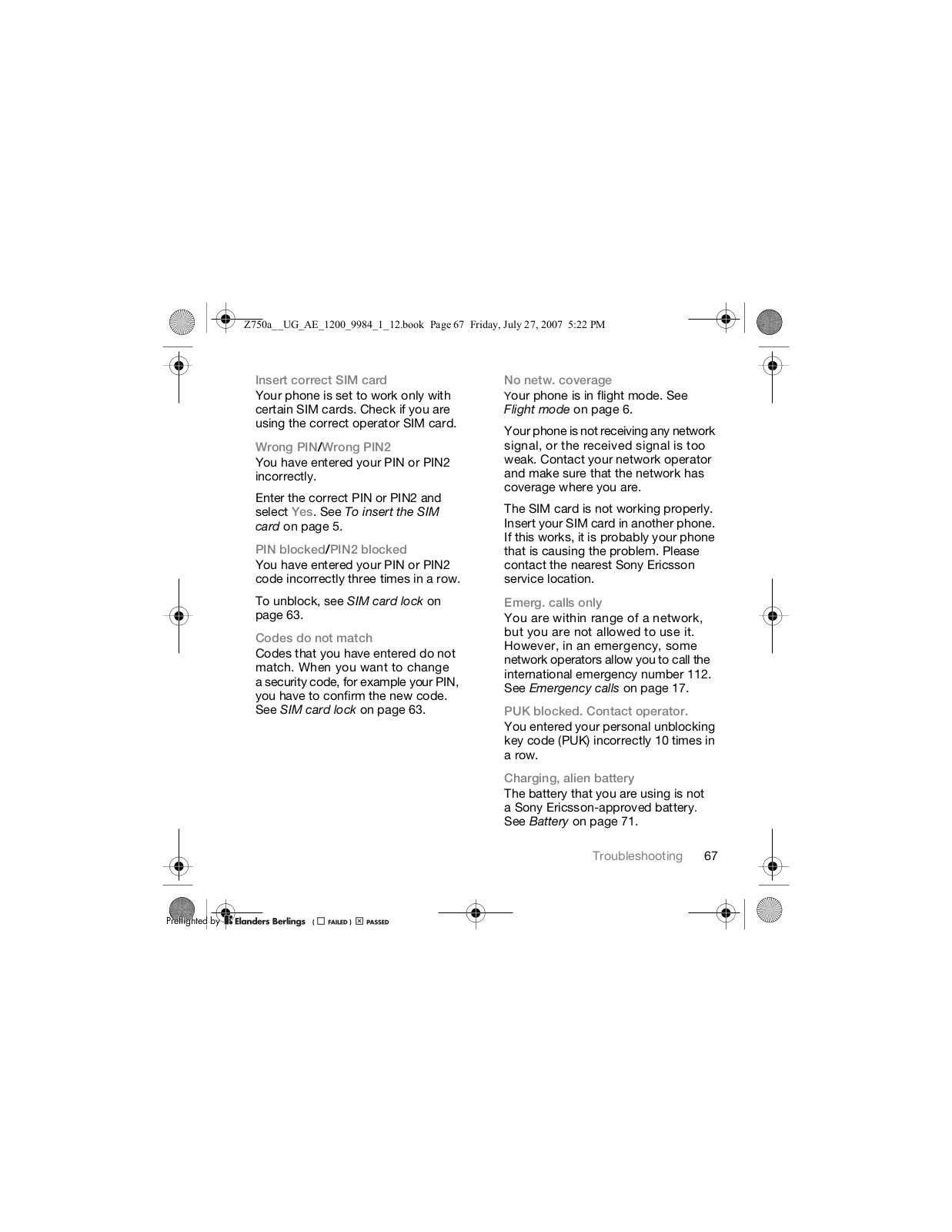

Error messages ............................. |
66 |

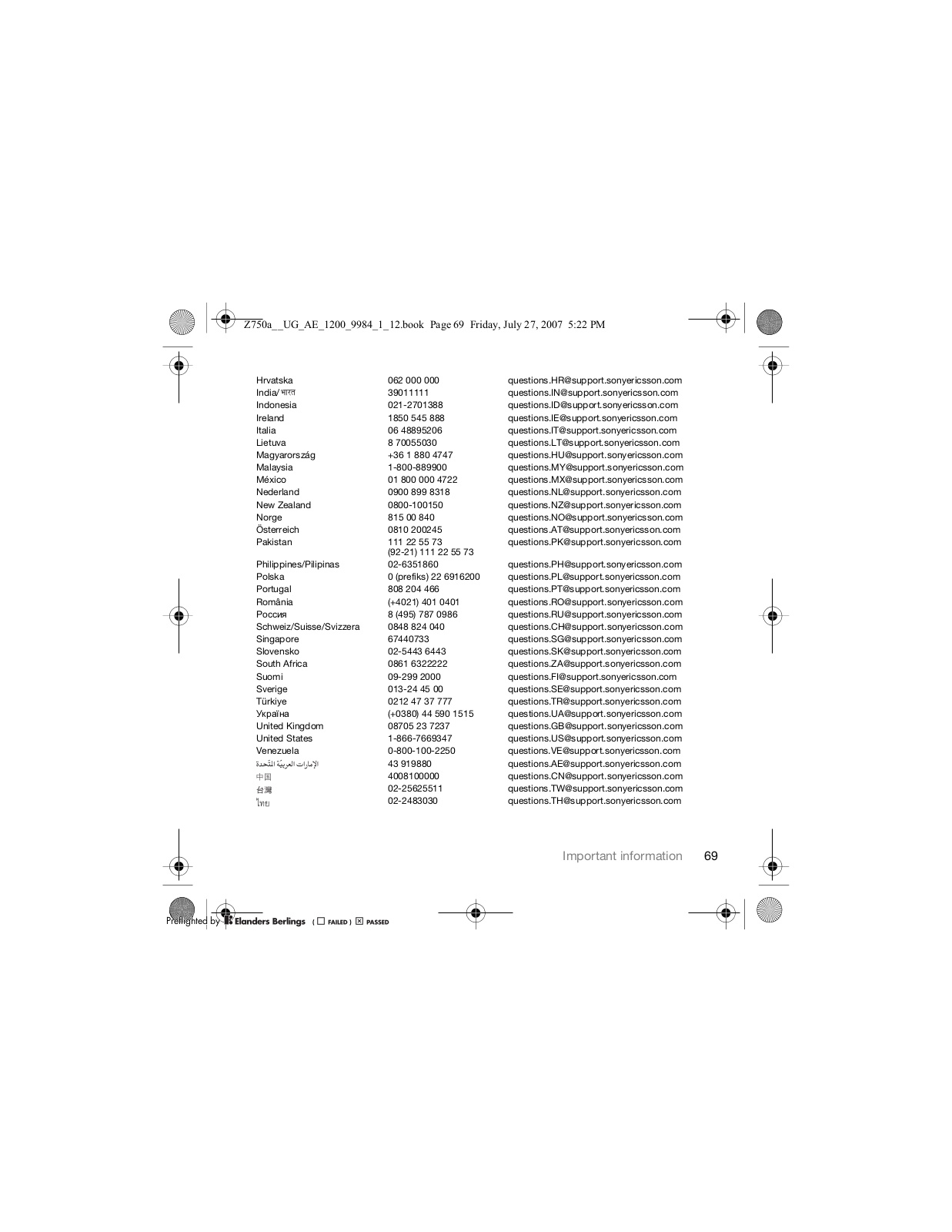

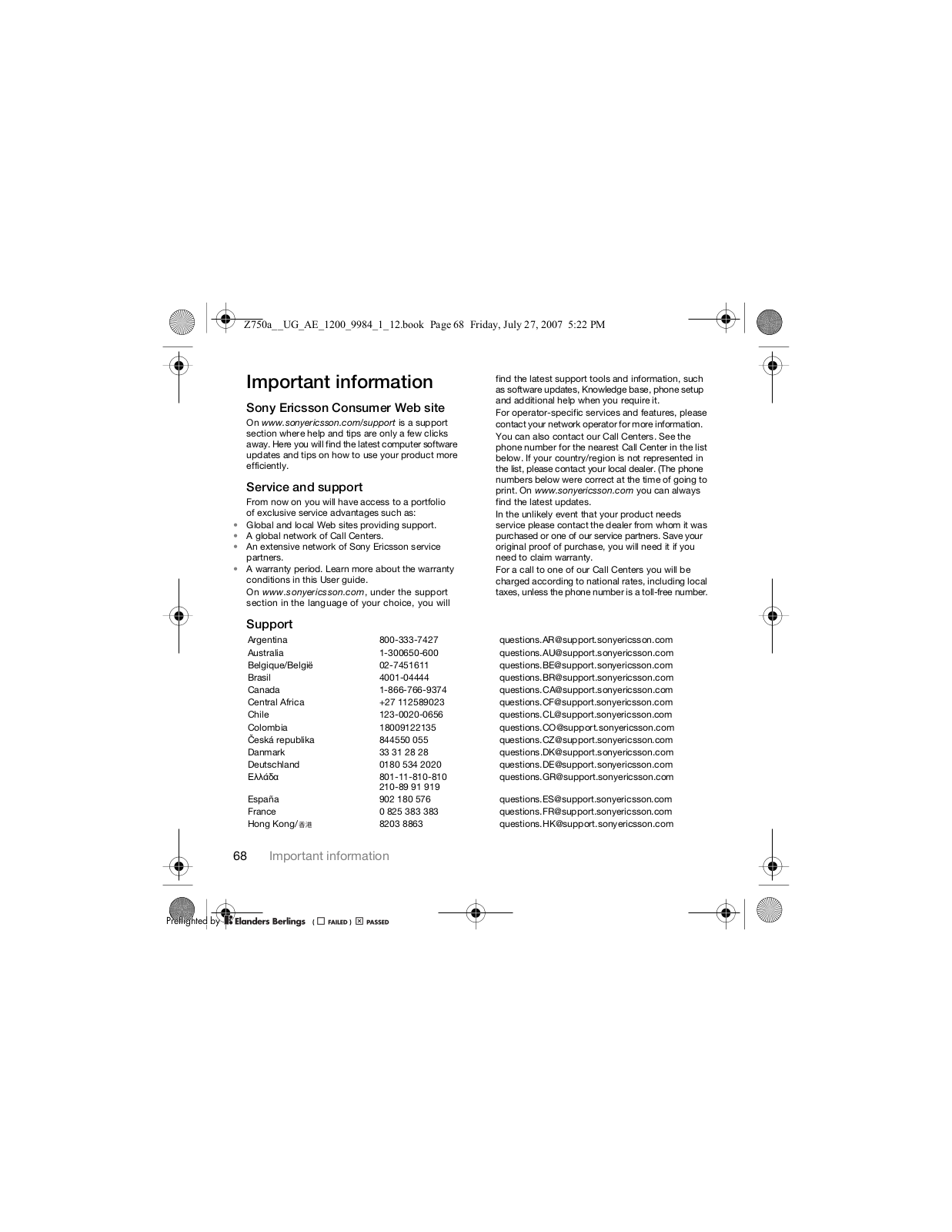

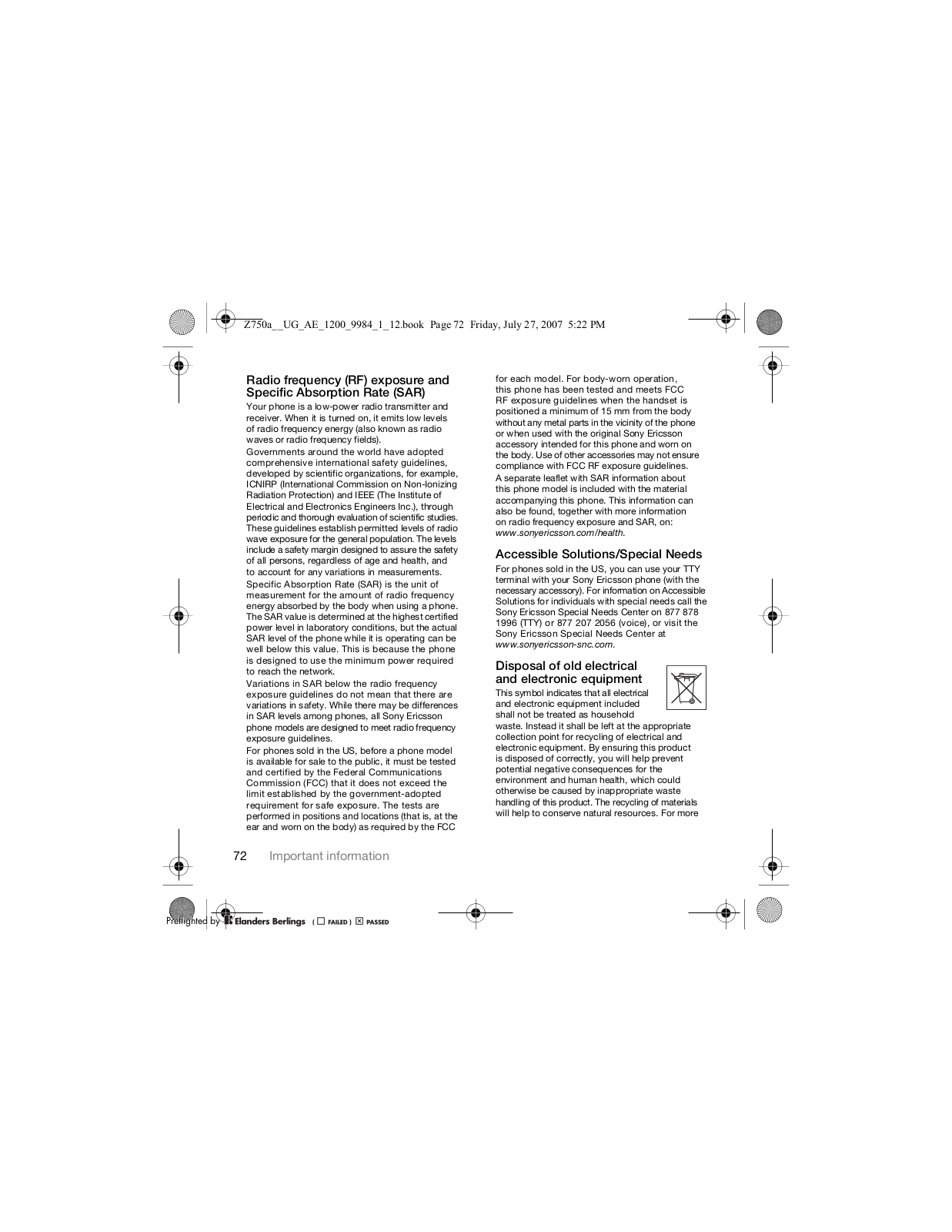

Important information ...... |
68 |

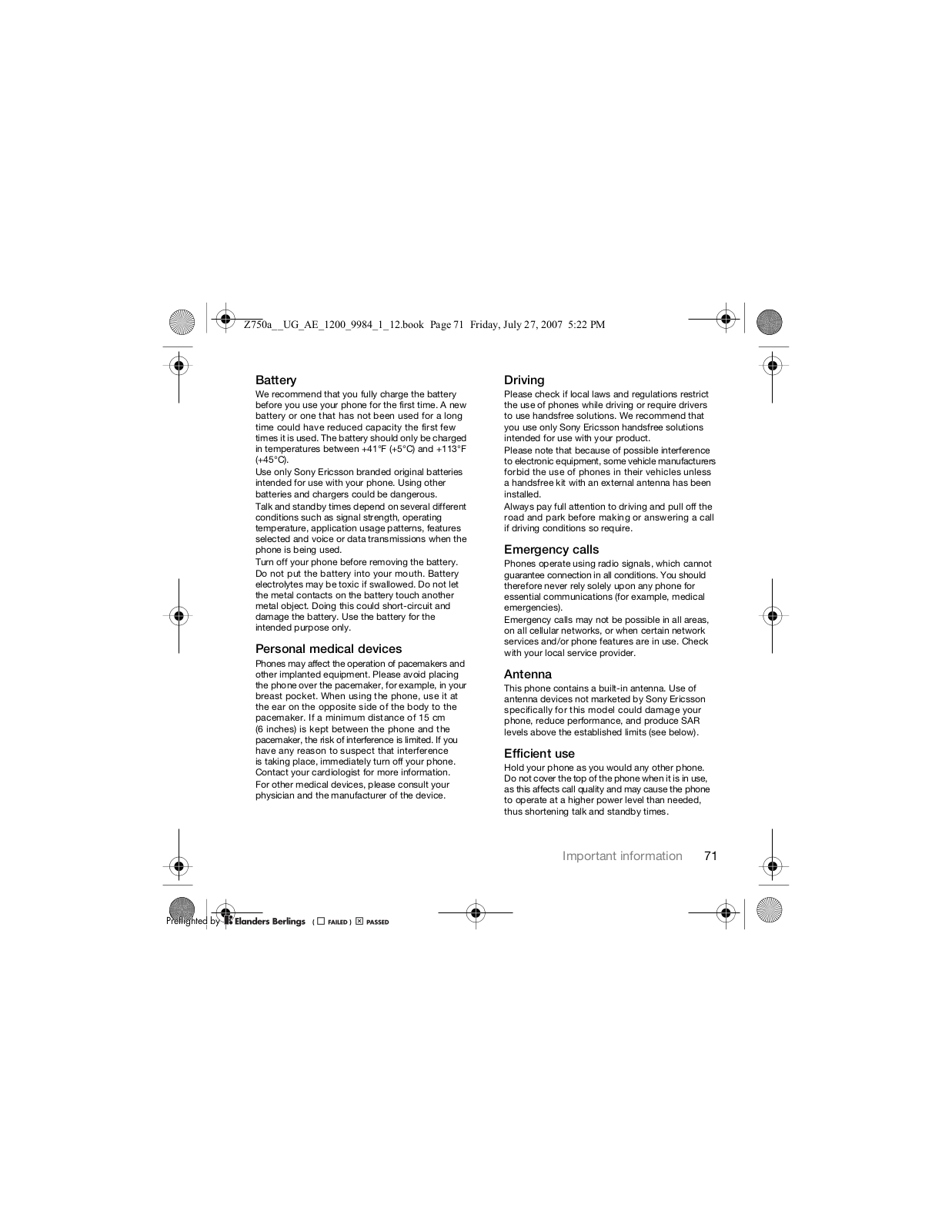

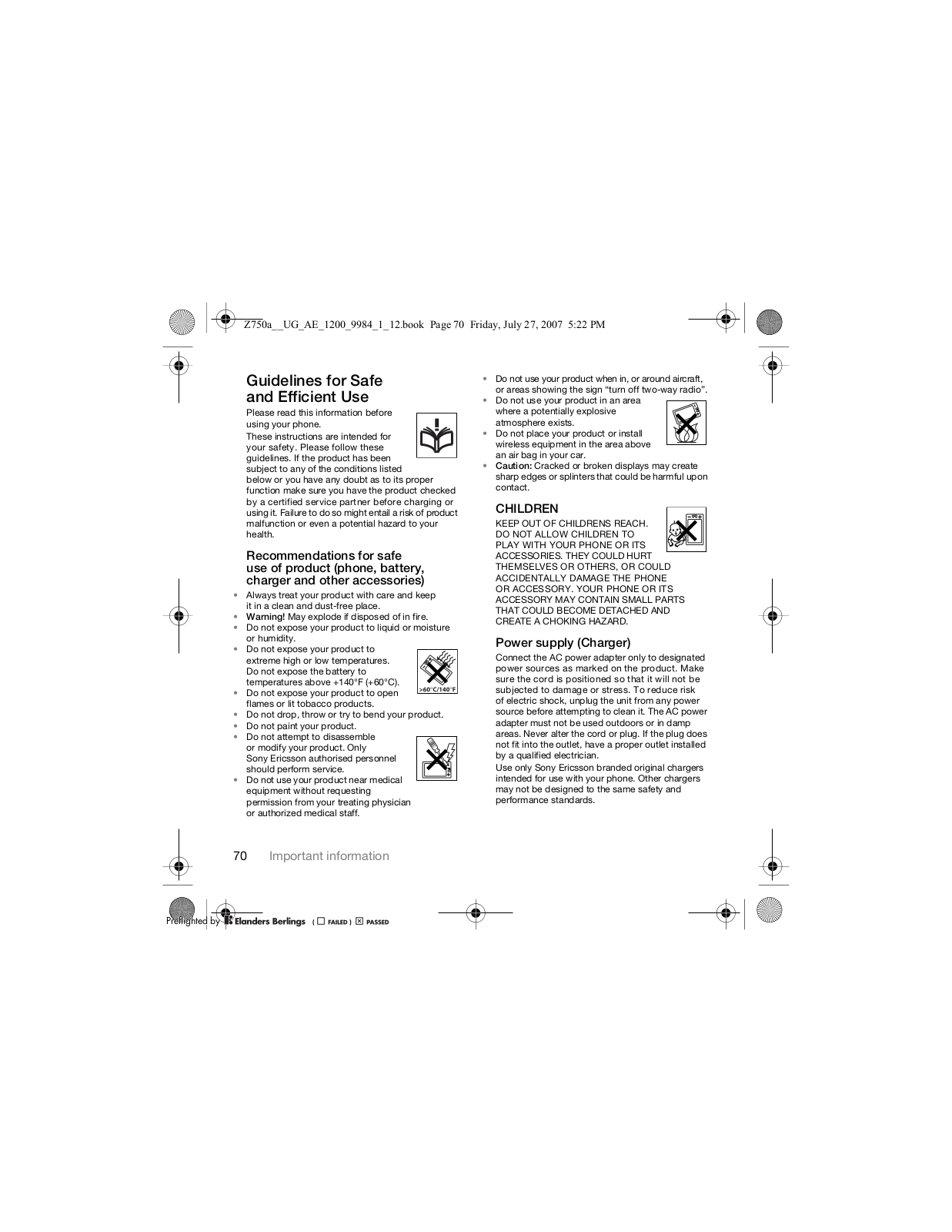

Guidelines for Safe |
|
and Efficient Use ........................... |
70 |

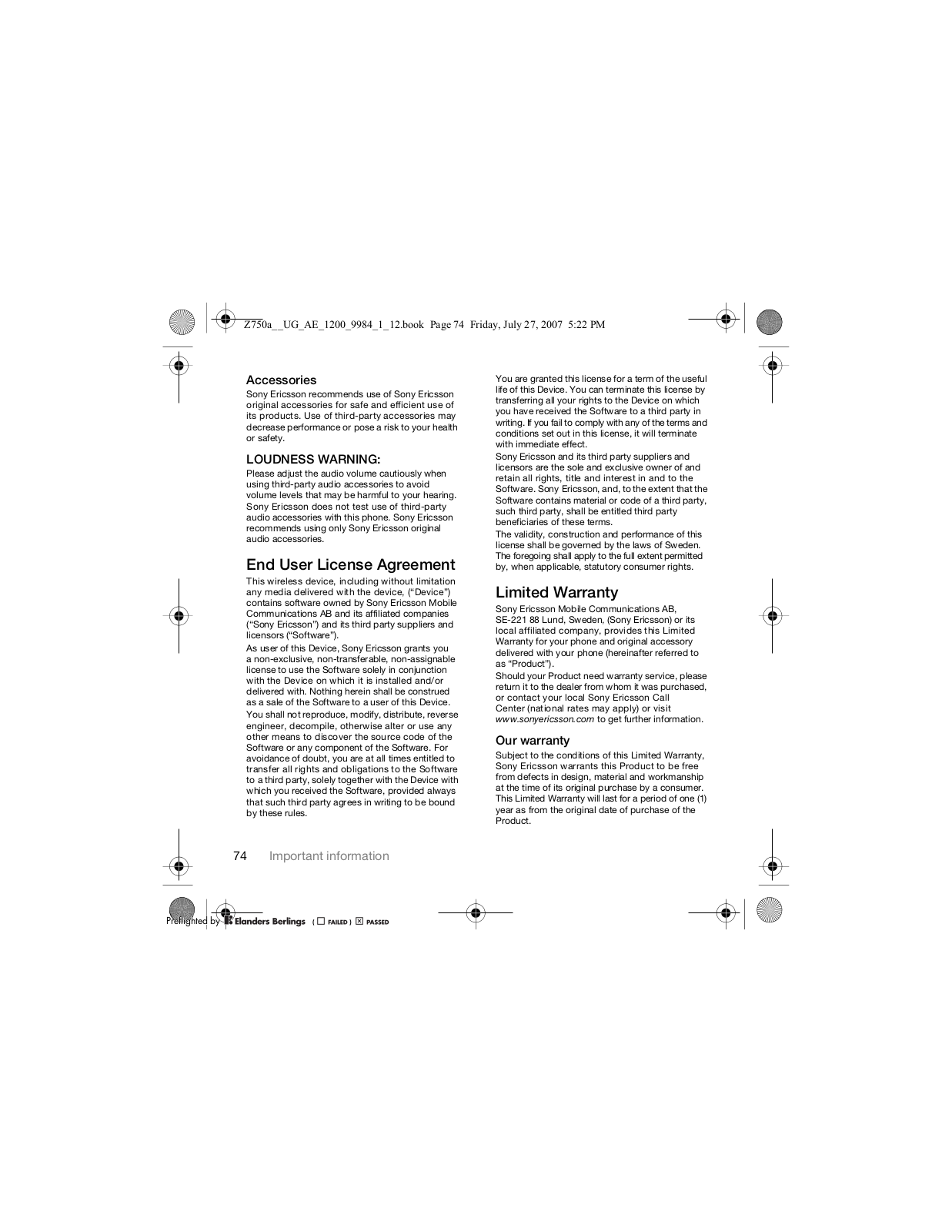

End User License Agreement ....... |
74 |

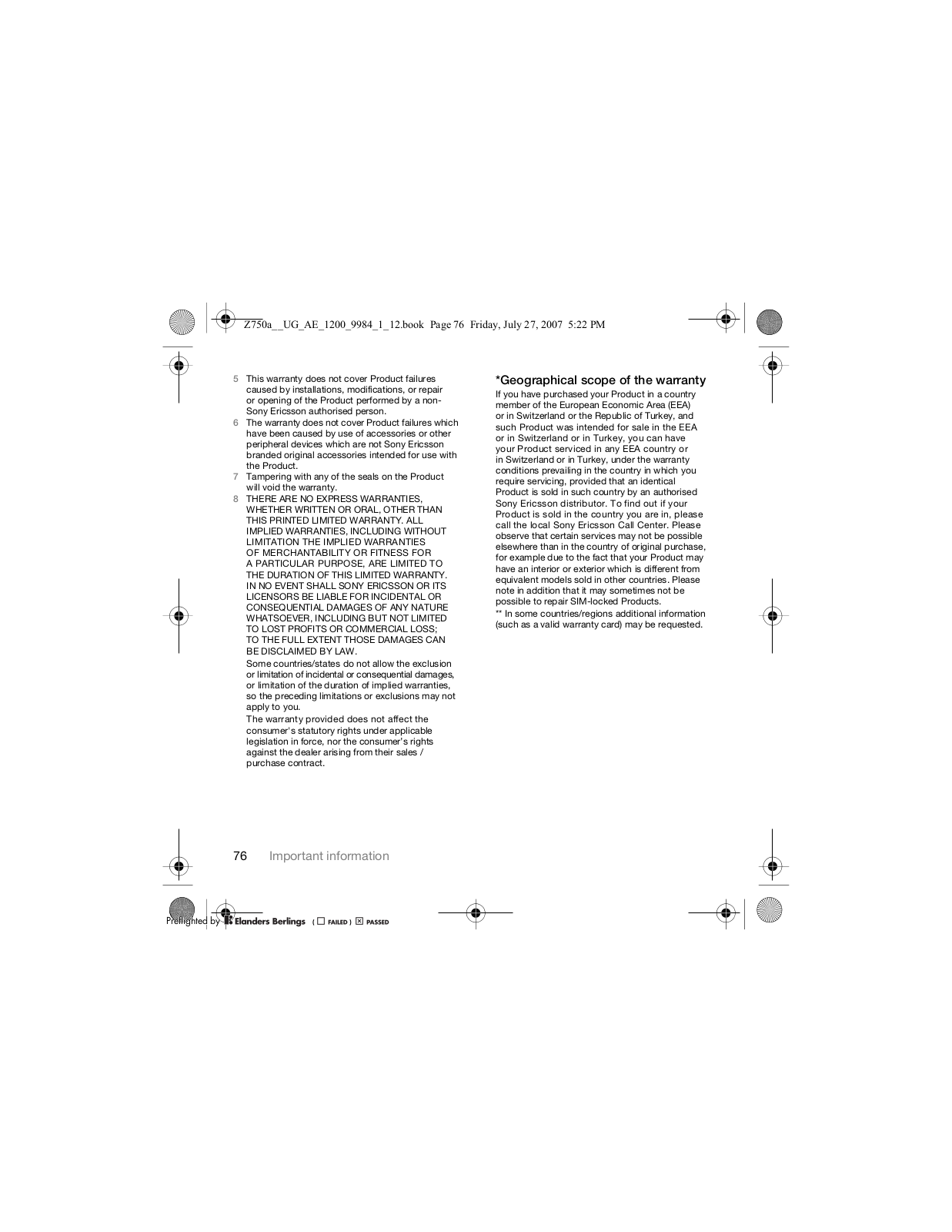

Limited Warranty .......................... |
74 |

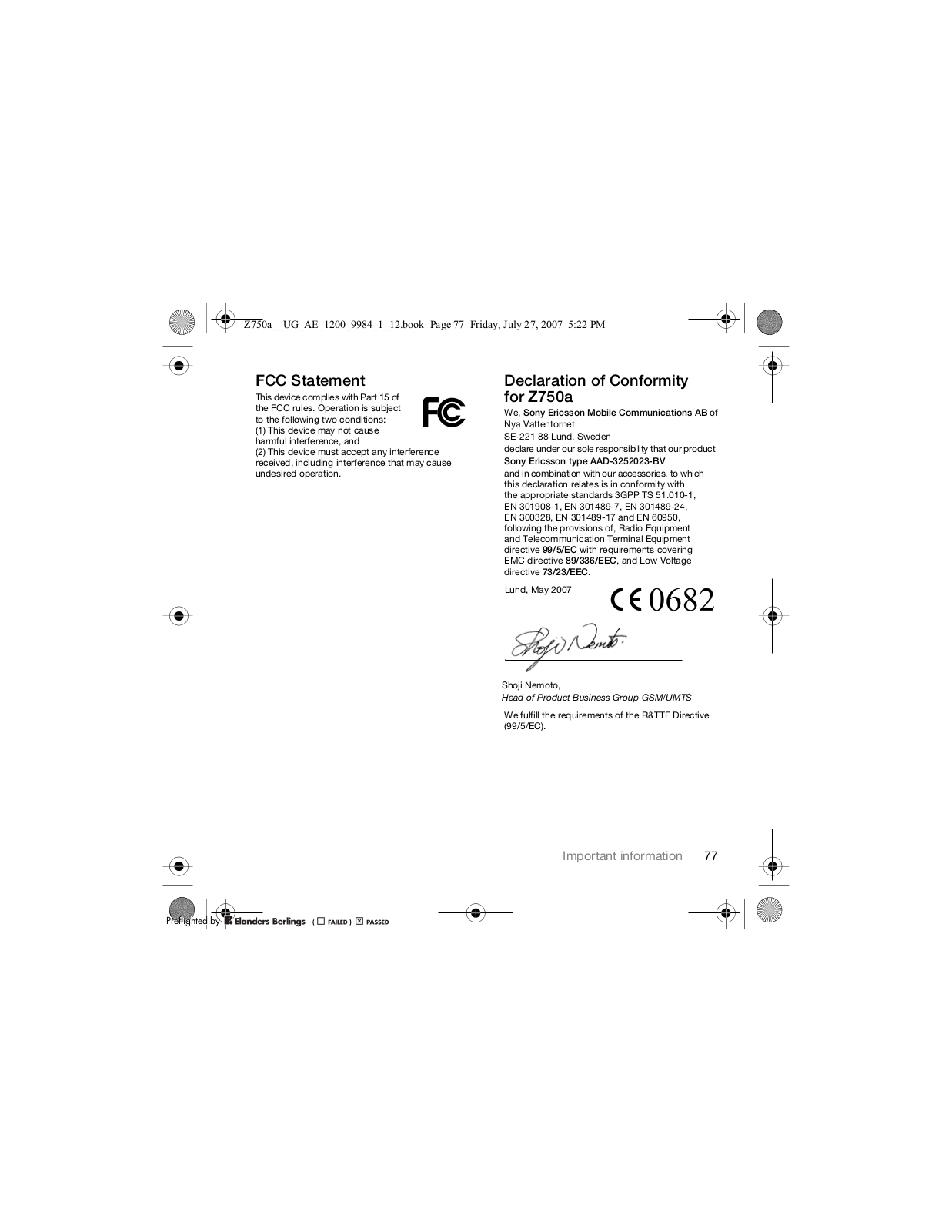

FCC Statement ............................. |
77 |
Declaration of Conformity |
|
for Z750a ...................................... |
77 |

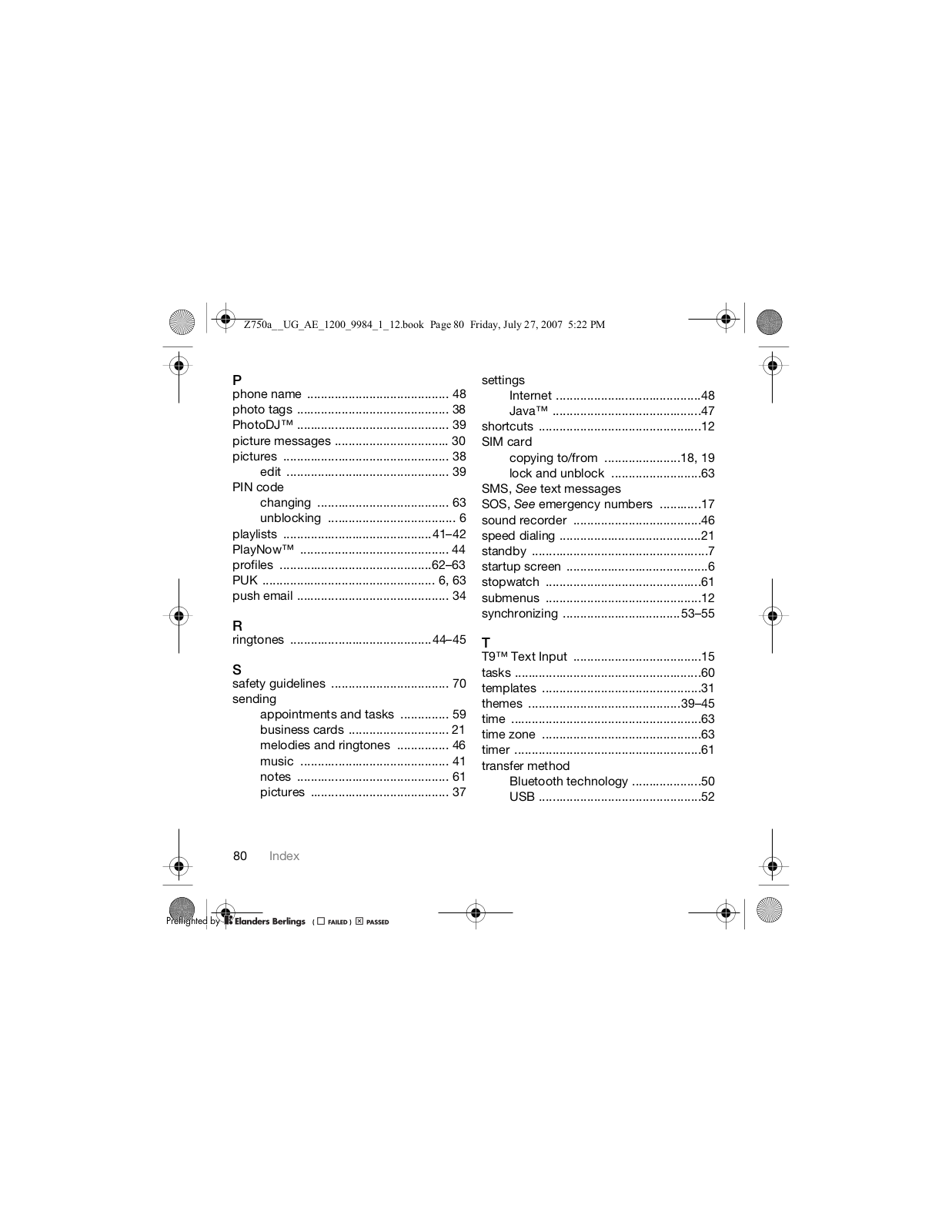

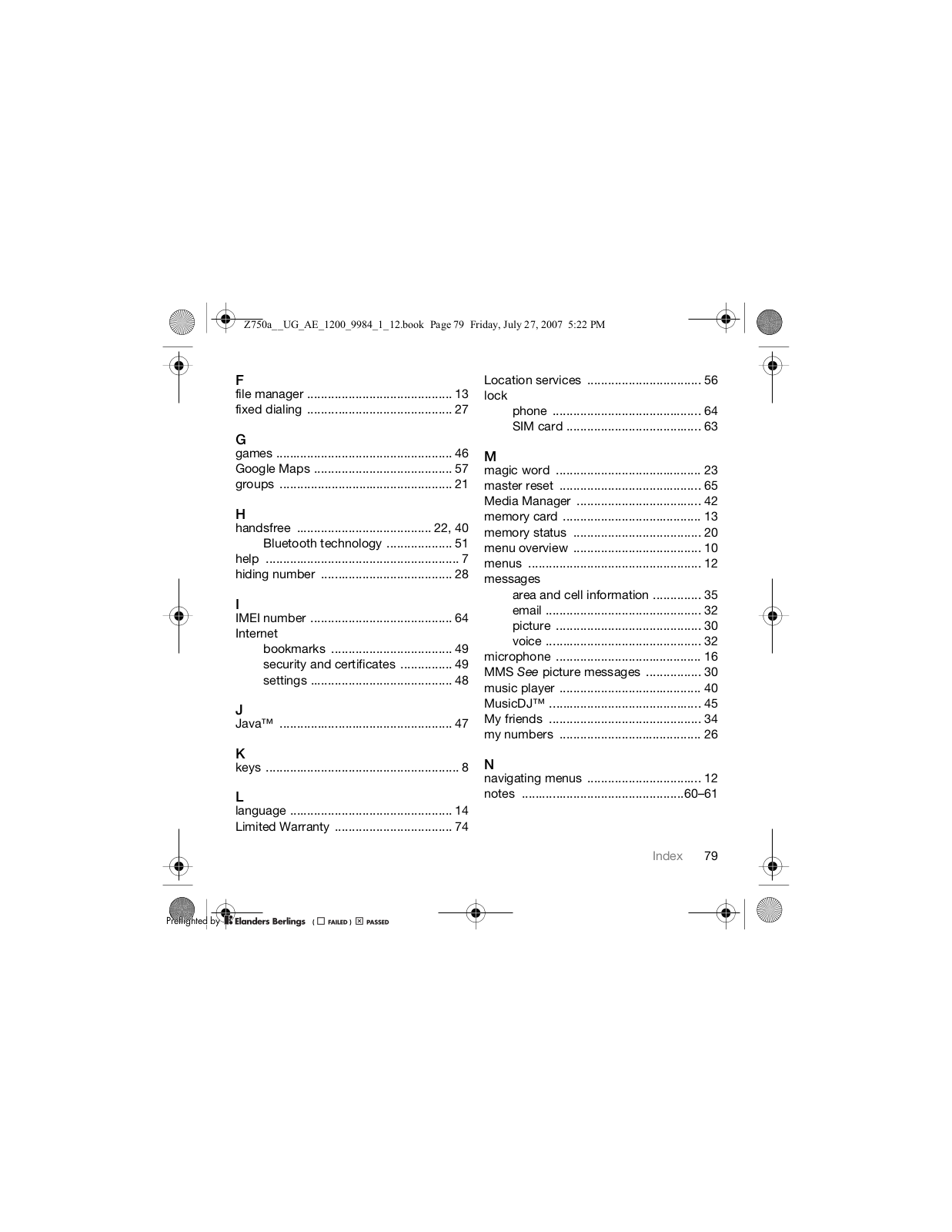

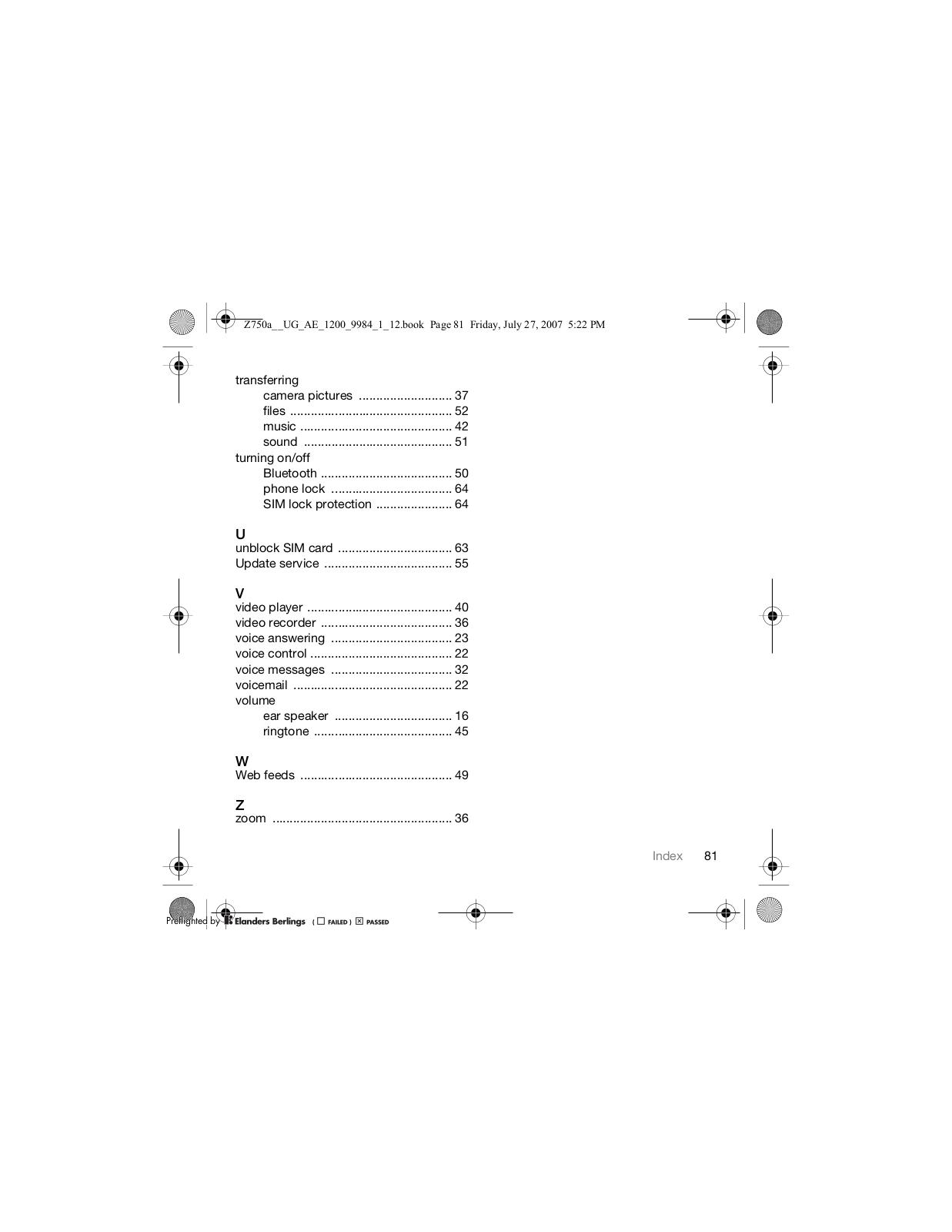

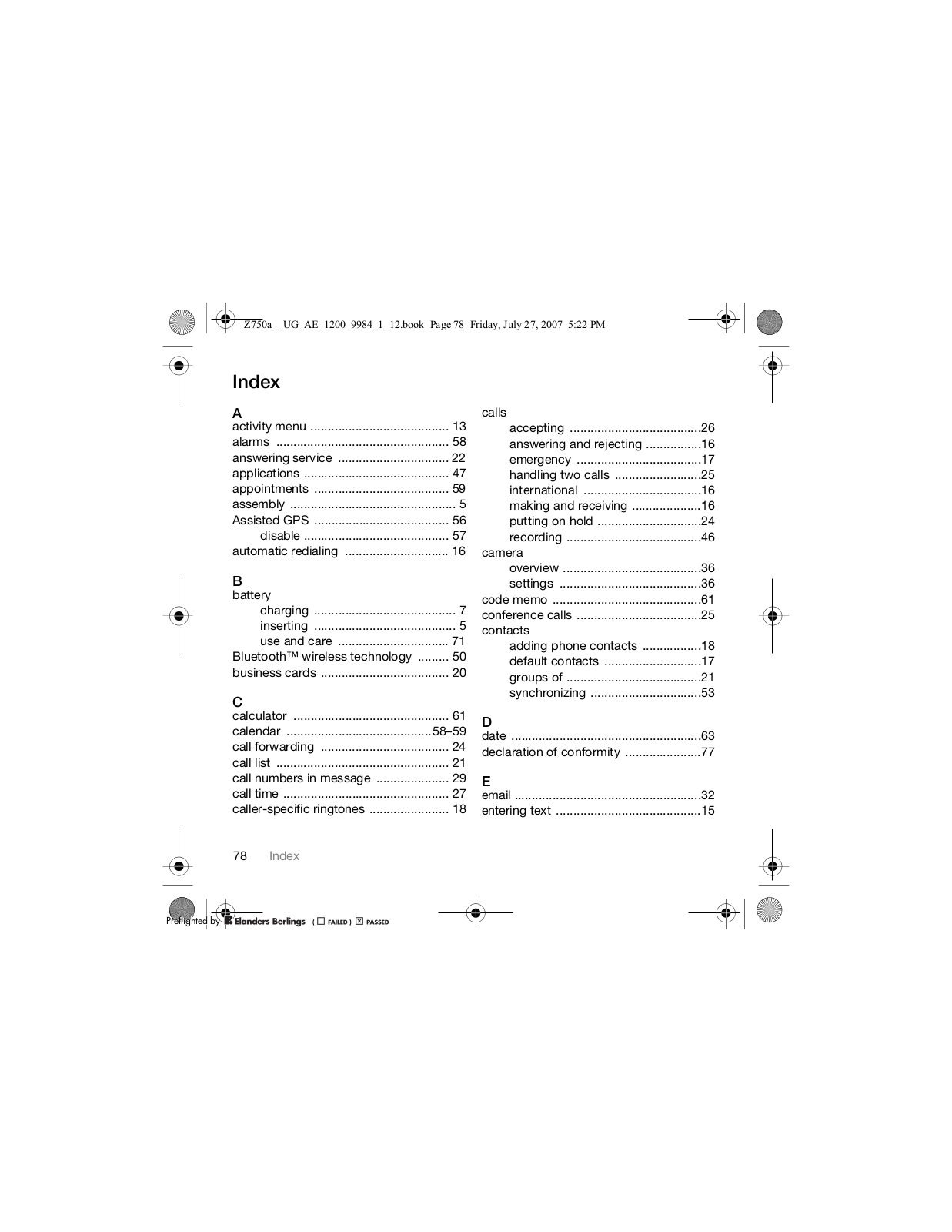

Index ................................. |
78 |
2 Contents
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 3 Friday, July 27, 2007 5:22 PM
Sony Ericsson Z750a
UMTS/HSDPA 850/1900/2100 GSM 850/900/1800/1900
This User guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2007
Publication number: 1200-9984.1 Please note:
Some of the services in this User guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.
Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your phone.
Your phone has the capability to download, store and forward additional content, for example, ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any
way for your improper use of additional content or other third party content.
Bluetooth is a trademark or registered trademark of Bluetooth SIG Inc. and any use of such mark by Sony Ericsson is under license.
The Liquid Identity logo, BestPic, PlayNow, MusicDJ, PhotoDJ, TrackID and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
Sony is a trademark of Sony Corporation. Memory Stick Micro, M2, the Memory Stick logo and Sony are trademarks or registered trademarks of Sony Corporation.
Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson.
Adobe Photoshop Album Starter Edition is a trademark or registered trademark of Adobe Systems Incorporated.
ActiveSync, Microsoft, Windows, PowerPoint, Outlook and Vista are trademarks or registered trademarks of Microsoft Corporation in the US and other countries.
MicroSD is a trademark or registered trademark of SanDisk Corporation.
Google and Google Maps are trademarks of Google Inc.
T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat.
No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
3
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 4 Friday, July 27, 2007 5:22 PM
End-user license agreement for Sun™ Java™ J2ME™.
Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part.
Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, reexport, or import Software. Software may not be downloaded, or otherwise exported or re-exported
(i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.
Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.
Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. All illustrations are for illustration only and may not accurately depict the actual phone.
Instruction symbols
These symbols appear in the User guide.
Note
Tip
Warning
A service or function is networkor subscription-dependent. Contact your network operator for details.
>Use a selection or navigation key to scroll and select. See
Navigation on page 12.
Represents moving up on center navigation key.
Represents moving down on center navigation key.
Represents moving right on center navigation key.
Represents moving left on center navigation key.
4
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 5 Friday, July 27, 2007 5:22 PM
Getting started
Assembly
Before you start using your phone, you need to insert a SIM card and the battery.
To insert the SIM card
1 Remove the battery cover.
2Slide the SIM card into its holder with the gold colored contacts facing down.
To insert the battery
1Insert the battery with the label side up and the connectors facing each other.
2Close and slide the battery cover into place.
Getting started |
5 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 6 Friday, July 27, 2007 5:22 PM
Turning on the phone
To turn on the phone
1 Press and hold down .
2Select a mode:
•Normal mode – full functionality.
•Flight mode – limited functionality. 3 Enter your SIM card PIN, if requested
and select OK.
4 Select a language.
5Select Cont. > Yes to use the setup wizard while settings are downloaded.
If you want to correct a mistake when you enter your PIN, press .
SIM card
The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription. Always turn off your phone and detach the charger before you insert or remove the SIM card.
You can save contacts on the SIM card
before you remove it from your phone. See To copy names and numbers
to the SIM card on page 18.
PIN
You may need a PIN (Personal Identification Number) to activate the services in your phone. Your PIN is supplied by your network operator. Each PIN digit appears as *, unless it starts with emergency number digits, for example, 112 or 911. You can see and call an emergency number without entering a PIN.
If you enter the wrong PIN three times in a row, the SIM card is blocked. See SIM card lock on page 63.
Flight mode
In Flight mode the network and radio transceivers are turned off to prevent disturbance to sensitive equipment.
You can use the Bluetooth™ function in Flight mode.
Startup screen
The startup screen appears when you turn your phone on. See Using pictures on page 38.
6 Getting started
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 7 Friday, July 27, 2007 5:22 PM
Standby
After you have turned your phone on and entered your PIN, the name of the network operator appears. This view is called standby.
Charging the battery
The phone battery is partly charged when you buy it.
To charge the battery
Help in your phone
Help and information are available in your phone. See Navigation
on page 12.
To use the setup wizard
1From standby select Menu > Settings
> the General tab > Setup wizard.
2 Select an option.
To view information about functions
•Scroll to a function and select Info, if available. In some cases, Info appears under Options.
To view the phone demonstration
•From standby select Menu
> Entertainment > Demo tour.
To view status information
• From standby press .
| 2.5 h.
1Connect the charger to the phone. It takes approximately 2.5 hours to fully charge the battery. Press a key to view the screen.
2Remove the charger by tilting the plug upwards.
You can use your phone while it is charging. You can charge the battery at any time and for more or less than 2.5 hours. You can interrupt the charging without damaging the battery.
Getting started |
7 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 8 Friday, July 27, 2007 5:22 PM
Phone overview
1Ear speaker
2Screen
3 Center navigation key
4 Selection key
5 Green key
6 Camera key
7C key (Clear)
8Connector for charger, handsfree and USB cable
9On/off key
10Activity menu key
11Red key
12Selection key
13Navigation key
14Light sensor
1 |
|
|
|
14 |
|
||||
|
|
2
3 |
13 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
12 |
|||
|
|
|
|
|
|
|
|
|
|
||||
4 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|||||||||
5 |
|
|
|
|
|
|
|
11 |
|||||
|
|
|
|
|
|||||||||
6 |
|
|
|
|
|
|
|
|
10 |
||||
|
|
|
|
|
|
7
9
8
8 Getting started
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 9 Friday, July 27, 2007 5:22 PM
15 Play/pause key |
15 |
|
16Volume, digital zoom keys
17Memory slot
16
17
Getting started |
9 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 10 Friday, July 27, 2007 5:22 PM
Menu overview
PlayNow™* |
Internet* |
Entertainment |
Games
TrackID™
VideoDJ™
PhotoDJ™
MusicDJ™
Remote control
Record sound
Demo tour
Camera |
Messaging |
Media |
Write new
Inbox
Web feeds
Drafts
Outbox
Sent messages
Saved messages
My friends*
Call voicemail
Templates
Manage messages
Settings
Location services |
Contacts |
Radio |
Google Maps |
Myself |
|
My favorites |
New contact |
|
Status info |
|
|
Log |
|
|
Settings |
|
|
10 Getting started
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 11 Friday, July 27, 2007 5:22 PM
Calls** |
|
|
|
Organizer |
|
|
|
|
|
File manager** |
|
All |
Answered |
Dialed |
Missed |
Alarms |
|
Applications |
|||||
|
|
|
|
||
|
|
|
|
Video call |
|
|
|
|
|
Calendar |
|
|
|
|
|
Tasks |
|
|
|
|
|
Notes |
|
|
|
|
|
Synchronization |
|
|
|
|
|
Timer |
|
|
|
|
|
Stopwatch |
|
|
|
|
|
Calculator |
|
|
|
|
|
Code memo |
|
Settings** |
|
|
|
|
|
General |
Sounds & alerts |
Display |
Calls |
Connectivity* |
|
Profiles |
Ring volume |
Wallpaper |
Speed dial |
Bluetooth |
|
Time & date |
Ringtone |
Themes |
Smart search |
USB |
|
Language |
Silent mode |
Startup screen |
Forward calls |
Phone name |
|
Update service |
Increasing ring |
Screen saver |
Manage calls |
Network sharing |
|
Voice control |
Vibrating alert |
Clock size |
Time & cost* |
Synchronization |
|
New events |
Message alert |
Brightness |
Show/hide my no. |
Device management |
|
Shortcuts |
Key sound |
|
Handsfree |
Mobile networks |
|
Flight mode |
|
|
Open to answer |
Internet settings |
|
Security |
|
|
|
Streaming settings |
|
Setup wizard |
|
|
|
Accessories |
|
Phone status |
|
|
|
|
|
Master reset |
|
|
|
|
* Some menus are operator-, networkand subscription-dependent.
**You can use the navigation key to scroll between tabs in submenus. For more information, see Navigation on page 12.
Getting started |
11 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 12 Friday, July 27, 2007 5:22 PM
Navigation
The main menus are shown as icons. Some submenus include tabs.
To navigate the phone menus
1 From standby select Menu.
2Use the navigation key to move through the menus.
To scroll between the tabs
•Scroll to a tab by pressing the navigation key left or right.
To select actions on the screen
•Select an action shown at the bottom of the screen by pressing the left or right selection key or the center navigation key.
To view options for an item
•Select Options to, for example, edit.
To return to standby
•Press .
To end a function
•Press .
To navigate your menu
1 From standby select Media.
2Use the navigation key to move up, down, left and right through the menus.
To delete items
•Press to delete items such as numbers, letters, pictures and sounds.
Shortcuts
You can use keypad shortcuts to go directly to a menu. Menu numbering starts from the top left icon and moves across and then down row by row.
To go directly to a main menu
•From standby select Menu and press
– , , or .
To use navigation key shortcuts
•From standby press , , or to go directly to a function.
To edit a navigation key shortcut
1From standby select Menu > Settings
> the General tab > Shortcuts.
2 Scroll to an option and select Edit.
3Scroll to a menu option and select
Shortc.
12 Getting started
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 13 Friday, July 27, 2007 5:22 PM
Activity menu
The activity menu gives you quick access to certain functions.
To open the activity menu
•Press .
Activity menu tabs
•New events – missed calls and new messages.
•Running apps – applications that are running in the background.
•My shortcuts – add your favorite functions to access them quickly.
•Internet – quick access to the Internet.
File manager
You can use the file manager to handle files saved in the phone memory or on a memory card.
You may have to purchase a memory card separately.
Memory card
Your phone supports Memory Stick Micro™ (M2™) or MicroSD™ memory card adding more storage space to your phone. It can also be used as a portable memory card with other compatible devices.
To insert a memory card
1
•Open the cover and insert the memory card with the gold colored contacts facing up.
To remove a memory card
23
•Open the cover and press the edge of the memory card to release and remove it.
Getting started |
13 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 14 Friday, July 27, 2007 5:22 PM
To view memory card options |
|
To view information about files |
|
1 From standby select Menu |
1 |
From standby select Menu |
|
> Organizer > File manager |
|
> Organizer > File manager. |
|
> the On memory card tab. |
2 |
Find a file and select Options |
|
2 Select Options. |
|
> Information. |
|
Handling files |
|
To move a file in the file manager |
|
You can move and copy files between |
1 |
From standby select Menu |
|
your phone, a computer and a memory |
|
> Organizer > File manager. |
|
card. Files are saved on the memory |
2 |
Find a file and select Options |
|
card first and then in the phone |
|
> Manage file > Move. |
|
memory. Unrecognized files are |
3 |
Select an option. |
|
saved in the Other folder. |
|
To select more than one file |
|
You can create subfolders to move |
|
||
|
in a folder |
||
or copy files to. You can select more |
1 |
From standby select Menu |
|
than one or all the files in a folder at |
|||
|
> Organizer > File manager. |
||
the same time for all folders except |
|
||
2 |
Scroll to a folder and select Open. |
||
Games and Applications. |
|||
3 |
Select Options > Mark > Mark |
||
If the memory is full, delete some |
|||
|
several. |
||
content to create space. |
4 |
For each file you want to mark, |
|
File manager tabs |
|
scroll to the file and select Mark. |
|
|
|
The file manager is divided into three tabs, and icons indicate where the files are saved.
•All files – all content in the phone memory and on a memory card
•On memory card – all content on a memory card
•In phone – all content in the phone memory
To delete a file from the file manager
1From standby select Menu
> Organizer > File manager.
2 Find the file and press |
. |
Phone language
You can select a language to use in your phone.
14 Getting started
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 15 Friday, July 27, 2007 5:22 PM
To change the phone language
1From standby select Menu > Settings
>the General tab > Language
>Phone language.
2 Select an option.
Entering text
You can use multitap text input or T9™ Text Input to enter text. The T9 Text Input method uses a built-in dictionary.
To change text input method
•When you enter text press and hold down .
To shift between capitals and lowercase letters
•When you enter text, press .
To enter numbers
•When you enter text, press and hold down – .
To enter periods and commas
•When you enter text, press .
To enter text using T9™ Text Input
1From standby select, for example,
Menu > Messaging > Write new > Text message.
2If is not displayed, press and hold down to change to T9 Text Input.
3Press each key only once, even if the letter you want is not the first letter on the key. For example, to write the
word “Jane”, press , , ,
. Write the whole word before looking at the suggestions.
4 |
Use or |
to view suggestions. |
5 |
Press |
to accept a suggestion. |
To enter text using multitap
1From standby select, for example,
Menu > Messaging > Write new > Text message.
2If is displayed, press and hold down to change to multitap input.
3 Press – repeatedly until the desired letter appears.
4When a word is written, press to add a space.
To add words to the built-in dictionary
1When you enter text using T9 Text Input, select Options > Spell word.
2Write the word using multitap input and select Insert.
Getting started |
15 |
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 16 Friday, July 27, 2007 5:22 PM
Calling
Making and receiving calls
You need to turn on your phone and be within range of a network.
To make a call
1From standby enter a phone number (with international country code and area code, if applicable).
2 Press .
You can call numbers from your contacts and call list. See Contacts on page 17, and Call list on page 21. You can also use your voice to make calls. See Voice control on page 22.
To end a call
• Press .
To make international calls
1From standby press until a “+” sign appears.
2Enter the country code, area code (without the first zero) and phone number.
3 Press .
To re-dial a number
• When Retry? appears select Yes.
Do not hold your phone to your ear when waiting. When the call connects, your phone gives a loud signal.
To answer a call
•Press .
To reject a call
•Press .
To change the ear speaker volume during a call
•Press the volume key up or down.
To mute the microphone during a call
1 Press and hold down .
2 Press and hold down again to resume.
To turn the loudspeaker on during
a call
•Select SpkrOn.
Do not hold your phone to your ear when using the loudspeaker. This could damage your hearing.
To view missed calls from standby
•Press and scroll to the New events tab and select a number.
•Press to open the call list.
16 Calling
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 17 Friday, July 27, 2007 5:22 PM
Networks
Your phone switches automatically between GSM and 3G (UMTS) networks depending on availability. Some network operators allow you to switch networks manually.
To switch networks manually
1From standby select Menu > Settings
> the Connectivity tab > Mobile networks > GSM/3G networks.
2Select an option.
Emergency calls
Your phone supports international emergency numbers, for example, 112 and 911. These numbers can normally be used to make emergency calls in any country, with or without the SIM card inserted, if a 3G (UMTS) or GSM network is within range.
In some countries, other emergency numbers may also be promoted. Your network operator may therefore have saved additional local emergency numbers on the SIM card.
To make an emergency call
•From standby enter 112 (the international emergency number) and press .
To view your local emergency numbers
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Special numbers > Emergency nos.
Contacts
You can save names, phone numbers and personal information in Contacts. Information can be saved in the phone memory or on the SIM card.
Default contact
You can choose which contact information is shown as default. If Phone contacts is selected as
default, your contacts show all the information saved in Contacts. If you select SIM contacts as default, your contacts show names and numbers saved on the SIM card.
To select default contacts
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Advanced > Default contacts.
3 Select an option.
Calling 17
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 18 Friday, July 27, 2007 5:22 PM
Phone contacts
Phone contacts can contain names, phone numbers and personal information. They are saved in the phone memory.
To add a phone contact
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Add.
3 Enter the name and select OK.
4 Enter the number and select OK.
5 Select a number option.
6Scroll between tabs and select the fields to add information.
7Select Save.
Calling contacts
To call a phone contact
1From standby select Menu
> Contacts.
2 Scroll to a contact and press .
To go directly to a contact, from standby press and hold down – .
To call a SIM contact from phone contacts
1 From standby select Menu > Contacts.
2Scroll to New contact and select
Options > SIM contacts.
3 Scroll to a contact and press .
18 Calling
To call with Smart search
1From standby press and hold down
– to enter a contact name or a phone number. All entries which match the sequence of digits or letters are shown in a list.
2Scroll to a contact or a phone number and press .
To turn Smart search on or off
1From standby select Menu > Settings
> the Calls tab > Smart search.
2Select an option.
Editing contacts
To add information to a phone contact
1 From standby select Menu > Contacts.
2Scroll to a contact and select Options
> Edit contact.
3 Scroll between the tabs and select Add.
4 Select an option and an item to add.
5 Select Save.
If your subscription supports Calling Line Identification (CLI) service, you can assign personal ringtones to contacts.
To copy names and numbers to the SIM card
1 From standby select Menu > Contacts.
2Scroll to New contact and select
Options > Advanced > Copy to SIM.
3 Select an option.
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 19 Friday, July 27, 2007 5:22 PM
To automatically save names and phone numbers on the SIM card
1From standby select Menu
> Contacts.
2Scroll to New contact and select Options > Advanced > Auto save on SIM.
3 Select an option.
To save contacts on a memory card
1From standby select Menu
> Contacts.
2Scroll to New contact and select Options > Advanced > Back up to m. card.
SIM contacts
SIM contacts can contain names and numbers only. They are saved on the SIM card.
To add a SIM contact
1From standby select Menu
> Contacts.
2 Scroll to New contact and select Add.
3 Enter the name and select OK.
4 Enter the number and select OK.
5Select a number option and add more information, if available.
6 Select Save.
When you copy all contacts from your phone to the SIM card, all existing SIM card information is replaced.
To call a SIM contact
1 From standby select Menu > Contacts.
2 Scroll to a contact and press .
To copy names and numbers to phone contacts
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Advanced > Copy from SIM.
3Select an option.
Deleting contacts
To delete a contact
1From standby select Menu
> Contacts.
2 Scroll to a contact and press .
To delete all phone contacts
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Advanced > Delete all contacts.
Calling 19
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 20 Friday, July 27, 2007 5:22 PM
Sending contacts
To send a contact
1From standby select Menu
> Contacts.
2Scroll to a contact and select
Options > Send contact.
3 Select a transfer method.
Make sure the receiving device supports the transfer method you select.
Sorting contacts
To select the sort order for contacts
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Advanced > Sort order.
3Select an option.
Memory status
The number of contacts you can save in your phone or on the SIM card depends on available memory.
To view memory status
1From standby select Menu
> Contacts.
2Scroll to New contact and select Options > Advanced > Memory status.
Synchronizing contacts
Contacts can be synchronized with a Microsoft Exchange Server (Microsoft® Outlook®). For more information see Synchronizing on page 53.
Myself
You can enter information about yourself and, for example, send your business card.
To enter Myself information
1From standby select Menu
> Contacts.
2 Scroll to Myself and select Open.
3Scroll to an option and edit the information.
4 Select Save.
To add your own business card
1From standby select Menu
> Contacts.
2 Scroll to Myself and select Open.
3Scroll to My contact info and select
Add > Create new.
4Scroll between tabs and select the fields to add information.
5 Enter the information and select Save.
To enter a symbol select Options
> Add symbol > Insert.
20 Calling
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 21 Friday, July 27, 2007 5:22 PM
To send your business card
1From standby select Menu
> Contacts.
2 Scroll to Myself and select Open.
3Scroll to My contact info and select
Send.
4 Select a transfer method.
Make sure the receiving device supports the transfer method you select.
Groups
You can create a group of phone numbers and email addresses from Phone contacts to send messages to. See Messaging on page 28. You can also use groups (with phone numbers) when you create accepted callers lists. See Accept calls on page 26.
To create a group of numbers and email addresses
1 From standby select Menu > Contacts.
2Scroll to New contact and select
Options > Groups.
3 Scroll to New group and select Add.
4Enter a name for the group and select
Cont.
5 Scroll to New and select Add.
6For each contact phone number or email address you want to mark, scroll to it and select Mark.
7 Select Cont. > Done.
Call list
You can view information about recent calls.
To call a number from the call list
1From standby press and scroll to a tab.
2Scroll to a name or a number and press .
To add a call list number to contacts
1From standby press and scroll to a tab.
2 Scroll to the number and select Save.
3Select New contact to create a new contact or select an existing contact to add the number to.
To clear the call list
1 From standby press .
2Scroll to the All tab and select
Options > Delete all.
Speed dial
Speed dialing lets you select nine contacts that you can dial quickly. The contacts can be saved in positions 1-9.
Calling 21
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 22 Friday, July 27, 2007 5:22 PM
To add contacts to speed dial numbers
1From standby select Menu
> Contacts.
2Scroll to New contact and select
Options > Speed dial.
3Scroll to a position number and select Add.
4 Select a contact.
To speed dial
•From standby enter the position number and press .
Voicemail
If your subscription includes an answering service, callers can leave a voicemail message when you cannot answer a call.
To enter your voicemail number
1From standby select Menu
>Messaging > Settings
>Voicemail number.
2 Enter the number and select OK.
To call your voicemail service
•From standby press and hold down
.
Voice control
By creating voice commands you can:
•Voice dial – call someone by saying their name
•Activate voice dialing by saying a “magic word”
•Answer and reject calls when you use a handsfree
To record a voice command to be used for voice dialing
1From standby select Menu > Settings
>the General tab > Voice control
>Voice dialing > Activate.
2Select Yes > New voice command and select a contact. If the contact has more than one number, select the number to add the voice command to.
3Record a voice command such as “John mobile”.
4Follow the instructions that appear. Wait for the tone and say the command to record. The voice command is played back to you.
5If the recording sounds OK, select Yes. If not, select No and repeat steps 3 and 4.
Voice commands are saved in the phone memory only. They cannot be used in another phone.
22 Calling
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 23 Friday, July 27, 2007 5:22 PM
To rerecord a voice command
1From standby select Menu > Settings
>the General tab > Voice control
>Voice dialing > Edit names.
2Scroll to a command and select
Options > Replace voice.
3Wait for the tone and say the command.
Voice dialing
You can call a contact by saying the name.
To voice dial
1From standby press and hold down a volume key.
2Wait for the tone and say a recorded name, for example “John mobile”. The name is played back to you and the call is connected.
To make a call with a handsfree
•Press the handsfree key.
The magic word
You can record and use a voice command as a magic word to activate voice dialing without pressing any keys. Your handsfree must be connected to your phone when using the magic word.
You should choose a long, unusual word or phrase that can easily be distinguished from ordinary background speech.
Bluetooth handsfree does not support this feature.
To activate and record the magic word
1From standby select Menu > Settings
>the General tab > Voice control
>Magic word > Activate.
2Follow the instructions that appear and select Cont. Wait for the tone and say the magic word.
3Select Yes to accept or No for a new recording.
4Follow the instructions that appear and select Cont.
5Select where your magic word is to be activated.
To make a call using the magic word
1 Say the magic word.
2Wait for the tone and say a voice command.
Voice answering
When you use a handsfree, you can answer or reject incoming calls with your voice.
Calling 23
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 24 Friday, July 27, 2007 5:22 PM
To activate voice answering and record voice answer commands
1From standby select Menu > Settings
>the General tab > Voice control
>Voice answer > Activate.
2Follow the instructions that appear and select Cont. Wait for the tone and say “Answer”, or another word.
3Select Yes to accept or No for a new recording.
4Follow the instructions that appear and select Cont. Wait for the tone and say “Busy”, or another word.
5Select Yes to accept or No for a new recording.
6Follow the instructions that appear and select Cont.
7Select where your voice answering is to be activated.
To answer a call using voice commands
•Say “Answer”.
To reject a call using voice commands
•Say “Busy”.
Forwarding calls
You can forward calls, for example, to an answering service.
When Restrict calls is used, some forward call options are not available. See Restricted dialing on page 26.
Forward call options
Standard options are:
•Always forward – forward all your calls
•When busy – if a call is ongoing
•Not reachable – if your phone is turned off or unreachable
•No reply – if a call is not answered in a specified time.
To forward calls
1From standby select Menu > Settings
> the Calls tab > Forward calls.
2 Select a call type and a forward option
3 Select Activate.
4Enter the number to forward calls to and select OK.
More than one call
You can handle more than one call at a time. For example, you can put an ongoing call on hold, while you make or answer a second call. You can also
24 Calling
0REFLIGHTED BY
Z750a__UG_AE_1200_9984_1_12.book Page 25 Friday, July 27, 2007 5:22 PM
switch between the two calls. You cannot answer a third call without ending one of the first two calls.
Call waiting
When call waiting is used, you hear a beep if you receive a second call.
To activate call waiting
•From standby select Menu > Settings
> the Calls tab > Manage calls > Call waiting > Activate.
To make a second call
1During the call, select Options > Hold. This puts the ongoing call on hold.
2 |
Select Options > Add call. |
3 |
Enter the number to call and press . |
To answer a second call
•During the call, press . This puts the ongoing call on hold.
To reject a second call
•During the call, press and continue with the ongoing call.
To end an ongoing call and answer a second call
•During the call, select Replace active call.
Handling two voice calls
You can have calls ongoing and on hold at the same time.
To switch between two calls
•During the call, press .
To join two calls
•During the call, select Options
> Join calls.
To connect two calls
•During the call, select Options
> Transfer call. You are disconnected from both calls.
To end an ongoing call and return to the call on hold
•First press and then .
Receiving a third voice call
You cannot answer a third call without ending one of the first two calls or joining them.
Conference calls
With a conference call, you can have a joint conversation with up to five people.
To add a new participant
1 During the call, select Options > Hold. This puts the joined calls on hold.
2 Select Options > Add call.
Calling 25
0REFLIGHTED BY
