Sony 49X8000D, 43X8000D, 43X8300D Reference Manual

Television

Reference Guide

KD-49X8300D / 49X8000D / 43X8300D / 43X8000D

Table of Contents

Safety information . . . . . . . . . . . . . . . . . . . . .2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Using Remote Control . . . . . . . . . . . . . . . . 8

Remote Control Parts Description . . . . . . . . .8

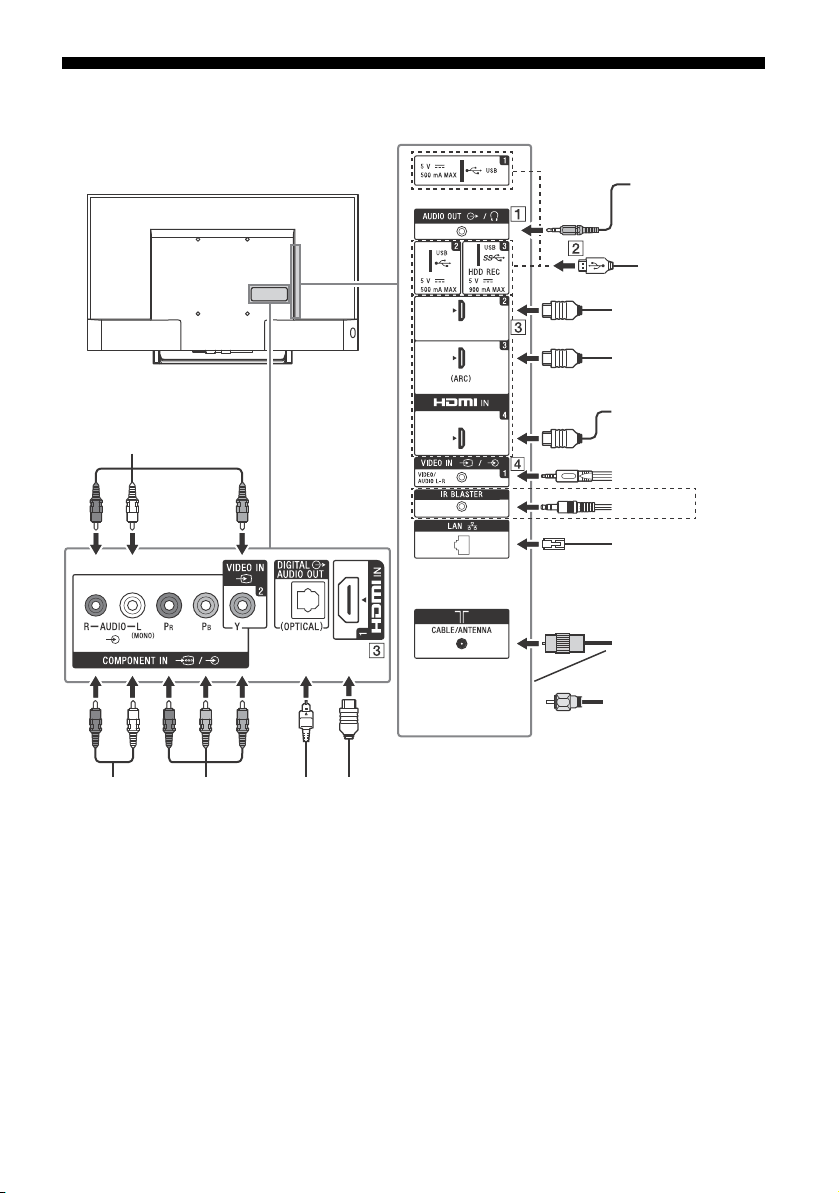

Connection Diagram . . . . . . . . . . . . . . . . 10

Installing the TV to the Wall . . . . . . . . . . 12

Troubleshooting. . . . . . . . . . . . . . . . . . . . 16

Troubles and Solutions . . . . . . . . . . . . . . . . 16

Specifications . . . . . . . . . . . . . . . . . . . . . . 17

Introduction

Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain i t for fu ture reference.

Note

• Before operating the TV, please read the “Safety information”
(page 2).

• Instructions about “Installing the TV to the Wall” are included
within this TV’s instruction manual.

• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Help Guide

Help Guide explains the information on how to use the TV's
features. To display Help Guide on the TV, press HELP on the
remote control and select [Help Guide].

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located
on the rear of the TV.

For models with supplied AC adapter:
Labels for the AC adapter Model No. and Serial No. are located
on the bottom of the AC adapter.

Notice for customers in Thailand

This telecommunication equipment conforms to NTC technical
requirement.

Notes for Australia and New Zealand model

This product is ENERGY RATING qualified in the default mode.
ENERGY RATING is a programme designed to promote energy
efficient products and practices.

• When the TV is initially set up, it is designed to meet ENERGY
RATING requirements while maintaining optimum picture
quality.

• Changes to certain features, settings and functionalities of this
TV (e.g. TV Guide, Picture/So und, Eco setting) can slightly
change the power consumption.

Depending upon such changed settings (e.g. Shop mode), the
power consumption may vary which possibly could exceed the
stated energy rating.

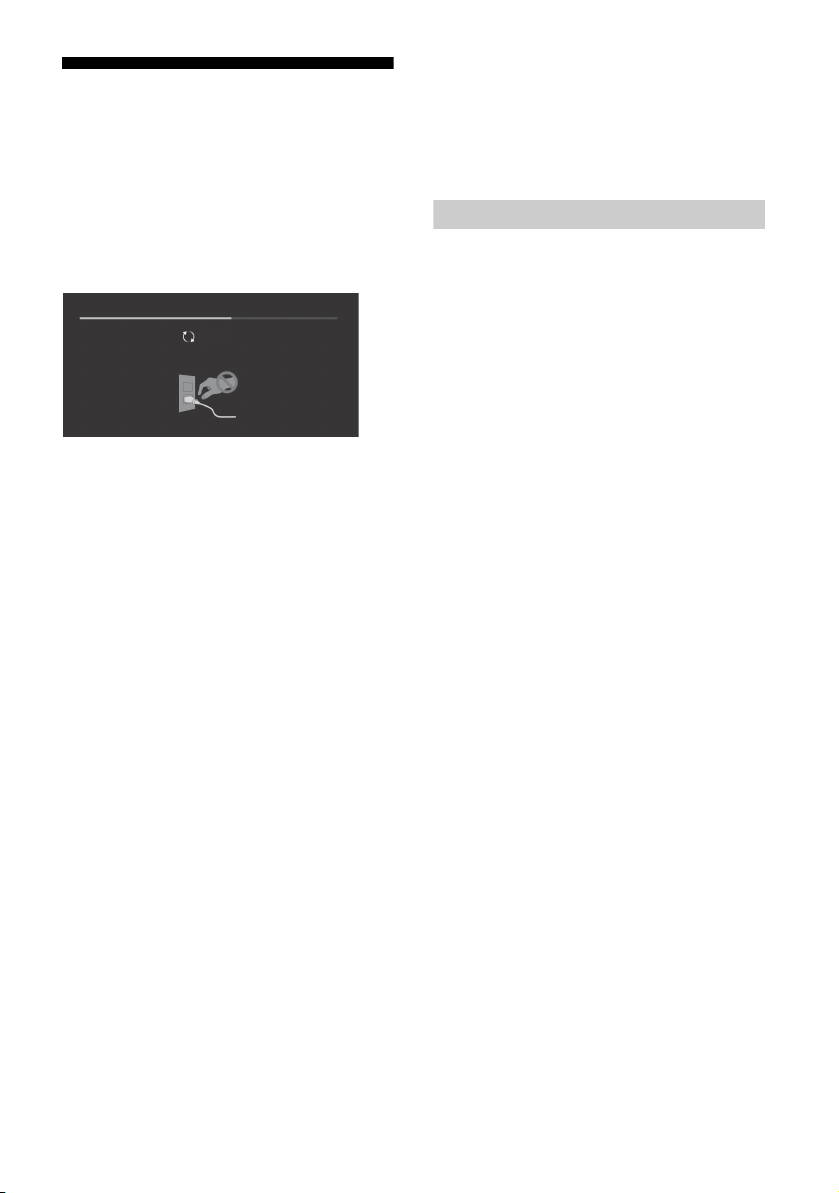

To reset the TV to ENERGY RATING qualified settings, complete
the initial set-up procedure in [Settings] t [Storage & reset] t
[Factory data reset].
After factory data reset, downloaded application data will be
deleted. Please download them again.

Safety information

WARNING

Batteries must not be exposed to excessive heat such as
sunshine, fire or the like.
Never place a television set in an unstable location. A television
set may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple
precautions such as:
 Using cabinets or stands recommended by the manufacturer of

the television set.

 Only using furniture that can safely support the television set.
 Ensuring the television set is not overhanging the edge of the

supporting furniture.

 Not placing the television set on tall furniture (for example,

cupboards or bookcases) without anchoring both the furniture
and the television set to a suitable support.

 Not placing the television set on cloth or other materials that

may be located between the television set and supporting
furniture.

 Educating children about the dangers of climbing on furniture

to reach the television set or its controls.

GB

2

If your existing television set is being retained and relocated, the

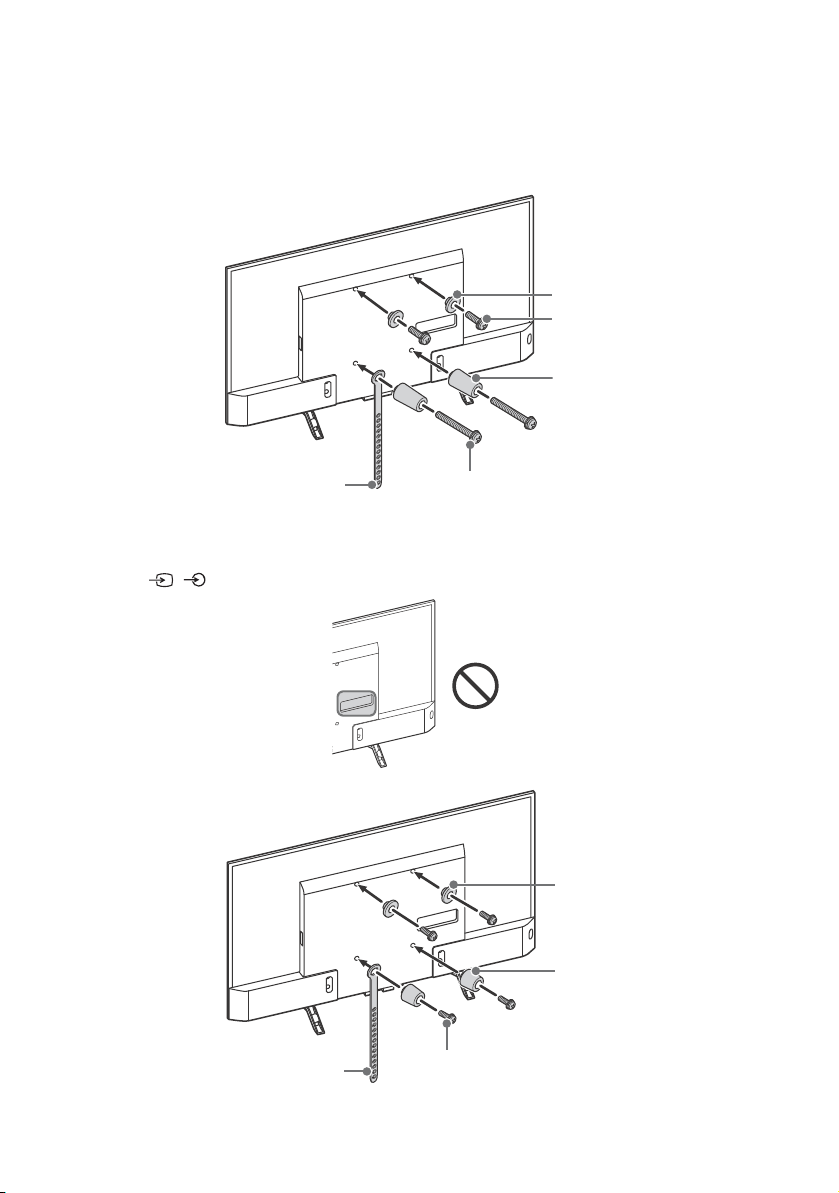

Screw

Wall-Mount Bracket

8 mm - 12 mm

TV’s rear cover

8 mm - 12 mm

Screw ( previously
removed)

Screw (not
supplied)

Cord (not
supplied)

30 cm

10 cm 10 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

10 cm

Leave at least this space around the set.

6 cm

same considerations as above should be applied.

Installation/Set-up

Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electric shock or damage
and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC
power outlet (mains soc ket).

• Place the TV on a stable, level surface to prevent it from falling
over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked
over.

• Only qualified service personnel should carry out wall-mount
installations.

• For safety reasons, it is strongly recommended that you use
Sony accessories, including:

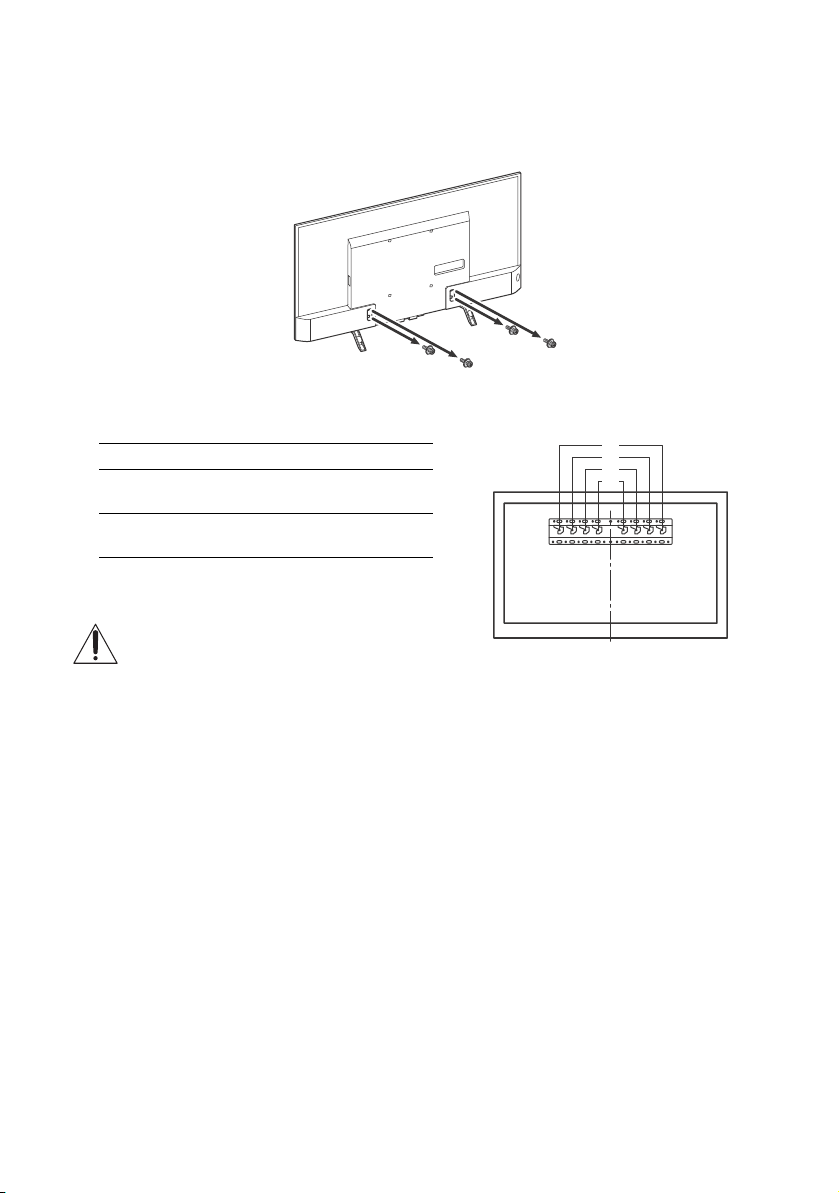

 Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.

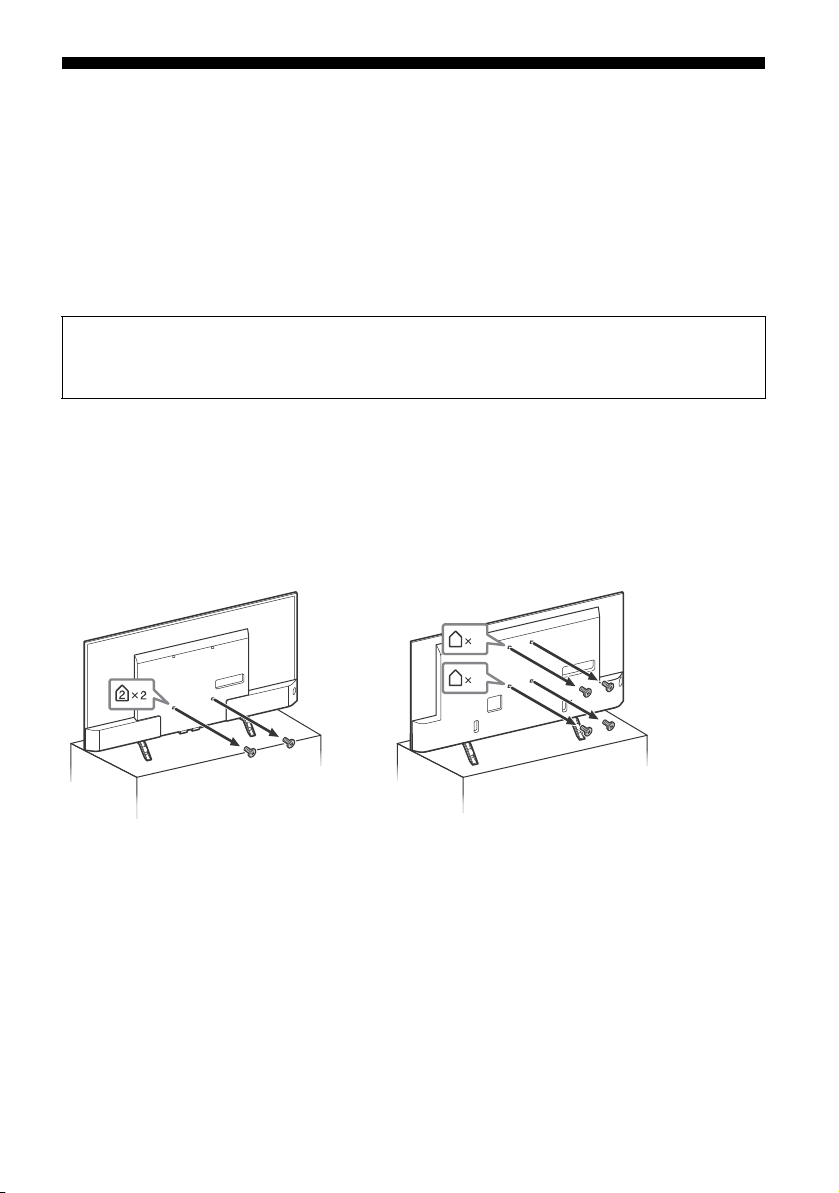

Topple prevention

Ventilation

• Never cover the ventilation holes or insert anything in the
cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony Wall-Mount
Bracket in order to provide adequate air circulation.

Installed on the wall

• When transporting the TV set, do not subject it to jolts or
excessive v ibration.

• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.

Installed with stand

GB

3

• To ensure proper ventilation and prevent the collection of dirt or

Air circulation is blocked.

Wall Wall

dust:
 Do not lay the TV set flat, install upside down, backwards, or

sideways.

 Do not place the TV set on a shelf, rug, bed or in a closet.
 Do not cover the TV set with a cloth, such as curtains, or items

such as newspapers, etc.

 Do not install the TV set as shown below.

AC power cord (mains lead)

Handle the AC power cord (mains lead) and outlet (mains socket)
as follows in order to avoid any risk of fire, electric shock or
damage and/or injuries:
 The shape of AC power plug (mains plug), which is supplied

with the TV set, varies depending on the region. Be sure to
connect the appropriate supplied AC power cord (mains lead)
with the plug that fits into the AC power outlet (mains socket).

 Use only Sony supplied AC power cords (mains lead), not those

of other brands.

 Insert the plug fully into the AC power outlet (mains socket).
 Operate the TV set on a 110 V - 240 V AC supply only (except

models with supplied AC adapter).

 Operate the TV set on a 100 V - 240 V AC supply only (models

with supplied AC adapter only).

 When wiring cables, be sure to unplug the AC power cord

(mains lead) for your safety and take care not to catch your feet
on the cables.

 Disconnect the AC power cord (mains lead) from the AC power

outlet (mains socket) before working on or moving the TV set.

 Keep the AC power cord (mains lead) away from heat sources.
 Unplug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its
insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied AC power cord (mains lead) on any
other equipment.

• Do not pinch, bend, or twist the AC power cord (mains lead)
excessively. The core conductors may be exposed or broken.

• Do not modify the AC power cord (mains lead).

• Do not put anything heavy on the AC power cord (mains lead).

• Do not pull on the AC power cord (mains lead) itself when
disconnecting the AC power cord (mains lead).

• Do not connect too many appliances to the same AC power
outlet (mains socket).

• Do not use a poor fitting AC power outlet (mains socket).

NOTE ON AC ADAPTER (models with supplied
AC adapter only)

Warning

To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
To prevent fire or shock hazard, do not place objects filled with
liquids, such as vases, on the apparatus. Do not install this
equipment in a confined space, such as a bookshelf or similar
unit.

• Please ensure that the AC power outlet (mains socket) is
installed near the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power cord
(mains lead). Otherwise it may cause a malfunction.

• Connect the AC adapter to an easily accessible AC power outlet
(mains socket).

• Do not coil the AC power cord (mains lead)
around the AC adapter. The core wire may
be cut and/or it may cause a malfunction
of the TV.

• Do not touch the AC adapter with wet hands.

• If you notice an abnormality in the AC adapter, disconnect it
from the AC power outlet (mains socket) immediately.

• The set is not disconnected from the AC source as long as it is
connected to the AC power outlet (mains so cket), even if the set
itself has been turned off.

• As the AC adapter will become warm when it is used for a long
time, you may feel hot when touching it by hand.

Prohibited Usage

Do not install/use the TV set in locations, environments or
situations such as those listed below, or the TV set may
malfunction and cause a fire, electric shock, damage and/or
injuries.

Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other
vessel, inside a vehicle, in medical institutions, unstable
locations, near water, rain, moisture or smoke.

Environments:

• Places that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration,
near flammable objects (candles, etc). The TV set shall not be
exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or
with attachments not recommended by the manufacturer.
Disconnect the TV set from AC power outlet (mains socket) and
antenna (aerial) during lightning storms.

• Install the TV so that it sticks out into an
open space. Injury or damage from a
person or object bumping into the TV
may result.

• Place the TV in a humid or dusty space,
or in a room with oily smoke or steam
(near cooking tables or humidifiers).
Fire, electric shock, or warping may
result .

• Install the TV in places subject to extreme temperature such as
in direct sunlight, near a radiator or a heating vent. The TV may
overheat in such condition which can cause deformation of the
enclosure and/or TV malfunction.

• If the TV is placed in the changing room of
a public bath or hot spring, the TV may be
damaged by airborne sulphur, etc.

• For best picture quality, do not expose the screen to direct
illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden
room temperature changes may cause moisture condensation.
This may cause the TV to show poor picture and/or poor colour.
Should this occur, allow moisture to evaporate completely
before powering the TV on.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break
by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have
unplugged the AC power cord (mains lead). Otherwise this may
cause an electric shock.

GB

4

When not in use

• If you will not be using the TV set for several days, the TV set
should be disconnected from the AC power (mains) for
environmental and safety reaso ns.

• As the TV set is not disconnected from the AC power (mains)
when the TV set is just turned off, pull the plug from the AC
power outlet (mains socket) to disconnect the TV set
completely.

• Some TV sets may have features that require the TV set to be
left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that they
are not mistakenly swallowed.

If the following problems occur...

Turn o ff the TV set and unplug the AC power cord (mains lead)
immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it checked by
qualified service personnel.

When:

 AC power cord (mains lead) is damaged.
 Poor fitting of AC power outlet (mains socket).
 TV set is damaged by being dropped, hit or having something

thrown at it.

 Any liquid or solid object falls through openings in the cabinet.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel
surrounds become warm. You may feel hot when touching there
by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or
during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid
excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision
technology and 99.99 % or more of the pixels are effective,
black dots may appear or bright points of light (red, blue, or
green) may appear constantly on the LCD screen. This is a
structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of
this TV set. The image may be uneven or the LCD screen may be
damaged.

• If this TV set is used in a cold place, a smear may occur in the
picture or the picture may become dark. This does not indicate a
failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This
is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow
your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/
cabinet of the TV set

Be sure to unplug the AC power cord (mains lead) connected to
the TV set from AC power outlet (mains socket) before cleaning.
To avoid material degradation or screen coating degradation,
observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently
with a soft cloth. If dust is persistent, wipe with a soft cloth
slightly moistened with a diluted mild detergent solution.

• Never spray water or detergent directly on
the TV set. It may drip to the bottom of the
screen or exterior parts and enter the TV set,
and may cause damage to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner,
scouring powder, or volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining
prolonged contact with rubber or vinyl materials may result in
damage to the screen surface and cabinet material.

• Do not touch the TV if your hand is covered in any chemical
substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation open ings is
recommended to ensure proper ventilation.

• When adjusting the angle of the TV set, move it slowly so as to
prevent the TV set from moving or slipping off from its table
stand.

Optional Equipment

Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker,
etc.), as this may result in the malfunction of the medical
equipment.

• Although this unit transmits/receives scrambled signals, be
careful of unauthorised interception. We cannot be responsible
for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and
new batteries.

• Dispose of batteries in an environmentally friendly way. Certain
regions may regulate the disposal of batteries. Please consult
your local authority.

• Handle the remote control with care. Do not drop or step on it,
or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source,
a place subject to direct sunlight, or a damp room.

GB

5

Disposal of the TV set

Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)

Disposal of Old Electrical &
Electronic Equipment (Applicable
in Republic of India)

This symbol and its variation indicates that this
product and its components, consumables,
parts or spares thereof shall not be treated as
household waste and may not be dropped in
garbage bins. Product owners are advised to

point for the recycling of electrical and electronic equipment. Your
co-operation shall facilitate proper disposal & help prevent
potential negative consequences/hazards to the environment
and human health, which could otherwise be caused by
inappropriate waste disposal including improper handling,
accidental breakage, damage and/or improper recycling of
e-waste. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this
product, please contact your local civic office, your household
waste disposal service provider or the store where you made the
purchase. You may contact our company’s toll free number in
India for assistance.

Toll Free: 1800-103-7799
Visit: www.sony.co.in for product recycling

Reduction in the Use of Hazardous Substances
in Electrical & Electronic Equipment (Applicable
in Republic of India)

This product and its components, consumables, parts or
spares comply with the hazardous substances restriction of
India’s E-Waste (Management) Rules. The maximum allowable
concentrations of the restricted substances are 0.1% by weight
in homogenous materials for Lead, Mercury, Hexavalent
Chromium, Polybrominated Biphenyls (PBB) and
Polybrominated Diphenyl Ethers (PBDE), and 0.01% by weight
in homogenous materials for Cadmium, except for the
exemptions specified in Schedule II of the aforesaid Rules.

deposit their product at the nearest collection

Notice for customer in UAE

TRA

REGISTERED No: ER35215/14
DEALER No: DA0065531/11

GB

6

Parts and Controls



ȩ

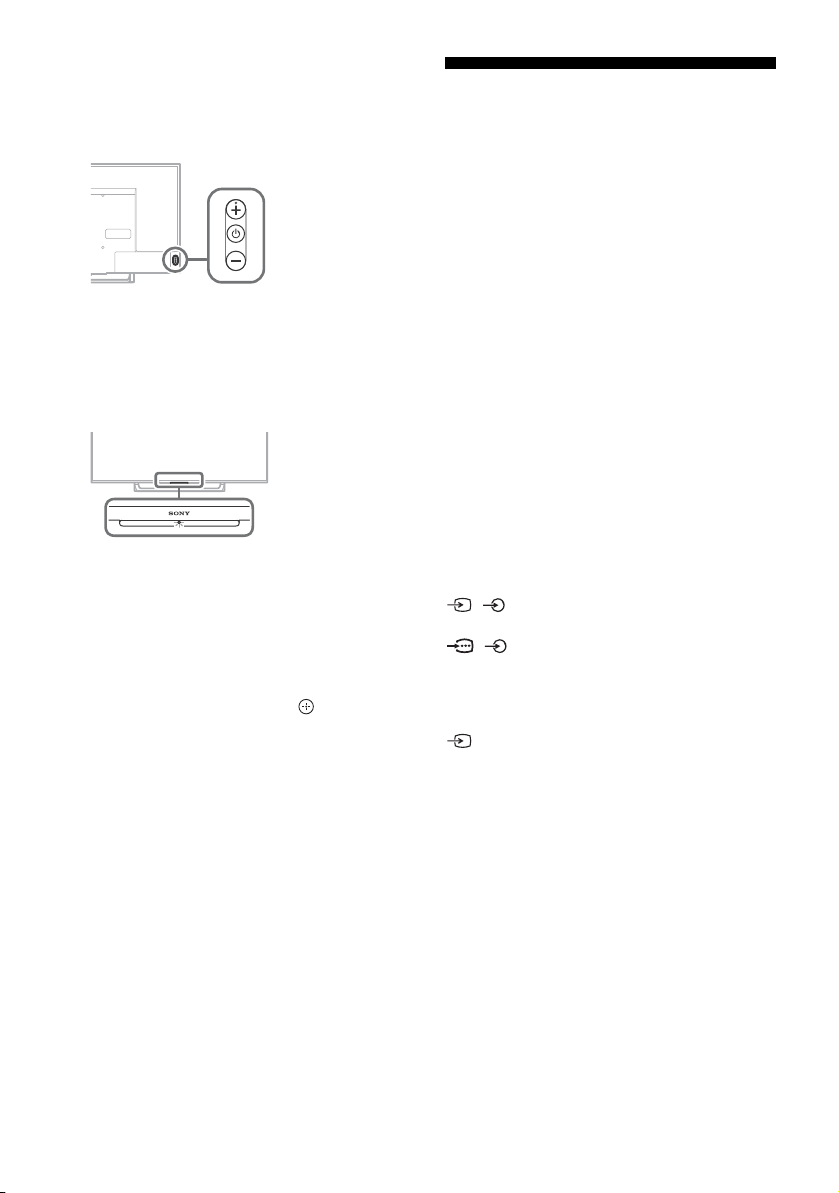

Controls and Indicators

 (Power) /+/-

When the TV is off,

Press  to power on.

When the TV is on,

Long press  to power off.
Press  repeatedly to change the function,
then press + or – button to:

• Adjust the volume.

• Select the channel.

• Select the input source of TV.

 Remote Control sensor*1 /

Light sensor*

The illumination LED lights up or blinks
according to the status of the TV.

•White
When turning on the TV/picture off
mode/software update, etc.

•Cyan
When connecting with a mobile device
wirelessly.

• Pink*
Recording mode.

•Amber
Timer is set.

*1 Do not place anything near the sensor.

*2 Only on limited region/country/TV model.

1

/ Illumination LED

2

GB

7

Using Remote Control

Ȫ

ȩ

ȫ

Ȭ

ȭ

Ȯ

MIC

Remote Control Parts Description

The remote control shape, location, availability and function of remote control button may vary
depending on your region/country/TV model.

/ (Input select/Text hold)

In TV mode: Display and select the input
source.
In Text mode: Hold the current page.

(Microphone)

Use Voice Function. (e.g., Search various
content by voice.)

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

SYNC MENU

Display the BRAVIA Sync Menu.

GB

8

(Wide mode)

Change the screen format.

EXIT

Return to the previous screen or exit from
the menu. When an Interactive Application
service is available, press to exit from the
service.

 Number buttons

/ (Info/Text reveal)

Display information.

 (Text)

Display text information.

 Google Play

Access the “Google Play” online service.

NETFLIX (Only on limited region/
country/TV model)

Access the “NETFLIX” online service.

Colour buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

TV

• Switch to a TV channel or input from other
applications.

• Turn on the TV to display TV channel or
input.

GUIDE/

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for
content.

//// (Item select/Enter)

///.//>/

Operate media contents on TV and
connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is
available).

HELP

Display Help Menu. Help Guide can be
accessed from here.

 REC

Record the current programme with the USB
HDD recording function.

TITLE LIST

Display the Title list.

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels
or inputs. The TV alternates between the
current channel or input and the last
channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the
sound.

PROG +/–//

In TV mode: Select the channel.
In Text mode: Select the next () or
previous () page.

 AUDIO

Change the language for the programme
currently being viewed.

GB

9

Connection Diagram

*1

*4

*2

*5

*1

*1

*1

*3

Headphone/Home
Audio System/
Subwoofer

Digital still
camera/
Camcorder/USB
storage media

HDMI Device

Home Audio
System with ARC/
HDMI Device

Cable/Antenna

Home
Audio
System
with
Optical
Audio
Input

DVD player with
component output

HDMI
Device

Router

VCR/Video game
equipment/DVD
player/Camcorder

IR Blaster

HDMI Device

VCR/Video game
equipment/DVD player/
Camcorder

For more information on connections, refer to the Help Guide (page 2).

GB

10

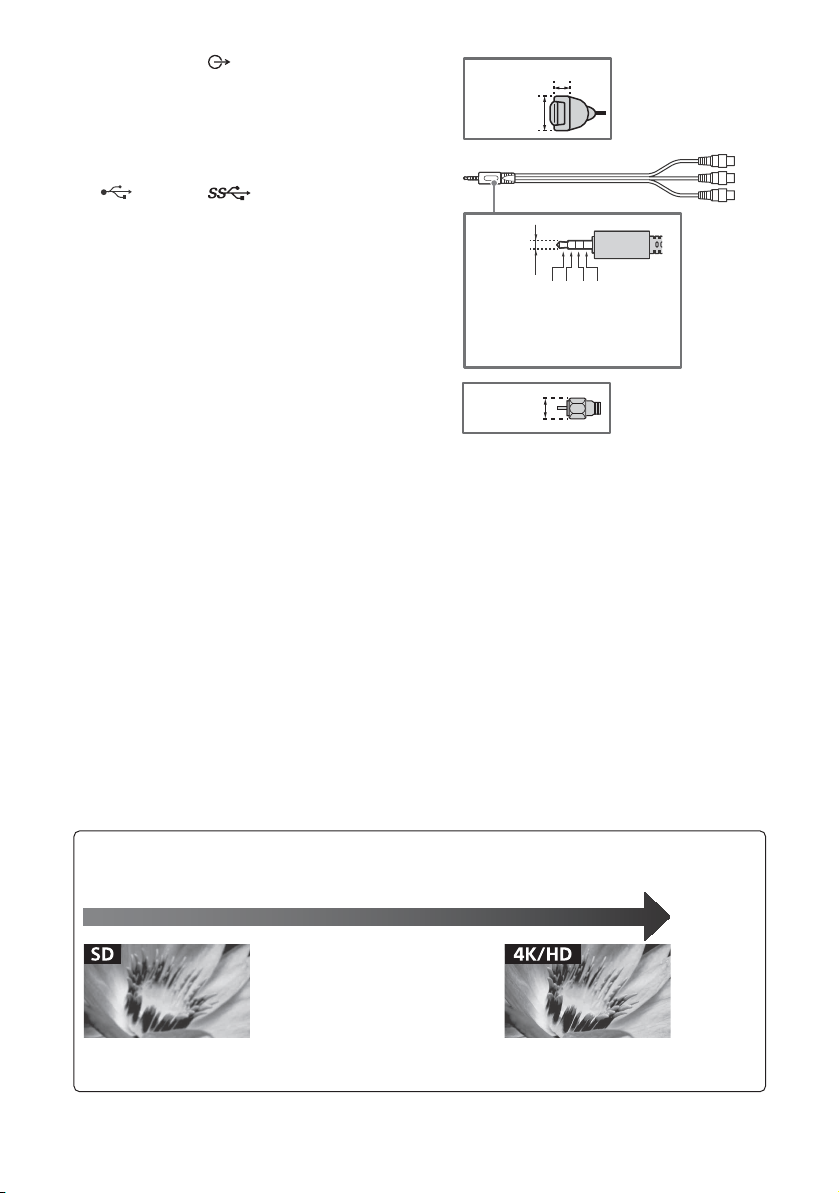

 AUDIO OUT*6 /

< 21 mm

< 12 mm

3.5 mm

1: L
2: Video
3: Ground
4: R

3214

< 14 mm

Picture Quality

• AV composite cable

• Antenna (aerial) cable

Standard definition (SD) videos have picture signals with a
vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines.

•Component cable •HDMI cable

High definition (HD) videos have picture signals
with a vertical resolution of 720 or 1,080 lines.
(For 4K vertical resolution: 2,160 lines)

• To listen to the TV's sound through the
connected equipment, press HOME.
Select [Settings] t [Sound] t
[Headphone/Audio out] and then select
the desired item.

 USB 1/2, USB 3 (HDD REC)*

• Connecting a large USB device may
interfere with other connected devices
beside it.

• When connecting a large USB device,
connect to the USB 1 port.

 HDMI IN 1/2/3/4

• If connecting a digital audio system that is
compatible with Audio Return Channel
(ARC) technology, use HDMI IN 3. If not, an
additional connection with DIGITAL AUDIO
OUT (OPTICAL) is necessary.

 / VIDEO IN 1

• For a composite connection, use the
supplied Analogue Extension Cable*5.

*1

*2

5

*3

*4 When connecting mono equipment, connect to the

L (MONO) audio jack (socket).
*5 Only on limited region/country/TV model.
*6 Supports 3-pole stereo mini jack only.

GB

11

Installing the TV to the Wall

KD-49X8300D / 49X8000D

2

1

2

2

KD-43X8300D / 43X8000D

This TV’s instruction manual only shows the steps on preparing the installation of the TV before
installing to the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your
TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of
this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for
any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide
supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

To remove the screws from the rear of the TV

GB

12

1 Make sure that the wall has enough space for the TV and is capable of supporting a

Screen centre point

Standard
mounting

Slim
mounting

weight of at least four times that of the TV.
Refer to the following table on installing the TV to the wall. See page 17-18 (Specifications)
for the TV’s weight.

Display dimensions

Model Name

KD-

49X8300D
49X8000D

43X8300D 960 564 209 498 108 66

43X8000D 960 564 209 498 107 65

Note

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

1,093 639 181 508 102 60

Screen

centre

dimension

Length for mounting

Standard

mounting

mounting

Unit: mm

Slim

GB

13

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

Screw (+PSW 6 x 50) 

Belt 

Screw (+PSW 6 x 20) 

Pulley 

Spacer (60 mm) 

Screw (+PSW 6 x 20) 

Pulley 

Belt 

Spacer (20 mm) 

referring to “1” of the Wall-Mount Bracket Installation Guide.

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting

Slim mounting

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.
Connect the Analogue Extension Cable (Availability depends on countries/regions/TV models) if you need to
use the / VIDEO IN 1 jack.

GB

14

3 Connect necessary cables to the TV.

a
b
c
d

Note

• You cannot access to any terminal after installing the TV to the wall.

4 Detach the Table-Top Stand from the TV.

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

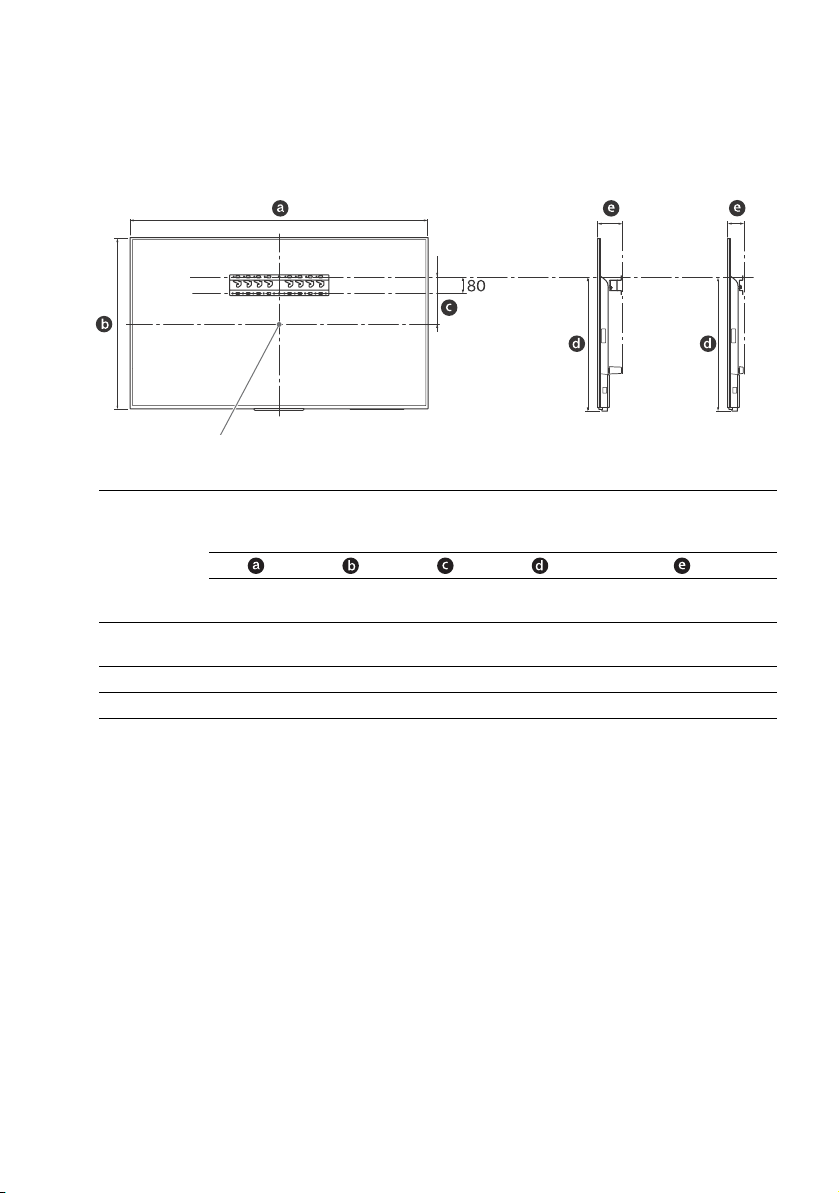

Model Name KD- Hook location

49X8300D
49X8000D

43X8300D
43X8000D

c

d

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

GB

15

Troubleshooting

Updating...

In order to keep your TV software up-to-date, it
is necessary to download the latest software
information via the digital broadcasting system
or internet and to update the software. Select
[Update Now] to start a software update. The
illumination LED flashes white while the
software is updating.
The following screen with [Updating…] will
appear while software is updating.

Do not unplug the AC power cord (mains lead)
during the software update. If you do, the
software update may not finish completely, and
it may cause a software malfunction. Software
updates can take up to 30 minutes. If you do not
wish to update the software automatically,
press HOME and select [Help]  [System
software update]  [Automatic software
download]  [Off].

When you plug in TV, the TV may not be able to
turn on for a while even if you press the power
button on the remote control or the TV, because
it takes time to initialize the system. Wait for
about one minute, then operate it again. When
you turn on by pressing the power button on
the remote control or the TV, it takes some time
to turn on the illumination LED and for the
remote control to be functional.

When the illumination LED is flashing in red,
count how many times it flashes (interval
time is three seconds).

If the illumination LED flashes red, reset the TV
by disconnecting the AC power cord (mains
lead) for two minutes, then turn on the TV.
If the problem persists, contact your dealer or
Sony service centre with the number of times
the illumination LED flashes red (interval time is
three seconds). Disconnect the AC power cord
(mains lead), and inform your dealer or Sony
service centre.

When the illumination LED is not flashing,
check the items as follows.

You can also refer to troubleshooting in the Help
Guide or perform self-diagnosis by selecting
[Help]  [Self diagnostics]. If the problem
persists, have your TV serviced by qualified
service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no
sound.

 Check the antenna (aerial)/cable connection.
 Connect the TV to the AC power (mains), and

press  on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

The remote control does not function.

 Replace the batteries.

The [Parental lock (Broadcast)] password has
been forgotten.

 Enter 9999 for the PIN code. Update PIN code by

selecting [Settings]

t [Change PIN code].

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm.
You may feel hot when touching there by the
hand.

Frozen audio or video, a blank screen, or the
TV does not respond to TV or remote control
buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes,
then plug it in again.

t [Parental lock (Broadcast)]

GB

16

The , + and – buttons cannot be located on

Rear of TV

the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to light up the illumination LED,

you can turn it off.
Press HOME, then select
[Illumination LED] t [Off].

[Settings] t

Cannot connect to a wireless router by WPS
(Wi-Fi Protected Setup).

• If you use WEP security, select [Easy] t [Wi-Fi] t
[Connect by scan list]. Then, select the network
name (SSID) you want to connect.

Cannot find the required network name in
network setup.

• Select [[Manual entry]] and press to enter
network name.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depend on your country/area selection
Analogue: B/G, I, D/K, M
Digital: DVB-T/DVB-T2

Colour system

PAL, SECAM, NTSC3.58, NTSC4.43

Channel coverage

Depend on your country/area selection
Analogue: UHF/VHF/Cable
Digital: UHF/VHF

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n
(IEEE802.11ac may not be available depending on
countries/regions.)
Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN 1

Video/Audio input (mini jack)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz),
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,
480p, 480i
Audio input (phono pin jack)

VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution,
HDCP 2.2-compatible)

Video:

4096 × 2160p (50, 60 Hz)*

1

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,
50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC
Formats

*1 3840 × 2160p is displayed when 4096 × 2160p is

input.

*2 HDMI IN 2 / 3 only.

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2,
96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby
Digital, Dolby Digital Plus and DTS

1*2

, 4096 × 2160p

GB

17

ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM, Dolby Digital, Dolby
Digital Plus, DTS)

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM,
Dolby Digital, DTS)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio output, Subwoofer

1, 2, 3 (HDD REC)*

USB device port. ( 3 USB HDD device for
REC feature)
USB port 1 and 2 support High Speed USB
(USB2.0).
USB port 3 supports Super Speed USB (USB3.0)

1

LAN

10BASE-T/100BASE-TX connector (Depending on
the operating environment of the network,
connection speed may differ. 10BASE-T/
100BASE-TX communication rate and
communication quality are not guaranteed for
this TV.)

DC IN 19.5 V (models with supplied AC

adapter only)

AC adapter input

IR BLASTER*

IR Blaster Cable input (mini jack)

1

Others

Optional accessories

Wall-Mount Bracket: SU-WL450
Wireless subwoofer: SWF-BR100
Camera and Microphone Unit: CMU-BR300

Operating temperature

0 ºC – 40 ºC

Power and others

Power requirements

except models with supplied AC adapter
110 V - 240 V AC, 50/60 Hz
models with supplied AC adapter only

19.5 V DC with AC adapter
Rating: Input 100 V - 240 V AC, 50/60 Hz

Energy Efficiency Class*

KD-49X8000D: A
KD-43X8000D: B

Screen size (measured diagonally) (Approx.)

KD-49X8300D / 49X8000D: 49 inches / 123.2 cm
KD-43X8300D / 43X8000D: 43 inches / 108.0 cm

Power consumption

Indicated on the rear of the TV

Power Consumption*

In [Standard] mode

KD-49X8000D: 80 W
KD-43X8000D: 82 W

2

2

In [Vivid] mode

KD-49X8000D: 114 W
KD-43X8000D: 126 W

Average annual energy consumption*2*

KD-49X8000D: 111 kWh
KD-43X8000D: 114 kWh

Standby power consumption*2*4*

0.50 W

3

5

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2: 5 V, 500 mA MAX
USB 3: 5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-49X8300D / 49X8000D: 1,093 × 686 × 216 mm
KD-43X8300D / 43X8000D: 960 × 612 × 216 mm

without Table-Top Stand

KD-49X8300D / 49X8000D: 1,093 × 639 × 44 mm
KD-43X8300D / 43X8000D: 960 × 564 × 45 mm

Mass (Approx.)

with Table-Top Stand

KD-49X8300D / 49X8000D: 14.2 kg
KD-43X8300D / 43X8000D: 13.2 kg

without Table-Top Stand

KD-49X8300D / 49X8000D: 13.2 kg
KD-43X8300D / 43X8000D: 12.3 kg

*1 Only on limited region/country/TV model.
*2 This information is for EU and other countries whose

relevant regulation is based on EU energy labelling
regulation.

*3 Energy consumption per year, based on the power

consumption of the television operating 4 hours per
day for 365 days. The actual energy consumption will
depend on how the television is used.

*4 Specified standby power is reached after the TV

finishes necessary internal processes.

*5 Standby power consumption will increase when your

TV is connected to the network.

Note

• Optional accessories availability depends on
countries/region/TV model/stock.

• Design and specifications are subject to change
without notice.

18

GB

Notes on Digital TV function

• Any functions related to Digital TV ()
will only work in countries or areas where
DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4
AVC) digital terrestrial signals are
broadcast. Please confirm with your local
dealer if you can receive a DVB-T/DVB-T2
signal where you live.

• This TV set complies with DVB-T/DVB-T2
specifications, but compatibility with future
DVB-T/DVB-T2 digital terrestrial broadcasts
are not guaranteed.

• Some Digital TV functions may not be
available in some countries/areas.

Trademark information

• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing LLC in the United States
and other countries.

• Manufactured under license from Dolby
Laboratories.
Dolby, Dolby Audio, and the double-D
symbol are trademarks of Dolby
Laboratories.

• “BRAVIA” and are trademarks of
Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote
VideoID, Gracenote Video Explore, the
Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or
other countries.

• Opera® Devices SDK from Opera Software
ASA. Copyright 1995-2015 Opera Software
ASA. All rights reserved.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi
Protected Setup and Wi-Fi CERTIFIED Logo
are trademarks or registered trademarks of
Wi-Fi Alliance.

• For DTS patents, see
http://patents.dts.com. Manufactured
under license from DTS, Inc.
DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and
DTS Digital Surround is a trademark of DTS,
Inc. © DTS, Inc. All Rights Reserved.

• QuickSet and the QuickSet logo are
trademarks of Universal Electronics Inc.
Portions © UEI 2000 – 2015

• The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other
trademarks and trade names are those of
their respective owners.

• TUXERA is a registered trademark of Tuxera
Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a
registered trademark of USB Implementers
Forum, Inc.

GB

19

20

GB

Customer Support and Contact:

Help Guide

© 2016 Sony Corporation Printed in Malaysia 4-593-370-12(1)
