4-178-676-19(1)
LCD
Digital Color TV
Setup Guide (Operating Instructions)
Setting up your TV
To watch TV
Additional Information
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Please Do Not Return
the Product to the Store
KDL-60NX810 / 60NX801 / 60NX800 / 55NX811 / 55NX810 / 52NX800 / 46NX810 / 46NX800
KDL-46NX711 / 46NX710 / 46NX700 / 40NX711 / 40NX710 / 40NX700
Owner’s Record
The information label are located on
the rear of the TV. For KDL–NX801/
800 series models, they can be found
by removing the bottom cover. Record
model name and serial numbers on the
information label in the spaces
provided below. Refer to them
whenever you call upon your Sony
dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electric shock and blade
exposure, do not use this polarized AC plug
with an extension cord, receptacle or other
outlet unless the blades can be fully inserted.
• Operate the TV only on 110-240 V
AC (U.S.A./Canada 120 V AC)
• Avoid operating the TV at
temperatures below 41°F (5°C).
• Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images or playing
stereoscopic 3D games. Sony
recommends that all viewers take
regular breaks while watching 3D
video images or playing stereoscopic
3D games. The length and frequency
of necessary breaks will vary from
person to person. You must decide
what works best. If you experience
any discomfort, you should stop
watching the 3D video images or
playing stereoscopic 3D games until
the discomfort ends; consult a doctor
if you believe necessary. You should
also review (i) the instruction
manual of any other device or media
used with this television and (ii) our
website (www.sony.com/tvsupport)
for the latest information. The vision
of young children (especially those
under six years old) is still under
development. Consult your doctor
(such as a pediatrician or eye doctor)
before allowing young children to
watch 3D video images or play
stereoscopic 3D games. Adults
should supervise young children to
ensure they follow the
recommendations listed above.
• Do not use, store, or leave the 3D
Glasses or the battery near fire, or in
places with a high temperature, e.g.,
in direct sunlight, or in sun-heated
cars.
• When using the simulated 3D
function, please note that the
displayed image is modified from
the original due to the conversion
done by this television.
Licensing Information
Macintosh is a trademark of Apple Inc.,
registered in the U.S. and other countries.
HDMI, the HDMI Logo, and HighDefinition Multimedia Interface are
trademarks or registered trademarks of
HDMI Licensing LLC in the United States
and other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
In the United States, TV Guide and TV
Guide On Screen are registered trademarks
of TV Guide Entertainment Group, Inc. and/
or its subsidiaries or affiliates, and are used
under a license by Gemstar-TV Guide
International, Inc. and/or its subsidiaries. In
Canada, TV Guide is a registered mark of
Transcontinental Inc., and is used under a
license by Gemstar-TV Guide International,
Inc. and/or its subsidiaries.
The TV Guide On Screen system is
manufactured under license from GemstarTV Guide International, Inc. and/or its
subsidiaries.
The TV Guide On Screen system is
protected by one or more of the following
United States patents 6,498,895; 6,850,693;
6,396,546; 5,940,073; 6,239,794 to
Gemstar-TV Guide International, Inc. and/or
its subsidiaries.
Gemstar-TV Guide International, Inc. and/or
its related affiliates are not in any way liable
for the accuracy or availability of the
program schedule information or other data
in the TV Guide On Screen system and
cannot guarantee service availability in your
area. In no event shall Gemstar-TV Guide
International, Inc. and/or its related a ffiliates
be liable for any damages in connection with
the accuracy or availability of the program
schedule information or other data in the TV
Guide On Screen system.
Blu-ray Disc is a trademark.
“BRAVIA” and , S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of Sony
Corporation.
“XMB” and “xross media bar” are
trademarks of Sony Corporation and Sony
Computer Entertainment Inc.
“PlayStation” is a registered trademark and
“PS3” is a trademark of Sony Computer
Entertainment Inc.
®
, the DLNA Logo and DLNA
DLNA
CERTIFIED
marks, or certification marks of the Digital
Living Network Alliance.
®
are trademarks, service
Your BRAVIA TV is
ENERGY STAR
qualified in the “Home”
mode.
It meets strict energy
efficiency guidelines set
by the U.S. Environmental
Protection Agency and Department of
Energy. ENERGY STAR is a joint program
of these government agencies, designed to
promote energy efficient products and
practices.
Changes to certain features, settings, and
functionalities of this TV (i.e. TV Guide,
Picture/Sound, Light Sensor, Power
Savings) can increase or change the power
consumption.
Depending upon such changed settings, the
power consumption may exceed the limits
required for the ENERGY STAR
qualification in the “Home” mode.
The 55 class has a 54.6 inch viewable
image size (measured diagonally).
®
~
• The illustrations of the remote
control used in this manual are of the
RM-YD036 unless otherwise stated.
• The illustrations used in this manual
may differ depending on your TV
model.
2
Table of Contents
Checking the accessories..............................................................................................................4
Inserting batteries into the remote control .....................................................................................4
Setting up your TV
Attaching the Table-Top Stand......................................................................................................6
Connecting the TV.........................................................................................................................9
Securing the TV...........................................................................................................................13
Organizing the AC power cord ....................................................................................................14
Running initial setup....................................................................................................................15
Detaching the Table-Top Stand from the TV...............................................................................15
Using a Wall-Mount Bracket........................................................................................................16
Installing the TV Against a Wall or Enclosed Area......................................................................16
To watch TV
To watch programs......................................................................................................................17
To use the TV features................................................................................................................17
To use i-Manual...........................................................................................................................18
Additional Information
Troubleshooting...........................................................................................................................19
Specifications ..............................................................................................................................21
• Operating instructions are built into your BRAVIA TV. Refer to “To use i-Manual” for operation
(page 18).
• Retain this manual for future reference.
The BRAVIA® Full HDTV Experience
Thank you for choosing Sony! Your new BRAVIA®
TV opens the door to the “Full HDTV Experience.”
This document will help you get the most out of your
TV.
Please take a moment to register your TV at:
U.S.A.: http://productregistration.sony.com
Canada: http://www.SonyStyle.ca/registration
Four Steps to a Full HD Experience
Set, Source, Sound, and Setup.
1 Set
Now that you have made the best selection in LCD TV
technology, be sure to remove all accessory contents
from the packaging before setting up your TV.
2 Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to highdefinition (HD) by contacting your HD service
provider.
• Receive over-the-air HD broadcasts with an HDquality antenna connected directly to the back of
your TV.
Visit www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution Blu-ray Disc™ player and
other Sony HD equipment.
3 Sound
Complete the high-definition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4 Setup

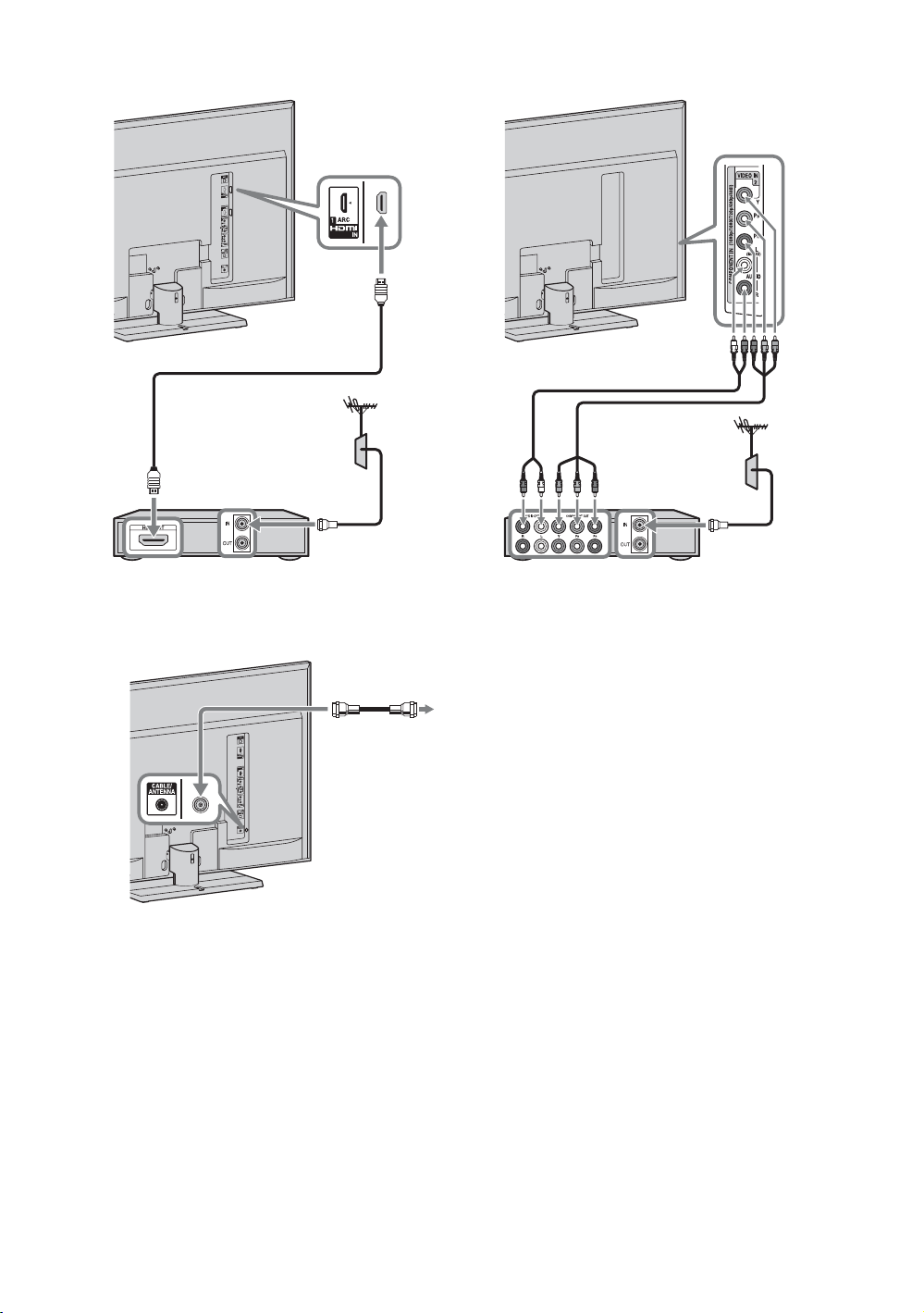

Install your TV and connect your sources. See page 9
for sample connection diagrams.
To help assure the highest quality for your HD experience,
use Sony HDMI (High-Definition Multimedia Interface)
cables.
To learn more about HDTV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.SonyStyle.ca/hd
This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.
3
Checking the accessories
For all models
Table-Top Stand (1)
Remote control (1)
Size AAA batteries (2)
For KDL-60NX801, KDL-60/52/
46NX800 and KDL-46/40NX700 models
AC power cord (1)
Bottom Cover (1)
KDL-60/52/46NX800 only)
Stand Rear Cover (1)
Fixing screws for Table-Top Stand
(M5 × 16) (4)
*3
Assembling Screws for Table-Top
Stand (M5 × 16) (4) (KDL-40NX700 only)
Black Spacers (4)
only)
Silver Spacers (4)
KDL-60NX800 only)
Screws (M6 × 20) (4)
and KDL-60NX800 only)
For KDL-55NX811, KDL-60/55/
46NX810, KDL-46/40NX711 and KDL46/40NX710 models
Hexagon wrench (1)
Assembling screws for Table-Top Stand (4)
(KDL-55NX811, KDL-60/55/46NX810,
KDL-46NX711 and KDL-46NX710 only)
Assembling screws for Table-Top Stand (2)
(KDL-40NX711, KDL-40NX710 only)
3D Glasses (battery included) (2)
(KDL-55NX811 and KDL-46/40NX711 only)
Pouch for 3D Glasses (2)
(KDL-55NX811 and KDL-46/40NX711 only)
3D Sync Transmitter (1)
(KDL-55NX811 and KDL-46/40NX711 only)
Double-sided tape (2)
(KDL-55NX811and KDL-46/40NX711 only)
*1 KDL-60NX801/60NX800 models are shipped
with the parts attached to the TV.
KDL-55NX811, KDL-60/55/46NX810, KDL46/40NX711, KDL-46/40NX710 and KDL40NX700 models requires assembling. Refer to
other leaflet to assemble the Table-Top Stand.
*2 Please refer to the model name printed on the
remote control.
*3 KDL-60NX801/60NX800 models are shipped
with the parts attached to the TV.
*4 These screws and spacers are required when
installing an optional Wall-Mount Bracket. You
*1
*2
*3
(KDL-60NX801 and
*3
*4
(KDL-52/46NX800
*4
(KDL-60NX801 and
*4
(KDL-60NX801
must use these screws instead of the ones
provided with the bracket for safety reasons. Be
sure to keep them in a safe place until you are
ready to use the Wall-Mount Bracket. See
page 23 for the recommended Wall-Mount
Bracket for your TV.
Inserting batteries into the remote control
1 Remove the protection sheet.
2 Push and slide the cover upward.
Guidelines for Remote Control
• Point your remote control directly at the IR
sensor located on your TV.
• Make sure that no objects are blocking the
path between the remote control and the IR
sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the fluorescent
lamps.
• If you are having problems with the remote
control, reinsert or replace your batteries and
make sure that they are correctly inserted.
4
Programming the Remote Control
Your remote control can be programmed to use other equipment and is pre-programmed to operate
the following Sony equipment.
Function Button Sony Equipment Code Number
DVD DVD Player 31033
AMP Receiver 52172
STB Digital Satellite 01639
Programming Other Equipment
2
2
4
3
Confirm the Programming
If you can turn your equipment on and off using the green POWER button, the programming is
complete. If not, try the next code listed.
Follow the steps below to program your TV remote control.
1 Look for the code in the Manufacturer’s Code List (refer to i-Manual) that
corresponds to the equipment you would like to operate with the Sony
remote control. If more than one code is provided, try programming the
first code listed. If your equipment’s code is not listed, visit
http://esupport.sony.com/remotecodes
2 Press and hold a DVD, AMP or STB function button simultaneously with
INPUT button and release.
When in the programming mode, the function button (DVD, AMP, STB)
blinks for approximately 30 seconds until a code is entered.
3 Enter the five digit code using - while the function buttons
4
(DVD, AMP, STB) are lit. If the code is not entered within 30 seconds,
you must repeat step 2.
4 Press or ENT to confirm the code. If successfully programmed, the
function button (DVD, AMP, STB) will blink twice, if not, it blinks five
times.
for a more comprehensive list.
~
• In some cases, you may not be able to program your remote control. If this is the case, use your equipment’s
own remote control.
• Any of the function buttons (DVD, AMP, STB) can be programmed to operate other equipment regardless of
the labeling. For example, if programmed with the correct code, a Blu-ray Disc player can be operated with
the DVD button. This is useful if your equipment does not match any of the labeled buttons.
To reset the remote control to the factory default:
Press SCENE, TV POWER, and simultaneously. The four function buttons (DVD, AMP, STB,
and TV) blink when successfully reset.
5
Setting up your TV
Some TV models are packaged with a detached
Table-Top Stand so you can mount your TV to
a wall right away. If you are not mounting the
TV to a wall, you will need to attach the TableTop Stand. You will need a Phillips
screwdriver and the supplied screws to
complete the task. Look for the attachment
instructions provided with the TV.
Be sure to consider the following while setting
up your TV:
• Disconnect all cables when carrying the
TV.
• Carry the TV with the adequate number of
people; larger size TVs require two or more
people.
• Correct hand placement while carrying the
TV is very important for safety and to avoid
damage.
Attaching the Table-Top Stand
Refer to the supplied Table-Top Stand
instruction leaflet for proper attachment for
some TV models.
~
• Do not put stress on the LCD panel or the frame
around the screen.
• Be careful to not pinch your hands or the AC
power cord when you install the TV unit to the
Table-Top Stand.
For KDL-52/46NX800 and KDL-46/
40NX700
1 Gently slide the TV unit onto the
Table-Top Stand and align the screw
holes.
• Ensure your TV has adequate ventilation,
see page 16.
• For best picture quality, do not expose the
screen to direct illumination or sunlight.
• Avoid installing the TV in a room with
reflective wall and floor materials.
• If the TV is brought directly from a cold to
a warm location, or is placed in a very damp
room, or is placed in a room in which
heating has just been turned on, moisture
may condense on the surface or inside the
TV. Should this occur, turn off the TV and
leave the TV off until the moisture
evaporates, and then the TV can be used. If
you notice moisture condensation between
the glass panel and the LCD, turn on the TV
and the condensation will evaporate after
the TV has warmed up.
2 Use the supplied screws to attach the
TV unit to the Table-Top Stand.
~
• If you use an electric screwdriver, set the
tightening torque at approximately 1.5 N·m
{15 kgf·cm}.
3 After all the screws are tighten cover
the Table-Top Stand with the supplied
Stand Rear Cover.
6
For KDL-55NX811, KDL-60/55/
46NX810, KDL-46/40NX711 and
KDL-46/40NX710
1 Align with the two dowels of the Table-
Top Stand, and gently place the TV,
checking the f mark is facing the front.
2 Attach the TV and Table-Top Stand
with the supplied screw and hexagon
wrench.
Setting up your TV
~
• Set the torque setting to approximately 3 N·m {30
kgf·cm}.
Reattaching the Table-Top Stand to the
TV
Attach to the original position using the
removed screws. See “Detaching the TableTop Stand from the TV” (page 15).
(Continued)
7
Adjusting the viewing angle (except 60-inch models)
This TV can be adjusted within the angles shown below.
For KDL-52/46NX800 and KDL-46/40NX700
1
Remove screw as
shown.
0°
6°
2
3
4
Install screw into the
top screw hole of the
Table-Top Stand.
Lift up and tilt.
~
• Reverse the steps when readjusting the angle back to 0 degree.
Slide in.
For KDL-55NX811, KDL-55/46NX810, KDL-46/40NX711 and KDL-46/40NX710
0° 6°
8
Connecting the TV
The following chart shows the high-definition (HD) and standard-definition (SD) video formats
supported by your BRAVIA TV inputs.
1
720/24p format is supported by KDL-55NX811, KDL-60/55/46NX810, KDL-46/40NX711 and
*
KDL-46/40NX710.
2
*
For supported PC formats refer to the i-Manual.
Setting up your TV
(Continued)
9
Shown with a Set Top Box with HDMI
connection
Shown with a Set Top Box with
COMPONENT connection
Set Top Box
Cable System or VHF/UHF Antenna System
Cable
or
Antenna
Set Top Box
10
Shown with HD BRAVIA® Sync™ Basic Connection
*Rear of TV
*A/V Receiver
AM
DVD INSAT IN VIDEO 2/BD IN OUT
L
RLR
OPT IN
OPT IN
COAX IN AUDIO IN
AUDIO IN AUDIO IN
SAT
VIDEO 1
DVD
FRONT R
FRONT L SUR R SUR L CENTER SUBWOOFER
*Blu-ray Disc
COMPONENT
VIDEO OUT
VIDEO
OUT
Y
DIGITAL OUT
VIDEO
AC IN
HDMI
OUT
PCM/DTS/DOLBY DIGITAL
COAXIAL OPTICAL
B
B
/
P
C
R
/
R
P
C
S VIDEO
L
R
AUDIO
OUT
5.1CH OUTPUT
FRONT REAR CENTER
L
R
WOOFER
HD Cable Box or
HD Satellite Receiver
SAT
(Dish)
Cable/
Antenna
* Signifies a BRAVIA Sync capable device.
Shown with HD Basic Connection with Home Theater System
Rear of TV
Blu-ray Disc/DVD
Cable/SAT (Dish)
SD Cable Box or
SD Satellite Receiver
Setting up your TV
Side Panel
Cable/
Antenna
or
Home Theater System
(Continued)
11
Shown with PC Connection with SD VCR/DVD
Rear of TV
Side Panel
or
Splitter
Cable/Antenna
VCR
VCR/DVD Combo
PC
Notebook PC
DVD
12

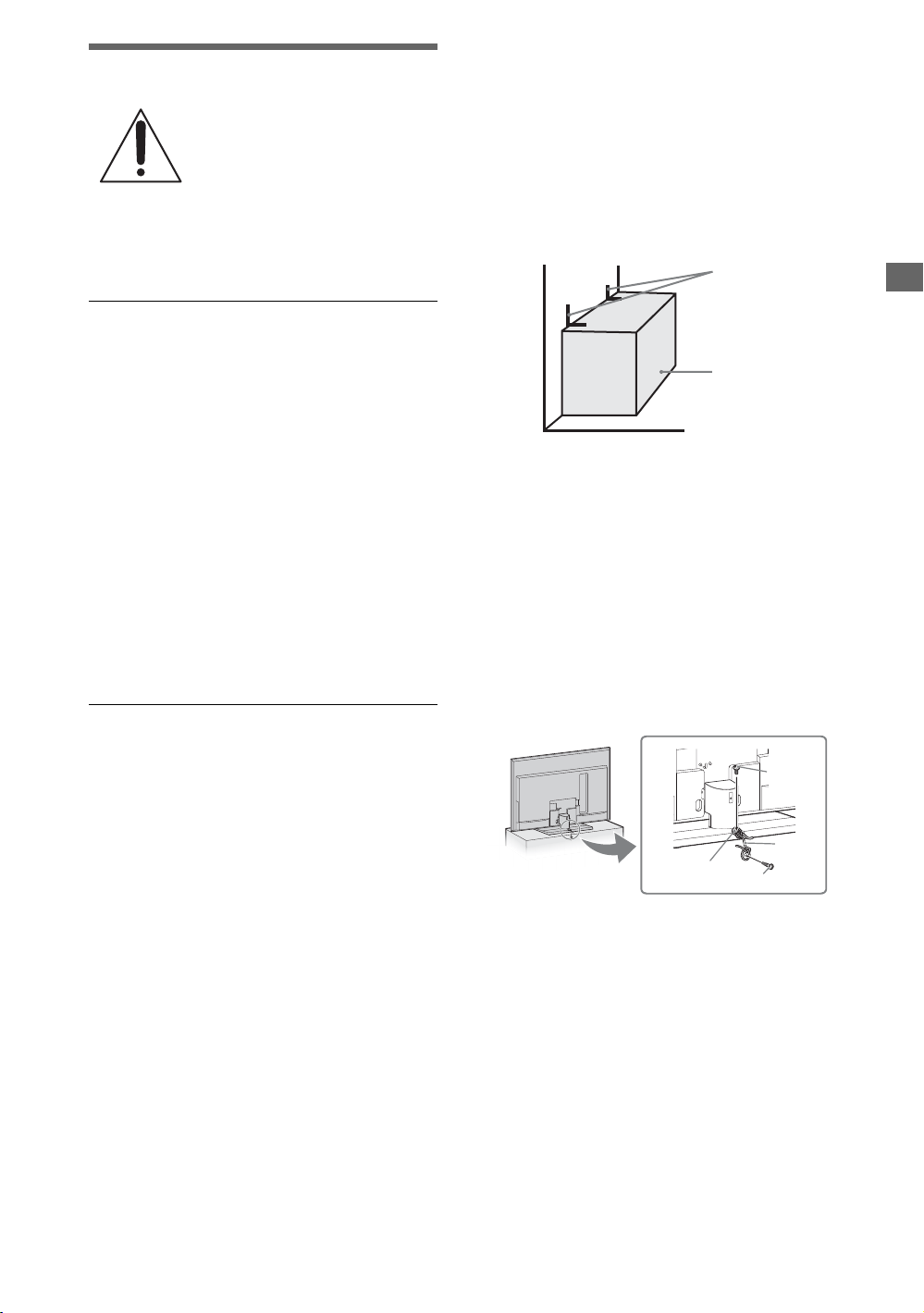

Securing the TV
Sony strongly recommends
taking measures to prevent the
TV from toppling over.
Unsecured TVs may topple and
result in property damage,
serious bodily injury or even
death.
Preventing the TV from
Toppling
• Secure the TV to a wall and/or stand.
• Do not allow children to play or climb on
furniture and TV sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
– slippery, unstable and/or uneven surfaces.
– furniture that can easily be used as steps,
such as a chest of drawers.
• Install the TV where it cannot be pulled,
pushed, or knocked over.
• Route all AC power cords and connecting
cables so that they are not accessible to
curious children.
Recommended Measures to
Secure the TV
Consider the following measures when
securing your TV to a TV stand (not supplied).
1 Secure the Stand for the TV.
Make sure the TV stand can adequately
support the weight of the TV. Use two angle
braces (not supplied) to secure the stand. For
each angle brace use the appropriate hardware
to:
• Attach one side of the angle brace to the
wall stud.
• Attach the other side to the TV stand.
Angle brace
(not supplied)
Stand
2 Secure the TV to the Stand.
Use the optional hardware listed below (not
supplied):
• M4 × 16 machine screw (screwed into the
TV’s Table-Top Stand)
• A screw or similar (attach it to the TV
stand)
• Rope or chain (strong enough to support the
weight of the TV). Make sure that there is
no excess slack in the rope or chain.
An alternative way to secure the TV is with an
optional Sony Support Belt Kit.
M4 × 16
machine screw
(not supplied)
Setting up your TV
Rope or chain
Screw hole on the
Table-Top Stand
~
Contact Sony Customer Support to obtain the
optional Support Belt Kit by providing your TV
model name.
• For United States call: 1-800-488-7669 or visit:
www.sony.com/accessories
• For Canada call: 1-877-899-7669
(not supplied)
Screw (not supplied)
(Continued)
13
3 Anchor the TV to the Wall.
Anchor the TV to the wall by using bolts, wall
anchor and chain (or rope).
~
• KDL-60NX801, KDL-60/52/46NX800 and KDL-
46/40NX700 are shipped with screws attached to
the rear of the TV. (They are fastened in the screw
holes for wall mounting.) Be sure to remove the
upper two screws prior to anchoring the TV on a
wall.
• Securing the TV to the stand without securing the
TV and the stand to the wall provides minimum
protection against the TV toppling over. For
further protection, be sure to follow the three
measures recommended.
Anchor bolts (not supplied)
Organizing the AC power cord
~
• Do not bundle the AC power cord together with
other cables.
For KDL-60NX801, KDL-60/52/
46NX800 and KDL-46/40NX700
Wallmount
holes
Rope or
chain
(not
supplied)
Wall-anchor
(not
supplied)
~
• After the AC power cord is thread as illustrated,
place the bottom cover (for NX801/800 series
only).
For KDL-55NX811, KDL-60/55/
46NX810, KDL-46/40NX711 and
KDL-46/40NX710
14
Running initial setup
1 Complete your cable connections
before proceeding with the Initial
Setup.
Connect the TV to your nearest power
outlet.
2 Check the ENERGY SAVING
SWITCH setting is on (z).
3 Press 1 (POWER) on the TV.
When you switch the TV on for the first
time, the Language menu appears on
the screen.
Detaching the Table-Top Stand from the TV
Remove only the screws marked with on
the TV.
~
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
For KDL-60NX801, KDL-60/52/
46NX800 and KDL-46/40NX700
~
• The NX801/NX800/NX700 series models must
remove the stand rear cover prior to detaching the
Table-Top Stand.
• When installing the TV on a wall, remove the four
screws from the rear of the TV. (They are fastened
in the screw holes for wall mounting.) Be sure to
store the removed screws in a safe place, keeping
them away from children (except KDL-46/
40NX700).
• When attaching the Table-Top Stand again, be
sure to fasten the four screws (previously
removed) to the original holes on the rear of the
TV (except KDL-46/40NX700).
Setting up your TV
~
• The TV image shown here may differ from your
TV but the operation of your TV remains the same
as indicated.
4 Follow the instructions on the screen.
~
• The ENERGY SAVING SWITCH must be on
(z) to set the clock and obtain program
information for the TV Guide.
• Home mode sets the TV to display the settings
optimized for home viewing (this setting is
ENERGY STAR compliant).
5 Select Continue to scan for available
channels and enable the TV Guide On
Screen
channels from a cable box or satellite
receiver and do not wish to use the
TV’s built-in tuner, select Skip.
Selecting Skip will disable the TV
Guide On Screen feature, which is
only available when the TV’s tuner is
used.
~
• If you skip the channel scan while in the setup
menus, TV Guide will be disabled.
®
feature. If you receive
For KDL-55NX811, KDL-60/55/
46NX810, KDL-46/40NX711 and
KDL-46/40NX710
KDL-60NX810
Joint
15
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. Some larger size TV may
require detaching the Table-Top Stand; see
“Detaching the Table-Top Stand from the TV”
(page 15).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety reasons,
Sony strongly recommends that you use the
Wall-Mount Bracket designed for your TV
and the installation should be performed by
a Sony dealer or licensed contractor.
• Follow the instruction guide provided with
the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing
this TV, especially to determine the
strength of the wall for withstanding the
TV’s weight.
• Be sure to use the screws supplied with the
Wall-mount bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed so that
they are 8 mm to 12 mm in length when
measured from the attaching surface of the
mounting hook.
The diameter and length of the screws differ
depending on the Wall-mount bracket
model. Use of screws other than those
supplied may result in internal damage to
the TV set or cause it to fall, etc.
8-12 mm
Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate
ventilation. Allow enough space around the TV
as shown below. Avoid operating the TV at
temperatures below 41 °F (5 °C).
Installed with stand
7
/
inches
11
8
4 inches
(10 cm)
Leave at least this much space around the set.
(30 cm)
4 inches
(10 cm)
Installed on the wall
7
11
inches
/
8
(30 cm)
4 inches
(10 cm)
4 inches (10 cm)
Never install the TV set as follows:
Air circulation is blocked.
Wall Wall
Air circulation is blocked.
inches
4 inches
(10 cm)
Leave at
least this
much space
around the
set.
2
3
/
8
(6 cm)
Screw
(supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of TV
set
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small children.
~
• Read the supplied Safety Booklet for additional
safety information.
16
~
• Inadequate ventilation can lead to overheating of
the TV and may cause damage to your TV or
cause a fire.
To watch TV
To watch programs
GUIDE
OPTIONS
HOME
0-9
ENT
1-
2
2
Turn on the TV.
1
1 Check the ENERGY SAVING
SWITCH setting is on (z).
2 Press 1 (POWER) on the TV or
TV ?/1 on the remote control to turn
on the TV. (You may use the TV ?/1
button located on the back of the
remote control.)
~
• The TV image shown here may differ from your
TV but the operation of your TV remains the
same as indicated.
Select a TV channel.
2
To watch TV
To use the TV features
Press HOME to display TV Home Menu/
XMB
media and network related content.
to access TV Settings and other
™
Settings
Picture & Display
Adjust the picture and screen settings
Press for:
Picture Adjustments
Ambient Sensor
Screen
Pro Picture Setup
To use the Guide
Press GUIDE to display the TV Guide On
Screen to view scheduled programs or to
select a program to watch. Press again to exit
the Guide. Use with 0-9 and ENT to select
digital channels. For example, to enter 2.1,
press , , , and ENT.
Press OPTIONS to display a list of convenient
functions and menu shortcuts. The Options
menu items vary based on current input and/or
content.
Picture Adjustments
Sound Adjustments
Add to Favorites
Speakers
TV
(Continued)
17
To use i-Manual
1
2
Your BRAVIA TV comes with an on-screen
manual. You can browse your i-Manual anytime
you need to find the varieties of convenient
functions.
Press i-MANUAL.
1
Press F/f/G/g/ to navigate and
2
select items.
i-Manual
Welcome to i-Manual
BRAVIA TV Features
Watching TV
Using the Home Menu
Fun Features with Connected Equipment
Parts Description
Troubleshooting
Index
x Welcome to i-Manual
x BRAVIA TV Features
x Fun Features with Connected
Equipment
Introduces how to connect and enjoy optional
x Watching TV
Introduces convenient features such as TV
Guide, Favorites, etc.
x Using the Home Menu
You can find how to customize your TV
settings, etc.
~
• Images and illustrations may differ from what you are watching on this TV.
equipment.
x Parts Description
x Troubleshooting
You can find solutions for your problems.
x Index
RETURN
Back
18
Additional Information
Troubleshooting
The TV will indicate any problems with the STANDBY indicator flashing in red.
When the STANDBY indicator is flashing
The self-diagnosis function is activated.
1 Count how many times the STANDBY indicator flashes between each three second
break.
For example, the indicator may flash three times, go off for three seconds, then flash again three
times.
2 Press 1 (POWER) on the TV to turn it off, disconnect the AC power cord, and inform
your dealer or Sony service center of how the indicator flashes (number of flashes).
When the STANDBY indicator is not flashing
1 Check the items in the tables below. (Also refer to “Troubleshooting” in the i-Manual.)
2 If the problem persists, contact Sony Customer Support (information provided on the
front cover).
Condition Explanation/Solution
There is no picture (screen
is dark) and no sound.
Tiny black dots and/or
bright dots appear on the
screen.
General
The TV’s power cannot be
turned on.
The TV turns off
automatically (the TV
enters standby mode).
The remote does not
function.
The TV and its surrounding
become warm.
The Parental Lock
password has been
forgotten.
• Check the antenna/cable connection.
• Connect the TV to the AC power, and press
TV.
• If the STANDBY indicator lights up in red, press TV
remote control.
• The screen is composed of pixels. Tiny black dots and/or bright
dots (pixels) on the screen do not indicate a malfunction.
• Check to see the (z) mark on the ENERGY SAVING SWITCH
is pressed.
• Check if the Sleep Timer, Timer, or Idle TV Standby is
activated.
• The Auto Shut-off function may be set to On. If Auto
Shut-off is activated and TV receives no signal, the TV will
automatically enter standby mode in 15 minutes. Check Auto
Shut-off is activated under Eco feature of this TV.
• Replace the batteries.
• Your TV may be in SYNC mode. Press SYNC MENU, select TV
Control and then select Home (Menu) or Options to control
the TV.
• When the TV is used for an extended period of time, the TV and
its surround may become warm to touch. This is not malfunction
of the TV.
• Enter 4357 for the PIN code. (PIN code 4357 is always accepted.)
1 (POWER) on the
?/1 on the
Additional Information
(Continued)
19
How to Care for Your BRAVIA
Safety is very important, please read and follow the safety documentation (Safety Booklet)
separately provided.
Unplug the TV and other connected equipment from the wall
outlet before you begin cleaning your TV.
• Wipe the LCD screen gently with a soft cloth.
• Stubborn stains may be removed with a cloth slightly moistened with a
solution of mild soap and warm water.
• If using a chemically pretreated cloth, please follow the instruction
provided on the package.
• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.
The TV should also be placed on a stable surface to prevent it from toppling over (see page 13). If
you have young children or pets at home, check regularly to insure the TV is securely fastened.
20
Specifications
Model name KDL- 60NX801/
52NX800 46NX800 46NX700 40NX700
60NX800
System
Television system NTSC: American TV standard
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 10 W + 10 W
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1/2 VIDEO / AUDIO
COMPONENT IN YP
HDMI IN 1/2/3/4 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT (OPTICAL) PCM/Dolby Digital optical signal
PC IN D-sub 15-pin, analog RGB
PC/HDMI 2 AUDIO IN Stereo mini jack
LAN
USB/DLNA Refer to the i-Manual for supported format.
BPR (Component Video) / Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO
HDMI: Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO (HDMI IN 2)
10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network
environment. 10BASE-T/100BASE-TX communication rate and communication quality are not
guaranteed for this TV.)*
1
Power and others
Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Power consumption
in use
2
in DAM*
in standby
Screen size
(inches measured diagonally)
Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)
Speaker
Full range (mm)
Dimensions with stand (mm)
without stand (mm)
wall-mount hole pattern(mm)
wall-mount screw size (mm)
Mass with stand (kg)/(lb.) 50.6/111.5 36.1/79.6 28.8/63.5 27.8/61.3 22.6/49.8
without stand (kg)/(lb.) 43.3/95.4 30.1/66.3 24.8/54.7 24.0/52.9 19.2/42.3
Supplied accessories See “Checking the accessories” (page 4).
Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket / Wall-Hanging Bracket
(inches)
(inches)
(inches)
222 W 169 W 153 W 129 W 109 W
18 W
(You may hear a clicking noise during the download but this is normal.)
Less than 0.13 W
Less than 0.17 W with 120 V AC and less than 0.23 W with 240 V AC
60 inches 52 inches 46 inches 40 inches
34 × 100 (2)
3
1
/8 × 4
1,440 × 927 × 380
56 3/4 × 36 3/8 × 15
1,440 × 889 × 64
56 3/4 × 35 × 2 5/8
400 × 300 300 × 300
1,261 × 819 × 400
49 3/4 × 32 1/4 × 15 3/
1,261 × 787 × 64
49 3/4 × 31 × 2 5/8
M6 (length: refer to diagram on page 16.)
1,127 × 742 × 320
4
44 3/8 × 29 1/4 × 12 5/
1,127 × 710 × 64
44 3/8 × 28 × 2 5/8
1,127 × 748 × 320
8
44 3/8 × 29 1/2 × 12 5/
1,127 × 716 × 64
44 3/8 × 28 1/4 × 2 5/
with 120 V AC and
less than 0.2 W
with 240 V AC
34 × 160 (2)
1 3/8 × 6 3/8
994 × 673 × 290
8
39 1/4 × 26 1/2 × 11 1/
994 × 641 × 64
8
39 1/4 × 25 1/4 × 2 5/
Additional Information
2
8
(Continued)
21
Model name KDL- 60NX810 55NX811/
55NX810
46NX810 46NX711/
46NX710
40NX711/
40NX710
System
Television system NTSC: American TV standard
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 8 W + 8 W + 10 W
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1/2 VIDEO / AUDIO
COMPONENT IN YP
BPR (Component Video) / Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO
HDMI IN 1/2/3/4 HDMI: Video: 480i, 480p, 720p, 720/24p, 1080i, 1080p, 1080/24p
HDMI: Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO (HDMI IN 2)
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT (OPTICAL) PCM/Dolby Digital optical signal
PC IN D-sub 15-pin, analog RGB
PC/HDMI 2 AUDIO IN Stereo mini jack
LAN
10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network
environment. 10BASE-T/100BASE-TX communication rate and communication quality are not
guaranteed for this TV.)*
1
USB/DLNA Refer to the i-Manual for supported format.
3D SYNC 3D Sync terminal for optional transmitter
Power and others
Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Power consumption
in use
2
in DAM*
in standby Less than 0.12 W with 120 V AC and less than 0.2 W with 240 V AC
Screen size
(inches measured diagonally)
Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)
Speaker
Full range (mm)
(inches)
Woofer (mm)
(inches)
Dimensions with stand (mm)
(inches)
without stand (mm)
(inches)
wall-mount hole pattern(mm)
wall-mount screw size (mm)
Mass with stand (kg)/(lb.) 43.0/ 94.8 32.2/71 24.8/54.7 24.4/53.8 19.8/43.7
without stand (kg)/(lb.) 36.6/ 80.7 26.9/59.3 20.5/45.2 20.5/45.2 16.1/35.5
Supplied accessories See “Checking the accessories” (page 4).
Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket / Wall-Hanging Bracket / 3D Glasses /
*1 For LAN connections, use a Category 7 10BASE-T/100BASE-TX cable (not supplied).
*2 Download Acquisition Mode (DAM) is used for software updates and/or collecting data for TV Guide On Screen.
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
215 W 175 W 156 W 153 W 137 W
18 W 22 W
(You may hear a clicking noise during the download but this is normal.)
60 inches
1,400 × 865 × 303
55 1/8 × 34 1/8 × 12
1,400 × 836 × 45
1
55
/8 × 33 × 1 7/8
54.6 inches
(55 class)
20 × 70 (4)
13
/16 × 2 7/8 (4)
Φ 60 (1)
Φ 2
1,276 × 800 × 323
50 1/4 × 31 1/2 × 12 3/
1,276 × 770 × 32
50 1/4 × 30 3/8 × 1 3/
3
/8 (1)
1,083 × 690 × 270
4
42 3/4 × 27 1/4 × 10 3/
1,083 × 660 × 31
3
42
8
/4 × 26 × 1 1/4
46 inches 40 inches
1,083 × 690 × 270
4
42 3/4 × 27 1/4 × 10 3/
1,083 × 660 × 31
3
42
/4 × 26 × 1 1/4
4
400 × 300 300 × 300
M6 (length: refer to diagram on page 16.)
3D Sync Transmitter
20 × 90 (2)
13
/16 × 3 5/8 (2)
40 × 90 (1)
5
1
/8 × 3 5/8 (1)
944 × 612 × 245
1
37
/4 × 24 × 9 3/4
944 × 582 × 32
1
37
/4 × 23 × 1 1/4
22
Declaration of Conformity
Trade Name: SONY
Model: KDL-60NX810/KDL-60NX801/KDL-60NX800/
KDL-55NX811/KDL-55NX810/KDL-52NX800/
KDL-46NX810/KDL-46NX800/KDL-46NX711/
KDL-46NX710/KDL-46NX700/KDL-40NX711/
KDL-40NX710/KDL-40NX700
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
For customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:
❑ Reorient or relocate the receiving antenna.
❑ Increase the separation between the equipment and
receiver.
❑ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
❑ Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Safety and Regulatory
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
Only use Wireless LAN indoors when using it with IEEE
802.11a/n (5 GHz).
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference
and/or damage to this device.
This device uses 5 GHz band for wireless LAN
communication and the maximum gain of the antenna in
this device is 6 dBi.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20 cm between the radiator and your body
(excluding extremities: hands, wrists and feet).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except
Grant condition.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television programming
in your area depends on the type of programming and signal
provided by your cable service provider.
Compatible optional accessories
information
Use the following Sony optional accessories with
your TV model.
Sony Model No.
KDL-
Sony Wall-Mount
Bracket Model
1
*
No.
Sony WallHanging Bracket
Model No.
Sony TV Stand
2
*
No.
KDL-
Sony Wall-Mount
Bracket Model
1
*
No.
Sony WallHanging Bracket
Model No.
Sony TV Stand
2
*
No.
Use with other optional accessories may cause instability
and could result in property damages or injury.
1
For instructions on using with your TV please go to
*
http://esupport.sony.com
download “Additional Information for Using Sony WallMount Bracket” or “Additional Information for Using
Sony Wall-Hanging Bracket”.
2
Some of these TV stand models may not be available in
*
your area.
60NX801/
60NX800
SU-WL500 SU-WL700
1
*
60NX810 55NX811/
SU-WL500 SU-WL700/WL500
1
*
52NX800 46NX800
SU-52NX1 SU-46NX1 SU-40NX1
Sony Model No.
55NX810
SU-B550S SU-B460S SU-B400S
for your TV model and
46NX700
SU-WH500
46NX810/
46NX711/
46NX710
SU-WH500
40NX700
40NX711/
40NX710
To Customers
Sufficient expertise is required for TV installations. Be
sure to subcontract the installation to a Sony dealer or
licensed contractor and pay adequate attention to safety
during the installation.
Additional Information
23
Online
Registration:
For Your Convenience
Be sure to register your TV.
United States
Canada
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
http://productregistration.sony.com
http://www.SonyStyle.ca/registration
Software
Updates:
United States
Canada
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting Settings, Product
Support and then Automatic Software Update.
http://www.sony.com/tvsupport
http://www.sony.ca/support
© 2010 Sony Corporation Printed in U.S.A.
Loading...
