SERVICE MANUAL

Room Air Conditioner

CAUTION

-BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.

-ONLY FOR AUTHORIZED SERVICE PERSONNEL.

MODEL: LS-H096Z_Series

LS-H076Z_Series
LS-C096Z_Series
LS-C076Z_Series

WEBSITE http://biz.LGservice.com

Contents

LG Model Name(2004)............................................................................................................ 3

Functions................................................................................................................................ 4

Product References .............................................................................................................. 7

Dimensions............................................................................................................................. 8

Refrigeration Cycle Diagram............................................................................................... 11

Wiring Diagram..................................................................................................................... 12

Operation Details ................................................................................................................. 13

Display Function .................................................................................................................. 20

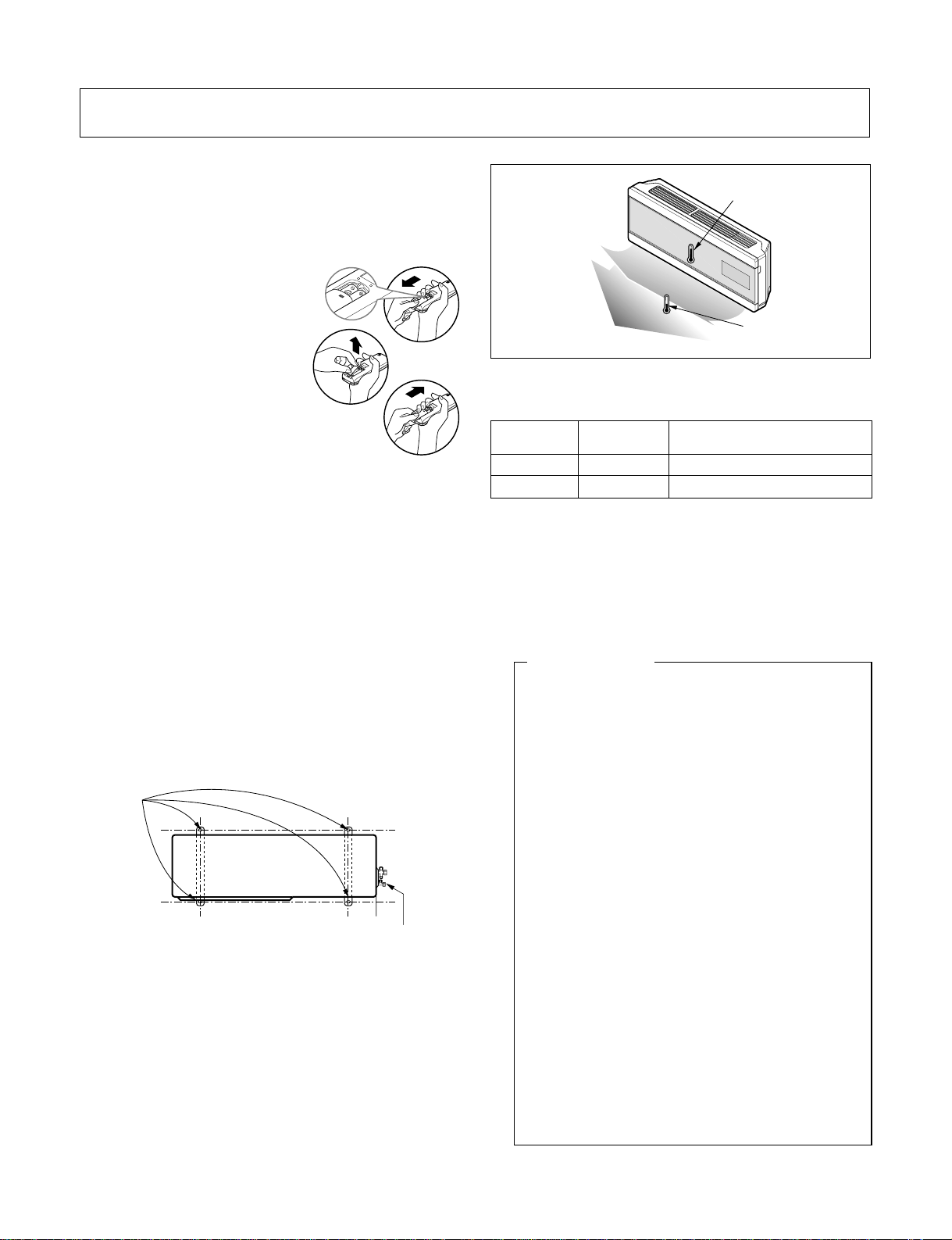

Installation ............................................................................................................................ 21

Operation .............................................................................................................................. 34

Disassembly of the parts (Indoor Unit).............................................................................. 35

2-way, 3-way Valve................................................................................................................ 38

Cycle Troubleshooting Guide.............................................................................................. 46

Electronic Parts Troubleshooting Guide............................................................................ 47

Electronic Control Device.................................................................................................... 56

Schematic Diagram.............................................................................................................. 59

Exploded View and Replacement Parts List...................................................................... 60

-2-

-3-

Code Type Code of Model Meaning

1 Producing Center, A~Z L: Chang-won R22 N: India

Refrigerant A: Chang-won R410A Z: Brazil

C: Chang-won R407C D: Indonesia
T: China M: Mexico
K: Turkey R22 V: Vietnam
E: Turkey R410A S: Out Sourcing

H: Thailand
2 Product Type A~Z S: Split Type Air Conditioner
3 Cooling/Heating/Inverter A~Z C: Cooling only

H: Heat pump

X: C/O + E/Heater

Z: H/P + E/Heater

V: AC Inverter C/O
N: AC Inverter H/P
Q: DC Inverter C/O
W: DC Inverter H/P

4, 5 Capacity 0~9 Cooling/Heating Capacity

Ex. "09" → 9,000 Btu/h
6 Electric Range 1~9 1: 115V/60Hz, A: 220V, 50Hz, 3Phase

A~Z 2: 220V/60Hz B: 208~230V, 60Hz, 3Phase

3: 208-230V/60Hz C: 575V, 50Hz, 3Phase

5: 200-220V/50Hz D: 440~460, 60Hz, 3Phase

6: 220-240V/50Hz E: 265V, 60Hz

7: 110V, 50/60Hz F: 200V, 50/60Hz

8: 380-415V/50Hz

9: 380-415V/60Hz
7 Chassis A~Z Name of Chassis of Unit

Ex. LSP → SP Chassis
8 Look A~Z Look,

Color (Artcool Model)
9 Function A~Z

10 Serial No. 1~9 LG Model De

* ARTCOOL COLOR

velopment Serial No.

Basic A
Basic+4Way B
Plasma Filter C
Plasma Filter+4 Way D
Tele+LCD E
Tele+LCD+Nano plasma+4Way F
Nano Plasma F+(A/changeove)+A/clean+Low A G
Nano Plasma F+(A/changeove)+A/clean+4way+Low A H
Tele+LED+4way I
Internet J
Plasma F+4Way+Oxy generator K
Nano Plasma F+(A/changeove)+A/clean L
Nano Plasma F+(A/changeove)+A/clean+4way M
Nano Plasma F+(A/changeove)+A/clean+PTC N
Nano Plasma F+(A/changeove)+Autoclean+4way+PTC P
Nano Plasma F+(A/changeove)+A/clean+4way+Low A+PTC Q
Negative ION+A/Clean R
(Nano)Plasma+Negative ION+A/Clean S
4way+(Nano)Plasma F+Negative ION+Healthy dehumidification+A/Clean

T

Nano Plasma F+4Way+(A/changeove)+A/clean+ U

R Mirror
W White
B Blue
D Wood
M Metal
C Cherry

LG Model Name(2004)

12

-

345678910

Functions

• Room temperature sensor. (THERMISTOR)

• Maintains the room temperature in accordance with the Setting Temp.

• Indoor fan is delayed for 5 sec at the starting.

• Restarting is inhibited for approx. 3 minutes.

• High, Med, Low, CHAOS, JET COOL

• Intermittent operation of fan at low speed.

• The fan is switched to low(Cooling), med(Heating) speed.

• The unit will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.

• The fan is switched to intermittent or irregular operation

•

The fan speed is automatically switched from high to low speed.

• The louver can be set at the desired position or swing
up and down automatically.

Indoor Unit

Operation ON/OFF by Remote controller

Sensing the Room Temperature

Room temperature control

Starting Current Control

Time Delay Safety Control

Indoor Fan Speed Control

Soft Dry Operation Mode

• The function will be operated while in any
operation mode with selecting the function.

• The function is to be stopped while it is
operating with selecting the function.

• Both the indoor and outdoor fan stops dur­ing defrosting.

• The indoor fan stops until the
evaporator pipe temperature will be reached
at 28°C.

Sleep Mode Auto Control

Natural Air Control by CHAOS Logic

Airflow Direction Control

-4-

Defrost(Deice) control (Heating)

Hot-start Control (Heating)

PLASMA

-5-

Cooling Mode Lights up during Cooling operation. (Outline)

Auto Operation Mode Lights up during Auto operation. (Outline)

Healthy Dehumidification

Lights up during Healthy Dehumidification operation. (Outline)

Mode

Heating Mode Lights up during Heating operation.

(Heat Pump model only) (Outline)

Defrost Mode Lights up during Defrost control or

Hot Start in Heating operation. (Outline)

Air circulation Mode Lights up during Air Circulation operation. (Outline)

Sleep Mode Lights up during Sleep Mode operation.

Timer Mode Lights up during Timer operation.

Auto Cleaning Mode Lights up during Auto Cleaning reservation.

Jet Cool Mode Lights up during Jet Cool Operation.

Plasma Lights up during Plasma operation.

Fan Speed (Low) Lights up when Fan speed is low.

Fan Speed (Medium) Lights up when Fan speed is Medium.

Fan Speed (High) Lights up when Fan speed is High.

Fan Speed (Chaos) Lights up when Fan speed is Chaos.

Desire temperature

For cooling,dehumidification,heating modes it display Desired temperature

indicator

• Cooling : 18~30°C • AI : Auto Operation

• Dehumidification : 18~30°C • Po : Jet Cool

• Heating : 16~30°C • Lo : Test Mode

• C1 : Indoor pipe sensor error

Desire temperature Icon

Indoor temperature Icon

Signal Receptor

Each Icon turns on when the unit is operated, then the only Icon outline to be operated is bright.

-6-

Healthy Dehumidification Operation Mode.

( )

Remote Control

Operation ON/OFF

Reset

Operation Mode Selection

Temperature Setting

Timer Selection

Timer Setting

JET COOL

Timer Cancel

Sleep Operation

Airflow Direction Control

(Cooling

model only)

(Heating

model only)

TEMPERATURE

LOW HIGH

Cooling Operation Mode.( )

Heating Operation Mode.( )

Auto Operation Mode.( )

Air Circulation

Horizontal Airflow Direction Control Button(Optional)

Room, Temperature Checking

Setting the Time or Timer

PLASMA(Optional)

Fan Speed Selection

(Low) (Med) (High)

ON

OFF

CANCEL

SET

2nd F

AUTO CLEAN

LED LUMINOSITY

AUTO CLEAN

: (High:39°C Low:11°C)

: OFF, ON, OFF ON

: Cancel Sleep Mode, Timer ON or Timer OFF

: 1, 2, 3, 4, 5, 6, 7, Off Timer

: Fan Operates without cooling or heating.

Cooling

Down to 18°C
Up to 30°C

Heating

Down to 16°C
Up to 30°C

-7-

Product References

Model Name

Item Unit

Cooling Capacity

Btu/h

Heating Capacity
Moisture Removal l/h
Power Source Ø, V, Hz

Cooling

W

Heating

Running Cooling

A

Current Heating
E.E.R. Cooling Btu/hW
C.O.P Heating

Refrigerant g
Airflow Direction Control (Up & Down)
Remocon Type

inch(mm)

Sleeping Operation
Drain Hose
Connecting Cable
Power Cord

Air Circulation

Noise Level

Input

m3/min

dB (A)±3

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Liquid

Gas

Service Valve

Motor Output

Dimensions
(W x H x D)

Net. Weight

W

mm

kg

LS-H096Z*C0 LS-H076Z*C0 LS-C096Z*C0 LS-C076Z*C0

NOTE: Please refer to Label Quality on the product since this specification may be changed for improving

performance

9,000 7,000 9,000 7,000
9,300 7,300 - -

1111

1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz

6.8 5.7 6.8 5.7
26 20 20 20
35 32 35 32
48 48 48 48

940 700 940 650
850 628 - -

4.2 3.2 4.2 2.9

3.8 2.9 - -

9.57 10 9.57 10.77

3.2 3.4 - -

7.8 4.7 7.8 4.7
27 18 18 18

900 x 272 x 135 900 x 272 x 135 900 x 272 x 135 900 x 272 x 135
770 x 540 x 245 575 x 525 x 260 564x 525 x 265 564 x 525 x 265

8.14 8.14 8.14 8.14
33 23 23 23

R-22, 920 R-22, 680 R-22, 570 R-22, 450

OOOO

L.C.D Wireless L.C.D Wireless L.C.D Wireless L.C.D Wireless

1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35)

3/8(9.52) 3/8(9.52) 3/8(9.52) 3/8(9.52)

OOOO
OOOO

1.0mm2+0.75mm21.0mm2+0.75mm

2

0.75mm

2

0.75mm

2

0.75mm

2

0.75mm

2

0.75mm

2

0.75mm

2

-8-

Installation plate

D

H

W

MODEL

DIM Unit

W mm 900

H mm 272
D mm 135

7K, 9K Btu Series

Dimensions

(1) Indoor Unit

-9-

(2) Outdoor Unit

W

L2

L3

L1

D

H

L4

L5

Gas side

(3-way valve)

Liquid side

(2-way valve)

MODEL

DIM unit

W mm 770 564
H mm 540 525

D mm 245 265
L1 mm 287 294
L2 mm 64 66
L3 mm 518 374
L4 mm 10 17
L5 mm 100 270

LS-H096Z_Series

LS-C096Z_Series
LS-C076Z_Series

-10-

W

L2

L3

L1

D

H

L4

L5

Gas side

(3-way valve)

Liquid side

(2-way valve)

MODEL

DIM.

Unit

W mm 575

H mm 525

D mm 260
L1 mm 301
L2 mm 73
L3 mm 392
L4 mm 35
L5 mm 100

LS-H076Z_Series

Refrigeration Cycle Diagram

-11-

INDOOR UNIT OUTDOOR UNIT

INDOOR UNIT OUTDOOR UNIT

HEAT
EXCHANGE
(EVAPORATOR)

HEAT
EXCHANGE
(EVAPORATOR)

HEAT
EXCHANGE
(CONDENSER)

HEAT
EXCHANGE
(CONDENSER)

COMPRESSOR

COMPRESSOR

ACCUMU
LATOR

GAS SIDE

GAS SIDE

VALVE

LIQUID SIDE

LIQUID SIDE

VALVE

CAPILLARY TUBE

CAPILLARY TUBE

CHECK VALVE

(Heating Model only)

COOLING
HEATING

REVERSING
VALVE
(Heating Model Only)

(1) Cooling Only Models

(2) Cooling & Heating Models

Wiring Diagram

-12-

3854A20305A

INDOOR WIRING DIAGRAM

FUSE

AC250V/T2A

CN-TH1

CN-GND

TRIAC

SH-CAPA.

BL

BR

GN/YL

BR

YL

OR

BK

CN-TAB1

CN-MOTOR

CN-TAB2

CN-4WAY

CN-SW/2 CN-SW/3

CN-STEP2CN-STEP1

CN-MAIN

CN-SW/1

RY-COMP.

RY-4WAY

RY-FAN

FORCED

OPERATON

S/W

SUC
STEP

MOTOR-1

ZNR

THERMISTOR

DISPLAY

MOTOR

MAIN PCB

ASM

POWER

TO OUTDOOR UNIT

TERMINAL
BLOCK

CONNECTOR
PWB ASM

BRBLBKRDGN/YL

BR

BLBKRD

GN/YL

1(L) 2(N

)

34

3

4

BL
BR

CN-U/D CN-VFD

STEP

MOTOR

CN-L/RCN-HVB

STEP

MOTOR

OPTION

OPTION

LIMIT S/W-1

LIMIT S/W-2

H.V.B A/CL

RD RD

BKBK

SUC

STEP

MOTOR-2

3854A20238K

FUSE

AC250V/T2A

CN-TH1(WH)

TRIAC

SH-CAPA.

BL

BR

GN/YL

BR

YL

OR

BK

CN-TAB1

CN-MOTOR

CN-TAB2

CN-4WAY

/FAN/O2

CN-SW/2 CN-SW/3

CN-STEP2CN-STEP1

CN-MAIN

CN-SW/1

RY-COMP.

RY-4WAY

RY-FAN

FORCED

OPERATON

S/W

SUC

STEP

MOTOR-1

ZNR

THERMISTOR

DISPLAY

MOTOR

MAIN PCB

ASM

POWER

TO OUTDOOR UNIT

TERMINAL
BLOCK

CONNECTOR
PWB ASM

BRBLBKRDGN/YL

BR

BLBKRD

GN/YL

1(L) 2(N

)

34

3

4

BL
BR

CN-U/D(WH) CN-DISP1

STEP

MOTOR

CN-L/R(BL)

CN-HVB

STEP

MOTOR

OPTION

OPTION

LIMIT S/W-1

LIMIT S/W-2

H.V.B A/CL

RD RD

BKBK

SUC
STEP

MOTOR-2

3854A20238Y

INDOOR WIRING DIAGRAM

FUSE

AC250V/T2A

CN-TH1

TRIAC

SH-CAPA.

BL

BR

GN/YL

BR

YL

OR

BK

CN-TAB1

CN-MOTOR

CN-TAB2

CN-SW/2 CN-SW/3

CN-STEP2CN-STEP1

CN-MAIN

CN-SW/1

RY-COMP.

FORCED

OPERATON

S/W

SUC

STEP

MOTOR-1

ZNR

THERMISTOR

DISPLAY

MOTOR

MAIN PCB

ASM

POWER

TO OUTDOOR UNIT

TERMINAL
BLOCK

CONNECTOR
PWB ASM

BRBLGN/YL

BR

BL

GN/YL

1(L) 2(N

)

3

4

BL
BR

CN-U/D CN-VFD

CN-GND

STEP

MOTOR

CN-L/RCN-HVB

STEP

MOTOR

OPTION

OPTION

LIMIT S/W-1

LIMIT S/W-2

H.V.B A/CL

RD RD

BKBK

SUC

STEP

MOTOR-2

TO INDOOR UNIT

BLACK

PILLAR
TERMINAL

BR

BR(YL)

OLP

1

COMP

RD

BL

BL

YL

FAN
MOTOR

GN/YL

RD

BL

CAPACITOR

HC F

R

C

S

BR

BL

GN/YL

BR BL

GN/YL

1(L

) 2(N)

3854AR2262F

OUTDOOR WIRING DIAGRAM

COMP

C

S

R

FAN

MOTOR

OLP

BR

BR BL

BK(RD)

YL

GN/YL

BR BL BK RD

GN/YL

REVERSING

VALVE

YL

BL

BK(RD)

CAPACITOR

RD

BR

RD

BL

YL

TO INDOOR UNIT

OUTDOOR WIRING DIAGRAM

3854A30077V

TERMINAL

BLOCK

HCF

1(L)2(N

)

3

12

4

(1) Indoor Unit

(2) Outdoor Unit

CoolingHeatpump

Heatpump Cooling

Operation Details

1. MAIN UNIT FUNCTION

• DISPLAY

1) C/O Model
Operation Indicator

• ON while in appliance operation, OFF while in appliance pause.

• Flashing while in disconnection or short in Thermistor. (3 sec off / 0.5 sec on)

Sleep Timer Indicator

• ON while in sleep timer mode, OFF when sleep timer cancel or appliance operation pause.

Timer Indicator

• ON while in timer mode (on/off), OFF when timer mode is completed or canceled.

Comp. Running Incidator

• While in appliance operation, ON while in outdoor unit compressor running, OFF while in compressor off.

2) H/P Model
Operation Indicator

• ON while in appliance operation, OFF while in appliance pause.

• Flashing while in disconnection or short in Thermistor. (3 sec off / 0.5 sec on)

Sleep Timer Indicator

• ON while in sleep timer mode, OFF when sleep timer cancel or appliance operation pause.

Timer Indicator

• ON while in timer mode (on/off), OFF when timer mode is completed or canceled.

Defrost Indicator

• OFF except when hot start during heating mode operation or while in defrost control.

■ Cooling Mode Operation

• When the intake air temperature reaches 0.5°C below the setting temp, the compressor and the outdoor fan
stop.

• When it reaches 0.5°C above the setting temp, they start to operate again.

Compressor ON Temp ➲ Setting Temp+0.5°C
Compressor OFF Temp ➲ Setting Temp-0.5°C

• While in compressor running, operating with the airflow speed set by the remote control. While in compressor
not running, operating with the low airflow speed regardless of the setting.

■ Healthy Dehumidification Mode

• When the dehumidification operation input by the remote control is received, the intake air temperature is
detected and the setting temp is automatically set according to the intake air temperature.

26°C ≤ Intake Air Temp ➲ 25°C
24°C ≤ Intake Intake Air Temp<26°C ➲ Intake Air Temp-1°C
18°C ≤ Intake Intake Air Temp<24°C ➲ Intake Air Temp-0.5°C
Intake Air Temp<18°C ➲ 18°C

-13-

• While in compressor off, the indoor f an repeats low airflow speed and pause.

• While the intake air temp is between compressor on temp. and compressor off temp., 10-min dehumidifica-

tion operation and 4-min compressor off repeat.
Compressor ON Temp. ➲ Setting Temp+0.5°C
Compressor OFF Temp. ➲ Setting Temp-0.5°C

• In 10-min dehumidification operation, the indoor fan operates with the low airflow speed.

■ Heating Mode Operation

• When the intake air temp reaches +3°…above the setting temp, the compressor is turned off. When below
the setting temp, the compressor is turned on.
Compressor ON Temp. ➲ Setting Temp.
Compressor OFF Temp. ➲ Setting Temp.+3°C

• While in compressor on, the indoor fan is off when the indoor pipe temp. is below 20°C, when above 28°C , it
operates with the low or setting airflow speed. When the indoor pipe temp is between 20°C and 28°C, it oper­ates with Super-Low(while in sleep mode, with the medium airflow speed).

• While in compressor off, the indoor fan is off when the indoor pipe temp is below 33°C, when above 35°C , it
operates with the low airflow speed.

• If overloaded while in heating mode operation, in order to prevent the compressor from OLP operation, the
outdoor fan is turned on/off according to the indoor pipe temp.

• While in defrost control, both of the indoor and outdoor fans are turned off.

■ Defrost Control

• While in heating mode operation in order to protect the evaporator pipe of the outdoor unit from freezing,
reversed to cooling cycle to defrost the evaporator pipe of the outdoor unit.

• After 40 min heating mode operation, at 4 min interval, whether to carry out defrost control or not and the time
of defrost control are determined according to the following conditions.

1) While in heating mode operation, the maximum of the indoor pipe temperature is measured and it is com-

pared with the present indoor pipe temperature to get the difference of the indoor pipe temperatures (=the
maximum temperature of indoor pipe ? the present temperature of indoor pipe), according to which, whether
to carry out defrost control or not is determined.

2) According to the need of defrost control shown above and the elapsed time of heating mode operation at that

moment, the defrost control time is determined.

3) When the determined time of defrost control is below 7 min, heating mode operation continues without carry-

ing out defrost control. According to the procedure stated above, the determination is made again. When the
defrost control time is 7 min or longer, defrost control is then carried out.

• While in defrost control, the minimum temp of the indoor pipe is measured and it is compared with the present
temp of the indoor pipe to get the difference of the indoor pipe temperatures (=the present temperature of the
indoor pipe ? the minimum temperature of the indoor pipe). When the difference is 5°C or higher, defrost con­trol is completed and heating mode operation is carried out.

• While in defrost control, if the defrost time determined before the start of defrost control is completed, defrost
control stops and heating mode operation is carried out regardless of the above condition.

• When the indoor pipe temp is 42°C or above, defrost control is not carried out even if the condition is one of
the defrost conditions above.

• While in defrost control, the compressor is on and the indoor fan, the outdoor fan, and the 4 way valve are off.

-14-

-15-

■ Fuzzy Operation (C/O Model)

• According to the temperature set by Fuzzy rule, when the intake air temp is 0.5°C or more below the setting
temp, the compressor is turned off. When 0.5°C or more above the setting temp, the compressor is turned on.

Compressor ON Temp ➲ Setting Temp + 0.5°C
Compressor OFF Temp ➲ Setting Temp + 0.5°C

• At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temp at that time.

26°C ≤ Intake Air Temp ➲ 25°C
24°C ≤ Intake Air Temp < 26°C ➲ Intake Air Temp + 1°C
22°C ≤ Intake Air Temp < 24°C ➲ Intake Air Temp + 0.5°C
18°C ≤ Intake Air Temp < 22°C ➲ Intake Air Temp
Intake Air Temp<18°C ➲ 18°C

• When the Fuzzy key (Temperature Control key) is input after the initial setting temperature is selected, the
Fuzzy key value and the intake air temperature at that time are compared to select the setting temperature
automatically according to the Fuzzy rule.

• While in Fuzzy operation, the airflow speed of the indoor fan is automatically selected according to the
temperature.

■ Fuzzy Operation (H/P Model)

• When any of operation mode is not selected like the moment of the power on or when 3 hrs has passed since
the operation off, the operation mode is selected.

• When determining the operation mode, the compressor, the outdoor fan, and the 4 way valve are off and only
the indoor fan is operated for 15 seconds. Then an operation mode is selected according to the intake air
temp at that moment as follows.

24°C ≤ Inatake Air Temp ➲ Fuzzy Operation for Cooling
21°C ≤ Inatake Air Temp<24°C ➲ Fuzzy Operation for Dehumidification
Inatake Air Temp<21°C ➲ Fuzzy Operation for Heating

• If any of the operation modes among cooling / dehumidification / heating mode operations is carried out for 10
sec or longer before Fuzzy operation, the mode before Fuzzy operation is operated.

1) Fuzzy Operation for Cooling

• According to the setting temperature selected by Fuzzy rule, when the intake air temp is 0.5°C or more below
the setting temp, the compressor is turned off. When 0.5°C or more above the setting temp, the compressor
is turned on.

Compressor ON Temp ➲ Setting Temp +0.5°C
Compressor OFF Temp ➲ Setting Temp + 0.5°C

• At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temp at that time.

26°C≤ Intake Air Temp ➲ 25°C
24°C≤ Intake Air Temp<26°C ➲ Intake Air Temp + 1°C
22°C≤ Intake Air Temp<24°C ➲ Intake Air Temp + 0.5°C
18°C≤ Intake Air Temp<22°C ➲ Intake Air Temp
Intake Air Temp<18°C ➲ 18°C

• When the Fuzzy key (Temperature Control key) is input after the initial setting temperature is selected, the
Fuzzy key value and the intake air temperature at that time are compared to select the setting temperature
automatically according to the Fuzzy rule.

• While in Fuzzy operation, the airflow speed of the indoor fan is automatically selected according to the tem­perature.

-16-

2) Fuzzy Operation for Dehumidification

• According to the setting temperature selected by Fuzzy rule, when the intake air temp is 0.5°C or more below
the setting temp, the compressor is turned off. When 0.5°C or more above the setting temp, the compressor
is turned on.

Compressor ON Temp ➲ Setting Temp + 0.5°C
Compressor OFF Temp ➲ Setting Temp+0.5°C

• At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temp at that time.

26°C ≤ Intake Air Temp ➲ 25°C
24°C ≤ Intake Air Temp<26°C ➲ Intake Air Temp+1°C
22°C ≤ Intake Air Temp<24°C ➲ Intake Air Temp+0.5°C
18°C ≤ Intake Air Temp<22°C ➲ Intake Air Temp
Intake Air Temp<18°C ➲ 18°C

• When the Fuzzy key (Temperature Control key) is input after the initial setting temperature is selected, the
Fuzzy key value and the intake air temperature at that time are compared to select the setting temperature
automatically according to the Fuzzy rule.

• While in Fuzzy operation, the airflow speed of the indoor fan repeats the low airflow speed or pause as in
dehumidification operation.

3) Fuzzy Operation for Heating

• According to the setting temperature selected by Fuzzy rule, when the intake air temp is 3°C or more above
the setting temp, the compressor is turned off. When below the setting temp, the compressor is turned on.

Compressor ON Temp ➲ Setting Temp
Compressor OFF Temp ➲ Setting Temp + 3°C

• At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temp at that time.

20°C≤Intake Air Temp ➲ Intake Air Temp + 0.5°C
Intake Air Temp<20°C ➲ 20°C

• When the Fuzzy key (Temperature Control key) is input after the initial setting temperature is selected, the
Fuzzy key value and the intake air temperature at that time are compared to select the setting temperature
automatically according to the Fuzzy rule.

• While in Fuzzy operation, the airflow speed of the indoor fan is set to the high or the medium according to the
intake air temperature and the setting temperature.

■ Airflow Speed Selection

• The airflow speed of the indoor fan is set to high, medium, low, or chaos (auto) by the input of the airflow
speed selection key on the remote control.

■ On-Timer Operation

• When the set time is reached after the time is input by the remote control, the appliance starts to operate.

• The timer LED is on when the on-timer is input. It is off when the time set by the timer is reached.

• If the appliance is operating at the time set by the timer, the operation continues.

-17-

■ Off-Timer Operation

• When the set time is reached after the time is input by the remote control, the appliance stops operating.

• The timer LED is on when the off-timer is input. It is off when the time set by the timer is reached.

• If the appliance is on pause at the time set by the timer, the pause continues.

■ Off-Timer ↔ On-Timer Operation

• When the set time is reached after the on/off time is input by the remote control, the on/off-timer operation is
carried out according to the set time.

■ Sleep Timer Operation

• When the sleep time is reached after <1,2,3,4,5,6,7,0(cancel) hr> is input by the remote control while in appli­ance operation, the operation of the appliance stops.

• While the appliance is on pause, the sleep timer mode cannot be input.

• While in cooling mode operation, 30 min later since the start of the sleep timer, the setting temperature
increases by 1°C. After another 30 min elapse, it increases by 1°C again.

• When the sleep timer mode is input while in cooling cycle mode, the airflow speed of the indoor fan is set to the

low.

• When the sleep timer mode is input while in heating cycle mode, the airflow speed of the indoor fan is set to
the medium.

■ Chaos Swing Mode

• By the Chaos Swing key input, the upper/lower vane automatically operates with the Chaos Swing or they are
fixed to the desired direction.

• While in Chaos Swing mode, the angles of cooling and heating cycle operations are different.

■ Chaos Natural Wind Mode

• When the Chaos Natural Wind mode is selected and then operated, the high, medium, or low speed of the air­flow mode is operated for 2~15 sec. randomly by the Chaos Simulation.

< Cooling Mode >

< Heating Mode >

OPEN

CLOSED

8°

OPEN

CLOSED

8°

-18-

■ Jet Cool Mode Operation (C/O Model)

• If the Jet Cool key is input at any operation mode while in appliance operation, the Jet Cool mode operates.

• In the Jet Cool mode, the indoor fan is operated at super-high speed for 30 min at cooling mode operation.

• In the Jet Cool mode operation, the room temperature is controlled to the setting temperature, 18°C

• When the sleep timer mode is input while in the Jet Cool mode operation, the Jet Cool mode has the priority.

• When the Jet Cool key is input, the upper/lower vanes are reset to those of the initial cooling mode and then

operated in order that the air outflow could reach further.

■ Jet Cool Mode Operation (H/P Model)

• While in heating mode or Fuzzy operation, the Jet Cool key cannot be input. When it is input while in the other
mode operation (cooling, dehumidification, ventilation), the Jet Cool mode is operated.

• In the Jet Cool mode, the indoor fan is operated at super-high speed for 30 min at cooling mode operation.

• In the Jet Cool mode operation, the room temperature is controlled to the setting temperature, 18°C.

• When the sleep timer mode is input while in the Jet Cool mode operation, the Jet Cool mode has the priority.

• When the Jet Cool key is input, the upper/lower vanes are reset to those of the initial cooling mode and then

operated in order that the air outflow could reach further.

■ Forced Operation

• Operation procedures when the remote control can't be used.

• The operation will be started if the power button is pressed.

• If you want to stop operation, re-press the button.

• While in forced operation, the key input by the remote control has no effect and the buzzer sounds 10 times to

indicate the forced operation.

■ Test operation

•

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room tem­perature and resets in 18±1 minutes.

•

During test operation, if remote controller signal is received, the unit operates as remote controller sets.
If you want to use this operation, open the front panel upward and Press the power button let it be pressed for
about 3 seconds.

•

If you want to stop the operation, re-press the button.

■ Auto restart

•

In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate
procedures automatically to the previous operating conditions.

■ Air Cleaner Operation

•

When an air cleaner function is selected during Air Conditioner operation

- Plasma air cleaner function will be operated while in any operation mode with selecting the function.

- The function is to be stopped while it is operating with selecting the function.

•

When an air cleaner function is selected during operation off

- The function will be only operated.

•

When inlet grille of air conditioner is opened during plasma operation, High Voltage Generator(H.V.B) is to be
stopped. When inlet grille of air conditioner is closed during plasma operation, High Voltage Generator(H.V.B)
will be operated again.

Heat pump Model

Cooling Model

Room Temp. ≥24°C 21°C ≤Room Temp. < 24°C Room Temp. < 21°C

Operating mode Cooling Cooling Healthy Dehumidification Heating

Indoor FAN Speed

High High High High

Setting Temperature

22°C22°C23°C24°C

-19-

■ Remote Control Operation Mode

• When the remote control is selected by the slide switch on the main unit, the appliance operates according to
the input by the remote control.

■ Protection of the evaporator pipe from frosting

• If the indoor pipe temp is below 0°C in 7 min. after the compressor operates without any pause while in cool­ing cycle operation mode, the compressor and the outdoor fan are turned off in order to protect the indoor
evaporator pipe from frosting.

• When the indoor pipe temp is 7°C or higher after 3 min. pause of the compressor, the compressor and the
outdoor fan is turned on according to the condition of the room temperature.

■ Auto Clean

• Open the door on the remote control. Press the Auto Clean Button.
Close the door on the remote control. Now each time that you press the start/stop button, the Air conditioner
operates clean function automatically.

■ Display Luminosity

• The Display Luminosity can be adjusted by using the remote control.
Press the start/stop button to start the unit. Open the door on the remote control, press the 2ndF button and,
press display luminosity button. Display will be dark. Press the button again to set bright display.

■ Buzzer Sounding Operation

• When the appliance-operation key is input by the remote control, the short "beep" sounds.

• When the appliance-pause key is input by the remote control, the long "beep—" sounds.

• When an except operation and pause key is input by the remote control, the short "beep" sounds.

Display Function

-20-

Cooling Mode Lights up during Cooling operation. (Outline)

Auto Operation Mode Lights up during Auto operation. (Outline)

Healthy Dehumidification

Lights up during Healthy Dehumidification operation. (Outline)

Mode

Heating Mode Lights up during Heating operation.

(Heat Pump model only) (Outline)

Defrost Mode Lights up during Defrost control or

Hot Start in Heating operation. (Outline)

Air circulation Mode Lights up during Air Circulation operation. (Outline)

Sleep Mode Lights up during Sleep Mode operation.

Timer Mode Lights up during Timer operation.

Auto Cleaning Mode Lights up during Auto Cleaning reservation.

Jet Cool Mode Lights up during Jet Cool Operation.

Plasma Lights up during Plasma operation.

Fan Speed (Low) Lights up when Fan speed is low.

Fan Speed (Medium) Lights up when Fan speed is Medium.

Fan Speed (High) Lights up when Fan speed is High.

Fan Speed (Chaos) Lights up when Fan speed is Chaos.

Desire temperature

For cooling,dehumidification,heating modes it display Desired temperature

indicator

• Cooling : 18~30°C • AI : Auto Operation

• Dehumidification : 18~30°C • Po : Jet Cool

• Heating : 16~30°C • Lo : Test Mode

• C1 : Indoor pipe sensor error

Desire temperature Icon

Indoor temperature Icon

Signal Receptor

Each Icon turns on when the unit is operated, then the only Icon outline to be operated is bright.

1) Selection of the best location

1. Indoor unit

• Do not have any heat or steam near the unit.

• Select a place where there are no obstacles in front of

the unit.

• Make sure that condensation drainage can be conve­niently routed away.
Do not install near a doorway.

• Ensure that the space around the left and right of the
unit is more than "A". The unit should be installed as
high on the wall as possible, allowing a minimum of
"B" from ceiling.

• Use a stud finder to locate studs to prevent unneces­sary damage to the wall.

2. Outdoor unit

• If an awning is built over the unit to prevent direct sun­light or rain exposure, make sure that heat radiation
from the condenser is not restricted.

• Ensure that the space around the back and sides is
more than 10cm. The front of the unit should have
more than 70cm of space.

• Do not place animals and plants in the path of the
warm air.

• Take the air conditioner weight into account and select
a place where noise and vibration are minimum.

• Select a place so that the warm air and noise from the
air conditioner do not disturb neighbors.

2) Piping length and elevation

Installation

1. Installation of indoor, Outdoor unit

-21-

More than "A"

More than "B"

More than 2.3m

More than "B"

More than 10cm More than 10cm

More
than 60cm

More than 60cm

More than 70cm

Install the indoor unit on the wall where the height
from the floors more than 2.3 meters.

CAUTION

• Capacity is based on standard length and maximum

allowance length is on the basis of reliability.

• Oil trap should be installed every 5~7 meters.

CAUTION

Grade

Clearance(cm)

AB

7K~14K 10 5

7k~14k

3/8"(Ø9.52) 1/4"(Ø6.35) 4 or 7.5 7 15 20
1/2"(Ø12.7) 1/4"(Ø6.35) 4 or 7.5 7 15 20

Pipe Size

Capacity

(Btu/h)

GAS LIQUID

Max.

Length

A (m)

Additional

Refrigerant

(g/m)

Max.

Elevation

B (m)

Standard

Length

(m)

If case more than 5m

Outdoor unit

Indoor unit

A

B

Outdoor unit

Indoor unit

A

B

A

Oil trap

Outdoor unit

Indoor unit

B

I

3) How to fix installation plate

The wall you select should be strong and solid enough
to prevent vibration

1. Mount the installation plate on the wall with four
type A screws. If mounting the unit on a concrete
wall, use anchor bolts.

• Mount the installation plate horizontally by aligning

the centerline using a level.

2. Measure the wall and mark the centerline. It is

also important to use caution concerning the
location of the installation plate-routing of the
wiring to power outlets is through the walls typi­cally. Drilling the hole through the wall for piping
connections must be done safely.

4) Drill a hole in the wall

• Drill the piping hole with a ø70mm hole core drill. Drill
the piping hole at either the right or the left with the
hole slightly slanted to the outdoor side.

-22-

Installation Plate

Type "A" screw

5-7mm

(3/16"~5/16")

Indoor

WALL

Outdoor

Left rear piping Right rear piping

B

A

D

C

Installation plate

ABCD

SZ

35 33 156 33

(7k~9k)

CHASSIS

(Grade)

Distance (mm)

-23-

2. Flaring Work and Connection of Piping

1) Flaring work

Main cause for refrigerant leakage is due to defect in the flaring
work. Carry out correct flaring work using the following procedure.

1. Cut the pipes and the cable.

• Use the piping kit accessory or pipes purchased locally.

• Measure the distance between the indoor and the

outdoor unit.

• Cut the pipes a little longer than the measured distance.

• Cut the cable 1.5m longer than the pipe length.

2. Burr removal

• Completely remove all burrs from the cut cross sec­tion of pipe/tube.

• Put the end of the copper tube/pipe in a downward
direction as you remove burrs in order to avoid drop­ping burrs into the tubing.

3. Putting nut on

•

Remove flare nuts attached to indoor and outdoor unit, then
put them on pipe/tube having completed burr removal.
(not possible to put them on after flaring work)

4. Flaring work

• Firmly hold copper pipe in a die in the dimension
shown in the table above.

• Carry out flaring work using flaring tool as shown
below.

5. Check

• Compare the flared work with figure below.

• If flare is noted to be defective, cut off the flared sec-

tion and re-flare it.

2) Connection of piping Indoor

• Preparing the indoor unit's piping and drain hose for
installation through the wall.

• Remove the plastic tubing retainer(see illustration
below) and pull the tubing and drain hose away from
chassis.

•

Replace the plastic tubing holder in the original position.
(Optional)

Copper

pipe

90°

Slanted Uneven Rough

Bar

Copper pipe

Clamp handle

Red arrow mark

Cone

Yoke

Handle

Bar

"A"

Inclined

Inside is shiny without scratches

Smooth all round

Even length

all round

Surface

damaged

Cracked Uneven

thickness

= Improper flaring =

Pipe

Reamer

Point down

Flare nut

Copper tube

mm inch mm

Ø6.35 1/4 0~0.5
Ø9.52 3/8 0~0.5

Ø12.7 1/2 0~0.5
Ø15.88 5/8 0~1.0
Ø19.05 3/4 1.0~1.3

Outside diameter A

-24-

1. Route the indoor tubing and the drain hose in the
direction of rear right.

2. Insert the connecting cable into the indoor unit
from the outdoor unit through the piping hole.

• Do not connect the cable to the indoor unit.

• Make a small loop with the cable for easy

connection later.

3. Tape the tubing, drain hose, and the connecting
cable. Be sure that the drain hose is located at the
lowest side of the bundle. Locating at the upper
side can cause drain pan to overflow inside the
unit.

NOTE: If the drain hose is routed inside the room,

insulate the hose with an insulation material* so that
dripping from "sweating"(condensation) will not damage
furniture or floors.
*Foamed polyethylene or equivalent is recommended.

4. Indoor unit installation

• Hook the indoor unit onto the upper portion of the
installation plate.(Engage the two hooks of the rear
top of the indoor unit with the upper edge of the instal­lation plate.) Ensure that the hooks are properly seat­ed on the installation plate by moving it left and right.

Press the lower left and right sides of the unit against
the installation plate until the hooks engage into their
slots(clicking sound).

4. Connecting the pipings to the indoor unit and drain
hose to drain pipe.

• Align the center of the pipes and sufficiently tighten
the flare nut by hand.

• Tighten the flare nut with a wrench.

• When extending the drain hose at the indoor unit,

install the drain pipe.

5. Wrap the insulation material around the connecting
portion.

• Overlap the connection pipe insulation material and
the indoor unit pipe insulation material. Bind them
together with vinyl tape so that there is no gap.

• Wrap the area which accommodates the rear piping
housing section with vinyl tape.

For right rear piping

mm inch kg.m

Ø6.35 1/4 1.8
Ø9.52 3/8 4.2
Ø12.7 1/2 5.5

Outside diameter Torque

Wrench

Indoor unit tubing

Open-end wrench (fixed)

Connection pipe

Flare nut

Vinyl tape(narrow)

Adhesive

Drain pipe

Indoor unit drain hose

Plastic bands

Insulation material

Vinyl tape(narrow)

Connection
pipe

Connecting cable

Vinyl tape
(wide)

Wrap with vinyl tape

Indoor
unit pipe

Pipe

Drain hose

Indoor unit tubing Flare nut Pipes

Connecting
pipe

Drain hose

Tape

Connecting cable

Connecting

cable

Drain hose

• Bundle the piping and drain hose together by wrap­ping them with vinyl tape for enough to cover where
they fit into the rear piping housing section.

1. Route the indoor tubing and the drain hose to the
required piping hole
position.

2. Insert the piping, drain hose, and the connecting
cable into the piping hole.

3. Insert the connecting cable into the indoor unit.

• Don't connect the cable to the indoor unit.

•

Make a small loop with the cable for easy connection later.

4. Tape the drain hose and the connecting cable.

• Connecting cable

5. Indoor unit installation

• Hang the indoor unit from the hooks at the top of the
installation plate.

• Insert the spacer etc. between the indoor unit and the
installation plate and separate the bottom of the
indoor unit from the wall.

6. Connecting the pipings to the indoor unit and the
drain hose to drain pipe.

• Align the center of the pipes and sufficiently tighten
the flare nut by hand.

• Tighten the flare nut with a wrench.

• When extending the drain hose at the indoor unit,

install the drain pipe.

7. Wrap the insulation material around the con­necting portion.

• Overlap the connection pipe heat insulation and the

indoor unit pipe heat insulation material. Bind them
together with vinyl tape so that there is no gap.

-25-

For left rear piping

mm inch kg.m

Ø6.35 1/4 1.8
Ø9.52 3/8 4.2
Ø12.7 1/2 5.5

Outside diameter Torque

Vinyl tape

Adhesive

Drain hose

Indoor unit drain hose

(narrow)

Plastic bands

Insulation material

Wrap with vinyl tape

Pipe

Vinyl tape(wide)

Drain hose

Connecting cable

Drain pipe

Indoor unit tubing Flare nut Pipes

Open-end wrench (fixed)

Flare nut

Wrench

Indoor unit tubing

Connection pipe

Indoor unit

Spacer

Installation plate

8cm

• Wrap the area which accommodates the rear piping
housing section with vinyl tape.

• Bundle the piping and drain hose together by wrap-

ping them with cloth tape over the range within which
they fit into the rear piping housing section.

8. Reroute the pipings and the drain hose across the

back of the chassis.

9. Set the pipings and the drain hose to the back of

the chassis with the tubing holder.

• Hook the edge of tubing holder to tap on chassis and

push the bottom of tubing holder to be engaged at the
bottom of chassis.

10. Indoor unit installation

• Remove the spacer.

• Ensure that the hooks are properly seated on the

installation plate by moving it left and right.

Press the lower left and right sides of the unit against
the installation plate until the hooks engage into their
slots(clicking sound).

-26-

Vinyl tape(narrow)

Connection
pipe

Connecting cable

Indoor
unit piping

Pipe

Vinyl tape
(wide)

Wrap with vinyl tape

Drain hose

Connecting

cable

Drain hose

Vinyl tape(narrow)

Pipe

Wrap with
vinyl tape(wide)

Piping for
passage through
piping hole

Tubing holder

CAUTION

Installation Information (For left piping)

• Good case

For left piping. Follow the instruction below.

• Press on the upper side of clamp. ( )

• Bend the tubing to the left side of chassis.

• Bend the tubing to the left side of chassis.

-27-

3) Connection of the pipes-Outdoor

1. Align the center of the pipings and sufficiently
tighten the flare nut by hand.

2. Finally, tighten the flare nut with torque wrench
until the wrench clicks.

• When tightening the flare nut with torque wrench,
ensure the direction for tightening follows the arrow on
the wrench.

mm inch kg.m

Ø6.35 1/4 1.8
Ø9.52 3/8 4.2

Ø12.7 1/2 5.5
Ø15.88 5/8 6.6
Ø19.05 3/4 6.6

Outside diameter Torque

Outdoor unit

Gas side piping
(Bigger diameter)

Liquid side
piping
(Smaller
diameter)

Torque wrench

• Bad case

■

Following bending type from right to left could cause problem
of pipe damage.

CAUTION

-28-

3. Connecting The Cable Between Indoor Unit and Outdoor Unit

1) Connect the cable to the Indoor unit.

• Connect the cable to the indoor unit by connecting the wires to the terminals on the control board in
dividually according to the outdoor unit connection. (Ensure that the color of the wires of the outdoor unit and

the terminal No. are the same as those of the indoor unit.)

The earth wire should be longer than the common wires.

Air

Conditioner

Main power source

If a power plug is not to be used, provide a circuit breaker
between power source and the unit as shown below.

Circuit Breaker

Use a circuit
breaker or time
delay fuse.

CAUTION

CAUTION

The power cord connected to the "A" unit should be
complied with the following specifications
(Type "B" approved by HAR or SAA).

(mm2)

(mm

2

)

The power connecting cable connected to the indoor
and outdoor unit should be complied with the following
specifications
(Type "B" approved by HAR or SAA).

NORMAL
CROSS-SECTIONAL
AREA 0.75mm2

• The above circuit diagram is subject to change with­out notice.

• Be sure to connect wires according to the wiring dia­gram.

• Connect the wires firmly, so that not to be pulled out
easily.

• Connect the wires according to color codes by refer­ring the wiring diagram.

CAUTION

• When installing, refer to the circuit diagram on the
Control Box of Indoor Unit.

• When installing, refer to the wiring diagram on the
Control Cover Inside Outdoor Unit.

5k~9k 12k~14K

0.75 1.0

Unit(A) Indoor Indoor

Cable Type(B) H05VV-F H05VV-F

NORMAL CROSS

-SECTIONAL AREA

Grade

7k~14k

1.0

Cable Type(B) H07RN-F

NORMAL CROSS

-SECTIONAL AREA

Grade

-29-

2) Connect the cable to the outdoor unit

1. Remove the control co ver from the unit by loos-

ening the screw.
Connect the wires to the terminals on the control
board individually.

2. Secure the cable onto the control board with the

cord clamp.

3. Refix the control cover to the original position

with the screw.

4. Use a recognized circuit breaker "A"

between the power source and the unit.
A disconnecting device to adequately disconnect
all supply lines must be fitted.

Terminal block

Over 5mm

Cover control

Connecting cable

Connecting cable

After the confirmation of the above conditions, prepare the wiring as follows:

1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of
wiring, be guided by the circuit diagram posted on the inside of control cover.

2) The screw which fasten the wiring in the casing of electrical fittings are liable to come loose from
vibrations to which the unit is subjected during the course of transportation. Check them and make
sure that they are all tightly fastened. (If they are loose, it could cause burn-out of the wires.)

3) Specification of power source.

4) Confirm that electrical capacity is sufficient.

5) See to that the starting voltage is maintained at more than 90 percent of the rated voltage marked on
the name plate.

6) Confirm that the cable thickness is as specified in the power source specification.
(Particularly note the relation between cable length and thickness. (Refer to page 28))

7) Always install an earth leakage circuit breaker in a wet or moist area.

8) The following would be caused by voltage drop.

• Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of the normal

function of the overload.

9) The means for disconnection from a power supply shall be incorporated in the fixed wiring and have an
air gap contact separation of at least 3mm in each active(phase) conductors.

Outdoor Unit

CAUTION

7k~14k 18k 24k~28k 30k, 32k 36k, 38k

15 20 30 30 40

Circuit

Breaker

(A)

Grade

-30-

4. Checking the Drainage and Forming the Pipings

1) Checking the drainage

1. To remove the front panel from the indoor unit.

• Set the air direction louvers up-and-down to the posi­tion(horizontally) by hand.

• Remove the securing screws that retain the front pan­el. Pull the lower left and right sides of the grille
toward you and lift it off.

2. To check the drainage.

• Pour a glass of water on the evaporator.

• Ensure the water flows through the drain hose of the

indoor unit without any leakage and goes out the drain
exit.

3. Drain piping

• The drain hose should point downward for easy drain
flow.

• Do not make drain piping.

2) Form the piping

1. Form the piping by wrapping the connecting por­tion of the indoor unit with insulation material and
secure it with two kinds of vinyl tapes.

• If you want to connect an additional drain hose, the
end of the drain outlet should be routed above the
ground. Secure the drain hose appropriately.

2. In cases where the outdoor unit is installed below
the indoor unit perform the following.

• Tape the piping, drain hose and connecting cable from
down to up.

• Secure the tapped piping along the exterior wall using
saddle or equivalent.

3. In cases where the Outdoor unit is installed above
the Indoor unit perform the following.

•

Tape the piping and connecting cable from down to up.

• Secure the taped piping along the exterior wall. Form
a trap to prevent water entering the room.

• Fix the piping onto the wall by saddle or equivalent.

Air

filter

Inlet Grille

Taping

Drain
hose

Pipings

Connecting
cable

Trap is required to prevent water
from entering into electrical parts.

Seal small openings
around pipings with a
gum type sealer.

Seal a small opening
around the pipings
with gum type sealer.

Trap

Trap

Downward slope

Do not raise

Accumulated
drain water

Tip of drain hose
dipped in water

Air

Waving

Water
leakage

Water
leakage

Ditch

Less than
50mm gap

Water
leakage

Drain pan

Drain

hose

Leakage

checking

Connecting area

drain hose

Leakage

checking

-31-

5. Air Purging

1) Air purging

Air and moisture remaining in the refrigerant system
have undesirable effects as indicated below.

• Pressure in the system rises.

• Operating current rises.

• Cooling(or heating) efficiency drops.

• Moisture in the refrigerant circuit may freeze and block

capillary tubing.

• Water may lead to corrosion of parts in the refrigera­tion system.

Therefore, the indoor unit and tubing between the
indoor and outdoor unit must be leak tested and evacu­ated to remove any noncondensables and moisture
from the system.

2) Air purging with vacuum pump

1. Preparation

• Check that each tube(both liquid and gas side tubes)
between the indoor and outdoor units have been prop­erly connected and all wiring for the test run has been
completed. Remove the service valve caps from both
the gas and the liquid side on the outdoor unit. Note
that both the liquid and the gas side service valves on
the outdoor unit are kept closed at this stage.

2. Leak test

• Connect the manifold valve(with pressure gauges)
and dry nitrogen gas cylinder to this service port with
charge hoses.

• Pressurize the system to no more than 150 P.S.I.G.
with dry nitrogen gas and close the cylinder valve
when the gauge reading reached 150 P.S.I.G. Next,
test for leaks with liquid soap.

• Do a leak test of all joints of the tubing(both indoor
and outdoor) and both gas and liquid side service
valves.
Bubbles indicate a leak. Be sure to wipe off the soap
with a clean cloth.

• After the system is found to be free of leaks, relieve
the nitrogen pressure by loosening the charge hose
connector at the nitrogen cylinder. When the system
pressure is reduced to normal, disconnect the hose
from the cylinder.

Be sure to use a manifold valve for air purging. If it is
not available, use a stop valve for this purpose. The
"Hi" knob of the manifold valve must always be kept
close.

CAUTION

To avoid nitrogen entering the refrigerant system in a
liquid state, the top of the cylinder must be higher than
its bottom when you pressurize the system. Usually,
the cylinder is used in a vertical standing position.

CAUTION

Lo Hi

Indoor unit

Outdoor unit

Manifold valve

Charge hose

Nitrogen gas
cylinder(in vertical
standing position)

Pressure
gauge

-32-

(1) Remove the caps from the 2-way and 3-way

valves.
(2) Remove the service-port cap from the 3-way valve.
(3) To open the 2-way valve turn the valve stem coun-

terclockwise approximately 90°, wait for about 2~3

sec, and close it.
(4) Apply a soap water or a liquid neutral detergent on

the indoor unit connection or outdoor unit connec-

tions by a soft brush to check for leakage of the

connecting points of the piping.
(5) If bubbles come out, the pipes have leakage.

Soap water method

3. Evacuation

• Connect the charge hose end described in the preced­ing steps to the vacuum pump to evacuate the tubing
and indoor unit.
Confirm the "Lo" knob of the manifold valve is open.
Then, run the vacuum pump.
The operation time for evacuation varies with tubing
length and capacity of the pump. The following table
shows the time required for evacuation.

• When the desired vacuum is reached, close the "Lo"
knob of the manifold valve and stop the vacuum pump.

4. Finishing the job

• With a service valve wrench, turn the valve stem of liq­uid side valve counter-clockwise to fully open the
valve.

• Turn the valve stem of gas side valve counter-clock­wise to fully open the valve.

• Loosen the charge hose connected to the gas side
service port slightly to release the pressure, then
remove the hose.

• Replace the flare nut and its bonnet on the gas side
service port and fasten the flare nut securely with an
adjustable wrench. This process is very important to
prevent leakage from the system.

• Replace the valve caps at both gas and liquid side
service valves and fasten them tight.
This completes air purging with a vacuum pump.
The air conditioner is now ready to test run.

Required time for evacuation when 30 gal/h vacuum

pump is used

10 min. or more 15 min. or more

If tubing length is less than

10m (33 ft)

if tubing length is longer

than 10m (33 ft)

Gas side

Liquid side

Cap

Hexagonal wrench

2-way valve

(Open)

3-way valve

(Close)

Indoor unit

Pressure
gauge

Open

Outdoor unit

Manifold valve

Lo Hi

Close

Vacuum pump

-33-

1. Check that all tubing and wiring have been properly
connected.

2. Check that the gas and liquid side service valves are
fully open.

1. Prepare remote control

1. Remove the battery cover
by pulling it according to the
arrow direction.

2. Insert new batteries making
sure that the (+) and (–) of
battery are installed correctly.

3. Reattach the cover by

pushing it back into position.

NOTE:

• Use 2 AAA(1.5volt) batteries. Do not use recharge-

able batteries.

• Remove the batteries from the remote control if the

system is not going to be used for a long time.

2. Settlement of outdoor unit

• Anchor the outdoor unit with a bolt and nut(ø10mm)

tightly and horizontally on a concrete or rigid mount.

• When installing on the wall, roof or rooftop, anchor the

mounting base securely with a nail or wire assuming
the influence of wind and earthquake.

• In the case when the vibration of the unit is conveyed

to the hose, secure the unit with an anti-vibration
bushing.

3. Evaluation of the performance

Operate unit for 15~20 minutes, then check the system
refrigerant charge:

1. Measure the pressure of the gas side service valve.

2. Measure the temperature of the intake and discharge
of air.

3. Ensure the difference between the intake tempera­ture and the discharge is more than 8°C(46°F) (Cool­ing) or (Heating).

4. For reference; the gas side pressure of optimum con­dition is as below.(Cooling)

NOTE: If the actual pressure is higher than shown, the

system is most likely over-charged, and charge
should be removed. If the actual pressure are
lower than shown, the system is most likely
undercharged, and charge should be added.

The air conditioner is now ready for use.

Bolt

Tubing connection

Discharge
temperature

Discharge air

Intake temperature

6. Test Running

R-22 35°C (95°F) 4~5kg/cm2G(56.8~71.0 P.S.I.G.)

R-410A 35°C (95°F) 8.5~9.5kg/cm

2

G(120~135 P.S.I.G.)

Outside ambient

TEMP.

Refrigerant

The pressure of the gas side

service valve.

This is performed when the unit is to be relocated
or the refrigerant circuit is serviced.

Pump Down means collecting all refrigerant in the
outdoor unit without loss in refrigerant gas.

CAUTION:

Be sure to perform Pump Down procedure with the
unit cooling mode.

Pump Down Procedure

1. Connect a low-pressure gauge manifold hose to
the charge port on the gas side service valve.

2. Open the gas side service valve halfway and purge
the air from the manifold hose using the refrigerant
gas.

3. Close the liquid side service valve(all the way in).

4. Turn on the unit's operating switch and start the
cooling operation.

5. When the low-pressure gauge reading becomes 1
to 0.5kg/cm2 G(14.2 to 7.1 P.S.I.G.), fully close the
gas side valve stem and then quickly turn off the
unit. At that time, Pump Down has been completed
and all refrigerant gas will have been collected in
the outdoor unit.

PUMP DOWN

ON

OFF

CANCEL

AUTO CLEAN

SET

1

3

5

4

9

10

17
18

16

7

2

8
13
14

15

11

6

12

Cooling Operation

Auto Operation

Healthy Dehumidification Operation

Flip-up door
(opened)

Heating Operation

Signal transmitter

•

Cooling Model( ), Heat Pump Model( )

Operation Mode

-34-

Operation

Name and Function-Remote Control

The remote control transmits the signals to the system.

START/STOP BUTTON

Operation starts when this button is pressed and
stops when the button is pressed again.

OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

INDOOR FAN SPEED SELECTOR

Used to select fan speed in four steps
low, medium, high and CHAOS.

JET COOL

Used to start or stop the speed
cooling. (Speed cooling operates
super high fan speed in cooling mode.)

CHAOS SWING BUTTON

Used to stop or start louver movement and set the
desired up/down airflow direction.

ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping
operation.

TIME SETTING BUTTONS

Used to adjust the time.

TIMER SET/CANCEL BUTTON

Used to set the timer when the desired time is
obtained and to cancel the Timer operation.

SLEEP MODE AUTO BUTTON

Used to set Sleep Mode Auto operation.

AIR CIRCULATION BUTTON

Used to circulate the room air without cooling or
heating.

ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

PLASMA(OPTIONAL)

Used to start or stop the plasma-purification func­tion.

HORIZONTAL AIRFLOW DIRECTION CON­TROL BUTTON (NOT ON ALL MODELS)

Used to set the desired horizontal airflow direc­tion.

RESET BUTTON

Used prior to resetting time or after replacing bat­teries.

2nd F Button

Used prior to using modes printed in blue at the
bottom of buttons.

AUTO CLEAN

Used to set Auto Clean mode.

LED LUMINOSITY

Used to adjust LED luminosity.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

-35-

Disassembly of the parts (Indoor unit)

Warning :

Disconnect the unit from power supply before making
any checks.
Be sure the power switch is set to “OFF”.

To remove the Grille from the Chassis.

• Hold up Inlet Grille Horizentally.

• To remove the Grille, pull the lower left and right

side of the grille toward you (slightly tilted) and lift it
straight upward.

• To seperate connecter assembly and than to remove
Inlet Grille assembly.

1. Before removing the control box, be sure to

take out the wire screwed at the other end.

-36-

2. To remove the Control Box.

• Remove securing screws.

• Pull the control box out from the chassis careful-

ly.

3. To remove the Discharge Grille.

• Unhook the discharge grille and pull the dis­charge grille out from the chassis carefully.

4. To remove the Evaporator.

• Remove 3 screws securing the evaporator(at the
left 2EA in the Eva Holder, at the right 1EA).

-37-

• Unhook the tab on the right inside of the chassis
at the same time, slightly pull the evaporator
toward you until the tab is clear of the slot.

5. To remove the Motor Cover

• Remove 2 securing screw.

• Pull the motor cover out from the chassis

carefully.

6. To remove the Cross-Flow Fan

• Loosen the screw securing the cross-flow fan to
the fan motor (do not remove).

• Lift up the right side of the cross-flow fan and the
fan motor, separate the fan motor from the
cross-flow fan.

• Remove the left end of the cross-flow fan from
the self-aligning bearing.

Motor cover

2-way, 3-way Valve

2-way Valve (Liquid Side) 3-way Valve (Gas Side)

Shaft position Shaft position Service port

Closed Closed Closed

(with valve cap) (with valve cap) (with cap)

Open Closed Open

(counter-clockwise) (clockwise) (push-pin or with

vacumm pump)

Open Open Closed

(with valve cap) (with valve cap) (with cap)

Closed Open Open

(clockwise) (counter-clockwise) (connected manifold

gauge)

Open Open Open

(with charging

cylinder)

Open Open Open

(with charging

cylinder)

Open Open

Open Open

Works

Shipping

Air purging
(Installation)

Operation

Pumping down
(Transfering)

Evacuation
(Servicing)

Gas charging
(Servicing)

Pressure check
(Servicing)

Gas releasing
(Servicing)

1.

2.

3.

4.

5.

6.

Valve cap

Open position
Closed position

Pin

Service
port

Service
port cap

To outdoor unit

Flare nut

To
piping
connection

To outdoor unit

Hexagonal wrench (4mm)

Open position
Closed position

To
piping
connection

Flare nut

-38-

Open

(with charging cylinder)

Open

(with charging cylinder)

1. Air purging (Only R-22 Model)

Required tools : hexagonal wrench, adjustable

wrench, torque wrenches, wrench to
hold the joints, and gas leak detec­tor.

The additional gas for air purging has been charged
in the outdoor unit.
However, if the flare connections have not be done
correctly and there gas leaks, a gas cylinder and the
charge set will be needed.

The air in the indoor unit and in the piping must be
purged. If air remains in the refrigeration pipes, it will
affect the compressor, reduce to cooling capacity, and
could lead to a malfunction.

• Procedure

(1) Recheck the piping connections.
(2) Open the valve stem of the 2-way valve coun-

terclockwise approximately 90°, wait 10 sec­onds, and then set it to closed position.

– Be sure to use a hexagonal wrench to operate

the valve stem.

(3) Check for gas leakage.

– Check the flare connections for gas leakage.

(4) Purge the air from the system.

– Set the 2-way valve to the open position and

remove the cap from the 3-way valve’s service
port.

– Using the hexagonal wrench to press the valve

core pin, discharge for three seconds and then
wait for one minute. Repeat this three times.

(5) Use torque wrench to tighten the service port

nut to a torque of 1.8kg.cm.

(6) Set the 3-way valve to the back seat.
(7) Mount the valve stem nuts to the 2-way and 3-

way valves.

(8) Check for gas leakage.

– At this time, especially check for gas leakage

from the 2-way and 3-way valve’s stem nuts,
and from the service port nut.

Caution

If gas leakage are discovered in step (3) above,
take the following mesures :

If the gas leaks stop when the piping connections
are tightened further, continue working from step (4).
If the gas leaks do not stop when the connections
are retightened, repair the location of the leak, dis­charge all of the gas through the service por t, and
then recharge with the specified amount of gas
from a gas cylinder.

Service port nut:
Be sure, using a torque wrench to tighten the service port nut (after using the service port), so that it prevents the
gas leakage from the refrigeration cycle.

* CAUTION : Do not leak the gas in the air during Air purging.

Liquid side

Outdoor unit

3-way
valve

Gas side

Indoor unit

2-way
valve

Open

Clsed

-39-

-40-

2. Pumping down

• Procedure

(1) Confirm that both the 2-way and 3-way valves

are set to the open position.

– Remove the valve stem caps and confirm that

the valve stems are in the raised position.

– Be sure to use a hexagonal wrench to operate

the valve stems.

(2) Operate the unit for 10 to 15 minutes.

(3) Stop operation and wait for 3 minutes, then

connect the charge set to the service port of
the 3-way valve.

– Connect the charge hose with the push pin to

the service port.

(4) Air purging of the charge hose.

– Open the low-pressure valve on the charge set

slightly to air purge from the charge hose.

– Refrigerant must be recovered.

Don’t vent the Refrigerant in the atmosphere.

(5) Set the 2-way valve to the closed position.

(6) Operate the air conditioner at the cooling

cycle and stop it when the gauge indicates
1kg/cm2g.

(7) Immediately set the 3-way valve to the closed

position.

– Do this quickly so that the gauge ends up indi-

cating 3 to 5kg/cm

2

g.

(8) Disconnect the charge set, and mount the 2-

way and 3-way valve’s stem nuts and the ser-
vice port nut.

– Use torque wrench to tighten the service por t

nut to a torque of 1.8 kg.m.

– Be sure to check for gas leakage.

Lo

Closed

Purge the air

Outdoor unit

Indoor unit

Liquid side

Gas side

CLOSE

Open

2-Way
valve

3-Way
valve

CLOSE

CAUTION

Do not use the existing charge set for R-22.
It is necessary to use new charge set for R-410A.
The pressure of R-410A is 1.6 times higher than
that of R-22. Thus, the high pressure side gauge
of charge set should be used higher pressure
gauge of 50kg/cm2range.

3. Re-air purging

(Re-installation)

• Procedure

(1) Confirm that both the 2-way valve and the 3-

way valve are set to the closed position.

(2) Connect the charge set and a gas cylinder to

the service port of the 3-way valve.

– Leave the valve on the gas cylinder closed.

(3) Air purging.

– Open the valves on the gas cylinder and the

charge set. Purge the air by loosening the flare
nut on the 2-way valve approximately 45° for 3
seconds then closing it for 1 minute; repeat 3
times.

– After purging the air, use a torque wrench to

tighten the flare nut on the 2-way valve.

(4) Check for gas leakage.

– Check the flare connections for gas leakage.

(5) Discharge the refrigerant.

– Close the valve on the gas cylinder and dis-

charge the refrigerant until the gauge indicates
3 to 5 kg/cm2g.

(6) Disconnect the charge set and the gas cylin-

der, and set the 2-way and 3-way valves to the
open position.

– Be sure to use a hexagonal wrench to operate

the valve stems.

(7) Mount the valve stem nuts and the service

port nut.

– Use torque wrench to tighten the service por t

nut to a torque of 1.8 kg.m.

– Be sure to check for gas leakage .

* CAUTION:

Do not leak the gas in the air during Air Purg­ing.

Lo

Closed

OPEN

Closed

Gas cylinder

R22

Outdoor unit

Indoor unit

Liquid side

Gas side

CLOSE

2-Way
valve

3-Way
valve

-41-

4. Balance refrigerant of the 2-way, 3-way valves

(Gas leakage)

• Procedure

(1) Confirm that both the 2-way and 3-way valves

are set to the back seat.

(2) Connect the charge set to the 3-way valve’s

port.

– Leave the valve on the charge set closed.
– Connect the charge hose with the push pin to

the service port.

(3) Open the valve (Lo side) on the charge set

and discharge the refrigerant until the gauge
indicates 0 kg/cm2G.

– If there is no air in the refrigerant cycle (the

pressure when the air conditioner is not run­ning is higher than 1 kg/cm2G), discharge the
refrigerant until the gauge indicates 0.5 to 1
kg/cm2G. if this is the case, it will not be neces­sary to apply a evacuatin.

– Discharge the refrigerant gradually; if it is dis-

charged too suddenly, the refrigeration oil will
also be discharged.

Lo

Open

Open

3-Way
valve

2-Way
valve

Gas side

CLOSEOPEN

Outdoor unit

Liquid side

Indoor unit

-42-

-43-

5. Evacuation

• Procedure

(1) Connect the vacuum pump to the charge set’s

center hose

(2) Evacuation for approximately one hour.

– Confirm that the gauge needle has moved

toward -76 cmHg (vacuum of 4 mmHg or less).

(3) Close the valve (Lo side) on the charge set,

turn off the vacuum pump, and confirm that
the gauge needle does not move (approxima­tely 5 minutes after turning off the vacuum
pump).

(4) Disconnect the charge hose from the vacuum

pump.

– Vacuum pump oil.

If the vacuum pump oil becomes dirty or
depleted, replenish as needed.

Lo

Open

Open

Vacuum pump

2-Way
valve

Outdoor unit

Liquid side

Indoor unit

Gas side

3-Way
valve

CLOSE

OPEN

CAUTION

Use vacuum pump equipped with check value
applied to be prevented from flowing backward.

-44-

6. Gas Charging

(After Evacuation)

• Procedure

(1) Connect the charge hose to the charging

cylinder.

– Connect the charge hose which you dis-con-

nected from the vacuum pump to the valve at
the bottom of the cylinder.

– If you are using a gas cylinder, also use a scale

and revers the cylinder so that the system can
be charged with liquid.

(2) Purge the air from the charge hose.

– Open the valve at the bottom of the cylinder

and press the check valve on the charge set to
purge the air. (Be careful of the liquid refriger­ant). The procedure is the same if using a gas
cylinder.

(3) Open the valve (Lo side on the charge set and

charge the system with liquid refrigerant.

– If the system can not be charged with the spec-

ified amount of refrigerant, it can be charged
with a little at a time (approximately 150g each
time) while operating the air conditioner in the
cooling cycle; however, one time is not suffi­cient, wait approximately 1 minute and then
repeat the procedure (pumping down-pin).

(4) Immediately disconnect the charge hose from

the 3-way valve’s service port.

–

Stopping partway will allow the gas to be dis­charged.

–

If the system has been charged with liquid refriger­ant while operating the air conditioner turn off the air
conditioner before disconnecting the hose.

(5) Mount the valve stem nuts and the service

port nut.

– Use torque wrench to tighten the service port

nut to a torque of 1.8 kg.m.

– Be sure to check for gas leakage.

CAUTION

This is different from previous procedures.
Because you are charging with liquid refrigerant
from the gas side, absolutely do not attempt to
charge with larger amounts of liquid refrigerant
while operating the air conditioner.

CAUTION

This unit is charged with R-410A.
Pay attention not to charge R-22.

R-410A

Charging
cylinder

Indoor unit

Check valve

OPEN

Lo

Liquid side

Gas side

CLOSE

2-Way
valve

3-Way
valve

Open

Open

Outdoor unit

-45-

7. Additional gas charging

(Gas leakage)

• When refrigerant is insufficient by leakage, recharge the unit with the refrigerant up to normal operating suc­tion pressure.

• Use the graph or the equation below to get operating suction pressure according to indoor and outdoor tem­perature.
Suction pressure was measured at 3-way valve service port after operating the unit for 10 minutes.

The method of using gra

ph

- Find outdoor temperature.

- Find indoor temperature onto the curve of outdoor temperature.

- Read suction pressure at the axis of ordinates.

The method of using equation

-. Calculate suction pressure after putting indoor and outdoor temperature into the equation.

13

(At operating the Unit for 10 minutes)

Suction Pressure

(Kg/cm

2

.g)

Outdoor Temp.

(˚C)

Indoor Temp. (˚C)

12
11
10

9
8
7
6
5

5 10152025303540

50˚C

40˚C

30˚C

20˚C
10˚C

0˚C

P = 3 + 0.0123 x Tout

1.5

+ 0.8 x Tin

0.5

Where, P : Suction Pressure(kg/cm

2

.

g)
Tout : Outdoor Temperature(˚C)
Tin : Indoor Temperature(˚C)

Operating Suction Pressure

(According to Indoor & Outdoor Temperature)

Cycle Troubleshooting Guide

Trouble analysis

1. Check temperature difference between intake and discharge air and operating current.

Temp. Difference

Temp. difference : approx. 0°C
Current : less than 80% of

rated current

Temp. difference : approx. 8°C
Current : less than 80% of

rated current

Temp. difference : less than 8°C
Current : over the reated

current

Temp. difference : over 8°C

Operating Current

• All amount of refrigerant leaked
out. Check refrigeration cycle.

• Refrigerant leakege

Clog of refrigeration cycle
Defective compressor

• Excessive amount of refrigerant

• Normal

Notice :

Temperature difference between intake and discharge air depends on room air humidity. When the room air
humidity is relativery higher, temperature difference is smaller. When the room air humidity is relatively lower tem­perature difference is larger.

2. Check temperature and pressure of refrigeration cycle.

Notice :

1. The suction pressure is usually R-22: 4.5~6.0 kg/cm2G(Cooling) at normal condition.
R-410a: 7.2~9.6 kg/cm2G(Cooling) at normal condition.

2. The temperature can be measured by attaching the thermometer to the low pressure tubing and wrap it with

putty.

Suction pressure Temperature

(Compared with (Compared with Cause of Trouble Description

the normal value) the normal valve)

Defective compressor Current is low.
Defective 4-way reverse valve

Excessive amount of High pressure does not quickly

Normal refrigerant rise at the beginning of

operation.

Insufficient amount of Current is low.

Lower Higher refrigerant (Leakage)

Clogging Current is low.

High

Higher

-46-

-47-

Electronic Parts Troubleshooting Guide

1. Product does not operate at all.

(* Refer to Electronic Control Device drawing and Schematic diagram.)

Turn off Main Power

Turn on Main Power

Does "beeping" sound is made from the Indoor Unit?

Primarily, the operating condition of Micom is OK.

Check the voltage of po wer(About A C 220V, 60Hz)

(About AC 220/240V, 50Hz)

• Main power's voltage

• Voltage applied to the unit

• Connecting method of Indoor/Outdoor connecting

cable

• Check PWB Assembly

- Fuse

- Pattern damage

- Varistor(ZNR01J, ZNR02J)

Check the connection housing for contacting

• Connector related to CN-TAB1, RY-COMP NO.3

• Connector related to CN-MOTOR

• Connector contacting of Outdoor Fan/Compressor

• Display PWB Assembly Check

Check each load(Indoor/Outdoor Fan Motor, Com­pressor, Stepping Motor) and contacting
condition of related connector

Main PCB Board Operation Check

Items

• SMPS Transformer
(Indoor unit)

- Input Voltage

- Output Voltage(ZD02D)

• IC04D(7805) Output
(Indoor/Outdoor unit)

• IC01A[S7136(KIA7036),
Reset IC] OSC01B

• Replace Trans

• Replace IC04D

• Replace faulty parts

- About AC220V/240V±10% - Check the power voltage

- About DC12V

• DC +5V

• Voltage of Micom No. 36,

(DC +4.5V over) and Soldering condition.

Content Remedy

NO

YES

(After 10 seconds)

-48-

2. The product is not operate with the remote control.

Turn on Main Power

While the compressor has been stopped, the compressor does not

operate owing to the delaying function for 3 minutes after stopped.

Caused by other parts except the remote control

Cause by the remote control

When the mark( ) is displayed in LCD screen, replace
battery .

Check the contact of CN-VFD(WH) connector.

When the compressor stopped Indoor Fan is driven by a low speed.
At this point the wind speed is not controlled by the remote controller.
(When operated in the Sleeping Mode, the wind speed is set to the
low speed by force.)

Check Display PWB Assembly

- Voltage between CN-VFD(WH) - : DC +5V

Check the connecting circuit between the remote controller
MICOM (No. ) - R17(2Ω) - IR LED - TR - R16(2.2KΩ).

Check point

• Check the connecting circuit between CN-VFD(WH)

- R01L(51kΩ) - C01L(680pF) - MICOM PIN

43

• Check Receiver Assembly

-49-

3. Compressor/Outdoor Fan are unable to drive.

Turn on Main Power

Operate "Cooling Mode( )" by setting the desired temperature of the
remote controller is less than one of the indoor temperature by 1°C at least.

When in Air Circulation Mode, Compressor/Outdoor Fan is stopped.

Check the sensor for indoor temperature is attached as close as to be
effected by the temperature of Heat Exchanger(EVA).

When the sensor circuit for indoor temperature and connector are in bad
connection or are not engaged, Compressor/Outdoor Fan is stopped.

• Check the related circuit of RY-FAN.

• Check the indoor temper ature sensor is disconnected or not(About 10k Ω/ at 25°C).

Turn off Main Power

• Check the electrical wiring diagram of outdoor side.

• Check the abnormal condition for the component of Compressor/Out-

door Fan Motor.

• Check the "open" or "short" of conmecting wires between indoor and
outdoor.

Check Relay(RY - COMP) for driving compressor.

• When the power(About AC220V/240V) is applied to the connecting wire
terminal support transferred to compressor, PWB Assembly is normal.

• Check the circuit related to the relay.

Check point COMP ON COMP OFF

Between Micom(No.

DC5V DC0V

59) and GND

Between IC01M(No. 11) Below DC 1V

About DC12V

and GND (app)

-50-

Check the TRIAC high speed operation by remote control.

(The Indoor Fan Motor is connected)

Turn off Main power

Check the connection of CN-MOTOR

Check the Fan Motor

Check the Fuse(AC250V/T2A)

Turn ON Main Power

Check the related circuit of indoor Fan Motor.

• The pin NO 58 of Micom, and the part for driving TRIAC(the input and

output signal of IC01M, PIN NO 7, 10)

• Check the pattern

• Check the TRIAC

- TRIAC Open: Indoor Fan Motor never operate

- TRIAC short: Indoor Fan Motor always operates in case of ON or OFF.

4. When indoor Fan does not operate.

The voltage of PIN NO 1(Black) and 3(Black) of CN-MOTOR.

About AC 180V over About AC 50V below

TRIAC is not damaged TRIAC change

-51-

• Confirm that the up/down Vertical Louver is normally geared with the
shaft of Stepping Motor.

• If the regular torque is detected when rotating the up/down Vertical Lou­ver with hands Normal

• Check the connecting condition of CN-U/D Connector

• Check the soldering condition(on PWB) of CN-U/D Connector

If there are no problems after above checks

• Confirm the assembly conditions that are catching and interfering parts
in the rotation radial of the up/down Vertical Louver

5. When up/down Vertical Louver does not operate.

Check the up/down operating circuit of the Vertical Louver

• Confirm that there is DC +12V between pin (Gray) of CN-U/D and
GND.

• Confirm that there is a soldering short at following terminals.

- Between , , and of MICOM

- Between , , and of IC01M

- Between , , and of IC01M

60 61 62 63

-52-

• Confirm that the left/right Vertical Louver is normally geared with the
shaft of Stepping Motor.

• If the regular torque is detected when rotating the left/right Vertical Lou­ver with hands Normal

• Check the connecting condition of CN-L/R Connector

• Check the soldering condition(on PWB) of CN-L/R Connector

If there are no problems after above checks

• Confirm the assembly conditions that are catching and interfering parts
in the rotation radial of the left/right Vertical Louver

6. When left/right Vertical Louver does not operate.

Check the left/right operating circuit of the Vertical Louver

• Confirm that there is DC +12V between pin (Gray) of CN-L/R and
GND.

• Confirm that there is a soldering short at following terminals.

- Between , , and of MICOM

- Between , , and of IC02M

- Between , , and of IC02M

54 55 56 57

-53-

• Confirm that the Inlet Grille is normally geared with the shaft of Stepping
Motor.

• If the regular torque is detected when moving the Inlet Grille with hands

Normal

• Check the connecting condition of CN-SUC Connector

• Check the soldering condition(on PWB) of CN-SUC Connector

If there are no problems after above checks

• Confirm the assembly conditions that are catching and interfering parts
in the rotation radial of the Inlet Grille

7. When Inlet Grille does not operate.

Check the operating circuit of the Inlet Grille

• Confirm that there is DC +12V between pin (RED) of CN-SUC and
GND.

• Confirm that there is a soldering short at following terminals.

- Between , , and of MICOM

- Between , , and of IC01G

- Between , , and of IC01G

-54-

8. When Heating does not operate

Operate “Heating Mode( )” by setting the desired temperature of the
remote control is higher than one of the indoor temperature by 2°C at
least.

In heating Mode, the indoor fan operates in case the pipe temperature
is higher than 28°C.

Check the connector of intake and pipe sensor(thermistors)

• Check the related circuit of RY-4WAY

• Check the indoor room temperature is disconnected or not (about
10KΩ/at 25°C).

• Check the indoor pipe temperature is disconnected or not (about

5KΩ/at 25°C).

Turn ON Main Power

Check the DC voltage on the PWB ASSEMBLY

• The details of check are as followings

Check point

Between Micom

(NO.59) and GND

Between IC01M

(NO.11) and GND

Comp ON

DC 5V

Below DC 1V

Comp OFF

DC 0V

About DC

12V

Check point

Between Micom

(NO.52) and GND

Between IC02M

(NO.11) and GND

4 way ON

DC 5V

Below DC 1V

4 way OFF

DC 0V

About DC 12V

Check point

Between Micom

(NO.53) and GND

Between IC02M

(NO.12) and GND

Fan ON

DC 5V

Below DC 1V

Fan OFF

DC 0V

About DC 12V

• Comp Relay.

• 4 way Relay

• Outdoor fan Relay

-55-

Turn off Main Power

• Check the electrical wiring diagram of outdoor side.

• Check the abnormal condition for the component of Compressor/Out-

door Fan Motor, 4 way.

• Check the "open" or "short" of connecting wires between indoor and
outdoor.

-56-

Electronic Control Device

(1) MAIN P.W.B ASSEMBLY (AC + DC PARTS)

• TOP VIEW

(1) MAIN P.W.B ASM (AC)

• BOTTOM VIEW

-57-

(2) DISPLAY ASSEMBLY

– 6302A90003A

• TOP VIEW

SEJIN ELECTRON INC. SVM-GP1119AI

P/N 3210018043

1

REV1

C13

C7

C8

C9

D1

Q1

Q2

R9

R13

R2R6

R7
R8

R10

TP1

TP2

TP3

TP4

R17

R18

R19

C14

C15

C18

R4R3

TP5
TP6

M42

M43

C19

C20

C21

R5

M45

M44

TP1

TP2

TP3

TP4

TP7
TP8

• BOTTOM VIEW

Schematic Diagram

36

13

23

17

15

16

14

20
19

18

21

22

29

26

24

25

27

28

32

30

31.

33

34

35

58

11

9

10

12

6

7

5

4

8

64

1

2

3

61

63

62

60

59

41

38

40

39

37

43

44

45

42

52

55

57

56

54

53

49

51

50

48

47

46

IC01M

R02F

20K

20K

R02P

KID65004AF

220

10V SD

C10D

+

103

50V

C08D

BZX55C11

C06D

25V SD

C07D

104

50V

330

20K

R02D

ZD02D

1

3

AC PART

5V

1

CN-12V

2

CN-CONT

1

2

HVB

2

1

3

IC04D

78L05BP

7805

O I

12V

L4 100nH

20K 2012

R11H~R14H

2

1

CN-HVB(BL)

3

SDA

OJ1H

R13H

R11H

R12H5VR14H

4

A0

EEPROM

OJ2H

OJ3H

5

SCL

WP

Vcc

1

2

G

A2

3

A1

8

7

6

20K

R01P

1

RD

Sub Part

3

4

PKYLOR

2

5

BL

1

HVB OUT

9

INDOOR FAN

342

CN-U/D(WH)

5

COMP

3.6V

KIA7036P

RESET

CN-TH1(WH)

D07D

SD01D

IC01D

TNY266P

STO2D-200

UG2D

472M 3KV

DC LOW

IC02D

TLP421(BL)

C05D

4

6

1/8W 2012

39

R03D

470/35V/SD

C04D

+

S

104

C02D

BP

EN

D

5

4

1

2

IC03D

TLP421 BL

15uF

450V/SD

C01D

+

INT

1/8W 2012

4

3

2

1

27k

R04D

5V

1/4W

1N4148

D02D

300K

R05D

O/L

OR3H

SMPS

OJ4H

5V

5V

OR5HOR6H

Hi Med

OR4H

Low

1dVAd

ssV

A

AVref

AVdd

NTC SCK-102

D05D

1N4007

R05H

OR1H

F1

OR2H

F2

R25H

R26H

R24H

R21H

5V

0.01

50V

C01A

R21H~R26H

12.1K, 1%

R22H

R23H

5V

2

10K

12.1K

R02H

6.2K
1%

R04H

1%

5V

15mH/1A

NF01J

1/4W 3216

R06D

300K

BD01D~04D

1N4007

47nM/275V/435D

C03J

100nF/275V/436D

METAL FILM

METAL FILM

C02J

250V/T2A

100nM/275V/436D

METAL FILM

C01J

FUSE

TVR10561

ZNR01J

CN-TAB1

N

11

T-BLOCK

RY-COMP

G4A-1A-E-LG

4

3

2

1

2

1

INDOOR FAN

12V

ROOM-TH

PIPE-TH

2113

2

3

44

680

R03J

1/2W

TRAICS

SM1L43

100,1/2W

R01J

120, 1/2W

R02J

TR01J

T1

1/4W

R04J

560

ZNR02J

TVR10561

TLP762JF

IC01J

1

2

3

5

4

3321

2

1

CN-MOTOR

FAN

INDOOR

MOTOR

KID65004AF

1

UPD780023AGC-C

Vss0

5V

Vdd0

8

NEC

X2

Vss1X1INT0

INT1

BL

2

3

4

6

5

7

11

4WAY

FAN

141516

2
1

13 12

5

6

43

IC02M

10 9

7

8

12V

OR
YL

RD

PK

4

4

2

2

3

3

1

1

5

5

CN-L/R(BL)

CSTS0800MG03-T2

R02A,20K

1M5VR01B

CRTL8.00MSOT

OSC01B

3

1

Q01C

2SC5343

KTC3198-Y

5V

INT

5V

IC01A

12K

R07D

56K

R08D

AC220~240V

50/60Hz

SH-CAPACITOR

2012

2012

T2

VOLTAGE GND

DC HIGH

VOLTAGE GND

DC HIGH

VOLTAGE GND

DC HIGH

VOLTAGE GND

DC LOW

VOLTAGE GND

KID65004AF

IC01G

3

2

8

1

9

5

6

4

7

RDORYLBLPK

33

22

11

CN-SUC(WH)

55

44

1

2

231

4

12V

R06V

220

R05V

10K

VFD DISPLAY

KTB 1151-Y

Q01V

STEPPING MOTOR

(UP/DOWN)

SUCTION 1

STEPPING MOTOR

STEPPING MOTOR

SUCTION 2

12V

12V

12V

SW PWB ASM

BZ

YLORPK

22

33

44

55

33

RDORBL

22

11

YLBLPK

55

44

RD

11

12V

11

2

33

2

75689

576

5V

CN-VFD(WH)

C01F

50V

0.01

1K

R01F

C01L

50V

681

R02L,1K

C03~04V

0.01

50V

R01L

5.1K

2(N)

1(L)

COMPRESSOR

OUTDOOR

FAN MOTOR

RY-4WAY

RY-FAN

R03T

1K

102

C03T

Q01T

5V

A104S

Q04T

C104S

102

C02T

Q06T

A104S

Q03T

C104S

5V

CN-TEL

D01T

5V

1N4148

C01T

104

2

3

1

2

3

1

100

KRC107S

KRA107S

R02E

910

R03E

220

BZ01E

C01E

100/25V

+

PKM17EPP-2002

12V

Q02E

KRC107S

Q01E

Q03E

R01E

BZ FREQ

Bz

Bz

o2

5V

8

R04V,1K

R03V,1K

22

33

11

55

44

11

L

RY-O2

CN-TAB2

8765423

1

12V

HVB OUT

2

1

3

2

1

3

12V

E2 1K

E3 1K

5V

Vout

Vout

ZBF503D

L1

SMD 2012

4444

33

22

11

22

33

44

11

77

66

11

10

C01Z

0.01

C02Z

0.01

5

11

10

987

6

Q02V

KRA107S

C07V

104

10V SD

220

C09D
+

5

4

5

4

OPTION

66

JP11,330

-58-

-59-

Exploded View and Replacement Parts List

1. Indoor Unit

352150

354210

159901

249951

266090

W0CZZ

733010

263230

346810

131410

146811-1

135311

237900

668713-2

W6631

135314

342800

267110

359011

159830

146811

268712

668713-1

135312

146811

145200

152302

135080-1

135080-2

135516

268714

35211B

264110

-60-

Parts List(Indoor)

131410 CHASSIS ASSEMBLY 3141A20009B 3141A20009B 3141A20009B 3141A20009B R
135080 DECORATION 3508A20055A 3508A20055A 3508A20055A 3508A20055A R
135080 DECORATION 3508A20056A 3508A20056A 3508A20056A 3508A20056A R
135311 GRILLE ASSEMBLY,DISCHARGE(W/NETSTEEL) 3531A20184B 3531A20184B 3531A20184B 3531A20184B R

GRILLE ASSEMBLY,DISCHARGE(W.O/NETSTEEL)

3531A20184C 3531A20184C 3531A20184C 3531A20184C R

135314 GRILLE ASSEMBLY,INLET(METAL) 3531A20196A 3531A20196A 3531A20196A 3531A20196A R

GRILLE ASSEMBLY,INLET(BLUE) 3531A20196B 3531A20196B 3531A20196B 3531A20196B R
GRILLE ASSEMBLY,INLET(CHERRY) 3531A20196D 3531A20196D 3531A20196D 3531A20196D R
GRILLE ASSEMBLY,INLET(WHITE) 3531A20196C 3531A20196C 3531A20196C 3531A20196C R
GRILLE ASSEMBLY,INLET(MIRROR) 3531A20195A 3531A20195A 3531A20195A 3531A20195A R

135316 GRILLE ASSEMBLY,FRONT(METAL) 3531A10221E 3531A10221E 3531A10221J 3531A10221J R

GRILLE ASSEMBLY,FRONT(BLUE) 3531A10221F 3531A10221F 3531A10221K 3531A10221K R
GRILLE ASSEMBLY,FRONT(CHERRY) 3531A10221H 3531A10221H 3531A10221M 3531A10221M R
GRILLE ASSEMBLY,FRONT(WHITE) 3531A10221C 3531A10221C 3531A10221L 3531A10221L R

GRILLE ASSEMBLY,FRONT(MIRROR) 3531A10220A 3531A10220A 3531A10220C 3531A10220C R
145200 LINK 4520A20008A 4520A20008A 4520A20008A 4520A20008A R
146811 MOTOR ASSEMBLY, STEP 4681A20055A 4681A20055A 4681A20055A 4681A20055A R
146811 MOTOR ASSEMBLY, STEP 4681A20055B 4681A20055B 4681A20055B 4681A20055B R
152302 FILTER(MECH), A/C 5230A20033A 5230A20033A 5230A20033A 5230A20033A R
159830 AIR CLEANER ASSEMBLY 5983A10009B 5983A10009B 5983A10009B 5983A10009B R
159901 VANE, HORIZONTAL 5990A20022B 5990A20022B 5990A20022B 5990A20022B R
237900 WINDOW, DISPLAY 3790A20037F 3790A20037F 3790A20037F 3790A20037F R
249951 CONTROL BOX ASSEMBLY, INDOOR 4995A20323A 4995A20323B 4995A20323F 4995A20323C R
263020 DIGITRON 6302A90003A 6302A90003A 6302A90003A 6302A90003A R
263230 THERMISTOR ASSEMBLY 6323A20004A 6323A20004A 6323A20004A 6323A20004A R
264110 POWER CORD ASSEMBLY 6411A20026D 6411A20026D 6411A20026D 6411A20026L R
266090 H.V ASSEMBLY 6609A10005B 6609A10005B 6609A10005B 6609A10005B R
267110 REMOTE CONTROLLER ASSEMBLY 6711A20073P 6711A20073P 6711A20073T 6711A20073T R
268714 PWB(PCB) ASSEMBLY, MAIN 6871A10099G 6871A10099H 6871A10099L 6871A10099M R
342800 BEARING 4280A20004A 4280A20004A 4280A20004A 4280A20004A R
346810 MOTOR ASSEMBLY, INDOOR 4681A20103B 4681A20103C 4681A20103B 4681A20103C R
35211B TUBE ASSEMBLY, TUBING 5211A30596A 5211A30596A 5211A30596A 5211A30596A R
352150 HOSE ASSEMBLY, DRAIN 5251AR1222R 5251AR1222R 5251AR1222R 5251AR1222R R
354210 EVAPORATOR ASSEMBLY,FIRST 5421A20086H 5421A20086H 5421A20086H 5421A20086H R
359011 FAN ASSEMBLY, CROSS FLOW 5901A20016E 5901A20016E 5901A20016E 5901A20016E R
668713 PWB(PCB) ASSEMBLY, SUB 6871A20259A 6871A20259A 6871A20259A 6871A20259A R
668713 PWB(PCB) ASSEMBLY, SUB 6871A20258B 6871A20258B 6871A20258B 6871A20258B R
733010 PLATE ASSEMBLY, INSTALL 3301A10005A 3301A10005A 3301A10005A 3301A10005A R
W6631 WIRING HARNESS 6631A20060A 6631A20060A 6631A20060A 6631A20060A R

NOTE) *Please ensure GCSC since these parts may be changed depending upon the buyer's request.

(GCSC WEBSITE http://biz.LGservice.com)

LOCATION

DESCRIPTION

PART No.

REMARKS

No.

LS-H096Z*C0 LS-H076Z*C0 LS-C096Z*C0 LS-C076Z*C0

-61-

Parts List(Indoor)

131410 CHASSIS ASSEMBLY 3141A20009B R
346810 MOTOR ASSEMBLY,INDOOR 4681A20103C R
342800 BEARING 4280A20004A R
135311 GRILLE ASSEMBLY,DISCHARGE(INDOOR) 3531A20184C R

146811-1 MOTOR ASSEMBLY,STEP 4681A20055A R

159901 VANE,HORIZONTAL 5990A20022B R
352150 HOSE ASSEMBLY,DRAIN 5251AR1222R R
359011 FAN ASSEMBLY,CROSS FLOW 5901A20016H R
354210 EVAPORATOR ASSEMBLY,FIRST 5421A20086H R
35211B TUBE ASSEMBLY,TUBING 5211A21419C R
159830 AIR CLEANER ASSEMBLY 5983A25006J R
249951 CONTROL BOX ASSEMBLY,INDOOR 4995A20375D R
268714 PWB(PCB) ASSEMBLY,MAIN 6871A10143G R
264110 POWER CORD ASSEMBLY 6411A20026D R
263230 THERMISTOR ASSEMBLY 6323A20004A R
W0CZZ CAPACITOR,DRAWING 3H01487A R
266090 H.V ASSEMBLY 6609A10005E R
135312 GRILLE ASSEMBLY,FRONT(INDOOR) 3531A10221Q R
135314 GRILLE ASSEMBLY,INLET 3531A20196F R
237900 WINDOW,DISPLAY 3790A20083A R

268712 PWB(PCB) ASSEMBLY,DISPLAY 6871A20463A R
135080-1 DECORATION 3508A20055B R
135080-2 DECORATION 3508A20056B R

152302 FILTER(MECH),A/C 5230A20033A R

145200 LINK 4520A20008A R

146811 MOTOR ASSEMBLY,STEP 4681A20055B R
668713-2 PWB(PCB) ASSEMBLY,SUB 6871A20259A R
668713-1 PWB(PCB) ASSEMBLY,SUB 6871A20258C R

733010 PLATE ASSEMBLY,INSTALL 3301A10005A R

267110 REMOTE CONTROLLER ASSEMBLY 6711A20073X R

NOTE) *Please ensure GCSC since these parts may be changed depending upon the buyer's request.

(GCSC WEBSITE http://biz.LGservice.com)

LOCATION

DESCRIPTION

PART No.

REMARKS

No.

LSNH076ZBL0

-62-

2-1. Outdoor unit

554031

437212

435511

W0CZZ

552202

567502

552116

552102-1

552201

554160

561410

552111

550140

552203-1

552203-2

430410

447910

649950

552102-2

437210

559010

546810

435301

-63-

Parts List(Outdoor)

NOTE) *Please ensure GCSC since these parts may be changed depending upon the buyer's request.

(GCSC WEBSITE http://biz.LGservice.com)

LOCATION

DESCRIPTION

PART No.

REMARKS

No.

430410 BASE ASSY, WELD[OUTDOOR] 3041A20008K 3041AR2415K 3041AR2415K R
435511 COVER ASSY, CONTROL(OUTDOOR) 3551A30023E 4974A3492B 4974A3492B R
437210

GRILLE ASSEMBLY, FRONT(OUTDOOR)

3721A20027N 3531AR2512R 3531AR2512R R
437212 PANEL ASSY, REAR(OUTDOOR) 3721A20026B 3530AR0058B 3530AR0058C R
447910 BARRIER ASSY, OUTDOOR 4791A30002B - - R
546810 MOTOR ASSEMBLY, OUTDOOR 4681A20004S 4681A20121B 4681A20004F R
550140 ISOLATOR, COMP 4H00982E 4H00982E 4H00982E R

552102-1 TUBE, CAPILLARY BEND 5210A21341A 5424AR3582H 5210A30151R R
552102-2 TUBE, CAPILLARY BEND 5424AR7208M - - R

552111 TUBE ASSEMBLY, CAPILLARY 5211A20117G 5211A30275D 5211A30082W R
552116 TUBE ASSEMBLY, REVERSING 5211A20116D - - R
552201 VALVE, CHECK 3H01552F - - R
552202 VALVE, REVERSING 5220AR3084A - - R

552203-1 VALVE, SERVICE 2H02479H 2H02479F 2H02479F R
552203-2 VALVE, SERVICE 2A00393U 2A00393U 2A00393M R

554031 CONDENSER ASSEMBLY,BENT 5403A20026F 5403AR2870M 5403AR2870K R
554160 COMPRESSOR SET 5416A20013C 5417A20012H 2520UAHP2BA R
559010 FAN ASSEMBLY,PROPELLER 5901A10004A 5900AR1266A 5900AR1266A R

W0CZZ CAPACITOR, DRAWING 2H01451P 2H01451P 2A00986Q R

435301 GRILLE, DISCHARGE 3530A20006B - - R

56141 COIL ASSEMBLY, REVERSING VALVE 3A02028Y - - R

649950 CONTROL BOX ASSEMBLY, OUTDOOR 4995A20083F 4995A20447D 4995AR2566K R

LS-H096Z*C0 LS-C096Z*C0 LS-C076Z*C0

-64-

Parts List(Outdoor)

NOTE) *Please ensure GCSC since these parts may be changed depending upon the buyer's request.

(GCSC WEBSITE http://biz.LGservice.com)

LOCATION

DESCRIPTION

PART No.

REMARKS

No.

546810 MOTOR ASSEMBLY,OUTDOOR 4681A20121B R
430410 BASE ASSEMBLY,WELD[OUTDOOR] 3041A20079A R

552203-2 VALVE,SERVICE 2A00393U R
552203-1 VALVE,SERVICE 2H02479P R

554031 CONDENSER ASSEMBLY,BENT 5403A20059F R
559010 FAN ASSEMBLY,PROPELLER 5900AR1266A R
554160 COMPRESSOR SET 2520UKYP2CA R
550140 ISOLATOR,COMP 4H00982E R
567502 O.L.P 6750U-L014A R
552116 TUBE ASSEMBLY,REVERSING 5211A21027A R
552202 VALVE,REVERSING 5220AR3084A R
552111 TUBE ASSEMBLY,CAPILLARY 5211A10402A R
552201 VALVE,CHECK 3H01552C R

552102-1 TUBE,CAPILLARY BEND 5210A30151Q R
552102-2 TUBE,CAPILLARY BEND 5210A22261A R

649950 CONTROL BOX ASSEMBLY,OUTDOOR 4995A90162A R

W0CZZ CAPACITOR,DRAWING 6120AR2194H R

561410 COIL ASSEMBLY,REVERSING VALVE 3A02028Y R
437212 PANEL,REAR 3720A10172C R
447910 BARRIER ASSEMBLY,OUTDOOR 4791A20011A R
437210 PANEL ASSEMBLY,FRONT(OUTDOOR) 3721A20258A R
435301 GRILLE,DISCHARGE 3530A10059H R
435511 COVER ASSEMBLY,CONTROL(OUTDOOR) 3551A30023Q R

LSUH076Z*L0

-65-

2-2. Outdoor unit

554031

437212

435511

W0CZZ

552202

567502

552116

552102-1

552201

554160

561410

552111

437210

550140

552203-1

552203-2

430410

447910

649950

552102-2

559010

546810

435512

-66-

Parts List (Outdoor)

LOCATION

DESCRIPTION

PART No.

REMARKS

No.

430410 BASE ASSEMBLY, OUTDOOR 3041A20079A R
435511 COVER ASSEMBLY, CONTROL(OUTDOOR) 3551A30023Q R
435512 COVER ASSEMBLY, TOP(OUTDOOOR) 3551A30034A R
437210 PANEL ASSEMBLY, FRONT(OUTDOOR) 3721A20060B R
437212 PANEL ASSEMBLY, REAR(OUTDOOR) 3721A20059A R
447910 BARRIER ASSEMBLY, OUTDOOR 4791A20011A R
546810 MOTOR ASSEMBLY, OUTDOOR 4681A20121B R

550140 ISOLATOR, COMP 4H00982E R
552102-1 TUBE, CAPILLARY BEND 5210A30151Q R
552102-2 TUBE, CAPILLARY BEND 5210A22261A R

552111 TUBE ASSEMBLY, CAPILLARY 5211A10402A R

552116 TUBE ASSEMBLY, REVERSING 5211A21027A R

552201 VALVE, CHECK 3H01552C R

552202 VALVE, REVERSING 5220AR3084A R
552203-1 VALVE, SERVICE 2H02479H R
552203-2 VALVE, SERVICE 2A00393U R

554031 CONDENSER ASSEMBLY, BENT 2403A20059F R

554160 COMPRESSOR SET 2520UCDK028 R

559010 FAN ASSEMBLY, PROPELLER 5900AR1266A R

561410 COIL ASSEMBLY, REVERSING VALVE 3A02028Y R

649950 CONTROL BOX ASSEMBLY, OUTDOOR 4995A10032T R

W0CZZ CAPACITOR, DRAWING 6120AR2194H R

435301 GRILLE, DISCHARGE 3530A10059G R

LS-H076Z*C0

NOTE) *Please ensure GCSC since these parts may be changed depending upon the buyer's request.

(GCSC WEBSITE http://biz.LGservice.com)

MEMO

-67-

-68-

MEMO

P/No.: 3828A20339A

June, 2006

Printed in Korea
