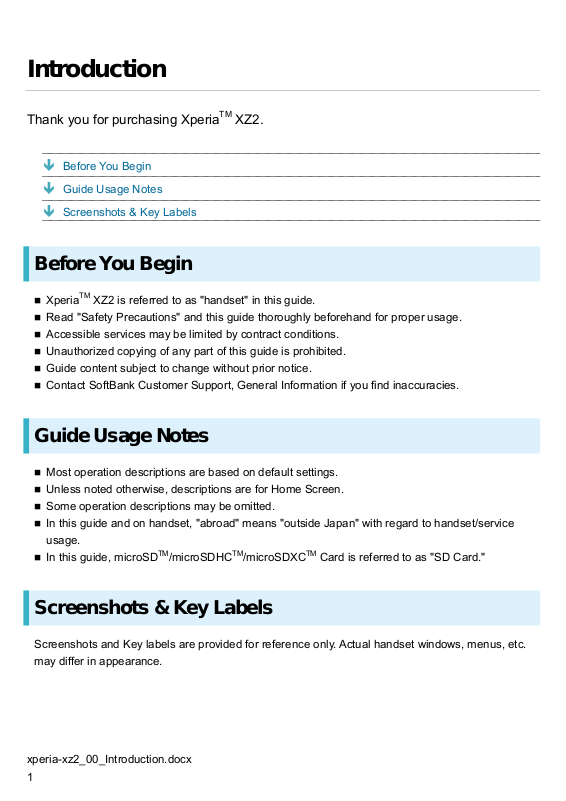

Introduction
Thank you for purchasing XperiaTM XZ2.
Before You Begin
Guide Usage Notes
Screenshots & Key Labels
Before You Begin
Xperia
Read "Safety Precautions" and this guide thoroughly beforehand for proper usage.
Accessible services may be limited by contract conditions.
Unauthorized copying of any part of this guide is prohibited.
Guide content subject to change without prior notice.
Contact SoftBank Customer Support, General Information if you find inaccuracies.
TM
XZ2 is referred to as "handset" in this guide.
Guide Usage Notes
Most operation descriptions are based on default settings.
Unless noted otherwise, descriptions are for Home Screen.
Some operation descriptions may be omitted.
In this guide and on handset, "abroad" means "outside Japan" with regard to handset/service
usage.
In this guide, microSD
TM
/microSDHCTM/microSDXCTM Card is referred to as "SD Card."
Screenshots & Key Labels
Screenshots and Key labels are provided for reference only. Actual handset windows, menus, etc.
may differ in appearance.
xperia-xz2_00_Introduction.docx
1
Parts & Functions
Part
Description
Proximity/Light
Sensor
Detects surrounding
brightness to
automatically adjust
Display or backlight
and prevent
Touchscreen
misoperation during a
call.
Earpiece/Speaker
Hear the other party's
voice here.
Also, hear sound
(music, videos, TV,
etc.) from here.
Front Camera
Use to shoot still
images, videos of
yourself, etc.
Notification Lamp
Flashes for
notifications while in
sleep mode. Lights
while charging.
Display
Touchscreen-type
display, operate with
your fingers on
Display.
Speaker
Listen to music as well
as video, TV, etc.
audio.
Handset (Front)
Handset (Back/Side)
Handset Keys
Handset (Front)
xperia-xz2_01_Getting Started.docx
1
Part
Description
Second Mic
Reduces noise for
calling.
SIM Card/SD Card
Slot
Insert SIM Card/SD
Card.
Internal
Antenna/GPS
Antenna Area
Internal Antenna for
calls, data
communication and
GPS.
RGBC-IR Sensor
Automatically adjusts
white balance based
for shooting based on
the light source.
Flash/Photo Light
Use as camera flash
when taking photos,
etc.
LaserAF Sensor
Autofocuses for
shooting based on
subject distance.
Wi-Fi® Antenna
Area
Internal Antenna for
Wi-Fi.
Internal Antenna
Area
Internal Antenna for
calls and data
communication.
Wi-Fi/Bluetooth®
Antenna Area
Internal Antenna for
Wi-Fi and Bluetooth®
feature.
Nameplate
CE mark, FCC ID,
IMEI information
printed sticker is
attached. Do not
remove nameplate.
Internal Antenna
Area
Internal Antenna for
calls and data
Handset (Back/Side)
xperia-xz2_01_Getting Started.docx
2
communication.
NFC/Osaifu-Keitai
Detection Area
Hold up to a
reader/writer to use
NFC/Osaifu-Keitai®.
Camera
Capture still images
and videos.
Fingerprint
Sensor
Use Fingerprint
authentication.
USB Type-CTM
Port
Connect USB Type-C
cable (commercially
available), etc.
Mic
Speak here.
Part
Description
Volume/Zoom
Up/Down Key
Adjust Volume.
Adjust Zoom while
using Camera.
Power
Key/Screen Lock
Key ( )
Long Press for power
on/off.
Press for sleep mode
on/off.
Camera Key
( )
Use as Camera
shutter.
Long Press to launch
Camera.
Handset Keys
xperia-xz2_01_Getting Started.docx
3
CE mark and FCC ID
Open the slot cover, and insert a fingernail into the hook at the edge of the label tray, then pull it out
straight.
Available radio frequencies
GSM/GPRS/EDGE 850, 900, 1800, 1900MHz
UMTS 2100 (Band I), 1900 (Band II), 1700 (Band IV), 900 (Band VIII)MHz
LTE (Bands 1,2,3,4,8,11,12,17,28,38,39,40,41,42)
WLAN 2.4G/5G, NFC
GSM 850/900 : Power Class 4, DCS (1800)/PCS (1900) : Power Class 1, UMTS : Power Class 3,
LTE : Power Class 3, 2.4GHz<100mW, 5.15-5.35GHz<200mW, 5.47-5.725GHz<200mW,
5.735-5.835GHz<25mW, NFC 13.56MHz
xperia-xz2_01_Getting Started.docx
4
SIM Card
SIM Card is an IC card containing phone number and other customer information.
Inserting SIM Card
Removing SIM Card
SIM-Unlocking Handset
Inserting SIM Card
Always unmount SD Card beforehand.
Draw SIM Card/SD Card Slot Cover out straight using groove, and pull SD Card Tray
out
Draw SIM Card Tray out straight using projecting part, and pull SIM Card Tray out
xperia-xz2_01_Getting Started.docx
5
Set SIM Card into SIM Card Tray with IC chip facing up
Check SIM Card orientation by notch.
Make sure SIM Card is in SIM Card Tray securely.
Holding handset level, insert SIM Card Tray into SIM Card Slot straight, and then press
in all the way
xperia-xz2_01_Getting Started.docx
6
Check direction of insertion.
Holding handset level, insert SD Card Tray straight, and then press SIM Card/SD Card
Slot Cover firmly where circled ○
SIM Card is inserted.
Make sure there is no gap between handset and SIM Card/SD Card Slot Cover.
Removing SIM Card
Always unmount SD Card beforehand.
xperia-xz2_01_Getting Started.docx
7
Draw SIM Card/SD Card Slot Cover out straight using groove, and pull SD Card Tray
out
Draw SIM Card Tray out straight using projecting part, and pull SIM Card Tray out
Remove SIM Card from SIM Card Tray
xperia-xz2_01_Getting Started.docx
8
Holding handset level, insert SIM Card Tray into SIM Card Slot straight, and then press
in all the way
Check direction of insertion.
Holding handset level, insert SD Card Tray straight, and then press SIM Card/SD Card
Slot Cover firmly where circled ○
xperia-xz2_01_Getting Started.docx
9
SIM Card is removed.
Make sure there is no gap between handset and SIM Card/SD Card Slot Cover.
SIM-Unlocking Handset
Handset can be SIM-unlocked. SIM-unlocking handset allows other-carrier SIM cards to be used
with it.
Some services, functions, etc. may have restrictions when an other-carrier SIM card is used.
SoftBank Corp. does not guarantee operation whatsoever.
For details, see SoftBank Website.
xperia-xz2_01_Getting Started.docx
10
SD Card
Handset supports SD Cards up to 256 GB. Some SD Cards may not operate properly.
Inserting SD Card
Formatting SD Card
Removing SD Card
SD Card Cautions
Data
Information stored on SD Card can become lost or changed accidentally or as a result of damage. It is
recommended that you keep a separate copy of important data. SoftBank Corp. is not responsible for
damages from data that is lost or changed.
Reading/Writing Data
Never power off while reading or writing data.
Battery Level
A low battery charge may prevent reading/writing to SD Card.
Handling SD Card
Use/keep SD Cards away from the reach of infants. May cause choking if swallowed.
Inserting SD Card
Draw SIM Card/SD Card Slot Cover out straight using groove, and pull SD Card Tray
out
xperia-xz2_01_Getting Started.docx
11
Set SD Card into SD Card Tray with the metal terminals facing up
Make sure SD Card is in SD Card Tray securely.
Holding handset level, insert SD Card Tray straight, and then press SIM Card/SD Card
Slot Cover firmly where circled ○
xperia-xz2_01_Getting Started.docx
12
SD Card is inserted.
Make sure there is no gap between handset and SIM Card/SD Card Slot Cover.
Formatting SD Card
When using a new SD Card for the first time, always format it on handset.
Formatting erases all data on SD Card. Carefully check any SD Card that was used on another
device before formatting.
Charge Internal Battery while formatting, or format with adequate battery charge.
In Home Screen, (Apps)
xperia-xz2_01_Getting Started.docx
13
(Settings)
xperia-xz2_01_Getting Started.docx
14
Storage
SD card
xperia-xz2_01_Getting Started.docx
15
Storage settings
xperia-xz2_01_Getting Started.docx
16
Format
ERASE & FORMAT
xperia-xz2_01_Getting Started.docx
17
DONE
All data on SD Card is erased.
Removing SD Card
Always unmount SD Card beforehand.
Draw SIM Card/SD Card Slot Cover out straight using groove, and pull SD Card Tray
out
Remove SD Card from SD Card Tray
xperia-xz2_01_Getting Started.docx
18
Holding handset level, insert SD Card Tray straight, and then press SIM Card/SD Card
Slot Cover firmly where circled ○
SD Card is removed.
Make sure there is no gap between handset and SIM Card/SD Card Slot Cover.
xperia-xz2_01_Getting Started.docx
19
Charging Internal Battery
Charging with AC Charger
Charging with AC Charger
For details on AC Chargers and other peripheral equipment, see SoftBank SELECTION Website.
See instructions included with AC Charger. Operation using AC Charger (USB PD) [ZSDBAG]
(SoftBank SELECTION USB Type-C rapid charging AC Charger [SB-AC19-TCPD]) is explained
here.
Insert USB Type-C connector of AC Charger straight into USB Type-C Port
Unfold power plug of AC Charger and plug into household AC
xperia-xz2_01_Getting Started.docx
20
Charging start sound sounds and Notification Lamp on handset lights up when charging starts.
When charging is complete, unplug AC Charger and remove USB Type-C connector of
AC Charger straight from handset
Charging ends.
xperia-xz2_01_Getting Started.docx
21
Power On/Off
Powering On
Powering Off
Powering On
(Long Press)
Lock Screen appears.
See "Unlocking Screen" to unlock the screen.
Startup wizard appears for the first time handset is powered on. Follow onscreen instructions.
Battery level is not sufficient if low battery indicator appears when is Pressed with handset
powered off. Charge Internal Battery.
Powering Off
xperia-xz2_01_Getting Started.docx
22
(Long Press)
Power off
Handset powers off.
xperia-xz2_01_Getting Started.docx
23
Using Touchscreen
Handset uses a touchscreen-type Display. Operate with your fingers on Display.
Tap
Touch & Hold
Drag
Swipe/Flick
Pinch/Spread
Tap
Contact Display lightly and briefly.
Touch & Hold
Touch screen lightly and hold it for a while. When the screen changes, release finger.
xperia-xz2_01_Getting Started.docx
24
Drag
Touch icon or other item lightly, move it where desired, and release finger.
Swipe/Flick
Contact Display lightly, then brush screen up/down or left/right.
Pinch/Spread
Contact Display lightly, then close/widen fingers.
xperia-xz2_01_Getting Started.docx
25
xperia-xz2_01_Getting Started.docx
26
Setting a Google Account
Use a Google account and get more convenience with Google services. A Google
account is required to use some services or fully use some applications.
Creating a Google Account
Logging In with a Google Account
Google Account Cautions
Be careful not to forget your Google account mail address or password.
Creating a Google Account
In Home Screen, (Apps)
xperia-xz2_01_Getting Started.docx
27
(Settings)
Accounts
xperia-xz2_01_Getting Started.docx
28
Add account
Google
xperia-xz2_01_Getting Started.docx
29
