4-270-476-11(3)

LCD Digital Color TV

Operating Instructions

Introducing Your New BRAVIA

Getting Started

Operating the TV

Using Features

Using the Menus

Other Information

Sony Customer Support

U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support

United States

1.800.222.SONY

Please Do Not Return the Product to the Store

KDL-46BX421 / 46BX420 / 40BX421 / 40BX420 / 32BX421 / 32BX420 / 32BX321 / 32BX320 KDL-22BX321 / 22BX320

Canada

1.877.899.SONY

Owner’s Record

The model and serial numbers are located at the side and rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this polarized A C plug with an extension cord , receptacle or other outlet unless the blades can be fully inserted.

❑ Operate the TV only on 110-240 V AC (USA/

Canada/Mexico 120 V AC).

❑ Avoid operating the TV at temperatures below 41°F

(5°C).

Licensing Information

Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Blu-ray Disc is a trademark.

“BRAVIA” and , BRAVIA Sync, and are trademarks or registered marks of Sony Corporation.

“PlayStation” is a registered trademark and “PS3” is a trademark of Sony Computer Entertainment Inc.

Your BRAVIA TV is ENERGY STAR in the “Home” mode. It meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices. Changes to certain features, settings, and functionalities of this TV (i.e. Picture/Sound, Power Savings) can increase or change the power consumption. Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qu alification in the “Home” mode.

qualified

Cleaning

When cleaning, be sure to unplug the power cord to avoid any chance of electric shock.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the instruction provided on the package.

• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.

• See the supplied Safety Booklet for additional information.

The 32 class has a 31.5 inch viewable image size (measured diagonally).

Contents

Introducing Your New BRAVIA

Welcome to the World of BRAVIA® . . . . . . . .4

Experiencing Stunning HD with Your

BRAVIA . . . . . . . . . . . . . . . . . . . . . . . . . . .4

The Four Steps to a Stunning HD

Experience . . . . . . . . . . . . . . . . . . . . . . . . .5

TV Feature Highlights . . . . . . . . . . . . . . . . . . .5

Getting Started

Setting Up Your TV. . . . . . . . . . . . . . . . . . . . .6

Locating Inputs and Outputs . . . . . . . . . . . . . .7

Connecting the TV . . . . . . . . . . . . . . . . . . . . .9

Connecting Other Equipment . . . . . . . . . . . .13

When Installing the TV Against a Wall or

Enclosed Area . . . . . . . . . . . . . . . . . . . . .14

Securing the TV . . . . . . . . . . . . . . . . . . . . . .15

Running Initial Setup. . . . . . . . . . . . . . . . . . .17

Operating the TV

Using the Remote Control. . . . . . . . . . . . . . . 18

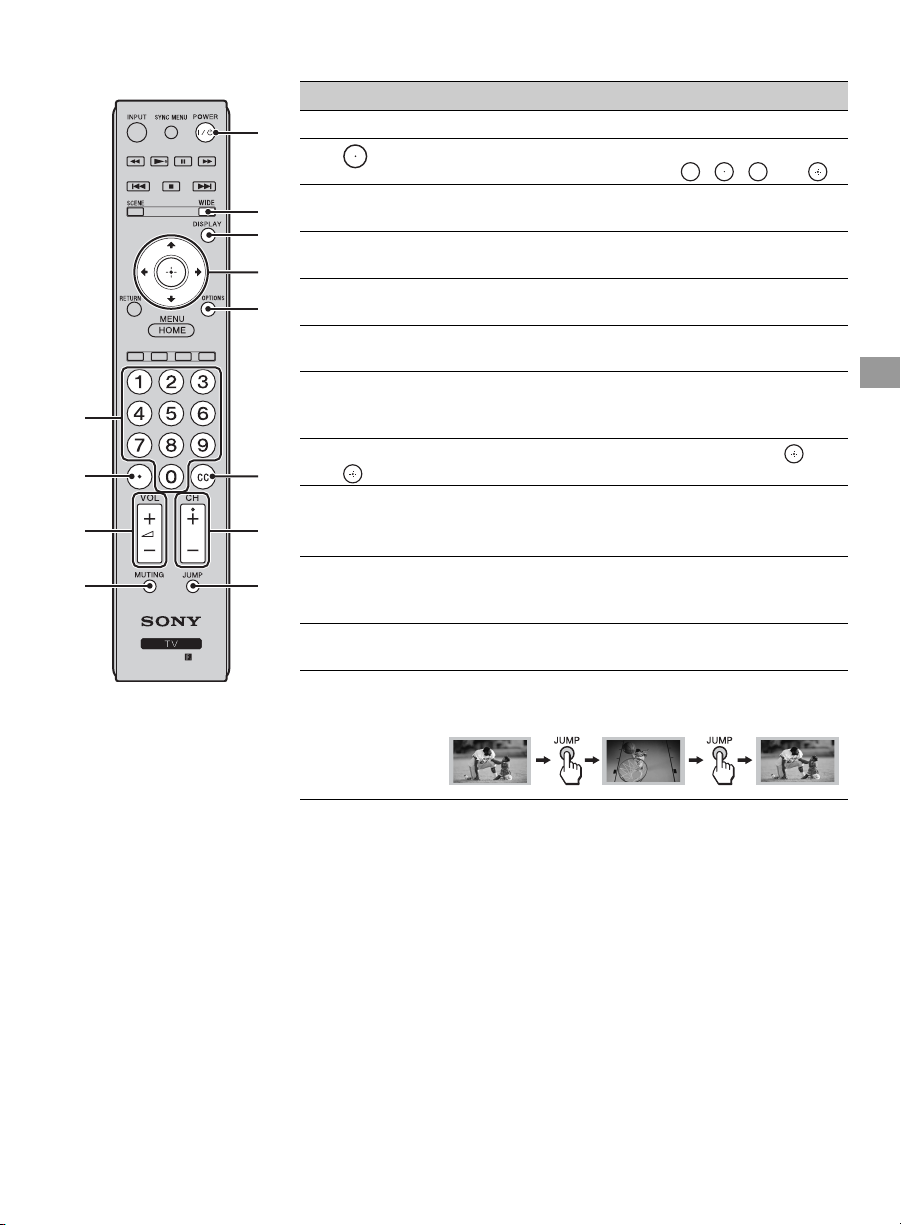

Remote Control Button Description . . . . . . .19

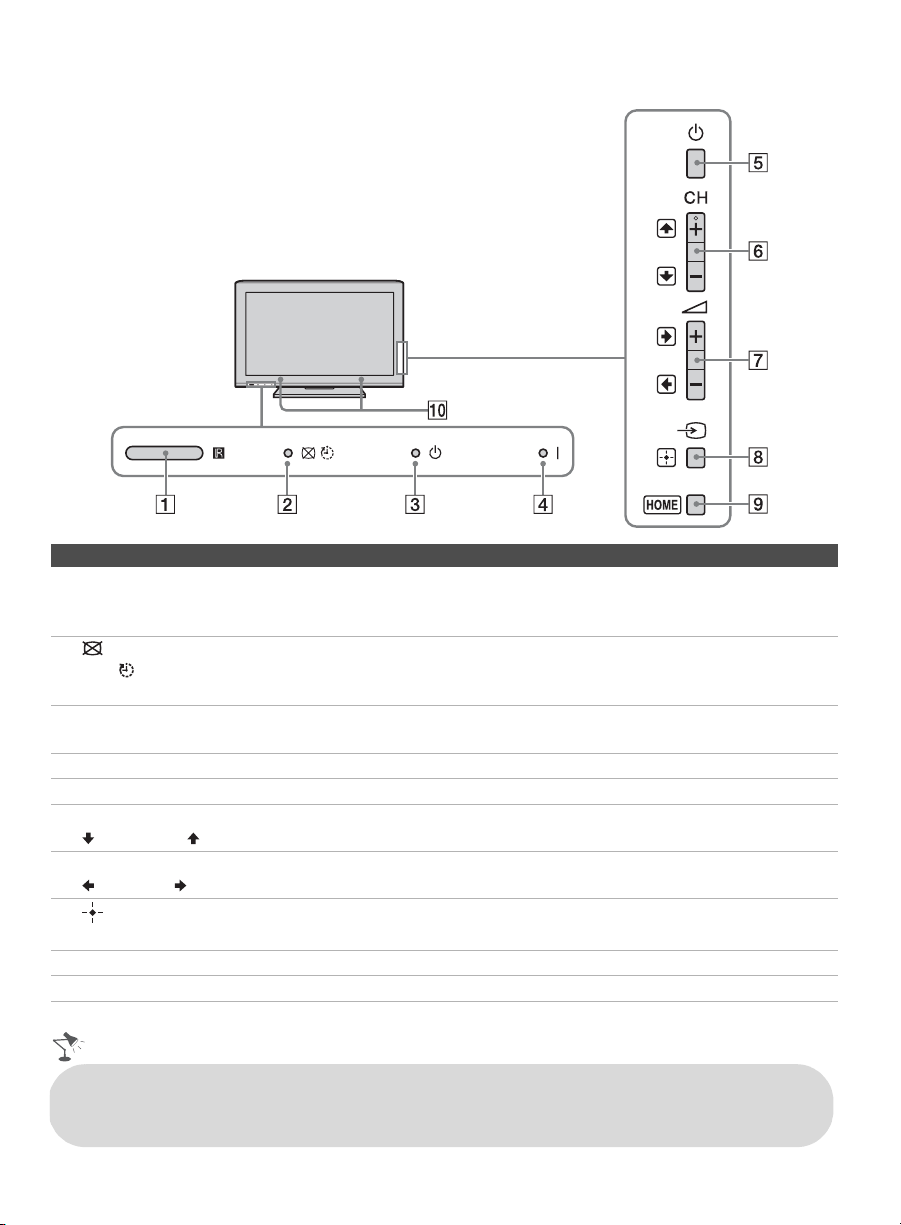

TV Controls and Indicators . . . . . . . . . . . . . .22

Using Features

BRAVIA® SyncTM with Control for HDMI . . . 23

Using PIP Feature. . . . . . . . . . . . . . . . . . . . . 24

Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Wide Mode . . . . . . . . . . . . . . . . . . . . . . . . . .25

Wide Mode with PC . . . . . . . . . . . . . . . . . . .26

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Playing back Photo/Music/

Video via USB . . . . . . . . . . . . . . . . . . . . . 27

Using the Menus

Navigating through TV Menus . . . . . . . . . . .28

Using the Picture Settings. . . . . . . . . . . . . . .29

Using the Sound Settings . . . . . . . . . . . . . . . 31

Using the Screen Settings . . . . . . . . . . . . . .33

Using the Channel Settings . . . . . . . . . . . . .35

Using the Parental Lock Settings . . . . . . . . .36

Using the Setup Settings . . . . . . . . . . . . . . . 39

Using the Eco Settings . . . . . . . . . . . . . . . . .43

Other Information

PC Input Signal Reference Chart for

PC and HDMI IN. . . . . . . . . . . . . . . . . . . . 44

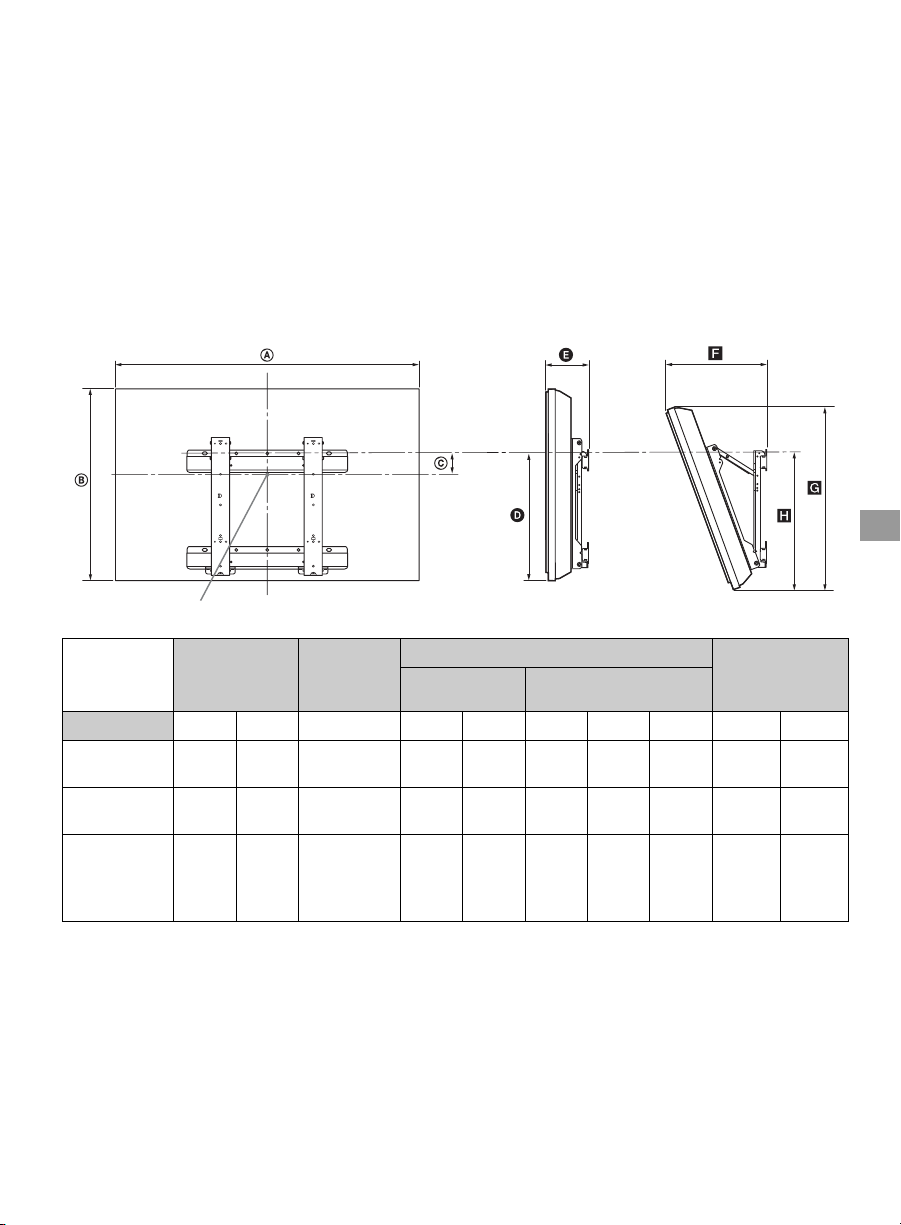

Using a Wall-Mount Bracket . . . . . . . . . . . . .45

Installing the Wall-Mount Bracket . . . . . . . . .46

Troubleshooting . . . . . . . . . . . . . . . . . . . . . .54

Important Notices . . . . . . . . . . . . . . . . . . . . .58

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 59

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Customer Support

United States http://www.sony.com/tvsupport Canada http://www.sony.ca/support

On-line Registration

United States http://productregistration.sony.com Canada http://www.SonyStyle.ca/registration

Introducing Your New BRAVIA

Welcome to the World of BRAVIA

Thank you for choosing this Sony documentation listed below to get the most out of your TV.

Safety Booklet

Contains precautionary measures to keep you and your TV safe. Read this information prior to setting up your TV.

Operating Instructions

Provides the most detailed information to operate your TV.

BRAVIA® high-definition television. Use the

Quick Setup Guide

Provides TV setup information with sample connection diagrams.

Experiencing Stunning HD with Your BRAVIA

The quality of the image you see on your BRAVIA signal it receives. To experience the stunning detail of your new access to HD programming. Your from:

• Over-the-air broadcasting via HD-quality antenna

• HD cable subscription

• HD satellite subscription

• Blu-ray Disc™ player or other HD compatible external equipment

BRAVIA

TV can receive and display HD programming

TV is only as good as the quality of the

BRAVIA

TV, you need

Contact your cable, satellite or HD service provider for information on upgrading to HD programming.

The Four Steps to a Stunning HD Experience

Set, Source, Sound, and Setup

Along with your BRAVIA TV set, a complete HD system requires a source of HD programming, an HD sound system, and a proper connection setup. Refer to the Quick Setup Guide, enclosed separately, for connecting optional equipment.

You can enjoy crisp, clear images, smooth movement, and high-impact visuals from 1080 HD signals as shown here. When you compare a high-definition signal to a standard analog signal, you will notice a big difference in picture quality. If black bars appear as shown here, press WIDE on the remote control to fill the screen.

Introducing Your New BRAVIA

TV Feature Highlights

Yo u r BRAVIA comes with many convenient features, such as:

➢ BRAVIA

equipment supporting the Control for HDMI function (page 23).

➢ Digital Media Accessibility: Use the Photo, Music, and Video icons to

access photo, music, and video files from Sony USB equipment (page 27).

➢ PIP (Picture in Picture): You can work on your PC and watch your favorite TV

program simultaneously (page 24).

➢ Favorites: Your favorite channels and inputs are at your finger tips for easy

access (page 25).

➢ Auto Wide Mode: Set your TV to automatically adjust the screen based on the

signal resolution (page 25).

➢ Input Selection: Allows you to easily switch between the connected equipment

(page 26).

➢ Scene Select: Allows you to easily adjust your TV to the most suitable picture

and sound settings based on the scenes for the best quality result for the contents genre you are watching (page 20).

SyncTM: Allows your BRAVIA TV to communicate with other Sony

Getting Started

Setting Up Your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied screws to complete the task. Look for the attachment instructions provided with the TV. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

KDL-22BX321/KDL-22BX320

• Ensure your TV has adequate ventilation, see page 14.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

Locating Inputs and Outputs

Side PanelRear Panel

VIDEO IN

VIDEO

(MONO)

AUDIO

Item Description

1 AUDIO OUT

L/R

2 DIGITAL AUDIO

OUT (OPTICAL)

3 CABLE/

ANTENNA

4 HDMI IN 1/2/3*2HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-

5 PC IN (RGB) Connects to a personal computer’s video and audio output connector. Can also be

*1Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

HDMI IN 3 is available for KDL-46/40/32BX421, and other models (depending on your region/country).

Connects to the left and right audio input jacks of your analog audio equipment. You can use these outputs to listen to your TV’s audio through your stereo system.

Connects to the optical audio input of digital audio equipment that is PCM/Dolby*1 Digital compatible.

RF input that connects to your Cable or VHF/UHF antenna.

digital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition video, plus digital audio. Be sure to use only an HDMI cable that bears the HDMI logo. Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-HDMI cable or adapter (not supplied). Equipment using a DVI connection also requires an additional audio connection using an audio cable connected to PC/HDMI 1 AUDIO IN of PC IN.

connected to other analog RGB equipment. See “PC Input Signal Reference Chart” on page 44 for the signals that can be displayed. For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). If an adapter is used, connect the adapter to the computer before connecting the HD15-HD15 cable. You may need to adjust the TV settings or your PC’s resolution and timing. See page 12 for information on how to setup your PC to this TV.

Getting Started

(Continued)

Item Description

VIDEO IN 1/ COMPONENT IN/R-AUDIO-L (MONO)

7 VIDEO IN 2

VIDEO/L (MONO)AUDIO-R

8 USB Connects to USB equipment to access photo, music, and video files.

• An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. 1080/24p is available only with HDMI connection.

This input port can be used as a composite video input (VIDEO 1) or as a component video input (COMPONENT). For composite use, connect the yellow jack to Y for video and use audio L (mono) and R for audio signal. For component connection, use Y, P and R for audio signal. This TV can auto detect and switch between the VIDEO 1 and COMPONENT when VIDEO 1 or COMPONENT is connected. To set to auto detection, press HOME, select Settings, and then select the Setup settings. Select the Video1/Component Selection option in AV S e t up then set to Auto.

Connects to the composite video output jack of video equipment. If you have mono equipment, connect its audio output port to the TV’s L (MONO) audio input port.

, PR for video signals and also connect the audio L (mono)

Connecting the TV

Cable System or VHF/UHF Antenna System

You can enjoy high-definition and standard-definition digital programming (if available in your area) along with standard-definition analog programming. This TV is capable of receiving unscrambled digital programming for both cable (QAM and 8VSB) and external VHF/UHF antenna (ATSC).

Cable or VHF/UHF (or VHF only)

75-ohm coaxial cable Rear of TV

CABLE/ANTENNA

• It is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be affected by radio frequency interference, resulting in signal degradation.

Cable System and VHF/UHF Antenna System

Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna programming, as indicated below.

A/B RF Switch

Cable

Antenna

• Be sure to set the Signal Type setting to Cable or Antenna found under the Channel settings

for your input signal (page 35).

Rear of TV

CABLE/ANTENNA

Getting Started

HD Cable Box/HD Satellite Box

You can enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input located on the back of your TV.

Shown with HDMI Connection

CATV/Satellite antenna cable

Rear of TV

HD cable box/ HD satellite box

HDMI cable

Shown with DVI Connection

CATV/Satellite antenna cable

DVI-to-HDMI cable

Rear of TV

HD cable box/ HD satellite box

Audio cable (stereo mini plugs)

Shown with Component Connection

CATV/Satellite antenna cable

Rear of TV

AUDIO-R (red)

AUDIO-L (white)

(red)

(blue)

Y (green)

Component video cable

HD cable box/ HD satellite box

Audio cable

• If your equipment has a DVI output and not an HDMI output, connect the DVI output to the HDMI IN 1 (with DVI-to-HDMI cable or adapter) and connect the audio output to the AUDIO IN of PC IN. For details, see page 7.

Getting Started

Use the TV as a monitor for your PC by connecting an HD15-HD15 cable connection as shown below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the separate Quick Setup Guide.)

Rear of TV

HD15-HD15 cable (analog RGB)

Audio cable (stereo mini plugs)

• Connect the PC IN jack to the PC using an HD15-HD15 cable with ferrite core (analog RGB) and audio cable (page 7).

Connecting Other Equipment

Digital audio equipment (A/V Receiver/Home Theater)

CABLE/ ANTENNA

VCR/Game system/ Camcorder

VIDEO IN VIDEO

(MONO)

AUDIO

Getting Started

Analog audio equipment

Personal computer

Digital recorder

USB

(A/V Receiver/ HomeTheater)

Blu-ray Disc Player/ “PS3”

DVD player

Digital satellite receiver

Digital cable box

Audio system

• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.

When Installing the TV Against a Wall or Enclosed Area

Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).

Installed with stand

4 inches (10 cm)

(30 cm)

inches

4 inches (10 cm)

inches

(6 cm)

Installed on the wall

4 inches (10 cm)

inches

(30 cm)

Leave at least this much space around the set.

Never install the TV set as follows:

Air circulation is blocked.

Wall Wall

• Inadequate ventilation can lead to overheating of the TV and may cause TV damage or cause a fire.

Air circulation is blocked.

4 inches (10 cm)

Leave at least this much space around the set.

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

❑ Secure the TV to a wall and/or stand. ❑ Do not allow children to play or climb on furniture and TV sets. ❑ Avoid placing or hanging items on the TV. ❑ Never install the TV on:

• slippery, unstable and/or uneven surfaces.

• furniture that can easily be used as steps, such as a chest of drawers.

❑ Install the TV where it cannot be pulled, pushed, or knocked over. ❑ Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a TV stand (not supplied).

1 Secure the stand for the TV.

Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:

• attach one side of the angle brace to the wall stud.

• attach the other side to the TV stand.

Getting Started

Angle braces

Stand

(Continued)

2 Secure the TV to the stand.

Use the optional hardware listed below (not supplied):

• M4 × 16 mm machine screw (screwed into the TV’s Table-Top Stand).

• A screw or similar (attach it to the TV stand).

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

M4 × 16 mm machine

screw (not supplied) Screw hole on the Table-Top Stand

Rope of chain (not supplied)

Screw (not supplied)

3 Anchor the TV to the wall.

Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).

Wall-anchor (not supplied)

Anchor bolts (not supplied)

Wall-mount holes

Rope or chain (not supplied)

• Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV model name. For United States call: 1-800-488-7669 or visit: www.sony.com/accessories For Canada call: 1-877-899-7669

• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Running Initial Setup

During initial setup, you will perform the following:

• Set the language for the On Screen Display (OSD) text

• Choose your viewing environment

• Scan for digital and analog channels

Complete your cable connections before beginning the Initial Setup. Refer to the Quick Setup Guide (supplied) for sample connection diagrams.

Initial Setup

ConfirmConfirm

Please select your language:

English

Español

Français

1 Turn on the TV. The Initial Setup screen will

appear.

2 Use the remote control buttons described below to

navigate through the Initial Setup.

Getting Started

V/v/B/b buttons:

Allow you to navigate and highlight options where applicable.

button:

Allows you to select the highlighted option and advance to the next screen.

3 Auto Program will scan for available channels from the signal source directly connected to

the TV’s CABLE/ANTENNA input. Follow the help text provided on the screen to run the Auto Program.

• When prompted to select Retail or Home, be sure to select Home for ENERGY STAR compliant mode.

• Select Cancel to stop or cancel the Auto Program. The Auto Program can be done at later time. To run Auto Program at a later time, press HOME, select Settings, and then select Auto Program under Channel settings.

• Connect either your cable or antenna to the TV (you can connect both using an A-B RF switch (not supplied)); for more details see page 9.

Initial Setup

Please select the type of use for this TV.

"Retail" optimizes the picture for store display.

"Home" optimizes the picture for normal home

use and is Energy Star compliant.

ConfirmConfirm

Retail

Home

RETURN

Back

Operating the TV

Using the Remote Control

To Insert Batteries into the Remote Control

Insert two size AA batteries (supplied) by matching e and E on the batteries to the diagram inside the battery compartment of the remote control.

Push to open

Guidelines to follow

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Remote Control Button Description

Button Description

1 INPUT Press to display the list of External Inputs and TV

2 SYNC

3 Equipment

Control

mode. Press repeatedly to toggle through the inputs. See page 26.

Press to display the BRAVIA Sync Menu and then select connected HDMI equipment from

Device Selection

These buttons are used to control the equipment connected to the TV by using the Control for HDMI function (not available on all Control for HDMI equipment). Some other buttons on the remote control may also operate BRAVIA

m (fast reverse): Press to play a program in fast rewind mode.

N (play): Press to play a program at a normal speed. X (pause): Press to pause playback. M (fast forward): Press to play a program in fast

forward mode.

(go to previous):

program from the previous chapter mark (if any) or from the beginning of the live TV cache.

x (stop): Press to stop playback. >

(go to next):

next chapter mark (if any) or to live TV when playing back a recorded program.

SyncTM equipment.

Press to replay the current

Press to advance forward to the

HDMI

Operating the TV

•The 5, N and CH + buttons have a tactile dot. Use them as a reference when operating the TV.

(Continued)

5 6

Button Description

SCENE

5 RETURN Press to go back to the previous screen or exit from the

6 HOME/

7 Colored

buttons

Optimizes picture and sound quality by selecting the following items.

Cinema

theater.

Sports

in a stadium.


photo.

Music

just like at a concert.

Game

superb picture and sound quality.

Graphics

clearer detailed pictures.

General

any scene.

Auto

quality according to the input source.

screen when displaying menu items and settings.

Press to display the menu with TV functions and settings. See “Using the Menus” on page 28.

When the colored buttons are available, an operation guide appears on the screen.

: Delivers picture and sound just like in a

: Presents realistic pictures and sound just like

: Reproduces the texture and color of a printed

: Lets you experience dynamic and clear sound

: Broadens your game-playing experience with

: Eases prolonged monitor viewing with

: No optimized picture and sound quality for

: Automatically optimizes picture and sound

• When you set automatically set to

Scene Select

Dynamic

Photo, Music, Cinema, Game

Sports, Sound Mode

qd qf

qa ql

Button Description

8 0-9 Press 0-9 to select a channel. 9 Use with 0-9 to select digital channels.

0 VOL (2)

+/–

qa MUTING Press to mute the sound. Press again or press VO L + to

qs POWER

"/1

qd WIDE Press repeatedly to cycle through the available Wide

qf DISPLAY Press once to display the banner with channel/program

qg V/v/B/b Press V/v/B/b to move focus/highlight. Press to

OPTIONS

qj CC Press to cycle through the available settings for

qk CH +/– Press to scan through channels. To scan quickly

ql JUMP Press to jump back and forth between two channels

For example, to enter 2.1, press , , and .

Press to adjust the volume.

restore the sound.

Press to turn on and off the TV.

Mode settings. See page 25.

information you are watching. The banner will time out in a few seconds or press again to exit.

select/confirm an item.

Press to display a list of convenient functions and menu shortcuts. The options menu items vary based on current input and content.

Closed Captions (CC)

Muting

through channels, press and hold down either CH +/–.

and external inputs. The TV alternates between the current/last channel or external input selected.

: On,

2 1

Off

, and

On when

Operating the TV

TV Controls and Indicators

Item Description

1 Light sensor

(IR) Infrared Receiver

2 (Picture

Off)/ (Timer) LED

3 1 (Standby)

LED

4 " (Power) LED Lights up in green when the TV is turned on. 5 1 (Power) Press to turn on and off the TV. 6 – CH + Press to scan through channels. To scan quickly through channels, press and hold down

7 – 2 +

Senses room light level and adjusts the screen brightness accordingly. Do not put anything over the sensor, doing so may affect its function. Receives IR signal from the remote control.

Lights up in orange when the sleep timer/Picture Frame is set. Lights up in green when the Power Saving is set to Picture Off.

Lights up in red when the TV is in standby mode.

either CH –/+. In the menu screen, these buttons serve as up/down buttons.

Press to adjust the volume. In the

screen, these buttons serve as left/right buttons.

t (Input)

9 HOME 0 Speaker Outputs audio signal.

• For more information about setting up the external inputs labels and the Skip feature, see page 40.

•The CH + button has a tactile dot. Use it as a reference when operating the TV.

• Make sure that the TV is completely switched off before unplugging the power cord.

Press to display the list of external inputs. Press repeatedly to toggle through the inputs.

In the menu screen, this button serves as confirming the selection or setting.

Press to display

with TV functions and settings (see “Using the Menus” on page 28).

Using Features

BRAVIA® SyncTM with Control for HDMI

With the Control for HDMI function, BRAVIA Sync helps to communicate with BRAVIA Sync-compatible equipment using

HDMI CEC (Consumer Electronics Control). Use the following settings and tips to help unify control of your connected equipment.

1 Press HOME and select Settings, then

select the Setup settings.

2 Select the HDMI Settings, then highlight

Control for HDMI, and set to On.

Controlling BRAVIA Sync-Compatible Equipment

To control the equipment by using the remote control, press SYNC MENU and select the desired equipment from HDMI Device Selection.

Sync Menu

HDMI 1

HDMI Device Selection

Device Control

Speakers

TV Control

Return to TV

AV Amplifier

• Automatically turns the connected AV amplifier on and switches the sound output from the TV speaker to the audio system when you turn the TV on.

• Automatically switches the sound output to the AV amplifier by turning the AV amplifier on when the TV is turned on.

• Automatically turns the connected AV amplifier off when you switch the TV to standby mode.

• Adjusts the volume (VOL +/-) and mutes the sound (MUTING) of the connected AV amplifier through the TV’s remote control.

Video Camera

• Automatically turns the TV on and switches the input to the connected video camera when the connected video camera is turned on.

• Automatically turns the connected video camera off when you switch the TV to standby mode.

Using Features

BD/DVD Player

• Automatically turns the BRAVIA Sync-

compatible equipment on and switches the input to that equipment when you select it from the Sync Menu.

• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play.

• Automatically turns the connected equipment off when you switch the TV to standby mode.

• Control for HDMI (BRAVIA Sync) is

only available for the connected Sony equipment that has the BRAVIA Sync or is compatible with Control for HDMI.

•The Control for HDMI settings must

be set on both the TV and connected equipment. For settings on the connected equipment, refer to their instruction manuals.

• When specific Sony equipment

compatible with Control for HDMI (BRAVIA Sync) is connected, BRAVIA sync is automatically activated on the equipment.

Using PIP Feature

PIP (picture in picture) displays a picture from a connected PC in full screen, and a TV program or other external input (see below “To Enter PIP” table) in an inset window. (Closed Captions (CC) is not available with PIP mode.)

Sub Window (Location of the

Main Window (PC)

To E n t e r PIP

PIP Supported Inputs

In main window In sub window

PC TV channel

(CABLE/ANTENNA), VIDEO IN 1/2, HDMI IN (video timing)

HDMI IN (PC timing) TV channel

(CABLE/ANTENNA), VIDEO IN 1/2, COMPONENT IN

1 Press OPTIONS while in the PC mode. 2 Select PIP from the OPTIONS menu. 3 The sub window will appear.

Sub Window can be moved by pressing

V/v/B/b.)

To Sw a p Audi o

You can swap audio between the main and sub window.

1 Press OPTIONS. 2 Press V/v to highlight Audio Swap and

press .

3 Press V/v to highlight the window to be

audible, then press .

To Change Channels

You can change the channel of the sub window by pressing number using the

CH +/–

or entering the channel

0-9

numeric buttons.

To Exit from PIP

1 Press OPTIONS. 2 Press V/v to highlight Exit PIP and press

to exit to full PC screen.

Favorites

Your favorite channels and external inputs can be accessed by pressing the HOME button once they are added to the list.

1 Press HOME. 2 Press V/v to select Favorites, then press

Favorites

Add to Favorites

Cable 4.61 ABC

Antenna 12 BBCNEWS

Component 3 DVD

Antenna 24.6 BBO

Cable 34 ESPN HD

Cable 36.1 STAR Ch

HDMI 1 BD

HDMI 3 Recorder

Antenna 52.5 NHKHi

Cable 88.6 NHK BS2

Set

The favorites list appears.

3 Press V/v to select a channel or input, then

press .

Adding to Favorites

While tuned to the channel you want to watch or viewing connected equipment, press HOME and select Favorites to display the list. Highlight Add to Favorites, then press . Your newly added item will be listed at the top of the list. When you continue to add items beyond the 10th item, the item listed at the bottom of the list will be automatically removed from the list.

Wide Mode

The Wide Mode feature allows you to select the screen display of your preference. Based on the original signal source, you may see black bars around the picture or just on the both sides of the screen. Sometimes you will see the picture fill the full screen. This is due to the signals your TV receives.

You can manually select available Wide Mode settings as you watch your TV by pressing the WIDE button on your remote control or you can set your TV to Auto Wide.

To set A u t o W id e

Press HOME and select Settings, then select the Screen settings. Select Auto Wide and set to On.

To change the Wide Screen Mode

Press WIDE repeatedly to cycle through the available modes.

4:3 Original source

Standarddefinition source

Wide Zoom Wide Zoom

Normal Normal

16:9 Original source

High-definition source

This mode is not available.

Using Features

• Favorite channels and external inputs

can also be added using the OPTIONS button on the remote control.

•Your Favorites list will be cleared each time you run the Auto Program.

Full Full

Zoom Zoom

Normal is available with 480i or 480p sources

only.

Wide Mode with PC

Wide Mode is also available for the PC settings. When a PC is connected to the TV and PC input is selected, you can change the PC Screen settings.

Screen PC

PC Settings

Wide Mode

Reset

Auto Adjustment

Phase

Pitch

Horizontal Center

Vertical Center

SetSet

To change the Wide Screen Mode for PC Timing

Press WIDE repeatedly to cycle through the available modes while in the PC input mode.

Incoming PC signal

800 × 600

Normal

Inputs

Press INPUT to display the Input menu and toggle through the external inputs to select your video signal for viewing including the TV mode. The inputs list consists of TV mode and other equipment connected to the TV. You can label your external inputs to identify them easily.

To Label an Input

1 Press HOME and select Settings, then

select the Setup settings. Select the Label Video Inputs option in AV Setup. Press V/v to highlight the video input (HDMI, Video 1-2, Component, PC) to which you want to assign a label;

press to select the input of your choice.

2 Press V/v to highlight one of the

displayed labels that corresponds to your connected equipment, then press .

3 If you have an open input where no

equipment is connected, you can label it as Skip. When you assign Skip, your TV will skip over this input when you press the INPUT button. The Skip labeled input is grayed out in the input list.

Full 1

Full 2

•Use the Auto Adjustment to adjust

the display position and phase of the picture when the TV receives an input signal from the connected PC.

Playing back Photo/Music/Video via USB

You can enjoy photo/music/video files stored in a Sony digital still camera or camcorder through a USB cable or USB storage device on your TV.

1 Connect a supported USB device to the

TV.

2 Press HOME. 3 Press V/v to select Photo, Music, or

Video, then press .

The file or folder list appears.

4 Press V/v/B/b to select a file or folder,

then press . When you select a folder, select a file, then press . Playback starts.

Picture Frame: Allows you to display a photograph on the screen for a selected period of time. After that period, the TV automatically switches itself into standby mode. Playback Options: Allows you to make adjustments for photo, music and video settings.

Photo Playback Auto Start

The TV automatically displays the thumbnail view screen when the TV is turned on and a digital still camera or other device storing photo files is connected to the USB port then turned on (page 39).

Notes when playing back files

• While the TV is accessing the data on the USB device, observe the following: – Do not turn off the TV or connected USB

device. – Do not disconnect the USB cable. – Do not remove the USB device. The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

• USB playback is supported for the following photo file formats: – JPEG (JPEG format files with the

extension “.jpg” and conforming to DCF

2.0 or Exif 2.21)

• USB playback is supported for the following music file format: – MP3 (files with the extension “.mp3” that

have not been copyrighted)

• USB playback is supported for the following video file format: – MPEG1, MPEG2 (files with the extension

“.mpg”)

• Photo Playback Auto Start works only for photo files in the newest digital still camera folder (DCF-compliant, highest-numbered “DCIM” folder).

• Playback may not start automatically when some digital still cameras (such as cameras with internal memory) are connected.

• The file name and folder name support only English.

• When you connect a Sony digital still camera, set the camera’s USB connection mode to “Auto” or “Mass Storage.” For more information about USB connection mode, refer to the instructions supplied with your digital camera.

• Use a USB storage device that is compliant with USB Mass Storage Class standards.

Using Features

Using the Menus

The HOME button allows you to access a variety of TV settings and USB media files.

Navigating through TV Menus

1 Press on the remote control to display the menu

options.

2 Press V/v/B/b to navigate on the menu or adjust the

settings.

3 Press to select or confirm. 4 Press to exit.

Favorites


Music

The Favorites feature provides quick access to your frequently used items, such as preferred TV channels or external inputs (e.g. game console, DVD player). For details, see page 25.

The Photo, Music, and Video icons organize your photo, music, and video files from Sony USB connected equipment. Be sure to select the correct icon when accessing files. Refer to the feature section for more information on these icons.

Video

Settings

The Settings icon contains all of the necessary configurations to customize your TV settings. The options you can select may vary. Unavailable options are grayed out or not displayed.

Picture: adjust the picture on your TV to fit your viewing preference. Sound: customize your sound settings to suit your audio preference. You can

also change the settings to output the sound to your connected audio equipment.

Screen: adjust the size and shape of the images you see on the screen. Channel: navigate your favorite channels and inputs and select the signal type,

as well as autoprogram channels. You can also customize the channels you see and the labels assigned to them. Parental Lock: set the password and limit access to programming based on rating levels. You can also block channels and inputs.

Setup: modify and customize a variety of general setting options. Eco: changes the settings related to power consumption.

Using the Picture Settings

Option Description

Picture Mode

Customized picture viewing

Reset Resets the current Picture settings to their defaults, except Picture Mode. Backlight Adjust to brighten or darken the backlight. Picture Adjust to increase or decrease picture contrast. Brightness Adjust to brighten or darken the picture. Color Adjust to increase or decrease color intensity. Hue Adjust to increase or decrease the green tones. Color

Tem perat u re

White adjustment

Sharpness Adjust to sharpen or soften the picture. Noise Reduction Select to reduce the picture noise level. Select from High, Medium, Low and Off. MPEG Noise

Reduction CineMotion Provides improved picture movement and reduces picture blur and graininess for film-

Displays the options selected in the Scene Select settings (page 20). When Scene Select is set to General, the options below can be selected.

Vivid Select for enhanced picture contrast and sharpness. Standard

Custom Cinema Photo Sports Game-

Standard Game-Original Graphics

Cool Select to give the white colors a bluish tint. Neutral Select to give the white colors a neutral tint. Warm 1/Warm 2Select to give the white colors a reddish tint. Warm 2 gives a redder

Select to reduce the picture noise in MPEG-compressed videos. This is effective when viewing a DVD or digital broadcast. Select from High, Medium, Low and Off.

based content. Select Auto to represent original film-based content as is.

Select for standard picture settings. Recommended for home entertainment.

Select to store your preferred settings. For film-based content. Suitable in a theater-like environment. For standard viewing of photographs. Optimizes picture quality for viewing sports. For standard picture suitable for games.

Adjusts the game picture according to your preference. Optimizes picture quality for viewing graphics.

tint than Warm 1.

Using the Menus

(Continued)

Option Description

Advanced Settings

Reset Resets the advanced settings to the default values. Adv. Contrast

Enhancer

Black Corrector

Gamma Adjusts the balance between bright and dark areas of the picture. Clear White Emphasizes white colors. Select from High, Low and Off. Live Color Makes colors more vivid. Select from High, Medium, Low and

White Balance Adjusts the color temperature in detail.

Automatically adjusts backlight and contrast to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark scenes, and will increase the contrast distinction of the darker picture scenes. Select from High, Medium, Low and Off.

Enhances black areas of the picture for stronger contrast. Select from

High, Medium, Low and Off.

Off.

•Available Picture options, including options in Advanced Settings depend on Scene Select and Picture Mode.

Using the Sound Settings

Option Description

Sound Mode

Customized sound listening

Reset Resets the current Sound settings to their defaults, except MTS Audio, Alternate

Trebl e Adjust to increase or decrease higher-pitched sounds. Bass Adjust to increase or decrease lower-pitched sounds. Equalizer Adjust allows you to select your frequency response curve. Select Reset to reset the

Balance Adjust to emphasize left or right speaker balance. Surround Allows you to select the suitable surround effects depending on the genre of TV

Volume Offset Adjust the volume level of the current input relative to other inputs. Steady Sound Select On to stabilize the volume across all programs and commercials.

MTS Audio

Enjoy stereo, bilingual and mono programs

Sets a sound mode. Sound Mode includes options best suited for video and photographs, respectively. The available options depend on the scene select settings.

Dynamic Enhances treble and bass. Standard Standard sound optimized for home use. Clear Voice Suitable for spoken dialog. Custom Select to store your preferred settings.

Audio and Speakers.

Equalizer settings to the default values. (Available when Sound Mode is set to Custom.)

program (movie, sport, music, etc.) or video game. The available options depend on the scene select setting.

On/Off Select On to optimize the sound quality to enjoy the effects of the

Surround option and to create a virtual surround sound using the 2ch speaker.

Cinema/Off Provides surround effects just like the high-grade audio systems

found in movie theaters.

Music/Off Provides surround effects that make you feel like you are surrounded

by sound as in a music hall.

Sports/Off Provides surround effects that make you feel like you are watching a

live sports contest.

Game/Off Provides surround effects that enhance game sound.

Select Off to disable this function. Stereo Select for stereo reception when viewing a program broadcast in

stereo.

Auto SAP Select to automatically switch the TV to second audio programs

when a signal is received. If no SAP signal is present, the TV remains in Stereo mode.

Mono Select for mono reception. Use to reduce noise during weak stereo

broadcasts.

Using the Menus

(Continued)

Option Description

Alternate Audio

Digital channels only

Speakers TV Speakers Select to use the TV speakers.

Select among the available options to switch among the alternate audio streams. The program you are tuned to may be broadcasted in a different language in the alternate audio streams.

Audio System Select to use an external audio system for the TV sound. By

selecting this option you are disabling the TV speakers.

• MTS Audio is only available for analog programs.

• Alternate Audio is only available if the program is broadcast with alternate audio streams.

• You can also access Sound Mode, MTS Audio and Alternate Audio by using the OPTIONS button on the remote control.

Using the Screen Settings

Option Description

Wide Mode Wide Zoom Fills the screen with minimum distortion.

Normal Full Select to enlarge the picture horizontally to fill the screen when the

Zoom Select to enlarge the original picture without distorting the aspect ratio.

Auto Wide On Select On to automatically change Wide Mode setting based on the

Off If frequent screen changes are disturbing to you, select Off. Choose one

4:3 Default

Select the default Screen Mode to use for 4:3 sources

Auto Display Area

Display Area Full Pixel

Horizontal Center

Vertical Center Allows you to move the position of the picture up and down. (Available in Wide

Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of the

Normal Select to display the 4:3 picture in its original size. Full Zoom

Off Select to continue using the current Wide Mode setting when the

Automatically adjusts the picture to the most appropriate display area.

+1 Normal

-1

Allows you to move the position of the picture left and right. (Available in

Zoom

and

Zoom and Zoom.)

Select to display 4:3 picture in original size when the original source is 4:3.

original source is 4:3 (Standard definition source). When the original source is 16:9 (High-definition source), select this mode to display the 16:9 picture in its original size.

content.

of the Wide Mode options when this function is set to Off.

original image as possible.

Select to enlarge the 4:3 picture horizontally only, to fill the display area.

Select to enlarge the picture horizontally and vertically to an equal aspect ratio that fills the wide screen.

channel or input is changed.

Displays pictures in their original size when parts of the picture are cut off (available depending on the TV model).

Displays pictures in their original size.

Displays pictures in their recommended size.

Enlarges the picture so that the edges are outside the visible display area.

Wide Zoom

Using the Menus

• Normal is not available when you are watching a 720p, 1080i or 1080p source.

• If 4:3 Default is set to anything but Off, the Wide Mode setting changes only for the current channel. When you change channels (or inputs), Wide Mode is automatically replaced with the 4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and inputs are changed, set 4:3 Default to Off.

• 4:3 Default is not available if Auto Wide is set to Off.

(Continued)

Option Description

PC Settings When a PC is connected to the TV and the PC input is selected, the PC settings screen

appears instead of the Screen settings. You can also select the PIP feature which allows you to view two pictures simultaneously from OPTIONS button (page 24).

Wide Mode Normal Select to display in the original image size.

Full 1 Select to enlarge the picture to fill the display area,

keeping its original aspect ratio.

Full 2 Select to enlarge the picture to fill the display area. Reset Resets all PC settings to the default values. Auto

Adjustment

Phase Adjust after Pitch to fine tune overall sharpness. Pitch Adjust uneven sharpness on screen. Horizontal

Center Ver tical

Center

Select to automatically adjust the display position and phase of the

picture when the TV receives an input signal from the connected PC.

Note that Auto Adjustment may not work well with certain input

signals. In such cases, manually adjust the options below.

Allows you to move the position of the picture left and right.

Allows you to move the position of the picture up and down.

• For the PC Input Signal Reference Chart, see page 44.

• Auto Adjustment, Phase and Pitch are not available with PC signal connected to HDMI input.

Using the Channel Settings

Option Description

Favorites Select favorite channels and external inputs (page 25).

Signal Type Cable Select if you are receiving cable channels via Cable TV provider.

Antenna Select if you are using an antenna.

Auto Program Automatically sets up the channel list on the TV for all receivable channels.

1 Select Auto Program. 2 Select OK to start Auto Program.

Add Digital Channels

Show/Hide Channels

Label Channels Allows you to assign labels (such as station call letters) to channel numbers.

Analog Fine Tune

1 Select Add Digital Channels. 2 Select OK to add digital channels.

Allows you to show or hide channels that appear when you use the CH +/– buttons.

1 Press V/v to scroll through the channels until you find the channel you want to

show or hide. Then press to select it.

2 Press V/v to determine if the channel will be shown or hidden. Then press to

select it.

1 Press V/v to scroll through the channel numbers. Then press to select the

channel number that you want to assign a label.

2 Press V/v to scroll through the label characters (A-Z, 0-9, etc.). Press b to move

to the next character. Repeat the previous steps to add up to seven characters to the label. When finished, press .

Allows you to fine-tune the selected analog channel manually if you feel that a slight tuning adjustment may improve picture quality. Select Auto to adjust to the most appropriate analog channel.

Using the Menus

• You should run Auto Program after changing the Signal Type setting.

• Running Auto Program will clear the Favorites list.

• Channels that you set to be hidden can be accessed by the 0-9 and buttons.

• You can set channels to be hidden that are automatically set in Auto Program.

Using the Parental Lock Settings

Option Description

Enter password

Change Password Country U.S.A. Select to use U.S.A. ratings (page 37).

Rating Off Turn Parental Lock off. No programs are blocked from viewing.

Downloadable U.S. Rating

(Available only in U.S.A. where advanced ratings exist)

Unrated

(Available only when Country is set to U.S.A.)

Channel Block Allows you to block channels regardless of program ratings.

External Input Block

The Parental Lock settings allow you to set up the TV to block programs according to their content and rating levels. Use 0-9 on the remote control to enter a four-digit password. The first time you create a password, confirm the password by entering it again.

Select to change your password.

Canada Select to use Canadian ratings (page 38).

Child Maximum ratings permitted are:

U.S.: TV-Y, TV-G, G Canada: C, G, TV-Y

Youth Maximum ratings permitted are:

U.S.: TV-PG, PG Canada: C8+, PG, 8 ans+, TV-PG

Young Adult Maximum ratings permitted are:

U.S.: TV-14, PG-13 Canada: 14+, 13 ans+, TV-14

Custom Select to set ratings manually.

U.S.: See page 37 for details. Canada: See page 38 for details.

Off Tur n Downloadable U.S. Rating off. No programs that contain

downloadable ratings are blocked from viewing.

Custom Select to block programs based on downloadable ratings. Clear All Select to clear the entire downloadable rating system.

Allow Allows programs and movies that are broadcasted without a rating. Block Blocks all programs and movies that are broadcasted without a rating.

To View a Blocked Channel

Press when tuned to the blocked channel then enter the password. Allows you to block external inputs regardless of program ratings.

To View a Blocked External Input

Press when tuned to the blocked input then enter the password.

• You need your password for any future access into the Parental Lock settings. If you lose your

password, see “Lost password” on page 57.

• Selecting Clear All will delete the current Downloadable U.S. Rating menu and the menu will

no longer be available until the TV is tuned to a channel that contains downloadable ratings.

• If you block unrated TV programs, be aware that the following types of programs may be blocked: programs broadcasted from another country, emergency broadcasts, political programs, sports, news, public service announcements, religious programs and weather.

US Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for the U.S., select U.S.A. in the Country setting (page 36).

Option Description

Movie Rating G All children and general audience.

PG Parental guidance suggested. PG-13 Parental guidance for children under 13. R Restricted viewing, parental guidance is suggested for children

under 17.

NC-17 and X No one 17 or under allowed.

TV Rating

Block programs by their rating, content or both

Age-Based Ratings

TV-Y All children. TV-Y7 Directed to children age 7 and older. TV-G General audience. TV-PG Parental guidance suggested. TV-14 Parents strongly cautioned. TV-MA Mature audience only.

Content-Based Ratings

FV Fantasy violence. D Suggestive dialogue. L Strong language. S Sexual situations. V Viole nce.

Using the Menus

• To ensure maximum blocking capability, set the Age-Based Ratings.

(Continued)

Canadian Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for Canada, select Canada in the Country setting (page 36).

Option Description

English Rating C All children.

C8+ Children 8 years and older. G General programming. PG Parental guidance. 14+ Viewers 14 and older. 18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for young children. 13 ans+ Not recommended for ages under 13. 16 ans+ Not recommended for ages under 16. 18 ans+ Programming restricted to adults.

U.S.A. Rating See “US Models” on page 37 for details.

Viewing Blocked Programs

You can view blocked programs by entering your password. Press when tuned to a blocked program, then enter the password. This temporarily deactivates the parental control feature. To reactivate the Parental Lock settings, turn off the TV. When the TV is turned on again, your

Parental Lock settings are reactivated.

Using the Setup Settings

Option Description

USB Auto Start

Closed Captions (CC)

Select On to start photo playback automatically when the TV is turned on and a digital still camera or other device containing photo files is connected to the USB port then turned on.

Allows you to select from several closed caption modes (for programs that are broadcast with closed captioning).

CC Display On Closed Captions (CC) is turned on.

Analog CC Allows you to select basic analog (EIA-608) closed caption options.

Digital CC When the digital closed caption service is available, select from the

Digital CC Options

Off Closed Captions (CC) is turned off. On when

Muting

CC1, CC2, CC3, CC4

Text1, Text2, Text3, Text4

Service 1-6 or CC1-4.

Allows you to make additional settings for digital closed caption options. Select As Broadcast or Custom. The Custom option is available on the Digital CC setting.

Custom Allows you to customize the following settings:

Closed Captions (CC) is turned on when the TV is

muted.

Displays a printed version of the dialogue or sound effects of a program. (Should be set to

Displays network/station information presented using either half or the whole screen (if available).

Character Size

Character Style

Character Color

Character Opacity

Edge Type None, Raised, Depressed, Outline,

Edge Color Color 1-8 Background

Color Background

Opacity

Small, Standard, Large

Style 1-7

Color 1-8

Solid, Translucent

Left Shadow, Right Shadow

Color 1-8

Solid, Translucent

CC1

for most programs.)

Using the Menus

• You can turn on Closed Captions (CC) options (On, Off or On when Muting) by pressing the CC button on the remote control.

(Continued)

Option Description

Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you would like the TV to

remain on before shutting off automatically.

Language Select to display all on-screen settings in your language of choice: English, Español,

Français. Info Banner

AV Setup Label Video

Displays the information related to the input signal you are watching.

Select Small to display minimal channel and program title or select Large to display

detailed channel and program information along with the TV icon if you are viewing the

TV. This information will appear if it is available from the broadcaster.

Info Banner appears on the screen each time the channel and external inputs are changed

or when DISPLAY on the remote control is pressed.

Allows you to identify A/V equipment you connected to the TV, such as

Inputs

a VCR, DVD, etc. For example, if you have a DVD player connected to the COMPONENT IN jack, you can select the label DVD for the Component input. Then when you press INPUT to change inputs, the video label you assigned to that input appears on screen.

1 Press V/v to highlight the video input (HDMI, Video 1-2,

Component, PC) to which you want to assign a label. Then press

to select the input.

2 Press V/v to highlight one of the displayed labels. Then press

to select the label.

Video1/

Component

Selection

Select Auto to have the TV detect and switch between the Video 1 or Component when Video 1 or Component is connected.

• You can assign following labels for each input:

–, Cable, Receiver, Satellite, VCR, DVD/BD, DVR, Audio System, Home Theater, Game, Camcorder, Digital Camera, PC, Edit, Skip (except PC IN) –, Edit, Skip (for PC IN)

•“–” indicates that no labels are assigned.

• If you select Edit, you can edit video labels. Follow the same steps for Label Channels on page

35.

• If you select Skip, your TV skips this input when you press the INPUT button.

• The Skip label is useful for inputs to which no equipment is connected.

Option Description

HDMI Settings

Picture Adjustments Lock

Product Support

Communicates with equipment compatible with the Control for HDMI function. Control for HDMI

Device Auto Power Off

TV Auto Power OnSelect On to control your TV’s power on from your connected

Device List Displays a list of equipment with Control for HDMI function

Device Control Keys

• Press OPTIONS while the equipment supporting Control for HDMI is connected to display the Device Control options. The Device Control option provides access to the Home (Menu), Options and Content List of your connected equipment with your TV remote control.

• Some equipment with Control for HDMI does not support the Device Control feature.

• HDMI Settings must be setup on the connected equipment.

Select Lock so no adjustment can be made to items grayed out. Select Unlock

Contact Sony Sony contact information is available on this screen for your

Signal Diagnostics

Links the operations of the TV and the equipment. For specific Sony equipment compatible with Control for HDMI, this setting is applied automatically to the connected equipment when set to On. Select On to have your connected equipment with Control for HDMI function powering off automatically when the TV is turned off. Select Off to disable this function. This feature is available when Control for HDMI is On.

equipment with Control for HDMI function. Select Off to disable this function. This feature is available when Control for HDMI is On.

connected to the TV. Select button functions of the TV's remote control to operate the connected equipment. None For basic operations, such as navigation buttons (up,

down, left or right, etc).

Tuning Keys For basic operations and operation of channel-related

buttons, such as CH +/– or 0-9, etc. Useful when you control a tuner or set-top box, etc; via the remote control.

Menu Keys For basic operations and operation of the

HOME/OPTIONS buttons. Useful when you select

menus of a BD player, etc; via the remote control.

Tuning and Menu Keys

to allow adjustment to any of the Picture settings.

convenience. TV specific information such as Model Name, Serial Number, Software Version and downloadable ratings (if available from the TV) are displayed here. Press to display the diagnostics information for the current signal.

For basic operations and operation of channel-related buttons and HOME/OPTIONS buttons.

Using the Menus

(Continued)

Option Description

Initial Setup If you missed the Initial Setup when you first connected the TV or if you want to scan all

Start-up Sound

receivable channels, select Initial Setup. Follow the instructions on the screen. Some settings such as Picture, Sound, and Parental Lock will not be affected by this Initial Setup. If you wish to return your TV to factory settings, please see the Troubleshooting section on page 57.

Select On to play sound when the TV is turned on. Select Off to disable it.

• Favorite channel list will be cleared each time you run the Initial Setup.

Using the Eco Settings

Option Description

Reset Resets the current Eco settings to the default values. Power Saving Select from Off, Low, High, Picture Off to adjust your TV’s power consumption. By

Idle TV Standby

Auto Shut Off Select On to automatically power off the TV when no input signal is detected for a certain

Light Sensor

selecting the High option, you will reduce the power consumption more than the other available settings. While Picture Off is set, pressing VO L +/ function. Press other buttons to disable it.

Select to automatically power off the TV after 1h, 2h, or 4h when no buttons are pressed on the remote control or the TV. Select

period of time. Select Off to disable this function. Optimizes the picture settings according to the ambient lighting.

Off

to disable this function.

– or MUTING buttons will not disable this

Using the Menus

Other Information

PC Input Signal Reference Chart for PC and HDMI IN

After connecting the PC to the TV, set the output signal from the PC according to the chart below.

For KDL-32BX321/KDL-32BX320/KDL-22BX321/KDL-22BX320

Resolution

Signals Horizontal

VGA 640 × 480 31.5 60 VGA

SVGA

XGA

WXGA

(Pixel)

800 × 600 37.9 60 VESA Guidelines

1,024 × 768 48.4 60 VESA Guidelines

1,280 × 768 47.4 60 VESA

1,280 × 768 47.8 60 VESA

1,360 × 768 47.7 60 VESA

× Vertical

(Line)

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

For KDL-46BX421/KDL-46BX420/KDL-40BX421/KDL-40BX420/KDL-32BX421/KDL-32BX420

Resolution

Signals Horizontal

VGA 640 × 480 31.5 60 VGA

SVGA

XGA

WXGA

SXGA

HDTV*

(Pixel)

800 × 600 37.9 60 VESA Guidelines

1,024 × 768 48.4 60 VESA Guidelines

1,280 × 768 47.4 60 VESA

1,280 × 768 47.8 60 VESA

1,360 × 768 47.7 60 VESA

1,280 × 1,024 64.0 60 VESA

1,920 × 1,080 67.5 60 CEA-861*

× Vertical

(Line)

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC timing.

This affects Picture settings and Wide Mode settings. To view PC content set Scene Select to Graphics, Wide Mode to Full, and Display Area to Full Pixel.

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC VGA input does not support interlaced signals.

• Your PC must support one of the above PC input signals to display on the television.

• In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC reboot may be necessary.)

Using a Wall-Mount Bracket

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. Some larger size TV may require removing the Table-Top Stand; refer to the instructions provided with the TV. Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that you use the WallMount Bracket designed for your TV and the installation should be performed by a Sony dealer or licensed contractor.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the mounting hooks to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

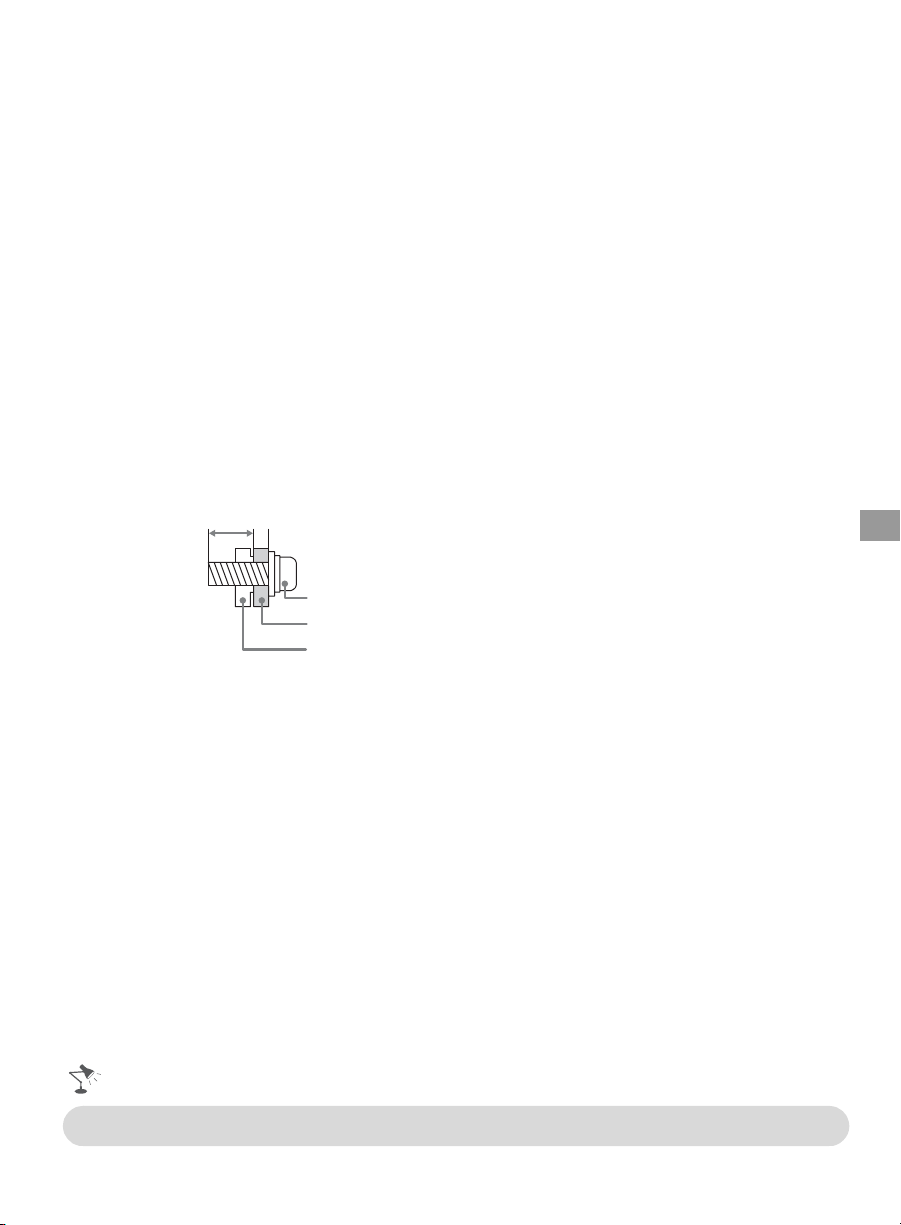

Min. - 26 TV: 6.5-10 mm 32 TV - Max.: 8-12 mm

Screw (supplied with the Wall-Mount Bracket)

Mounting Hook

Hook attachment on rear of TV set

Other Information

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

• Read the supplied Safety Booklet for additional safety information.

Installing the Wall-Mount Bracket

To Customers

Your TV can be wall-mounted using SU-WL500 or SU-WL100 Wall-Mount Bracket (sold separately).

Please provide this installation information as well as the instruction supplied with SU-WL500 or SU-WL100 Wall-Mount Bracket to your installer.

To Sony Dealers and Licensed Contractors

To avoid injury and property damage, read these instructions carefully. Periodic inspection and maintenance is highly recommended to ensure that TV is securely mounted.

Note when installing

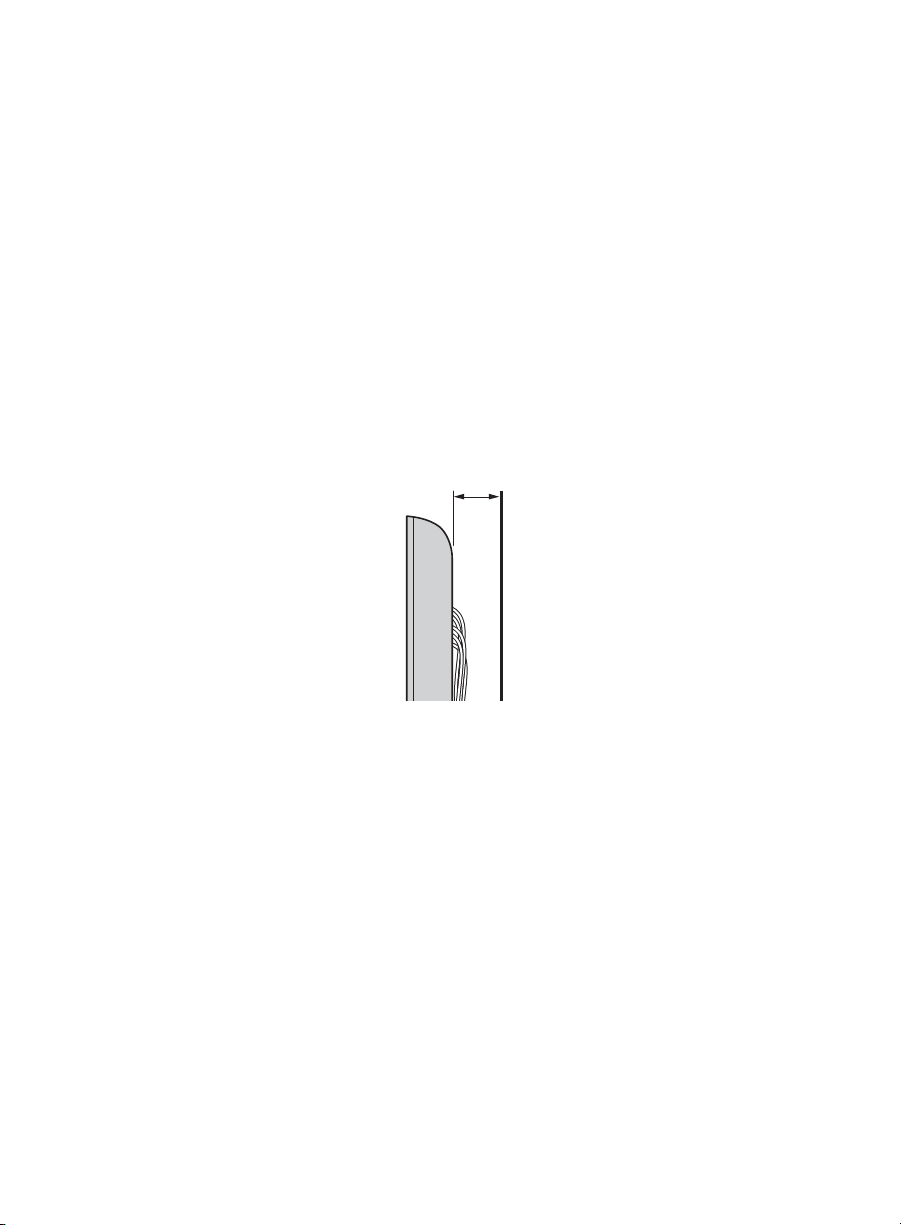

When using the SU-WL500 or SU-WL100 Wall-Mount Bracket, the space between the wall and the TV will be 6 cm (2

/8 inches). Use this space to route cables to the TV.

6 cm (23/8 inches)

For SU-WL500 (except KDL-22BX321/22BX320)

Step 1: Checking the parts required for the installation

Open the Wall-Mount Bracket package and check the contents for all required parts along with the Instructions.

Step 2: Deciding on the installation location

Decide where you want to install your TV. Refer to the TV installation dimensions table.

Refer to the Instructions for SU-WL500.

Dimension Table

Screen center point

Other Information

Unit: mm (inches)

TV Model AB C DEFGH

KDL-46BX421 KDL-46BX420

KDL-40BX421 KDL-40BX420

KDL-32BX421 KDL-32BX420 KDL-32BX321 KDL-32BX320

TV Dimensions

1,120

(44

988

(39)

800

(31

674

/8)

(26 5/8)

600

(23

496

/2)

(19 5/8)

Screen center dimensions

/8)

(3 3/8)

122

(4 7/8)

172

(6 7/8)

Length for each mounting angle Weight

Angle (0°) Angle (20°)

425

(16 3/4)

426

(16 7/8)

426

(16 7/8)

145

(5 3/4)

146

(5 3/4)

146

(5 3/4)

354

(14)

330

(13)

294

(11 5/8)

638

(25 1/8)

569

(22 1/2)

471

(18 5/8)

457

(18)

458

(18 1/8)

458

(18 1/8)

17.7 kg

(39.0 lb.)

13.6 kg

(30.0 lb.)

9.1 kg

(20.1 lb.)

×4

70.8 kg

(156.0 lb.)

54.4 kg

(119.9 lb.)

36.4 kg

(80.2 lb.)

Figures in the above table may differ slightly depending on the installation.

CAUTION

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. Refer to your TV’s operating instructions for its weight.

(Continued)

Step 3: Installing the Base Bracket on the wall

Refer to the Instructions for SU-WL500.

Step 4: Preparing the TV for wall mount installation

Follow the steps below to prepare for installing the TV.

1 Disconnect all the cables from the TV. 2 Secure the Mounting Hook to the rear of the TV.

Determine the screw locations and secure the Mounting Hooks to the rear of the TV. Refer to the “Screw and Hook Locations Diagram/Table” shown below. 1 Secure the Mounting Hooks to the rear of the TV using only the supplied screws

(M6 × 16).

2 Be sure to tighten the screws with equal torque strength.

Square hole

Mounting Hook

Screw (M6 ×

16) Square hole

Tab

Align the tab on the rear of the Mounting Hook with the square hole on the rear of the TV as illustrated.

Screw and Hook Locations Diagram/Table

TV Model Screw location Hook location

KDL-46BX421/KDL-46BX420/ KDL-40BX421/KDL-40BX420

KDL-32BX421/KDL-32BX420/ KDL-32BX321/KDL-32BX320

d, g b

e, g c

Screw location

When installing the Mounting Hooks on the TV.

Hook location

When installing the TV onto Base Bracket.

Wall

3 Adjust the angle of the Mounting Hook.

Refer to the Instructions for SU-WL500.

4 Remove the screws guided by the arrow marks of the TV.

Do not remove any other screws from the TV.

Other Information

(Continued)

5 Lift the TV off the Table-Top Stand. Make sure that you carry out this task with at least two or

three people (see page 6 for details).

Do not attempt to lift the TV by yourself.

Step 5: Installing the TV on the wall

Refer to the Instructions for SU-WL500.

• When you put the TV back on the Table-Top Stand, reverse the above steps.

• When moving the TV, do not squeeze the bottom of the front panel too tight.

• Remove the screws or install the Mounting Hook on a stable and level surface.

For SU-WL100 (KDL-22BX321/22BX320 only)

Step 1: Checking the parts required for the installation

Open the Wall-Mount Bracket package and check the contents for all required parts along with the Instructions.

Step 2: Adjusting the position of the holders of the Base Plate

Refer to the Instructions for SU-WL100.

Step 3: Deciding on the installation location

Decide where you want to install your TV. Refer to the TV installation dimensions table.

Refer to the Instructions for SU-WL100.

Dimension Table

Other Information

Screen center point

Unit: mm (inches)

TV Model AB C DEFGH

KDL-22BX321 KDL-22BX320

TV Dimensions

551

(21

363

/4)

(14

Screen center dimensions

/8)

107

Length for each mounting angle Weight

Angle (0°) Angle (20°)

/4)

302

(12)

122

212

/8)

338

/8)

(13

/8)

(11

295

5.6 kg

/8)

12.4 lb.

(

)

×4

22.4 kg

(

49.4 lb.

Figures in the above table may differ slightly depending on the installation.

CAUTION

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.

Step 4: Installing the Base Plate on the wall

Refer to the Instructions for SU-WL100.

(Continued)

)

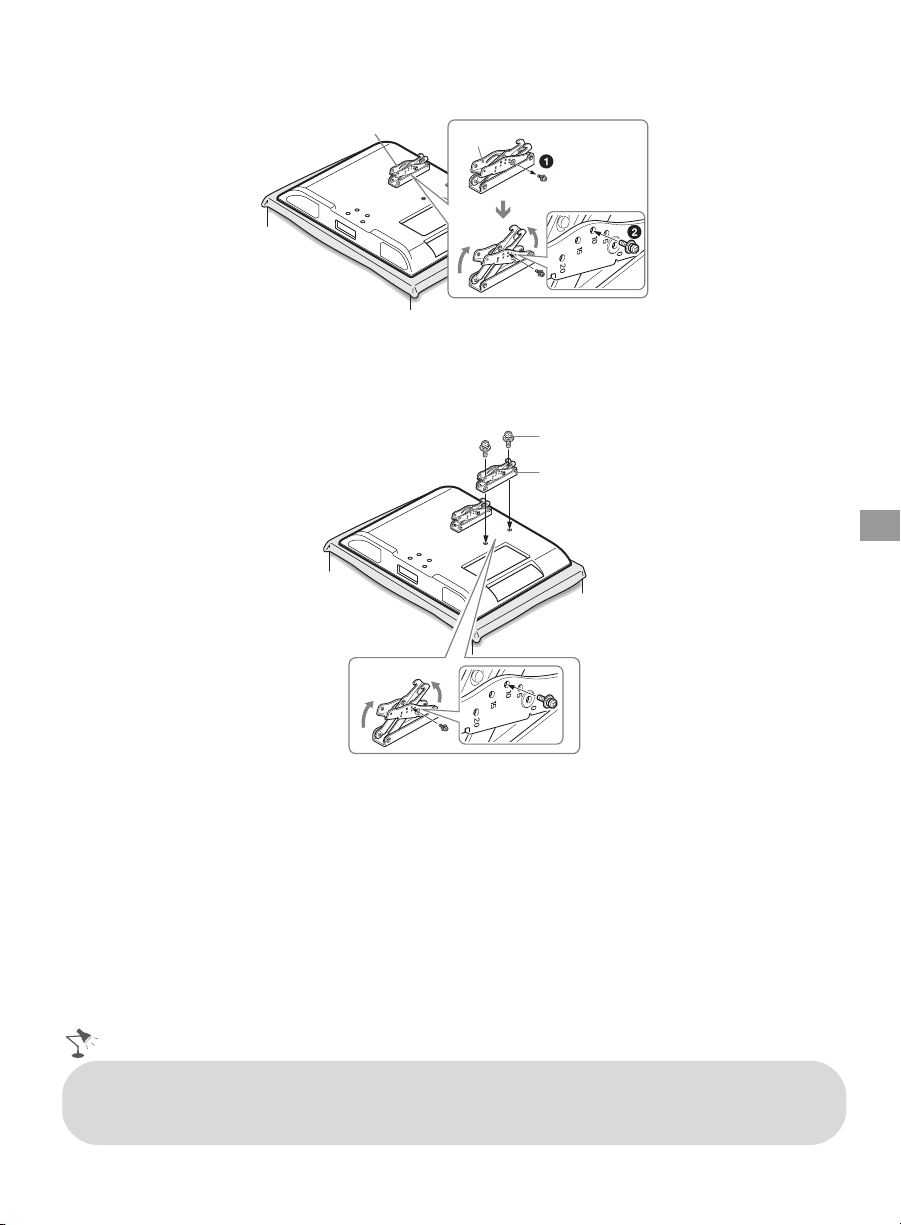

Step 5: Preparing the TV for wall mount installation

Follow the steps below to prepare for installing the TV.

1 Disconnect all the cables from the TV. 2 Align the holes on the left Mounting Hook with the corresponding holes on the rear of the TV.

Secure them to the TV using two screws (supplied with SU-WL100).

Screw (+PSW 4 × 12)

Mounting Hook

Hook locations diagram

Install the TV onto the location “b” of the Base Plate.

3 Adjust the angle of the Mounting Hook.

Mounting Hook

Arm

4 Align the holes on the right Mounting Hook with the corresponding holes on the rear of the

TV.

Secure them to the TV using two screws (supplied with SU-WL100).

Screw (+PSW 4 × 12)

Mounting Hook

Other Information

Step 6: Installing the TV on the Base Plate

Refer to the Instructions for SU-WL100.

1 Connect the cables to the corresponding inputs on the rear of the TV.

For details on the cable connection, see “Connecting Other Equipment” on page 13.

2 Install the TV onto the Base Plate.

• When using an electric screwdriver to tighten the screws, the torque must be approximately

1.5 N·m {15 kgf·cm}. Do not lift the Mounting Hook before the screws (two screws each for left /right) are secured.

Troubleshooting

Many of the poor pictures and poor sound conditions are related to improper connection of the cables; refer to the Quick Setup Guide provided for connections.

If you have questions, service needs, or require technical assistance related to the use of your Sony TV even after you read this operating instructions manual, contact the following:

For US Support:

http://www.sony.com/tvsupport

For Canadian Support:

http://www.sony.ca/support

Things to consider

• Check the input selection by pressing the INPUT button. You may be watching the wrong input.

• If you cannot hear sound from the TV, you may have accidentally pressed the MUTING button on your remote control; press the MUTING button again or press VOL + to deactivate muting.

• If the remote control is not functioning properly, the batteries may be installed incorrectly or may be low or an object or light may be interfering with the remote control.

• To reset the TV to factory default settings:

1 Turn on the TV. 2 Press and hold down the V button on the remote, press the 1 button on the TV set. (The TV will turn

itself off, then back on again.)

3 Release the V button when the TV is turn on.

IMPORTANT: The factory reset will clear all of your customized settings including the Parental Lock setting.

When the Password is lost or cannot remember, enter the master password: 4357. This password clears your previous password and allows you to enter a new password.

Condition Explanation/Solution

No picture

No picture • Check the Power Saving settings (see page 43). Cannot receive any

channels

TV is locked to one channel • Perform Auto Program to add receivable channels that are not present

Cannot receive or select channels

The TV turns off automatically

No picture from some video sources

or call 1-800-222-SONY (7669)

or call 1-877-899-SONY (7669)

• Make sure the power cord is connected securely.

• Turn on the power of the TV.

• Check cable/antenna connections.

• Make sure the Signal Type setting is correct for your TV signal source.

in the TV’s memory (see pages 17 and 35).

• Perform Auto Program to add receivable channels that are not present

in the TV’s memory (see pages 17 and 35).

• To receive or select cable channels, make sure that Signal Type in the Channel settings is set to Cable (see page 35). To receive or select UHF channels over an antenna, make sure Signal Type is set to Antenna.

•Check if Sleep Timer is activated (see page 40).

•Check Idle TV Standby in the Eco settings.

• Check the connection between the optional video equipment and the TV.

•Press INPUT on the remote control (see page 26).

Condition Explanation/Solution

Poor picture

Picture quality not as good as viewed at the store

Broadcast HD formats have poor quality

Double images or ghosts • Check cable/antenna connections.

Only snow and noise appear on the screen

Dotted lines or stripes • Keep the TV away from noise sources such as cars, motorcycles, or hair-

No color / Dark picture / Color is not correct / The picture is too bright

Noisy picture • Make sure that the antenna is connected using a 75-ohm coaxial cable

Blurry picture / Poor color • Transporting the TV from a cold to a warm location or a sudden change

• Picture quality depends on the signal content. See Quick Setup Guide

(supplied) to display the best possible picture for that signal.

• Content and signal quality are controls by the signal provider. Many HD

channels and content are actually upscaled versions of standarddefinition broadcasts. The picture is affected by the quality of the signal received, which varies between channel and program.

• Check the antenna location and direction.

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life. (3-5 years

in normal use, 1-2 years at the seaside.)

dryers.

• If using 300 ohm twin lead, move the excess lead away from the TV or

try using 75-ohm coaxial cable instead.

•Adjust the Picture Mode options in the Picture settings (see page 29).

• If you set the Power Saving mode to Low or High, it will enhance the

black level.

(not supplied).

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

in room temperature may cause moisture condensation, resulting in a blurry picture or poor color. Turn off your TV and wait a few hours before powering on again.

No sound / Noisy sound

No sound but good picture • Check the volume control.

Audio noise • Make sure that the antenna is connected using a 75-ohm coaxial cable

No audio or low audio with Home Theater System

No color / Irregular picture • Verify that the Video1/Component Selection (see page 40) is set to

•Press

MUTING

page 21).

•Set Speakers to TV Speakers in the Sound settings (see page 32). If

it is set to Audio System, sound is not output from the TV’s speakers regardless of the TV’s volume control.

• When using HDMI input with Super Audio CD or DVD-Audio,

DIGITAL AUDIO OUT (OPTICAL) may not provide an audio signal.

• When tuned to a digital channel with Alternate Audio, the broadcaster

may not be broadcasting your preferred Alternate Audio language. Press OPTIONS, highlight and select Alternate Audio, and change the Alternate Audio language (see page 32).

(not supplied).

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

•Set Speakers to Audio System in the Sound settings (see page 32).

the current input type in use. We suggest leaving this setting to Auto.

VOL +

so that “Muting” disappears from the screen (see

Other Information

(Continued)

Condition Explanation/Solution

BRAVIA Sync

Cannot find connected BRAVIA Sync HDMI device

Second A/V receiver is not listed on the Device List

• Make sure that the Control for HDMI is set up on both the TV and the optional device compatible with BRAVIA Sync (see page 23).

• Only one A/V receiver may be used with the BRAVIA Sync and Control for HDMI functions at one time (see page 41).

PC Input

No picture / No signal • Confirm the PC is correctly connected to the TV with either the PC IN

Poor Picture • Adjust the resolution (see page 44).

(with an HD15 cable) or with the HDMI IN.

• Ensure the output signal from the PC is one of the formats listed on page

44.

• Turn the PC off. Confirm the PC connection and restart the PC. Plug-andplay will auto-detect the TV and correctly set up PC timing.

• Verify the PC is not in standby or hibernation mode.

• Adjust Pitch and Phase.

General

TV screen feels warm • Due to the thin profile of this television, the heat generated by the LCD

Wide Mode changes automatically

Suddenly the picture gets smaller

“Black box” on screen • You have selected a text option and no text is available (see page 39). To

panel backlight and supporting electronics will be more noticeable. This is normal operation and not a cause for concern.

•The current Wide Mode setting is automatically replaced with the 4:3

Default setting when you change the channel or video input, if 4:3 Default in the Screen settings is set to other than Off. If you want to lock in Wide Mode selected with WIDE on the remote control, set 4:3 Default to Off in the Screen settings (see page 33).

•Check the Auto Wide option in the Screen settings (see page 33).

• The picture gets smaller during the commercials due to the method in which the provider broadcasts their content. When HD content channels switch to SD content (commercials), the picture may be small with a black border.

• Auto Wide will not expand the picture during these content changes since the content information is regulated by the channel signal provider. You can manually change the Wide Mode if you prefer (see page 25). This setting will remain in effect until you change the channel or input or manually change the Wide Mode again.

turn off this feature, set the CC Display option to Off. If you were trying to select closed captioning, select CC1 instead of Text1-4.

Condition Explanation/Solution

Black bands appear at the edges of the screen

Certain programs on DVD or other digital sources display a loss of detail, especially during fastmotion or dark scenes

Remote control does not operate

Some digital cable channels are not being displayed

Some photo, music, or video files are not displaying from my USB equipment

Photo images appear small in the screen

Photo images or folders take time to display

Lost password • Select the Password settings on the Parental Lock settings, then enter

How to reset the TV to factory settings

• Some wide screen programs are filmed in aspect ratios that are greater

than 16:9 (this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and bottom of the screen. For more details, check the documentation that came with your DVD/Blu-ray (or contact your program provider).

• Programs in 4:3 aspect ratio will have bands on left and right sides of the

screen.

• Programs broadcast in HD formats (720p and 1080i) with 4:3 content

will commonly have black bands on the left and right sides of the screen which are added by the broadcaster (see image on left).

• Auto Wide will not expand the picture when the black bands on the

sides of the screen are added by the broadcaster. You can manually change the Wide Mode to Wide Zoom, or Zoom to fill the screen, which will remain in affect until you change the channel or input or manually change the Wide Mode again.

• This is due to the digital compression of the source content used by

certain digital broadcasts and DVDs which may cause your TV’s screen to display less detail than usual, or cause artifacts (small blocks or dots, pixelations) to appear on your screen. These signal compressions are more visible and are dependent on the clarity and resolution of the TV.

• To determine if the problem is with the remote control or not, press a

button on the TV.

• Check the polarity of the batteries or replace the batteries.

• Point the remote control at the remote control sensor located at the front of

the TV.

• Keep the remote control sensor area clear from obstacles.

• Fluorescent lamps can interfere with your remote control operation; try

turning off the fluorescent lamps.

• Certain cable companies have limitations on the broadcast of digital

cable channels. Check with your cable company for more information.

• The digital cable channel may be set to Hidden in the Show/Hide

Channels setting (see page 35).

• The accessible file or folder limit in a directory is 1,000 for USB

connected equipment. This limit includes non-supported files or just folders. Files or folders are populated based on their time stamps. Photo, music files or folders exceeding the limit will not be displayed.

• Set display size to expanded.

• Whether or not photo images can or cannot be displayed in full-screen

depends on the resolution or aspect ratio of the file.

• Depending on the image dimension, file size, and number of files in a

folder, some photo images or folders take time to display.

• The first time a camera is connected to the TV via USB cable, it may take

up to a couple of minutes for the photos to display.

the following master password: 4357. This password clears your previous password and allows you to enter a new password (see page 36).

• Turn on the TV. While holding down V on the remote control, press 1 on

the TV. (The TV will turn itself off, then back on again.) Release V. IMPORTANT: The reset will clear all of your customized settings including the Parental Lock setting.

Other Information

Important Notices

Declaration of Conformity

Trade Name: SONY Model: KDL-46BX421/KDL-46BX420/ KDL-40BX421/KDL-40BX420/KDL-32BX421/ KDL-32BX420/KDL-32BX321/KDL-32BX320/ KDL-22BX321/KDL-22BX320 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For Customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

FCC Related Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and

receiver.

❑ Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

❑ Consult the dealer or an experienced radio/TV

technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

Compatible Wall-Mount Bracket Information

Use the following Sony Wall-Mount Bracket with your TV model.

Sony TV Model No.

KDL-46BX421/ KDL-46BX420/

KDL-22BX321/

KDL-22BX320 KDL-40BX421/ KDL-40BX420/ KDL-32BX421/ KDL-32BX420/ KDL-32BX321/

KDL-32BX320

Sony Wall-Mount Bracket Model No.

Use with other Wall-Mount Brackets may cause instability and could result in property damages or injury.

SU-WL500 SU-WL100

Note

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

For Customers in the United States

The lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org).

To Customers

Sufficient expertise is required for TV installations. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation.

Specifications

System

Television system NTSC: American TV standard

Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69

Panel system LCD (Liquid Crystal Display) Panel

Speaker output (except KDL-22BX321/BX320)

Speaker output (KDL-22BX321/BX320 only)

Input/Output jacks

CABLE/ANTENNA 75-ohm external terminal for RF inputs VIDEO IN 1/2 VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative

COMPONENT IN YP

HDMI IN HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p

AUDIO OUT 500 mVrms (typical) DIGITAL AUDIO OUT

(OPTICAL) PC IN D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

PC/HDMI IN 1 AUDIO INPUT Stereo mini jack, 500 mVrms, (Typical) / Impedance: 47 kilohms

ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Analog Cable: 1 - 135 / Digital Cable: 1 - 135

8 W + 8 W

5 W + 5 W

AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms

BPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p

P AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms

Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital

PC Input (see page 44)

PCM/Dolby Digital optical signal

See the PC Input Signal Reference Chart for PC and HDMI IN on page 44.

Other Information

Model name KDL- 46BX421

46BX420

40BX421 40BX420

32BX421 32BX420

Power and others

Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada/Mexico 120 V AC, 60 Hz)

Power consumption

in use in standby Less than 0.25 W with 120 V AC and with 240 V AC less than 0.35 W

Screen size (inches measured diagonally)

Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)

Speaker/Full range (2) (mm)

Dimensions with stand (mm)

wall-mount hole pattern (mm) wall-mount screw size (mm) M6 (length: refer to diagram on page 45)

Mass with stand (kg)

Supplied accessories Remote control RM-YD065 (1)/Size AA batteries (2)/Operating Instructions (1)/Quick Setup Guide

common to all models

individual models Screw (7)

Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket: SU-WL500

(inches)

without stand (mm)

without stand (kg)

(inches)

(lb.)

(1)/Warranty Card (1)/Safety and Regulatory Booklet (1)/Software License (1)/Stand installation guide (1)/Table-Top Stand (1 set)

210 W 180 W 115 W

46 40

40 × 100

/8 × 4)

1,120 × 707 × 294

/8 × 27 7/8 × 11 5/8

1,120 × 674 × 97

/8 × 26 5/8 × 3 7/8

20.1

44.3

17.7

39.0

300 × 300 200 × 200

988 × 632 × 250

39 × 25 × 9

988 × 600 × 94

/8 × 3 3/4

39 × 23

15.7

34.6

13.6

30.0

31.5

(32 class)

800 × 528 × 220

/2 × 20 7/8 × 8 3/4

800 × 496 × 91

/2 × 19 5/8 × 3 5/8

10.7

23.6

9.1

20.1

(Continued)

Model name KDL- 32BX321

32BX320

22BX321 22BX320

Power and others

Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada/Mexico 120 V AC, 60 Hz) Power consumption

in use in standby Less than 0.25 W with 120 V AC and with 240 V

Screen size (inches measured diagonally)

Display resolution 1,388 dots (horizontal) × 768 lines (vertical) Speaker/Full range (2) (mm)

Dimensions with stand (mm)

wall-mount hole pattern (mm) wall-mount screw size (mm) M6 (length: refer to diagram on page 45) M4 (length: refer to diagram on page 45)

Mass with stand (kg)

Supplied accessories Remote control RM-YD065 (1)/Size AA batteries (2)/Operating Instructions (1)/Quick Setup Guide

common to all models

individual models Screw (7)

Optional a ccess ories Connecting cables / Support Belt Kit / Wall-Mount Bracket: SU-WL100 (KDL-22BX321/BX320 only),

(inches)

without stand (mm)

without stand (kg)

(inches)

AC less than 0.35 W

(lb.)

(1)/Warranty Card (1)/Safety and Regulatory Booklet (1)/Software License (1)/Stand installation guide (1)/Table-Top Stand (1 set)

SU-WL500 (except KDL-22BX321/22BX320)

115 W 55 W

Less than 0.28 W with 120 V AC and with 240 V

31.5

(32 class)

40 × 100

/8 × 4)

800 × 528 × 220

31 1/2 × 20 7/8 × 8 3/4

800 × 496 × 91

/2 × 19 5/8 × 3 5/8

200 × 200 100 × 100

10.7

23.6

9.1

20.1

AC less than 0.40 W

22BX321: 551 × 393 × 190

22BX320: 551 × 393 × 215

/4 × 15 1/2 × 7 1/2

/4 × 15 1/2 × 8 1/2

551 × 363 × 61

/4 × 14 3/8 × 2 1/2

6.2

13.7

5.6

12.4

• Optional accessories availability depends on its stock.

• Design and specifications are subject to change without notice.

Index

0-9 buttons 21 4:3 Default 33

Add Digital Channels 35 Advanced Settings 30 Alternate Audio 32 Analog Fine Tune 35 AUDIO OUT 7 Auto Display Area 33 Auto Program 17, 35 Auto Shut Off 43 Auto Wide 33 AV Setup 40

Backlight 29 Balance 31 Bass 31 Brightness 29

CABLE/ANTENNA 7 CC button 21 CH +/– button 21, 22 Change Password 36 Channel Block 36 CineMotion 29 Closed Captions (CC) 39 Color 29 Color Temperature 29 Colored buttons 20 COMPONENT IN 8 Country 36

DIGITAL AUDIO OUT (OPTICAL)

Display Area 33 DISPLAY button 21 Downloadable U.S. Rating 36

English Rating 38 Enter password 36 Equalizer 31 Equipment Control button 19 External Input Block 36

Favorites 35 French Rating 38

HDMI IN 7 HDMI Settings 41 HOME/MENU button 20, 22 Horizontal Center 33, 34 Hue 29

Idle TV Standby 43 Info Banner 40 Infrared Receiver (IR) 22 Initial Setup 42 INPUT button 19, 22 Installing the TV on a wall 45, 46

JUMP button 21

Label Channels 35 Language 40 Light sensor 22, 43

Movie Rating 37 MPEG Noise Reduction 29 MTS Audio 31 Music 27 MUTING button 21

Noise Reduction 29

OPTIONS 21

PC IN 7 PC Settings 34 Photo 27 Picture 29 Picture Adjustments Lock 41 Picture Frame 27 Picture Mode 29 Picture Off ( ) LED 22 PIP 24 Power (1) button 22 POWER ("/1) button 21 POWER (") LED 22 Power Saving 43 Product Support 41

Rating 36 Reset 29, 31, 43, 57 RETURN button 20

SCENE button 20 Settings

Channel Eco 43 Parental Lock 36 Picture 29 Screen 33 Setup 39

Sound 31 Sharpness 29 Show/Hide Channels 35 Signal Type 35 Sleep Timer 40 Sound Mode 31 Speaker 22 Speakers 32 Standby (1) LED 22 Start-up Sound 42 Steady Sound 31 Surround 31 SYNC MENU button 19

Timer ( ) LED 22 Treble 31 Troubleshooting 54–57 TV Rating 37

U.S.A. Rating 38 Unrated 36 USB 8 USB Auto Start 39

Vertical Center 33, 34 Video 27 VIDEO/AUDIO (L/R) 8 Viewing Blocked Programs 38 VOL (2) +/– button 21, 22 Volume Offset 31

WIDE button 21 Wide Mode 33, 34

Other Information

4-270-476-11(3)

For Your Convenience

Online Registration:

Be sure to register your TV.

United States Canada

http://productregistration.sony.com http://www.SonyStyle.ca/registration

4-270-476-11(3)

LCD Digital Color TV

Operating Instructions

Introducing Your New BRAVIA

Getting Started

Operating the TV

Using Features

Using the Menus

Other Information

Sony Customer Support

U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support

United States

1.800.222.SONY

Canada

1.877.899.SONY

Please Do Not Return the Product to the Store

KDL-46BX421 / 46BX420 / 40BX421 / 40BX420 / 32BX421 / 32BX420 / 32BX321 / 32BX320 KDL-22BX321 / 22BX320

Sony 32BX321, 40BX420, 46BX420, KDL-22BX321, 40BX421 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Experiencing Stunning HD with Your BRAVIA

The Four Steps to a Stunning HD Experience

TV Feature Highlights

Getting Started

Setting Up Your TV

Locating Inputs and Outputs

Connecting the TV

Connecting Other Equipment

When Installing the TV Against a Wall or Enclosed Area

Securing the TV

Running Initial Setup

Operating the TV

Using the Remote Control

Remote Control Button Description

TV Controls and Indicators

Using Features

BRAVIA® SyncTM with Control for HDMI

Using PIP Feature

Favorites

Wide Mode

Wide Mode with PC

Inputs

Playing back Photo/Music/Video via USB

Using the Menus

Navigating through TV Menus

Using the Picture Settings

Using the Sound Settings

Using the Screen Settings

Using the Channel Settings

Using the Parental Lock Settings

Using the Setup Settings

Using the Eco Settings

Other Information

PC Input Signal Reference Chart for PC and HDMI IN

Using a Wall-Mount Bracket

Installing the Wall-Mount Bracket

Troubleshooting

Important Notices

Specifications

Index
