Install the SBC chassis in a four-post rack or cabinet
Installation Hardware Key
A
AAB
B, C
C
Unpack the chassis and verify the contents
Install the SBC chassis in a two-post rack
SBC Chassis
Quick Install Guide
Accessory Kit
Rack Mount Kit
For racks with a 30-inch depth,
use the 9-inch extension arms.
WARNING: Do not block the air vents on either side
of the SBC 2000 to avoid overheating the unit.
Before completing installation of the SBC chassis, review the page
“Chassis Mounting Space Requirements” in SBC online documentation:
https://support.sonus.net/x/LwWB
QUICK INSTALL: SONUS SBC 2000 SERIES

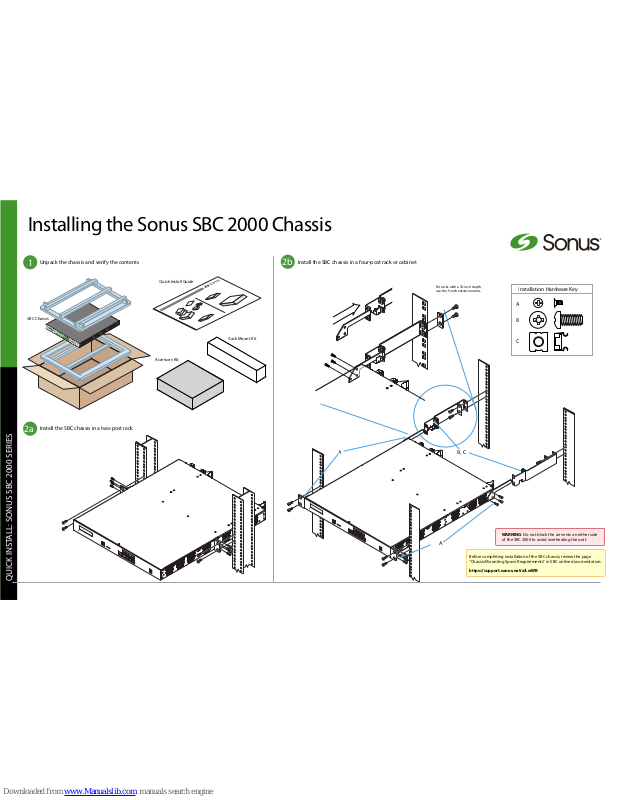

Installing the Sonus SBC 2000 Chassis
3
6
7
8
Prepare for the initial conguration of the SBC 2000 by gathering the following information:
Look for the information note with this symbol: Follow the link in the note for
important instructions about Initial Setup and Install Latest Software/Security Patches.
5
From the SBC 1000-2000 Documentation page, click the Online Product Documentation
link for the release associated with the software version installed on your SBC
(for example, Release 7.0.x Documentation if you installed Version 7.0.3).
After the upgrade, return to Product Documentation > SBC Edge Documentation
for further instructions for SBC 1000 deployment, and instructions on how to sign
up for critical product announcements from Sonus Support.
From a laptop or PC, login to Sonus support at https://support.sonus.net.
Click Product Documentation, and then from the Sonus Product Documentation page
select SBC Edge Documentation from the Session Border Controllers panel.
IMPORTANT!
Play it safe! To learn how, check online docs now at
https://support.sonus.net/display/ALLDOC/SBC+1000-2000+Documentation
ALWAYS upgrade the SBC 2000
(and the ASM if installed)
with the latest rmware & security patches after initial setup!
IMPORTANT!
Value For Your
Environment
(make notes here)
Conguration
Item
Required? Description
Local Admin
User Name
Yes
Local Admin
Password
Yes
Secondary DNS
IP Address
No
SBC IP Address Yes The primary IP Address for the SBC Edge system. Enter this address in the
Application Interface Setup panel of the Initial Setup tab.
SBC Host Name Yes The computer name of the SBC Edge system.
Internet
Domain Name
No If the SBC Edge system resides on an Internet network (such as genericdomain.com),
record the domain name here.
Default IP
Route Gateway
No If the SBC Edge system will use a default gateway, record the IP address
of the gateway here.
Primary DNS
IP Address
No The IP address of the prinary DNS server used to resolve domain names.
For SBC Edge deployments with Microsoft Unied Communications, use of host
name addressing is recommended and therefore DNS servers are required.
Application
Solution Module
(ASM) IP Address
No
The address used by the ASM. This address must be in the same subnet as the SBC Edge
application IP address.
The ASM IP conguration items are only visible in the SBC Initial Setup page
when an ASM is installed in the SBC Edge.
The IP address of a secondary DNS server, if available.
Choose a user name for the local administrative account. This user name is
required for logging into the SBC Edge Web User Interface for the rst time.
Choose a strong password for the local administrative account.
This password is required for logging into the SBC Edge Web User Interface for the rst time.
4
Make sure you have the following items:
a. The SBC 2000 mounted in the rack.
b. An Ethernet cable with an RJ-45 connector on each end.
c. A laptop or PC with an available Ethernet port.
SBC Initial Conguration
QUICK INSTALL: SONUS SBC 2000 SERIES
