Sonus SBC 1000, SBC 2000 Configuration Manual

Revision

Date

Revised By

Comments

0.1

12/03/2015

Roman Kokes

Initial Publication

0.2

3/16/2015

Grant Gist

Internal review

0.4

3/26/2015

Andy N. Tran

Customer review

1.0

4/13/2015

Tech Pubs

Final Edit and Release

SBC 1000/2000 Configuration Guide with

Lync 2013 for Windstream/ LPAETEC SIP

Trunk Deployments

Application Notes

Rev. 1.0

Last Updated: April 10, 2015

1 Document Overview .............................................................................. 5

1.1 Glossary .................................................................................................................................. 5

1.2 Overview ................................................................................................................................. 6

2 Introduction ........................................................................................... 6

2.1 Audience ................................................................................................................................. 6

2.2 Requirements .......................................................................................................................... 7

2.3 Reference Configuration ......................................................................................................... 8

Network Topology ............................................................................................................... 8

3 Configuring Sonus SBC 1000 and SBC 2000 Series ............................. 9

3.1 External Peer Side SBC Configuration ................................................................................. 10

Node Interfaces ................................................................................................................. 10

SIP profile .......................................................................................................................... 12

Media Profile ..................................................................................................................... 13

Voice Codec Profiles ................................................................................................................. 14

SIP Server Tables ...................................................................................................................... 15

Static IP Route Table ........................................................................................................ 15

Signaling Groups ............................................................................................................... 16

Call Routing Table ............................................................................................................. 17

Transformation Tables ...................................................................................................... 18

Trunk Registration ............................................................................................................. 19

3.2 Internal Side SBC configuration ............................................................................................ 20

Node Interfaces ................................................................................................................. 20

SIP Profile ......................................................................................................................... 22

Media Profiles .................................................................................................................... 23

Voice Codec Profiles ................................................................................................................. 24

Signaling Group ................................................................................................................. 25

Sip Server Table ................................................................................................................ 26

Call Routing Table ............................................................................................................. 27

Transformation Tables ...................................................................................................... 28

4 Lync Server 2013 configuration ........................................................... 31

4.1 Lync 2013 Configuration Settings ......................................................................................... 31

Addition of the SBC to the Lync Server. ............................................................................ 31

Adding the SBC to Lync Server 2013 Routing. ................................................................. 35

5 SBC and Lync 2013 Specific Configurations ...................................... 37

5.1 Initial Setup for All Calls ........................................................................................................ 37

Calling number manipulation ............................................................................................. 37

Called number ................................................................................................................... 37

5.2 Initiating Transfers with REFER ............................................................................................ 37

Call transfer via REFER method ....................................................................................... 37

5.3 Initiating Transfers with Re-INVITE ...................................................................................... 38

Call transfer via Re-Invite method ..................................................................................... 38

Term

Definition

AOC

Advice Of Charge

B2B UA

Back to Back User Agent

CP

Calling Party

CPD

Call Progress Detection

CPE

Customer Premise Equipment – Cisco SIP Server is the CPE device in this case.

CTI

Computer Telephony Integration

DNIS

Dialed Number Identification Service

IP

Internet Protocol

MS

Media Server

PBX

Private Branch Exchange

PSX

Policy Server Exchange

SDOP

Signaled Digits Out-Pulsed

SIP

Session Initiation Protocol

UUI

User to User Information

1 Document Overview

These Application Notes describe the configuration steps required for the Sonus Session Border Controller (SBC) 1000 and SBC 2000 to interoperate with the Lync 2013 system and a SIP trunk group to PSTN.

The objective of the document is to describe the configuration procedures to be followed during interoperability testing of SBC 1000 and SBC 2000 with Lync 2013 server over SIP trunk to PSTN.

For additional information on Sonus SBC 1000 and SBC 2000 series, visit http://www.sonus.net For additional information on Lync 2013, visit http://www.microsoft.com

1.1 Glossary

1.2 Overview

The Sonus SBC 1000 and SBC 2000 session border controllers are designed to use the same application software, boot image and Survivable Branch Appliance software. They differ in the number of physical Ethernet connections and processing power but are otherwise viewed from a software standpoint as being the same. With this in mind, this particular effort was tested with an SBC 1000 but is fully applicable to an SBC 2000.

2 Introduction

This document provides a configuration guide for Sonus SBC 1000 Series (Session Border Controller) when connecting to a SIP trunk group and a Lync 2013.

The Sonus SBC 1000 and SBC 2000 are Session Border Controllers that connect disparate SIP trunks, SIP PBXs, and communication applications within an enterprise. The SBC can also be used as a SIP routing and integration engine.

The Sonus SBC is the point of connection between the SIP trunk group to PSTN and the Lync 2013.

2.1 Audience

This technical document is intended for telecommunication engineers with the purpose of configuring the Sonus SBC 1000 and SBC 2000 and aspects of the SIP trunk group together with Lync 2013 product. There will be steps that require navigating the third-party and Sonus SBC Command Line Interface (CLI). Understanding the basic concepts of IP/Routing and SIP/RTP is also necessary to complete the configuration and for troubleshooting, if necessary.

This configuration guide is offered as a convenience to Sonus customers. The specifications and information regarding the product in this guide are subject to change without notice. All statements, information, and recommendations in this guide are believed to be accurate but are presented without warranty of any kind, express or implied, and are provided “AS IS”. Users must take full responsibility for the application of the specifications and information in this guide.

Technical support on SBC 1000 and SBC 2000 can be obtained through the following:

 Phone: +1 888-391-3434 (Toll-free) or +1 978-614-8589 (Direct)  Web: http://www.sonus.net/company/maintenance/log-trouble-tickets

Sonus Equipment

Type

Version

SBC 1000

4.1.0 Build 369

3rd Party Equipment

Type

Version

Microsoft Lync 2013

Mediation Server

5.0.8308.420

Polycom CX500 Lync Edition

SIP Phone

4.0.7577.4455 Windstream Equipment

Type

Version

Broadsoft West

Broadsoft platform

R17 SP4

ACME SBC

ACME Net-Net 4250

SC6.2.0 Patch 3 (Build

497) Build Date=02/12/10

2.2 Requirements

The following equipment and software was used for the sample configuration provided:

PSTN

Lync 2013

Sonus

SBC 1000

Windstream

Internal IP Network

2.3 Reference Configuration

A simulated enterprise site consisting of a Lync 2013 and a SIP trunk group to PSTN connected over the SBC

1000. The SBC 1000 was running software version 4.1.0 Build 369 during testing.

Network Topology

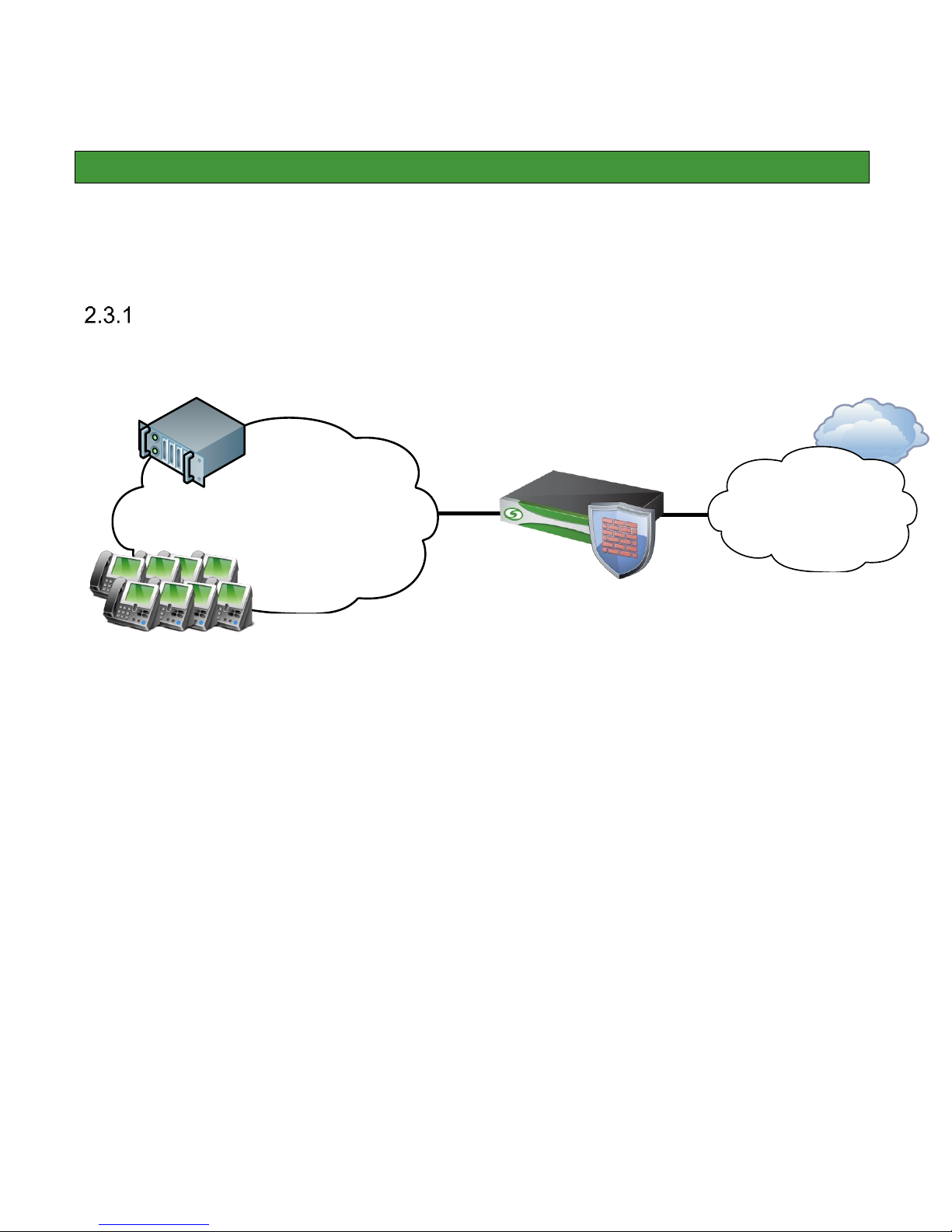

Figure 2.1 Network Topology

The figure above represents the equipment used for the integration and certification testing. The SBC 1000 is used to route and facilitate calls between the PSTN and the Lync 2013 system.

The SBC 1000 under test has 2 Ethernet ports configured. The SBC 2000 can have up to 4 physical Ethernet ports and two physical T1/E1 ports. For more information on Media port deployment options or other network connectivity queries, refer to the SBC 1000 Network Deployment Guide or contact your local Sales team for information regarding the Sonus Network Design professional services offerings.

Lync 2013 Signaling Group

Internal

Lync 2013

External

Signaling Group: To/From Lync Call Routing: From Lync

Signaling Group: To/From Windstream Call Routing: From Windstream

10.35.180.136:5068

SIP over TCP

Windstream

10.35.177.230:5060

64.199.64.220:5060

216.110.2.235:5060

SIP over UDP

3 Configuring Sonus SBC 1000 and SBC 2000 Series

The SBC 1000 and SBC 2000 share a common code base and user interface. In this example, we are using an SBC 1000.

Figure 3.1 SBC 1000 SIP Trunk Diagram

3.1 External Peer Side SBC Configuration

Node Interfaces

The Sonus SBC 1000 allows you to configure the identification information, Physical Data Layer, and Networking Layer for the Ethernet ports. If you want to change the IP Address, you must configure the associated Logical

Interface or use the Modify Ethernet IP task found under the Tasks tab.

Settings for the Ethernet connection between the Sonus SBC 1000 and the public Internet are shown in the figures below.

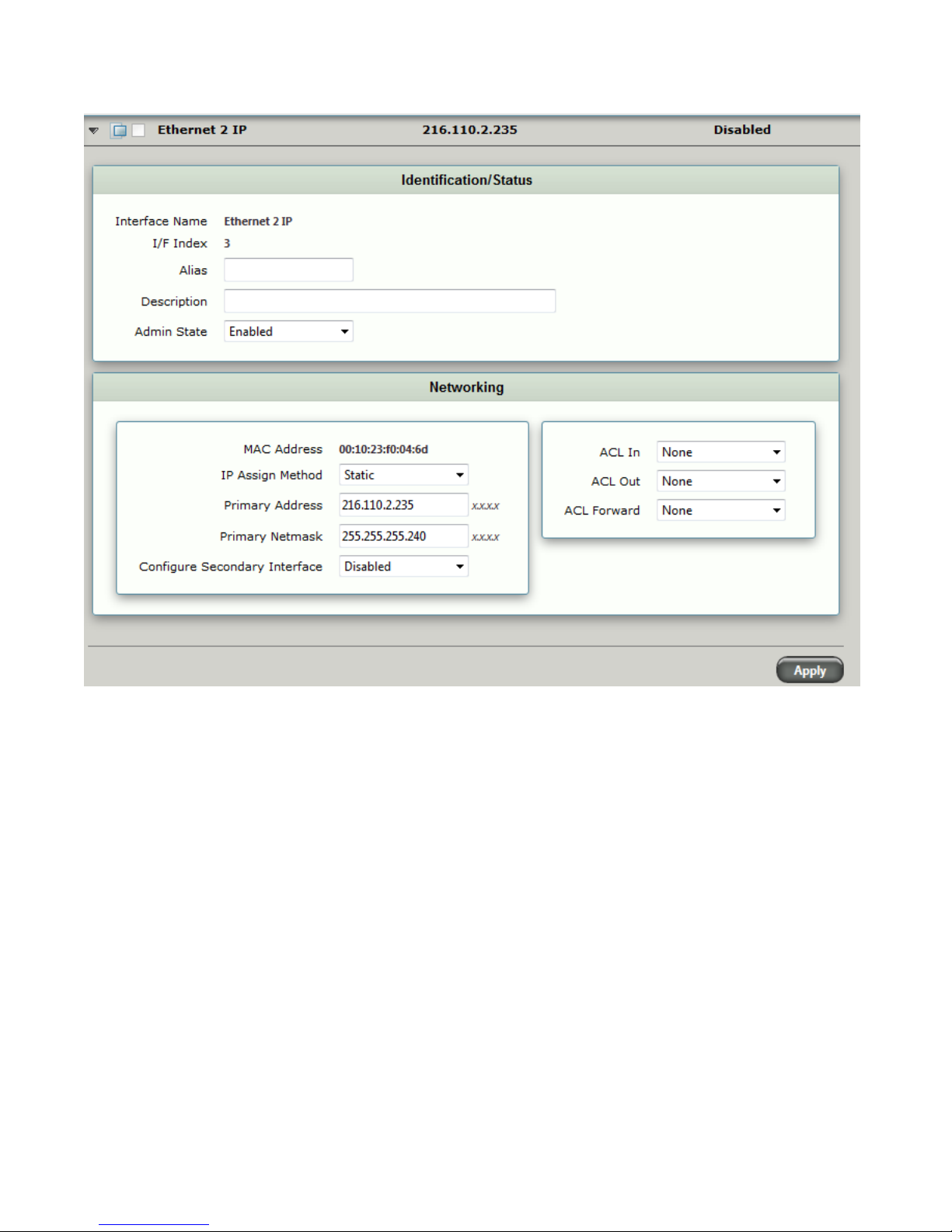

Figure 3.2 External Port

Figure 3.3 Logical Interface

SIP profile

SIP Profiles control the how the Sonus SBC 1000/2000 communicates with SIP devices. They control important characteristics such as: session timers, SIP header customization, SIP timers, MIME payloads, and option tags.

The default SIP profile used for the SBC 1000 for this testing effort is shown in the following figure.

Figure 3.4 SIP profile

Media Profile

Media Profiles allow you to specify the individual voice codecs and their associated settings for inclusion in a Media List. Different codecs provide varying levels of compression allowing one to reduce bandwidth requirements at the expense of voice quality.

The Media Profile Used for the SBC 1000 is shown in the following figure and is for reference only.

Figure 3.5 Media List

Voice Codec Profiles

The Voice Codec Profiles used for the SBC 1000 in this testing effort are shown in the figures below.

Figure 3.6 Voice codec configuration

Figure 3.7 Voice codec configuration

SIP Server Tables

SIP Server Tables contain information about the SIP devices connected to the Sonus SBC 1000/2000. The entries in the tables provide information about the IP Addresses, ports, and protocols used to communicate with each server. The Table Entries also contain links to counters that are useful for troubleshooting.

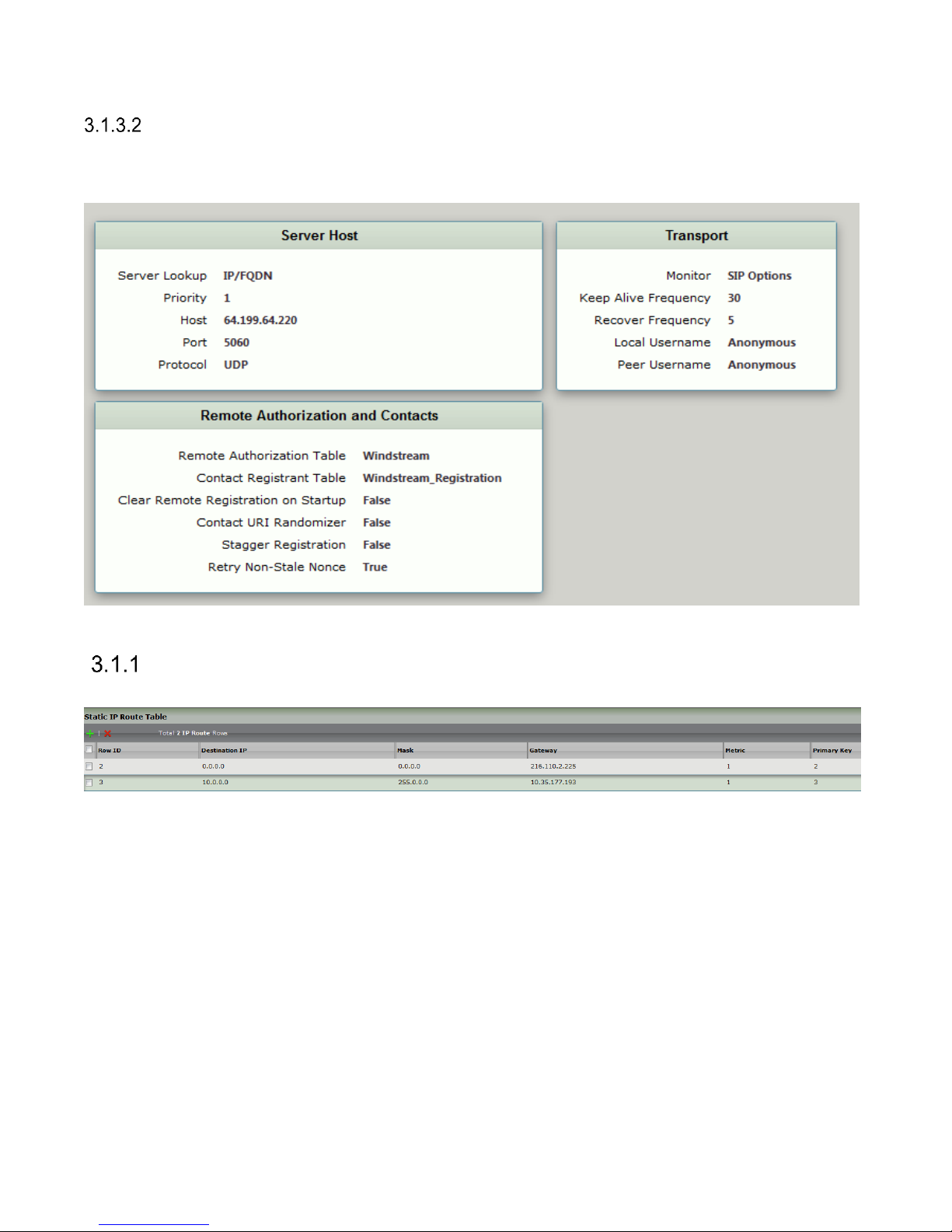

Figure 3.8 SIP Server Table

Static IP Route Table

The Static IP route table feature allows you to route subnets to different IP gateway..

Figure 3.9 SIP Host table

Signaling Groups

Signaling groups allow telephony channels to be grouped together for the purposes of routing and shared configuration. They are the entity to which calls are routed, as well as the location from which Call Routes are selected. They are also the location from which Tone Tables and Action Sets are selected. In the case of SIP, they specify protocol settings and link to server, media and mapping tables.

Figure 3.10 SIP Signaling Group to Windstream

Call Routing Table

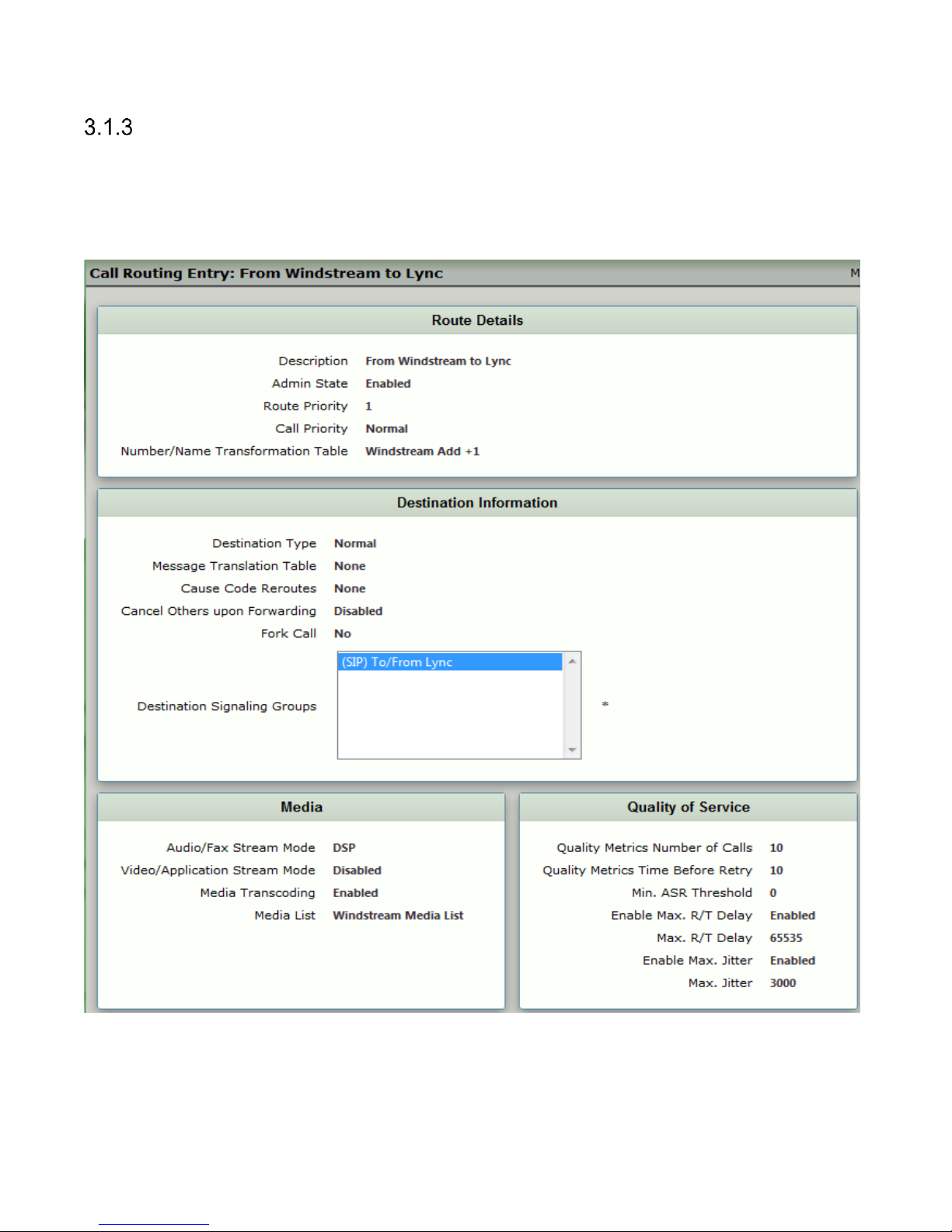

Call Routing allows calls to be carried between signaling groups, thus allowing calls to be carried between ports, and between protocols (like ISDN to SIP). Routes are defined by Call Routing Tables, which allow for flexible configuration of which calls are carried, and how they are translated. These tables are one of the central connection points of the system, linking Transformation Tables, Message translations, Cause Code Reroute, Tables, Media Lists and the three types of Signaling Groups (ISDN, SIP and CAS).

Figure 3.11 Call Routing Table PSTN to Lync 2013

Transformation Tables

Transformation Tables facilitate the conversion of names, numbers and other fields when routing a call. They can, for example, convert a public PSTN number into a private extension number, or into a SIP address (URI). Every entry in a Call Routing Table requires a Transformation Table, and they are selected from there. In addition, Transformation tables are configurable as a reusable pool that Action Sets can reference.

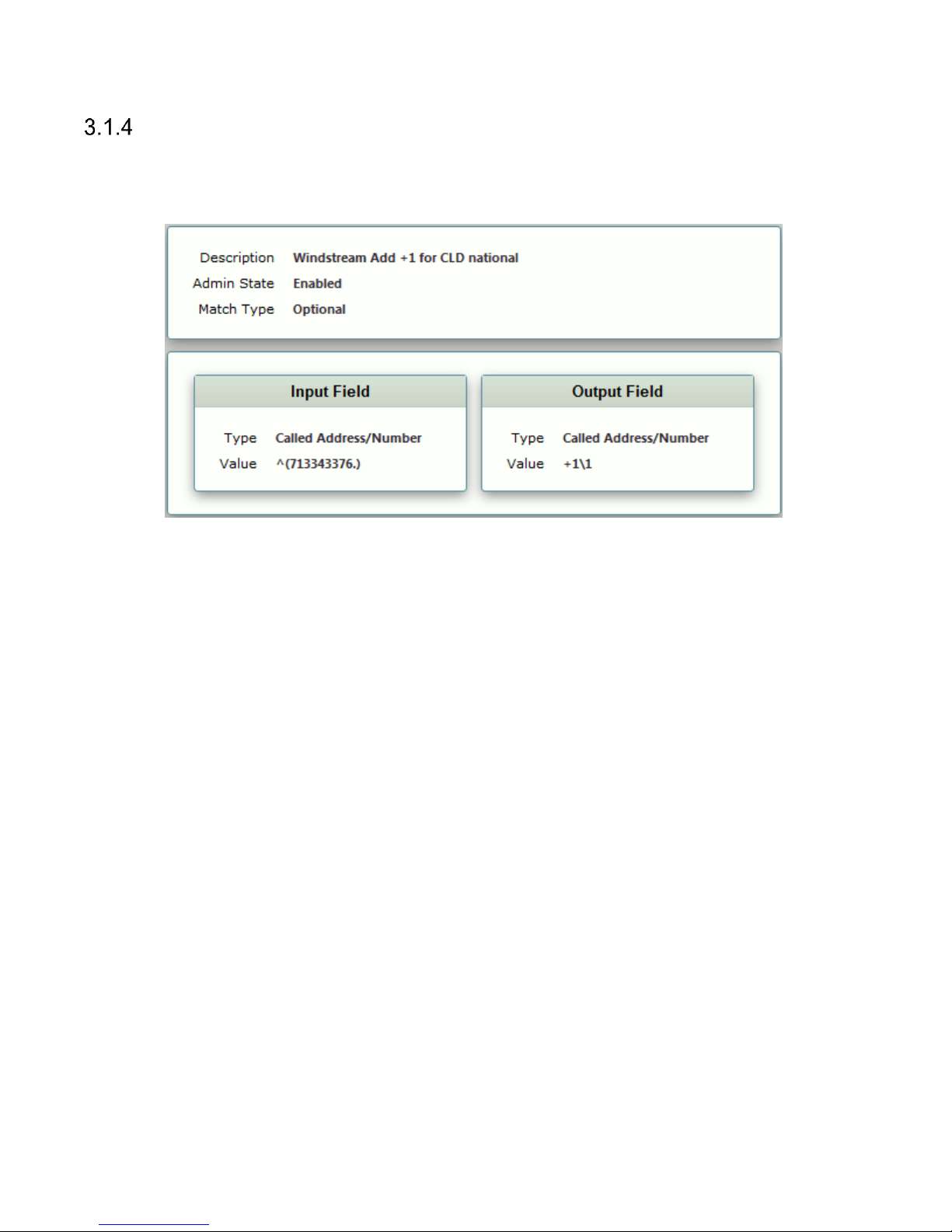

Figure 3.12 Transformation Table Match 713343376 range

Trunk Registration

Windstream requires authentication when establishing a SIP Trunk group to the SBC 1000. The Contact Registrant Table is used for registration with remote address and specific configuration.The Remote Authorization table is used for authorization configuration for remote registration.

Figure 3.13 Contact registrant table

Figure 3.14 Remote Authorization table

3.2 Internal Side SBC configuration

Node Interfaces

The Sonus SBC 1000 allows you to configure the Identification information, Physical Data Layer, and Networking Layer for the Ethernet ports. If you want to change the IP Address, you must configure the associated Logical

Interface or use the Modify Ethernet IP task found under the Tasks tab.

Settings for the Ethernet connection between the Sonus SBC 100 and Lync 2013 are shown in the figures below.

Figure 3.15 Node Port

Figure 3.16 Logical Interface

SIP Profile

SIP Profiles control the how the Sonus SBC 1000/2000 communicates with SIP devices. They control important characteristics such as: session timers, SIP header customization, SIP timers, MIME payloads, and option tags.

The default SIP profile used for these tests is shown in the figure below.

Figure 3.17 SIP profile

Media Profiles

Media Profiles allow you to specify the individual voice codecs and their associated settings for inclusion in a Media List. Different codecs provide varying levels of compression allowing one to reduce bandwidth requirements at the expense of voice quality.

The Media Profile used for these tests is shown in the figure below.

Figure 3.18 Media List

Voice Codec Profiles

The default voice codec profiles used in this testing effort are shown in the figures below.

Figure 3.19 Voice codec configuration

Figure 3.20 Voice codec configuration

Signaling Group

Signaling groups allow telephony channels to be grouped together for the purposes of routing and shared configuration. They are the entity to which calls are routed, as well as the location from which Call Routes are selected. They are also the location from which Tone Tables and Action Sets are selected. In the case of SIP, they specify protocol settings and link to server, media and mapping tables.

Figure 3.21 Signaling Group

Sip Server Table

SIP Server Tables contain information about the SIP devices connected to the Sonus SBC 1000/2000. They, in essence, emulate a traditional ‘SIP trunk group’. The entries in the tables provide information about the IP Addresses, ports, and protocols used to communicate with each server. The Table Entries also contain links to counters that are useful for troubleshooting.

Figure 3.22 Sip Server Table

Call Routing Table

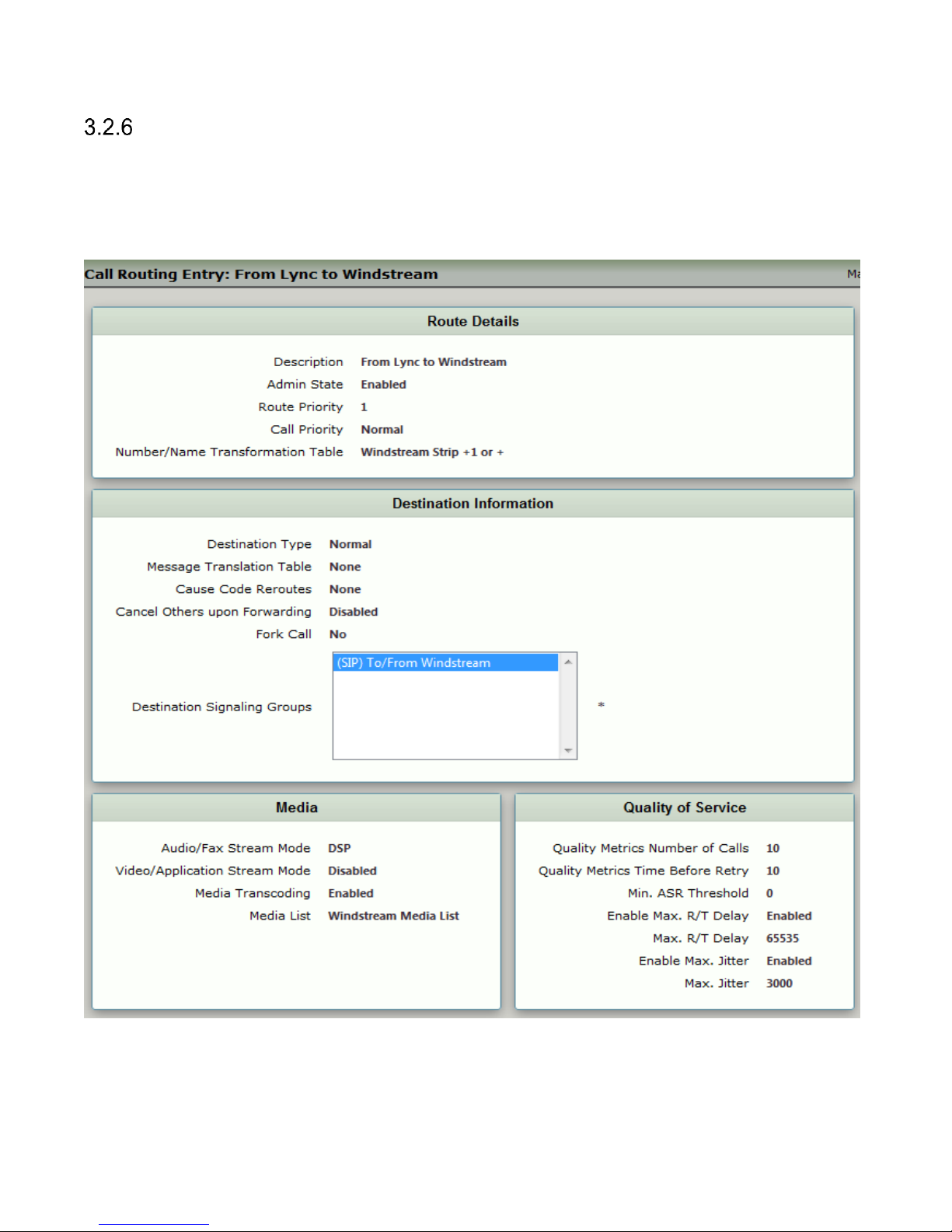

Call Routing allows calls to be carried between signaling groups, thus allowing calls to be carried between ports, and between protocols (like ISDN to SIP). Routes are defined by Call Routing Tables, which allow for flexible configuration of which calls are carried, and how they are translated. These tables are one of the central connection points of the system, linking Transformation Tables, Message translations, Cause Code Reroute, Tables, Media Lists and the three types of Signaling Groups (ISDN, SIP and CAS).

Figure 3.23 SIP Call Routing Table To PSTN

Transformation Tables

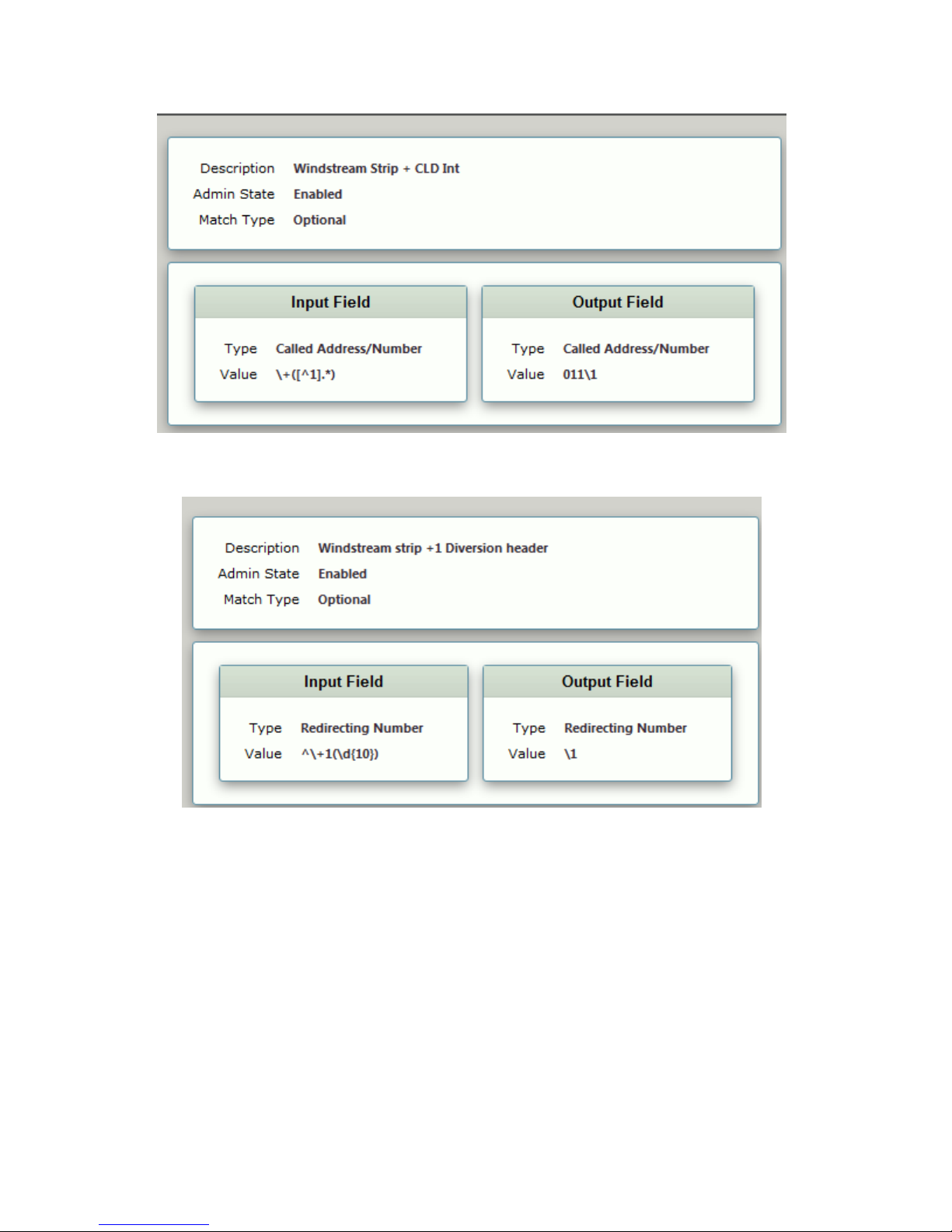

Transformation Tables facilitate the conversion of names, numbers and other fields when routing a call. They can, for example, convert a public PSTN number into a private extension number, or into a SIP address (URI). Every entry in a Call Routing Table requires a Transformation Table, and they are selected from there. In addition, Transformation tables are configurable as a reusable pool that Action Sets can reference.

Figure 3.24 Transformation Table to match US National

Figure 3.25 Transformation Table to match US National

Figure 3.26 Transformation Table to match International calls

Figure 3.27 Transformation Table to match US Redirected

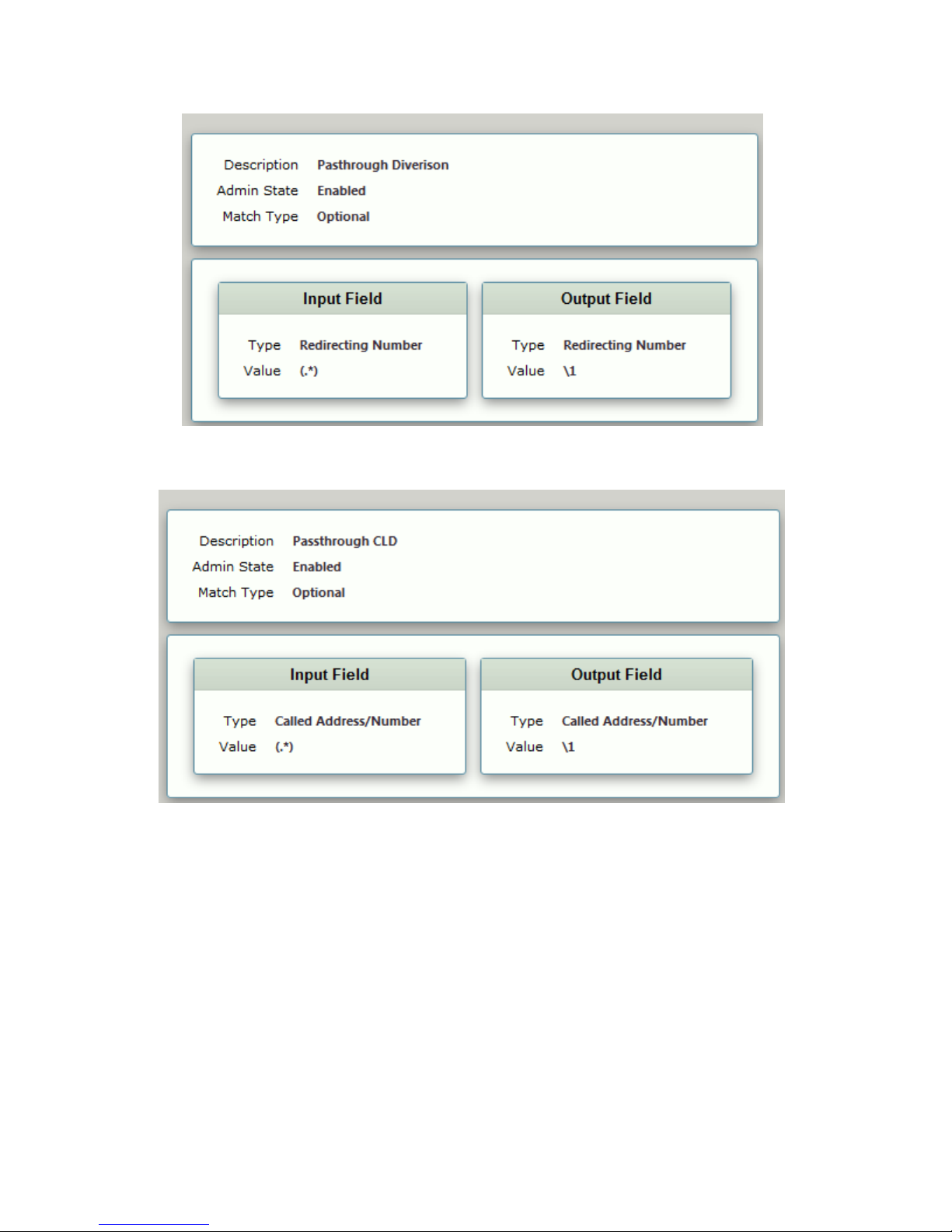

Figure 3.28 Transformation Table to Match ALL Redirected

Figure 3.29 Transformation Table to match ALL Calls

4 Lync Server 2013 configuration

This section assumes that the Lync Server components have been installed along with Lync users. The user should be familiar with Lync Server Topology Builder, Lync Server Control Panel and Lync Server management Shell. This section does not cover the basic installation of Lync Server 2013.

4.1 Lync 2013 Configuration Settings

Addition of the SBC to the Lync Server.

The Lync Server topology needs to be modified by adding the SBC as a Gateway device. The Gateway device is the interface to the Verizon SIP Trunk.

1. Open Lync Server Topology builder.

2. Load the current topology.

3. Expand the topology.

4. Right click the PSTN Gateways link in the left hand pane.

5. Select “New IP/PSTN Gateway…” from the menu as shown and follow thru with the process.

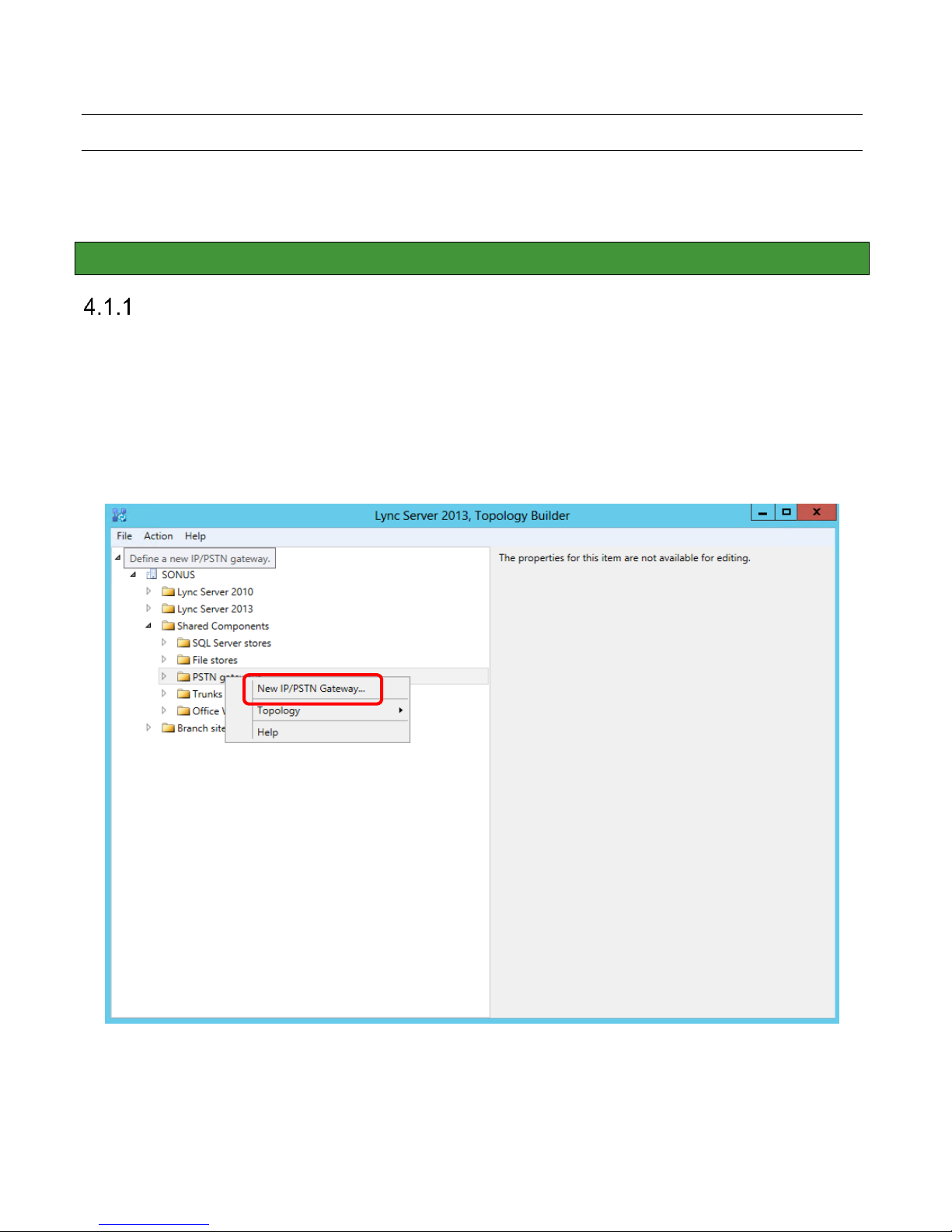

Figure 4.1 Create New Gateway

Figure 4.2 Define the FQDN of the Gateway

Figure 4.3 Enable IPV4/IPV6

Figure 4.4 Define Trunk Port and Protocol

Adding the SBC to Lync Server 2013 Routing.

In order for Lync Server 2013 to send calls to the Verizon SIP Trunk the SBC must be added to the routing.

1. Open Lync Server Control Panel and click on the Voice Routing link on the left hand pane.

2. Click on the Route tab on top of the right hand pane and scroll down to show the dialog below:

Figure 4.5 Add Routing

Ensure the SBC is highlighted in the dialog shown above and click “OK’. At this point commit these changes to

the topology.

Figure 4.6 Select Trunk

5 SBC and Lync 2013 Specific Configurations

Required settings for the SBC and Microsoft Lync 2013 product depend on the type of call scenario.

5.1 Initial Setup for All Calls

Calling number manipulation

Transformation tables were required for the purpose of mapping preconfigured Lync 2013 user extensions to established Windstream SIP Trunk DIDs. This is not expected to be a requirement for deployment scenarios.

Called number

Normal calling pattern was to dial all digits in E.164 format for both national and international calls. Other dialing patterns tested include Emergency calls.

5.2 Initiating Transfers with REFER

Call transfer via REFER method

Microsoft Lync Server 2013 needs additional configuration in order to enable SIP REFER Method. Refer support needs to be set to Enable sending refer to gateway under Trunk Configuration profile assigned to the appropriate SBC trunk.

Figure 5.1 Sip Server Table

5.3 Initiating Transfers with Re-INVITE

Call transfer via Re-Invite method

Transferring a call to another phone number is supported via the RFC3261 method. No special flag is required to

be set for this method. Ensure that on MS Lync 2013 under the “Trunk Configuration” element that REFER

support is set to “none”.

Sonus SBC 1000, SBC 2000 Configuration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
