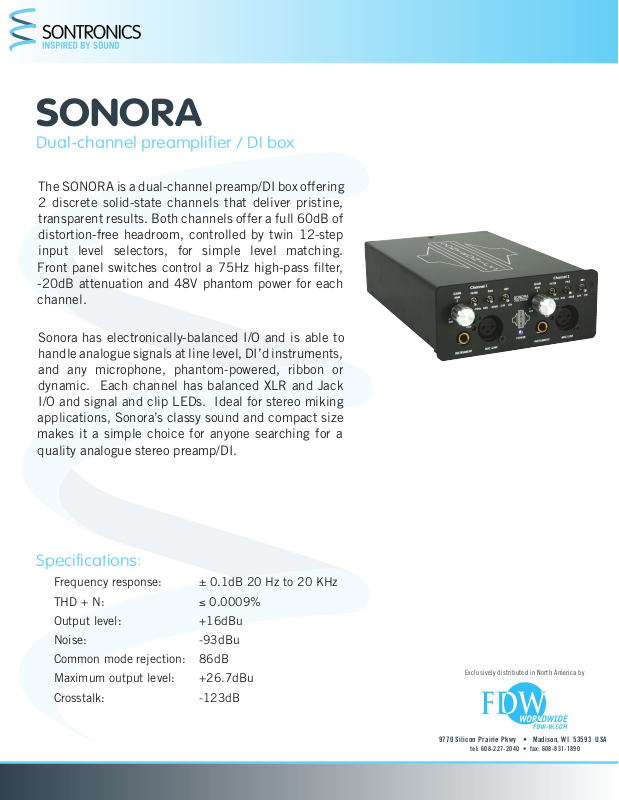

Sontronics Sonora User manual

SONORA

Dual-channel preamplifier / DI box

The SONORA is a dual-channel preamp/DI box offering
2 discrete solid-state channels that deliver pristine,
transparent results. Both channels offer a full 60dB of
distortion-free headroom, controlled by twin 12-step
input level selectors, for simple level matching.

Front panel switches control a 75Hz high-pass filter,

-20dB attenuation and 48V phantom power for each
channel.

Sonora has electronically-balanced I/O and is able to
handle analogue signals at line level, DI’d instruments,
and any microphone, phantom-powered, ribbon or
dynamic. Each channel has balanced XLR and Jack

I/O and signal and clip LEDs. Ideal for stereo miking
applications, Sonora’s classy sound and compact size
makes it a simple choice for anyone searching for a
quality analogue stereo preamp/DI.

Specifications:

Frequency response: ± 0.1dB 20 Hz to 20 KHz

THD + N: ≤ 0.0009%

Output level: +16dBu

Noise: -93dBu

Common mode rejection: 86dB

Maximum output level: +26.7dBu

Crosstalk: -123dB
