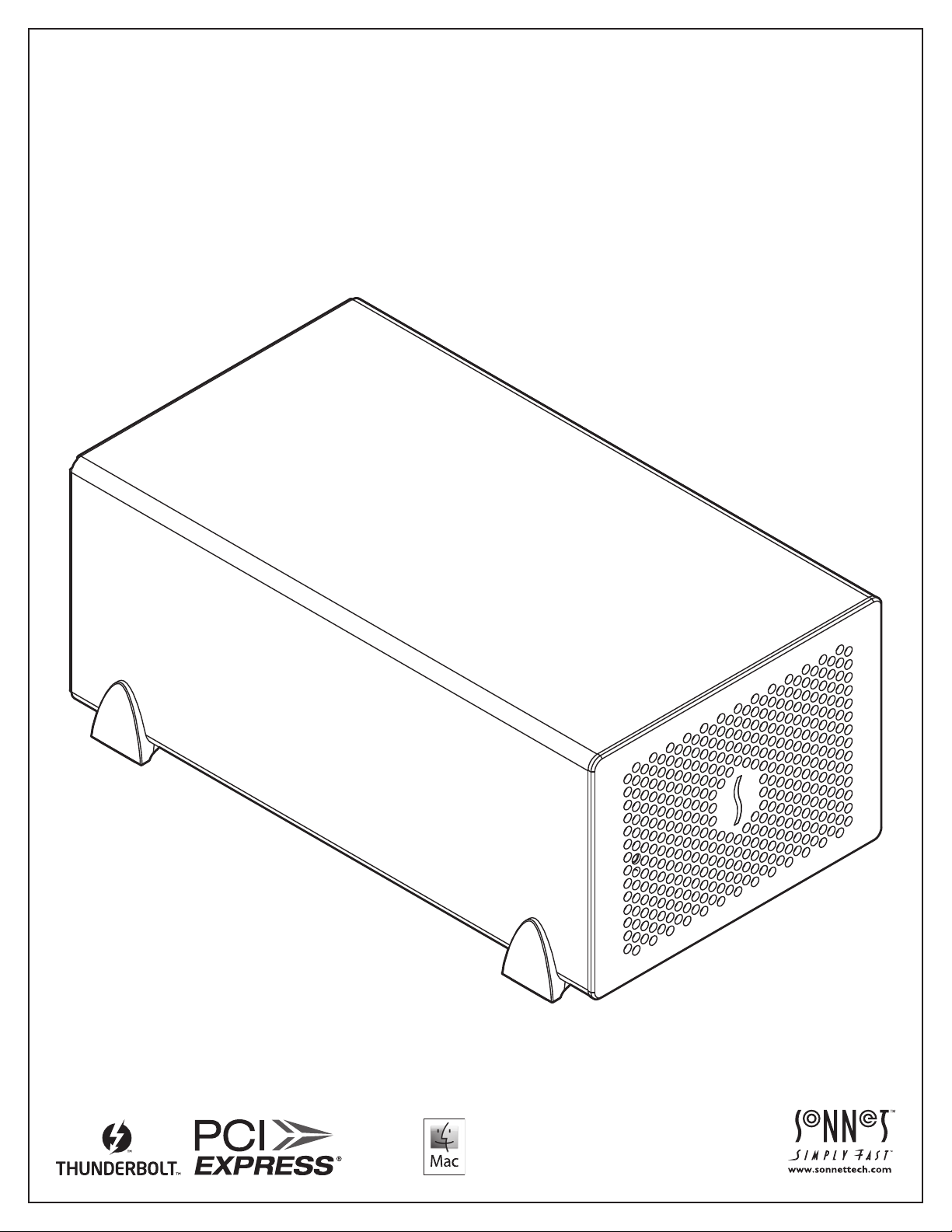

Sonnet echo express SE II User Manual

User’s Guide

For
Windows

for Echo™ Express SE II

™

Thunderbolt

2-to-PCI Express® Card Expansion Chassis

Contents

1 Introduction, System Requirements 1

2 Echo Express SE II Description 2

Echo Express SE II Extererior
Echo Express SE II Inner Assembly
Echo Express SE II Power Adapter
Thunderbolt Connector Lock
Thunderbolt Cable

3 PCIe Card Installation and Chassis Setup Steps 5

4 Verify Connections Using System Information 8

A – Verify the Echo Express SE II is Recognized
B – Verify the Installed Card is Recognized

5 Tips, General Information, and Known Issues 9

Tips, General Information
Known Issues

6 Specifications, Precautions, FCC Compliance, and Support Information 10

Specifications
Safety Precautions
FCC Compliance
Contacting Customer Service
Visit Our Website

This page left intentionally blank

Chapter 1 – Introduction, System Requirements

6.063
154

4.343

110.31

4.646

ECHO EXPRESS SE II

FRONT VIEW

118.01

ECHO EXPRESS SE II

REAR VIEW

Introduction

Congratulations on your purchase! The Echo Express SE II is
a Thunderbolt 2 expansion system for PCIe cards. Through its
PCIe slots, you may connect two expansion cards to your iMac

®

Mac

mini, Mac Pro®, MacBook Air®, or MacBook Pro® with

®

Thunderbolt technology to expand its capabilities in ways never
before possible! With its Windows

®

support, the Echo Express
SE II offers you a handy way to connect expansion cards to your
desktop or laptop PC with Thunderbolt technology.

Mac Compatibility

• Mac computer with a Thunderbolt 2 or Thunderbolt port

®

10.8.5 or later

• OS X

Windows Compatibility

• Windows PC with a Thunderbolt 2 a (recommended) or

Thunderbolt port*

• Windows 8, 7

10.963

278.46

ECHO EXPRESS SE II

SIDE VIEW

,

1

System Requirements

While the Echo Express SE II chassis requires no drivers, the
expansion cards you install do; Thunderbolt-compatible drivers
to enable them to work properly through the Thunderbolt
interface are required. More information on which cards are
compatible with Echo Express SE II is available at:
http://sonnettech.com/support/charts/thunderbolt/index.html

* To support more than two PCIe controllers, Windows requires a

Thunderbolt 2 interface in both the computer and the expansion
chassis. Note that some PCIe cards have a bridge to multiple
controllers, so it is possible for a single dual-controller PCIe card to
reach the limit if not connected via Thunderbolt 2. Not all Mac­compatible PCIe cards are also compatible with Windows.
