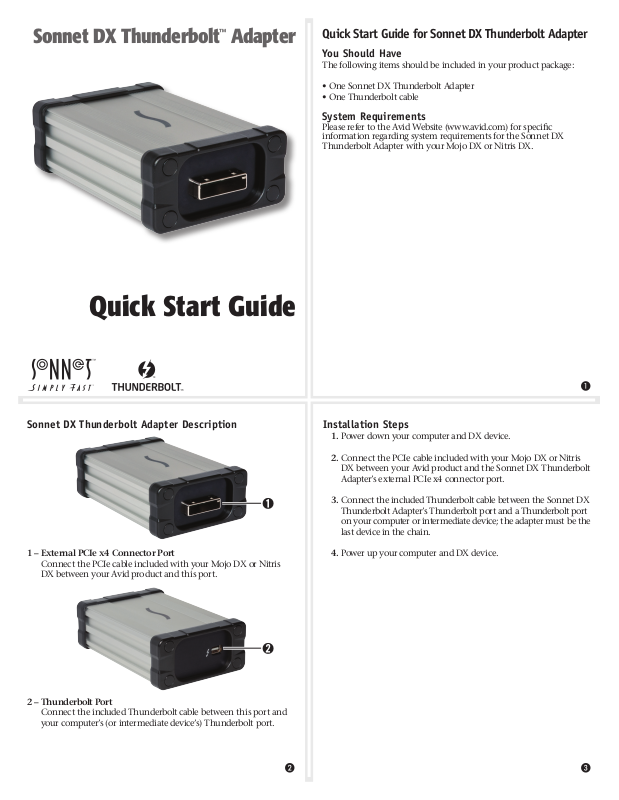

Sonnet DX Thunderbolt Quick Start Manual

Sonnet DX Thunderbolt™ Adapter

Quick Start Guide

Quick Start Guide for Sonnet DX Thunderbolt Adapter

You Should Have

The following items should be included in your product package:

• One Sonnet DX Thunderbolt Adapter

• One Thunderbolt cable

System Requirements

Please refer to the Avid Website (www.avid.com) for specific
information regarding system requirements for the Sonnet DX
Thunderbolt Adapter with your Mojo DX or Nitris DX.

Sonnet DX Thunderbolt Adapter Description

1 – External PCIe x4 Connector Port

Connect the PCIe cable included with your Mojo DX or Nitris
DX between your Avid product and this port.

2 – Thunderbolt Port

Connect the included Thunderbolt cable between this port and
your computer’s (or intermediate device’s) Thunderbolt port.

➊

➋

Installation Steps

1. Power down your computer and DX device.

2. Connect the PCIe cable included with your Mojo DX or Nitris
DX between your Avid product and the Sonnet DX Thunderbolt
Adapter’s external PCIe x4 connector port.

3. Connect the included Thunderbolt cable between the Sonnet DX
Thunderbolt Adapter’s Thunderbolt port and a Thunderbolt port
on your computer or intermediate device; the adapter must be the
last device in the chain.

4. Power up your computer and DX device.

Adapter Specifications

External Connectors • External PCIe x4

• Thunderbolt

Dimensions WxDxH 2.7 x 4.0 x 1.3 in.

(6.7 x 10.0 x 3.4 cm)

Weight 0.4 lb. (0.18 kg)

RoHS Compliant Yes

Package Contents • Sonnet DX Thunderbolt Adapter

• Thunderbolt cable

• Quick start guide

Compliance Information

Canada
This Class B digital apparatus complies with Canadian ICES-003.Cet
appareil numérique de la classe B est conforme à la norme NMB-003
du Canada."

EU
Sonnet Technologies is authorized to apply the CE (Conformité
Europénne) mark on this compliant equipment thereby declaring
conformity to EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.

Korea

이 기기는 가정용 (B 급 ) 자파적합기기로서 주 로 가정에서 사
용하는 것을 목적으로 하며 , 모 든 지역에서 사용할 수 있습니다

EMC (Electromagnetic Compliance)
Sonnet Technologies declares that this product complies with the
following standards regulating emissions and immunity:

• FCC Part 15 Class B

• EN 55022 Class B

• EN 55024 Class B

• AS/NZS CISPR 22 Class B

• CISPR 22 Class B

USA
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:

• Reorient or locate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any modifications to the unit, unless expressly approved by Sonnet,
could void the user's authority to operate the equipment.

Contacting Customer Service

The Sonnet Web site located at www.sonnettech.com has the most
current support information and technical updates. Before you call
Customer Service, please check our Web site for the latest updates
and online support files, and check this Quick Start Guide for helpful
information.

When you call Customer Service, have the following information
available so the customer service staff can better assist you:

• Product name • Date and place of purchase • Computer model

• Operating system version • Software/firmware versions

USA Customers
If further assistance is needed, please contact Sonnet Customer

Service at:
Tel : [phone]

(Monday–Friday, 7 a.m.–4 p.m. Pacific Time)

E-mail: [e-mail]

For Customers Outside the USA

For support on this product, contact your reseller or local distributor.

Visit Our Web Site

For the most current product information and online support files,
visit the Sonnet Web site at www.sonnettech.com/support/. Register
your product online at http://registration.sonnettech.com to be
informed of future upgrades and product releases.
