SONIQ QMR10AR User Manual
User Manual
Bluetooth
®
Bluetooth
®
ACC-dbti
Dongle
Bluetooth 2.0+EDR
USB Adaptor
Content
1 Introduction to BlueSoleil™................................................................4
1.1 Bluetooth Functions ......................................................................4
1.2 Main Window ...............................................................................5
2 Basic Operations ................................................................................7
2.1 Insert Adaptor .............................................................................7
2.2 Install the Software ......................................................................7
2.3 Start BlueSoleil ............................................................................7
2.4 Search for Other Bluetooth Enabled Devices.....................................8
2.5 Establish Connection.....................................................................9
2.6 Bluetooth Security ...................................................................... 10
3 Getting Started.................................................................................12
3.1 AV Headphone ........................................................................... 12
3.2 Basic Imaging............................................................................12
3.3 Dial-up Networking..................................................................... 13
3.4 FAX .......................................................................................... 15
3.5 File Transfer .............................................................................. 15
3.6 Headset .................................................................................... 17
3.7 Human Interface Device .............................................................. 17
3.8 LAN Access................................................................................ 18
3.9 Object Push...............................................................................20
3.10 Personal Area Networking ......................................................... 22
3.11 Printer ...................................................................................25
3.12 Serial Port .............................................................................. 26
3.13 Bluetooth Synchronization ........................................................27
4 BlueSoleil User Guides......................................................................28
4.1 BlueSoleil Environment ............................................................... 28
4.1.1 Main Window.....................................................................28
4.1.2 Service Window ................................................................. 30
4.1.3 Menus .............................................................................. 31
2
4.2 Device Configurations ................................................................. 34
4.2.1 Hardware Configuration ...................................................... 34
4.2.2 Properties Configuration...................................................... 34
4.3 Security Configuration................................................................. 36
4.3.1 Pair / Un-pair Devices ......................................................... 36
4.3.2 General Security ................................................................ 36
4.3.3 Managing Device Pairings .................................................... 37
4.3.4 Local Services Security ....................................................... 38
3
1 Introduction to BlueSoleil™
BlueSoleil is a Windows-based software from IVT that allows your Bluetooth®
enabled desktop or notebook computer to wirelessly connect to other
Bluetooth enabled devices. BlueSoleil allows MS Windows users to wirelessly
access a wide variety of Bluetooth enabled digital devices, such as cameras,
mobile phones, headsets, printers, and GPS receivers. You can also form
networks and exchange data with other Bluetooth enabled computers or
PDAs.
Platforms supported by BlueSoleil include: Windows 98SE, ME, 2000, and XP.
1.1 Bluetooth Functions
In order to connect and share services via Bluetooth wireless technology, two
devices must support the same Bluetooth Profile(s) as well as opposite device
roles (i.e., one must be the server, and the other must be the client).
Bluetooth enabled devices often support multiple profiles, and if involved in
multiple connections, can perform different device roles simultaneously.
BlueSoleil supports the following Bluetooth functions (Profiles) in the following
device roles:
Bluetooth Functions (Profiles) Client Server
AV Headphone* √ √
Basic Image Profile √ √
Dial-Up Networking √
Fax √
File Transfer √ √
Headset* √ √
Human Interface Device √
LAN Access √ √
Object Push √ √
Personal Area Networking √ √
Printer √
Serial Port √ √
4
Synchronization √ √
• Notes:
• Only one Headset or AV Headphone connection can exist at a time,
since there is only one virtual Bluetooth audio device.
• The Headset and AV Headphone Pr ofiles do not work on Windows 98SE
or Windows Me.
1.2 Main Window
Note: For more complete information about the Main Window (including the
icon meanings) as well as information about the Service Window and
BlueSoleil menus, please refer to Chapter 4.
By default, BlueSoleil starts with the Main Window open. Use the Main Window
to perform your primary connection operations. The Main Window displays the
local device (red ball) as well as the remote devices detected in range.
Different icons distinguish different types of remote devices.
At the top of the Main Window are Service Buttons. After you search for the
services supported by a remote device, the supported services of the selected
device will be highlighted.
Local Device — Basic Operations:
• Hover your mouse over the red ball to display the local device's
Bluetooth name and address.
• Click on the red ball to start or stop searching for Bluetooth de vices in
range.
• Right-click on the red ball to display a pop-up menu of related
operations (e.g., General Inquiry, My Services, Security, etc.).
Remote Devices — Icon Meanings
• White — Idle. The normal state of the device.
• Yellow—Selected. You have selected the device.
• Green — Connected. The device is connected to your local device.
Remote Devices — Operations
• Single-click to select.
• Double-click to search for the services supported by the device.
• Right-click to display a pop-up menu of related operations (e.g.,
Refresh Devices, Pair Devices, Connect, etc.).
5

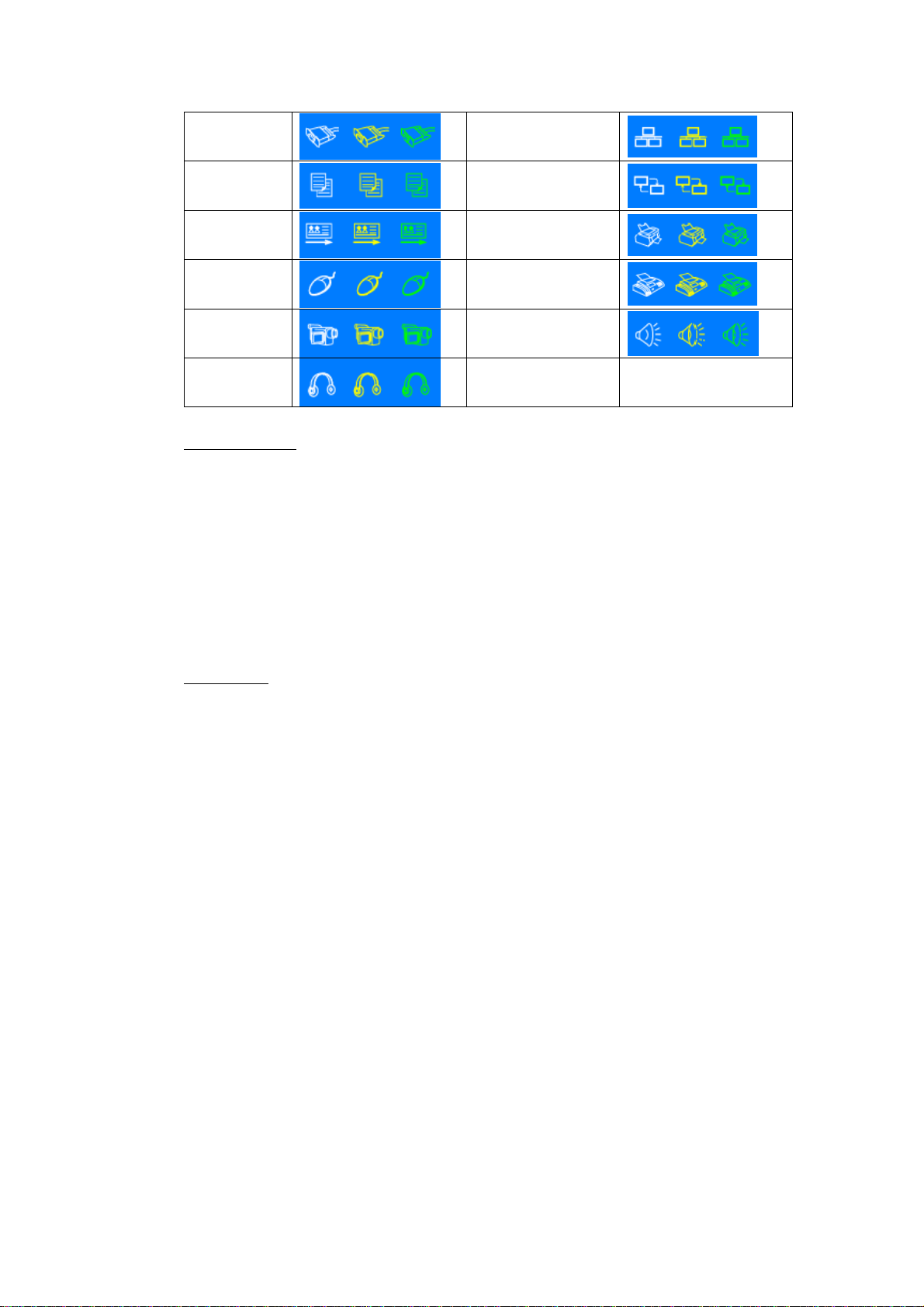

Services — Icon Meanings
• White — Idle. The normal state.
• Yellow — Available. The service is available on the selected device.
• Green — Connected. The service is active in a connection with the
remote device.
Services — Operations
• Hover your mouse over the service icon to display the name of the
service.
• Single-click on the service icon to connect.
• Right-click on the service icon to display a pop-up menu of related
operations.
6
2 Basic Operations
2.1 Insert Adaptor
BlueSoleil supports Windows systems enabled with Bluetooth wireless
technology via either a USB adapter or a CompactFlash (CF) card.
IMPORTANT! Be sure to insert the Bluetooth adaptor BEFORE you
install the software!
USB Adaptor:
1. Insert the USB adapter into the USB port of your computer.
CompactFlash Card:
1. Insert the CompactFlash card i nto y our c ompu ter. T o us e a CF c ard i n a PC
Card (PCMCIA) slot, first plug the card into a CF-to-PC Card adapter.
2. The Found New Hardware Wizard will automatically start. Make sure the
installation CD is still in your computer. Follow the wizard to install the
card drivers.
2.2 Install the Software
IMPORTANT! If you have any Bluetooth software previously installed
on your computer, you must completely remove it first!
1. Insert the BlueSoleil software installation CD into the CD drive of your
computer.
2. Use My Computer or Windows Explorer to access your CD drive. In the CD,
click on SETUP.EXE.
3. Follow the directions on your screen to install the software.
4. As prompted, when software installation is complete, restart your
computer.
2.3 Start BlueSoleil
1. Start BlueSoleil. Click on the BlueSoleil ico n on y o ur d e skt o p, or g o to S tar t
| Programs | IVT BlueSoleil | BlueSoleil.
Note: BlueSoleil will detect each insertion or removal of the USB adap ter.
Alternatively, you can start BlueSoleil before plugging in the USB adapter.
7
2. The very first time you use BlueSoleil, the Welcome to Bluetooth screen
will appear. Assign your Windows system a name and device type, to be
shown to other Bluetooth enabled devices. In most cases, you should
leave the security setting checked. Click OK.
2.4 Search for Other Bluetooth Enabled Devices
Before it can connect, your computer must first detect other Bluetooth
enabled devices in range.
Initiate a Device Search
1. Make sure that the Bluetooth enabled device you wish to connect to is
turned on, with sufficient battery power, and set in discoverable mode.
Have any necessary passkeys ready. If necessary, you may also need to
enable the service you want to use on the remote device. Refer to the
remote device’s user documentation for instructions.
If you haven’t done so already, you may also want to assign the device a
Bluetooth name. Refer to the device’s user documentation for instructions.
2. In the Main Window, click on the red ball to start the device search.
Alternatively, you can click My Bluetooth | My Device Inquiry or View |
Refresh Devices or press F5.
3. After a few seconds, an icon will appear around the center ball for each
Bluetooth enabled device detected within the radio range.
Note:
• The Main Window can display only e ight discovered devices at a time.
If BlueSoleil discovered more than eight devices, use the scroll bar to
view the remaining devices discovered by BlueSoleil.
• To sort the devices by device name, device address, or device type,
click View | Arrange Devices.
4. Wait several seconds until BlueSoleil reports the name of each device.
5. If the device you want is not listed, make sure that the device is turned on
and discoverable and try searching again. You have multiple options for
starting another search:
• If you start another search b y double-clicking on the red ball or clicking
My Bluetooth | My Device Inquiry or View | Refresh Device s, then the
list of previously detected devices will not be cleared.
8
• If you start another search by pressing F5, then the list of previously
detected devices will be cleared.
2.5 Establish Connection
Note: These are generic instructions for any type of Bluetooth enabled device.
Refer to the instructions in Chapter 3 for specific details for the type of service
you plan to use.
Normally, a connection is initiated from the client. Check the chart in Chapter
1 to verify which device role BlueSoleil supports for the service you wish to
use.
• On the server side, start the service
• On the client side, initiate the connection
Start the Service
If you would like to use your computer as a server in a Bluetooth connection,
you must first start (enable) the appropriate service(s) on your system.
1. Access the Service Window. Click View | Service Window.
2. If the icon for a service is highlighted (yellow), then the service has already
been started. If the icon is white, then you need to start the service in
order to use it. Right-click the icon. In the pop-up menu, select Start
Service. The icon should now be highlighted (yellow). Serial Port icons will
also report which COM port is assigned to them.
Note:
• Icons will appear only for Bluetooth functions (Profiles) which
BlueSoleil supports in the Server device role. See chart in the 1.1
Bluetooth Functions.
• Depending on your system, multiple icons for Serial COM ports may
appear.
3. After you have started the service in BlueSoleil, now you are ready to
initiate the connection from the remote device. For instructions, refer to
the user documentation for the remote device.
Initiate the Connection
If you would like to use your computer as a client in a Bluetooth connection,
make sure that you have started (enabled) the service on the remote device.
Otherwise, BlueSoleil will not be able to discover the service and connect to it.
For instructions, refer to the device’s user documentation.
1. Return to the Main Window. Click View | Main Window.
9
2. Double-click on the icon for the device you wish to connect to. BlueSoleil
will begin to search for information about which services the device
supports.
3. After the search, icons will be highlighted (yellow) at the top of the
BlueSoleil Main Window for services that are supported by the device.
Verify that the service you want to use is supported.
4. Right-click on the device icon. In the pop-up menu, click Connect, then
select the service. BlueSoleil will start the connection. Depending on the
security settings of each device, you may need to enter the same passkey
on each device in order to bond the two devices.
5. A screen may appear asking if you want to set up automatic connections.
Click Yes or No.
6. If you are connecting to a phone, your phone may ask if you want to ask
the BlueSoleil computer to your device list. Enter Yes and enter a passkey.
7. When the devices have successfully connected, the device icon in the Main
Window will turn green, and a green line will appear between the red ball
and the device icon. A red dot will travel along the green line from the
client to the server. A signal strength icon will also appear next to the
device icon.
The BlueSoleil icon in the task tray will also turn green to indicate an
active connection.
Note: A red check mark will appear next to the name of any device that
you have previously paired with your computer.
8. Depending on which services you are using, additional screens may appear,
and/or you may need to configure additional connection settings (e.g.,
user name, password, COM port number, etc.). Refer to the instructions in
Chapter 3 for your specific service. After configuring the appropriate
connection settings, you should be ready to use your application.
9. To end a connection, in the Main Window, right-click on the icon for a
connected device. In the pop-up menu, click Disconnect.
Note: You can only disconnect this way if your computer is acting as a client
device. If your computer is acting as a server device, then you can disconnect
in BlueSoleil by clicking View | Service Window, then right-clicking on the
service icon. In the pop-up menu, click Stop Service. Alternatively, you can
disconnect from the remote device.
2.6 Bluetooth Security
To modify your connection’s security settings, click My Bluetooth | Security.
10
BlueSoleil offers three security levels:
• Low (Security Mode 1, Non-secure)
No security procedure is needed for connections.
• Medium (Security Mode 2, Service level enforced security)
Authentication or Authorization is requested when a specific service is
accessed by other Bluetooth enabled devices. If two devices are
connecting for the first time, or if two devices do not have a trusted
relationship, then the same passkey must be provided on both sides to
complete the Authentication. This mode allows you to assign different
access rights for each service supported by the server device.
• High (Security Mode 3, Link level enforced security)
If either of two devices is in Mode 3, Authentication is requested
whenever a link connection is initiated between two Bluetooth enabled
devices. The passkey must be provided on both sides to complete
Authentication.
Note: In Security Mode 2, the user can add each authenticated device into a
trusted device list to expedite future connections.
11
3 Getting Started
3.1 AV Headphone
The AV Headphone Profile enables use of a Bluetooth enabled headphone to
listen to high-quality stereo music played on a computer.
Typical Usage
• Listen to music using a Bluetooth enabled AV headphone.
Step 1: Connect to the AV headphone, following the instructions in
Chapter 2.
Step 2: Play music using media player software on your computer. Music
will transmit wirelessly to the headphone.
3.2 Basic Imaging
The Basic Imaging Profile (BIP) enables users to receive pictures from a
Bluetooth enabled digital camera, mobile phone, or other compatible device.
It also enables remote control of shooting, display, and other imaging
functions.
Typical Usage
• Control camera to take pictures
• Receive pictures sent from BIP-enabled digital devices
Control Camera to Take Pictures
Step 1: Connect to the camera, following the directions in Chapter 2.
A Bluetooth Camera Controller will appear, Figure 3.1.
12
Loading...
