SONIQ PD100 User Manual

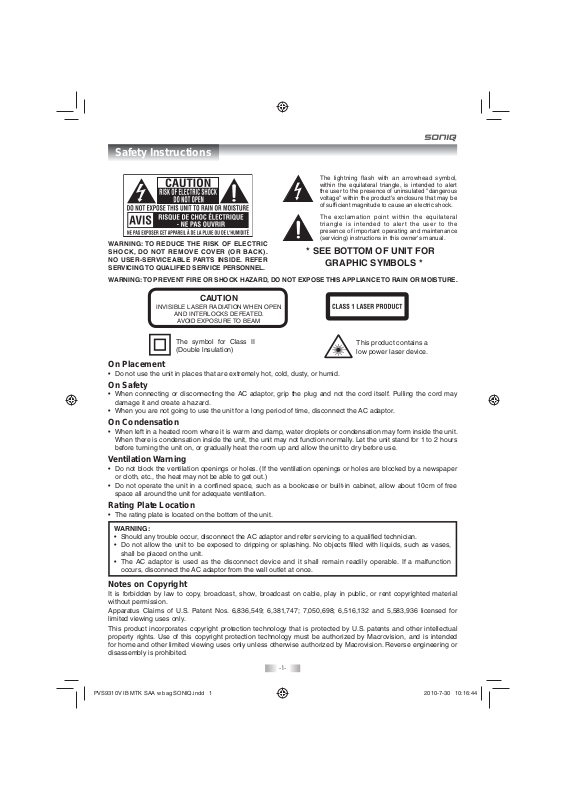

Safety Instructions

The lightning flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufﬁ cient magnitude to cause an electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

(servicing) instructions in this owner's manual.

* SEE BOTTOM OF UNIT FOR

GRAPHIC SYMBOLS *

INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM

The symbol for Class II (Double lnsulation)

This product contains a low power laser device.

On Placement

CAUTION

• Do not use the unit in places that are extremely hot, cold, dusty, or humid.

On Safety

• When connecting or disconnecting the AC adaptor, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.

• When you are not going to use the unit for a long period of time, disconnect the AC adaptor.

On Condensation

• When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1 to 2 hours before turning the unit on, or gradually heat the room up and allow the unit to dry before use.

Ventilation W arning

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not operate the unit in a conﬁ ned space, such as a bookcase or built-in cabinet, allow about 10cm of free space all around the unit for adequate ventilation.

Rating Plate Location

• The rating plate is located on the bottom of the unit.

WARNING:

• Should any trouble occur, disconnect the AC adaptor and refer servicing to a qualiﬁ ed technician.

• Do not allow the unit to be exposed to dripping or splashing. No objects ﬁ lled with liquids, such as vases,

shall be placed on the unit.

• The AC adaptor is used as the disconnect device and it shall remain readily operable. If a malfunction

occurs, disconnect the AC adaptor from the wall outlet at once.

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission.

Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

-1-

PVS9310V IB MTK SAA w bag SONIQ.indd 1PVS9310V IB MTK SAA w bag SONIQ.indd 1 2010-7-30 10:16:442010-7-30 10:16:44

Important safety instructions

SAFE USE OF YOUR EQUIPMENT

Here are a few tips to help you do this:

READ this instruction manual before you attempt to use the equipment. NEVER fit, make, or shift stands or legs with woodscrews. Use only approved supports and fasteners

specially designed for the equipment. NEVER let anyone, especially children, push objects into holes, ventilation slots or any other opening; this

could result in fatal electric shock!

ALWAYS disconnect the AC adaptor when you are not going to use the unit for a long period of time. ENSURE that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made in accordance with the instructions given. Switch off the main supply when making or changing connections.

CONSULT your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DON'T continue to operate the equipment if it is damaged in any way or if it does not function normally.

Disconnect the AC adaptor and consult your dealer. DON'T leave equipment switched on when it is unattended unless it is part of it's normal function to operate

in your absence, for example a video cassette recorder with timed recording facility. LISTEN to headphones at moderate volume levels; high volume levels can permanently damage your

hearing.

WARNING:

• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.

• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualiﬁ ed service agent.

• Place the unit on a ﬂ at and even surface.

• Do not restrict the air ﬂ ow of the unit by placing it in a place with poor air ﬂ ow, by covering it with a cloth, or by placing it on carpeting.

• To avoid magnetized, do not place the unit near speaker or magnet.

• Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht, etc) where it would be exposed to high temperatures above 40°C.

• It also should not be placed in temperatures less than 5°C or greater than 35°C.

• No naked ﬂ ame sources such as lighted candles should be placed on the AC adaptor and main unit.

-2-

PVS9310V IB MTK SAA w bag SONIQ.indd 2PVS9310V IB MTK SAA w bag SONIQ.indd 2 2010-7-30 10:16:442010-7-30 10:16:44

Table of Contents

Safety Instructions ..................................1

Important Safety Instructions.................2

Table of Contents ....................................3

Disc Formats ............................................4

Accessories .............................................5

Remote Control ........................................5

Control Reference Guide ...................6 - 7

Power Supply ......................................8 - 9

Using the AC adaptor .................................8

Using the car power adaptor ......................8

Using the rechargeable battery ...................9

Turning on the unit ...................................... 9

Connections ...........................................10

Connecting a TV ........................................10

Using headphones / earphones ................10

Sound System ........................................10

Playing a Disc .................................11 - 12

Playing a disc ............................................11

Pausing playback (still mode) .................... 11

Stopping playback ..................................... 11

Fast forward / Fast reverse ........................11

Skip (forward / reverse) .............................11

Audio selection .........................................11

Subtitle selection ....................................... 12

Angle selection .......................................... 12

Display function ......................................... 12

Adjust the LCD screen ..............................12

Locating a Desired Section ..................13

Locating a speciﬁ c chapter / title ...............13

Locating a speciﬁ c time .............................13

Locating a speciﬁ c disc / track time ........... 13

Selecting a speciﬁ c track ........................... 13

Repeat Playback ...................................14

Repeating a chapter / title .........................14

Repeating a single track / whole disc ........14

Repeating a speciﬁ c section ...................... 14

Programmable Memory ....................14-15

Playing titles / chapters / tracks in a favourite

order .................................................... 14-15

Viewing JPEG/DivX Files ......................15

Viewing JPEG/DivX ﬁ les ............................ 15

Customizing the Function Settings

..........................................................16 - 17

Language setup ........................................ 16

Video setup .............................................. 16

System setup ..................................... 16 - 17

Maintenance ...........................................18

Cleaning the disc ....................................... 18

Cleaning the unit .......................................18

Important note ..........................................18

Troubleshooting Guide .........................18

Carrying Bag Installation ......................19

-3-

PVS9310V IB MTK SAA w bag SONIQ.indd 3PVS9310V IB MTK SAA w bag SONIQ.indd 3 2010-7-30 10:16:442010-7-30 10:16:44

Disc Formats

The unit can playback discs bearing any of the following marks:

Region Management Information

Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

The region number of this unit is 4.

Disc Function or Operation that is Not Available

When the symbol appears on the TV screen, it indicates that the function or operation attempted is not available at that time. This occurs because the DVD manufacturer determines the speciﬁ c functions. Certain functions may not be available on some discs. Be sure to read the documentation provided with the disc.

Icons Used on DVDs

Sample lcons

Note:

• When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not be shown.

DVDs [8cm(3")/12cm(5") disc]

Audio CDs [8cm(3")12cm(5") disc]

Compatible

Language selections for audio

Language selections for subtitles

Screen aspect ratio

Multiple camera angles

Region code indicator

Title, Chapter and Tracks

• DVDs are divided into “titles” and “chapters”. If the disc has more than one movie on it, each movie would be a separate “title”. “Chapters” are sections of titles.

• Audio CDs are divided into “tracks”. A “track” is usually one song on an Audio CD.

Note:

• Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them, but some do not.

Notes on Unauthorized Discs

You may not be able to play back some DVDs on this unit if they were purchased from outside your geographic area or made for business purposes.

-4-

PVS9310V IB MTK SAA w bag SONIQ.indd 4PVS9310V IB MTK SAA w bag SONIQ.indd 4 2010-7-30 10:16:442010-7-30 10:16:44

Accessories

Please check and identify the supplied accessories.

Remote Control (with battery) ..........................................................................................x 1

AC Adaptor ......................................................................................................................x 1

Car Power Adaptor ...........................................................................................................x 1

Earphones .......................................................................................................................x 1

Audio/Video Cable ...........................................................................................................x 1

Carrying Bag ....................................................................................................................x 1

Instruction Manual ............................................................................................................x 1

Warranty Card ..................................................................................................................x 1

Hotline Card .....................................................................................................................x 1

Remote Control

Using the Remote Control

• Point the remote control at the REMOTE SENSOR located on the unit.

• When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation.

• The recommended effective distance for remote operation is about 16 feet (5 meters).

Remove the plastic sheet before operating the remote control.

To Change Remote Battery

1. Open the battery door.

BATTERY REPLACEMENT

When the battery becomes weak, the operating distance of the remote control will be greatly reduced and you will need to replace the battery.

Note:

• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.

• Corrosion, oxidation, battery-leakage and any other gradually acidic defect of this nature will void the warranty.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

WARNING:

• Do not dispose of battery in ﬁ re, battery may explode or leak.

• The battery should not be exposed to excessive heat such as sunshine, ﬁ re or the like.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. Insert one CR2025 (3V) size battery.

-5-

PVS9310V IB MTK SAA w bag SONIQ.indd 5PVS9310V IB MTK SAA w bag SONIQ.indd 5 2010-7-30 10:16:442010-7-30 10:16:44

Control Reference Guide

Remote Control

1) VIDEO MODE button

Adjust Brightness, Screen Size, Backlight and

Contrast of the LCD screen.

2) PREV button

Move back through titles, chapters or tracks on a

disc.

/ SEARCH buttons

SEARCH:

Fast reverse playback.

SEARCH:

Fast forward playback.

4) GOTO button

Skip directly to a location on a CD/DVD.

5) Cursor ( , , , ) buttons

Move between selections on a menu screen and

adjust certain settings.

ENTER button Conﬁ rm selections on a menu screen.

6) MEMORY button

Set titles/chapters in a favorite order.

7) Number (0 - 9) buttons

Use when creating programs or locating a title/

chapter/track or speciﬁ c time.

8) REPEAT A-B button

Perform point-to-point repeat playback on a DVD

or CD.

REPEAT DISC button Repeat a DVD chapter or title. Repeat a CD track or the whole disc. SETUP button In Stop Mode, press to display the unit’s SETUP

menu.

9) SUBTITLE button Select one of the subtitle languages programmed

on a DVD (if available).

RETURN button Return to normal operation after using the SETUP

menu of a DVD.

10) AUDIO button Select one of the audio sound tracks on a DVD

(if more than one is available) or select the audio output mode on a CD.

11) ANGLE button Switch between multiple camera angles if

applicable to the DVD.

12) DISPLAY button Show status information on the screen.

13) STOP button

Stop playing a disc.

PAUSE button Press once to pause playback. Press subsequently

to advance frame by frame on a DVD.

PLAY button

Start or resume playback of a disc.

14) NEXT button

Skip to next title, chapter or track on a disc.

15) MENU button

Enter and exit the main DVD Menu.

-6-

PVS9310V IB MTK SAA w bag SONIQ.indd 6PVS9310V IB MTK SAA w bag SONIQ.indd 6 2010-7-30 10:16:442010-7-30 10:16:44

Control Reference Guide

Unit

1) LCD screen

2) DC IN 9V - 12V jack

3) AUDIO / VIDEO OUT jack

4) CHARGE / STANDBY / ON switch

5) VOLUME control

Adjusts the volume.

6) Headphone jack

STOP button

Press to stop playing a disc. MENU button Accesses DVD Disc Menu if DVD disc is currently

playing.

Accesses Setup menu if disc is not playing.

button

Press to start or resume playback of a disc.

Pressing during playback of a disc will cause

playback to be paused.

SEARCH button

Press and hold to perform fast forward playback

during CD playback.

In DVD Menu or Setup Menu, press to scroll up.

PREV button

Press to go back to the previous title / chapter /

track.

In DVD Menu or Setup Menu, press to scroll left.

NEXT button

Press to advance titles / chapters / tracks.

In DVD Menu or Setup Menu, press to scroll

right.

SEARCH button

Press and hold to perform fast reverse playback

during CD playback.

In DVD Menu or Setup Menu, press to scroll

down.

8) Disc Door

Push to close the disc door.

9) OPEN knob

Press the open knob to open the disc door.

10) Remote sensor

Senses the remote control's signals.

11) ON indicator

12) CHARGING indicator

Charge the rechargeable battery before using

it for the first time. Complete charging typically takes approximately 4-5 hours. The charging light will go out when the battery becomes fully charged.

-7-

PVS9310V IB MTK SAA w bag SONIQ.indd 7PVS9310V IB MTK SAA w bag SONIQ.indd 7 2010-7-30 10:16:452010-7-30 10:16:45

Power Supply

A. Using the AC Adaptor

This AC adaptor operates on AC between 100V and 240V.

• The supplied AC adaptor is suitable for use on AC mains supplies of 100-240 Volts AC and should only be connected to a mains supply within these parameters.

AC adaptor

LEFT SIDE OF UNIT

To AC outlet

To DC IN 9V-12V jack

Cautions:

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.

• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.

• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.

IMPORTANT

• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.

• When the AC adaptor is plugged in, the apparatus is not completely disconnected from the main power source, even when the unit is turned off.

B. Using the Car Power Adaptor

The 12V car power adaptor is designed for use with vehicles that have a 12V, negative ground electrical system.

WARNING: Disconnect this car power adaptor when not in use. Not for use in 24V vehicles.

LEFT SIDE OF UNIT

To the cigarette lighter socket

Car power adaptor

Cautions:

• Use only the included 12V car power adaptor. Use of any other 12V car power adaptor could damage the unit.

• The 12V car power adaptor included is for use with this unit only. Do not use it with any other equipment.

• In the interest of trafﬁ c safety, drivers should not operate the unit or view videos while driving.

• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.

• After use, disconnect the car power adaptor from both the unit and cigarette lighter socket.

• If the unit is not properly attached to a vehicle, it may become airborne in the event of an accident and cause damage, injury, or death.

• Check your local trafﬁ c laws for rules governing the use of video devices in vehicles before using this unit in your vehicle.

-8-

PVS9310V IB MTK SAA w bag SONIQ.indd 8PVS9310V IB MTK SAA w bag SONIQ.indd 8 2010-7-30 10:16:452010-7-30 10:16:45

To DC IN 9V-12V jack

Power Supply

C. Using the Built-in Battery

The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the ﬁ rst time. The normal charging time should be completed within 4-5 hours. The charging light will go out when the built-in battery becomes fully charged.

To Recharge the Built-in Battery

To AC outlet

AC adaptor

To DC IN

9V-12V jack

Slide the switch

to CHARGE

Warnings:

• The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC adaptor.

• The built-in battery cannot be recharged when the unit is in power ON mode.

• The unit should not be exposed to excessive heat such as sunshine, ﬁ re or the like.

Cautions:

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.

• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.

• When the AC adaptor is plugged in, the apparatus is not completely disconnected from the mains, even when the unit is turned off.

Condition and attention:

• When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop playing.

• Recharge the built-in battery when you are ready to use it again.

• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).

• To get the longest service life of the built-in battery, charge at indoor-temperature.

• The built-in battery in this device may present a risk of ﬁ re or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.

• The unit should not be exposed to excessive heat such as sunshine, ﬁ re or the like.

• When discarding the unit, environmental problems must be considered and local rules or laws governing the disposal of such products must be strictly followed.

Recharging is completed when

charging light goes out

Charging light ON

Turning On the Unit

1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON position.

2. The DVD logo (start-up picture) will appear on the screen.

3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY position.

-9-

PVS9310V IB MTK SAA w bag SONIQ.indd 9PVS9310V IB MTK SAA w bag SONIQ.indd 9 2010-7-30 10:16:452010-7-30 10:16:45

Connections

A. Connecting a TV

If your TV has audio/video inputs, you can also connect the unit to your TV using the Audio/Video cable, and watch DVD on your TV screen.

LEFT SIDE OF UNIT

White Red Yellow

To AUDIO / VIDEO

OUT jacks

Audio/Video cable

Watching a DVD on your TV

1. Turn on the unit.

2. Turn on the TV and set its source to AV or similar (see the TV instruction manual for details).

B. Using Headphones / Earphones

• Turn down the volume before connecting, and then adjust the level.

• When headphones / earphones are connected, no sound will be emitted from the unit's speaker.

Caution:

• Avoid listening to sound at levels which may be harmful to your ears.

LEFT SIDE OF UNIT

Headphones /

Earphones

(3.5mm diameter plug)

Sound System

Dolby Digital

Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce from one to 5.1 discrete channels of excellent quality audio.

The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two-channel listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel soundtracks available on many DVDs.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

-10-

PVS9310V IB MTK SAA w bag SONIQ.indd 10PVS9310V IB MTK SAA w bag SONIQ.indd 10 2010-7-30 10:16:452010-7-30 10:16:45

Playing a Disc

This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows speciﬁ c or limited operation during playback. Therefore, this unit may not respond to all operating commands. THIS IS NOT A DEFECT. Please refer to the instructions accompanying the speciﬁ c DVD in question for more information about the options available on that DVD.

” may appear on the screen during operation. A “ ” means that the desired operation is not

“ permitted by the unit or disc.

Playing a Disc

1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON position.

See CUSTOMIZING THE FUNCTION SETTINGS before proceeding to step 2.

2. Press the OPEN knob to open the disc door.

3. Hold the disc by its sides and carefully place it onto the spindle with the label side

facing up, pushing gently until you hear a “click”.

4. Close the disc door. It takes a short while for your unit to load the disc. After loading,

the unit will automatically bring you to the main menu of the DVD or start playing the DVD.

5. If the unit does not automatically start playing the DVD, press the PLAY button on

the remote control or button on the unit.

Pausing Playback (Still Mode)

Press the PAUSE button. To resume normal playback, press the PLAY button on the remote control or button on the unit. For a DVD, each time you press the PAUSE button on the remote control, the picture advances one frame.

Stopping Playback

Press the STOP button at the location where you want to interrupt playback. To resume playback at the position where the disc was stopped, press the PLAY button on the remote control or button on the unit. If you press the STOP button twice, the unit’s memory will be cleared and pressing the PLAY button on the remote control or button on the unit will reset the DVD to the beginning.

Fast Forward / Fast Reverse

1. Press the SEARCH or SEARCH button when a disc is playing. Each time you press the SEARCH or

SEARCH button, the playback speed changes in the following sequence:

Press the

point to resume normal playback.

Notes:

• The DVD player mutes sound and subtitles during reverse and forward scan of DVDs.

• The fast playback speed may differ depending on the disc.

PLAY button on the remote control or press the button twice on the unit when you reach the desired

Skip (Forward / Reverse)

• Press the NEXT button to advance titles, chapters/tracks.

• Press the PREV button to go back to current or previous titles, chapters/tracks.

• For an Audio CD, use the number buttons on the remote control to jump directly to the desired track number.

Audio Selection

On some DVDs, the sound is recorded in two or more formats. Follow the directions below to select the preferred language and sound system.

1. While a disc is playing, press the AUDIO button to show the current audio format number.

Audio 1/3:Dolby D 2ch EnglishAudio 1/3:Dolby D 2ch English

2. Press the AUDIO button repeatedly to select the desired audio format.

Notes:

• If only one audio format is recorded on the DVD, the number does not change.

• Some DVDs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language on the disc menu.

• You can select different audio channels (Stereo, Mono Left, Mono Right or Mix-Mono) on an Audio CD by pressing the AUDIO button repeatedly.

-11-

PVS9310V IB MTK SAA w bag SONIQ.indd 11PVS9310V IB MTK SAA w bag SONIQ.indd 11 2010-7-30 10:16:452010-7-30 10:16:45

Playing a Disc

Subtitle Selection

1. While a DVD is playing, press the SUBTITLE button to display the current language setting, as shown in the

example.

2. Press the SUBTITLE button repeatedly to select the desired subtitle language. You can turn subtitles off by

pressing the SUBTITLE button repeatedly until the “

Notes:

• Some DVDs are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle

function to off.

• During some scenes, the subtitles may not appear immediately after you select your desired scene.

• The number of subtitle languages recorded differs depending on the disc. If only one language is recorded, the

language does not change.

• This function can only be used for discs on which subtitles have been recorded in multiple languages.

• Some DVDs allow you to change subtitles using the disc menu only. If this is the case, press the MENU button

and choose the appropriate subtitle on the disc menu.

Angle Selection

Some DVDs contain scenes that have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press

the ANGLE button to view the number of current angles available.

2. Press the ANGLE button repeatedly to change the scene to the

next recorded angle.

• After approx. two seconds, playback will continue from the new

angle selected.

• If no button is pressed within 10 seconds, playback continues

without changing the current angle.

Note: This function can only be used for discs on which scenes shot from multiple angles have been recorded.

Subtitle 02/03:SpanishSubtitle 02/03:Spanish

Subtitle OffSubtitle Off

” is displayed.

1/31/311

Sequence of angle shots

(Example)

/31 /32 /33

Display Function

While the disc is playing, press the DISPLAY button repeatedly to display information on operation status.

Adjust the LCD Screen

You can adjust Brightness, Screen Size, Backlight and Contrast of the LCD screen.

1. Press the VIDEO MODE button on the remote control.

2. Press the / button to select Brightness, Screen Size, Backlight or Contrast.

3. Press the / button to change the setting.

4. Press the VIDEO MODE button to exit the menu.

-12-

PVS9310V IB MTK SAA w bag SONIQ.indd 12PVS9310V IB MTK SAA w bag SONIQ.indd 12 2010-7-30 10:16:452010-7-30 10:16:45

Locating a Desired Section

Locating a Specific Chapter / Title

If you know the chapter/title number for the chapter that you want to play, you can locate it by directly selecting that number.

1. Press the GOTO button.

Title 01/03 Chapter 03/12Title 01/03 Chapter 03/12

2. Press the

/ button to highlight chapter/title number, press the corresponding number buttons (2 digits) for the chapter/title you want. (For example: 02, 08, 10 or 15.) (If you press only 1 numeric button, press the ENTER button to conﬁ rm.)

3. Playback starts from the selected chapter/title.

Notes:

• If the chapter/title number entered is not permitted by the DVD, " GOTO button again and re-enter correct number.

• Some discs may not respond to this process.

• This method of locating a chapter/title is available only on a DVD that contains chapter/title numbers.

Locating a Specific Time

You can move to a speciﬁ c location by entering its corresponding time (hours, minutes, seconds).

1. Press the GOTO button two times.

2. Press the corresponding number buttons (5 digits: X:XX:XX, for example: 0 30 05, 1 08 23, 1 22 56.) for the setting point you want.

3. Playback starts from the selected section.

Notes:

• If the time entered is not permitted by the DVD, "

• Some discs may not respond to this process.

• Some scenes may not be located as precisely as you speciﬁ ed.

• This method for accessing speciﬁ c locations is available only within the current title of the DVD.

Title 01/03 TimeTitle 01/03 Time ::

Title 01/03 Chapter 00/00Title 01/03 Chapter 00/00

Input invalidInput invalid

" will display. You should re-enter correct time.

Input invalidInput invalid

" will display. You should press the

Selecting a Specific Track

1. Press the GOTO button.

2. Press the corresponding number buttons (2 digits) for the track you want. (For example: 02, 08, 10 or 15.) (If you press only 1 numeric button, press the ENTER button to conﬁ rm.)

3. Playback starts from the selected track.

Notes:

• If the track number entered is not permitted by the CD, " button again and re-enter correct number.

• You can also directly press the number buttons to select a track.

PVS9310V IB MTK SAA w bag SONIQ.indd 13PVS9310V IB MTK SAA w bag SONIQ.indd 13 2010-7-30 10:16:462010-7-30 10:16:46

-13-

Input invalidInput invalid

" will display. You should press the GOTO

Repeat Playback

You can play a speciﬁ c DVD title or chapter repeatedly (title repeat, chapter repeat, A-B repeat).

Repeating a Chapter

1. While the DVD is playing, press the REPEAT DISC button until the “ screen. The current chapter is played repeatedly.

Repeating a Title

2. While the DVD is playing, press the REPEAT DISC button until the “ The current title is played repeatedly.

To Resume Normal Playback

3. While the DVD is playing, press the REPEAT DISC button until the “ screen.

You can play a single CD track or the whole disc repeatedly.

Repeating a Single Track

1. While the CD is playing, press the REPEAT DISC button until the “ ” indicator displays on the screen. The current track is played repeatedly.

Repeating the Whole Disc

2. While the CD is playing, press the REPEAT DISC button until the “ ” indicator displays on the screen. The whole disc is played repeatedly.

To Resume Normal Playback

3. While the CD is playing, press the REPEAT DISC button until the “

Repeating a Specific Section

You can play a speciﬁ c section repeatedly.

1. While the disc is playing, press the REPEAT A-B button at the beginning of the section (“ you want to play repeatedly.

2. Press the REPEAT A-B button again at the end of the section (“

3. The unit will immediately begin replaying your selection.

To Resume Normal Playback

4. While the disc is playing, press the REPEAT A-B button until the “ repeat indicator disappears from the screen for a CD). The system will return to normal playback.

Notes:

• Some discs may not permit A-B repeat operation.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles.

• You can specify a segment only within the current title or track.

• There may be a slight difference between point A and the location where playback actually resumes depending on the disc.

ChapterChapter

” indicator displays on the

TitleTitle

” indicator displays on the screen.

Repeat OffRepeat Off

ABAB

” is displayed).

AB OFFAB OFF

” indicator displays on the

” indicator displays on the screen.

” indicator displays on the screen (the

” is displayed)

Programmable Memory

Playing Titles / Chapters / Tracks in a Favourite Order

You can combine your favorite titles/chapters/tracks and play them in the order you determine.

1. During playback, press the MEMORY button and a program screen appears.

Clear: Delete all input programs. Exit: Exit memory menu and return to normal playback. Next / Prev: Move to the next / previous setup page.

2. Input the title (2 digits) and chapter (2 digits) by pressing the number buttons (for example: 01 02, 02 05, 02 11). It will move to the next item automatically.

-14-

PVS9310V IB MTK SAA w bag SONIQ.indd 14PVS9310V IB MTK SAA w bag SONIQ.indd 14 2010-7-30 10:16:462010-7-30 10:16:46

Programmable Memory

• You can use the Cursor buttons ( , , , ) to move the highlighted bar to any item, and re-enter the title and chapter. Press the NEXT / PREV to move to the next / previous setup page.

• You can use the Cursor buttons ( press the ENTER button to conﬁ rm.

3. Press the PLAY button on the remote control or button on the unit to start memory playback.

ProgramProgram

(“

4. To resume normal playback from memory playback

1). Press the MEMORY button to display the memory menu.

2). Use the Cursor buttons ( , , , ) to move the highlighted bar to “Stop”. Press the ENTER button to conﬁ rm “Stop”.

3). Use the Cursor buttons ( , , , ) to highlight “Clear”, and then press the ENTER button to conﬁ rm.

4). Use the Cursor buttons ( , , , ) to highlight “Exit”, and then press the ENTER button to conﬁ rm. It will return to normal playback (“

Notes:

• For a CD, you can only arrange order for tracks. The display will be a little different.

• If the title or chapter number entered is not permitted by the DVD, it will disappear. You should re-enter correct number.

• You should input items one by one following the 1, 2, 3 ... sequence.

• If the DVD contains only one title, you can only arrange order for chapters.

• Some discs may not permit memory playback operation.

• If you select repeat during memory playback, the DVD player repeats the current memory playback.

• If you press the MEMORY button while the display appears on the TV screen, the display disappears.

• The programmed selections will be cleared when you press the STOP button two times, open the disc tray or turn off the DVD player.

” appears on the screen).

ProgramProgram

, , , ) to move the highlighted bar to “Clear”, “Exit” or “Next / Prev”, and

” disappears from the screen).

Viewing JPEG/DivX Files

This unit can play JPEG/DivX ﬁ les recorded on a CD-R or CD-ROM disc (CD-RW is not recommended).

Viewing JPEG/DivX Files

1. Slide the OPEN knob rightwards to open the disc door.

2. Hold a JPEG/DivX file disc by its edges and gently push it onto the spindle with the label side facing up until you hear a “click”.

3. Close the disc door. The JPEG/DivX ﬁ les on the disc will be displayed automatically or a folder list appears.

4. Press the STOP button to display a folder list. Press the / button to highlight a JPEG/DivX ﬁ le to play. Press the PLAY button to start playback.

Notes:

• You can press the

• You can press the PREV or NEXT button to change the picture/DivX ﬁ le.

• For a JPEG ﬁ le, you can press the ANGLE button on the remote control to rotate direction of the picture by 90o.

• For a DivX ﬁ le, press the AUDIO button repeatedly to select the desired audio format if more than one is available.

• For a DivX ﬁ le, press the SUBTITLE button repeatedly to select the desired subtitle language if more than one is available.

• Some discs may not permit this operation.

, DivXTM Certiﬁ ed, and associated logos are trademarks of DivX, Inc. and used under license.

DivX

About DivX

DivX is a popular media technology created by DivX, Inc. DivX media ﬁ les contain highly compressed video with high visual quality that maintains a relatively small ﬁ le size. DivX ﬁ les can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media ﬁ les are available for download online, and you can create your own using your personal content and easy-to-use tools from DivX.com.

About DivX Certiﬁ ed

This product passed DivX Certiﬁ cation HT2.2. DivX Certiﬁ ed is an assurance to consumers that DivX video they create or download will play and Certiﬁ ed products support all versions of DivX: 3,4,5 and DivX VOD.

PAUSE button to freeze the picture. Press the PLAY button to resume picture slide show.

-15-

PVS9310V IB MTK SAA w bag SONIQ.indd 15PVS9310V IB MTK SAA w bag SONIQ.indd 15 2010-7-30 10:16:462010-7-30 10:16:46

Customizing the Function Settings

Language Setup

1. Press the SETUP button on the remote control or MENU button on the unit in stop mode (when disc is not playing).

2. Press the

button to select Language Menu.

3. Press the / button to select the option (Player Menu, Audio, Subtitle or Disc Menu), then press the button.

4. Press the / button to select your preferred language, then press the

Language

- - Language Menu - -

Player Menu Audio Subtitle DivX Subtitle Disc Menu

ENTER button to conﬁ rm.

5. Repeat steps 3 and 4 to adjust other options. Press the button to return to the previous menu.

Go To Language Menu

6. Press the SETUP or RETURN button to exit the menu.

Notes:

• Some DVDs may not play in the audio language you selected. A prior language may be programmed on the disc.

• Some DVDs may be set to display subtitles in a language other than the one you selected. A prior subtitle language may be programmed on the disc.

• Some DVDs allow you to change subtitle selections using the disc menu only. If this is the case, press the MENU button and choose the appropriate subtitle language from the selection on the disc menu.

• Some DVDs may not include your pre-selected language. In this case, the DVD player automatically displays disc menus consistent with the disc’s initial language setting.

Video Setup

1. Press the SETUP button on the remote control or MENU button on the unit in stop mode (when disc is not playing).

2. Press the / button to select Video Menu.

3. Press the / button to select the option (Brightness or Contrast), then press the button.

4. Press the / button to adjust the setting, then press the ENTER button to conﬁ rm.

5. Repeat steps 3 and 4 to adjust other options. Press the button to return to the previous menu.

6. Press the SETUP or RETURN button to exit the menu.

Language

Video Menu

-- --

Brightness Contrast 00 Backlight

Go To Video Menu

Video

Eng Eng Of

f West Eu Eng

Video

System

System Setup

1. Press the SETUP button on the remote control or MENU button on the unit in stop mode (when disc is not playing).

2. Press the / button to select System Menu.

3. Press the / button to select the option (TV Display, Parental, Password, Default or DivX Registration), then press the button.

4. Press the / button to adjust the settings, then press the ENTER

Language

- - System Menu - -

TV Display

Parental

Password

Default DivX Registration

button to conﬁ rm.

5. Repeat steps 3 and 4 to adjust other options. Press the button to return to the previous menu.

Go To System Menu

6. Press the SETUP or RETURN button to exit the menu.

(Continued on the next page.)

-16-

PVS9310V IB MTK SAA w bag SONIQ.indd 16PVS9310V IB MTK SAA w bag SONIQ.indd 16 2010-7-30 10:16:462010-7-30 10:16:46

Wide

Video

System

Customizing the Function Settings

TV Display

Pan Scan

• When wide-screen video is played, this mode clips the right and left sides of the

image so that it can be viewed on a conventional screen.

• Some wide-screen DVDs that do not permit Pan Scan mode playback are

automatically played in letterbox mode (black bands that appear at the top and bottom of the screen).

Letter Box

• When wide-screen video is played in this mode on a conventional screen, black

bands appear at the top and bottom of the screen.

Wide Screen

• This is the correct mode for playing wide-screen videos on the unit screen or other

external wide-screens.

Notes:

• The displayable picture size is preset on the DVD. Therefore the playback picture of

some DVDs may not conform to the picture size selected.

• When you play DVDs recorded in the 4:3 aspect ratio, the playback picture will

always appear in the 4:3 aspect ratio regardless of the TV display setting.

• Select Wide Screen to conform the LCD screen on the unit. Always be sure that

your TV display conforms to the actual TV in use if you connect the unit to a TV.

Cut off when a wide-screen video image is played.

Pan Scan

Letter Box

Wide Screen

Parental Lock

DVDs are rated according to their content and some are equipped with a password function. The contents allowed by parental lock level and the way a DVD is controlled may vary from disc to disc. For example, if the disc allows, you could lock-out violent scenes unsuitable for children or you could lock out playback of the disc altogether.

You cannot play password function equipped DVDs rated higher than the level you selected unless you cancel the parental lock function.

The parental lock levels are equivalent to the following ratings. 1 : Kid Safe 2 : G 3 : Pg 4 : Pg 13 5 : Pg R 6 : R 7 : Nc 17 8 : Adult

Password

Use the or button to select Password, press the button to “Change”, then press the ENTER button. Press the number buttons to input your 4-digit password until to “OK”. (If the password has not been set yet after you purchase this unit, it is "8888").

If you forget the password, you can erase your current password by pressing the number button 8

Default

Pressing the ENTER button with this function selected resets all settings to their initial factory state, except for parental setting and password.

Note: It takes 3-5 seconds to reset the unit to the factory default.

DivX Registration

The unit provides you the DivX videos using the DivX® VOD service. For more information, visit www.divx.com/vod. Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.

Notes:

• Registration code is for DivX Video-On-Demand only, do not apply this code for another applications or websites.

• All the downloaded videos from DivX® VOD can only be played back on this DVD player.

PVS9310V IB MTK SAA w bag SONIQ.indd 17PVS9310V IB MTK SAA w bag SONIQ.indd 17 2010-7-30 10:16:462010-7-30 10:16:46

on the remote four times (PASSWORD : 8 8 8 8).

VOD(Video on Demand) registration code that allows you to rent and purchase

-17-

Maintenance

Cleaning the Disc

A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges.

• Do NOT touch the surface of the unlabeled side of the disc.

• Do NOT stick paper or tape on the surface.

• Do NOT expose the disc to direct sunlight or excessive heat.

• Clean the disc before playback. Wipe the disc from the centre outward with a cleaning cloth.

• NEVER use solvents such as benzine or alcohol to clean the disc.

• Do NOT use irregular shaped discs (example : heart shaped, octagonal, etc.). They may cause malfunctions.

Cleaning the Unit

• Be sure to turn the unit off and disconnect the AC adaptor before maintaining the unit.

• Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been

dipped in a weak soap-and-water solution and wrung out thoroughly. Wipe with a dry cloth.

• Never use alcohol, benzine, thinner, cleaning ﬂ uid or other chemicals. Do NOT use compressed air to remove dust.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

Troubleshooting Guide

SYMPTOM CAUSE (AND REMEDY)

No power.

The remote control does not function.

No sound or only a very low-level sound is heard.

No picture.

• Ensure the AC adaptor is connected.

• Make sure that the unit is turned on.

• Make sure the infrared remote sensor is not blocked.

• Make sure the plastic sheet has been removed from the remote.

• Point the remote directly at the infrared remote sensor on the unit.

• Replace the battery in the remote with a new one.

• Make sure that ON mode is selected.

• The system is in pause mode. Press the button on the unit to return to normal play mode.

• Make sure the unit is not in fast-forward or fast-reverse mode. Press the on the remote control or

• Make sure that AUDIO/VIDEO output connections are correct.

• The DTS DVD cannot be decoded to have speaker output.

• The unit has overheated. Shut it off for 30 minutes to allow it to cool down.

• The region number of the disc doesn't match the region number of this unit.

button on the unit to return to normal play mode.

PLAY button on the remote control or

PLAY button

The picture is not clear.

Loud hum or noise is heard.

The disc does not play.

Specifications and external appearance are subject to change without notice.

PVS9310V IB MTK SAA w bag SONIQ.indd 18PVS9310V IB MTK SAA w bag SONIQ.indd 18 2010-7-30 10:16:462010-7-30 10:16:46

• The DVD is dirty. Gently clean the disc.

• The disc is scratched.

• Please adjust the LCD's brightness, contrast and saturation by the VIDEO MODE button on the remote control.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

• There is no disc inside the unit ("No Disc" appears on the screen).

Insert the disc correctly with the graphics facing up.

• Clean the disc.

• A non-PAL disc has been inserted, or the disc region number does not match the region number of the unit.

• Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.

-18-

Carrying Bag Installation

CARRYING BAG

SAFETY WARNING!

On no account should this unit be used by the driver of a moving motor vehicle, or left unsecured in the vehicle whilst driving. If this unit is being used by a passenger in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device (i.e. airbag, seat belt etc.) that is ﬁ tted.

1. Insert the unit into bag as shown.

3. Strap the top strap around the car's headrest support (ie. just below the headrest) as shown below.

5. Adjust the straps tightly so that the unit is secured.

And connect the 12V car power adaptor as shown.

2. Insert the straps on carrying bag as shown.

4. Strap the lower strap around the car seat itself, as shown below.

CAUTION:

Using other car power adaptors could damage the unit.

-19-

PVS9310V IB MTK SAA w bag SONIQ.indd 19PVS9310V IB MTK SAA w bag SONIQ.indd 19 2010-7-30 10:16:462010-7-30 10:16:46

SONIQ PD100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
