SONIQ LCDTV20 User Manual

LCDTV20
TABLE OF CONTENTS
Packing List ......................................................................1
Safety Precautions ...........................................................2
Feature Description ..........................................................4
Identification of Controls .................................................5
Preparing the Remote Control ......................................... 7
Connecting to the antenna......................................
al Function ..............................................................9~12
Gener
Troubleshooting Guide......................................................12
.1.
USER MANUAL
BEFORE YOU BEGIN...
Congratulations! You have purchased a Digital Television, one of the finest Color Televisions on the market today.
This manual will guide you in the use of the many exciting features found on Digital televisions. These features will enhance your viewing experience, making your television viewing more enjoyable than ever before. However, before you begin to use your new TV set, it is important that manual for complete operating instructions. After you are finished with this manual, please retain it for futurereference.
Safety Precautions
you read through this entire
LCDTV20
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning symbol in the triangle tells you that the voltage inside this product may be strong enough to cause an electric shock .
Please carefully study this manual and always keep it available. There are, howe
some installation and operation
1.Read Instructions - All the safety and operating instructions should be read before the product is operated.
2.Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
3.Power Sources - This product should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply to your home, consult your product dealer or local power company.For products intended to operate from battery power, or other sources, refer to the operating instruc tions.
4.Power/Signal Cord - The cords should be routed so that they are not likely to be walked on or pinched by itemsplaced upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
5. O ve rloading - Do not ove rload wall outlets, extension cords, or integral convenience this can result in a risk of fire or electric shock .
precautions which you should be aware of.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOV COVER (OR BACK).NOUSER SERVICE­ABLE PART INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
!
The exclamation point in the triangle tells you that important operating and maintenance in st ructions fo l l ow this symbol.DO NOT T R S E RVICE THIS PRODUCT YOU R S E L F.
Y TO
!
receptacles as
ver,
.2.
USER MANUAL
6.Object and Liquid Entry - Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock.Never spill liquid of any kind on the product.
7.E nviroment - Do not place the unit on an unstable cart, stand, tripod or tabl e.And do not place your TV here the screen may be lighted straightly by sunlight or highlighted by any other source.Keep it
somew away fo rm moisture, dust and heat, keep some distance from the wall to ensure proper ventilation .The tempreture had better arranges 5oC -4 0oC.To avoid any hurt, unplug your TV at a storm or unused for a long time of dura t i o n .
8.Cleaning - Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol s.Use a damp cloth for cleaning or use a specified cleaner for LCD. N ever power on LCDTV before
cleaner the LCD panel dry s.
9.LCD Protection - Never scratch or hit the LCD with any hard wa r e, otherwise it will cause irrecove ra ble
scra tch ,spots or damage.
.Remote Control - Do not press, drop, moisten or disassemble the remote control, do not mix the old
10
battery with new one, or dispose of in fire or wa t e r.Ta ke the batteries out when they are exhausted or unused for a long time so as to avoid liquid leakage causing damage to the remote.
11.Servicing - Do not attempt to service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the fo l l owing cond
itions :
a.When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c.If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or damaged in any way, and keep the product in the place where it is and contact the service personnel immediately. f. When the product exhibits a distinct change in performance - this indicates a need for service.
LCDTV20
12.Replacement Parts - When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same charateristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
13.Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by
the manufacturer.
.3.
USER MANUAL
BEFORE YOU BEGIN...(continued)
Feature Description
20.1"TFT LCD Screen
No Radiation, No Flash, Environmental Protection
Slim, Light, Low-consumption
RF Input Specified with CATV Features AV Input - VIDEO/S-VIDEO/SCAR
video recorder, camera, player, etc.
Built-in Speaker - dual channel stereo
PAL/SECAM Mode
Auto Volume
Control
200 Channel storage
Cable TV Receivable (470MHz)
Auto/Manual Channel Search
4 Picture Mode Available
4 Sound Mode Available
Mute with Blue Background
English OSD Selectable
Program Edit
On/Off Timer
Auto Switch-off for
No Signal Input
Sleep Power-off
Teletext Function
Wide Mains Power (AC 110-240V -- 50/60Hz)
T input available for convenience to enjoy various programs by
LCDTV20
SPECIFICATIONS
Power
TV Tuning System
Resolution
Channel Preset
Television System
Antenna Input
Speaker Resistance
Trilingual OSD
External Jack
LCD Screen Size
Audio Out
Power Consumption
Unit Dimensions
TV Weight
*Design & specification are subject to change without notice
Signal System Frequency
Broadcast T V,
Video Recorder,etc.
.4.
AC 110V - 240V 50/60Hz
FS
640 X 480
2 0 0
PAL-B/G PAL-D/K PA L - I SECAM-L
75 ohm
8 ohm
English OSD Selectable
Vocal input: 0.5Vrms±3dB >20KΩ Vocal output: 0.5Vrms±3dB <5KΩ
Video in/out:1Vpp±3dB 75Ω
20.1inch
4.0W x 2
60W
614(L)X200(W)X452(H)
9kg
48.25MHz-831.25MHz
USER MANUAL

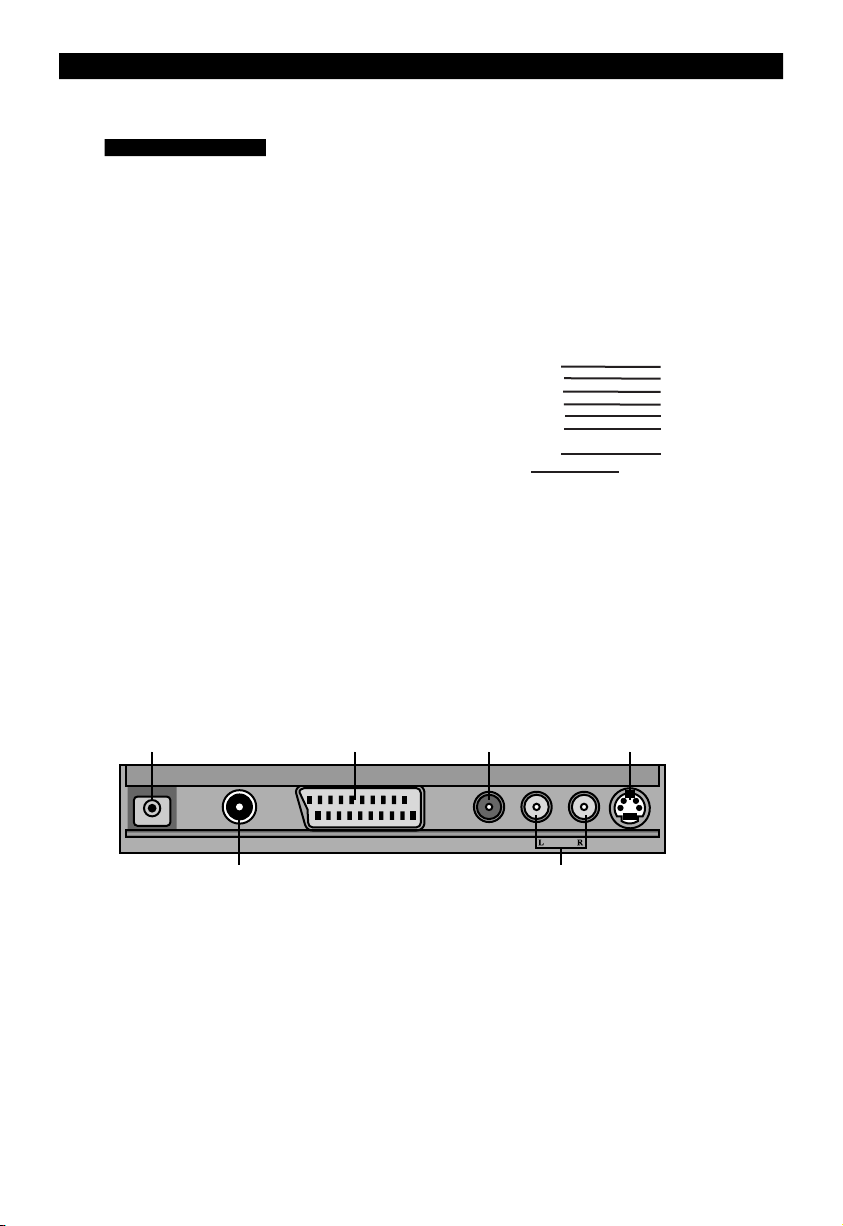

IDENTIFICATION OF CONTROLS
Main unit (front view)
1.STANDBY Turns the TV On or Off
2.CH+ Used to select a channel up
3.CH- Used to select channle down
4.VOL+ Volume up
5.VOL- Volume down
6.TV/AV Used to select a signal sorce TV.A.S-video
7.MENU Accesses or banish the TV menu
8.LED Stand By indicator
8
LCDTV20
7 6
5 4
3 2
1
DC Supply Input
SCART Input
RF Input
DC Supply Input To Main Power (DC 12V in) RF Input For connection to RF Antenna SCART Input 21-Pin Digital Scart Terminal Video Input Composite Video input Audio Input Left,Right S Video Input S Video Input
.5.
Video Input
S Video Input
Audio Input
USER MANUAL
IDENTIFICATION OF CONTROLS(continued)
Remote Control
LCDTV20
Programme (Ch) Up
Select Input Signal
Volume Down
No Function
Display Channel Information
Numeric Buttons
Scans through the channels
Teletext Buttons
Power
Enter the Menu System
Volume Up
Programme (Ch) Down
No Function
Picture Preset
Mute
Timer
Returns to previously selected channel
Sound Preset
NICAM Stereo On/Off
Teletext Buttons: TXT/TV:Teletext/TV Switch TEXT/MIX:Teletext MIX With TV Picture TEXT HOLD:Keep The Teletext Refresh REVEAL:Reveal The Hidden Contents In Teletext TEXT INDEX:Go To The Index Page TEXT SIZE:Change The Teletext Size TEXT CANCEL:Cancel TeleText Function
* To operate the LCD TV, you must point the remote control at the remote sensor of the TV (Stuff placed between them may affect the operation). * Never let the remote sensor on the TV explosed to the direct sunlight or strong light to avoid the
!
remote misfunction. Youshould change the lighting angel or TV position angle or operate the remote near the sensor.
.6.
USER MANUAL
PREPARING THE REMOTE CONTROL
To operate the LCD TV, you must first place the batteries in the remote control.
1. Open the cover.
2. Insert batteries (AAA size). Make sure to match the + and - on the batteries to the marks inside the battery compartment.
3. Close the cover.
OPERATING WITH THE REMOTE CONTROL
Operating LCD TV with the remote control.
The remote control must point at the remote sensor in order for the TV to function correctly. * Do not face the remote sensor towards any light source such as direct sunlight.The TV may malfunction.
LCDTV20
!
INCORRECT USE OF BATTERIES MIGHT CAUSE THEM TO LEAK, CORRODE OR EXPLODE. * Do not place the batteries in the wrong direction. *It is dangerous to charge/heat/open or short-circuit the batteries. * Do not leave dead batteries or mix old/new batteries in the remote control. * When not using the remote control for a long duration of time, remove the batteries.When operating range becomesreduced, replace. * If leakage from the battery occurs, wipe the battery liquid from the battery compartment, then replace. *Take out the batteries when unused for a long time of duration.
.7.
USER MANUAL

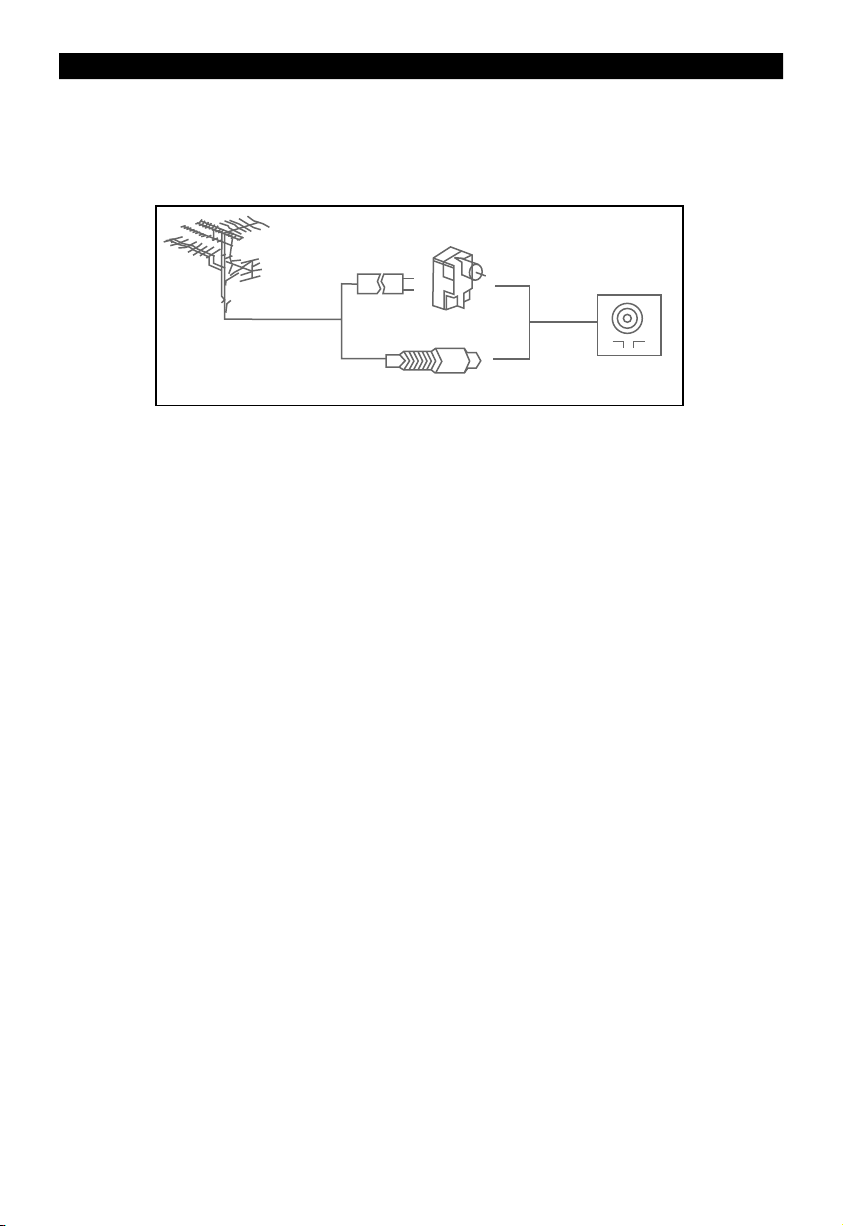

CONNECTING TOTHE ANTENNA
LCDTV20
Parallel flat:cable
(300 )
Coaxial cable
(75)
To ensure best receiving effect, use outdoor antenna or cable antenna (CATV).The type and location of
antennas shallvary with places.
Notes:
* Connect the outdoor antenna as shown above, and also install a lightning arrester and perform periodical checking and repair. * It is suggested to better use a 75 Ω coaxial cable, to eliminate interference or noise due to improper matching of impedance. *The cable must not be tied together with supply cord.
CONNECTING TOTHE AC ADAPTER
An AC adapter is supplied with the TV, to transform AC 110V-240V to DC 12V.To power on the TV set, you should first connect the adapter to the rear of the TV and the other end to the main power.
* Notes:Disconnect AC plug from wallet when unused for a long time.
Impedance adapter
(300-75)
RF Input
.8.
USER MANUAL
FUNCTIONS & FEATURES
General Function
1.Turn “On/OFF” unit
Connect AC/DC adaptor into unit (DC SUPPLY INPUT), before plug in AC wallet. STANDBY indicator on
front panel will be “ON” in RED color, unit getting standby mode automatically.Press STANDBY button on
Unit/Remote Control, unit will be “ON”, STANDBY indicator will be changed from RED to GREEN color.
Press STANDBY button again, unit will be “Off”, STANDBY indicator change from GREEN to RED color.
(Notes: STANDBY LED will remain in RED, if there is no signal input when unit is ON.)
(Notes: Disconnect AC Plug from AC Wallet, if it’s not used for a long period.)
2.Auto Off
“AUTO OFF” function will be activated when there is no signal input for 10 minutes. Unit could be
resumed after pressed STANDBY button.
3.Sound Mode Selection
Press SOUND button on Remote control get different sound effects (Music, Speech, Normal,User Define).
4.Image effect
Press PICTURE button on Remote control to get different image effects (Soft, Vivid, Normal,User Define).
5.Display Button
Press DISPLAY button on Remote control to view the current desired TV channel number or AV mode
6.Channel Selection
Press “CH+” or “CH-” button find a desired TV channel.
7. Volume Adjustment
Press “VOL+” or VOL-” button to adjust the sound output level.
8.Mute Function
Press MUTE button on Remote control to mute the sound; press “VOL+” or VOL-” button to release the
Mute function.
**Abnormal quick or often press buttons will be shorten the life of the parts.
LCDTV20
.9.
USER MANUAL
LCDTV20
FUNCTIONS & FEATURES ... (continued)
Function Selection Menus
Easy OSD message is designed for setup each item adjustment, press MENU button to access the main menu; press CH+/CH-/VOL+/VOL- (direction keys) to navigate the items on menu with item highlighted; press VOL+/VOL- for adjustment.
MENU varies according to the different input mode, TV tuner or AV input (CVBS, S-Video, Scart) illustrated as the following:
TV MODE 6 function classifications showed on main Menu
1. Image adjustment factors
2. Audio adjustment factors
3. Channel search
4. Sort channel
5. Timer setup
1 2 3 4 5 6 7
Bright 30 Contrast 30 Color 30 sharpness 30
6. Configure
7. Corresponding description for highlighted
● Adjust for TV image
Press MENU button to access the main unit, use CH+ or CH- button to select the factor (Bright, Contrast, Color and Sharpness); use VOL+ or VOL- button to adjust the image to get the best performance. Press MENU button again to exit the main menu after completed.
● Adjust for Audio effect
Press MENU button to access the main unit, use VOL + or VOL – to access audio adjustment mode (2) with highlighted. Press CH+ or CH- button to select the factor (Bass, Treble and Balance); use VOL+ or VOL- button to
Bass 30 Treble 30 Balance 0
Timer
adjust the image to get the best performance. Press MENU button again to exit the main menu after completed.
● Search for TV Channel
Press MENU button to access the main menu, VOL + or VOL – to access Channel search mode (3) with highlighted. Press CH+ or CH- to select the factor (Auto Search, Manu Search, Fine Search, Save, Skip, Colour System and Sound System); use VOL+ or VOL- button for operate. *Auto Search mode: Unit will search and store all the
Auto Search
Auto Search Manu Search
Manu Search Fine Search
Fine Search Save 1
Save 1 Skip Off
Skip Off Colour System PAL
Colour System Auto Sound System B/G
Sound System I
Channel
Channel
received channels automatically. *Manu Search (Manual Search): Unit will search the channel then stop, select Save mode and press VOL + button for confirm. Channel need to be search one by one. *Fine Search: To fine tune the desired Channel, and use Save mode then press VOL + button for
.10.
USER MANUAL
LCDTV20
FUNCTIONS & FEATURES ... (continued)
confirm. *Save: To save the desired channel/system by using VOL + at this mode. Channel number will bem flash once for confirm. *Skip: Press VOL + or VOL- to turn skip function ON for the desired channel; To release the skipped channel, input the channel number, then press VOL + or VOL- at Skip mode to turn it OFF. *Colour System: Select colour system (PAL, SECAM, AUTO) by pressing VOL + or VOL- button. *Sound System: Choose sound system (D/K, B/G., I) by pressing VOL + or VOL- button.
●Sort Channel
Press MENU button to access the main menu, VOL + or VOL – to access Sort Channel mode (4) with highlighted. Received channels could be sorted up to your favorite order by using this function.
Channel 1 0 Channel 2 0 Exchange
Channel
Step 1: Select desired a program that willing to move on “Channel 1” position, Step 2: Confirm a new program place on “Channel 2” position, Step 3: Press VOL+ or VOL- to confirm “Exchange” and save the setting. Repeat the above step to sort for next program.
●Setup a Timer in TV mode:
Press MENU button to access the main menu, VOL + or VOL – to access Timer setup mode (5) with highlighted. Current time, ON Time, OFF Time and Select Channel is showed on the OSD, enter the current time, then enter the On/Off time and
Current Time :_ _ ON Time _ _:_ _ OFF Time _ _:_ _ Select Channel _ _:_ _
Timer
programnumber for your prefer. (Notes: Timer function only be operated at TV mode) (Notes: Make sure all the digits have been entered when set the time. For example: 10pmfor 22:00) (Notes: Make sure your TV set is in Standby mode when using this function).
●Configur
Press MENU button to access the main menu, VOL + or VOL – to access Configure setup mode (6) with highlighted. *Input: 4 signal input (TV, Video, S-Video andScart) enabled for select which must be accorded with the
Input TV Language English Lock Reset VCR OFF
Config
actual connection. *Language: Select favorite language. *Lock: Press VOL + or VOL – to activate the lock function;Press any key on remote control to release lock function. *Reset: To reset all the setting to factory deflaut. *VCR: Press VOL + or VOL – button to turn on/off theFunction. Picture quality could be improved from any VCRconnected to the TV.
.11.
USER MANUAL
LCDTV20
1 2 3
AV MODE (SC Video, SC RGB, VIDEO) Only 3 function classification on the above AV modes:
1. Image Adjustment factors
2. Audio adjustment factors
3. Configure
Operation for above (1, 2, 3) are same as TV Mode.
TROUBLESHOOTING GUIDE Check the following guide for a possible correction to a problem before contacting customer service.
Bright 30 Contrast 30 Color 30 Hue 0 sharpness 30
Config
