Page 1

Redbox

User Handbook No3

Mixers & Source Selectors, Microphone Ampliers, Stereo to Mono Converters, General Interfaces

RB-SS10 10 way stereo analogue source selector/mixer

RB-DSS10 10 way stereo digital source selector

RB-PMX4 10 input, 4 output analogue preset mixer

RB-SSML1 Mic/line source selector with compressor/limiter

RB-MA1 Microphone amplier, single

RB-MA2 Microphone amplier, dual

RB-DMA2 Dual digital microphone amplier

RB-ML2 Microphone limiter, 2 channel

RB-SL2 Twin mono, or stereo limiter

RB-SM1 Stereo to mono converter, single

RB-SM2 Stereo to mono converter, dual

RB-LC3 3 way light/power controller

RB-MM1 Mix minus generator

RB-OA3 3 studio on-air switcher

RB-OA3R Remote switch panel for RB-OA3

Page 2

Sonifex Ltd, 61, Station Road, Irthlingborough, Northants, NN9 5QE, England.

Tel : +44 (0)1933 650 700 Fax : +44 (0)1933 650 726 Email : [email protected] or [email protected] Web : http://www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a commitment on the part of Sonifex Ltd. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising form the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser’s personal use, without the express written permission of Sonifex Ltd.

Unless otherwise noted, all names of companies, products and persons contained herein are part of a completely ctitious adaptation and are designed solely to document the use of Sonifex products.

Redbox User Handbook No 3

Page 3

CONTENTS

Warranty i

Warranty and Liability - important the purchaser is advised to read this clause i Unpacking the Redbox ii Returning the Warranty Card iii

Safety Information iii

Safety of Mains Operated Equipment iii Voltage Setting Checks iii Fuse Rating iii Power Cable and Connection iv Ordering the Correct Mains Lead iv Installation Information iv

Atmosphere iv Electromagnetic Radiation iv Fitting Redboxes iv

WEEE & RoHS Directives - Sonifex Statement vi

1 RB-SS10 10 Way Stereo Analogue Source Selector/Mixer 1

Introduction 1 System Block Diagram 2 Front Panel Indicators & Controls 2

Illuminated Push Buttons 2 Front Panel Gain Controls 3 Headphone Output 3 Volume Control 3 Additional Modes 3 Conguring the Additional Modes 3

Rear Panel Connections and Operation 4

Inputs 4 Outputs 4 Altering the Master Output Level 4 RB-SS10 Additional Audio Input Connectors 5 RB-SS10 Remote Start I/O 6 Remote Select/Switch Inputs 7 Status Outputs 8

Technical Specications RB-SS10 9

2 RB-DSS10 10 Way Stereo Digital Source Selector 11

Introduction 11 System Block Diagram 12 Front Panel Indicators & Controls 12

Power Indicator 12 Illuminated Push Buttons 13 Headphone Output 13 Volume Control 13 Additional Modes 13 Select & Conrm Mode 13 Conguring the Additional Modes 13

Rear Panel Connections and Operation 14

RB-DSS10 Inputs 14 RB-DSS10 Outputs 14 Digital Audio Inputs & S/PDIF Output 15 Remote Start I/O 16 Remote Select/Switch Inputs 17 Status Outputs 18

Technical Specications RB-DSS10 19

3 RB-PMX4 10 Input, 4 Output Analogue Preset Mixer 21

Introduction 21 System Block Diagram 22

Redbox User Handbook No 3

CONTENTS

Page 4

CONTENTS

Rear Panel Connections and Operation 22

Outputs 1-4 23

Front Panel Controls 23

Switch Banks 23 Input Gain Controls 23

Technical Specications RB-PMX4 24

4 RB-SSML1 Mic/Line Source Selector with Compressor Limiter 25

Introduction 25 System Block Diagram 26 Rear Panel Connections 26

Stereo Monitor Inputs 27 Stereo Monitor Pad & Volume Control 27 Mic Input 27 Mic Input Gain 27 Using Phantom Powered Microphones 27 Using the LF Filter 28 Compression Active on Mic Input Only 28 Peak Hold Disabled on LED Meter 28 Stereo Line Input 28 Stereo Input Gain Pad 28

CONTENTS

Stereo Line Output 28 Stereo Output Gain Pad 28

Front Panel Controls 28

Mic & Line Volume Controls 29 Mic/Line Select Switch 29 Bypass Button 29 Applying Compression 29 LED Metering 29 Headphone Outputs 29

Technical Specications RB-SSML1 30

5 RB-MA1 Single & RB-MA2 Dual Microphone Ampliers 31

Introduction 31 System Block Diagram 31 Rear Panel Connections and Operation 32

Mic Inputs 32 Input Gain 32 Using Phantom Powered Microphones 33 Using the LF Filter 33 Output 33

Technical Specications RB-MA1 & RB-MA2 34

6 RB-DMA2 Dual Digital Microphone Amplier 35

Introduction 35 System Block Diagram 36 Front Panel Indicators & Controls 36

Sync & Power Indicator 37 Input Level Adjustment 37 Disabling the Fine Gain Control Knob 37 Input Level Indicators 37

Rear Panel Connections and Operation 37

RB-DMA2 Inputs 38 Rear Panel Controls 39

Technical Specications RB-DMA2 42

7 RB-ML2 Stereo Microphone & Line Level Limiter 44

Introduction 44 System Block Diagram 45 Rear Panel Connections and Operation 45

Redbox User Handbook No 3

Page 5

CONTENTS

Mic / Line Inputs 46 Mic Input Gain 46 Using Phantom Powered Microphones 46 Using the LF Filter 46 Mic / Line Outputs 46 Mic / Line Output Gain 47 Level Limiting 47 Mode Select Switch 47

Technical Specications RB-ML2 48

8 RB-SL2 Twin Mono, or Stereo, Limiter 50

Introduction 50 System Block Diagram 50 Rear Panel Connections and Operation 51

Outputs 51 Inputs 51 Gain Control 51 Mode Switch 51

Technical Specications RB-SL2 52

9 RB-SM1 Single & RB-SM2 Dual Stereo To Mono Converter 53

Introduction 53 System Block Diagram 53 Rear Panel Connections and Operation 54

Stereo Inputs 1 (& 2) 55 Mono Output 1 (& 2) 55 Output Gain 55

Technical Specications RB-SM1 & RB-SM2 56

10 RB-LC3 3 Way Light/Power Controller 57

Introduction 57 System Block Diagram 58 Rear Panel Connections and Operation 58

Switched Mains Outputs 59 Telephone Connections 59 Remote External Control Inputs 59 Conguration Switches 60 Latching and Momentary Mode 60 Flash Rate Preset Potentiometer 62

Technical Specications RB-LC3 63

11 RB-MM1 Mix Minus Generator 64

Introduction 64 System Block Diagram 64 Front Panel Indicator 65 Rear Panel Connections and Operation 65

Stereo Inputs From Mixer Main Output 65 Input From Mixer Telephone Fader 65 Output Null Adjustments (LF and Full-Band) 65 Band Pass Filter Switch 66 Output to Telephone Balance Unit (TBU) 66 Output Level Adjustment 66 Operation of the RB-MM1 66

Technical Specications RB-MM1 66

12 RB-OA3 3 Studio On-Air Switcher 68

Introduction 68 System Block Diagram 69 Rear Panel Connections and Operation 70 Installation Guide for the RB-OA3 70

CONTENTS

Redbox User Handbook No 3

Page 6

CONTENTS

Setting the Unit’s Identity Using The Mode ID DIP Switches 70 Setting The Boot Up Mode 70 Force Last Used Studio Mode 71 Force Studio 1 Mode 71

Conguring for Operation 71 Single (MASTER) Mode 71

Studio Connections 71 Control Panels 71 Profanity Delay Connector 71 Mix Input 71 LSO Expansion Port 72 Serial Ports 72

Studio Expansion 72

Studio Connections 72 Control Panels 72 Profanity Delay Connector 72 Mix Input 72 LSO Expansion 72 Serial Ports 72

Bus Expansion 73

CONTENTS

Studio Connections 73 Control Panels 73 Profanity Delay Connector 73 Mix Input 73 LSO Expansion 73 Serial Ports 73

Studio & Bus (4 Unit) Expansion 74

Studio Connections 74 Control Panels 74 Profanity Delay Connector 74 Mix Input 74 LSO Expansion 74 Serial Ports 75

Indications – How The LEDS Are Used 75

FRONT PANEL LEDS 75 CONTROL PANEL LEDS 76

Operational Modes 76 Rear Panel Connections & Operation 79

Transmission Outputs and Studio 1-3 Audio Connection Details 81 Studio 1-3 Control Port Connection Details 83 Profanity Delay Control 84 Serial Ports 84

Technical Specications RB-OA3 85

RB-OA3R Remote Switch Panel For RB-OA3 86

Introduction 86 Technical Specications RB-OA3R 88

RB-OA3C Expansion Unit Cable Kit For RB-OA3 89

Introduction 89 Technical Specications RB-OA3C 89

13 Connectors & Cabling 90

XLR 3 Pin Connectors 90 RCA Phono Connectors 90 D-Type Connectors 91

14 Glossary 92

Redbox User Handbook No 3

Page 7

Figures

FIGURES

Fig A: Packing List. ii

Fig B: Mains Cable Wire Colours iv

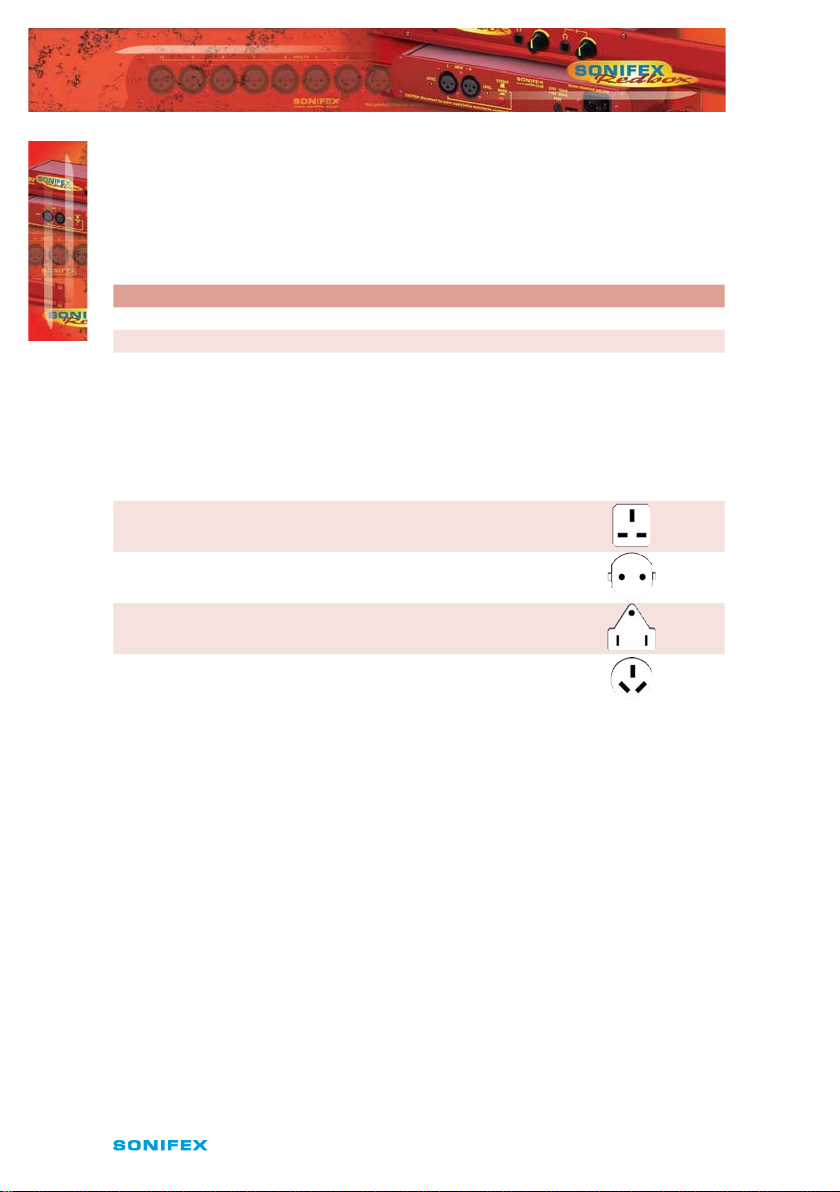

Fig C: Mains Lead Table. iv

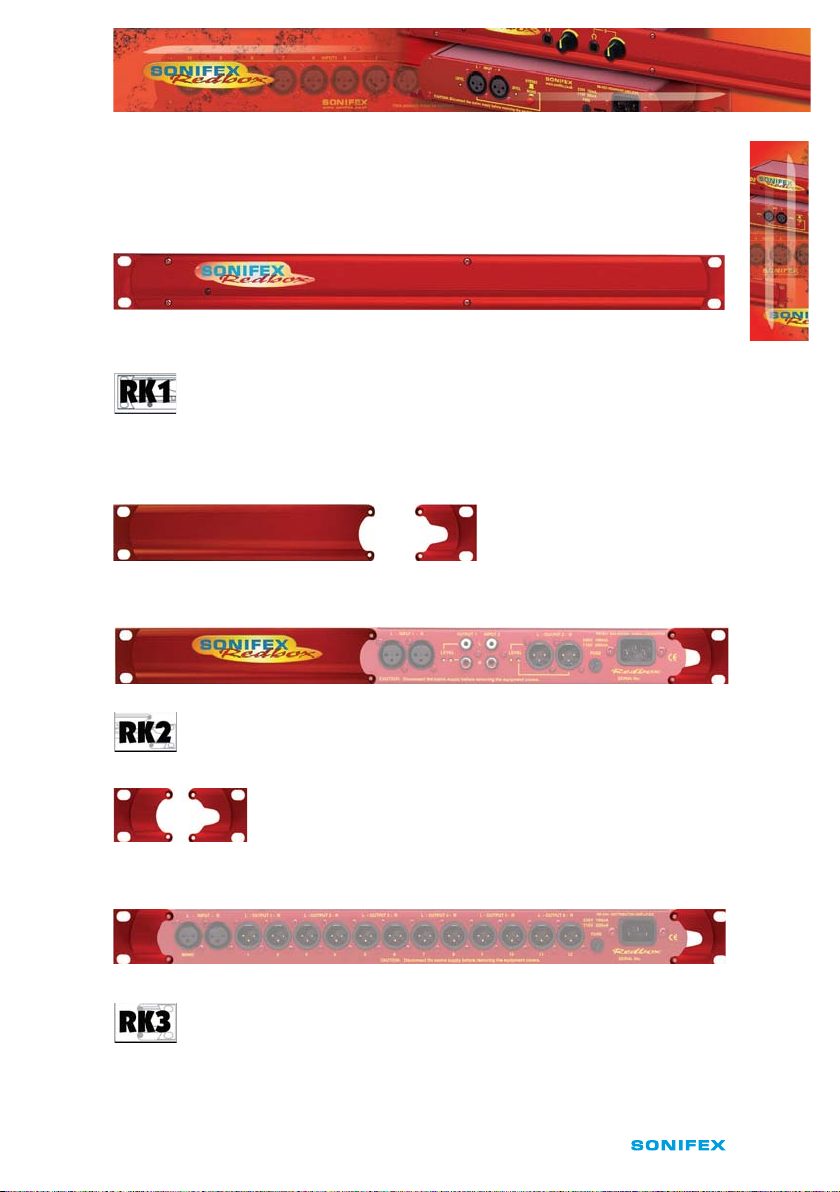

Fig D: RB-RK1Small Redbox Front Rack-mount Kit . v

Fig E: RB-RK2 Small Redbox Rear Rack-mount Kit. v

Fig F: RB-RK3 Large Redbox Rear Rack-mount Kit. v

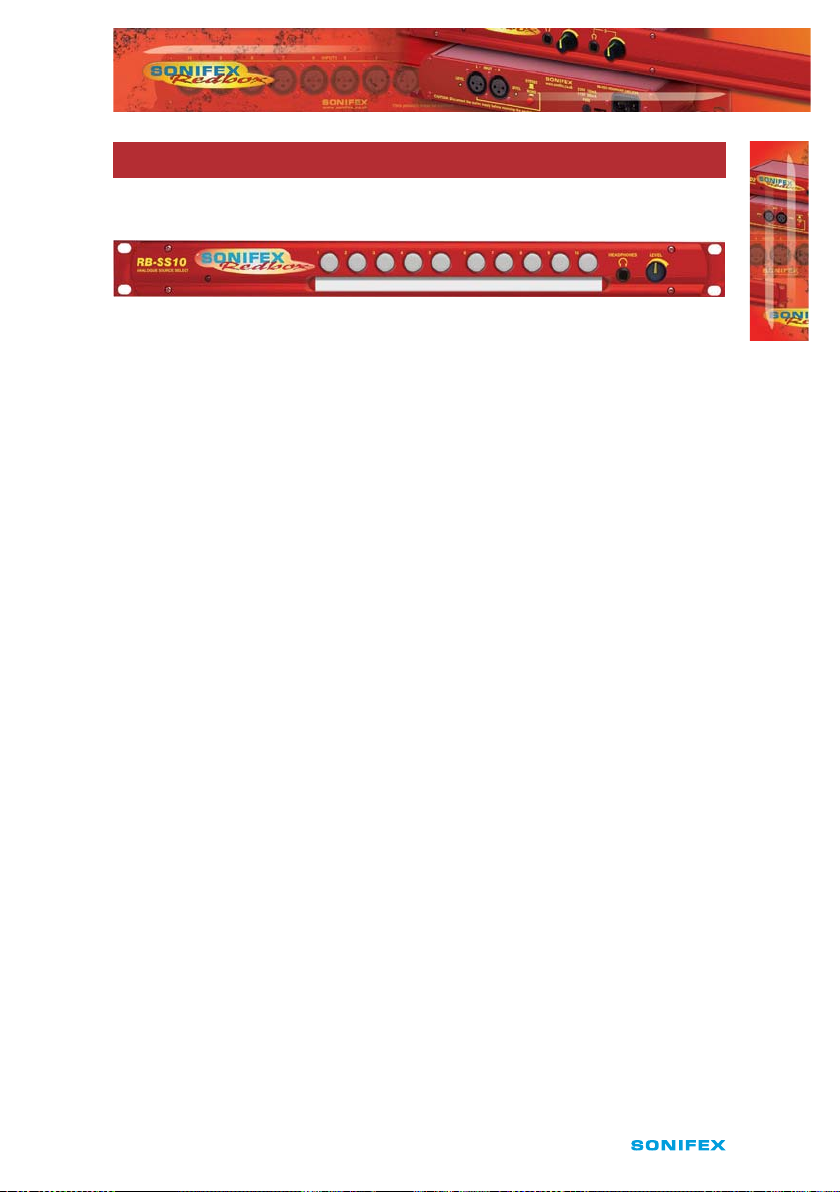

Fig 1-1: RB-SS10 Front Panel. 1

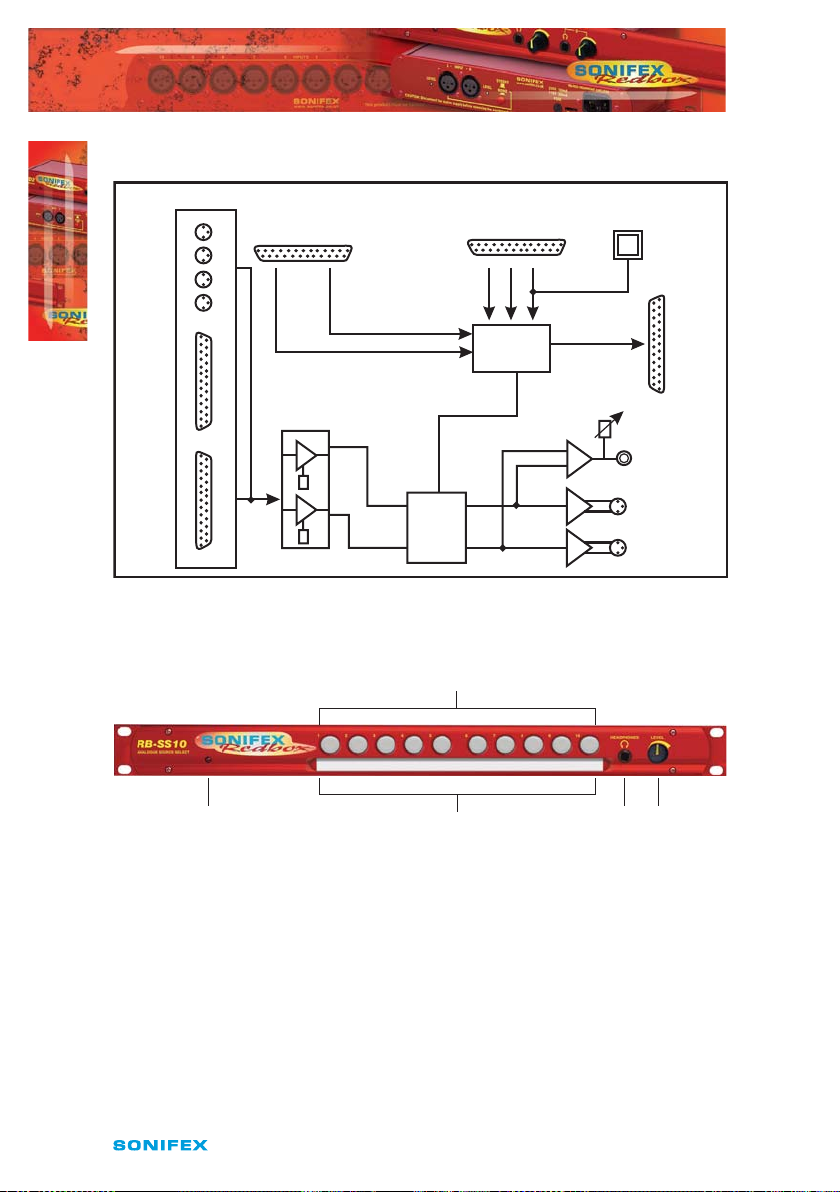

Fig 1-2: RB-SS10 System Block Diagram. 2

Fig 1-3: RB-SS10 Front Panel. 2

Fig 1-4: RB-SS10 Rear Panel. 4

Fig 1-5: Analogue Audio Inputs Pin Connections 5

Fig 1-6: Remote Start Pin Connections. 6

Fig 1-7: Connection Example. 7

Fig 1-8: Remote Select/Switch Input Connections. 7

Fig 1-9: Connection Example. 8

Fig 1-10: Status Output Pin Connections. 8

Fig 1-11: Connection Example. 9

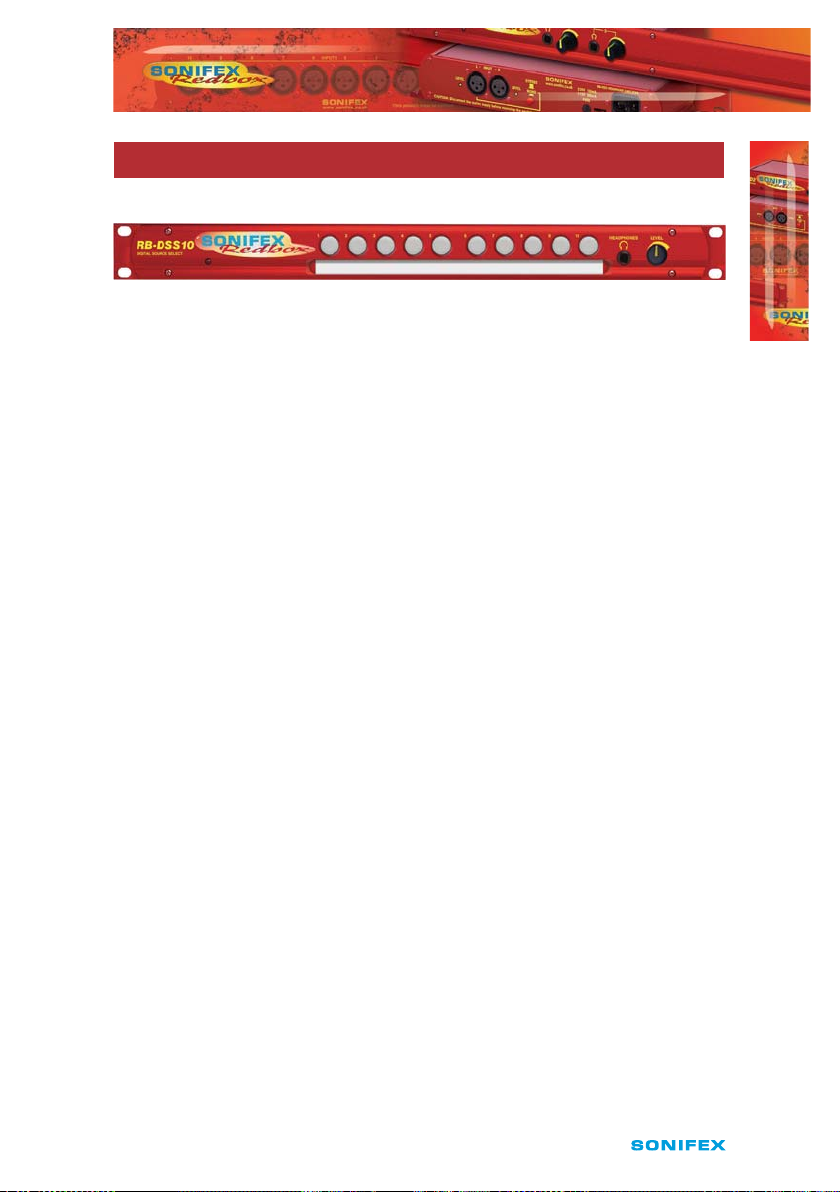

Fig 2-1: RB-DSS10 Front Panel. 11

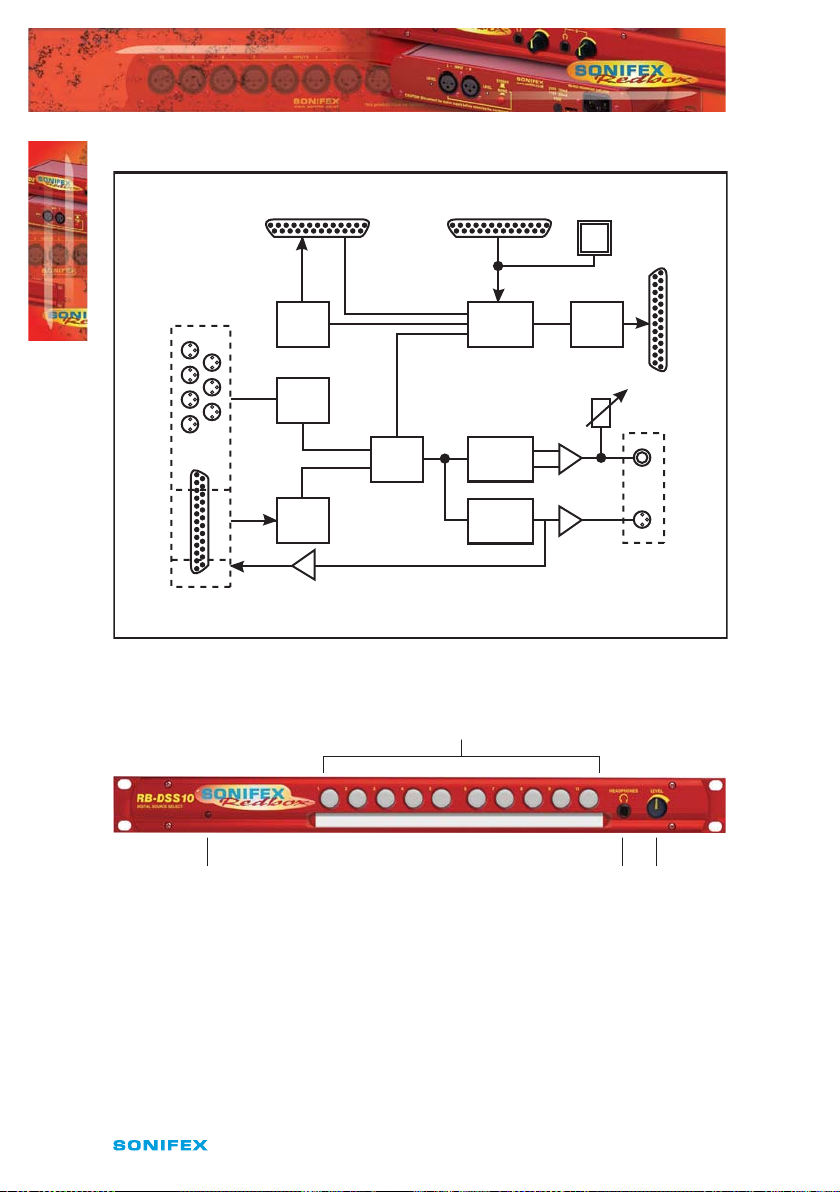

Fig 2-2: RB-DSS10 System Block Diagram. 12

Fig 2-3: RB-DSS10 Front Panel. 12

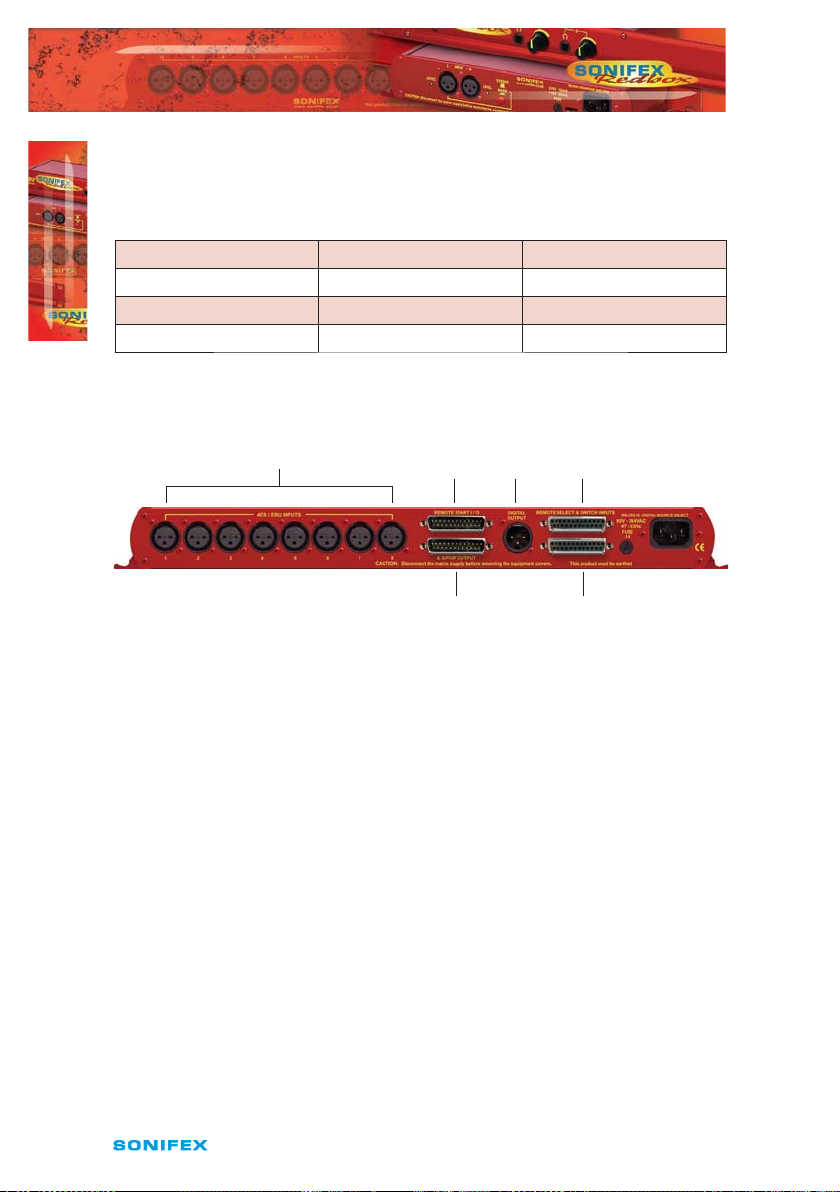

Fig 2-4: RB-DSS10 Rear Panel. 14

Fig 2-5: Digital Audio Inputs and S/PDIF Output Pin Connections. 15

Fig 2-6: Remote Start Pin Connections. 16

Fig 2-7: Connection Example. 17

Fig 2-8: Remote Select/Switch Input Connections. 17

Fig 2-9: Status Output Pin Connections. 18

Fig 2-10: Connection Example. 18

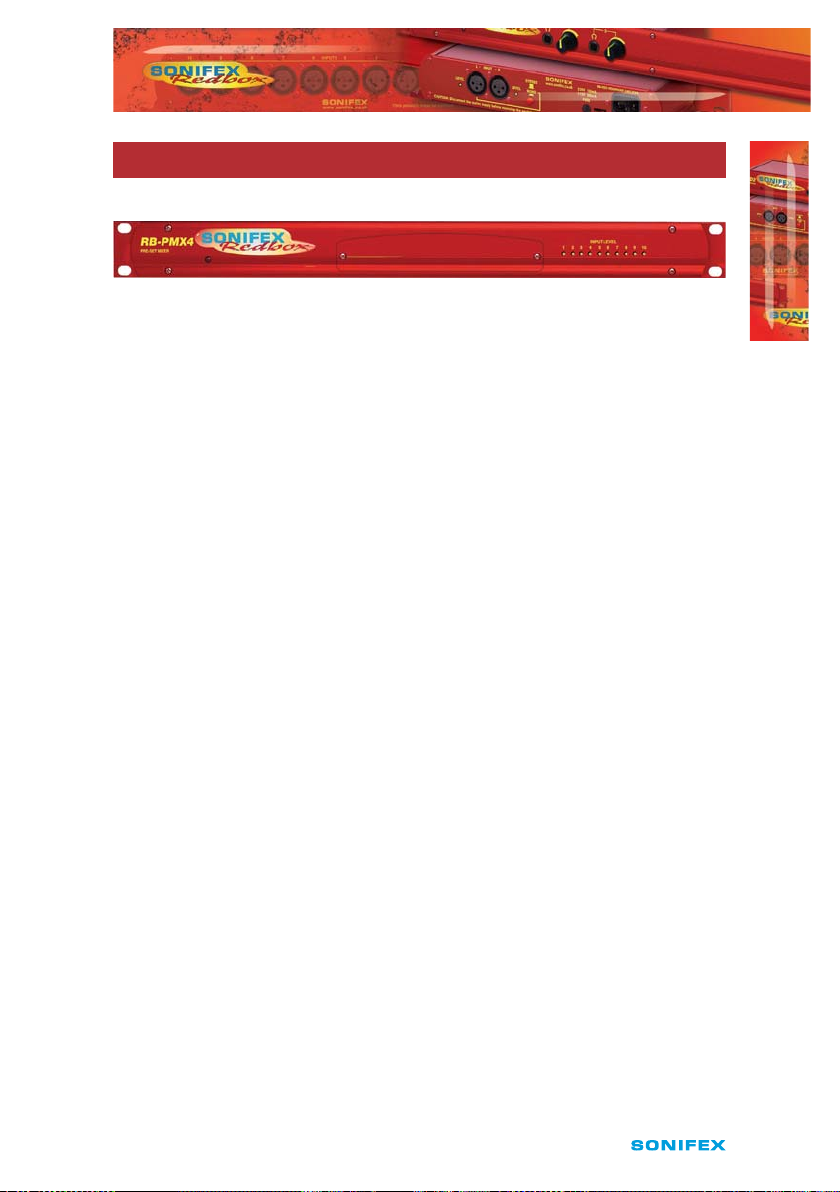

Fig 3-1: RB-PMX4 Front Panel . 21

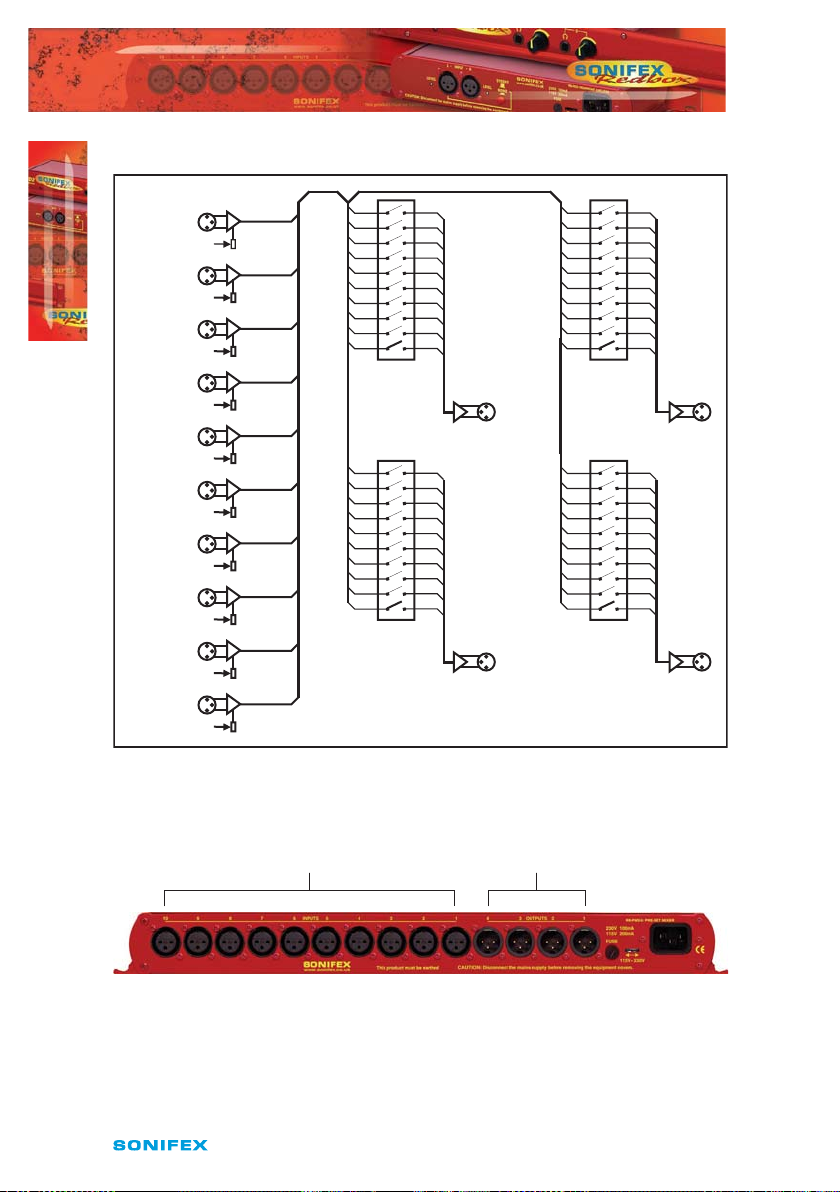

Fig 3-2: RB-PMX4 Block Diagram. 22

Fig 3-3: RB-PMX4 Rear Panel. 22

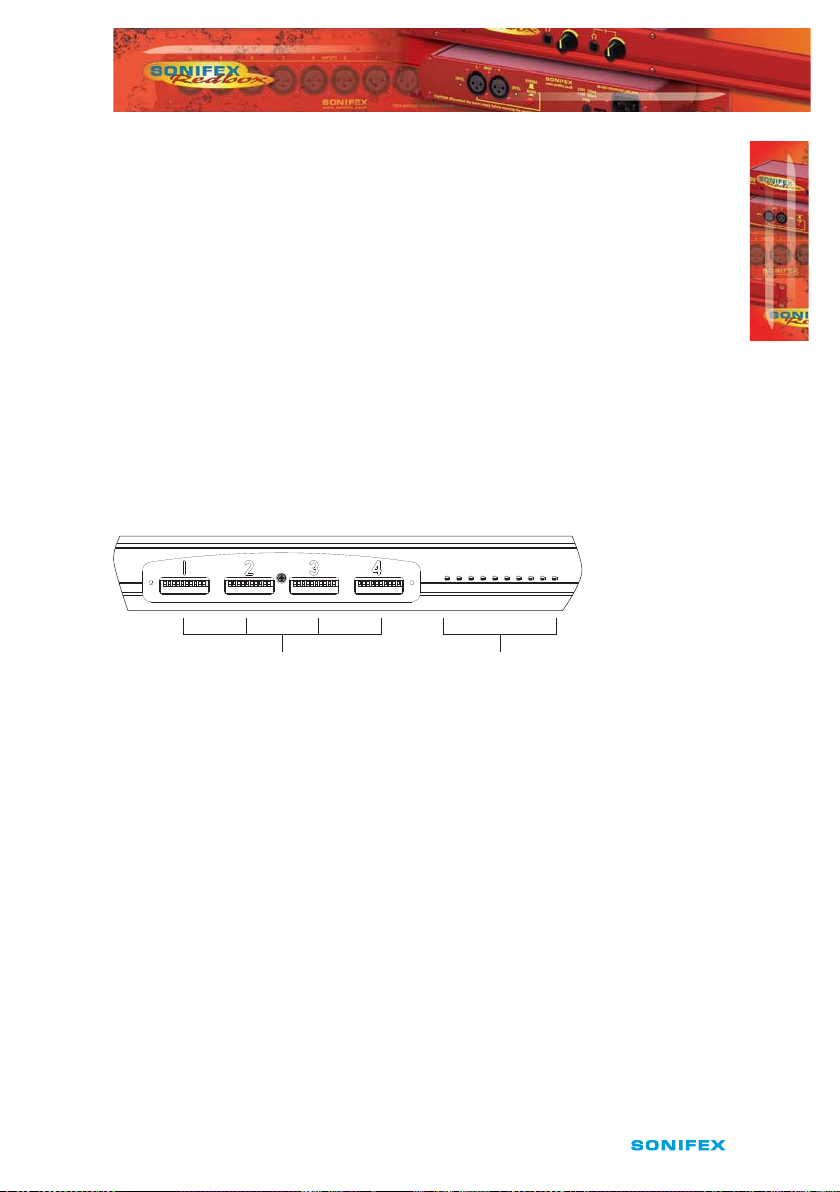

Fig 3-4: RB-PMX4 Front Panel Controls. 23

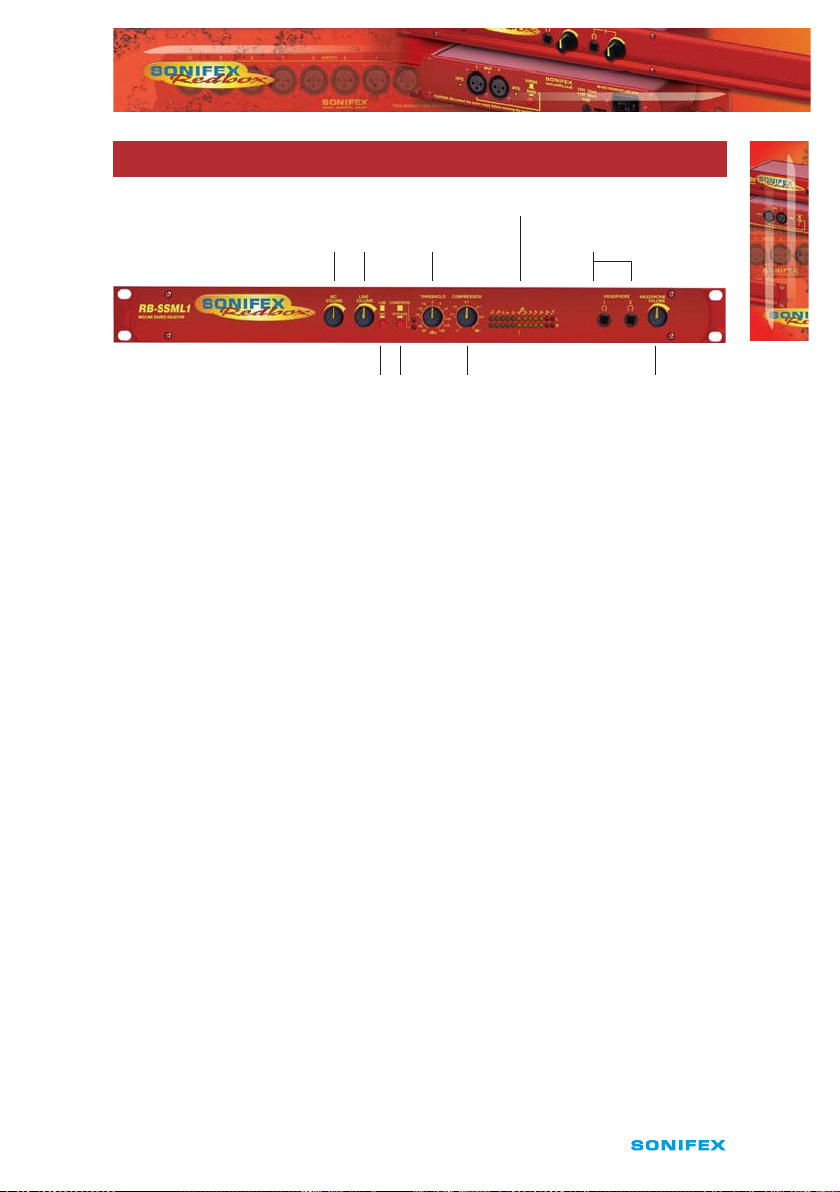

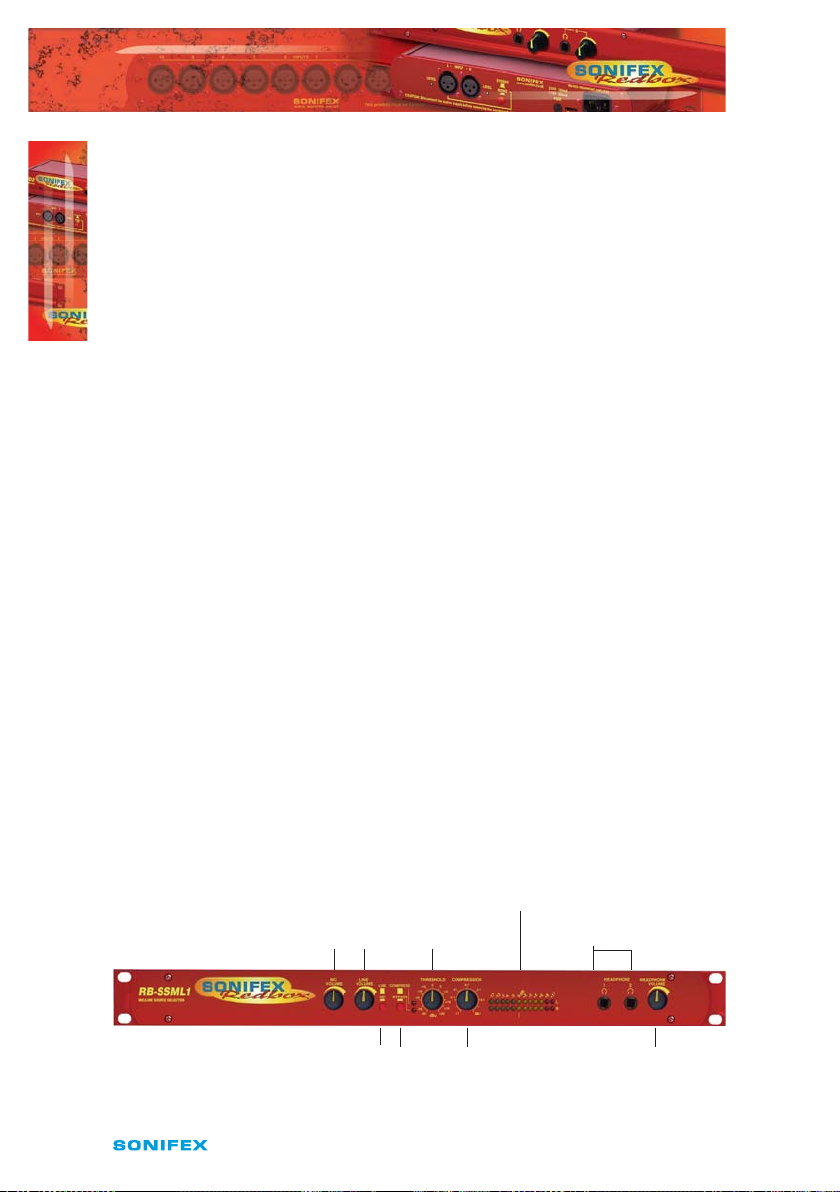

Fig 4-1: RB-SSML1 Front Panel. 25

Fig 4-2: RB-SSML1 Block Diagram. 26

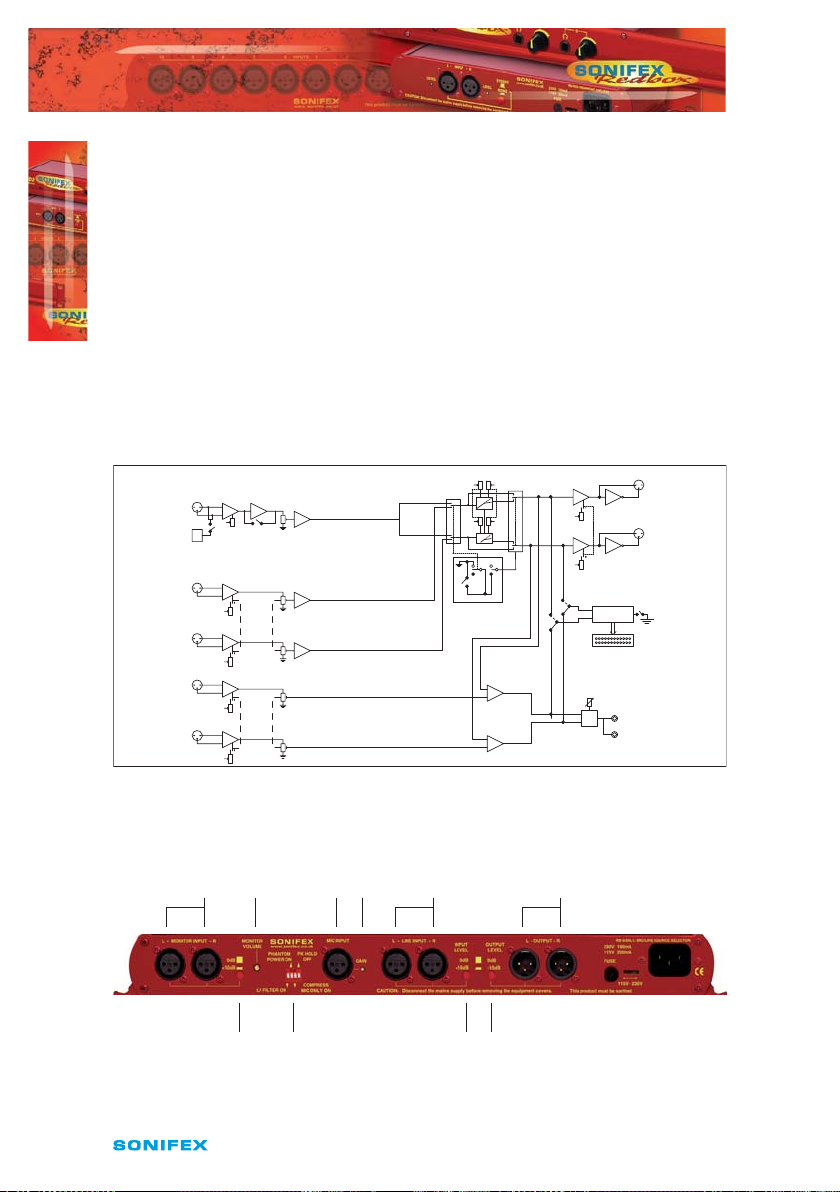

Fig 4-3: RB-SSML1 Rear Panel. 26

Fig 4-4: DIP Switch to Control Mic & Meter

Features. 27

Fig 4-5: RB-SSML1 Front Panel. 28

Fig 5-1: RB-MA1 & RB-MA2 Front Panel. 31

Fig 5-2: RB-MA1 & RB-MA2 Block Diagram Single Channel. 31

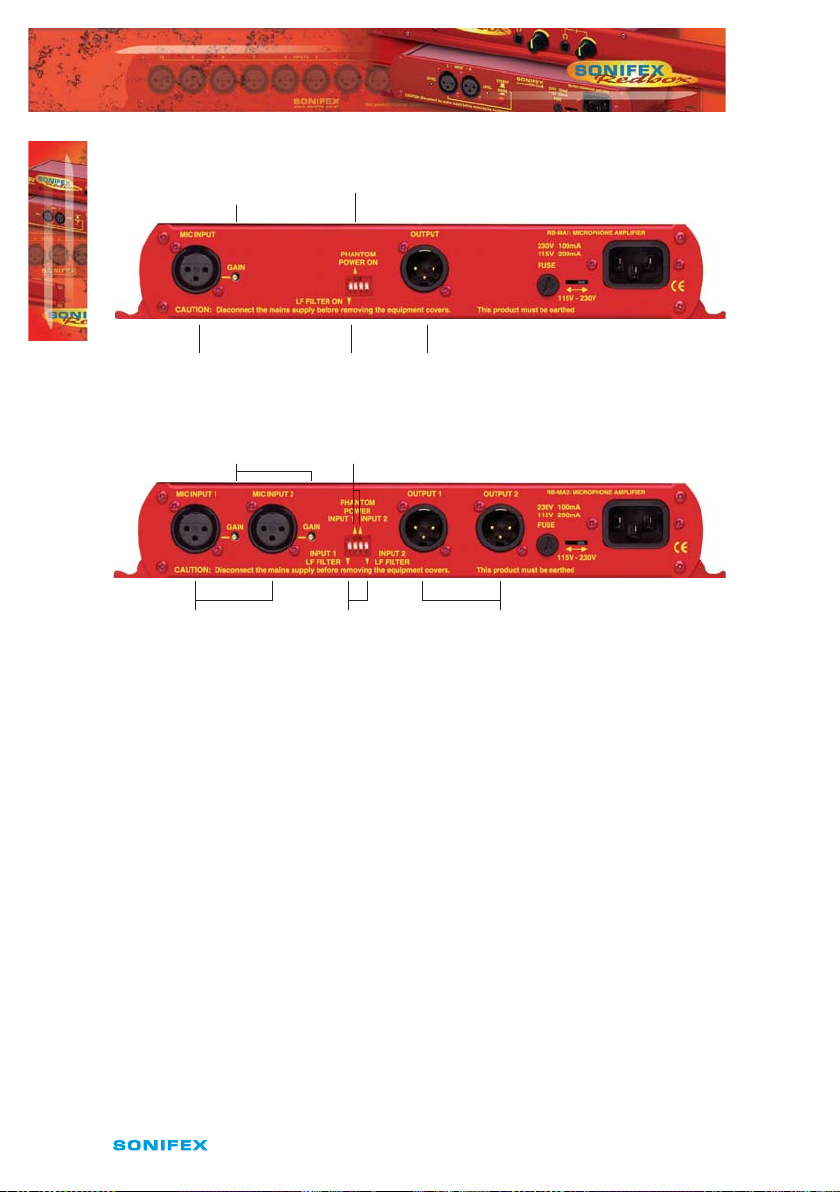

Fig 5-3: RB-MA1 Rear Panel. 32

Fig 5-4: RB-MA2 Rear Panel. 32

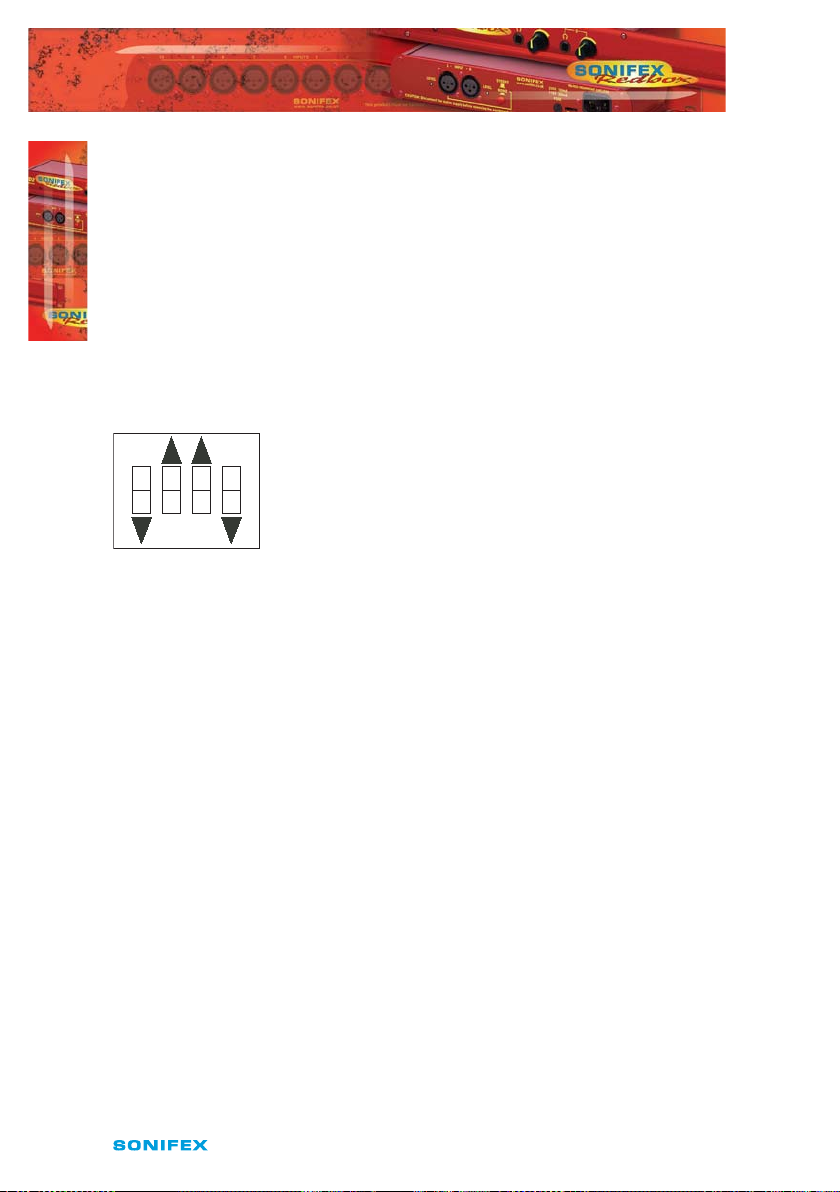

Fig 5-5: Switch to Control LF Filter and Phantom Power. 33

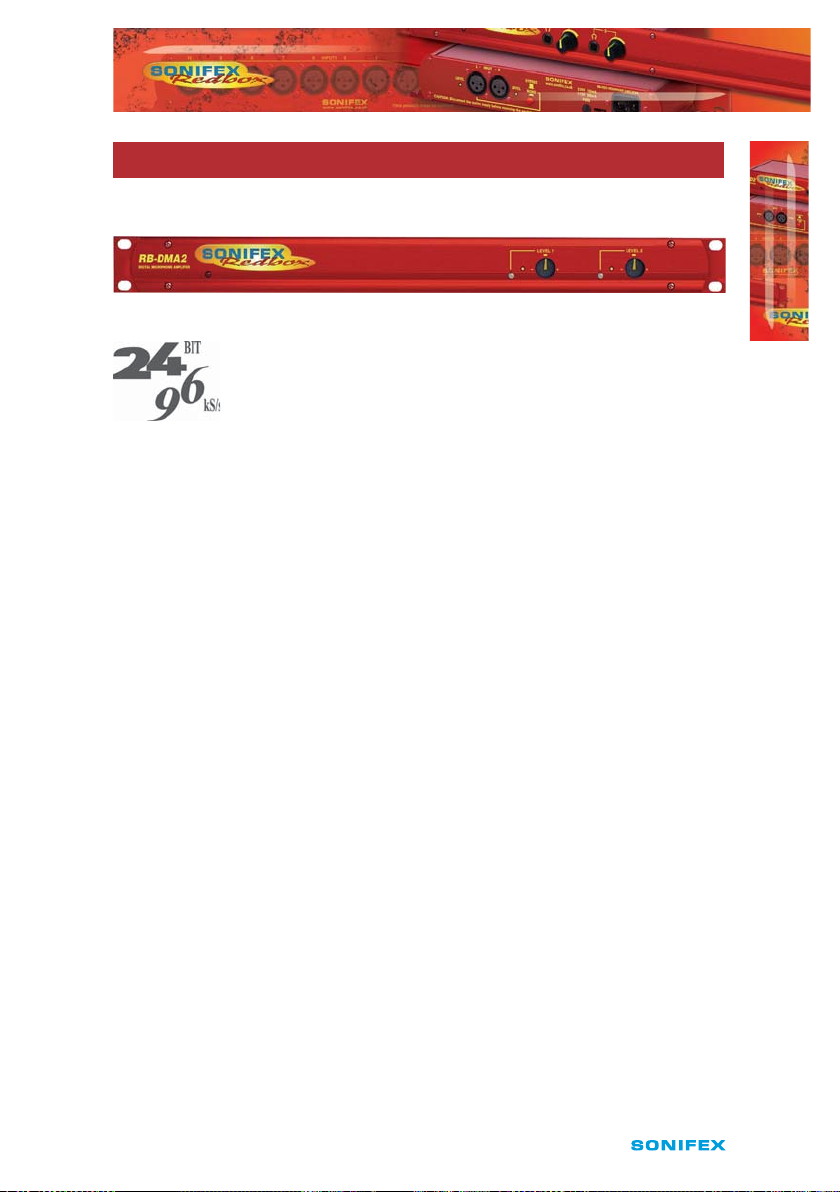

Fig 6-1: RB-DMA2 Front Panel. 35

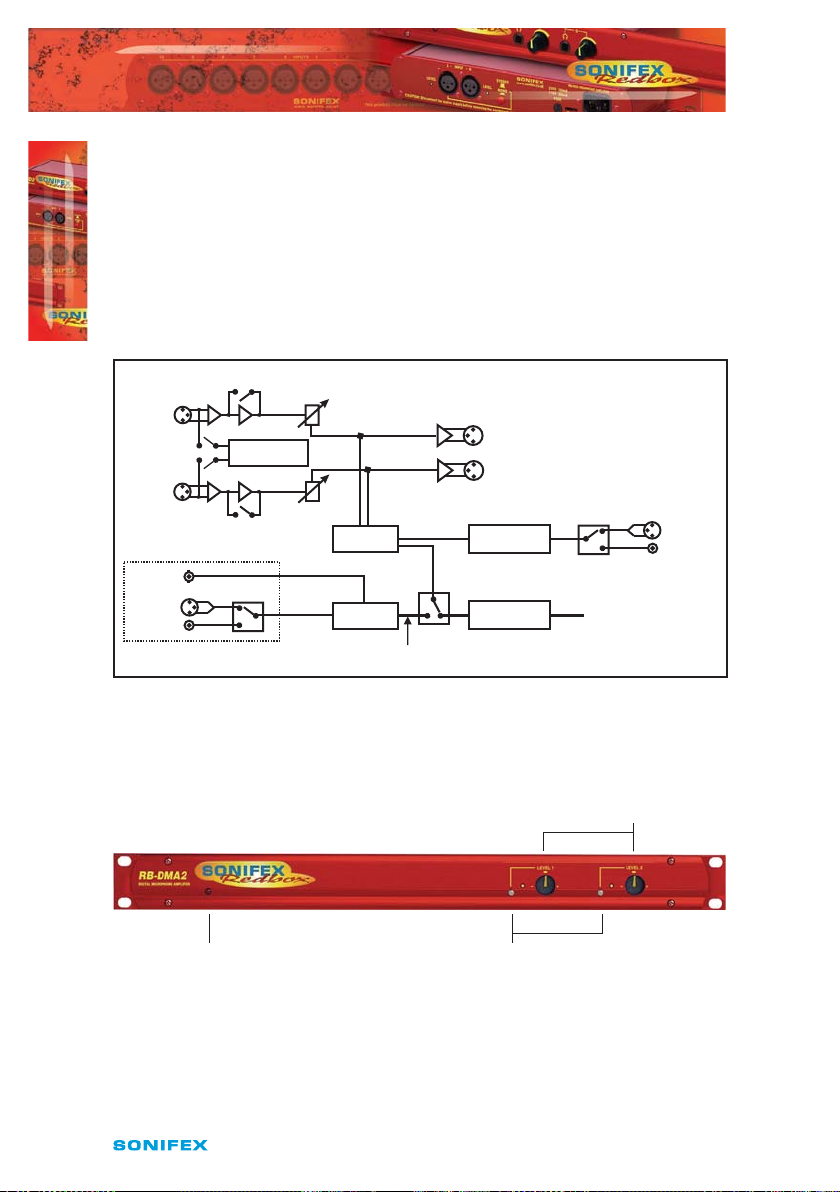

Fig 6-2: RB-DMA2 System Block Diagram. 36

Fig 6-3: RB-DMA2 Front Panel. 36

Fig 6-4: Jumpers to Disable Fine Gain Control. 37

Fig 6-5: RB-DMA2 Rear Panel. 37

Fig 6-6: RB-DMA2 Status Select Switches. 39

Fig 6-7: RB-DMA2 Frequency and Sync Rotary Switch Selections. 41

Fig 7-1: RB-ML2 Front Panel. 44

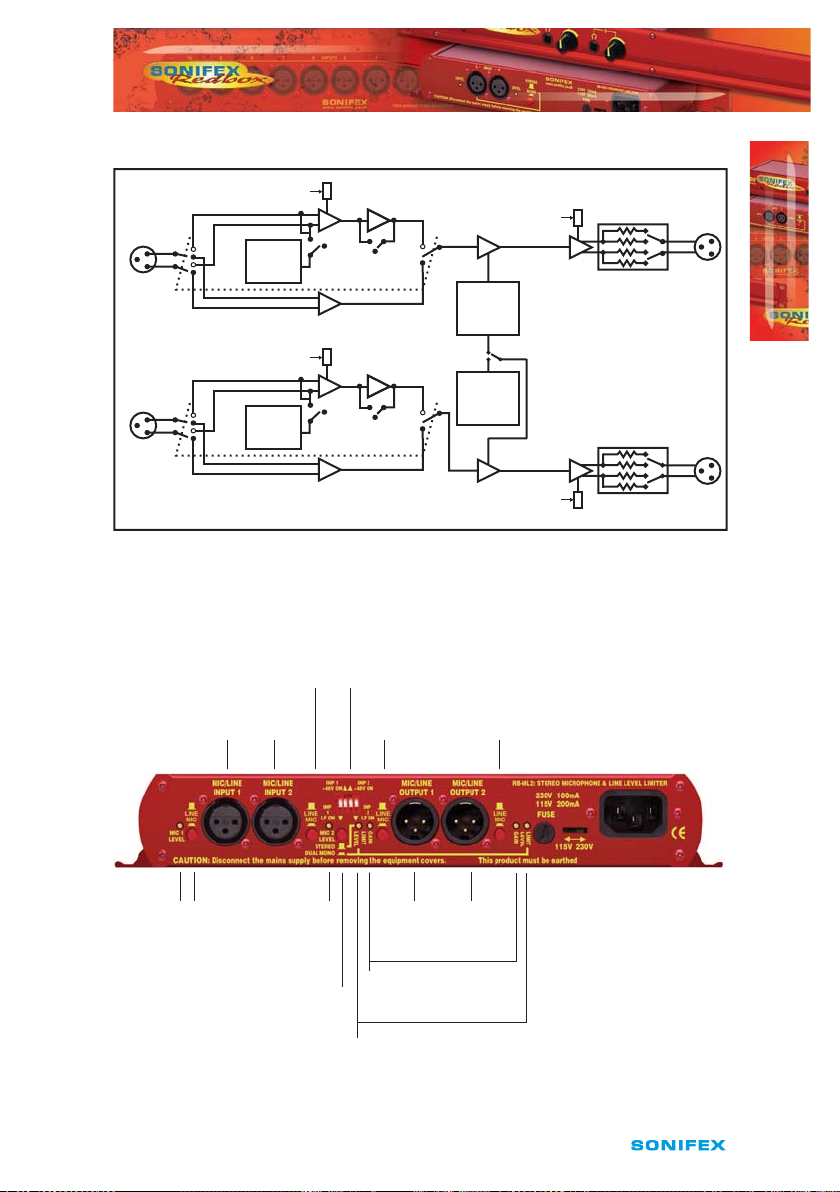

Fig 7-2: RB-ML2 Block Diagram. 45

Fig 7-3: RB-ML2 Rear Panel. 45

Fig 7-4: Switch to Control LF Filter and Phantom Power. 46

Fig 8-1: RB-SL2 Front Panel. 50

Fig 8-2: RB-SL2 Block Diagram. 50

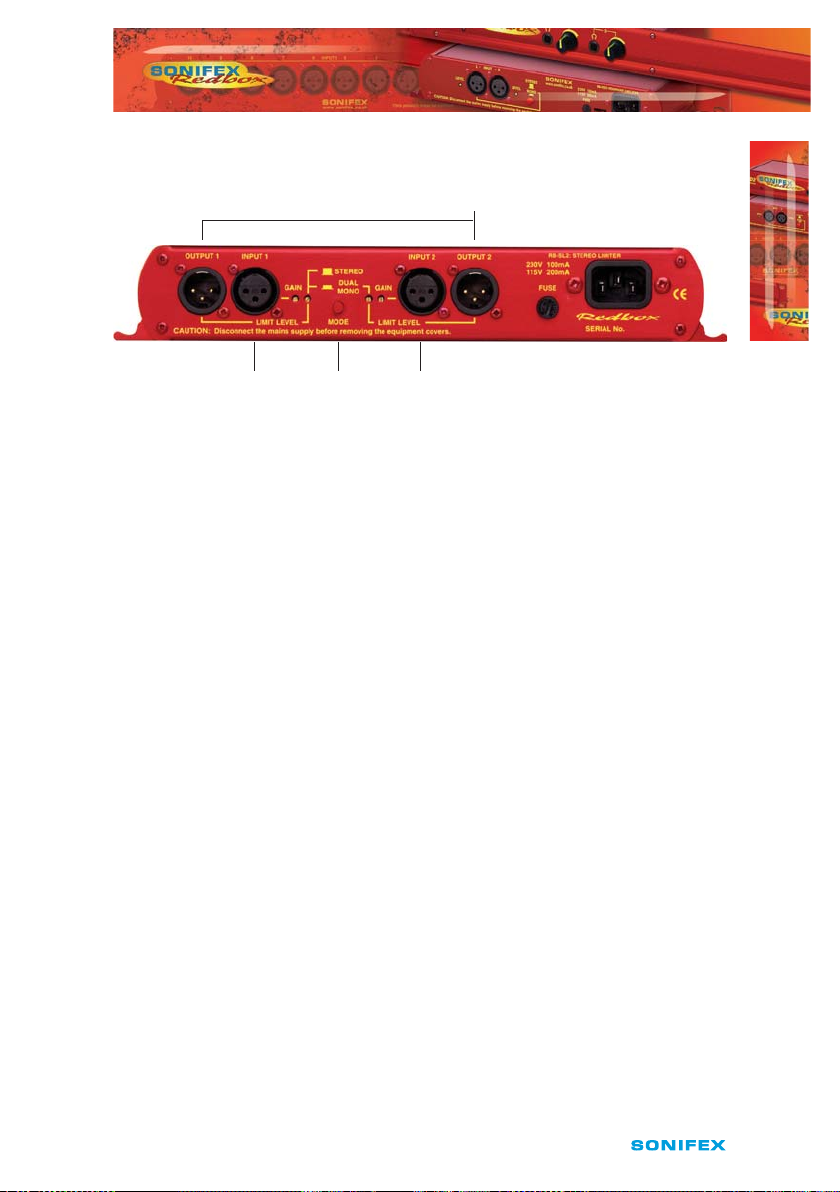

Fig 8-3: RB-SL2 Rear Panel. 51

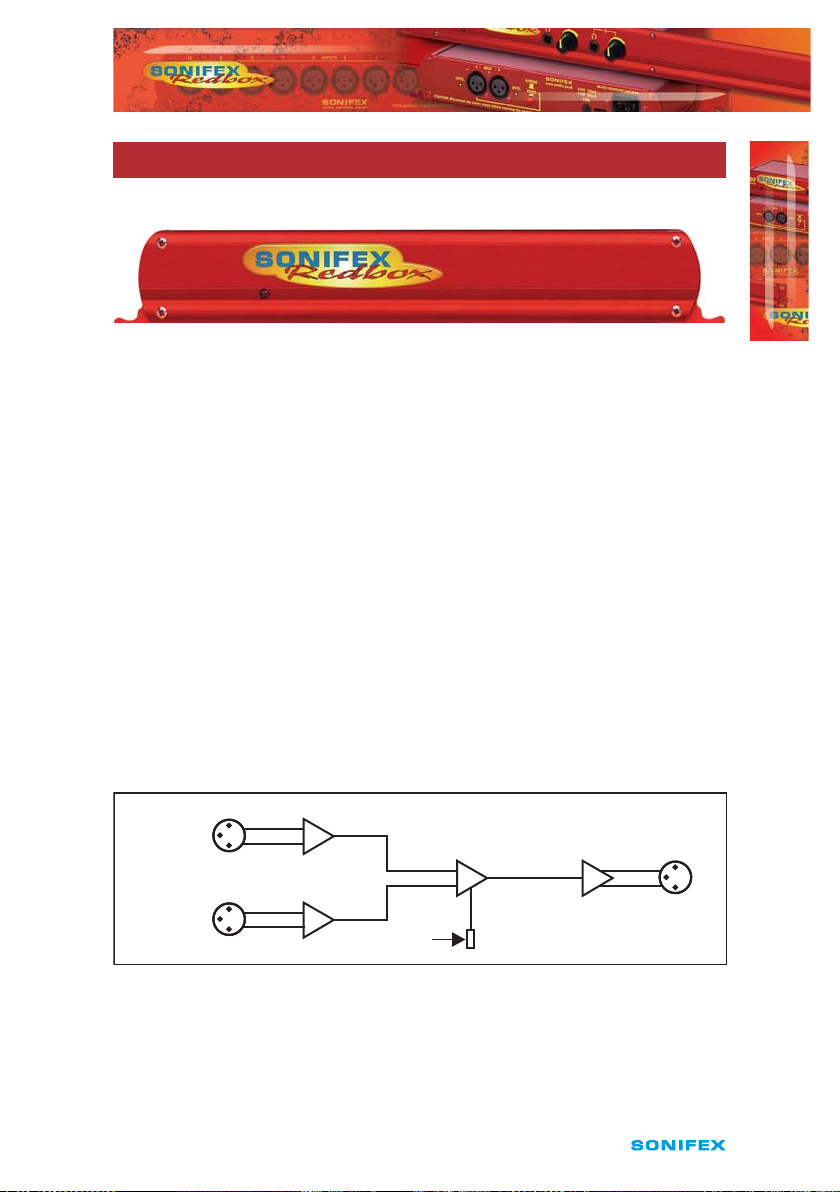

Fig 9-1: RB-SM1 & RB-SM2 Front Panel. 53

Fig 9-2: RB-SM1 & RB-SM2 Block Diagram Single Channel. 53

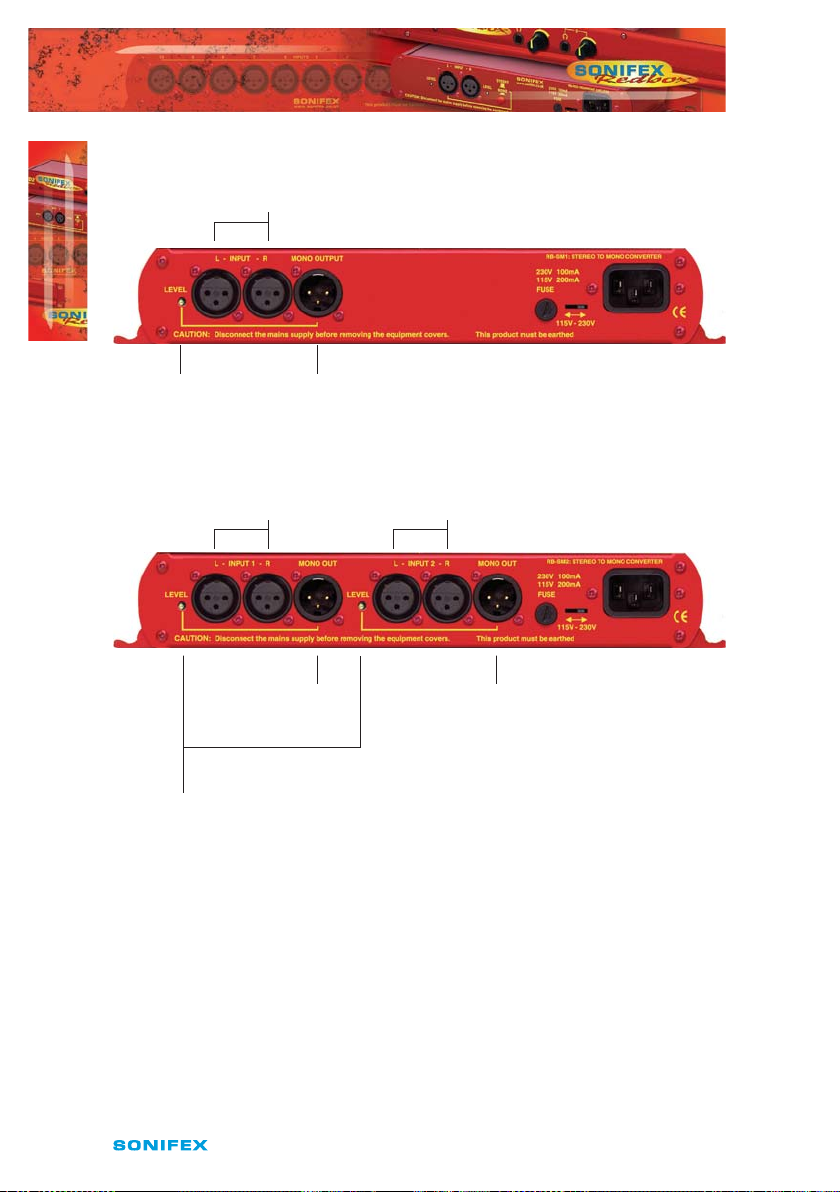

Fig 9-3: RB-SM1 Rear Panel.. 54

Fig 9-4: RB-SM2 Rear Panel. 54

Fig 10-1: RB-LC3 Front Panel. 57

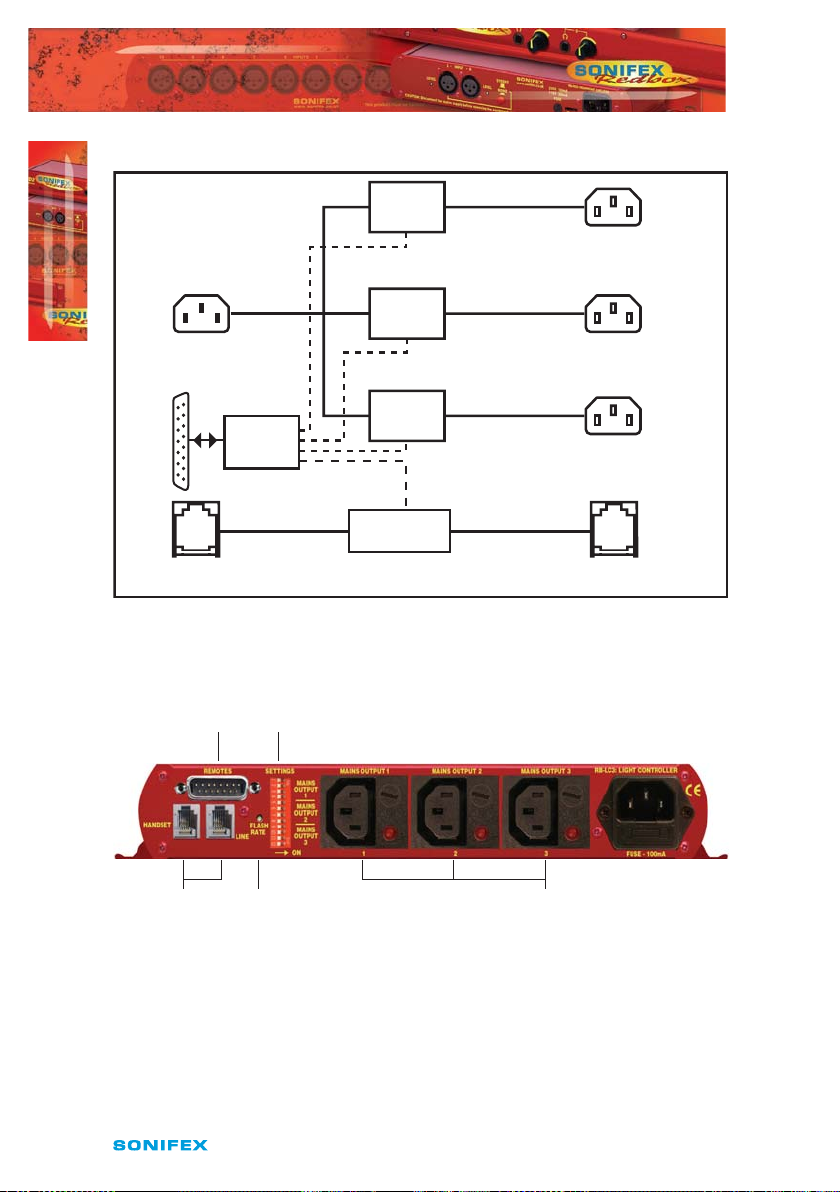

Fig 10-2: RB-LC3 Block Diagram. 58

Fig 10-3: RB-LC3 Rear Panel 58

Fig 10-4: Output 1 Conguration Setting. 61

Fig 10-5: Output 2 Conguration Settings. 61

Fig 10-6: Output 3 Conguration Settings. 62

FIGURES

Redbox User Handbook No 3

Page 8

FIGURES

Figures (continued)

Fig 11-1: RB-MM1 Front Panel. 64

Fig 11-2: RB-MM1 System Block Diagram. 64

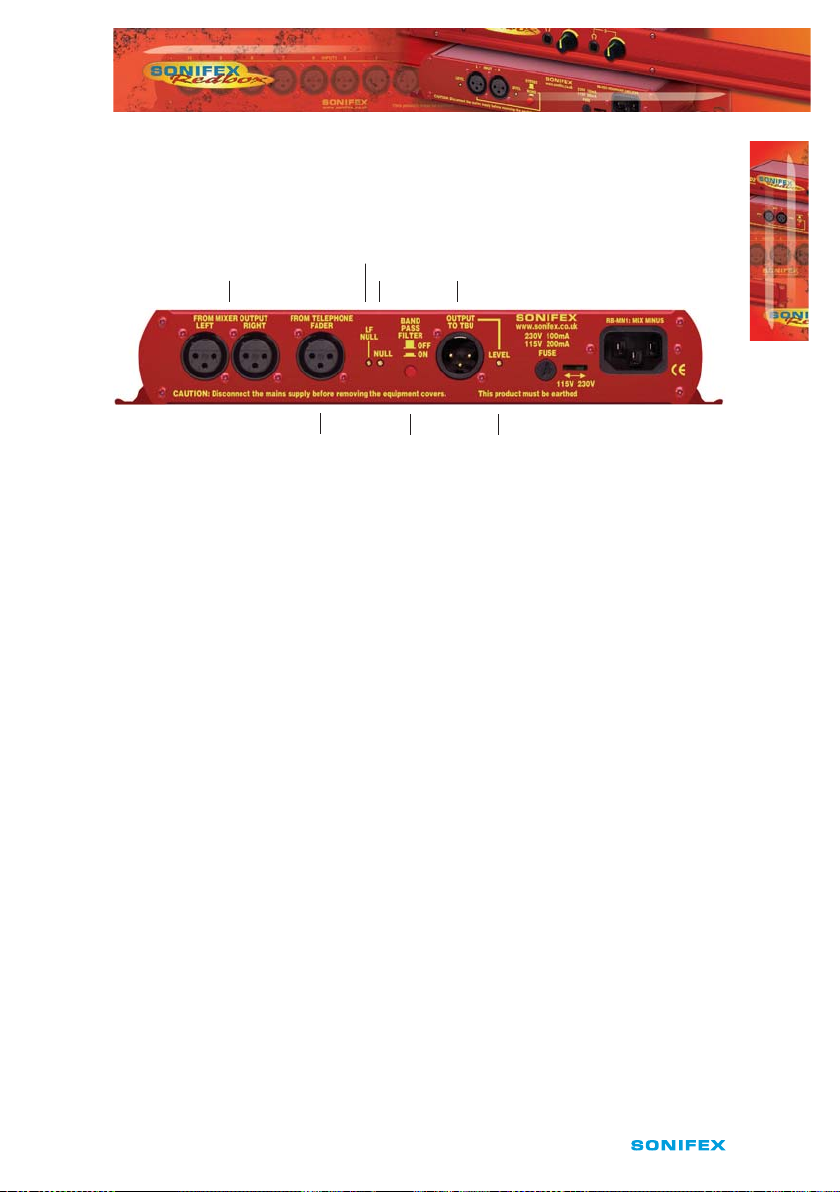

Fig 11-3: RB-MM1 Rear Panel. 65

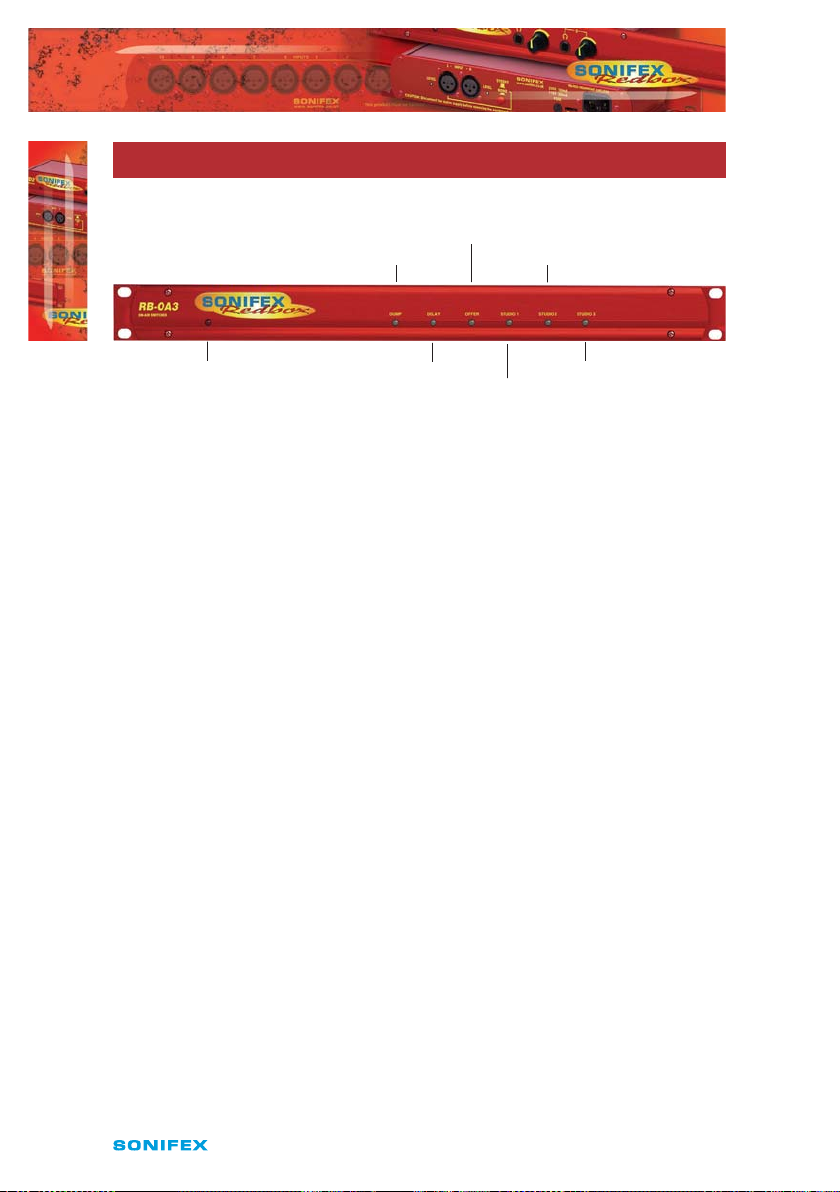

Fig 12-1: RB-OA3 Front Panel. 68

Fig 12-2: RB-OA3 System Block Diagram. 69

Fig 12-3: RB-OA3 Rear Panel. 70

Fig 12-4: RB-OA3 Unit Identity Denitions. 70

Fig 12-5: RB-OA3 Unit Identity Reset Settings. 71

Fig 12-6: RB-OA3 Studio Expansion Diagram. 72

FIGURES

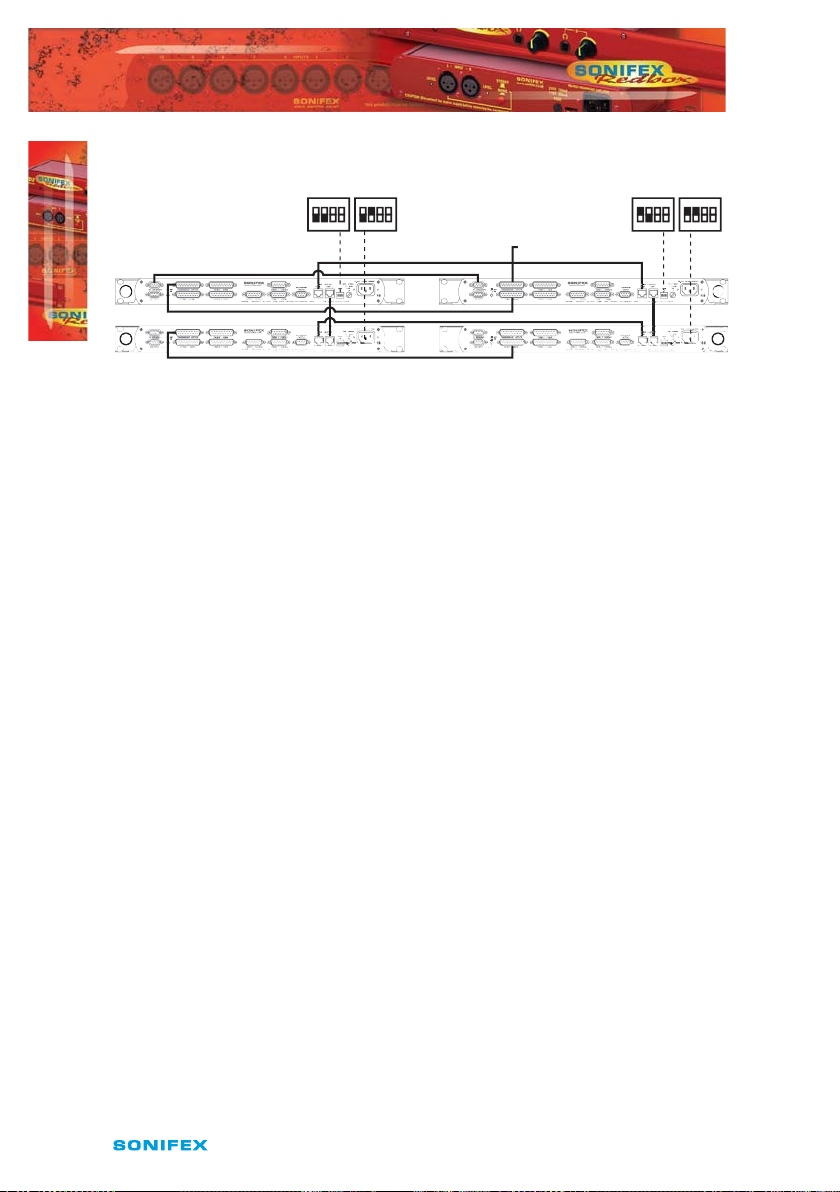

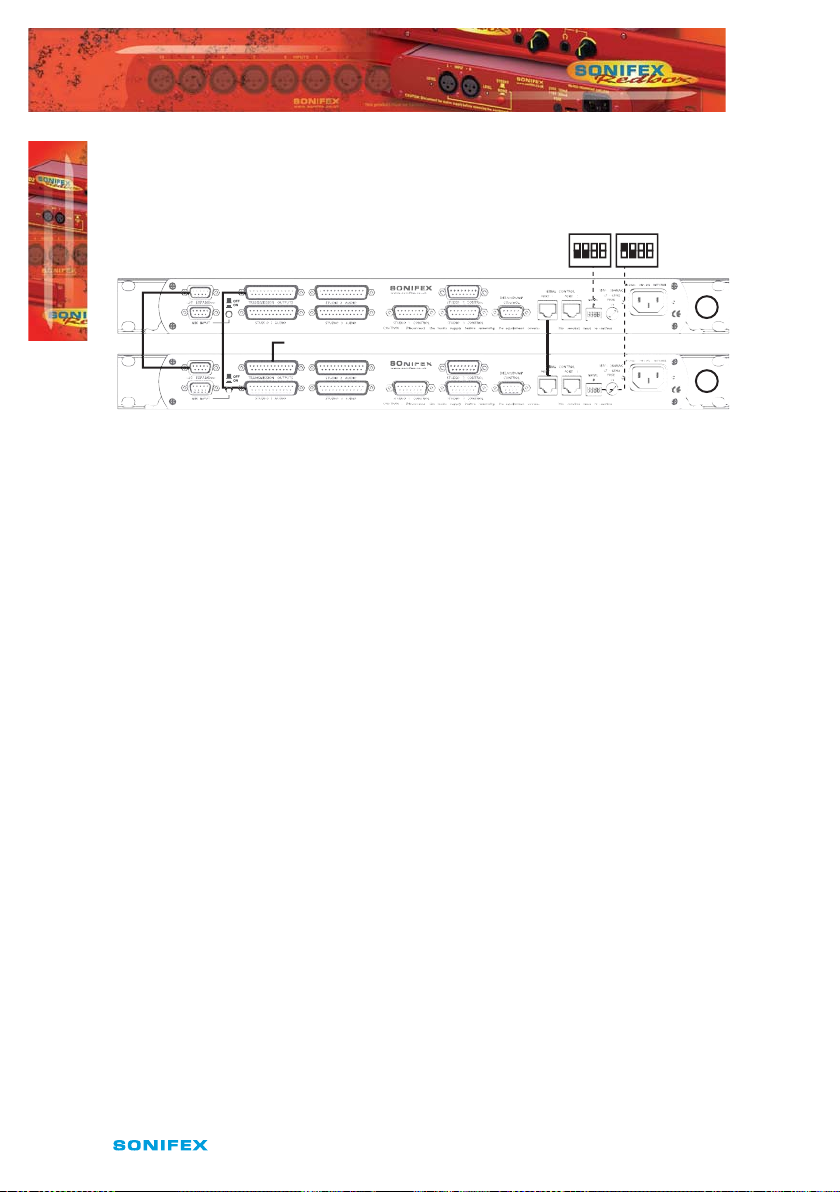

Fig 12-7: RB-OA3 Bus Expansion Diagram. 73

Fig 12-8: RB-OA3 Studio & Bus Expansion Diagram. 74

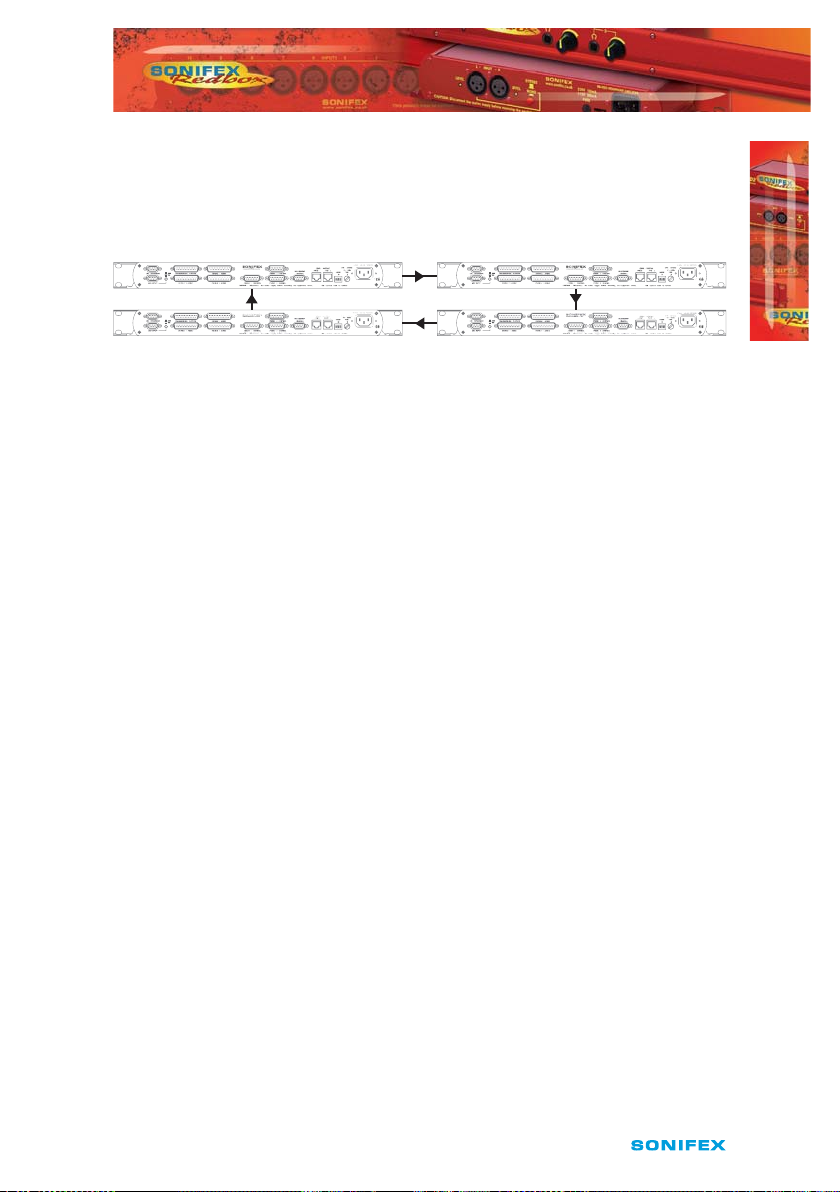

Fig 12-9: RB-OA3 Multiple RB-OA3 Expansion Diagram. 75

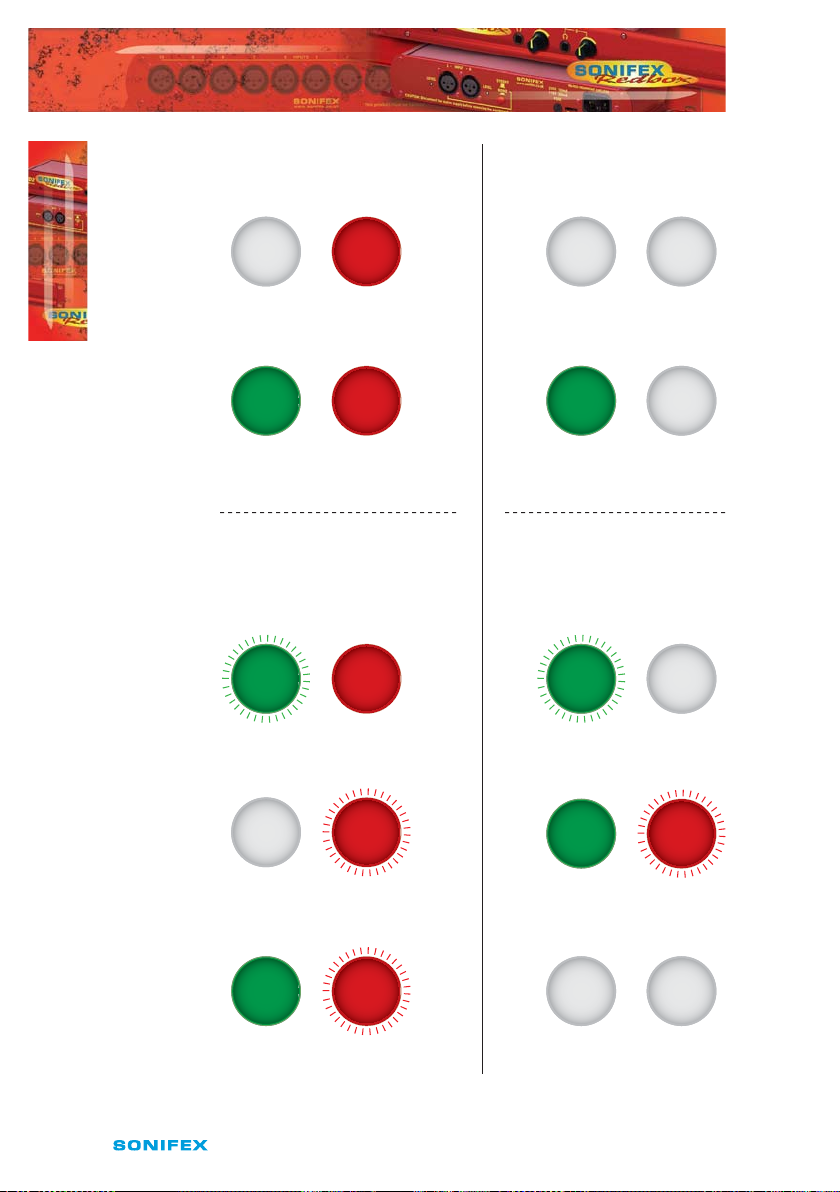

Fig 12-10: Oer & Accept Button Operation 78

Fig 12-11: RB-OA3 LSO Expansion Connector Denitions. 79

Fig 12-12: RB-OA3 LSO Expansion Connector Details. 79

Fig 12-13: RB-OA3 Mix Input Connector Denitions. 80

Fig 12-14: RB-OA3 Mix Input Connector Details. 80

Fig 12-15: RB-OA3 Transmission I/O Connector Denitions. 81

Fig 12-16: RB-OA3 Transmission Outputs Connector Details. 81

Fig 12-17: RB-OA3 Studio 1-3 Audio Connector Denitions. 82

Fig 12-18: RB-OA3 Studio 1-3 Audio Connector Details. 82

Fig 12-19: RB-OA3 Studio 1-3 Control Connector Denitions. 83

Fig 12-20: RB-OA3 Switch & Lamp Control Details. 83

Fig 12-21: RB-OA3 Profanity Delay Control Connector Denitions.. 84

Fig 12-22: RB-OA3 Profanity Delay Control Connector Details. 84

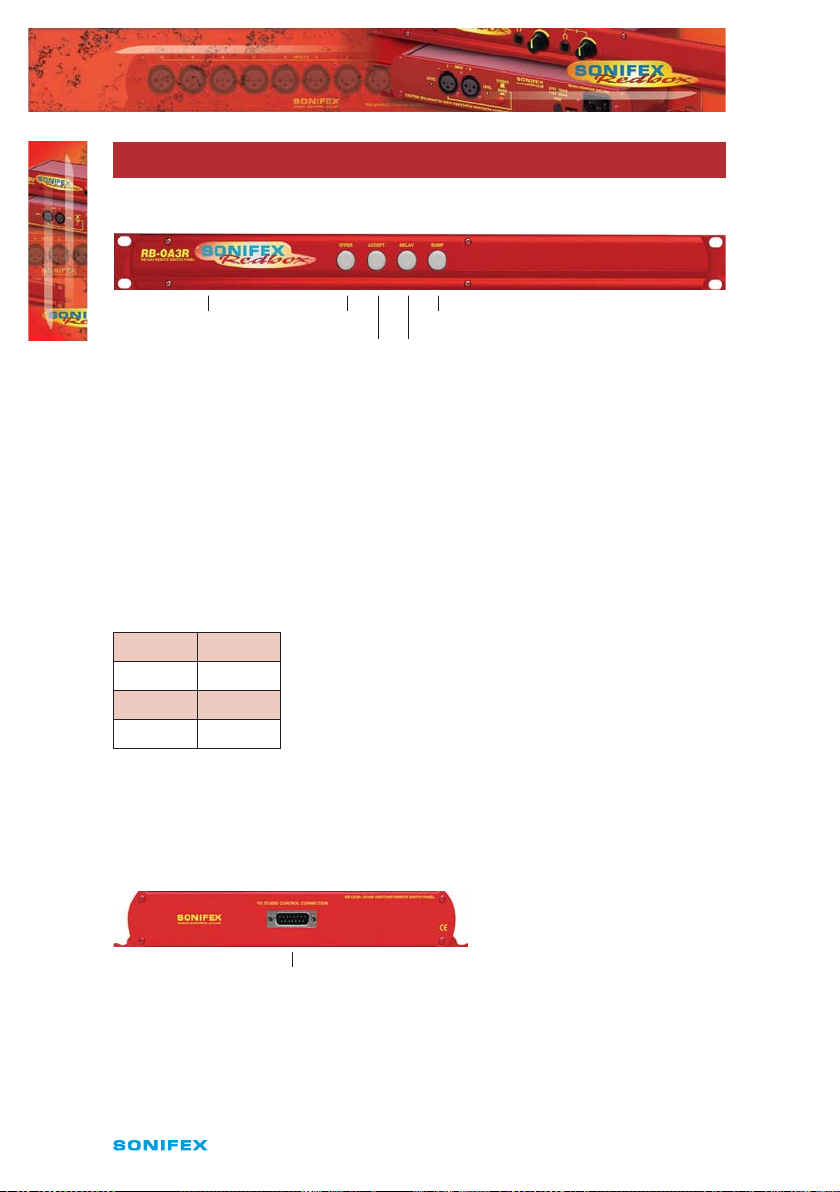

Fig 12-23: RB-OA3R Front Panel. 86

Fig 12-24: RB-OA3R Control Function lndication Colours. 86

Fig 12-25: RB-OA3R Rear Panel. 86

Fig 12-26: RB-OA3R Pin Out Denitions. 87

Fig 12-27: RB-OA3R Pin Out Positions. 87

Fig 13-1: XLR Connectors. 90

Fig 13-2: RCA Phono Connector. 90

Fig 13-3: ¼” Jack Connector. 90

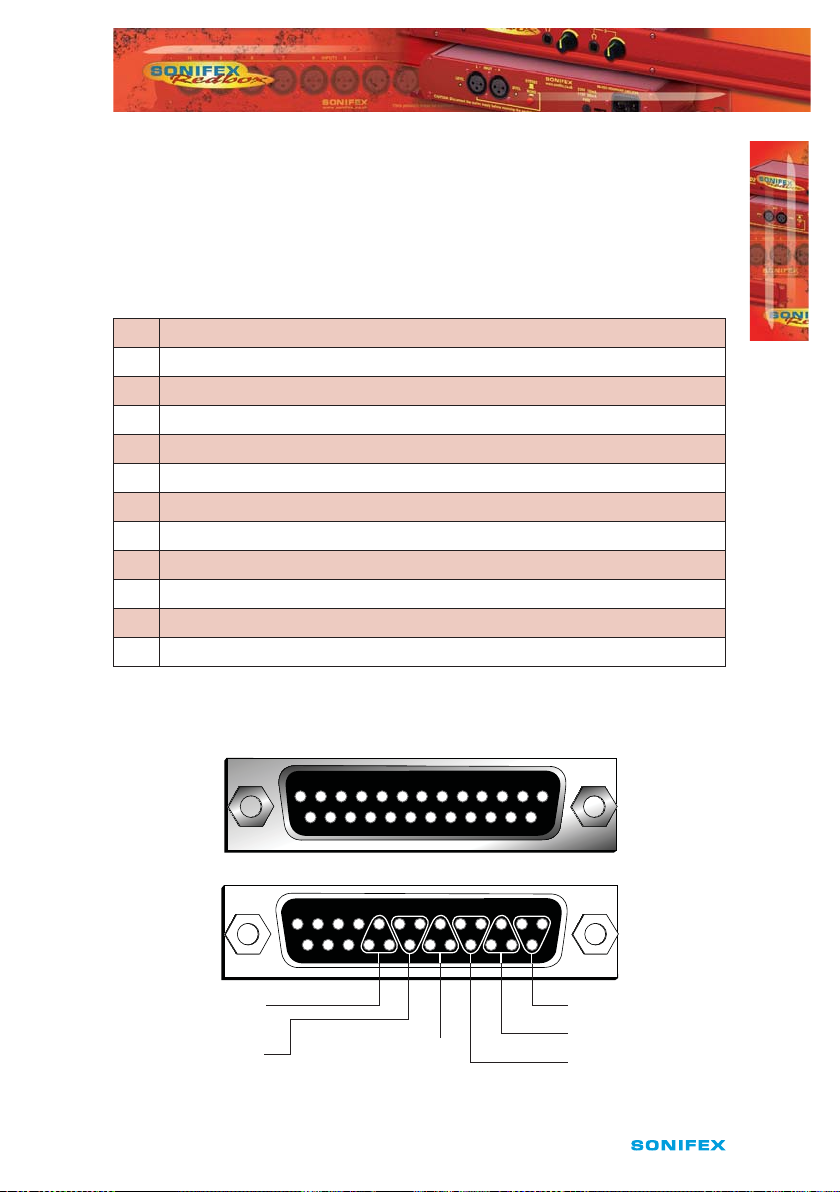

Fig 13-4: 25 Way D-Type Connectors. 91

Fig 13-5: 15 Way D-Type Connectors. 91

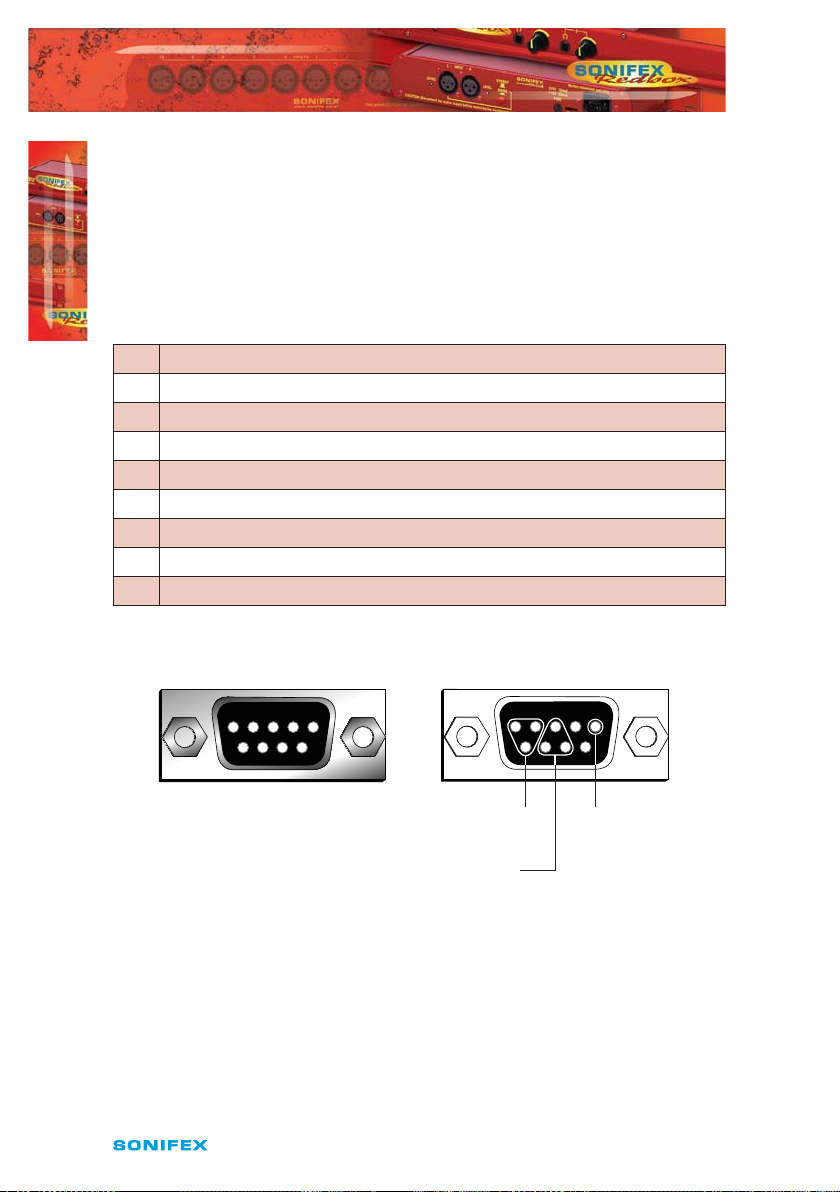

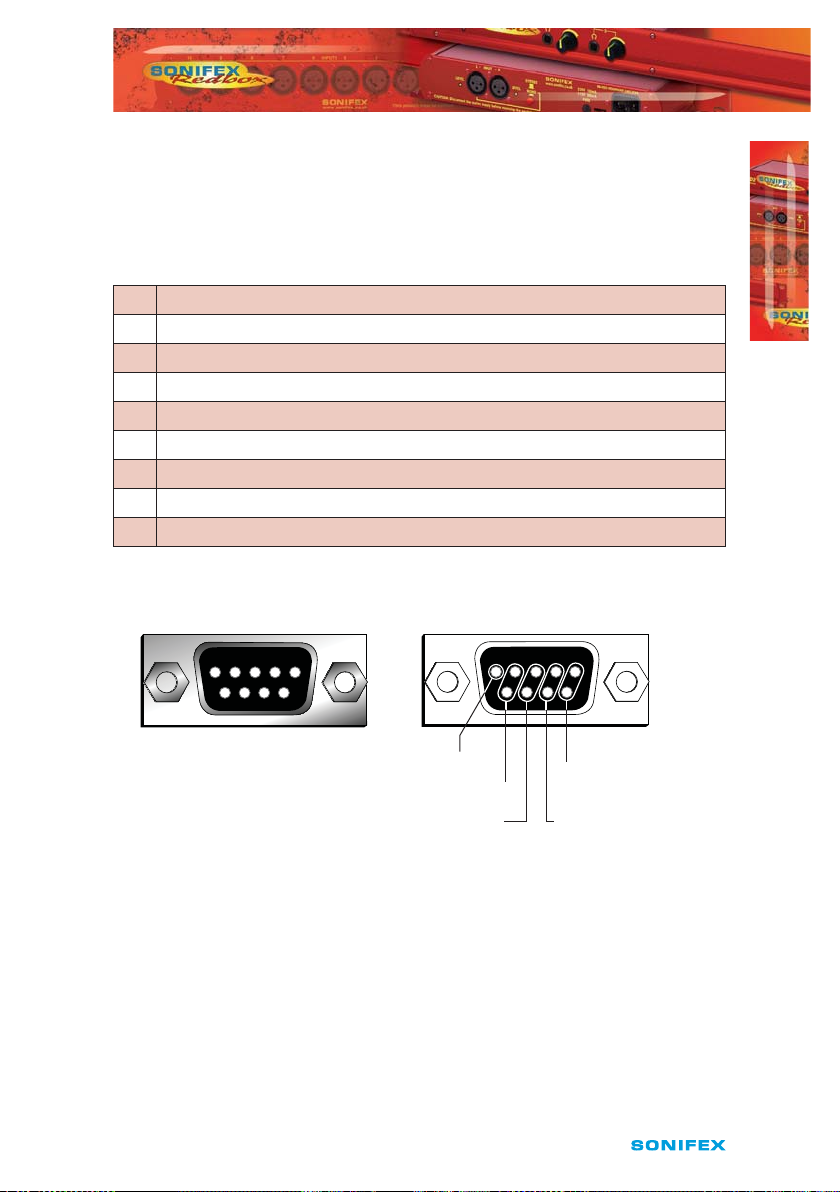

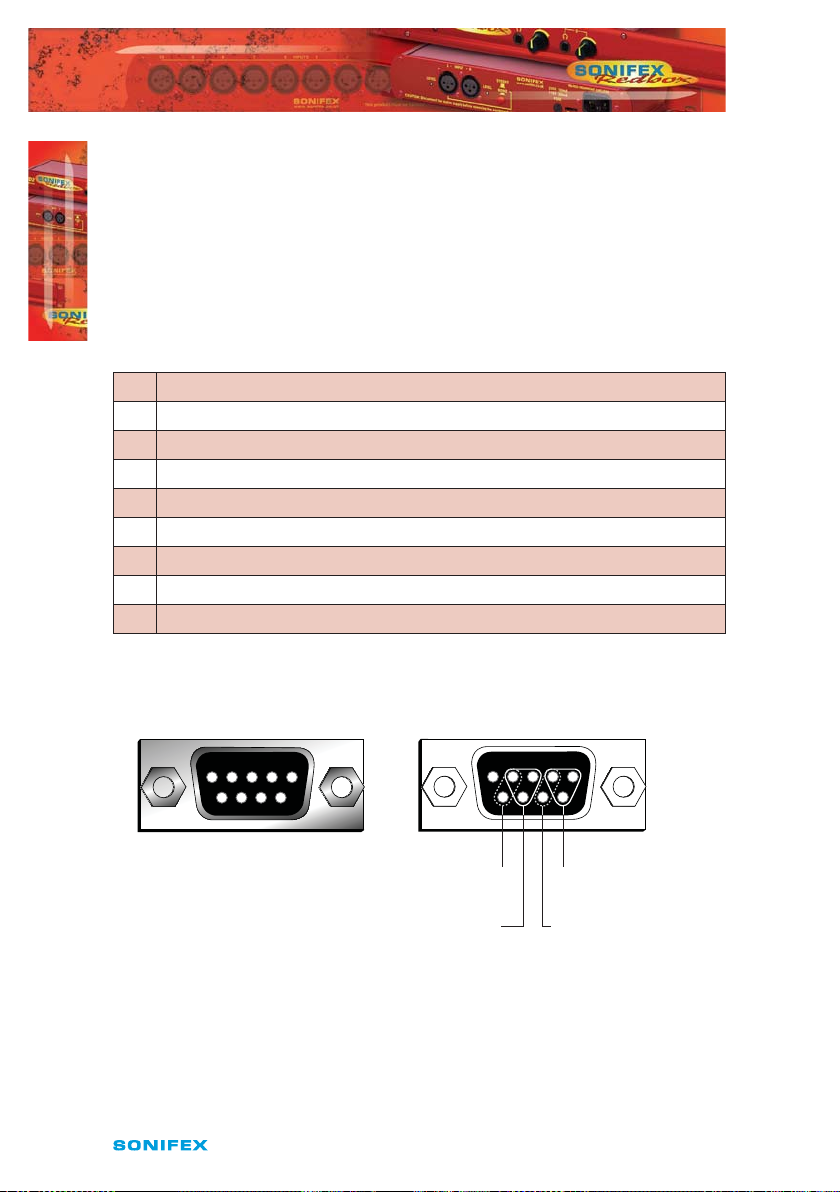

Fig 13-6: 9 Way D-Type Connectors. 91

Redbox User Handbook No 3

Page 9

WARRANTY

Warranty

Warranty and Liability - important the purchaser is advised to read this clause

(a) The Company agrees to repair or (at its discretion) replace Goods which are found to

be defective (fair wear and tear excepted) and which are returned to the Company within 12 months of the date of despatch provided that each of the following are satised:

(i) Notication of any defect is given to the Company immediately upon its

becoming apparent to the Purchaser;

(ii) The Goods have only been operated under normal operating conditions and

have only been subject to normal use (and in particular the Goods must have been correctly connected and must not have been subject to high voltage or to ionising radiation and must not have been used contrary to the Company’s technical recommendations);

(iii) The Goods are returned to the Company’s premises at the Purchaser’s expense;

(iv) Any Goods or parts of Goods replaced shall become the property of the

Company;

(v) No work whatsoever (other than normal and proper maintenance) has been

carried out to the Goods or any part of the Goods without the Company’s prior written consent;

(vi) The defect has not arisen from a design made, furnished or specied by the

Purchaser;

(vii) The Goods have been assembled or incorporated into other goods only in

accordance with any instructions issued by the Company;

(viii) The defect has not arisen from a design modied by the Purchaser;

(ix) The defect has not arisen from an item manufactured by a person other than

the Company. In respect of any item manufactured by a person other than the Company, the Purchaser shall only be entitled to the benet of any warranty or guarantee provided by such manufacturer to the Company.

(b) In respect of computer software supplied by the Company the Company does not

warrant that the use of the software will be uninterrupted or error free.

(i) For death or personal injury to the extent that it results from the negligence of

the Company, its employees (whilst in the course of their employment) or its agents (in the course of the agency);

WARRANTY

Redbox User Handbook No 3

Page 10

WARRANTY

(ii) For any breach by the Company of any statutory undertaking as to title, quiet

possession and freedom from encumbrance.

(d) Subject to conditions (a) and (c) from the time of despatch of the Goods from the

Company’s premises the Purchaser shall be responsible for any defect in the Goods or loss, damage, nuisance or interference whatsoever consequential economic or otherwise or wastage of material resulting from or caused by or to the Goods. In particular the Company shall not be liable for any loss of prots or other economic losses. The Company accordingly excludes all liability for the same.

(e) At the request and expense of the Purchaser the Company will test the Goods to

ascertain performance levels and provide a report of the results of that test. The report will be accurate at the time of the test, to the best of the belief and Knowledge of the Company, and the Company accepts no liability in respect of its accuracy beyond that set out in Condition (a).

(f) Subject to Condition (e) no representation, condition, warranty or other term, express

WARRANTY

or implied (by statute or otherwise) is given by the Company that the Goods are of any particular quality or standard or will enable the Purchaser to attain any particular performance or result, or will be suitable for any particular purpose or use under specic conditions or will provide any particular capacity, notwithstanding that the requirement for such performance, result or capacity or that such particular purpose or conditions may have been known (or ought to have been known) to the Company, its employees or agents.

(g) (i) To the extent that the Company is held legally liable to the Purchaser for any

single breach of contract, tort, representation or other act or default, the Company’s liability for the same shall not exceed the Price of the Goods.

(ii) The restriction of liability in Condition (g)(i) shall not apply to any liability

accepted by the Seller in Condition (c).

(h) Where the Goods are sold under a consumer transaction (as dened by the

Consumer Transactions (Restrictions on Statements) Order 1976) the statutory rights of the Purchaser are not aected by these Conditions of Sale.

Unpacking the Redbox

The Redbox is shipped with the following equipment. Please check your packaging to ensure that you have all of the items below. If anything is missing, please contact the supplier of your equipment immediately.

Item Quantity

Redbox audio interface 1

IEC Mains lead tted with moulded mains plug 1

Handbook and warranty card 1

Fig A: Packing List.

Redbox User Handbook No 3

Page 11

SAFETY & INSTALLATION

INFORMATION

Each Redbox is shipped in protective packaging and should be inspected for damage before use. Where an item is found to have transit damage, notify the carrier immediately with all the relevant details of the shipment. Packing materials should be kept for inspection and also for if the product needs to be returned.

Returning the Warranty Card

In order to register the date of purchase so that we can keep you informed of any design improvements or modications, it is important to complete the warranty registration document that is enclosed and return it to Sonifex Ltd in the UK, or register online at www.sonifex.co.uk/register

For your own records you should write down the serial number (which can be found on the rear of the Redbox).

Serial Number ………………………………………

Safety Information

Safety of Mains Operated Equipment

This equipment has been designed to meet the safety regulations currently advised in the country of purchase and it conforms to the safety regulations specied by use of the CE Mark.

Warning : There are no user serviceable parts inside the equipment. If you should ever need to look inside the unit, always disconnect the mains supply before removing the equipment covers.

SAFETY & INSTALLATION INFORMATION

Voltage Setting Checks

Ensure that the machine operating voltage is correct for your mains power supply by checking the box in which your Redbox was supplied. The voltage is shown on the box label. The available voltage settings are 115V, or 230V. Please note that all Redboxes are either switchable between 115V and 230V, or have a universal power supply.

Fuse Rating

The Redboxes are supplied with a single fuse in the live conducting path of the power infeed at the power supply. For reasons of safety it is important that the correct rating and type of fuse is used. Incorrectly rated fuses could present a possible re hazard, under equipment fault conditions. See the Technical Specications of each product for the fuse rating. The active fuse is tted on the outside rear panel of the unit.

Redbox User Handbook No 3

iii

Page 12

SAFETY & INSTALLATION INFORMATION

Power Cable and Connection

An IEC power connector is supplied with the Redbox, which has a moulded plug, attached – this is a legal requirement. If no moulded plug has been supplied with your Redbox, please contact your supplier, because an IEC connector is always supplied from the Sonifex factory. If for any reason, you need to use the Redbox with a dierent power cable, you should use the following wiring guidelines:

Wire Colour Connection

Green, or green and yellow Earth (E) Blue, or Black Neutral (N) Brown, or Red Live (L)

Fig B: Mains Cable Wire Colours

Ordering the Correct Mains Lead

When ordering a Redbox from Sonifex, it is helpful if you can specify your required operating voltage and mains lead. After the product code add:

UK, for 230V, UK 3 pin to IEC lead

EC, for 230V, European Schuko 2 pin to IEC lead

US, for 115V, 3 pin to IEC lead

AU for 230V, Australasian 3 pin to IEC lead

Fig C: Mains Lead Table.

E.g. order RB-MA1 UK for a UK IEC lead to be supplied.

Installation Information

Atmosphere

The units should be installed in an area that is not subject to excessive temperature

SAFETY & INSTALLATION INFORMATION

variation (<0°C, >50°C), moisture, dust or vibration.

Electromagnetic Radiation

The cover is connected to earth by means of the xing screws. It is essential to maintain this earth ground connection to ensure a safe operating environment and provide electromagnetic shielding.

Fitting Redboxes

Redboxes can be xed to the underside of a mixing desk, or other surfaces using 4.2mm holes in the sides and xed with 2 x M4 screws or 2 x No. 6 countersink wood screws.

Redbox User Handbook No 3

Page 13

SAFETY & INSTALLATION

INFORMATION

They can also be rack-mounted, with either the front, or rear of the Redbox positioned at the front of the rack:

Front Mounting Redboxes: For rack mounting smaller (28cm) units the optional RB-RK1 (Red) or RB-RK1B (Black) kit can be used (which include 4 o M6 panel xing screws).

Fig D: RB-RK1Small Redbox Front Rack-mount Kit .

Wherever you see this symbol an RB-RK1 front panel rack kit can be used :

Rear Mounting Redboxes: For rear panel mounting you can use either the RB-RK2, or RB-RK3, depending on the size of your Redbox.

RB-RK2 1U rear panel rack kit for small Redbox range, e.g., RB-BL2

Fig E: RB-RK2 Small Redbox Rear Rack-mount Kit.

e.g. for tting an RB-BL2:

SAFETY & INSTALLATION INFORMATION

Wherever you see this symbol an RB-RK2 small Redbox rear panel 19” rack kit can be used :

RB-RK3 1U rear panel rack kit for large Redbox range, e.g., RB-DA6

Fig F: RB-RK3 Large Redbox Rear Rack-mount Kit.

e.g. for tting an RB-DA6:

Wherever you see this symbol an RB-RK3 large Redbox rear panel 19” rack kit can be used :

Note: When tting the rear-mounting rack-kits, a notch has been left on the inside of the right-hand rack-piece for the mains cable to pass through. Make sure that the mains cable has been put through the notch before attaching the right hand rack-piece.

Redbox User Handbook No 3

Page 14

SAFETY & INSTALLATION INFORMATION

WEEE & RoHS Directives - Sonifex Statement

The Waste Electrical and Electronic Equipment (WEEE) Directive was agreed on 13 February 2003, along with the related Directive 2002/95/EC on Restrictions of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS).

The Waste Electrical and Electronic Equipment Directive (WEEE) aims to minimise the impacts of electrical and electronic equipment on the environment during their life times and when they become waste. It applies to a huge spectrum of products. It encourages and sets criteria for the collection, treatment, recycling and recovery of waste electrical and electronic equipment. All products manufactured by Sonifex Ltd have the WEEE directive label placed on the case. It gives a contact for individuals who are unsure about the correct procedure when the product has reached its “end of use”.

Sonifex Ltd will be happy to give you information about local organisations that can reprocess the products, or alternatively all products that have reached “end of use” can be returned to Sonifex and will be reprocessed correctly free of charge.

Sonifex Ltd has phased out the use of certain hazardous substances identied in the European Union’s Restriction of Hazardous Substances (RoHS) directive. The RoHS directive limits the use of certain hazardous substances currently used in EEE manufacture, including lead, mercury, cadmium, hexavalent chromium, and halide-containing compounds PBB (polybrominated biphenyl) and PBDE (polybrominated diphenyl ether). Elimination of these substances will result in more environmentally friendly recycling of electronic equipment. For the products which Sonifex manufacture, the main area where products were aected was in the use of lead for manufacturing and assembling electronics circuit boards.

Sonifex Ltd practices lead-free (LF) manufacturing processes. LF solder is used on the surface-mount PCB manufacturing processes and for hand soldering. The printed circuit boards (PCBs) used are either gold plated, or immersion tin plated, both of which use no lead. Historically the PCBs were hot air solder levelled (HASL) PCBs which used tin/lead based solder.

The manufacturing processes include the assembly of purchased components from various sources. Product is oered as RoHS compliant, or LF, only after sucient evidence is received

SAFETY & INSTALLATION INFORMATION

from the component manufacturers that their components are RoHS compliant. Sonifex Ltd relies solely on the distributor, or manufacturer, of the components for identication of RoHS compliance. Thus whilst every eort is made to ensure compliance, Sonifex Ltd makes no warranty, or certication, or declaration of compliance concerning said components.

Sonifex Ltd denes “Lead Free” as pertaining to any product, which has been manufactured by Sonifex Ltd using components which have been declared by the manufacturers as “Lead Free”. All statements by Sonifex Ltd of RoHS compliance are based on component manufacturer documentation.

Redbox User Handbook No 3

Page 15

MIXER & SOURCE SELECTORS

1 RB-SS10 10 Way Stereo Analogue Source Selector/Mixer

Introduction

Fig 1-1: RB-SS10 Front Panel.

The RB-SS10 10 Way Stereo Analogue Source Selector/Mixer is a 1U rack-mount unit that produces a stereo analogue audio output from 10 selectable stereo analogue sources. There are 10 illuminated front panel push buttons, which select and indicate the current channel selection. The selection and indication is also available through a remote connector on the rear panel. To stop accidental front panel selection there is a remote input to inhibit the front panel buttons.

As well as being able to act as a source select module, the RB-SS10 can act as a mixer, by enabling the mix mode (using the remote input).

The gain for left and right inputs can be individually adjusted by using the preset potentiometers on the front panel.

As well as routing the selected audio signal, the unit will also route a remote signal input through the remote connector to the selected input source, for starting external audio equipment such as a CD player.

The front panel headphone output has its own volume control, which is independent of the level adjustment for the main outputs, and has a maximum output level of +12dBu. The volume control can be made to also alter the output level of the main XLR outputs by using a switch on the rear panel to enable/disable this feature.

There is a designation strip on the front panel, useful for giving the buttons a meaningful description. The strip covers the input gain controls so that once congured, they can’t easily be altered – ideal for installation work.

The LED on the front panel is used to indicate that power is present on the unit.

MIXER & SOURCE SELECTORS - RB-SS10

Redbox User Handbook No 3

Page 16

MIXER & SOURCE SELECTORS

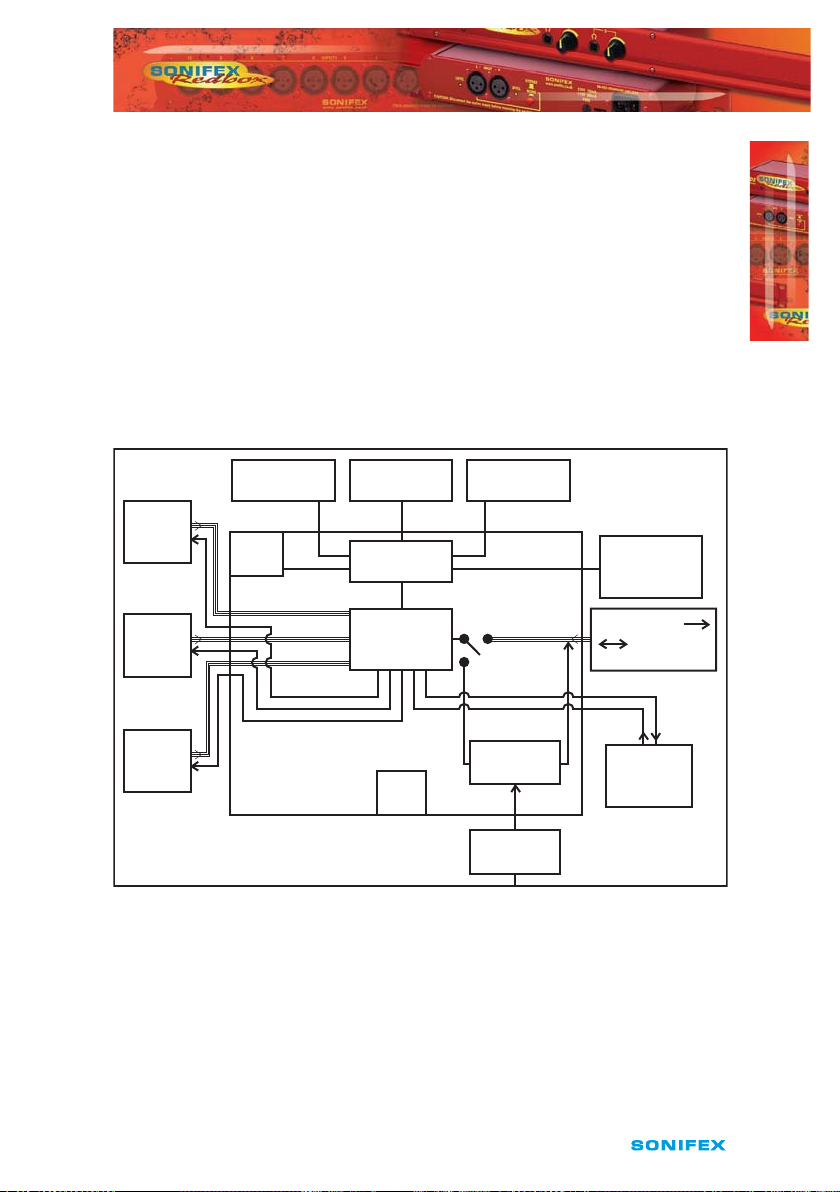

System Block Diagram

Inputs

Audio

Inputs

Audio

Inputs

3-6

Audio

Inputs

7-10

Fig 1-2: RB-SS10 System Block Diagram.

Remote Start I/O

Input Gain

Stage

x10

Remote

Start In

Front Panel Indicators & Controls

Remote Select/

Switch Inputs

Front Panel

Inhibit

Analogue

Switches

Illuminated

Push Buttons

Mix Mode

MCU

Push Button

Switches

Outputs

Volume

Status

Outputs

Headphone

Outputs

MIXER & SOURCE SELECTORS - RB-SS10

Fig 1-3: RB-SS10 Front Panel.

Power LED

Indication

Front Panel

Gain Controls

Underneath

Designation Strip

Headphone

Output

Illuminated Push Buttons

The front panel contains 10 illuminated push buttons, used for selecting an analogue source. The push button illuminates when the input is selected. The status of pin 12 on the remote connector determines whether the unit is in the selector mode, or the mix mode. When pin 12 is connected to 0V, mix mode is enabled.

In selector mode, one push of a button will select the desired analogue stereo source and pushing the button again will turn it o.

Redbox User Handbook No 3

Volume Control

Page 17

MIXER & SOURCE SELECTORS

In mix mode, each button you press will select that source allowing multiple sources to be mixed to a single output. Pressing the button again will switch o a source.

There is also a remote input to inhibit the front panel switches. When the front panel inhibit is active, pressing the front panel switches has no eect on the current channel selection.

Front Panel Gain Controls

The input gain can be individually adjusted for left and right channels through pre-set potentiometers which are accessible through the front panel. The gain range of the input is

-8dBu to +20dBu.

Headphone Output

The front panel headphone output is a ¼” stereo jack socket and is designed to drive 150mW into 32 - 600 professional headphones.

Volume Control

The volume control is used to alter the headphone output. It can also be used to alter the main XLR output levels by using a rear panel switch to enable/disable the control.

Additional Modes

An option to set the unit in dierent modes of operation is available and can be congured at anytime while the unit is powered.

There are currently three modes of operation: Alternate mode, Latched mode and Protected Alternate mode: -

Alternate Mode In this mode the channels are selected and deselected by a press of the button, as described previously.

Latched Mode In this mode the selected channel is active only while the button is pressed. As soon as button is released the channel becomes inactive.

Protected Alternate Mode

Operates in a similar manner to the Alternate mode, but a channel cannot be turned o unless switching to another input or while operating in mix-mode and there is more than one channel active. In other words, there will always be a channel routed to the output. NOTE: after setting this mode there will be no channel selected.

Conguring the Additional Modes

While the unit is powered, hold down the input 10 button and press the input 5 button ve times. Once completed, the input 10 button will start to ash and the rst 3 input buttons will display the current operating mode (as shown below). To change the mode, simply press the input 10 and the buttons will indicate the newly selected mode. Once the required operating mode has been set the unit will restart within ve seconds from the last button press.

MIXER & SOURCE SELECTORS - RB-SS10

Redbox User Handbook No 3

Page 18

MIXER & SOURCE SELECTORS

INPUT 1 button on = Alternate mode

INPUT 2 button on = Latched mode

INPUT 3 button on = Protected Alternate mode

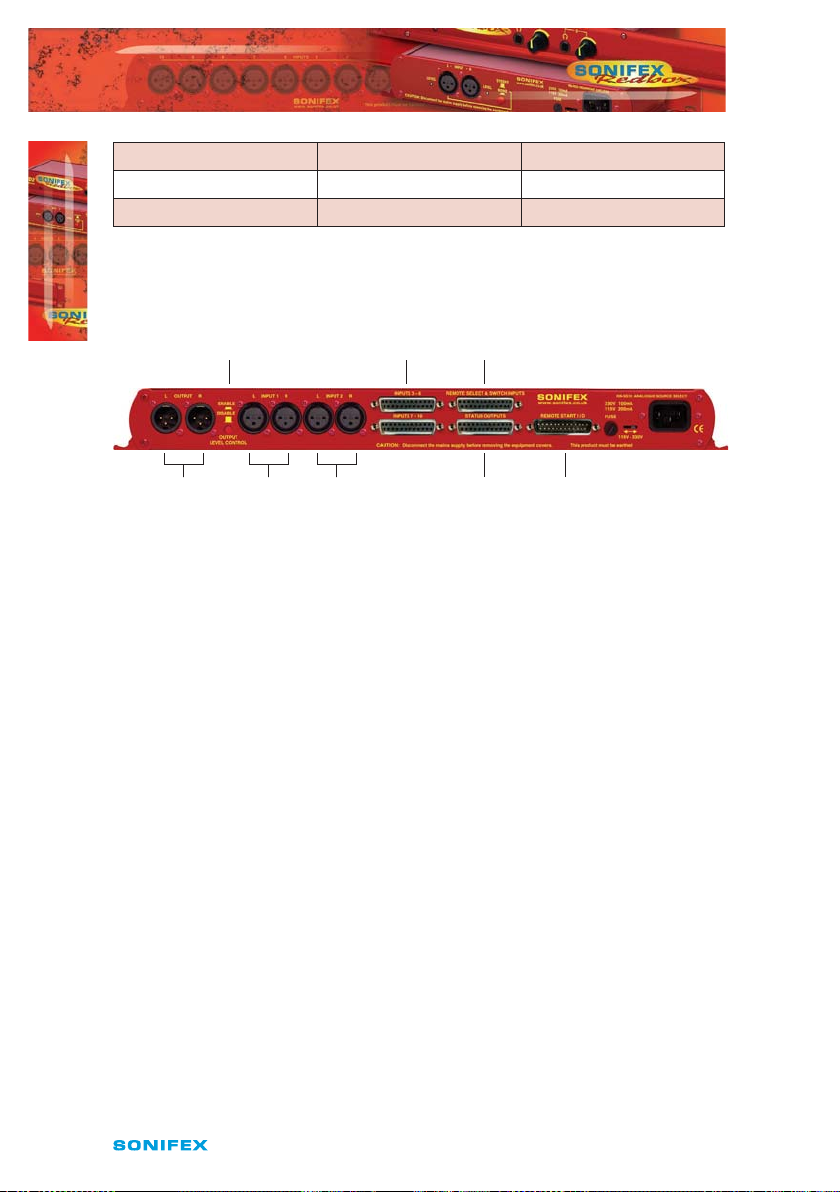

Rear Panel Connections and Operation

Master Output Control

Outputs Input 1 Status

Fig 1-4: RB-SS10 Rear Panel.

Inputs

Two of the stereo analogue audio inputs are on XLR-3 pin sockets (female) so that they can be used for equipment which you may want to plug/unplug on a regular basis and isn’t pre-wired, e.g. portable recorders.

The four XLR-3 inputs can take balanced professional levels, or unbalanced by using the front panel gain controls, and by connecting the non-phase to the signal ground. They have the following connections:

Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

Outputs

The two XLR 3 pin outputs are electronically balanced, and can be wired unbalanced. Each

MIXER & SOURCE SELECTORS - RB-SS10

output is individually buered so that a short circuit on one output will not aect the others. They have the following connections:

Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

Altering the Master Output Level

When the Output Level Control push-switch is Enabled (pushed in) on the rear panel, it changes the functionality of the front panel volume control to also alter the level of the master output, as well as the headphone volume.

Input 2

Additional

Audio Input

Connects

Remote Select/ Switch Inputs

Outputs

Remote

Start I/O

Redbox User Handbook No 3

Page 19

MIXER & SOURCE SELECTORS

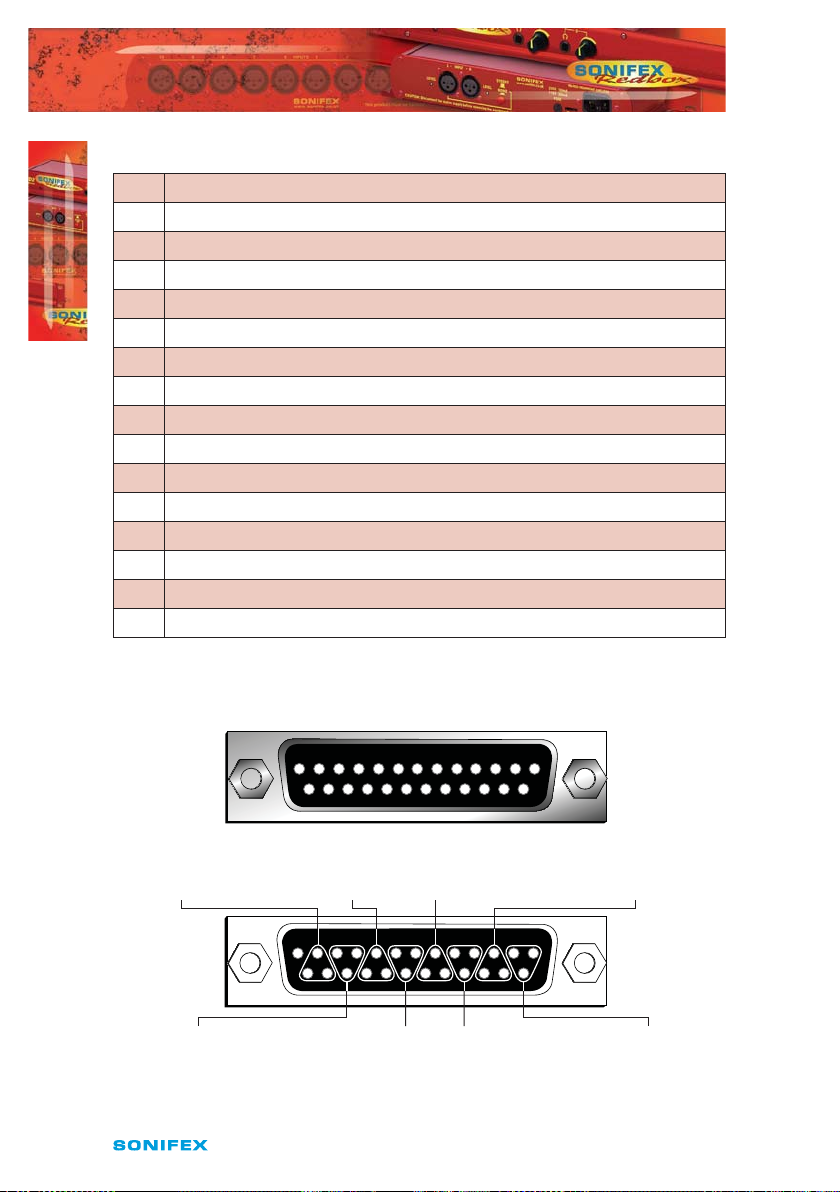

RB-SS10 Additional Audio Input Connectors

There are 2 o 25 way D-type sockets (female) used for the remaining audio inputs. The INPUTS 3 - 6 (upper) connector contains analogue inputs 3-6, and the INPUTS 7 – 10 (lower) connector contains analogue inputs 7-10.

Pin No. I/O INPUTS 3 - 6 connector INPUTS 7 – 10 connector

Pin 1 I Audio input 3 left phase Audio input 7 left phase

Pin 2 - Chassis ground Chassis ground

Pin 3 I Audio input 3 right non-phase Audio input 7 right non-phase

Pin 4 I Audio input 4 left phase Audio input 8 left phase

Pin 5 - Chassis ground Chassis ground

Pin 6 I Audio input 4 right non-phase Audio input 8 right non-phase

Pin 7 I Audio input 5 left phase Audio input 9 left phase

Pin 8 - Chassis ground Chassis ground

Pin 9 I Audio input 5 right non-phase Audio input 9 right non-phase

Pin 10 I Audio input 6 left phase Audio input 10 left phase

Pin 11 - Chassis ground Chassis ground

Pin 12 I Audio input 6 right non-phase Audio input 10 right non-phase

Pin 13 - No internal connection No internal connection

Pin 14 I Audio input 3 left non-phase Audio input 7 left non-phase

Pin 15 I Audio input 3 right phase Audio input 7 right phase

Pin 16 - Chassis ground Chassis ground

Pin 17 I Audio input 4 left non-phase Audio input 8 left non-phase

Pin 18 I Audio input 4 right phase Audio input 8 right phase

Pin 19 - Chassis ground Chassis ground

Pin 20 I Audio input 5 left non-phase Audio input 9 left non-phase

Pin 21 I Audio input 5 right phase Audio input 9 right phase

Pin 22 - Chassis ground Chassis ground

Pin 23 I Audio input 6 left non-phase Audio input 10 left non-phase

Pin 24 I Audio input 6 right phase Audio input 10 right phase

Pin 25 - Chassis ground Chassis ground

MIXER & SOURCE SELECTORS - RB-SS10

Fig 1-5: Analogue Audio Inputs Pin Connections

Redbox User Handbook No 3

Page 20

MIXER & SOURCE SELECTORS - RB-SS10

MIXER & SOURCE SELECTORS

RB-SS10 Remote Start I/O

This 25 way D-type plug (male) connector contains the remote start input connection and the corresponding 10 opto-isolated remote start outputs. This is intended to be used as a method for re-directing a remote start command using a single switch or mixer fader start output, to selected equipment, i.e. CD player, or MD player, etc. This operates in both selector mode and mix mode enabling a single switch to remotely control whichever source is selected or mixed.

Pin No. I/O Description

Pin 1 O Start output 1 collector

Pin 2 O Start output 2 collector

Pin 3 O Start output 3 collector

Pin 4 O Start output 4 collector

Pin 5 O Start output 5 collector

Pin 6 O Start output 6 collector

Pin 7 O Start output 7 collector

Pin 8 O Start output 8 collector

Pin 9 O Start output 9 collector

Pin 10 O Start output 10 collector

Pin 11 - No internal connection

Pin 12 - No internal connection

Pin 13 I Remote start input signal

Pin 14 O Start output 1 emitter

Pin 15 O Start output 2 emitter

Pin 16 O Start output 3 emitter

Pin 17 O Start output 4 emitter

Pin 18 O Start output 5 emitter

Pin 19 O Start output 6 emitter

Pin 20 O Start output 7 emitter

Pin 21 O Start output 8 emitter

Pin 22 O Start output 9 emitter

Pin 23 O Start output 10 emitter

Pin 24 - No internal connection

Pin 25 - Signal ground

Fig 1-6: Remote Start Pin Connections.

Redbox User Handbook No 3

Page 21

MIXER & SOURCE SELECTORS

The collector connects to the start pin of the equipment, and the emitter connects to the common pin of the equipment.

Start Output Collector 1 to 10 (Pins 1 to 10)

Start Output Emitter 1 to 10 (Pins 14 to 23)

Fig 1-7: Connection Example.

Remote Select/Switch Inputs

This 25 way D-type socket (female) connector contains the front panel inhibit input connection and the remote switch inputs to control the channel selection.

Pin No. I/O Description

Pin 1 I Remote input 1 – active low to ground

Pin 2 I Remote input 2 – active low to ground

Pin 3 I Remote input 3 – active low to ground

Pin 4 I Remote input 4 – active low to ground

Pin 5 I Remote input 5 – active low to ground

Pin 6 I Remote input 6 – active low to ground

Pin 7 I Remote input 7 – active low to ground

Pin 8 I Remote input 8 – active low to ground

Pin 9 I Remote input 9 – active low to ground

Pin 10 I Remote input 10 – active low to ground

Pin 11 I Front panel inhibit signal – active low to ground

Pin 12 I Mix Mode – active low to ground

Pin 13 - No internal connection

Pins 14 to 25 - Signal ground

Play Command

Command Common

MIXER & SOURCE SELECTORS - RB-SS10

Fig 1-8: Remote Select/Switch Input Connections.

Redbox User Handbook No 3

Page 22

MIXER & SOURCE SELECTORS - RB-SS10

MIXER & SOURCE SELECTORS

All of the active low signals have internal pull-ups.

Remote Inputs 1 to 10 Front Panel Inhibit Mix Mode (Pins 1 to 12)

Signal Ground (Pins 14 to 24)

Fig 1-9: Connection Example.

Status Outputs

This 25 way D-type socket (female) connector contains the remote status tallies.

Pin No. Signal Name I/O Description

Pin 1 REMTALLY1 O Internal open collector to ground for output 1

Pin 2 REMTALLY2 O Internal open collector to ground for output 2

Pin 3 REMTALLY3 O Internal open collector to ground for output 3

Pin 4 REMTALLY4 O Internal open collector to ground for output 4

Pin 5 REMTALLY5 O Internal open collector to ground for output 5

Pin 6 REMTALLY6 O Internal open collector to ground for output 6

Pin 7 REMTALLY7 O Internal open collector to ground for output 7

Pin 8 REMTALLY8 O Internal open collector to ground for output 8

Pin 9 REMTALLY9 O Internal open collector to ground for output 9

Pin 10 REMTALLY10 O Internal open collector to ground for output 10

Pin 11 N/C - No internal connection

Pin 12 N/C - No internal connection

Pin 13 GND - Signal ground

Pins 14 to 23 +5V O To supply up to a maximum of 500mA

Pin 24 N/C - No internal connection

Pin 25 N/C - No internal connection

Fig 1-10: Status Output Pin Connections.

Pins 1 to 10 are to replicate the front panel push button indicators and have a maximum sink current of 100mA per pin. An example of how to connect the signals is shown below.

Pins 11, 12, 24 and 25 have no connection inside the unit.

Redbox User Handbook No 3

Page 23

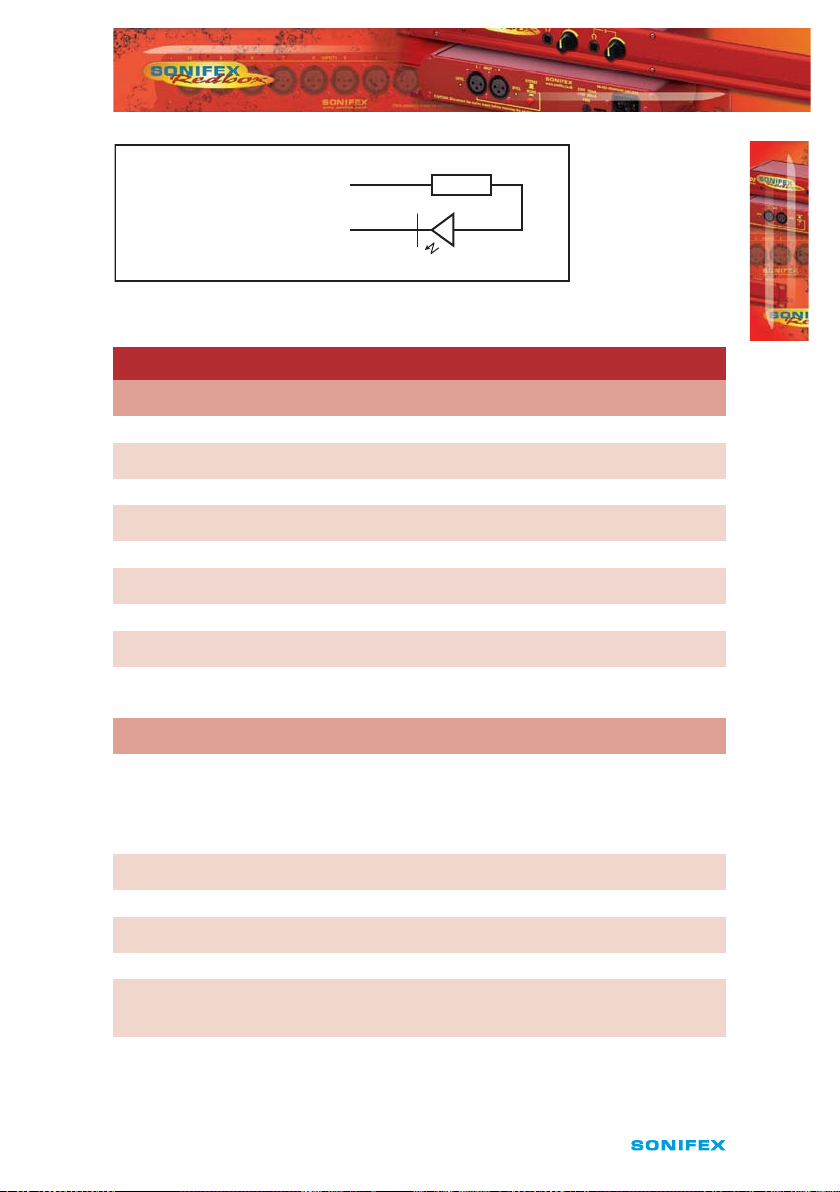

+5V (Pins 14 to 23)

Remote Tally 1 to 10 (Pins 1 to 10)

Fig 1-11: Connection Example.

MIXER & SOURCE SELECTORS

Technical Specications RB-SS10

Audio Specications

Input Impedance: 20k bridging

Output Impedance: <50

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

Frequency Response: 20Hz to 20kHz ±0.1dB (600 load, ref 1kHz)

Input Gain Range: Adjustable 8dB loss to 20dB gain (L & R adjust).

Common Mode Rejection: >66dB typically

Noise: -96dB unity gain ref +8dBu

Max Headphone Output Level: +12dBu

Connections

Inputs: 4 x XLR 3 pin female (2 x stereo) (balanced, can be unbalanced)

2 x 25 way D-type socket (female) (4 stereo balanced channels on each)

Outputs: 2 x XLR 3 pin male (stereo balanced, can be unbalanced)

Remote Start I/O: 25 way D-type plug (male)

Remote Select/ Switch Inputs: 25 way D-type socket (female)

Status Outputs: 25 way D-type socket (female)

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum.

Fuse Rating: Anti-surge fuse 160mA 20 x 5mm (230VAC) Anti-surge fuse 315mA 20 x 5mm (115VAC)

MIXER & SOURCE SELECTORS - RB-SS10

Redbox User Handbook No 3

Page 24

MIXER & SOURCE SELECTORS

Equipment Type

RB-SS10: 10 way stereo analogue source selector/mixer

Physical Specications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.5kg Gross: 2.0kg Nett: 3.3lbs Gross: 4.4lbs

MIXER & SOURCE SELECTORS - RB-SS10

Redbox User Handbook No 3

Page 25

MIXER & SOURCE SELECTORS

2 RB-DSS10 10 Way Stereo Digital Source Selector

Introduction

Fig 2-1: RB-DSS10 Front Panel.

The RB-DSS10 10 Way stereo Digital Source Selector is a 1U rack-mount which produces an AES/EBU and S/PDIF level digital audio output from 10 selectable AES/EBU or S/PDIF digital input signals. There are 10 illuminated front panel push buttons, which select and indicate the current channel selection. The selection and indication is also available through a remote connector on the rear panel. To stop accidental front panel selection there is a remote input to inhibit the front panel buttons.

The digital receivers in this unit are fully 24 bit, 96kHz capable. When an input is selected from the front panel, or remotely, the unit will attempt to capture the incoming signal on either the AES/EBU or the S/PDIF signal inputs, with priority given to the AES/EBU input. If the AES/EBU signal becomes locked while the S/PDIF signal is routed, the unit will automatically switch to the incoming AES/EBU signal.

Once the receiver has successfully locked to a digital input, the LED illuminates, the tally is made, and the audio is routed simultaneously to both the digital audio outputs and converted to analogue audio for monitoring on the front panel headphone socket. If the incoming audio signal is not present, the push button LED and remote tally ash to indicate that the incoming digital signal is missing.

The headphone output has its own volume control, which is independent of the level adjustment for the main outputs, and has a maximum output level of +12dBu.

There is a designation strip on the front panel, useful for giving the buttons a meaningful description.

The LED on the front panel is used to indicate that power is present on the unit. However, it also has a secondary role to indicate whether the selected channel is routing the AES/EBU (red LED) or S/PDIF input (amber LED).

MIXER & SOURCE SELECTORS - RB-DSS10

Redbox User Handbook No 3

Page 26

MIXER & SOURCE SELECTORS

System Block Diagram

Remote Start I/O

Remote

Start In

Inputs

AES/ EBU

S/PDIF

Output

Fig 2-2: RB-DSS10 System Block Diagram.

Data

Selector

AES

Receiver

AES

Receiver

Front Panel Indicators & Controls

Data

Selector

Remote Select/

Switch Inputs

MCU

DAC

AES

Transmitter

Illuminated

Push Buttons

Push Button

Switches

Data

Selector

Volume Control

Outputs

Status Outputs

Headphone Output

AES/ EBU

MIXER & SOURCE SELECTORS - RB-DSS10

Power LED Indication

Fig 2-3: RB-DSS10 Front Panel.

Headphone

Output

Power Indicator

Red indicates AES/EBU input.

Amber indicates S/PDIF input.

Redbox User Handbook No 3

Volume Control

Page 27

MIXER & SOURCE SELECTORS

The LED and remote tally ash, if the incoming audio signal is not present, to indicate that the incoming digital signal is missing.

Illuminated Push Buttons

The front panel contains 10 illuminated push buttons, used for selecting a digital source. The push button illuminates when the input is selected and ashes when the selected input loses lock.

There is also a remote input to inhibit the front panel switches. When the front panel inhibit is active, pressing the front panel switches has no eect on the current channel selection.

Headphone Output

The output available on the front panel through a ¼” stereo jack socket, is designed to drive 150 mW into 32to 600 professional headphones.

Volume Control

The headphone output has its own volume control and has a maximum output level of +12dBu.

Additional Modes

An option to set the unit in dierent modes of operation is available and can be congured at anytime while the unit is powered.

There are currently three modes of operation: Alternate mode, Latched mode and Protected Alternate mode: -

Alternate Mode In this mode the channels are selected and deselected by a press of the button, as described previously.

Latched Mode In this mode the selected channel is active only while the button is pressed. As soon as button is released the channel becomes inactive.

Protected Alternate Mode

Operates in a similar manner to the Alternate mode, but a channel cannot be turned o unless switching to another input. In other words, there will always be a channel routed to the output. NOTE: after setting this mode there will be no channel selected.

MIXER & SOURCE SELECTORS - RB-DSS10

Select & Conrm Mode

In this mode, input button 10 acts as a CONFIRM button for input selection 1 to 9. Once one of the inputs is pressed, this selection will then ash along with button 10. You must press button 10 within 5 seconds to conrm the selection or the original input selection times out. Only inputs 1 to 9 are selectable and there is always an input channel routed in this mode. NOTE: Initially, after setting this mode there will be no input selected.

Conguring the Additional Modes

While the unit is powered, hold down the input 10 button and press the input 5 button ve times. Once completed, the input 10 button will start to ash and the rst 3 input

Redbox User Handbook No 3

Page 28

MIXER & SOURCE SELECTORS

buttons will display the current operating mode (as shown below). To change the mode, simply press the input 10 and the buttons will indicate the newly selected mode. Once the required operating mode has been set the unit will restart within ve seconds from the last button press.

INPUT 1 button on = Alternate mode

INPUT 2 button on = Latched mode

INPUT 3 button on = Protected Alternate mode

INPUT 4 button on = Select & Conrm mode

Rear Panel Connections and Operation

AES/EBU

Inputs

Remote

Start I/O

AES/EBU

Output

Remote Select/

Switch Inputs

Digital Audio

Inputs & S/PDIF

Output

Fig 2-4: RB-DSS10 Rear Panel.

RB-DSS10 Inputs

AES/EBU Inputs

The 8 digital input XLR 3 pin sockets have an impedance of 110. They have the following connections:

Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

MIXER & SOURCE SELECTORS - RB-DSS10

The signals on this connector should meet the IEC 60968 specication

RB-DSS10 Outputs

AES/EBU Outputs

The digital output XLR 3 pin socket has an impedance of 110. It has the following connections:

Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

The signals on these connectors will comply with the IEC 60968 specication

Status

Outputs

Redbox User Handbook No 3

Page 29

MIXER & SOURCE SELECTORS

Digital Audio Inputs & S/PDIF Output

This connector contains the other two remaining professional AES/EBU input connections, and the 10 S/PDIF input connections. It also has the S/PDIF digital output. The S/PDIF digital inputs and the output have an impedance of 75.

Pin No. I/O Description

Pin 1 I AES/EBU input 9 signal phase

Pin 2 - Signal ground

Pin 3 I AES/EBU input 10 signal non-phase

Pin 4 I S/PDIF input 1 signal

Pin 5 I S/PDIF input 2 signal

Pin 6 I S/PDIF input 3 signal

Pin 7 I S/PDIF input 4 signal

Pin 8 I S/PDIF input 5 signal

Pin 9 I S/PDIF input 6 signal

Pin 10 I S/PDIF input 7 signal

Pin 11 I S/PDIF input 8 signal

Pin 12 I S/PDIF input 9 signal

Pin 13 I S/PDIF input 10 signal

Pin 14 I AES/EBU input 9 signal non-phase

Pin 15 I AES/EBU input 10 signal phase

Pins 16 to 23 - Signal ground

Pin 24 O S/PDIF output signal

Pin 25 - Signal ground

MIXER & SOURCE SELECTORS - RB-DSS10

Fig 2-5: Digital Audio Inputs and S/PDIF Output Pin Connections.

Note: The actual phase of the AES/EBU signals is not relevant.

Redbox User Handbook No 3

Page 30

MIXER & SOURCE SELECTORS - RB-DSS10

MIXER & SOURCE SELECTORS

Remote Start I/O

This 25 way D-type plug (male) connector contains the remote start input connection and the corresponding 10 opto-isolated remote start outputs.

Pin No. I/O Description

Pin 1 O Start output 1 collector

Pin 2 O Start output 2 collector

Pin 3 O Start output 3 collector

Pin 4 O Start output 4 collector

Pin 5 O Start output 5 collector

Pin 6 O Start output 6 collector

Pin 7 O Start output 7 collector

Pin 8 O Start output 8 collector

Pin 9 O Start output 9 collector

Pin 10 O Start output 10 collector

Pin 11 - No internal connection

Pin 12 - No internal connection

Pin 13 I Remote start input signal

Pin 14 O Start output 1 emitter

Pin 15 O Start output 2 emitter

Pin 16 O Start output 3 emitter

Pin 17 O Start output 4 emitter

Pin 18 O Start output 5 emitter

Pin 19 O Start output 6 emitter

Pin 20 O Start output 7 emitter

Pin 21 O Start output 8 emitter

Pin 22 O Start output 9 emitter

Pin 23 O Start output 10 emitter

Pin 24 - No internal connection

Pin 25 - Signal ground

Fig 2-6: Remote Start Pin Connections.

These signals should be connected to external equipment, such as a CD player (as shown following). The collector connects to the start pin of the equipment, and the emitter connects to the common pin of the equipment.

Redbox User Handbook No 3

Page 31

MIXER & SOURCE SELECTORS

Start Output Collector 1 to 10 (Pins 1 to 10)

Start Output Emitter 1 to 10 (Pins 14 to 23)

Fig 2-7: Connection Example.

Remote Select/Switch Inputs

This 25 way D-type socket (female) connector contains the front panel inhibit input connection and the remote switch inputs to control the channel selection.

Pin No. I/O Description

Pin 1 I Remote input 1 – active low

Pin 2 I Remote input 2 – active low

Pin 3 I Remote input 3 – active low

Pin 4 I Remote input 4 – active low

Pin 5 I Remote input 5 – active low

Pin 6 I Remote input 6 – active low

Pin 7 I Remote input 7 – active low

Pin 8 I Remote input 8 – active low

Pin 9 I Remote input 9 – active low

Pin 10 I Remote input 10 – active low

Pin 11 I Front panel inhibit signal – active low

Pin 12 - No internal connection

Pin 13 - No internal connection

Pins 14 to 24 - Signal ground

Pin 25 - No internal connection

Fig 2-8: Remote Select/Switch Input Connections.

Play Command

Command Common

MIXER & SOURCE SELECTORS - RB-DSS10

Redbox User Handbook No 3

Page 32
