Sonifex RB-DA6, RB-DA6G, RB-DA6P, RB-DA6R, RB-DA6RG User Handbook Manual

...

Download

Manufacturers of audio & video

products for radio & TV broadcasters

Redbox

User Handbook No 4

HANDBOOK

RB-DA6 6 Way Stereo Distribution Amplifier RB-DA6G 6 Way Stereo Distribution Amplifier

With Output Gain Control

RB-DA6P 6 Way Stereo Distribution Amplifier RB-DA6R 6 Way Stereo Distribution Amplifier

With RJ-45 Outputs RB-DA6RG 6 Way Stereo Distribution Amplifier With RJ-45 Outputs RB-DA4x5 4 Input, 4 x 5 Output Distribution Amplifier/Mixer RB-DA24MD 24 Way Mono Audio Distribution Amplifier RB-DDA6A 6 Way Stereo AES/EBU Digital Distribution Amplifier RB-DDA6A3 6 Way Stereo AES3 Digital Audio Distribution Amplifier

RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier RB-DDA6A-2P 6 Way Stereo AES/EBU Digital Distribution Amplifier With Dual Power Supplies

RB-DDA6W 6 Way Word Clock Distribution Amplifier RB-DDA6W-2P 6 Way Word Clock Distribution Amplifier

With Dual Power Supplies RB-DDA22 Digital Audio Distribution Amplifier With Multiple Outputs RB-AES4B3 Quad 3 Way Passive AES3ID Splitters With BNC Connectors

RB-AES4X3 Quad 3 Way AES3 Splitter XLR Connectors RB-MS4X3 Quad 3 Way Microphone Splitter RB-MSP6 6 Way +48V Phantom Power Supply

Redbox Handbook 4

Redbox User Handbook No 4

Stock Code: 30-341

Artwork: AW10834A

Revision 3.01, December 2017

©Sonifex Ltd, 2017

Sonifex Ltd, 61, Station Road, Irthlingborough,

Northants, NN9 5QE, England.

Tel: +44 (0)1933 650 700

Fax: +44 (0)1933 650 726

Email: sales@sonifex.co.uk

Website: http://www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a

commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage

whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic

or mechanical, including photocopying, recording, information storage and retrieval systems, for any

purpose other than the purchaser’s personal use, without the express written permission of Sonifex

Ltd. Unless otherwise noted, all names of companies, products and persons contained herein are

part of a completely fictitious adaptation and are designed solely to document the use of Sonifex

product. Made in the UK by

For the latest Sonifex handbook information please visit the Sonifex website at www.sonifex.co.uk

Contents

Product Warranty - 2 Year Extended ii

Sonifex Warranty & Liability Terms & Conditions ii

1. Definitions ii

2. Warranty ii

Unpacking Your Product iii Repairs & Returns iv

Conformity iv

Safety & Installation of Mains Operated Equipment iv

Voltage Setting Checks iv Fuse Rating iv Power Cable & Connection iv WEEE Directive v Atmosphere/Environment v Fitting Redboxes v

1 RB-DA6 6 Way Stereo Distribution Amplifier 1

Introduction 1

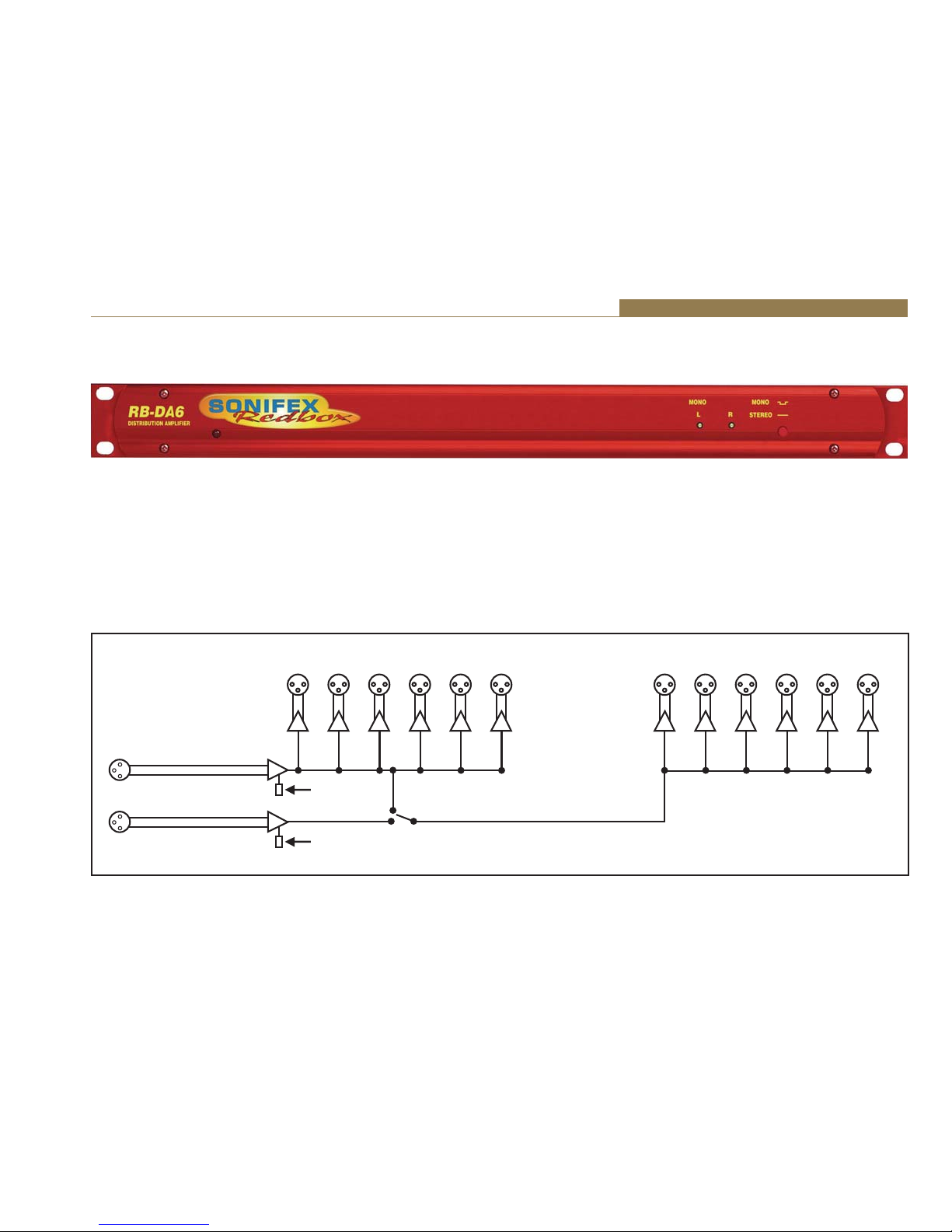

System Block Diagram 1

Connections and Operation 2

Technical Specifications RB-DA6 3

2 RB-DA6G 6 Way Stereo Distribution Amplifier With Output Gain Control 4

Introduction 4

System Block Diagram 4

Connections and Operation 5

Technical Specifications RB-DA6G 6

3 RB-DA6P 6 Way Stereo Distribution Amplifier 7

Introduction 7

System Block Diagram 7

Connections and Operation 8

Technical Specifications RB-DA6P 9

4 RB-DA6R 6 Way Stereo Distribution Amplifier With RJ45 Outputs 10

Introduction 10

Connections and Operation 11

System Block Diagram 11

Technical Specification RB-DA6R 13

5 RB-DA6RG 6 Way Stereo Distribution Amplifier With RJ45 Outputs 14

Introduction 14

Connections and Operation 15

System Block Diagram 15

Technical Specification RB-DA6RG 17

6 RB-DA4x5 4 Input, 4 x 5 Output Distribution Amplifier/Mixer 18

Introduction 18

System Block Diagram 19

Rear Panel Connections and Operation 19

Technical Specifications RB-DA4x5 21

7 RB-DA24MD 24 Way Mono Audio Distribution Amplifier 22

Introduction 22

Connections And Operation 23

Technical Specifications RB-DA24MD 25

8 RB-DDA6A 6 Way Stereo AES/EBU Digital Distribution Amplifier 26

Introduction 26

Rear Panel Connections and Operations 26

System Block Diagram 27

Technical Specifications RB-DDA6A 28

9 RB-DDA6A-2P 6 Way Stereo AES/EBU Digital Distribution Amplifier With Dual Power Supplies 29

Introduction 29

System Block Diagram 30

Rear Panel Connections and Operations 31

10 RB-DDA6A3 6 Way Stereo AES-3id Digital Audio Distribution Amplifier 33

Introduction 33

Rear Panel Connections and Operations 33

System Block Diagram 34

Technical Specifications RB-DDA6A3 35

11 RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier 36

Introduction 36

Rear Panel Connections and Operations 36

System Block Diagram 37

Technical Specifications RB-DDA6S 38

12 RB-DDA6W 6 Way Word Clock Distribution Amplifier 39

Introduction 39

Rear Panel Connections and Operations 39

System Block Diagram 40

Contents

Technical Specifications RB-DDA6W 41

13 RB-DDA6W-2P 6 Way Word Clock Distribution Amplifier With Dual Power Supplies 42

Introduction 42

System Block Diagram 43

Rear Panel Connections and Operations 44

Technical Specification For RB-DDA6W-2P 45

14 RB-DDA22 Digital Audio Distribution Amplifier With Multiple Outputs 46

Introduction 46

System Block Diagram 47

Rear Panel Connections and Operations 48

Digital Audio Inputs 48

Digital Audio Outputs 48

Technical Specifications RB-DDA22 49

15 RB-AES4B3 Quad 3 Way Passive AES-3id Splitters With BNC Connectors 50

Introduction 50

Block Diagram 50

Controls & Connectors 51

Technical Specification RB-AES4B3 52

16 RB-AES4X3 Quad 3 Way AES3 Splitter XLR Connectors 53

Introduction 53

Block Diagram 53

Controls & Connectors 54

Technical Specifications RB-AES4X3 55

17 RB-MS4X3 Quad 3 Way Microphone Splitter 56

Introduction 56

Block Diagram 56

Controls & Connectors 57

Front Panel 57

Rear Panel 58

Technical Specifications RB-MS4X3 59

18 RB-MSP6 6 Way +48V Phantom Power Supply 60

Introduction 60

System Block Diagram 60

Connections and Operation

Front Panel Controls and Indicators 61

Rear Panel Connections 61

Technical Specifications RB-MSP6 62

Figures

Fig A: RB-RK1 Small Redbox Front Rack-mount Kit . v Fig B: RB-RK2 Small Redbox Rear Rack-mount Kit. vi Fig C: RB-RK3 Large Redbox Rear Rack-mount Kit. vi Fig 1-1: RB-DA6 Front Panel. 1 Fig 1-2: RB-DA6 System Block Diagram 1 Fig 1-3: RB-DA6 Rear Panel 2 Fig 2-1: RB-DA6G Front Panel 4 Fig 2-2: RB-DA6G System Block Diagram 4 Fig 2-3: RB-DA6G Rear Panel 5 Fig 3-1: RB-DA6P Front Panel 7 Fig 3-2: RB-DA6P System Block Diagram 7 Fig 3-3: RB-DA6P Rear Panel 8 Fig 3-4: RB-DA6P Phoenix Connectors 8 Fig 4-1: RB-DA6R Front Panel 10 Fig 4-2: RB-DA6R System Block Diagram 11 Fig 4-3: RB-DA6R Rear Panel 11 Fig 4-4: RB-DA6R Input Selector Switch 11 Fig 4-5: RB-DA6R Front Panel Input Gain Controls and Stereo/Mono Switch 12 Fig 5-1: RB-DA6RG Front Panel 14 Fig 5-2: RB-DA6RG System Block Diagram 15 Fig 5-3: RB-DA6RG Rear Panel 15 Fig 5-4: RB-DA6RG Input Selector Switch 16 Fig 5-5: RB-DA6RG Front Panel Output Gain Controls and Stereo/Mono Switch 16 Fig 6-1: RB-DA4x5 Front Panel 18 Fig 6-2: RB-DA4x5 System Block Diagram 19 Fig 6-3: RB-DA4x5 Rear Panel 19 Fig 6-4: RB-DA4x5 Audio Output Group15-Way D-Type Plug 20 Fig 6-5: RB-DA4x5 Pinout for Audio Output Group Connector 20 Fig 6-6: RB-DA4x5 Routing Selection Switch 20 Fig 6-7: RB-DA4x5 Routing Selection Switch Functions 20 Fig 7-1: RB-DA24MD Front Panel 22 Fig 7-2: RB-DA24MD System Block Diagram 22 Fig 7-3: RB-DA24MD Rear Panel 23

Fig 7-4: Analogue Input 23 Fig 7-5: 25 Way D-Type Outputs 23 Fig 7-6: 25 Roll Off and Dual Mono/Mixed Operation Switches 24 Fig 8-1: RB-DDA6A Front Panel 26 Fig 8-2: RB-DDA6A Rear panel 26 Fig 8-3: RB-DDA6A System Block Diagram 27 Fig 9-1: RB-DDA6A-2P Front Panel 29 Fig 9-2: RB-DDA6A-2P System Block Diagram 30 Fig 9-3: RB-DDA6A-2P Rear panel 31 Fig 9-4: RB-DDA6A-2P Alarm Connector Diagram 31 Fig 10-1: RB-DDA6A3 Front Panel 33 Fig 10-2: RB-DDA6A3 Rear panel 33 Fig 10-3: RB-DDA6A3 System Block Diagram 34 Fig 11-1: RB-DDA6S Front Panel 36 Fig 11-2: RB-DDA6S Rear panel 36 Fig 11-3: RB-DDA6S System Block Diagram 37 Fig 12-1: RB-DDA6W Front Panel 39 Fig 12-2: RB-DDA6W Rear Panel 39 Fig 12-3: RB-DDA6W System Block Diagram 40 Fig 13-1: RB-DDA6W-2P Front Panel 42 Fig 13-2: RB-DDA6W-2P System Block Diagram 43 Fig 13-3: RB-DDA6W-2P Rear Panel 44 Fig 13-4: RB-DDA6W-2P Alarm Connector Diagram 44 Fig 14-1: RB-DDA22 Front Panel 46 Fig 14-2: RB-DDA22 Front Panel Controls 46 Fig 14-3: RB-DDA22 System Block Diagram 47 Fig 14-4: RB-DDA22 Rear Panel 48 Fig 15-1: RB-AES4B3 Front Panel 50 Fig 15-2: RB-AES4B3 System Block Diagram 50 Fig 15-3: RB-AES4B3 Front Rear Panel 51 Fig 15-4: RB-AES4B3 Examples Of Cumulative Cabling 52 Fig 16 -1: RB-AES4X3 Front Panel 53 Fig 16-2: RB-AES4X3 System Block Diagram 53 Fig 16-3: RB-AES4X3 Rear Panel 54 Fig 16-4: RB-AES4X3 Examples Of Cumulative Cabling 55

Figures

Fig 17-1: RB-MS4X3 Front Panel 56 Fig 17-2: RB-MS4X3 System Block Diagram 56 Fig 17-3: RB-MS4X3 Front Panel Connections 57 Fig 17-4: RB-MS4X3 Rear Panel Connections 58 Fig 17-5: RB-MS4X3 Examples Of Usage 59 Fig 18-1: RB-MSP6 Front Panel 60 Fig 18-2: RB-MSP6 System Block Diagram 60 Fig 18-3: RB-MSP6 Front Panel LED Indicators 61 Fig 18-4: RB-MSP6 Rear Panel Connections 61 Fig 18-5: RB-MSP6 Fault Scenario Diagram 62

Warranty Registration

Sonifex Limited y 61 Station Road y Irthlingborough y Northamptonshire y NN9 5QE y United Kingdom Tel: +44 (0)1933 650 700 y Fax: +44 (0)1933 650 726 y Email: technical.support@sonifex.co.uk y Internet: www.sonifex.co.uk

As standard, Sonifex products are supplied with a 1 year back to base warranty.

If you register the product online, you can increase your product warranty to 2 years and we can also keep you informed of any product design improvements or modifications.

To register your product, please go online to www.sonifex.co.uk/register

Product:

Serial No:

Warranty

Product Warranty - 2 Year Extended

As standard, Sonifex products are supplied with a 1 year back to base warranty. In order to register the date of purchase and so that we can keep you informed of any product design improvements or modifications, it is important to complete the warranty registration online. Additionally, if you register the product on the Sonifex website, you can increase your product warranty to 2 years. Go to the Sonifex website at: http://www.sonifex. co.uk/technical/register/index.asp to apply for your 2 year warranty.

Note: For your own records the product serial number is recorded on the CE certification page of this handbook.

Sonifex Warranty & Liability Terms & Conditions

1. Definitions

‘the Company’ means Sonifex Ltd and where relevant includes companies within the same group of companies as Sonifex Limited.

‘the Goods’ means the goods or any part thereof supplied by the Company and where relevant includes: work carried out by the Company on items supplied by the Purchaser; services supplied by the Company; and software supplied by the Company.

‘the Purchaser’ means the person or organisation who buys or has agreed to buy the Goods.

‘the Price’ means the Price of the Goods and any other charges incurred by the Company in the supply of the Goods.

‘the Warranty Term’ is the length of the product warranty which is usually 12 months from the date of despatch; except when the product has been registered at the Sonifex website when the Warranty Term is 24 months from the date of despatch.

‘the Contract’ means the quotation, these Conditions of Sale and any other document incorporated in a contract between the Company and the Purchaser.

This is the entire Contract between the parties relating to the subject matter hereof and may not be changed or terminated except in writing in accordance with the provisions of this Contract. A reference to the consent, acknowledgement, authority or agreement of the Company means in writing and only by a director of the Company.

2. Warranty

a. The Company agrees to repair or (at its discretion) replace Goods

which are found to be defective (fair wear and tear excepted) and which are returned to the Company within the Warranty Term provided that each of the following are satisfied:

i. notification of any defect is given to the Company immediately

upon its becoming apparent to the Purchaser;

ii. the Goods have only been operated under normal operating

conditions and have only been subject to normal use (and in particular the Goods must have been correctly connected and must not have been subject to high voltage or to ionising radiation and must not have been used contrary to the Company’s technical recommendations);

iii. the Goods are returned to the Company’s premises at the

Purchaser’s expense;

iv. any Goods or parts of Goods replaced shall become the

property of the Company;

v. no work whatsoever (other than normal and proper

maintenance) has been carried out to the Goods or any part of the Goods without the Company’s prior written consent;

iii

Warranty

vi. the defect has not arisen from a design made, furnished or

specified by the Purchaser;

vii. the Goods have been assembled or incorporated into other

goods only in accordance with any instructions issued by the Company;

viii. the defect has not arisen from a design modified by the

Purchaser;

ix. the defect has not arisen from an item manufactured by

a person other than the Company. In respect of any item manufactured by a person other than the Company, the Purchaser shall only be entitled to the benefit of any warranty or guarantee provided by such manufacturer to the Company.

b. In respect of computer software supplied by the Company the

Company does not warrant that the use of the software will be uninterrupted or error free.

c. The Company accepts liability:

(i) for death or personal injury to the extent that it results from the

negligence of the Company, its employees (whilst in the course of their employment) or its agents (in the course of the agency);

(ii) for any breach by the Company of any statutory undertaking as

to title, quiet possession and freedom from encumbrance.

d. Subject to conditions (a) and (c) from the time of despatch of

the Goods from the Company’s premises the Purchaser shall be responsible for any defect in the Goods or loss, damage, nuisance or interference whatsoever consequential economic or otherwise or wastage of material resulting from or caused by or to the Goods. In particular the Company shall not be liable for any loss of profits or other economic losses. The Company accordingly excludes all liability for the same.

e. At the request and expense of the Purchaser the Company will test

the Goods to ascertain performance levels and provide a report of the results of that test. The report will be accurate at the time of the test, to the best of the belief and knowledge of the Company, and the Company accepts no liability in respect of its accuracy beyond that set out in Condition (a).

f. Subject to Condition (e) no representation, condition, warranty or

other term, express or implied (by statute or otherwise) is given by the Company that the Goods are of any particular quality or standard or will enable the Purchaser to attain any particular performance or result, or will be suitable for any particular purpose or use under specific conditions or will provide any particular capacity, notwithstanding that the requirement for such performance, result or capacity or that such particular purpose or conditions may have been known (or ought to have been known) to the Company, its employees or agents.

g. (i) To the extent that the Company is held legally liable to the

Purchaser for any single breach of contract, tort, representation or other act or default, the Company’s liability for the same shall not exceed the price of the Goods.

(ii) The restriction of liability in Condition (g)(i) shall not apply to

any liability accepted by the Seller in Condition (c).

h. Where the Goods are sold under a consumer transaction (as defined

by the Consumer Transactions (Restrictions on Statements) Order

1976) the statutory rights of the Purchaser are not affected by these Conditions of Sale.

Unpacking Your Product

Each product is shipped in protective packaging and should be inspected for damage before use. If there is any transit damage take pictures of the product packaging and notify the carrier immediately with all the relevant

CE Conformity

details of the shipment. Packing materials should be kept for inspection and also for if the product needs to be returned.

The product is shipped with the following equipment so please check to ensure that you have all of the items below. If anything is missing, please contact the supplier of your equipment immediately.

Item Quantity

Product unit 1

IEC mains lead fitted with moulded mains plug 1

Handbook and warranty card 1

If you require a different power lead, please let us know when ordering the product.

Repairs & Returns

Please contact Sonifex or your supplier if you have any problems with your Sonifex product. Email technical.support@sonifex.co.uk for the repair/ upgrade/returns procedure, or for support & questions regarding the product operation.

Conformity

The products in this manual comply with the essential requirements of the relevant European health, safety and environmental protection legislation.

The technical justification file for this product is available at Sonifex Ltd.

The declaration of conformity can be found at: http://www.sonifex.co.uk/declarations

Safety & Installation of Mains Operated Equipment

There are no user serviceable parts inside the equipment. If you should ever need to look inside the unit, always disconnect the mains supply before removing the equipment covers. The cover is connected to earth by means of the fixing screws. It is essential to maintain this earth/ ground connection to ensure a safe operating environment and provide electromagnetic shielding.

Voltage Setting Checks

Ensure that the machine operating voltage is correct for your mains power supply by checking the box in which your product was supplied. The voltage is shown on the box label. The available voltage settings are 115V, or 230V. Please note that all products are either switchable between 115V and 230V, or have a universal power supply.

Fuse Rating

The product is supplied with a single fuse in the live conducting path of the mains power input. For reasons of safety it is important that the correct rating and type of fuse is used. Incorrectly rated fuses could present a possible fire hazard, under equipment fault conditions. The active fuse is fitted on the outside rear panel of the unit.

Power Cable & Connection

An IEC power connector is supplied with the product which has a moulded plug attached.

The mains plug or IEC power connector is used as the disconnect device. The mains plug and IEC power connector shall remain readily operable to disconnect the apparatus in case of a fault or emergency.

The mains lead is automatically configured for the country that the product is being sent to, from one of:

Safety & Installation

Fig A: RB-RK1 Small Redbox Front Rack-mount Kit .

Territory Voltage IEC Lead Type Image

UK & Middle East 230V UK 3 pin to IEC lead

Europe 230V

European Schuko round 2 pin to IEC lead

USA, Canada and South America

115V 3 flat pin to IEC lead

Australia & New Zealand

230V Australasian 3 flat pin to IEC lead

Connect the equipment in accordance with the connection details and before applying power to the unit, check that the machine has the correct operating voltage for your mains power supply.

This apparatus is of a class I construction. It must be connected to a mains socket outlet with a protective earthing connection.

Important note: If there is an earth/ground terminal on the rear panel of the product then it must be connected to Earth.

WEEE Directive

The Waste Electrical and Electronic Equipment (WEEE) Directive was agreed on 13 February 2003, along with the related Directive 2002/95/EC on Restrictions of the use of

certain Hazardous Substances in electrical and electronic equipment (RoHS). The Waste Electrical and Electronic Equipment Directive (WEEE) aims to minimise the impacts of electrical and electronic equipment on the environment during their life times and when they become waste. All products manufactured by Sonifex Ltd have the WEEE directive label placed on the case. Sonifex Ltd will be happy to give you information about local organisations that can reprocess the product when it reaches its “end of use”, or alternatively all products that have reached “end of use” can be returned to Sonifex and will be reprocessed correctly free of charge.

Atmosphere/Environment

This apparatus should be installed in an area that is not subject to excessive temperature variation (<0°C, >50°C), moisture, dust or vibration.

This apparatus shall not be exposed to dripping or splashing, and no objects filled with water, such as vases shall be placed on the apparatus.

Fitting Redboxes

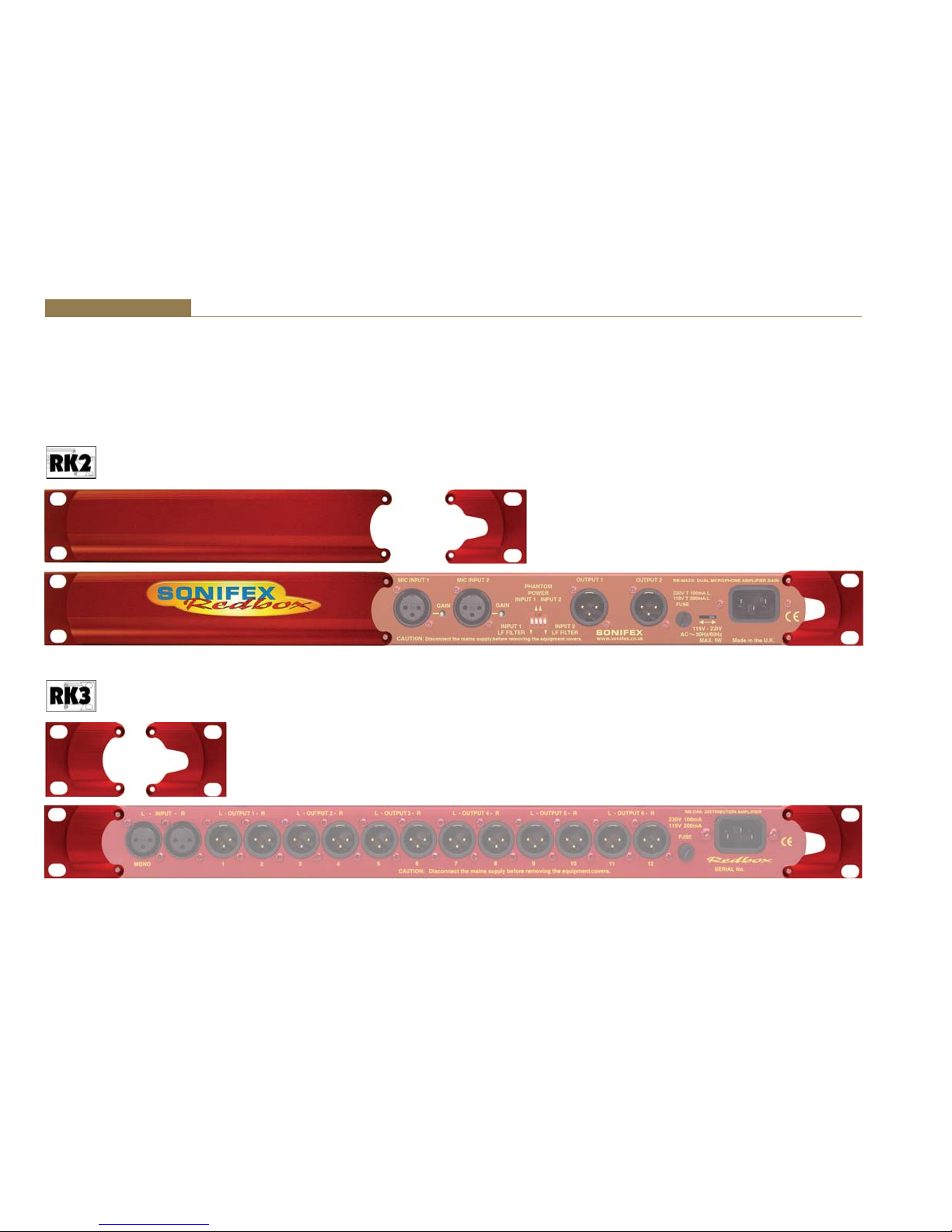

Redboxes can be fixed to the underside of a desk, or other surfaces using 4.2mm holes in the sides and fixed with 2 x M4 screws or 2 x No. 6 countersink wood screws.

Safety & Installation

They can also be rack-mounted, with either the front, or rear of the Redbox positioned at the front of the rack (Note: this product is front rack-mounted as standard):

Front Mounting Redboxes: For rack mounting smaller (28cm) units the optional RB-RK1 (Red) or RB-RK1B (Black) kit can be used (which include 4 off M6 panel fixing screws).

Rear Mounting a Redbox: For rear panel mounting you can use either the RB-RK2 (in this case), or RB-RK3, depending on the size of your Redbox.

Fig B: RB-RK2 Small Redbox Rear Rack-mount Kit.

Fig C: RB-RK3 Large Redbox Rear Rack-mount Kit.

Audio Distribution Amplifier - RB-DA6 1

1 RB-DA6 6 Way Stereo Distribution Amplifier

Introduction

Fig 1-1: RB-DA6 Front Panel.

The RB-DA6 is a high performance 6 way stereo analogue distribution amplifier for splitting a source to a number of different outputs. The RB-DA6 has 1 stereo input and 6 stereo outputs with gain control on both inputs. It can also be configured so that 1 mono input can be distributed to 12 outputs.

The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one won’t affect the others.

The RB-DA6 has master left and right gain controls which are pre- set potentiometers accessible through the front panel.

Left Outputs

Balanced

Left Input Balanced

Stereo/Mono

Right Input Balanced

Right Outputs

Balanced (Mono 7-12)

Gain

1 2 3 4 5 6 1 2 3

4 5

System Block Diagram

Fig 1-2: RB-DA6 System Block Diagram

1 Audio Distribution Amplifier - RB-DA6

Connections and Operation

Fig 1-3: RB-DA6 Rear Panel

Inputs (Left and Right)

The XLR-3 input connectors can take balanced professional levels, or unbalanced by using the front panel gain controls, and by connecting the non-phase to the signal ground. The input can be configured as either a stereo input with six stereo outputs or a mono input with twelve outputs. The XLR 3 pin input has the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

Stereo Outputs 1-6 (Mono Outputs 1-12)

The XLR 3 pin outputs are electronically balanced, and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output will not affect the others. They have the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

OutputsInputs

Input Gain Control

The input gain on the RB-DA6 can be varied –8dB to 18db by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6 has separate left and right master gain controls.

Stereo/Mono Operation

The mode of operation may be switched between a stereo distributed channel to 6 stereo channels, and a mono channel to 12 mono channels, by the push button on the front panel, which is recessed to prevent accidental switching.

Audio Distribution Amplifier - RB-DA6 1

Technical Specifications RB-DA6

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ хϮϬŬɏďƌŝĚŐŝŶŐ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

&ƌĞƋƵĞŶĐǇZĞƐƉŽŶƐĞ ϮϬ,ǌƚŽϮϬŬ,ǌцϬϭĚ;ϲϬϬɏůŽĂĚƌĞĨϭŬ,ǌͿ

Common Mode Rejection:>66dB typically

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB unity gain ref +8dB

Connections

Inputs: 2 x 3 pin female (Balanced, can be unbalanced)

Outputs: 12 x XLR 3 pin male (Balanced, can be unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6: 6 way stereo distribution amplifier

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs

2 Audio Distribution Amplifier - RB-DA6G

2 RB-DA6G 6 Way Stereo Distribution Amplifier With Output Gain Control

Introduction

Fig 2-1: RB-DA6G Front Panel

The RB-DA6G is a high performance 6 way stereo analogue distribution amplifier for splitting a source to a number of different outputs. The RB-DA6P has 1 stereo input and 6 stereo outputs with gain control on both inputs. It can also be configured so that 1 mono input can be distributed to 12 outputs. As a variant of the RB-DA6, the RB-DA6G, has an individual gain control on every output.

On the RB-DA6G the XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one won’t affect the others.

The RB-DA6G has master left and right gain controls which are pre- set potentiometers accessible through the front panel. Each channel has an individual output gain control (normalising) which are all pre-set potentiometers, also accessible through the front panel. The 1-12 mono, 1-6 stereo switch is recessed on the front panel to prevent accidental knocking. An LED power indicator on the front panel displays the power supply connection.

System Block Diagram

Left Outputs

Balanced

Left Input Balanced

Stereo/Mono

Right Input Balanced

Right Outputs

Balanced (Mono 7-12)

1 2 3 4 5 6 1 2 3 4 5 6

Fig 2-2: RB-DA6G System Block Diagram

Audio Distribution Amplifier - RB-DA6G 2

Connections and Operation

Fig 2-3: RB-DA6G Rear Panel

Inputs (Left and Right)

Stereo Outputs 1-6 (Mono Outputs 1-12)

OutputsInputs

Output Gain Control

The output gain on the RB-DA6G can be varied –8dB to 18dB by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6G has output gain controls on every output.

Stereo/Mono Operation

2 Audio Distribution Amplifier - RB-DA6G

Technical Specifications RB-DA6G

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ хϮϬŬɏďƌŝĚŐŝŶŐ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

&ƌĞƋƵĞŶĐǇZĞƐƉŽŶƐĞ ϮϬ,ǌƚŽϮϬŬ,ǌцϬϭĚ;ϲϬϬɏůŽĂĚƌĞĨϭŬ,ǌͿ

Gain Range: Adjustable 8dB loss to 18dB gain

Common Mode Rejection:>66dB typically

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -88dB unity gain ref +8dB

Connections

Inputs: 2 x 3 pin female (Balanced, can be unbalanced)

Outputs: 12 x XLR 3 pin male (Balanced, can be unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6G: 6 way stereo distribution amplifier with output gain

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs

Audio Distribution Amplifier - RB-DA6P 3

3 RB-DA6P 6 Way Stereo Distribution Amplifier

Introduction

Fig 3-1: RB-DA6P Front Panel

The RB-DA6P is a high performance 6 way stereo analogue distribution amplifier for splitting a source to a number of different outputs. The RBDA6P has 1 stereo input and 6 stereo outputs with gain control on both inputs. It can also be configured so that 1 mono input can be distributed to 12 outputs.

The RB-DA6P is a version of the RB-DA6 audio distribution amplifier which uses Neutrik Phoenix stlye connectors instead of XLR inputs and outputs. Each unit is shipped with the mating connectors so that wires can be simply

terminated using a small flat-blade screwdriver. The inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one won’t affect the others.

It has master left and right gain controls which are pre- set potentiometers accessible through the front panel.

Left Outputs

Balanced

Left Input Balanced

Stereo/Mono

Right Input Balanced

Right Outputs

Balanced (Mono 7-12)

Gain

1 2 3 4 5 6 1 2 3

4 5

System Block Diagram

Fig 3-2: RB-DA6P System Block Diagram

3 Audio Distribution Amplifier - RB-DA6P

Connections and Operation

Inputs (Left and Right)

The Phoenix style input connectors can take balanced professional levels, or unbalanced by using the front panel gain controls, and by connecting the non-phase to the signal ground. The input can be configured as either a stereo input with six stereo outputs or a mono input with twelve outputs. The connections are shown in Fig 1-8.

Stereo Outputs 1-6 (Mono Outputs 1-12)

The Phoenix style 3 pin outputs are electronically balanced, and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output will not affect the others. The connections are shown in

Fig 3-4.

Input Gain Control

Stereo/Mono Operation

Fig 3-3: RB-DA6P Rear Panel

OutputsInputs

Phase Screen

Non-Phase

INPUT OUTPUT

Screen Phase

Non-Phase

Fig 3-4: RB-DA6P Phoenix Connectors

Audio Distribution Amplifier - RB-DA6P 3

Technical Specifications RB-DA6P

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ хϮϬŬɏďƌŝĚŐŝŶŐ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

&ƌĞƋƵĞŶĐǇZĞƐƉŽŶƐĞ ϮϬ,ǌƚŽϮϬŬ,ǌцϬϭĚ;ϲϬϬɏůŽĂĚƌĞĨϭŬ,ǌͿ

Gain Range: Adjustable 8dB loss to 18dB gain

Common Mode Rejection:>66dB typically

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB unity gain ref +8dB (RB-DA6)

Connections

Inputs: 2 x Phoenix 3 pin female (Balanced, can be unbalanced)

Outputs: 12 x Phoenix 3 pin male (Balanced, can be unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6P: 6 way stereo distribution amplifier with Phoenix connectors

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs

4 Audio Distribution Amplifier - RB-DA6R

4 RB-DA6R 6 Way Stereo Distribution Amplifier With RJ45 Outputs

Introduction

Fig 4-1: RB-DA6R Front Panel

The RJ45 connectors are wired to be StudioHub compatible, a format defined by Radio Systems Inc.

The RB-DA6R has master left and right gain controls which are pre-set potentiometers accessible through the front panel, providing a gain range of -8dB to +18dB. An LED power indicator on the front panel shows the unit is powered.

The RB-DA6R is a high performance 6 way stereo analogue distribution amplifiers for splitting a source to a number of different outputs. The RBDA6R has 1 stereo input and 6 stereo outputs with gain control on both inputs. It can also be configured so that 1 mono input is distributed to 12 outputs.

A rear panel mounted switch selects between electronically balanced inputs via either XLR-3 or RJ45 connectors, or unbalanced inputs via RCA Phono connectors. The balanced inputs can be wired unbalanced. The electronically balanced outputs are via RJ45 connectors and can also be wired unbalanced.

Input Gain Control Mono/Stereo Switch

Audio Distribution Amplifier - RB-DA6R 4

Connections and Operation

Fig 4-3: RB-DA6R Rear Panel

Balanced Inputs

Balanced professional inputs are provided via dual XLR-3 connectors or the single RJ45 connector. The two connector types are wired in parallel and each can take unbalanced signals by connecting the non-phase of each channel to signal ground (screen). The inputs can be configured as either stereo, with six stereo outputs, or as mono with twelve outputs.

The XLR-3 pin inputs have the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-Phase

RJ45 Balanced Outputs

Balanced Inputs

Input

Select

Unbalanced Inputs

Left

Left & Right

Right

Left

Right

XLR-3

RJ-45

RCA Phono

Stereo/Mono

Gain

Fig 4-2: RB-DA6R System Block Diagram

System Block Diagram

Input Selector Switch

Balanced Inputs Balanced OutputsUnbalanced Inputs Fuse Power Supply

Fig 4-4: RB-DA6R Input Selector Switch

4 Audio Distribution Amplifier - RB-DA6R

The RJ45 input is wired according to the StudioHub+ standard and has the following connections: Pin 1: Left Phase Pin 2: Left Non-Phase Pin 3: Right Phase Pin 4: Screen Pin 5: No Connection Pin 6: Right Non-Phase Pin 7: No Connection Pin 8: No Connection

Unbalanced Inputs

The RCA Phono input connectors provide an unbalanced input with an additional gain of +10dB to compensate for consumer level signals.

Input Selector Switch

This switch controls which input is routed to the outputs; either balanced (XLR-3 or RJ45) or unbalanced (RCA Phono).

Stereo Outputs 1-6 (Mono Outputs 1-12)

The electronically balanced outputs, which can be wired unbalanced, are via six RJ45 connectors. Each output is individually buffered so that a short on one output will not affect the others. They are wired according to the StudioHub+ standard and have the following connections: Pin 1: Left Phase Pin 2: Left Non-Phase Pin 3: Right Phase Pin 4: Screen Pin 5: No Connection Pin 6: Right Non-Phase Pin 7: No Connection Pin 8: No Connection

Input Gain Control

The input gain on the RB-DA6R can be varied -8dB to +18dB by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6R has separate left and right master gain controls.

Stereo/Mono Operation

Fig 4-5: RB-DA6R Front Panel Input Gain Controls and Stereo/Mono Switch

Audio Distribution Amplifier - RB-DA6R 4

Technical Specification RB-DA6R

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ;y>ZͿ хϮϬŬɏďĂůĂŶĐĞĚďƌŝĚŐŝŶŐ

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ;ZͿ хϮϬŬɏƵŶďĂůĂŶĐĞĚ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

Frequency Response: 20Hz to 20kHz ± 0.1dB (600R load, ref 1kHz)

Gain Range: Adjustable 8dB loss to 18dB gain

Common Mode Rejection:>66dB typically

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -98dB unity gain ref +8dB (RB-DA6R)

-86dB unity gain ref +8dB (RB-DA6RG)

Connections

Inputs: 2 x XLR-3 pin female (Balanced, can be unbalanced) 1 x RJ45 socket (Balanced, can be unbalanced) 2 x RCA Phono sockets (Unbalanced)

Outputs: 6 x RJ45 socket (Balanced, can be unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220V-240V, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 200mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6R: 6 way stereo distribution amplifier with RJ45 outputs

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs

5 Audio Distribution Amplifier - RB-DA6RG

5 RB-DA6RG 6 Way Stereo Distribution Amplifier With RJ45 Outputs

Introduction

Fig 5-1: RB-DA6RG Front Panel

Mono/Stereo SwitchOutput Gain Control

The RB-DA6RG is a high performance 6 way stereo analogue distribution amplifiers for splitting a source to a number of different outputs. The RB-DA6R has 1 stereo input and 6 stereo outputs with individual gain control on every output. It can also be configured so that 1 mono input is distributed to 12 outputs.

The RJ45 connectors are wired to be StudioHub compatible, a format defined by Radio Systems Inc.

On the RB-DA6RG each channel has an individual output gain control (normalising) which are all pre-set potentiometers, also accessible through the front panel. These can similarly be adjusted between -8db and +18dB. An extra 10dB of gain is applied to the unbalanced inputs to compensate for lower level consumer signals. The 1-12 mono, 1-6 stereo switch is recessed on the front panel to prevent accidental knocking. An LED power indicator on the front panel shows the unit is powered.

Audio Distribution Amplifier - RB-DA6RG 5

System Block Diagram

RJ45 Balanced Outputs

Balanced Inputs

Input

Select

Unbalanced Inputs

Left

Left & Right

Right

Left

Right

XLR-3

RJ-45

RCA Phono

Gain Gain Gain Gain GainGainGain Gain Gain Gain GainGain

Stereo/Mono

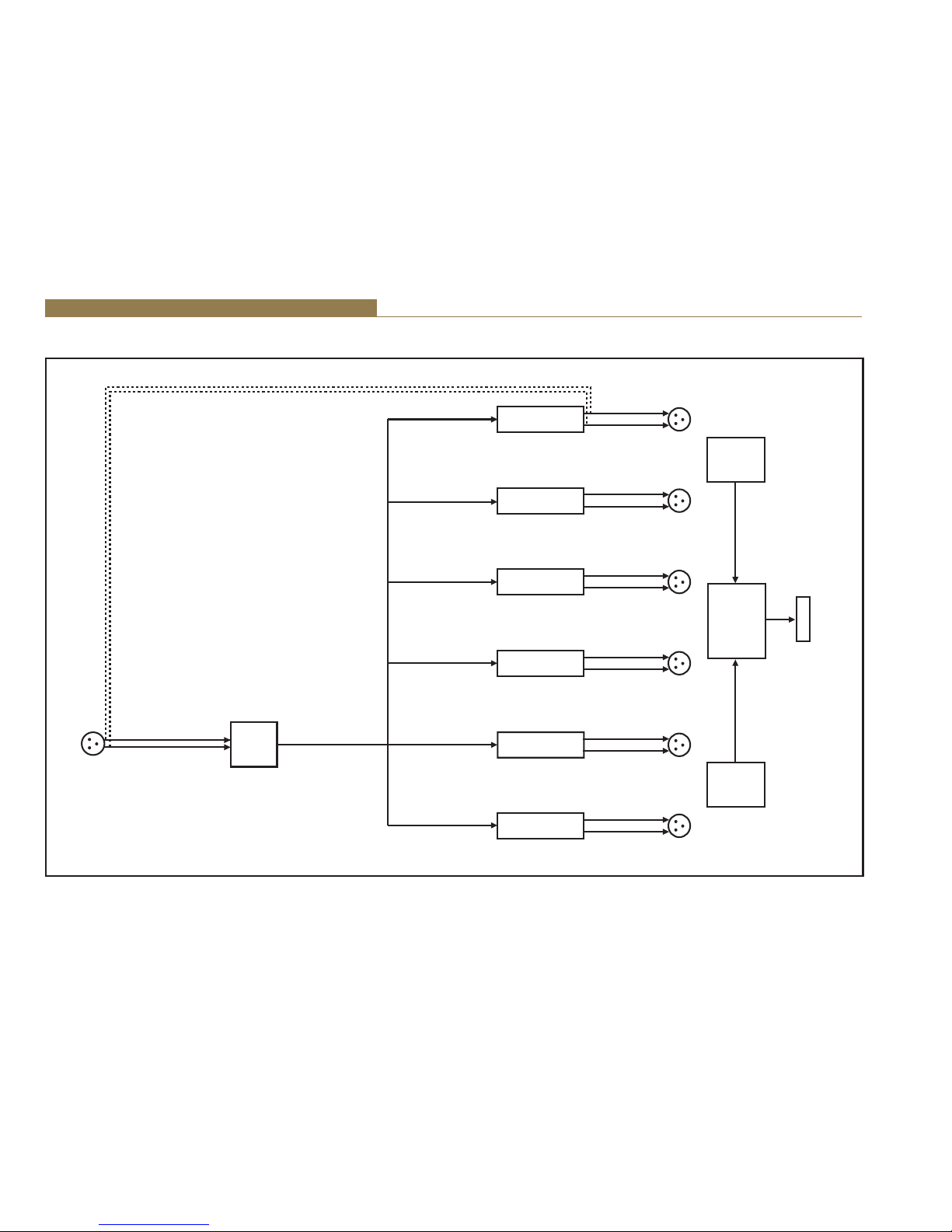

Fig 5-2: RB-DA6RG System Block Diagram

Connections and Operation

Fig 5-3: RB-DA6RG Rear Panel

Input Selector Switch

Balanced Inputs Balanced OutputsUnbalanced Inputs Fuse Power Supply

5 Audio Distribution Amplifier - RB-DA6RG

Balanced Inputs

The XLR-3 pin inputs have the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-Phase

Unbalanced Inputs

The RCA Phono input connectors provide an unbalanced input with an additional gain of +10dB to compensate for consumer level signals.

Input Selector Switch

This switch controls which input is routed to the outputs; either balanced (XLR-3 or RJ45) or unbalanced (RCA Phono).

Stereo Outputs 1-6 (Mono Outputs 1-12)

Output Gain Control

The output gain on the RB-DA6RG can be varied -8dB to +18dB by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6RG has output gain controls on every output.

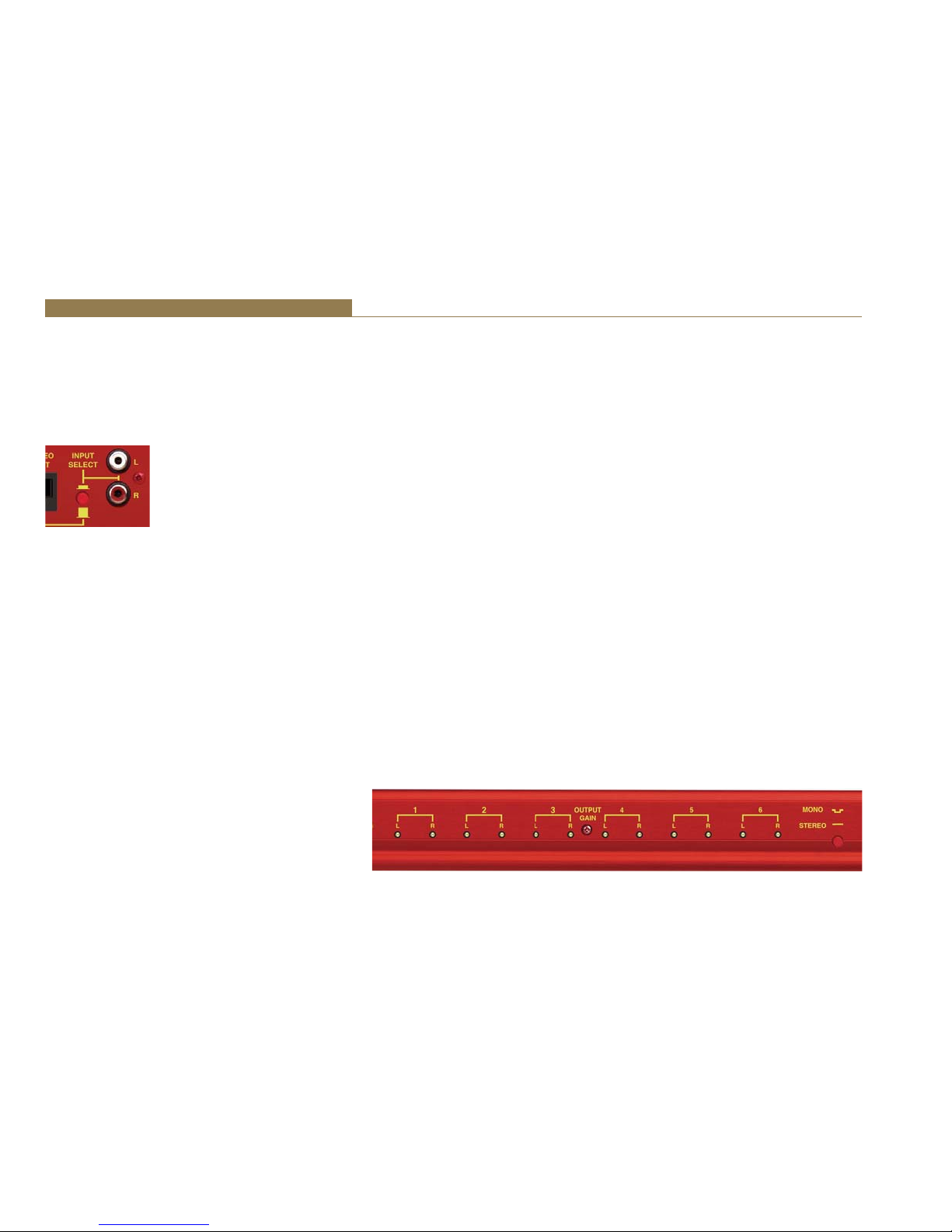

Fig 5-5: RB-DA6RG Front Panel Output Gain Controls and Stereo/Mono Switch

Fig 5-4: RB-DA6RG Input Selector Switch

Audio Distribution Amplifier - RB-DA6RG 5

Stereo/Mono Operation

Technical Specification RB-DA6RG

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ;y>ZͿ хϮϬŬɏďĂůĂŶĐĞĚďƌŝĚŐŝŶŐ

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ;ZͿ хϮϬŬɏƵŶďĂůĂŶĐĞĚ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

Frequency Response: 20Hz to 20kHz ± 0.1dB (600R load, ref 1kHz)

Gain Range: Adjustable 8dB loss to 18dB gain

Common Mode Rejection:>66dB typically

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -98dB unity gain ref +8dB (RB-DA6R)

-86dB unity gain ref +8dB (RB-DA6RG)

Connections

Inputs: 2 x XLR-3 pin female (Balanced, can be unbalanced) 1 x RJ45 socket (Balanced, can be unbalanced) 2 x RCA Phono sockets (Unbalanced)

Outputs: 6 x RJ45 socket (Balanced, can be unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220V-240V, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 200mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6RG: 6 way stereo distribution amplifier with RJ45 outputs and output gain

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm (H) 21” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs

6 Audio Distribution Amplifier - RB-DA4x5

6 RB-DA4x5 4 Input, 4 x 5 Output Distribution Amplifier/Mixer

Introduction

Fig 6-1: RB-DA4x5 Front Panel

Output

Gain

Controls

Input

Gain

Controls

Input/

Output

Levels

Input

Selectors

The RB-DA4x5 is a 1U rack-mount combined distribution amplifier and mixer. It has 4 mono analogue audio inputs on female XLR and 4 groups of 5 outputs on 15 way D-type connectors. Each output group has a five way front-panel DIP switch assigned to it which is used to select the input(s) to send to the output group. This enables each of the four inputs, and a 1kHz 0dBu tone, to be mixed to the output group.

The inputs and outputs are electronically balanced and can be wired unbalanced. Each input has adjustable gain using a preset potentiometer, providing a gain range of -8dB to +18dB. Each output is individually buffered so that a short circuit on one output will not affect the others. The output gain of each group can similarly be adjusted between -8dB and +18dB using preset potentiometers.

The DIP switch settings and gain controls are recessed beneath a frontmounting screw-on cover so that settings can not be accidentally altered, for secure applications. Four bright front-panel signal present LEDs show the levels of either the inputs or the output groups by pressing the AUDIO PRESENCE button. The LEDs will show green illumination from -12dBu through to 0dBu, amber from 0dBu through to +6dBu and red for inputs and outputs at +6dBu and over.

Audio Distribution Amplifier - RB-DA4x5 6

System Block Diagram

Fig 6-2: RB-DA4x5 System Block Diagram

Rear Panel Connections and Operation

Fig 6-3: RB-DA4x5 Rear Panel

Balanced XLR

Input 1

Balanced XLR

Input 2

Balanced XLR

Input 3

Balanced XLR

Input 4

Gain

Reference

Tone

Output 1

Switch Bank

Meter 2

Output

Gain

Output 1

Switch Bank

Meter 4

Output

Gain

Output 1

Switch Bank

Meter 1

Output

Gain

Output 1

Switch Bank

Meter 3

Output

Gain

Meter In 3

Meter Out 3

Meter 3

Meter In 1

Meter Out 1

Meter 1

Meter In 4

Meter Out 4

Meter 4

Meter In 2

Meter Out 2

Meter 2

Inputs Outputs

6 Audio Distribution Amplifier - RB-DA4x5

Audio Inputs 1-4

The XLR 3 pin sockets used for the audio inputs are electronically balanced

ĂŶĚŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϮϬŬɏďƌŝĚŐŝŶŐdŚĞǇĂƌĞƌŽƵƚĞĚƚŽƚŚĞƐǁŝƚĐŚ

matrix. Each XLR has the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

D-Type Audio Output Groups 1-4

Each output group connector has 5xDA driven balanced audio outputs on a

ͲƚǇƉĞĐŽŶŶĞĐƚŽƌŽƵƚƉƵƚƐĞĂĐŚǁŝƚŚĂŶŽƵƚƉƵƚŝŵƉĞĚĂŶĐĞŽĨфϱϬɏ

Fig 6-4: RB-DA4x5 Audio Output Group15-Way D-Type Plug

Function Output 1 Output 2 Output 3 Output 4 Output 5

Out - Pin No.13467 Out + Pin No. 9 10 12 13 15 Signal Ground Pin No.

2115148

Fig 6-5: RB-DA4x5 Pinout for Audio Output Group Connector

Monitor LEDs

There are 4 LEDs on the front panel that indicate the relative levels of the audio signals at the inputs or outputs. A pushbutton switch on the front panel toggles the function of these LEDs between input and output. These LEDs indicate the levels of the signals by illuminating green for signals between –12 and 0dBu, illuminating yellow for signals between 0 and +6dBu, and illuminating red for signals over +6dBu.

Input Level Adjustment

The gain for each input can be adjusted through pre-set potentiometers that are accessible from behind the removable plate on the front panel. The gain of each balanced input is variable within a range of -8dB to +18dB into the router input.

Output Level Adjustment

The gain for each output group can be adjusted through pre-set potentiometers that are accessible from behind the removable plate on the front panel. The gain of each output group is variable within a range of -8dB to +18dB from the router output.

Routing Selection

Each output group is capable of selecting its signal from any combination of inputs and the test tone. Set the appropriate dip-switch for that group & that input to the on position to include the signal in the group’s output.

Fig 6-6: RB-DA4x5 Routing Selection Switch

Function

Group 1 Routing

Group 2 Routing

Group 3 Routing

Group 4 Routing

Input 1 SW1-1 On SW1-6 On SW2-1 On SW2-6 On Input 2 SW1-2 On SW1-7 On SW2-2 On SW2-7 On Input 3 SW1-3 On SW1-8 On SW2-3 On SW2-8 On Input 4 SW1-4 On SW1-9 On SW2-4 On SW2-9 On Test Tone SW1-5 On SW1-10 On SW2-5 On SW2-10 On

Fig 6-7: RB-DA4x5 Routing Selection Switch Functions

Output 1

Output 2 Output 4

Output 3 Output 5

1 8

9 15

1 2 3 4 5 6 7 8 9

OUTPUT 1

TEST TONE 1 2 3 4

OUTPUT 2

TEST TONE 1 2 3 4

On 

Audio Distribution Amplifier - RB-DA4x5 6

Alignment Test Tone

Each of the output groups has the capability of selecting a 1kHz, 0dBu test tone. This signal can be used as a reference to set the output gain levels. Once these values are known then the input gains can be set by providing a known tone to the input and adjusting the input gain to the required level. It is possible to use this test tone as a reference level for the input gain by adjusting the output gains to unity and then looping back any output to the input connector. The on-board oscillator is temperature sensitive and in cold conditions may take a short time to start oscillating. In any case you should always allow the unit to fully come to its normal operating temperature before adjusting the gains.

Technical Specifications RB-DA4x5

Audio Specifications

Maximum Input Level: +28dBu

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ;y>ZͿ хϮϬŬɏďĂůĂŶĐĞĚďƌŝĚŐŝŶŐ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϱϬɏ

Maximum Output Level: +28dBu

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB, unity gain, ref +8dBu output

Common Mode Rejection:>66dB typically

&ƌĞƋƵĞŶĐǇZĞƐƉŽŶƐĞ ϮϬ,ǌƚŽϮϬŬ,ǌцϬϭĚ;ϲϬϬɏůŽĂĚƌĞĨϭŬ,ǌͿ

Input Gain Range: Adjustable 8dB loss to 18dB gain (channel 1-4 adjust)

Output Gain Range: Adjustable 8dB loss to 18dB gain (group 1-4 adjust)

Connections

Inputs (4 x Mono): 4 x XLR 3 pin female (Balanced)

Outputs (20 x Mono): 4 x 15 way D-type (Balanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 9W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA4x5: 4 input to 20 output distribution amplifier & mixer

Physical Specifications

Dimensions (Raw): 48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U) 19” (W) x 6.2” (D*) x 1.7 (H) (1U)

Dimensions (Boxed): 59cm (W) x 27.4cm (D*) x 10.8cm (H)

23.2” (W) x 10.8” (D*) x 4.3” (H)

Weight: Nett: 1.6kg Gross: 2.2kg Nett: 3.5lbs Gross: 4.8lbs

* Note that this product is deeper than standard redboxes.

7 Audio Distribution Amplifier - RB-DA24MD

7 RB-DA24MD 24 Way Mono Audio Distribution Amplifier

Introduction

Fig 7-1: RB-DA24MD Front Panel

The RB-DA24MD is a 1U rack mount high performance 24 way audio distribution amplifier. It has 2 inputs which can be each individually routed to 12 outputs, or mixed and routed to all 24 outputs.

The XLR inputs and D-type outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one won’t affect the others. Each output is also protected against connection to both POE (power over Ethernet) and phantom power circuits.

The RB-DA24MD has master gain controls for both input 1 and input 2 which are pre-set potentiometers accessible through the rear panel. These controls allow the gain to be adjusted from -15dB to +15dB, useful for normalising consumer to professional signals and vice versa. An LED power indicator on the front panel shows the unit is powered.

A 125Hz 6dB per octave roll off filter is activated by a push switch on the rear panel. When selected the filter is the applied to both inputs.

Input 1 (L) Balanced

Input 2 (R) Balanced

Gain LF Filter Mix Level

Mix Level

Dual Mono (Stereo)/ Mixed Mono

LF FilterGain

Outputs 13-24 (R) Balanced

Outputs 1-12 (L) Balanced

Fig 7-2: RB-DA24MD System Block Diagram

Audio Distribution Amplifier - RB-DA24MD 7

Analogue

Inputs

Dual Mono/Mixed

Operation

25 Way D-Type

Outputs 1-12

Input

Gain

Input

Gain

25 Way D-Type

Outputs 13-24

Power Supply

SelectorFuseLF Roll

Off Switch

Connections And Operation

Fig 7-3: RB-DA24MD Rear Panel

Inputs (1&2)

The XLR-3 input connectors can take balanced professional levels, or unbalanced consumer levels by connecting the non-phase to the signal ground and adjusting the rear panel input gain controls. The inputs can be configured as either dual mono, input 1 routed to outputs 1-12 and input 2 routed to outputs 13-24, or mixed mono, inputs 1 and 2 mixed at a pre-set level and routed to all 24 outputs. The XLR 3 pin input has the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-Phase

Fig 7-4: Analogue Input

Outputs (1 – 24)

The 25 way D-type outputs are electronically balanced, and can be wired unbalanced (not recommended). Each output is individually buffered so that a short circuit on one output will not affect the others. The outputs are also protected from connection to POE (power over Ethernet) and phantom power circuits. They have the following connections:

Fig 7-5: 25 Way D-Type Outputs

7 Audio Distribution Amplifier - RB-DA24MD

Outputs 1-12 D-Type Outputs 13-24 D-Type

Pin No. Signal Signal

Pin 1 Screen Screen Pin 2 Output 1 - Phase Output 13 - Phase Pin 14 Output 1 - Non-Phase Output 13 - Non-Phase Pin 3 Output 2 - Phase Output 14 - Phase Pin 15 Output 2 - Non-Phase Output 14 - Non-Phase Pin 4 Output 3 - Phase Output 15 - Phase Pin 16 Output 3 - Non-Phase Output 15 - Non-Phase Pin 5 Output 4 - Phase Output 16 - Phase Pin 17 Output 4 - Non-Phase Output 16 - Non-Phase Pin 6 Output 5 - Phase Output 17 - Phase Pin 18 Output 5 - Non-Phase Output 17 - Non-Phase Pin 7 Output 6 - Phase Output 18 - Phase Pin 19 Output 6 - Non-Phase Output 18 - Non-Phase Pin 8 Output 7 - Phase Output 19 - Phase Pin 20 Output 7 - Non-Phase Output 19 - Non-Phase Pin 9 Output 8 - Phase Output 20 - Phase Pin 21 Output 8 - Non-Phase Output 20 - Non-Phase Pin 10 Output 9 - Phase Output 21 - Phase Pin 22 Output 9 - Non-Phase Output 21 - Non-Phase Pin 11 Output 10 - Phase Output 22 - Phase Pin 23 Output 10 - Non-Phase Output 22 - Non-Phase Pin 12 Output 11 - Phase Output 23 - Phase Pin 24 Output 11 - Non-Phase Output 23 - Non-Phase Pin 13 Output 12 - Phase Output 24 - Phase Pin 25 Output 12 - Non-Phase Output 24 - Non-Phase

Input Gain Control

The input gain on the RB-DA24MD can be varied between -15dB and +15dB by adjusting the pre-set potentiometers. These are accessible through the holes in the rear panel. The RB-DA24MD has separate input 1 and input 2 gain controls.

LF Roll Off Filter

A low frequency roll off filter is activated by a push switch on the rear panel. This implements a 125Hz 6dB per octave roll off filter which is applied to both inputs.

Dual Mono/Mixed Mono Operation

The method of operation may be switched between stereo/dual mono and mixed mono. When the RB-DA24MD is set to dual mono each input is distributed separately to outputs 1-12 and 13-24. Input 1 is routed to outputs 1-12 and input 2 to 13-24. When it is set to mixed mono mode both inputs are mixed and routed to all 24 outputs.

Fig 7-6: 25 Roll Off and Dual Mono/Mixed Operation Switches

Mixed Mono Settings

When set to mixed mono operation there are 3 different mix level modes, selected by the 4 jumpers on the PCB.

Jumper Link Mix Mode

Off (Input 1 + Input 2) -6dB Pin 1 & 2 (Input 1 + Input 2) -3dB Pin 2 & 3 Input 1 + Input 2

All jumpers (J1 to J4) must be set the same for correct operation.

Audio Distribution Amplifier - RB-DA24MD 7

Technical Specifications RB-DA24MD

Audio Specifications:

Input Impedance: хϮϬŬɏďƌŝĚŐŝŶŐ;ďĂůĂŶĐĞĚͿ

Output Impedance: фϱϬɏ

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

Frequency Response: ϮϬ,ǌƚŽϮϬŬ,ǌцϬϭĚ;ϲϬϬɏůŽĂĚƌĞĨ

1kHz)

Gain Range: Adjustable -15dB loss to +15dB gain

Common Mode Rejection: >66dB typically

LF Roll Off Filter 125Hz at 6dB/octave

Distortion: 0.01%THD @ 1kHz, red + 8dBu output

Noise: -100dB unity gain, ref +8dBu output

Connections:

Inputs: 2 x XLR 3 pin female (balanced)

Outputs: 2 x 25 way D-type plug (balanced, can

be unbalanced)

Mains Input: Filtered IEC, switchable 110-120V, or

220-240V, fused, 12W maximum

Fuse Rating: Anti-surge fuse 100mA x 5mm (230VAC)

Anti-surge fuse 200mA x 5mm (115VAC)

Equipment Type:

Equipment Type: RB-DA24MD 24 Way Mono Distribution Amplifier

Physical Specification:

Dimensions (Raw): 48cm (W) x 15.8cm (D) x 4.2 (H) (1U)

19” (W) x 6.2” (D) x 1.7” (H) (1U)

Dimensions (Boxed) 58.5cm (W) x 27.4cm (D) x 10.8cm (H)

23” (W) x 10.9” (D) x 4.3” (H)

Weight Nett: 1.6kg Gross: 2.2kg

Nett: 3.5lbs Gross: 4.8lbs

8 Audio Distribution Amplifier - RB-DDA6A

8 RB-DDA6A 6 Way Stereo AES/EBU Digital Distribution Amplifier

Introduction

Fig 8-1: RB-DDA6A Front Panel

The RB-DDA6A digital distribution amplifier is used for distributing digital audio data in AES/EBU format, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels.

It has a single XLR-3 female AES/EBU audio input which is distributed to 6 XLR-3 male AES/EBU outputs.

Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a DAT machine.

It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit. So, it can be used for standard CD signal distribution at 16 bit 44.1kHz, as well as for high quality 24 bit 96kHz recording.

Rear Panel Connections and Operations

Fig 8-2: RB-DDA6A Rear panel

AES/EBU

Input

AES/EBU

Outputs

AES/EBU Input

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏ/ƚŚĂƐƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

AES/EBU Outputs

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏdŚĞǇŚĂǀĞƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

Audio Distribution Amplifier - RB-DDA6A 8

AES/EBU

Transmitter

Input XLR-3

Female

AES/EBU

Transmitter

AES/EBU

Transmitter

AES/EBU

Transmitter

AES/EBU

Transmitter

AES/EBU

Transmitter

Output XLR-3

Male

Output XLR-3

Male

Output XLR-3

Male

Output XLR-3

Male

Output XLR-3

Male

Output XLR-3

Male

AES/EBU

Receiver

System Block Diagram

Fig 8-3: RB-DDA6A System Block Diagram

8 Audio Distribution Amplifier - RB-DDA6A

Technical Specifications RB-DDA6A

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ϭϭϬɏцϮϬйďĂůĂŶĐĞĚ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ ϭϭϬɏцϮϬйďĂůĂŶĐĞĚ

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz)

Signal Level: 2V/7V peak to peak min/max

Connections

Input: 1 x AES/EBU XLR 3 pin female (balanced)

Outputs: 6 x AES/EBU XLR 3 pin male (balanced)

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6A 6 way AES/EBU stereo digital distribution amplifier

Physical Specifications

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

14.2” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 0.95kg Gross: 1.4kg Nett: 2.1lbs Gross: 3.2lbs

Audio Distribution Amplifier - RB-DDA6A-2P 9

9 RB-DDA6A-2P 6 Way Stereo AES/EBU Digital Distribution Amplifier With Dual Power Supplies

Introduction

Fig 9-1: RB-DDA6A-2P Front Panel

Power Indicator LEDs

The RB-DDA6A-2P digital distribution amplifier is used for distributing digital audio data in AES/EBU format, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels.

It has a single XLR-3 female AES/EBU audio input which is distributed to 6 XLR-3 male AES/EBU outputs.

Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a DAT machine.

The unit provides redundancy protection by using two power supply units that can be supplied from separate mains feeds. The unit automatically load shares between the two supplies so that if either supply should fail the unit will continue to work correctly. If both supplies fail the input is connected directly to output 1.

The condition of the two supplies is indicated on the front panel by two red LEDs which illuminate to indicate the correct function of the supply. On the alarm output connector there is a changeover relay to indicate the status of each supply. This is normally closed to indicate power fail and once the supply is working correctly the relay activates to make a normally open contact.

9 Audio Distribution Amplifier - RB-DDA6A-2P

System Block Diagram

Fig 9-2: RB-DDA6A-2P System Block Diagram

Digital Audio

Driver

Digital Audio

Driver

Digital Audio

Driver

Digital Audio

Driver

Digital Audio

Driver

Digital Audio

Driver

Digital

Audio

Receiver

PSU 1

Power Supply

Monitor,

Indicator

And Alarm

Outputs

PSU 2

9-Way

D-Type

Socket

Alarm

Output

Power Off Connectivity

Audio Distribution Amplifier - RB-DDA6A-2P 9

Rear Panel Connections and Operations

Fig 9-3: RB-DDA6A-2P Rear panel

AES/EBU Input

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏ/ƚŚĂƐƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

AES/EBU Outputs

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏdŚĞǇŚĂǀĞƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

Alarm Connector

AES/EBU

Outputs

AES/EBU

Input

PSU Alarm

Outputs

Power

Supply 2

Power

Supply 1

Pin 7: Ground Pin 8: Ground Pin 9: Power Supply 2 Normally Closed (indicates supply inactive)

Fig 9-4: RB-DDA6A-2P Alarm Connector Diagram

CommonN/O CommonN/O

N/C N/C

PSU 2PSU 1

9 Audio Distribution Amplifier - RB-DDA6A-2P

Technical Specification RB-DDA6A-2P

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ϭϭϬɏцϮϬйďĂůĂŶĐĞĚ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ ϭϭϬɏцϮϬйďĂůĂŶĐĞĚ

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz)

Signal Level: 2V/7V peak to peak min/max

Connections

Audio Input: 1 x AES/EBU XLR 3 pin female (balanced)

Audio Outputs: 6 x AES/EBU XLR 3 pin male (balanced)

Alarm Outputs: 2 x Relay output indicators on 1 x 9 pin D-Type socket

Mains Inputs: 2 x Filtered IEC, 85-264V switchable, fused, 6W max

Fuse Ratings: 2 x Anti-surge fuse 1A 20 x 5mm

Equipment Type

RB-DDA6A-2P: 6 way AES/EBU stereo digital distribution amplifier with dual power supplies

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H)

Weight: Nett: 1.5kg Gross: 2.0kg Nett: 3.3lbs Gross: 4.4lbs

Audio Distribution Amplifier - RB-DDA6A3 10

10 RB-DDA6A3 6 Way Stereo AES-3id Digital Audio Distribution Amplifier

Introduction

Fig 10-1: RB-DDA6A3 Front Panel

The RB-DDA6A3 digital distribution amplifier is used for distributing digital audio data in AES-3id format, repeating both the audio data and the status information of the input whilst re-normalising to standard AES-3id digital audio levels.

It has a single female BNC AES-3id audio input which is distributed to 6 female BNC AES-3id outputs.

It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.

Rear Panel Connections and Operations

Fig 10-2: RB-DDA6A3 Rear panel

AES-3id Input

dŚĞ^ͲϯŝĚŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱё

AES-3id Outputs

dŚĞ^ͲϯŝĚŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱё

AES-3id

Input

AES-3id

Outputs

10 Audio Distribution Amplifier - RB-DDA6A3

AES-3id

Transmitter

Input BNC

AES-3id

Transmitter

AES-3id

Transmitter

AES-3id

Transmitter

AES-3id

Transmitter

AES-3id

Transmitter

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

AES-3id

Receiver

Fig 10-3: RB-DDA6A3 System Block Diagram

System Block Diagram

Audio Distribution Amplifier - RB-DDA6A3 10

Technical Specifications RB-DDA6A3

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ϳϱɏ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ ϳϱɏ

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz,64kHz, 88.2kHz and 96kHz)

Signal Level: 0.8V/1.2V peak to peak min/max

Connections

Input: 1 x BNC female

Outputs: 6 x BNC female

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable,fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6A3 6 way AES-3id stereo digital distribution amplifier

Physical Specifications

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

14.2” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 0.92kg Gross: 1.46kg Nett: 2.1lbs Gross: 3.2lbs

11 Audio Distribution Amplifier - RB-DDA6S

S/PDIF

Input

S/PDIF

Outputs

11 RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier

Introduction

Fig 11-1: RB-DDA6S Front Panel

The RB-DDA6S digital distribution amplifier is similar to the above models except that it is used for distributing digital audio data in S/PDIF format.

It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.

Uses include audio distribution at 16 bit 44.1kHz from a consumer CD player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of, say, a DVD player to multiple studios.

Rear Panel Connections and Operations

Fig 11-2: RB-DDA6S Rear panel

S/PDIF Input

dŚĞ^W/&ƉŚŽŶŽŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

S/PDIF Outputs

dŚĞ^W/&ƉŚŽŶŽŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

Audio Distribution Amplifier - RB-DDA6S 11

S/PDIF

Transmitter

Input

RCA Phono

S/PDIF

Transmitter

S/PDIF

Transmitter

S/PDIF

Transmitter

S/PDIF

Transmitter

S/PDIF

Transmitter

Output

RCA Phono

Output

RCA Phono

Output

RCA Phono

Output

RCA Phono

Output

RCA Phono

Output

RCA Phono

S/PDIF

Receiver

Fig 11-3: RB-DDA6S System Block Diagram

System Block Diagram

11 Audio Distribution Amplifier - RB-DDA6S

Technical Specifications RB-DDA6S

Audio Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ϳϱɏцϱйƵŶďĂůĂŶĐĞĚ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ ϳϱɏцϱйƵŶďĂůĂŶĐĞĚ

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz)

Signal Level: Balanced min 0.5V ±20% peak to peak

Connections

Input (unbalanced): 1 x S/PDIF RCA phono female

Outputs: 6 x S/PDIF RCA phono female (unbalanced)

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6S 6 way stereo S/PDIF digital distribution amplifier

Physical Specifications

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

14.2” (W) x 8” (D) x 2.4” (H)

Weight RB-DDA6S: Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs

Audio Distribution Amplifier - RB-DDA6W 12

12 RB-DDA6W 6 Way Word Clock Distribution Amplifier

Introduction

Fig 12-1: RB-DDA6W Front Panel

The RB-DDA6W 6 Way Word Clock Distribution Amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used in distributing reference clocks for digital audio systems.

It has a single female BNC input which is distributed to 6 female BNC outputs.

The unit’s primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

Rear Panel Connections and Operations

Fig 12-2: RB-DDA6W Rear Panel

Word Clock Input

dŚĞtŽƌĚůŽĐŬEŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

Word Clock Outputs

dŚĞtŽƌĚůŽĐŬEŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨфϳϱɏ

Word Clock Input Word Clock Outputs

12 Audio Distribution Amplifier - RB-DDA6W

TTL

Transmitter

Input BNC

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

TTL

Receiver

System Block Diagram

Fig 12-3: RB-DDA6W System Block Diagram

Audio Distribution Amplifier - RB-DDA6W 12

Technical Specifications RB-DDA6W

Signal Specifications

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ϳϱɏ

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ фϳϱɏ

Connections

Input: 1 x BNC female

Outputs: 6 x BNC female

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6W: 6 way word clock distribution amplifier

Physical Specifications

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

14.2” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs

13 Audio Distribution Amplifier - RB-DDA6W-2P

13 RB-DDA6W-2P 6 Way Word Clock Distribution Amplifier With Dual Power Supplies

Introduction

Fig 13-1: RB-DDA6W-2P Front Panel

The RB-DDA6W-2P word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.

It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

Power Indicator LEDs

Audio Distribution Amplifier - RB-DDA6W-2P 13

System Block Diagram

Fig 13-2: RB-DDA6W-2P System Block Diagram

TTL

Transmitter

Input BNC

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

TTL

Transmitter

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

Output

BNC

TTL

Receiver

PSU 1

Power Supply

Monitor,

Indicator

And Alarm

Outputs

PSU 2

9-Way

D-Type

Socket

Alarm

Output

13 Audio Distribution Amplifier - RB-DDA6W-2P

Word

ClockOutputs

Word Clock

Input

PSU Alarm

Outputs

Power

Supply 2

Power

Supply 1

Rear Panel Connections and Operations

Fig 13-3: RB-DDA6W-2P Rear Panel

Word Clock Input

dŚĞtŽƌĚůŽĐŬEŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

Word Clock Outputs

dŚĞtŽƌĚůŽĐŬEŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨфϳϱɏ

Alarm Connector

Pin 1: Power Supply 1 Common Pin 2: Power Supply 1 Normally Open Pin 3: Ground Pin 4: Power Supply 2 Common Pin 5: Power Supply 2 Normally Open Pin 6: Power Supply 1 Normally Closed (indicates supply inactive) Pin 7: Ground Pin 8: Ground Pin 9: Power Supply 2 Normally Closed (indicates supply inactive)

CommonN/O CommonN/O

N/C N/C

PSU 2PSU 1

Fig 13-4: RB-DDA6W-2P Alarm Connector Diagram

Audio Distribution Amplifier - RB-DDA6W-2P 13

Technical Specification For RB-DDA6W-2P

Audio Specification

/ŶƉƵƚŝŵƉĞĚĂŶĐĞ ϳϱɏ

KƵƚƉƵƚŝŵƉĞĚĂŶĐĞ фϳϱɏ

Connections

Audio Inputs: 1 x BNC female

Audio Outputs: 6 x BNC female

Alarm Outputs: 2 x Relay output indicators on 1 x 9 pin D-Type socket

Mains Input: 2 x Filtered IEC, 85-264V switchable, fused, 6W max

Fuse Rating: 2 x Anti-surge fuse 1A 20 x 5mm

Equipment Type

RB-DDA6W-2P: 6 way word clock distribution amplifier with dual power supplies

Physical Specification

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H)

Weight: Nett: 1.5kg Gross: 2.0kg Nett: 3.3lbs Gross: 4.4lbs

14 Audio Distribution Amplifier - RB-DDA22

14 RB-DDA22 Digital Audio Distribution Amplifier With Multiple Outputs

Introduction

Fig 14-1: RB-DDA22 Front Panel

The RB-DDA22 digital distribution amplifier is used for distributing digital audio data in many formats, repeating both the audio data and the status information of the input whilst re-clocking the data and re-normalising to the appropriate standard digital audio levels.

The unit has 5 inputs and you can select one of them to distribute to all of the 22 outputs.

Input Signals:

• 1 x XLR 3 female AES/EBU digital audio input

• 1 x BNC AES-3id digital audio input

• 1 x RJ45 AES/EBU digital audio input

• 1 x RCA Phono S/PDIF input

• 1 x TOSLink digital audio optical input

Output Signals:

• 6 x XLR-3 male AES/EBU digital audio outputs

• 6 x BNC AES-3id digital audio outputs

• 6 x RJ45 AES/EBU digital audio outputs

• 2 x RCA Phono S/PDIF outputs

• 2 x TOSLink optical outputs

The RJ-45 connectors are wired to be StudioHub+ compatible, a format defined by Radio Systems Inc.

Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a USB audio player.

It can accept input sample rates in the range of 30kHz - 200kHz, and bit rates of 16, 20 and 24 bit. So, it can be used for standard CD signal distribution at 16 bit 44.1kHz, as well as for high quality 24 bit 96kHz or 192kHz recording.

The front panel has an INPUT SELECT button and 7 indicator LEDS. The button is used to select the input to be used and shows the mode of operation of the unit. The LEDs will indicate, depending on the mode of operation, the input selected,

valid signal presence, or the operational frequency.

Operating Mode

In ‘operating mode’, the central button LED is unlit. The unit selects this mode when a valid input signal has been present and no button presses have been made for 8 seconds. The LEDs around the button illuminate amber to directly indicate the following frequencies 32, 44.1, 48, 88.2, 96,

Fig 14-2: RB-DDA22 Front Panel Controls

StudioHub+TM is a registered trademark of Radio Systems Inc

Audio Distribution Amplifier - RB-DDA22 14

176.4 & 192 kHz. If the input is at a non-standard frequency then the unit will indicate both the frequencies either side of the incoming frequency – e.g. if the input signal has a frequency of 64kHz then both the 48kHz and

88.2kHz LEDs will be illuminated. If the frequency is below 32kHz or above 192kHz then the appropriate LED will flash.

Input Select Mode

Pressing the INPUT SELECT central button illuminates it red and allows you to select the required input. Pressing the button will step the selected input to the next input selection including auto mode.

In Input Select Mode the LEDs have the following states:

Off – Signal not selected and no valid signal present

Green – Signal not selected and valid signal present

Red – Signal selected and no valid signal present

Amber – Signal selected and valid signal present or Auto Mode Selected

Note: Input Select mode is chosen automatically when the selected input is not present.

Auto Select Mode

In this special input select mode the unit will hunt through all the inputs until it finds a valid signal. If multiple signals are present you can force selection of the next input by holding the input select button down for 2 seconds, when the next valid input will be selected.

Digital Audio

Transmitter

Digital Audio

Transmitter

Digital Audio

Transmitter

Digital Audio

Transmitter

Digital Audio

Transmitter

Digital

Audio

Receiver

Input

Select

AES/EBU

XLR3

AES3id

BNC

AES/EBU

RJ45

S/PDIF RCA

Phono

TOSLink

Optical

AES/EBU XLR3

AES3id BNC

AES/EBU RJ45

S/PDIF RCA Phono

TOSLink Optical

Circuit Replicated 6 Times

Circuit Replicated Twice

System Block Diagram

Fig 14-3: RB-DDA22 System Block Diagram

14 Audio Distribution Amplifier - RB-DDA22

Rear Panel Connections and Operations

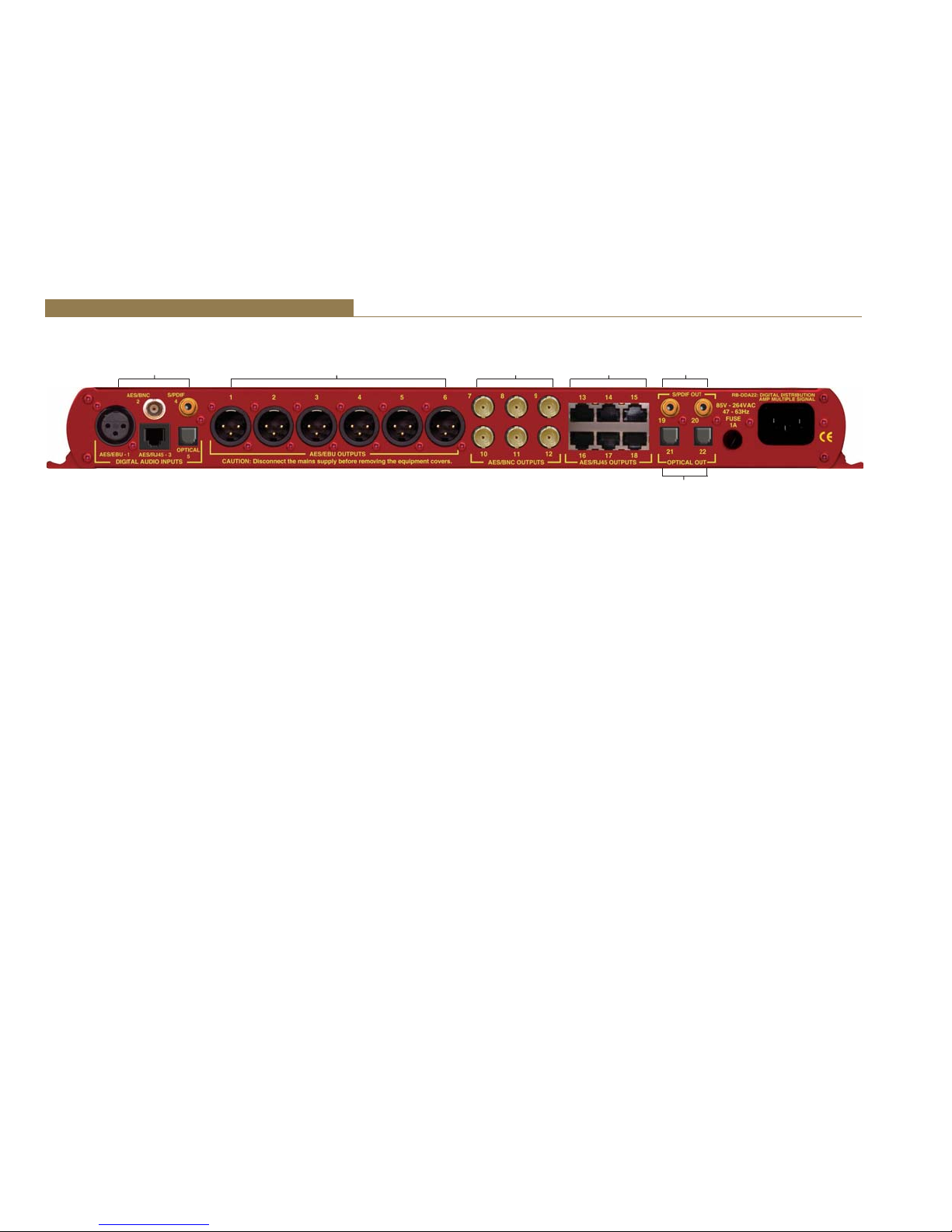

Fig 14-4: RB-DDA22 Rear Panel

Digital Audio Inputs

AES/EBU Inputs

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏ/ƚŚĂƐƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

dŚĞE^ϯŝĚŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

dŚĞZ:ϰϱ^ŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏ/ƚŚĂƐƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Phase Pin 2: Non-phase Pin 3: No Connection Pin 4: Screen Pin 5: No Connection Pin 6: No Connection Pin 7: No Connection Pin 8: No Connection

S/PDIF Input

dŚĞ^W/&ƉŚŽŶŽŝŶƉƵƚŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

Optical Outputs

SPDIF OutputsRJ45 OutputsBNC Outputs

XLR OutputsDigital Audio Inputs

Optical Input

The optical input is a standard TOSLink connector.

Digital Audio Outputs

AES/EBU Outputs

dŚĞy>ZϯƉŝŶƐŽĐŬĞƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏdŚĞǇŚĂǀĞƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Screen Pin 2: Phase Pin 3: Non-phase

dŚĞE^ϯŝĚŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

dŚĞZ:ϰϱ^ŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏdŚĞǇŚĂǀĞƚŚĞĨŽůůŽǁŝŶŐ

connections: Pin 1: Phase Pin 2: Non-phase Pin 3: No Connection Pin 4: Screen Pin 5: No Connection Pin 6: No Connection Pin 7: No Connection Pin 8: No Connection

Audio Distribution Amplifier - RB-DDA22 14

S/PDIF Outputs

dŚĞ^W/&ƉŚŽŶŽŽƵƚƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ

Optical Outputs

The optical outputs are standard TOSLink connectors.

Technical Specifications RB-DDA22

Audio Specifications

Sample Frequency Range: 30-200kHz (i.e. including 32kHz, 44.1kHz, 48kHz,

88.2kHz, 96kHz, 176.4kHz and 192kHz)

Bit Depth: Up to and including 24 bit

/ŶƉƵƚ/ŵƉĞĚĂŶĐĞ ^hŽƌZ:ϰϱϭϭϬɏцϮϬйďĂůĂŶĐĞĚ  ^EϳϱɏцϮϬйƵŶďĂůĂŶĐĞĚ  ^W/&ϳϱɏцϱйƵŶďĂůĂŶĐĞĚ

Input Signal Level: AES/EBU or RJ45: 3V/10V peak to peak min/max AES/BNC: 1.0V ±20% min S/PDIF: 0.5V ±20% min

KƵƚƉƵƚ/ŵƉĞĚĂŶĐĞ ^hŽƌZ:ϰϱϭϭϬɏцϮϬйďĂůĂŶĐĞĚ  ^EϳϱɏцϮϬйƵŶďĂůĂŶĐĞĚ  ^W/&ϳϱɏцϱйƵŶďĂůĂŶĐĞĚ

Input Signal Level: AES/EBU or RJ45: 3V/10V peak to peak min/max AES/BNC: 1.0V ±20% min S/PDIF: 0.5V ±20% min

Front Panel Operational Controls & Indicators

Digital Input Select: AES/EBU (XLR), AES/EBU (BNC), AES/EBU (RJ45), S/PDIF or TOSlink optical

Indicators: Input presence and sample rate being used indicators via tricolour LEDS around the input select button

Connections

Inputs: 1 x AES/EBU XLR 3 pin female (balanced) 1 x AES3id BNC (unbalanced) 1 x AES StudioHub+TM RJ45 (balanced) 1 x S/PDIF RCA phono female (unbalanced) 1 x TOSLink optical receiver

Outputs: 6 x AES/EBU XLR 3 pin male (balanced) 6 x AES3id BNC male (balanced) 6 x AES StudioHub+ TM RJ45 (balanced) 2 x S/PDIF RCA phono female (unbalanced) 2 x TOSLink optical transmitter

Mains Input: Filtered IEC, 85-264VAC 47-63Hz, fused, 10W max

Fuse Rating: Anti-surge fuse 1A 20 x 5mm

Equipment Type

RB-DDA22: Digital audio distribution amplifier with multiple outputs

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.75” (H)

Weight: Nett: 1.4kg Gross: 2.0kg Nett: 3.0lbs Gross: 4.4lbs

15 Audio Distribution Amplifier - RB-AES4B3

15 RB-AES4B3 Quad 3 Way Passive AES-3id Splitters With BNC Connectors

Introduction

Fig 15-1: RB-AES4B3 Front Panel

The RB-AES4B3 is a passive digital splitter, designed to split a single AES-3id

ƐŽƵƌĐĞƚŽƵƉƚŽƚŚƌĞĞĚĞƐƚŝŶĂƚŝŽŶƐƵƐŝŶŐEĐŽŶŶĞĐƚŽƌƐϳϱёƚĞƌŵŝŶĂƚŝŽŶ

can be applied, if desired to unconnected outputs. The RB-AES4B3 is a quad “one-to-three” splitter housed in a 19” rack.

Block Diagram

Fig 15-2: RB-AES4B3 System Block Diagram

AES/EBU Input

AES/EBU Output 1

AES/EBU Output 2

AES/EBU Output 3

Audio Distribution Amplifier - RB-AES4B3 15

Controls & Connectors

Fig 15-3: RB-AES4B3 Front Rear Panel

AES/EBU input(s)

The single digital audio input is via a female BNC connector with the following pin assignment:

Tip: Signal Screen: 0V Common

AES/EBU outputs 1-3

The digital audio outputs are via a female BNC connectors with the following pin assignment:

Tip: Signal Screen: 0V Common

Termination switches

/ƚŝƐƉŽƐƐŝďůĞƚŽƚĞƌŵŝŶĂƚĞKƵƚƉƵƚϮĂŶĚKƵƚƉƵƚϯǁŝƚŚϳϱёŝŶƚŚĞĞǀĞŶƚ

that they are not connected to a destination device. It may be necessary to remove termination from an unused output if a used output is connected to a destination via a long cable run, in order to increase the level of the AES-3id carrier signal.

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

Termination

Switches

Termination

Switches

Termination

Switches

Termination

Switches

15 Audio Distribution Amplifier - RB-AES4B3

Technical Specification RB-AES4B3

Cable drive capability

ƵŵƵůĂƚŝǀĞĐĂďůĞĚƌŝǀĞĐĂƉĂďŝůŝƚǇŽĨϭϬϬŵŽĨϳϱёĐŽĂǆŝĂůĐĂďůĞĂƚƐĂŵƉůĞ

rates up to and including 96kHz.

Equipment Type

RB-AES4B3 Quad 3 Way Passive Digital AES-3id Splitters, with BNC connections in a 19” rack.

Physical Specification

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H)

Weight: Nett: 1.02kg Gross: 1.38kg Nett: 2.25lbs Gross: 3.04lbs

Source Splitter

Destination 1

Destination 2

Destination 3

100m Short

Short

Sample Rate = 96kHz Signal Amplitude = 1V

pk-pk

100m cumulative

Source Splitter

Destination 1

Destination 2

Destination 3

10m 30m

30m

Sample Rate = 96kHz Signal Amplitude = 1V

pk-pk

100m cumulative

Source Splitter

Destination 1

Destination 2

Destination 3

50m 50m

50m

Sample Rate = 48kHz Signal Amplitude = 1V

pk-pk

200m cumulative

Examples of use of cumulative cabling:

Fig 15-4: RB-AES4B3 Examples Of Cumulative Cabling

Audio Distribution Amplifier - RB-AES4X3 16

16 RB-AES4X3 Quad 3 Way AES3 Splitter XLR Connectors

Introduction

Fig 16 -1: RB-AES4X3 Front Panel

AES/EBU Input

AES/EBU Output 1

AES/EBU Output 2

AES/EBU Output 3

110

The RB-AES4X3 is a passive digital splitter, designed to split a single AES3

ƐŽƵƌĐĞƚŽƵƉƚŽƚŚƌĞĞĚĞƐƚŝŶĂƚŝŽŶƐƵƐŝŶŐEĞƵƚƌŝŬy>ZĐŽŶŶĞĐƚŽƌƐϭϭϬё

termination can be applied, if desired to unconnected outputs. The RBAES4X3 is a quad “one-to-three” splitter housed in a 19” rack.

Block Diagram

Fig 16-2: RB-AES4X3 System Block Diagram

16 Audio Distribution Amplifier - RB-AES4X3

Controls & Connectors

Fig 16-3: RB-AES4X3 Rear Panel

AES/EBU input(s)

The single digital audio input is via a female XLR connector with the following pin assignment:

Pin 1: 0V Common Pin 2: Phase Pin 3: Non Phase

AES/EBU outputs 1-3

The digital audio outputs are via male XLR connectors with the following pin assignment:

Pin 1: 0V Common Pin 2: Phase Pin 3: Non Phase

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

AES/

EBU

Input

AES/

EBU

Outputs

Termination

Switches

Termination

Switches

Termination

Switches

Termination

Switches

Termination switches

/ƚŝƐƉŽƐƐŝďůĞƚŽƚĞƌŵŝŶĂƚĞKƵƚƉƵƚϮĂŶĚKƵƚƉƵƚϯǁŝƚŚϭϭϬёŝŶƚŚĞĞǀĞŶƚ

Audio Distribution Amplifier - RB-AES4X3 16

Technical Specifications RB-AES4X3

Cable drive capability

The table below sets out the minimum signal amplitude required to drive

ϭϬϬŵ;ĐƵŵƵůĂƚŝǀĞͿŽĨϭϭϬёƚǁŝƐƚĞĚƉĂŝƌĐĂďůĞďĂƐĞĚŽŶƚŚĞƐĂŵƉůĞƌĂƚĞ

of the digital audio:

Sample Rate Minimum Signal Amplitude

32kHz *2Vpk-pk

44.1kHz *2Vpk-pk

48kHz *2Vpk-pk

88.2kHz 5Vpk-pk

96kHz 5Vpk-pk

* Minimum of 2Vpk-pk is defined by the AES3 format specification.

The table below sets out the minimum signal amplitude required to drive

ϯϬŵ;ĐƵŵƵůĂƚŝǀĞͿŽĨϭϭϬёƚǁŝƐƚĞĚƉĂŝƌĐĂďůĞďĂƐĞĚŽŶƚŚĞƐĂŵƉůĞƌĂƚĞŽĨ

the digital audio:

Sample Rate Minimum Signal Amplitude

176.4kHz 3Vpk-pk

192kHz 3Vpk-pk

Equipment Type

RB-AES4X3 Quad 3 Way Passive Digital AES3 Splitters, with XLR connections in a 19” rack.

Physical Specification

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H)

Weight: Nett: 1.02kg Gross: 1.38kg Nett: 2.25lbs Gross: 3.04lbs

Source Splitter

Destination 1

Destination 2

Destination 3

100m Short

Short

Sample Rate = 96kHz Signal Amplitude = 5V

pk-pk

100m cumulative

Source Splitter

Destination 1

Destination 2

Destination 3

Short 10m

10m

Sample Rate = 192kHz Signal Amplitude = 3V

pk-pk

30m cumulative

Source Splitter

Destination 1

Destination 2

Destination 3

50m 50m

50m

Sample Rate = 48kHz Signal Amplitude = 2V

pk-pk

200m cumulative

Examples of use of cumulative cabling:

Fig 16-4: RB-AES4X3 Examples Of Cumulative Cabling

17 Audio Distribution Amplifier - RB-MS4X3

17 RB-MS4X3 Quad 3 Way Microphone Splitter

Introduction

Controls x 4

Fig 17-1: RB-MS4X3 Front Panel

The RB-MS4X3 is a passive microphone splitter, designed to split the signal from a single mic or line source, to up to 3 destinations, whilst allowing the operator to pass phantom power back from mic preamplifier inputs, or apply +48VDC power directly from the unit. Pin 1 “ground” lifts are provided to eliminate ground loop problems.

Block Diagram

Fig 17-2: RB-MS4X3 System Block Diagram

Isol Out 1

Isol Out 2

Ext. Phantom Present LED

Mic Input

Direct Out

Disconnect CT

On/O

-30dB Pad

Gnd Lift

Ext. +48V

Circuit Inside Box Replicated 4 Times

Ext 48VDC

Audio Distribution Amplifier - RB-MS4X3 17

Controls & Connectors Front Panel

Fig 17-3: RB-MS4X3 Front Panel Connections

External +48VDC

This latching push switch applies the external +48V phantom power (if connected) to a microphone connected to the rear panel input connector.

ON LED

The ON LED illuminates when both external +48V phantom power is connected to the rear panel DC socket and the external power is switched to the input.

30dB Pad

It is possible to attenuate the incoming signal by 30dB for example when interfacing a line level signal into a microphone preamplifier. The latching push switch applies and removes the 30dB pad.

Important: Phantom power should be disabled when connecting a line level signal to the splitter input.

Ext.

Phantom

Enable

On Input

30dB

Pad

Phantom Loopback/ Ground Lift Output 2

Ground

Lift Output 3

Ext. Phantom

On Indicator

Output 2 Toggle switch

This switch controls both the grounding of the output 2 XLR connector (pin 1) and the ability to pass back phantom power (via the internal transformer’s centre tap) from output 2 to a mic connected to the splitter’s input.

Switch Position Phantom Loopback (PL) Output 2 XLR Pin 1

Left Disabled Grounded

Centre Disabled Lifted

Right Enabled Grounded

Output 3 Toggle Switch

This switch controls the grounding of the output 3 XLR connector.

Switch Position Phantom Loopback (PL)

Left Grounded

Right Lifted

Phantom Powering Guidance

It is possible to pass phantom power to the splitter input by three different methods:

• Via the external +48V DC connector.

• From a mic pre-amp connected to direct output (output 1).

• From a mic pre-amp connected to output 2 (provided phantom loopback is enabled).

It is therefore possible to concurrently power the microphone using any two of the above methods (for power redundancy) without causing signal degradation. It is important the output connectors are grounded (and not lifted) should the external phantom power be connected, to prevent hum/ hiss caused by ground loop currents.

Important: A maximum of two phantom powering methods can be used concurrently.

17 Audio Distribution Amplifier - RB-MS4X3

Rear Panel

Fig 17-4: RB-MS4X3 Rear Panel Connections

Input

The XLR 3 pin input socket is transformer balanced and is capable of accepting a dynamic or phantom powered microphone, or a line level signal up to +18dBu (without the 30dB pad applied). The input socket has the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non Phase

Output 1 (Direct)

The XLR 3 pin plug is a parallel connection of the input. It is therefore possible to supply phantom power to the splitter input by connecting output 1 to a phantom powered microphone preamplifier. The output 1 plug has the following connections: Pin 1: Screen Pin 2: Phase Pin 3: Non Phase

Direct

Output

Output 2

Isolated

Output 3

Isolated

External 48V

Phantom

Input

Direct

Output

Output 2

Isolated

Output 3

Isolated

Direct

Output

Output 2

Isolated

Output 3

Isolated

Direct

Output

Output 2

Isolated

Output 3

Isolated

Input

Output 2 (+48V PL Phantom Loopback)

The XLR 3 pin plug is a transformer isolated output. A switchable centre tap connection makes it possible to supply phantom power to the splitter input by connecting output 2 to a phantom powered microphone preamplifier, and setting the front panel toggle switch to the correct position (see front panel controls). The output 2 plug has the following connections: Pin 1: Screen (Can be grounded or lifted by front panel toggle switch) Pin 2: Phase Pin 3: Non Phase

Output 3

The XLR 3 pin plug is a transformer isolated output and has the following connections: Pin 1: Screen (Can be grounded or lifted by front panel toggle switch) Pin 2: Phase Pin 3: Non Phase

Audio Distribution Amplifier - RB-MS4X3 17

Technical Specifications RB-MS4X3

Test Conditions Result

Frequency Response Ref. -6dBu, 1kHz 10Hz - 30kHz ±0.5dB

 ^ŽƵƌĐĞ/ŵƉĞĚĂŶĐĞсϭϱϬё  >ŽĂĚ/ŵƉĞĚĂŶĐĞсϭϬŬё

Total Harmonic Ref. +3dBu, 50Hz 0.02%

ŝƐƚŽƌƚŝŽŶ ^ŽƵƌĐĞ/ŵƉĞĚĂŶĐĞсϭϱϬё  >ŽĂĚ/ŵƉĞĚĂŶĐĞсϭϬŬё

Total Harmonic Ref. 0.1%THD+N, 50Hz +13dBu

ŝƐƚŽƌƚŝŽŶϬϭй ^ŽƵƌĐĞ/ŵƉĞĚĂŶĐĞсϭϱϬё  >ŽĂĚ/ŵƉĞĚĂŶĐĞсϭϬŬё

Total Harmonic Ref. 1%THD+N, 50Hz +18dBu

ŝƐƚŽƌƚŝŽŶϭй ^ŽƵƌĐĞ/ŵƉĞĚĂŶĐĞсϭϱϬё  >ŽĂĚ/ŵƉĞĚĂŶĐĞсϭϬŬё

Common Mode Ref. 20kHz >60dB

ZĞũĞĐƚŝŽŶZĂƚŝŽ ^ŽƵƌĐĞ/ŵƉĞĚĂŶĐĞсϲϬϬё  >ŽĂĚ/ŵƉĞĚĂŶĐĞсϭϬŬё

Equipment Type

RB-MS4X3 Quad 3 Way Microphone Splitter.

Physical Specification

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H)

Weight: Nett: 1.02kg Gross: 1.38kg Nett: 2.25lbs Gross: 3.04lbs

Examples of usage:

Splitter

Main Desk

Mic In

Monitor Mixer

Mic In

Recorder

Mic In

Dynamic

Mic

1 2 3

Ext Phantom O 30dB Pad O +48V PL O

Splitter

Main Desk

Mic In

Monitor Mixer

Mic In

Recorder

Mic In

Condenser

Mic

1 2 3

Extn Phantom On 30dB Pad O +48V PL O

+48VDC

48V

Splitter

Main Desk

Mic In

Monitor Mixer

Mic In

Recorder

Mic In

1 2 3

Ext Phantom O 30dB Pad On +48V PL O

Line

Level

Source

Fig 17-5: RB-MS4X3 Examples Of Usage

18 Phantom Power Supply- RB-MSP6

18 RB-MSP6 6 Way +48V Phantom Power Supply

Introduction

Fig 18-1: RB-MSP6 Front Panel

The RB-MSP6 is a 1U rack-mount phantom power supply, designed to be used in conjunction with up to six RB-MS4X3s, providing mains input redundancy to ensure the target microphones remain powered in the event of a single mains failure.

Two mains AC inlets power separate 48V supplies that are diode fed to six locking DC connector outputs. Each output connector is individually

protected with a resettable fuse rated at 50mA, so a fault on one output will not affect the others.

Should either of the 48V supplies fail, or if their AC power input is removed, the corresponding red front panel LED will extinguish, and a relay alarm output is provided on the rear panel D-Type.

System Block Diagram

Fig 18-2: RB-MSP6 System Block Diagram

Mains Inlet 1

Mains Inlet 2

Anti-Surge

AC/DC Converter

20W +48V Out

Anti-Surge

AC/DC Converter

20W +48V Out

50mA

Resettable

Locking DC Connector

2.5mm Pin

Alarm

Relay

Alarm

Relay

Alarm

Outputs

Phantom Power Supply- RB-MSP6 18

Connections and Operation Front Panel Controls and Indicators

Fig 18-3: RB-MSP6 Front Panel LED Indicators

The RB-MSP6 front panel LEDs (labelled 1 and 2) show the presence of power at the input of each IEC AC supply. Each LED illuminates red if power is present at the input. If a LED extinguishes, it indicates a problem with the corresponding supply. This could be due to one or more of the following:

• The AC mains input is out of range or missing.

• The mains fuse is blown or missing.

• The internal AC/DC 48V supply is faulty.

The current status of the two AC/DC 48V power supplies is also reflected at the remote output port on the rear panel, see below for details.

Rear Panel Connections

AC Mains inputs

The two mains inputs should be connected to 90V – 264V, 47 – 63Hz AC mains supplies, and protected with a 1A anti-surge fuse.

+48V Phantom Power Outputs

The DC outputs each provide up to 50mA of phantom power (48V) to an externally connected RB-MS4X3. The connectors are locking to prevent accidental unplugging, and the positive voltage is on the 2.5mm centre pin.

Alarm Outputs (ALARMS)

The 9 way D-Type socket contains alarm outputs that monitor the status of the two 48V power supplies. A changeover relay provides a normally open (NO), normally closed (NC) and a common connection for each supply. The pinout of the D-Type connector is shown below.

Note: “Normally closed” refers to the pin that is connected to the common when the corresponding supply is working normally.

Fig 18-4: RB-MSP6 Rear Panel Connections

18 Phantom Power Supply- RB-MSP6

Pin Number Connection

1 Supply 1 Normally Open (NO)

2 Supply 1 Common

3 Supply 1 Normally Closed (NC)

6 Supply 2 Normally Open (NO)

7 Supply 2 Common

8 Supply 2 Normally Closed (NC)

4,5,9 No Connection

Front Panel

LED 1

D-Type Pin No.

D-Type

Pin No.

48V

Supply 1

48V

Supply 2

IEC

Unplugged

Front Panel

LED 2

Technical Specifications RB-MSP6

Mains inputs 2 x Filtered IEC, 90V-264V, 47-63Hz, fused,

20W maximum

Fuse Ratings 2 x Anti-surge fuse 1A 20 x 5mm

Phantom Power Outputs 6 x locking DC connectors, 2.5mm pin, 48VDC,

50mA maximum current, protected by resettable fuse.

Equipment Type:

RB-MSP6: RB-MSP6 6 way phantom power supply

Physical Specification:

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

11” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

14.2” (W) x 8” (D) x 2.4” (H)

Weight: Nett: 1.14kg Gross: 1.52kg

Nett: 2.50lbs Gross: 3.34lbs

Accessories:

RB-RK2: 1U rear panel rack kit for small Redbox range

Example: The diagram below shows a fault scenario where the mains connection to Supply 2 has been unplugged. The front panel LED is no longer illuminated, and the relay has switched, creating a connection between pins 6 and 7 of the ALARMS D-Type.

Fig 18-5: RB-MSP6 Fault Scenario Diagram

Notes

www.sonifex.co.uk

t:+44 (0)1933 650 700 f:+44 (0)1933 650 726

sales@sonifex.co.uk

Sonifex RB-DA6, RB-DA6G, RB-DA6P, RB-DA6R, RB-DA6RG User Handbook Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
