This handbook is for use with the following products:

CM-ULR1 Unbalanced to Balanced Audio Converter

CM-ULX1 Unbalanced to Balanced Audio Converter

Stock Code: 30-377

Artwork: AW10921A

©Sonifex Ltd, 2018

All Rights Reserved

Revision 1.01, July 2018

Sonifex Ltd, 61, Station Road, Irthlingborough,

Northants, NN9 5QE, England.

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.sonifex.co.uk

Made in the UK by

Product:

Serial No:

Register Online for an
Extended 2 Year Warranty

For the latest Sonifex handbook information please visit the
Sonifex website at www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a

commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage

whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic

or mechanical, including photocopying, recording, information storage and retrieval systems, for any

purpose other than the purchaser’s personal use, without the express written permission of Sonifex

Ltd. Unless otherwise noted, all names of companies, products and persons contained herein are part

of a completely fictitious adaptation and are designed solely to document the use of Sonifex product.

Passive Packs

CM-ULR1
CM-ULX1

HANDBOOK

Unbalanced to Balanced
Audio Converter

Unbalanced to Balanced
Audio Converter

www.sonifex.co.uk/register

s

s

s

s

5 6 7 8

s

www.sonifex.co.uk

t:[phone]
f:[phone]
[e-mail]

Passive Packs

The passive packs are a range of small utility products which use

transformers to change audio input & output impedances and levels and to

distribute audio signals.

There are a range of different products to suit different needs:

CM-HPR1 Headphone Volume Control
CM-HPX1 Headphone Volume Control
CM-ULR1 Unbal to Bal Audio Converter
CM-ULX1 Unbal to Bal Audio Converter
CM-LUR1 Bal to Unbal Audio Converter
CM-LUX1 Bal to Unbal Audio Converter
CM-AESX3 3 Way Dig AES3 Splitter, XLR
CM-AESB3 3 Way Dig AES3ID Splitter, BNC
CM-MS3 3 Way Microphone Splitter

CM-MNT1 Desk Mount Panel

All of the products, along with the CM-TBU and CM-TLL, can be mounted to
the underside of a desk using the CM-MNT1 desk mount plate. This fixes to
the top side of the product and screws to the underside of a surface.

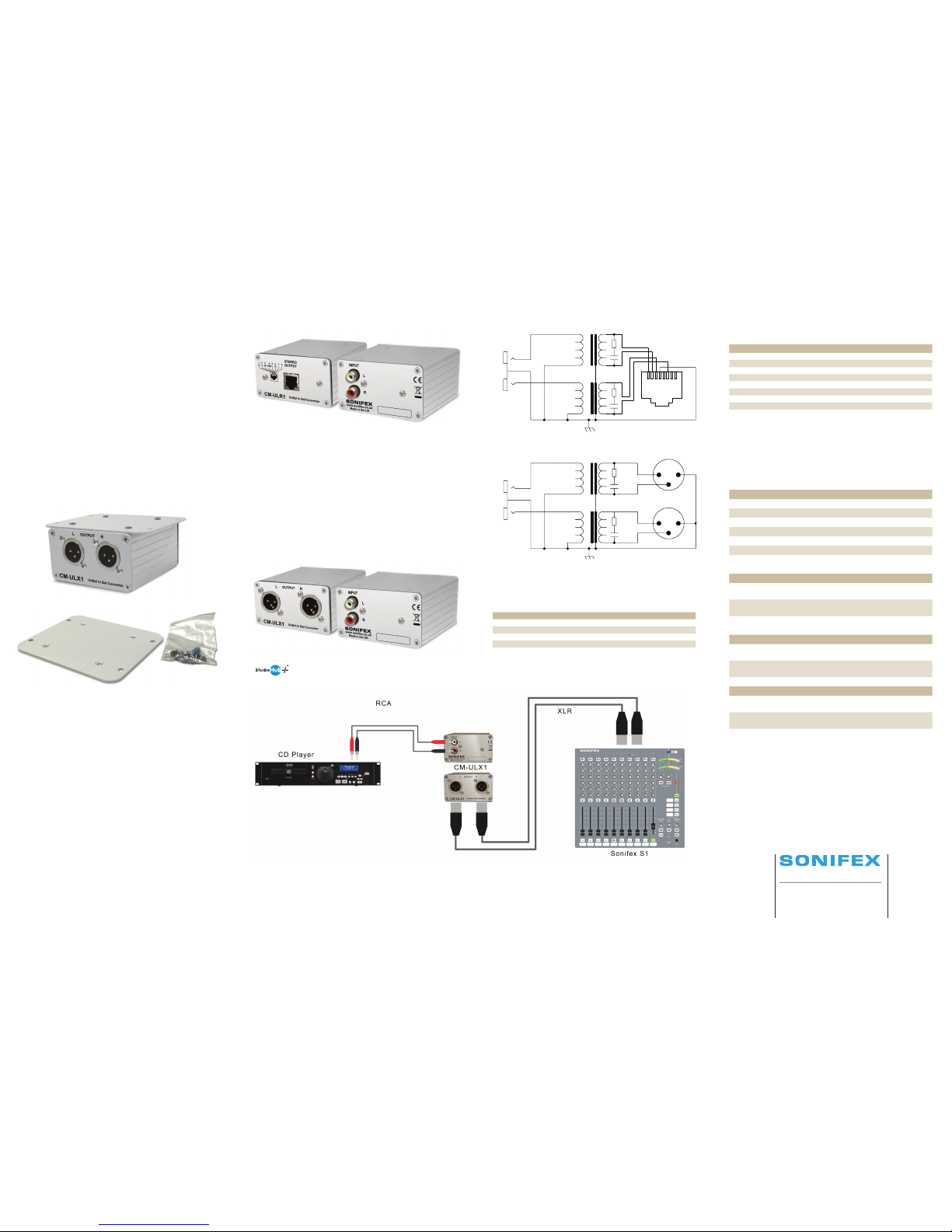

Fig B: CM-MNT1 Desk-Mount Plate With Screws

Fig A: CM-MNT1 Desk-Mount Plate Fitted On CM-ULX1

CM-ULR1 & CM-ULX1 Unbalanced to Balanced Audio
Converters

These two products allow the connection of a stereo unbalanced line input
on phono connectors to a balanced line output (RJ45 on the CM-ULR1 with
StudioHub+™ pinout, 2 x male XLRs on the CM-ULX1).

They are transformer balanced, with a 1:2 ratio, so 6dB of gain is added
to the input to help interface with the higher signal levels associated with
professional outputs.

These units are passive versions of the RB-UL1, and provide you with an
alternative to wiring an unbalanced output directly into a balanced input.

By placing one of these boxes close to the unbalanced output (before the
cable run to the balanced input), the connection will benefit from the
input device’s common mode rejection capabilities, reducing noise and
interference.

Block Diagrams

Fig 1-4: CM-ULR1 Block Diagram

Fig 1-5: CM-ULX1 Block Diagram

Connectors & Controls

RCA Phono Inputs

Both units use a stereo unbalanced line phono connector with the following
connections:

Pin Type Connection

White Tip: Left
White Screen: Ground
Red Tip: Right
Red Screen: Ground

Analogue Outputs CM-ULR1
The stereo balanced line output is on a female RJ45 connector with the
following standard StudioHub+™ pin assignments:

Pin No. Connection

1 Left Phase
2 Left Non-Phase
3 Right Phase
4 Ground
5 N/C
6 Right Non-Phase
7 N/C
8 N/C

Analogue Outputs CM-ULX1
The stereo analogue balanced line output is on two male 3 pin XLR
connectors with the following pin assignments:
Pin 1: 0V Common
Pin 2: Phase
Pin 3: Non Phase

Technical Spec CM-ULR1/CM-ULX1

Audio Specification

Input/Output Level Ratio: 1:2

Input/Output Impedance Ratio: 1:4

Max Input Level: +22dBu

Max Output Level: +28dBu

Frequency Response: 20Hz to 20kHz, +0/-0.5dB

Noise: <-100dBu A-wgtd

Distortion Ref +8dBu (Output): <0.02%

Connections

Stereo Unbalanced Line Input
(CM-ULR1 & CM-ULX1):

2 x RCA phono connectors

Balanced Line Output (CM-ULR1): 1 x RJ45 female

StudioHub+™ pinout

Balanced Line Output (CM-ULX1): 2 x male XLRs

Equipment Type

CM-ULR1: Unbalanced to balanced audio

converter, RJ45 output

CM-ULX1: Unbalanced to balanced audio

converter, XLR output

Physical Specification

Dimensions (Raw): 7.7cm (W) x 8.3cm (D) x 4.2cm (H)

3.0” (W) x 3.3” (D) x 1.7” (H)

Weight: Nett: 0.22kg Gross: 0.33kg

Nett: 0.49lbs Gross: 0.73lbs

Fig 1-1: CM-ULR1 Front & Rear View

Fig 1-3: CM-ULX1 Application Diagram

1 : 2

1 : 2

Balanced Output

12345678

Unbalanced

Input

L

R

Unbalanced

Input

1 : 2

1 : 2

Balanced Output L

Balanced Output R

L

R

12

3

12

3

Fig 1-2: CM-ULX1 Front & Rear View
