Sonifex AVN-TB6D, AVN-TB6 Handbook

Manufacturers of Audio Products for AV,

Installed Sound, Broadcast Radio & Broadcast TV

AVN-TB6

6 Button Talkback Intercom (Freestanding)

HANDBOOK

AVN-TB6D

6 Button Talkback Intercom (Desktop)

AVN-TB6 & AVN-TB6 Handbook

This handbook is for use with the following product:

AVN-TB6 & AVN-TB6D 6 Button Talkback Intercom

AW10890A,

Stock Code: 30-371

Revision 1.01, July 2018

©Sonifex Ltd, 2018

All Rights Reserved

Sonifex Ltd, 61, Station Road, Irthlingborough,

Northants, NN9 5QE, England.

Tel: [phone]

Fax: [phone]

Email: [email protected]

Website: http://www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a

commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage

whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic

or mechanical, including photocopying, recording, information storage and retrieval systems, for any

purpose other than the purchaser’s personal use, without the express written permission of Sonifex

Ltd. Unless otherwise noted, all names of companies, products and persons contained herein are

part of a completely fictitious adaptation and are designed solely to document the use of Sonifex

product.

Made in the UK by

For the latest Sonifex handbook information please visit the
Sonifex website at www.sonifex.co.uk

Contents & Figures

Contents

Product Warranty - 2 Year Extended i

Sonifex Warranty & Liability Terms & Conditions i

1. Definitions i

2. Warranty i

Unpacking Your Product ii
Repairs & Returns iii

Conformity iii

Safety & Installation of Mains Operated Equipment iii

Voltage Setting Checks iii
Fuse Rating iii
Power Cable & Connection iii
WEEE Directive iv
Atmosphere/Environment iv

1. AVN-TB6 & AVN-TB6D 6 Button Talkback Intercom 1

Introduction 1

2. Installation 3

Network Connection 3
Microphone 4
GPIO 4
Power Supply 4

3. Front Panel Controls, Connections & Indicators 5

Status Indicators 6

AoIP 6
Ethernet 6
Talk 6
AGC 6
Clock 6
AC PSU 6
DC PSU 6

Channel 1 to 6 Intercom Call Buttons 7
Listen Button 7
Page Button 7
Rotary Encoder Control 7
Reset Switch 7
Mon Button 7
User Button 7
LS Mute Button 7
Mic Mute Button 7
Microphone Input Connector 7

+48V Phantom Power Indicator 8
Headset Connector (AVN-TB6D only) 8
Headphone Output Connector 8
Power Switch 8

4. Rear Panel Connections 9

Headset Connector (AVN-TB6 only) 10
GPI/O 10
Ethernet 1GB & AoIP 1GB Network Interfaces 10
AoIP SFP Interface 10
12V DC Input 10
Mains Fuse 11
Mains AC Input 11

5. Quick Start Guide 12

6. Intercom Calls 13

Making a Call 13
Receiving a Call 13
During a Call 13
Ending a Call 13
Group Calls 13
Call Signal 13
Auto Answer 14
Listen Button 14
Call Functions 14

7. Intercom Calls with IFB 15

8. Non-Intercom Calls 16

9. Page 17

Making a Page 17
Receiving a Page 17
During a Page 17
Ending a Page 17

10. Volume Control 18

Speaker & Headphone Volume 18
Call Channel Volume 18
Monitor Volume 18
Call Signal Volume 18

11. Network Address Announcement 19

12. Embedded Web Server 20

Information Tab 20

Device Information Web Page 20
Audio Assignments Web Page 22

Contents & Figures

GPIO Assignments Web Page 23

Configuration Tab 24

Network Web Page 25
AoIP Stream Settings Web Page 26
PTP Profiles Web Page 27
Channels - Basic Settings Web Page 29
Channels - Advanced Settings Web Page 30
Group Talk Web Page 31
Front Panel - Display Settings Web Page 32
Front Panel - Colour Settings Web Page 32
Front Panel - User Button Settings Web Page 33
Audio - Microphone Settings Web Page 34
Audio - Monitor & Speaker Settings Web Page 35
Page Settings Web Page 36
GPIO Settings Web Page 37

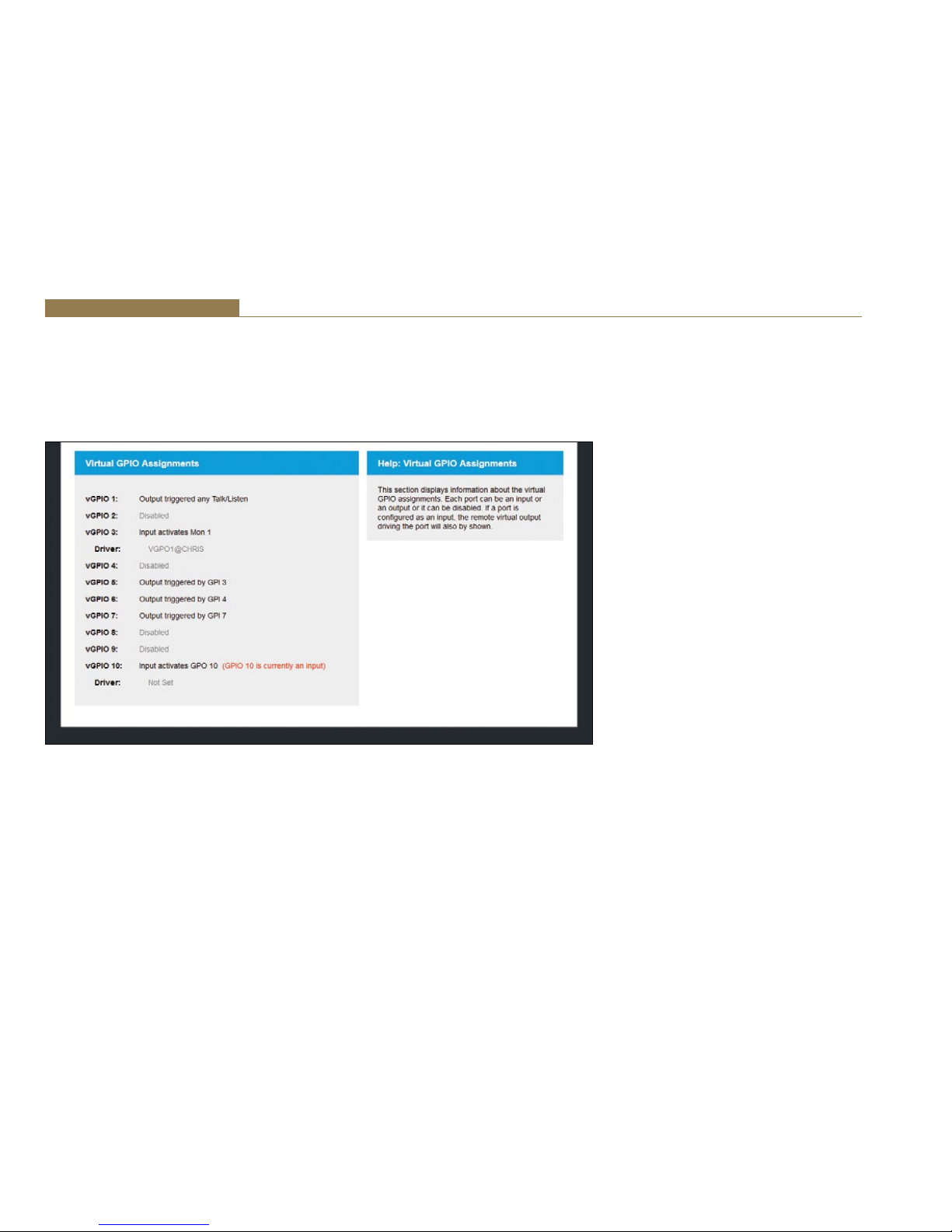

Virtual GPIO Settings Web Page 38
Miscellaneous Settings Web Page 39

System Tab 39

13. Ember+ Interface 42

Connecting to the Ember+ Interface 42
GPIO 42

Type Parameter 43
Input Function Parameter 43
Input Action Parameter 43
Output Trigger Parameter 43
Status Parameter 43
Set Output Function 43

Relay 43

Trigger Parameter 43
Status Parameter 43
Active Function 43

Virtual GPIO Control 44

Type Parameter 44
Input Function Parameter 44
Input Driver Name Parameter 44
Output Trigger Parameter 44
Status Parameter 44
Set Output Function 44

Parameter Value Specification 45

Identity 45
Network 45
AoIP 45
PTP 45
Display 46
Mic 46
Channels 46
Group Talk 47
Page 47
GPIO 47
Relay 48
User 49
Monitors 49
Speaker 49
Power Button 49
AC PSU Status 49
DC PSU Status 49

14. Technical Specifications 50

15. Additional Information 52

Contents & Figures

Figures

Fig 1-1: The AVN-TB6 Front Panel 1
Fig 1-2: The AVN-TB6D Front Panel 1

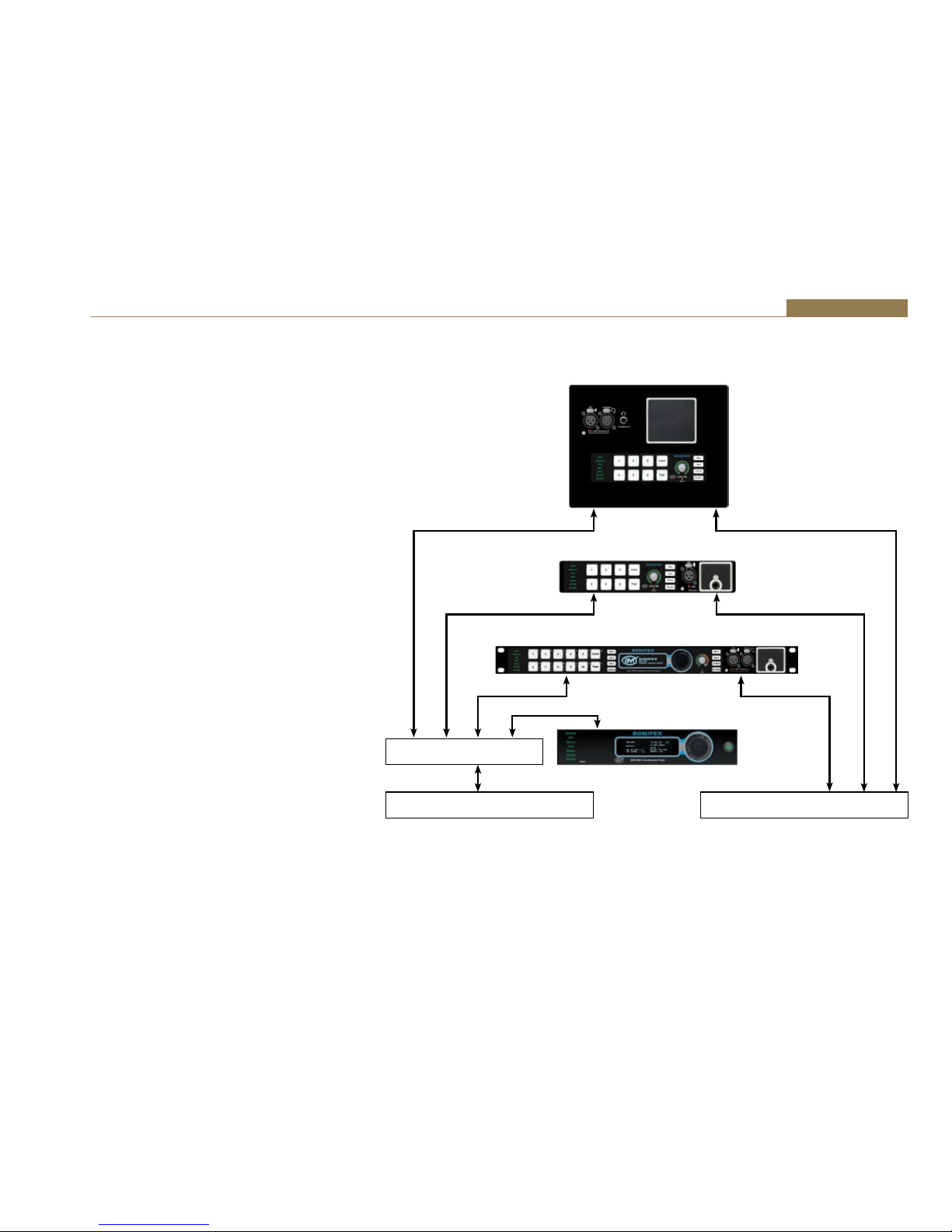

Fig 2-1: Preferred Network Topology 3

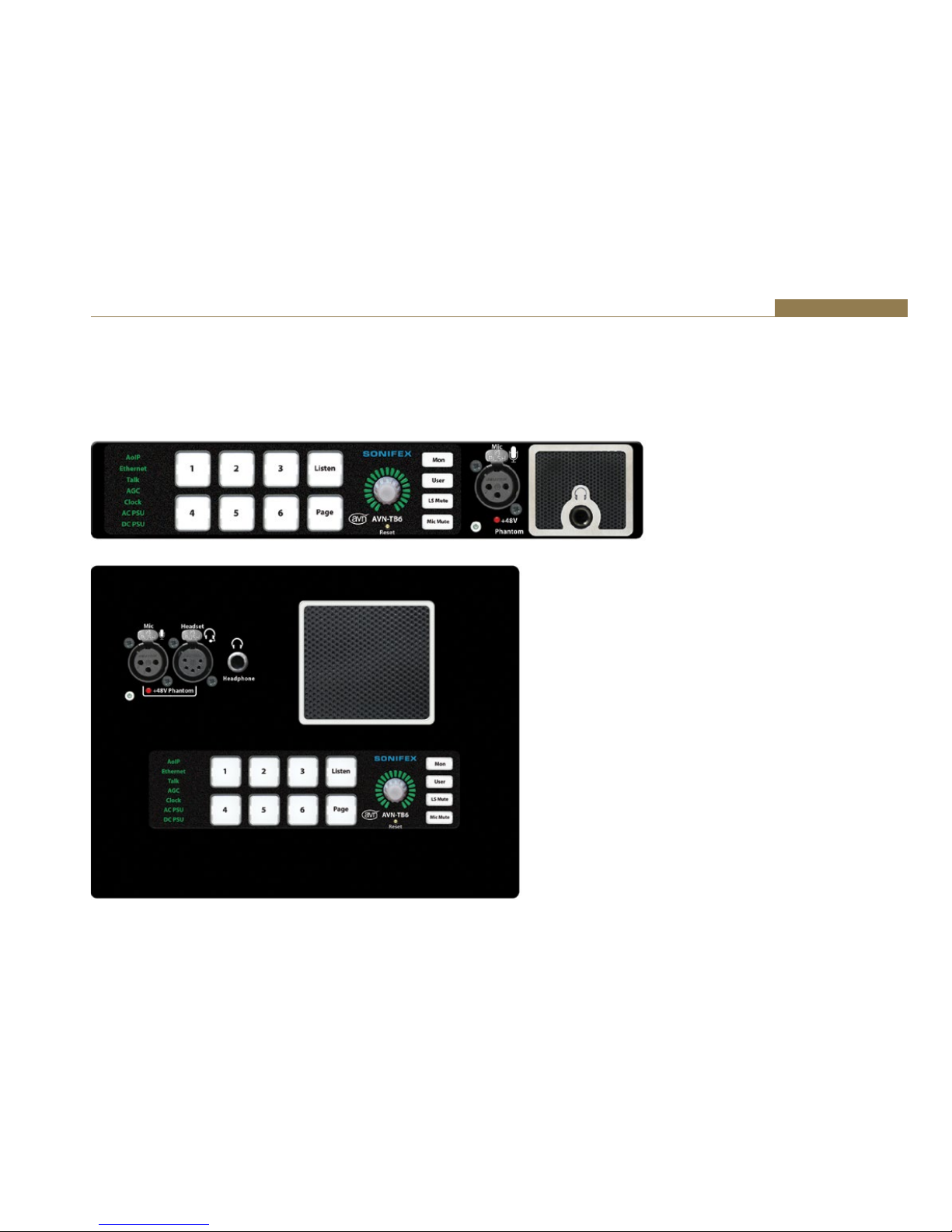

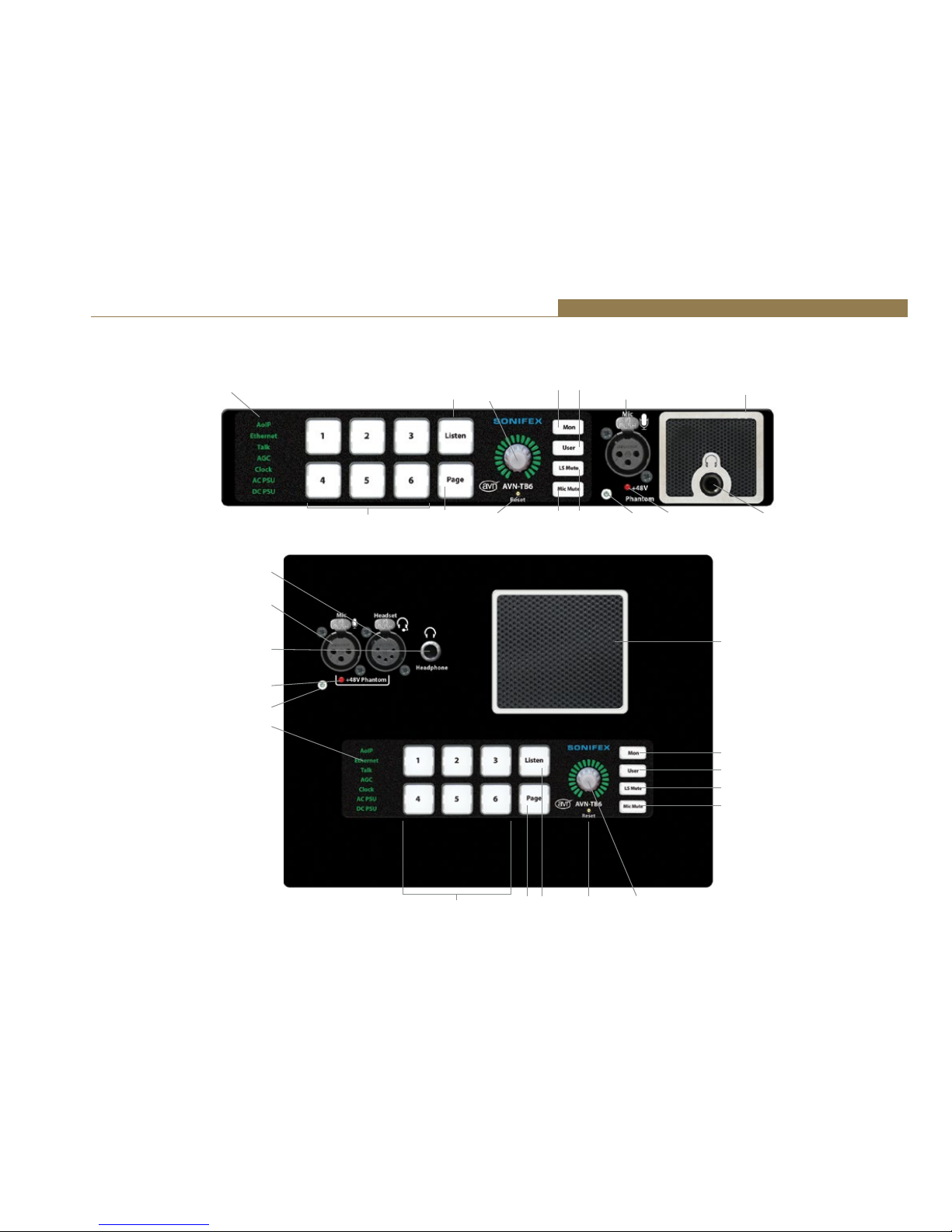

Fig 3-1: AVN-TB6 and AVN-TB6D Front Panels 5

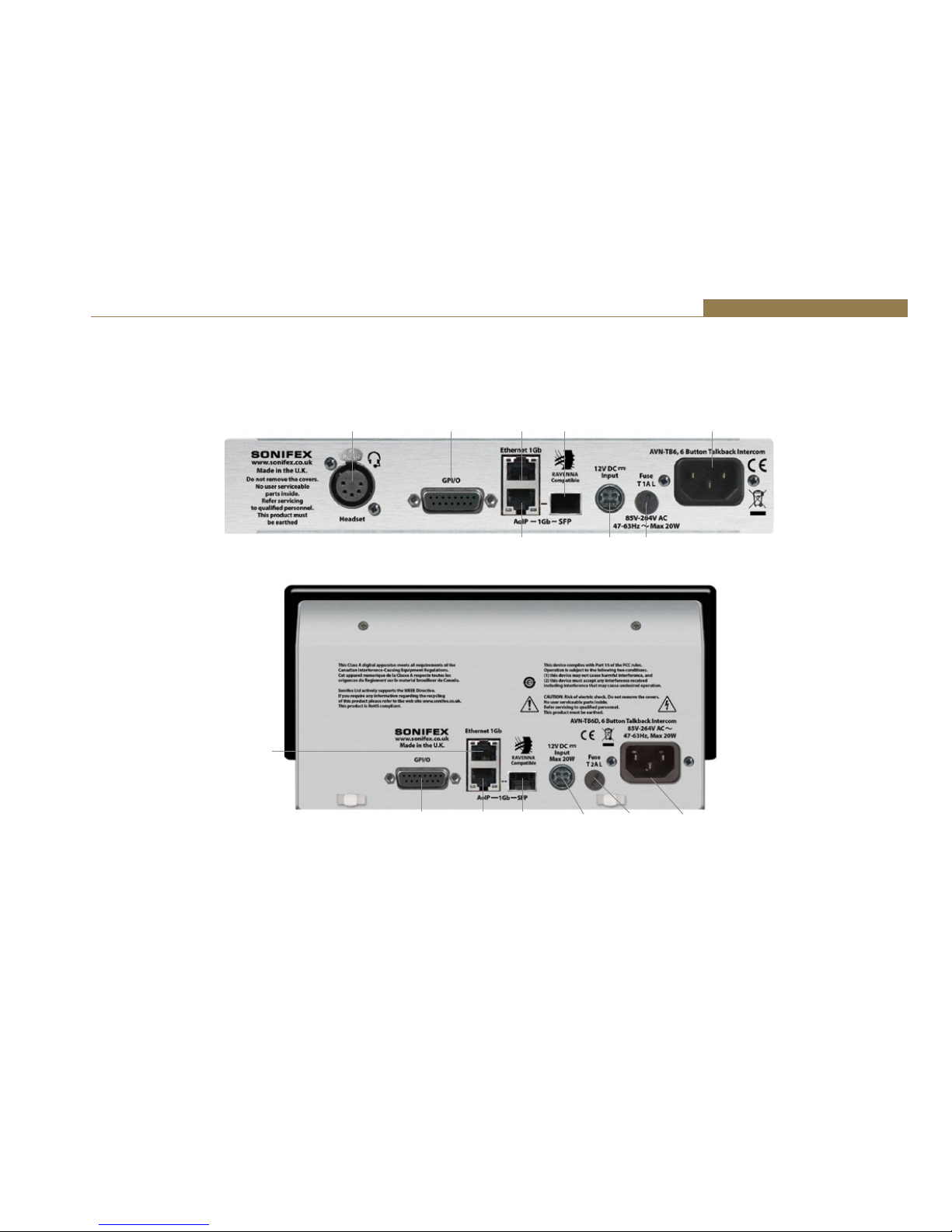

Fig 4-1: AVN-TB6 and AVN-TB6D Rear Panels 9
Table 6-1: Call Functions 14

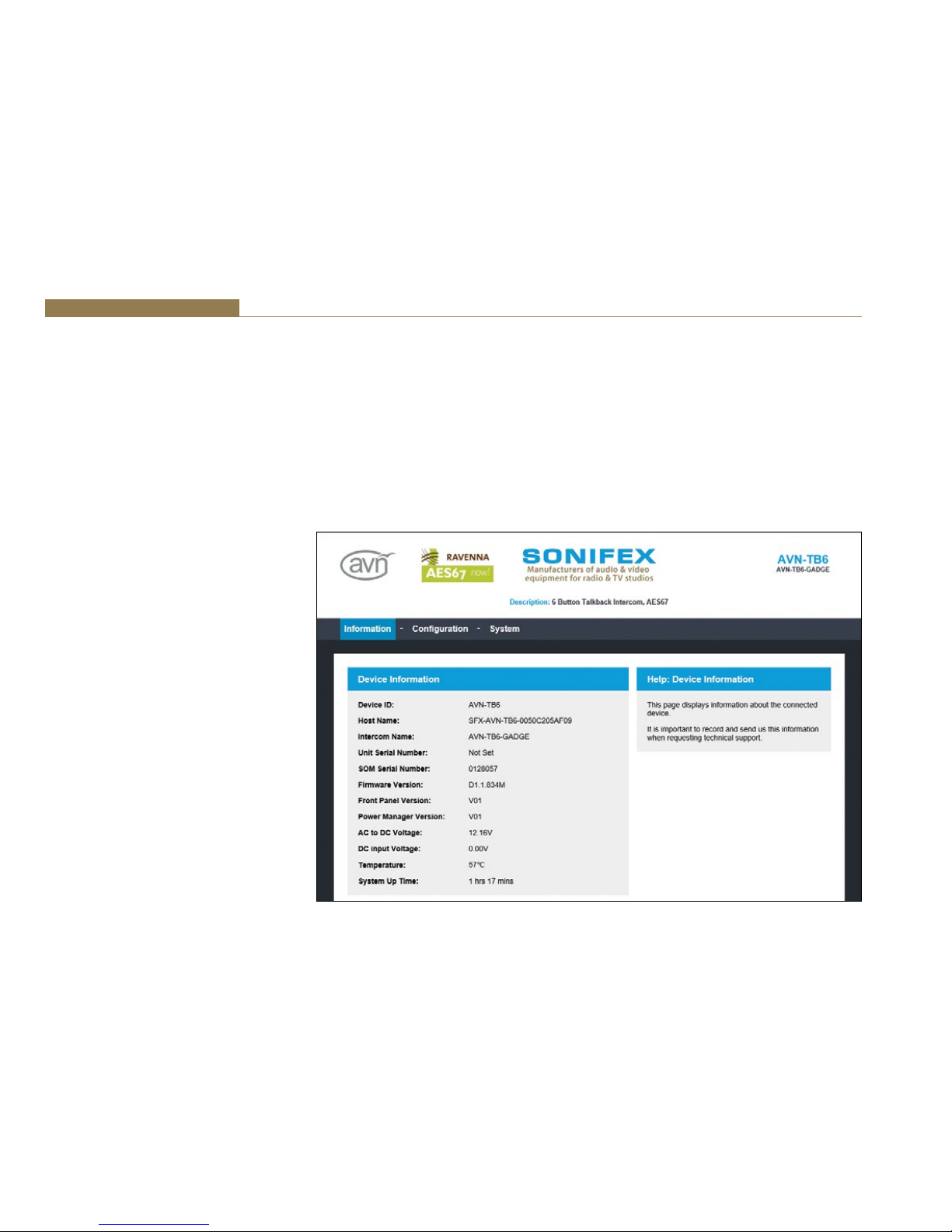

Fig 12-1: Upper Section of Device Information Web Page 20

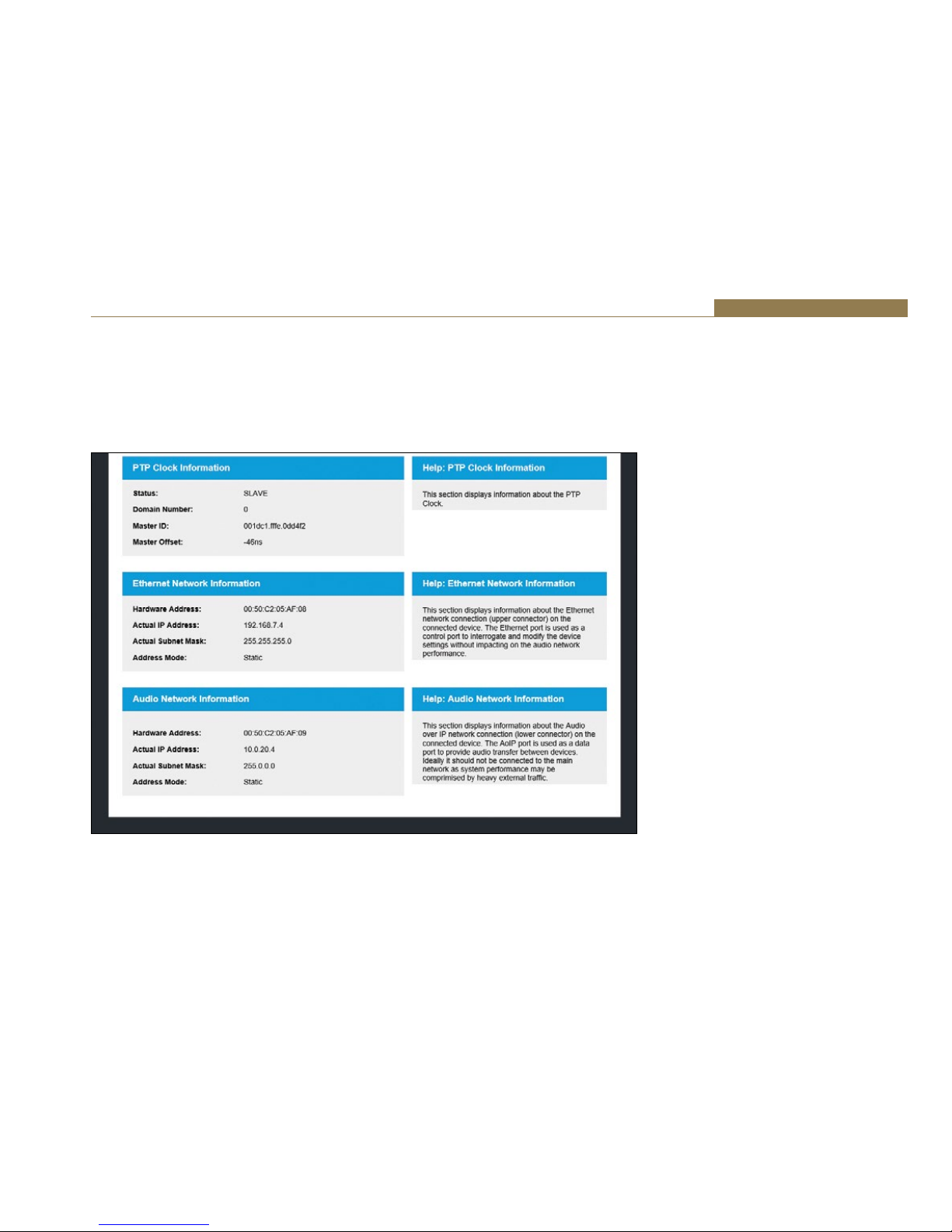

Fig 12-2: Lower Section of Device Information Web Page 21

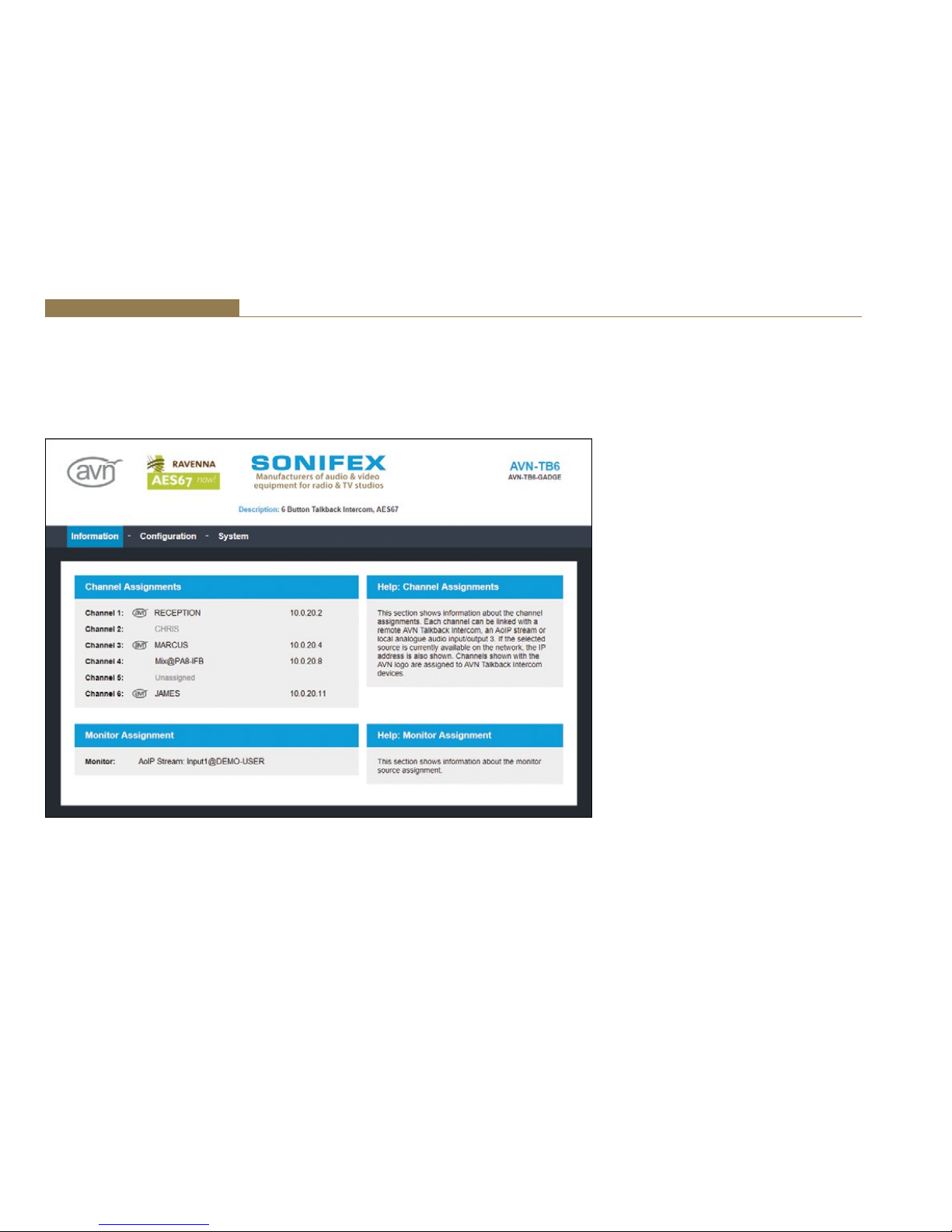

Fig 12-3: Audio Assignments Web Page 22

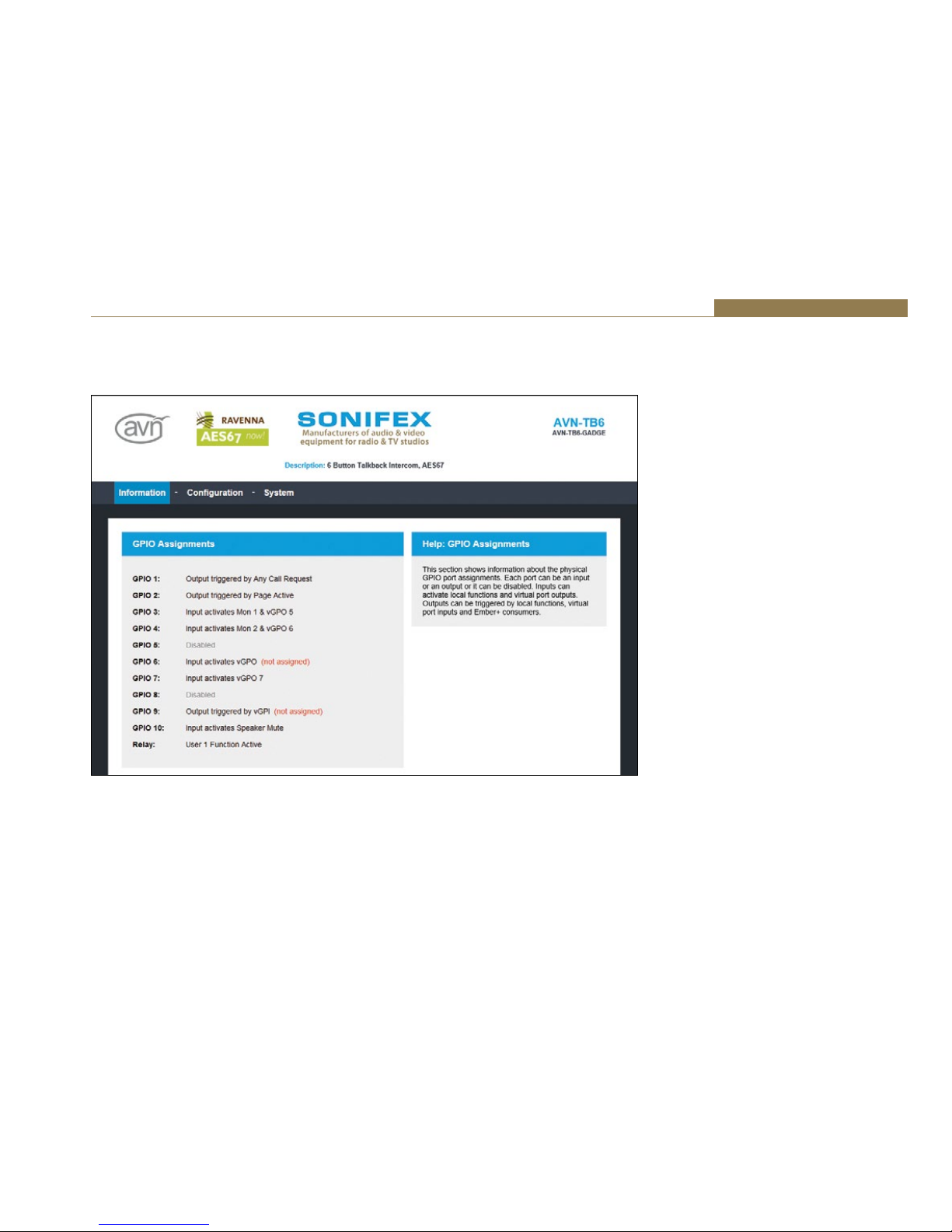

Fig 12-4: Upper Section of GPIO Assignments Web Page 23
Fig 12-5: Lower Section of GPIO Assignments Web Page 24

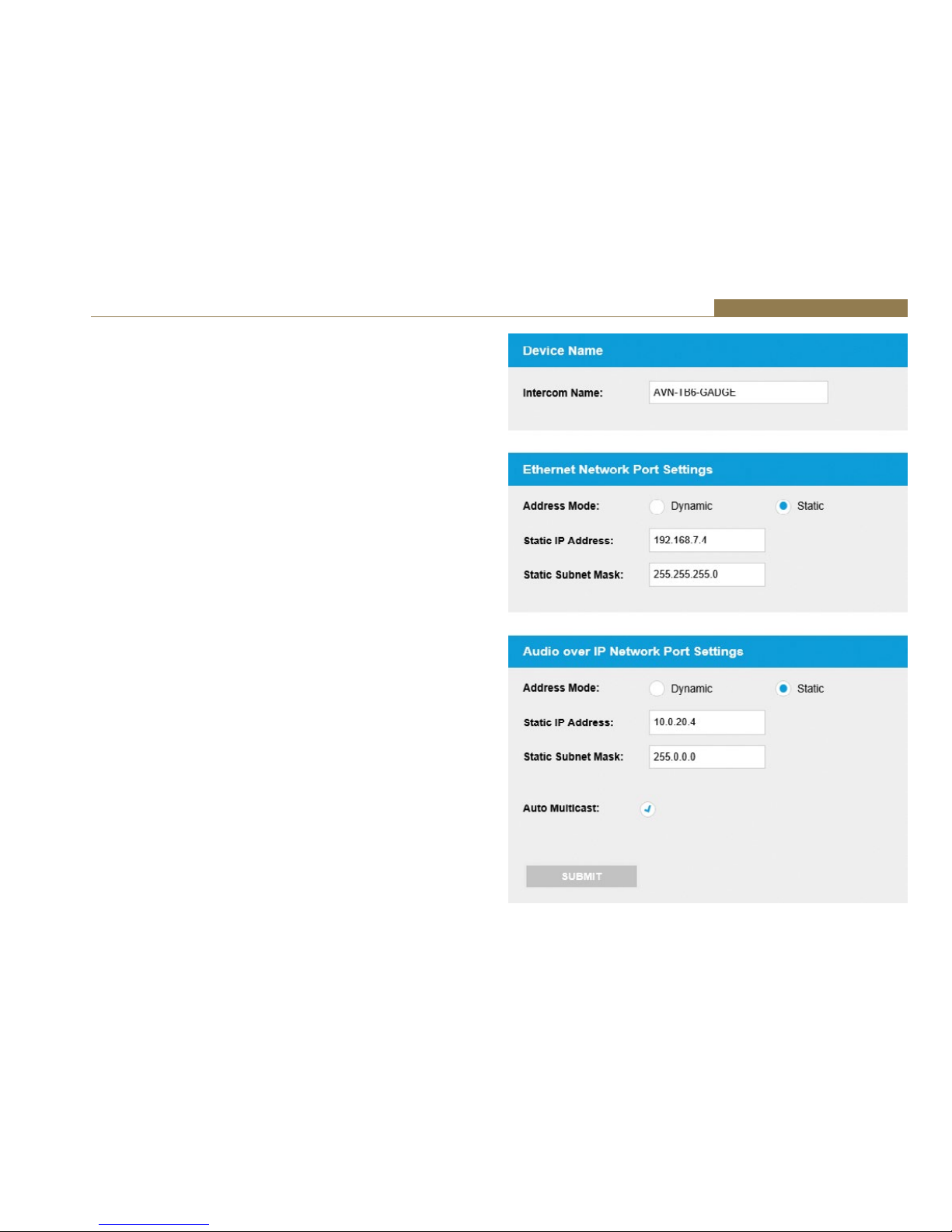

Fig 12-6: Network Web Page 25

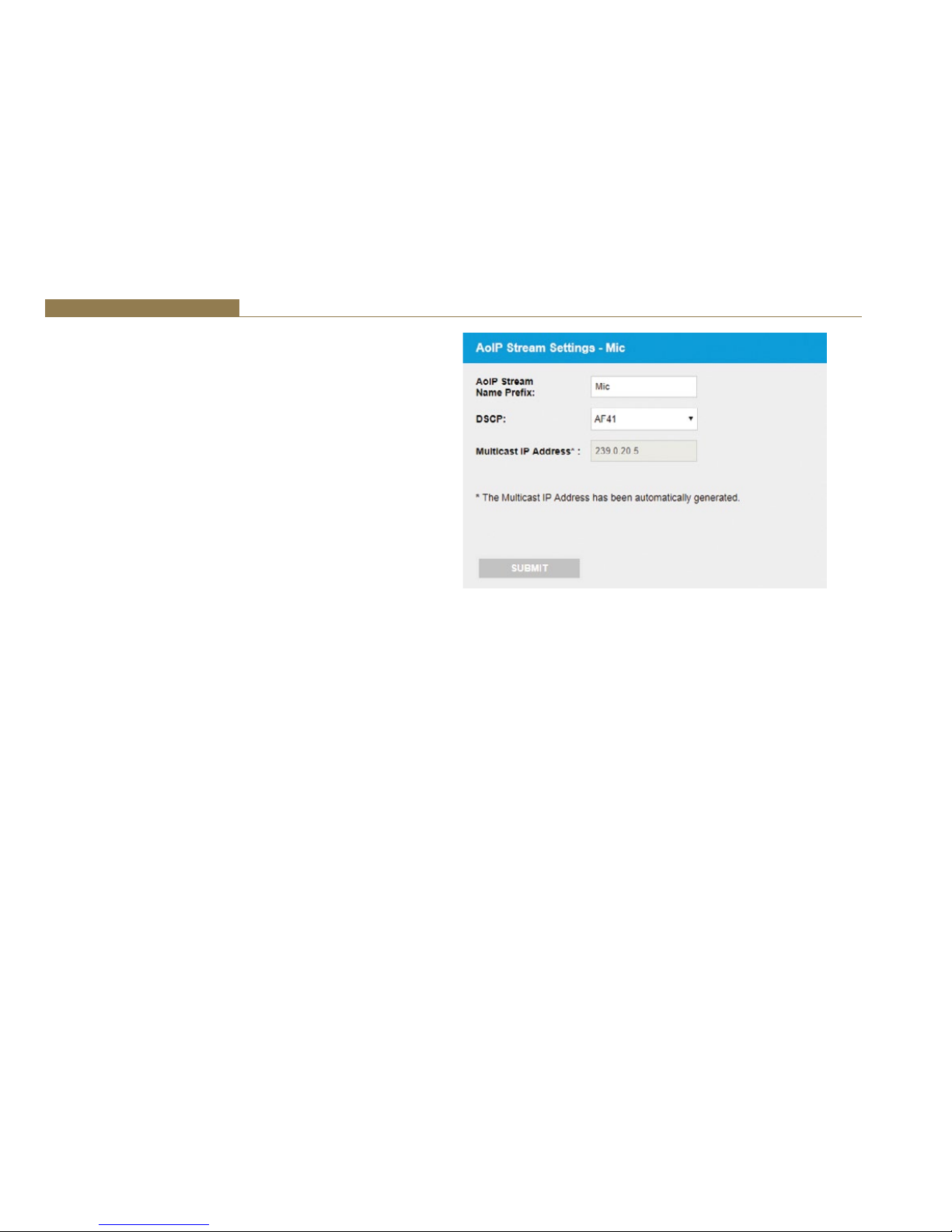

Fig 12-7: AoIP Stream Settings Web Page 26

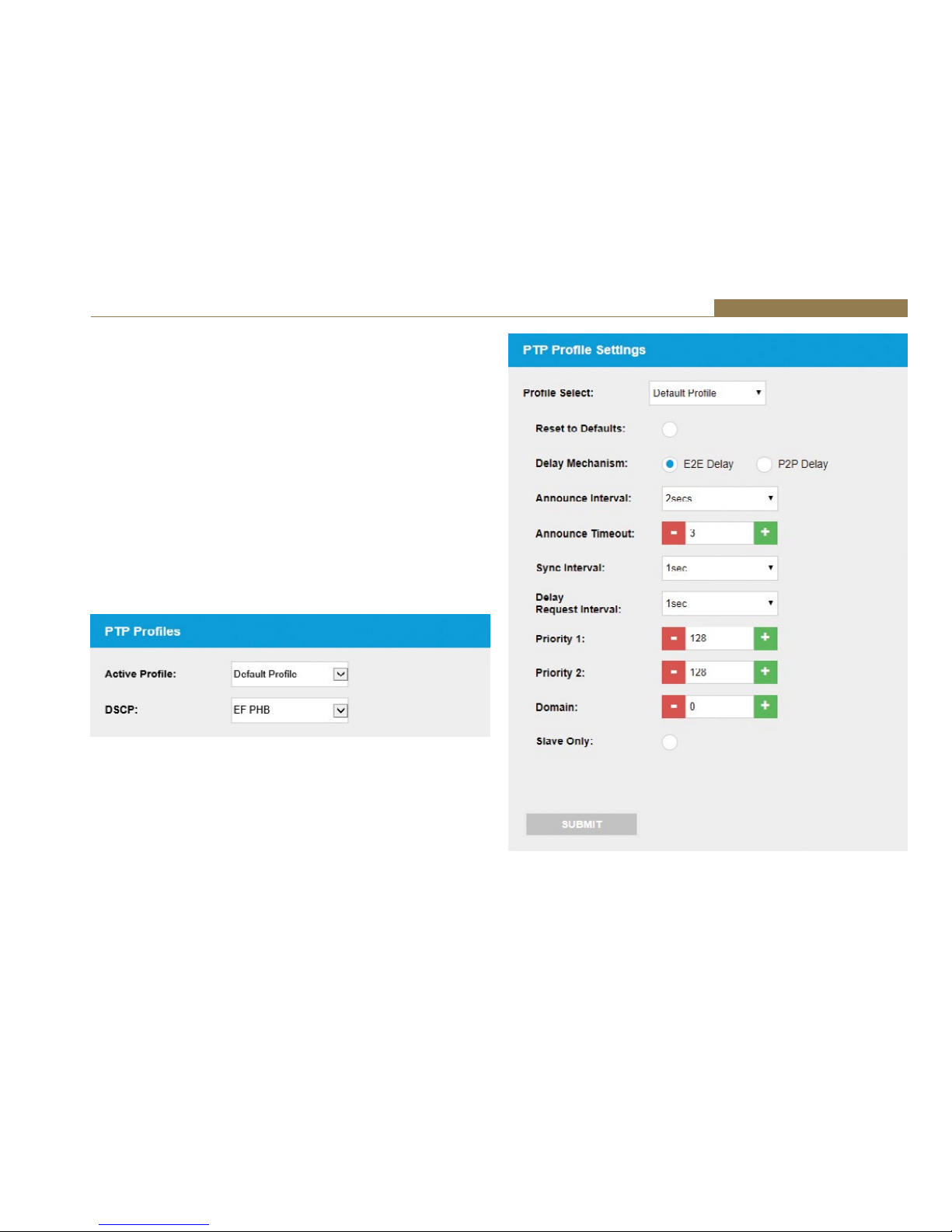

Fig 12-8: Upper Section of PTP Profiles Web Page 27
Fig 12-9: Lower Section of PTP Profiles Web Page 27

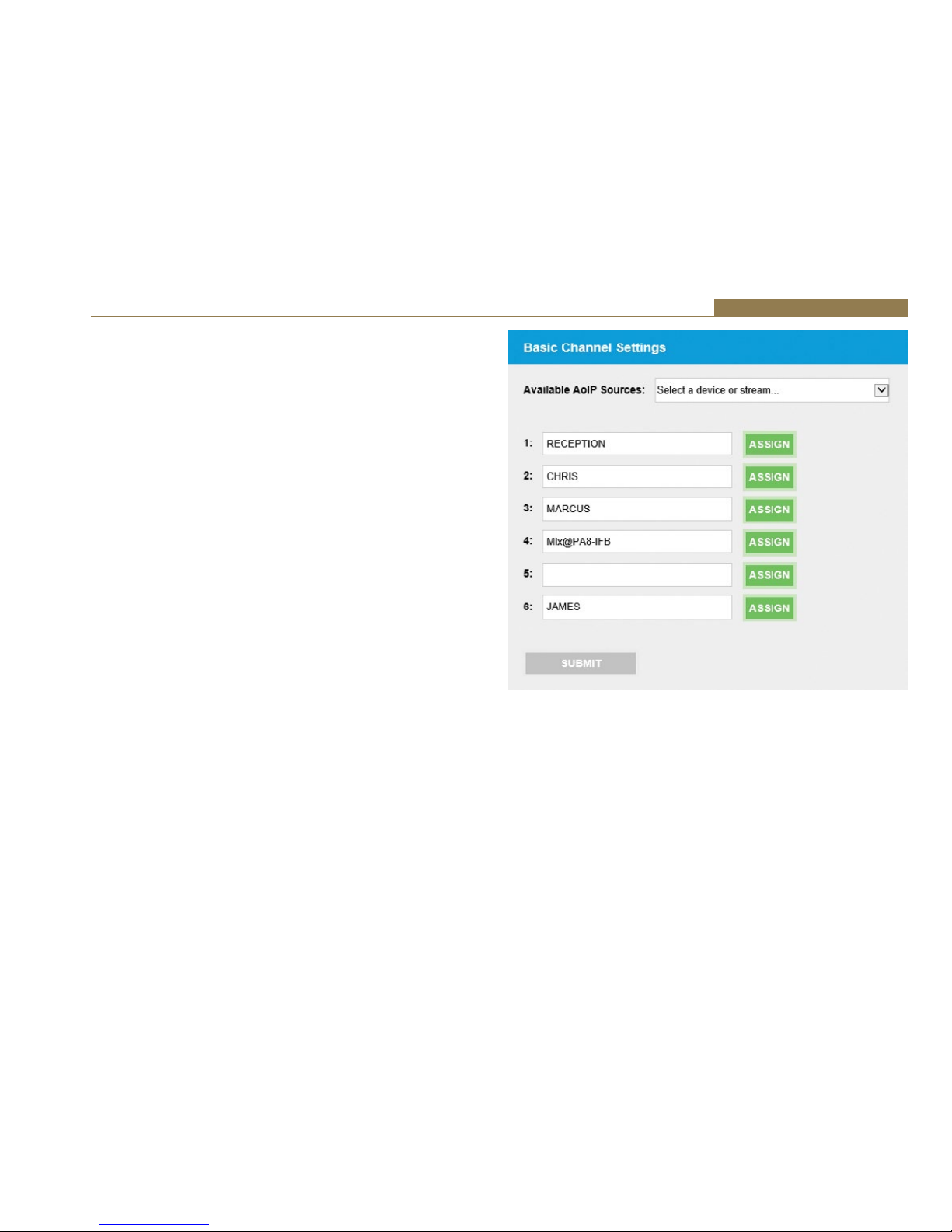

Fig 12-10: Channels - Basic Settings Web Page 29

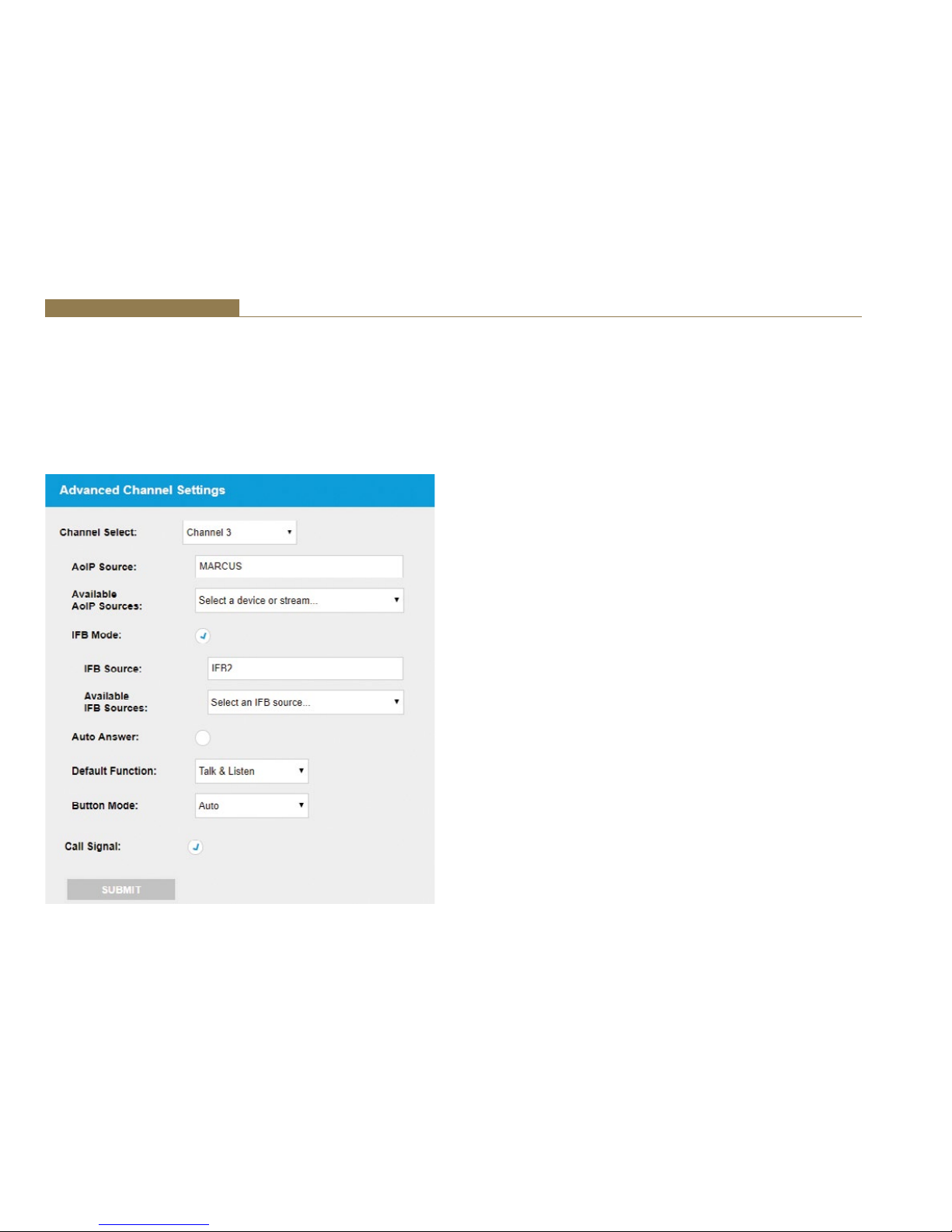

Fig 12-11: Channels - Advanced Settings Web Page 30

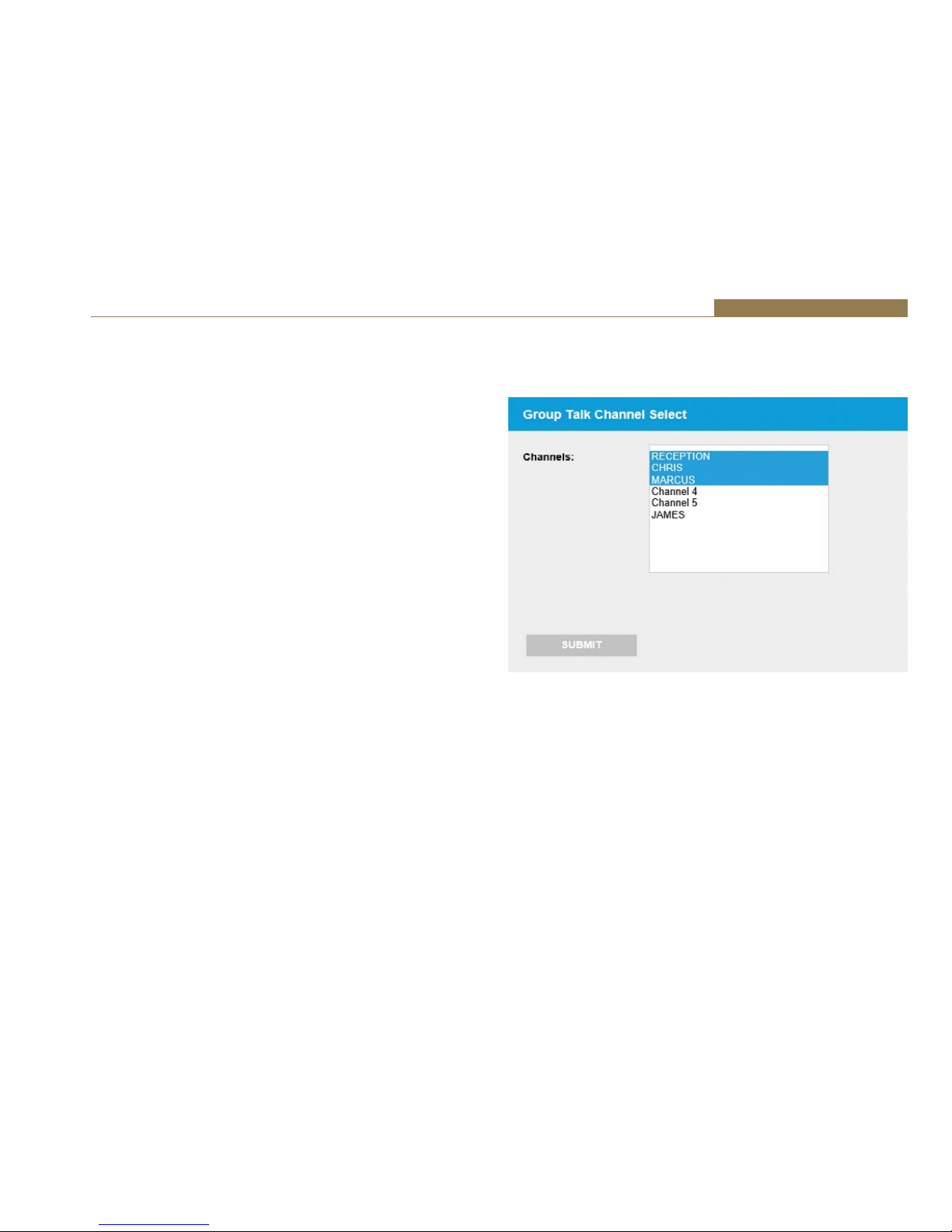

Fig 12-12: Group Talk Web Page 31

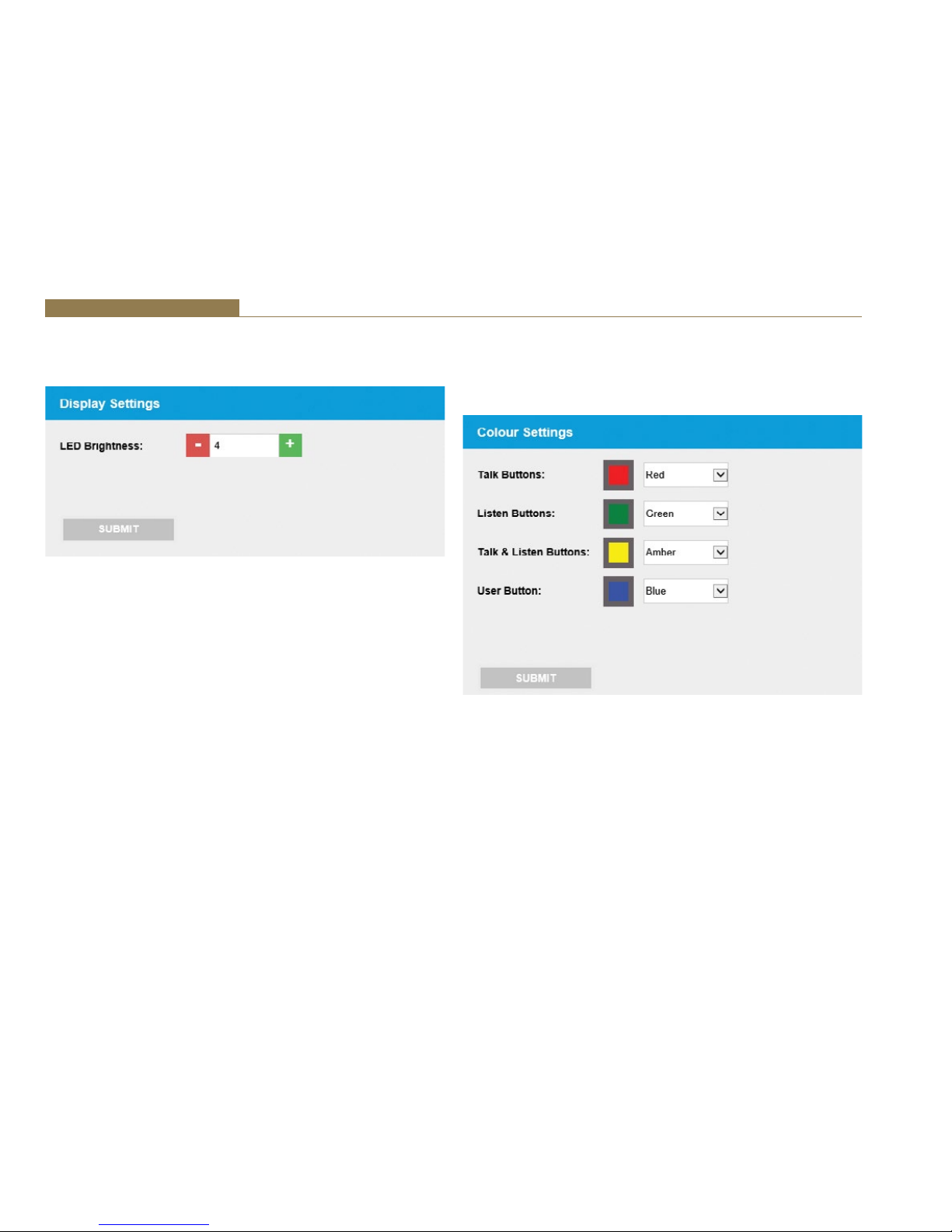

Fig 12-13: Front Panel - Display Settings Web Page 32
Fig 12-14: Front Panel - Colour Settings Web Page 32

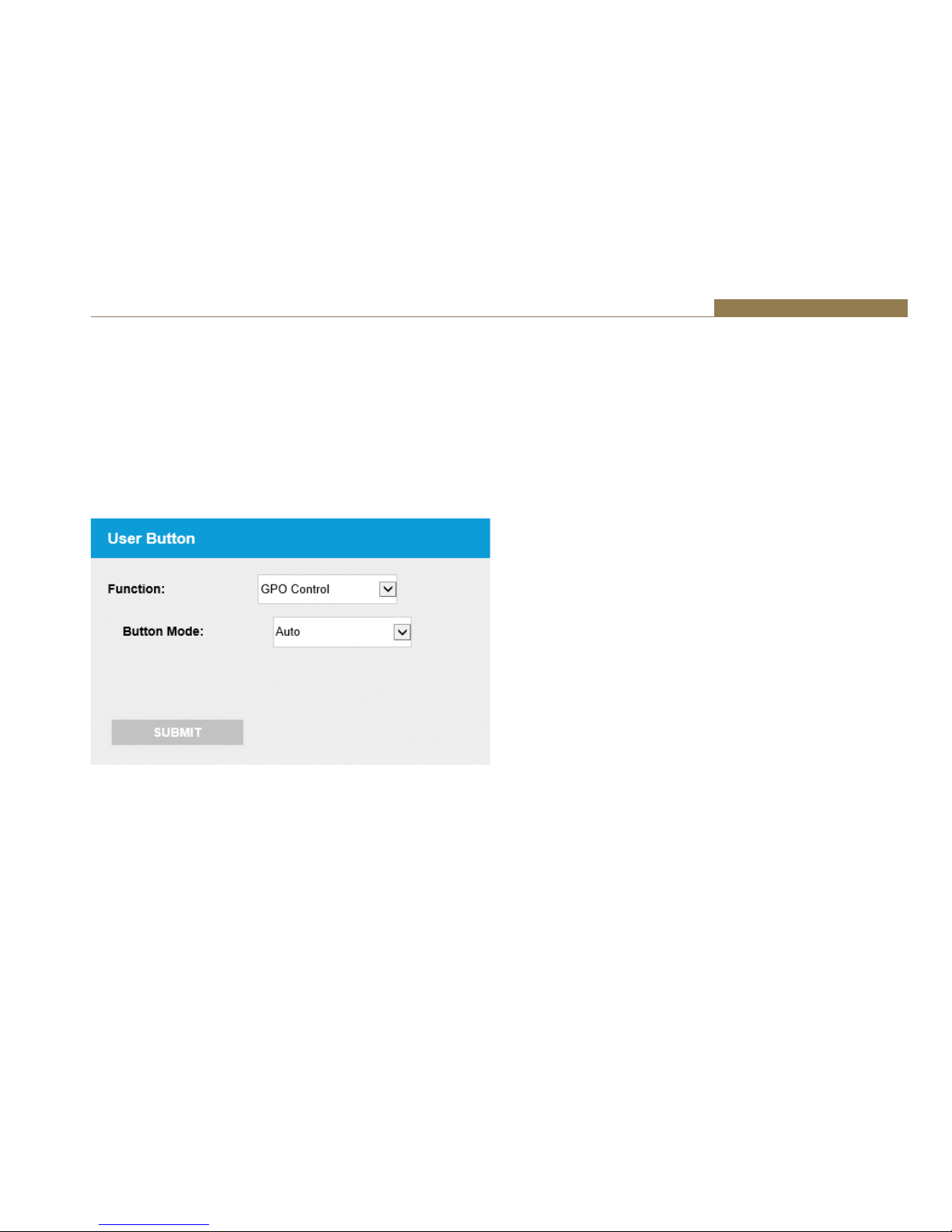

Fig 12-15: Front Panel - User Button Settings Web Page 33

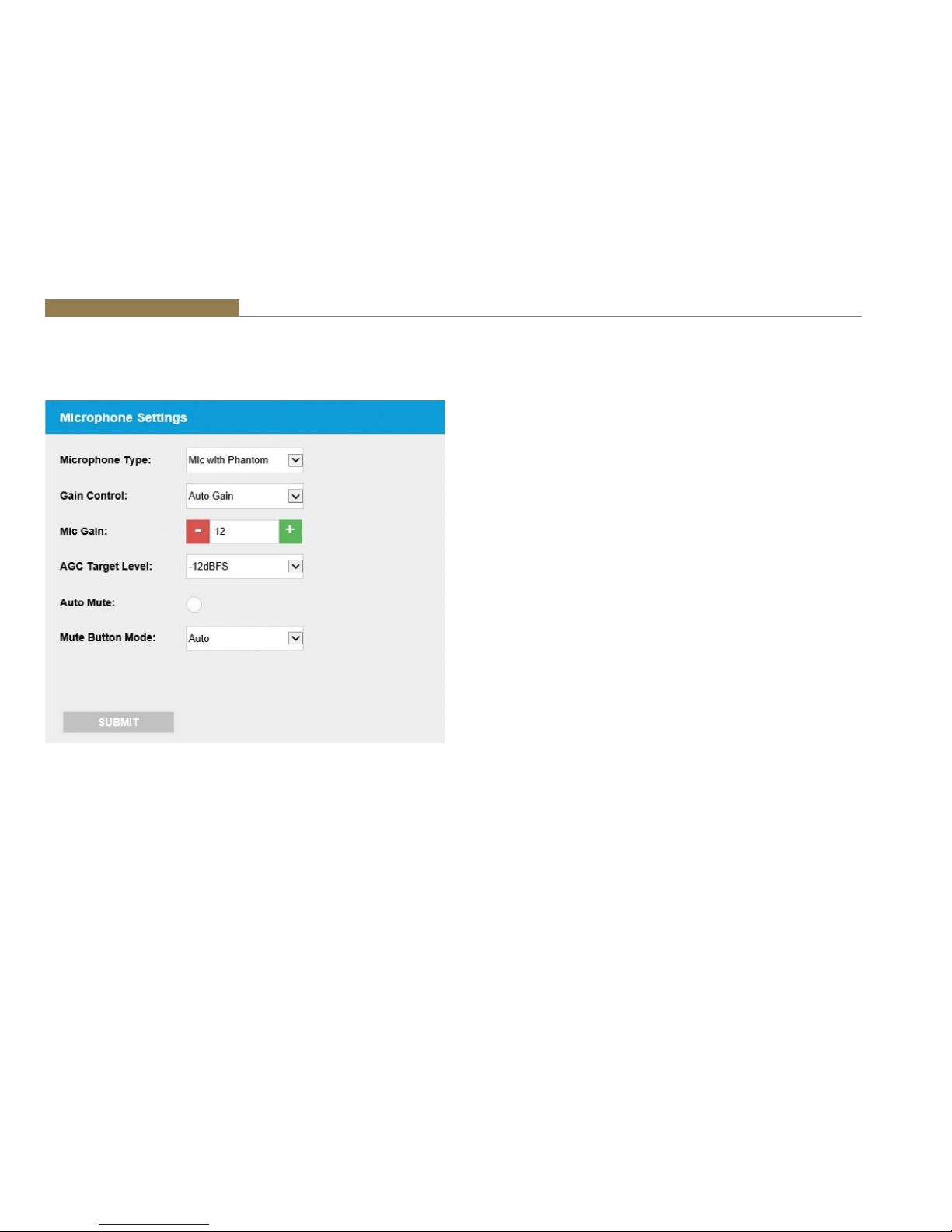

Fig 12-16: Audio - Microphone Settings Web Page 34

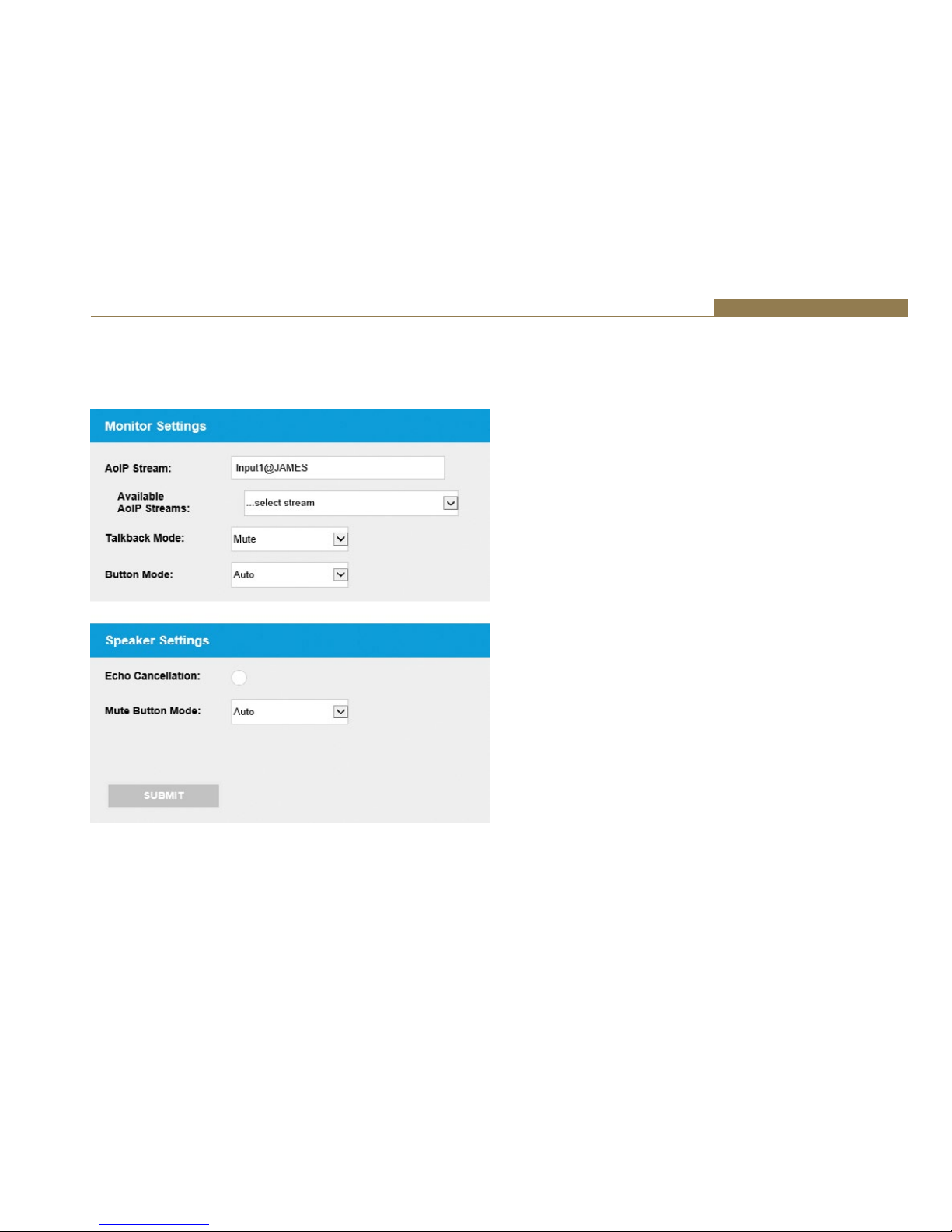

Fig 12-17: Audio - Monitor & Speaker Settings Web Page 35

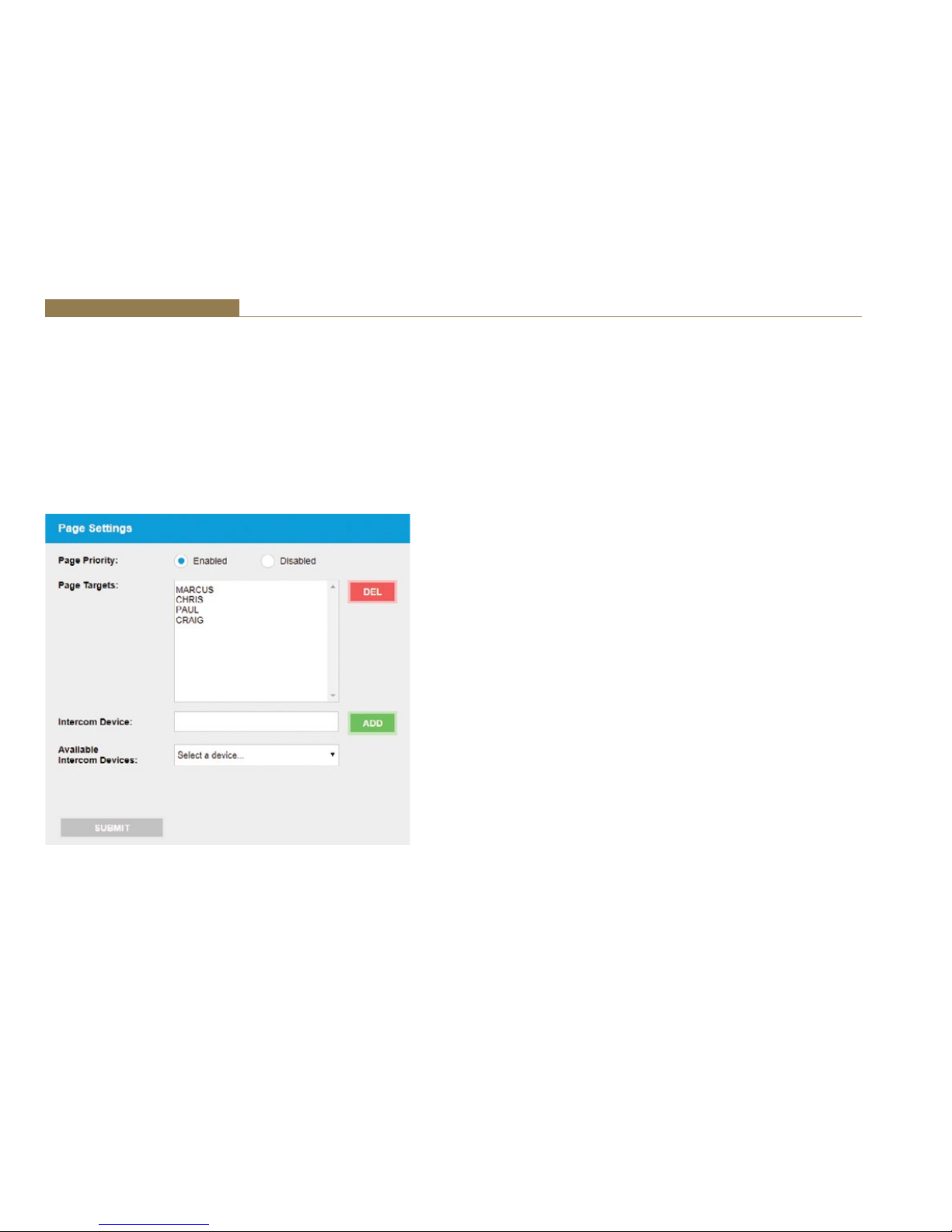

Fig 12-18: Page Settings Web Page 36

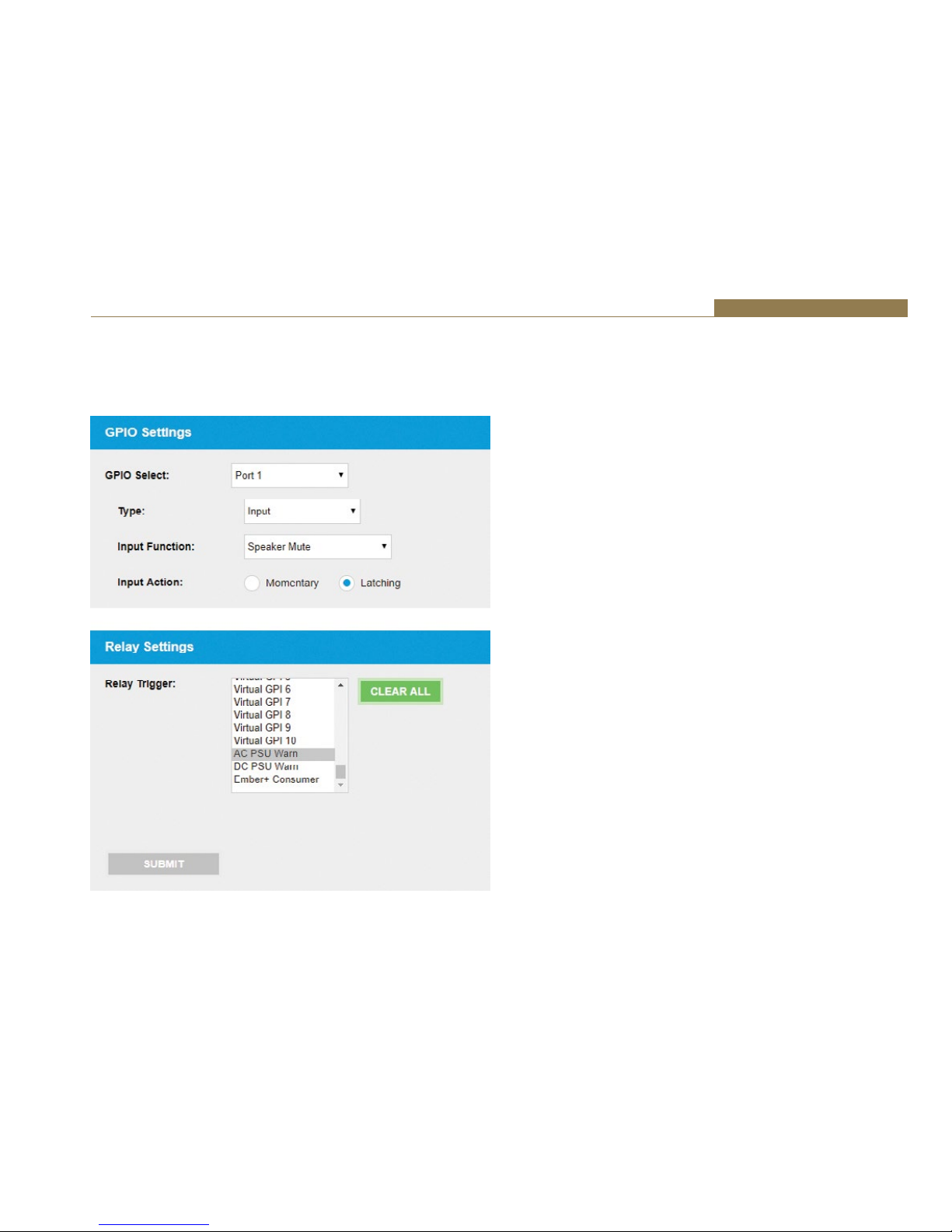

Fig 12-19: GPIO Settings Web Page 37

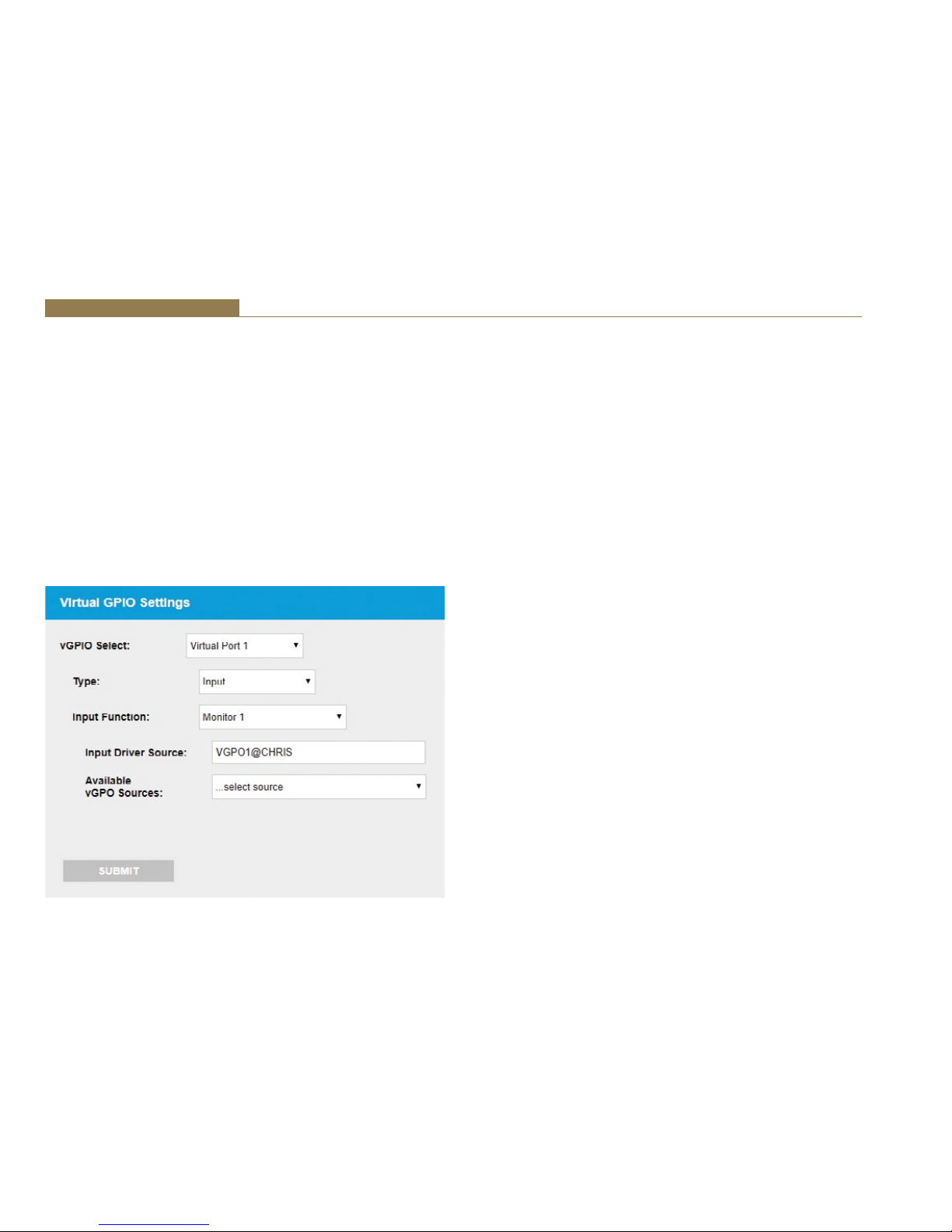

Fig 12-20: Virtual GPIO Settings Web Page 38

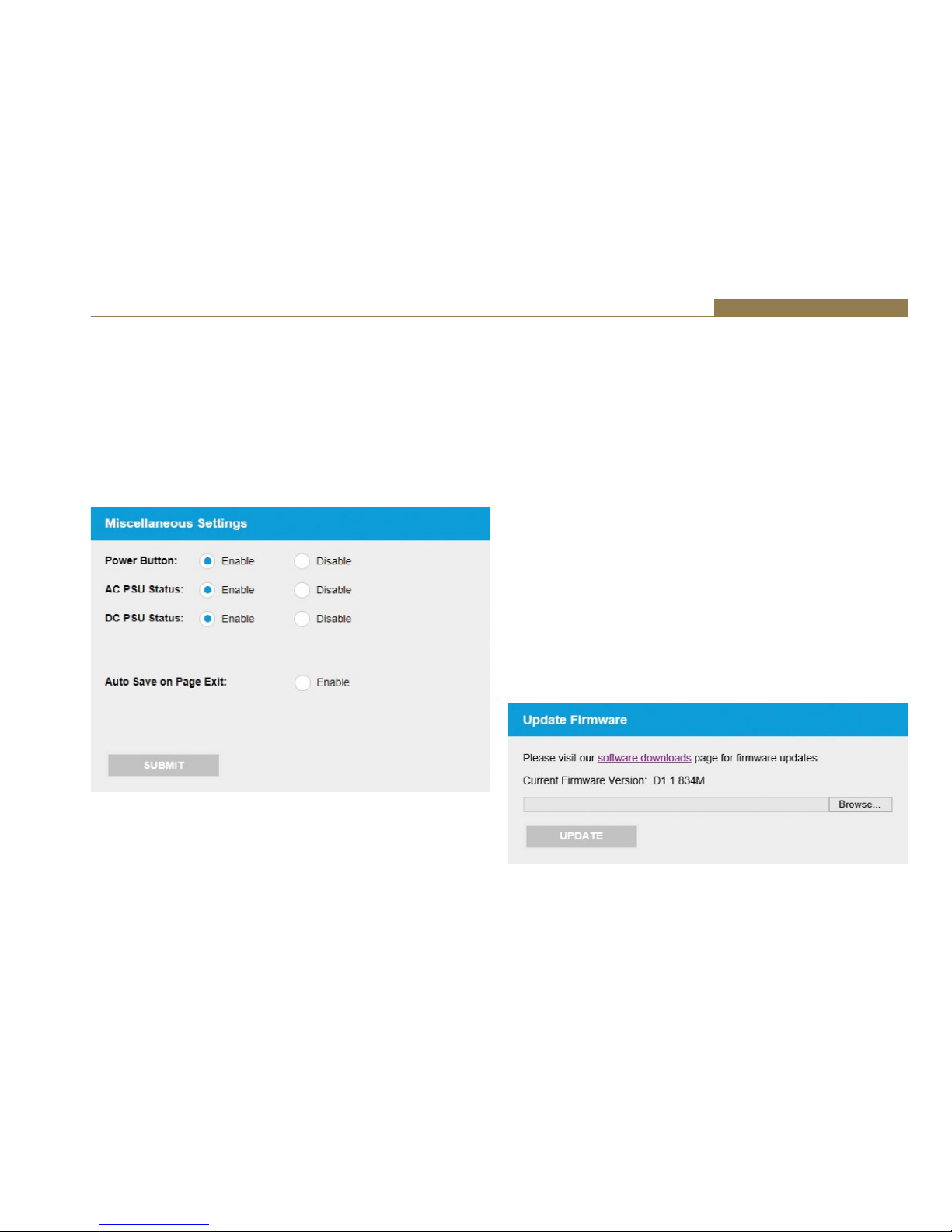

Fig 12-21: Miscellaneous Settings Web Page 39
Fig 12-22: Update Firmware Section of System Web Page 39

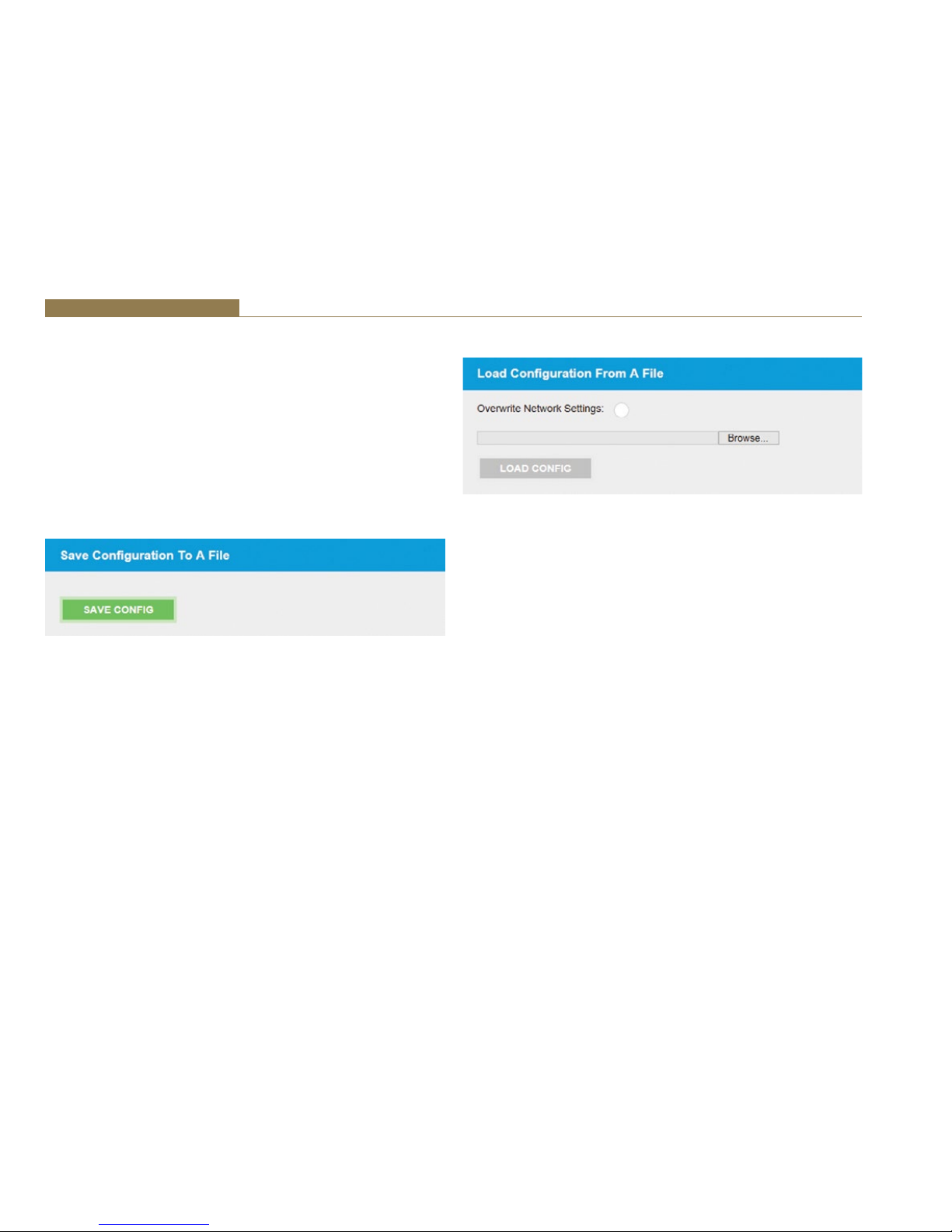

Fig 12-23: Save Configuration Section of System Web Page 40
Fig 12-24: Load Configuration Section of System Web Page 40

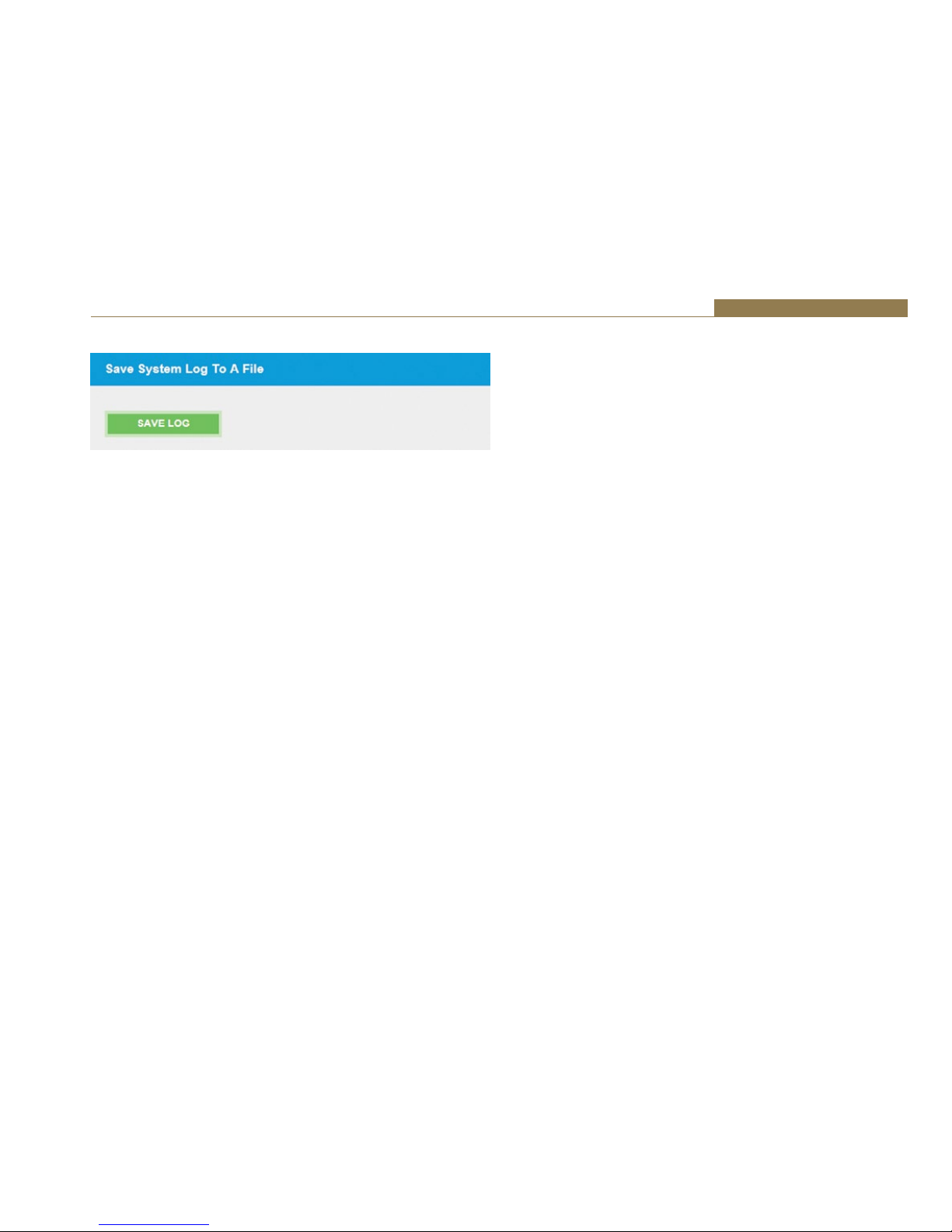

Fig 12-25: Save System Log Section of System Web Page 41

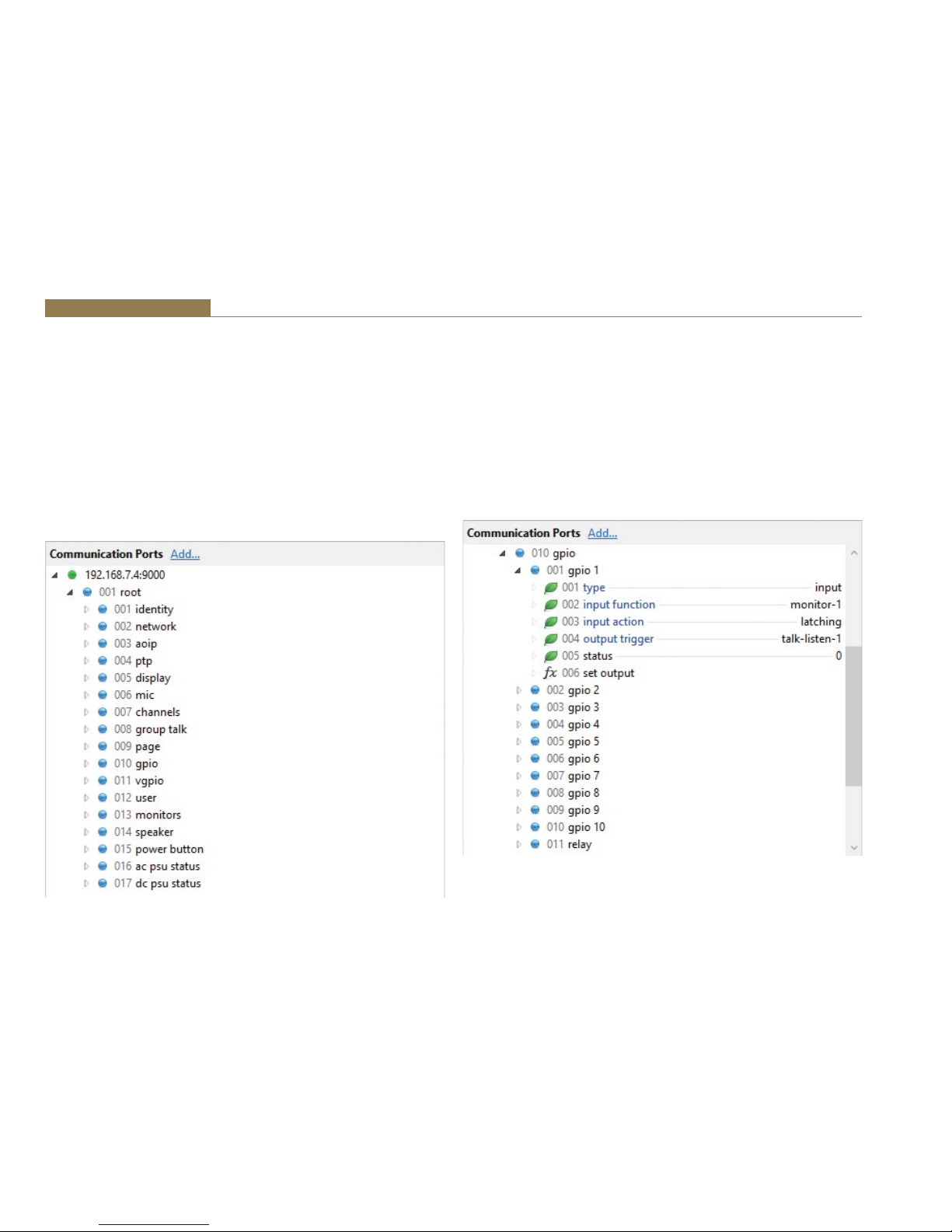

Fig 13-1: Ember+ Root Structure 42
Fig 13-2: Ember+ GPIO Branch Structure 42

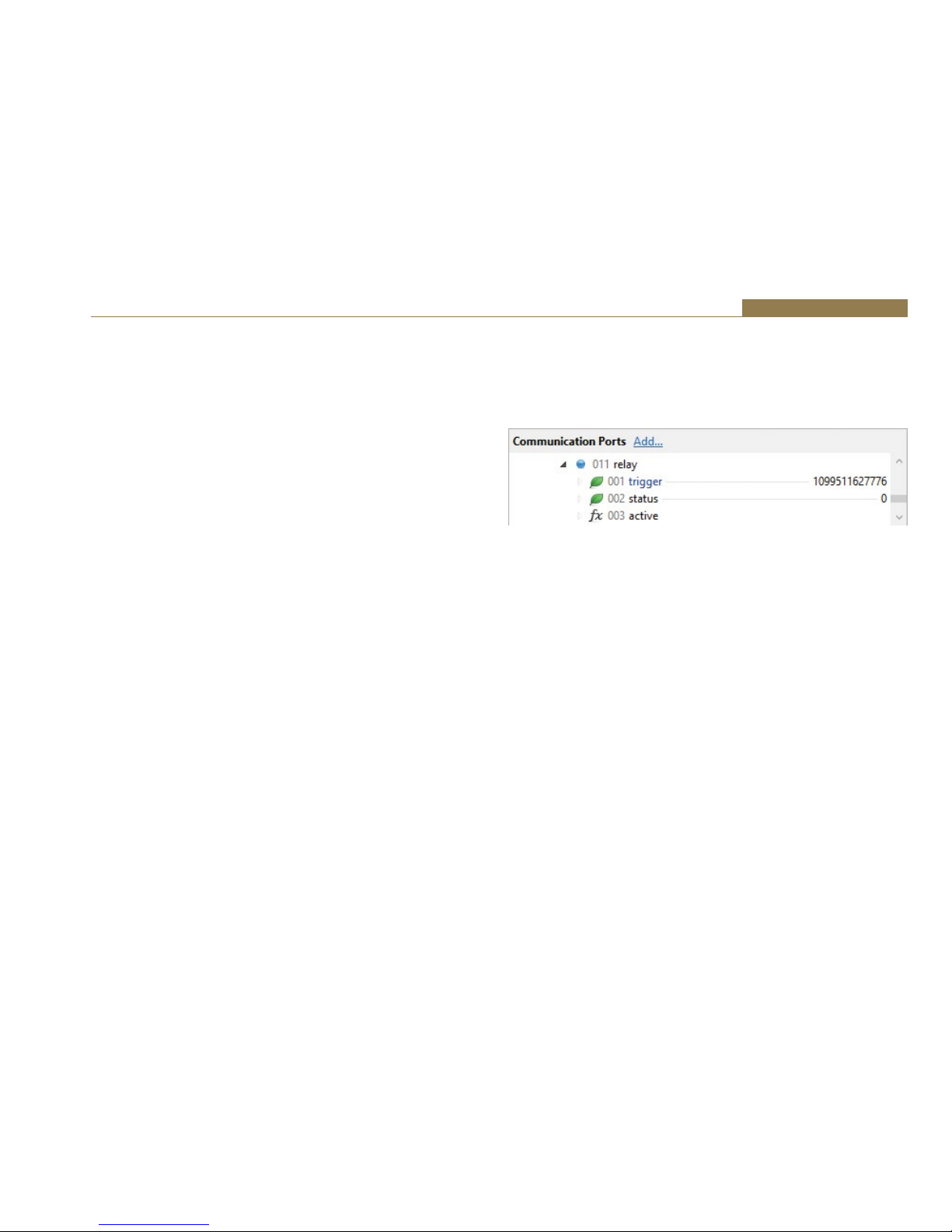

Fig 13-3: Ember+ Relay Node Structure 43

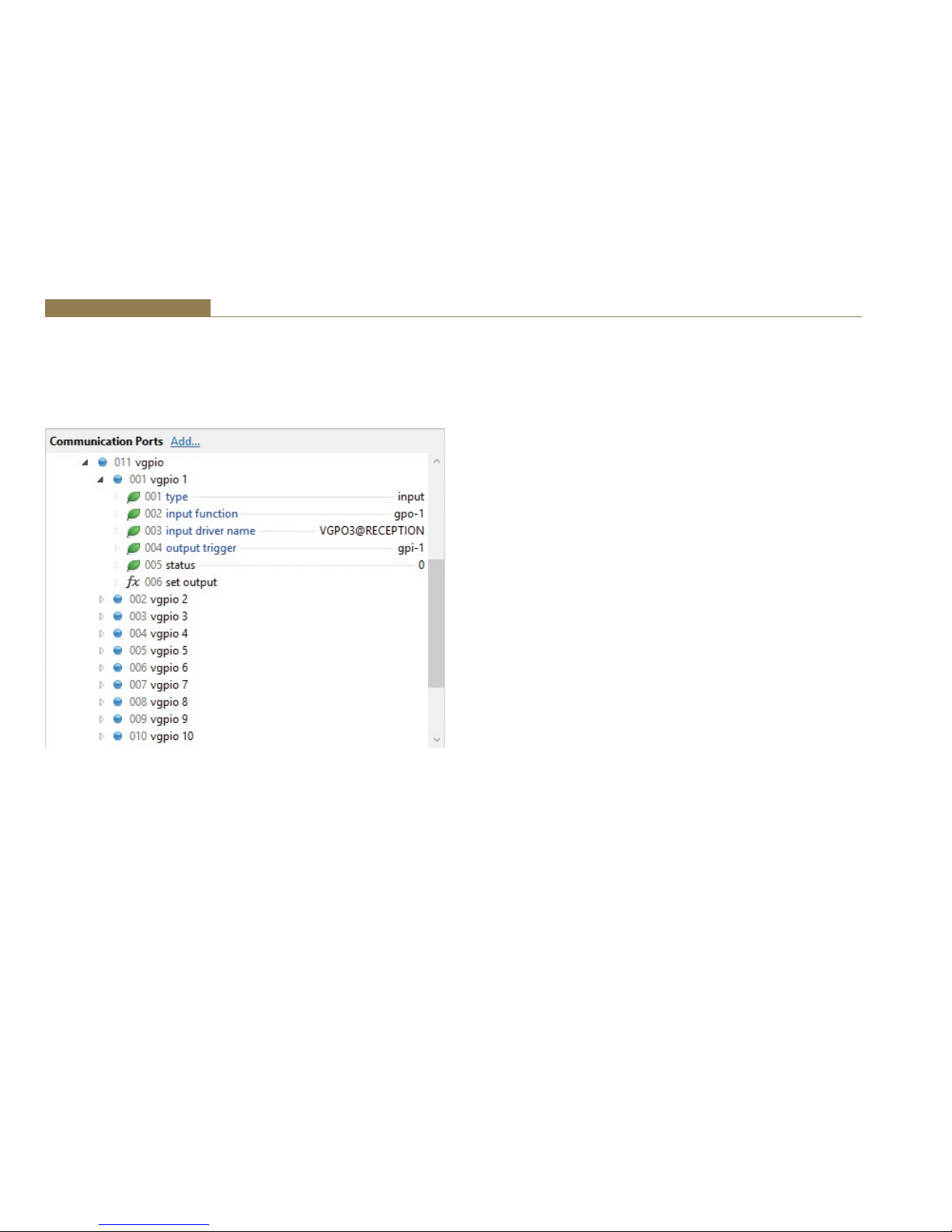

Fig 13-4: Ember+ Virtual GPIO Branch Structure 44
Table 15-1: DSCP Names & Their Corresponding IP Precedence 52

Warranty Registration

Sonifex Limited  61 Station Road  Irthlingborough  Northamptonshire  NN9 5QE  United Kingdom
Tel: [phone]  Fax: [phone]  Email: [email protected]  Internet: www.sonifex.co.uk

Register Online for an
Extended 2 Year Warranty

As standard, Sonifex products are
supplied with a 1 year back to base
warranty.

If you register the product online, you
can increase your product warranty
to 2 years and we can also keep
you informed of any product design
improvements or modifications.

Product:

Serial No:

To register your product, please go online to www.sonifex.co.uk/register

i

Warranty

Product Warranty - 2 Year Extended

As standard, Sonifex products are supplied with a 1 year back to base
warranty. In order to register the date of purchase and so that we can keep
you informed of any product design improvements or modifications, it is
important to complete the warranty registration online. Additionally, if you
register the product on the Sonifex website, you can increase your product
warranty to 2 years. Go to the Sonifex website at: www.sonifex.co.uk/
register to apply for your 2 year warranty.

Sonifex Warranty & Liability Terms &
Conditions

1. Definitions

‘the Company’ means Sonifex Ltd and where relevant includes companies
within the same group of companies as Sonifex Limited.

‘the Goods’ means the goods or any part thereof supplied by the Company
and where relevant includes: work carried out by the Company on items
supplied by the Purchaser; services supplied by the Company; and software
supplied by the Company.

‘the Purchaser’ means the person or organisation who buys or has agreed
to buy the Goods.

‘the Price’ means the Price of the Goods and any other charges incurred by
the Company in the supply of the Goods.

‘the Warranty Term’ is the length of the product warranty which is usually
12 months from the date of despatch; except when the product has been
registered at the Sonifex website when the Warranty Term is 24 months
from the date of despatch.

‘the Contract’ means the quotation, these Conditions of Sale and any
other document incorporated in a contract between the Company and the
Purchaser.

This is the entire Contract between the parties relating to the subject
matter hereof and may not be changed or terminated except in writing in
accordance with the provisions of this Contract. A reference to the consent,
acknowledgement, authority or agreement of the Company means in
writing and only by a director of the Company.

2. Warranty

a. The Company agrees to repair or (at its discretion) replace Goods

which are found to be defective (fair wear and tear excepted) and
which are returned to the Company within the Warranty Term
provided that each of the following are satisfied:

i. notification of any defect is given to the Company immediately

upon its becoming apparent to the Purchaser;

ii. the Goods have only been operated under normal operating

conditions and have only been subject to normal use (and
in particular the Goods must have been correctly connected
and must not have been subject to high voltage or to ionising
radiation and must not have been used contrary to the
Company’s technical recommendations);

iii. the Goods are returned to the Company’s premises at the

Purchaser’s expense;

iv. any Goods or parts of Goods replaced shall become the

property of the Company;

v. no work whatsoever (other than normal and proper

maintenance) has been carried out to the Goods or any part of
the Goods without the Company’s prior written consent;

vi. the defect has not arisen from a design made, furnished or

specified by the Purchaser;

ii

Warranty

vii. the Goods have been assembled or incorporated into other

goods only in accordance with any instructions issued by the
Company;

viii. the defect has not arisen from a design modified by the

Purchaser;

ix. the defect has not arisen from an item manufactured by a person

other than the Company. In respect of any item manufactured
by a person other than the Company, the Purchaser shall only be
entitled to the benefit of any warranty or guarantee provided by
such manufacturer to the Company.

b. In respect of computer software supplied by the Company the

Company does not warrant that the use of the software will be
uninterrupted or error free.

c. The Company accepts liability:

(i) for death or personal injury to the extent that it results from the

negligence of the Company, its employees (whilst in the course
of their employment) or its agents (in the course of the agency);

(ii) for any breach by the Company of any statutory undertaking as

to title, quiet possession and freedom from encumbrance.

d. Subject to conditions (a) and (c) from the time of despatch of

the Goods from the Company’s premises the Purchaser shall be
responsible for any defect in the Goods or loss, damage, nuisance
or interference whatsoever consequential economic or otherwise or
wastage of material resulting from or caused by or to the Goods. In
particular the Company shall not be liable for any loss of profits or
other economic losses. The Company accordingly excludes all liability
for the same.

e. At the request and expense of the Purchaser the Company will test

the Goods to ascertain performance levels and provide a report of

the results of that test. The report will be accurate at the time of the
test, to the best of the belief and knowledge of the Company, and the
Company accepts no liability in respect of its accuracy beyond that
set out in Condition (a).

f. Subject to Condition (e) no representation, condition, warranty or

other term, express or implied (by statute or otherwise) is given by
the Company that the Goods are of any particular quality or standard
or will enable the Purchaser to attain any particular performance
or result, or will be suitable for any particular purpose or use
under specific conditions or will provide any particular capacity,
notwithstanding that the requirement for such performance, result or
capacity or that such particular purpose or conditions may have been
known (or ought to have been known) to the Company, its employees
or agents.

g. (i) To the extent that the Company is held legally liable to the

Purchaser for any single breach of contract, tort, representation
or other act or default, the Company’s liability for the same
shall not exceed the price of the Goods.

(ii) The restriction of liability in Condition (g)(i) shall not apply to

any liability accepted by the Seller in Condition (c).

h. Where the Goods are sold under a consumer transaction (as defined

by the Consumer Transactions (Restrictions on Statements) Order

1976) the statutory rights of the Purchaser are not affected by these
Conditions of Sale.

Unpacking Your Product

Each product is shipped in protective packaging and should be inspected
for damage before use. If there is any transit damage take pictures of the
product packaging and notify the carrier immediately with all the relevant
details of the shipment. Packing materials should be kept for inspection and
also for if the product needs to be returned.

iii

CE Conformity

The product is shipped with the following equipment so please check to
ensure that you have all of the items below. If anything is missing, please
contact the supplier of your equipment immediately.

Item Quantity

Product unit 1

IEC mains lead fitted with moulded mains plug 1

Handbook 1

If you require a different power lead, please let us know when ordering the
product.

Repairs & Returns

Please contact Sonifex or your supplier if you have any problems with your
Sonifex product. Email [email protected] for the repair/
upgrade/returns procedure, or for support & questions regarding the
product operation.

Conformity

The products in this manual comply with the essential requirements of the
relevant European health, safety and environmental protection legislation.

The technical justification file for this product is available at Sonifex Ltd.

The declaration of conformity can be found at:
http://www.sonifex.co.uk/declarations

Safety & Installation of Mains
Operated Equipment

There are no user serviceable parts inside the equipment. If you should
ever need to look inside the unit, always disconnect the mains supply
before removing the equipment covers. The cover is connected to earth
by means of the fixing screws. It is essential to maintain this earth/
ground connection to ensure a safe operating environment and provide
electromagnetic shielding.

Voltage Setting Checks

Ensure that the machine operating voltage is correct for your mains power
supply by checking the box in which your product was supplied. The voltage
is shown on the box label. The available voltage settings are 115V, or 230V.
Please note that all products are either switchable between 115V and 230V,
or have a universal power supply.

Fuse Rating

The product is supplied with a single fuse in the live conducting path of the
mains power input. For reasons of safety it is important that the correct
rating and type of fuse is used. Incorrectly rated fuses could present a
possible fire hazard, under equipment fault conditions. The active fuse is
fitted on the outside rear panel of the unit.

Power Cable & Connection

An IEC power connector is supplied with the product which has a moulded
plug attached.

The mains plug or IEC power connector is used as the disconnect device.
The mains plug and IEC power connector shall remain readily operable to
disconnect the apparatus in case of a fault or emergency.

The mains lead is automatically configured for the country that the product
is being sent to, from one of:

iv

Safety & Installation

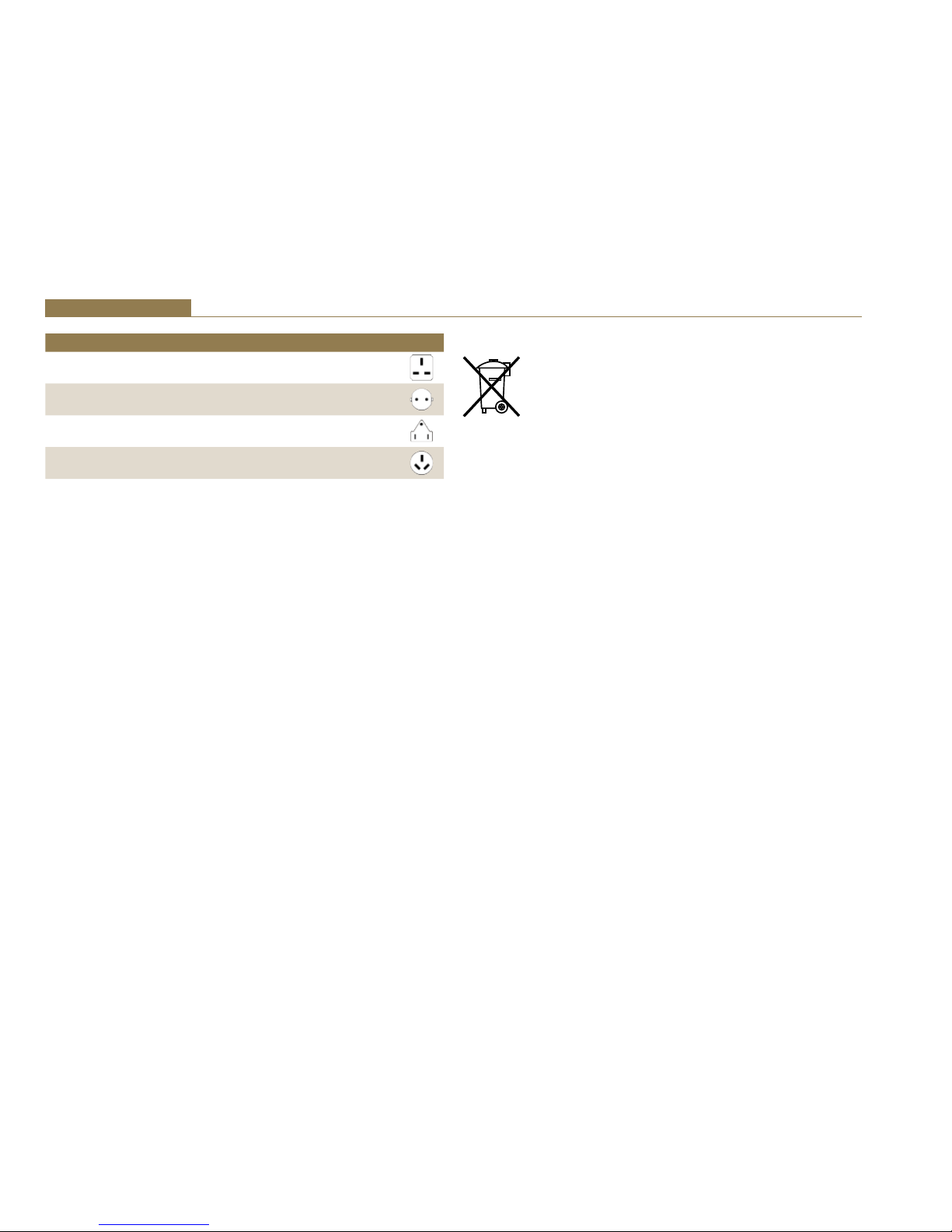

Territory Voltage IEC Lead Type Image

UK & Middle East 230V UK 3 pin to IEC lead

Europe 230V

European Schuko round 2 pin to
IEC lead

USA, Canada and
South America

115V 3 flat pin to IEC lead

Australia & New
Zealand

230V Australasian 3 flat pin to IEC lead

Connect the equipment in accordance with the connection details and
before applying power to the unit, check that the machine has the correct
operating voltage for your mains power supply.

This apparatus is of a class I construction. It must be connected to a mains
socket outlet with a protective earthing connection.

Important note: If there is an earth/ground terminal on the rear panel of
the product then it must be connected to Earth.

WEEE Directive

The Waste Electrical and Electronic Equipment (WEEE)
Directive was agreed on 13 February 2003, along with the
related Directive 2002/95/EC on Restrictions of the use of

certain Hazardous Substances in electrical and electronic
equipment (RoHS). The Waste Electrical and Electronic Equipment Directive
(WEEE) aims to minimise the impacts of electrical and electronic equipment
on the environment during their life times and when they become waste.
All products manufactured by Sonifex Ltd have the WEEE directive label
placed on the case. Sonifex Ltd will be happy to give you information about
local organisations that can reprocess the product when it reaches its “end
of use”, or alternatively all products that have reached “end of use” can be
returned to Sonifex and will be reprocessed correctly free of charge.

Atmosphere/Environment

This apparatus should be installed in an area that is not subject to excessive
temperature variation (<0°C, >50°C), moisture, dust or vibration.

This apparatus shall not be exposed to dripping or splashing, and no objects
filled with water, such as vases shall be placed on the apparatus.

1

Introduction 1

1. AVN-TB6 & AVN-TB6D 6 Button Talkback Intercoms

Introduction

The AVN-TB6 and AVN-TB6D are 6 channel talkback intercom control units from the Sonifex range of IP based AVN (Audio/Video/Network) products. The
AVN-TB6 is a freestanding version, which can be converted into a 1U rackmount using the AVN-TB6RK rack-kit. The AVN-TB6D is a desktop version that can
be fitted flush into a work surface if required. Both models offers similar functionality.

Fig 1-1: The AVN-TB6 Front Panel

Fig 1-2: The AVN-TB6D Front Panel

2

1 Introduction

These units provide broadcast quality audio communication between
studios, offices and different areas in a facility or building complex, using
RAVENNA/AES67 as the transport mechanism, allowing simple CAT 5 cabling
and expansion.

RAVENNA (of which AES67 is a subset) allows for the distribution of audio
across a network. The AVN range use RAVENNA as the communication
method providing compatibility with other AES67 systems.

Each of the 6 channels on the AVN-TB6 and AVN-TB6D can be configured to
provide communications with other remote networked intercom units or
AoIP streams, and an independently configurable page function can contact
selected units with priority over standard intercom calls if required.

There is a monitor channel that can route the audio from an AoIP source to
the headphones and speaker. This could be used to take an IFB feed or an
off-air transmission signal or simply to listen to any audio source.

A user configurable GPIO system, with 10 physical ports and 10 virtual
ports, can be used to control operational functions on local or networked
units, or drive outputs as selected states change, and a voltage free relay
contact can be used to operate external equipment.

A built-in web server provides complete configuration control of the units
and also allows for firmware updates and configuration backup. An Ember+
interface also gives access to the configuration options as well as providing
remote control and monitoring of the GPIO and virtual GPIO ports.

3

Installation 2

2. Installation

Network Connection

The AVN-TB6 and AVN-TB6D have 2 separate
gigabit network ports:

Upper Port: Configuration and control interface
Lower Port: Audio over IP (AoIP) interface

In an ideal installation, the lower port should
be connected to a dedicated network switch
that handles audio and audio related traffic
only. All other intercom units, AoIP sources and
destinations, and grandmaster clocks should be
connected to this network. The upper port can
then be connected to a separate network to
provide access to the embedded web server. With
this setup, potentially heavy network traffic on a
company LAN does not affect the performance of
the AoIP network.

The AVN-TB6 and AVN-TB6D and any other Sonifex
talkback intercoms can be used with a single
network connection using the lower (AoIP) port
as this also provides access to the embedded web
server. The talkback intercom units, AoIP sources
and destinations, and grandmaster clocks should
still ideally be connected to a dedicated network
switch.

AVN-TB6D

AVN-TB6

AVN-TB10AR

AVN-GMC

Lower

AoIP Port

Upper

Ethernet Port

Lower

AoIP Port

Upper

Ethernet Port

Lower

AoIP Port

Upper

Ethernet Port

Gigabit Ethernet Switch

Other AoIP Sources/Destinations Main Network Switch

Fig 2-1: Preferred Network Topology

4

2 Installation

Microphone

These units have connections for a microphone via a 3 pin XLR on the front
panel, or a headset via a 5 pin XLR. The headset connector is located on
the rear panel of the AVN-TB6. On the AVN-TB6D, the headset connector
is located on the front panel. Only one microphone or headset should
be connected. If phantom power is required, this can be enabled via the
webserver. See Audio - Microphone Settings web page on page 33 for
details.

GPIO

The GPIO connector provides 10 ports, individually configurable as either
inputs or outputs, via a 15 way ‘D’ type connector. Connection details are
shown on page 10 Outputs are open collector driven, and inputs are
active low. See GPIO Settings web page on page 37 for details.

Power Supply

The units can be powered from the mains via the supplied IEC lead, or by
using the optional external 12V DC power supply, part number AVN-DC150.
Please contact Sonifex Ltd sales for more details. Both power supplies can
be connected and powered at the same time to provide redundancy if
required.

5

Front Panel Controls, Connections & Indicators 3

3. Front Panel Controls, Connections & Indicators

Fig 3-1: AVN-TB6 and AVN-TB6D Front Panels

Rotary

Encoder

Control

Microphone
Input
Connector

Loudspeaker

Status

Indicators

Reset

Switch

Phantom Power
Indicator

Headphone
Output

Power
Button

Channel 1 to 6 Intercom

Call Buttons

Page

Button

Listen

Button

Status

Indicators

Microphone

Input Connector

Headset

Connector

Phantom

Power Indicator

Power Button

Headphone

Socket

Channel 1 to 6 Intercom

Call Buttons

Page

Button

Reset

Switch

Rotary Encoder

Control

Loudspeaker

Mon Button
User Button

LS Mute Button
Mic Mute Button

User
Button

Mic Mute

Button

Mon

Button

LS Mute
Button

Listen
Button

6

3 Front Panel Controls, Connections & Indicators

Status Indicators

The RGB status indicators are located on the left side of the front panel.

AoIP

Indicates the status of AoIP services on the network as follows:

Green All transmit AoIP streams are available and at least one
external AoIP service is available.

Amber Either the transmit AoIP stream has not started or there
are no external AoIP services available.

Off The transmit AoIP stream has not started and there are
no external AoIP services available. The indicator will
also be off if there is no link on the AoIP network port
(lower network connector).

The AoIP network interface is configured via the embedded web server. See
the Network web page on page 25.

Ethernet

Indicates the link status of the Ethernet network port (upper network
connector) as follows:

Green The link is up.

Off The link is down.

The Ethernet network interface is configured via the embedded web server.
See the Network web page on page 25.

Talk

Illuminates green if an intercom call or page is active.

AGC

Indicates the status of the automatic gain control as follows:

Green The AGC is enabled.

Red The audio source level for one of the outputs is too high
and is being limited. The monitored outputs are the
headphone/headset output and the speaker output.

Clock

Indicates the status of PTP clock as follows:

Green The unit is a PTP slave with a clock offset of less or
equal to ±1µs or the unit is the PTP master.

Amber The unit is a PTP slave with a clock offset of between
±1µs and ±10µs.

Flash Amber The unit is in a listening state and is not yet acting as the
master or a slave.

Red The unit is a PTP slave with a clock offset of greater
than ±10µs.

Flash Red The unit is a PTP slave and no master is available.

AC PSU

Indicates the status of the internal AC-DC power supply as follows:

Green AC-DC generated voltage is within normal operating range
of +11V to +13V. This is the normal condition.

Amber AC-DC generated voltage is less than +11V or greater than
+13V. This indicates a warn condition.

Red AC-DC generated voltage is less than +10V or greater than
+14V. This indicates a fault condition.

DC PSU

Indicates the status of the DC power input as follows:

7

Front Panel Controls, Connections & Indicators 3

Green DC voltage is within normal operating range of +11V to
+13V. This is the normal condition.

Amber DC voltage is less than +11V or greater than +13V. This
indicates a warn condition.

Red Not connected or DC voltage is less than +10V or
greater than +14V. This indicates a fault condition if a DC
power source is connected.

Channel 1 to 6 Intercom Call Buttons

These buttons initiate an intercom call to a pre-configured target intercom
unit or AoIP stream. The channels are configured via the embedded web
server. See the Channels - Advanced Settings web page on page 30.

Listen Button

This button is used when making an intercom call to change the default call
type. See Listen Button on page 14 for more details.

Page Button

The page button initiates a talk only call to a pre-configured list of target
intercom units. The button flashes red when active. The target intercoms are
selected via the embedded web server. See the Page Settings web page on
page 36

Rotary Encoder Control

The rotary encoder control is used to set the volume levels for the
headphones, speaker and the input levels for the various audio inputs. See
Volume Control on page 18 for details.

Reset Switch

The recessed reset switch, located below the rotary encoder control, initiates
a full hardware reset.

Mon Button

This button activates the monitor channel. The monitor can be set to
provide audio from any AoIP source. To configure the monitor, see the
Audio - Monitor & Speaker Settings web page on page 34 for details.

User Button

This button is configurable and can be used to control various functions on
the unit. To configure this button, see the Front Panel - User Button web
page in on on page 32.

LS Mute Button

This button mutes the audio feed to the speaker. The button illuminates red
when the mute function is active. The operational mode of the button is
user configurable, see the Audio - Monitor & Speaker Settings web page on
page 34 for details.

Mic Mute Button

This button can be used to temporarily mute the microphone/headset
input. The button illuminates red when active. The operational mode of the
button is user configurable, see the Audio - Microphone Settings web page
on page 33 for details.

Microphone Input Connector

This 3 pin XLR socket is the connection for the microphone. The connections
are as follows:

Pin 1: Ground
Pin 2: Microphone Phase
Pin 3: Microphone Non-Phase

Phantom power can be supplied if required. To change the mic settings, see
the Audio - Microphone Settings web page on page 33 for details.

8

3 Front Panel Controls, Connections & Indicators

+48V Phantom Power Indicator

This indicator illuminates red when the phantom power supply is enabled. .
To change the phantom power setting, see the Audio - Microphone Settings
web page on page 33 for details.

Headset Connector (AVN-TB6D only)

This 5 pin XLR socket is the connection for the headset. The connections are
as follows:

Pin 1: Microphone Non-Phase
Pin 2: Microphone Phase
Pin 3: Ground
Pin 4: Headphone Left
Pin 5: Headphone Right

Phantom power can be supplied if required. To change the headset settings,
see the Audio - Microphone Settings web page on page 33 for details.

Headphone Output Connector

The headphone connection is via a 6.35mm (¼ inch) jack socket. The
connections are as follows:

Tip: Headphone Left
Ring: Headphone Right
Sleeve: Ground

When headphones are connected, the speaker mute is automatically
activated.

Power Switch

The power switch turns the unit on and off. When the unit is on, the
indicator is green. When the unit is off, the indicator is red. The power
switch can be disabled if required, see the Miscellaneous Settings web page
on page 39 for details.

9

Rear Panel Connections 4

Headset

Connector

Ethernet
Network
Interface

12V DC

Input

Mains
Fuse

Mains AC

Input

AoIP
SFP
Interface

4. Rear Panel Connections

Fig 4-1: AVN-TB6 and AVN-TB6D Rear Panels

GPI/O

Ethernet
Network
Interface

AoIP
SFP
Interface

GPI/O 12V DC

Input

Mains
Fuse

Mains AC
Input

AoIP

Network

Interface

AoIP

Network

Interface

10

4 Rear Panel Connections

Headset Connector (AVN-TB6 only)

This 5 pin XLR socket is the connection for the headset. The connections are
as follows:

Pin 1: Microphone Non-Phase
Pin 2: Microphone Phase
Pin 3: Ground
Pin 4: Headphone Left
Pin 5: Headphone Right

Phantom power can be supplied if required. To change the headset settings,
see the Audio - Microphone Settings web page on page 33 for details.

GPI/O

This 15 pin ‘D’ type socket provides 10 configurable general purpose inputs
or outputs and a voltage free switching relay contact. The connections are
as follows:

Pin 1 GPIO Port 1
Pin 2 GPIO Port 2
Pin 3 GPIO Port 3
Pin 4 GPIO Port 4
Pin 5 GPIO Port 5
Pin 6 Relay – Normally Open Contact
Pin 7 Relay – Normally Closed Contact
Pin 8 Relay – Common
Pin 9 GPIO Port 6
Pin 10 GPIO Port 7
Pin 11 GPIO Port 8
Pin 12 GPIO Port 9
Pin 13 GPIO Port 10
Pin 14 Fused (200mA) +12VDC Supply
Pin 15 Ground

GPIO ports configured as an output are open collector type. GPIO inputs are
active low. See the GPIO Settings web page on page 37 for details on how
to configure the GPIO and relay settings.

Ethernet 1GB & AoIP 1GB Network
Interfaces

These RJ45 connectors are the gigabit network ports. The upper connector
is the configuration and control port and the lower connector is the audio
over IP (AoIP) port.

AoIP SFP Interface

This SFP (small form-factor pluggable) connector allows an alternative
interface type to be used for the AoIP port, for example fibre. If a SFP
interface is used, the AoIP network port cannot be used at the same time.

12V DC Input

This 4 pin connector allows an external +12V power supply to be used to
power the unit. When looking at the rear of the unit, the pin locations and
connections are as follows:

Location Connection
Pin 1 Upper Left +12V DC
Pin 2 Upper Right +12V DC
Pin 3 Lower Left 0V
Pin 4 Lower Right 0V

Both the 12V DC input and the mains AC input can be connected at the
same time.

11

Rear Panel Connections 4

Mains Fuse

This 20mm x 5mm anti-surge mains fuse is rated at 2A.

Mains AC Input

This universally filtered IEC is the mains AC input power supply to the unit.

12

5 Quick Start Guide

5. Quick Start Guide

This section outlines the steps required to get the AVN-TB6/AVN-TB6D
connected to a network and in a state where it can make and receive
intercom calls.

1. Connect the upper Ethernet port to a suitable network to access the
web server to configure the initial settings. By default this port is
configured to use the static IP address 192.168.0.100.

2. Apply power to the unit via the IEC mains connection or via an external
12V DC power supply.

3. Once the unit is powered, open a web browser and connect to the unit
by entering the IP address 192.168.0.100 into the browser address bar.
Once connected, the device information web page will be shown.

4. On the web page, select Network from the configuration tab and
configure the Ethernet and AoIP ports to the required settings. The IP
addresses assigned to the 2 ports must be on different subnets. For
example, with the subnet mask on both ports set to 255.255.255.0, if
the IP address on the Ethernet port is set to 192.168.0.100, the AoIP
port must be set to 192.168.x.y where x is not 0 and y is unique on the
chosen subnet.

5. Although not essential at this point, it is a good idea to assign a
recognisable intercom name so that other users can easily identify and
use services from this unit.

6. To simplify the configuration process, make sure the Auto Multicast
option is enabled. This removes the need to set the transmit AoIP
multicast IP address as it will be configured automatically based on the
AoIP port IP address. Once the settings on the network page have been
configured, press the submit button to save them to the connected
unit. When the network settings have been changed, the unit will
automatically restart. If the settings of the network port the browser
is connected to have changed, a new connection for the browser will
need to be established using the new IP address. If dynamic address
mode has been selected, the active IP address for the network port can

be determined by using the network address announcement function.
See Network Address Announcement on page 19 for details.

7. If a dedicated grandmaster clock, such as the AVN-GMC from Sonifex, is
going to be used as the master PTP clock for the network audio system,
the PTP profile on the AVN-TB6/AVN-TB6D will need to be set to the
current setting on the grandmaster device. On the web page, select PTP
Profiles from the configuration tab. Select the required profile from the
drop down list box and ensure that the domain number for the selected
profile matches the grandmaster setting. Press the submit button to
save the new settings. If no dedicated grandmaster device is used, the
connected intercom units will automatically establish a master clock
hierarchy. In this case, the default profile can be used.

8. Connect the lower AoIP port to the audio network.

9. On the web page, select Microphone Settings from the Audio sub tab.
Select the required microphone type, with or without phantom power.
Now change the microphone or headset gain so that metering LEDs
around the front panel rotary control peak in the amber section for
normal speech. Press the submit button to save the new settings.

10. The final step is to assign remote intercoms or AoIP streams to the
required channels. On the web page, select Basic Settings from the
Channels sub tab. Select the required remote intercom or AoIP stream
from the Available AoIP Sources list box at the top of the page. This
shows a dynamic list of currently available intercom devices including
those with IFB, and AoIP streams on the network. To configure a
channel for the selected AoIP source, press the corresponding assign
button. For sources that are not currently available, the source name
can be manually entered in the edit box for each channel. For intercom
assignments, a channel on the selected device will need to be assigned
to this unit in order to make intercom calls. Press the submit button to
save the new settings.

The unit should now have the minimum settings configured to allow
intercom calls between devices and AoIP streams.

13

Intercom Calls 6

6. Intercom Calls

Each channel button on the front panel can be assigned to a remote intercom
unit in order to make and receive voice calls. See the Channels - Advanced
Settings web page on page 30 for full details of the available options.

Making a Call

To make a call request, press the channel button assigned to the required
remote unit. If the called unit has the auto answer option enabled, the
call will be connected immediately. The button status for an active call is
described later in this section. If the called unit’s auto answer option is
disabled, the selected channel button will slowly flash using the colour
assigned to the default function for that channel. For example, if the default
function is talk and listen, and the colour assigned to the talk and listen
buttons is amber, the button will flash amber. If a call request is made to an
intercom that doesn’t have a valid channel assignment for the calling unit,
the call will be cancelled. To correct this error, assign the intercom name from
the unit attempting to make the call to a channel on the target unit.

Receiving a Call

When an intercom call request is received from a remote unit, the call will
be handled by the local channel assigned to the calling intercom unit. The
way the call is handled is dependent on the auto answer option setting for
the local channel. If the auto answer option is enabled, the call is connected
immediately. If the auto answer option is disabled, the channel button that
is assigned to the caller will rapidly flash using the colour assigned to the
requested call type. For example, if the calling unit has requested a talk only
call, the call will be treated locally as listen only. If the local colour assignment
for listen buttons is green, the channel button will flash green. If the call
signal is enabled, a repeated audible signal will be heard in the headphones
or speaker. The call is answered by pressing the flashing channel button and
the audio from each unit will be routed depending on the callers selected call
type.

During a Call

When an intercom call is connected, the channel button is illuminated using
the colour assigned to the call type. The intercom unit that initiates the
call always dictates the call type. If the monitor channel is active when an
intercom call is connected, the audio routed to the headphones or speaker
from the monitor source is automatically muted or dimmed according to
the monitor settings.

Ending a Call

An active call can be terminated by either party. To end a call, press the
illuminated channel button. The call is ended immediately and the button
illumination is turned off. If the monitor channel is active, it will return to
the normal state when all calls have ended.

Group Calls

Intercom calls can be made simultaneously to multiple remote units using
the group talk function. The group talk set can include any combination
of channels, see the Group Talk web page on page 31 for details. Group
calls are selected by assigning the group talk function to the user button,
see the Front Panel - User Button web page on page 32 for details. The
user button, linked to the group talk set, can then be used to make or end
a group call.

Call Signal

The call signal provides an audible indication that an incoming call is
waiting to be answered. It can be heard in the headphones and through
the speaker. If the call signal is not required, it can be turned off. See the
Channels - Advanced Settings web page on page 30 for details.

14

6 Intercom Calls

Auto Answer

The auto answer option is individually configurable for each channel. An
incoming call request on a channel that has this option enabled will connect
immediately. To change the auto answer settings, see the Channels ­Advanced Settings web page on page 30 for details.

Listen Button

Each channel has a default function option that selects the type of call
that is initiated when the corresponding channel button is pressed. See
Channels - Advanced Settings web page on page 30 for details. The front
panel listen button can be used to change the default call function to listen
only, talk and listen or talk forced listen. To override the default function
for a channel, press the listen button. The first press will select listen only,
and the button will illuminate using the colour assigned listen buttons. A
second press will select talk and listen, and the button will illuminate using
the colour assigned to talk and listen buttons. A third press will select talk
forced listen, and the button will flash alternately using the colours assigned
to both talk and listen buttons. A fourth press will cancel the listen function
and the button illumination will turn off. Once the listen button indicates
the required call function, press a channel button to call the assigned unit.
If a channel button is not pressed within 3 seconds of the last listen button

press, the listen function is cancelled.

Call Functions

The following table shows the corresponding call functions between the
calling and receiving unit. The default channel button colours for the call
type is also shown.

Calling Unit Receiving Unit
Call Type Default Channel

Button Colour

Call Type Default Channel

Button Colour

Talk Only Red Listen Only Green
Listen Only Green Talk Only Red
Talk & Listen Amber Talk & Listen Amber
Talk Forced Listen

- Talk inactive

- Talk Active

Green with Red Flash
Red with Green Flash

Talk Forced Listen
Talk Only
Talk & Listen

Red
Amber

Table 6-1: Call Functions

The Talk Forced Listen call works differently to the standard talk/listen
functions. When this type of call is initiated, the call starts as a listen only
call. The callers channel button is illuminated using the colour assigned to
listen buttons, with a brief flash using the colour assigned to talk buttons.
The channel button on the receiving unit is illuminated to indicate a talk
call. The calling unit can then repeatedly press the channel button to enable
and disable talk. When talk is enabled, the channel button illuminates
using the colour assigned to talk buttons, with a brief flash using the colour
assigned to listen buttons. The channel button on the receiving unit is
illuminated to indicate a talk & listen call when the callers talk is enabled.
The receiving unit can end the call by pressing the channel button as per
other call functions. The calling unit ends the call by briefly holding the
channel button until the illumination has turned off.

15

Intercom Calls with IFB 7

7. Intercom Calls with IFB

Other models in the AVN Talkback range, such as the AVN-TB10AR, AVN­TB20AR and the AVN-TB20AD, can generate specific IFB AoIP streams.
These IFB streams from remote units can by assigned to the channel
buttons on the AVN-TB6 and AVN-TB6D by enabling the channel IFB mode.
See the Channels - Advanced Setting web page on page 30 for more
details. With IFB mode enabled, the selected IFB feed from the remote unit
will be heard in the headphones and through the speaker when the channel
is idle, and the channel button will flash briefly in the colour assigned to
listen buttons. Once a call is initiated and connected, the remote unit will
modify the audio content of the IFB stream and the receiver will hear the
required interrupt audio. Intercom calls with IFB are controlled in exactly
the same way as normal intercom calls.

16

8 Non-Intercom Calls

8. Non-Intercom Calls

The AVN-TB6 and AVN-TB6D allow any AoIP stream to be assigned to the
channel buttons. When a call is initiated to a non AVN Talkback device,
the unit does not attempt to communicate with the remote device for call
control. It simply routes the AoIP stream assigned to the channel to the
headphones and loudspeaker and unmutes the microphone audio routed
to the microphone AoIP transmit stream. If simply call indication is required
between devices, the GPIO ports on the unit can be used to provide control
and tally functions. See the GPIO Settings web page on page 37 for
details on how to configure the GPIO and relay settings.

17

Page 9

9. Page

The page function provides an easy method of making a high priority talk
only call to a preselected group of target intercoms. Up to 20 intercom units
can be selected as page targets and each unit can be configured to treat
received page calls as a priority over normal intercom calls. See the Page
Settings web page on page 36 for details.

Making a Page

To make a page call, press the page button. The button will slowly flash
green if at least one of the configured page targets is able to receive the
page. A configured target may not be receiving the page for a number of
reasons. These include:

• The target unit may be switched off or not connected to the network.

• The target unit may be already involved in a page call, either outgoing or
incoming.

• The target unit may be involved in an intercom call and the page priority
option on that unit is disabled, meaning that the intercom call takes
priority.

Receiving a Page

When a page is received and accepted, the page button fast flashes red. If
the page priority option is disabled, and an intercom call is currently active,
the page will be ignored.

During a Page

During a page call, the microphone audio signal from the paging unit will
be heard by the units that accepted the page. The page targets do not need
to respond to the page to hear the audio. Any current intercom calls on the
units receiving the page will be suspended and any active monitor channels
on the paging and receiving units will be muted for the duration of the page
call.

Ending a Page

A page call can only be terminated by the unit that initiated it. To end
a page call, press the green flashing page button. The page is ended
immediately and the button stops flashing. Any suspended intercom calls
on the target page units are resumed and any active monitor channels on
the paging and receiving units are unmuted.

18

10 Volume Control

10. Volume Control

The rotary encoder control on the front panel is used to set the volume
levels of the speaker, the headphones and the input levels for the various
audio sources.

Speaker & Headphone Volume

The volume control automatically switches from speaker to headphones
when a headphone jack plug is connected. To adjust the volume, turn
the rotary encoder control. The LEDs around the rotary control show the
current level between minimum (muted) and maximum (+12dB gain). There
are 21 LEDs and they are illuminated in a 1, 2, 1, 2 pattern giving 41 discrete
level steps. The LEDs will return to showing the microphone signal level if
no adjustments have been made for 1.5 seconds, or if the rotary control
button is pressed.

Call Channel Volume

The volume levels of the audio from remote units assigned to the call
channel buttons can be individually adjusted to compensate for varying
talk levels. This can be done during a call if required. To adjust the
channel volume, press the rotary encoder control which will then flash to
indicate that volume adjustment mode has been initiated. This mode will
automatically cancel if no further action is taken within 3 seconds. Then
select a channel to adjust by pressing the associated channel button. The
rotary encoder control and the selected channel button will now flash
using the colour assigned to the default function for that channel. The LEDs
around the rotary control show the current level in a similar way to the
speaker and headphone volume. Turn the rotary encoder control to adjust
the volume level. The volume adjustment mode will automatically cancel
if no adjustments have been made for 1.5 seconds, or if the rotary control
button is pressed.

Monitor Volume

The volume level of the audio from the selected monitor source can be
adjusted to compensate for varying levels. This can be done regardless
of whether the monitor is currently active or not. To adjust the monitor
volume, press the rotary encoder control which will then flash to
indicate that volume adjustment mode has been initiated. This mode will
automatically cancel if no further action is taken within 3 seconds. Then
press the monitor button. The rotary encoder control and the monitor
button will now flash green. The LEDs around the rotary control show
the current level in a similar way to the speaker and headphone volume.
Turn the rotary encoder control to adjust the monitor level. The volume
adjustment mode will automatically cancel if no adjustments have been
made for 1.5 seconds, or if the rotary control button is pressed.

Call Signal Volume

The volume level of the call signal routed to the speaker and headphones
can be adjusted to provide a comfortable mix level with other active audio
sources. The call signal volume control automatically switches from speaker
to headphones when a headphone jack plug is connected. To adjust the call
signal volume, press and hold the rotary encoder control until it starts to
flash blue. The LEDs around the rotary control show the current level in a
similar way to the speaker and headphone volume. Turn the rotary encoder
control to adjust the call signal level. The volume adjustment mode will
automatically cancel if no adjustments have been made for 1.5 seconds, or
if the rotary control button is pressed.

19

Network Address Announcement 11

11. Network Address Announcement

These units have a network address announcement mode which can be
used to determine the current settings for either of the 2 network ports:

1. Ensure that volume control mode is not currently active i.e. the LEDs
around the rotary encoder control are showing the microphone signal
level. Also, ensure no calls or pages are active.

2. Press the rotary encoder control button 6 times within 2 seconds. If the
button is not pressed 6 times within a 2 second period starting from the
first press, the network address announcement mode will not start.

3. Once the network address announcement mode has been initiated, the
rotary encoder control and channel buttons 1, 2, 4 and 5 will flash red.

4. Press channel 1 for the Ethernet port IP address, channel 2 for the
Ethernet port sub-net mask, channel 4 for the AoIP port IP address and
channel 5 for the AoIP port sub-net mask. Once a selection has been
made, the chosen details will be announced through the loudspeaker or
the headphones. If no selection is made within 3 seconds, the network
address announcement mode will be cancelled, and the rotary encoder
control and channel buttons will return to the non-illuminated state.

5. Once the chosen details have been announced, the unit return to normal
operating mode.

20

12 Embedded Web Server

12. Embedded Web Server

The AVN-TB6 and AVN-TB6D have embedded web servers which provide
easy access to all the configuration options through a web browser. It also
gives access to system information and allows the firmware to be easily
updated when new releases are made available.

model label. This makes it easier to identify the connected intercom unit,
especially when configuring multiple units at the same time. The right hand
side of each page has a brief help section that describes the content of each
section.

Information Tab

The pages under the Information tab provide device information as well as
a summary of the audio and GPIO assignments.

Device Information Web Page

The top part of this page shows details of the connected unit as shown:

To access the embedded web server, the unit
needs to be connected to a network via either of
the 2 network ports on the rear panel. The upper
port is the general access Ethernet port and
the lower port is the audio over IP (AoIP) port.
By default, both ports are set to static address
mode with the upper port IP address set to

192.168.0.100 and the lower port IP address set
to 192.168.1.100. If the network address mode
for the port to be used has been set to dynamic,
the unit will attempt to acquire an IP address
from a DHCP server or auto configuration if no
DHCP server is found. The current IP address
of these ports can be determined by using the
network address announcement function. See
Network Address Announcement on page 19
for details. If a port has yet to acquire an IP
address or has failed to link, the corresponding
IP address and subnet mask be announced as

0.0.0.0. Once the IP address of the required port
is known, simply type this into the address bar of
a web browser. The Device Information page of
the connected unit will be displayed. This is the
default page and will always be displayed first
when connecting to the embedded web server.
Each page of the web server shows the intercom
name in the upper right hand corner, under the

Fig 12-1: Upper Section of Device Information Web Page

21

Embedded Web Server 12

This information shows the current status of the unit as well as the software
versions of the various modules running on the unit. When contacting
Sonifex technical support, it is important to provide the information shown
on this page.

The lower half of the page shows the status of the Precision Time Protocol
(PTP) clock, as well as the configuration of the network ports as shown:

Fig 12-2: Lower Section of Device Information Web Page

The network IP addresses and subnet masks shown are the actual values
currently in use.

22

12 Embedded Web Server

Two additional pages under the information tab, provide a configuration
summary of the audio and GPIO assignments.

Audio Assignments Web Page

The Audio Assignments page shows the current channel and monitor
configuration as shown:

Fig 12-3: Audio Assignments Web Page

Each channel is listed with the intercom
name or AoIP stream name assignment if
any. Channels that are assigned to remote
sources indicate whether that source
is currently online. If it is online, the
assignment is shown in black and the AoIP
port IP address of the source is also shown.
If the target assignment is an AVN talkback
device, an AVN logo is shown next to the
channel number. Unavailable sources or un­assigned channels are shown in grey.

The Monitor Assignment shows the current
configuration and status of the monitor
channel. If the configured AoIP stream is
currently available, the assignment is shown
in black. Unavailable streams are shown in
gr ey.

23

Embedded Web Server 12

GPIO Assignments Web Page

The GPIO Assignments page shows the current GPIO, virtual GPIO and relay
configuration as shown:

Fig 12-4: Upper Section of GPIO Assignments Web Page

Each physical GPIO can be configured as
an input, output or it can be disabled. Any
configuration errors that will stop the GPIO
functioning are shown in red. For example,
GPIO 6 has been assigned as an input that
activates a virtual output. However, none of
the virtual GPIO have been set to an output
that is driven by GPI6. At the bottom of the
GPIO assignments is the list of functions that
trigger the relay – if any.

24

12 Embedded Web Server

Each virtual GPIO can also be configured as an input, output or it can be
disabled. As with the GPIO assignments, configuration errors are shown
in red. Virtual inputs require a remote virtual output driver to trigger the
input. The driver details are shown below the virtual input description and
will be grey if the driver service is not available. If the service is available, it
will be shown in black.

Fig 12-5: Lower Section of GPIO Assignments Web Page

Configuration Tab

The pages under the Configuration tab are split into groups and all of the
unit’s configuration settings can be edited here. Each page has a SUBMIT
button that sends the changes to the connected unit. The SUBMIT button
remains disabled until changes have been made on the page. Once the
SUBMIT button has been pressed, a busy indicator will be shown and the
page will be temporarily disabled until the changes have been written.

25

Embedded Web Server 12

Network Web Page

The Network page shows the current configuration of the Ethernet and
AoIP network ports. The intercom name is also set here.

Intercom Name – The intercom name is the user friendly name that
identifies the unit on the network. It is a good idea to assign a user name
or location as this is easily recognised by other users. The default intercom
name is made from the device ID and the 7 digit product serial number i.e.
AVN-TB6-1234567. The intercom name can only contain letters, numbers
and hyphens although it cannot start or end with a hyphen.

Address Mode – Each network port has its own independent address
mode which determines how the port obtains its IP address. When set to
dynamic, the unit will attempt to acquire an IP address automatically from
either a DHCP server or via auto configuration if no DHCP server is found.
The actual IP address will be shown on the device information page. When
static mode is used, the IP address and subnet mask values entered will be
assigned to the corresponding network port.

Static IP Address – This is the IP address that will be assigned to the
corresponding network port when static address mode is selected. It is
important to ensure that this IP address is not currently in use on the
network. These values are not used when the address mode is dynamic.

Static Subnet Mask – This is the subnet mask that will be used for the
corresponding network port when static address mode is selected. These
values are not used when the address mode is dynamic.

Fig 12-6: Network Web Page

26

12 Embedded Web Server

Auto Multicast – When this option is enabled and the address mode of the
AoIP port is set to static, the AoIP transmit multicast IP address, shown on
the AoIP Streams Web Page, is automatically configured based on the AoIP
port IP address. If the IP address of the AoIP port is changed, the multicast
address is updated. This simplifies configuration and ensures the multicast
address is unique on the network.

If any of the network configuration options are changed, the unit will
automatically restart to implement the new settings. If the IP address of
the network port that is currently being used to access the web server
is changed, a new connection will need to be made once the unit has
restarted. Otherwise, the new page will be shown automatically once the
restart is complete.

Network Defaults
Intercom Name: AVN-TB6-xxxxxxx or AVN-TB6D-xxxxxxx

Where xxxxxxx is the product serial number
Ethernet Port:
Address Mode: Static
Static IP Address: 192.168.0.100
Static Subnet Mask: 255.255.255.0
Audio over IP Port:
Address Mode: Static
Static IP Address: 192.168.1.100
Static Subnet Mask: 255.255.255.0
Auto Multicast: Enabled

AoIP Stream Settings Web Page

The AoIP Stream Settings page shows the current configuration of the AoIP
options. The single transmit source on the AVN-TB6 and AVN-TB6D is for
the microphone/headset input.

Fig 12-7: AoIP Stream Settings Web Page

AoIP Stream Name Prefix – The AoIP stream name prefix forms part of
the AoIP stream name which will be displayed on remote devices when
searching for AoIP streams. This stream name is comprised of the AoIP
stream name prefix, set here for the microphone transmit source, and the
intercom name. For example, if the default microphone AoIP stream name
prefix “Mic” is used, and the intercom name is set to “DEMO-USER”, the
advertised AoIP stream name would be “Mic@DEMO-USER”.

DSCP – The DSCP or Differentiated Services Code Point value is used by
DiffServ to control the precedence of outgoing AoIP data packets. Network
hardware can use this value to ensure audio data has higher priority over
other network traffic. See Table 15-1 DSCP Names & Their Corresponding IP
Precedence on page 51 for more information.

Multicast IP Address – The multicast IP address is the IPv4 multicast
destination address for the transmit source. Remote network devices that
are configured to receive this source will use this IP address to access the

27

Embedded Web Server 12

audio data. It is important to ensure that the IP address entered here is
unique on the network as AoIP stream sources cannot share the same
multicast IP address. Multicast IP addresses should be within the range

224.0.0.0 to 239.255.255.255. If the Auto Multicast option on the Network

page is enabled and the AoIP port address mode is set to static, this
multicast IP address is automatically configured and cannot be changed.

AoIP Stream Settings Defaults

Mic AoIP Source:
AoIP Stream Name Prefix: Mic
DSCP: AF41
Multicast IP Address: 239.0.1.100

PTP Profiles Web Page

The PTP Profiles page shows the currently selected PTP profile. It also
allows the parameters in each profile to be edited.

Fig 12-8: Upper Section of PTP Profiles Web Page

Active Profile – There are 3 PTP profiles available: Default, AES67 Media
and Custom. This drop down list selects which of the profiles will be active.

DSCP – The DSCP or Differentiated Services Code Point value is used by
DiffServ to control the precedence of outgoing PTP packets. Network
hardware can use this value to ensure PTP data has higher priority over
other network traffic. See Table 13-1 – DSCP Names & Their Corresponding
IP Precedence on page 51 for more information.

Fig 12-9: Lower Section of PTP Profiles Web Page

28

12 Embedded Web Server

Profile Select – This drop down list selects the profile to view and change
settings. All of the available profiles can be edited.

Reset to Defaults – Selecting this checkbox and pressing the submit button
resets the selected profile to the default settings for that profile.

Delay Mechanism – This selects the method for calculating and maintaining
the clock synchronisation communication delay between master and
slave devices. Both P2P (Peer to Peer) and E2E (End to End) methods are
supported. The best method for a particular installation will depend on the
type of network hardware used. If all the switches are known to be IEEE
1588 capable, P2P should be used. Otherwise it is best to use E2E.

Announce Interval – This is the rate at which the announce message is sent,
one per the selected time. The announce message forms part of the Best
Master Clock Algorithm (BMCA) and contains the properties of the clock
which sends it. If a device receives an announce message from a better
clock, it will enter the slave state.

Announce Timeout – This is the time the unit will wait for an announce
message and is a multiple of announce intervals. If no announce messages
are received within the timeout interval, the unit will assume the role of
grandmaster.

Sync Interval – This is the rate at which the sync message is sent, one per
the selected time. The sync and follow up messages are sent from the
master to the slave to determine the difference in clock frequency. This
information is used in conjunction with the network delay to synchronise
the clocks.

Delay Request Interval – This defines the rate at which a slave clock sends
delay request messages to the master. The delay request message allows
a slave device to calculate the network delay from the slave to the master.
This option is only valid when using the E2E delay mechanism.

Peer Delay Request Interval – This is the rate at which a device exchanges
peer delay measurement messages. This allows each unit to track the
network delays between itself and its connected neighbours. This option is
only valid when using the P2P delay mechanism.

Priority 1 & Priority 2 – These values define a precedence setting used
by the best master clock algorithm when selecting a grandmaster clock.
Priority 2 defines a fine tune setting when multiple clock sources have
similar ordering criteria.

Domain – This defines the group of PTP devices that the unit will
communicate with.

Slave Only – This option limits the unit to being a slave PTP clock only.

PTP Profiles Defaults

Active Profile: Default
DSCP: AF PHB
Default Profile:
Delay Mechanism: E2E
Announce Interval: 2 secs
Announce Timeout: 3 secs
Sync Interval: 1 sec
Delay Request Interval: 1 sec
Peer Delay Request Interval: 1 sec
Priority 1: 128
Priority 2: 128
Domain: 0
Slave Only: Disabled
AES67 Media Profile:
Delay Mechanism: E2E
Announce Interval: 2 secs
Announce Timeout: 3 secs

29

Embedded Web Server 12

Sync Interval: 1/8 sec
Delay Request Interval: 1 sec
Peer Delay Request Interval: 1 sec
Priority 1: 128
Priority 2: 128
Domain: 0
Slave Only: Disabled
Custom Profile:
Delay Mechanism: E2E
Announce Interval: 2 secs
Announce Timeout: 3 secs
Sync Interval: 1 sec
Delay Request Interval: 1 sec
Peer Delay Request Interval: 1 sec
Priority 1: 128
Priority 2: 128
Domain: 0
Slave Only: Disabled

Channels - Basic Settings Web Page

The Basic Settings page is located under the Channels sub tab. It allows
the AoIP stream source assignments to be set for all 6 channel buttons on
the front panel. The other channel options are shown on the Channels ­Advanced Settings web page – see page 30 for details.

Fig 12-10: Channels - Basic Settings Web Page

Available AoIP Sources – This dynamic drop down list shows the 3 types
of AoIP sources that are currently visible on the network and available for
selection as a target for a channel. These types are AVN Intercom Devices, AVN
Intercom Devices with IFB and AoIP Streams. To make an assignment, select a
source from the list and then press the assign button on the required channel.

Channels 1 - 6 – Each row shows the current AoIP source assignment for the
corresponding channel. To change the stream name, select a source from
the Available AoIP Sources list and press the assign button on the required
channel. Alternatively, the stream name can also be entered manually for
remote sources that are currently offline.

30

12 Embedded Web Server

Channels - Basic Settings Defaults

Channels 1 – 6:
AoIP Source: not set

Channels - Advanced Settings Web Page

The Advanced Settings page is located under the Channels sub tab. It
shows the current assignments for each of the 6 channel buttons on the
front panel. Other options that control intercom calls are also set here.

Fig 12-11: Channels - Advanced Settings Web Page

Channel Select – This drop down list selects the channel to view and change
settings.

AoIP Source – This setting assigns the intercom name or AoIP stream
name to connect to when the intercom channel is active. If the source is
an intercom device, this name corresponds to the intercom name that is
assigned on the network web page. This name can be entered manually, or
it can be selected from the dynamic list of available AoIP sources detailed
below.

Available AoIP Sources – This dynamic drop down list shows the 3 types
of AoIP sources that are currently visible on the network and available for
selection as a target for a channel. These types are AVN Intercom Devices,
AVN Intercom Devices with IFB and AoIP Streams. Selecting an AoIP source
from this list places the name into the AoIP source edit box.

IFB Mode – This option allows the selected channel to be assigned to
an IFB AoIP stream from a remote intercom device. This stream type
will have a designated audio feed that will be replaced by or mixed with
the microphone audio when the channel is active. If IFB mode for the
channel is enabled and the AoIP source is an available intercom device,
but the configured IFB stream does not exists, a non IFB mode call will be
connected instead.

IFB Source – This is the AoIP stream name prefix of the IFB stream on the
selected AoIP Source. This name can be entered manually, or it can be
selected from the dynamic list of available IFB sources detailed below. This
option is only available if IFB mode is enabled.

Available IFB Sources – This dynamic drop down list shows the names of
the available IFB streams on the selected AoIP source. If the selected AoIP
source is not an IFB enabled intercom device, this list will be empty. This
option is only available if IFB mode is enabled.

31

Embedded Web Server 12

Auto Answer – This option allows an incoming call on the selected channel
to be answered automatically without the need to press the associated
channel button.

Default Function – The default function option sets the call type that is
initiated when the corresponding channel button is pressed. Talk & Listen
calls allow both the caller and receiver hear each other. In a Talk Only call,
only the receiver hears the caller. In a Listen Only call, only the caller hears
the receiver. Talk Forced Listen calls allow the caller to hear the receiver,
with the option to enable or disable talk to the receiver by repeatedly
pressing the channel button. If IFB mode is enabled on the selected
channel, Talk Forced Listen is not available. The default function can be
overridden when initiating call by using the listen button on the front panel.

Button Mode – Selects the operational mode of the selected channel talk
button. In momentary mode, the channel is active whilst the button is
pressed. In latching mode, a separate button press is required to enable
and disable the channel. In auto mode, the button has a momentary action
that will automatically latch on or off if pressed briefly. The button can also
be disabled if required. Momentary mode is not available if auto answer is
enabled.

Call Signal – This option enables an audible indication that an incoming call
is waiting to be answered. The call signal is heard through the loudspeaker,
or the headphones if connected. This setting applies to all channels.

Channels - Advanced Settings Defaults
Channels 1 – 6:
AoIP Source: Not set
IFB Mode: Disabled
IFB Source: Not set
Auto Answer: Disabled
Default Function: Talk & Listen
Button Mode: Auto
Call Signal: Enabled

Group Talk Web Page

The Group Talk page shows the channels that are included in the group talk
set.

Fig 12-12: Group Talk Web Page

Channels – Click on this list to select the channels that are to be included
in the group talk set. To select multiple channels, hold down the Ctrl key on
the keyboard and then make a selection.

Group Talk Defaults

Channels: 1, 2, 3, 4, 5, 6

32

12 Embedded Web Server

Front Panel - Display Settings Web Page

The Display Settings page is located under the Front Panel sub tab. It allows
the LED brightness to be adjusted.

Fig 12-13: Front Panel - Display Settings Web Page

LED Brightness – Click on the + or – buttons to change the brightness of the
LEDs on the front panel in the range 1 to 7.

Front Panel - Display Settings Defaults

LED Brightness: 4

Front Panel - Colour Settings Web Page

The Colour Settings page is located under the Front Panel sub tab. It shows
the colours that are assigned to the intercom call and user buttons as
shown:

Fig 12-14: Front Panel - Colour Settings Web Page

Talk Buttons – This setting defines the colour of the channel buttons when
a talk only call is active.

Listen Buttons – This setting defines the colour of the channel buttons
when a listen only call is active.

Talk & Listen Buttons – This setting defines the colour of the channel
buttons when a talk & listen call is active.

User Button – This setting defines the colour of the user assignable function
button.

33

Embedded Web Server 12

Front Panel - Colour Settings Defaults

Talk Buttons: Red
Listen Buttons: Green
Talk & Listen Buttons: Amber
User Button: Blue

Front Panel - User Button Settings Web Page

The User Button Settings page is located under the Front Panel sub tab. It
shows the configuration of the user button.

Fig 12-15: Front Panel - User Button Settings Web Page

Function – This option sets the function for the user button. Group Talk
initiates a group talk call to the members of the group talk set. GPO Control
allows a selection of physical and virtual GPO ports to be asserted. The GPO
and virtual GPO ports that are under user button control are assigned in the
GPIO and virtual GPIO settings pages.

Button Mode – Selects the operational mode of the selected user button.
In momentary mode, the selected user function is active whilst the button
is pressed. In latching mode, a separate button press is required to enable
and disable the selected user function. In auto mode, the button has a
momentary action that will automatically latch on or off if pressed briefly.
The button can also be disabled if required.

Front Panel - User Button Defaults

User Button:
Function: Group Talk
Button Mode: Auto

34

12 Embedded Web Server

Audio - Microphone Settings Web Page

The Microphone Settings page is located under the Audio sub tab. The
microphone input type and associated options are set here.

Fig 12-16: Audio - Microphone Settings Web Page

Microphone Type – This drop down list selects the required microphone
input type and also enables phantom power if required.

Gain Control – This option selects between fixed or auto gain control. When
auto gain is selected, the gain levels for the mic and headset inputs are
automatically adjusted to compensate for varying talk levels.

Mic Gain – This option sets the input gain for the mic in the range 0dB to
+60dB in 3dB steps.

Headset Gain – This option sets the input gain for the headset in the range
0dB to +60dB in 3dB steps.

AGC Target Level – This option sets the required output level for the
microphone/headset automatic gain control. This option is available only
when the gain control is set to auto gain.

Auto Mute – This option selects whether the microphone or headset AoIP
stream is automatically muted when no calls are active. Please note, if this
option is not enabled, the audio from the microphone or headset will be
available to any other devices on the network.

Mute Button Mode – Selects the operational mode of the mic mute button
on the front panel. In momentary mode, the mic mute is active whilst the
button is pressed. In latching mode, a separate button press is required to
enable and disable the mic mute function. In auto mode, the button has a
momentary action that will automatically latch on or off if pressed briefly.
The button can also be disabled if required.

Audio - Microphone Settings Defaults

Microphone Type: Normal Mic
Gain Control: Fixed Gain
Mic Gain: 30
Headset Gain: 30
AGC Target Level: -18dBFS
Auto Mute: Enabled
Mute Button Mode: Auto

35

Embedded Web Server 12

Audio - Monitor & Speaker Settings Web Page

The Monitor & Speaker Settings page is located under the Audio sub
tab and it shows the current assignment for the monitor channel. The
loudspeaker options are also set here.

Fig 12-17: Audio - Monitor & Speaker Settings Web Page

AoIP Stream – This setting is the name of the AoIP stream that will be
routed to the monitor channel. The stream name is comprised of the AoIP
stream name prefix and the intercom name. For example, if the required
AoIP stream, called “Input1”, is being transmitted from an intercom unit
with the name “DEMO-SOURCE”, the AoIP stream name would be “Input1@
DEMO-SOURCE”. This name can be entered manually, or it can be selected
from the dynamic list of available AoIP streams detailed below.

Available AoIP Streams – This dynamic drop down list shows the AoIP
streams that are currently visible on the network. Selecting an AoIP stream
from this list places the name into the AoIP stream edit box.

Talkback Mode – This setting controls how the audio level of the monitor is
modified when an intercom channel is active. There are 3 options, the level
of the monitor is either muted, reduced by 75% or reduced by 50%.

Button Mode – Selects the operational mode of the monitor button on the
front panel. In momentary mode, the monitor is active whilst the button is
pressed. In latching mode, a separate button press is required to enable and
disable the monitor. In auto mode, the button has a momentary action that
will automatically latch on or off if pressed briefly. The button can also be
disabled if required.

Echo Cancellation – This setting enables the acoustic echo cancellation
algorithm which removes audio content, originating from the speaker, from
the microphone input. This prevents a remote user from hearing a delayed
echo of themselves.

Mute Button Mode – This setting selects the operational mode of the
speaker mute button on the front panel. In momentary mode, the speaker
is muted whilst the button is pressed. In latching mode, a separate button
press is required to enable and disable the speaker mute. In auto mode,
the button has a momentary action that will automatically latch on or off if
pressed briefly. The button can also be disabled if required with the mute
permanently on or off.

36

12 Embedded Web Server

Audio - Monitor & Speaker Settings Defaults

AoIP Stream: not set
Talkback Mode: Mute
Button Mode: Auto
Echo Cancellation: Disabled
Mute Button Mode: Auto

Page Settings Web Page

The Page Settings page shows the current list of target intercoms for the
page function. The page priority setting is also set here.

Fig 12-18: Page Settings Web Page

Page Priority – This option selects whether received page calls have priority
over current intercom calls. If this option is enabled, all current intercom
calls will be suspended during a received page call. These calls will then
resume once the page call has ended. If a page request is received and this
option is disabled, the page will be ignored.

Page Targets – This is the list of up to 20 target intercom devices that will
be called during a page. To add to the list, select a new device from the
available intercom devices select box or manually enter the name in the
intercom devices edit and then press the ADD button. To remove one or
more targets from the list, highlight the required page targets and press
the DEL button. Multiple targets can be selected by clicking the required
options whilst holding down the Ctrl key on the keyboard.

Intercom Device – A new page target intercom name can be added to the
list by entering the name in this edit box and pressing the ADD button.
Alternatively, it can be selected from the dynamic list of available intercom
devices detailed below.

Available Intercom Devices – This dynamic drop down list shows the
intercom units that are currently visible on the network and available for
selection as a page target. Selecting an intercom from this list places the
intercom name into the intercom device edit box.

Page Settings Defaults

Page Priority: Enabled
Page Targets: none set

37

Embedded Web Server 12

GPIO Settings Web Page

The GPIO Settings page shows the current configuration of the 10 GPIO
ports on the rear panel mounted GPIO connector. The functions, inputs and
states that control the output relay are also set here.

Fig 12-19: GPIO Settings Web Page

GPIO Select – This drop down list selects the GPIO port to view and change
settings.

Type – This option selects whether the selected GPIO port is an input, an
output or whether it is disabled. Ports configured as inputs are active low
and they have a weak internal pullup. Ports configured as outputs are open
collector driven and are therefore active low.

Input Function – This option selects the required function that the selected
GPIO input controls. GPIO inputs can be set to control a local function and
a virtual GPIO output if required. If no local function control is needed, but
control of a virtual GPIO output is required, select Virtual GPO Only. The
assignment for which GPIO input triggers a virtual GPIO output is made on
the virtual GPIO settings page. This option is only available when the type is
set to input.

Input Action – This option selects the operational mode of the selected
GPIO input. In momentary mode, the selected function is active whilst
the input is asserted low. In latching mode, a separate active low pulse is
required to enable and disable the selected function. This option is only
available when the type is set to input.

Output Trigger – This option selects the function that triggers the GPIO
output. GPIO outputs can be triggered by a local function, a virtual GPIO
input and an Ember+ consumer if required. If a local function trigger is not
needed, but a virtual GPIO input or Ember+ consumer trigger is required,
select Virtual GPI Only or Ember+ Consumer Only. The assignment for
which virtual GPIO input triggers a GPIO output is made on the virtual GPIO
settings page. This option is only available when the type is set to output.

Relay Trigger – The output relay, which provides both normally open and
normally closed contacts on the GPIO connector on the rear panel, can be
triggered by multiple functions, inputs and states. When any of the selected
triggers become active, the relay is switched on. To select multiple triggers,
click on the required options whilst holding down the Ctrl key on the

38

12 Embedded Web Server

keyboard. The CLEAR ALL button provides an easy way to remove all current
relay trigger assignments.

GPIO Settings Defaults

GPIO Port 1 – 10:
Type: Disabled
Input Function: Talk/Listen 1
Input Action: Latching
Output Trigger: Talk/Listen 1

Virtual GPIO Settings Web Page

The Virtual GPIO Settings page shows the current configuration of the 10
virtual GPIO ports. These virtual ports provide a method of controlling
functions on remote units by linking a virtual output on one unit to a virtual
input on another unit.

Fig 12-20: Virtual GPIO Settings Web Page

vGPIO Select – This drop down list selects the virtual GPIO port to view and
change settings.

Type – This option selects whether the selected virtual GPIO port is an
input, an output or whether it is disabled.

Input Function – This option selects the required function that the selected
virtual GPIO input controls. This list includes GPO 1 – 10 which allows a
virtual GPIO input to control a physical GPIO output. Please note, if a GPO
port is selected, the type option for that GPIO port must be set to output.
This option is only available when the type is set to input.

Input Driver Source – This setting is the name of the virtual GPIO output
on a remote unit that will drive the virtual GPIO input on this unit. These
source names are generated automatically based on the source type and
the intercom name. For example, for virtual output port 1 on an intercom
unit with the name “DEMO-SOURCE”, the source name would be “VGPO1@
DEMO-SOURCE”. This name can be entered manually, or it can be selected
from the dynamic list of available vGPO sources detailed below. This option
is only available when the type is set to input.

Available vGPO Sources – This dynamic drop down list shows the virtual
GPIO outputs that are currently visible on the network and available for
selection as an input driver source. Selecting a source from this list places
the virtual GPIO output name into the input driver source edit box. This
option is only available when the type is set to input.

Output Trigger – This option selects the function that triggers the virtual
GPIO output. This list includes GPI 1 – 10 which allows a physical GPIO input
to trigger a virtual GPIO output. Please note, if a GPI port is selected, the
type option for that GPIO port must be set to input otherwise the virtual
output will not be triggered. This option is only available when the type is
set to output.

39

Embedded Web Server 12

Virtual GPIO Settings Defaults

Virtual GPIO Port 1 – 10:
Type: Disabled
Input Function: Talk/Listen 1
Input Driver Device: not set
Output Trigger: Talk/Listen 1

Miscellaneous Settings Web Page

The Miscellaneous Settings page shows general settings for the connected
unit.

Fig 12-21: Miscellaneous Settings Web Page

Power Button – This option enables the power button on the front panel of
the unit. When enabled, pressing the power button will switch the unit on
and off.

AC PSU Status – This option enables the AC PSU status LED on the front
panel.

DC PSU Status – This option enables the DC PSU status LED on the front
panel.

Auto Save on Page Exit – With this option enabled, any changes made on a
page are automatically saved when leaving the page. This option is initially
cleared when connecting to a device.

Miscellaneous Settings Defaults

Power Button: Enabled
AC PSU Status: Enabled
DC PSU Status: Enabled

System Tab

The System Tab allows the firmware on the unit to be updated. It also has
options for saving and loading the configuration settings to and from a local
file.

Update Firmware

Fig 12-22: Update Firmware Section of System Web Page

40

12 Embedded Web Server

The current firmware version on the connected unit is shown. New versions
of firmware will be released as new features are added, and when any
bug fixes are completed. Click on the software downloads link to visit the
Sonifex web page. If an update is available, download the latest file. The
file will have the ‘.SWU’ extension. Click the select button and browse your
computer to locate the new firmware file and then click Update. Once
the file has been successfully uploaded to the unit, the firmware update
process will begin. This takes approximately 1 minute during which time
a progress page will be shown. Once the update is complete, the device
information page will be shown automatically.

Save Configuration To A File

Fig 12-23: Save Configuration Section of System Web Page

The current configuration of the connected unit can be saved to a local xml
file by clicking the SAVE CONFIG button. The filename will be “avn_tb_”
followed by the intercom name. It is a good idea to save the configuration
settings of all units on the network once they have been setup as this
provides a quick and easy way of returning the units to a known working
condition.

Load Configuration From A File

Fig 12-24: Load Configuration Section of System Web Page

The current configuration of the connected unit can be overwritten
from a previously saved xml file. The settings on the network page will
only be updated if the Overwrite Network Settings check box is ticked.
Click the select button and browse your computer to locate the required
configuration file and then click the LOAD CONFIG button. Once the file
has been successfully uploaded, the unit will automatically reboot to load
the new configuration settings. This takes approximately 25 seconds during
which time a progress page will be shown. If the settings of the network
port the browser is connected to have changed, a new connection will need
to be made once the unit has restarted. Otherwise, the device information
page will be shown automatically.

41

Embedded Web Server 12

Save System Log To A File

Fig 12-25: Save System Log Section of System Web Page

The AVN-TB6 and AVN-TB6D maintain an internal log that records
system events and errors. This information may be useful for resolving
configuration issues. To download the log, click the SAVE LOG button.

42

13 Ember+ Interface

13. Ember+ Interface

The AVN-TB6 and AVN-TB6D have an Ember+ provider interface that
exposes all of the available configuration options. It also allows the GPIO,
virtual GPIO and the relay to be controlled and monitored by an external
Ember+ consumer.

Connecting to the Ember+ Interface

The Ember+ interface is available on both the Ethernet and AoIP network
connections using port 9000. Each of the configuration options are arranged
in branches grouped by function. Fig 13-1 shows a graphical representation
of the root structure.

Fig 13-1: Ember+ Root Structure

The configuration options are presented as either string or integer types.
Where possible, integer type options are enumerated to indicate what each
of the setting values are. A full list of the options and values associated with
each of the Ember+ parameters are on page 45.

GPIO

The GPIO branch of the Ember+ provider interface allows monitoring and
control of the GPIO ports and the relay. Fig 13-2 shows the structure of
each GPIO child node For further details on the configuration options, refer
to page 37.

Fig 13-2: Ember+ GPIO Branch Structure

43

Ember+ Interface 13

Each GPIO node has a similar set of parameters and functions:

Type Parameter

This enumerated integer parameter is the current port type.

Input Function Parameter

This enumerated integer parameter is the function that will be activated
when the GPIO port, when configured as an input, is asserted.

Input Action Parameter

This enumerated integer parameter is the operational mode of the GPIO
port when it is configured as an input.

Output Trigger Parameter

This enumerated integer parameter is the function that triggers the GPIO
port when it is configured as an output.

Status Parameter

The status parameter shown in Fig 13-2 represents the current state of the
GPIO port regardless of whether the port is set as an input or an output. A
value of 0 indicates the port is inactive and a 1 indicates the port is active.
This parameter has an Ember+ stream identifier and a consumer can
subscribe to it to automatically receive updates when the status changes.

Set Output Function

The set output leaf shown in Fig 13-2 is a function that allows control of
the GPIO port when it is configured as an output. The function exposes
1 argument called enable, which is an integer with a value of non-zero
for assert the output, or zero for de-assert the output. The function also
returns an integer result which reflects the current state of the GPIO output
similar to the status parameter. A return value of -1 indicates there was
an error invoking the function. If the GPIO port is configured as an input,
invoking this function has no effect.

Relay

The relay node of the GPIO branch of the Ember+ provider interface allows
the relay to be controlled by an Ember+ consumer. Fig 13-3 shows the
structure of the relay node. For further details on the configuration options,
refer to page 37.

Fig 13-3: Ember+ Relay Node Structure

Trigger Parameter

This integer parameter is the combined value of the functions that trigger
the operation of the relay. As multiple trigger functions can be selected, the
value shown is the sum of the selected items corresponding values.

Status Parameter

The status parameter shown in Fig 13-3 represents the current state of the
relay. A value of 0 indicates the relay is inactive and a 1 indicates the relay is
active. This parameter has an Ember+ stream identifier and a consumer can
subscribe to it to automatically receive updates when the status changes.

Active Function

The active leaf shown in Fig 13-3 is a function that allows control of the
relay. The function exposes 1 argument called enable, which is an integer
with a value of non-zero to activate the relay, or zero to de-activate the
relay. The function also returns an integer result which reflects the current
state of the relay similar to the status parameter. A return value of -1
indicates there was an error invoking the function.

44

13 Ember+ Interface

Virtual GPIO Control

The virtual GPIO branch of the Ember+ provider interface allows monitoring
and control of the virtual GPIO ports. Fig 13-4 shows the structure of each
virtual GPIO child node. For further details on the configuration options,
refer to page 38.

Fig 13-4: Ember+ Virtual GPIO Branch Structure

Type Parameter

This enumerated integer parameter is the current virtual GPIO port type.

Input Function Parameter

This enumerated integer parameter is the function that will be activated
when the virtual GPIO port, when configured as an input, is asserted.

Input Driver Name Parameter

This string parameter is the name of the virtual output on a remote unit
that drives the virtual GPIO port when it is configured as an input.

Output Trigger Parameter

This enumerated integer parameter is the function that triggers the GPIO
port when it is configured as an output.

Status Parameter

The status parameter shown in Fig 13-4 represents the current state of the
virtual GPIO port regardless of whether the port is set as an input or an
output. A value of 0 indicates the port is inactive and a 1 indicates the port
is active. This parameter has an Ember+ stream identifier and a consumer
can subscribe to it to automatically receive updates when the status
changes.

Set Output Function

The set output leaf shown in Fig 13-4 is a function that allows control of the
virtual GPIO port when it is configured as an output. To use this function,
the output trigger must be set to ember-consumer, and at least one remote
unit must have this output selected as the driver for a virtual input. The
function exposes 1 argument called enable, which is an integer with a value
of non-zero for assert the output, or zero for de-assert the output. The
function also returns an integer result which reflects the current state of
the virtual GPIO output similar to the status parameter. A return value of -1
indicates there was an error invoking the function. If the virtual GPIO port is
configured as an input, invoking this function has no effect.

45

Ember+ Interface 13

Parameter Value Specification

This section provides a full list of the possible parameter
values for the Ember+ interface. Integer values with the ‘0x’
prefix are in hexadecimal format.

Identity

This is a read only leaf that describes the unit.

Network

Intercom Name (string): Max length = 23 characters
Address Mode (integer): 0 = Dynamic, 1 = Static
IP Address (string): Max length = 15 characters
Subnet Mask (string): Max length = 15 characters
Auto Multicast (integer): 0 = Disable, 1 = Enable

AoIP

Stream Name (string): Max length = 12 characters
DSCP (integer): Min = 0, Max = 56
IP Address (string): Max length = 15 characters

PTP

DSCP (integer): Min = 0, Max = 56
Profile (integer): 0 = Default
1 = AES67 Media
2 = Custom
Domain Number (integer): Min = 0
Max = 127 (Default Profile)
Max = 255 (AES67 Media Profile)
Max = 255 (Custom Profile)
Priority 1 (integer): Min = 0, Max = 255
Priority 2 (integer): Min = 0, Max = 255
Announce Interval (integer): Setting value is 2

integer

Min = 0 (Default Profile)
Min = 0 (AES67 Media Profile)
Min = -3 (Custom Profile)
Max = 4
Announce Timeout (integer): Min = 2, Max = 10
Sync Interval (integer): Setting value is 2

integer

Min = -1, Max = 1 (Default Profile)
Min = -4, Max = 1 (AES67 Media Profile)
Min = -7, Max = 6 (Custom Profile)
Min Delay Request Interval (integer): Setting value is 2

integer

Min and Max values in following read
only parameters
Min Delay Request Interval Min (integer): Value is read only
Greater of 0 or Sync Interval (Default Profile)
Greater of -3 or Sync Interval (AES67 Media Profile)
Sync Interval (Custom Profile)
Min Delay Request Interval Max (integer): Value is read only:

46

13 Ember+ Interface

Lesser of 5 or Sync Interval+5
(Default Profile)
Lesser of 5 or Sync Interval+5
(AES67 Media Profile)
Sync Interval+5 (Custom Profile)
Min Peer Delay Request Interval (integer): Setting value is 2

integer

Min = 0, Max = 5 (Default Profile)
Min = 0, Max = 5 (AES67 Media Profile)
Min = -1, Max = 5 (Custom Profile)
Slave Only (integer): 0 = Disable, 1 = Enable
Delay Mechanism (integer): 0 = E2E, 1 = P2P
Reset Defaults (integer): 1 = Reset Profile to Default Values

Display

LED Brightness (integer): Min = 1, Max = 7
Talk Colour,
Listen Colour,
Talk Listen Colour,
User 1 Colour (integer): 0 = Red
1 = Green
2 = Amber
3 = Blue
4 = Purple
5 = Light Blue
6 = White

Mic

Type (integer): 0 = Mic
1 = Phantom Mic
2 = Headset
3 = Phantom Headset
Gain Control (integer): 0 = Fixed, 1 = Automatic
Mic Gain (integer): Actual Gain is value x 3
Min = 0, Max = 20
Headset Gain (integer): Actual Gain is value x 3
Min = 0, Max = 20
AGC Target Level (integer): 0 = -24dBFS
1 = -21dBFS
2 = -18dBFS
3 = -15dBFS
4 = -12dBFS
5 = -9dBFS
6 = -6dBFS
Auto Mute (integer): 0 = Disable, 1 = Enable
Mute Button Mode (integer): 0 = Auto
1 = Momentary
2 = Latching
3 = Disabled On

4 = Disabled Off

Channels

AoIP Source (string): Max length = 36 characters
IFB Mode (integer): 0 = Disable, 1 = Enable
IFB Source (string): Max length = 12 characters
Auto Answer (integer): 0 = Disable, 1 = Enable
Default Function (integer): 0 = Talk & Listen
1 = Talk Only
2 = Listen Only
3 = Talk Forced Listen
Button Mode (integer): 0 = Auto
1 = Momentary
2 = Latching

47

Ember+ Interface 13

3 = Disabled
Call Signal (integer): 0 = Disable, 1 = Enable

Group Talk

Group Talk 1 (integer): Value is sum of required options
0x1 = Channel 1
0x2 = Channel 2
0x4 = Channel 3
0x8 = Channel 4
0x10 = Channel 5

0x20 = Channel 6

Page

Priority (integer): 0 = Disable, 1 = Enable
Target 1,
Target 2,
Target 3,
Target 4,
Target 5,
Target 6,
Target 7,
Target 8,
Target 9,
Target 10,
Target 11,
Target 12,
Target 13,
Target 14,
Target 15,
Target 16,
Target 17,
Target 18,
Target 19,
Target 20 (string): Max length = 23 characters

GPIO

Type (integer): 0 = Input
1 = Output
2 = Disabled
Input Function (integer): 0 - 5 = Talk/Listen 1 - 6
6 = Page
7 = User Button 1
8 = Monitor 1
9 = Speaker Dim
10 = Speaker Mute
11 = Microphone Mute
12 = Virtual GPO Only
Input Action (integer): 0 = Momentary
1 = Latching
Output Trigger (integer): 0 - 5 = Talk/Listen 1 - 6
6 = Any Talk/Listen
7 - 12 = Call Request 1 - 6
13 = Any Call Request
14 = Page
15 = User Button 1
16 = Monitor 1
17 = Speaker Dim
18 = Speaker Mute
19 = Microphone Mute
20 = Virtual GPI Only
21 = Ember+ Consumer Only

48

13 Ember+ Interface

Relay

Trigger (integer): Value is sum of required options
0x1 = Talk/Listen 1
0x2 = Talk/Listen 2
0x4 = Talk/Listen 3
0x8 = Talk/Listen 4
0x10 = Talk/Listen 5
0x20 = Talk/Listen 6
0x40 = Call Request 1
0x80 = Call Request 2
0x100 = Call Request 3
0x200 = Call Request 4
0x400 = Call Request 5
0x800 = Call Request 6
0x1000 = Page
0x2000 = User Button 1
0x4000 = Monitor 1
0x8000 = Speaker Dim
0x10000 = Speaker Mute
0x20000 = Mic Mute
0x40000 = GPI 1
0x80000 = GPI 2
0x100000 = GPI 3
0x200000 = GPI 4
0x400000 = GPI 5
0x800000 = GPI 6
0x1000000 = GPI 7
0x2000000 = GPI 8
0x4000000 = GPI 9
0x8000000 = GPI 10
0x10000000 = Virtual GPI 1
0x20000000 = Virtual GPI 2
0x40000000 = Virtual GPI 3
0x80000000 = Virtual GPI 4
0x100000000 = Virtual GPI 5
0x200000000 = Virtual GPI 6

0x400000000 = Virtual GPI 7
0x800000000 = Virtual GPI 8
0x1000000000 = Virtual GPI 9
0x2000000000 = Virtual GPI 10
0x4000000000 = AC PSU Warn
0x8000000000 = DC PSU Warn
0x10000000000 = Ember+ Consumer

vGPIO

Type (integer): 0 = Input
1 = Output
2 = Disabled
Input Function (integer): 0 - 5 = Talk/Listen 1 - 6
6 = User Button 1
7 = Monitor 1
8 = Speaker Dim
9 = Speaker Mute
10 = Microphone Mute
11 - 20 = GPO 1 - 10
Input Driver Name (string): Max length = 30 characters
Output Trigger (integer): 0 - 5 = Talk/Listen 1 - 6
6 = Any Talk/Listen
7 - 12 = Call Request 1 - 6
13 = Any Call Request
14 = Page
15 = User Button 1
16 = Monitor 1
17 = Speaker Dim
18 = Speaker Mute
19 = Microphone Mute
20 - 29 = GPI 1 - 10
30 = Ember+ Consumer

49

Ember+ Interface 13

User

Function (integer): 0 = Group Talk
1 = GPO Control
Button Mode (integer): 0 = Auto
1 = Momentary
2 = Latching
3 = Disabled

Monitors

AoIP Stream (string): Max length = 36 characters
Talkback Mode (integer): 0 = Mute
1 = Dim 75%
2 = Dim 50%
Button Mode (integer): 0 = Auto
1 = Momentary
2 = Latching
3 = Disabled

Speaker

Echo Cancel (integer): 0 = Disable, 1 = Enable
Mute Button Mode (integer): 0 = Auto
1 = Momentary
2 = Latching
3 = Disabled On
4 = Disabled Off

Power Button

Enable (integer): 0 = Disable, 1 = Enable

AC PSU Status

Enable (integer): 0 = Disable, 1 = Enable

DC PSU Status

Enable (integer): 0 = Disable, 1 = Enable

50

14 Technical Specifications

14. Technical Specifications

Audio-Over-IP Specification

Open Standards: RAVENNA, AES67

Device Discovery: Bonjour (mDNS / DNS-SD)

Audio Delivery: RTP/UDP over IPv4 multicast

QoS: DiffServ

Stream Management: RTSP/SDP

Control: Web server/Ember+

Format: Linear PCM 24-bit (L24)

Channels Per Stream: 2

Frames Per Packet: 48

Transmit Streams: 1 (fixed)

Sample Rate: 48 kHz

Ember+ Interface Connection

Interface Type: Provider

Network Interface: Ethernet port and AoIP port

Port: 9000

Timing Synchronisation

Profile Support: Default, AES67 Media & Custom profiles

Timing Protocol: PTPv2, IEEE1588-2008

Microphone and Headset Input

Input Impedance: > 2.5kΩ balanced

Gain Range: 0dB to +60dB

0dBFS Line-Up: Adjustable in steps of 3dB from -58dBu to
+2dBu

Frequency Response: 20Hz to 20kHz, +0/-0.2dB

Noise: -127dBu, 20kHz BW, Rs=200Ω ref. 76dB gain

Headphone Output

Output Impedance: Drives 150mW into 32Ω to 600Ω headphones

0dBFS Line-Up: +20dBu

Frequency Response: 20Hz to 20kHz, +0/-0.2dB

THD+N: < -108dBFS, -30dBFS, 20Hz to 20kHz, unity
gain, 20kHz BW

Noise: -110dBFS, 20kHz BW

Loudspeaker

Power Output: 4W

Volume: Mute to full volume via front panel control

Connections

Microphone: XLR-3 pin female (electronically balanced)

Headphone: ¼ inch (6.35mm) stereo jack socket

Headset: 1 x XLR-5 pin female (electronically balanced
input)

GPIO: 15-way ‘D’-type socket

Network: 2 x gigabit Ethernet, RJ45 1 x SFP

Mains AC Input: Universal filtered IEC, continuously rated
85-264VAC, 47-63Hz, 20W

DC Input: 4 pin 7.5A power jack socket, 10-14VDC

Fuse Rating: Anti-surge fuse 2A 20mm x 5mm

Equipment Type

AVN-TB6: 6 channel freestanding talkback intercom
control unit with RAVENNA AoIP

AVN-TB6D: 6 channel desktop talkback intercom control
unit with RAVENNA AoIP

51

Technical Specifications 14

Physical Specification AVN-TB6

Dimensions (Raw): 25.5cm (W) x 19.4cm (D) x 4.4cm (H) (1U)

10.1” (W) x 7.7” (D) x 1.8” (H) (1U)

Dimensions (Boxed):
Weight: 33cm (W) x 26cm (D) x 17cm (H)
13” (W) x 10.3” (D) x 6.7” (H)

Accessories

AVN-DC150: 150W DC power supply with KPJX-4S plug

AVN-TB6RK: 1U rack-kit for AVN-TB6RK

52

15 Aditional Information

15. Additional Information

DSCP Name DS Field Value IP Precedence (Description)

CS0 0: Best effort

CS1, AF11-AF13 8, 10, 12, 14 1: Priority

CS2, AF21-AF23 16, 18, 20, 22 2: Immediate

CS3, AF31-AF33 24, 26, 28, 30 3: Flash (mainly used for voice

signalling)

CS4, AF41-AF43 32, 34, 36, 38 4: Flash Override

CS5, EF PHB 40, 46 5: Critical (mainly used for RTP)

VOICE ADMIT 44 5: Critical (uses Call Admission

Control)

CS6 48 6: Internetwork Control

CS7 56 7: Network Control

Table 15-1: DSCP Names & Their Corresponding IP Precedence

Table 15-1 shows the corresponding IP precedence for the DSCP names used
in the PTP Profiles and AoIP Stream Settings. For more information on the
types of DSCP name, see the following documents:

CS: Class Selector (RFC 2474)

AFxy: Assured Forwarding (x= class, y = Drop Precedence) (RFC 2597)

EF: Expedited Forwarding (RFC 3246)
