SONERO SON X-AVT110 Instructions

EN

HDMI TESTING METER

INSTRUCTION MANUAL

X-AVT110

Version: 2018-08-22

TABLE OF CONTENT

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Delivery Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connection Plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Warranty and Liability . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposel of the Device. . . . . . . . . . . . . . . . . . . . . . . . . 10

FCC compliance statement . . . . . . . . . . . . . . . . . . . . . . 10

Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

- 2 -

INTRODUCTION

The HDMI Testing Meter from Sonero enables the reading of resolution,
HDCP version as well as colour space and depth. The results can be read

off using the LCD display. Test the specications of monitors/displays

quickly and easily. During operation, power is supplied via the micro USB
socket.

INTENDED USE

This product is intended for indoor use only. Do not use it outdoors. Contact
with moisture, e.g. in bathrooms, must be avoided under all circumstances.

For safety and approval purposes (CE), you must not rebuild and/or modify

this product. If you use the product for purposes other than those described
above, the product may be damaged. In addition, improper use can cause

hazards such as short circuiting, re, electric shock etc.

Read the instructions carefully and keep them. Make this product available
to third parties only together with its operating instructions.

SAFETY INSTRUCTION

Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the

warranty/guarantee.

The device is not a toy. Keep it out of the reach of children and pets.

- 3 -

Do not leave packaging material lying around carelessly. These may
become dangerous playing material for children.

Suffocation Risk! Keep packaging materials away from children!

Protect the product from extreme temperatures, direct sunlight, strong jolts,

high humidity, moisture, ammable gases, vapors and solvents.

Do not place the product under any mechanical stress.

If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can no
longer be guaranteed if the product:

• is visibly damaged,

• is no longer working properly,

• has been stored for an extended period in poor ambient conditions or

• has been subjected to any serious transport-related stresses.

Please handle the product carefully. Jolts, impacts or a fall even from a low
height can damage the product.

Also observe the safety and operating instructions of any other devices
which are connected to the product.

Consult an expert when in doubt about the operation, safety or connection
of the device.

DELIVERY CONTENTS

1x HDMI Testing Meter
1x User Manual

- 4 -

FEATURES

Compliant with HDMI1.4/2.0 Specications
Compliant with HDCP1.4/2.2 Specications

Detect resolutions up to 4K2K@60Hz
Detect HDCP version for 1.x or 2.x
Detect Colour Space 4:4:4, 4:2:2 or 4:2:0
Micro USB port for power

SPECIFICATIONS

Product Size in mm: 69x22x 11mm
Product Weight in g: 12g

Power
Input: Micro USB 5V DC, 1A, HDMI Male

Environmental Conditions
Operating Humidity: 5~95%
Operating Temperature: 0~85°C
Ambient Temperature: 0~40°C
Storage Temperature: -40~85°C

- 5 -

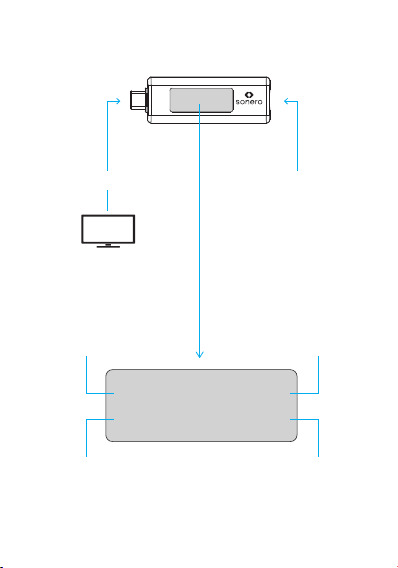

CONNECTION PLAN

720P

1080P
4K / 30Hz
4K / 60Hz

4:2:0
4:2:2
4:4:4

HDMI

4K/60Hz HDCP2.X

- 6 -

MICRO USB FOR POWER

24BitYUV 4:4:4

1X
2X

24 Bit
30 Bit
36 Bit
48 Bit

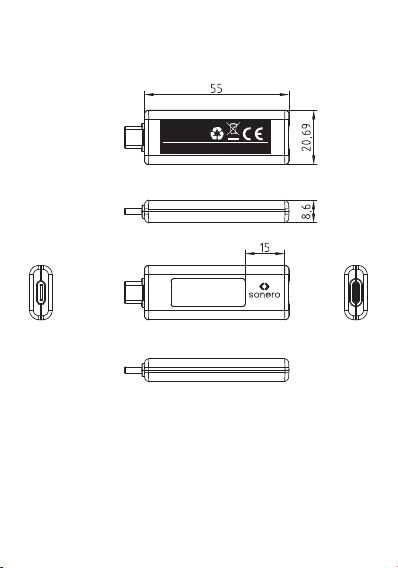

INTERFACE

MODEL NO.:

X-AVT110

CHARGE NO.:

XXXX

PureLink GmbH

Von-Liebig-Str. 10 | D-48432 Rheine | www.purelink.de

- 7 -

MADE IN CHINA

OPERATION

A. Detect resolution range: 720p, 1080p, 4K/30Hz & 4K/60Hz
B. Detect HDCP range: 1.x & 2.x
C. Detect colour space range: 4:2:0, 4:2:2 & 4:4:4
a. 24 Bit/Pixel=8 bits/colour
b. 30 Bit/Pixel=10 bits/colour
c. 36 Bit/Pixel=12 bits/colour
d. 48 Bit/Pixel=16 bits/colour

MAINTENANCE

There are no components located inside the product that require
maintenance. Never open or attempt to dismantle the product.

Maintenance, modications and repairs are to be per formed exclusively by
an expert or at a qualied shop.

If you have questions which remain unanswered by these operating
instructions, contact our technical support ser vice or other technical
personnel.

CLEANING

Before cleaning the product, it must be disconnected from all other
connected products.

Only use dry and soft cloth to clean the product housing of the.

Do not use abrasives or solvents.

Do not use any aggressive cleaning agents, rubbing alcohol or other
chemical solutions as they can cause damage to the housing or cause
malfunctions.

- 8 -

To clean the product, use a soft, dry cloth. Do not apply too much pressure
to the housing as this may cause scratch marks.

You can easily remove dust using a soft bristled brush.

WARRANTY AND LIABILITY

The manufacturer guarantees full statutory warranty terms on all new
devices.

As the manufacturer has no inuence on installation, warranty only applies

to the product itself.

If any fault or damage is detected on your product, please contact your
dealer and provide your sales slip or invoice as evidence of the purchase, if
necessary. Your dealer will repair the fault either on site, or send the device
to the manufacturer. You make the work of our technicians considerably
easier, describing possible faults in detail – only then can you be assured
that intermittent faults, will be found and repaired with certainty!

The manufacturer is not liable for damages to persons or property caused
by improper installation, operation or maintenance, not described in this
manual.

Do not alter or modify the product or its accessories.

Any use other than described in this user`s manual is not permitted and
causes loss of warranty, loss of guarantee, and non-liability.

- 9 -

CE CONFORMITY

PureLink GmbH hereby declares that this product X-AVT110

complies with Directive 2014/30/EU.

The full text of the EU Declaration of Conformity is available at
the following Internet address:

www.purelink.de/ce/4251364709795_CE.pdf

DISPOSEL OF THE DEVICE

WEEE-Reg. No.: DE 93 847 290

According to the European WEEE directive, any electrical and
electronic equipment must not be disposed of along with
consumer waste. As a consumer, you are committed by law to

deposit electrical and electronic devices at public collecting points
or to the dealer for free at the end of the device’s lifetime. Details are
regulated in the respective national legislations. The Wheelie Bin symbol on
the product, in the manual or on the packaging refers to these terms. With
the return of your used devices you actively take part in protecting the
environment.

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.

- 10 -

Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a par ticular installation.

If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Important: Changes or modications to this product not authorized by

PureLink could void the electromagnetic compatibility (EMC) and wireless
compliance and negate your authority to operate the product.

This product has demonstrated EMC compliance under conditions that
included the use of compliant peripheral devices and shielded cables
between system components. It is important that you use compliant
peripheral devices and shielded cables between system components to
reduce the possibility of causing interference to radios, television sets, and
other electronic devices.

- 11 -

Exposure to radio frequency energy The radiated output power of this

device meets the limits of FCC/IC radio frequency exposure limits. This

device should be operated with a minimum separation distance of 20 cm (8
inches) between the equipment and a person’s body.
Responsible party (contact for FCC matters only):

PureLink GmbH
Von-Liebig-Straße 10
48432 Rheine
Germany

DISCLAIMER

This product complies with the statutory national and European
requirements. All company names and product names are trademarks of
their respective owners.

All rights reserved.

We reserve our right for misprints and changes to the device, packaging
or user manual.

HDMI® is a registered trademark of HDMI Licensing Administrator, Inc.

®

Sonero
PureLink GmbH
Von-Liebig-Straße 10
D-48432 Rheine
[email protected]
www.purelink.de

- 12 -
